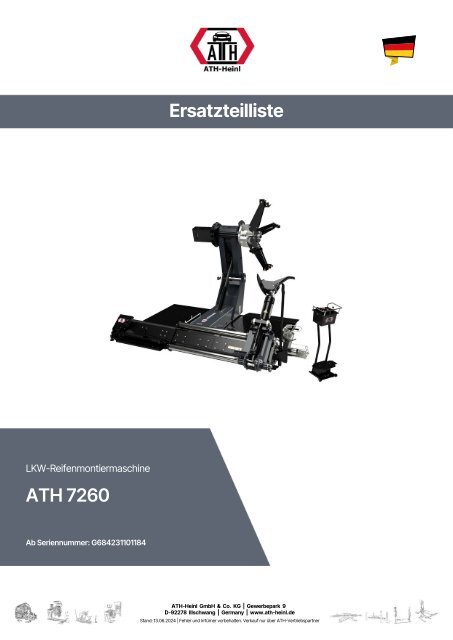

ATH-Heinl ETL LKW-Reifenmontiermaschine ATH 7260

Ersatzteilliste

LKW-Reifenmontiermaschine

ATH 7260

Ab Seriennummer: G684231101184

ATH-Heinl GmbH & Co. KG | Gewerbepark 9

D-92278 Illschwang | Germany | www.ath-heinl.de

Stand: 13.06.2024 | Fehler und Irrtümer vorbehalten. Verkauf nur über ATH-Vertriebspartner

10

7

8

11

3

9

5

6

4

2

1

Nr. ATH-Nr. Beschreibung Anzahl

01-001 RGR2260 Grundrahmen 1

01-002 Aufnahmestütze 1

01-003 RHA2261 Hubarm kpl. 1

01-004 RSM2260 Spannmechanismus kpl. 1

01-005 RMS2260 Montageschlitten-Einheit kpl. 1

01-006 RMT2261 Montageturm 1 1


01-008 RMW2260 Montagewerkzeug kpl. 1

01-009 Zubehör 1

01-010 RBP6260 Bedienpult kpl. 1

01-011 Bedieneinheit 1

2

® Urheberrecht ATH-Heinl GmbH & Co. KG, Alle Rechte vorbehalten / Druckfehler und technische Änderungen vorbehalten

Stand: 13.06.2024 / Produkthersteller ATH-Heinl GmbH & Co. KG

44

43

42

41

42 393735333231

24 25

26

23

27

40

30

21

22

29

28

39

38

37

36

20

19

18

35

34

33

32 31

16

17

15

12 13 14

45

11

58

8

10 9 7

6

5

4

3

1

56

2

55

54

53

52

51 50494847

46

57

55 53 50 4847

46


02-001 RGR2261 Grundrahmen 1

02-002 RBW2260 Befestigungswinkel 1

02-003 HBS8712 Beilagscheibe GB/T97.1/6 21

02-004 Schraube M8 x 16 21

02-005 RAP2260 Abdeckplatte 3

02-006 RFR2260 Führungsrohr 54.5 x 1600 2

02-007 HSM8641.20 Mutter M8 - GB/ T6170 (4.64) 2

02-008 RKA2260 Kettenaufnahme 1

02-009 RDH2261 Durchführungshülse 2

02-010 RFR2261 Führungsrohr 42,5 x 400 1

02-011 RPS2258 Befestigungsprofil 1

02-012 Schraube M8 x 40 4

02-013 RKG2260 Kettengleitplatte 1

02-014 Mutter M8 x 21 39

02-015 Beilagscheibe D.8 10


Stand: 13.06.2024 / Produkthersteller ATH-Heinl GmbH & Co. KG

3


02-016 RGD2260 Gummidämpfer 2

02-017 HSS0820 Schraube M8 x 20 8

02-018 NEQ2023 Nivellierung Einstellschraube für Quertraverse 1

02-019 Mutter M8 x 18 3

02-020 RKT2260 Kette 1

02-021 RAS2262 Abdeckung/ Schlauchhalterung 1

02-022 RSH2260 Schlauchhalterung 1

02-023 RHB2260 Hebel 1

02-024 Mutter M36 x 3 2

02-025 Scheibe 1

02-026 RZM4260 Zylinder/ Montageschlitten 1 1


02-028 RRA2261 Rampe 1

02-029 RNS2260 Nylon-Stopfen 2

02-030 RZR2266 Zylinderrohr 1

02-031 RAR4258 Abstreifring 36 x 44 x 5/6,5 1

02-032 RDR2266 Distanzring 35 x 45 x 2 1

02-033 RDR4232 Dichtungsring 35 x 45 x 6 1

02-034 RZD2262 Zylinderdeckel 1

02-035 RFR4261 Führungsring 35 x 25 x 2,5 1

02-036 RKS2264 Kolbenstange/ Zylinder Montageschlitten 1

02-037 HZD8691 O-Ring Ø24 x 2.4 1

02-038 RKO2264 Kolben 1

02-039 HKD6720 Kolbendichtung 75 x 55 x 22,4 1

02-040 Mutter M22 x 1,5 1

02-041 RDH2260 Distanzhalter 1

02-042 HOR6560 O-Ring Ø75 x 2,65 für Hub-/Freihubzylinder 2

02-043 RZK2260 Zylinderkopf 1

02-044 RDS4264 Dichtsatz/ Zylinder Montageschlitten 1 1


02-046 HDR8561 Dichtring 30 x 38 x 7 1

02-047 HAR3039 Abstreifring 30 x 38 x 5 1

02-048 AFR2033 Führungsring 30 x 10 x 2,5 1


02-050 HZD8712 O-Ring Ø60 x 3.1 1

4




02-051 RAH2261 Abstandshalter 1

02-052 RKS2263 Kolbenstange 1

02-053 HZD8691 O-Ring Ø24 x 2.4 1

02-054 RKO2263 Kolben 1

02-055 RKD4261 Kolbendichtung 60 x 44 x 18.4 1

02-056 Mutter M22 x 1,5 1

02-057 RDS4260 Dichtungssatz/ Zylinder Montageschlitten 2 1

02-058 Halterung 1



5

25

26

19 27

41

28

29

24

23

22

30

20

21

42

31

33

18

17

36

34 32 35

16

15

1

37

13

14

12

10

11

5

39

38

7

4

2

9 8

6 3


03-001 RAH2260 Hubaufnahmeschlitten 1

03-002 Schraube M12 x 25 8

03-003 Mutter M27 x 2 1

03-004 RDL4260 Dichtungsleiste 1

03-005 ROW2260 Obere Wellenabdeckung/ Hubaufnahmeschlitten 1

03-006 RAP2261 Anschlussplatte / Hubaufnahmeschlitten 1

03-007 RDS2270 Distanzscheibe 2

03-008 RUW2260 Untere Wellenabdeckung/ Hubaufnahmeschlitten 1

03-009 RWH2260 Welle/ Hubaufnahmeschlitten 1

03-010 RBU2261 Buchse SF-1/140100 2

03-011 Mutter M8 x 21 8

03-012 HBS8572 Unterlegscheibe D.12 -GB/T97.1 16

03-013 HSN3223 Schmiernippel 8 x 1 1

03-014 Schraube M12 x 45 16

6




03-015 Schraube M8 x 50 2

03-016 RAR4261 Abstreifring 2

03-017 RSB2261 Schlauch-Aufnahmebügel 1

03-018 Zylinder Welle 1

03-019 Abstandshalter 1

03-020 HIS2535 Inbusschraube M8 x 25 2

03-021 RBK2228 Befestigungsklammer 1

03-022 RKL2260 Klemme 1

03-023 HSM8641.20 Mutter M8 - GB/ T6170 1

03-024 HIS2523 Schraube M8 x 90 - GB/T70.1 1

03-025 Mutter M8 1

03-026 Mutter M36 x 1,5 1


03-028 RWB2260 Werkzeugbox 1



03-031 RBH2260 Bolzen/ Hubarm 1

03-032 Schraube M16 x 40 4

03-033 RVS2260 Verdrehsicherung 1


03-035 Schraube M12 x 25 2

03-036 RGP2260 Gleitplatte kpl. 1

03-037 RGP2261 Gleitplatte/ lose 1

03-038 RGS2261 Gleitstück 1

03-039 RBS2261 Befestigungsstift/ Gleitstück 3

03-040 Mutter M6 x 12 2

03-041 Buchse 1

03-042 Schmutzfänger 1

03-043 Schraube M6 x 12 6

03-044 HFR2832 Federring D. 6 - GB/T93 6




7

13

32

19 20 21 22 28 27

16 17

14 15 18

11

10

12

26

25

24

23

31

30

29

42

33

8734

35

36

37

43

33

87

38

39

40

41

44

42

50

48

52

53

54

55

57

58

9

61

60

59

85

84

62

71

74

8

68

63

67 70

73

7

64

65

83 8281 80 79 78 77 76

6

5

69 66

75 72

4

3

2

59

61

74 69

79

82

83

1

70

86

45

51

50

49

48

47

46

52

53

54

55

56


04-001 RHA2263 Hubarm 1

04-002 HLB2404 Lagerbuchse 4040 4

04-003 RHZ2260 Hubzylinder 1

04-004 RBU2271 Buchse SF-1/12070 2

04-005 RDR2261 Dichtungsring DH 145 x 158 x 7 1


04-007 RSR2261 Stützring 1

04-008 RDR2262 Dichtungsring D-9 120 x 133 x 7 1

04-009 Mutter M33 x 2 1

04-010 RSZ2260 Spannzylinder kpl. 1




04-014 RAG2260 Abdeckung/ Getriebemotor 1

8




04-015 RSS2261 Schraube/ Spannbacke M10 x 30 - GB/T70.1 3

04-016 RGM6260 Getriebemotor 1

04-017 RGR2262 Getrieberad klein 1

04-018 RGR2263 Getrieberad groß 1



04-021 HSM0615 Mutter M6 - GB/T6170 16


04-023 RFS2260 Fettstutzen 1

04-024 RGD2261 Getriebedichtung 1


04-026 Mutter M8 x 18 5

04-027 RAS2263 Abdeckung/ Spannzylinder 1

04-028 Abdeckung Getriebekasten 1


04-030 RGA2260 Getriebeabdeckung 1

04-031 HSS0820 Schraube M8 x 20 - GB/T70.1 4

04-032 RGD2263 Getriebeabdeckung 1


04-034 RSB2262 Schutzbügel 1

04-035 Mutter M10 4

04-036 Schraube M10 x 40 4

04-037 RMA2260 Motoraufnahme 1

04-038 HSS8610 Sechskantschraube M10 x 30 DIN933 2

04-039 RBS2259 Befestigungsstift 12 x 60 2


04-041 RGA2261 Getriebeabdeckung vorne 1

04-042 HIS2537 Zylinderkopfschraube M8 x 16 10

04-043 Abdeckung 1

04-044 Zylinder Welle 1

04-045 RBU2262 Buchse SF-1/5050 4


04-047 Mutter M22 x 1,5 1

04-048 HZD8723 Kolbendichtung 70 x 50 x 22.4 1

04-049 RKO2258 Kolben 1



9




04-052 HDR8560 Abstreifring 40 x 48 x 5 1

04-053 ROR4259 O-Ring 70 x 3.1 1

04-054 HKD6815 Dichtung 40 x 50 x 7 1

04-055 HZD8691 O-Ring Ø24 x 2.4 - GB1235 1

04-056 RKS2262 Kolbenstange/ Hubzylinder 1

04-057 RDS4269 Dichtungssatz/ Hubzylinder 1

04-058 RKS2261 Kolbenstange/ Spannzylinder 1

04-059 ROR4236 O-Ring 32 x 3.1 1

04-060 RKO2260 Kolben 1

04-061 RKD4262 Kolbendichtung KGD130 105 x 25.4 x 9.5 1

04-062 Mutter M27 x 2 1

04-063 RMA4228 Manometer 250 Bar 1

04-064 Schraube M12 x 257 8


04-066 Schraube M6 x 12 2

04-067 RBP2230 Befestigungsplatte/ Verteilerblock Spannzylinder 1

04-068 HHA8308 Blindstopfen 1

04-069 RDR4230 Dichtungsring Q223 40,87 x 3,53 3

04-070 RDR4228 Dichtungsring LDQ-40,5 x 46,5 x 1,5-PTFE 3

04-071 HHA8371 Hydraulikanschluss 5B-04 2

04-072 RVB4228 Verteilerblock/ Spannzylinder 1

04-073 HHD8331 O-Ring Ø17 x 1.8 - GB3452.1 1

04-074 HBS3724 Beilagscheibe A13 DSH3000 6

04-075 RAV4230 Absperrventil 1

04-076 HBS6414 Blindstopfen für Zylinder 2

04-077 RDR2258 Distanzring 1

04-078 RSD2260 Spannzylinderdeckel/ unten 1

04-079 ROR4237 O-Ring 130 x 3.1 2


04-081 RSD2261 Spannzylinderdeckel/ vorne 1

04-082 RFR4260 Führungsring 40 x 12 x 2.5 2

04-083 HKD6815 Dichtung 40 x 50 x 7 1

04-084 RSV4260 Schlauch-Verschraubung 2

10




04-085 RBO2260 Bolzen 720B-04 2

04-086 RDS4261 Dichtungssatz/ Spannzylinder 1

04-087 Schraube M6 x 10 10



11

21

20

19

15

16

17 18

13

14

12

11

10

1

6 4

2

9

8

5

3

7


05-001 RRA2262 Radaufnahme 1

05-002 RBU2263 Buchse 1

05-003 Schraube M18 x 1,5 x 100 8


05-005 RBZ2261 Bolzen/ Zugstange hinten 4

05-006 RVG2260 Verbindungsgelenk 4

05-007 RDK2260 Drehteller-Kreuz 1

05-008 RBZ2262 Bolzen/ Zugstange vorne 4

05-009 RZS2260 Zugstange 4

05-010 RBV2260 Bolzen/ Verbindungsgelenk hinten 4

05-011 RMS2261 Madenschraube M6 x 6 16

05-012 RBV2261 Bolzen/ Verbindungsgelenk vorne 4

12




05-013 RMS2262 Madenschraube M8 x 20 4

05-014 RMU2260 Mutter M8 4

05-015 Schraube M6 x 12 4

05-016 RBP2260 Befestigungsplatte 4

05-017 Mutter M18 x 1,5 8

05-018 RSA2262 Spannarm 4

05-019 RKE2230 Kunststoffeinsatz 1 8

05-020 RSK2260 Spannklaue 4

05-021 RPF2259 Passfeder 20 x 60 2



13

12

11

10

13

14

15

14 15

16

17

5

6

5

6

7

4

9

8

3

2

1

29

16

17

18

20

24

18

20

19

23

21

22

4

3

2

32

31

30

25

34

26

33

35

27

28


06-001 RMS2263 Montageschlitten 1



06-004 HIS2537 Zylinderkopfschraube M8 x 16 4



06-007 RWM2260 Welle/ Montageschlitten unten 1

06-008 RBM2260 Bolzen/ Montageschlitten 1


06-010 RBU2264 Buchse 2

06-011 RST2268 Stift 10 x 35 2

06-012 RST2261 Stift 10 x 50 1

06-013 RDG2260 Dämpfungsgummi 1

14





06-015 HIS2538 Inbusschraube M6x16 2


06-017 RAS2267 Aufnahmestütze 1

06-018 Schraube M8 x 10 4

06-019 Schraube M20 x 50 2

06-020 RSP2260 Schleißplatte 2


06-022 Schraube M16 x 50 6

06-023 HBS8629 Beilagscheibe D.16 - GB/ T97.1 6


06-025 RFW2260 Obere Führungswelle 1

06-026 RAR4263 Abstreifring/ obere Führungswelle DH-05-100 2

06-027 RLB2260 Lagebnuchse SF-1/10060 2

06-028 Schraube M24 x 50 2

06-029 Mutter M24 x 2 1

06-030 RFW2261 Untere Führungswelle 1

06-031 RAR4262 Abstreifring/ untere Führungswelle DH-05-80 2

06-032 RLB2261 Lagerbuchse SF-1/8060 2

06-033 Schraube M12 x 45 6





15

41

39

31

32

27

28

29

37

34

30

1

36

35

33

31

32

2

40

39

34

26

38

37

24

25

35

36

21

23

22

3 4

5

6

7

8

9

10 11

12

13

14

15

16

17

18

20

19



07-002 HMB2525 Lagerbuchse SchHB 25 x 25 2

07-003 RBH2262 Befestigungshaken 2


07-005 Schraube M4 x 50 2


07-007 RBU2265 Buchse 2


07-009 RBU2266 Buchse SF-1/2010 2

07-010 RFE2260 Feder 2


07-012 HSR8613 Schraube M6 x 20 2

07-013 Schraube M6 x 30 2

07-014 RHB2261 Hakenbegrenzungsplatte 2

16







07-018 Schraube M14 x 70 2

07-019 REZ4260 Entriegelungszylinder 1

07-020 RBU2267 Buchse/ Entriegelungszyinder SF-1/1618 2

07-021 RFE2261 Feder/ Entriegelungszylinder 1


07-023 REA2260 Entriegelungsaufnahme/ Entriegelungszylinder 1


07-025 Mutter M16 1


07-027 Schraube M8 x 8 1

07-028 Schraube M8 x 12 1

07-029 RBU2268 Buchse SF-1/8040 1

07-030 RZR2264 Zylinderrohr/ Entriegelungszylinder 1


07-032 RDR4260 Dichtring 50 x 39 x 4.2-PU+NBR 1

07-033 RKO2265 Kolben 1

07-034 HHD8332 O-Ring Ø18 x 2.4 - GB1235 1

07-035 RDR2260 Dichtungsring 20 x 28 x 5.7 (7258/ 7260) 1

07-036 RAR4259 Abstreifring 20 x 28 x 4.5/6 1



07-039 HZD8557 O-Ring Ø50 x 3.1 - GB1235 1

07-040 RKS2265 Kolbenstange/ Entriegelungszylinder 1

07-041 RDS4262 Dichtungssatz für Entriegelungszylinder 1



17

23

18

17

16

15

19

22

21

20

1

11 5

2

3

4

24

30

29

28

27

31

32

33

34

35 36

28

30

31

33

34

35

10

6

7

26

14

13

12

9

8

25


08-001 RRN2260 Rotationsnabeneinheit 1

08-002 RAP2262 Anschlagplatte 2



08-005 Schraube M8 x 16 2




08-009 RWD2260 Welle/ Drehzylinder 1

08-010 RDB2260 Distanzblock 2

08-011 RWD2261 Welle Distanzblock/ Drehzylinder 1

08-012 RRZ4260 Rotationszylinder 1

08-013 RBU2269 Buchse 2

08-014 Seegerring D.16 2

08-015 RSE2260 Sicherheitsring/ Entriegelungsstift 1

18




08-016 RST2262 Stift 1

08-017 RSE2261 Sicherheits-Pin/ Entriegelungsstift 1

08-018 RKE2260 Kugel/ Entriegelungsstift M12 x 40 1

08-019 HBS8713 Beilagscheibe D.14 1



08-022 ROR4265 O-Ring 85 x 3.1 1

08-023 RSR2600 Seeger D.100 1

08-024 RNA2260 Nylonabdeckung/ Rotationseinheit 1

08-025 RKS2266 Kolbenstange/ Drehzylinder 1

08-026 RZR2265 Zylinderrohr/ Drehzylinder 1

08-027 Mutter M16 x 1,5 1

08-028 RKD4259 Kolbendichtung 45 x 31 x 15.5 1

08-029 RKO2259 Kolben 1

08-030 HHD8332 O-Ring Ø18 x 2.4 - GB1235 1

08-031 ROR4263 O-Ring 45 x 3.1 1

08-032 Zylinderabdeckung 1


08-034 RAR4259 Abstreifring 20 x 28 x 4.5/6 1

08-035 RDR2260 Dichtungsring 20 x 28 x 5.7 1

08-036 RDS4263 Dichtungssatz für Rotationszylinder 1



19

6 7 8

9 10 11 12

14

13

15

16

5

4

3

2

1


09-001 RAM2260 Aufnahme/ Montagewerkzeug 1

09-002 RBP2261 Befestigungsplatte/Befestigungsschrauben Montagefinger 2

09-003 RBM2261 Befestigungsschraube/ Montagefinger 2


09-005 Schraube M8 x 12 2

09-006 RMT2264 Montageteller 1

09-007 ROR4269 O-Ring 106 x 3.55 1

09-008 RRL2260 Rollenlager 32010 2

09-009 ROR4270 O-Ring 75 x 3.55 1

09-010 RAS2264 Abdeckscheibe/ Kugellager Montagewerkzeug 1

09-011 RUS2260 Unterlegscheibe 45 1

09-012 RMU2261 Mutter M45 x 1,5 1

09-013 RSM2258 Stift/ Montagefinger 8 x 60 1

20




09-014 RMF2260 Montagefinger 1


09-016 RZF2260 Zugfeder/ Montagfinger 1



21

40 41

42

44

39

43

38

54

45

46

47

48

53

5251

5049

4

5

6

7

2

3

9

10

8

22

21

12

11

26

1

20

19

18

16

17

15

14 13

36

35

34

37

32

33

29

30

31

25

24

23

28

27

22


10-001 RMA0520 Montiereisen groß 1

10-002 RMA0519 Montiereisen klein 1

10-003 RFZ0481 Wulstniederhalte-Klemme LKW für Stahl-Räder 1



10-006 RWH2261 Werkzeughalter 1

10-007 RAW2260 Aufnahme/ Werkzeughalter 1


10-009 RSV2260 Spannklauenverlängerungs-Satz 4

10-010 Schraube M12 x 30 4

10-011 RAS1213 Aluminiumspannbacken-Satz 4

10-012 RMR2260 Montagerolle kpl. 1

10-013 Hebel 1

10-014 RST2263 Stift 1

10-015 RST2264 Stift 1




10-016 RST2265 Stütze 1

10-017 Schraube M4 x 20 1

10-018 RFE2262 Feder 1

10-019 RRA2263 Rahmen 1


10-021 HAB2605 Sicherungsstift GB/ T879.1/ 3 x 25 2

10-022 RST2266 Stift 5 x 25 3

10-023 RAW2261 Aufnahmewelle/ Spannklauen-Verlängerung 1

10-024 RST2267 Stift/ Aufnahmewelle Spannklauen-Verlängerung 1

10-025 RFE2265 Feder/ Aufnahmewelle Spannklauen-Verlängerung 1

10-026 Schraube M12 x 16 1


10-028 RSB2260 Spannbacke/ Spannklauen-Verlängerung 1

10-029 RAS1214 Aliminiumspannbacke/ lose 1

10-030 RMH2260 Mutternhülse/ Aluminiumspannbacke 1

10-031 RSS2262 Spezialschraube/ Aluminiumspannbacke 1

10-032 RFM2260 Flachutter M10/ Aluminiumspannbacke 1

10-033 Schraube M10 x 35 1




10-037 ROR2258 O-Ring/ Aluminium-Spannklaue 12 x 2.4 3

10-038 RAW2262 Aufnahmewelle/ Montagerolle 1

10-039 RSN2260 Schmiernippel M6 x 1 1

10-040 Schraube M5 x 12 2

10-041 RBP2262 Befestigungsplatte/ Montagerolle 1


10-043 RRG2260 Ringgriff/ Montagerolle 1

10-044 RVW2260 Vordere Walze/ Montagerolle 1


10-046 HZD8557 O-Ring Ø50 x 3.1 - GB1235 2

10-047 RHW2260 Hintere Walze 1

10-048 RIW2260 Innere Welle/ Montagerolle 1

10-049 Mutter M5 1




23


10-051 RFE2263 Feder/ Montagerolle 1


10-053 RFE2264 Feder/ Spannstift Montagerolle 1

10-054 RSS2263 Spannstift/ Feder Montagerolle 1

24



4

27

21

26

24

35

22

32

28

50

23

36

15

29

17

6

10

39

48

34

51

30

33

20

42

1

41

45

47

5

38

13

14

5

43

9

31

16

37

25

18

3 49 2 44 12 8 40 46 6



11-002 Schraube M6 x 35 2

11-003 Schraube M6 x 25 2

11-004 Schraube M8 x 12 2

11-005 Schraube M8 x 10 3

11-006 HMR2400 Mutter M3 8

11-007 HSM8641.20 Mutter M8 - GB/ T6170 2


11-009 HMR7415 Kunststoff-Mutter M6 4

11-010 RST2258 Stift M3 x 12 4




25




11-014 Schraube M3 x 16 4


11-016 HSE7250 Befestigungsschraube Endsch/CE M4 x 6 4


11-018 Schraube M5 x 10 2


11-020 RST2259 Stift GB/T91/2.5 x 26 2

11-021 HLT8264 Lichtschranke By-Pass LA16Y-11-Y 1

11-022 HKE7026 Kontaktelement N/C 1-2/ Öffner 2

11-023 HNA7210 Not-Aus-Taster 1

11-024 HWS8265 Wahlschalter 2 x NO 1

11-025 RMS6234 Mikroschalter AV-163-IC25C 2

11-026 RMS6230 Mikroschalter 123 1

11-027 RWS6258 Wegeschalter 3

11-028 RSS6258 Steuerschalter 1

11-029 RCP6258 CPU-Platine ZYS-32 1

11-030 RAN6258 Antenne 1

11-031 RBU2260 Buchse 1

11-032 RDI6258 Diode 1

11-033 RAB6258 Anschlussbuchse/ Ladegerät 1

11-034 RAK6258 Akku 3.7V4000mAh 1

11-035 RDI6259 Diode 1

11-036 RBM6260 Bedienmaske/ Bedienpult 1

11-037 Gummifuß 2

11-038 RRB6258 Rolle/ Bedienpult 2

11-039 RSA2260 Schutzabdeckung/ Mikroschalter 1

11-040 RFF2258 Feder/ Fußpedal 2

11-041 RFP2228 Fußpedal 1

11-042 RFP2228 Fußpedal 1

11-043 RSB2259 Stützblech 2

11-044 RDP2259 Druckplatte 2

11-045 RPW2258 Pedalwelle 2

11-046 RST2260 Stift 1

26




11-047 RUA2258 Untere Abdeckung/ Bedieneinheit 1

11-048 RAG2261 Abdeckung/ Gehäuse Bedienpult 1

11-049 Seeger 2

11-050 Handlauf 1

11-051 RGB2260 Gehäuse/ Bedienpult 1



27

7

8

6

5

10

9

4

3

2

11

1

14

13

12


12-001 Rahmenteil rechts/ Schalteinheit 1

12-002 Schraube M8 x 16 1


12-004 Elektroeinheit 1

12-005 RHA4260 Hydraulikaggregat 1

12-006 RAS2265 Abdeckung/ Schalteinheit 1

12-007 RAP2263 Aufahmeplatte/ Abdeckung Schalteinheit 1

12-008 Schraube M8 x 12 4

12-009 Schraube M6 x 35 4


12-011 RFA2261 Frontabdeckung 1

12-012 HFR2812 Federring D.8 - GB/T93 5

12-013 RRL2261 Rahmenteil links/ Schalteinheit 1

28







29

3

2

14

16

1

15

17

18

19

20

21

5

4

13

6

12

11 10 9 8 7


13-001 RSK2261 Schaltkasten leer 1

13-002 RES6220 Elektrische Schalttafel kpl. 1

13-003 HGS2349 Schraube M5 x 8 4

13-004 RSA6260 Standard-Steckaufsatz/ Spule schwarz 18

13-005 RAP2264 Aufnahmeplatte/ Elektrik 1

13-006 RKL6260 Klemmleiste 1


13-008 Selbstsichernde Scheibe D.5 2

13-009 Schraube M5 x 10 2

13-010 Stift M3 x 12 4

13-011 HSE7250 Befestigungsschraube Endsch/CE M4 x 6 16

13-012 RCP6260 CPU-Platine 1

13-013 Hauptschalter 1

13-014 RSA6258 Sicherungsautomat DZ108-20/10-16A 1

13-015 Schraube M4 x 20 3

30




13-016 HMS8260 Motorschütz 1210/AC24V 1


13-018 RSB2263 Stützbügel 1

13-019 HNG7901 Einbau-Netzteil LRS-150-24 AC/DC geschlossen 24VDC 1

13-020 REA2261 Erdungssaufkleber 1

13-021 HHS8714 Hutschiene für Klemmen (l=115mm) 1



31

17

18

13

14

16

19

20

22

21

15

23

24

12

11

10

9

7

38

33

28

25

26

27

8

6

5

4

3

2

32 31 30 29

35

36

1

37 34


14-001 ROT4260 Öltank 1

14-002 ROF4260 Ölfilter 1

14-003 ROA4260 Ölsaugrohr Z3/8 x 35 1

14-004 ROF4261 Ölfilter WU-63-G38 1

14-005 ROA4261 Ölsaugrohr Z3/8 x 70 1

14-006 RHS4268 Hydraulikschlauch L=400 1

14-007 RHV4261 Hydraulikverschraubung 3/8 5T9-06 1


14-009 HAR4306 Ansaugrohr 1

14-010 RHV4262 Hydraulikverschraubung 5B-08-06WD 2

14-011 RHV4263 Hydraulikverschraubung 1B-06-08WD 1

14-012 RHE4260 Hydraulikeinschrauber/ Magnetventil 14

14-013 RWV6260 Wegeventileinheit kpl. 1

32




14-014 Schraube M8 x 75 4

14-015 RTD4260 Tankeckel 1

14-016 Schraube M12 x 20 4

14-017 RMA2261 Motor-Adapter AKG07FS200Z 1

14-018 RMO6261 Motor 230/400V 50/60HZ 3ph 4p 4.8/5.6kw S1 1

14-019 RMF2261 Motorflansch LMC250MFS2004S 1

14-020 Schraube M12 x 35 4

14-021 RDR4261 Dichtungs-Ring/ Tankdeckel - Motor 1


14-023 HTV8329 Tankdeckel mit Ölstandsanzeige 3/4"" 1

14-024 Schraube M8 x 16 12


14-026 RHV4264 Hydraulikverschraubung 1B-06WD 1

14-027 Schraube M6 x 30 9

14-028 RAS2266 Abstandsstück GUPP004 1

14-029 RFB4260 Flansch-Block 1 3


14-031 ROR4271 O-Ring 20 x 2.4 3

14-032 RZP4260 Zahnradpumpe PR18007P 1

14-033 ROR4266 O-Ring 26 x 3.1 1

14-034 HAS8325 Öl-Ablassschraube 3/8 1

14-035 HFR2812 Federring D.8 - GB/T93 4

14-036 Schraube M8 x 30 7

14-037 Scheibe BS/A17.20 1

14-038 RFB4261 Flansch-Block 2 1



33

A6

A5

A4

A3

A2

A1

B6

B5

B4

B3

B2

B1

M1

M2

21 30

17

2

20

22

33 B3 A3

26

21

25

18

27 A4

20 B4

21 34

22

31

17

16

24

20

23

6

20 A6

21

13 M2 M1

38 1412

10

B1

29

B4

B3

A2

A1 B2

A4

A3

43

42

41

40

39

9

15

11

8

M1

M2

32 19

A1 24

19

20 28

A2

21

4

B2

32

3

B5

19

36

20

23

B1

7

20

24

22

B6

37

1

35

A5

35

5

21


15-001 RHA4260 Hydraulikaggregat 1

15-002 RSZ2260 Spannzylinder kpl. 1

15-003 RRZ4260 Rotationszylinder 1

15-004 REZ4260 Entriegelungszylinder 1


15-006 RHZ2260 Hubzylinder 1


15-008 RGM6260 Getriebemotor 1

15-009 RVB4260 Ventildrossel-Block 1

15-010 RDV4260 Druckbegrenzungsventil LF08-00-05 1

15-011 ROR4267 O-Ring 28 x 2.4 2

15-012 HBS6414 Blindstopfen für Zylinder 2

15-013 Schraube M10 x 55 2


15-015 HRV8318 Rückschlagventil 1

34




15-016 RMA4228 Manometer 250 Bar 1

15-017 HHA8371 Hydraulikanschluss 5B-04 2

15-018 RHA4259 Hydraulikanschluss 1

15-019 RHV4265 Hydraulikverschraubung 5B-04-L40 2

15-020 HBS3724 Beilagscheibe A13 DSH3000 36

15-021 RBO2260 Bolzen 720B-04 10

15-022 HHA8369 Hydraulikanschluss 4

15-023 RDS2266 Drosselschraube M8 x 12 2

15-024 AHS8328 Hohlschraube 3

15-025 HHA8332 Hydraulikschlauchanschluss 1/4"„-AG / 1/4“"- IG/ 2B-04 1

15-026 HHA8370 Hydraulikanschluss 1

15-027 RAV4228 Absperrventil 1

15-028 RDS2267 Drosselschraube M8 x 12 1

15-029 RHV4266 Hydraulikverschraubung 6B-04LN 10

















35

www.ath-heinl.de

ATH-Heinl GmbH & Co. KG

Gewerbepark 9

D-92278 Illschwang

Germany

Tel.: +49(0)9666 18801 00

Fax: +49(0)9666 18801 01

info@ath-heinl.de

www.ath-heinl.de

Spare parts book

Truck tire changer

ATH 7260

From serial number: G684231101184

ATH-Heinl GmbH & Co. KG | Gewerbepark 9

D-92278 Illschwang | Germany | www.ath-heinl.de

Release date: 13.06.2024 | Errors and omissions excepted. Sale only through ATH distributors

10

7

8

11

3

9

5

6

4

2

1

Nr. ATH-Nr. Description Quantity

01-001 RGR2260 Frame 1

01-002 Arm support 1

01-003 RHA2261 Chuck arm 1

01-004 RSM2260 Clamp unit 1

01-005 RMS2260 Carriage unit 1

01-006 RMT2261 Tool holder arm 1 1

01-007 RMT2262 Tool holder arm 2 1

01-008 RMW2260 Double tool 1

01-009 Accessories 1

01-010 RBP6260 Pedal control 1

01-011 Control unit 1

2

® Copyright ATH-Heinl GmbH & Co. KG, All rights reserved / Misprints and technical changes reserved

Release date: 13.06.2024 / Product manufacturer ATH-Heinl GmbH & Co. KG

44

43

42

41

42 393735333231

24 25

26

23

27

40

30

21

22

29

28

39

38

37

36

20

19

18

35

34

33

32 31

16

17

15

12 13 14

45

11

58

8

10 9 7

6

5

4

3

1

56

2

55

54

53

52

51 50494847

46

57

55 53 50 4847

46


02-001 RGR2261 Base 1

02-002 RBW2260 Support 1

02-003 HBS8712 Washer D.6 21

02-004 Screw M8 x 16 21

02-005 RAP2260 Cover 3

02-006 RFR2260 Tube 54.5 x 1600 2

02-007 HSM8641.20 Nut M8 2

02-008 RKA2260 Chain support 1

02-009 RDH2261 Nut M6 x 15.8 2

02-010 RFR2261 Tube 42.5 x 400 1

02-011 RPS2258 Hose clamp 1

02-012 Screw M8 x 40 4

02-013 RKG2260 Support 1

02-014 Nut M8 x 21 39

02-015 Washer D.8 10


Release date: 13.06.2024 / Product manufacturer ATH-Heinl GmbH & Co. KG

3


02-016 RGD2260 Rubber pad 2

02-017 HSS0820 Screw M8 x 20 8

02-018 NEQ2023 Adjust foot 1

02-019 Nut M8 x 18 3

02-020 RKT2260 Chain 1

02-021 RAS2262 Cover 1

02-022 RSH2260 Hose support 1

02-023 RHB2260 Lever 1

02-024 Nut M36 x 3 2

02-025 Washer 1

02-026 RZM4260 Carriage cylinder 1 1


02-028 RRA2261 Ramp 1

02-029 RNS2260 Nylon plug 2

02-030 RZR2266 Cylinder liner 1

02-031 RAR4258 Scraper 35 x 43 x 5/6.5 1

02-032 RDR2266 Ring 35 x 45 x 2 1

02-033 RDR4232 Seal 35 x 45 x 6 1

02-034 RZD2262 Cylinder guide cover 1

02-035 RFR4261 Guide ring 35 x 25 x 2.5 1

02-036 RKS2264 Cylinder shaft 1

02-037 HZD8691 O-ring 24 x 2.4 1

02-038 RKO2264 Piston 1

02-039 HKD6720 Gasket 75 x 55 x 22.4 1

02-040 Nut M22 x 1.5 1

02-041 RDH2260 Spacer 1

02-042 HOR6560 O-ring 75 x 2.65 2

02-043 RZK2260 Cylinder head 1

02-044 RDS4264 Carriage cylinder 1 seal kit 1


02-046 HDR8561 Sealing ring 30 x 38 x 7 1

02-047 HAR3039 Scraper 30 x 38 x 5/6.5 1

02-048 AFR2033 Guiding ring 30 x 10 x 2.5 1

02-049 RZD2261 Cylinder guide cover 1

02-050 HZD8712 O-ring 60 x 3.1 1

4




02-051 RAH2261 Spacer 1


02-053 HZD8691 O-ring 24 x 2.4 1

02-054 RKO2263 Piston 1

02-055 RKD4261 Gasket 60 x 44 x 18.4 1

02-056 Nut M22 x 1.5 1

02-057 RDS4260 Carriage cylinder 2 seal kit 1

02-058 Support 1



5

25

26

19 27

41

28

29

24

23

22

30

20

21

42

31

33

18

17

36

34 32 35

16

15

1

37

13

14

12

10

11

5

39

38

7

4

2

9 8

6 3


03-001 RAH2260 Frame 1

03-002 Screw M12 x 25 8

03-003 Nut M27 x 2 1

03-004 RDL4260 Seal 1

03-005 ROW2260 Cover 1

03-006 RAP2261 Connection board 1

03-007 RDS2270 Spacer 2

03-008 RUW2260 Lower cover 1

03-009 RWH2260 Shaft 1

03-010 RBU2261 Bush SF-1/140100 2

03-011 Nut M8 x 21 8

03-012 HBS8572 Washer D.12 16

03-013 HSN3223 Greaser 8 x 1 1

03-014 Screw M12 x 45 16

6




03-015 Screw M8 x 50 2

03-016 RAR4261 Scraper 2

03-017 RSB2261 Hose support bar 1

03-018 Cylinder shaft 1

03-019 Spacer 1

03-020 HIS2535 Screw M8 x 25 2

03-021 RBK2228 Protection clamp 1

03-022 RKL2260 Clamp 1

03-023 HSM8641.20 Nut M8 1

03-024 HIS2523 Screw M8 x 90 1

03-025 Nut M8 1

03-026 Nut M36 x 1.5 1

03-027 RDS2228 Spacer 2

03-028 RWB2260 Tool box 1

03-029 HIS2535 Screw M8 x 25 4

03-030 Washer D.8 4

03-031 RBH2260 Pin 1

03-032 Screw M16 x 40 4

03-033 RVS2260 Fastening plate 1

03-034 Washer D. 16 4

03-035 Screw M12 x 25 2

03-036 RGP2260 Slipping plate assembly 1

03-037 RGP2261 Slipping plate 1

03-038 RGS2261 Slider 1

03-039 RBS2261 Pin 3

03-040 Nut M6 x 12 2

03-041 Bush 1

03-042 Brush 1

03-043 Screw M6 x 12 6

03-044 HFR2832 Washer D.6 6

03-045 HBS8712 Washer D.6 6



7

13

32

19 20 21 22 28 27

16 17

14 15 18

11

10

12

26

25

24

23

31

30

29

42

33

8734

35

36

37

43

33

87

38

39

40

41

44

42

50

48

52

53

54

55

57

58

9

61

60

59

85

84

62

71

74

8

68

63

67 70

73

7

64

65

83 8281 80 79 78 77 76

6

5

69 66

75 72

4

3

2

59

61

74 69

79

82

83

1

70

86

45

51

50

49

48

47

46

52

53

54

55

56


04-001 RHA2263 Chuck arm 1

04-002 HLB2404 Bush SF-1/4040 4

04-003 RHZ2260 Chuck Arm Cylinder 1

04-004 RBU2271 Bush SF-1/12070 2

04-005 RDR2261 Seal DH 145 x 158 x 7 1

04-006 Washer 1

04-007 RSR2261 Seat 1

04-008 RDR2262 Seal D-9 120 x 133 x 7 1

04-009 Nut M33 x 2 1

04-010 RSZ2260 Chuck cylinder 1

04-011 Washer 1

04-012 Washer 1

04-013 HBS8712 Washer D.6 33

04-014 RAG2260 Motor cover 1

8




04-015 RSS2261 Screw M10 x 30 3

04-016 RGM6260 Hydraulic motor unit 1

04-017 RGR2262 Gear 1

04-018 RGR2263 Gear 1

04-019 Washer 1

04-020 HIS2535 Screw M8 x 25 1

04-021 HSM0615 Nut M6 16

04-022 RDH2261 Nut M6 x 15.8 3

04-023 RFS2260 Hose 1

04-024 RGD2261 Seal 1

04-025 HSN3223 Greaser 8 x 1 2

04-026 Nut M8 x 18 5

04-027 RAS2263 Cover 1

04-028 Top gear box 1

04-029 HIS2538 Screw M6 x 16 23

04-030 RGA2260 Gear end cover 1

04-031 HSS0820 Screw M8 x 20 4

04-032 RGD2263 Cover 1

04-033 Washer D.8 8

04-034 RSB2262 Protective plate 1

04-035 Nut M10 4

04-036 Screw M10 x 40 4

04-037 RMA2260 Motor support 1

04-038 HSS8610 Screw M10 x 30 2

04-039 RBS2259 Pin 12 x 60 2

04-040 Washer D.10 2

04-041 RGA2261 Cover 1

04-042 HIS2537 Screw M8 x 16 10

04-043 Cover 1

04-044 Cylinder shaft 1

04-045 RBU2262 Bush SF-1/5050 4


04-047 Nut M22 x 1.5 1

04-048 HZD8723 Gasket 70 x 50 x 22.4 1

04-049 RKO2258 Piston 1



9



04-051 RZD2260 Cylinder guiding cover 1

04-052 HDR8560 Scraper 40 x 48 x 5 1

04-053 ROR4259 O-ring 70 x 3.1 1

04-054 HKD6815 Sealing ring 40 x 50 x 6 1

04-055 HZD8691 O-ring 24 x 2.4 1


04-057 RDS4269 Chuck Arm Cylinder seal kit 1


04-059 ROR4236 O-ring 32 x 3.1 1

04-060 RKO2260 Piston 1

04-061 RKD4262 Gasket KGD130 x 105 x 25.4 x 9.5 1

04-062 Nut M27 x 2 1

04-063 RMA4228 Pressure gauge LA-60 x 250-B 1

04-064 Screw M12 x 257 8

04-065 HBS8572 Washer D.12 8

04-066 Screw M6 x 12 2

04-067 RBP2230 Spacer 1

04-068 HHA8308 Plug 1

04-069 RDR4230 Seal ring Q223 40.87 x 3.53 3

04-070 RDR4228 Ring LDQ-40.5 x 46.5 x 1.5-PTFE 3

04-071 HHA8371 Union 5B-04 2

04-072 RVB4228 Valve body 1

04-073 HHD8331 O-ring 17 x 2 1

04-074 HBS3724 Washer 1/4 6

04-075 RAV4230 Stop valve 1

04-076 HBS6414 Plug QD07 2

04-077 RDR2258 Washer 1

04-078 RSD2260 Back flange 1

04-079 ROR4237 O-ring 130 x 3.1 2


04-081 RSD2261 Front flange 1

04-082 RFR4260 Guide ring 40 x 12 x 2.52 2

04-083 HKD6815 Sealing ring 40 x 50 x 6 1

04-084 RSV4260 Union 2

10




04-085 RBO2260 Bolt 720B-04 2

04-086 RDS4261 Chuck cylinder seal kit 1

04-087 Screw M6 x 10 10



11

21

20

19

15

16

17 18

13

14

12

11

10

1

6 4

2

9

8

5

3

7


05-001 RRA2262 Chuck turntable 1

05-002 RBU2263 Bush 1

05-003 Screw M18 x 1.5 x 100 8

05-004 HLB4050 Bush SF-1/4050 1

05-005 RBZ2261 Pin 4

05-006 RVG2260 Connection rod 4

05-007 RDK2260 Turntable cross 1

05-008 RBZ2262 Shaft 4

05-009 RZS2260 Bar 4

05-010 RBV2260 Pin 4

05-011 RMS2261 Screw M6 x 6 16

05-012 RBV2261 Pin 4

12




05-013 RMS2262 Screw M8 x 20 4

05-014 RMU2260 Nut M8 4

05-015 Screw M6 x 12 4

05-016 RBP2260 Fastening plate 4

05-017 Nut M18 x 1.5 8

05-018 RSA2262 Arm 4

05-019 RKE2230 Spacer 1 8

05-020 RSK2260 Clamp 4

05-021 RPF2259 Tab20 x 60 2



13

12

11

10

13

14

15

14 15

16

17

5

6

5

6

7

4

9

8

3

2

1

29

16

17

18

20

24

18

20

19

23

21

22

4

3

2

32

31

30

25

34

26

33

35

27

28


06-001 RMS2263 Carriage frame 1


06-003 Washer D.8 6

06-004 HIS2537 Screw M8 x 16 4

06-005 HSS0820 Screw M8 x 20 2


06-007 RWM2260 Shaft 1

06-008 RBM2260 Shaft 1

06-009 RDS2268 Spacer 4

06-010 RBU2264 Bush 2

06-011 RST2268 Pin 10 x 35 2

06-012 RST2261 Pin10 x 50 1

06-013 RDG2260 Cushion plate 1

14




06-014 HBS8712 Washer D.6 2

06-015 HIS2538 Screw M6 x 16 2

06-016 RDH2261 Nut 2

06-017 RAS2267 Support 1

06-018 Screw M8 x 10 4

06-019 Screw M20 x 50 2

06-020 RSP2260 Wear plate 2

06-021 Washer D.24 3

06-022 Screw M16 x 50 6

06-023 HBS8629 Washer D.16 6

06-024 HSN3223 Greaser 8 x 1 2

06-025 RFW2260 Upper guide 1

06-026 RAR4263 ScraperDH-05-100 2

06-027 RLB2260 Bear SF-1/10060 2

06-028 Screw M24 x 50 2

06-029 Nut M24 x 2 1

06-030 RFW2261 Lower guide 1

06-031 RAR4262 Scraper DH-05-80 2

06-032 RLB2261 Bear SF-1/8060 2

06-033 Screw M12 x 45 6

06-034 HBS8572 Washer D.12 6

06-035 Washer D.20 2



15

41

39

31

32

27

28

29

37

34

30

1

36

35

33

31

32

2

40

39

34

26

38

37

24

25

35

36

21

23

22

3 4

5

6

7

8

9

10 11

12

13

14

15

16

17

18

20

19


07-001 RMT2263 Tool arm 1

07-002 HMB2525 Bush SF-1/2525 2

07-003 RBH2262 Hook 2

07-004 RAH2262 Spacer 10

07-005 Screw M4 x 50 2

07-006 RAH2263 Spacer 2

07-007 RBU2265 Bush 2

07-008 RDS2269 Shim 2

07-009 RBU2266 Bush SF-1/2010 2

07-010 RFE2260 Spring 2

07-011 RSS2261 Screw M10 x 30 2

07-012 HSR8613 Screw M6 x 20 2

07-013 Screw M6 x 30 2

07-014 RHB2261 Hook limit plate 2

16




07-015 HSM0615 Nut M6 4

07-016 RAH2264 Spacer 2

07-017 Washer 2

07-018 Screw M14 x 70 2

07-019 REZ4260 Tool hooking cylinder 1

07-020 RBU2267 Bush SF-1/1618 2

07-021 RFE2261 Spring 1

07-022 HLB2404 Bush SF-1/4040 2

07-023 REA2260 Block 1

07-024 HBS8629 Washer D.16 1

07-025 Nut M16 1

07-026 RDR2263 Spacer 4

07-027 Screw M8 x 8 1

07-028 Screw M8 x 12 1

07-029 RBU2268 Bush SF-1/8040 1



07-032 RDR4260 Ring 50 x 39 x 4.2-PU+NBR 1

07-033 RKO2265 Piston 1

07-034 HHD8332 O-ring 18 x 2.4 1

07-035 RDR2260 Sealing ring 20 x 28 x 5.7 1

07-036 RAR4259 Scraper 20 x 28 x 4.5/6 1


07-038 RZD2263 Cylinder guiding cover 1

07-039 HZD8557 O-ring 50 x 3.1 1


07-041 RDS4262 Tool hooking cylinder seal kit 1



17

23

18

17

16

15

19

22

21

20

1

11 5

2

3

4

24

30

29

28

27

31

32

33

34

35 36

28

30

31

33

34

35

10

6

7

26

14

13

12

9

8

25


08-001 RRN2260 Rotation hub unit 1

08-002 RAP2262 Stop plate 2

08-003 HBS8712 Washer D.6 12

08-004 HIS2538 Screw M6 x 16 4

08-005 Screw M8 x 16 2

08-006 Washer D.8 2

08-007 HLB2030 Bush SF-1/2030 1

08-008 HBS8629 Washer D.16 2

08-009 RWD2260 Cylinder pin 1

08-010 RDB2260 Block 2

08-011 RWD2261 Pin 1

08-012 RRZ4260 Rotation cylinder 1

08-013 RBU2269 Bush 2

08-014 Seeger D.16 2

08-015 RSE2260 Ring 1

18




08-016 RST2262 Pin 1

08-017 RSE2261 Shaft 1

08-018 RKE2260 Ball M12-40 1

08-019 HBS8713 Washer D.14 1

08-020 RDR2264 Spacer 4

08-021 RDR2265 Spacer 1

08-022 ROR4265 O-ring 85 x 3.1 1

08-023 RSR2600 Seeger D.100 1

08-024 RNA2260 Nylon cover 1



08-027 Nut M16 x 1.5 1

08-028 RKD4259 Gasket TPM45 x 31 x 15.5 1

08-029 RKO2259 Piston 1

08-030 HHD8332 O-ring 18 x 2.4 1

08-031 ROR4263 O-ring5 45 x 3.1 1

08-032 Cylinder guiding cover 1


08-034 RAR4259 Scraper 20 x 28 x 4.5/6 1

08-035 RDR2260 Sealing ring T605 20 x 28 x 5.7 1

08-036 RDS4263 Rotation cylinder seal kit 1



19

6 7 8

9 10 11 12

14

13

15

16

5

4

3

2

1


09-001 RAM2260 Tool support 1

09-002 RBP2261 Fixing plate 2

09-003 RBM2261 Bolt 2

09-004 Washer D.8 2

09-005 Screw M8 x 12 2

09-006 RMT2264 Bead breaking disk 1

09-007 ROR4269 O-ring 106 x 3.55 1

09-008 RRL2260 Bear 32010 2

09-009 ROR4270 O-ring 75 x 3.55 1

09-010 RAS2264 Cover 1

09-011 RUS2260 Washer 45 1

09-012 RMU2261 Nut M45 x 1.5 1

09-013 RSM2258 Pin8 x 60 1

20




09-014 RMF2260 Long mounting tool 1

09-015 HSN3223 Greaser 8 x 1 1

09-016 RZF2260 Spring 1



21

40 41

42

44

39

43

38

54

45

46

47

48

53

5251

5049

4

5

6

7

2

3

9

10

8

22

21

12

11

26

1

20

19

18

16

17

15

14 13

36

35

34

37

32

33

29

30

31

25

24

23

28

27

22


10-001 RMA0520 lever 1

10-002 RMA0519 lever (24") 1

10-003 RFZ0481 Plier 1

10-004 HIS2535 Screw M8 x 25 2

10-005 Washer D.8 2

10-006 RWH2261 Support 1

10-007 RAW2260 Base 1

10-008 HBS8572 Washer D.12 4

10-009 RSV2260 Clamping extension kit 4

10-010 Screw M12 x 30 4

10-011 RAS1213 Clamp protection kit 4

10-012 RMR2260 Roller assembly 1

10-013 Handle 1

10-014 RST2263 Pin 1

10-015 RST2264 Pin 1




10-016 RST2265 Support 1

10-017 Screw M4 x 20 1

10-018 RFE2262 Spring 1

10-019 RRA2263 Frame 1

10-020 Seeger D.10 1

10-021 HAB2605 Pin 3 x 25 2

10-022 RST2266 Pin5 x 25 3

10-023 RAW2261 Shaft 1

10-024 RST2267 Pin 1

10-025 RFE2265 Spring 1

10-026 Screw M12 x 16 1

10-027 RSS2261 Screw M10 x 30 2

10-028 RSB2260 Clamp 1

10-029 RAS1214 Clamp protection 1

10-030 RMH2260 Nut 1

10-031 RSS2262 Special screw 1

10-032 RFM2260 Nut M10 1

10-033 Screw M10 x 35 1

10-034 RKE2230 Plastic insert 1 1



10-037 ROR2258 O-ring 12 x 2.4 3

10-038 RAW2262 Shaft 1

10-039 RSN2260 Greaser M6 x 1 1

10-040 Screw M5 x 12 2

10-041 RBP2262 Fastening plate 1

10-042 Seeger D.16 1

10-043 RRG2260 Ring 1

10-044 RVW2260 Roller 1

10-045 Washer 3

10-046 HZD8557 O-ring 50 x 3.1 2

10-047 RHW2260 Roller 1

10-048 RIW2260 Bar 1

10-049 Nut M5 1

10-050 Washer D.6 1



23


10-051 RFE2263 Spring 1

10-052 Seeger D.19 1

10-053 RFE2264 Spring 1

10-054 RSS2263 Pin 1

24



4

27

21

26

24

35

22

32

28

50

23

36

15

29

17

6

10

39

48

34

51

30

33

20

42

1

41

45

47

5

38

13

14

5

43

9

31

16

37

25

18

3 49 2 44 12 8 40 46 6


11-001 Screw GB/T70.1/M5 x 8 2

11-002 Screw GB/T70.1/M6 x 35 2

11-003 Screw GB/T70.1/M6 x 25 2

11-004 Screw GB/T70.1/M8 x 12 2

11-005 Screw GB/T70.1/M8 x 10 3

11-006 HMR2400 Nut GB52/M3 8

11-007 HSM8641.20 Nut GB/T6170/M8 2

11-008 HSM0615 Nut GB/T6170/M6 2

11-009 HMR7415 Nut GB/T889.1/M6 4

11-010 RST2258 Pin M3 x 12 4

11-011 Washer GB/T97.1-1985/5 2



25


11-012 HBS8712 Washer GB/T97.1/6 2

11-013 Washer GB/T97.1/8 2

11-014 Screw GB/T818/M3X16 4

11-015 Screw GB/T818/M3 x 6 4

11-016 HSE7250 Screw GB/T818/M4 x 6 4

11-017 Screw GB/T818/M4 x 8 4

11-018 Screw GB/T818/M5 x 10 2

11-019 Washer GB/T93/5 2

11-020 RST2259 Pin GB/T91/2.5 x 26 2

11-021 HLT8264 Override button LA16Y-11-Y 1

11-022 HKE7026 Contact NCC (1-2) 2

11-023 HNA7210 Emergency switch XA2ES542 1

11-024 HWS8265 Button XA2ED33 1

11-025 RMS6234 Micro switch AV-163-IC25C 2

11-026 RMS6230 Switch123 1

11-027 RWS6258 Manipulator 3

11-028 RSS6258 Pushbutton LC2101KK 1

11-029 RCP6258 PCB of control console (Pedal Control) 1

11-030 RAN6258 Antenna TX2400-JW-5 1

11-031 RBU2260 Socket DY20-5A 1

11-032 RDI6258 Diode 1

11-033 RAB6258 Battery charger socket 1

11-034 RAK6258 Battery 3.7V4000mAh 1

11-035 RDI6259 Diode 1

11-036 RBM6260 Mask 1

11-037 Rubber base 2

11-038 RRB6258 Wheel 2

11-039 RSA2260 Switch cover 1

11-040 RFF2258 Spring 2

11-041 RFP2228 Pedal B 1

11-042 RFP2228 Pedal A 1

11-043 RSB2259 Switch support 2

11-044 RDP2259 Press plate 2

11-045 RPW2258 Pedal shaft 2

11-046 RST2260 Pin 1

26




11-047 RUA2258 Cover 1

11-048 RAG2261 Plate 1

11-049 Seeger 2

11-050 Hurdle 1

11-051 RGB2260 Frame 1



27

7

8

6

5

10

9

4

3

2

11

1

14

13

12


12-001 Right support 1

12-002 Screw M8 x 16 1

12-003 Washer D.8 5

12-004 Electric unit 1

12-005 RHA4260 Hydraulic power unit 1

12-006 RAS2265 Cover 1

12-007 RAP2263 Cover 1

12-008 Screw M8 x 12 4

12-009 Screw M6 x 35 4

12-010 HSM0615 Nut M6 4

12-011 RFA2261 Cover 1

12-012 HFR2812 Locking washer D.8 5

12-013 RRL2261 Left support 1

28




12-014 HSS0820 Screw M8 x 20 4



29

3

2

14

16

1

15

17

18

19

20

21

5

4

13

6

12

11 10 9 8 7


13-001 RSK2261 Box 1

13-002 RES6220 Electric unit 1

13-003 HGS2349 Screw M5 x 8 4

13-004 RSA6260 Standard connector black 18

13-005 RAP2264 Support 1

13-006 RKL6260 Wiring terminal 1

13-007 Washer D.5 2

13-008 Locking washer D.5 2

13-009 Screw M5 x 10 2

13-010 Pin M3 x 12 4

13-011 HSE7250 Screw M4 x 6 16

13-012 RCP6260 CPU board 1

13-013 Power switch 1

13-014 RSA6258 Breaker DZ108-20/10-16A 1

13-015 Screw M4 x 20 3

30




13-016 HMS8260 Contactor CJX2-1210 (AC24V) 1

13-017 Washer D.4 3

13-018 RSB2263 Support 1

13-019 HNG7901 Switch power S-145-24 1

13-020 REA2261 Ground decal 1

13-021 HHS8714 Guide DZ47 L=150mm 1



31

17

18

13

14

16

19

20

22

21

15

23

24

12

11

10

9

7

38

33

28

25

26

27

8

6

5

4

3

2

32 31 30 29

35

36

1

37 34


14-001 ROT4260 Oil tank 1

14-002 ROF4260 Oil filter 1

14-003 ROA4260 Oil suction pipe Z3/8 x 35 1

14-004 ROF4261 Oil filter WU-63-G38 1

14-005 ROA4261 Oil suction pipe Z3/8 x 70 1

14-006 RHS4268 Hydraulic hose L=400 1

14-007 RHV4261 Union 3/8 5T9-06 1


14-009 HAR4306 Oil suction pipe 1

14-010 RHV4262 Union 5B-08-06WD 2

14-011 RHV4263 Union 1B-06-08WD 1

14-012 RHE4260 Union 1B-04-06WD 14

14-013 RWV6260 Modular directional valve unit 1

32




14-014 Screw M8 x 75 4

14-015 RTD4260 Cover 1

14-016 Screw M12 x 20 4

14-017 RMA2261 Motor joint AKG07FS200Z 1

14-018 RMO6261 Motor 230/400V 50/60HZ 3ph 4p 4.8/5.6kw S1 1

14-019 RMF2261 Motor flange LMC250MFS2004S 1

14-020 Screw M12 x 35 4

14-021 RDR4261 Spacer GUMP250 1

14-022 HBS8572 Washer D.12 4

14-023 HTV8329 Oil level plug 3/4 1

14-024 Screw M8 x 16 12

14-025 Washer D.8 12

14-026 RHV4264 Union 1B-06WD 1

14-027 Screw M6 x 30 9

14-028 RAS2266 Spacer GUPP004 1

14-029 RFB4260 Flange union 3

14-030 RHE4260 Union 2

14-031 ROR4271 O-ring 20 x 2.4 3

14-032 RZP4260 Gear pump PR18007P 1

14-033 ROR4266 O-ring 26 x 3.1 1

14-034 HAS8325 Plug 4BN-06WD G3/8 1

14-035 HFR2812 Locking washer D.8 4

14-036 Screw M8 x 30 7

14-037 Washer BS/A17.20 1

14-038 RFB4261 Flange union 1



33

A6

A5

A4

A3

A2

A1

B6

B5

B4

B3

B2

B1

M1

M2

21 30

17

2

20

22

33 B3 A3

26

21

25

18

27 A4

20 B4

21 34

22

31

17

16

24

20

23

6

20 A6

21

13 M2 M1

38 1412

10

B1

29

B4

B3

A2

A1 B2

A4

A3

43

42

41

40

39

9

15

11

8

M1

M2

32 19

A1 24

19

20 28

A2

21

4

B2

32

3

B5

19

36

20

23

B1

7

20

24

22

B6

37

1

35

A5

35

5

21


15-001 RHA4260 Hydraulic power unit 1

15-002 RSZ2260 Chuck cylinder 1

15-003 RRZ4260 Rotation cylinder 1

15-004 REZ4260 Tool hooking cylinder 1


15-006 RHZ2260 Chuck Arm Cylinder 1


15-008 RGM6260 Hydraulic motor unit 1

15-009 RVB4260 Restrictor body 1

15-010 RDV4260 Flow Restrictor LF08-00-05 1

15-011 ROR4267 O-ring 28 x 2.4 2

15-012 HBS6414 Plug ZBJ22 007-QD07 2

15-013 Screw M10 x 55 2

15-014 RHE4260 Union 1B-04-06WD 2

15-015 HRV8318 Non return valve GDF-06-07-00 1

34




15-016 RMA4228 Pressure gauge LA-60 x 250-B 1

15-017 HHA8371 Union 5B-04 2

15-018 RHA4259 Union 5B-04-L56 1

15-019 RHV4265 Union 5B-04-L40 2

15-020 HBS3724 Washer BS/A13.70 36

15-021 RBO2260 Bolt 720B-04 10

15-022 HHA8369 Union 1B-04 4

15-023 RDS2266 Special screw 2

15-024 AHS8328 Special screw 3

15-025 HHA8332 Union 2B-04 1

15-026 HHA8370 BANJO UNION 1/4 1BI-04B 1

15-027 RAV4228 Stop valve BP25000000 1

15-028 RDS2267 Special screw 1

15-029 RHV4266 Union 6B-04LN 10

















35

www.ath-heinl.com

ATH-Heinl GmbH & Co. KG

Gewerbepark 9

D-92278 Illschwang

Germany

Tel.: +49(0)9666 18801 00

Fax: +49(0)9666 18801 01

info@ath-heinl.de

www.ath-heinl.com

ATH-Heinl ETL LKW-Reifenmontiermaschine ATH 7260

Verwandeln Sie Ihre PDFs in ePaper und steigern Sie Ihre Umsätze!

Template löschen?

Als Template speichern ?
