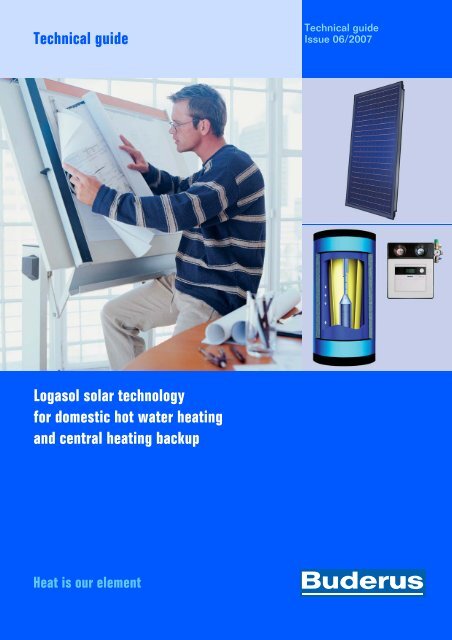

Technical guide Heat is our element - Buderus

Technical guide

Logasol solar technology

for domestic hot water heating

and central heating backup

Heat is our element

Technical guide

Issue 06/2007

Contents

Technical guide - Logasol solar technology for domestic hot water heating and central heating backup - 06/2007

Contents

1 Principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.1 Free solar energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

1.2 Energy supplied by solar collector systems in relation to the energy demand . . . . . . . . . . . . . . . . . . . . . 3

2 Technical description of system components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.1 Solar collectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2.2 Logalux solar cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.3 Solar control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

2.4 Logasol KS... complete station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

2.5 Other system components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

3 Notes regarding solar heating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

3.1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

3.2 Regulations and guidelines for designing/engineering a solar collector system . . . . . . . . . . . . . . . . . . . 59

4 Sample systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4.1 Solar heating systems for domestic hot water heating with conventional

oil/gas fired boilers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

4.2 Solar heating systems for DHW heating and central heating backup with

conventional oil/gas fired boilers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

4.3 Solar heating systems for DHW heating with solid fuel-boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

4.4 Solar heating systems for DHW heating and central heating backup with solid fuel boiler . . . . . . . . . 73

4.5 Solar heating systems for DHW heating and swimming pool heating with

conventional oil/gas-fired boilers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76

4.6 Detailed hydraulic scheme for wall mounted boilers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78

5 Sizing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

5.1 Sizing principles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79

5.2 Sizing the collector array and solar heating cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

5.3 Space requirements for solar collectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92

5.4 Hydraulic system engineering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98

5.5 Sizing of the diaphragm expansion vessel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110

6 Design/engineering information regarding the installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 118

6.1 Pipework, thermal insulation and collector temperature sensor extension cable . . . . . . . . . . . . . . . . . 118

6.2 Air vent valve . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

6.3 Information regarding the different flat-plate collector installation systems . . . . . . . . . . . . . . . . . . . . 121

6.4 Flat roof installation for vacuum tube collectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

6.5 Lightning protection and earth bonding for solar heating systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

7 Regulations and Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Questionnaire "Fax inquiry - solar heating system for detached houses and

two-family homes" (copy template) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Keyword index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 144

List of abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

1

1

Principles

1 Principles

1.1 Free solar energy

The energy that is provided by the sun can be used

effectively in almost any part of Germany. The annual

insolation level lies between 900 kWh/m2 and 1200

kWh/m2 . The "insolation map" gives you an idea of the

average insolation that can be expected in your

region(➔ 2/1).

A thermal solar heating system uses the energy of the

sun to heat domestic hot water (DHW) and can also be

used as central heating backup. Solar systems for DHW

heating are energy-saving and environmentally

friendly. Combined solar heating systems for DHW

heating and central heating backup are progressively

becoming more popular. Frequently it is only

information about the astounding proportion of

heating that technically advanced solar heating

systems can provide today that is lacking.

A considerable proportion of solar energy can be used

for heat generation using solar collector systems,

saving valuable fuel, and fewer emissions reduce the

burden on the environment.

2

Münster

Frankfurt

2/1 Average insolation in Germany

Caption

1150 to 1200 kWh/m 2

1100 to 1150 kWh/m 2

1050 to 1100 kWh/m 2

1000 to 1050 kWh/m 2

950 to 1000 kWh/m 2

900 to 950 kWh/m 2

Bremen

Kassel

Hannover


Köln

Freiburg

Hamburg

Leipzig

Nürnberg

München

Chemnitz

Berlin

Cottbus

1.2 Energy supplied by solar collector systems in relation to the energy demand

Solar collector systems for DHW heating

DHW heating is the most obvious application for solar

collector systems. The regular demand for hot water all

the year round is a good match for solar energy.

Almost 100% of the energy demand for DHW heating

during the summer can be covered by a solar heating

system (➔ 3/1). Nevertheless, the conventional heating

system must still be able to cover the DHW demand

independently of solar heating. Long periods of bad

weather may occur during which the convenience of

hot water still has to be assured.

Solar collector systems for DHW heating and

central heating backup

Being environmentally aware means thinking of solar

collector systems not just for DHW heating but also for

central heating backup. However, the solar heating

system can only give off heat if the return temperature

of the heating system is lower than the temperature of

the solar collector. Large radiators with low system

temperatures or underfloor heating systems are

therefore ideal.

With an appropriate design the solar heating system

will cover up to 30% of the annual heating energy that

is needed for DHW heating and central heating.

Combined with a back boiler or solid fuel boiler, the

requirement for fossil fuels can be reduced even further

during the heating season because renewables such as

wood can be used. The residual energy is provided by a

condensing or a low temperature boiler

Q

kWh

1 2 3 4 5

Caption (➔ 3/1 and 3/2)

a Energy demand

b Energy provided by the solar heating system

MMonth

Q Heating energy

Solar energy surplus

(available for a swimming pool, for example)

Utilised solar energy

(solar coverage)

Energy demand that has not been covered

(reheating)


Principles 1

3/1 Energy provided by a solar collector system in relation to the

annual energy demand for DHW heating

Q

kWh

6

M

7 8 9 10 11 12

1 2 3 4 5 6

M

7 8 9 10 11 12

3/2 Energy provided by a solar collector system in relation to the

annual energy demand for DHW and central heating

a

b

a

b

3

2

Technical description of system components

2 Technical description of system components

2.1 Solar collectors

2.1.1 Logasol SKN3.0 flat-plate collector

Selected features and characteristics

● Favourable price/performance ratio

● Consistently high yield through robust, highlyselective

black chromium coating

● TÜV-tested connecting technology

● Rapid collector connection without the need for tools

● Easy handling because of light weight of 42 kg

● Meets all federal subsidy requirements in full

[Germany]

● Solar fluid has long-term stability due to fan

absorber with extremely good stagnation

characteristics

● Energy-saving manufacture with recyclable

materials

● Solar keymark

4

R

8

4/1 Design of Logasol SKN3.0-s flat-plate collector (portrait)

V

7

M

R

Component design and functions (➔ 4/1)

The casing of the Logasol SKN3.0 solar collector

consists of a lightweight, extremely strong fibre glass

frame profile. The back panel is made from 0.6 mm

aluminium zinc-coated sheet steel. The collector is

covered with 3.2 mm thick single-pane safety glass.

The low-ferrous, structured cast glass is coated, is

highly transparent (92% light transmission) and has

extremely good load-bearing capability.

The 55 mm thick mineral wool provides extremely

good thermal insulation and high efficiency. It is heat

resistant and non-outgassing.

The absorber consists of individual strips with a highlyselective

black chromium coating. The absorber is

ultrasonically welded to the pipe fan in order to

provide an extremely good heat transfer.

The Logasol SKN3.0 has four hose coupling nipples for

making simple, rapid hydraulic connections. The solar

hoses can be fitted using spring band clips that require

no tools. They are designed for temperatures up to

+170 °C and pressures of up to 6 bar in conjunction

with the collector.


6

5

4

3

2

V

1

R Solar return

V Solar flow

M Measuring point (sensor well)

1 Glass cover

2 Strip absorber

3 Pipe fan

4 Thermal insulation

5 Back panel of casing

6 Fibre glass frame profile

7 Extruded plastic corner

8 Header pipe cover

Dimensions and specification

➔ 5/1 and 5/2

Dimensions and specification for Logasol SKN3.0 flat-plate collectors

90

R

1145

Technical description of system components 2

Logasol SKN3.0-s Logasol SKN3.0-w

V

M

R

2070

5/1 Dimensions of Logasol SKN3.0-s (portrait) and SKN3.0-w (landscape) flat-plate collectors; dimensions in mm

V

90


V Solar flow


Logasol flat-plate collector SKN3.0-s SKN3.0-w

Type of installation portrait landscape

Gross absorber surface area m 2

2.37 2.37

Aperture area (light entry area) m 2 2.26 2.26

Net absorber surface area m 2 2.23 2.23

Absorber contents l 0.86 1.25

Selectivity Level of absorption

Level of emissions

Weight kg 41 42

Efficiency η0 % 77

Effective heat transfer coefficient k1

W/(m

k2

2 ·K)

W/(m2 ·K2 3,6810

)

0,0173

Thermal capacity c kJ/(m 2 ·K) 2.96

Irradiation angle correction factor IAM dir

τα (50°)

IAM dfu

τα

R


V

%

%

M

2070

95±2

12±2

0.911

0.900

Nominal flow rate V l/h 50

Stagnation temperature °C 188

Max. operating pressure (test pressure) bar 6

Max. operating temperature °C 120

Collector yield (minimum yield verification 1) of 525 kWh/(m 2 ·a) for

BAFA)

DIN registration number 011-75050 F

5/2 Specification for Logasol SKN3.0 flat-plate collectors

1) Minimum yield verification for BAFA (Bundesamt für Wirtschaft and Ausfuhrkontrolle, Eschborn, Germany) in conformity with

DIN EN 12975 for a fixed coverage of 40%, daily consumption 200 l and location Würzburg

>525

R

1145

V

5

2


2.1.2 Logasol SKS4.0 high performance flat-plate collector


● High performance flat-plate collector

● Hermetically sealed with inert gas filling between

glass and absorber

● No misting up of inside of the glass

● Rapid responses

● Absorber coating permanently protected against

dust, moisture and airborne pollutants

● Optimised insulation from the glass cover

● Powerful full-area absorber with vacuum coating

and double meander

● Array connection for up to 5 collectors on one side

● Extremely good stagnation characteristics

● Rapid collector connection without the need for tools

6

R

8

6/1 Design of the Logasol SKN3.0-s flat-plate collector (portrait)

V

M

7

R

Component design and functions (➔ 6/1)

The casing of the Logasol SKS4.0 solar collector consists

of a lightweight, extremely strong fibre glass frame

profile. The back panel is made from 0.6 mm

aluminium zinc-coated sheet steel. The collector is

covered with 3.2 mm thick single-pane safety glass.

The low-ferrous, slightly structured cast glass is highly

transparent (92% light transmission) and has

extremely good load-bearing capability.

The 55 mm thick mineral wool insulation provides

extremely good thermal insulation and high

efficiency. It is heat resistant and non-outgassing.

The effective copper surface absorber is provided with

a highly selective vacuum coating. The double

meander on the back is ultrasonically welded to the

absorber to provide an extremely good heat transfer.


6

5

4

3

2

1

V


V Solar flow


1 Glass cover

2 Full area absorber

3 Double meander


5 Back panel of casing

6 Fibre glass frame profile

7 Extruded plastic corner

8 Edge assembly


➔ 8/1 and 8/2

Inert gas filling

The inert gas filling (➔ 7/1, item 2) between the

absorber and the pane of glass reduces heat loss. The

enclosed space is filled with a heavy, convectioninhibiting

inert gas as used in thermal glass. The

hermetically sealed design also protects the absorber

coating from environmental effects such as moist air,

dust and pollutants. This gives the equipment a longer

service life and output is consistently high.

Double meander absorber

Because the absorber is designed as a double meander,

the collector can be easily connected on one side into

arrays of up to 5 collectors. Connection at alternate

sides is only required for larger collector arrays to

provide a homogeneous flow through the collectors.

The meander design of the absorber makes the

collector extremely efficient, since the flow is always

turbulent over the entire flow rate range. The pressure

drop is also kept low by connecting two meanders in

parallel. The collective return line of the collector is at

the bottom so that the hot solar fluid can escape from

the collector in the event of stagnation.

St

St R

7/2 Design and connection of the Logasol SKS4.0-s double meander absorber

V


7

6

7/1 Sectional view of the Logasol SKS4.0 high performance

flat-plate collector with inert gas filling

Caption (➔ 7/1)

1 Glass cover

2 Stainless steel spacer

3 Inert gas filling

4 Surface absorber


6 Bottom panel

7 Absorber pipe outlet

Meander 1

Meander 2

1 2 3 4


V

5

St

St R


up to 5 up to 10 collectors

7

2


Dimensions and specification for Logasol SKS4.0 high performance flat-plate collectors

8/1 Dimensions of Logasol SKS4.0-s (portrait) and SKS4.0-w (landscape) high performance flat-plate collectors; dimensions in mm

8

90

R

Logasol SKS4.0-s Logasol SKS4.0-w

1145

V

Logasol high performance flat-plate collector SKS4.0-s SKS4.0-w

Type of installation portrait landscape

Gross absorber area m 2 2.37 2.37

Aperture area (light entry area) m 2


2.1 2.1

Absorber area (net area) m 2 2.1 2.1





Efficiency η0 % 85.1

Effective heat transfer coefficient k1

W/(m

k2

2 ·K)

W/(m2 ·K2 4.0360

)

0.0108

Thermal capacity c kJ/(m2 ·K) 4.82

Irradiation angle correction factor IAM dir

τα (50°)

IAM dfu

τα

Nominal volume flow V l/h 50


Max. operating pressure bar 10

Max. operating temperature °C 120

Collector yield (minimum yield verification 1) of 525 kWh/(m 2 ·a)

for BAFA)

M

R

2070

DIN registration number 011-75052 F

V

90


V Solar flow


8/2 Specification for Logasol SKS4.0 high performance flat-plate collectors

1) Minimum yield verification for BAFA (Bundesamt für Wirtschaft and Ausfuhrkontrolle, Eschborn) in conformity with DIN EN 12975 with

fixed cover proportion of 40%, daily consumption 200 l and location Würzburg

R

V

%

%

M

2070

95±2

5±2

0.95

0.90

>525

R

1145

V

2.1.3 Vaciosol CPC6 and CPC12 vacuum tube collectors


● Suitable for sloping or flat roof installation,

floorstanding installation or facade installation.

● For heating domestic water and heating water for

partially solar heating systems and swimming pool

water

● High degree of flexibility using collector modules

with 6 or 12 tubes

● Excellent design

● Rapid assembly times due to prefabricated collector

units and simple, flexible roof and flat room

installation kits

● Simple connecting technology for installing several

collectors next to each other using preinstalled

threaded connections. No more pipework or

complex thermal insulation required

● Solar flow and return can be on the right or left side

of the collector (optional)

● Tubes can be replaced without emptying the

collector circuit - "dry connection"

● Hydraulic connecting lines easy to connect using

locking ring screw connections

● High level of operating safety and long service life

due to use of high-quality, corrosion resistant

materials such as thick-walled borosilicate glass,

copper, aluminium with anticorrosive coating and

connecting vacuum pipes to solar circuit using "dry

connections"

1 2 3

9

9/1 Design of the Vaciosol CPC12 vacuum tube collectors

8


4 5

7

6

● Tubes are permanently vacuum sealed because all

connections are glass-to-glass, no glass-to-metal

transitions

Energy yield and performance

● Extremely high energy yield with small collector

area

● Circular absorber surface means that each

individual tube is always properly aligned in

relation to the sun

● Extremely high solar coverage rates possible

● Extremely efficient because of highly-selective

coated absorbers

● The vacuum tubes are extremely effective in

reducing the thermal loss of a solar collector, since

there is no air in the vacuum that can transport the

heat of the absorber surface to the glass tubes on the

outside that are exposed to the weather

● The heat transfer medium is directly led to the tubes

without an intermediate heat exchanger in the

collector

● The circular absorber always collects direct and

diffused insolation at different irradiation angles

● The CPC mirror and direct flow through the vacuum

tubes make a considerable contribution to the high

energy yield

● The vacuum provides the best possible thermal

insulation, therefore high efficiency also in winter

and during periods of low irradiation

1 Flow and return connection

2 Sensor well

3 Header tube/distribution tube


5 Heat exchanger

6 Vacuum tubes

7 Heat conducting plate

8 CPC mirror

9 U tube


➔ 11/1 and 11/2


9

2


Heat exchanger and heat transfer unit

The insulated collection and distribution tubes are in

the heat exchanger (➔ 9/1, item 5).

The flow and return connections can be on the left or

right side (optional).

Each vacuum tube contains a U-tube with direct flow

that is connected to the collection or distribution tube

in such a way that each individual vacuum tube has

identical hydraulic resistance. This U-tube is pressed

onto the inside of the vacuum tubes with the heat

conducting plate.

Vacuum tubes

The vacuum tube is a product with optimised geometry

and performance (➔ 10/1).

The tubes consist of two concentric glass tubes that

have a hemispherical closure at one end and are fused

together at the other end. The space between the tubes

is evacuated and then hermetically sealed (vacuum

insulation).

In order to make solar energy usable, the inner glass

tube has an environmentally friendly highly-selective

coating on the outside and is therefore designed to be

an absorber. This coating is therefore protected in the

vacuum space. This is an aluminium nitrite sputter

coating that has extremely low emissions and

extremely good absorption.

CPC mirror

In order to increase the efficiency of the vacuum tubes

there is a highly-reflective, weather resistant CPC

mirror behind the vacuum tubes (Compound

Parabolic Concentrator). The special mirror geometry

ensures that direct and diffused sunlight falls on the

absorber, even at unfavourable irradiation angles

(➔ 10/2). This improves the energy yield of a solar

collector considerably.

10

10/1 Sectional diagram of a vacuum tube in the Vaciosol CPC6 and

CPC12 vacuum tube collectors


1 Copper pipe

2 Heat conducting plate

3 Absorber layer

4 Vacuum tubes

5 CPC mirror

10/2 CPC mirror of the Vaciosol CPC6 and CPC12 vacuum tube

collectors


5

4

3

1

2


Dimensions and specifications of the Vaciosol CPC6 and CPC12 vacuum tube collectors

101

Vaciosol CPC6 Vaciosol CPC12

2057

11/1 Dimensions of the Vaciosol CPC6 and CPC12 vacuum tube collectors; dimensions in mm

Vacuum tube collector, Vaciosol CPC6 CPC12

Number of vacuum tubes 6 12

Type of installation vertical

Gross absorber surface area m 2 1.43 2.82

Aperture area (light entry area) m 2

1.28 2.56





Efficiency η0 % 66.5

Effective heat transition coefficient k1

W/(m

k2

2 ·K)

W/(m 2 ·K 2 0.721

)

0.006

Thermal capacity c kJ/(m2 ·K) 7.974

Nominal flow rate V l/h 46 92


Max. operating pressure bar 10

Collector yield (minimum yield verification 1) of 525 kWh/(m 2 ·a)

for BAFA)

702

EC type test Z-DDK-MUC-04-100029919-005

11/2 Specifications of the Vaciosol CPC6 and CPC12 vacuum tube collectors

1) Minimum yield verification for BAFA (Bundesamt für Wirtschaft and Ausfuhrkontrolle, Eschborn, Germany) in conformity with

DIN EN 12975 with fixed coverage of 40%, daily consumption of 200 l and location Würzburg

101


2057

%

%

1390

>95

525

11

2


2.2 Logalux solar cylinder

2.2.1 Logalux SM… dual-mode cylinder for DHW heating


● Dual-mode cylinder with two smooth tube indirect

coils

● Available with blue or white casing

● Buderus thermoglazing and magnesium anode for

corrosion protection

● Large cleaning aperture

● Low heat loss due to high-grate thermal insulation

● CFC-free insulating casing made from 50 mm thick

rigid polyurethane foam (Logalux SM300) or 100 mm

thick flexible polyurethane foam (Logalux SM400 and

SM500)

Design and function

Different cylinders can be used, subject to the

individual application and system capacity. The

Logalux SM300, SM400 and SM500 dual-mode

cylinders are designed for solar DHW heating.

Conventional reheating by a boiler is an option.

The large size of the solar indirect coils inside the

Logalux SM300, SM400 and SM500 dual-mode

cylinders provide an extremely good heat transfer and

therefore create a high temperature differential in the

solar circuit between the flow and the return.

A further indirect coil is fitted into the upper part of the

cylinder to ensure that hot water is always available,

even if little insolation is available. This indirect coil

can also be used for reheating using a conventional

boiler.

The mono-mode Logalux SU... cylinder can be used in

existing heating systems. Another technical solution

provided by Buderus is a cylinder primary system

consisting of an SU400, SU500, SU750 or SU1000

mono-mode cylinder with a fitted plate-type heat

exchanger (Logalux LAP heat exchanger kit ➔ Current

technical guide "DHW cylinder"). The Logalux LAP

heat exchanger kit can be used for reheating with a

conventional boiler. Wall mounted or floorstanding

gas/oil fired boilers and solid fuel boilers or a

combination of the above are generally suitable for

reheating.

12

12/1 Components of the Logalux SM300, SM400 and SM500

dual-mode cylinders

Caption

1 Magnesium anode

2 Thermal insulation (rigid foam insulation for Logalux SM300,

flexible foam insulation for Logalux SM400 and SM500)

3 DHW outlet

4 Cylinder

5 Upper indirect coil for reheating with a conventional boiler

6 Solar indirect coil

7 Cold water inlet

Dimensions, connections and specification➔ 13/1 and 13/2


1

2

3

4

5

6

7

Dimensions and specifications of Logalux SM... dual-mode solar cylinder

13/1 Dimensions and connections of Logalux SM... dual-mode cylinders


Logalux dual-mode cylinder SM300 SM400 SM500

Cylinder diameter with/without insulation ØD/ØD Sp mm 672/– 850/650 850/650

Height H mm 1465 1550 1850

Cold water inlet / drain H EK/EL mm 60 148 148

Cylinder return on the solar side H RS1 mm 297 303 303

Cylinder flow on the solar side H VS1 mm 682 690 840

Cylinder return H RS2 mm 842 790 940

Cylinder flow H VS2 mm 1077 1103 1253

DHW circulation inlet H EZ mm 762 912 1062

DHW outlet ØAW

HAW Feet centres A1

A2

inch

mm

mm

mm

R1

1326

400

408

R14

1343

480

420


R14

1643

480

420

Cylinder capacity total/standby l 290/≈130 390/≈165 490/≈215

Content, solar indirect coil l 8 9.5 13.2

Size of solar indirect coil m 2 1.2 1.3 1.8

Standby heat loss 1)

ØD

ØD Sp

Performance factor (upper indirect coil) 2)

Continuous output (upper indirect coil) with

80/45/10 °C 3)

AW

VS2

R 1

EZ

R 3/4

RS2

R 1

VS1

R 1

RS1

R 1

EK/EL

R 1 1/4

M1 Ø19 mm internal

M2 Ø19 mm internal

kWh/24h 2.1 2.81 3.3

N L 2.9 4.1 6.7

kW (l/h) 34.3 (843) 34.3 (843) 34.3 (843)

Number of collectors ➔ 83/2, 86/2 ➔ 83/2, 86/2 ➔ 83/2, 86/2

Weight (net) kg 144 202 248

Max. operating pressure heating water/DHW bar 25/10

H

H AW

H VS2

H EZ

H RS2

H VS1

H RS1

H EK/EL

20 – 25

Max. operating temperature heating water/DHW °C 160/95

13/2 Specification of the Logalux SM300, SM400 and SM500 dual-mode cylinders

1) In accordance with DIN 4753-8: DHW temperature 65 °C, ambient temperature 20 °C

2) In accordance with DIN 4708 when heating to a cylinder temperature of 60 °C with a heating water flow temperature of 80 °C

3) Heating water flow temperature/DHW outlet temperature/cold water inlet temperature

A2

Plan view

A1

13

2


2.2.2 Thermosiphon cylinder Logalux SL… for DHW heating


● Patented heating lance for stratified cylinder

heating in the respective highest temperature zone

● Buoyancy-controlled plastic gravity flaps for

stratification system

● DHW available extremely quickly via the solar

heating system and less frequent reheating using

the boiler

● Buderus thermoglazing and magnesium anode for

corrosion protection

● CFC-free insulation casing made from flexible

polyurethane foam, 100 mm thick at the sides and

150 mm thick on top (removable)


Buderus provides thermosiphon cylinders in various

shapes and sizes for DHW heating. All versions are

based on the thermosiphon principle (➔ page 15).

The solar indirect coil only heats a relatively small

quantity of DHW, almost to the solar flow

temperature. The heated DHW rises directly upwards

into the standby reservoir through the heating lance

(item 6 ➔ 14/1). With normal insolation, the set

temperature is soon reached. Reheating using a

conventional boiler is therefore less frequently

required.

Depending on the solar heating, the DHW only rises

upwards until it reaches the layer with the same

temperature level. Then the relevant buoyancycontrolled

gravity flaps open (item 7 ➔ 14/1). The

cylinder heats itself in this way layer by layer from top

to bottom (➔ page 15).

Particularly with a control unit that is suitable for

double match flow operation (SC20, SC40, solar

function module FM443 or SM10), this principle is

optimally coordinated by the flow rate adjustment of

the variable speed pump and the heating of the

standby reservoir with higher priority.

Mono-mode cylinder Logalux SL300-1

The upper indirect coil for reheating by a conventional

boiler is not fitted to the Logalux SL300-1 mono-mode

cylinder with 300 litre capacity. The cylinder is suitable

for retrofitting an existing DHW system by adding a

solar heating system.

14

Dual-mode cylinder Logalux SL300/400/500-2

The dual-mode solar cylinders SL…-2 with capacities of

300 l, 400 l and 500 l have a solar indirect coil and an

upper indirect coil for conventional reheating. These

cylinders are also available with white casing as

version Logalux SL…-2 W.

14/1 Design of the Logalux SL300-2 thermosiphon cylinder

Caption



3 DHW outlet

4 Cylinder

5 Upper indirect coil for reheating by a conventional boiler

6 Heating lance

7 Gravity flap





1

2

3

4

5

6

7

8

9

Thermosiphon principle for high levels of insolation

The heated water rises rapidly and is available in the

standby reservoir extremely quickly. The cylinder is

heated up from top to bottom (item 1 ➔ 15/1).

Because only water from below flows through the

heating lance at the solar indirect coil, there is always

AW 1

V

R

15/1 Heating procedure for a thermosiphon cylinder at full insolation

Thermosiphon principle with low insolation

For example, if the water is only heated to 30 °C, it only

rises to the layer at that temperature level. The water

flows through the open gravity flaps into the cylinder

and heats the area (item 2 ➔ 15/2).

The water leaving through the gravity flaps stops the

water from rising in the heating lance and prevents it

from mixing with layers at higher temperatures

(item 3 ➔ 15/2).

VS

RS

Caption (➔ 15/1 and 15/2)

1 Separating layer between temperature zones

2 Open gravity flap in heating lance

3 Closed gravity flap

AW DHW outlet

EK Cold water inlet


V Solar flow

EK


AW

V

R

a wide temperature differential between the cylinder

return and the collector. That ensures a high solar

yield.

AW


V

R

EK

VS

RS

1

AW

V

R

VS

VS

40ß C

40ß C

RS

RS

3 3

30 30 ßC ßC

2 2

EK

EK

30ß C

20ß 20ß CC

15/2 Hot water leaving the heating lance at low insolation

EK

VS

RS

1

40 ßC

40 ßC

30 30 ßC ßC

20 ßC

3

3

2

2

15

2


Dimensions and specification for the Logalux SL… thermosiphon cylinder

Mg

M1

EH

M2

M3

M4

16/1 Dimensions and connection of the Logalux SL… mono-mode and dual-mode thermosiphon cylinders for HDW heating

Logalux thermosiphon cylinder SL300-1 SL300-2 SL400-2 SL500-2

Cylinder diameter with/without insulation ØD/ØD Sp mm 770/570 770/570 850/650 850/650

Height H mm 1670 1670 1670 1970

Cold water inlet/drain H EK, EL mm 245 245 230 230

Cylinder return on the solar side H RS1 mm 100 100 100 100

Cylinder flow on the solar side H VS1 mm 170 170 170 170

Cylinder return H RS mm – 886 872 1032

Cylinder flow H VS mm – 1199 1185 1345

DHW circulation inlet H EZ mm 1008 1008 994 1154

DHW outlet ØAW

H AW

Immersion heater HEH mm 949 – – 985

Feet centres A1/A2 mm 380/385 375/435 440/600 440/600

Cylinder capacity total/standby l 300/≈165 300/≈155 380/≈180 500/≈230

Content, solar indirect coil l 0.9 0.9 1.4 1.4

Size of the solar indirect coil m 2 0.8 0.8 1 1


Performance factor (upper indirect coil) 2)

Continuous output (upper indirect coil) at

80/45/10 °C 3)

16/2 Specification for the Logalux SL… mono-mode and dual-mode thermosiphon cylinders for DHW heating


2) In accordance with DIN 4708 when heating to a cylinder temperature of 60 °C and with a heating water flow temperature of 80 °C


16

ØD

ØD Sp

AW

EZ

R6

EK, EL

R14

VS1

R6

RS1

R6

H

H AW

H EZ

H EK, EL

H VS1

H RS1

8

Mg

M1

M2

M3

M4

Logalux SL300-1

Mg Magnesium anode

M1–M4 Temperature measuring points;

assignment subject to system

components, hydraulics and control

units

EH

inch

mm

R1

1393

R1

1393


R1

1392

R1

1692

kWh/24h 2.51 2.51 2.85 3.48

N L – 2.3 4.1 6.7

kW (l/h) – (–) 34.3 (843) 34.3 (843) 34.3 (843)

Number of collectors ➔ 83/2, 86/2 ➔ 83/2, 86/2 ➔ 83/2, 86/2 ➔ 83/2, 86/2

Weight (net) kg 135 151 197 223

Max. operating pressure (solar circuit/heating water/DHW) bar 8/–/10 8/25/10 8/25/10 8/25/10

Max. operating temperature (solar circuit/heating

water/DHW)

°C 135/–/95 135/160/95 135/160/95 135/160/95

ØD

ØD Sp

Logalux SL…-2

Aw

VS

R1

M

EZ

R6

RS

R1

EK, EL

R14

VS1

R6

RS1

R6

H

H AW

H VS

H EZ

H RS

H EK, EL

H VS1

H RS1

8

Mg

Fixing clips M1 to M4 for temperature sensors

are shown offset in the side view.

EH

Plan view

A1

Bottom view

M 1–M4

RS1

VS1

A2


2.2.3 Combi cylinder Logalux P750 S and thermosiphon Combi cylinder

Logalux PL750/2S and PL1000/2S for DHW and central heating backup

Combi cylinders are designed for solar DHW heating in

combination with solar central heating backup. Their

compact design provides a favourable ratio between

external surface area and volume, meaning that

cylinder losses are minimised. All Logalux combi

cylinders are fitted with a 100 mm thick, CFC-free

insulation jacket made from flexible polyurethane

foam. They also have the advantage of simple

hydraulics with few mechanical components.

Selected features and characteristics of the Logalux

P750 S combi cylinder

● Internal DHW cylinder with Buderus thermoglazing

and magnesium anode for corrosion protection

● Large smooth tube indirect coils for optimum

utilisation of solar energy

● All connections on the DHW side are at the top, all

connections on the heating water and solar side are

on the cylinder side.

● Solar indirect coil in the heating water resulting in

no risk of scaling.

Design and operation of the Logalux P750 S combi

cylinder

There is a DHW cylinder in the top part of the thermal

store that is designed in accordance with the double

jacket principle. Cold water enters this section from

above. A solar indirect coil (item 7 ➔ 17/1) is

connected to the side of the lower section. This first

heats the heating buffer water (item 6 ➔ 17/1). After a

short time the DHW in the standby part at the top

(item 4 ➔ 17/1) reaches the set temperature, meaning

that DHW can be drawn from the top. The return

connection at the bottom of the standby section must

be used to reheat the DHW by a conventional boiler

(➔ 55/2). A return temperature limiter (➔ page 55) or

an HZG kit (➔ page 31) in combination with an SC40

solar control unit or solar function module FM443 is

recommended for connecting to the heating system.

17/1 Design of the Logalux P750 S combi cylinder

Caption



3 Sensor well

4 DHW standby part


6 Thermal store section




1

2

3

4

5

6

7

17

2


Selected features and characteristics of the

Logalux PL…/2S thermosiphon combi cylinder

● Internal DHW cylinder, conical straight-through

design, with Buderus thermoglazing and

magnesium anode for corrosion protection


heating, surrounded by DHW and running along

the entire height of the cylinder.

● Solar indirect coil integrated in the heating lance

and therefore also surrounded by DHW

● Significantly improved solar efficiency because the

solar heating system always heats the coldest

medium first

● All connections on the heating side are at the

cylinder side

● Solar connection and cold water inlet from below

Design and operation of the Logalux PL…/2S

thermosiphon combi cylinder

The Logalux PL750/2S and PL1000/2S thermosiphon

combi cylinders have a conical internal body (item 5

➔ 18/1) for DHW heating. There is a heating lance

suspended in the DHW that runs along the entire

height of the cylinder integrating the solar indirect coil

(item 6 and item 8 ➔ 18/1). The DHW cylinder can

therefore be heated in accordance with the

thermosiphon principle using this patented

stratification system. Subject to the availability of

adequate insolation, a sensible temperature level is

reached in the DHW cylinder after only a short time.

The DHW cylinder is surrounded by a thermal store

(item 4 ➔ 18/1) that is heated subject to the

stratification status in the internal body.

18

18/1 Design of the Logalux PL750/2S and PL1000/2S thermosiphon

combi cylinders

Caption



3 DHW outlet

4 Thermal store

5 Conical internal body


7 Gravity flaps





1

2

3

4

5

6

7

8

9

Cold water enters the lower section of the conical

internal body, so that the solar indirect coil and the

heating lance are in the coldest medium. The heating

lance has an opening at the bottom that enables the

cold drinking water to reach the solar indirect coil.

Here the water is heated by the solar heating system

and rises upwards in the lance without mixing with the

colder water that surrounds it.

There are various outlets with buoyancy-controlled

gravity flaps at different levels (Pos. 7 ➔ 18/1), through

which the heated medium reaches the layers with the

same temperature level in the cylinder (phase 1

➔ 19/1). After a delay, the heat is then transferred to

the buffer water in the outer body, enabling the

thermal store to be heated from top to bottom

(phase 2 ➔ 19/1). The solar system shuts down

(phase 3 ➔ 19/2) when the DHW cylinder and the

thermal store are both fully heated. Drawing hot water

gradually discharges the DHW cylinder from bottom to

top. Cold drinking water replaces the DHW drawn

inside the inner body. Because of the heat-up delay

between the inner and outer bodies, the internal

body can be supplied with solar heat again although

the outer thermal store is still fully heated (phase 4

➔ 19/2). This makes the system considerably more

efficient.

When the DHW cylinder has been almost completely

drawn off, both the solar indirect coil and the thermal

store reheat the DHW cylinder (phase 5 ➔ 19/3). If no

solar yield is available (e.g. during bad weather), the

thermal store can be reheated using a conventional

boiler (phase 6 ➔ 19/3) or may be combined with a

solid fuel boiler (engineering notes ➔ page 58). A

return temperature controller (➔ page 55) or an HZG

kit (➔ page 31) in combination with a SC40 solar

control unit or solar function module FM443 is

required for connecting to the heating system.

Caption (➔ 19/1 to 19/3)

AW DHW outlet


RS1 Solar return

VS1 Solar flow

RS2 Boiler return

VS3 Boiler flow

Other connections for alternative heating ➔ 20/1 to 21/2


EK

VS1

RS1

AW AW

EK

VS1

RS1

19/1 Heating the thermosiphon combi cylinder via the solar indirect

coil (1) and delayed thermal store heating (2)

EK

VS1

RS1

19/2 Drawing DHW from the fully heated cylinder (3) and reheating

the DHW cylinder (which is cold at the bottom) via the solar

indirect coil in spite of having a full thermal store (4)

EK

VS1

RS1

19/3 Reheating the DHW cylinder via the solar indirect coil and the

thermal store (5) and reheating via a conventional boiler in the

event of insufficient solar yield (6)


VS3

RS2

Phase 1 Phase 2

AW AW

VS3

RS2

EK

VS1

RS1


AW AW

VS3

RS2

EK

VS1

RS1


VS3

RS2

VS3

RS2

VS3

RS2

19

2


Dimensions and specification for the Logalux P750 S combi cylinder

20/1 Dimensions and connections of the Logalux P750 S combi cylinder for DHW heating and as central heating backup

Logalux combi cylinder P750 S

Cylinder diameter with/without insulation ØD/ØD Sp mm 1000/800

Cold water inlet ØEK inch R6"

Draining the heating system ØEL inch R14

Cylinder return on the solar side ØRS1 inch R1

Cylinder flow on the solar side ØVS1 inch R1

Return, oil/gas fired/condensing boilers for DHW heating ØRS2 inch R14

Flow, oil/gas fired/condensing boiler for DHW heating ØVS3 inch R14

Return, oil/gas fired boiler ØRS3 inch R14

Return, heating circuits ØRS4 inch R14

Flow, heating circuits ØVS4 inch R14

Flow, solid fuel boiler ØVS2 inch R14

DHW circulation inlet ØEZ inch R 6"

DHW outlet ØAW inch R 6"

Capacity l 750

Capacity, thermal store only l ≈400

Capacity, DHW l ≈160

Content, solar indirect coil l 16.4

Size, solar indirect coil m 2 2.15


Performance factor 2)

Continuous output at 80/45/10 °C 3)

20/2 Specification for the Logalux PL750 S combi cylinder for DHW and central heating backup




20

M1

M2

M3

M4

M5

M6

M7

M8

ØD

ØD sp

M

VS2

VS3

RS2

VS 4

VS1

RS3

RS1

RS4/EL

1920

1668

1513

1033

911

788

500

370

215

8

kWh/24h 3.7


N L

M 1–M 8

EK

EZ/AW

kW (l/h) 28 (688)

Number of collectors ➔ 86/1

Weight (net) kg 262

Max. operating pressure (solar indirect coil/heating water/DHW) bar 8/3/10

Max. operating temperature (heating water/DHW) °C 95/95

AW/EZ

M

MB1

550

Plan view Bottom view

MB1 DHW measuring point

M1–M8 Temperature measuring

points; assignment depending

on components, hydraulics

and control units in the system

3

640

Fixing clips M1 to M8 for temperature

sensors are shown offset in the side view.


Dimensions and specification of the Logalux PL…/2S thermosiphon combi cylinder

M1

M2

M3

M4

M5

M6

M7

M8

EL2

21/1 Dimensions and connections of the Logalux PL…/2S thermosiphon combi cylinder

Logalux thermosiphon combi cylinder PL750/2S PL1000/2S

Cylinder diameter with/without insulation ØD/ØD Sp mm 1000/800 1100/900

Cold water inlet ØEK inch R1 R1

Draining the heating system ØEL inch R14 R14

Solar/DHW draining ØEL1/ØEL2 inch R 6" R 6"

Cylinder return on the solar side ØRS1 inch R 6" R 6"

Cylinder flow on the solar side ØVS1 inch R 6" R 6"

Return, oil/gas fired/condensing boiler for DHW heating ØRS2 inch R14 R14

Flow, oil/gas fired/condensing boiler for DHW heating ØVS3 inch R14 R14

Return, oil/gas fired boiler ØRS3 inch R14 R14

Flow, oil/gas fired boiler ØVS5 inch R14 R14

Return, heating circuits ØRS4 inch R14 R14

Flow, heating circuits ØVS4 inch R14 R14

Return, solid fuel boiler ØRS5 inch R14 R14

Flow, solid fuel boiler ØVS2 inch R14 R14

DHW circulation inlet ØEZ inch R 6" R 6"

DHW outlet ØAW inch R 6" R 6"

Immersion heater ØEH inch R15 R15

Capacity l 750 940

Capacity, thermal store only l ≈275 ≈380

Capacity, DHW total/standby part l ≈300/≈150 ≈300/≈150

Content, solar indirect coil l 1.4 1.4

Size of the solar indirect coil m 2 1.0 1.2


Performance factor 2)

ØD

ØD sp

Continuous output at 80/45/10 °C 3)

M

VS2

VS3

RS2

VS4

EH/VS5

RS3

RS4

RS5/EL

VS1

RS1/EL1

EK

1920

550

1668

AW/EZ

1513

EH

M

MB1

MB2

RS1

EK

1033

911

788

500

370

M 1–M8

EZ/AW

Mg

640

VS1

EL2

215


170

100 MB1 DHW measuring point


8

MB2 Solar measuring point


points; subject to system

configuration

sensors are shown offset in the side view.

kWh/24h 3.7 4.57

N L 3.8 3.8

kW (l/h) 28 (688) 28 (688)

Number of collectors ➔ 86/1 ➔ 86/1

Weight (net) kg 252 266

Max. operating pressure (solar indirect coil/heating water/DHW) bar 8/3/10 8/3/10

Max. operating temperature (heating water/DHW) °C 95/95 95/95

21/2 Specification for the Logalux PL…/2S combi cylinder for DHW and central heating backup





21

2


2.2.4 Duo FWS combi cylinder


● Internal corrugated stainless steel pipe (material

W1.4404) for hygienic DHW heating

● High degree of DHW convenience through a

corrugated pipe with a large transfer area

● Large smooth-tube indirect coil for optimum solar

utilisation

● Solar indirect coil in the heating water preventing a

risk of scaling

● Slimline version for easy handling

● All DHW and heating water connections are on the

cylinder side

● Sensor terminal strip for variable sensor positioning


An internal corrugated stainless steel pipe (item 2 ➔ 22/1)

is wound onto a supporting structure. The corrugated

pipe has an extremely large surface in its upper area to

achieve a high degree of DHW convenience. The lower

section is sized so that the thermal store is efficiently

cooled by the cold water. This optimises the solar yield.

If no solar yield is available, the thermal store can be

reheated using a conventional boiler or can be

combined with a solid fuel boiler. The thermal store

temperature (top) indirectly specifies the DHW

temperature and has a major influence on the drawing

capacity (DHW convenience). A return temperature

controller (➔ page 55) or an HZG kit (➔ page 41) in

combination with the FM443 solar function module

FM443 or the SC40 solar control unit is required for

connecting to the heating system.

22

22/1 Design of the Duo FWS combi cylinder

Caption

1 DHW outlet

2 corrugated stainless steel pipe

3 Thermal store section



Dimensions, connections and specification ➔ 23/1 and 23/2


1

2

3

4

5

Dimensions and specification of the Duo FS combi cylinder

AB

EK

ØD

Side view with indirect coil and

corrugated pipe heat exchanger

VS2

VS3

23/1 Dimensions and specification of the Duo FWS combi cylinder


Combi cylinder Duo FWS750 Duo FWS1000

Cylinder diameter with thermal insulation 80 mm

120 mm

VS4

RS2

VS1

RS5

RS3

RS1

RS4

H

120

ØD W

ØD W

Cylinder diameter without thermal insulation Dia. D mm 750 800

Height H mm 1948 2208

Height with thermal insulation 80 mm HW mm 1985

2260

120 mm HW mm 2025

2300

Cold water inlet ØEK

inch R14

R14

HEK mm

270

280

Cylinder return on the solar side ØRS1

inch

G1

G1

HRS1 mm

370

380

Cylinder flow on the solar side ØVS1

inch

G1

G1

HVS1 mm

930

980

Return, oil/gas fired/condensing boiler for DHW heating/heating ØRS2

inch G15

G15

circuit flow/pellet boiler return

HRS2 mm 1030

1080

Return, oil/gas fired/condensing boiler for DHW heating ØRS5

inch G15

G15

(alternative)

HRS5 mm

830

880

Flow, oil/gas fired/condensing boiler for DHW heating ØVS3

inch G15

G15

HVS3 mm 1570

1830

Return, heating circuits ØRS3

inch G15

G15

HRS3 mm

470

480

Flow, pellet system heating circuits ØVS4

inch G15

G15

HVS4 mm 1230

1280

23/2 Specification of Duo FWS combi cylinder

Continued on the next page

48

A A

H AB

H EK

Ø600

A – A

mm

mm

910

990


H VS2

H VS3

H VS4

HRS2 HVS1 HRS5 HRS3 HRS1 HRS4 Side view without indirect coil or

corrugated pipe heat exchanger

Plan view without indirect coil

1450

G1½

960

1040

120

Side view without corrugated

pipe heat exchanger

23

2


Combi cylinder Duo FWS750 Duo FWS1000

Return, solid fuel boiler ØRS4

HRS4 Flow, pellet boiler/solid fuel boiler ØVS2

HVS2 DHW outlet ØAB

HAB 24

inch

mm

inch

mm

inch

mm

G15

280

G15

1660

R14

1670


G15

290

G15

1920

R14

1930

Cylinder capacity l 750 1000

Capacity, corrugated stainless steel pipe (DHW) l 38 38

Size of the corrugated stainless steel pipe m 2 7 7

Content, solar indirect coil l 11 13

Size of the solar indirect coil m 2 2.2 2.7

Performance factor1) at a boiler output of 30 kW

at a boiler output of 45 kW

Drawing capacity2) Draw-off rate 10 l/min

Draw-off rate 20 l/min

N L

N L

Number of collectors ➔ 86/1 ➔ 86/1

Weight (net) kg 240 270

Max. operating pressure (heating water/DHW/solar circuit) bar 3/10/10 3/10/10

Max. operating temperature (heating water/DHW/solar circuit) °C 95/95/110 95/95/110

23/2 Specification of Duo FWS combi cylinder

1) With reference to DIN 4708 T3

2) Without reheating, cylinder partially heated at 70 °C, DHW temperature 45 °C

l

l

3.2

–

275

218

–

4.2

407

324


2.2.5 Thermosiphonthermal stores Logalux PL750, PL1000 and PL1500

as heating thermal stores


● Suitable for solar arrays with up to 8 collectors (with

Logalux PL750 and PL1000) or up to 16 collectors

(with Logalux PL1500) and for heat supplied from

other sustainable energy sources


heating

● Buoyancy-controlled plastic gravity flaps

● Extremely suitable for use as a heating thermal store

because of its large buffer volume (e.g. in dualcylinder

systems)

● Encased in 100 mm thick, CFC-free insulation jacket

made from flexible polyurethane foam in a blue

jacket


This sheet steel thermosiphon thermal store is

available in three versions:

● Logalux PL750 with a content of 750 l



The Logalux PL1500 thermosiphon thermal store has

two solar indirect coils.

➔ Detailed description of the thermosiphon

equipment ➔ page 14 ff.



2 Cylinder


4 Gravity flap


25/1 Logalux PL750 and PL1000 thermosiphon thermal stores

25/2 Logalux PL1500 thermosiphon thermal store


1

2

3

4

5

V

R

25

2


Dimensions and specification of the Logalux PL750, PL1000 and PL1500 thermosiphon thermal stores

26/1 Dimensions and connections of the Logalux PL…thermosiphon thermal store

Logalux thermosiphon thermal store PL750 PL1000 PL1500

Cylinder diameter with/without insulation ØD/ØD Sp mm 1000/800 1100/900 1400/1200

Height H mm 1920 1920 1900

Cylinder return on the solar side H RS1 mm 100 100 100

Cylinder flow on the solar side H VS1 mm 170 170 170

Cylinder return ØRS2–RS4

HRS2 HRS3 HRS4 Cylinder flow ØVS2–VS4

HVS2 HVS3 HVS4 Feet centres A1

A2

26

M1

M2

M3

M4

ØD

ØDSp E

R 5

VS2

VS3

VS 4

RS 4

RS2

RS3

VS1

R6

RS1

R6

Side view

Logalux PL750, PL1000, PL1500

M

H

H E

H VS2

H VS3

HVS4 HRS4 H RS2

H RS3

H VS1

H RS1

8

inch

mm

mm

mm

inch

mm

mm

mm

mm

mm

R14

370

215

1033

R14

1668

1513

1033

555

641


R14

370

215

1033

R14

1668

1513

1033

555

641

Cylinder capacity l 750 1000 1500

Content, solar indirect coil l 2.4 2.4 5.4

Size of the solar indirect coil m 2

3 3 7.2


kWh/24h 3.7 4.57 5.3

Number of collectors ➔ 86/3 ➔ 86/3 ➔ 86/3

Weight (net) kg 212 226 450

Max. operating pressure (solar indirect coil/heating water) bar 8/3 8/3 8/3

Max. operating temperature (heating water) °C 110 110 110

M 1–M 4

26/2 Specification of Logalux PL... thermosiphon thermal store for solar central heating backup


M

E


Logalux PL750, PL1000

A1


points; assignment subject to

system components,

hydraulics and control units


sensors are shown offset in the side view.

RS1

VS1

A2

Bottom view

Logalux PL1500

VS2–VS4 Use subject to system

components and hydraulics

RS2–RS4 Use subject to system

components and hydraulics

R15

522

284

943

R15

1601

1363

943

850

980

RS1

VS1

2.3 Solar control unit

2.3.1 Selection aids

Selection and standard delivery of control unit

Various control units and function modules are

available depending on the application area and the

boiler control unit:

● Heat source with Logamatic EMS control system:

– Solar heating systems for DHW heating:

Programming unit RC35 with

Solar function module SM10 (➔ page 29)

– Solar heating systems for DHW and central

heating backup:

Logamatic 4121 control unit with

Solar function module FM443 (➔ page 31)

2.3.2 Control strategies

Temperature differential control

In "Automatic" mode the solar control unit monitors

whether the solar cylinder can be heated with solar

energy. To do this, the control unit compares the

collector temperature using the FSK sensor and the

temperature in the lower area of the cylinder (FSS

sensor). If there is adequate insolation, i.e. the set

temperature differential between the collector and the

cylinder is exceeded, the solar circuit pump starts and

the cylinder is heated.

After a long period of insolation and low DHW

consumption, high temperatures occur in the cylinder.

The solar circuit control unit switches the solar circuit

pump off when the maximum cylinder temperature is

been reached during heating.

Temperature differential control unit SC20 for one consumer

V

FSK

SP1

Logasol

SKN3.0

SKS4.0

AW

SP1 Logasol

SKN3.0

SKS4.0

AW

Twin-Tube

Twin-Tube

Logasol

KS0105SC20

R

MAG

230 V

50 Hz

FE

AW

FSX

FSS

WWM


SL400-2, SL500-2

VS

RS

EK

V

FSK


Logasol

KS0105SC20

R

MAG

230 V

50 Hz

FE

AW

FSX

FSS

WWM


SL400-2, SL500-2

● Heat source with Logamatic 2107 control unit:


● Heat source with Logamatic 4000 control unit:


● Heat source with third party control unit:

Control unit SC20 or SC40 (➔ page 34 f.)

The standard delivery of the solar function modules or

the SC20 and SC40 control units includes:

● One collector temperature sensor FSK

(NTC 20 K, Ø6 mm, 2.5m lead) and

● One collector temperature sensor FSS

(NTC 10 K, Ø9.7 mm, 3.1m lead)

The maximum cylinder temperature can be adjusted

at the control unit.

If there is little insolation the pump speed is reduced to

maintain a constant temperature differential. This

allows the cylinder to be heated with low power

consumption. The solar control unit does not switch

the pump off until the temperature differential has

dropped below the minimum temperature differential,

and the speed of the circulation pump has already

been reduced to its minimum value by the solar control

unit.

If the cylinder temperature is inadequate to provide

DHW convenience a heating circuit control unit

ensures the reheating of the cylinder by a conventional

heat source.

27/1 Function diagram of solar DHW heating with temperature differential control unit SC20 and flat-plate collectors with the system enabled

(left) and conventional reheating if there is insufficient insolation (right)


VS

RS

EK

KS0105SC20 Logasol complete station

KS0105 with integral solar

control unit SC20

FSK Collector temperature sensor

FSS Cylinder temperature sensor

(bottom)

FSX Cylinder temperature sensor

(top; optional)

Other abbreviations ➔ page 148

27

2


Double-Match-Flow

Solar function modules SM10, FM443 and control units

SC20 and SC40 provide optimised heating of the

thermosiphon cylinder using a special high-flow/lowflow

strategy. The solar control unit monitors the

cylinder heating status using a threshold sensor

located in the centre of the cylinder. Depending on the

heating status the control unit switches to high-flow or

low-flow operation, whichever is currently the best.

This changeover facility is known as Double-Match-

Flow.

Prioritised heating of the standby part

with low-flow operation

In low-flow operation the control unit attempts to

achieve a temperature differential between the

collector (FLK sensor) and the cylinder (FSS sensor).

This is done by varying the flow rate via the solar

circuit pump speed.

The standby part of the thermosiphon cylinder is

heated with priority using the resulting high flow

temperature. Conventional cylinder reheating is

therefore suppressed as much as possible conserving

primary energy.

Standard thermosiphon cylinder heating

in high-flow operation

The solar control unit increases the speed of the solar

circuit pump if the standby part of the cylinder has

been heated up to 45 °C (FSX threshold sensor). The set

temperature differential between the collector (FSK

sensor) and the lower cylinder area (FSS sensor) is 15 K.

The system is then operating with a lower flow

temperature. With this operating mode, less heat is lost

in the collector circuit, and system efficiency is

optimised during cylinder heating.

Subject to sufficient collector output being available,

the control system reaches the set temperature

differential and continues to heat the cylinder with

optimum collector efficiency. If the set temperature

differential can no longer be achieved, the control

system uses the available solar heat at the slowest

pump speed until the shut-off criterion is reached. The

thermosiphon cylinder stores the heated water in the

correct temperature layer (➔ 28/3). If the temperature

differential drops below 5 K, the control unit switches

the solar circuit pump off.

Caption (➔ 28/1 to 28/3)

ΔJ Temperature differential between collector (FSK sensor)

and lower cylinder area (FSS1 sensor)


V Solar flow


28

Δϑ = 30 K

28/1 Prioritised heating of the standby section of a thermosiphon

cylinder with Δϑ = 30 K using a variable, slow pump speed in

low-flow operation, until 45 °C is reached at the FSX threshold

sensor

Δϑ = 15 K

FSS1

V

28/2 Heating of a thermosiphon cylinder with Δϑ = 15K with strong

insolation using a fast pump speed in high-flow operation

Δϑ < 15 K

28/3 Heating of a thermosiphon cylinder with the maximum

possible flow temperature (Δϑ < 15 K) using the slowest pump

speed with low insolation


AW

R

AW

FSS1

V

R

AW

FSS1

V

R

FSX

EK

FSX

FSX

EK

VS

RS

VS

RS

VS

RS

Solar optimisation function of function modules SM10, FM244 and FM443

With the solar optimisation function, conventional

energy is conserved and solar yield is increased by

integrating the solar control in the boiler control unit.

The consumption of reheating (primary) energy for

heating DHW is reduced by up to 10% compared to

conventional solar control units. The number of burner

starts is reduced by up to 24%.

60

With the solar optimisation function the control unit

captures whether

ϑSp ● solar yield is available, and whether

˚C

● the stored amount of heat is sufficient to provide

45

DHW.

The general objective of the control unit is to reduce the

temporary set DHW temperature as much as possible

whilst at the same time ensuring user convenience, to

prevent reheating by the boiler.

The standby volume of the cylinder is designed to cover

the DHW demand at a storage temperature of 60 °C. If

the lower region of the cylinder is heated by solar

energy, then the boiler can heat the water to useful

temperatures that much more rapidly. Higher

temperatures in the lower cylinder region therefore

enable a reduction of the set reheating temperature,

saving primary energy. The lowest acceptable DHW

temperature can be set by the user using the

"MINSOLAR" parameter within a range of 30 °C to

54 °C. With DHW heating using the flow-through

principle, this temperature relates to the water in the

upper section of the thermal store.

2.3.3 Solar control units and function modules


Logamatic EMS control system with solar function module SM10

Features and characteristics

● Control of solar DHW heating for heat sources with

EMS and control unit RC35

● Up to 10% primary energy saving and up to 24%

fewer burner starts compared to conventional solar

control units by means of system integration in the

heating control unit (solar optimisation function)

5:30 8:00 10:10 17:00 22:00

29/1 "Solar yield optimisation" control function

Caption

ϑ Sp DHW temperature in the cylinder

t Time

a Insolation

b DHW temperature at the top of the cylinder

c DHW temperature at the bottom of the cylinder

d Set DHW temperature

➊ First draw-off (reheating)

➋ Second draw-off (adequate solar yield)

➋ Third draw-off (adequate cylinder temperature)

● Prioritised heating of the standby section of

thermosiphon cylinders and energy-optimised

operation control using Double-Match-Flow

(FSX sensor also used as threshold sensor)

● Optional dual-cylinder systems (cylinders connected

in series) for DHW heating in combination with

KR-VWS (daily heating of pre-heating stage and

stratification) or SC10 (water transfer only)


a

b

c

t

d

29

2


● Different versions:

– SM10 inside: SM10 integrated in

Logasol KS0105SM1 complete station

– SM10: Module for wall mounting or integration in

a slot in the heat source (please observe heat

source details), only suitable for combining with

Logasol KS01 complete stations without control

system


1 Access to equipment fuse

2 Solar function module SM10

3 Access to replacement fuse

4 Indicator (LED) for operation and alarm indication

5 Wall retainer

6 Terminal cover

Logamatic 2107 control unit with solar function module FM244


● Combined boiler/solar control unit for low

temperature boilers with low and moderate heating

demand and solar DHW heating

● Up to 10 % primary energy saving and up to 24%



Logamatic 2107 control unit (solar optimisation

function)

● Optional solar heating systems for central heating

backup in combination with the RW return

temperature limiter

● Optional dual-cylinder systems (cylinders connected

in series) for DHW heating in combination with

SC10 (water transfer only)

● Only for combining with Logasol KS01... complete

stations without control unit

● Solar function module FM244 is integrated in

control unit 2107

30

1 2 3 4

30/1 Solar-function module SM10 for wall mounting


Components that can be used for solar operation

(with solar function module FM244):

1 Digital display

2 User interface with cover

3 Rotary selector

4 Operating mode buttons

Additional boiler control components:

5 Control unit ON/OFF switch

6 Burner control selector switch

7 Control unit power fuse

8 Flue gas test button (chimney sweep)

9 Boiler control thermostat

10 Boiler high limit safety cut-out


1

2 3 4

6 5

10 9 8 7 6 5

30/2 Boiler control unit Logamatic 2107 with fitted solar-function

module FM244


Logamatic 4000 control system with solar function module FM443


● Solar function module FM433 makes enables the

control of DHW heating or DHW and central

heating backup in systems with a maximum of two

solar consumers (cylinders)

● Up to 10% primary energy saving and up to 24%



heating control unit (solar optimisation function)

● Prioritised heating of the standby part of


operation control using Double-Match-Flow (FSX

sensor also used as threshold sensor)

● Can be used for EMS heat sources with the

Logamatic 4121 control unit; required for solar

heating systems for DHW heating with central

heating backup because of the external heat

detection function

● Optional integrated heat meter function in

combination with WMZ1.2 accessory kit

● Entire system, including the solar control unit, can

be operated from the living room using the MEC2

programming unit

● Only for combining with Logasol KS01... complete

stations without control unit

● Stratification of dual-mode cylinders

● Transfer of hot water in dual-cylinder systems for

DHW heating

● Intelligent buffer management

● Statistics function

● Solar function module FM443 can be integrated in a

digital control unit of the Logamatic 4000 modular

control system

31/1 Solar function module FM443

Caption

1 Connection plug

2 LED indicator, module fault

3 LED maximum collector temperature

4 LED solar circuit pump 2 (secondary pump) running

5 LED solar circuit pump 2 running or three-way diverter valve in

solar circuit 2 position

6 LED three-way diverter valve in solar circuit 1 position

7 Manual switch solar circuit selection

8 PCB

9 Manual switch, solar circuit function 1

10 LED three-way diverter valve in direction "Central heating

backup via thermal store off" or "Pump off" (bypass operation)

11 LED three-way diverter valve in direction "Central heating

backup via thermal store on" or "Pump running" (thermal store

operation)

12 LED solar circuit pump 1 running

13 LED maximum temperature in cylinder 1


13

12

11

10

9

1

2

3

4

5

6

7

8

31

2


Stratification

If the pump function is set to "Stratification" with dualmode

solar cylinders, the pump that is connected is

used to heat up the solar pre-heating stage to 60 °C

once every day, if required, to provide pasteurisation in

accordance with DVGW Code of Practice W 551 or for

the pasteurisation of the solar pre-heating stage.

Transfer of hot water

If the pump function is set to "transfer", with cylinders

connected in series the connected pump is used to

transfer the water from the solar cylinder and the

cylinder that is heated via the boiler. As soon as the

solar cylinder is hotter than the cylinder that is heated

by the boiler, pump PUM is switched on and the water

in the cylinders is transferred.

This pump is also used to heat the solar cylinder, i. e.

the solar pre-heating stage, to 60 °C once every day if

required to pasteurise in accordance with the DVGW

Code of Practice W 551 or for the pasteurisation of the

solar pre-heating stage.

32

32/1 Water transfer in a circuit with one solar cylinder

32/2 Transfer of hot water between cylinders connected in series


FSS

FSX

FSS

PUM

M

PUM

FSX

Logamatic SC10 solar control unit


● Autonomous solar control unit with temperature

differential control for simple solar heating systems

● Easy operation and function control of the

temperature differential control unit with two sensor

inputs and one switching output

● Controller for wall mounting, function and

temperature displayed via segment LCD

● Can be used to transfer hot water between two

cylinders, e.g. the heat stored in the pre-heating

cylinder can be transferred to the standby cylinder

● Used for buffer bypass circuits in solar heating

systems for central heating backup. The

temperature comparison results in the volume flow

being routed either to the thermal store or to the

heating return. This function can also be used in

combination with wood burning boilers.

Temperature differential control

The required temperature differential can be set to

between 4 K and 20 K (factory setting 10 K). The pump

starts if the set temperature differential between the

collector (FSK sensor) and the bottom of the cylinder

(FSS sensor) is exceeded. The control unit switches the

pump off when the temperature differential drops

below this value again.

A maximum cylinder temperature of between 20 °C

and 90 °C can also be set (factory setting 60 °C). When

the cylinder reaches the maximum temperature (FSS

sensor), the control unit switches the pump off.

Special displays and controls of the SC10 solar

control unit

The temperature settings can be viewed on the control

unit display. The current values of connected

temperature sensors 1 and 2 are displayed together

with the respective sensor number.

Standard delivery

The standard delivery includes:


(NTC 20K, Ø6 mm, 2.5m lead)


(NTC 10K, Ø9.7 mm, 3.1m lead)


5

33/1 Logamatic SC10 solar control unit

Caption

1 Segment LCD

2 Direction key "Up"

3 Function key "SET"

4 Direction key "Down"

5 Operating mode keys (concealed)

Application Recommended switch-on

temperature differential

K

Operating a solar

10

heating system

Buffer bypass circuit

(three-way valve)

6

Transfer between

two cylinders

10

33/2 Recommended switch-on temperature differential


1

2

3

4

33

2




● Autonomous solar heating system control unit for

DHW heating, independently of the heat generator

control unit

● Prioritised heating of the standby part of


operation control using Double-Match-Flow (FSX

threshold sensor available as accessory, AS1 or

AS1.6 cylinder connection kit)


– SC20 integrated in the Logasol KS0105 complete

station

– SC20 for wall mounting in combination with

Logasol KS01

● Easy operation and monitoring of single consumer

systems with three sensor inputs and one switching

output for one variable speed solar circuit pump

with variable lower modulation limit

● Backlit segment LCD with animated system

pictograph. Different system values (temperature

values, hours run, pump speed) can be called up in

automatic mode

● The pump is switched off when the maximum

collector temperature is exceeded. The pump will

not start if the temperature drops below the

minimum collector temperature (20 °C), even if the

other switch-on conditions are met

● With the tube collector function the solar circuit

pump is activated briefly every 15 minutes from a

collector temperature of 20 °C to pump warm solar

fluid to the sensor


control unit

As well the above parameters, the digital display also

allows the speed of the solar circuit pump to be

displayed in percent.

The following values can be optionally recorded with

the FSX sensor accessory (cylinder connection kit AS1):

● The top cylinder temperature in the standby part of

the DHW cylinder or

● The mid-cylinder temperature for Double-Match-

Flow (here the FSX threshold sensor)




(NTC 20K, Ø6 mm, 2.5m lead)



34



1 System pictograph

2 Segment LCD


4 Function key "OK"

5 Direction key "Back"

34/2 Segment LCD of the Logamatic SC20 solar control unit


1 Display "Maximum collector temperature or minimum collector

temperature"

2 "Temperature sensor" symbol

3 Segment LCD

4 Multifunction display (temperature, hours run, etc.)

5 "Maximum cylinder temperature" display

6 Animated solar circuit


6

1

min/max

5

1

2

T1 T1

T3 T3

max max

T2 T2

2

ΔT T on on

-

+

4

3

3

max max

DMF DMF

reset reset

�i

❄

˚C

%

h

4

5

Control unit function

The required temperature differential between the two

connected temperature sensors can be set to between

7 K and 20 K in automatic mode (factory setting 10 K).

The pump starts if this temperature differential is

exceeded between the collector temperature sensor

(FSK sensor) and the bottom of the cylinder (FSS

sensor). An animated display of the movement of the

solar fluid appears on the display (➔ 34/2, item 6). The

efficiency of the solar system is increased by the

variable speed control provided by the SC20. A

minimum speed can also be stored. When the

temperature differential drops below this value again

the control unit switches the pump off. To protect the

pump, it is automatically activated for about 3 seconds

approximately 24 hours after it was last operated

(pump kick).

The different system values (temperature values, hours

run, pump speed) can be called up using the rotary



● Autonomous solar heating system control unit for

different applications, independent of the heat

source, with 27 selectable solar heating systems,

from DHW heating and central heating backup to

swimming pool water heating


– SC40 integrated in the Logasol KS 0105 complete

station

– SC40 for wall mounting in combination with

Logasol KS01

● Easy operation and monitoring of systems with up

to four consumers, eight sensor inputs and five

switching outputs, two of which are for variable

speed solar circuit pumps with adjustable lower

modulation limit

● Backlit LCD graphic with depiction of the selected

solar system. Different system values (pump status,

temperature values, selected function, fault

messages) can be called up in automatic mode

● RS232 interface for transferring data and integral

heat meter (accessory WMZ 1.2 required)

● Integrated circuit for buffer bypass circuit in solar

heating systems for central heating backup

● Daily heating of the pre-heating cylinder to provide

pasteurisation

● In solar heating systems with a pre-heating cylinder

and standby cylinder, the cylinder contents are

transferred by actuating a pump as soon as the

temperature of the standby cylinder drops below the

temperature of the pre-heating cylinder

● Priority definition with two consumers in the solar

heating system and actuation of the 2nd consumer

via a pump or a three-way diverter valve


selector (➔ 34/1, item 3). The temperature values are

assigned in the pictograph using item numbers.

The SC20 solar control unit also enables the setting of

a maximum cylinder temperature between 20 °C and

90 °C, which is displayed in the system pictograph, if

required. Reaching of the maximum or minimum

collector temperature is also visually indicated on the

segment LCD, and the pump switched off if they are

exceeded. If the temperature drops below the

minimum collector temperature the pump will not

start, even if the other switch-on conditions are met.

The tube collector function that is integrated in the

SC20 provides a pump kick to optimise the operation

of vacuum tube collectors.

The combination of the Double-Match-Flow function

(only possible with additional FSX sensor as accessory

to the AS1 cylinder connection kit) and the speed

● Optional actuation for two solar heating circuit

pumps for a separate operation of two collector

arrays, e.g. with east/west orientation

● Actuation of an external plate-type heat exchanger

for heating the solar cylinder

● Collector array cooling for reducing the stagnation

times by means of adapted solar circuit pump

operation

● With the tube collector function, the solar circuit

pump is activated briefly every 15 minutes at a

collector temperature from 20 °C to pump warm

solar fluid to the sensor


control unit

The relevant system pictograph is selected from the 27

pre-programmed hydraulic schemes, and subsequently

saved to the control unit.




(NTC 20 K, Ø6 mm, 2.5m lead)


(NTC 10 K, Ø9.7 mm, 3.1m lead)


35

2


Control unit function

The control unit is divided into two operating levels.

Various system values (temperatures, hours run, pump

speed, amount of heat and bypass valve setting) can be

displayed at the display level. Functions can be selected

and settings made and modified at the service level

The system selection function is used to select the

standard system at the SC40 solar control unit and the

hydraulic scheme of the solar heating system. The

selected hydraulic scheme defines the system

configuration and function. The selection is made from

systems for DHW heating, central heating backup or

swimming pool water heating as per the system

pictographs (➔ 37/1). The settings contain all decisive

temperatures, temperature differentials, pump speeds

and optional functions, e.g. tube collector functions,

capturing the heat amount, cylinder water transfer,

daily heating of the pre-heating volume, Double-

Match-Flow etc. required for the system operation. The

marginal conditions for controlling two collector

arrays with different orientation and heating the

cylinder via an external heat exchanger are also

entered here.

The SC40 further provides the following extensions via

the control facilities of the SC20 solar control unit:

● Central heating backup with buffer bypass

actuation

● Swimming pool water heating using a plate-type

heat exchanger

● Actuation of a 2nd consumer via a pump or threeway

diverter valve

● Actuation of a water transfer pump with cylinders

connected in series

● East/west control for separate operation of two

collector arrays

● Daily heating of pre-heating cylinder for

pasteurisation purposes

36

● Integral capturing of the heat amount with flow

meter

● Cylinder heating via an external heat exchanger

● Data transfers via an RS232 interface

● Collector array cooling for reducing stagnation

times

● Rapid diagnosis and simple function tests

Detailed descriptions of special functions ➔ page 41 ff.


Caption

1 System pictograph

2 Segment LCD


4 Function key "OK"

5 Direction key "Back"


1

2

3

4

5


Logamatic SC40 solar control unit, system and function overview

Hydraulic

no.

Domestic hot water heating

T1

T2

T3

T4

T5

T6

T7

WMZ

S8

WMZ

S8

WMZ

R1

R1

S1

S7

System pictograph Selectable additional functions, subject to the hydraulic scheme

S1

S7

S1

WMZ

S5

R1 WMZ S8 R5

S8

WMZ

S8

WMZ

S8

R1

R1

R1

R1

S1

S7

S7

S1

S7

S7

S1

S1

S6

R5

S6

S5

S5

R4

R2

S7

S8

R2

R2

S6

S3

S4

R5

S3

S2

S3

S4

S3

S4

R2 S2

S2

S3

S4

R2 S2

Double-Match-

Flow

●

(S4)

●

(S4)

●

(S4)

●

(S4)

●

(S3)

●

(S3)

●

(S3)

Cooling

function

●

(S1, S2)

●

(S1, S2, S5)

●

(S1, S2)

●

(S1, S2, S5)

●

(S1, S2)

●

(S1, S2, S5)

●

(S1, S2)

37/1 Logamatic SC40 solar control unit, system and function overview

Symbols: ● Function available, – function unavailable, (S..) required temperature sensors

R3

R3

S2 S4

S3

R3

S2 S4

S3

R3

S2 S4

R3

R3

R3

Daily heating Heat exch. antiicing

protection

●

(S2, S3)

●

(S2, S3)

●

(S2, S3)

●

(S2, S3)

●

(S2, S3, S4)

●

(S2, S3, S4)

●

(S2, S3, S4)


–

–

●

(S6)

●

(S6)

–

–

●

(S6)


37

2


38

Hydraulic

no.

T8

Central heating backup

H1

H2

H3 –

H4 –

H5

H6

R1

WMZ

R1

WMZ

S8

R1

WMZ

S8

WMZ

S8

S1

S8

R1

S7

R1


S5

S1

S7

R4

WMZ

S8

S1 S555

S7

WMZ

S8

R4

R1

S1

S1

S1

S7

S7

S5

R4

S6

R5

R2

S4

S2

S4

S6

S2

R2

S7

R3

S3

R2

S4

S6

S2

S4

S6

S2

R2 S2

S6

WMZ

S8

R4 S5

R1

R2

S1

S7

S4

S2

S6

S4

S6

S5

R3

Double-Match-

Flow

●

(S3)

●

(S4)

●

(S4)

●

(S4)

●

(S4)

Cooling

function

●

(S1, S2, S5)

●

(S1, S2)

●

(S1, S2, S5)

●

(S1, S2)

●

(S1, S2, S5)

●

(S1, S2, S5)

●

(S1, S2, S5)



R3

S2 S4

R5

R3

R5

R5

R5

S3

R5

R5

S3

S3

S3

S3

S3

●

(S2, S3, S4)



protection

●

(S6)

– –

– –

–

–

●

(S2, S4)

●

(S2, S4)

●

(S7)

●

(S7)

–

–

Hydraulic

no.

H7 –

H8 –

H9 WMZ

S2

–

H10

H11

H12

WMZ

R1

S8

R1

S1 S5

WMZ

S1

S7

S8

S8 R1

R1

WMZ

R1

H13 –

R1

R1

WMZ

R4



S7

R2

R4

S1

S7

S1

S7

R4

S2

S4

R3

S4

R3

WMZ

S8 R4

S1 S5

S8

WMZ

S1

S7

S8

S1 S5

S8

S7

S7

R4

R3

R2

S2

R2

S6

S2

R4

S2

S6

R5

R4

S5

R2

S6

S5

S6

S2

S2

S6

R5

R2

S6

S4

S6

S5

S3

S4

S3

Double-Match-

Flow

●

(S6)

●

(S6)

●

(S5)

Cooling

function

●

(S1, S2, S4, S5)

●

(S1, S2, S5)

●

(S1, S2, S5)

●

(S1, S2, S4)

●

(S1, S2, S4, S5)

●

(S1, S2, S3)

●

(S1, S2, S3, S5)



S4

R3

R3

S4

S3

S4

R2

S3

R3

R5

R5

R5

R3

S3

S3

S3


protection

●

(S2)


–

–

●

(S2)

●

(S2)

●

(S2)

–

–

●

(S4)

●

(S4)

–

–

●

(S6)

●

(S6)


39

2


Swimming pool water heating

40

Hydraulic

no.

S1

S2

S3 – – –

S4 – – –

●

(S4)

●

(S4)


–

–

●

(S2, S4)

●

(S2, S4)

S5 S3

– – –

S6

WMZ

R1

WMZ

S8

R1

WMZ

S8

WMZ

S8

S1

S1

S7


S4

S2

S6

S8 R4 R5 R2

R1

R4

S7

S1

S7

S5

S1

S7

R3

S6

R5

S4

R2

S3

S4

S2

S3

Double-Match-

Flow

●

(S4)

Cooling

function



R3

S2

S6

S3

R4 R5 R2

S2

S4

R1 WMZ

S8

R4 R3 R2

R1

R4

S1

S7

S1

S7

S4

S2

S2

S4

S6

R3

S6

S5

R5

S6

R5

S5

R2

S3

R1 WMZ R4 R5 R3 S5

S8

R2

S3

R3

– –


protection

●

(S6)

●

(S6)

●

(S6)

●

(S4)

●

(S4)

●

(S6)

2.3.4 Special functions

Central heating backup via buffer bypass circuit

The solar central heating backup can be controlled

with the FM443 solar function module and the SC40

solar control unit via a buffer bypass circuit using the

HZG kit (➔ 41/1) available as an accessory. A buffer

bypass circuit provides a hydraulic connection

between the thermal store and the heating circuit

return. If the temperature in the thermal store is higher

than the heating circuit return temperature by an

adjustable amount (ϑOn), the three-way diverter valve

opens in the direction of the thermal store. The thermal

store heats the return water that is flowing to the

boiler. If the temperature differential between the

thermal store and the heating circuit return drops by

an adjustable amount (ϑOff ), the three-way diverter

valve switches in the direction of the boiler and stops

cylinder discharging.

The operating status of the three-way diverter valve is

displayed by the FM443 solar function module and the

SC40 solar control unit. The HZG kit includes:

● Two FSS temperature sensors (NTC 10 K, Ø9.7 mm,

3.1 m lead) for connecting to the FM443 or SC40

● One three-way diverter valve

(threaded connection Rp1")


1 Cylinder temperature sensor (two sensors provided in the

HZG kit; available as sensor kit for the 2nd consumer FSS)

2 Three-way diverter valve (included in HZG kit; available separately

as diverter valve for the 2nd consumer VS-SU)


Δp3WV Pressure drop of three-way diverter valve (HZG kit or VS-SU)

VR Heating system return flow rate


41/1 HZG kit with three-way diverter valve and two cylinder

temperature sensors

Δp3WV

mbar

41/2 Pressure drop of three-way diverter valve (➔ 41/1)


400

300

200

100

0

1000 2000

I

3000 4000 5000

VR h

2

1

41

2


Solar heating systems with two consumers

Two solar consumers (cylinders) can be heated using

the FM443 solar heating function module and the

SC40 solar control unit in combination with the sensor

kit 2nd consumer FSS and the diverter valve 2nd

consumer VS-SU.

The single-line solar station KS01...E can be used as an

alternative to the VS-SU. Priority is given to the first

consumer (selectable with the SC40). If the

temperature differential setting of 10 K is exceeded, the

solar control unit switches on the supply pump in solar

heating circuit 1 (high-flow/low-flow operation with

thermosiphon cylinder ➔ page 28).

The solar control unit optionally changes over to an

additional solar circuit pump or the second consumer

via a three-way diverter valve, if:

● The first consumer has reached the maximum

cylinder temperature or

● The temperature spread in solar circuit 1 is no longer

adequate for heating the first consumer, in spite of

using the slowest pump speed.

42

FSW1

FV

FSK

V

WMZ

ZV

VS-

SU

Twin-

Tube

R

WMZ

1.2

MAG

FSW2

FR

Logasol

SKN3.0

SKS4.0

Logasol

KS01..

FE

AW

FSS1

WWM

AW

Logalux SM...

VS

RS

EK

FE

PS

FSX

FSS2

Heating of the second consumer is interrupted every 30

minutes to check the temperature rise in the collector.

If the collector temperature increases by more than 1 K

per minute, the check is repeated until:

● The temperature increase at the collector

temperature sensor is less than 1K per minute, or

● The temperature spread in solar circuit 1 will enable

heating of the prioritised consumer again

The solar function module FM443 and solar control

unit SC40 indicate which consumer is currently being

heated. The following are required as accessories for a

second consumer:

● diverter valve for 2nd consumer VS-SU: Three-way

diverter valve (threaded connection Rp1")

● Alternative: Single-line solar station KS01... E

● Sensor kit for 2nd consumer FSS:

Cylinder temperature sensor as sensor FSS2


42/1 Solar heating system with flat-plate collectors for two consumers with control via solar function module FM443 (abbreviations ➔ page 148;

additional sample systems ➔ page 60 ff.)

VK

MAG


HZG

A B

AB

RK

VK

RK

Logalux PL... Logano EMS

Oil/Gas

Logamatic 4121

+ FM443

1

2

Heat meter kit WMZ 1.2 (accessory)

The solar function module FM443 and solar control

unit SC40 include the function of a heat meter. If heat

meter kit WMZ 1.2 is being used, the amount of heat

can be captured directly by the solar circuit taking the

glycol content into consideration (adjustable from 0%

to 50%). The amount of heat and the current output in

the solar heating circuit (only with FM443) as well as

the flow rate can be monitored this way.

The WMZ 1.2 kit includes:

● Flow meter with two threaded 6" water meter

connections

● Two temperature sensors as pipe contact sensors

with clips for attaching to flow and return

(NTC 10 K, Ø9.7 mm, 3.1m lead) for connecting to

FM443 or SC40

Because of the differing nominal flow rates there are

three different WMZ 1.2 heat meter kits:

● For a maximum of five collectors

(nominal flow rate 0.6 m3 /h)

● For a maximum of ten collectors

(nominal flow rate 1.0 m3 /h)

● For a maximum of fifteen collectors

(nominal flow rate 1.5 m 3 /h)

The flow meter must be installed in the solar return.

The contact sensors can be attached to the flow and

return using clips.

The pressure drop of the three-way diverter valve and

the flow meter must be taken into consideration when

the complete stations are selected (➔ 41/2 and 43/2).



1 Threaded water meter connection 6"

2 Flow meter

3 Contact temperature sensor


a WMZ1.2 up to 5 collectors

b WMZ1.2 up to 10 collectors

c WMZ1.2 up to 15 collectors

ΔpWMZ Flow meter pressure drop

VSol Solar circuit flow rate


110

208

43/1 Heat meter kit WMZ 1.2 (dimensions in mm)

43/2 Pressure drop of WMZ1.2 flow meter

1

2

3

43

2


Two collector arrays with different orientation (east/west control)

If insufficient space is available on a rooftop, select the

system hydraulics of the east/west orientation. The

collectors are distributed on two rooftops, which makes

special demands of the hydraulic scheme and the

control system.

FSK

The hydraulic system should preferably be

implemented using two solar stations (a 2-line station

and a 1-line station). The advantage is that both

collector arrays can be operated at the same time at

PSS

midday.

The circuits must be controlled separately when

WMZ

FSW1

operating with two solar stations, which is taken care

of by the SC40 solar control unit.

FSW2

Solar cylinder heating via an external heat exchanger

These system hydraulics are chosen if a relatively small

solar heating cylinder with high DHW usage is being

used with a relative large collector area, or only a

shared heat transfer is to be implemented with several

solar heating cylinders (thermal stores). In both cases,

a high heat exchanger output is required that cannot

be provided by the indirect coils that are integrated

inside the cylinders.

From a hydraulic point of view, another pump is

required at the secondary side of the heat exchanger

that has to be controlled. This function can be

performed by the SC40 solar control unit.

A good hydraulic balance is required between the

primary and secondary sides of the heat exchanger

with this hydraulic scheme.

44

44/1 East/west control via two solar stations



FSS Cylinder temperature sensor (bottom)

FSX1 Cylinder temperature sensor (top; optional – required for

water transfer)

FSX2 Cylinder temperature sensor (centre; optional – required for

Double-Match-Flow function)

FSW1 Heat meter temperature sensor, flow (option)

FSW2 Heat meter temperature sensor, return (option)

PSS Solar circuit pump

PUM Water transfer pump (option)

WMZ Heat meter kit



FSS Cylinder temperature sensor (bottom)

FSX1 Cylinder temperature sensor (top; option – required for

water transfer)

FSX2 Cylinder temperature sensor (centre; option – required for

Double-Match-Flow function)

WT Sensor for heat exchanger, external

FSW1 Heat meter temperature sensor, flow (option)

FSW2 Heat meter temperature sensor, return (option)


PWT Heat exchanger pump

PUM Water transfer pump (option)

SU Diverter valve

WMZ Heat meter kit


FSK

FSW1 WT

FSK

PSS

PSS PWT

WMZ

FSW2

SU

FSX1

FSX2

FSX1

FSX2

FSS

FSS

44/2 Control unit for heating a cylinder via an external heat

exchanger

PUM

PUM

Cylinders connected in series

When cylinders are connected in series, the preheating

cylinder is heated via the solar heating system.

The solar heating function module FM443 or solar

control unit SC40 is used to control the solar heating

system.

When hot water is drawn-off, the water that has been

pre-heated using solar energy enters the cold water

inlet of the standby cylinder via the hot water outlet of

the pre-heating cylinder and is reheated by the boiler,

if required (➔ 45/1).

With high levels of solar yield, the pre-heating cylinder

can also achieve higher temperatures than the

standby cylinder. To enable the use of the entire

cylinder volume for solar heating, a pipe must be

routed from the hot water outlet of the standby

cylinder to the cold water inlet of the pre-heating

cylinder. A pump is used to deliver the water in such

cases.

To safeguard that the system is operated in accordance

with the technical regulations in DVGW Code of

Practice W 551 (➔ 59/1), all water in the pre-heating

stages must be heated to 60 °C once every day. The

temperature in the standby cylinder must always be

≥ 60 °C. The daily heating of the pre-heating stage can

FSK

PSS

SP1

Collector

Logasol

KS01..

TW

FSS

System part-heated

by solar energy

(pre-heat stage)

VS

M

RS

AW

Pre-heat cylinder

Logalux SU...

EK


DHW heating

(downstream)

be carried out either in standard operation by solar

heating or via conventional reheating.

In combination with the SC40 solar control unit, two

additional cylinder sensors are needed that are

installed at the top or bottom of the standby cylinder.

Cylinders with insulation that can be removed allow

the sensor to be freely secured with straps. The FSX

sensor is installed inside the standby cylinder.

The control units FM443 or SC40 monitor the

temperatures via the sensor in the pre-heating

cylinder. If the required temperature of 60 °C in not

achieved in the pre-heating cylinder using solar

energy, circulation pump P UM between the hot water

outlet of the standby cylinder and the cold water inlet

of the pre-heating stage is started during a period when

no hot water is drawn off (preferably at night). The P UM

pump remains on until the required temperature has

been achieved at both sensors or the end of the

specified period is reached.

45/1 Example of a DHW pre-heating cylinder and standby cylinder connected in series, control of cylinder water transfer and

pasteurisation circuit in accordance with DVGW Code of Practice W 551, controlled by a FM443

(example system ➔ 88/1; abbreviations ➔ page 148)


FSX

PS

VS

M

RS

P UM

AW

EZ

WWM

EK

Standby cylinder

Logalux SU...

PZ

FK

Boiler Logano EMS

Oil/Gas

1

2

Logamatic

4121

+ FM443

45

2


2.4 Logasol KS... complete station


● An assembly consists of all required components

such as the solar circuit pump, the gravity brake, the

safety valve, the pressure gauge, a ball valve in the

flow and return with integral thermometer, a

throughput limiter and thermal protection.

● Available as 1-line or 2-line solar station.

● Four different output stages

● Optionally available with or without integral

control unit

Max.

recommended no.

of collectors

Logasol KS01... complete stations are designed for one

solar consumer. However, they are suitable for two

consumers if a 2-line solar station is operated in

combination with a 1-line solar station. This

arrangement provides two separate return connections

with separate pumps and throughput limiters (➔ 47/2).

This enables the hydraulic balancing of two consumers

with different pressure drop values. One safety

assembly is sufficient for this arrangement, provided

that no pressure filling is required.

The two-consumer system is controlled either by an

FM443 solar function module or an SC40 solar control

unit in combination with the 2nd consumer sensor kit

FSS. Optionally, the SC40 can also already be installed

in the solar station.

As an alternative to the 1-line station, a VS-SU 2nd

consumer diverter valve can also be used.

Another application for the combination of a 2-line

solar station with a 1-line solar station is the

implementation of a solar heating system with two

collector arrays in different orientation (east/west

control). Here too it is important to have two separate

return connections with separate pumps and

46

Without integral

control unit

Configuration of the Logasol KS01.. complete

station

Two versions and four different output levels of the

Logasol KS01... complete station are available for

optimum adaptation to the collector array.

The 2-line solar stations for collector arrays with up to

50 collectors are already equipped with an air

separator. The smallest version KS0105 is also

available with an integral SC20 or SC40 solar control

unit or with the SM10 solar module.

1-line complete stations without air separators offer a

solar circuit pump and shut-off valves for the

additional return line in systems with two collector

arrays (east/west) or two consumers.

The table 46/1 shows the different versions and

recommends the maximum number of collectors that

can be operated with them. A pipework calculation is

required to determine the correct output level.

SM10

With integral

control unit

SC20 SC40

throughput limiters (➔ 47/2). As previously described,

hydraulic balancing of the two collector arrays with

different pressure drop values is now feasible. Two

safety assemblies (part of the standard delivery) and

two diaphragm expansion vessels (MAG) are required

for this arrangement.

Two collector arrays with different orientation are

controlled using an SC40 solar control unit in

combination with an additional collector array

temperature sensor. Here too, a 2-line solar station

with integrated SC40 solar control unit can be used.

The Logasol KS01... complete station without integral

control unit is specially designed for combination with

solar function modules that are integrated into the

boiler control unit. These include function modules

FM244, FM443 and SM10.

The Logasol KS01.. complete station SM10 is connected

to the Logamatic EMS control system via a BUS line,

enabling an intelligent combination of the boiler

control and solar heating control units.


With integral air

separator

5 Logasol KS0105 E – – – –

10 Logasol KS0110 E – – – –

5 Logasol KS0105 Logasol KS0105SM10 Logasol KS0105SC20 Logasol KS0105SC40 ●

10 Logasol KS0110 – – – ●

20 Logasol KS0120 – – – ●

50 Logasol KS0150 – – – ● 1)

46/1 Selection of a suitable Logasol KS... complete station subject to the number of collectors and their equipment level

Symbols: ● Integral, – not integral

1) Additional air separator at the roof level required for each collector array

➔ The essential diaphragm expansion vessel (DEV) is

not part of the standard delivery of the Logasol KS...

complete station. It must be sized for each individual

case (➔ page 110 ff.). An AAS/Solar connection kit with

corrugated stainless steel pipe, a ¾" quick release

coupling and a wall retainer for a DEV with a

2

1

10

9

2

V

V

1

47/1 Layout of the Logasol KS01... complete station without integral

solar control unit

2

1

3

4

5

6

7

10

6

8

2

2

R

R


3

4

5

6

7

6

2

8

maximum of 25 l are available as accessories. The wall

retainer cannot be used for DEV with a capacity of 35 l

to 50 l. The AAS/Solar connecting kit is unsuitable for

DEV with a capacity in excess of 50 l because the DEV

connection is larger than ¾".

Caption (➔ 47/1 and 47/2)

V Flow from collector to consumer

R Return from consumer to collector

1 Ball valve with thermometer and integral gravity

brake

Position 0° = gravity brake ready for operation,

ball valve open

Position 45° = gravity brake manually open

Position 90° = ball valve closed

2 Clamping ring fitting (all flow and return connections)

3 Safety valve

4 Pressure gauge

5 Connection for diaphragm expansion vessel

(DEV and AAS/Solar not part of the standard delivery)

6 Fill & drain valve

7 Solar circuit pump

8 Throughput indicator

9 Air separator (not with 1-line solar stations)

10 Regulating/shut-off valve

Dimensions and specification ➔ 48/1 and 48/2

47/2 Layout of the combination of Logasol KS01... 2-line complete station and Logasol KS01... 1-line complete station E

R

R

V

V


1

2

R

R

3

4

5

6

7

6

9

2

8

47

2


Dimensions and specification of Logasol KS… complete station

48/1 Dimensions of the Logasol KS... complete station

Logasol complete station KS0105 E KS0110 E KS0105 KS0110 KS0120 KS0150

Number of consumers 1 1 1 1 1 1

Casing dimensions Height H mm 355 355 355 355 355 355

Selecting the Logasol KS... complete station

Information concerning the selection of a suitable

complete station ➔ page 109.

48

Logasol

KS01... E

Width W mm 185 185 290 290 290 290

Depth D mm 180 180 235 235 235 235

Detailed dimensions A mm – – 130 130 130 130

Copper pipe connection size

(clamping ring fitting)

B

C

C mm 93 93 80 80 80 80

E mm 50 50 50 50 50 50

Flow/

return

mm 15 × 1 22 × 1 15 × 1 22 × 1 28 × 1 28 × 1

Expansion vessel connection 6" 6" 6" 6" 6" 1"

Safety valve bar 6 6 6 6 6 6

Circulation pump Type

Finished

length

Grundfos

Solar

15-40

H

Logasol

KS01...

Grundfos

Solar

15-70

Grundfos

Solar

15-40

Grundfos

Solar

15-70


Grundfos

UPS

25-80

Grundfos

Solar

25-120

mm 130 130 130 130 180 180

Electrical power supply VAC 230 230 230 230 230 230

Frequency Hz 50 50 50 50 50 50

Max. power consumption W 60 125 60 125 195 230

Max. current strength A 0.25 0.54 0.25 0.54 0.85 1.01

Throughput limiter adjusting range l/min 0.5–6 2–16 0.5–6 2–16 8–26 20–42.5

Weight kg 5.4 5.4 7.1 (8.01) ) 7.1 9.3 10.0

48/2 Specification and dimensions of the Logasol KS… complete station

1) Logasol KS0105 complete station with integral SC20, SC40 or SM10 control unit

B T

A C E

Logasol

KS01... E

KS01...

2.5 Other system components

2.5.1 LA1 air separator for a 1-line complete station

The LA1 air separator is used for filling the solar

heating system with the BS01 filling station

(➔ page 120). The LA1 separates residual trapped air

(micro-bubbles) during operation and ensures that the

solar heating circuit is continuously de-aerated. The

AAV at the highest point of the system is not required.

The LA1 is installed in the solar heating circuit using

clamping ring fittings. Two connection sizes are

available:

● LA1 Ø18

● LA1 Ø22

2.5.2 Connection with Twin-Tube

Twin-Tube is a thermally insulated twin tube with UV

protective jacket and integral sensor lead. The

connection kits contains suitable fittings for the

various collector types to enable the Twin-Tube 15 and

Twin-Tube DN20 fittings to be connected to the

collector array, the complete station and the cylinder.

An appropriate mounting kit for the Twin-Tube special

tube consisting of four oval clips with headless spiral

screws and dowels must be ordered separately.

Space for a bending radius of at least 110 mm for routing

the Twin-Tube 15 must be available on site (➔ 49/2).

The corrugated stainless steel Twin-Tube DN20 can be

bent at an angle of up to 90° without springing back.


49/1 Air separator

r ≥ 110

r ≥ 110

49/2 Bending radius for Twin-Tube 15; sizes in mm

(dimensions ➔ 49/3)

Twin-Tube 15 (DN12) DN20

Dimensions (➔ 49/2) A mm 73 105

B mm 45 62

Pipe material Soft copper (F22) in accordance with

DIN 59753


A

Corrugated stainless steel pipe

no. 1.4571

Pipe dimensions Diameter DN 2 ×15 × 0.8 2 × DN20 (external Ø = 26.6 mm)

Length m 12.5 12.5

Insulating material EPDM rubber EPDM rubber

Fire protection class DIN 4102-B2 DIN 4102-B2

λ insulation W/m·K 0.04 0.04

Insulation thickness mm 15 19

Temperature resistant up to °C 190 190

Protection film PE, UV-resistant PE, UV-resistant

Sensor lead 2 × 0.75 mm 2 , VDE 0250 2 × 0.75 mm 2 , VDE 0250

49/3 Twin-Tube specification

B

49

2


2.5.3 Overvoltage protection for the control unit

The collector temperature sensor in the lead collector

can be subject to overvoltage during a thunderstorm

because of its exposed location on the roof. This

overvoltage can destroy the sensor.

The overvoltage protection is not a lightning

conductor. It is designed for situations where lightning

strikes somewhere in the vicinity of the solar heating

system can cause overvoltages. Safety diodes limit this

overvoltage to a level that will not damage the control

unit. The junction box must be located within the

range of the lead length of the FSK collector

temperature sensor (➔ 50/1).

2.5.4 Solar fluid

The solar heating system must be protected against

frost. Either solar fluid L or Tyfocor LS antifreeze can be

used for this purpose.

Solar fluid L

Solar fluid L is a ready-made mixture consisting of 50%

PP glycol and 50% water. This clear mixture is foodcompatible

and biologically degradable.

Solar fluid L protects the system against frost and

corrosion. As can be seen in the diagram 50/2, solar

fluid L provides frost protection down to an outside

temperature of –37 °C. In systems with Logasol SKN3.0

and SKS4.0 collectors, solar fluid L ensures a reliable

operation at temperatures from –37 °C to +170 °C.

50

50/1 Overvoltage protection for control unit (sample installation)


ϑ A Outside temperature


V

ϑ A

˚C

V

FSK

SP1

0

–10

–20

–30

–37

R

Logasol

SK...

Twin-Tube

Logasol

KS0105SC..

R

MAG

230 V

50 Hz

E Automatic all-metal air

vent valve (accessory)

FSK Collector temperature

sensor (standard delivery

of the control unit)

KS01… Logasol KS… complete

station with integral

control unit

SK… Logasol SKN3.0 or

SKS4.0 solar collector

SP1 Overvoltage protection

Solar fluid L


–50

0 10 20 30 40 50

PP: glycol/% by vol.

50/2 Level of frost protection of heat transfer medium subject to the

glycol:water mixture

60

Tyfocor LS

Tyfocor LS is a ready-made mixture consisting of 43%

PP glycol and 57% water. The mixture is foodcompatible,

biologically degradable and has a

red/pink colour.

Tyfocor LS protects the system against frost and

corrosion. As can be seen in the table 51/1, Tyfocor LS

provides frost protection down to an outside

temperature of – 28 °C. In systems with Logasol SKN3.0

and SKS4.0 collectors, Tyfocor LS ensures a reliable

operation at temperatures from –28 °C to +170 °C.

Never dilute the prepared mixture of Tyfocor LS heat

transfer medium. The values in table 51/1 apply to

situations where water remaining in the solar heating

system after flushing has led to prohibited dilution of

the heat transfer medium.

➔ Only Tyfocor LS must be used in solar heating

systems with Vaciosol CPC vacuum tube collectors.

Testing the solar fluid

Heat transfer media based on mixtures of propylene

glycol and water age during operation in solar heating

systems. This decay can be detected from the outside by

dark colouration or opaqueness. Long periods of

overheating (> 200 °C) result in a characteristic

pungent smell of burning. The fluid becomes almost

black because of the increase in solid decomposition

products of the propylene glycol or the inhibitors that

are no longer soluble in fluid.

The main influences are high temperatures, pressure

and the duration of the load. These factors are strongly

influenced by the absorber geometry.

Favourable characteristics are obtained using fanshaped

absorbers such as the ones used in the SKN3.0,

and double meander absorbers with return line at the

bottom such as the ones used in the SKS4.0.


Tyfocor LS

prepared mixture

% by vol.

Value read off

Glykomat °C

However, the locations of the connecting pipes on the

collector also influence the stagnation characteristics

and therefore the ageing of the solar fluid. It is

therefore important to avoid running the flow and

return lines over long distances with inclines at the

collector array, since solar fluid will run into the

collector from these line sections in the event of

stagnation and increase the vapour volume. Ageing is

also accelerated by oxygen (air-borne) and impurities

such as copper or iron cinders.

To check the solar fluid on site, determine the pH value

and the antifreeze level. Suitable pH measuring sticks

and a refractometer (frost protection) are included in

the Buderus solar service case.


Provides frost

protection down to

°C

100 –23

Prohibited dilution with water!

–28

95 –20 –25

90 –18 –23

85 –15 –20

80 –13 –18

51/1 Frost protection with Tyfocor LS heat transfer medium

Ready-mixed solar fluid pH value in the delivered condition pH limit for replacement

Solar fluid L 50/50 approx. 8 ≤ 7

Tyfocor LS 50/50 approx. 10 ≤ 7

51/2 pH limits for checking ready-mixed solar fluid

51

2


2.5.5 Thermostatically controlled domestic hot water mixer

Anti-scalding protection

If the maximum cylinder temperature is set higher

than 60 °C, take suitable measures to provide

protection against scalding. The following options are

available:

● Either install a thermostatically controlled DHW

mixer downstream of the cylinder's DHW

connection or

● At all draw-off points, limit the mixing temperature

using thermostatic valves or pre-selectable monolever

mixing taps (maximum temperatures of 45 °C

to 60 °C are considered to be relevant in residential

buildings)

The diagram 52/1 must be taken into consideration

when designing a system with a thermostatically

controlled DHW mixer.

➔ The mixed water temperature can be adjusted in 6

steps of about 5 °C within a temperature range of 35 °C

to 60 °C.


Δp Pressure drop of a thermostatically controlled DHWmixer

V Flow rate

52

V

l/min

Thermostatic DHW mixer assembly with circulation pump

The thermostatic DHW mixer assembly is suitable for

use in detached house or two-family home and for all

DHW cylinders with an operating temperature up to

73

90 °C. It is used to provide protection against scalding,

particularly for solar DHW systems.

The DHW mixer assembly consists of a thermostatic

mixer valve for adjustable temperatures ranging from

35 °C to 65 °C, a DHW circulation pump, two

thermometers for the DHW outlet temperature and the

cylinder temperature, non-return valves and shut-off

valves in a compact unit. The benefit offered by this

unit is rapid, fault-free assembly of the DHW mixer

and the DHW circulation.

DHW mixer assembly

Max. operating pressure: bar 10

Max. water temperature °C 90

Setting range °C 35–65

Kvs value m 3 /h 1.6

52/2 DHW mixer assembly specification

DHW circulation pump

Power supply V 230

Frequency Hz 50

Power consumption at stage 1 W 27



52/3 DHW circulation pump specification

52/1 Pressure drop of a thermostatically controlled DHW mixer at a

hot water temperature of 80 °C, a mixed water temperature of

60 °C and a cold water temperature of 10 °C


30

20

10

5

40 60 80 100 200 400 600 800 1000

86.5

Δp/mbar

383

343

300

342.5 58 93

52/4 Dimensions of DHW mixer valve with DHW circulation pump

(dimensions in mm)

5

4

3

2

1

EW

MIX

EK 11 EZ

53/1 Connections and components of DHWmixer assembly

AW

EZ

EK

A 6 B

53/2 DHW mixer assembly installation diagram

4

3

1

MIX


AW DHW outlet


EZ DHW circulation inlet

MIX Mixed water

1 Non-return valve

2 DHW circulation pump

3 Thermostatic mixing valve

4 Shut-off valve with non-return valve

5 DHW circulation line

6 AW draw-off point

7 Cold water connection in accordance with the technical

regulations for domestic water installation (TRWI)

7

1

1

2


5

7

8

9

10

EK

6


A Mixed water outlet at draw-off points

B DHW circulation line inlet from draw-off points

EK Cold water inlet (mixer assembly)

EW DHW inlet (mixer assembly)

EZ DHW circulation inlet to cylinder

MIX Mixed water

1 Cold water supply ball valve Rp6" (internal)

2 Tee with non-return valve

3 DN20 DHW mixing valve

4 Dial thermometer

5 DHW water supply ball valve Rp6" (internal) with non-return

valve

6 Mixed water drain ball valve Rp6" (internal)

7 DHW circulation shut-off valve Rp6" (internal)

8 DHW circulation pump

9 Tee with non-return valve

10 Fem. reducing coupling Ø G1" x Rp6"”

11 Connecting piece with non-return valve

53/3 Residual head of the DHW circulation pump


H Residual head

V Flow rate

a Stage 3

b Stage 2

c Stage 1


53

2


Method of operation in conjunction with a DHW circulation line

The thermostatically controlled DHW mixer mixes

sufficient cold water into the hot water from the

cylinder to prevent the temperature from exceeding a

selected set temperature. In conjunction with a DHW

circulation line, a bypass line is required between the

DHW circulation inlet at the cylinder and the cold

water inlet into the thermostatically controlled DHW

mixer (item 2 ➔ 54/1).

If the cylinder temperature exceeds the set value that

has been selected at the thermostatically controlled

DHW mixer and no water is being drawn off, the

circulation pump delivers part of the DHW circulation

return via the bypass line directly to the DHW mixer

cold water inlet, which is now open. The hot water

from the mixer now mixes with the colder water from

the DHW circulation return. To prevent natural

circulation, the thermostatically controlled DHW

mixer must be installed below the cylinder's DHW

54

PZ

3

V

R

WWM

2

3

FE

AW

1

AW

EZ

Logalux SM…

(Logalux SL…2)

VS

RS

54/1 Example of a DHW circulation line with a thermostatically controlled DHW mixer

outlet. Where that is impossible, install a heat

insulating loop or non-return valve at the DHW outlet

connection (AW). This prevents single-pipe DHW

circulation losses. Non-return valves must be allowed

for to prevent incorrect circulation and therefore

cooling and mixing of the cylinder content.

➔ DHW circulation causes standby losses. It should

therefore only be used in widespread DHW networks.

Using a poorly designed DHW circulation line or DHW

circulation pump could reduce the net solar yield

considerably.

If DHW circulation is to be provided, the content of the

DHW line must be circulated three times per hour in

accordance with DIN 1988, preventing a temperature

drop in excess of 5 K. To retain the temperature

stratification inside the cylinder, coordinate the flow

rate and any DHW circulation pump cycling.


EK

1 Thermostatic DHW mixer assembly with

DHW circulation pump

2 DHW circulation bypass line

3 Non-return valve

AW DHW outlet



FE Fill & drain valve

PZ DHW circulation pump with time switch

SM… Dual-mode solar cylinder

Logalux SM300, SM400 or SM500

SL…2 Dual-mode thermosiphon cylinder

Logalux SL300-2, SL400-2 or SL500-2

(not shown)

V/R Connections for solar heating system

VS/RS Reheating connection

WWM Thermostatically controlled DHW mixer


2.5.6 RW return temperature limiter for central heating backup

Limiting the return temperature

A so-called return temperature limiter RW is

recommended in all systems for central heating

backup


● One solar control unit SC10

(temperature differential control unit)

● One three-way valve with servomotor

● Two cylinder temperature sensors:

NTC 10 K, Ø9.7 mm, 3.1 m lead and

NTC 20 K, Ø6 mm, 2.5 m lead

The RW return temperature limiter continuously

compares the temperature in the heating return with

the temperature in the thermal store. Subject to the

return temperature, it directs the heating return flow

through the thermal store or straight back to the boiler

(➔ 55/2). The buffer bypass circuit can be realised with

the HZG-set in conjunction with the FM443 solar

function module or the Logamatic SC40 solar control

unit.

Water connection

To provide the optimum solar yield, size the heating

surfaces for the lowest possible system temperature.

Experience has shown that the lowest system

temperatures are provided by area heating (e.g.

underfloor heating system). To prevent unnecessarily

high return temperatures, all heating surfaces must be

calibrated in accordance with DIN 18380 (VOB part C).

Heating surfaces that have not been hydraulically

calibrated can significantly reduce the solar yield.


1 Solar control unit SC10

2 Three-way valve with servomotor


1

55/1 Control unit and three-way valve of the RW return temperature

limiter

VS1

RS1

EK

EK

2

AW

Logalux P750 S

VS2

VS4

A B

AW

WWM

55/2 Hydraulic connection of an RW return temperature limiter

using the example of the Logalux P750 S combi cylinder

(abbreviations ➔ page 148)

AB

PS

SC10

VK

RK

55

2


2.5.7 Swimming pool water heat exchanger


● Stainless steel plate-type heat exchanger

● Removable moulded thermal insulation shells

● Heat transfer from the heat transfer medium in the solar

heating circuit to the swimming pool water via liquids

flowing in countercurrents

● The connection at the swimming pool end must be

protected using a check valve and a dirt filter

Sizing the circulation pump in the secondary circuit

The primary side flow rate depends on the number of

collectors. The control unit in the complete station regulates

both the solar circuit pump (primary) and the swimming

pool water pump (secondary). The secondary pump must be

resistant to chlorinated water. The inlet pressure at the inlet

side must also be taken into consideration.

➔ A relay is required for the swimming pool water pump if

the total power consumption exceeds the maximum output

current of the control unit.

The circulation pump at the secondary side must be sized in

accordance with the required flow rate using the following

formula.

56/1 Secondary pump flow rate

Calculating parameters (➔ 56/1)

m SP Secondary pump flow rate in m 3 /h

n Number of solar collectors

56

m SP

=

n ⋅ 0.25

Dimensions and specification of swimming pool water

heat exchanger

The swimming pool heat exchanger should be linked in

parallel to the conventional heating system. This allows the

solar heating system to heat the swimming pool water either

alone or with boiler backup.

56/2 Swimming pool water heat exchangers SWT6 and SWT10

(specification ➔ 56/3)

Swimming pool water heat exchanger SWT6 SWT10

Length L mm 208 208

Width W mm 78 78

Depth D mm 55 79

Max. number of collectors 6 10

Connections Flow (V) and return (R) inch G6 (male) G6 (male)

Max. operating pressure: bar 30 30

Pressure drop at the secondary side

at a flow rate of

Weight (net, approx.) kg 1.9 2.5

Heat exchanger output at temperatures of

kW

7

12

primary side

°C

48/31

48/31

secondary side

°C

24/28

24/28

56/3 Specification for swimming pool water heat exchangers SWT6 and SWT10

mbar

m 3 /h


L

160

1.5

B

T

R2

V2

V1

R1

210

2.6

3 Notes regarding solar heating systems

3.1 General information

Notes regarding solar heating systems 3

57/1 Specimen wiring diagram in connection with the general information regarding solar heating systems (abbreviations ➔ page 148)

Item System

components

General design infomration


Further

information

1 Collectors The size of the collector arrays must be determined independently of the hydraulic system. ➔ page 80 ff.

2

3

FSK

2

3

PSS

FP

FSS 2

FPU

Pipework with

incline to the air

vent valve

(Logasol KS…)

Connection lines

Twin-Tube

4 Complete station

SP1

VS-SU

5

4

6

Collector

Logalux PL...

57/2 General information regarding solar heating systems

1

M1

M3

Logasol

KS01..

M4

VS 1

VS 2

VS 3

RS2

RS3

RS 1

HSM-E

10

13

A M B

AB

FR

HK1

11

PH

M

FK

PH

14

Logamatic

2114

Solid fuel boiler

Logano S151


Oil/Gas

AW

VS 2

Logalux SM.../SL...

Install an all-metal air vent valve at the highest point of the system if the system is not vented

with "filling station and air separator" or the KS0150 complete station is used (collector

accessories in Heating Technology catalogue). An air vent valve can also be installed wherever

the pipework changes direction and goes downwards, and then rises again. The 2-branch

complete station is equipped with an air separator.

To make the connecting lines easier to install, the double copper tube Twin-Tube 15 or the

stainless steel corrugated tube Twin-Tube DN20 is recommended, complete with heat and UV

protection jacket and integral extension lead for the FSK collector temperature sensor.

If Twin-Tube cannot be used or larger pipework cross-sections or lengths are required, install

appropriate pipework and sensor lead extensions on site (e. g. 2 × 0.75 mm 2 ).

The Logasol KS... complete station contains all important hydraulic and control components

for the solar circuit.

The choice of complete station is subject to the number of consumers, the

number/arrangement of collectors or connections, and the collector array pressure drop. A

Logasol KS... complete station without control unit is recommended if the solar circuit control

can be integrated into the boiler control unit via the FM244, SM10 or FM443 solar function

module or the SC20 or SC40 solar control unit for wall mounting.

TW

9

12

FSX

FSS1

9

PS

TW

M1

RS 2

VS 1

M2

RS 1

6

1

2

EZ


+ FM443

WWM

EK

This diagram is only a schematic

representation that provides a

guide to possible hydraulic schemes.

Implement all safety equipment

in accordance with local regulations.

7

PZ

8

➔ page 119 f.

➔ page 49 f.

➔ page 108

➔ page 118 f.

➔ page 46 ff.



57

3

Notes regarding solar heating systems

Item System

components

5

58

Diaphragm

expansion vessel

General design information

Size the diaphragm expansion vessel separately subject to the system volume and the safety

valve response pressure so that it can withstand the volume fluctuations in the system. With

east/west systems an additional diaphragm expansion vessel is required for the 2nd collector

array. If the Vaciosol CPC vacuum tube collectors are used, install the diaphragm expansion

vessel 20-30 cm above the complete station. A pre-cooling vessel is also required if the DHW

heating coverage is above 60% or in central heating backup systems.


Further

information

➔ page 110 ff

.

➔ page 116 f.

6 DHW cylinder Determine the size of the cylinders independently of the hydraulic system. ➔ page 80 ff.

7 Hot water mixers

8

9

DHW water

circulation

Conventional reheating

(boiler control unit)

10 Thermal store

11

12

13

Heating surface

sizing and

adjustment

Control unit

Heating circuit

Return temperature

controller

14 Solid fuel boiler

58/1 General information regarding solar heating systems

Reliable protection from excessive hot water temperatures (risk of scalding!) is provided by a

thermostatically controlled hot water mixer (WWM).

To prevent natural circulation, install the thermostatically controlled DHW mixer below the

cylinder's DHW outlet. If this is not possible, provide a heat insulating loop or a non-return

valve.

A DHW circulation line was not depicted! DHW circulation causes standby losses. It should

therefore only be used in widespread DHW networks. Using a poorly designed DHW

circulation line or DHW circulation pump could reduce the net solar yield considerably.

If DHW circulation is to be provided, the content of the DHW line must be circulated three

times per hour in accordance with DIN 1988, preventing a temperature drop in excess of 5 K.

To retain the temperature stratification inside the cylinder, coordinate the flow rate and any

DHW circulation pump cycling.

The hydraulic integration of the heat source and the solar control unit that can be used are

subject to the boiler type and the control unit that is used.

A distinction can be drawn between the following boiler groups.

Wall mounted with EMS: e.g. Logamax plus GB142 and GB152

Floorstanding with EMS: e.g. Logano G125, G135 and G144

Wall mounted: e.g. Logamax plus GB142

Floorstanding: e.g. Logano G125, G225, S125, S325, G134 and G234

Only heat from the solar heating system and (if available) other sustainable energy sources

should be fed to the buffer part for central heating in the combi cylinder or thermal store. If

the buffer area of the solar cylinder is heated by a conventional boiler, this part is blocked for

energy consumption by the solar heating system.

When the central heating is being integrated, size the radiators such that the return

temperature is as low as possible.

As well as sizing the radiators, pay special attention to adjusting them in accordance with

regulations. The lower the return temperature that can be selected, the greater the expected

solar yield.

In this case it is important for all radiators to be adjusted in accordance with the applicable

regulations (VOB part C: DIN 18380). A wrongly adjusted radiator can reduce the solar yield

of the central heating considerably.

The possibility of using the control unit must be checked with regard to the number of heating

circuits.

A so-called return temperature controller (RW) must be installed for all central heating backup

systems. This monitors the central heating return temperature and prevents the solar cylinder

from being heated up via the central heating return at high temperatures using a three-way

distribution valve. The HZG kit can be used in combination with the FM443 solar function

module or the SC40 solar control unit.

Occasional heating

If a wood burning fireplace insert or solid fuel boiler is only operated occasionally, the heat

that is generated can be fed into the solar thermal store or combi cylinder. However, the solar

yield is limited during this time. Simultaneous operation of the solar heating part of the system

and solid fuel combustion must be minimised so that the solar yield is only reduced

temporarily. This requires correct system engineering.

Permanent heating

If a wood burning fireplace insert or solid fuel boiler is to be used permanently in occasional

alternating mode with an oil/gas fired boiler for central heating, a reduction in solar yield can

be expected during the transition period due to the higher temperatures in the buffer part.

Always comply with the current design/engineering document for solid fuel boilers.

➔ page 52 f.

➔ page 54





➔ page 55

➔ page 79


➔ page 31 f.

➔ page 55



➔ page 70 ff.

Notes regarding solar heating systems 3

3.2 Regulations and guidelines for designing/engineering a solar collector system

➔ The guidelines shown here are only a selection and

may not be complete.

Installation and commissioning must be carried out by

a specialist contractor. Take appropriate accident

prevention measures when carrying out any

installation work on the roof. Observe all relevant

accident prevention regulations!

Technical rules for the installation of solar heating systems

Requirement Description

Rooftop installation

DIN 18338 VOB 1) ; roofing and sealing work

DIN 18339 VOB 1) ; plumbing work

DIN 18451 VOB 1) ; scaffolding work

DIN 1055 Design loads for buildings

Connection of solar heating systems

Apply all current technical standards to all practical

work. Design the safety equipment in accordance with

all locally applicable regulations. Also comply with the

building regulations of the country concerned, the

listed building regulations and any local building

regulations that may apply to the assembly and

operation of a solar collector system.

DIN EN 12975-1 Solar heating systems and components - Solar collectors - Part 1:

General requirements, German version

DIN EN 12976-1 Solar heating systems and components - Factory made systems - Part 1:


DIN V ENV 12977-1 Solar heating systems and components - Custom built systems - Part 1:


Installation and equipment of DHW cylinders

DIN 1988 Technical Regulations for Drinking Water Installations (TRWI)

DIN 4753-1 Water heaters and water heating installations for drinking water and service water; requirements, marking,

equipment and testing

DIN 18380 VOB1) ; heating systems and central DHW heating systems

DIN 18381 VOB1) ; gas, water and sewage plumbing works inside of buildings

DIN 18421 VOB 1) ; insulation work on technical installations

AVB2) Water

DVGW W 551 DHW heating and pipework systems; technical measures for reducing the growth of legionella bacteria

Electrical connection

DIN VDE 0100 Installation of HV systems with rated voltages up to 1000 V

DIN VDE 0185 Lightning protection systems

VDE 0190 Main earth bonding of electrical systems

DIN VDE 0855 Antenna systems - to be applied analogous

DIN 18382 VOB 1) ; electrical cabling systems in buildings

59/1 Important standards, regulations and EC directives for the installation of solar collector systems

1) VOB – contract procedures for construction work – part C: General technical conditions of contract for construction services (ATV)

2) Invitation to tender templates for building work in overground workings, particularly with regard to residential building


59

4

Sample systems

4 Sample systems

4.1 Solar heating systems for domestic hot water heating with conventional

oil/gas fired boilers

4.1.1 Solar DHW heating floorstanding boiler and dual-mode cylinder

Solar heating circuit

The 1st consumer (dual-mode DHW cylinder)

is heated subject to the temperature

differential between FSK and FSS.

60


The boiler heats up the unmixed heating

circuit.


DHW reheating

The DHW is reheated to the set temperature

by the boiler subject to the FSX sensor, if

required. Small system in accordance with

DVGW Code of Practice W 551.

60/1 Wiring diagram with short description of the sample system (General instructions ➔ page 57 f.; abbreviations ➔ page 148)

Boiler Boiler Solar

Floorstanding Control unit Type Control unit Component

Logano with EMS

Logano plus with EMS

Logano

FSK

PSS

SP1

Logasol

KS01..

I

Collector

Logamatic EMS RC35 SM10

Logamatic 4000 4121 FM443



Third party Third party Third party

60/2 Possible control versions for the solar heating system

FSX

FSS

PS

HS-E -

TW

VS2 AW

M1

RS2

VS1

M2

RS1

WWM

EZ

EK


HK1

PH

PZ

Logamatic EMS

+ SM10

+ RC35

SC20

Boiler Logano

Oil/Gas

SC40 (hydraulic

system T1 ➔ 37/1)

FK




Implement all safety equipment in

accordance with local regulations.

Logasol KS01.. I


Logasol KS01.. SC.. I

4.1.2 Solar DHW heating: Wall mounted boiler and dual-mode cylinder

FSK







circuit.


Sample systems 4

DHW reheating


by the boiler subject to the FSX sensor, if





Wall Control unit Type Control unit Component

Logamax with EMS

Logamax plus with EMS

Logamax

Logamax plus

PSS

SP1

Logasol

KS01..

I

Collector

M1

RS2

VS1

M2

RS 1




Logamatic 4000 4121 FM443 Logasol KS01.. I



FSX

FSS

TW

VS2

AW

WWM

EZ

EK


HK1

Logamatic EMS

+ SM10

+ RC35






PZ

GB142

VK

RK

VS

RS

SC20


system T1 ➔ 37/1)

Logasol KS01.. SC.. I

61

4


4.1.3 Solar DHW heating: Floorstanding boiler and pre-heat cylinder (retrofit solution)


The 1st consumer (pre-heat cylinder) is

heated subject to the temperature differential

between FSK and FSS. The water from both

cylinders is transferred, if the standby

cylinder is cooler than the pre-heat cylinder.

62

FSK

SP1



circuit.


DHW reheating


by the boiler subject to sensor FSX3, if








Logano

PSS

Logasol

KS01..

I

Collector

FSX1

FSS

TW

RS

VS

M

Logalux SU.../ST...

Logamatic EMS RC35

SM10

SC10


Logamatic 2000 2107

FM244

SC10




1) Actuation via buffer water bypass circuit temperature differential

AW

SC40

EK

HS-E -

HK1

PH

II

P UM

WWM

PZ


system T5 ➔ 37/1)

Boiler

Oil/Gas FK

FSX3

FSX2

AW

EZ

EK






Cylinder

Logasol KS01..

P UM


1) PUM Logasol KS01..

P UM



P UM

I

II

I

II

I

II

I

II

I

II



4.1.4 Solar DHW heating: Wall mounted boiler and pre-heat cylinder (retrofit solution)

FSK

SP1

PSS




between FSK and FSS. The water from both





circuit.

DHW reheating


by the boiler subject to sensor FSX3, if








Logamax

Logamax plus

Logasol

KS01..

I

Collector

FSX1

FSS

TW

RS

VS

M

HK1

Logamatic EMS RC35

SM10

SC10





1) Actuation via buffer water bypass circuit temperature differential

AW

SC40

EK


FSX3

FSX2

RS

VS

M2

Boiler

Gas

II

P UM

AW

EZ

EK

Cylinder

WWM

VK

RK

VS

RS

PZ


system T5 ➔ 37/1)







P UM


1)

PUM Logasol KS01..


P UM

I

II

I

II

I

II

I

II

63

4


4.2 Solar heating systems for DHW heating and central heating backup with

conventional oil/gas fired boilers

4.2.1 Solar DHW heating and central heating backup: Wall mounted boiler, dual-mode

DHW cylinder and thermal store




differential between FSK and FSS1. If the 1st

consumer can no longer be heated, the 2nd

consumer is heated subject to the

temperature differential between FSK and

FSS2. Possible heating of the 1st

64

consumer is checked at frequent intervals.


The system return temperature is raised by

the solar thermal store if there is a positive

temperature differential between the FP and

the FR. The temperature is increased to the

required


flow temperature by the wall mounted

boiler. All heating circuits are equipped with

a three-way valve.

DHW reheating


by the FSX sensor, if required. Small system in

accordance with DVGW Code of Practice

W551.





Logamax plus with EMS 1)

Logamax

Logamax plus

FSK

SP1

PSS

II

FP

FSS 2

I

M1

M4

VS 1

Collector

Logasol

KS01..

VS 2

Logalux PL...




RS3

RS1

SV

HSM-E M

III


1) This system hydraulic scheme is not possible with the Logamax plus GB152

FR

A M B

AB

HK1

PH

FK

1

2


+ FM443

VK

RK

GB142

KFE

FSX

FSS 1

PS

TW

AW

VS 2

M1

RS2

VS1

RS1

M2



system H5 ➔ 37/1)

EZ






WWM

EK

PZ


VS-SU

HZG kit


VS-SU

HZG kit


VS-SU

HZG kit

I

II

III

I

II

III

I

II

III



4.2.2 Solar DHW heating and central heating backup: Wall mounted boiler, pre-heat

cylinder and thermal store

FSK




between FSK and FSS1. The water from both



If the 1st consumer can no longer be heated,

the 2nd consumer is heated subject to the


FSS2. Possible heating of the 1st consumer is

checked at frequent intervals.






required flow temperature by the wall

mounted boiler. All heating circuits are

equipped with a three-way valve.

DHW reheating




W 551.






Logamax

Logamax plus

SP1

PSS

Logasol

KS01..

I

Collector





TW

FSS

RS1

VS1

AB

MB 2

WWM

MB1

FSX

EK

PZ

EZ VS3

M4

Logalux PL.../2S

VS4

FP

RS4

II

PS

A M B

AB

FR

HSM-E

HK1

PH

M


system H5 ➔ 37/1)


Oil/Gas


VS-SU

HZG kit


VS-SU

HZG kit


VS-SU

HZG kit

This diagram is only a schem

representation that provide

guide to possible hydraulic

Implement all safety equipm

in accordance with local reg

I

II

III

IV

I

II

III

IV

I

II

III

SC10 P UM IV

1

2 Logamatic

4

+ FM443

65

4


4.2.3 Solar DHW heating and central heating backup: Floorstanding boiler and

thermal store (retrofit solution)




between FSK and FSS1. The water from both



If the 1st consumer can no longer be heated,

the 2nd consumer is heated subject to the


66

FSK

SP1

Log asol

KS0 1..E

II

PSS2

FP

FSS2

VS1

RS1








required


flow temperature by the floorstanding boiler.

All heating circuits are equipped with a threeway

valve.

DHW reheating


by the FSX3 sensor, if required. Small system

in accordance with DVGW Code of Practice

W 551.






Collector

PSS1

M1

M4

VS 2

RS3

Logasol

KS01..

III


Logano Logamatic 4000 4211 FM443



I

SC40

Logalux PL...

A M B

AB

FR

HK1

PH

M

FSS1

FSX1

HSM-E

VS

M

RS


TW

AW

EK

SC10

WWM

IV

P UM


system H6 ➔ 37/1)






PZ

Boiler

Oil/Gas

FSX3

FSX2

AW

EZ

EK


Logasol KS01.. E

HZG kit



HZG kit



HZG kit

Cylinder

I

II

III

IV

I

II

III

IV

I

II

III

SC10 P UM IV

PS

4.2.4 Solar DHW heating and central heating backup: Floorstanding boiler,

combi cylinder

FSK


The combi cylinder is heated subject to the


FSS. The heating water and the DHW are

heated.



the combi cylinder if there is a positive



required flow temperature by the

floorstanding boiler. All heating circuits are




DHW reheating


by the floorstanding boiler subject to the FSX

sensor, if required. Small system in


W 551.






Logano

SP1

PSS

Logasol

KS01..

I

Collector

TW







FSS

RS1

VS1

AB

MB 2

WWM

MB1

FSX

EK

PZ

EZ VS3

M4


VS4

FP

RS4

II

PS

A M B

AB

FR

HSM-E

HK1

PH

M


system H1 ➔ 37/1)


Oil/Gas



guide to possible hydraulic schemes


in accordance with local regulations


HZG kit


RW


RW


HZG kit


HZG kit

1

2 Logamatic

4121

+ FM443

I

II

I

II

I

II

I

II

I

II

67

4


4.2.5 Solar DHW heating and central heating backup: Wall mounted boiler (GB142),






heated.

68

FSK

SP1

PSS

Logasol

KS01..

I

Collector

TW










DHW reheating





W 551.





Logamax plus with EMS1) Logamax

Logamax plus

FSS

RS1

VS1





AW

MB 2

WWM


1) This system hydraulic scheme is not possible with the Logamax plus GB152

MB1

FSX

EK

PZ

EZ VS3

VS4

M4 FP

RS4

II

A M B

AB

FR

HSM-E

HK1

PH

M

FK


+ FM443

1

2


system H1 ➔ 37/1)

VK

RK

VS


HZG kit


HZG kit


HZG kit



guide to possible hydraulic scheme


in accordance with local regulation

GB142

I

II

I

II

I

II



4.2.6 Solar DHW heating and central heating backup: Wall mounted boiler (GB152),


FSK

SP1

PSS

Collector

Logasol

KS01..

I

TW





heated.









DHW reheating takes place via a third-party

three-way valve GS-U (remove motor from

internal three-way valve).

DHW reheating





W 551.






Logamax

Logamax plus





FSS

RS1

VS1

AW

MB 2

WWM

MB1

FSX

EK

PZ

EZ VS3


VS4

M4 FP

RS4

II

A M B

AB

FR

HSM-E

HK1

PH

M

FK


+ FM443

1

2

VK

RK


system H1 ➔ 37/1)

M

MAG

BC10

U-KS11

G-SU


HZG kit


HZG kit


HZG kit






GB152

1) Remove motor from internal three-way changeover valve

1)

I

II

I

II

I

II

69

4


4.3 Solar heating systems for DHW heating with solid fuel boiler

4.3.1 Solar DHW heating: Floorstanding boiler, solid fuel boiler with dual-mode






70

FSK


The floorstanding boiler or solid fuel boiler

heats up the heating circuit.


DHW reheating




W 551.




Logano with EMS 1)

Logano plus with EMS 1)

Logano

SP1

PSS

FPO

FPU

Collector

Logasol

KS01..

I

M1

VS1

VS2

RS2

RS3

Logalux PR.../PS...

HSM-E

A M B

AB


1) Every boiler requires its own chimney






FR

HK1

PH

M

FK

PH

Logamatic

2114


Logano S151


Oil/Gas

TW

FSX

FSS1

FK

PS

TW

AW

VS2

M1

RS2

VS1

M2

RS1


SC20

1

2

Logamatic

4121

+ FM443

EZ


system T1 ➔ 37/1)

WWM

EK






PZ



Logasol KS01.. I



4.3.2 Solar DHW heating: Wall mounted boiler, solid fuel-boiler with dual-mode


FSK

PSS

SP1

II

FPO

FP

FSS2

FPU






The wall mounted boiler or solid fuel boiler

heats up the heating circuit.

DHW reheating




W 551.




Logamax with EMS 1)


Logamax

Logamax plus

VS-SU

Logasol

KS01..

I

M1

M4

VS 1

Collector

VS2

VS3

RS3

RS2

RS1

Logalux PL...

HSM-E

III

A M B

AB

FR

HK1






PH

FK

M

PH

FK

Logamatic

2114

1

2


Logano S151


+ FM443

RK

TW

VK

GB142

FSX

FSS1

PS

TW

AW

VS2

M1

RS2

VS1

M2

RS1

EZ







SC20

WWM

EK


system T1 ➔ 37/1)

PZ


71

4


4.3.3 Solar DHW heating: Pellet boiler with dual-mode DHW cylinder and thermal store





72

FSK


The solid fuel boiler heats up the thermal

store to a constant temperature.


DHW reheating




W 551.



Solid fuel Control unit Type Control unit Component

Logano pellet Logamatic 4000 4211 P FM443 Logasol KS01.. I

Logano solid fuel

SP1

PSS

FK

Logasol

KS01..

Logamatic 4000 +


Merchandise +


S151 + 2114 + 4121

SX11 + 4121

Ixtronic + 4121

S241 control unit +

4121



I

M1

Collector

VS1

VS2

RS2

RS3

Logalux PR.../PS...

HSM-E

HK1

PH

M

PH

Logamatic

4211P

+ FM443

Pellet boiler Logano SP...

FM443 Logasol KS01.. I

SC20

FSX

FSS1

PS


system T1 ➔ 37/1)






TW

AW

VS2

M1

RS2

VS 1

M2

RS1

EZ

WWM

EK


PZ

Logasol KS01.. I



4.4 Solar heating systems for DHW heating and central heating backup with solid fuel

boiler

4.4.1 Solar DHW heating and central heating backup: Floorstanding boiler, solid fuel

boiler with dual-mode DHW cylinder and thermal store

FSK

SP1

Log asol

KS0 1..E

II

PSS2

Collector

PSS1






consumer (solar buffer) is heated subject to

the temperature differential between FSK and

FSS2. Possible heating of the 1st consumer

is checked at frequent intervals.






required flow temperature by the

floorstanding boiler and the solid fuel

boiler. The solar yield is reduced during solid

fuel boiler operation. All heating circuits are


DHW reheating




W 551.




Logano with EMS 1)

Logano plus with EMS 1)

Logasol

KS01..



I

SC40




FPO

FP

FSS2

FPU

M1

M4

VS 1

VS2

VS3

RS2

RS3

RS1

Logalux PL...

HSM-E

III

A M B

AB

FR

HK1

PH

M

FK

PH

Logamatic

2114

Logamatic

2107 M


Logano S151


system H6 ➔ 37/1)

FSX

FSS1

FK

Floorstanding boiler

Oil/Gas

TW

PS

TW

AW

VS2

M1

RS2

VS1

M2

RS1

EZ

WWM

EK




HZG kit



HZG kit



HZG kit






I

II

III

I

II

III

I

II

III

PZ

73

4


4.4.2 Solar DHW heating and central heating backup: Wall mounted boiler, solid fuel

boiler with dual-mode DHW cylinder and thermal store










74







mounted boiler and the solid fuel boiler. The

solar yield is reduced during solid fuel boiler

operation. All heating circuits are equipped

with a three-way valve.


DHW reheating




W 551.




Logamax with EMS 1)


Logamax

Logamax plus

FSK

PSS

SP1

II

FPO

FP

FSS2

FPU

VS-SU

Logasol

KS01..

Logalux PL...



I

M1

M4

VS 1

Collector




VS2

VS3

RS3

RS2

RS1

HSM-E

III

A M B

AB

FR

HK1

PH

FK

M

PH

FK

Logamatic

2114

1

2


Logano S151


+ FM443

RK

TW

VK

GB142

FSX

FSS1

PS

TW

AW

VS2

M1

RS2

VS1

M2

RS1


system H5 ➔ 37/1)

EZ

WWM

EK








VS-SU

HZG kit


VS-SU

HZG kit


VS-SU

HZG kit

PZ

I

II

III

I

II

III

I

II

III



4.4.3 Solar DHW heating and central heating backup: Solid fuel boiler with dual-mode


FSK

PSS

SP1















required flow temperature by the solid fuel

boiler. All heating circuits are equipped with

a three-way valve.

DHW reheating




W 551.



Solid fuel Control unit Type Control unit Component

Logano pellet Logamatic 4000 4211 P FM443

Logano solid fuel

II

FPO

FSS2

FPU

VS-SU

Logasol

KS01..

I

M1

M4

VS 1

Collector

RS2

RS3

Logalux PL...

Logamatic 4000 +


Merchandise +


S151 + 2114 + 4121

SX11 + 4121

Ixtronic + 4121

S241 control unit +

4121



VS3

VS2

RS1

HSM-E

HK1

PH

M

FK

PH

1

2

Logamatic

4121

+ FM443

TW

Solid fuel boiler Logano S241






FSX

FSS1

FM443

PS

TW

AW

VS2

M1

RS2

VS1

M2

RS1


system H5 ➔ 37/1)

EZ

WWM

EK



VS-SU


VS-SU


VS-SU

PZ

I

II

I

II

I

II

75

4


4.5 Solar heating systems for DHW heating and swimming pool heating with

conventional oil/gas-fired boilers

4.5.1 Solar DHW heating and swimming pool water heating: Floorstanding boiler






consumer (swimming pool) is heated via the

swimming pool heat exchanger SWT and the

secondary circuit pump PS2 subject to the


76

FSK

SP1

PSS

II

between FSK and FSS2. Possible heating of

the 1st consumer is checked at frequent

intervals.

DHW reheating




W 551.


Swimming pool water reheating

The floorstanding boiler reheats the

swimming pool water via a heating circuit

with heat exchanger (WT).

76/1 Wiring diagram with short description of the sample system (General instructions ➔ page 57f.; abbreviations ➔ page 148)





Collector

Logasol

KS01..

I

A M B

AB





FE

FSS1

AB

VS 1

RS 1

WWM

AW

M 4

FSX

Logalux SL300-2, SL400-2, SL500-2

M

VS

RS

EK

PS

VK

MAG

RK

1

2

FV3


system S1 ➔ 37/1)






M

WT

PH

SH


+ FM443 + FM442

Boiler

Logano EMS

Oil/Gas

PSB SMF

III

SWT


VS-SU

SWT

PS2


VS-SU

SWT

PS2


VS-SU

SWT

PS2

FSS2

FSB

PS2

230 V

50 Hz

IV

RSB

I

II

III

IV

I

II

III

IV

I

II

III

IV



4.5.2 Solar DHW heating and swimming pool water heating: Wall mounted boiler

FSK

SP1

PSS

II






consumer (swimming pool) is heated via the

swimming pool heat exchanger SWT and the

secondary circuit pump PS2 subject to the


between FSK and FSS2. Possible heating of

the 1st consumer is checked at frequent

intervals.

DHW reheating


subject to the FSX sensor, if required. Small

system in accordance with DVGW Code of

Practice W 551.

Swimming pool water reheating

The wall mounted boiler reheats the

swimming pool water via a heating circuit

with heat exchanger (WT).

77/1 Wiring diagram with short description of the sample system (General instructions ➔ page 57f.; abbreviations ➔ page 148)





Logamax

Logamax plus

Collector

Logasol

KS01..

I

A M B

AB





FE

FSS2

AB

FSS1

VS 1

RS 1

WWM

AW

M 4

Logamatic

4121

+ FM443

FSX

Logalux SL300-2, SL400-2, SL500-2

M

VS

RS

1

2

EK






GB142

SA

VK

SMF RK

FV3


system S1 ➔ 37/1)

M

WT

PH

SH

PSB SMF

III

SWT


VS-SU

SWT

PS2


VS-SU

SWT

PS2


VS-SU

SWT

PS2

PS2

230 V

50 Hz

FSS2

FSB

RSB

IV

I

II

III

IV

I

II

III

IV

I

II

III

IV

77

4


4.6 Detailed hydraulic scheme for wall mounted boilers

The individual device hydraulics are different for wall

mounted boilers. For example, the three-way diverter

valve in each boiler is installed into the boiler flow or

return.

Systems for solar DHW heating

78

The diagrams 78/1 and 78/2 show the hydraulic

integration of several Buderus wall mounted boilers

subject to the selected system hydraulic scheme.

78/1 Detailed hydraulic scheme for wall mounted boilers in sample systems for solar DHW heating (abbreviations ➔ page 148)

Systems for solar DHW heating and central heating backup

VK

RK

VK

RK

SV

Logamax plus

GB152-16...24

M SV

ÜV

AV

VS RS

MAG

Logamax plus

GB142

MAG

AV

VS

M

PH

Combi cylinder system

Logamax plus

GB142

78/2 Detailed hydraulic scheme for wall mounted boilers in sample systems for solar DHW heating and central heating backup (abbreviations

➔ page 148)


VK

RK

VK

RK

SV

MAG

VS

M

AV

PH

RS

Logamax plus

GB142

SV

MAG

M

PH

Two-cylinder system

5 Sizing

5.1 Sizing principles

5.1.1 Solar DHW heating

Solar heating systems are most frequently used for

DHW heating. Check each case individually as to

whether it is possible to combined an existing heating

system and a solar heating system. The conventional

heat source must be able to provide the hot water in a

building independently of the solar heating system.

There is also an appropriate comfort requirement that


Sizing 5

must be reliably covered during periods of bad

weather.

Coverage of 50% to 60% is generally desirable for

DHW heating systems for detached houses and twofamily

homes. Sizing for less than 50% is also relevant

if the available consumption values are unreliable. A

coverage of less than 50% is generally appropriate in

apartment blocks.

5.1.2 Domestic hot water (DHW) heating and central heating backup

Solar heating systems can also be designed as

combination systems for DHW heating and central

heating backup. Solar swimming pool water heating,

combined with DHW heating and central heating

backup is also possible.

Since the system is operated at low temperatures

during the spring and autumn, the type of heat

distribution only plays a minor part in the efficiency of

the system. A solar heating system for providing

central heating backup can be realised in combination

with an underfloor heating system and with radiators.

5.1.3 Sizing with computer simulation

It is advisable to size the solar heating system using

computer simulation:

● With six collectors or more, or

● If there is a significant difference from the

calculation conditions in the sizing diagrams

(➔ 80/1 to 81/2 and 84/1 to 85/2)

Correct sizing essentially depends on the accuracy of

the information concerning the actual DHW demand.

The following values are important:

● Daily DHW demand

● Daily profile, DHW demand

● Weekly profile, DHW demand

● Seasonal influence on the DHW demand (e. g. camp

site)

● Set DHW temperature

● Existing DHW heating equipment (if an existing

system is being extended)

● Circulation losses

The desired coverage for DHW heating systems

combined with central heating backup is between 15%

and 35% of the total annual heating demand for DHW

and central heating. The achievable coverage is

largely dependent on the building's heating demand.

The Logasol SKS4.0 high-performance flat-plate

collector and the Vaciosol CPC vacuum tube collector

are particularly recommended as solar collectors for

systems with central heating backup because of their

high efficiency and dynamic response behaviour.

● Location

● Orientation

● Slope

The T-SOL simulation program is extremely practical

for calculating solar heating systems. Simulation

programs require consumption values as well as the

size of the collector array and the cylinder.

Consumption information should always be obtained,

since values taken from literature are of little use.

The collector array and the solar heating cylinder must

therefore be pre-sized for the computer simulation

(➔ page 80 ff.). The required output result is obtained

in stages.

The T-SOL program stores results such as temperatures,

energy levels, efficiencies and coverage in a file. This

information can be displayed on screen in many

different ways and can be printed out for further

analysis.

79

5

Sizing

5.2 Sizing the collector array and solar heating cylinder

5.2.1 Systems for DHW heating in detached houses and two-family homes

Number of collectors

Empirical values from detached houses and two-family

homes can be used when a small solar heating system

for DHW heating is being sized. The following factors

influence the optimum sizing of the collector array, the

cylinder and the compact station for solar collector

systems for DHW heating:

● Location

● Roof slope (collector angle of inclination)

● Roof orientation (south-facing collector)

● DHW consumption profile

Take the draw-off temperature in accordance with the

existing or intended sanitary equipment into

consideration. Basically, you orient yourself to the

known number of occupants and the average

consumption per person per day. Information about

particular draw-off habits and comfort requirements

are ideal.

Calculation principles

Diagrams 80/1 to 81/2 are based on a sample

calculation with the following system parameters:

● Logasol SKS4.0 high-performance flat-plate

collectors, Logasol SKN3.0 flat-plate collectors and

Vaciosol CPC6 vacuum tube collectors

● Logasol SKS4.0: Logalux SL300-2 dual-mode

thermosiphon cylinder (for more than three

collectors: Logalux SL400-2)

● Logasol SKN3.0: Logalux SM300 dual-mode cylinder

(for more than three collectors: Logalux SM400)

● Vaciosol CPC6: Logalux SL300-2 dual-mode

thermosiphon cylinder (for more than three CPC6:

Logalux SL400-2)

● South-facing roof orientation (correction factor

➔ page 82)

● Roof incline 45° (correction factor ➔ page 82)

● Location Würzburg

● Draw-off temperature 45 °C

➔ Determining the number of collectors or tubes in

accordance with diagram 80/1, 81/1 or 81/2 results in

a solar coverage of approx. 60%.

80

Example

● Household with four occupants and a DHW demand

of 200 l per day

● Solar heating system for DHW heating

➔ According to diagram 80/1, curve b, two Logasol

SKS4.0 high-performance flat-plate collectors are

required.

Logasol SKS4.0

80/1 Diagram for an approximate determination of the number of

Logasol SKS4.0 collectors for DHW heating (example

highlighted, observe calculation principles!)


nSKS4.0 Number of collectors

nP Number of occupants

DHW demand curves:

a Low (< 40 l per person per day)

b Average (50 l per person per day)

c High (75 l per person per day)


n P

8

7

6

5

4

3

2

a

c

b

1 1 2 3 4 5

n SKS4.0

6

Logasol SKN3.0

n P

8

7

6

5

4

3

2


Logasol SKN3.0 collectors for DHW heating (observe

calculation principles!)


nSKN3.0 Number of collectors

nP Number of occupants

DHW demand curves:

a Low (

5

Sizing

Influence of collector orientation and inclination on solar yield

Optimum angle of inclination for collectors

Use of solar heat for Optimum angle of

inclination of

collectors

DHW 30°–45°

Domestic hot water + central heating 45°–53°

Domestic hot water + swimming pool

water

30°–45°

Domestic hot water + central heating +

swimming pool water

45°–53°

82/1 Angle of inclination of collectors subject to the use of solar

heating system

The optimum angle of inclination depends on the use

of the solar heating system. The shallower optimum

angles of inclination for DHW and swimming pool

water heating take into account the higher position of

the sun in the summer The wider optimum angles of

inclination for central heating backup are designed for

the lower sun position in spring and autumn.

82

Collector orientation according to the points of the

compass

Orientation in accordance with the points of the

compass and the angles of inclination of the solar

collectors have an influence on the thermal energy

that is supplied by a collector array. Aligning the

collector array south with a deviation of up to 10° east

or west and an angle of inclination of 35° to 45° are the

ideal conditions for maximum solar yield.

If the collector array is mounted on a steep roof or a

wall, the orientation of the collector array is identical

to that of the roof or wall. If the collector array

orientation deviates to the east or west, the rays of the

sun will no longer strike the absorber area in the most

effective way. This will reduce the performance of the

collector array.

According to table 82/2 there is a correction factor for

every collector array deviation from the southern point

of the compass, subject to the angle of inclination. The

collector area that was determined under ideal

conditions must be multiplied by this factor to achieve

the same energy yield as is achieved with direct

orientation south.

Correction factors for solar collectors Logasol SKN3.0 and SKS4.0 for DHW heating

Angle of

Correction factors for collector orientation deviation from south

inclination

Deviation to the west by South Deviation to the east by

90° 75° 60° 45° 30° 15° 0° –15° –30° –45° –60° –75° –90°

60° 1.26 1.19 1.13 1.09 1.06 1.05 1.05 1.06 1.09 1.13 1.19 1.26 1.34

55° 1.24 1.17 1.12 1.08 1.05 1.03 1.03 1.05 1.07 1.12 1.17 1.24 1.32

50° 1.23 1.16 1.10 1.06 1.03 1.02 1.01 1.04 1.06 1.10 1.16 1.22 1.30

45° 1.21 1.15 1.09 1.05 1.02 1.01 1.00 1.02 1.04 1.08 1.14 1.20 1.28

40° 1.20 1.14 1.09 1.05 1.02 1.01 1.00 1.02 1.04 1.08 1.13 1.19 1.26

35° 1.20 1.14 1.09 1.05 1.02 1.01 1.01 1.02 1.04 1.08 1.12 1.18 1.25

30° 1.19 1.14 1.09 1.06 1.03 1.02 1.01 1.03 1.05 1.08 1.13 1.18 1.24

25° 1.19 1.14 1.10 1.07 1.04 1.03 1.03 1.04 1.06 1.09 1.13 1.17 1.22

82/2 Correction factors with south deviation of Logasol SKN3.0 and SKS4.0 solar collectors for different angles of inclination

Correction ranges: 1.00–1.05 1.06–1.10 1.11–1.15 1.16–1.20 1.21–1.25 > 1.25

➔ The correction factors only apply to DHW heating

and not for central heating backup.

Example

● Parameters

– Household with four occupants with DHW

demand of 200 l per day

– Angle of inclination 25° with rooftop installation

or roof integration of Logasol SKS4.0 solar

collectors

– Deviation to the west by 60°

● Measure

– 1.8 Logasol SKS4.0 collectors (➔ Diagram 80/1)

– Correction factor 1.10 (➔ Table 82/2)

– The calculation results in: 1.8 × 1.10 = 2.0

➔ To achieve the same energy yield as with direct

southerly orientation, allow for 2 Logasol SKS4.0 solar

collectors.

Technical guide - Logasol solar technology for domestic hot water heating and central heating backup - 06/2007

Correction factors for Vaciosol vacuum tube collectors with DHW heating

Cylinder selection

A suitable ratio between collector output (size of

collector array) and cylinder capacity (cylinder

volume) is required to make a solar heating system

operate efficiently. The size of the collector array is

limited subject to the cylinder capacity (➔ 83/2).

Always operate solar heating systems for DHW heating

in a detached house with a dual-mode cylinder, if

possible. A dual-mode solar cylinder has a solar heat

exchanger and a heat exchanger for reheating by a

boiler. In this concept the upper part of the cylinder

acts as the standby part. Take this into consideration

when selecting a cylinder.

Two-cylinder systems are only worthwhile for greater

DHW demands than can be covered by a dual-mode

cylinder. In such systems, a mono-mode cylinder for

accepting the solar heat is installed upstream of a

conventional cylinder. The conventional cylinder must


Sizing 5

Angle of

Correction factors for collector orientation deviation from south

inclination

Deviation to the west by South Deviation to the east by

90° 75° 60° 45° 30° 15° 0° –15° –30° –45° –60° –75° –90°

90° 2.4 2.0 1.9 1.8 1.8 1.9 2.0 1.9 1.8 1.8 1.9 2.0 2.4

80° 2.0 1.7 1.6 1.5 1.5 1.5 1.6 1.5 1.5 1.5 1.6 1.7 2.0

70° 1.7 1.5 1.4 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.4 1.5 1.7

60° 1.6 1.4 1.3 1.2 1.2 1.2 1.2 1.2 1.2 1.2 1.3 1.4 1.6

50° 1.4 1.3 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2 1.3 1.4

40° 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.3

30° 1.3 1.2 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.2 1.3

20° 1.2 1.1 1.1 1.1 1.0 1.0 1.0 1.0 1.0 1.1 1.1 1.1 1.2

15° 1.2 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.2

83/1 Correction factors with southerly deviation of Vaciosol vacuum tube collectors for different angles of inclination

Correction ranges: 1.0–1.1

1.2–1.3 1.4–1.6 1.7–2.4

cover all DHW demands. The solar cylinder can

therefore be somewhat smaller.

This concept can also be used for retrofitting a solar

heating system in a conventional system. However, the

use of a dual-mode cylinder should always be

considered for energy and financial reasons.

Rule of thumb

A cylinder volume of twice the daily demand has

proven to be adequate. Table 83/2 shows standard

values for selecting the DHW cylinder subject to the

DHW demand per day for the relevant number of

occupants. A cylinder temperature of 60 °C and a

draw-off temperature 45 °C have been assumed. In a

multi-cylinder system the stored volume of DHW

should be able to cover twice the daily demand with a

draw-off level of 85%.

DHW

Recommended

Recommended number of occupants Capacity Rec. no.

cylinder

daily DHW demand in l

1)

Rec. no. of

Logalux with cylinder temperature of 60 °C

and draw-off temperature of 45 °C

with a DHW demand per person per day of

40 l

50 l

75 l

Low Average High l

Collectors

SKN3.0 or

SKS4.0

CPC tubes

SM300 up to 200/250 approx. 5–6 approx. 4-5 approx. 3 290 2–3 18

SM400 up to 250/300 approx. 6-8 approx. 5-6 approx. 3-4 390 3–4 24


SL300 up to 200/250 approx. 5-6 approx. 4-5 approx. 3 300 2–3 18

SL400 up to 250/300 approx. 6-8 approx. 5-6 approx. 3-4 380 3–4 24


SU160 2)

SU200 2)

up to 200/250 approx. 5-6 approx. 4-5 approx. 3 160 (300) 2–3 12

up to 200/250 approx. 5-6 approx. 4-5 approx. 3 200 (300) 2–3 12

83/2 Standard values for selecting the DHW cylinder

1) Determining the number of collectors ➔ page 84

2) Subject to the system configuration; relative to a total DHW volume of 300 l and water transfer between the pre-heating stage and the

standby cylinder (sample system ➔ 45/1)

83

5

Sizing

5.2.2 Systems for DHW heating and central heating backup in detached houses

and two-family homes


The sizing of the collector array for a solar heating

system for DHW heating and central heating backup is

directly dependent on the heating demand of the

building and the required solar coverage. Only partial

coverage is generally achieved during the heating

season.

➔ Diagrams 84/1 to 85/2 assume an average DHW

demand for a 4-person household to be 50 l per person

per day for DHW heating.


Diagrams 84/1 to 85/2 are based on a sample

calculation with the following system parameters:

● Logasol SKS4.0 high-performance flat-plate

collectors, Logasol SKN3.0 flat-plate collectors and

Vaciosol CPC vacuum tube collectors

● Logasol SKS4.0:

Thermosiphon combi cylinder PL750/2S (for more

than 8 collectors: Logalux PL1000/2S)

● Logasol SKN3.0:

P750 S combi cylinder (for more than six collectors:

Logalux PL1000/2S)

● Vaciosol CPC:

Thermosiphon combi cylinder PL750/2S (for more

than 42 CPC tubes: Logalux PL1000/2S)

● Household with four occupants with a DHW


● Roof orientation towards south

● Roof pitch 45°


● Low temperature heating with ϑ V =40°C, ϑ R = 30 °C

Example

● Household with four occupants with a DHW


● Solar heating system for DHW heating and

underfloor heating backup

● Heating demand 8 kW

● Required coverage 25%

➔ According to diagram 84/1, curve c, six Logasol

SKS4.0 high-performance flat-plate collectors are

required.

84



Logasol SKS4.0 collectors for DHW heating and central heating

backup (example highlighted, observe calculation principles!)


nSKS4.0 Number of collectors

QH Building heating demand

Curves for coverage of total annual heating demand for DHW

heating and central heating

a Coverage of approx. 15 %

b Coverage of approx. 20 %

c Coverage of approx. 25 %

d Coverage of approx. 30 %

e Coverage of approx. 35 %


Q H

kW

18

16

14

12

10

8

6

4

2

0 1 2 3 4 5

n SKS4.0

a

b

c

d

e

6 7 8 9 10


Q H

kW

18

16

14

12

10

8

6

4

2

0 1 2 3 4 5


Logasol SKN3.0 collectors for DHW heating and central

heating backup (observe calculation principles!)


nSKN3.0 Number of collectors









a

n SKN3.0

b

c

d

e

6 7 8 9 10

Vaciosol CPC


nCPC Number of tubes










QH kW

18

16

14

12

10

8

6

4

2

Sizing 5

0

6 12 18 24 30

nCPC 36 42 48 54 60


Vaciosol CPC tubes for DHW heating and central heating

backup (observe calculation principles!)

a

b

c

d

e

85

5

Sizing

Cylinder selection

Solar heating systems for DHW heating and central

heating backup should be operated using a

combination cylinder if possible. When a cylinder is

being selected ensure that the DHW standby part

corresponds to the user's usage pattern.

As well as providing an adequate supply of DHW, a

solar heating system for DHW heating and central

heating backup must also take the building heating

demand into consideration.

DHW cylinder Recommended


86/1 Standard values for selecting the combi cylinder


Alternatively it is possible to install a two-cylinder

system instead of a combi cylinder. This would be

particularly advisable if an additional DHW demand

or buffer water demand arises due to an additional

86

Recommended

number of

occupants

Table 83/2 shows standard values for selecting the

combi cylinder subject to the DHW demand per day for

the relevant number of occupants, and the

recommended number of collectors. A cylinder volume

of at least 100 l must be available per flat-plate

collector to minimise stagnation times.

The total coverage can be sized in accordance with

diagrams 84/1 to 85/2. A detailed result is provided by

simulation using a suitable simulation program.

Capacity

DHW/total

Logalux at a cylinder temperature of 60 °C

and draw-off temperature of 45 °C l

Recommended

number 1)

of collectors

SKN3.0 or SKS4.0

consumer. The number of collectors must be adapted

to the demand of the additional consumer in this case

(e.g. swimming pool or thermal store).


Recommended

number

of CPC tubes

P750 S up to 200/250 approx. 3-5 160/750 4–6 36–48

PL750/2S up to 250/350 approx. 3-9 300/750 4–8 36–48

PL1000/2S up to 250/350 approx. 3-9 300/940 6–10 48–60

Duo FWS750 up to 200/250 approx. 3-5 38/750 4–6 36–48

Duo FWS1000 up to 250/350 approx. 3-6 38/1000 4–8 48–60

DHW cylinder Recommended


Logalux

at a cylinder temperature of 60 °C

and draw-off temperature of 45 °C

86/2 Standard values for selecting the DHW cylinder for a two-cylinder system.


Recommended number of occupants Cylinder

with DHW demand per person per day of

capacity

40 l

Low

50 l

Average

75 l

High l

Rec.

number 1)

of collectors

SKN3.0

or

SKS4.0

Rec.

number of

CPC tubes

SM300 up to 200/250 approx. 5-6 approx. 4-5 approx. 3 290 2–3 18



SL300 up to 200/250 approx. 5-6 approx. 4-5 approx. 3 300 2–3 18



DHW cylinder Buffer capacity Recommended number of 1) SKN3.0 or

SKS4.0 collectors

Logalux l

86/3 Standard values for selecting the thermal store for a two-cylinder system.


Recommended number of CPC tubes

PL750 750 4–8 36–48

PL1000 1000 4–8 48–60

PL1500 1500 6–16 72–108

5.2.3 Apartment blocks with 3 to 5 residential units

Dual-mode cylinder in large systems

With large systems as defined by the DVGW

[Germany], the water delivered by the DHW heating

system must always be at a temperature of ≥ 60 °C.

The entire contents of pre-heating stages must be

heated to ≥ 60 °C at least once per day.

For small detached houses the pre-heating stage (the

part of the cylinder volume that is heated by the solar

heating system) and the standby part (conventionally

heated cylinder volume) must also be combined in a

dual-mode cylinder. The daily heating is made

possible by a water transfer between the standby part

and the pre-heating stage. A connecting line with

circulation pump is provided for this purpose between

the DHW outlet and the cold water inlet of the dual-

FSK

SP1

PSS

Logasol

KS01..

Collector

PS

FSX

FSS

M1

RS 2

VS 1

M2

RS 1

VS 2 AW

TW

EZ

EK


HK1

HS-E PH

PUM

WWM


Sizing 5

mode cylinder. The pump is actuated via the FM443

solar function module.

This means that a coverage of approx. 30% can be

achieved for a system with a Logalux SM500 or SL500

cylinder with 4 or 5 collectors and a DHW demand of

100 l at 60 °C per residential unit.

➔ When sizing the cylinder ensure that the DHW

demand can also be covered without solar yield via

conventional reheating.

Daily heating/pasteurisation control

Pasteurisation control can only be used and completed

successfully if the same conditions as those for

apartment blocks with up to 30 residential units are

met (➔ page 89).

87/1 Example of hydraulic integration of a dual-mode cylinder in large systems for apartment blocks of 3 to 5 residential units; control of cylinder

water transfer and pasteurisation control in accordance with DVGW Code of Practice W 551 using solar function module FM443

(abbreviations ➔ page 148)

PZ

FK


Oil/Gas






1

2


+ FM443

87

5

Sizing

5.2.4 Apartment blocks with up to 30 residential units

Two-cylinder system with pre-heating stage

The daily heating of the pre-heating stages must

always be taken into consideration when solar heating

systems are being planned in combination with large

systems for DHW heating in accordance with the

DVGW. This ensures that hygiene is maintained, and

simultaneously raises the average temperature level in

the solar pre-heating stage.

In smaller large systems with a uniform consumption

profile (e.g. an apartment block) or lesser coverage

requirements of approx. 20% to 30%, systems with preheating

stages filled with DHW are frequently a

financially interesting solution in spite of the required

daily heating. However, the daily heating reduces the

yield considerably in systems with greater coverage

requirements of approx. 40% and the associated large

solar buffer volumes. A switch to thermal stores filled

with heating water with additional heat transfer to the

DHW is a frequent response for such systems. These

also offer the advantage that integrating the solar

heating system only leads to a slight increase in DHW

volume with the SAT-VWS system and none at all with

88

FSK

PSS

SP1

Logasol

KS01..

Collector

FSS

TW

RS

VS

M

AW

EK


HS-E -

HK1

PH

FSX

PS

the SAT-ZWE system. Separate engineering documents

are available for these systems.

Systems with DHW cylinders are suitable for

retrofitting, since the pre-heating stage and the

standby part have separate cylinders. The pre-heating

stage and the standby cylinder can be sized separately.

The set temperature for the standby cylinder is at least

60 °C. Solar heating must be enabled up to 75 °C so

that the solar heating system can utilise the entire

cylinder volume. The solar function module FM443 or

solar control unit SC40 switches pump PUM ON for a

water transfer between the two cylinders if the preheating

cylinder is hotter than the standby cylinder.

This means that both cylinders are heated above the

set temperature, and the heat loss due to DHW

circulation can also be covered by solar energy.

The water transfer is started at a preset time during the

night if the required pasteurisation temperature of

60 °C is not achieved during the day.

88/1 Diagram of a two-cylinder system as large system with pre-heat cylinder and standby cylinder filled with DHW; cylinder water transfer and

pasteurisation control regulated in accordance with DVGW Code of Practice W 551 by solar function module FM443 (abbreviations

➔ page 148)


RS

VS

M

PUM

AW

EZ

WWM

EK





Implement all safety equipment in

accordance with local regulations.

PZ

FK


Oil/Gas

1

2


+ FM443

Daily heating/pasteurisation control

The following conditions must be complied with to

enable pasteurisation control to be used and

completed successfully:

● Pasteurisation of the pre-heat stage must take place

during periods where no DHW is drawn. This

requirement is easiest to comply with at night.

● The flow rate for pasteurisation should be selected so

that the content of the pre-heat cylinder is circulated

at least twice per hour. It is advisable to use a threestage

pump that delivers appropriate reserves.

● The temperature of the standby cylinder must not drop

below the 60 °C limit whilst pasteurisation is taking

place. The output for pasteurisation must not be

greater than the maximum output for conventional

reheating of the standby cylinder so that the

temperature in the standby cylinder does not drop.

● To minimise the heat loss between the standby

cylinder and the pre-heat cylinder, the line must be

adequately insulated to a high thermal insulation

standard.

Collector area sizing

Apply a daily consumption of approx. 70 l to 75 l of

DHW at 60 °C per m² of collector area for sizing the

collector area in properties with a uniform

consumption profile, such as in apartment blocks.

Estimate the DHW demand with care, since less

utilisation would lead to a considerable increase in the

stagnation time of this system. Higher utilisation helps

to improve the system resilience.

By way of simplification, the following formulae can

be used taking the specified marginal conditions into

consideration:


Sizing 5

● Keep the pasteurisation line as short as possible (close

proximity to pre-heat or standby cylinder).

● The DHW circulation must be switched off during preheat

stage pasteurisation (no cooling by circulation

return into the standby cylinder).

● If the control unit for heating the standby cylinder has

a function for temporarily increasing the set

temperature in the cylinder, the time window of this

function must precede (e.g. 1/2 h) the time window for

pre-heat cylinder pasteurisation (synchronise both

time windows).

● Check the pasteurisation function during the system

commissioning. Select conditions that are identical to

the subsequent operating conditions.

n SKS4.0 =0.6·n WE

n SKN3.0 =0.7·n WE

n CPC12 =0.5·n WE

89/1 Formulae for the required number of Logasol SKS4.0, SKN3.0

and Vaciosol CPC12 solar collectors in relation to the number

of residential units (observe marginal conditions!)

Calculating sizes

nSKS4.0 Number of Logasol SKS4.0 solar collectors

nSKN3.0 Number of Logasol SKN3.0 solar collectors

nCPC12 Number of Vaciosol solar collectors with 12 tubes

nWE Number of residential units

Marginal conditions for formulae ➔ 89/1

● Pasteurisation control at 02:00 h

● New building circulation cost: 100 W/apartment

Old building: 140 W/RU


● Pre-heat cylinder temperature max. 75 °C, water

transfer enabled

● 100 l/RU at 60 °C

89

5

Sizing

Cylinder volume sizing

The DHW cylinders connected in series must be

equipped with a water transfer facility. Ensure that

daily heating takes place, and also a transfer of hotter

water from the pre-heat cylinder to the standby

cylinder. The cylinder volume for the solar heating

system then consists of the volume of the pre-heat

cylinder plus the volume of the standby cylinder.

Observe the sensor positions that are required during

cylinder selection. A cylinder with removable flexible

foam insulation makes it possible to attach additional

contact sensors, e.g. using straps.


The minimum pre-heat cylinder volume should be

approx. 20 l per square metre of collector area:

90/1 Formula for minimum pre-heat cylinder volume in relation to

the collector area


AK Collector area in m2 VVWS,min Minimum pre-heat cylinder volume in l

An increase in the specific cylinder volume increases

the system resilience regarding consumption

fluctuations, on the other hand more conventional

energy would be required for daily heating.

The pre-heat cylinder must provide a facility for

positioning two additional sensors at 20 % and 80 % of

the cylinder height.

The maximum number of collectors for the Logalux SU

pre-heat cylinder as per table 90/2 applies to a

maximum cylinder temperature of 75 °C and solar

heating system coverage of 25% to 30%. A heat

transfer to the collector circuit is not safeguarded if the

maximum cylinder temperature is exceeded.

Simulations must be used to verify that stagnation is

unlikely to occur. This is particularly important for

properties with limited summer use (e.g. schools).

90

V VWS ,min = A K ·20l/m 2

pre-heat cylinder Number of solar collectors

Logalux SKN3.0 SKS4.0 CPC12

SU400 16 14 11

SU500 20 16 13

SU750 22 18 15

SU1000 25 21 17

90/2 Maximum number of collectors for a Logalux SU pre-heat

cylinder (with a maximum cylinder temperature of 75 °C and

solar heating system coverage of 25% to 30%)

Standby cylinder

The standby cylinder is not heated at a lower

temperature differential (maximum temperature

minus reheat temperature) than the pre-heat cylinder,

but this cylinder provides about one third of the

necessary cylinder capacity because of its larger

volume. The heating of the standby cylinder also

enables an integration and provision of solar coverage

of the heat loss resulting from the DHW circulation.

The standby cylinder is sized in accordance with

conventional heat demand without taking the preheat

cylinder volume that is heated using solar energy

into consideration. However, the specific total cylinder

volume should be approx. 50 l per square metre of

collector area:

VBS + VVWS AK ------------------------ 50 l/m 2

≥

90/3 Formula for minimum total cylinder volume of pre-heat stage

and standby part per square metre of collector area


AK Collector area in m2 VBS Standby cylinder volume in l

VVWS Pre-heat cylinder volume in l


5.2.5 Swimming pool water heating systems

The weather conditions and the swimming pool heat

loss into the ground have a considerable influence on

sizing. For that reason, sizing a solar heating system

for heating swimming pool water can only ever be

approximate. Basically, the sizing has to be oriented to

the area of the pool. The water cannot be guaranteed

to be at a certain temperature over several months.

Standard values for indoor swimming pools with covers.

Conditions for standard indoor swimming pool values

● Pool basin covered when not in used (insulation)

● Set pool water temperature 24 °C

Example


– Indoor swimming pool, covered

– Pool surface 32 m2 – Pool water temperature 25 °C

● Wanted

– Number of Logasol SKS4.0 solar collectors for solar

swimming pool water heating

Standard values for outdoor swimming pools

The standard values only apply if the swimming pool

is insulated and embedded in the ground in a dry

condition. First insulate the pool if the swimming pool

is at the level of groundwater without insulation. Then

carry out a heat demand calculation.

Covered outdoor swimming pool (or indoor

swimming pool without insulation)

A ratio of 1:2 applies as standard value. This means

that the area of a collector array with Logasol SKN or

SKS must be half the size of the pool surface area. The

standard value is 1:3 for vacuum tube collectors.


Sizing 5

➔ If the solar swimming pool water heating system is

combined with DHW heating, we recommend the use

of a Logalux SM... dual-mode solar heating cylinder

with a large solar indirect coil and limited cylinder

heating up to 60 °C.

If the required set water temperature is higher than

24 °C, the number of required collectors increases by

the correction factor in table 91/1.

Range Reference size Sizing with solar collectors

SKN3.0 SKS4.0 CPC

Pool surface Pool surface in m 2 1 collector for every 5 m 2 1 collector

for every 6.4 m 2

Correction factor for pool

water temperature

Deviation above 24 °C pool

water temperature

1.3 additional collectors 1 additional collector

For every +1 °C above a pool water temp. of 24 °C

12 tubes for every 8 m 2

1 additional

CPC12 collector

91/1 Standard values for calculating the number of collectors for swimming pool water heating for a covered indoor swimming pool (insulation).

● Read off (➔ 91/1)

– 5 Logasol SKS4.0 solar collectors for pool area of

32 m 2

– 1 Logasol SKS4.0 solar collector as correction for

+1 °C above 24 °C pool water temperature

➔ Six Logasol SKS4.0 solar collectors are required for

solar swimming pool water heating.

Outdoor swimming pool without insulation

In this case the standard value ratio is 1:1. This means

that the area of a collector array comprising Logasol

SKN or SKS must be the same size as the pool surface.

The standard value is 1:2 for vacuum tube collectors.

If the solar heating system is intended for an outdoor

swimming pool, DHW heating and/or central heating

backup, add the required collector areas for the

swimming pool water and DHW. Do not add the

collector areas for central heating. The solar heating

system heats the outdoor swimming pool in summer

and central heating in winter. DHW is heated all year

round.

91

5

Sizing

5.3 Space requirements for solar collectors

5.3.1 Space requirement with rooftop installation and roof integration

Logasol solar collectors can be installed on steep roofs

with a pitch of 25° to 65° and offer two installation

options. These are rooftop installation (➔ page 123 ff.)

and roof integration (➔ page 130 ff.). Installation on

corrugated sheets and sheet metal roofs (rooftop

installation only) can only be carried out on roof

pitches between 5° and 65°.

The minimum angle of inclination for vacuum tube

collectors with rooftop installations is 15°. Roof

integration is not possible.

➔ At the planning stage, the amount of space required

beneath the roof must be taken into consideration as

well as the area required on top of the roof.

Dimensions A and B represent the area requirement

for the selected number and layout of collectors (➔ 93/1

to 93/3). With roof integration they include the area

required for the collectors and their connection kits.

These dimensions must be considered to be the

minimum requirements. Installation with two persons

is made easier by also removing one or two rows of tiles

around the collector array. For this, dimension C is

regarded as the upper limit.

Dimension C represents at least two rows of tiles (three

rows of tiles with the Vaciosol CPC) up to the roof ridge.

If the tiles are laid in concrete there is a risk of

damaging the roof cover at the roof ridge.

Dimension D represents the roof overhang, including

the gable end thickness. The adjacent 0.5 m (0.3 m

with the Vaciosol CPC) space from the collector array

is required beneath the roof, subject to the connection

version (right or left).

Allow 0.5 m to the right and/or left of the collector

array for the connection lines (beneath the roof!).

92

Allow 0.3 m beneath the collector array (beneath the

roof!) for routing the return connection line.

➔ Route the return line with a rise to the automatic air

vent valve if the system is not filled using a filling

station.

Allow 0.4 m above the collector array (beneath the

roof!) for routing the flow header (rising) and the air

cowl with automatic air vent valve if the system is not

filled using a filling station.

≥ 0.5

92/1 Space requirements for rooftop and roof integration of solar

collectors (explanation in the text body); dimensions in m


C

A

≥ 0.5

D

B

≥ 0.3

D

≥ 0.4

Area required for solar collector rooftop and roof integration installation

C

B 1 2 3 4 5 6 7 8 9 10

Y

B

1 2 3 4 5 6 7 8 9 10

A

93/1 Area required for collector arrays for rooftop and roof integration installation (dimensions ➔ 93/2 and 93/3)

Dimensions Collector array dimensions for Logasol flat-plate collectors

SKN3.0 and SKS4.0 SKN3.0 and SKS4.0

at

rooftop installation

at

roof integration

portrait landscape portrait landscape

A for 1 collector m 1.15 2.07 – –

for 2 collectors m 2.32 4.17 2.67 4.52









B m 2.07 1.15 2.80 1.87

C 2 rows of tiles 2 rows of tiles 2 rows of tiles 2 rows of tiles

X ≈0.20 m ≈0.20 m 3 rows of tiles 3 rows of tiles

Y subject to roof

subject to roof

– –

construction

construction

(batten spacing) (batten spacing)

93/2 Collector array dimensions with Logasol flat-plate collectors for rooftop and roof integration installation (➔ 92/1 and 93/1)

Dimensions Collector array dimensions for Vaciosol vacuum tube collectors

CPC6 CPC12

for


for


one row two rows one row two rows

A for 6 tubes m 0.70 0.70 – –

for 12 tubes m 1.40 1.40 1.40 1.40

for 18 tubes m 2.15 2.15 – –

for 24 tubes m 2.85 2.85 2.80 2.80

for 30 tubes m 3.55 3.55 – –

for 36 tubes m 4.25 4.25 4.20 4.20

B m 2.10 4.15 2.10 4.15

93/3 Collector array dimensions with Vaciosol vacuum tube collectors for rooftop installation (➔ 92/1 and 93/1)

X

A Width of collector row

B Height of collector row

C Distance from roof ridge (at least two rows of tiles ➔ 92/1)

X Distance between collectors rows side by side

Y Distance between collectors rows above each other


Sizing 5

93

5

Sizing

5.3.2 Space required for flat roof installation

Flat roof installation is possible with portrait and

landscape Logasol SKS4.0 or SKN3.0 collectors and

with Vaciosol CPC vacuum tube collectors. The area

required for the collectors corresponds to the

installation area for the flat roof supports used plus a

space for pipework routing. This space should be at

least 0.5m to the left and right of the array. Maintain

a minimum distance of one metre from the roof edge.

94/1 Flat roof stand installation dimensions on the example of

Logasol SKN3.0-s and SKS4.0-s portrait flat-plate collectors

(dimension A ➔ 94/2 and dimension B ➔ 94/3)

94

A

Number of Collector row dimensions for Logasol

collectors

SKN3.0 and SKS4.0

portrait landscape

A A

m m

2 2.34 4.18

3 3.51 6.28

4 4.68 8.38

5 5.85 10.48

6 7.02 12.58

7 8.19 14.68

8 9.36 16.78

9 10.53 18.88

10 11.70 20.98

94/2 Collector row dimensions when using flat roof supports

Angle of Collector row dimensions for Logasol

inclination


portrait landscape

B B

m m

25° 1.84 1.06

30° 1.75 1.02

35° 1.68 0.96

40° 1.58 0.91

45° 1.48 0.85

50° 1.48 0.85

55° 1.48 0.85

60° 1.48 0.85


B

A B

94/4 Flat roof stand installation dimensions for Vaciosol CPC6 and

CPC12 vacuum tube collectors (dimension A ➔ 94/5 and

dimension B ➔ 94/6)

Number of Collector row dimensions for Vaciosol

tubes

CPC6 CPC12

one row one row

A A

m m

6 0.70 –

12 1.40 1.40

18 2.15 –

24 2.85 2.80

30 3.55 –

36 4.25 4.20



tubes

CPC6 CPC12

one row one row one row one row

with 30° with 45° with 30° with 45°

B B B B

m m m m

6 1.82 1.49 – –

12 1.82 1.49 1.82 1.49

18 1.82 1.49 – –

24 1.82 1.49 1.82 1.49

30 1.82 1.49 – –

36 1.82 1.49 1.82 1.49



Minimum row spacing

If several rows of collectors are installed behind each

other, they must be a minimum distance apart to

minimise the shading on the collectors at the back.

Standard values that apply to standard sizing apply to

this minimum spacing (➔ 95/3).

sinγ

X = L ⋅ ⎛----------- + cosγ⎞

⎝tanε ⎠

95/1 Formula for minimum row spacing for flat roof installation

L

95/2 Calculation parameter display (formula ➔ 95/1)

X

Calculation parameters (➔ 95/1 and 95/2)

X Free minimum spacing between collector rows (standard values

➔ 95/3)

L Length of solar collectors

γ Collector angle of inclination relative to the horizontal (standard

values ➔ 95/3)

ε Minimum solar altitude relative to the horizontal without shading

Angle of

inclination 1)


Sizing 5

Free minimum space X between collector rows

for Logasol


for Vaciosol

CPC6 and CPC12

portrait landscape portrait

γ m m m

25° 2)

30° 3)

4.74 2.63 –

5.18 2.87 34) 35° 5.58 3.09 –

40° 5.94 3.29 –

45° 6.26 3.46 3.55) 50° 6.52 3.61 –

55° 6.74 3.73 –

60° 6.90 3.82 –

95/3 The standard values for the minimum space between collector

rows at different angles of inclination (➔ 95/2; relative to the

minimum solar altitude without shading of 17° as the mean

between the Münster and Freiburg locations on the 21st

December at 12.00 h (midday))

1) Only these angles of inclination are approved by the

manufacturer. The use of different positions could damage

the system.

2) Adjustable by trimming the telescopic strut

3) Adjustable by trimming the telescopic strut with landscape

collectors

4) Angle of inclination only meaningful for DHW heating

5) Angle of inclination only meaningful for combined DHW

and central heating backup

95

5

Sizing

5.3.3 Space requirements for wall mounting

Logasol flat-plate collectors

Wall mounting is only suitable for Logasol SKN3.0-w

and SKS4.0-w landscape flat-plate collectors, and is

only approved for an installation height of up to 20 m.

The wall must have adequate load-bearing capacity

(➔ page 138)!

The space requirement on the wall for the collector rows

depends on the number of collectors. In addition to the

width of the collector array, allow at least 0.5 m to the left

and right (dimension A ➔ 96/2) for routing the

pipework. The space between the collector row and the

edge of the wall must be at least one metre.

96/1 Installation dimensions of wall mounting kits for Logasol

SKN3.0-w and SKS4.0-w landscape flat-plate collectors;

dimensions in m (dimension A ➔ 96/2)

96

A

Number of Collector row dimensions for Logasol

collectors

SKN3.0-w and SKS4.0-w

landscape

A

m

2 4.17

3 6.26

4 8.36

5 10.45

6 12.55

7 14.64

8 16.74

9 18.83

10 20.93

96/2 Collector row dimensions when using wall mounting supports

0.85

Minimum row spacing

The wall mounting kit is particularly suitable for

buildings the roof orientation of which deviates

considerably from south or for providing windows and

doors with shade. From a technical point of view this

allows the best possible use to be made of the sun, and

also represents an architectural feature.

In summer the collector provides ideal shade for

windows and keeps the rooms nice and cool. In winter,

when the sun is at a low altitude, the rays if the sun can

shine into the window below the collector and

therefore provide an additional source of energy.

➔ Several rows of collectors arranged above of each

other must be kept at least 3.7 m apart to prevent the

collectors from casting shadows on each other

(➔ 96/3). This space can be reduced if "freedom from

shade" is not required.

96/3 Shade-free spacing for several rows of wall installation kits for

landscape flat-plate collectors arranged above each other.

Logasol SKN3.0-w and SKS4.0-w; dimension in m


3,7

Vaciosol vacuum tube collectors

Vaciosol CPC vacuum tube collectors can be fitted to

the wall with an angle of inclination of 45° or 60° using

flat roof support.

Portrait installation is possible using a rooftop

installation kit. The wall must have an adequate loadbearing

capacity. The header must generally be

installed at the top.

97/1 Installation dimensions of wall installation kits with angled

frames for Vaciosol CPC6 and CPC12 vacuum tube collectors.

(dimension A ➔ 97/2 and dimension B ➔ 97/3)


tubes

CPC6 CPC12

one row one row

A A

m m

6 0.70 –

12 1.40 1.40

18 2.15 –

24 2.85 2.80

30 3.55 –

36 4.25 4.20



tubes

CPC6 CPC12

one row one row one row one row

with 30° with 45° with 30° with 45°

B B B B

m m m m

6 1.82 1.52 – –

12 1.82 1.52 1.82 1.52

18 1.82 1.52 – –

24 1.82 1.52 1.82 1.52

30 1.82 1.52 – –

36 1.82 1.52 1.82 1.52

97/3 Collector row dimensions when using flat roof stands

B

A


B

Sizing 5

97/4 Installation dimensions of portrait wall mounting kits for

Vaciosol CPC6 and CPC12 vacuum tube collectors (dimensions

A and B ➔ 97/5)

Number Collector row dimensions for Vaciosol

of tubes

CPC6 CPC12

one row two rows one row two rows

B = 2.10 m B=4.15m B=2.10m B=4.15m

A A A A

m m m m

6 0.70 0.70 – –

12 1.40 1.40 1.40 1.40

18 2.15 2.15 – –

24 2.85 2.85 2.80 2.80

30 3.55 3.55 – –

36 4.25 4.25 4.20 4.20

97/5 Collector row dimensions when using rooftop installation kits

A

97

5

Sizing

5.4 Hydraulic system engineering

5.4.1 Hydraulic circuit

Collector array

A collector array should consist of the same collectors

and have the same collector orientation (all portrait or

all landscape). This is necessary, since the volume flow

distribution would otherwise be non-uniform. A

maximum of ten Logasol SKN3.0 or SKS4.0 flat-plate

collectors may be installed next to each other and

hydraulically connected in a collector row if the

connections are on alternate sides. If the connections

are all on the same side, a maximum of five Logasol

SKS4.0 flat-plate collectors can be installed next to

each other and hydraulically connected. With CPC6 or

CPC12 vacuum tube collectors, a maximum of 36

tubes can be connected in series.

Connection in series

The hydraulic connection of collector rows in series is

quickly accomplished because of the ease of

connection. Connection in series is the easiest way to

achieve a uniform volume flow distribution. An almost

uniform flow through the individual collectors can be

achieved, even if the collector rows are asymmetrically

distributed.

The number of collectors per row should be equal, if

possible. However, the number of collectors in the

individual rows must not differ by more than one.

The maximum number of flat-plate collectors

connected in series is limited to 9 or 10 collectors and 3

rows (➔ 98/1).

98

Row(s) Max. number of

collectors per row with

flat-plate collectors

In small systems it is preferable to connect collectors in

series. Connecting the collectors in parallel is better in

larger systems. This makes the volume flow

distribution of the entire array more uniform.

Connection in series Connection in parallel

Max. number of tubes

per row with vacuum

tube collectors

1 10 36 1

2 5 18 2

3 3 12 3

4

More than three rows


not possible!

98/1 Collector array layout options

–

Row(s) Max. number of collectors per

row with flat-plate collectors

With alternate connections

max. 10 collectors per row

or

with connections on same side

max. 5 SKS4.0 per row

Allow for a higher pressure drop if Logasol SKS4.0

collectors are connected in series (➔ 102/2).

The hydraulic connection is shown in the following

diagram on the example of a rooftop installation.

Additional automatic air vent valves may be required

if such valves cannot be installed above the top row

(i.e. flat roof installation) (➔ page 119). As an

alternative to the use of automatic air vent valves, the

system can also be operated using an air separator in

the cellar (separate or integrated into the Logasol

KS01... compact station) if the system is filled via a

filling station.


4

…

…

n

Max. number of tubes

per row with vacuum

tube collectors

Max. 36 tubes per row

Examples of connections in series

E

V

E

V

FSK

FSK

99/1 Layout of a row of collectors

99/2 Two collector rows connected in series

E

V

1)

E

V

99/3 Three collector rows connected in series

R

FSK


1 to 10 collectors

Logasol SKS4.0 Logasol SKS4.0

Connection at alternate sides:


1)

1 to 5 collectors per row V R 1 to 5 collectors per row


FSK


per row


1)

R

E

V

1) Kit for connecting in series

1)

1)

R


E

1)


FSK


per row

1) Kit for connecting in series

R

R

FSK

R

E

V

V

R

FSK


FSK

Vaciosol CPC12

12 to 36 tubes

Same-side connection: 1

to 5 collectors


12 to 36 tubes

in total

V

R

Sizing 5

FSK

99

5

Sizing

Connection in parallel

Connect the collector rows in parallel if more than 10

flat-plate collectors or 36 tubes are required. Rows

connected in parallel must consist of the same number

of collectors and must be hydraulically connected in

accordance with the Tichelmann principle. Ensure that

the tube diameters are identical. Perform a hydraulic

balancing if this is not possible. Provide a Tichelmann

loop in the return to minimise heat losses. Collector

arrays that are installed side by side can be arranged

in a mirror image so that both arrays can be connected

with a riser in the centre.

E

V

E

V

100/1 Connecting collector rows in parallel

100

E

E

E

E

R

R

FSK

FSK


1 to 10 collectors per row

Ensure that only collectors of one type are used, since

portrait and landscape collectors have a different

pressure drop value.

Each row requires a separate automatic air vent valve.

As an alternative to the use of automatic air vent

valves (➔ page 119), the system can also be operated

using an air separator in the cellar (separate or

integrated into the Logasol KS01... compact station) if

the system is filled via a Logasol BS01 filling station

(➔ page 120). In this case, a shut-off valve is required

for each flow in a row.

Logasol SKS4.0 Logasol SKS4.0

E

FSK

Connection at alternate sides:


1) For improved ventilation and for calibrating the collector arrays

install a shut-off ball valve in each outlet.


V

E

E

FSK

1)

1)

1)

R


12 to 36 tubes per row

Same-side connection:


V R

Combined connection in series and in parallel

It is only possible to hydraulically connect more than

three collectors above or behind each other by using a

combination of connection in series and connection in

parallel. This is done by connecting the bottom two (1

+ 2) and the top two (3 + 4) collectors in series

(➔ 101/1).

101/1 Connection of more than three landscape collectors above each other

Collector array with dormer

The following hydraulic schemes represent one option

for solving the problem of dormers. These hydraulic

schemes generally equate to two rows of collectors

connected in series. Observe the information

concerning the maximum number of collectors that

can be used in rows of collectors connected in series. As

E

V

R

FSK

E

V

E

R


Logasol SKN3.0-w

FSK

1)

1)

4

3

2

1

1) Kit for connection in series

101/2 Hydraulic connection of collector arrays that are interrupted by a dormer

E


Sizing 5

Then connect rows 1 + 2 to rows 3 + 4 in parallel. Here

too, observe the position of the automatic air vent

valve.

➔ The maximum permitted number of collectors per

row is 5 if two collector rows connected in series are

connected to each other in parallel.

➔ Take the pressure drop of the collector array into

consideration when selecting the compact station.

E

V

E

R

1)

1)

Logasol SKS4.0-w

FSK

an alternative to the use of automatic air vent valves,

the system can also be operated using an air separator

in the cellar (separate or integrated into the Logasol

KS01... compact station) if the system is filled via a

filling station.

E

4

3

2

1


Dormer Dormer

R

E

V

FSK

101

5

Sizing

5.4.2 Flow rate in the collector array for flat-plate collectors

The nominal flow rate for engineering small and

medium-sized systems is 50 l/h per collector, resulting

in a total system flow rate as per formula 102/1.

➔ A flow rate 10% to 15% lower (at full pump rate)

does not usually lead to significant yield reductions.

However, avoid higher flow rates to minimise the

amount of power required by the solar circuit pump.

102


VA Total system flow rate in l/h

VK,Nom Nominal flow rate of collector in l/h

nK Number of collectors

5.4.3 Pressure drop calculation in collector array for flat-plate collectors

Collector row pressure drop

The pressure drop of a collector row increases with the

number of collectors per row. The pressure drop for a

row including connecting accessories, subject to the

number of collectors per row, can be found in the table

102/2.

Number

of

collectors

VA = VK,Nom ⋅ nK = 50 l/h ⋅ nK 102/1 Formula for total system flow rate

➔ The pressure drop values for the Logasol SKS4.0 and

SKN3.0 collectors for a solar fluid mixture consisting of

50% glycol and 50% water at a mean temperature of

50 °C are specified in the table 102/2.

Pressure drop for a row consisting of n collectors

Logasol SKN3.0 Logasol SKS4.0

portrait landscape portrait and landscape

at a flow rate per collector (nominal flow rate 50 l/h)

50 l/h 100 l/h1) 150 l/h2) 50 l/h 100 l/h1) 150 l/h2) 50 l/h 100 l/h1) 150 l/h2) n mbar mbar mbar mbar mbar mbar mbar mbar mbar

1 1.1 4.7 10.2 0.4 1.7 4.3 30 71 131

2 1.5 6.5 13.2 1.9 6.9 14.4 31 73 133

3 2.1 13.5 26.3 5.6 18.1 35.1 32 82 153

4 6.5 22.1 – 9.3 29.7 – 39 96 –

5 11.1 34.5 – 14.8 46.8 – 44 115 –

6 15.2 – – 21.3 – – 49 – –

7 21.0 – – 28.9 – – 61 – –

8 28.0 – – 37.6 – – 73 – –

9 35.9 – – 47.5 – – 87 – –

10 45.0 – – 58.6 – – 101 – –

102/2 Pressure drop values for collector rows with Logasol SKN3.0 or SKS4.0 including AAV and connection kit; pressure drop values apply to solar

fluid L at an average temperature of 50 °C

1) Flow rate per collector, connected in two rows (➔ page 103)

2) Flow rate per collector, connected in three rows (➔ page 103)

– Non-permissible number of collectors


Rows of collectors connected in series

The pressure drop of the array results from the total of

all pipework drop values and the pressure drop for

each row of collectors. The pressure drop of rows of

collectors connected in series is cumulative.

ΔpArray = pRow Δ ⋅ nRow 103/1 Formula for pressure drop of a collector array with rows of

collectors connected in series

As far as table 102/2 is concerned, take into

consideration that the actual flow rate is calculated via

the individual collectors connected in series from the

number of collector rows and the nominal collector

flow rate (50 l/h):

VK = VK,Nom ⋅ nRow = 50 l ⁄ h ⋅ nRow 103/2 Formula for flow rate through a collector with rows of collectors



ΔpArray Pressure drop for collector array in mbar

ΔpRow Pressure drop for one collector row in mbar

nRow Number of collector rows

VK Flow rate through the individual collectors in l/h


Example


Sizing 5


– Connection in series of 2 collector rows, each with

5 Logasol SKN3.0-s solar collectors

● Wanted

– Pressure drop of overall collector array

● Calculation

– Flow rate through one collector:

VK = VK,Nom · nRow V K =50l/h ·n Row =50l/h·2=100l/h

– Read-off from table 102/2:

34.5 mbar per collector row

– Pressure drop of array:

ΔpArray = ΔpRow · nRow =34.5mbar·2=69mbar

➔ The pressure drop of the collector array is 69 mbar.

E

V

R

FSK

103/3 Connection in series of two Logasol SKN3.0 collector rows

103

5

Sizing

Collector rows connected in parallel

The pressure drop for the array results from the total of

the pipework pressure drop values up to a collector row

and the pressure drop of an individual collector row.

Unlike the situation when connecting in series, the

actual flow rate via the individual collectors

corresponds to the nominal collector flow rate (50 l/h)






104

ΔpArray = ΔpRow

104/1 Formula for the pressure drop of a collector array with rows of

collectors connected in parallel

V K

=

V K,Nom

104/2 Formula for the flow rate through a collector with rows of

collectors connected in parallel

Example


– Connection in parallel of 2 collector rows, each

with 5 Logasol SKN3.0-s solar collectors

● Wanted




VK = VK,Nom =50l/h




ΔpArray = ΔpRow = 11.1 mbar

➔ The pressure drop of the collector array is 11.1 mbar.

104/3 Two Logasol SKN3.0 collector rows connected in parallel using

the Tichelmann principle


E

V

E

FSK

R


Illustration 105/3 shows an example of a combination

of connections in series and in parallel. In each case,

the top and bottom rows of collectors are connected in

series to form a sub-array, meaning that only the

pressure drop values of the sub-array collector rows

connected in series will cumulate.

For this, take into consideration that the actual flow

rate is calculated via the individual collectors

connected in series from the number of collector rows

connected in series and the nominal flow rate per

collector (50 l/h):



Δpsub-array Pressure drop of the collector sub-array consisting of

collector rows connected in series in mbar



Nominal flow rate of collector in l/h

V K,Nom

ΔpArray = ΔpSub-array = pRow Δ ⋅ nRow 105/1 Formula for the pressure drop of a collector array consisting of

a combination of collector rows connected in series and parallel

VK = VK,Nom ⋅ nRow = 50 l ⁄ h ⋅ nRow 105/2 Formula for the pressure drop through a collector array

consisting of a combination of collector rows connected in

series and in parallel

Example


Sizing 5


– Connection in parallel of 2 sub-arrays consisting

of 2 rows of collectors, each of which consists of 5

Logasol SKN3.0 solar collectors.

● Wanted




VK = VK,Nom · nRow V K =50l/h ·n Row =50l/h·2=100l/h



– Pressure drop of (sub-)array:

ΔpArray = ΔpSub-array = ΔpRow · nRow Δp Array =34.5mbar·2=69mbar


E

V

E

R

FSK

105/3 Combination of connections in series and in parallel in a

collector array consisting of Logasol SKN3.0 solar collectors

105

5

Sizing

5.4.4 Calculation of pressure drop values in an array of vacuum tube collectors

Pressure drop of CPC6 and CPC12 vacuum tube collectors; heat transfer media; Tyfocor LS; medium

temperature 40 °C

106/1 Pressure drop of CPC6 and CPC12 vacuum tube collectors

Collector array pressure drop

The pressure drop of the array approximately consists

of the total of the pressure drop values of each

collector. The pressure drop values of the connecting

lines may also need to be taken into consideration.

106

Δp

mbar

90

80

70

60

50

40

30

20

10

CPC12

0

0 0,5 1 1,5 2 2,5 3 3,5 4 4,5 5

Δ = Δp ⋅ n

p Array

106/2 Formula for the pressure drop of a collector array

I

V

min

The flow rate through the individual collectors is

calculated from the aperture area of the collector and

the nominal collector flow rate (0.6 l/min · m 2 ).



Δp Pressure drop for one collector in mbar

n Number of collectors

VK Flow rate through the individual collectors in l/min.

VK,Nom Nominal flow rate of collector in l/min · m2 A Aperture areas in m 2

ACPC6 = 1.28 m2 ACPC12 = 2.56 m2 Technical guide - Logasol solar technology for domestic hot water heating and central heating backup - 06/2007

CPC6

VK =

VK,Nom ⋅ n⋅ A

106/3 Formula for the flow rate through a collector

Example 1


– 2 CPC12 connected in series

● Wanted

– Collector array pressure drop



VK = VK,Nom · n · ACPC12 V K = 0.6 l/min · m 2 · 2 · 2.56 m 2

V K =3l/min

– Read-off from diagram 106/1:

ΔpCPC12(3 l/min) =46mbar


ΔpArray = ΔpCPC12(3 l/min) · n

ΔpArray =46mbar·2

ΔpArray =92mbar


Example 2


– 2 CPC12 and 1 CPC6 connected in series

● Wanted

– Collector array pressure drop



VK = VK,Nom · n · ACPC6 + n · ACPC12 VK =0.6l/min · m2 · (1 · 1.28 m2 + 2 · 2.56 m2 )

VK =3.8l/min

– Read-off from diagram 106/1:

ΔpCPC6(3.8 l/min) =30mbar

ΔpCPC12(3.8 l/min) =60mbar


ΔpArray = ΔpCPC6(3.8 l/min) · n + ΔpCPC12(3.8 l/min) · n

ΔpArray =30mbar·1+60mbar·2

ΔpArray =150mbar


Sizing 5


107

5

Sizing

5.4.5 Pressure drop of pipework in the solar circuit

Calculating the pipework

The flow velocity in the pipework should be in excess of

0.4 m/s to enable air remaining in the heat transfer

medium to be transported to the next air separator in

lines with a slope. Interfering flow noise can occur from

flow velocities of 1 m/s and above. Take individual

resistance values (caused by bends, for example) into

consideration in the pressure drop calculation. In

practice, this is often done by adding 30% to 50% to the

Number

of

collecto

rs

108

Flow

rate

pressure drop of the straight pipework. The actual

pressure drops can vary more subject to the type of

pipework.

In systems with differently aligned collector arrays

(east/west systems), take the total flow rate into

consideration when the common flow line is being

sized.

Flow velocity v and pressure drop R in copper pipes with pipe dimensions of

15 x 1 18 x 1 22 x 1 28 x 1.5 35 x 1.5

v R v R v R v R v R

l/h m/s mbar/m m/s mbar/m m/s mbar/m m/s mbar/m m/s mbar/m

2 100 0.21 0.93 – – – – – – – –

3 150 0.31 1.37 – – – – – – – –

4 200 0.42 3.41 0.28 0.82 – – – – – –

5 250 0.52 4.97 0.35 1.87 – – – – – –

6 300 0.63 6.97 0.41 2.5 – – – – – –

7 350 0.73 9.05 0.48 3.3 0.31 1.16 – – – –

8 400 0.84 11.6 0.55 4.19 0.35 1.4 – – – –

9 450 0.94 14.2 0.62 5.18 0.4 1.8 – – – –

10 500 – – 0.69 6.72 0.44 2.12 – – – –

12 600 – – 0.83 8.71 0.53 2.94 0.34 1.01 – –

14 700 – – 0.97 11.5 0.62 3.89 0.4 1.35 – –

16 800 – – – – 0.71 4.95 0.45 1.66 – –

18 900 – – – – 0.8 6.12 0.51 2.06 0.31 0.62

20 1000 – – – – 0.88 7.26 0.57 2.51 0.35 0.75

22 1100 – – – – 0.97 8.65 0.62 2.92 0.38 0.86

24 1200 – – – – – – 0.68 3.44 0.41 1.02

26 1300 – – – – – – 0.74 4.0 0.45 1.21

28 1400 – – – – – – 0.79 4.5 0.48 1.35

30 1500 – – – – – – 0.85 5.13 0.52 1.56

108/1 Flow velocity and pressure drop per meter of straight copper pipe for a 50/50 glycol:water mixture at 50 °C


5.4.6 Pressure drop of the selected solar cylinder

The pressure drop of the solar cylinder depends on the

number of collectors and the flow rate The indirect coils

of the solar cylinder have various pressure drop

characteristics because of their differing dimensions.

Numbe

r of

collect

ors

Flow

rate

SL300-1

SL300-2

SL400-2

SL500-2

SM300

SM400

SM500

5.4.7 Selecting the Logasol KS... compact station

The selection of the suitable complete station can be

approximately determined through the number of

collectors. The pressure drop (residual head) and the

flow rate in the collector circuit are required for

finalising the selection. Take the following pressure

drop values into consideration:


Sizing 5

Use table 109/1 to estimate the pressure drop The

pressure drop in the table applies to a 50/50

glycol:water mixture at a temperature of 50 °C.

Press drop in solar indirect coils of the Logalux cylinder

P750 S PL750/2S PL1000/2S PL750 PL1000 PL1500 Duo

FWS750

● Pressure drop in the collector array (➔ page 102)

● Pipework pressure drop (➔ page 108)

Duo

FWS1000

l/h mbar mbar mbar mbar mbar mbar mbar mbar mbar mbar mbar

2 100

5

Sizing

5.5 Sizing of the diaphragm expansion vessel

5.5.1 System volume calculation

The volume of a solar heating system with the Logasol

KS... complete station is significant in the sizing of the

expansion vessel and the determination of the

quantity of solar fluid.

The following formula applies to the filling volume of

the solar heating system with a Logasol KS... complete

station:

110/1 Formula for filling volume of solar heating systems with a

Logasol KS... complete station


VA System filling volume

VK Volume of one collector (➔ 110/3)


VWT Solar indirect coil volume (➔ 110/4)

VKS Volume of a Logasol KS… complete station (approx. 1.0 l)

VR Pipework volume (➔ 110/2)

Solar indirect coil volume

110

VA = VK ⋅ nK + VWT + VKS + VR Pipework volume

Pipe dimension

Ø × wall thickness

Specific line volume

mm l/m

15×1.0 0.133

18×1.0 0.201

22×1.0 0.314

28×1.5 0.491

35×1.5 0.804

42×1.5 1.195

110/2 Specific filling volume of selected pipework

Solar collector volume


Solar collectors Collector content

Type Version l

Flat-plate

collector

SKN3.0

portrait

landscape

0.86

1.25

High-perf. flatplate

collector

.

SKS4.0

portrait

landscape

1.43

1.76

Vacuum tube CPC6 6 tubes 0.97

collector CPC12 12 tubes 1.91

110/3 Filling volume of Logasol solar collectors

Solar cylinder Indirect coil content

Scope Type Logalux l

DHW heating

DHW heating and

central heating backup (combi cylinder)

Thermal store

dual-mode

mono-mode

110/4 Filling volume of solar indirect coils in Logalux cylinders

SM300 8.0

SM400 9.5

SM500 13.2

SL300-2 0.9

SL400-2 1.4

SL500-2 1.4

SL300-1 0.9

SU160 4.5

SU200 4.5

SU300 8.0

SU400 12.0

SU500 16.0

SU750 23.0

SU1000 28.0

P750 S 16.4

PL750/2S 1.4

PL1000/2S 1.6

Duo FWS750 11.0

Duo FWS1000 13.0

PL750 2.4

PL1000 2.4

PL1500 5.4

5.5.2 Diaphragm expansion vessel for solar heating systems with flat-plate collectors


Inlet pressure

Adjust the inlet pressure of the diaphragm expansion

vessel (DEV) prior to filling the solar heating system to

take the system elevation into account. The require

system inlet pressure be calculated using the following

formula:

Calculation parameters (➔ 111/1) and picture legend (➔ 111/2)

pV DEV inlet pressure in bar

hstat Static height in m between centre of DEV and highest point of

system

➔ The minimum inlet pressure is 1.2 bar.

Filling pressure

The expansion vessel creates a "hydraulic seal" when

the system is filled, since an equilibrium between the

fluid pressure and the gas pressure occurs at the

diaphragm. The hydraulic seal (VV ➔ 111/4) is

introduced with the system in a cold state, and

monitored via the filling pressure at the system

pressure gauge on the water side after venting and

degassing the system in a cold state. The system filling

pressure should be 0.3 bar higher than the DEV inlet

pressure. A controlled evaporation temperature of

120 °C is therefore reached in the event of stagnation.

The filling pressure is calculated using the following

formula:


p0 DEV filling pressure in bar

pV DEV inlet pressure in bar

Hydraulic seal

V V

pV = 0.1 ⋅ hstat + 0.4 bar

111/1 Formula for inlet pressure of a diaphragm expansion vessel

p0 = pV + 0.3 bar

111/3 Formula for filling pressure of a diaphragm expansion vessel

➔ A deviation from the optimum inlet pressure or

filling pressure always leads to a reduction in the

available volume. This can cause system

malfunctions.

111/2 Inlet pressure of a diaphragm expansion vessel


p V

V V

111/4 Filling pressure of a diaphragm expansion vessel

p 0

Sizing 5

111

5

Sizing

Final pressure

At the maximum collector temperature, the filling gas

is compressed to the final system pressure by taking up

additional expansion volume (Ve ➔ 112/2).

The final pressure of the solar heating system and

therefore the pressure rating and the required size of

the DEV are determined by the safety valve response

pressure. The final pressure is determined using the

following formula:

112/1 Formulas for final pressure of a diaphragm expansion vessel

subject to the safety valve response pressure


pe DEV final pressure in bar

pSV Safety valve response pressure in bar

Ve Expansion volume

Hydraulic seal

V V

Intrinsic safety of a solar heating system

A solar heating system is considered to be intrinsically

safe if the DEV can absorb the volume change as a

result of solar fluid evaporation in the collector and the

connecting lines (stagnation). If a solar heating system

is not intrinsically safe, the safety valve responds

during stagnation. Then the solar heating system has

to be re-started. A DEV is sized on the basis of the

following assumptions and formulae:


Vn,min Minimum D volume in l

VA n

System filling volume in l (➔ 110/1)

Expansion coefficient (= 7.3 % with Δϑ = 100 K)

VD Evaporation volume in l

pe DEV outlet pressure in bar

p0 DEV filling pressure in bar


Volume of one collector (➔ 110/3)

V K

112

pe ≤ pSV ∠ 0.2 bar for pSV ≤ 3 bar

pe ≤ 0.9 ⋅ pSV for pSV > 3 bar

V V + V e

112/2 Final pressure of a diaphragm expansion vessel

V n min


p e

( + 1)

, = ( VA ⋅ n + VD) ⋅ ----------------------

( ∠ )

112/3 Formula for minimum DEV volume

VD =

nK ⋅ VK 112/4 Formula for the evaporation volume

pe pe p 0


Sizing 5

Nomograph for the graphical determination of the diaphragm expansion vessel for solar

heating systems with flat-plate collectors

The size of the diaphragm expansion vessel in systems

with a 6 bar safety valve can be determined

graphically subject to the system configuration using

the following nomograph. The above assumptions and

formulae are based on this nomograph.

Sizing example

● Specified solar heating system with

– 4 Logasol SKS4.0-s collectors and Logalux SL400

thermosiphon cylinders

– 12 m single pipe length between collector array

and cylinder

– Pipe dimension 15 mm x 1.0 mm

– Static height between DEV and the highest point

of system = 10 m

● Wanted

– Required expansion vessel

➔ The graphical determination of the diaphragm

expansion vessel is described in the nomograph on

pages 114 and 115.

Item Calculation principles and initial values Required operation

1

2

3

4

5

The single pipe between the cylinder and the collector array is

12 m in length.

Trace the "Single pipe length" axis at 12 m horizontally to the left

of the "Pipe dimensions" sub-diagram.

The pipe dimension that was used is 15 x 1. Continue vertically upwards into the "DHW cylinder" subdiagram

at the intersection with line 15 x 1.

A Logalux SL400 DHW cylinder is specified for this system. At the intersection with the "Logalux SL..." curve, go horizontally

to part 2 of the nomograph into the "Collector filling volume"

sub-diagram.

The system is operated using 4 Logasol SKS4.0-s collectors. The

filling volume V K of the collector array is 5.72 l. 1)

The static height between the highest point in the system

(automatic air vent valve) and the expansion vessel is 10 m.

Draw an additional line parallel to the existing lines for a filling

volume of 5.72 l in the "Collector array filling volume" subdiagram.

Go vertically down into the "static height" sub-diagram

from the intersection point with the new line

At the intersection with line 10, go horizontally left and read off

the minimum nominal volume of the expansion vessel (11.5 l).

Result: Allow for a DEV with 18 l (DEV 10, white field).

113/1 Description of operations for the example of expansion vessel sizing with nomograph (➔ 114/1 and ➔ 115/1)

1) The values in table ➔ 110/3 apply to the collector filling volume

113

5

Sizing

Nomograph for sizing the diaphragm expansion vessel for solar heating systems with flat-plate collectors

(part 1)

114

28 x 1.5

Logalux SM500, Duo FWS1000

Duo FWS750

Logalux SM400

Logalux SM300

Logalux PL1500

Logalux P750 S

Logalux SL..., PL.../2S, PL750, PL1000

114/1 Nomograph for sizing the expansion vessels for systems with the Logasol KS... complete station and 6 bar safety valve (part 2 ➔ 115/1) with

sizing example highlighted in blue (description ➔ page 113)


22 x 1

18 x 1

15 x 1

0

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

Sizing 5

Nomograph for sizing the diaphragm expansion vessel for solar heating systems with flat-plate collectors

(part 2)

Minimum nominal DEV volume (V n,min in l)

0

10

20

30

MAG 18

MAG 25

MAG 35

3 4 5 6 7 8 9 10 12 15 20 25 30 35 40

MAG 80

115/1 Nomograph for sizing the expansion vessel for systems with the Logasol KS... complete station and 6 bar safety valve with sizing example

highlighted in blue (description ➔ page113)

≤ 8

10

12

14

MAG 100


MAG 35

MAG 50

≤ 8

10

12

14

25

30

35

40

45

50

55

60

65

70

75

80

85

90

Static height (h st in m) Collector array filling volume (V K in l)

115

5

Sizing

5.5.3 Diaphragm expansion vessel for solar heating systems with vacuum tube collectors

Allow for a 6 bar safety valve to protect the solar

heating circuit. Check the suitability of the envisaged

components for this pressure level. Install the

System example: Solar DHW heating

116/1 System example (abbreviations ➔ page 148)

Calculation principles for determining the expansion vessel size

The following formulae are based on a 6 bar safety

valve. To calculate the expansion vessel size

accurately, first determine the system component

capacities so that the expansion vessel size can be

calculated using the following formula:


VNom Nominal expansion vessel size

VA System filling volume (content of entire solar heating circuit)

VVapour Capacity of collectors and pipework

in the vapour area above the bottom edge of collector

DF Pressure factor (➔ 117/1)


– 2 CPC12 collectors

– Cu pipe: 15 mm, length = 2 x 15 m

– Static height: H = 9 m

– Content of the cylinder indirect coil and the solar

heating station: e. g. 6.4 l

– Cu pipe in vapour area: 15 mm, length = 2 x 2 m

– VA : 14.21 l

116

FSK

VS

RS

Logalux SM... (SL...)

VNom ≥

( VA ⋅ 01 , + VVapour ⋅ 1. ( 25)

) ⋅ DF

116/2 Formula for the nominal size of the expansion vessel

min 2 m

expansion vessel 20 to 30 cm above the compete

station in the returning to protect the group from

excessive temperatures.

0.2–0.3 m

– V Vapour: 4.35 l

The system component contents can be found in tables

➔ 110/2 to 110/4.

The pipework above the bottom edge of the collector

(the lowest collector, if there are several collectors) can

contain vapour when the solar heating system is idle.

The vapour volume VVapour therefore includes the

contents of the pipework and collectors concerned.

Calculating the size of the expansion vessel

VNom ≥ (VA ·0.1 + VVapour · 1.25) · DF

DF (9 m) = 2.77 (➔ 117/1)

VNom ≥ (14.21 l · 0.1 + 4.35 l · 1.25) · 2.77

VNom ≥ 19 l

➔ Select the next bigger expansion vessel, i.e. 25 l

Calculation of system content, inlet pressure and

operating pressure

Add the hydraulic seal of the relevant expansion vessel

to the system content to determine the necessary

amount of solar fluid.

The hydraulic seal in the expansion vessel results from

filling the solar heating system from the inlet pressure

to the operating pressure (subject to static height "H").


PSS

Logasol

KS01..

The percentage of the hydraulic seal in relation to the

selected vessel size and the specified pressure can be

found in table 117/1.

with a static height of 9 m, the following applies:

Vseal = VNom ·Hydraulic seal factor

Hydraulic seal factor (9 m) = 7.7 % (➔ 117/1)

Vseal = 25 l ·77%= 25 l ·0.77

Vseal = 1.9 l

Determining the pressure factor


Sizing 5

Calculation of the required amount of solar fluid

Vtot = VA + VSeal Vtot = 14.21 l + 1.9 l

Vtot = 16.13 l

Calculation basis for determining the pre-cooling vessel size

Install a pre-cooling vessel upstream of the expansion

vessel to provide the expansion vessel with thermal

protection, particularly with solar central heating

backup, and systems for DHW heating with more than

60% coverage.

Result

The expansion vessel with 25 l capacity is adequate.

The inlet pressure is 2.6 bar, the operating pressure is

2.9 bar and the solar fluid content is 16.13 l.

Static height H Pressure factor DF Hydraulic seal factor DEV inlet pressure System filling pressure

m % bar bar

2 2.21 9.4 1.9 2.2

3 2.27 9.1 2.0 2.3

4 2.34 8.8 2.1 2.4

5 2.41 8.6 2.2 2.5

6 2.49 8.3 2.3 2.6

7 2.58 8.1 2.4 2.7

8 2.67 7.9 2.5 2.8

9 2.77 7.7 2.6 2.9

10 2.88 7.5 2.7 3.0

11 3.00 7.3 2.8 3.1

12 3.13 7.1 2.9 3.2

13 3.28 7.0 3.0 3.3

14 3.43 6.8 3.1 3.4

15 3.61 6.7 3.2 3.5

16 3.80 6.5 3.3 3.6

17 4.02 6.4 3.4 3.7

18 4.27 6.3 3.5 3.8

19 4.54 6.1 3.6 3.9

20 4.86 6.0 3.7 4.0

117/1 Determining the pressure factor

Pre-cooling vessel size 5 12

l l

Height mm 270 270

Diameter mm 160 270

Connection Inch 2 x R6 2 x R6

Max. operating

pressure:

bar

10 10

117/2 Pre-cooling vessel specification

The following standard value applies with regard to

the pre-cooling vessel size:

VPre ≥

VVapour ∠ VPipe 117/3 Formula for nominal pre-cooling vessel size


VPre Nominal pre-cooling vessel size

VVapour Content of collectors and pipework

in the vapour area above the bottom edge of the collector

VPipe Pipework from the lower edge of the collector to

the complete station

117

6

Design/engineering information regarding the installation

6 Design/engineering information regarding the installation

6.1 Pipework, thermal insulation and collector temperature sensor extension cable

Glycol and temperature-resistant sealing

All components of a solar heating system (including

flexible seals for valve seats, diaphragms in expansion

vessels etc.) must be made from glycol-resistant

materials and carefully sealed, since water:glycol

mixtures have a greater tendency to leak than pure

water. Aramide fibre seals have proven to be effective.

Graphited cord is suitable for sealing glands. Hemp

seals must also be coated with temperature-resistant

and glycol-resistant thread paste. Nissen products "Neo

Fermit universal" or "Fermitol" can be used as thread

paste (observe the manufacturer's instructions).

The solar hose ferrules on the Logasol SKN3.0 collectors

and the connectors of the Logasol SKS4.0 collectors

provide an easy and reliable seal for collector

connections. Connecting kits for Twin-Tube 15 and

Twin-Tube DN20 are available for providing a reliable

connection to the special Twin-Tube double tube.

Pipework routing

All connections in the solar circuit must be brazed.

Alternatively, press fittings can be used, provided that

they are suitable for use with a water:glycol mixture

and respectively high temperatures (200 °C). All

pipework must be routed with a rise towards the

collector array or the air vent valve, if installed. Heat

expansion must be taken into consideration when the

pipework is being routed. The pipes must be equipped

118

Pipe diameter

mm

Twin-Tube (double tube)

insulation thickness 1) mm

Collector temperature sensor extension lead

When routing the pipework, also route a two-core lead

(up to 50 m length 2 × 0.75 mm2 ) for the collector

temperature sensor alongside. An appropriate lead is

provided in the insulation of the special Twin-Tube.

Provide a shield for the collector temperature sensor

Aeroflex SSH pipe

diameter × insulation

thickness mm

118/1 Thickness of thermal insulation for solar heating system connection lines.

1) Requirements according to the Energy Saving Order (EnEV) [Germany]

with expansion facilities (bends, sliding clamps,

compensators) to prevent damage and leaks.

➔ Plastic pipework and galvanised components are

not suitable for solar heating systems.

Thermal insulation

Connection lines may be routed in unused flues, air

shafts and wall slits (in new buildings). Open shafts

must be suitably sealed to prevent heat loss caused by

rising air (convection).

The thermal insulation of the connection lines must be

designed for the operating temperature of the solar

heating system. Therefore use appropriate high

temperature-resistant insulating materials such as

insulating hoses made from EPDM rubber. The

thermal insulation must be UV and temperatureresistant

in external areas. The connection kits for the

Logasol SKS4.0 solar collectors are fitted with UV and

high temperature-resistant thermal insulation made

from EPDM rubber. The solar collectors, complete

stations and solar cylinders made by Buderus are fitted

with efficient thermal insulation in the factory.

The table 118/1shows standard values for the

insulating thickness on pipework in solar heating

systems. Mineral wool is unsuitable for external

applications because it absorbs water and then fails to

provide thermal insulation.

Aeroflex HT pipe

diameter × insulation

thickness mm

extension lead, if it is routed together with a 230 V

cable. Install the FSK collector temperature sensor near

the flow header in the sensor lead pipe of the Logasol

SKN3.0 and SKS4.0 collectors.


Mineral wool insulation

thickness (in relation to

λ =0.035W/m⋅K) 1) mm

15 15 – 15 × 24 20

18 – 18 × 26 18 × 24 20

20 19 22 × 26 22 × 24 20

22 – 22 × 26 22 × 24 20

28 – 28 × 38 28 × 36 30

35 – 35 × 38 35 × 36 30

42 – 42 × 51 42 × 46 40

6.2 Air vent valve

Design/engineering information regarding the installation 6

6.2.1 Automatic air vent valve

Unless "filling station and air separator" are being

used (➔ page 120), solar heating systems with flatplate

collectors are ventilated via quick-acting air vent

valves at the highest point of the system. After filling

has been completed, this valve must be closed to

prevent gaseous solar fluid from escaping from the

system in the event of stagnation. Vent Vaciosol

vacuum collector tubes with "filling station and air

separator".

Provide an air vent valve at the highest point of the

system (detail E ➔ 119/1) and, for every change of

direction, with a new rise (e.g. in dormers, ➔ 101/2).

If there are several rows of collectors, provide an air

vent valve for each row (➔ 119/2), unless the system

can be ventilated above the top row (➔ 119/3). Order

an automatic all-metal air vent valve in the form of an

air vent valve kit.

➔ Never use air vent valves with plastic floats in solar

heating systems because of the high temperatures that

occur. If there is insufficient room for an automatic allmetal

air vent valve with an upstream ball valve,

provide a manual air vent valve with a drip container.

Logasol SKN3.0 Logasol SKS4.0

R V

E FSK

E

119/1 Hydraulic diagram with air vent valve at the highest point of

system

119/2 Hydraulic diagram with air vent valve for each collector row on

the example of flat roof installation (connection in series)

119/3 Hydraulic diagram with air vent valve above the top row on the

example of rooftop installation (connection in series)


FSK

Same-side

connection

E E

R V

R V

E

E

R V

119

6


6.2.2 Filling station and air separator

A solar heating system can also be filled with the

Logasol BS01 filling station (➔ 120/1), resulting in a

large proportion of the air being pushed out of the

system during the filling procedure. An air vent valve

on the roof is not required in this case. Instead, a

central air separator is part of the Logasol KS01 2branch

complete station. (➔ 120/2). This separates the

residual micro-bubbles out of the medium during

operation.

Benefits of the system are:

● Reduced installation effort because no air vent

valves are required on the roof

● Easy and quick commissioning, i.e. filling and

ventilation in one step.

● Efficiently vented system

● Low-maintenance operation

If the collector array consists of several rows connected

in parallel, provide each individual row with a shut-off

valve in the flow. Each row is filled and ventilated

individually during the filling procedure.

120

No air

vent valve

required

1

A

2

1 Pressure hose 5"

2 Return hose 6"

FSK

PSS

Logasol

KS01..

Collector

120/1 Logasol BS01 filling station

VS2 AW

120/2 System design; detail A: Filling procedure with filling pump (seal ➔ 60/1; abbreviations ➔ page 148)


FSX

FSS

PS

M1

RS2

VS1

M2

RS1

EZ

EK


HK1

WWM

PZ

FK


Oil/Gas

1

2

Logamatic

4121

+ FM443


6.3 Information regarding the different flat-plate collector installation systems

6.3.1 Permissible standard snow loads and building heights in accordance with DIN 1055

The following table contains the permissible standard

snow loads and building heights for the different

installation options. Observe the information shown

Roof cover/wall

Permissible roof pitch

Permissible building heights

(wind loads) of up to 20 m - at

wind speeds of up to 80 mph

Permissible building heights

(wind loads) of up to 100 m - at

wind speeds of up to 94 mph

Standard snow loads in

accordance with DIN 1055, part

5

0–2 kN/m 2

Standard snow loads in

accordance with DIN 1055, part

5

> 2kN/m2 6.3.2 Selection aid for hydraulic connection accessories

Provide suitable hydraulic connection accessories

subject to the number of collectors and their hydraulic

connections.

Single-row collector array


Portrait/landscape

Tiles, plain tiles, slate,

shingle, corrugated

sheets, sheet steel,

bitumen

25°–65°,

5°–65° (corrugated

sheets, sheet steel roof)

Connecting two collector rows in parallel

during engineering to safeguard a correct installation

and to prevent damage to the collector array.

Roof integration


Tiles, plain tiles, slate,

shingle

25°–65°

Without accessories Without accessories

Only portrait collectors

with rooftop installation

kit

Not permissible

Flat roof installation


➔ For further details regarding the various assembly

systems, see the relevant "Hydraulic connection"

section in the following sub-chapters.


Wall mounting 45–60

°C, landscape

– load-bearing

0° (with slightly sloping

roofs of up to 25°,

protection from sliding

off or on-site fixing)

Without accessories

(observe securing flat

roof supports!)

With flat roof support kit

(observe flat roof

support fixing!)

–

Without accessories


Without accessories Without accessories Without accessories Without accessories

Only portrait collectors

with rooftop installation

kit up to 3.1 kN/m 2

Without accessories up

to 3.8 kN/m 2

121/1 Permissible standard snow loads and building heights in accordance with DIN 1055

Without flat roof

support kit up to

3.8 kN/m 2

Number of

collectors

Number of rows Connection kit Air vent valve kit1) 1 to 10 1 1 1

121/2 Hydraulic connection accessories for a single-row collector array

1) The air vent valve kit is not required if the system is filled with a "Filling station" (➔ page 120)


Number of

collectors

Number of rows Connection kit Air vent valve kit 1)

2 to 20 2 2 2

121/3 Hydraulic connection accessories for connecting two collector rows in parallel

1) The air vent valve kit is not required if the system is filled with a "Filling station" (➔ page 120). Also provide a shut-off valve in the flow

of each row if the collectors are connected in parallel

121

6


Several collector rows connected in series

122

Number of

collectors

Number of rows Number

of collectors

per row

Connection kit Air vent valve kit 1)

122/1 Hydraulic connection accessories for connecting several collector rows in series

1) The air vent valve kit is not required if the system is filled with a "Filling station" (➔ page 120). Additional air vent valve kits are required

unless the system can be vented above the top row (e.g. with flat roof installation, ➔ 119/2).


Series connection kit

2 2 1 1 1 1

3

2

2

1

1 1 1

3 1 1 1 2

4 2 2 1 1 1

5 2

6

7 2

3

2

1 1 1

2 3 1 1 1

3 2 1 1 2

4

3

1 1 1

8 2 4 1 1 1

9

2

5

4

1 1 1

3 3 1 1 2

10 2 5 1 1 1


6.3.3 Rooftop installation for flat-plate collectors


The collectors are secured at the same angle as the

pitched roof using the rooftop installation kit. The roof

skin retains its sealing properties.

The rooftop installation kit for Logasol SKN3.0 and

SKS4.0 flat-plate collectors consists of a standard kit for

the first collector in a row and an extension kit for each

additional collector in the same row (➔ 124/1). Use the

rooftop installation extension kit only in conjunction

with a standard kit. In place of the single-side collector

tensioner (item. 1 ➔ 124/1) the extension kit contains

so-called double-sided collector tensioners (item 5

Roof connection for tile and plain tile covers

9

50 – 80

33

285

Roof hook Rafter anchor

Roof connection for slate and shingle covers

Special roof hook

Roof connection for corrugated sheets, sheet steel roof

123/1 Roof connection versions for different roof covers (dimensions in mm)

62

40

➔ 124/1) and connectors for defining the correct

spacing and securing two adjacent Logasol SKN3.0 or

SKS4.0 flat-plate collectors.

Roof connections for different roof covers

The profile rails and collector tensioners of the various

rooftop installation kits are identical for all roof

connections. The various installation kits for tile and

plain tile, slate and shingle cover as well as for

corrugated sheet and sheet steel roofs only differ with

regard to the type of roof hook (➔ 123/1) or special

fixing materials used (➔ 125/2, 125/1 and 126/2).

10

61 65 8 65

M12


35

164.6 304

55

180

300

8

75

∅9

38 – 59

407

35 70

9

123

6


Roof connection for tiled roofs

Fig. 124/1 shows an example of the rooftop

installation kits for tiled covers. The roof hooks (123/1

and item 2 ➔ 124/1) are hooked over the existing roof

battens (➔ 124/2) and fastened to the profile rails.

As an alterative to being hooked on, the roof hooks can

also be fastened to a batten or a hard surface

(➔ 124/3). This is done by turning the lower part of the

roof hook. If additional height compensation is

required, the lower section of the roof hook can be

shimmed.

When rooftop installation on a tiled roof is envisaged,

check whether the dimensions specified in fig. 124/1,

detail A must be complied with. Use the roof hooks

supplied, if they

● fit into the valley of the roof tile and

● extend over the roof tile plus roof batten.

➔ The tile cover should not exceed 120 mm. Where

necessary, include a roofing contractor in the planning

process.

Caption (➔ 124/1)

1 Single-sided collector tensioner (only in the standard kit)

2 Roof hook, adjustable

3 Profile rail

4 Anti-slippage protection for collectors (2x per collector)

5 Two-sided collector tensioner (only in the extension kit)

6 Connector (only in the extension kit)

7 Hard surface (cladding)

Caption (➔ 124/2)

1 Hexagon nut

2 Serrated washer

3 Roof batten

4 Roof hook, lower part

Caption (➔ 124/3)

1 Hexagon nut

2 Serrated washer

3 Fixing screws

4 Roof hook, lower part

5 Rafter/hard surface

124

124/1 Rooftop installation standard kit and extension kit (highlighted

in blue) for one Logasol SKN3.0 or SKS4.0 flat-plate collector

(detail A: dimensions in mm)

124/2 Hooked-on roof hook

124/3 Roof hook fastened to the rafter


7

6

35

A

5

5

50–86

4

B

3

4

1

2

1

2

3

4

1

2

3


Plain tile roof connection

Fig. 125/1 shows the attachment of the roof hook

(item 2) to a plain tile cover. Trim and attach the plain

tiles on site.

The horizontal profile rails must be fastened to the roof

hook in the same way as they are with tiles (➔ 124/1).

➔ Refer to a roofing contractor for rooftop installation

on plain tiles, if required.

Caption (➔ 125/1)

1 Plain tiles (cut along the dotted line)

2 Roof hook, lower part fastened to a rafter or plank/board

Roof connection with slate or shingle

➔ Special roof hook installations with slate or shingle

cover must be carried out by a roofing contractor.

Fig. 125/2 shows an example of a waterproof

installation of the special roof hooks (item 5 ➔ 125/2)

on a slate or shingle cover with seals and flashing to be

provided on site.

The horizontal profile rails must be fastened to the

special roof hooks in the same way as they are with tile

cover (➔ 124/1).

Caption (➔ 125/2)

1 Sheet steel above special roof hook (on site)

2 Sheet steel below special roof hook (on site)

3 Multiple overlap

4 Seal (on site)

5 Special roof hook

6 Screw (standard delivery)

125/1 Roof hook attached on a plain tile roof


1

2

6

4

5

4

125/2 Special roof hook with waterproof cover for attaching a rooftop

installation kit for flat-plate collectors to a slate or shingle cover

3

1

2

125

6


Roof connection in roofs with insulation on rafters

Fig. 126/1 shows the roof connection to a roof with

insulation on rafters using the special hooks. The

roofing contractor must secure a wooden board with a

minimum cross-section of 28 mm x 200 mm to the

rafter. The force that is introduced by the roof hook

must be transferred by this board to the load-bearing

rafters. With an assumed maximum snow load of

2kN/m 2 (without accessories) or 3.1 kN/m 2 (with

accessories), the following force per roof hook must be

allowed for:

● Horizontal to roof Fsx = 0.8kN

● Vertical to roof Fsy =1.8kN

The horizontal profile rails must be fastened to the

special roof hooks in the same way as they are with a

tile cover (➔ 124/1).

Caption (➔ 126/1)

1 Roof tile

2 Special roof hook

3 Insulation on rafters

4 Rafter

5 On-site screw connection

6 Wooden board (at least 28 mm × 200 mm)

F sx Load per roof hook, vertical to the roof

F sy Load per roof hook, horizontal (parallel) to the roof

Roof connection with corrugated sheet roofs

➔ Rooftop installation onto a corrugated sheet cover is

only permissible if the headless spiral screws can be

fastened at least 40 mm into a wooden structure with

adequate load-bearing capacity (➔ 126/2).

The corrugated sheet roof connection contains

headless spiral screws including retaining brackets and

sealing washers that are used instead of the roof hooks

in the rooftop installation kit.

Fig. 126/2 shows how the profile rails are attached to

the retaining brackets of the headless spiral screws.

Caption (➔ 126/2)

1 M8 × 16 Allen screws


3 Retaining bracket

4 Hexagon nut

5 Seal washer

126

126/1 On-site attachment of additional wooden boards on the

insulation on rafters, to which the special hooks for attaching

a rooftop installation kit are fastened (dimensions in mm)


5

6

1

6

5 2

1

4

3

2

1

126/2 Example of profile rail attachment with rooftop installation on

a corrugated sheet cover (dimensions in mm)

105

< 60

F sy

2

3

F sx

4

3

4

5

3

> 40


Roof connection on roofs with sheet steel

Fig. 127/1 shows the roof connection on a sheet steel

roof with the corrugated sheet/sheet steel roof

connection Secure a sleeve to the roof on site and make

it watertight. Generally four sleeves per collector are

usually soldered on for this purpose. The M12 × 180

headless special screws are fastened to the substructure

(rafter or load-bearing timber, at least

40 mm × 40 mm) through the sleeve.

Caption (➔ 127/1)


2 M8 × 16 Allen screws

3 Retaining bracket

4 M12 headless special screw

5 Sleeve

6 Sheet steel roof

7 Sub-structure (timber, at least 40 mm × 40 mm)

Snow load profile/additional rail

Also install a snow guard and an additional rail

(accessories) during the rooftop installation of portrait

flat-plate collectors on buildings between 20 m and

100 m in height in regions with snow loads of 2 kN/m 2

to 3.1 kN/m 2 . These provide better distribution of the

higher loads on the roof.

Fig. 127/2 shows the installation of a snow guard and

an additional rail on the example of tile cover. Both

accessories can also be fitted to installation systems for

other roof covers.

Caption (➔ 127/2)

1 Profile rails from rooftop installation kit

2 Additional rails (including collector tensioner)

3 Additional roof connection (snow guard standard delivery)

4 Vertical profile rails (snow guard standard delivery)

1

6

127/1 On-site attachment of sleeves for watertight mounting of

headless special screws for rooftop installation on sheet steel

cover (dimensions in mm)


2

3

4

105

40

5

< 60

127/2 Rooftop installation kit with snow guard and additional rail

6

7

4

5

3

7

> 40

1

2

3

4

1

127

6


Water connections

The rooftop connection kits are used to make the

hydraulic collector connections during rooftop

installation (figs 128/1 and128/2).

Roof outlets are required for flow and return, since the

collector connections are above roof level. A

ventilation tile (as shown in fig. 128/3) can be used as

a roof outlet for the flow and return lines. The flow line

is routed through the roofing skin with an incline to

the air vent valve, if installed, via the upper ventilation

tile. The lead from the collector temperature sensor

also runs through this tile. Route the return line with a

slope to the KS station. A ventilation tile can be used

for this if the return line runs through the roof below or

at the same level as the collector array return

connection (fig. 128/3). An additional air vent valve is

not usually required, in spite of the change of direction

in the tile.

➔ Involve a roofing contractor in the planning to

prevent damage to the building.

Caption (➔ 128/1)

1 Connecting line 1000 mm

2 Dummy plug

3 Spring clips

4 Hose coupling with R 3/4” connection or 18 mm locking ring

Caption (➔ 128/2)

1 1000 mm connection line with R 3/4“ connection or 18 mm

locking ring at the system side, insulated

2 Dummy plug

3 Clip

Caption (➔ 128/3)

1 Flow line

2 Return line

3 Sensor lead

4 Ventilation tile

5 Air vent valve

Static requirements

➔ The rooftop installation kit is exclusively designed

for the secure mounting of solar collectors. The

attachment of other rooftop equipment such as aerials

to the rooftop mounting kit is not permissible.

The roof and the substructure must have an adequate

load-bearing capacity. A load of about 50 kg or 55 kg

can be expected for each Logasol SKN3.0 or SKS4.0 flat-

128

128/1 SKN3.0 rooftop connection kit

128/2 SKS4.0 rooftop/roof integration connection kit

128/3 Route connection lines beneath the roof

plate collector. Also take the specific regional loads as

per DIN 1055 [or local regulations] into account.

The values in table 121/1 are the permissible standard

snow loads and building heights for rooftop

installation.


1

4

3

2

2

3

3

3

3

2

4 5

2

3

3

1

3

2

3

3

1

4

1

4

3

1


Rooftop installation system component selection aid

Include appropriate connecting materials in the

engineering subject to the number of collectors and

their hydraulic connections.

SKN3.0-s

and

SKS4.0-s

SKN3.0-w

and

SKS4.0-w

Total number of collectors 2 3 4 5 6 7 8 9 10

Number of rows 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

Number of collectors per row 2 1 3 2 1 4 2 5 3 6 3 2 7 4 8 4 9 5 3 10 5

1

2

3

4

Standard

kit1) Tiles

Tiles

Plain tiles

Slate

Shingle

Corrugated

sheets

Sheet steel roof

1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

Extension kit1) Tiles

Tiles

Plain tiles

Slate

Shingle

Corrugated

sheets

sheet steel roof

1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

Additional kit

Standard kit2) Tiles

Tiles

Plain tiles

Slate

Shingle

Corrugated

sheets


1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

Additional kit


Tiles

Plain tiles

Slate

Shingle

Corrugated

sheets


1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

Standard

kit1) Tiles

Tiles

Plain tiles

Slate

Shingle

Corrugated

sheets


1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2


Tiles

Plain tiles

Slate

Shingle

Corrugated

sheets


1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

1) Consisting of installation kit and roof connection

2) Consisting of snow guard and additional horizontal rail, required for snow loads of 2 kN/m2 to 3.1 kN/m2 129/1 Fixing materials for rooftop installation system

and building heights of 20 m

to 100 m


129

6


6.3.4 Roof integration for flat-plate collectors

The roof integration system is suitable for SKN3.0 and

SKS4.0 portrait and landscape collectors. Individual

installation kits are available for tile, shingle, slate and

plain tile roof covers. The collectors seal the roof in

conjunction with the metal surround (coated

aluminium, anthracite RAL 7016).

The two outer collectors in a row are installed using a

standard kit. Every other collector in the array is

installed between the two outer collectors using an

extension kit (fig. 130/2).

Fit additional roof battens on site for attaching the

collectors, the metal surround and as support for the

cover plate at the top and the flashing at the bottom

(fig. 130/3).

During installation the collectors are first attached to

the roof battens and then encased in the metal

surround. The hydraulic connection lines can be

routed through the roof inside the side cover plates.

Another row consisting of the same number of

collectors can be installed directly above the first row.

Appropriate standard and extension kits are available

for an additional row. The space between the top and

bottom collector rows is closed off with a cover plate

(fig. 131/1).

If two rows with a different number of collectors are

installed above each other, leave a gap of at least two

rows of tiles between each row.

➔ If necessary, include a roofing contractor in the

planning and installation to prevent damage to the

building.

Caption (➔ 130/2)

1 Top left cover plate

2 Top centre cover plate

3 Top right cover plate

4 Retainer

5 Right side cover plate

6 Bottom right cover plate

7 Batten to prevent slippage

8 Anti-slippage protection (with landscape: 5x)

9 Bottom centre cover plate

10 Bottom left cover plate

11 Roll of sealing tape

12 Left side cover plate

13 Left support plate

14 Double-sided hold-down retainer

15 Cover strip

16 Screw 6 x 40 with washer

17 Single-sided hold-down retainer

18 Right support plate

Caption (➔ 130/3)

1 Additional roof battens

130

130/1 General layout, collector array integrated into the roof

130/2 1 standard kit for the two outer collectors and 1 extension kit

for the centre collector (highlighted in blue)

130/3 Spacing between additional roof battens for single-row

installation (dimensions in mm); values in brackets for portrait

version


11

12

1

4

13

10 9 8 7 6

1

1

1 2 3

1

15

14

1

16

17

18

160 200 - 230

1860 - 1890 (940 - 970)

2120 (1200)

2240 - 2270 (1320 - 1350)

2490 - 2520 (1570 - 1600)

1

5

4



The roof integration connection kits are recommended

for making the hydraulic collector connections during

roof integration installation (figs 131/2 and 131/3).

The flow and return lines can be routed through the

roof inside the side cover plate using the connection

kits.

If an air vent valve is installed, route the flow line

beneath the roof with an incline. Route the return line

to the KS station with a slope.



snow loads and building heights for roof integration.

Caption (➔ 131/1)

1 Centre cover plate (right)

2 Rubber lip

Caption (➔ 131/2)

1 Connection line 1000 mm

2 Bracket

3 Clamping disk

4 Nut G1

5 Spring clip

6 Dummy plug

7 Hose ferrule with R 3/4“ connection or 18 mm locking ring

Caption (➔ 131/3)

1 1000 mm connection line with R 3/4“ connection or 18 mm

locking ring at the system side, insulated

2 Dummy plug

3 Clip

131/1 Cover plate between two rows of collectors arranged one above

the other


2

5

2

1

131/2 SKN3.0 roof installation connection kit

3

2

6

3 4

131/3 SKS4.0 roof installation connection kit

5

5

7

3

2

5

3

1

4 3

1

6

5

2

1

5

3

1

7

131

6


Roof integration installation system component selection aid

Include appropriate fixing materials in the


rows.

132

SKN3.0-s

and

SKS4.0-s

SKN3.0-s

and

SKS4.0-s

Total number of collectors 1 2 3 4 5 6 7 8 9 10

Number of rows 1 1 2 1 3 1 2 1 1 2 3 1 1 2 1 3 1 2

Number of collectors per row

Row 1

Tiles

Tiles

1 2 1 3 1 4 2 5 6 3 2 7 8 4 9 3 10 5

Row 1

Slate

Shingle

1 – 1 – 1 – – – – – – – – – – – – –

Individual Plain tiles

installation Additional row

Tiles

Tiles

Additional row

Slate

Shingle

Plain tiles

Row

Tiles

Tiles

– – 1 – 2 – – – – – – – – – – – – –

Row 1

Slate

Shingle

– 1 – 1 – 1 1 1 1 1 1 1 1 1 1 1 1 1

Standard kit Plain tiles

for 2 collectors Additional row

Tiles

Tiles


Slate

Shingle

Plain tiles

Row 1

Tiles

Tiles

– – – – – – 1 – – 1 2 – – 1 – 2 – 1

Row 1

Slate

Shingle

Plain tiles

– – – 1 – 2 – 3 4 1 – 5 6 2 7 1 8 3

Extension kit


Tiles

Tiles


Slate

Shingle

Plain tiles

– – – – – – – – – 1 – – – 2 – 2 – 3

132/1 Fixing materials for roof integration installation system


SKN3.0-w

and

SKS4.0-w

SKN3.0-w

and

SKS4.0-w


Total number of collectors 1 2 3 4 5 6 7 8 9 10

Number of rows 1 1 2 1 3 1 2 1 1 2 3 1 1 2 1 3 1 2

Number of collectors per row 1 2 1 3 1 4 2 5 6 3 2 7 8 4 9 3 10 5

Individual

installation

Standard kit

for 2 collectors

Extension kit

Row 1

Tiles

Tiles

Row 1

Slate

Shingle

Plain tiles


Tiles

Tiles


Slate

Shingle

Plain tiles

Row 1

Tiles

Tiles

Row 1

Slate

Shingle

Plain tiles


Tiles

Tiles


Slate

Shingle

Plain tiles

Row 1

Tiles

Tiles

Row 1

Slate

Shingle

Plain tiles


Tiles

Tiles


Slate

Shingle

Plain tiles

132/1 Fixing materials for roof integration installation system

1 – 1 – 1 – – – – – – – – – – – – –

– – 1 – 2 – – – – – – – – – – – – –

– 1 – 1 – 1 1 1 1 1 1 1 1 1 1 1 1 1

– – – – – – 1 – – 1 2 – – 1 – 2 – 1

– – – 1 – 2 – 3 4 1 – 5 6 2 7 1 8 3

– – – – – – – – – 1 – – – 2 – 2 – 3


133

6


6.3.5 Flat roof installation for flat-plate collectors

Flat roof installation is intended for level roof surfaces.

However, it is also suitable for roofs with minor slopes

of up to 25° (➔ 134/1). For this, secure the flat roof

support on site.

The flat roof installation kit for Logasol SKN3.0 and

SKS4.0 flat-plate collectors consists of a standard kit for

the first collector in a row and an extension kit for each

additional collector in the same row (➔ 134/2).

Accessories are required for buildings more than 20 m

high and with snow loads of > 2kN/m 2 (➔ 121/1).

The angle of inclination of the flat roof support can be

adjusted in steps of 5° as follows:

● Portrait flat roof support: 30° to 60° (adjustable by

25° by trimming the telescopic rail)

● Landscape flat roof support: 35° to 60° (adjustable

by 25° or 30° by trimming the telescopic rail)

The flat roof supports can be fixed to the roof by means

of weighting (ballast) or by attaching them to the roof

structure.

On-site mounting

The flat roof supports can by mounted on on-site

substructures consisting of double-T supports, for

example (➔ 134/3). For this, there are holes in the

bottom profile rails of the flat roof supports. The on-site

substructure must be designed such that the wind force

acting upon the collectors can be absorbed.

The support spacing dimensions can be found in

figures 135/1 to 135/3. The positions of the holes for

attaching the flat roof supports to the on-site

substructure can be found in figure 134/3.

For buildings more than 20 m in height or with snow

loads of 2 kN/m 2 to 3.8 kN/m 2 , each standard kit for

portrait collectors must be fitted with an additional rail

(standard kit addition) and each extension kit must be

fitted with an additional rail and an additional

support (extension kit addition). With landscape

collectors, fit all installation kits with an additional rail

(standard kit and extension kit addition).

134

134/1 Examples of actual flat-plate collector angle of inclination when

using flat roof supports on a flat roof with a shallow pitch (< 25°)

Item 1: pitch; item 2: collector angle of inclination

134/2 Flat roof support standard kit and extension kit (blue) for one

SKN3.0-s or SKS4.0-s flat collector

134/3 Flat roof support fixed on site with base anchoring to a

substructure consisting of double-T supports (dimensions in m);

value in brackets for landscape version; centre contact surface

(blue) only required for buildings above 20 m in height.


30˚

45˚

15˚ 15˚

45˚

2

30˚

0.563 0.563

(0.353) (0.353)

1


0.98

135/1 Collector support spacing in standard version with flat roof supports for portrait collectors SKN3.0-s and SKS4.0-s (dimensions in m)

135/2 Collector support spacing in standard version when using additional supports with flat roof supports for portrait collectors SKN3.0-s and

SKS4.0-s (dimensions in m)

135/3 Distance between collector supports with flat roof supports for landscape SKN3.0-w and SKS4.0-w collectors (dimensions in m)

1.17

0.98 0.19 0.98 0.19

1.82 0.275


0.98

1.82

0.98

135

6


Securing by means of ballast troughs

Four ballast troughs are required for each flat roof

support when the collectors are weighed down

(dimensions: 950 mm x 350 mm x 50 mm) - these are

hooked into the flat roof support (➔ 136/1). They are

filled with concrete slabs, gravel or the like to weigh

them down. See table 137/1 for the required ballast

weight (maximum 320 kg with gravel filling) subject

to the height of the building.

With a building up to 20 m high and snow loads of up

to 2 kN/m2 , one additional support is required for the

4th, 7th and 10th collector in a row when ballast

troughs are used in conjunction with portrait

collectors. The installation kit includes one additional

support when landscape collectors are used. The

additional supports are required for hooking in the

trays.

For buildings higher than 20 m or with snow loads of

2kN/m 2 to 3.8 kN/m 2 , each standard kit must include

an additional rail (standard kit addition) and each

extension kit for portrait collectors must include an

additional support and an additional rail (extension

kit addition). With landscape collectors, all installation

kits must be equipped with an additional rail

(standard kit and extension kit addition).

Erect the entire structure on protective building mats to

protect the skin of the roof.


The flat roof connection kits are used to make the

hydraulic collector connections during flat roof

installation (fig. 136/2 and 136/3). Route the flow line

parallel to the collector to prevent damage to the

connection due to the movement of the collector in the

wind (fig. 136/4).



snow loads and building heights.

Caption (➔ 136/2)

1 Bracket with R 3/4“ connection on the system-side

or 18 mm locking ring

2 Clamping disk

3 Nut G1

4 Dummy plug

5 Spring clips

Caption (➔ 136/3)

1 Bracket with R 3/4“ connection on the system side or 18 mm

locking ring

2 Dummy plug

3 Clip

Caption (➔ 136/4)

1 Pipe clamp (on site)

2 M8 thread

3 Bracket (connection kit standard delivery)

4 Flow line

136

136/1 Flat roof support with ballast trough and additional guy ropes

136/2 SKN3.0 flat roof connection kit

136/3 SKS4.0 flat roof connection kit

136/4 Collector flow line routing


1

3

2

2

4

3

5

2

3

4

3

3

5

1

2

4

3 2

1

3

1

1


Flat roof support weights

When the roof loads are being determined, the

following weights can be assumed for flat roof

installation kits:

● Standard kit, portrait: 12.2 kg

● standard kit, landscape: 8.7 kg

Flat roof support fixing (collector stabilisation)

Flat roof installation system, component selection aid




● Extension kit, portrait: 7.2 kg

● Extension kit, landscape: 8.7 kg

Building height Wind velocity Base anchoring Ballast Guy rope

Number and type of

screws 1)

Weight (e.g.

concrete slabs)

Protection against

tilting

Weight (e.g. concrete

slabs)


Protection against

slippage

Max. tensile strength

per rope

m km/h kg kg kN

0 to 8 102 2x M8/8.8 270 180 1.6

8 to 20 129 2x M8/8.8 450 320 2.5

20 to 100 2)

151 3x M8/8.8 – 450 3.3

137/1 Options for securing flat roof supports for each collector to prevent tilting and sliding as a result of wind; version for Logasol SKN3.0 and

SKS4.0 flat-plate collectors

1) Per collector support

2) Additional rail and additional support required for portrait collectors, and additional rail for landscape collectors

Installation kits with ballast trough 1)

SKN3.0-s

and

SKS4.0-s


Number of rows 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

Number of collectors per row 2 1 3 2 1 4 2 5 3 6 3 2 7 4 8 4 9 5 3 10 5

1

2

3

4

Standard kit 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

Extension kit 1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

Additional support 2)

– – – – – 1 – 1 – 1 – – 2 1 2 2 2 2 – 3 2

Standard kit addition 3)

1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

Addition to extension kit3) 1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

Standard kit 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

SKN3.0-w

and

SKS4.0-w

Extension kit

Standard kit addition

1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

3) 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

Addition to extension kit 3)

1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

Installation kits for on-site attachment

SKN3.0-s

Standard kit 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

and Extension kit 1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

SKS4.0-s Standard kit addition3) 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2


SKN3.0-w

Standard kit 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

and Extension kit 1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

SKS4.0-w Standard kit addition 3)

1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2


1) The standard installation and extension kits contain one set of ballast troughs each

2) Not required if the additional extension kit is selected

3) Required in addition to the standard and extension kit with snow loads in excess of 2 kN/m2 137/2 Fixing materials for the flat roof installation system

or building height exceeding 20 m

137

6


6.3.6 Wall installation for flat-plate collectors

Wall installation is only suitable for landscape Logasol

SKN3.0-w and SKS4.0-w flat-plate collectors, and is

only approved for building walls up to an installation

height of 20 m.

Wall mounting requires horizontal flat roof supports.

The first collector in the row is installed using a wall

support standard kit. Every additional collector in the

same row is installed using a wall support extension

kit. These kits include three supports (➔ 138/2).

The pitch of the collectors on the wall may only be set

to between 45° and 60° relative to the horizontal

(➔ 138/1).

On-site fixing

Secure the collector supports on site to a load-bearing

surface using three bolts per support (➔ 138/3).



snow loads and building heights.

138

0.353

0.353

138/1 Max. permitted collector pitch on a wall

Item 1: pitch (absolute angle relative to the horizontal)

Item 2: collector angle of inclination

138/2 Wall mounting with wall support standard kit and wall support extension kit (blue); dimensions in m

Wall construction 1)

Reinforced concrete at least B25

(min. 0.12 m)

Reinforced concrete at least B25

(at least 0.12 m)

Steel substructure

(e.g. double-T support)

0.98 0.98 0.135 0.98 0.98

138/3 Fixing materials

1) Brickwork on request

2) Each dowel/screw must be able to withstand a tensile force of at least 1.63 kN and a vertical force (shearing force) of at least 1.56 kN

3) 3x screw diameter = external washer diameter


60˚

30˚

Screws/dowels for each collector support Distance from edge of wall

3x UPAT MAX Express-anchors, type MAX 8 (A4) 2) and

3x washers3) in acc.with DIN 9021

3x Hilti HST-HCR-M82) or HST-R-M82) and


3x M8 (4.6) 2) and


45˚

m

2

>0.10

>0.10

–

1

45˚


Component selection aid for wall mounting system for Logasol SKN3.0-w and SKS4.0-w




Installation kits

SKN3.0-w and

SKS4.0-w


Number of rows 1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2


2 1 3 2 1 4 2 5 3 6 3 2 7 4 8 4 9 5 3 10 5

per row

1

2

3

4

Standard kit for wall

mounting

Extension kit

for wall mounting

139/1 Fixing materials for wall mounting system for Logasol SKN3.0-w and SKS4.0-w

6.3.7 Standard values for installation times

Use of contractors

At least two installers must be allowed for when

installing solar collectors. Each installation on a

sloping roof involves intervention in the roof cover

Source appropriate contractors (roofers, plumbers)

prior to installation. Use these as required. Buderus

provides training in the installation of solar heating

systems. Information concerning this can be obtained

from your local Buderus sales office (➔ back).

➔ Kits are available for any installation option,

including accessories and installation instructions.

Read the installation instruction for the chosen

installation option carefully before work commences.

1 2 1 2 3 1 2 1 2 1 2 3 1 2 1 2 1 2 3 1 2

1 – 2 1 – 3 2 4 3 5 4 3 6 5 7 6 8 7 6 9 8

Collector installation times

The times in table 139/2 only apply to collector

installation with installation systems and connections

to a row of collectors. In-depth knowledge of the

relevant installation instructions is required.

The times for safety measures, transporting the

collectors and installation systems to the roof and roof

modifications (adapting and cutting the roof tiles) are

not taken into consideration. These times should be

estimated in consultation with a roofing contractor.

➔ The time calculation for planning a solar collector

system is based on practical experience. These depend

on the on-site situation. The actual installation times

on site may therefore vary considerably from the times

quoted in table 139/2.

Installation option and scope Standard values for installation times

of 2 SKN3.0/SKS4.0 collectors for each additional collector

Rooftop installation 1.0 h per installer 0.3 h per installer

Roof integration 3.0 h per installer 1.0 h per installer

Flat roof installation with ballast troughs 1.5 h per installer 0.5 h per installer

Flat roof installation on substructures 1.5 h per installer 0.5 h per installer

Wall mounting 45° 2.5 h per installer 1.5 h per installer

139/2 Installation times with two installers for collectors in small systems (up to 8 collectors) on roofs with an angle of inclination of ≤ 45°,

excluding handling time, effort in conjunction with safety precautions and the creation of on-site substructures


139

6


6.4 Flat roof installation for vacuum tube collectors

Flat roof installation is intended for level roof surfaces.

The area required for concrete slabs must be cleared of

gravel on flat roofs with gravel cover.

Place protective building mats beneath the concrete

slabs on flat roofs with plastic roof membranes (item 1

➔ 140/2)

Vacuum

Concrete slab spacing

tube collector

with 30° with 45°

A B B

m m m

CPC6 0.55 1.225 0.915

CPC12 1.100 1.225 0.915

140/1 Concrete slab spacings when using flat roof supports

Weight of concrete slabs

140

Building height Vacuum

tube collector

Number

of angled frames

140/2 flat roof supports with concrete slabs (dimensions A and B

➔ 140/1)

Item 1: Protective building mats for flat roofs with plastic roof

membranes

Angle

of frame


A

1

B

Required weight

front concrete slab rear concrete slab

m kg kg

0 to 8

CPC6

CPC12

2

2

30°/45°

30°/45°

75

75

75

75

between 8 and 20

CPC6 2 30°/45° 112 112

CPC12 2 30°/45° 112 112

140/3 Required concrete slab weight when using flat roof supports


6.5 Lightning protection and earth bonding for solar heating systems

Requirement for lighting protection

The requirement for lightning protection is defined in

the building regulations of the country concerned.

Lightning protection is frequently required for

buildings that

● are more than 20 m high

● are significantly higher than the surrounding

buildings

● are valuable buildings (monuments) and/or

● could cause panic if a lightning strike occurred

(schools, etc.).

If a solar heating system is installed on top of a

building with a high protection target (e.g. high-rise

building, hospital, assembly buildings or shops) the

lightning protection requirements should be discussed

with an expert and/or the building operator. This

discussion should take place in the planning phase of

the solar heating system.

Since solar heating systems are not higher than the

roof ridge (even in special cases), the probability of a

direct lightning strike for a residential building in

accordance with DIN VDE 0185, part 100, is the same

with or without a solar heating system.

Earth bonding for the solar heating system

Irrespective of whether a lightning protection system is

present, the flow and return of a solar heating system

must always be earthed with a copper cable with at

least 6 mm2 cross-section at the earth bonding rail.

➔ If a lightning protection system is installed,

determine whether the collector and the installation

system are outside the protection scope of this system.

If this is the case, a specialist electrical contractor

must connect the solar heating system to the existing

lightning protection system. Electrically conducting

parts of the solar heating circuit must be earthed with

a copper cable with at least 6 mm 2 cross-section at the

earth bonding rail


141

7

Regulations and Directives

7 Regulations and Directives

Fax enquiry – Solar heating system for detached houses and two-family houses (Page 1/2)

Details regarding the sizing of a solar heating system

Project

Contact Buderus Design/Engineering

Mr./Mrs. Mr./Mrs.

Telephone Telephone

Fax Fax

Place of collector installation

System location:

Collector orientation:

Available roof area:

Questionnaire "Fax inquiry - solar heating system for detached houses and two-family homes“ (copy template)

142

Postcode

Town

Point of the compass Angle of inclination

Include scale drawings of southern aspect!

Are collectors shaded? No Yes

Type of collector installation: Roof integration


Roof skin make-up:

Solar heating system pipework

Single line length in the system:

Boiler room / installation room of the cylinder(s)

Room dimensions:

Smallest door size:

Utilisation of solar energy

90

West

Length

Flat roof installation

m

m

Outside

the building

m

DHW (WW)

+ –

0

South

Height

Length

Height

Swimming pool (S)

90

East

Collektor model: SKN3.0 SKS4.0

Vaciosol CPC

Static height:

m

m

m

× Width

Wall mounting

× Width

× Width


m

Between the highest system point and the

centre of the diaphragm expansion vessel

+

m

Inside

the building

Central heating (H)

m

m

Assumptions

if no details

are provided

0 south

No

Adequate space

Rooftop

Tiled roof

1 m / 8 m

8 m

> 2 m

Adequate space

2.00 m × 1.20 m

DHW (WW)

Fax enquiry – Solar heating system for detached houses

and two-family homes (Page1/2)

DHW heating

No. of occupants: persons

Daily DHW demand:

(Standard values in litres/person)

Daily DHW volume:

Washing machine with hot fill? No Yes

Dishwasher with hot fill? No Yes

DHW draw-off temperature: ˚ßC

Max. cylinder temperature: ˚ß˚C

Control ON 1 OFF 1

Regulations and Directives 7

litre (person × litres per person)

DHW circulation: DHW circulation loss: W

Time

Reheating

:


4 persons

50 l per person

200 litres

Reheating in summer mode? No Yes, with Yes, with …

Boiler efficiency (summer mode): %

50 %

Additional cylinder volume? litre

Dual-mode Mono-mode no

Fuel:

Central heating back-up

Set water temperature:

Oil Gas LPG Biomass Elec. District heating

Operating period: From to

Standard outside temperature: ˚˚ß˚C

Flow temperature: ˚˚ß˚C Return temperature:

Heating limit temp. (changeover to summer mode): ˚ß˚C

Annual oil consumption: m3 l/p.a.

Annual gas consumption:

/p.a.

Swimming pool water heating

Type:

Indoor

Available boiler output: kW

Boiler efficiency of: %

Heat demand: kW

˚ß˚C

No

No

45 ˚ßC / 60 ˚ß˚C

60 ˚˚ßC

None

None

18 kW

Fuel oil /

Natural gas

–14 ßC

6 kW

18 ˚ßC

1260 l/p.a. /

1160 m 3 /p.a.

Private Public Private

kW m3 HE output (for reheating): HE water content:

/h

˚ß˚C

90 %

35 / 30 ˚ ßC

May – September

Indoor pool

Sheltered

Pool cover: None Available Type of cover Available

Reheating by boiler via heat exchange (HE)? Yes No, with … Yes, with HE …

Date: Signature:

Low Medium High

(40 l/person) (50 l/person) (75 l/person)

ON 2 OFF 2 ON 3 OFF 3

: : : : :

Outdoor Exposed Sheltered Sheltered from wind

Tile colour

(Std. value: 45 ß˚C For detached and two-family homes,

60 ˚˚ßC for apartment buildings)

Assumptions

(continued)

Basin: (Length x Width x Depth) m × m ×

m

Please state!

Blue

24 ßC

Please state!

143

7

Appendix

Keyword index

A

Absorber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4–6, 8

Accessories

Fixing materials . . . . . . . . . . . . . . . . .129, 132, 137, 139

Hydraulic connection (options) . . . . . . . . . . . . . . . . .121

Accident prevention regulations . . . . . . . . . . . . . . .59

Air separator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Air vent valve . . . . . . . . . . . . . . . . . . . . . . . . . . .57, 119

Angle of inclination (collectors) . . . . . . .82–83, 92, 95

B

Boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58

Buffer bypass circuit . . . . . . . . . . . . . . . . . . . . . . . . .41

C

Central heating backup

Buffer bypass circuit . . . . . . . . . . . . . . . . . . . . . . . . . .41

RW return temperature limiter . . . . . . . . . . . . . . . . . .55

Sample system . . . . . . . . . . . . . . . . . . . . . 64–69, 73–75

Collector

See solar collector...

Collector array

Collector row pressure drop . . . . . . . . . . . . . . .102, 106

Flow rate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Hydraulic connection (options) . . . . . . . . . . . . . . . . . .98

Number of collectors (sizing) . . . . . . . 80–81, 84–85, 89

Pressure drop for connection in parallel . . . . . . . . . . .104

Pressure drop with connection in series/parallel . . . .105

Pressure drop, connection in series . . . . . . . . . . . . . .103

Vacuum tube connector pressure drop . . . . . . . . . . .106

Collector array hydraulics with dormer . . . . . . . . .101

Collector temperature sensor extension lead . . . .118


Pressure drop and flow rate . . . . . . . . . . . . . . . . . . . .105

Computer simulation (solar heating system sizing) 79

Connection accessories (hydraulic) . . . . . . . . . . . .121

Connection in parallel . . . . . . . . . . . . . . . .98, 100, 104

Connection in parallel and in series . . . . . . . .101, 105

Connection in series . . . . . . . . . . . . . .98–99, 101, 103

Connection in series and in parallel . . . . . . . .101, 105

Connection pipes . . . . . . . . . . . . . . . . . . . . . . . . . .118

Correction factor, number of collectors . . . . . . . . . .82

Cylinder

See dual-mode thermosiphon cylinder Logalux SL...

See Duo FWS... combi cylinder

See Logalux P750 S... combi cylinder

See Logalux PL... thermosiphon thermal store

See Logalux PL.../2S... thermosiphon combi cylinder

144

See Logalux SM... dual.mode cylinder


D

Daily heating . . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 89

DHW circulation line . . . . . . . . . . . . . . . . . . . . . . . . 54

DHW heating

Correction factor, number of collectors . . . . . . . . . . . 82

Sample system . . . . . . . . . . . . . . . . . . . . . . . . . . . 70–72

Sizing (apartment block with 3 to 5 residential units) . 87

Sizing (apartment block with up to 30 residential units) .

88– . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90

Sizing (detached house/two-family home) . . . 80, 82–83

DHW heating and central heating backup

Sample system . . . . . . . . . . . . . . . . . . . . . 64–69, 73–75

Sizing (detached house/two-family home) . . . . . . 84, 86

DHW mixer (thermostatic) . . . . . . . . . . . . . . . . 52–54

Diaphragm expansion vessel (DEV) 111–112, 116–117

Directives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Domestic hot water heating

Sample system . . . . . . . . . . . . . . . . . . . . . . . . . . . 60–63

Dormer (collector array hydraulics) . . . . . . . . . . . . 101

Double-Match-Flow . . . . . . . . . . . . . . . . . . . . . . . . . 28

Dual-mode cylinder Logalux SM...

DHW circulation line . . . . . . . . . . . . . . . . . . . . . . . . . 54

Dimensions and specification . . . . . . . . . . . . . . . . . . . 13

Pressure drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Sample system . . . . . . . . . . . . . . . . . . 60–61, 64, 70–75

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83, 86

Dual-mode thermosiphon cylinder Logalux SL...

Design and function . . . . . . . . . . . . . . . . . . . . . . . . . . 14

DHW circulation line . . . . . . . . . . . . . . . . . . . . . . . . . 54


Pressure drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Sample system . . . . . . . . . . . . . . . . . . 60–61, 64, 70–75

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83, 86

Duo FWS... combi cylinder



Pressure drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

E

Earth bonding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 141

Efficiency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 8, 11

EMS

Boiler with EMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Control unit selection aid . . . . . . . . . . . . . . . . . . . . . . 27

Solar function module FM443 . . . 28–29, 31, 41–43, 46

Solar function module SM10 . . . . . . . . . . . . . 28–29, 46

Energy supply (solar) . . . . . . . . . . . . . . . . . . . . . . . . . 3

F

Filling pressure (DEV) . . . . . . . . . . . . . . . . . . . . . . .111

Filling station . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .120

Final pressure (DEV) . . . . . . . . . . . . . . . . . . . . . . . .112

Flat roof installation . . . . . . . . . . . . . . . . .94, 134, 140

Floorstanding boiler . . . . . . . . . . . . . . . . . . . . . . . . .58

Flow rate

Collector array . . . . . . . . . . . . . . . . . . . . . . . . . . . . .102

Connection in parallel . . . . . . . . . . . . . . . . . . . . . . . .104

Connection in series . . . . . . . . . . . . . . . . . . . . . . . . .103

Connection in series and in parallel . . . . . . . . . . . . . .105

Frost protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Function module (solar)

FM244 (Logamatic 2107) . . . . . . . . . . . . . . . .29–30, 46

FM443 (Logamatic 4000, EMS) . . . 28–29, 31, 41–43, 46

SM10 (Logamatic EMS) . . . . . . . . . . . . . . . . . .28–29, 46

H

Heat meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

High-Flow operation . . . . . . . . . . . . . . . . . . . . . . . . .28

Hydraulic connection accessories . . . . . . . . . . . . . .121

Hydraulic connections

Collector array (options) . . . . . . . . . . . . . . . . . . . . . . .98

Connection in parallel . . . . . . . . . . . . . . . . . . . . .98, 100

Connection in series . . . . . . . . . . . . . . . . . . . . . . .98–99


HZG kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

I

Inlet pressure (DEV) . . . . . . . . . . . . . . . . . . . . . . . .111

Insolation map . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Installation instructions . . . . . . . . . . . . . . . . . . . . . .139

Installation system (collector array)

Flat roof installation . . . . . . . . . . . . . . . . . . . . . .134, 140

Roof integration . . . . . . . . . . . . . . . . . . . . . . . . . . . .131

Rooftop installation . . . . . . . . . . . . . . . . . .123–126, 129

Wall installation . . . . . . . . . . . . . . . . . . . . . . . . .138–139

Installation times (collectors) . . . . . . . . . . . . .139, 141

Intrinsic safety of a solar heating system . . . . . . . .112

L

List of abbreviations . . . . . . . . . . . . . . . . . . . . . . . .147

Logalux P750 S... combi cylinder

See also thermosiphon combi cylinder...

Design and function . . . . . . . . . . . . . . . . . . . . . . . . . .17

Dimensions and specification . . . . . . . . . . . . . . . . . . .20

Pressure drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

Sample system . . . . . . . . . . . . . . . . . . . . . . . . . . .67–69

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .86

Logalux PL... thermosiphon thermal store


Appendix 7



Pressure drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Sample system . . . . . . . . . . . . . . . . . . . . . 64–66, 70–75

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Logalux PL.../2S... Thermosiphon combi cylinder

Pressure drop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86

Logalux PL.../2S... thermosiphon combi cylinder

Design and function . . . . . . . . . . . . . . . . . . . . . . . 18–19


Sample system . . . . . . . . . . . . . . . . . . . . . . . . . . . 67–69

Logalux SL... thermosiphon cylinder

See dual-mode thermosiphon cylinder Logalux SL...

Logalux SM... dual-mode cylinder


Logasol KS... compact station

Diaphragm expansion vessel, . . . . . . 111–112, 116–117

Selection (pressure drop, flow rate) . . . . . . . . . . . . . 109

Logasol KS... complete station

Diaphragm expansion vessel . . . . . . . . . . . . . . . . . . . 47

Diaphragm expansion vessel, . . . . . . . . . . . . . . . . . . . 46


Equipment level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

External control . . . . . . . . . . . . . . 28–29, 31, 41–43, 46

Integral control unit . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Low-Flow operation . . . . . . . . . . . . . . . . . . . . . . . . . 28

O

On-site fixing

Flat roof installation . . . . . . . . . . . . . . . . . . . . . . . . . 137

Wall installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

On-site safety

Installation instructions . . . . . . . . . . . . . . . . . . . . . . . 139

Optimisation function (solar) . . . . . . . . . . . . . . . . . . 29

Overvoltage protection

Control unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

P

Pasteurisation control . . . . . . . . . . . . . . . . . . . . 87, 89

Pipework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108, 118

Pre-cooling vessel . . . . . . . . . . . . . . . . . . . . . . . . . . 117


Logasol SAT-VWS system . . . . . . . . . . . . . . . . . . . 45, 90

pre-heat cylinder

Logasol SAT-VWS system . . . . . . . . . . . . . . . . . . . . . . 88

Sample system . . . . . . . . . . . . . . . . . . . . . 62–63, 65–66

Pressure drop

Collector row . . . . . . . . . . . . . . . . . . . . . . . . . . 102, 106

Connection in parallel . . . . . . . . . . . . . . . . . . . . . . . 104

Connection in series . . . . . . . . . . . . . . . . . . . . . . . . . 103

145

7

Appendix


Logasol KS... compact station . . . . . . . . . . . . . . . . . .109

Pipework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .108

Solar cylinder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109

Primary energy saving . . . . . . . . . . . . . . . . . . . . . . .29

Pump sizing (SWT) . . . . . . . . . . . . . . . . . . . . . . . . . .56

Q

Questionnaire for detached houses

and two-family homes (fax) . . . . . . . . . . . . . .142–143

R

Reheating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3, 58

Reheating optimisation . . . . . . . . . . . . . . . . . . . . . . .29

Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Roof integration . . . . . . . . . . . . . . . . . . . . . . . . .92–93

Rooftop installation . . . . . . . . . . . 92–93, 123–126, 129

RW return temperature limiter . . . . . . . . . . . . . . . . .55

S

Safety regulations . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Sizing

Diaphragm expansion vessel, . . . . . . 111–112, 116–117

Logasol KS... compact station (selection) . . . . . . . . . .109

Solar heating system for detached house/

two-family home (DHW) . . . . . . . . . . . . . . . . .80, 82–83

Solar heating system for detached house/

two-family home (DHW+HTG) . . . . . . . . . . . . . . .84, 86

Solar heating system, apartment block

with 3 to 5 residential units (DHW) . . . . . . . . . . . . . . .87

Solar heating system, apartment block

with up to 30 residential units (DHW) . . . . . . . . . .88–90

Space required for flat roof installation . . . . . . . . . . . .94

Space required for rooftop installation and roof

integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .93

Space requirement with rooftop installation and roof

integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .92

Space requirement, wall mounting . . . . . . . . . . . . . . .96

Swimming pool water heating . . . . . . . . . . . . . . . . . .91

Solar collector Logasol SKN3.0

Design and function . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Dimensions and specification . . . . . . . . . . . . . . . . . . . .5

Installation times . . . . . . . . . . . . . . . . . . . . . . . .139, 141

Solar collector Logasol SKS4.0


Dimensions and specification . . . . . . . . . . . . . . . . . . . .8

Installation times . . . . . . . . . . . . . . . . . . . . . . . .139, 141

Solar collector Vaciosol CPC...


Dimensions and specification . . . . . . . . . . . . . . . . . . .11

Solar control unit

Solar control unit SC10 . . . . . . . . . . . . . . . . . . . . . . . .33

Solar control unit SC20 . . . . . . . . . . . . . . . . . .34–35, 46

Solar control unit SC40 . . . . . . . . . . . . . . . . . .35–40, 46

146

Solar function module FM244 . . . . . . . . . . . . 29–30, 46

Solar function module FM443 . . . 28–29, 31, 41–43, 46

Solar function module SM10 . . . . . . . . . . . . . 28–29, 46

Selection aids . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Solar fluid L . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50–51

Solar heating system enquiry for detached houses

and two-family homes (fax) . . . . . . . . . . . . . . 142–143

Solar optimisation function . . . . . . . . . . . . . . . . . . . 29

Solid fuel boiler . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Sample system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Space requirement

Flat roof installation . . . . . . . . . . . . . . . . . . . . . . . . . . 94

Rooftop installation and roof integration . . . . . . . 92–93

Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Stagnation temperature . . . . . . . . . . . . . . . . . . 5, 8, 11

Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59


Flat roof installation . . . . . . . . . . . . . . . . . . . . . . . . . 136

Roof integration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Rooftop installation . . . . . . . . . . . . . . . . . . . . . . . . . 128

Wall installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Swimming pool water heat exchanger SWT . . . . . . 56

Swimming pool water heating (sizing) . . . . . . . . . . 91

System volume (solar part) . . . . . . . . . . . . . . . . . . 110


T

Technical rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Temperature differential control . . . . . . . . . . . . . . . 27

Testing the solar fluid . . . . . . . . . . . . . . . . . . . . . . . 51

Thermal insulation . . . . . . . . . . . . . . . . . . . . . . . . . 118

Thermal store

See Logalux PL... thermosiphon thermal store

Thermostatic DHW mixer assembly . . . . . . . . . . 52–54

Twin-Tube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Two consumers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Tyfocor LS (solar fluid) . . . . . . . . . . . . . . . . . . . . . . . 51

V

Vaciosol CPC...

See Vaciosol CPC... solar collector

Vapour safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Volume of a solar heating system . . . . . . . . . . . . . 110

W

Wall installation . . . . . . . . . . . . . . . . . . . . . . . 138–139

Wall mounted boiler . . . . . . . . . . . . . . . . . . . . . . . . 58

Detailed hydraulic scheme . . . . . . . . . . . . . . . . . . . . . 78

Sample system . . . . . . . . . . . . 61, 63–65, 68–69, 71, 74

Wall mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96


Rooftop installation . . . . . . . . . . . . . . . . . . . . . . . . . .128


Appendix 7

147

7

Appendix

List of abbreviations

Abb. Description

AK Cold water outlet (buffer system)

AV Shut-off valve

AW/AB DHW outlet

E Air vent valve

EH Immersion heater


EL Drain

EW DHW inlet (primary system)


FA Outside temperature sensor

FE Fill & drain valve

FK Boiler water temperature sensor

FR Return temperature sensor


FP Thermal store temperature sensor

FPO Thermal store temperature sensor, top

FPU Thermal store temperature sensor, bottom

FSB Swimming pool water temperature sensor

FSS1 Cylinder temperature sensor (1st consumer)

FSS2 Cylinder temperature sensor (2nd consumer)

FSW1 Heat meter temperature sensor Flow

FSW2 Heat meter temperature sensor return

FSX

FSX1

FSX2

FSX3

148

Cylinder temperature sensor or threshold sensor for

thermosiphon cylinder for High-Flow-/Low-Flow

operation with solar function module FM443 or

SM10

(Cylinder connection set AS1, AS16 or DHW

temperature sensor FB or FW)

FV Flow temperature sensor

HK Heating circuit

HS (-E)

Heating circuit quick assembly set, optionally with

self-regulating electronic pump

HSM (-E)

HS with actuator (mixer), optionally with selfregulating

electronic pump

HZG HZG set for central heating backup

Abb. Description

Measuring point (e.g. cylinder), motor (e.g.

M

actuator)

MB Domestic hot water measuring point

MAG Diaphragm expansion vessel

PH Heating circuit pump

PS Cylinder primary pump

PSB Swimming pool water pump


PUM Stratification pump

PWT Heat exchanger pump

PZ DHW circulation pump

R Return; solar return

RK Boiler return

RS Cylinder return

RSB Swimming pool control unit

RW Return temperature limiter

SA Line regulating and shut-off valve

SH Heating circuit actuator

SMF Dirt filter

SP1 Overvoltage protection

SU Diverter valve

SV Safety valve

SWT Swimming pool water heat exchanger

TW Drinking water/DHW

TWE Domestic hot water heating

ÜV Overflow valve

V Flow; solar flow

VK Boiler flow

VS Cylinder flow

VS-SU Diverter valve to 2nd consumer VS-SU

Heat

source

Residential unit

WT Heat exchanger

WMZ

Heat meter set WMZ1.2 in conjunction with solar

function module FM443

WWM Thermostatically controlled DHW mixer



Appendix 7

149

7 Appendix

150



Appendix 7

151

7 Appendix

152


High grade heating technology requires professional installation and maintenance. Buderus, therefore, supplies its

complete range only through approved heating engineers. Ask your local heating contractor for Buderus heating

technology, inform yourself at one of our sales offices or visit our website.

Branch Post Code/Town Street Telephone Fax Responsible

service centre

1. Aachen 52080 Aachen Hergelsbendenstr. 30 (0241) 9 68 24-0 (0241) 9 68 24-99 Trier

2. Augsburg 86156 Augsburg Werner-Heisenberg-Str. 1 (0821) 4 44 81-0 (0821) 4 44 81-50 München

3. Berlin-Tempelhof 12103 Berlin-Tempelhof Bessemerstr. 76 a (030) 7 54 88-0 (030) 7 54 88-1 60 Berlin

4. Berlin/Brandenburg 16727 Velten Berliner Str. 1 (03304) 3 77-0 (03304) 3 77-1 99 Berlin

5. Bielefeld 33719 Bielefeld Oldermanns Hof 4 (0521) 20 94-0 (0521) 20 94-2 28/2 26 Hannover

6. Bremen 28816 Stuhr Lise-Meitner-Str. 1 (0421) 89 91-0 (0421) 89 91-2 35/2 70 Hamburg

7. Dortmund 44319 Dortmund Zeche-Norm-Str. 28 (0231) 92 72-0 (0231) 92 72-2 80 Dortmund

8. Dresden 01458 Ottendorf-Okrilla Jakobsdorfer Str. 4-6 (035205) 55-0 (035205) 55-1 11/2 22 Leipzig

9. Düsseldorf 40231 Düsseldorf Höher Weg 268 (0211) 7 38 37-0 (0211) 7 38 37-21 Dortmund

10. Erfurt 99091 Erfurt Alte Mittelhäuser Straße 21 (0361) 7 79 50-0 (0361) 73 54 45 Leipzig

11. Dining 45307 Essen Eckenbergstr. 8 (0201) 5 61-0 (0201) 56 1-2 79 Dortmund

12. Esslingen 73730 Esslingen Wolf-Hirth-Str. 8 (0711) 93 14-5 (0711) 93 14-6 69/6 49/6 29 Esslingen

13. Frankfurt 63110 Rodgau Hermann-Staudinger-Str. 2 (06106) 8 43-0 (06106) 8 43-2 03/2 63 Gießen

14. Freiburg 79108 Freiburg Stübeweg 47 (0761) 5 10 05-0 (0761) 5 10 05-45/47 Esslingen

15. Gießen 35394 Gießen Rödgener Str. 47 (0641) 4 04-0 (0641) 4 04-2 21/2 22 Gießen

16. Goslar 38644 Goslar Magdeburger Kamp 7 (05321) 5 50-0 (05321) 5 50-1 14/1 39 Hannover

17. Hamburg 21035 Hamburg Wilhelm-Iwan-Ring 15 (040) 7 34 17-0 (040) 7 34 17-2 67/2 31/2 62 Hamburg

18. Hannover 30916 Isernhagen Stahlstr. 1 (0511) 77 03-0 (0511) 77 03-2 42/2 59 Hannover

19. Heilbronn 74078 Heilbronn Pfaffenstr. 55 (07131) 91 92-0 (07131) 91 92-2 11 Esslingen

20. Ingolstadt 85098 Großmehring Max-Planck-Str. 1 (08456) 9 14-0 (08456) 9 14-2 22 München

21. Kaiserslautern 67663 Kaiserslautern Opelkreisel 24 (0631) 35 47-0 (0631) 35 47-1 07 Trier

22. Karlsruhe 76185 Karlsruhe Hardeckstr. 1 (0721) 9 50 85-0 (0721) 9 50 85-33 Esslingen

23. Kempten 87437 Kempten Heisinger Str. 21 (0831) 5 75 26-0 (0831) 5 75 26-50 München

24. Kiel 24145 Kiel-Wellsee Edisonstr. 29 (0431) 6 96 95-0 (0431) 6 96 95-95 Hamburg

25. Koblenz 56220 Bassenheim Am Gülser Weg 15-17 (02625) 9 31-0 (02625) 9 31-2 24 Gießen

26. Köln 50858 Köln Toyota-Allee 97 (02234) 92 01-0 (02234) 92 01-2 37 Dortmund

27. Kulmbach 95326 Kulmbach Aufeld 2 (09221) 9 43-0 (09221) 9 43-2 92 Nürnberg

28. Leipzig 04420 Markranstädt Handelsstr. 22 (0341) 9 45 13-00 (0341) 9 42 00 62/89 Leipzig

29. Magdeburg 39116 Magdeburg Sudenburger Wuhne 63 (0391) 60 86-0 (0391) 60 86-2 15 Berlin

30. Mainz 55129 Mainz Carl-Zeiss-Str. 16 (06131) 92 25-0 (06131) 92 25-92 Trier

31. Meschede 59872 Meschede Zum Rohland 1 (0291) 54 91-0 (0291) 66 98 Gießen

32. München 81379 München Boschetsrieder Str. 80 (089) 7 80 01-0 (089) 7 80 01-2 58/2 71 München

33. Münster 48159 Münster Haus Uhlenkotten 10 (0251) 7 80 06-0 (0251) 7 80 06-2 21/2 31 Dortmund

34. Neubrandenburg 17034 Neubrandenburg Feldmark 9 (0395) 45 34-0 (0395) 4 22 87 32 Berlin

35. Neu-Ulm 89231 Neu-Ulm Böttgerstr. 6 (0731) 7 07 90-0 (0731) 7 07 90-92 München

36. Norderstedt 22848 Norderstedt Gutenbergring 53 (040) 50 09 14 17 (040) 50 09 - 14 80 Hamburg

37. Nürnberg 90425 Nürnberg Kilianstr. 112 (0911) 36 02-0 (0911) 36 02-2 74 Nürnberg

38. Osnabrück 49078 Osnabrück Am Schürholz 4 (0541) 94 61-0 (0541) 94 61-2 22 Hannover

39. Ravensburg 88069 Tettnang Dr. Klein-Str. 17-21 (07542) 5 50-0 (07542) 5 50-2 22 Esslingen

40. Regensburg 93092 Barbing Carl-Zeiss-Str. 16 (09401) 8 88-0 (09401) 8 88-92 Nürnberg

41. Rostock 18182 Bentwisch Hansestr. 5 (0381) 6 09 69-0 (0381) 6 86 51 70 Berlin

42. Saarbrücken 66130 Saarbrücken Kurt-Schumacher-Str. 38 (0681) 8 83 38-0 (0681) 8 83 38-33 Trier

43. Schwerin 19075 Pampow Fährweg 10 (03865) 78 03-0 (03865) 32 62 Hamburg

44. Traunstein 83278 Traunstein/Haslach Falkensteinstr. 6 (0861) 20 91-0 (0861) 20 91-2 22 München

45. Trier 54343 Föhren Europa-Allee 24 (06502) 9 34-0 (06502) 9 34-2 22 Trier

46. Viernheim 68519 Viernheim Erich-Kästner-Allee 1 (06204) 91 90-0 (06204) 91 90-2 21 Trier

47. Villingen-Schwenningen 78652 Deißlingen Baarstr. 23 (07420) 9 22-0 (07420) 9 22-2 22 Esslingen

48. Wesel 46485 Wesel Am Schornacker 119 (0281) 9 52 51-0 (0281) 9 52 51-20 Dortmund

49. Würzburg 97228 Rottendorf Edekastr. 8 (09302) 9 04-0 (09302) 9 04-1 11 Nürnberg

50. Zwickau 08058 Zwickau Berthelsdorfer Str. 12 (0375) 44 10-0 (0375) 47 59 96 Leipzig

Service-Center Telephone Fax

Berlin: (0180) 3 22 34 00 (030) 75 48 82 02

Dortmund: (0180) 3 67 14 04 (0231) 9 27 22 88

Berlin: (0180) 3 22 34 00 (030) 75 48 82 02

Esslingen: (0180) 3 67 14 02 (0711) 9 31 47 16

Gießen: (0180) 3 22 34 34 (06441) 4 18 27 97

Hamburg: (0180) 3 67 14 00 (040) 73 41 73 20

Hannover: (0180) 3 67 14 01 (0511) 7 70 31 03

Leipzig: (0180) 3 67 14 06 (0341) 9 45 14 22

München: (0180) 3 22 34 01 (089) 78 00 14 30

Nürnberg: (0180) 3 67 14 03 (0911) 3 60 22 31

Trier: (0180) 3 67 14 05 (06502) 93 44 20

BBT Thermotechnik GmbH

Buderus Deutschland

35573 Wetzlar

www.buderus.de

info@buderus.de

48 7

11

9

26

1

45

42

33

25

21

14

38

30

46

5

15

6

13

19

18

24

36

17 17

49

10 10

43

16 29

37

27

22 20

47

31

12

39

23

35

2

41

40

32

28

34

4

3

50

44

8

7 747 011 220 (20) Brühl 07/2007 Printed in Germany.

Subject to technical modifications.

Technical guide Heat is our element - Buderus

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
