The Painting Technique of Two Panels from the Saint Victor Altarpiece in Siena Cathedral

by troels flintenborg

wo Sienese altarpieces from the

middle of the 14th century were

restored in 2003-4, and in this

process underwent a technical examination

with the purpose of exploring their

relationship to the painting tradition of

Siena. The two altarpieces, depicting St.

Victor of Siena and Santa Corona (fig. 1)

have been ascribed to different artists in the

past. Today the Master of the Palazzo Venezia

Madonna is regarded as responsible for the

work, and it has been demonstrated that the

panels must have been part of the St. Victor

altarpiece which was set up in Siena

Cathedral in 1351. 1 In the 1590s, this

altarpiece was replaced by a new one by

Alessandro Casolani. 2 It must have been

taken apart in the 1790s at the latest, when

the two lateral panels with the saints’ images

were brought to England by the Earl Bishop

of Bristol. During the following decades they

were part of English collections, thereafter

briefly in different French, Danish and

American hands until they were acquired by

Statens Museum for Kunst in 1923. The

remaining extant parts of the St. Victor

altarpiece are the main section of the central

panel, which is a depiction of The Adoration

of the Shepherds (Fogg Art Museum,

Cambridge, Mass. – fig. 2), and two fragments

of the predella with The Crucifixion (Louvre,

Paris – fig. 3) and The Blinding of St. Victor

(Städelsches Kunstinstitut, Frankfurt am

Main – fig. 4) respectively. These are all

ascribed to Bartolommeo Bulgarini.

The two painters are from stylistically

different traditions in Siena, as the Master of

the Palazzo Venezia Madonna comes from

the orbit of Simone Martini, whereas

Bulgarini was presumably a pupil of Pietro

Lorenzetti. This has influenced their

individual contributions to the St. Victor

altarpiece resulting in stylistic divergences,

which are remarkable in comparison to the

cathedral’s three other 14th T

century

altarpieces consecrated to the patron saints

of the city. On this background it is interesting

to view the results of the technical

investigation in relation to reference material

from the other parts of the altarpiece.

The composition and painting materials of

the panels were examined by X-radiography,

139 english version

infra-red reflectography as well as cross

section, paint medium and pigment

analyses. 3 Furthermore, comparative studies

of punchmarks were carried out. On the

background of these investigations, it can be

concluded that the panels are part of a

Sienese painting tradition which in some

respects differs from the contemporary

Florentine practice, and moreover from the

technique later formulated in a dogmatic

fashion in Cennino Cennini’s treatise. At the

same time, they are examples of the diversity

in the technical execution of the works, which

is to be found within 14 th century Sienese

painting; this is illustrated among other things

by the differences and variations in relation

to the other pictures of the altarpiece.

The construction of the panels.

X-ray examination

The saints are painted on two poplar planks

with the dimensions 163 x 51 cm (St. Victor)

and 162 x 51,9 cm (Santa Corona) and

thickness 4,6 cm. Both panels have been

reduced to about half thickness by planing

the bottom part of the reverse, presumably to

give room for horizontal battens in

connection with the mounting of the present

19 th century frame. At the top section of the

reverse, the original surface of the planks is

visible, covered with a thick layer of gesso 4 ,

apart from a vertical and a horizontal stripe

where the approximately 10 cm wide original

battens were nailed on when the pictures

were still part of the altarpiece.

X-radiography revealed two dowel holes,

12.5 – 14 cm long and approximately 1.5

cm wide, close to the bottom and a little

above the middle on the right side of the St.

Victor panel and the left side of the Santa

Corona panel respectively, corresponding to

the lateral positions of the two panels in the

altarpiece. Research has shown that this

method of auxiliary strengthening of the joins

between central and side panels is

characteristic of Sienese altarpieces in

particular. 5

The canvas, which was glued to the front

of the panels before the application of the

gesso layer, could be seen in several areas of

the X-radiographs as well as with the naked

eye, after the removal of filling from an

earlier restoration (fig. 5). The canvas

completely covers the panels, except for the

pastiglia decorated spandrels at the top; it is

a slightly irregular and comparatively open

weave linen. In comparison, the canvas

covering the panel of the predella fragment

The Blinding of St. Victor is more regular and

more closely woven. 6 Even at Cennino

Cennini’s time, it was an old-fashioned

technique to cover the entire panel with

canvas. Cennino writes: ”You may also do as

our forefathers used to, that is, apply canvas

all over the whole acona before you gesso” 7 ,

but otherwise recommends the use of

narrower strips of canvas, presumably to

cover joins in the panel, even though this is

not specifically mentioned. 8

Underdrawing

The underdrawing is discernible in both

panels locally where a few lines in the

costumes can be seen with the naked eye.

The fluent unbroken character of the thin

lines and several small drops suggest that a

fine brush has been used. In addition, where

the paint layer meets the gilded areas,

contours of the figures as well as outlines of

details like the palm leaves, olive branch,

crowns and the sword are marked by incised

lines. The same applies to Santa Corona’s

gown where main lines of the folds in the

gold brocade imitation are incised.

Even though it could be concluded that

underdrawing was present in both panels, it

was, however, only visible in the one case

when examined by infra-red reflectography. 9

In Santa Corona’s cloak, the reflectography

revealed a very sketchy drawing to designate

folds in the drapery. They are exclusively

contour lines, with no apparent corrections or

attempts to indicate shadows by means of

hatching or washes, making the drawing

consistent with the sort of underdrawing

without distinct individual characteristics,

which is often found in 14 th century Sienese

painting. It is true though that Cennino

mentions shadowing in the underdrawing of

faces and drapery folds, and examples of this

method have indeed been found in works by

Duccio, Ugolino di Nerio, Luca di Tommè and

the Florentine Nardo di Cione. 10

In the St. Victor panel, no part of the

underdrawing was visible in the reflectogram,

presumably because the ink or paint used for

the drawing had too low a content of carbon

to be perceptible. The examination did show,

however, that there had originally been spurs

on the saint’s boots (fig. 6). Even though it is

surprising to find different materials used for

the drawing in the two connected pictures,

the lack of visibility is not an unknown

phenomenon with this technique. A similar

result is reported from infra-red

reflectography of works by for example

Bartolommeo Bulgarini and Neroccio di

Bartolommeo. 11 It also occurs on two other

panels by the Master of the Palazzo Venezia

Madonna, depicting Mary Magdalene and St.

Peter, where only few traces of underdrawing

were detected. 12

Concerning the other parts of the St.

Victor altarpiece, examination by infra-red

reflectography of the predella fragment The

Blinding of St. Victor has revealed extensive

underdrawing. Although still without

shadowing and again carried out with a fine

brush, the drawing here is rather more

detailed and precise than in the two larger

saints. The main lines of the architecture and

the contours bordering on the gilded areas

are incised, too. 13

The composition of the paint layers.

Modelling of draperies and flesh colour

At first sight it could look as though 14 th

century Sienese tempera practice was very

rigorous, following the methodology later

formulated by Cennino Cennini and

consequently with little possibility for a

personal stamp in terms of technique. Closer

examination, however, has shown that there

were individual variations in the technical

execution of paintings. For example as early

as the first part of the century, there were

marked differences between artists like

Duccio and Ugolino di Nerio, both as regards

underdrawing and choice of pigments. 14 In a

wider context, different methods of modelling

the drapery of the Virgin’s blue mantle have

been established. 15 Distinct differences

between the works from Simone Martini’s

and the Lorenzetti brothers’ workshops have

been demonstrated, both as regards the

composition of paint layers, the execution of

the painting and the use of decorative techniques

like sgraffito and punchwork. This should

be born in mind when considering the panels

of the Master of the Palazzo Venezia Madonna.

The paint layers of the two saints are only

faintly visible on X-radiographs. In this

connection, it is also significant that the

transition from painted to gilded areas is not

particularly conspicuous, either. This would

have been the case if the artist, after gilding

the panels, had covered the edges with lead

white paint where the gold overlapped areas

that were to be painted. As the first step in

the construction of the picture, the gilding

took place before the painting and would

inevitably overlap the incised contours of the

figures. To re-establish these, one could

either paint the excess gold over with lead

white in a glue medium or alternatively

scrape away the gold. These two methods are

described by Cennino Cennini, who

recommends the latter. The former, known as

ritagliare, besides having the covering effect

of the lead white layer on the gold,

presumably also served the purpose of

assisting in the subsequent adhesion of the

tempera paint. The method is described by

Cennino as follows:

”When you have shaped up the diadems and

ornaments in this way, take a bit of white

lead in a little dish, thoroughly ground with a

little diluted size; and with a smallish miniver

brush cover and mark out the figures from

the ground, just as you see those little marks

which you scratched in with the needle

before you laid the bole. Again, if you want to

do without marking out with white lead and

the brush, take your little tools, and scrape

off all the gold which is superfluous, or which

laps over the figure: and this is better

practice.” 16

Because of the lead white pigment in the

ritagliare method, it appears in X-radiographs

as a radio-opaque, i.e. whitish, zone along

the edges of the paint layer where it adjoins

gilded areas. In 14th-century Sienese

painting, this has been found primarily in

works by Peitro Lorenzetti and artists

stylistically related to him, like Bartolommeo

Bulgarini and Luca di Tommè (though not

Ambrogio Lorenzetti), but is not seen in

works by other artists. 17 The technique is

employed in Bulgarini’s central panel of the

St. Victor altarpiece and here and there,

more discretely, in the predella fragment The

Blinding of St. Victor; however, it is absent in

the two Copenhagen panels. It is interesting

to note that here the artist has, however, also

omitted to use the alternative technique of

scraping away, but has painted directly on

top of the overlapping gold. 18

There are also characteristic features in the

modelling of the draperies visible to the

naked eye. Although a certain weight and

depth have been achieved, form has been

created to a great extent with the help of the

sinuous contours of the edges of the drapery

and to a lesser degree by the modelling of the

individual folds, where there is little contrast

between light and shade (fig. 7). A similar

soft though nuanced modelling is seen in

works by Simone Martini. 19 The shaping of

the two saints’ garments has been carried out

with thin, flowing parallel brush strokes

without distinct highlights and entirely

without cross-hatching.

The paint layers are generally thin, so the

gesso (and sometimes the underdrawing) is

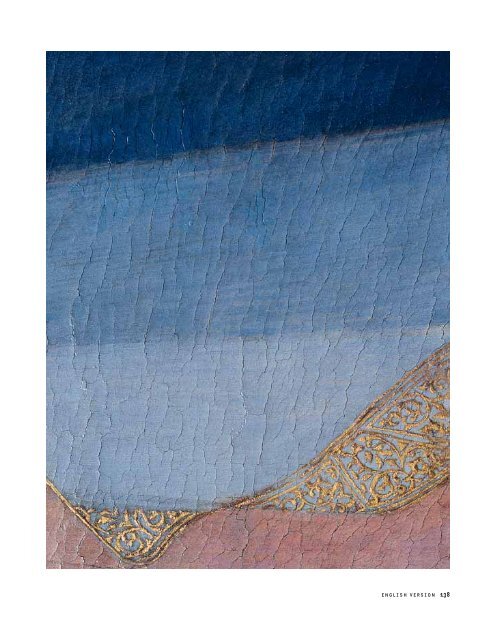

discernible in several places. Santa Corona’s

blue mantle is to some degree modelled with

juxtaposed colour tones, painted against

each other with no common underlying

colour and with a moderate use of

transitional zones (fig. 8). There is a wide

range from the darkest to the lightest colours

in the drapery, but again not in the individual

separate fold. The method deviates from

Cennino’s directions for modelling drapery in

three shades, not only because of the scope

in the shades of colour, but also because

there is no systematic modelling from dark to

light. Finally, the deepest tones are achieved

through the addition of black pigment (see

below) instead of consisting of the pure blue

colour prescribed by Cennino. In comparison,

the Virgin’s blue mantle in Bulgarini’s central

panel on the St. Victor altarpiece The

Adoration of the Shepherds is composed

around an overall middle tone. The folds,

whose contours are delineated with incised

lines, have presumably been modelled with a

dark blue glaze which has now

disappeared. 20

The technique used for St. Victor’s cloak

and boots is in accordance with a similar

method known from Simone Martini’s

painting, where highlights and shadows are

painted over an underlying middle tone. The

red lining of the cloak is painted with a

general tone of vermilion, on which are

applied discrete highlights in red lead and

one or two shadows in red lake. 21 The same

principle is followed in the modelling of the

blue outer side of the cloak and boots, which

are built up in ultramarine and white, around

an intense blue middle tone.

The composition of the left, lighter side of

english version 140

the saint’s pink tunic follows more closely

Cennino’s system with modelling in three

shades of colour. The paint layer is only

partly preserved here, but has apparently

been created with shadows in a dark red

glaze and with modelling from dark to light.

The folds on the shadow side of the tunic

however, are almost entirely modelled in a

red (now brown-red) lake, which is mainly

applied pure and like watercolour, and with

the addition of a trace of white only in a few

highlights (fig. 9). As the pigment has

become rather faded over time, these areas

appear rather uneven and striped. But it is

evident that the artist has utilised the semitransparent

nature of the red lake, where the

modelling is achieved exploiting the white

ground colour by applying the paint more

thinly in the light areas and more heavily

where he wanted a deeper tone. The same

simple method is used in the darker areas of

the red lining of Santa Corona’s cloak. A

similar technique is found in a couple of

places in Jacopo di Cione’s Florentine San

Pier Maggiore Altarpiece (1370-71) 22 and in

a slight variation in the Infant Jesus’

loincloth in Lippo Memmi’s The Virgin Mary

with Child and Redeemer in the Siena

Pinacoteca. 23 Another example of an

economical way of painting is the marble

floor which the two saints are standing on.

Here the gesso has simply been employed as

the white background colour for the

brushstrokes in various colours, which

constitute the marbling.

In painting St. Victor’s scabbard, the

artist has employed one of the striking

techniques which are characteristic of 14thcentury

Sienese painting. He has painted a

deep green glaze on top of gilding, which is

textured with short, parallel incised lines, the

combination giving a spectacular, almost

enamelled effect (fig. 10). Copper-green

glaze on top of gilding is often employed by

Simone Martini and his followers, among

them the Master of the Palazzo Venezia

Madonna, especially when representing the

silk lining of the Virgin’s mantle. 24

The green colour has often turned brown

or black in the course of time; the green

glaze on the scabbard had received two

layers of overpainting over the years, probably

because of this discolouration. During

removal of later gilding a coat of arms also

appeared at the top of the scabbard (fig. 11).

The shield-shaped form with two fields under

each other separated by a horizontal line as


well as some preserved remnants of black

paint in the bottom field suggest it is the city

arms of Siena, an appropriate device for a

patron saint of the city.

Even though the painting does not follow

the incised contours of the figures accurately,

there do not seem to be actual divergences in

relation to the underdrawing. But two

remarkable changes in the figure of St. Victor

have been made during the painting process:

the red tunic has been adorned with a fur

trimming at the bottom, painted on top of the

red colour, and the blue boots originally had

gilded spurs. The shape of the spurs can be

seen both in the X-radiographs and the infrared

reflectogram (fig. 6) and can be

distinguished with the naked eye in the

pentimenti in the blue paint and beside one

heel. During the restoration of the painting,

traces of gilding could furthermore be

ascertained in paint losses in the left boot.

In his build-up of faces and hands, the artist

has in principle followed the traditional

method as described by Cennino, in which a

green earth with a cool bluish-green tone has

been used as underpainting for the flesh

colour (fig. 12) 25 . As a result of abrasion and

possibly an increased transparency of the

overlying layers of paint, the green colour has

become more predominant than it was

originally. Because of the worn state of the

flesh paint, it has not been possible to

establish an actual verdaccio layer in the

modelling, but discrete shading has been

done in a warm brownish colour, for example

round the base of the nose and the chin.

The modelling of the lighter areas of flesh

paint has been carried out with parallel brush

strokes which follow the form. The strokes lie

close together, and for this reason crosshatching

is not a prominent feature. Due to

abrasion, in particular some of the middle

tones of the faces have disappeared, and one

must assume that the modelling was more

differentiated than it appears today. The fact

that it still has a graduated effect is due

especially to the overall controlled colouring,

where there is a moderate use of white in the

paint composition even in the highlights.

The green earth is also applied under the

two saints’ hair, where it plays a certain part

as background for the modelling, which is

carried out with a yellow earth and white in

the light areas, and warmer brown and

reddish colours in the shadows. Contrary to

Cennino’s instructions, the use of green earth

under the hair seems to have been quite

common practice, and can be found in other

works by the Master of the Palazzo Venezia

Madonna as well as in works by his

contemporaries. 26

The abraded state of the paint layer in a

large part of the hands makes it difficult to

judge their original appearance. There is a

faint brownish sinopia line around Santa

Corona’s hands, but the artist has not

otherwise employed actual contour lines. The

present, rather template-like quality of the

hands is not, however, very different from

that of his other works, where the linear

effect is not accentuated despite a rather

shallow modelling. 27

In comparison examinations of Bulgarini’s

style of painting have shown that in general,

he employs greater contrasts in his

modelling. 28 In his articulation of both

drapery and flesh paint, he uses almost white

highlights, often with distinct cross-hatching

which is especially notable in the early works

due to the space between each brush stroke.

Another characteristic feature is his use of

distinct contour lines. In The Adoration from

the St. Victor altarpiece, these features also

seem to be present, though the poor state of

preservation of the paint layer makes some of

them less conspicuous.

Sgraffito decoration

Santa Corona’s gown is designed with a

striking sgraffito technique, executed by first

gilding the whole area of the dress and then

covering it with a layer of egg tempera paint.

The pattern was then created by scraping in

the dry paint and by granulating the

uncovered gold with a fine punch, so that it

caught and reflected the light in a more

sparkling way (fig. 13). Finally the shadows

in the folds of the dress were made with a

glaze, which has turned mostly brown, but

was originally a brilliant green. Cennino does

not give instructions on shading in his

section on sgraffito, but elsewhere in his

treatise mentions modelling with green glaze

on top of gilding. 29

The sgraffito technique, which simulates

gold brocade (or silver brocade), was known

in Siena as early as the latter part of the 13th century, but was not fully utilised until the

1330s by Simone Martini. The high quality

of the sgraffito work of the Master of the

Palazzo Venezia Madonna and the occurrence

of patterns which already appear in Simone’s

works could be read as the result of a pupilmaster

relationship between these two

artists. 30 However, the technique did not

come to play a significant role outside

Simone’s circle until it was reintroduced in

the 1350s, and there are indications that it

was in fact the Palazzo Venezia Madonna

Master’s sgraffito work on the St. Victor

altarpiece around 1350 which gave the

impetus to that development. In Bulgarini’s

works from the 1340s, the technique does

not appear, but it is employed on the Virgin’s

gown as well as the white garments of the

two groups of angels at the top of the central

panel of the altarpiece. 31 Furthermore, the

pattern of the angels’ garments is identical

with a sub-element of the sgraffito pattern on

Santa Corona’s dress. In Bulgarini’s San

Giminiano Altarpiece from about 1353, the

influence of the Palazzo Venezia Madonna

Master can be traced yet again, here in the

Virgin’s garments, whose pattern and quality

of high craftsmanship are almost identical

with those of Santa Corona’s gown. 32 In the

ensuing years, an increasing use of the

sgraffito technique is seen, both in

Bulgarini’s work and in Sienese painting in

general, where it is employed to such an

extent that in some works it becomes the

dominant technique.

It has been suggested that the execution

of pastiglia, mordant gilding, punch work and

sgraffito decoration may have been left to

assistants, 33 and it can be said that the

time-consuming mechanical nature of these

techniques makes them suitable for division

of labour. The sharing of assistants could

explain the occurrence of identical

”decorative” elements in the works of

different artists, 34 even though conscious

artistic choices must have been made on the

part of the masters, not least in an art like

the Sienese, where the decorative element

had such stylistic importance.

In contradistinction to the Florentine

painters’ sgraffito motifs, which for instance

include animals and birds, the Sienese

motifs were in the main abstract plant

patterns with their point of origin in existing

Chinese and oriental silks and brocades. 35

Still, one finds patterns with close parallels

in their morphology to the pattern of Santa

Corona’s gown both in Florentine and other

Northern Italian works from the period about

1340-70. 36

Pigments and paint media

A comparatively limited range of pigments

has been used in the two panels.

Ultramarine, the only blue pigment

employed, is found in St. Victor’s cloak and

boots as well as in the paint mixtures of the

saints’ palm leaves, the olive branch and the

fur trimmings. A cross section from the

darkest shadows of Santa Corona’s mantle

reveals that the pigment is mixed with black

to make the colour deep enough, which is an

unusual feature, as one would normally

expect to find the pure ultramarine or a dark

glaze as the top layer (fig. 14). An underlying

layer with a corresponding pigment mixture,

although more thinly pigmented, also seen in

the cross section, may have been an initial

layer to define the extent of the shadows in

the drapery. But it is hardly the dark grey

underpainting, like the one which is found

under ultramarine paint layers in a great

number of Tuscan pictures of the period

1350-1450. 37

It is a distinctive feature of Simone

Martini and painters from his circle that more

than other contemporary painters they

preferred ultramarine for the modelling of

blue drapery 38 (by comparison, Bulgarini

employed azurite for the modelling of the

Virgin’s mantle in the central panel of the St.

Victor altarpiece). The use of ultramarine in

the mixtures for green colours, among others,

may be seen as a result of this preference for

the pigment. Even the fur trimming and the

fur lining of St. Victor’s garments are painted

with a mixture of black and white with an

addition of high quality ultramarine. The

same high quality is seen in St. Victor’s olive

branch, where the pigment is apparently

mixed with an organic yellow (fig. 15). Only

the substrate of the yellow dyestuff is

preserved, so the colour of the leaves has

changed considerably in a bluish direction.

The poor stability of the organic yellow

dyestuffs must have been well-known, as

Cennino writes for example of a couple of

them, ”see that it is not exposed to the air,

for it soon loses its color” and ”This is a very

thin color. It fades in the open” as well as in

a mixture with verdigris: ”it is beautiful to

the eye, but it does not last.” 39 However,

indications are that the Sienese painters still

preferred the organic yellow dyestuffs for

their paint mixtures, as they are found in

their works more often than, for example,

lead tin yellow which was the pigment of

choice in Florence. 40

As mentioned above, the red of St.

Victor’s cloak is painted with vermilion, with

a few highlights in the form of light touches

of red lead and one or to shadows in a red

glaze. The latter is probably the same as the

dyestuff used for the saint’s tunic and for the

red of Santa Corona’s mantle. Analysis of a

sample from the right side of the tunic

showed that the colour is a red lake,

produced from the secretions of the Asiatic

scale insect Coccus lacca. 41 Together with

the related kermes insect Coccus ilicis from

the Mediterranean area, it has proved to be

the most important source of carmine

dyestuffs in Northern Italian painting of the

14 th and 15 th centuries, where it has been

identified in numerous works. 42 Cennino,

who was aware of the question of stability

recommends using the imported Asian

dyestuff in preference to the more local

kermes colour. 43 In comparison with the

Italian tradition for these animal colours,

there seems to have been a greater tendency

in contemporary Northern European art to

use the vegetable dye madder.

The white colour in Santa Corona’s

sgraffito decorated gown is lead white, while

the shading is, as mentioned earlier, carried

out with green glazes of verdigris (fig. 16).

The same technique is used on top of the

gilding in St. Victor’s scabbard and in the

buttons of the garments. The colour has

turned brownish in most places, but here and

there the original green can be distinguished

(fig. 17). The paint medium for the green

colour is linseed oil. 44 Cennino describes the

technique as follows: ”Gild the ground; draw

on it the subject which you want; lay in the

grounds with verdigris in oil, shading some

folds twice; then lay some uniformly all over

the grounds and the subjects evenly.” 45

Linseed oil has been used as a the medium

for the green glazes, as the paint would not

get the same degree of translucency in egg

tempera, which is otherwise the general paint

medium in the two paintings. The analyses

also showed that the linseed oil was

apparently heat-bodied to improve its drying

qualities.

Green earth, the other green pigment in

the paintings, can be seen in the

underpainting of faces and hands (fig. 12). It

deviates in colour from the green earth used

for example in the two panels by the Palazzo

Venezia Madonna Master depicting Mary

Magdalene and St. Peter. 46 The pigment in

the latter picture in particular has a warmer,

more yellow tone. As there was a number of

natural occurrences of green earth in Central

and Southern Europe, and in Italy near

english version 142

Verona and Venice, among other places,

painters very likely had several qualities at

their disposal, with different tones from bluegreen

over yellow-green to olive green. So a

variation in the colour in the works of the

individual painter is not surprising. 47

When imagining the original appearance of

the two panels, one must take various factors

into account. Some colours like the yellow

and red lakes have faded, others like the

vermilion in St. Victor’s cloak have darkened

or have changed colour in a brownish

direction, like the green of St. Victor’s

scabbard or Santa Corona’s dress. Finally, a

combination of wear and increased

transparency of the paint layers in certain

areas, as well as the effect of a fairly thick

layer of varnish, have all contributed to

altering their appearance.

The earliest description we have of the

pictures is from 1854, when they were in the

Davenport Bromley collection in England

(and ascribed to Simone Martini). The

German art historian G. F. Waagen visited the

collection at Wooton Hall and described his

impression:

”Simone Martini, called Memmi [sic] – St.

Catherine, whole-length figure, three-quarters

size: one of the most beautiful works by this

great painter preserved to us. The proportions

are slender, the refined and noble features

indicate an unusual feeling for beauty, and

the purest religious feeling. In the right hand,

in reference doubtless to her double

martyrdom, she holds two palms. The tunic,

according to the style of the school of Siena

at that period, consists of a richly-patterned

gold stuff: the mantle, the folds of which are

disposed with much originality and purity of

style, is of a cool blue, with lining of broken

violet, which renders the general effect much

more harmonious than in most pictures of

the time, and particularly so as compared

with the companion picture, a youthful saint,

with sword, palm, and olive-branch, whose

blue and red drapery is far more gaudy, while

at the same time the head is much less

beautiful and significant.” 48

Despite Waagen’s misattribution and -

interpretation of motif, as well as the

uncertainty latent in a description

presumably written after his visit to the

collection, perhaps based on notes or in part

from memory, there can be no doubt as to the


identity of the two pictures. And the passage

is telling in the choice of words, with the

expressions cool blue, broken violet,

harmonious, gaudy, as well as the absence of

the colour green in the description.

Pastiglia decoration and mordant

gilding

The removal of 19th-century gilding and a

secondary gesso layer in the spandrels at the

top of the panels revealed the original

pastiglia decoration with its 14 th century

gilding and punch work (fig. 19). The

pastiglia pattern consists of slight variations

on a type also to be found in Bulgarini’s San

Gimignano Polyptych from about 1353 49 and

has been demonstrated in almost identical

form in his Madonna and Child Enthroned

from Ovile, about 1355-60 (Museo

Seminario, Siena) and in Jacobo di Mino del

Pellicciaio’s later Coronation of the Virgin

(Museo Civico, Montepulciano). 50 The

striking similarities in the patterns can be

seen as yet another indication of an on-going

connection between the Master of the

Palazzo Venezia Madonna and Bulgarini after

their collaboration on the St. Victor

altarpiece. But as is the case with the other

decorative techniques, the resemblance

could also be explained by a scenario where

one assistant carried out the work for the

different artists.

The striking and extensive mordant

gilding which creates the impression of gold

embroidered trimmings on the borders of the

costumes in the two paintings has the effect,

among others, of emphasising the line of the

borders and thus strengthening the

impression of form in the drapery. This is

especially evident in Santa Corona’s mantle.

The mordant pattern appears in slight

variations in different places in the figures

but clearly derives from the pattern of the

sgraffito decoration (fig. 13). This again is a

decorative element which can also be found

in a work by Bulgarini, the Madonna and

Child Enthroned with Angels 51 from after

1356, in which the mordant border at the

bottom of the Virgin’s cloak has the same

pattern.

Punchmarks

Examination of punched decorations in the

gilded parts of paintings has for many years

been a tool in the study of individual

painters’ ooutput and the chronology of their

works, and has also contributed to our

knowledge about their apprenticeship and

the connection between workshops. The

development of the technique reached a

climax in Siena in the 14 th century, when

the repertoire of punchmarks and the

individual artistic use of them culminated.

By comparison, contemporary Florentine

painters (with a few exceptions like Bernardo

Daddi) generally used fewer different

punches and patterns of more simple design.

In the two saints by the Master of the

Palazzo Venezia Madonna, there is punch

work in the haloes, in the two crowns of

Santa Corona and the gold borders of her

bodice, as well as on St. Victor’s scabbard

and belt. The gilt buttons in the garments are

granulated with a point-shaped punch and

afterwards formed by shading with a glaze.

The composition of the haloes is typical of

the style of the Master of the Palazzo Venezia

Madonna, influenced as it was by Simone

Martini, with a relatively narrow central band

with one or two repeated motif punches,

demarcated on both sides by a narrow band

of identical small marks as well as several

closely adjoining circular indentations and a

slender outer ring composed of gothic arches

(fig. 19). In comparison, Bulgarini’s version

of the haloes is seen in the central panel of

the St. Victor altarpiece, in his traditional

heavier style with a broader central band

encircled by double bands of small motifs

and no outer ring of arches. 52 Bulgarini’s San

Gimignano Polyptych from 1353 testifies

however to the influence of the Master of the

Palazzo Venezia Madonna after their

collaboration on the St. Victor altarpiece, as

the haloes here are designed after the same

prototype as St. Victor’s and Santa

Corona’s. 53 However, there seems to have

been only a passing effect; in his later works,

Bulgarini reverts to his earlier style of haloes

with their broader and heavier design.

About 47 different punchmarks have been

identified in works ascribed to the Master of

the Palazzo Venezia Madonna. 54 The majority

of these have also been found in the works of

other artists, while eight marks seem to be

specifically associated with his output.

There are 11 different punchmarks in the

panels of St. Victor and Santa Coronoa.

These 11 marks can be found on 16 other

works by the artist. In the remaining parts of

the St. Victor altarpiece are a further six

marks which come from Bulgarini’s

repertoire, and it has been shown that only a

minor exchange of punches between the two

painters occurred: each borrowed two from

the other. In the case of Bulgarini, the two

borrowed punches appear for the first time in

his works. 55

Bulgarini’s output exhibits the greatest

number of punchmarks known in any

workshop: 83 different marks have been

identified. 56 The large number is partly due

to the situation in Siena in the 1350s. In

Sienese works from these years, immediately

after the first outbreak of the Black Death,

one sees a large number of punches from

different workshops apparently being pooled

and used collectively by several artists. 57

This phenomenon has been interpreted as a

sign of the creation of a compagnia, meaning

a form of collaboration under the leadership

of Bulgarini and with varying participation of

Jacopo di Mino del Pelicciaio, Naddo

Ceccarelli, Niccolò di Ser Sozzo, Luca di

Tommè and Giovanni da Milano. 58

The shared use of a large number of

punches complicates matters, naturally, if

one wishes to use the punchmarks

specifically as a tool to help differentiate

between painters. But on the other hand, the

appearance of the same marks in parallel

artistic outputs can also be a sign of contact

or collaboration.

The Master of the Palazzo Venezia

Madonna may have participated in the

Sienese compagnia in an early phase, even

though his degree of involvement is not very

clear. To judge by the material which the

punchmarks constitute, his contact with

Bulgarini and the varying members of the group

was mostly on an individual basis, independent

of the common enterprise. Altogether, 21 of

his marks appear in works by the abovementioned

painters, distributed as follows:

Bulgarini: 8 punchmarks (in 20 works spread

over his production) 59

Naddo Ceccarelli: 8 punchmarks (in 17 works,

of which 1 is dated 1347)

Jacopo Pellicciaio: 6 punchmarks (in 3 works,

of which 1 is dated 1362)

Luca di Tommè: 4 punchmarks (in 8 works)

Giovanni da Milano: 3 punchmarks (in 4 works)

Niccolò di Ser Sozzo: 1 punchmark (in 1

work) 60

Thus there has been a certain amount of

exchange between the Master of the Palazzo

Venezia Madonna and the aforementioned

painters. But it is striking that in every

instance, there is only a very small degree of

overlapping between the punchmarks which

he shared separately with each painter. The

immediate conclusion could be that only few

of the marks employed by the Master of the

Palazzo Venezia Madonna come from the

common pool. Apart from this, his

connection to another circle, the one around

Simone Martini and Lippo Memmi, is

illustrated by the fact that 24 of his marks

are also recorded in works by these two

painters, as well as works ascribed to Barna

da Siena. 61 They are:

Simone Martini: 9 punchmarks (in 15 works)

Lippo Memmi: 7 punchmarks (in 25 works)

Barna da Siena: 15 punchmarks (in 15 works)

Not surprisingly, there is considerable

congruity among these 24 punchmarks,

between the marks found in Simone Marini

and Lippo Memmi (6 marks are shared),

while there is little overlapping with the

marks shared by Barna da Siena (only 2

marks can be found also in Simone Martini

and Lippo Memmi). Out of the complete

group of 24, there is a moderate congruence

with the first-mentioned, as only 10 of the

24 marks are repeated among the marks

which the Master of the Palazzo Venezia

Madonna shared with the painters in the

1350s’ compagnia.

Final remarks

In terms of painting technique, the two

panels by the Palazzo Venezia Madonna

Master are in many ways typical of Sienese

practice at the middle of the 14th century.

As such their technique differs in certain

areas from the ”standard” laid down by

Cennino Cennini. At the same time, the artist

is clearly a product of schooling in the

Simone Martini painting tradition with its

characteristic use of special decorative

techniques and differentiated modelling of

the paint layers. It must be said, however,

that the pictures also contain examples of

individual modifications of the painting

technique, which are not prevalent and which

illustrate the technical diversity and

individuality found within Sienese painting.

The constellation of the centre panel, side

panels and predella fragments of the St.

Victor altarpiece is generally accepted

today, 62 despite the stylistic divergences of

the contributions of the two painters. It is

true there are signs that Bulgarini altered

certain elements of his style and technique

under the influence of his collaborator, but

this does not seem to have been mutual. 63

Even though the modifications made by the

Master of the Palazzo Venezia Madonna to

St. Victor’s boots and tunic may presumably

be seen as an adaptation of details in the

figure in relation to the altarpiece as a whole,

it is hardly a case of stylistic adjustment.

And the heterogeneity is reflected in the

dissimilarities in the technique of the two

painters, where not least a detail like the

difference in the use of the ritagliare

technique at a basic physical level

demonstrates the differences of their

separate schooling.

Acknowledgements

I would like to thank Catherine Higgitt, Jo

Kirby, Marika Spring and Raymond White of

the Scientific Department, The National

Gallery, London, for their work on the crosssection,

pigment and paint-medium analyses

of the two paintings. I also wish to extend

thanks to Rachel Billinge, Conservation

Department, The National Gallery, for carrying

out investigations with infrared reflectography,

as well as Chief Restorer Martin Wyld and

the other conservators in the department for

helpful advice during the restoration. I am

also grateful to Norman Muller, Princeton

University Art Museum, for valuable comments

and information, and not least for

pointing out the significance of the ritagliare

technique. Finally Stephan Knobloch,

Städelsches Kunstinstitut, and Kate Oliver,

Fogg Art Museum, must be thanked for readily

making available works and technical data.

english version 144

1 Henk van Os (Sienese Altarpieces 1215 – 1460,

Groningen 1984 and 1990, vol. 1, pp. 84-89)

suggested the connection between the panels on an

iconographic basis.

Elizabeth H. Beatson, Norman E. Muller and Judith B.

Steinhoff (‘The St. Victor Altarpiece in Siena Cathedral:

A Reconstruction’, The Art Bulletin 68, vol. LXVIII, no. 4,

December 1986, pp. 610-631) supported the

hypothesis on the basis of technical examination and

written sources, and further pointed out the link with

the predella fragments in Frankfurt and Paris.

2 Cf. Judith Steinhoff-Morrison: Bartolomeo Bulgarini and

Sienese painting of the mid-fourteenth century. Ph.D.

dissertation, Princeton University 1989, Ann Arbor

1990, pp. 67-76 and Rudolph Hiller von Gaertringen:

Italienische Gemälde im Städel, 1300-1500, Toskana und

Umbrien, Mainz am Rhein 2004, p. 84 n. 7, p. 87 n. 18.

3 The analyses were carried out at The National Gallery,

London, with the exception of the X-radiography.

Examination of the underdrawing by means of infra-red

reflectography was carried out by Rachel Billinge. Paint

medium analyses with GC-MS and FTIR-microscopy

were carried out by Catherine Higgitt. The HPLC analysis

of red lake was carried out by Jo Kirby. Cross-section

and pigment analyses were carried out by Marika Spring.

4 This protective measure has been found occasionally in

other Sienese altarpieces, cf. Beatson, Muller and

Steinhof, 1986, p. 623.

5 Cf. Beatson, Muller and Steinhoff, 1986, pp. 622-623

for the method of construction of the St. Victor altarpiece.

6 The average thread count was 13.7 x 13.1 threads/cm

(St. Victor) and 9.1 x 11.8 threads/cm (Santa Corona)

and 15.8 x 15.9 threads/cm (The Blinding of St. Victor).

The central panel with The Adoration also had canvas

under the ground originally, but this was removed when

the paint layer was transferred to another support in

1940 (personal communication from Norman Muller).

7 Cennino Cennini: The Craftsman’s Handbook “Il Libro

dell’Arte”. Translated by Daniel V. Thompson, Jr., 2nd

edition, New York 1960, Chapter CXXXIII, p. 80.

8 Cennino Cennini, transl. Thompson 1960, Chapter

CXIIII, p. 70.

Apparently not all painters used the method of covering

the panel with canvas. Several of Amrogio Lorenzetti’s

works thus do not seem to have canvas (personal

communication from Norman Muller, who has examined

a number of A.L. works). This is also the case with

Ambrogio’s St. John the Baptist, Statens Museum for

Kunst, inv. no. KMS8314.

9 Examination with infra-red reflectography was carried

out by Research Associate Rachel Billinge, Conservation

Department, The National Gallery, London. The

equipment employed was a Hammamatsu C2400

camera with an N2606 series infra-red vidicon tube.

The camera was mounted with a 36 mm lens and a

Kodak 87A Wratten filter. The mosaic of reflectograms

was assembled using Vips-ip software.

10 A summary underdrawing carried out with a brush has

been found in Ugolino di Nerio’s altarpiece from Santa

Croce in Florence, cf. David Bomford, Jill Dunkerton,

Dillian Gordon, Ashok Roy and Jo Kirby: Art in the

Making. Italian Painting before 1400. The National

Gallery, London 1989, p. 112. But a moderate form of

shading by hatching has been reported in another work


by the same painter, cf. N. Delsaux, F. Delteil-Ruffat and

P. Ausset: ”Restauration d’un primitif Italien; Ugolino da

Siena, Vierge à l’enfant”, Technologie de la Conservation

et de la Restauration des oeuvres d’art et du patrimoine,

no. 1, 1988, p. 70. The same method of shading with

close parallel lines is also reported in Luca di Tommè, cf.

Norman E. Muller: ‘Observations on the Painting

Technique of Luca di Tommè’, Los Angeles County

Museum of Art, Bulletin, vol. XIX, 1973, p. 14. In works

by Duccio and Nardo di Cione (but not Jacopo di Cione)

underdrawing with a certain degree of shading has

been found, cf. David Bomford et al., 1989, pp. 81-82,

93-94, 97, 129-130. The underdrawing here is

apparently made with a pen, which is also seen in

Simone Martini, cf. David Hemsol: ‘Simone Martini’s ‘St.

John the Evangelist’ re-examined: A panel from an early

portable triptych’, Apollo, vol. CXLVII, no. 432, 1998, p. 3.

11 Bartolommeo Bulgarini: Madonna of Humility,

Amsterdam, Rijksmuseum, inv. no. A4002 as well as all

works by Neroccio di Bartolommeo in the Siena

Pinacoteca. Cf. H. W. van Os, J. R. J. van Asperen de

Boer, C. E. de Jong-Hansen, C. Wiethoff (ed.). The Early

Sienese Paintings in Holland, 1989, pp. 24, 33, 38.

12 The National Gallery, London, NG 4491 and NG 4492.

The examination with infra-red reflectography was

carried out by Rachel Billinge, cf. note 9.

13 Cf. von Gaertringen, 2004, pp. 88-90.

14 Cf. Bomford et al., 1989, pp. 78-123.

15 Norman Muller: ”Three Methods of Modelling the

Virgin’s Mantle in Early Italian Painting” JAIC vol. 17,

no. 2, 1978, pp. 10-18.

16 Cennino Cennini, transl. Thompson, 1960, p. 86.

17 This is a discovery made by Norman E. Muller, who

kindly drew my attention to the phenomenon. Cf. also:

Norman E. Muller: ”Observations on the Painting

Technique of Lucca di Tommè”, Los Angeles County

Museum of Art, Bulletin, vol. XIX, 1973, p. 16, and

Steinhoff-Morrison, 1989, p. 173, and Bruce Hardin

Suffield: ”Andrea di Bartolo’s Madonna and Child:

Investigations of the Materials, Techniques and Original

Effects”, Record of the Art Museum, Princeton University,

vol. 59, no. 1-2, 2000, p. 21.

18 A certain amount of paint loss along the edges of the

figures as well as the top of St. Victor’s olive branch

could be connected with this procedure.

19 Cf. Cathleen Sara Hoeniger: The Painting Technique of

Simone Martini, Ph.D. dissertation, Princeton University

1989, p. 141 and pp. 172 ff.

20 The method is described in Muller, 1978, pp. 3-7. The

paint layer in question in The Adoration is preserved only

in parts and is discoloured so as to be almost black.

21 The same composition is seen in the Master of the

Palazzo Venezia Madonna’s Mary Magdalene (The

National Gallery, London, NG 4491) in the vermilion

cloak and also in corresponding draperies in Jacopo di

Cione’s San Pier Maggiore altarpiece from Florence,

1370-71 (The National Gallery, London, NG 569.1) cf.

Bomford et al., 1989, pp. 32, 150.

22 Cf. Bomford et al., 1989, p. 180 and p. 33; the

technique is also reported by Knut Nicolaus in an

altarpiece by the Portuguese Alvaro di Piero, who

worked in Pisa and Volterra around 1450, cf. Knut

Nicolaus: ‘Untersuchungen zur Italienischen

Tafelmalerei des 14. und 15. Jahrhunderts. Eine

maletechnische Analyse an Werken aus dem Besitz des

Herzog-Anton-Ulrich-Museums in Braunschweig’.

Maltechnik Restauro 79, 1973, p. 150.

23 Siena Pinacoteca, No 595. In the Child’s loincloth, the

red lake is mixed with a little white in the highlights,

but is unmixed in the darker parts of the drapery.

24 The Master of the Palazzo Venezia Madonna: Madonna

with Child, Palazzo Barberini, Rome, inv. 1545, cf. also

Hoeniger, 1989, p. 260.

25 Green earth with a warmer, more yellowish tone is seen

in the Master of the Palazzo Venezia Madonna’s St.

Peter (The National Gallery, London, NG 4492).

However, Mary Magdalene (The National Gallery, NG

4491) has a more coolly coloured green earth layer,

even though the two panels originate from the same

altarpiece.

26 In the Master of the Palazzo Venezia Madonna’s The

Mystical Marriage of Saint Catherine (Siena Pinacoteca

inv. 108) and his St. Peter (The National Gallery, London

NG 4492) this method is seen. It is also apparent in

Bulgarini’s Madonna and Child Enthroned with Angels

(Siena Pinacoteca, inv. 80), in an altarpiece by Naddo

Ceccarelli (Siena Pinacoteca, inv. 115) and in Niccolò di

Ser Sozzo and Luca di Tommè’s Madonna with Child,

Angels and Saints (Siena Pinacoteca, inv. 51) Ambrogio

Lorenzetti often used a grey colour for underpainting

rather than a green earth, cf. Norman Muller:

‘Lorenzettian technical influences in a painting by the

Master of Figline’ La pittura nel XIV e XV secolo. Il

contributo dell’analisi tecnica alla storia dell’arte, ed. Henk

W. van Os and J. R. J. Asperen de Boer, p. 287; there are

also examples of underpainting completely lacking (ibid.

pp. 286-87).

27 Cf. Mary Magdalene (London, The National Gallery, NG

4491), The Mystical Marriage of Saint Catherine (Siena

Pinacoteca, inv. No. 108), Madonna with Child, Rome,

Palazzo Barberini, inv. No. 1545).

28 Cf. Steinhoff-Morrison, 1989, pp. 174-180.

29 Cf. Cennino Cennini transl. Thompson 1960, p. 88.

30 Cf. Hoeniger, 1989, pp. 232-233.

31 The paint layer of the Virgin’s gown is very damaged,

making it difficult to evaluate precisely the design of

the sgraffito pattern.

32 Bartolomeo Bulgarini: Polyptych, c. 1353, private

collection, Florence, cf. Judith Steinhoff: ”A Trecento

Altarpiece Rediscovered: Bartolomeo Bulgarini’s

Polyptych for San Giminiano”, Zeitschrift für

Kunstgeschichte, vol. 56, 1993, pp. 102-112 and

Steinhoff: ”Artistic working relationships after the

Black Death: a Sienese compagnia, c. 1350-1363(?)’,

Renaissance Studies, vol. 14 No 1, 2000, pp. 10-13.

33 Cf. Steinhoff, 2000, p. 12 and Hayden B. J. Maginnis:

The World of the Early Sienese Painter, 2001, p. 99. In

Cennino’s instructions for the representation of gold or

silver brocade, he even ends the section with the

following advice: ”And, indeed, I advise you, if you want

to teach boys or children how to do gilding, have them

lay silver, so as to get some experience with it; for it is

less expensive” (Cennino Cennini, transl. Thompson

1960, p. 88).

34 The statutes of the Sienese painters’ guild contained

rules about assistants’ work for other masters. Heavy

fines were exacted for using assistants who were

contractually tied to another master. Cf. ch. XVII in the

statutes from 1356, reproduced (in toto) in Hayden B.

J. Maginnis, 2001, p. 206.

35 The foreign silks which were imported to Italy via

Venice from the end of the 13 th century were

significant especially in Siena as a source of inspiration

for painters as the town, unlike Lucca and Florence, did

not have its own silk industry. Cf. Lisa Monnas:

”Costume and Textiles in Simone Martini’s St. Louis of

Toulouse crowning of Robert of Anjou” in Essays in

Honour of John White, ed. Helen Weston and David

Davies, University College London 1990, pp. 152-162

and Paul Hills: The Light of Early Italian Painting, Yale

University Press, New Haven and London 1987 p. 96

and Maginnis, 2001, p. 98 and Gustave Soulier: Les

Influences orientales dans la peinture toscane, Paris

1924, and Brigitte Klesse; Seidenstoffe in der

Italienischen Malerei des 14. Jahrhunderts, Bern 1967,

pp. 52, 102, 119, 487, 488, and Hoeniger, 1989, pp.

229, 237-238.

36 Cf. Klesse, 1967, pp. 233-237, 272, 474. E.g. works by

Bernardo Daddi, Giovanni del Biondo, Allegretto Nuzi,

the Master of the Fabriano Altar, Puccio di Simone,

Zannino di Pietro and Taddeo Gaddi.

37 Cf. Elisabeth Martin and Ségolène Bergeon: ”Des bleus

profonds chez les Primitifs italiens” Techne, no. 4,

Laboratoire de Recherche des Musées de France, 1996.

Investigation of approx. 50 Tuscan works from the

period 1350-1450 revealed a dark grey paint layer

underneath a thin layer of ultramarine as a frequently

used method for achieving a deep blue colour.

38 Cf. Cathleen Hoeniger: ”The Identification of Blue

Pigments in Early Sienese Paintings by Color Infrared

Photography”, JAIC, vol. 30, no. 2, 1991, pp. 115-124;

and cf. Hoeniger, 1989, p. 167. In the works of the

Master of the Palazzo Venezia Madonna there are h

owever examples of the use of azurite in blue draperies.

In The Mystical Marriage of Saint Catherine (Siena

Pinacoteca, inv. No. 108), the pigment is apparently

used in the Virgin’s now almost blue-black cloak.

Similarly in one of the angels in the painter’s Madonna

Enthroned with Angels in the Berenson collection, where

it is applied on top of a reddish underpaint, cf. Conti,

Alessandro: ”Oro e Tempera: Aspetti della Tecnica di

Simone Martini” in Simone Martini: atti del convegno,

Siena, 27-29 March 1985, Florence 1988, p. 127, n.

11) There are several examples in 14th-century

Sienese painting of a differentiated use of the pigment,

in the sense that painters employed a deep blue, high

quality pigment for the most important figures and a

paler, less intense one for the secondary figures, cf.

Hoeniger, 1991, pp. 115-124.

39 Cennino Cennini transl. Thompson 1960, Chapter

XLVIII, pp. 29-30; Chapter L, p. 30, Chapter LVI, p. 33.

40 Cf. Bomford et al., 1989, pp. 39, 120-123.

41 Analysed with HPLC by Jo Kirby, The National Gallery,

London, Scientific Department.

42 Cf. Bomford et al., 1989, p. 33 and Jo Kirby, Raymond

White: ‘The Identification of Red Lake Dyestuffs’,

National Gallery Technical Bulletin, no. 17, 1996, pp. 56-

80 and Jo Kirby, David Saunders, John Cupitt:

’Colorants and colour change’ Early Italian Paintings;

Techniques and Analysis. Symposium, Maastricht 9 th -

10 th October 1996, pp. 65-71.

43 Cf. Cennino Cennini, transl. Thompson 1960, Chapter

XLIII, pp. 26-27.

44 Paint medium analyses were carried out with GC-MS,

IR microscopy and FTIR-analysis by Catherine Higgitt, The

National Gallery, London, Scientific Department.

45 Cennino Cennini, transl. Thompson 1960, p. 88.

46 The National Gallery, London, Inv. No. NG 4491 and NG

4492.

47 Cf. Bomford et al., 1989, p. 41 and Libby Sheldon: ”The

Rise and Fall of Green Earth: An Investigation of the

Terre Verde Tradition from the Thirteenth to the

Sixteenth Century”; Essays in Honour of John White, ed.

Helen Weston and David Davies, University College

London, 1990, p. 175.

48 G. F. Waagen: Treasures of Art in Great Britain, vol. 3,

London 1854, p. 373.

49 Cf. Steinhoff, 1993 (note 32)

50 Cf. Steinhoff, 2000 (note 32)

51 Siena Pinacoteca, inv. No. 80.

52 Like other parts of The Adoration, the haloes are much

damaged and extensively restored. However, enough

original material has been preserved to show their

general composition.

53 Cf. Steinhoff, 1993, p.104, fig. 3, p. 109, fig. 8, p. 110,

fig. 10; and Steinhoff, 2000, pp. 10-12.

54 Mojmìr S, Frinta’s Punched Decoration on Late Medieval

Panel and Miniature Painting; Prague 1998, has been

used as the basis for the following calculations. As is

the norm in these kinds of estimations, only figurative

punchmarks have been taken into account, i.e. simple

circular or point-shaped punchmarks are not included.

The estimations are approximate as a couple of Frinta’s

attributions are tentative, and as further a few works

appear with divergent attributions in other parts of the

publication. The works in question are omitted from the

calculations.

For an overview of Bulgarini’s punchmarks cf. Erling

Skaug: Punchmarks from Giotto to Fra Angelico, Oslo

1994, vol. II, table 7.12.

55 This investigation was undertaken by Norman E. Muller,

cf. Beatson, Muller and Steinhof, 1986, pp. 627-628

and cf. further Steinhoff-Morrison, 1989, pp. 100-101.

56 Cf. Skaug, vol. II, table 7.12.

57 Many of the punches in question come from workshops

that closed on the outbreak of the plague in 1348. A

corresponding phenomenon is also true to a lesser

extent of Florentine works in the years after 1348 (cf.

Skaug, 1994, pp. 154-161). The Sienese collaboration

of the 1350s apparently continued until about 1362,

after which a large number of punches were taken to

Florence, apparently by Giovanni da Milano; here they

appear in works by Florentine painters in the years

following the second outbreak of plague in 1363, cf.

Skaug, 1994, pp. 253-257; and Erling Skaug:

”Punchmarks – what are they worth? Problems of

Tuscan workshop interrelationships in the midfourteenth

century: the Ovile Master and Giovanni da

Milano”, La pittura nel XIV e XV secolo; il contributo

dell’analisi tecnica alla storia dell’arte, H. W. van Os and J.

Aspersen de Boer (ed.) in Atti del XXIV congresso

internationale di storia dell’arte, III, 1979, Bologna

1980, pp. 253-282. Cf. also Steinhoff, 2000, pp. 1-45.

58 The absence of written sources makes it difficult to

estimate the degree of formalisation of the

collaboration; cf. Steinhoff, 2000, p. 8.

59 Remarkably, none of the punchmarks of the Master of

the Palazzo Venezia Madonna reappear in Bulgarini’s

altarpiece for San Gimignano, which otherwise contains

specific features in the composition of haloes, as well

as sgraffito and pastiglia design, which are clearly

drawn from the former’s contribution to the St. Victor

altarpiece.

60 Erling Skaug (Skaug 1994, vol. II, table 7.12) lists 6 of

the Master of the Palazzo Venezia Madonna’s

punchmarks from the St. Victor altarpiece as also used

by Niccolò di Ser Sozzo. Two of these marks (nos. 100

and 340) cannot however be found in the two saints’

panels.

61 Remarkably, only one single mark used by Andrea Vanni

and the Master of the Straus Madonna respectively is

also used by the Master of the Palazzo Venezia

Madonna.

62 Judith Steinhoff (Steinhoff, 2000) sees the St. Victor

altarpiece as the first example of a new model of

collaboration in Siena after the Black Death, where

artists from stylistically different traditions

collaborated on commissions, each apparently retaining

their separate stylistic characteristics.

63 Cf. Steinhoff-Morrison, 2000, pp. 1-4. 10-12.

english version 146

Download and read the article (pdf 650 KB - Statens Museum for Kunst

Transform your PDFs into Flipbooks and boost your revenue!

Download and read the article (pdf 650 KB - Statens Museum for Kunst

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
