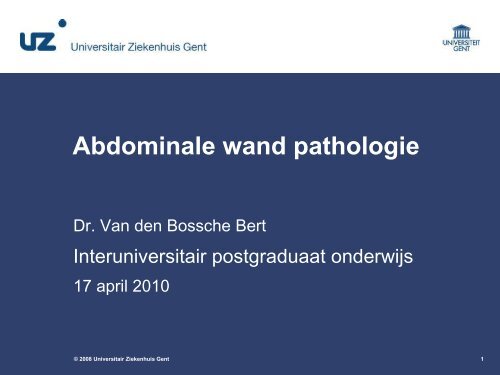

Abdominale wand pathologie

Abdominale wand pathologie

Dr. Van den Bossche Bert

Interuniversitair postgraduaat onderwijs

17 april 2010

© 2008 Universitair Ziekenhuis Gent 1

Definities

Reduceerbare hernia: spontaan of door manuele druk

terug te duwen in de buikholte

Niet-reduceerbare of geincarcereerde hernia: inhoud kan

niet teruggeduwd worden

≠ obstructie

≠ strangulatie

© 2008 Universitair Ziekenhuis Gent

2

2

Indeling naar lokalisatie

Hernia inguinalis

Hernia umbilicalis

Hernia epigastrica

Hernia ventralis

Hernia obturatorius

Hernia sciatica

Hernia perinealis

Hernia dorsalis/lumbalis

Spigeliaanse hernia

Littré hernia

Richter hernia


3

3

Liesbreukherstel : kunst of kwelling


4

4

Liesbreuken : hoe was het vroeger ?


5

5

Hernia inguinalis – Anatomie (1)

Liesstreek (groin)


Fascia transversalis

Ligamentum inguinale (Poupart)

Ligamentum pectineale (Cooper)

Conjoint tendon (falx inguinalis)

Fascia MOAE en MOAI

Ruimte van Bogros

Skandalakis JE et al. World J Surg 1989;13:490

6

6


7

7

Hernia inguinalis – Anatomie (2)

N. Ilioinguinalis

N.iliohypogastricus

N. genitalis


8

8


9

9

Incidence of chronic pain: 14 to 15 %


10

10

Mechanism of nerve trauma

Partial or complete transsection

stretching

contusion

crushing

cautery damage

suture compression


11

11

Six manoevers to avoid nerve injury in

open repair

Avoiding indiscriminate division of the subcutaneus

tissue

avoiding removal of the cremaster muscle fibers

avoiding extensive dissection of the iioinguinal nerve

identifying and preserving all neural structures

avoiding making the inguinal ring too tight

avoiding placement of sutures in the lower edge of the

internal oblique muscle


12

12


13

13


14

14

Neuropathic pain treatment

Infiltration : local injection of 10 cc lidocain ( 1% )

Periostitis: Depo medrol 5 cc lidocaine and 40 mg

methylprednisolone)

Operative transsection:

triple neurectomy + removal of mesh ( meshoma)

high resection ! ( n 225 80 % resolution)

Gabapentanoids / tricyclic drugs

Acupuncture

Pulsed radiofrequency techniques ( neurodestructive

treatment) = highly controversial


15

15


16

16

Hernia inguinalis – Klinische diagnose

Zwelling

Pijn bij inspanning

Uitstraling van pijn naar het scrotum

Meestal beter in liggende houding

Direct < indirect

Klinisch onderzoek: vinger door externe ring met

valsalva-maneuver

Herniografie


17

17


18

18

Hernia inguinalis – Differentiaal diagnose

Liespijn op basis van tendinitis of musculair

Gynaecologische etiologie

Lipoma van de funniculus

Hydrocoele / varicocoele

Lymfadenopathie

Abcedaties

Hematoom


19

19

Hernia inguinalis – Behandeling (1)

Asymptomatische hernia?

Rol van een breukband?

Lokale anesthesie: bupivacaine 0.5%

lidocaine 2%

Infiltratie van de huid

Zenuwblock mediaal van spina

Infiltratie onder fascia MOAE

Infiltratie tuberculum

Infiltratie breukzak


20

20


Verschillende technieken


Anterieur (open)

Posterieur (open en laparoscopisch)

Er bestaat geen “beste” techniek

“Het beste is diegene die je het frekwentst doet”

21

21


Belangrijke algemene punten bij chirurgisch herstel:

Onderkennen van mogelijke onderliggende etiologie

Igv een indirecte breuk breukzak reseceren?

Reconstructie van de bodem van het lieskanaal

Bij een directe breuk altijd zoeken naar een breukzak!

(13% dubbele hernia)

Recidief (nieuw, therapeutisch falen, collageen)


22

22


Anterieure benadering:

Bassini (zeer beperkte toepassing)

Lichtenstein repair (USA)

Shouldice (Canada)

McVay-repair (preperitoneaal, veel tensie)

Mesh-and plug repair

Posterieure benadering:

TAP

TEP

Kugel

Polysoft

PHS / UHS


23

23

Current guidelines (EHS 2008)

• Lichtenstein tension free repair reported recurrence

rates of 1-2%, although underestimated.

• Easy to perform at relatively low cost.

• Laparoscopic repair (TAP and TEP) reports low

recurrence rates and very quick recovery to normal

daily recovery.


So, why look for other techniques ?

24

24

Primair liesbreukherstel

Bassini – Mc Vay – shouldice

Open en anterieur herstel

Tension

Postoperatieve pijn

lange herstelperiode

hoge recidiefkans

Besmet milieu (darmnecrose)


25

25

Lichtenstein

Referentie

Anterieur herstel

Tension free - prothese

Recidieven 1 à 2 %

Chronische pijn

Niet voor femoraalbreuken


26

26


Richtlijnen voor Lichtenstein repair (1):

Mesh 8x12cm

2cm mediaal van tuberculum

2-3cm naar craniaal

Ligamentum inguinale

4-5 lateraal van “nieuwe interne ring”

Bescherming van de zenuwen

Light weight mesh

Resorbeerbare draad, afzonderlijke punten craniaal


27

27

General anterior view


28

28

Liesbreuken : types


29

29


Lichtenstein

30

30


Lichtenstein

31

31


Lichtenstein

32

32

Lichtenstein : chronische pijn

Grondige dissectie

Funiculus


33

33


Grondige dissectie

Zenuwen


34

34


Grondige fixatie

Mesh ligt op de inguinale

zenuwen

Reconstructie van een

interne liesring


35

35

Anterieur - posterieur


36

36

Preperitoneaal herstel

Prothese blijft ter plaatse door abdominale druk

Geen contact met oppervlakkige zenuwen

Grote overlap


37

37

laparoscopie

TAPP

Trans abdominal pre-peritoneal repair

Toegang preperitoneaal via de abdominale caviteit met openen

van peritoneum

TEP

Totally extra-peritoneal repair

Preperitoneale ruimte wordt bekomen zonder peritoneum te

openen.


38

38

laparoscopie


39

39

laparoscopie


40

40


41

41

Bedenkingen bij laparoscopie

Algemene anaesthesie

Lange learning curve – ervaring


Meer recidieven ?

Complicaties

Hoge kostprijs

42

42

Preperitoneaal herstel via anterieure weg

Kugel

Ugahary

POLYSOFT

Rebound


Moeilijke procedures

Bijkomende opening in de abdominale wand

43

43

Polysoft / Kugel - techniek

Anterieur

Kleine incisie

Minimale dissectie

Via de herniatie

Preperitoneaal

Minimale fixatie

dagkliniek


Memory-ring

Direct

Femoral

Notch for iliac vessels

Ring interrupted

Indirect

44

44


Polysoft /Kugel

45

45


Polysoft / Kugel

46

46


Polysoft / Kugel

47

47

TIPP : Indirect hernia


48

48

TIPP : self expandable memory ring patch


Polysoft® Memory-ring

Anatomical shape

Notch for iliac vessels

49

49

Final position of the mesh:


50

50

Polysoft / Kugel: postoperatief

Intrademaal gehecht

Verband na 10 verwijderen

Dagkliniek

Maaltijd

Mictie

mobilisatie

Week relatieve rust

Pijnstilling ( NSAID – paracetamol)


51

51

Preperitoneal open approach vs Lichtenstein

Nienhuijs S. et all Pain after open preperitoneal repair vs

Lichtenstein : a randomized trial World J. Surg. 2007

n= 172

anterior approach = dissection of the inguinal canal =

manipulation of the nerves

Kugel mean VAS 0.3 vs 0.9 in Lichtenstein p = 0.002 at fu

3 months


52

52

New developments in meshes

polyester (dacron)


ethylene glycol + terephthalic acid (1939)

machine knitted (Mersilene)

multifilament, macroporous (>75µ)

degradable at longer time

53

53

© 2008 Universitair Ziekenhuis Gent 54


55

55

Polypropylene (Marlex)

Propane gas – Propylene – Polypropylene

Fiber knitted (1963)

Monofilament, macroporous (>75µ)

Inflammatory response, shrinkage, BUT:

Gold standard in mesh repair of abdominal wall hernia


56

56


57

57


Scar plate

fold development with heavy weight PP mesh

58

58

ePTFE (teflon)


expanded fully fluorinated polymer (1963)

pores 20-25µ, microporous

more prone to infection

intra-abdominal use

expensive

59

59

PVDF polyvinylidenfluoride


non-absorbable

macroporous polymer

already routinely used

more resistant to hydrolysis and degradation

less inflammatory response

60

60


61

61


62

62

So enough possible mesh materials...

But:


how strong should it be? 16N/cm

how strong is it? >5 times stronger

63

63

Development of larger pore sized, lighter weight meshes

Two times stronger than physically possible

Less foreign body reaction

Less shrinkage

Less scar plate


64

64

VYPRO II

Multifilament ( Prolene / Vicryl )

50 % / 50 %


ULTRAPRO

Monofilament ( Prolene / Monocryl )

50 % / 50 %

65

65

Pore Size

Ti MESH 35 gr 1 mm

Ti MESH 16gr 1 mm

BARD Mesh 1-2mm

ATRIUM 1-2mm

PROLENE 5mil 1-2mm

PROLENE Soft 2-3mm

VYPRO II 3-4mm

VYPRO 4-5mm

ULTRAPRO 3-4mm


66

66

Pore Size & Scar Tissue


Inelastic, rigid tissue scar plate can form.

The larger pore construction reduces connective tissue foreign body reaction by maximising

areas not in contact with the foreign body. Also increases elasticity properties.

A non-mesh structure, such as ePTFE becomes encapsulated rather

than incorporated, and can migrate.

foreign body scar tissue

67

67


Inelastic, rigid tissue scar plate can form.

bridging + retraction = shrinkage !

foreign body

scar tissue

68

68

PARIETENE : 129 g/ m²

SURGIPRO : 127g/m²

MARLEX : 95 g/m²

ATRIUM : 92 g /m²

PROLENE ( 5mils ) : 85 g/m²

PROLENE SOFT : 45 g/m²

TI MESH : 35 g/m²( Light )

16 g/m² ( Extralight )

VYPRO II : 75 g/m² ( 35g/m² )

VYPRO : 54 g/m² ( 26 g/m²)

UlTRAPRO : 50 – 55 g/m² ( 28g/m²)


LIGHTWEIGHT

Non absorbable

100% POLYPROPYLENE

Composite meshes

Partially absorbable

LIGHTWEIGHT !!

69

69

Scar mesh , not a scar plate

foldfree incorporation with lightweight Vypro II mesh


70

70

But still strong enough ?

Pressure [mmHg]

1800

1600

1400

1200

1000

800

maximal abdominal pressure

600

400

200

0


Comparing abdominal pressures with mesh burst strength

4 13 44 59

150

338

Laying Standing Pain Pressing Coughing Vypro/PP Vypro II/PP Prolene Softpro Ultrapro/PP Mersilene

375

1650

750

525

413

71

71

Clinical evidence?

Inguinal hernia


3 randomized controlled trials

1 showed an increase in recurrence

rate

all showed less postoperative chronic pain

Bringman 2006, O’Dwyer 2005, Post 2004

72

72

Incisional hernia


1 randomized controlled trial

showed an increase in recurrence

rate (not significant)

no difference in quality of life or pain

perceptions

Conze, 2005

73

73

Is this enough evidence to promote its use?

Compare it with the evidence for using any type of mesh in

incisional hernia repair:


1 randomized trial comparing

sutures and mesh repair!!

Luijendijk, 2000; Burger, 2004.

74

74

And if you are not convinced...

You can use mosquito nets!


75

75

Hernia femoralis

4x meer bij vrouwen dan bij mannen

Altijd controle bij repair van een liesbreuk

33% van de breuken bij vrouwen, 2% bij de man

Meer strangulatie

Bulging aan de mediale zijde van de dij

Onder het ligamentum inguinale

DD met varix V saphena magna

Repair: ver schillende mogelijkheden met sluiten van het

femoraal kanaal

Cave: tekenen van strangulatie


76

76

Hernia umbilicalis

Meer bij vrouwen

Risicofactoren: zwangerschap, ascites, obesiteit

Kinderen: kan verdwijnen in de eerste levensjaren

Volwassenen: chirurgisch herstel

Repair: primair kan bij breukpoorten tot 1cm

Groter dan 1cm: prothese

Laparoscopisch of open

Igv cirrhose: geen consensus over mesh of geen mesh

Eerst controle over de ascites om genezing te bekomen


77

77

Hernia epigastrica

Linea alba boven de navel

3-5% van de populatie

20% multipel!

Symptomen vaak gerelateerd aan maaltijd

DD rectus diastase, galsteenlijden, maagulcus

Geen consensus over primair vs. Mesh

10-20% recidief (meerdere breukpoorten)


78

78

Andere vormen

Littre: Divertikel van meckel in de breukzak

Spigeliaanse hernia: hernia thv linea semilunaris

Lumbale hernia: Petit’s triangle and Grynfeltt’s triangle

Obturator hernia: hoge mortaliteit (-40%) wegens

miskenning en frekwentere incarceratie

Perineale hernia: na rectumextirpatie of prostatectomie

Sciatic hernia: grote en kleine foramen


79

79


Thank you

80

80

Incisionele hernia (1)

Ongeveer 10% van alle laparotomieen

Slechte sluitingstechniek

Multiple ingrepen

Wondinfecties

Leeftijd

Onderliggend lijden

Obesiteit

Pulmonale complicaties postoperatief


81

81


Herstel steeds middels mesh-placement

Verschillende technieken:


Rives-Stoppa (sublay), inlay, onlay etc.

Component separation techniek

Ramirez-incisies

Laparoscopisch: geen verwijderen van de breukzak

Gebruik van suturen aan te raden

Cave: seroomvorming!!

82

82


Prognose:

Small: 2-5%

Medium: 5-15%

Large: >25%

Complicaties: huidnecrose, seromen, abdominaal

compartiment syndroom….


83

83

Definition

Hernia after open or laparoscopic surgery, visible and

palpable when patient is standing

60 % of patients is asymptomatic

Incarceration requires emergency surgery


84

84

Prevention and incidence

10 – 15 % of laparotomy incisions

Meta-analysis of Hodgson

Abdominal fascial closure of midline laparotomy wounds with

a continuous non-absorbable suture 32 % risk reduction in

comparison with interrupted techniques


Meta-analysis by Van „t Riet

15 studies with 6566 patients

Similar results

LAPAROTOMY WOUNDS SHOULD BE CLOSED WITH

A NON-ABSORBABLE OR VERY SLOW ABSORBABLE

CONTINUOUS FASCIAL SUTURE

85

85

Controversies

Absorbable >< non-absorbable sutures


Non-absorbable

= nidus for infection and sinus tract formation

Continuous >< interrupted closure

Continuous

= quicker and spreads the tension

Mass >< layered closure

Meta-analysis by Weiland 12.247 patients

Layered closure had higher hernia formation

86

86

Risk factors (1)

Wound infection

Abdominal distention

Pulmonary complications

Male gender

Age

Obesity

Emergency procedures


87

87

Risk factors (2)

Early reoperation

Jaundice

Underlying disease

Type of closure

Suture material

Choice of original incision


88

88

Diagnosis

Anamnesis

Physical examination

Ultrasound

CT scan more efficient and accurate in defining the

defect and for planning and choice of operation


89

89

Classification

Localisation

Size

Recurrence

Reducibility at the hernia gate

Symptoms


90

90

Techniques of repair

Primary repair

Prosthetic mesh repair


Onlay mesh repair

Inlay mesh repair

Retrorectus mesh repair

Intraperitoneal underlay mesh repair

91

91

Primary repair

For small defects < 5 cm

Continuous or interrupted sutures to approximate the

edges of the fascial defects (1 cm of the fascial edge 1

cm advancement) = Mayo repair

Recurrence rates > 50 %

Always tension on the repair


92

92

Primary suture


93

93

Modifications of primary repair

Bilateral relaxing incisions in the anterior rectus fascia

for upper midline hernias

Separation-of-parts technique = bilateral release of the

external oblique muscle


94

94


Onlay mesh is sutured to the anterior rectus sheath,

after primary closure of the fascial defect

Advantage


Mesh not in contact with abdominal content

Disadvantages

Repair under tension

Large subcutaneous dissection > seroma formation > mesh

infection

95

95


96

96


Onlay only (no primary closure of fascial defect)

Advantage


Less tension

Cuff technique

Sutures fixate the mesh around both anterior and posterior

rectus sheath

Disadvantages

Extreme pain

Necrosis viable rectus muscle and fascia

97

97


Inlay mesh repair


Hernia sac is excised

Recurrence rates 10 – 20 %

Only when retrorectus or intraperitoneal mesh repair is not

possible

98

98


Retrorectus mesh repair = Stoppa


Hernia sac in place as a buffer

Above umbilicus

Dissection above posterior rectus fascia and underneath the rectus

muscle

Below the umbilicus

No posterior rectus fascia, dissection in preperitoneal space

99

99


Retrorectus mesh repair = Stoppa

Polypropylene mesh in space created and fixated to the muscle

layer above with full or partial thickness sutures


Recurrence rate < 10 %

Mesh infection 5 - 12 %

Pain > 10 %, usually resolves after complete ingrowth of the

mesh

100

100



Open


Opening hernia sac, adhesiolysis and fixation of the mesh

intraperitoneal

Laparoscopic

Entering abdomen away from the defect, mesh fixed to the

abdominal wall with partial thickness tacks or full thickness

abdominal/fascial wall sutures

101

101



Laparoscopic


Significant seroma rate 10 – 15 %

Unrecognized bowel injuries

Recurrence rate < 5 %

102

102


103

103


104

104

Ramirez and Component separation technique


105

105


106

106


107

107


108

108


109

109


110

110


111

111

Abdominale wand pathologie - Belsurg

Transform your PDFs into Flipbooks and boost your revenue!

Abdominale wand pathologie - Belsurg

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
