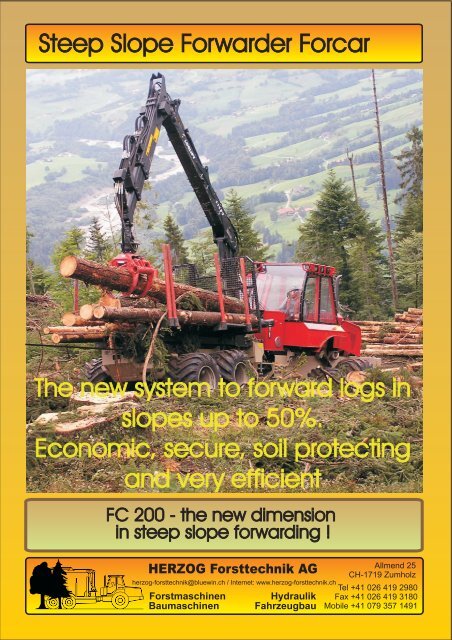

Steep Slope Forwarder Forcar
The new system to forward logs in
slopes up to 50%.
Economic, secure, soil protecting
and very efficient
FC 200 - the new dimension
in steep slope forwarding !
HERZOG Forsttechnik AG
Allmend 25
CH-1719 Zumholz
herzog-forsttechnik@bluewin.ch / Internet: www.herzog-forsttechnik.ch
Tel +41 026 419 2980
Fax +41 026 419 3180
Mobile +41 079 357 1491

- economic - soil protecting
Apractical example:
The task was to transport the logs downhill to the
forest road:
! Despite an average inclination of 45%
! Despite wet conditions during forwarding and..
! Despite a logging volume over 350m3 in the
same drive-way (length 220m)
The soil is not scarred at all and
there is no deepened trace !!
Uphill-transport of logs is normally possible up to
35-40% of slope without scarring the soil.
When reaching the road at the bottom, the driver
switches off the power of the winch and drives the
FORCAR to the discharge area. When backing up
the cable is held taut by the automatic electronic
control; no control needed by the driver. Reaching
the bottom of the slope, the driver increases the
power of the winch to the needed level and climb
up the slope. Short slopes from over 60% may be
overcome (uphill an downhill) without damaging
neither road nor embankment.
The winch provides over 50%
of the required tractif power,
synchronous with the wheels.
Even in steepest conditions the FORCAR is
keeping an even pace. Because the taut cable is
acting like kind of a spring, evenly keeping its
power but changing constantly in length. There is
no slip or roll. The winch enables to overcome
obstacles of up to a wheel’s height. The machine
can be positioned within centimeters precision.All
the operator has to do, is giving the command
forwards or backwards, exactly as in flat terrain.All
winch functions are controlled and provided by the
electronic system.
Thanks to the sophisticated
technique the operator’s stress
factor is considerably reduced.

,
- secure - very efficient -
Measurementsand weight¨
Unloaded weight14’200kgs-6wheel
17'200kgs–8wheel
Permissibleload 10000kgs
Permissibleslope 80%
Tractifpower(wheels+winch)202 kN
Speedonroad 20to40km/h
Speedonterrain max.12km/h
Machine width 2.50bis2.80m
(dependsontyres)
Tyres
Frontaxle
TrelleborgTwin428 750/45x30.5, 20
PR
Rearaxle(bothaxlesversion8x8)
Trelleborg 710/45-22.516PR
Nokian 600/50-22.516PR
Engine
CUMMINS QSB5,9TAA-C30
6-cylinderinline, watercooled,
turbocharged, aftercooled EURO 3
(TIER2)
Displacement 5900 cm³
Power(DIN70020) 190HP
RPM 2400
Max.Torque 785Nm
Fueltank 140 l
Powertransmission
Hydrostatic transmission Rexroth-
Hydromatik, Variable displacement
pump an motor with electro-hydraulic
automotif control. Strong cooling
systemforheavy duty applications.
Workingpressure max.420
bars
Steeringsystem
Hydrostatic steering, steering force 52
kNm
Cabine
Tested security cabine (OECD:ROPS,
FOPS,OPS)
High comfort cabine with very good
visibility, heating an air condition system,
special comfort driver seat, Radio/CD
player
Tiltsystemforthedriverseat50%
Brakes
Hydraulicallyactivatedmultidiscbrakes
3separatebrakecircuits
Springappliedparkingbrake,hydraulically
released
Electricsystem
Voltage 24V
Battery 2x125Ah
Generator 70A(1600W)
Workinglights 12 pcs. XENON
Frame/axles
Frame articulation 43°
steeringangle
Centralaxial oscillation,blocablewith two
hydraulicpistons.
Hydraulicsystem
TypeLoad-Sensing
Pressureworkingcircuit230to380bars
Capacity max. 275
l/min.
Hydraulic tank 140litres
Steeringand assistance
Circuit 180bars/65litres
Crane
LOGLIFTF91 8 8
kNm,8.5m/10.1m
LOGLIFTF111 100kNm,
8.5/10.1m
Cranetiltsystem
Tiltangle 23°(50%)
Tiltingforce 135kNm
Loadbunk
Loadingarea 3.7m2
Permissiblelog length 2-6m
Loadbunk1.5mextensible
Bunkgate 500mmhydrauliclymovable
Sychronisedspecialwinch
Cablecapacitiy 300m,16mm
Cableresistance 2 4
tonnes
Special synchronising system integrated
in the forwarder FORCAR FC 200
(synchronisation winch drive an wheel
drive)

FORCAR FC 200 the solution for steep slopes
6-wheel and 8-wheel version
Even in the most averse topographicalconditionsour FORCARFC 200 keeps the full capacity. The integrated
specialwinch is responsablefor the climbingand the all importantsecurityand soil protection,the tilt crane
for the loadingcapacityand the tilt seat for the indispensablecomfortof the operator.
Lateralinclinationfor the load The winch assistanceassure a payloadof The hart of the FORCAR:The
bunk up to 25% left and right. 10 tons also in steep slopes (equal if winch synchronisedwith the
uphill or downhillforwarding) wheel drive !
