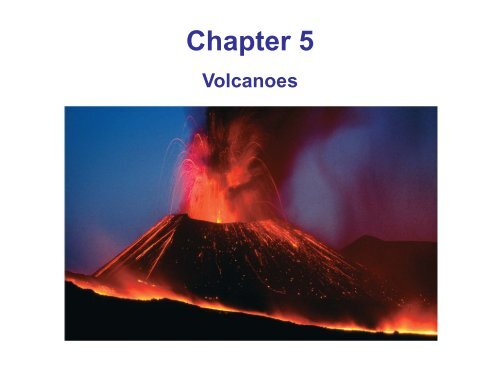

Chapter 5 Volcanoes (.pdf)

Chapter 5

Volcanoes

Mount Rainier

Deane’s Volcano

Deane’s Volcano

19,000 feet high


19,000 feet high

Covered with snow year round



Covered with snow year round

Active, belches ash and pyroclastics year

round





round

Lava flows engulf quaint barns with “mail

pouch tobacco” roofs





round


pouch tobacco” roofs

Located where Maryville is, so I can see it

from my office





round


pouch tobacco” roofs

Located where Maryville is, so I can see it

from my office

Magma

Simple put, a volcano

occurs when magma erupts

onto the surface, either on

land or the ocean floor

Magmas originate in the

mantle at depths between

50 and 250 kilometers (30 to

150 miles) below the Earth’s

surface

Magma from Mantle

Magma does

not come from

the “center” or

core of the

Earth

It comes from

the upper part

of the mantle

Source of Magma

Magmas can reach the

surface in one of three

plate tectonic settings:

Divergent plate boundaries

Subduction zones

“Hot spots”

Composition of Magma

A magma’s chemical composition influences

its physical properties, which determines

how it will erupt (quietly or violently) and the

kind of volcanic structure it will form

The three major compositional variables of

magma are the proportions of

silica (SiO 2)

iron (Fe)

magnesium (Mg)

Composition of Magma

A rock formed from a magma rich in iron and

magnesium is described as mafic

A rock formed from a magma rich in silica is

described as felsic

There is a gradation from mafic to felsic as

the proportion of iron/magnesium decreases

and the proportion of silica increases

Magma and Lava

The upper mantle is extremely rich in iron and

magnesium and therefore is of mafic composition

The magma erupting along the mid-oceanic ridges

and at oceanic volcanic hot spots is therefore also

mafic in composition and creates basaltic lavas

Magma and Lava

For a magma from the

mantle to erupt on land,

the magma will have to

melt its way through the

crust

The crust is rich in silicate minerals

These silicate minerals are melted and become

part of the magma

As more and more silicate minerals are added to

the magma, the magma’s composition

progressively changes from mafic to felsic

Major Types of Lava

Basaltic lavas

Magma has mafic composition, typically erupts at

1000 o to 1200 o C, flowing basaltic lavas have lowviscosity,

cools to form basalt

Andesitic lavas

Intermediate in composition and viscosity between

mafic and felsic magmas, cools to form andesite

Rhyolitic lavas

Felsic composition, typically erupts at 800 o to

1200 o C, high-viscosity, cools to form rhyolite

Major Types of Lava

Basaltic lavas tend to be a dark color, because

most iron/magnesium minerals are dark

Rhyolitic lavas tend to be lighter in color, because

most silica minerals are lighter in color

Basalt Andesite Rhyolite

Flowing Lava

The silica-poor mafic

magmas that produce

the basalt of the ocean

floors have low viscosity

Low viscosity means

that the lava flows easily

In contrast, silica-rich

felsic magmas have high

viscosity and flow very

poorly (like cold syrup)

Examples of Lava Flow

Pahoehoe

Aa

Pillow basalts

Vesicular basalt

We will look at each type

Aa and Pahoehoe

Aa: a relatively low

viscosity basaltic lava

characterized by a

sharp, jagged, blocky

texture

Pahoehoe: a very low

viscosity basaltic lava

characterized by a

smooth, ropy texture

Aa and Pahoehoe

A single downhill basaltic lava flow commonly

has the features of pahoehoe near the source,

where the lava is still hot and fluid

While Aa usually

develops farther

downstream where

the cooling lava has

developed a thicker

outer layer

Pillow Basalt

When a basaltic magma

erupts under the ocean,

it cools very rapidly and

forms a “pillow-shaped”

lava that has a glassy

texture

This exposed pillow lava

was formed under the

sea and uplifted by

tectonic forces

Magma contain

dissolved gases

which become

trapped in the

basalt when the

lava cools

The “pitted”

surface is

referred to as

vesicular

Vesicular Basalt

Pyroclastic Material

Pyroclastic material

is volcanic ejecta

violently blown out

of the volcano into

the atmosphere

during an eruption

It can be molten,

partially molten or

solid

Pyroclastic Material

The molten pyroclasts

can cool and solidify

as they fly through the

atmosphere

Smaller particles can

be blown 20-25

kilometers up into the

stratosphere

Pyroclasts

Pyroclasts are classified by the size of the

particle

Volcanic ash is very fine dust which is “ash-like”

in consistency

Cinder is composed of gravel-sized pieces of

ejecta and usually feels rough to the touch

Volcanic bombs are large fragments of ejected

magma which become rounded and cool

(solidify) as they fly thru the atmosphere

Volcanic Bomb

Volcanic Tuff

Rocks created from smaller particles

(such as ash) are called volcanic tuffs

Volcanic Breccia

Volcanic breccia is composed of large pieces

of volcanic ejecta solidified into rock

Cinder Cones

Composite Volcano

Caldera

Types of Volcanoes

Shield Volcano

Volcanic Dome

Shield Volcano

Formed mainly of basaltic lavas

Gentle slopes averaging 2-10 degrees

Can be huge, up to 120 kilometers wide!

Long duration of activity, lasting tens of

thousands of years

Eruptions usually non-violent

Long lava flows

Shield Volcano

Shield Volcanoes

The entire island of Hawaii

was created by a series of

shield volcanoes

The cratered top of Mauna

Loa is seen covered with

snow

Composed of rhyolitic and andesitic lavas (felsic

magma)

Lava oozes out onto the surface like “thick

toothpaste”

Grows slowly

Volcanic Dome

Steep-sided and small, rarely more than a couple

of hundred meters wide

Typically forms inside an already existing crater

Volcanic Dome

Volcanic Dome

Novarupta Dome, Alaska

Mount St. Helens

Cinder Cones

A volcano formed of cinders and other small-sized

basaltic pyroclastic material built up around the

volcanic vent

Steep sides, with slopes up to 30 degrees

Relatively small, averaging one kilometer (~1/2 mile)

in diameter, but can have extensive lava flows

Short-lived,

typically a single

event, lasting for

a few hours up to

several months

Cinder Cones

Cinder Cones

Cerro Negro Cinder

Cone, Nicaragua

Amboy Cinder Cone,

California

Composite Volcano

Some eruptions may spew out pyroclastic deposits,

another eruption may consist of andesitic lava flows

Slopes are intermediate in steepness

Relatively large, easily 10-15 kilometers in diameter

Intermittent eruptions over long time span, lasting

thousands of years

Eruptions often highly explosive

An active volcano that can

erupt with different types of

material during its life

Composite Volcano

Mount St. Helens

Mount St. Helens in

Washington is a composite

volcano

On March 16, 1980 the first

of a series of minor

earthquakes occurred

under the volcano

This marked the beginning

of a new eruption cycle

It had been ~350 years

since the last eruption


On May 18, 1980, at 8:32 am, a

magnitude 5.1 earthquake

occurred 1 mile directly under

the volcano

10 seconds later, the north

side of the volcano began to

collapse followed immediately

by an explosion that blew the

top 400 meters (1300 feet) off

of the peak


“...24 square miles of valley was

filled by a debris avalanche, 250

square miles of recreation, timber,

and private lands were damaged by

a lateral blast, and an estimated 200

million cubic yards of material was

deposited directly by lahars

(volcanic mudflows) into the river

channels”

“Fifty-seven people were killed”


Trees snapped like toothpicks...

Mount St. Helens Ash Fall


Before

After

Mount St. Helens Today

Mount St. Helens is

now a volcanic

national monument

and remains active

Caldera

A large depression (can easily be several miles

wide) formed by collapse of a volcano into a

partially drained magma chamber

The collapse may eject a tremendous amount

of pyroclastic material into the atmosphere and

cover very large areas of land with ash and

debris

Caldera may have younger domes within it

Caldera

Crater Lake Caldera

Crater Lake Caldera

Crater Lake Caldera

Crater Lake Caldera

Crater Lake Caldera

50 cubic kilometers of material was

blown off the top of the mountain

Fissure Eruptions

A volcanic eruption

originating along

an elongate fissure

rather than a

central vent

Fissure Eruptions

Laki Fissure in

Iceland formed in

1783, resulting in a

lava flow that

covered 13 square

kilometers

Mid-Oceanic Ridges

Fissure volcanic activity can occur any where along

the 60,000 kilometer-long mid-oceanic ridges (much

more on this when we cover the ocean floor)

Flood Basalts

Thick, widespread

accumulations of basalt

that cover a large area

Typically fed by fissures

An excellent example is

the Columbia River

Plateau in Washington

and Oregon

Columbia Plateau Flood Basalts

Successive flows of

flood basalt over a time

period of 10 to 15

million years built up a

plateau 1.8 kilometers

(6,000 feet) thick and

covers an area of

160,000 square

kilometers (63,000

square miles)

Large Igneous Provinces

Areas of extensive flood basalt lava flows are

found both on land and under the oceans

Deccan Plateau in India

At the end of the

Cretaceous period,

65 million years ago,

volcanic eruptions

created the Deccan

Plateau that covers

most of southern

India


After several thousand years, the combined

thickness of the lava flows were as much as

2000 meters (6500 feet) and covered an area

of over 1,500,000 square kilometers


Such staggering quantities of gas were released

into the Earth’s atmosphere by these continuous

eruptions, that the chemical composition of the

entire atmosphere was changed world-wide

This may have played a major role in the extinction

of the dinosaurs at the end of the Cretaceous

Diatreme

When a volcano goes

dormant, the magma

and breccia in the

volcanic vent will cool

and solidify into rock

If the volcanic cone is

eroded away, this plug,

called a diatreme, will

be exposed

Shiprock,

New Mexico

Diatreme

Fig. 6.12

Seamounts

Dotting the ocean floor are submarine volcanoes

called seamounts

They can rise above the ocean floor from hundreds

of meters to even a couple thousand meters

They are found in all oceans, but by far the

greatest number occur in the Pacific Ocean

Seamounts

There are more than a million seamounts in the oceans

(only a couple thousand are plotted on the map below)

So there are far more volcanoes under the sea than on

land

Oceanic Volcanic Hot Spots

Instability at the coremantle

boundary

causes a mantle plume

to rise, led by a hot,

turbulent plume head


When the plume

reaches the base of the

lithosphere, it flattens

and decompresses.

Basaltic magma from

decompression melting

erupts as flood basalts


As the plume moves

over the remains of

the plume, the plume

tail, now a hot spot,

may form a hot spot

volcano


Continued plate

movement over the

hot spot creates a

chain of volcanic

islands

Oceanic Volcanic Hot Spots

Hot Spot Volcanism

Every island in the Hawaiian Island chain was

created by volcanic eruptions that occurred as

the Pacific Oceanic Plate crossed over a hot spot

for millions of years

Hot Spot Volcanism


The Cortes Bank Seamount, 100-miles

offshore of San Diego, California, is the

17-mile long remnant of a undersea

volcanic mountain range that rises to

within 3 feet of the surface


Fisherman and scuba divers knew about it,

but it was not on any nautical maps

The U.S. Navy found it the hard way in 1985

when the aircraft carrier Enterprise ran

aground

Then the surfers found it


“To get the biggest waves at Cortes Bank, you need light winds, low

tides, and big storm swells from the northwest all at the same time, a

Pacific surfer's version of the "perfect storm". When it happened on

January 19, 2001, California big wave riders scrambled to test their

skill against the biggest, baddest wave ever ridden.”

Continental Volcanic Hot Spots

Yellowstone Caldera Chain formed as the North

America Plate moved to the west southwest


The ages of the Yellowstone Calderas formed

over the hot spot range from 16 million years

ago to the present


The youngest

caldera is 80

kilometers long

and 55 kilometers

wide (50 by 35

miles) or roughly

the size of Knox

County

It lies within the

Yellowstone

National Park


The caldera is large enough so that you cannot

obviously realize that you are in a giant crater


Currently, volcanic activity is exhibited only via

numerous geothermal vents, including Old

Faithful Geyser, but within the past two million

years, it has undergone three extremely large

explosive eruptions, up to 2,500 times the size

of the 1980 Mount St. Helens eruption


The most recent explosion occurred 630,000

years ago,

1000 cubic kilometers of pryoclastic material

was blown into the atmosphere

Most of the United States was covered with ash


The brown area marks the extent of the ash fall

Volcanic Hazards

Lava Flows

Lava erupts from the flank of the Barcena Volcano

on the Revillagigedo Islands, Mexico in the Pacific

Ocean causing little damage

Lava Flows

Lava set fire to the brand new Wahaùla Visitor

Center in Hawaiì Volcanoes National Park when an

1989 eruption of Pu‘u ‘O‘o–Kupaianaha completely

covered the area with thin pahoehoe lava flows

Lava Flows of Parícutin

The Parícutin eruption began as a fissure in a

cornfield owned by farmer Dionisio Pulido on

February 20, 1943 in the Mexican state of

Michoacán

Pulido, his wife

and son, all

witnessed the

initial eruption of

ash and stones

first-hand as they

plowed the field

Lava Flows of Parícutin

The villages of Paricutín and San Juan

Parangaricutiro were both buried by lava

and ash

Eruption Cloud

So much smoke and

ash was released by

the Chaiten Volcano

in southern Chile

during the 2008

eruption, that the

eruption cloud

stretched across

South America from

the Andes

Mountains to out

over the Atlantic

Ocean

Gases

Volcanoes can

also eject great

quantities of

gases and steam

which can be

mixed with the

pyroclasts

Gases

Sulfur dioxide (SO 2)

Hydrogen sulfide (H 2S)

Carbon dioxide (CO 2)

Hydrogen Chloride (HCl)

Hydrogen Fluoride (HF)

VOG

Noxious sulfur dioxide gas and other pollutants

emitted from Kilauea Volcano on the Island of

Hawaiì react with oxygen and atmospheric

moisture to produce volcanic smog (vog) and

acid rain

VOG

Sulfur dioxide, a pollutant that is also generated

by burning coal and oil, can cause asthma and

other respiratory illnesses and aggravate lung

and heart disease

Mixed with atmospheric moisture, it produces

acid rain

Lahar

Lahar is an Indonesian word that describe

fast moving volcanic mud flows

They kill by drowning people in mud that is

too thick and too heavy to swim in

Lahar

Lahars are formed by the sudden mixing of

large volumes of pyroclastic material, such

as ash, with water

For example, when volcanic activity melts a

glacier on a mountain top, or because of

heavy rain, or the draining of a lake in a

crater

Lahar

“Sunday 18 March

2007 4:59 GMT

Wellington, New

Zealand –

A massive lahar, or

volcanic mudflow,

swept down New

Zealand's 2,797metre

high Mount

Ruapehu on Sunday

after its steaming

crater lake burst its

banks...”

Lahar

Lahars can flow very fast, at speeds faster than

100 kilometers per hour (60 miles per hour)

They can flood large areas and flow for long

distances in river channels

Lahar in the Belham Valley, Montserrat, in the

Caribbean, during heavy rain, 19 July 2007

Lightning

Lightning storm at the Chaiten Volcano, Chile

Nuée Ardente

Nuée ardente is a poetic-sounding French

word introduced in 1904 to describe the

terrible pyroclastic flow that destroyed the

entire city of St. Pierre on the island of

Martinique in 1902

It translates to “glowing incandescence”

Nuée Ardente

Nuée ardente are extremely fast moving

fluidized bodies of very hot gas, ash and rock

that hug the ground as they flow down the

volcanic slope

Temperatures can be as high as 800 o C

Nuée Ardente

Mayon Volcano, Philippines, 1984

Martinique is an island

formed by volcanoes in

the Caribbean

It was a French colony

1902 Martinique

The dormant Mount Pelée

volcano began a new

series of eruptions on

April, 25, 1902

With each passing day,

the eruptions became

worse

The French governor

refused to evacuate the

city of St. Pierre and

surrounding smaller

cities at the base of the

volcano


On Wednesday, May 7, 1902, the governor with his

family and entourage visited St. Pierre

There was a gala ball that night


The next day at 8:02 am,

the city of St. Pierre was

destroyed by a pyroclastic

flow that roared down the

slopes of Mount Pelée at of

670 kilometers per hour

(415 mph)

Over 29,000 people

were burned alive in

seconds


The entire town was

completely destroyed


Supposedly, there was one survivor, ex-convict

Louis-Auguste Cyparis (aka Ludger Sylbaris),

who was in jail either for murder or being drunk

He joined the circus


Don’t worry!

A French government review panel

concluded that the island governor

was correct in not evacuating the city

Phreatic Explosion

When water mixes

with magma below

the surface, you can

get a tremendous

steam explosion

These can be the

greatest explosions

on Earth

Nisino-sima Volcano

in the Pacific Ocean

Santorini

Santorini is a circular group

of islands in the Aegean

Sea and is part of Greece

The central lagoon is a

volcanic caldera 12 by 7

kilometers (8 by 4 miles) in

size

About 3500 years ago

there was a tremendous

volcanic eruption

30 cubic kilometers of

the island was blown as

high as 36 kilometers

into the atmosphere

This is believed to be

the largest volcanic

explosion in recorded

human history

Santorini

Atlantis?

The eruption, ash fall and

tsunamis are believed to

have destroyed the Minoan

civilization at the height of

its wealth and power

This may be the source of

Plato’s story of Atlantis

Santorini

Akrotiri is an ancient city on Santorini that was

buried under hundreds of feet of volcanic ash

from this tremendous explosion

It is an active archaeology dig that is open to the

public

Santorini

The volcano is still active as recent as 1950

How Bad Can It Be?

1815 Indonesia 92,000 killed




1902 Martinique 29,025 killed

1902 Guatemala 6,000 killed


1951 New Guinea 2,942 killed

1982 Mexico 1,700 killed

1985 Columbia 23,000 killed


Cumulative deaths due to volcanic

eruptions over the past 500 years


Causes of volcanicrelated

deaths Over

the last 2,000 years

Mount Tambora

Mount Tambora (or Tomboro) is an active

stratovolcano on Sumbawa island, Indonesia

It was thought to be 14,000 feet (4,300 meters) high

when it blew up in April 1815

The death toll was at least 71,000 people (some

estimate 92,000 people were killed), of which

11,000 to 12,000 were killed directly by the eruption

Mount Tambora

The explosion was heard on Sumatra island

2,000 kilometers (1,200 miles) away

The red areas outlines the heavy ash fall

Mount Tambora

The eruption ejected immense amounts of

volcanic dust into the upper atmosphere and

created global climate anomalies in the

Northern hemisphere

The entire world experienced dusty skies and

deep red sunsets

(Dusty sunsets

in Hong Kong

from 1992

Mount Pinatubo

eruption)

Year Without a Summer

1816 became known as the Year Without a

Summer and the Poverty Year and Eighteen

hundred and Froze to Death

Agricultural crops failed and livestock died in

much of the Northern Hemisphere, resulting in

the worst famine of the 19th century

Europe, still

recuperating from

the Napoleonic

Wars, suffered

from food

shortages

Year Without a Summer

Food riots broke out in

Britain and France and grain

warehouses were looted

The violence was worst in

landlocked Switzerland,

where famine caused the

government to declare a

national emergency

Huge storms, abnormal rainfall with flooding of

the major rivers of Europe (including the Rhine)

are attributed to the event, as was the frost in

August 1816

Future Eruptions?

Future Eruptions?

Future Eruptions?

Mount Vesuvius

The Mount

Vesuvius

Volcano is

surrounded by

the city of

Naples, Italy

Vesuvius is

called the most

dangerous

volcano in the

world


In A.D. 79, an

eruption buried

the cities of

Pompeii and

Herculium in ash

in a manner of

minutes

Perhaps 15,000

to 25,000 people

lived in these

cities at the time

of the eruption


Over 1500 bodies have been

found in the ruins of Pompeii

The bodies were instantly

incinerated by the hot ash


Today, Naples

has a population

of 3,000,000

people

A new eruption

would probably

devastate the

entire city...

Chapter 6

Weathering and Soil

Chapter 5 Volcanoes (.pdf)

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
