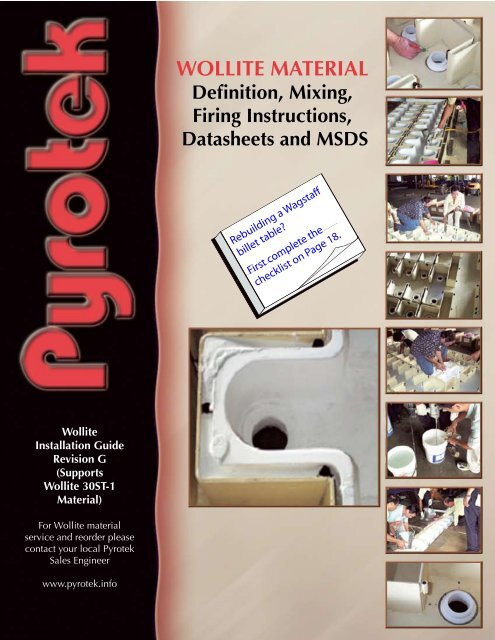

Wollite Installation Guide

Wollite

Installation Guide

Revision G

(Supports

Wollite 30ST-1

Material)

For Wollite material

service and reorder please

contact your local Pyrotek

Sales Engineer

www.pyrotek.info

WOLLITE INSTALLATION GUIDE

WOLLITE MATERIAL

Definition, Mixing,

Firing Instructions,

Datasheets and MSDS

Rebuilding a Wagstaff

billet table?

First complete the

checklist on Page 18.

Wollite Installation Guide — 07-06-524, Rev G Page

Page 2

OUR MISSION STATEMENT

Pyrotek is the leading international company supplying customers with performance

improving technical products, integrated systems and consulting services world-wide. We

are committed to:

• customer Satisfaction

• Employee Development

• Profitable growth

• Integrity

• reliability, Quality and Service

• Environmental Awareness

• Partnerships with customers and Suppliers

our mission is to provide innovative solutions to customer needs utilizing our global

resources.

OUR DEDIcATION TO YOU

our commitment to customer service began with the company’s inception in 1956. today

you can depend on Pyrotek for innovative solutions to your high-temperature material

requirements.

DOcUMENT REVISION

revision g references the Wollite 30St name as Wollite 30St-1. no other changes have

been made from revision F as the formula has not changed. Please provide Pyrotek corporate

marketing with any suggestion or change you may have for improvement to the contents of

this document.

cOpYRIGhT

this document contains confidential information and cannot be reproduced without written

permission from Pyrotek Incorporated.

DOcUMENT USE

the information contained in this document is provided without warranty, express or implied,

except that it is true to the best of Pyrotek’s knowledge. Pyrotek Incorporated assumes no

legal liability for the use or reliance upon any information in this document by any other

party.

pyrotek’s worldwide locations provide fast reliable

service. please contact us for additional information.

© PyrotEk, Inc. • corPorAtE oFFIcE 9503 EASt montgomEry AvE. SPokAnE WA 99206

PhonE (509) 926-6212 • FAx (509) 927-2408 • Py-07-06-524, rEv g

www.pyrotek.info • email:info@pyrotek.info

Wollite Installation Guide — 04-05-524, Rev E

cONTENTS


our commitment to you ...........................................................................5

types of Wollite ........................................................................................5

Wollite’s Foaming Action ..........................................................................5

Working Safely .........................................................................................5

mSDS ..................................................................................................5

PPE .....................................................................................................6

curing requirements ...........................................................................6

thermocouples and Weep holes ..............................................................7

recommended Supplies for All Applications ............................................8

mixing considerations ..............................................................................8

Before mixing .....................................................................................8

Wollite 30-37-45 Installation ....................................................................9

Before mixing .....................................................................................9

Part A ..................................................................................................9

Part B ..................................................................................................9

mixing 5-gallon Batch ......................................................................10

mixing Small Batches ........................................................................10

Wollite 30St-1 Installation ......................................................................11

Before mixing ...................................................................................11

Part A ................................................................................................11

Part B ................................................................................................11

mixing 5-gallon Batch ......................................................................12

mixing Small Batches ........................................................................13

Wollite 56 Installation ............................................................................14

Part A ................................................................................................14

Part B ................................................................................................14

mixing a Batch ..................................................................................14

continue curing ................................................................................15

Firing Wollite 56 ...............................................................................15

Firing Wollite 30-37-45 and Wollite 30St-1 ............................................16

curing in a Furnace ...........................................................................16

curing in an open Area ....................................................................17



Page 4

Wagstaff Billet table Installation .............................................................18

Wagstaff Billet table checklist ...........................................................18

Safety Items to Address

required Equipment

Installation Process overview -- table Preparation

Installation Procss overview-- refractory installation

Installation Process overview -- Wollite Installation

recommended Supplies ....................................................................20

Wagstaff table Preparation ................................................................20

mixing Wollite for Wagstaff table ......................................................22

curing Wollite in a Wagstaff table .....................................................24

Wollite Datasheet ...................................................................................25

Wollite 30St-1 Datasheet .......................................................................27

mSDS Wollite 30St-1 Part A ...................................................................29

mSDS Wollite Part A ...............................................................................37

mSDS Wollite Part B ...............................................................................45

mSDS Wollite .........................................................................................56

Wollite Installation Guide — 07-06-524, Rev G

OUR cOMMITMENT TO YOU

TYpES OF WOLLITE


the information provided in this guide is designed to help you understand and

complete the Wollite application process.

Pyrotek’s experienced Sales Engineers can assist you in application issues and

any questions you may have about the materials and their use.

to procure a video showing installation of Wollite 30St-1, contact Pyrotek

chicoutimi, Quebec, at 418-545-8093.

there are two light-density, highly insulating Wollite formulations used for

backup insulation applications covered in this guide.

• Wollite 30-37-45

• Wollite 30St-1

A more dense formulation used for less insulating applications or cast products

is also covered in this guide.

• Wollite 56

WOLLITE’S FOAMING AcTION

WORKING SAFELY

Wollite is a mineral foam based on wollastonite powder (caSio 3 ). the creation

of the solid phosphate bonded castable material known as Wollite begins as

two separate liquid components, referred to as Part A and Part B. When these

two parts are mixed together, an exothermic reaction takes place. this reaction

leads to the foaming of the mixed liquids. Within a short time the foam expands,

filling voids within a mold as it transforms into a solid material. this reactive

process results in an approximate 15% increase in volume from the separate

liquid materials to the final solid, phosphate bonded castable material.

MSDS

Prior to completing the mixing and installation procedures outlined in this

document, it is recommended that you read and become familiar with the

product’s material safety data sheets (mSDS) included in the last pages of this

document. review the mSDS for both Part A and Part B of the formulation

you are using.

Wollite Installation Guide — 07-06-524, Rev G Page 5


Page 6

ppE

When mixing and installing Wollite, wear

proper personal protective equipment (PPE).

this includes a pair of rubber gloves, an

overcoat and safety glasses. Wollite Part B

contains phosphoric acid and sulfuric acid

(except for Wollite 56). Even if phosphoric

acid is not considered a strong acid, it can

cause skin burns. Wear proper protection as TYPICAL SAFETY CLOTHING

reflected in the product mSDS:

• Skin Protection: Wear rubber or polyethylene gloves to protect hands.

• Eye Protection: Wear chemical safety goggles.

• other Protective clothing or Equipment: Wear a protective overcoat

when mixing material. Eye bath and safety shower nearby are

recommended.

• Work/hygienic Practices: maintain good personal and industrial

hygiene. Wash thoroughly after handling product.

curing Requirements

Pre-fired Wollite contains 45 – 50% water. this moisture needs to be removed

prior to use and the introduction of molten metal to the area.

cAUTION: The Wollite material must be properly dried before direct

or indirect contact with molten aluminum. Wollite not completely dried

prior to use may result in extensive bubbling and/or possible explosions.

It is very important to follow firing instructions to dry the material!

If you have any doubt or questions about firing, communicate with your

pyrotek Sales Engineer.

IMpORTANT: Ensure any weep holes in the cold face are open and clear

to allow release of trapped moisture.


ThERMOcOUpLES AND WEEp hOLES


Prior to mixing and pouring any Wollite, plan for placement of any required

thermocouples and weep holes.

consider the need for any thermocouple and its location to monitor the

temperature between the Wollite and cold face.

Weep holes allow release of captured water vapor within the trough or frame

holding the Wollite. Determine the placement of these holes. For specifics on

weep hole placement communicate with your Pyrotek Sales Engineer.

For general consideration, when insulating a trough, place weep holes in the

bottom of the trough, each hole approximately 1/8-inch (3mm) in diameter and

placed toward the outside of the trough. Also develop a method to seal these

holes during the pouring process to keep Wollite from filling the holes or running

out through the holes while it is in a liquid state, prior to its transformation

from a liquid to a solid. one method of sealing the trough is to place a layer

of ceramic paper in the bottom of the trough, over the weep holes to protect

them. this layer of ceramic paper will keep the Wollite from dripping out of

the weep holes during the pour. After the Wollite is set and before the firing

process, the ceramic paper must be pierced. Drill through the ceramic paper

to allow release of moisture through the paper.

UNDER-TROUGH WEEP HOLE ILLUSTRATION

IMpORTANT: Weld weep

holes closed prior to putting

the completed trough into

service. closed holes allow

the trough shell to capture any

molten aluminum in the event

of leakage within the trough.



REcOMMENDED SUppLIES FOR ALL AppLIcATIONS

MIXING cONSIDERATIONS

Page

Prior to mixing any Wollite formulation review the installation instructions related

to the Wollite formulation you are using. As you review these instructions and

your project, determine supplies needed to complete the installation. required

tools and supplies vary according to each project. various supplies you may

consider are listed below.

q Electric drill

q Drill bits for weep holes

q Paint impeller for mixing Wollite

q Scales to weigh Part A and Part B

q Extra 5-gallon bucket for mixing Wollite

q Empty 5-gallon bucket (for washing paint impeller)

q Funnels or other system to guide mixture into cavity

q ceramic blanket

q ceramic paper

q Flat blade to scrape excess Wollite from refractory

q heat source to dry Wollite (to reach 110° c -- 230° F)

q thermocouple and related monitoring device

Before Mixing

once Part A and Part B are mixed together, working time is very short and you

must be prepared to pour the mixture within the allotted time.

Because the mixed product is very liquid, it is recommended to seal all small

openings to prevent the liquid from leaking prior to its beginning the foaming

action and setting-up into a solid.

NOTES: For optimum mixing conditions, work at room temperature.

The temperature of part A and part B must be 15° c (59° F) to 18° c (64°

F). Do not let the mix temperature exceed 20° c (68° F) before pouring.

Once part B is added to part A, foaming reaction occurs and cannot be stopped.

Foaming reaction is exothermic and the material may reach a temperature

of 70° c (158° F).

For easy cleaning of molds and accessories, proceed immediately after

casting while components are still wet.


WOLLITE 30-37-45 INSTALLATION


Wollite 30-37-45 was the first Wollite formulation developed for backup

insulation applications. the usual applications are:

• Wagstaff crossfeeder insulation.

NOTE: procedures specific to Wagstaff tables are included later in this

manual. Refer to “contents” on page 3 to identify the page number for

these instructions.

• trough insulation

• cFF (ceramic foam filter) box insulation

• crucible, ladle or small furnaces

the Wollite 30-37-45 works as well as the Wollite 30St-1 except that the

Wollite 30-37-45 formulation sediments with time and vibrations ( such as

during transportation). the Wollite 30St-1 does not settle significantly.

Wollite 30-37-45 is a two-part material defined as Part A and Part B. Usually,

they are both supplied in 5-gallon pails.

Before Mixing

Before mixing Wollite 30-37-45 Part A and Part B together, it is very important

to remix Part A since it contains heavy materials that tend to settle to the bottom

of the container as a solid cake of sediment. Part B does not require mixing.

part A

Part A contains the wollastonite and water. If reinforcement is required, chopped

fiberglass may be added.

part B

Part B contains water, sulfuric acid, PvA (polyvinyl alcohol resin) and phosphoric

acid.

cAUTION: part B is considered a dangerous product and precautions

should be taken as described in the Wollite part B MSDS located at the

end of this document.



Page 0

Mixing 5-Gallon Batch

1. open the 5-gallon pail of Part A and slowly pour the liquid into another

container. there will be a solid cake of powder in the bottom of the

pail.

2. Put the solid cake of sediment in a mixer and begin blending by slowly

adding the removed liquid.

NOTE: If a mixer is not available, use a paint impeller to break up the solid

cake of sediment. Break it into chunks about 1/2-inch (12mm) in diameter.

Then, slowly add liquid, mixing until the slurry is homogenized.

3. mix until the slurry is well homogenized.

NOTE: The following weights have been determined to enable mixing in

a single 5-gallon pail. This ratio of part A to part B is 4:1.

4. Weigh Part A to have 22.5 kilograms (49.6 pounds).

5. Weigh Part B to have 5.6 kilogram (12.4 pounds).

6. Add the 5.6 kilograms of Part B to the 22.5 kilograms of Part A.

7. mix for 20 seconds using a paint impeller.

the mixed Wollite material is now

ready to be poured. the typical working

time after adding and mixing Part B to

Part A until the foaming takes place

is between 3-7 minutes. this mixed

Wollite is a very liquid material and

freely flows into all cracks and crevices

until it begins to foam.

Mixing Small Batches

MIXING PART B INTO PART A

to mix small batches of Wollite 30-37-45, follow the above instructions and

measure a 4:1 weight ratio between Part A and Part B respectively.


WOLLITE 30ST-1 INSTALLATION

Before Mixing


All Wollite materials are created from two-part formulations. one difference

between Wollite 30-37-45 and Wollite 30St-1 is that Wollite 30St-1 Part A

does not sediment (settle as a solid cake at the bottom of the bucket) with time

or vibrations.

part A

Wollite 30St-1 Part A contains about the same ingredients as Wollite 30-37-45,

plus a polymer that prevents sedimentation.

NOTE: In order to prevent possible sedimentation, do not premix part A

before its application. Mixing tends to decrease the polymer action and

may cause the material to sediment. This is a consideration if using only

a portion of a bucket because the whole bucket must be mixed prior to

partial use.

part B

Part B contains water, sulfuric acid, PvA resin (polyvinyl alcohol) and phosphoric

acid.






Page 2

Mixing 5-Gallon Batch

NOTE: This procedure produces a brim-full 5-gallon pail of liquid material.

Take this into consideration when evaluating the transportation of the

material to the place to be poured, and the process involved with pouring

from the full bucket.

1. Using a paint impeller, stir Part A in its container until completely

homogenous.

2. Add Part B to Part A according to a 4:1 weight ratio; 4 weight units of

Part A for 1 weight unit of Part B.

NOTE: The 4:1 weight to mix a complete 5-gallon bucket of Wollite 30ST-1

has been premeasured in each shipping container of part A and part B

respectively. If mixing this total amount, completely empty the contents

of part B into part A.

3. Using a paint impeller, immediately stir the combined parts for no more

than 45 seconds. the mixture should become quite liquid and flow

easily.

4. Pour mixture into the mold or cavity. complete the fill within two

minutes after mixing Part A and Part B.


Mixing Small Batches


1. Select a container that will hold four parts in weight of Part A and one

part in weight of Part B, as well as an extra volume of about half this

volume for mixing.

2. Using a paint impeller, stir the 5-gallon pail of Part A until mixture is

homogeneous.

NOTE: Any remaining part A mixed and not used may tend to slightly

sediment over time.

3. Pour the determined quantity of Part A into the small batch mixing

container.

4. Weigh this portion of Part A to be used. Use this weight as a reference

to determine the amount of Part B to add.

5. calculate a Part A to Part B weight ratio of 4:1. (the weight of Part B is

to be 1/4 the weight of Part A.) carefully measure this weight of Part B

into a clean container.

6. carefully add this measured Part B to the Part A in the small batch mixing

container.

7. Using a paint impeller, immediately stir the combined parts for no more

than 45 seconds. the mixture should become quite liquid and flow

easily.

8. Pour mixture into the mold or cavity. complete the fill within two

minutes after mixing Parts A and B.



WOLLITE 56 INSTALLATION

Page 4

the formulation of Wollite 56 creates a more dense material than either Wollite

30-37-45 or Wollite 30St-1. mixing of Part A and Part B is similar to Wollite

30-37-45 instructions, but the weigh ratio between Part A and Part B is

different. For Wollite 56 the weight ratio is 5.25:1 between Part A and Part B

respectively.

part A

Wollite 56 Part A sediments slightly and will require thorough mixing prior to

use.

part B

Part B contains water, PvA (polyvinyl alcohol resin) and phosphoric acid.




Mixing a Batch

1. there will be sedimentation in the Part A container. Using a paint

impeller, stir Part A in its container until completely homogenous.

2. If mixing a smaller amount than the whole bucket mixed in Step 1, pour

the determined quantity of Part A into a separate container.

3. Weigh this portion of Part A to be used. Use this weight as a reference

to determine the amount of Part B to add.

4. calculate a Part A to Part B weight ratio of 5.25:1. (the weight of Part

B is to be 1 / 5.25 the weight of Part A.) carefully measure this weight of

Part B into a clean container.

5. carefully add this measured Part B to the Part A to be prepared.

6. Using a paint impeller, immediately stir the combined parts for no less

than 15 seconds and no more than 45 seconds. the mixture should

become quite liquid and flow easily.

7. Pour mixture into the mold or cavity complete the fill within two minutes

after mixing Parts A and B.

8. If material has been poured into a mold, fiberglass reinforcement may

be quickly added as required. Setting time in the mold is three to five

minutes.

9. After three to five minutes a molded article’s green strength should be

high enough for handling. Unmold as necessary.


continue curing


1. Place unmolded article or other green Wollite 56 material in a curing

oven with rh (relative humidity) of 100%.

2. At rh 100% follow the temperature cycle of:

A. 7 hours at 70° c

B. 1 hour at 90° c

c. 4 hours at 110° c

Firing Wollite 56

1. continue drying with the oven rh no longer set, or move the articles

from the oven to a dryer.

2. Dry for eight (8) hours at 110° c.

NOTE: Adjust the duration of the drying cycle according to the article

quantity and size.



FIRING WOLLITE 30-37-45 AND WOLLITE 30ST-1

Page 6


prior to use and the introduction of molten metal to the area.

the firing process is identical for Wollite 30-37-45 and Wollite 30St-1.

cAUTION: The Wollite material must be properly dried before direct or

indirect contact with molten aluminum. Wollite not completely dried prior

to use may result in extensive bubbling and/or possible explosions. It is

very important to follow firing instructions to dry the material!



IMpORTANT: Ensure any weep holes in the cold face are open and clear

to allow release of trapped moisture.

curing in a Furnace

If possible, place the complete assembly in a furnace and increase the

temperature at a rate of 50° c per hour (or 90° F per hour) until the temperature of

100° c (212° F) is reached. Fire the material for one hour per 25mm (1-inch)

of Wollite thickness. After this initial firing, increase temperature at a rate

of 50° c per hour (or 90° F per hour) up to 300° c (572° F) and fire at this

temperature for four hours.


curing in an Open Area


If you cannot cure the Wollite material in a furnace, cover the part to be fired

with a suitable ceramic blanket to limit thermal loss. Allow ventilation for

airflow and release of moisture.

connect any installed thermocouple to a monitoring device. monitor this

temperature during the firing process. the temperature at the thermocouple will

stay under 100° c (212° F) until all moisture has been removed. Upon release

of all moisture the temperature will begin to raise above this temperature.

For a heat source, use a burner set at low flame without impinging directly on

the refractory. maintain an air temperature between the blanket and refractory

of between 500° c (932° F) to 700° c (1292° F). the refractory surface will

soon measure 500° c or more and this temperature gradually penetrates the

refractory, then begins to heat the Wollite, driving out any moisture through

the weep holes. this heat must be applied for at least 12 hours, or until the

thermocouple located between the Wollite and outside cold face (such as a

steel shell) raises above 105° c (221° F).

WAGSTAFF BILLET TABLE INSTALLATION

review the following checklist prior to beginning the project. Items in this

checklist review instructions detailed and illustrated within in this section.

LOOSLY FIT INSULATION BLANKET

WITH EXHAUST PORT

THERMOCOUPLE

STEEL SHELL

WEEP HOLE

CERAMIC PAPER

PICTORIAL TROUGH CROSS-SECTION

HEAT SOURCE

WEEP HOLE

WOLLITE

REFRACTORY



Page

Safety Items to Address

q Eye protection

q gloves

WAGSTAFF BILLET TABLE chEcKLIST

q knowledge of plant safety rules and requirements

q material Safety Data Sheets

q Disposal plan for hazardous goods (if required by plant)

Required Equipment

q Electric drill for mixing

q mixer blade for mixing

q clear plastic beaker (1-liter) for measuring Part B

q 1-gallon (or more) vegetable or other oil as parting agent for steel uprights

q contact adhesive to glue around weep holes (or 3/8-inch plastic / metal tubes)

q 2 empty 5-gallon buckets (one for mixing, one for washing blade)

q 2 (or more) 2-gallon buckets for pouring, preferably with small pouring spout

q 2 or 3 funnels (exit oD 16mm - 18mm diameter)

q Flat blade to trim excess Wollite from refractory

q Duct tape or masking tape to seal entry / exit gaps

q caulking gun to apply silicone and mastic

q Silicone caulk (tube) to fill cracks and gaps in steelwork and steel uprights

q mastic 85 to fill crossfeeder joints

q Plywood or thick cardboard to lay on the table uprights to walk on

q 1/8-inch (3mm) ceramic paper for bottom gaskets (cut wide to cover weep holes)

q 1/4-inch or 1/2-inch (6mm or 12mm) thick ceramic blanket (to form gaskets around

openings to prevent leaks & make bake-out tent)

q Paint brushes to smooth mastic in crossfeeder joints

q components for all crossfeeder refractory

q thimbles

q 1/8-inch (3mm) ceramic gaskets or 1/8-inch ceramic rope for crossfeeder joints

q Water for clean-up

q Burners or Wagstaff preheaters for bake-out of Wollite

Installation process Overview-- Table preparation

q table stripped clean of old refractory

q Steel surface clean and level

q Steel surface coated with Wise chem

q hold-down plate nuts clean and threads in good condition


q hold-down plates flat and coated with Wise chem

q hold-down plate bolts in good condition

q thimbles installed

q molds installed

Installation process Overview-- Refractory Installation

q Fill gaps in steelwork with silicone caulk


q 1/8-inch (3mm) ceramic paper installed on bottom of mold table

q 1/8-inch paper glued with contact cement around steam vent holes (or 3/8” tubes

installed)

q oil applied to inside of shell upright surfaces

q crossfeeders installed

q crossfeeder / thimble gap centered

q gaskets installed between crossfeeder sections

q crossfeeder joints filled with mastic 85

q gaps between entry / exit steel flange and refractory blocked with tape

Installation process Overview-- Wollite Installation

q Precaution to cool Wollite if ambient temperature is 75° F (24° c) or higher

q measuring beaker marked for proper amount of Part B

q correct ratios of Part A and Part B available

q Part A mixed

q Funnels in place

q Pouring buckets in place

q Plywood or cardboard in place on top of table uprights

q top plate hold-down nuts protected with tape or plastic inserts

q cavity between refractory and steel filled to top

q Wollite trimmed level with top of upright

q Excess Wollite cleaned from refractory

q Bake-out to remove water in Wollite

q 1/8-inch (3mm) ceramic paper on top of refractory for gasket

q Steel top plates installed

q mastic 85 between refractory and top plate

q Boron nitride Lubricoat ® Blue applied to refractory surface



THIMBLE INSTALLATION

Page 20

Recommended Supplies

In addition to the previously listed supplies for all applications, consider the additional

supplies when installing a Wagstaff table.

q clear plastic beaker (1-liter) for measuring Part B

q vegetable oil or other available oil, 1-gallon can

q contact adhesive to glue around weep holes

q 2 empty buckets of 5-gallon size one for mixing, one for washing paint impeller

q 3 buckets of 2-gallon size (preferably with small pouring spout)

q 2 or 3 funnels (exit oD to be ~12mm diameter)

q 1/8-inch (3 mm) ceramic paper for bottom gaskets (cut wide to cover weep holes)

q 1/4-inch or 1/2-inch (6mm or 12mm) thick ceramic blanket to form gaskets around

openings to prevent leaks

q Silicone caulk (tube) and caulk gun to fill cracks in steel uprights

q Plywood or thick cardboard to lay on the table to walk on

q moldable to fill the joints of the crossfeeders

Prior to mixing any material, review the following procedures, keeping in mind

additional supplies you may need that relate to your specific project.

Wagstaff Table preparation

1. the tabletop steelwork should

be clean and free of debris

and dust. repair as required.

coat any rust with Wisechem

212E.

2. Install the

thimbles.

CLEAN TABLE

3. Install the molds. this will “center” each thimble

allowing proper gaps between refractory pieces and

eliminate pinch points between the thimble and

refractory.


INSTALL 1/8” (3 MM) CERAMIC PAPER


4. Before installation of the 1/8-inch (3mm) ceramic paper in the bottom

of the steel trough, spray a small amount of glue around each weep

hole. this will keep the Wollite from running under the 1/8-inch (3mm)

ceramic paper into the mold and also stop the Wollite from plugging

the weep hole.

5. A highly recommended

practice is to use 1/8-inch

(3mm) diameter plastic or steel

tubing, cut 6-inches (152mm)

in length, inserted into each

steam vent hole. this will

ensure a path for any steam

to escape during start-up and

casting.

APPLY GLUE TO WEEP HOLE

6. check each steel upright radius for gaps in the

steelwork. Plug as necessary with silicone caulk or

similar sealer.

7. A b a r r i e r c o a t i n g i s

recommended on all exposed

steelwork to act as a parting

line so the Wollite will not

stick. this will facilitate

future maintenance and

replacement of refractory

pieces. A simple, cost

effective recommendation is

vegetable oil applied through

any sprayer, paint gun or APPLY VEGETABLE OIL WITH SPRAYER

applied by hand with a rag.

Also boron nitride can be sprayed or brushed onto the steel surfaces.

It is better to apply the parting agent before the crossfeeders are set in

place.



JOINT FILLED WITH MASTIC

Page 22

8. carefully drop in all refractory

pieces, ensuring equal spacing

around thimble holes, as well as

alignment of the outlet of each

crossfeeder. 1/8-inch (3mm)

ceramic gaskets can be used as

joint gaskets, as well as 1/4-inch

(6mm) diameter ceramic rope.

9. the paper or rope gasket should be left undersized

in the length of the joint to allow some Wollite to fill

in the joint cavity from the backside, thus “locking”

each crossfeeder together. Fill the space between

the refractory and steel at the entry and exit ends

of the table with ceramic blanket or mastic. this

will seal the table to keep Wollite from running out

the ends.

10. By hand, thread the top plate hold down bolts into place to keep Wollite

from filling the threads for these bolts. Fill all joints with mastic 85.

Mixing Wollite for Wagstaff Table

INSTALL REFRACTORY

NOTE: Review previous mixing instructions pertaining to the Wollite

formulation you are using. Refer to “contents” on page 3 to identify the

page number for specific instructions.

the recommended practice is to mix Wollite into one or two gallon batches

at a time. Use the 4:1 ratio of four weight portions of Part A to one weight

portion Part B. the space between the steelwork and refractory is approximately

1/2-inch (12mm) and requires careful pouring. In warm climates the reaction

of the Wollite is accelerated, so working time can sometimes be as quickly as

one to two minutes.


POUR WOLLITE THROUGH FUNNEL


When mixing the Wollite into smaller batches for a Wagstaff table, it helps

to have a separate mixing bucket and marked measuring containers for the

Part A and Part B.

1. Pour the pre-measured Part A

into the mixing bucket.

2. Begin the mixer and carefully

add Part B.

3. After mixing, quickly transfer the

Wollite from the mixing bucket

into pouring containers.

4. you may find it easier to

walk on the table by placing

plywood or heavy cardboard over the crossfeeders.

6. continue to move the funnel

as necessary filling the cavity

to approximately 1/2-inch

to 1/4-inch (12mm to 6mm)

below the top of the steelwork.

If Wollite spills or drops onto

the refractory, let it set up and

then gently scrape it off with a

piece of cardboard or plastic.

MIXING PART B INTO PART A

5. Begin at the center of the table and carefully pour

Wollite from the smaller pouring containers into the

funnel inserted between the refractory and steelwork.

the funnel must have a 1/2-inch (12mm) diameter

oD outlet to fit the opening.

Work from the center of the table toward the ends.

the Wollite will initially run the length of the gap,

but slows down as the reaction begins.

WOLLITE LEVEL



Page 24

curing Wollite in a Wagstaff Table


prior to use and the introduction of molten metal to the table.

cAUTION: The Wollite material must be properly dried before direct

or indirect contact with molten aluminum. Wollite not completely dried

prior to use may result in extensive bubbling and/or possible explosions.

It is very important to follow the firing instructions to dry the material!



IMpORTANT: Ensure any weep holes are open and clear to allow release

of trapped moisture.

recommended bake-out time is 12 hours using the Wagstaff preheat burners

or other similar device. During the initial bake-out, leave the top plate off

to allow residual moisture to escape. cover the table with a tent of ceramic

blanket, paper or glass cloth, leaving one end open as a “chimney effect”. If

gas torches are used, take care not to allow direct flame impingement on the

surface of the Insural 140.

After bake-out, install the top plates using Wagstaff recommended procedure.

normally, 1/4-inch or 1/2-inch (6mm or 12mm) ceramic blanket is put down

over the refractory acting as a gasket between the refractory and top plates.

Before the table goes back into service, remove a few molds in random locations

and check to ensure Wollite did not run into any steam vent holes. If there is

any doubt, remove all the molds and check all the steam vent holes. If some

are full of Wollite, simply use a 1/8-inch drill bit to clean the steel hole and then

drill into the Wollite the length of the bit. replace and tighten all molds.

Finally, if Wollite has been used as a backup insulating material for connecting

troughs from the furnace to the Wagstaff table, ensure these troughs have

been properly fired. Follow the firing procedure described earlier in these

procedures.

NOTE: See the section of this manual titled “Firing Wollite 30-37-45 and

Wollite 30ST-1.” Refer to “contents” on page 3 to identify the page number

for specific instructions.


WOLLITE DATAShEET (pAGE 1 OF 2)

WOLLITE

INSULATING CASTABLE

APPLICATIONS:

• Secondary insulation

• Foam blocks

• Sampling spoons

• Floats

• Spouts


ADVANTAGES:

• Non-wetting

• Does not require preheating prior to

usage

• Low K-factor

• Thermal shock resistant

• Ceramic fiber free

• Non-asbestos

AVAILABILITY:

•Back-up insulation in pail of 30kg

(66 lbs.)

• Pre-cast shapes

Wollite material is a solid, light weight mineral foam which is stable during its

preparation and during its subsequent curing and drying. This phosphate bonded

foam insulation can be made in a density ranging from 320 to 1009 kg/m3 (20 to

63 lbs/ft3 ) and its mainly composed of wollastonite which is a calcium silicate

(CaSiO ) material. Because of the foam properties, it is well suited for casting com-

3

plex shapes and parts.

Wollite Installation Guide — 07-06-524, Rev G Page 25

Pyrotek's worldwide locations provide fast reliable service.

Please contact us for additional information.


WOLLITE DATAShEET (pAGE 2 OF 2)

Page 26

WOLLITE TECHNICAL DATA:

THERMAL CONDUCTIVITY

°C °F W/(m . K) BTU-in/ft2 /hr °F

25 77 0.10 0.70

125 257 0.12 0.83

250 482 0.14 0.97

350 662 0.16 1.11

500 932 0.18 1.25

600 1112 0.19 1.32

MODULUS OF

RUPTURE

0.95 MPa @ 375°C

137.79 psi @ 707°F

COLD CRUSHING

STRENGTH

2.51 MPa @ 375°C

364.05 psi @ 707°F

DENSITY

480 kg/m3 30 lbs/ft3 PRODUCT

WOLLITE

30/30ST

25 77 0.12 0.83

125 257 0.13 0.90

250 482 0.14 0.97

350 662 0.15 1.04

500 932 0.16 1.11

600 1112 0.17 1.18

1.36 MPa @ 375°C

197.25 psi @ 707°F

4.14 MPa @ 375°C

600.47 psi @ 707°F

593 kg/m3 37 lbs/ft3 WOLLITE 37

25 77 0.12 0.84

125 257 0.13 0.92

250 482 0.14 0.98

350 662 0.15 1.06

500 932 0.16 1.12

600 1112 0.18 1.26

1.74 MPa @ 375°C

253 psi @ 707°F

5.86 MPa @ 375°C

851 psi @ 707°F


25 77 0.19 1.32

125 257 0.20 1.39

250 482 0.21 1.46

350 662 0.22 1.52

500 932 0.22 1.53

600 1112 0.23 1.59

4.47 MPa @ 375°C

648.33 psi @ 707°F

12.73 MPa @ 375°C

1846.36 psi @ 707°F


Advanced Metals Processing Technology

Note: The physical and chemical properties listed represent typical, average values obtained in accordance with accepted test methods and are subject to normal

manufacturing variations. They are supplied as a technical service and are subject to change without notice.

PRINTED IN THE USA BY PYROTEK, INC. • E. 9503 MONTGOMERY AVE. SPOKANE WA 99206

PHONE (509) 926-6212 • FAX (509) 927-2408 • PY-11-04-290

www.pyrotek.info • e-mail: info@pyrotek.info


WOLLITE 30ST-1 DATAShEET (pAGE 1 OF 2)

WOLLITE 30ST-1

INSULATING CASTABLE

Wollite 30ST-1 is a pourable, light weight mineral

foam insulation material. Because of the consistency

of the pourable mix, and due to the products foaming

properties, the material is suitable for insulating

refractory parts such as refractory trough liners,

ceramic foam filter box liner or any complex

refractory shape.

After mixing and pouring Wollite 30ST-1 in a liquid

state, it expands and solidifies within a matter of

minutes to a consistent density of approximately 30

lbs. per cu. ft. Because of its low viscosity, Wollite

30ST-1 fills very narrow cavities.

Wollite 30ST-1 is composed primarily of wollastonite

which is a calcium silicate (CaSiO 3 ) material. Its

very low thermal conductivity results in even

temperature with low thermal loss.

Its natural non-wetting properties totally protect the

steel shell against molten aluminum contact. In

addition, it takes a short amount of time to remove

and reinstall Wollite 30ST-1 which allows for shorter

refractory change-out times.

Pyrotek's worldwide locations provide fast reliable

service. Please contact us for additional information.


APPLICATIONS:

• Back-up insulation

- Ceramic foam filter boxes

- Troughs

- Covers

ADVANTAGES:

• Very low viscosity, filling narrow

and complex cavities

• Energy cost savings due to better

insulation efficiency

• Easier and safer removal and

reinstallation

• Quick set time and low firing

temperature

FEATURES:

• Ceramic fiber free

• Low thermal conductivity

• Good thermal shock resistance

• Does not require preheating prior

to usage

• Naturally non-wetting

AVAILABILITY:

• PART A: Five (5) gallon pail

containing 44 lbs. (20 kg)

• PART B: One (1) gallon

containing 12.3 lbs. (5.6 kg)



WOLLITE 30ST-1 DATAShEET (pAGE 2 OF 2)

Page 2

WOLLITE 30ST-1

TECHNICAL DATA:

• DENSITY

480 kg/m 3 (30 lbs/ft 3 )

• COLD CRUSHING STRENGTH

2.51 MPa @ 375°C (364.05 psi @ 707°F)

• MODULUS OF RUPTURE

0.95 MPa @ 375°C (137.79 psi @ 707°F)

• THERMAL CONDUCTIVITY

°C °F W/(m . K) BTU-in/ft 2 /hr °F

25 77 0.10 0.70

125 257 0.12 0.83

250 482 0.14 0.97

350 662 0.16 1.11

500 932 0.18 1.25

600 1112 0.19 1.32

Advanced Metals Processing Technology

REGIONAL OFFICES

EUROPE: AFRICA: CANADA:

United Kingdom +44 (0)1 908-561155 Republic of South Africa Pyrotek Canadian HQ

Germany +49 (0) 2182 8 10 20 (27) (0)357 974 039 (418) 545-8093

France +33 (0) 4 37 43 13 00

Scandinavia +46 (0) 534 62000 ASIA: JAPAN:

Czech Republic +420 (0) 506 418 305 Pyrotek Asia HQ Pyrotek Japan Ltd.

Switzerland +41 (0) 27 455 82 64 +(86) (0)755-26632324 +(81) (0)78 265-5590

Spain +(34) 976 222 545

AUSTRALIA: NEW ZEALAND:

Pyrotek Australia HQ Pyrotek New Zealand HQ

+61 (0)2 9631-1333 +64 (0)3 214-4789

CORPORATE OFFICE • 9503 E MONTGOMERY AVENUE • SPOKANE, WA 99206

PHONE (509) 926-6212 • FAX (509) 927-2408 • PY-06-06-767

www.pyrotek.info • e-mail: info@pyrotek.info


MSDS WOLLITE 30ST-1 pART A (pAGE 1 OF 8)

Wollite 30ST-1 Part A

Classification


NFPA PPE Personal Protection Equipment

SAFETY DATA SHEET

According to EC Directive 2001/58/EC

Revision Date 12-Jul-2006

Transport Symbol

1. IDENTIFICATION OF THE SUBSTANCE/PREPARATION AND THE

COMPANY/UNDERTAKING

Product name Wollite 30ST-1 Part A

Product code 02031-AST1

Product use Liquid refractory component to be mixed with Wollite Part B.

Manufacturer or supplier's details

Pyrotek Inc

9503 E. Montgomery Ave

Spokane Valley, WA 99206 USA

Ph: (509) 926-6212

Fax: (509) 927-2408

Emergency telephone number

Pyrotek (509) 926-6212, Chemtrec North America (800) 262-8200, Chemtrec Outside North America +1 703 527 3887

2. COMPOSITION/INFORMATION ON INGREDIENTS

Hazardous components

Chemical Names CAS-No EINECS-No. Weight % Classification

Calcium Sulfate 7778-18-9 1 - 5% NE

Wollastonite 13983-17-0 50 - 75% NE

All components

Chemical Names

Sodium Silicate

Calcium Sulfate

Wollastonite

Acrylic Emulsion

For the full text of the R phrases mentioned in this Section, see Section 16

________________________________________________________________

Page 1 / 8 According to EC Directive 2001/58/EC




02031-AST1 - Wollite 30ST-1 Part A

________________________________________________________________

Further information

Dust from dried material may cause skin, eye and respiratory track irritation.

Page 0

3. HAZARDS IDENTIFICATION

Emergency Overview

Product dust may be irritating to eyes, skin and respiratory system.

The preparation is classified as dangerous in accordance with Directive 1999/45/EC.

Physico-chemical properties No information available

Properties affecting health No information available

Environmental properties No information available

Main symptoms No information available

Aggravated Medical Conditions No information available

Interactions with other chemicals No information available

Potential environmental effects No information available

See Section 11 for additional Toxicological information.

4. FIRST AID MEASURES


Appearance Suspension. Liquid Odor Slight - Odorless

Classification -

Symbol(s) - R -phrase(s) No information available

General advice If symptoms persist, call a physician. Show this safety data sheet to the doctor in

attendance.

Eye contact Rinse immediately with plenty of water, also under the eyelids, for at least 15

minutes. If symptoms persist, call a physician.

Skin contact Wash off with soap and water. Remove and wash contaminated clothing before reuse.

If skin irritation persists, call a physician.

Ingestion Consult a physician if necessary.

Inhalation Move to fresh air. If symptoms persist, call a physician.

Notes to physician Treat symptomatically.

Protection of first-aiders Use personal protective equipment.

5. FIRE-FIGHTING MEASURES

Flammable properties The product is not flammable.

Suitable extinguishing media Use extinguishing measures that are appropriate to local circumstances and the

surrounding fire.

________________________________________________________________





________________________________________________________________

Unsuitable extinguishing media No information available

Specific hazards arising from the

chemical

Protective equipment and

precautions for firefighters

NFPA

HMIS Health -

No information available



Use personal protective equipment. As in any fire, wear self-contained breathing

apparatus pressure-demand, MSHA/NIOSH (approved or equivalent) and full

protective gear.

6. ACCIDENTAL RELEASE MEASURES

Personal precautions Use personal protective equipment. Avoid contact with the skin and the eyes. Keep

people away from and upwind of spill/leak.

Environmental precautions Prevent further leakage or spillage if safe to do so. Local authorities should be

advised if significant spillages cannot be contained.

Methods for cleaning up Dam up. Shovel into suitable container for disposal. After cleaning, flush away traces

with water.

7. HANDLING AND STORAGE

Handling Ensure adequate ventilation. Wear personal protective equipment. Remove and

wash contaminated clothing before re-use. Avoid contact with skin, eyes and

clothing. Handle in accordance with good industrial hygiene and safety practice.

Storage Keep containers tightly closed in a cool, well-ventilated place. Do not freeze. Keep in

properly labelled containers.

Exposure limits

Health - Flammability - Instability 0

8. EXPOSURE CONTROLS / PERSONAL PROTECTION

Chemical Names ACGIH TLV OSHA PEL EU United Kingdom France

Sodium Silicate Not Listed Not Listed Not Listed Not Listed Not Listed

Calcium Sulfate TWA: 10 mg/m3 TWA: 15 mg/m3 TWA: 5 mg/m3 Not Listed Not Listed Not Listed

Wollastonite Not Listed Not Listed Not Listed Not Listed Not Listed

Acrylic Emulsion Not Listed Not Listed Not Listed Not Listed Not Listed

Chemical Names Italy Spain Germany Portugal Netherlands


Calcium Sulfate Not Listed VLA-ED: 10 mg/m³ this MAK: 6 mg/m³ TWA: 10 mg/m

value is for the 6 mg/m³ respirable

particulated matter that

is free from asbestos

and contains less than

1% of crystalline silica

fraction

3 Not Listed



________________________________________________________________

Page 3 / 8

Flammability -

Instability 0






________________________________________________________________

Page 2


Chemical Names Switzerland Finland Austria Poland Norway


Calcium Sulfate MAK: 3 mg/m³ Not Listed MAK: 6 mg/m 3 NDS: 10.0 mg/m³ Not Listed

Wollastonite Not Listed Not Listed Not Listed Not Listed 10 mg/m 3 - total dust

5 mg/m 3 - respirable

nuisance dust


Chemical Names Czech Republic Ireland Denmark Belgium Greece


Calcium Sulfate Not Listed TWA: 10 mg/m³ Not Listed Not Listed TWA: 10 mg/m3 TWA: 5 mg/m3 Wollastonite Not Listed Not Listed 1 f/cm3 Not Listed Not Listed


Chemical Names Luxembourg Sweden Hungary Slovak Republic Australia


Calcium Sulfate Not Listed Not Listed TWA: 6 mg/m3 6 mg/m3 TWA: 6 mg/m3 TWA 6 mg/m3 TWA

10 mg/m3 TWA

Wollastonite Not Listed 0,5 f/cm3 Not Listed Not Listed Not Listed


Chemical Names New Zealand Japan China Argentina Brazil


Calcium Sulfate 10 mg/m3 TWA

respirable dust with no

asbestos and less than

1% free silica

Not Listed Not Listed TWA: 10 mg/m3 Not Listed

Wollastonite Not Listed Not Listed STEL: 10 mg/m3 TWA: 5 mg/m3 Not Listed Not Listed


Chemical Names Venezuela South Africa Russia India Iceland


Calcium Sulfate TWA: 10 mg/m3 10 mg/m3 TWA total

inhalable dust

5 mg/m3 TWA

respirable dust

Not Listed Not Listed Not Listed

Wollastonite Not Listed Not Listed Not Listed Not Listed TWA: 1 fiber/cm3

Ceiling: 2 fibers/cm3


Occupational exposure controls

PPE

Engineering controls Ensure adequate ventilation, especially in confined areas

Respiratory protection Use the indicated respiratory protection if the occupational exposure limit is

exceeded and/or in case of product release (dust).

Eye protection Tightly fitting safety goggles.

Skin protection Rubber gloves. PVC or other plastic material gloves. Lightweight protective clothing.

General industrial hygiene

practice

When using, do not eat, drink or smoke. Remove and wash contaminated clothing

before re-use. Regular cleaning of equipment, work area and clothing. Eyewash

station recommended. Wash hands before breaks and immediately after handling the

product.

Environmental exposure controls Do not allow material to contaminate ground water system.

________________________________________________________________

Page 4 / 8





________________________________________________________________


9. PHYSICAL AND CHEMICAL PROPERTIES

Physical state Liquid- Suspension

Color No information available

Odor Slight - Odorless

pH No data available

Flash point No data available

Autoignition temperature No data available

Boiling point/range No data available

Melting point/range No data available

Flammability Limits in Air

Upper No data available Lower No data available

Evaporation Rate No data available

Vapor pressure No data available

Vapor density No data available

Specific Gravity 1.2 - 1.6

Solubility No information available

Partition coefficient (noctanol/water)

No data available

Viscosity No information available

Stability Stable.

Conditions to avoid No information available

Materials to avoid Acids.

Hazardous decomposition

products

Possibility of hazardous

reactions

Acute toxicity

10. STABILITY AND REACTIVITY

No dangerous reaction known under conditions of normal use

Hazardous polymerization does not occur

11. TOXICOLOGICAL INFORMATION


Component Information

Chemical Names LD50 Oral LD50 Dermal LC50 Inhalation

Sodium Silicate - - -

Calcium Sulfate - - -

Wollastonite - - -

Acrylic Emulsion - - -

Potential health effects

Principle Routes of Exposure Eye contact. Skin contact. Inhalation. Ingestion.

Acute effects

Eyes May cause slight irritation.

Skin Mild skin irritation.

Ingestion Ingestion may cause gastrointestinal irritation, nausea, vomiting and diarrhea.

Inhalation May cause irritation of respiratory tract.

________________________________________________________________






________________________________________________________________

Chronic toxicity

Chronic toxicity Avoid repeated exposure.

Page 4


Carcinogenicity The table below indicates whether each agency has listed any ingredient as a

carcinogen

Chemical Names ACGIH NTP OSHA IARC EU


Calcium Sulfate Not Listed Not Listed Not Listed Not Listed Not Listed

Wollastonite Not Listed Not Listed Not Listed Group 3 Not Listed


Chemical Names United Kingdom France Germany Spain Italy





Chemical Names Portugal Netherlands Switzerland Austria Norway





Chemical Names Ireland Denmark Belgium Sweden Czech Republic





Chemical Names Hungary Luxembourg Australia New Zealand Japan





Chemical Names Argentina Venezuela South Africa Russia Iceland





Target Organ effects No information available

12. ECOLOGICAL INFORMATION

Ecotoxicity

Ecotoxicity effects No information available.

Persistence and degradability No information available

Bioaccumulation No information available

Mobility in Environmental Media No information available

________________________________________________________________

Page 6 / 8





________________________________________________________________


13. DISPOSAL CONSIDERATIONS

Waste disposal methods Dispose of in accordance with local regulations.


Contaminated packaging Empty containers should be taken for local recycling, recovery or waste disposal.

Other Information According to the European Waste Catalogue, Waste Codes are not product specific,

but application specific. Waste codes should be assigned by the user based on the

application for which the product was used.

Labelling

R -phrase(s)


S -phrase(s)


14. TRANSPORT INFORMATION

No Information available

15. REGULATORY INFORMATION

International Inventories

Chemical Names EINECS ELINCS TSCA DSL NDSL PICCS ENCS CHINA AICS KECL

Sodium Silicate X - X X - X X X X X

Calcium Sulfate X - X X - X X X X X

Wollastonite X - - - - X - X X X

Acrylic Emulsion - - - - - - - - - -

Germany

WGK Classification

Chemical Names Germany Water Classifications

Sodium Silicate hazard class 1, low hazard to waters

Calcium Sulfate hazard class 1, low hazard to waters (footnote 14)

Wollastonite This substance is not classified as dangerous according to German legislation

Acrylic Emulsion This substance is not classified as dangerous according to German legislation

Switzerland

Switzerland Poison Classification


USA

________________________________________________________________

Page 7 / 8






________________________________________________________________

Page 6


Federal Regulations

SARA 313

Section 313 of Title III of the Superfund Amendments and Reauthorization Act of 1986 (SARA). This product contains a

chemical or chemicals which are subject to the reporting requirements of the Act and and Title 40n of the Code of Federal

Regulations, Part 372:

SARA 311/312 Hazardous Categorization

Acute Health Hazard

-

Clean Air Act, Section 112 Hazardous Air Pollutants (HAPs) (see 40 CFR 61)

This product contains the following HAPs:

State Regulations

California Proposition 65

This product contains the following Proposition 65 chemicals:

Chemical Names Category Type

Sodium Silicate (CAS #: 1344-09-8) - -

Calcium Sulfate (CAS #: 7778-18-9) - -

Wollastonite (CAS #: 13983-17-0) - -

Acrylic Emulsion (CAS #: -- ) - -

State Right-to-Know

Chronic Health Hazard

-

Chemical Names Massachusetts New Jersey Pennsylvania Illinois Rhode Island

Sodium Silicate - - - - -

Calcium Sulfate X - X - -

Wollastonite - - - - -

Acrylic Emulsion - - - - -

Canada

WHMIS hazard class Non-controlled

Australia

Hazchem Code No information available

Text of R phrases mentioned in Section 2


16. OTHER INFORMATION

Prepared By Pyrotek Inc


Spokane, WA 99206 USA

Ph:(509) 926-6212

Fax: (509) 927-2408


Fire Hazard

-

Revision Note No information available

The information contained in this document is provided without warranty, express or implied, except that it is true to the best

of Pyrotek's knowledge. The information on this sheet relates only to the specific material designated herein and Pyrotek Inc.

assumes no legal liability for the use or reliance upon the data by any other party.

________________________________________________________________

Release of Pressure

-

Reactive Hazard

-



MSDS WOLLITE pART A (pAGE 1 OF 8)

Wollite Part A










Product name Wollite Part A

Product code 02031-A

Product use Liquid refractory component to be mixed with Wollite Part B.





Ph: (509) 926-6212

Fax: (509) 927-2408










Wollastonite




Dust from dried material may cause skin, eye and respiratory track irritation.

________________________________________________________________





02031-A - Wollite Part A

________________________________________________________________

Page





Appearance Suspension. Liquid












General advice Show this safety data sheet to the doctor in attendance. If symptoms persist, call a

physician.





Ingestion Consult a physician if necessary.










chemical


________________________________________________________________

Odor Odorless - Slight

Symbol(s) - R -phrase(s) No information available





________________________________________________________________



NFPA

HMIS



As in any fire, wear self-contained breathing apparatus pressure-demand,

MSHA/NIOSH (approved or equivalent) and full protective gear. Use personal

protective equipment.


Personal precautions Use personal protective equipment. Avoid contact with the skin and the eyes. Keep

people away from and upwind of spill/leak.

Environmental precautions Prevent further leakage or spillage if safe to do so. Local authorities should be

advised if significant spillages cannot be contained.

Methods for cleaning up Dam up. Shovel into suitable container for disposal. After cleaning, flush away traces

with water.


Handling Handle in accordance with good industrial hygiene and safety practice. Wear

personal protective equipment. Remove and wash contaminated clothing before reuse.

Ensure adequate ventilation.

Storage Do not freeze. Keep containers tightly closed in a cool, well-ventilated place. Keep in

properly labelled containers.







Calcium Sulfate TWA: 10 mg/m3 TWA: 15 mg/m3 TWA: 5 mg/m3 Not Listed Not Listed Not Listed



Calcium Sulfate Not Listed VLA-ED: 10 mg/m³ this MAK: 6 mg/m³ TWA: 10 mg/m

value is for the 6 mg/m³ respirable





fraction

3 Not Listed


Wollastonite Not Listed Not Listed Not Listed Not Listed 10 mg/m 3 - total dust

5 mg/m 3 - respirable

nuisance dust

Calcium Sulfate MAK: 3 mg/m³ Not Listed MAK: 6 mg/m 3 NDS: 10.0 mg/m³ Not Listed


Wollastonite Not Listed Not Listed 1 f/cm3 Not Listed Not Listed

Calcium Sulfate Not Listed TWA: 10 mg/m³ Not Listed Not Listed TWA: 10 mg/m 3

________________________________________________________________

Page 3 / 8

TWA: 5 mg/m 3






________________________________________________________________

Page 40




Calcium Sulfate Not Listed Not Listed TWA: 6 mg/m3 6 mg/m3 TWA: 6 mg/m3 TWA 6 mg/m3 TWA

10 mg/m3 TWA


Wollastonite Not Listed Not Listed STEL: 10 mg/m3 TWA: 5 mg/m3 Not Listed Not Listed

Calcium Sulfate 10 mg/m3 TWA




Not Listed Not Listed TWA: 10 mg/m3 Not Listed


Wollastonite Not Listed Not Listed Not Listed Not Listed TWA: 1 fiber/cm3


Calcium Sulfate TWA: 10 mg/m3 10 mg/m3 TWA total


5 mg/m3 TWA




PPE


Respiratory protection Use the indicated respiratory protection if the occupational exposure limit is

exceeded and/or in case of product release (dust).


Skin protection Rubber or plastic gloves. PVC or other plastic material gloves. Lightweight protective

clothing.


practice

Environmental exposure controls No information available

Handle in accordance with good industrial hygiene and safety practice. Eyewash

station recommended. When using, do not eat, drink or smoke. Remove and wash

contaminated clothing before re-use. Regular cleaning of equipment, work area and

clothing.


Physical state Liquid- Suspension

Color No information available

Odor Odorless - Slight

pH No data available





Flammability Limits in Air Upper No data available








________________________________________________________________

Page 4 / 8

Lower No data available





________________________________________________________________



Conditions to avoid No information available

Materials to avoid Acids.


products


reactions




No dangerous reaction known under conditions of normal use










Acute effects

Eyes May cause slight irritation.

Skin May cause eye/skin irritation.






carcinogen










________________________________________________________________

Page 5 / 8






________________________________________________________________

Page 42













Ecotoxicity











Labelling




________________________________________________________________

Page 6 / 8





________________________________________________________________

R -phrase(s)


S -phrase(s)








Germany





Switzerland



USA


SARA 313






-











-




Canada

WHMIS hazard class Non-controlled

Fire Hazard

-

Australia


________________________________________________________________


-


-






________________________________________________________________


R38 - Irritating to skin

R49 - May cause cancer by inhalation

Page 44





Ph:(509) 926-6212

Fax: (509) 927-2408







________________________________________________________________

Page 8 / 8



MSDS WOLLITE pART B (pAGE 1 OF 11)

Wollite Part B










Product name Wollite Part B

Product code 02033-B





Ph: (509) 926-6212

Fax: (509) 927-2408


No information available Pyrotek (509) 926-6212, Chemtrec North America (800) 262-8200, Chemtrec Outside North

America +1 703 527 3887




Phosphoric acid 7664-38-2 231-633-2 50 - 75% C;R34

Sulfuric acid 7664-93-9 231-639-5 5 - 10% C;R35

PVA Resin 9002-89-5 1 - 5% NE



________________________________________________________________





02033-B - Wollite Part B

________________________________________________________________


Not applicable

Page 46


Phosphoric acid

Sulfuric acid

Water

PVA Resin



Corrosive. Causes severe burns.



Appearance -Liquid Odor Acidic

Classification C, R34, 35

Symbol(s) C - Corrosive R -phrase(s) Causes severe burns

Physico-chemical properties Heating can release vapours which can be ignited.

Properties affecting health Irritating to eyes, respiratory system and skin.








General advice Show this safety data sheet to the doctor in attendance.

Eye contact In case of eye contact, remove contact lens and rinse immediately with plenty of

water, also under the eyelids, for at least 15 minutes. Keep eye wide open while

rinsing. Call a physician immediately.

Skin contact Wash off immediately with soap and plenty of water removing all contaminated

clothes and shoes. Call a physician immediately.

Ingestion Rinse mouth. Do not induce vomiting. Never give anything by mouth to an

unconscious person. Call a physician immediately.

Inhalation Move to fresh air. Call a physician immediately.

Notes to physician No information available

Protection of first-aiders Use personal protective equipment. Avoid contact with skin, eyes and clothing.

________________________________________________________________





________________________________________________________________







Unsuitable extinguishing media Never use water.


chemical



NFPA

HMIS

Heating or fire can release toxic gas.


MSHA/NIOSH (approved or equivalent) and full protective gear


Personal precautions Use personal protective equipment. Avoid contact with skin, eyes and clothing.

Ensure adequate ventilation.

Environmental precautions Prevent further leakage or spillage if safe to do so. Do not flush into surface water or

sanitary sewer system. Should not be released into the environment.

Methods for cleaning up Dam up. Soak up with inert absorbent material (e.g. sand, silica gel, acid binder,

universal binder, sawdust). Shovel into suitable container for disposal. Clean

contaminated surface thoroughly.


Handling Wear personal protective equipment. Avoid contact with skin, eyes and clothing.

Ensure adequate ventilation. Remove and wash contaminated clothing before reuse.

In case of insufficient ventilation, wear suitable respiratory equipment. When

diluting, always add the product to water. Never add water to the product.

Storage Keep containers tightly closed in a dry, cool and well-ventilated place. Keep in

properly labelled containers. Store in original container. Do not freeze. Do not re-use

empty containers.


Health 3 Flammability - Instability -

Health 3 Flammability - Instability -



Phosphoric acid STEL: 3 mg/m3 TWA: 1 mg/m3 TWA: 1 mg/m3 1 mg/m3 TWA

2 mg/m3 TWA: 1 mg/m³ VME: 1 mg/m

STEL STEL: 2 mg/m³

3

VLE: 3 mg/m3 Sulfuric acid TWA: 0.2 mg/m3 TWA: 1 mg/m3 Not Listed Not Listed VME: 1 mg/m3 VLE: 3 mg/m3 Water Not Listed Not Listed Not Listed Not Listed Not Listed

PVA Resin Not Listed Not Listed Not Listed Not Listed Not Listed

________________________________________________________________






________________________________________________________________

Page 4



Phosphoric acid TWA: 1 mg/m³

STEL: 2 mg/m³

VLA-ED: 1 mg/m³

VLA-EC: 2 mg/m³

Sulfuric acid Not Listed VLA-ED: 1 mg/m³

VLA-EC: 3 mg/m³

1 mg/m³ STEL: 3 mg/m 3

TWA: 1 mg/m 3

MAK: 0.1 mg/m³

Peak: 0.1 mg/m³

0.5 mg/m³ inhalable

fraction, battery

manufacture, metal

working in a closedprocess

system

0.1 mg/m³ inhalable

fraction, all others

STEL: 3 mg/m 3

TWA: 1 mg/m 3

STEL: 0.5 ppm

STEL: 2 mg/m3 MAC: 0.2 ppm

MAC: 1 mg/m3 MAC: 1 mg/m3 Water Not Listed Not Listed Not Listed Not Listed Not Listed



Phosphoric acid MAK: 1 mg/m³ TWA: 1 mg/m³ MAK: 1 mg/m


3 NDS: 1 mg/m³ TWA: 1 mg/m

NDSCh: 2 mg/m³

3

Sulfuric acid MAK: 0.1 mg/m³ TWA: 0.2 mg/m³ STEL: 2 mg/m

STEL: 0.1 mg/m³ STEL: 1 mg/m³

3

MAK: 1 mg/m3 NDS: 1 mg/m³ TWA: 0.1 mg/m

NDSCh: 3 mg/m³

3

TWA: 0.2 mg/m3 Water Not Listed Not Listed Not Listed Not Listed Not Listed



Phosphoric acid Not Listed TWA: 1 mg/m³ 1 mg/m


3 TWA TWA: 1 mg/m³ VLE TWA: 1 mg/m

STEL: 2 mg/m³ VLE

3

STEL: 3 mg/m3 Sulfuric acid Not Listed TWA: 1 mg/m³ 1 mg/m3 TWA TWA: 1 mg/m³ VLE :3

mg/m³ VLE

TWA: 1 mg/m3 Water Not Listed Not Listed Not Listed Not Listed Not Listed



Phosphoric acid TWA: 1 mg/m3 STEL: 2 mg/m3 STV: 3 mg/m3 LLV: 1 mg/m3 TWA: 1 mg/m3 STEL: 2 mg/m3 1 mg/m3 TWA

2 mg/m3 3 mg/m

Ceiling

3 STEL

1 mg/m3 TWA

Sulfuric acid Not Listed STV: 3 mg/m3 LLV: 1 mg/m3 TWA: 1 mg/m3 STEL: 1 mg/m3 0.1 mg/m3 TWA 3 mg/m3 STEL

1 mg/m3 TWA

Water Not Listed Not Listed Not Listed Not Listed Not Listed



Phosphoric acid 1 mg/m3 TWA TWA: 1 mg/m3 STEL: 3 mg/m3 TWA: 1 mg/m3 TWA: 1 mg/m3 STEL: 3 mg/m3 Not Listed

Sulfuric acid 1 mg/m3 TWA Ceiling: 1 mg/m3 STEL: 2 mg/m3 TWA: 1 mg/m3 TWA: 1 mg/m3 STEL: 3 mg/m3 TWA: 12 mg/m3 TWA: 8 ppm




Phosphoric acid TWA: 1 mg/m 3

STEL: 3 mg/m 3

3 mg/m 3 STEL

1 mg/m 3 TWA

Not Listed Not Listed TWA: 1 mg/m3 STEL: 2 mg/m3 Ceiling: 2 mg/m3 Sulfuric acid TWA: 1 mg/m3 STEL: 3 mg/m3 1 mg/m3 TWA Not Listed 1 mg/m3 TWA TWA: 1 mg/m3 Ceiling: 2 mg/m3 Water Not Listed Not Listed Not Listed Not Listed Not Listed



PPE


________________________________________________________________

Page 4 / 11





________________________________________________________________



Respiratory protection In case of insufficient ventilation wear suitable respiratory equipment. Respirator with

a gas filter. NIOSH/MSHA approved respirator.


Skin protection PVC or other plastic material gloves. Rubber gloves. Long sleeved clothing.

Lightweight protective clothing.


practice

Environmental exposure controls No information available

When using, do not eat, drink or smoke. Eyewash station recommended. Remove

and wash contaminated clothing before re-use. Regular cleaning of equipment, work

area and clothing.


Physical state Liquid

Color Colorless, Cloudy

Odor Acidic

pH < 1.0









Specific Gravity 1.3 - 1.5 g/cm3

Solubility Soluble





Conditions to avoid Heating in air.


Materials to avoid Alkali metals. Metals. Do not mix with Iron, Zinc, Aluminum Solutions.


products


reactions


Hydrogen, by reaction with metals. Sulfur oxide. Phosphorous Oxide. Carbon oxides.





Phosphoric acid 1530 mg/kg Rat 2740 mg/kg Rabbit 850 mg/m 3 Rat 1 h

________________________________________________________________

Page 5 / 11







________________________________________________________________

Page 50


Sulfuric acid 2140 mg/kg Rat - 320 mg/m3 Mouse 2 h

510 mg/m3 Rat 2 h

Water - - -

PVA Resin 14700 mg/kg Mouse

20 g/kg Rat

- -



Acute effects

Eyes Corrosive to the eyes and may cause severe damage including blindness.

Skin Causes burns. Repeated or prolonged skin contact may cause allergic reactions with

susceptible persons.


Causes burns. May be fatal if swallowed.

Inhalation Irritating to respiratory system.




carcinogen


Phosphoric acid Not Listed Not Listed Not Listed Not Listed Not Listed

Sulfuric acid A2 Not Listed Present Group 1 Not Listed





Sulfuric acid Not Listed Not Listed Category 4 (no

significant contribution

to human cancer)

Not Listed Not Listed





Sulfuric acid A2 - Suspected Human

Carcinogen (contained

in strong inorganic acid

mists)

Present Not Listed Not Listed Carcinogen





Sulfuric acid Not Listed Not Listed Not Listed Not Listed Not Listed





Sulfuric acid Not Listed Not Listed Not Listed A2 - suspected human

carcinogen

Not Listed



________________________________________________________________

Page 6 / 11





________________________________________________________________





Sulfuric acid A2

A2


A2 - Suspected human A2 - Alleged

carcinogen Carcinogen in Humans

(the classification refers

to the sulfuric acid

content in strong

inorganic acid mixtures)



Target Organ effects Eyes. Respiratory System. Skin. Teeth.


Ecotoxicity

Ecotoxicity effects Contains no substances known to be hazardous to the environment or not

degradable in waste water treatment plants





Waste disposal methods Should not be released into the environment. It must undergo special treatment, e.g.

at suitable disposal site, to comply with local regulations.

Contaminated packaging Empty remaining contents. Empty containers should be taken for local recycling,

recovery or waste disposal. Clean container with water.






IMDG/IMO IMDG/IMO

Proper shipping name Corrosive liquid, acidic, inorganic, n.o.s

IMO Class 8

Subsidiary Class

UN-No UN3264

Packing group II

Ems No. F-A, S-B

Description Corrosive liquid, acidic, inorganic, n.o.s.(Phosphoric acid,Sulfuric acid),UN3264,PG

II

RID RID

________________________________________________________________

Page 7 / 11






________________________________________________________________

Page 52



Hazard Class 8

UN-No UN3264


Classification Code C1

Description UN3264 Corrosive liquid, acidic, inorganic, n.o.s.(Phosphoric acid,Sulfuric

acid),8,II,RID

ADR/RID-Labels 8

ADR ADR



UN-No UN3264


Classification Code C1

Description UN3264 Corrosive liquid, acidic, inorganic, n.o.s.(Phosphoric acid,Sulfuric

acid),8,II,ADR

ADR/RID-Labels 8

ADN ADN

Proper shipping name Liquide inorganique corrosif, acide, N.S.A.



Classification Code

Special Provisions 274

Description UN3264 Liquide inorganique corrosif, acide, N.S.A.(Phosphoric acid,Sulfuric

acid),8,II

Hazard Labels 8

Limited Quantity 500 mL

Transport Category

Ventilation

ICAO ICAO

UN-No UN3264





Description Corrosive liquid, acidic, inorganic, n.o.s.*(Phosphoric acid,Sulfuric acid),UN3264,PG

II

IATA IATA

UN-No UN3264





ERG Code 8L

Description Corrosive liquid, acidic, inorganic, n.o.s.*(Phosphoric acid,Sulfuric acid),UN3264,PG

II

DOT DOT




UN-No UN3264


Reportable Quantity (RQ) Phosphoric acid, RQ kg= 2837.5 Sulfuric acid, RQ kg= 4540

________________________________________________________________

Page 8 / 11





________________________________________________________________



Description Corrosive liquid, acidic, inorganic, n.o.s.(Phosphoric acid,Sulfuric

acid),8,UN3264,PG II,RQ

TDG TDG




UN-No UN3264


Description CORROSIVE LIQUID, ACIDIC, INORGANIC, N.O.S.(Phosphoric acid,Sulfuric acid),

Class 8,UN3264,PG II

MEX MEX




UN-No UN3264


Description UN3264 Corrosive liquid, acidic, inorganic, n.o.s.(Phosphoric acid,Sulfuric acid),8,II

Labelling

Contains

Phosphoric acid

Symbol(s)

C - Corrosive

R -phrase(s)

R35 - Causes severe burns


S -phrase(s)

S45 - In case of accident or if you feel unwell, seek medical advice immediately (show the label where possible)

S26 - In case of contact with eyes, rinse immediately with plenty of water and seek medical advice

S 9 - Keep container in a well-ventilated place

S 7 - Keep container tightly closed

S36/37/39 - Wear suitable protective clothing, gloves and eye/face protection

S24/25 - Avoid contact with skin and eyes



Phosphoric acid X - X X - X X X X X

Sulfuric acid X - X X - X X X X X

Water X - X X - X - X X X

PVA Resin - - X X - X X X X X

________________________________________________________________

Page 9 / 11





________________________________________________________________

Page 54


Germany



Phosphoric acid hazard class 1, low hazard to waters

Sulfuric acid hazard class 1, low hazard to waters (footnote 8)

Water This substance is not classified as dangerous according to German legislation

PVA Resin hazard class 1, low hazard to waters

Switzerland



USA


SARA 313





Chemical Names SARA 313 - Threshold Values


-







Phosphoric acid (CAS #: 7664-38-2) - -

Sulfuric acid (CAS #: 7664-93-9) - -

Water (CAS #: 7732-18-5) - -

PVA Resin (CAS #: 9002-89-5) - -



-

Fire Hazard

-


Phosphoric acid X X X - X

Sulfuric acid X X X X X

Water - - - - -

PVA Resin - - - - -

Canada

WHMIS hazard class D1A Very toxic materials , E Corrosive material

Australia



________________________________________________________________

Page 10 / 11


-


-




________________________________________________________________


R34 - Causes burns

R35 - Causes severe burns




Ph:(509) 926-6212

Fax: (509) 927-2408








________________________________________________________________

Page 11 / 11




MSDS WOLLITE (pAGE 1 OF 8)

Page 56

Wollite (cast)





Revision Date 2006-07-25




Product name Wollite (cast)

Product code 02032 - WC

Synonyms Wollite 30; 37; 45; 56; 30ST-1

Product use Castable refractory





Ph: (509) 926-6212

Fax: (509) 927-2408










Wollastonite


Calcium Phosphate


________________________________________________________________




02032 - WC - Wollite (cast)

________________________________________________________________




This product is considered an "article" according to OSHA Hazard Communication Standard 29 CFR 1910.1200 and, as

such, is exempt from the MSDS provisions of 29 CFR 1910.1200 (G) (6). As a service to the customer, this MSDS

provides safety and handling information. This product is considered non-hazardous when used according to accepted

practices for the intended use.

Some components contained in this product can be emitted as airborne contaminants (dust) under certain processing

conditions such as cutting, sawing, grinding, milling, machining, etc.

Use the indicated respiratory protection if the occupational exposure limit is exceeded and/or in case of product release

(dust).

Fiber may be added to refractory to increase strength.




The product is an article and is not subject of Directive 67/548/EEC or Directive 1999/45/EC.

Appearance Refractory, Article. Solid Odor Odorless


Symbol(s) -










General advice If symptoms persist, call a physician. Show this safety data sheet to the doctor in

attendance.





Ingestion Not a normal route of exposure. Consult a physician if necessary.



________________________________________________________________

R -phrase(s) No information available






________________________________________________________________


Flammable properties No information available

Page 5







chemical




Australian Hazchem Code No information available

NFPA


MSHA/NIOSH (approved or equivalent) and full protective gear.


Personal precautions Use personal protective equipment.

Environmental precautions No information available

Methods for cleaning up Vacuum or wet sweep. Clean contaminated surface thoroughly.


Handling Wear personal protective equipment. Handle in accordance with good industrial

hygiene and safety practice.

Storage Keep containers tightly closed in a cool, well-ventilated place. Do not freeze.


Health 0 Flammability -

HMIS Health 0 Flammability - Instability 0


Chemical Names ACGIH TLV OSHA PEL Argentina Australia Austria


Calcium Sulfate TWA: 10 mg/m3 TWA: 15 mg/m3 TWA: 5 mg/m3 TWA: 10 mg/m3 10 mg/m3 TWA MAK: 6 mg/m3 Calcium Phosphate Not Listed Not Listed Not Listed Not Listed Not Listed

Chemical Names Belgium Brazil China Czech Republic Denmark

Wollastonite Not Listed Not Listed STEL: 10 mg/m3 TWA: 5 mg/m3 Not Listed 1 f/cm3


Calcium Phosphate Not Listed Not Listed Not Listed Not Listed Not Listed

________________________________________________________________

Page 3 / 8

Instability 0





________________________________________________________________



Chemical Names EU Finland France Germany Greece


Calcium Sulfate Not Listed Not Listed Not Listed MAK: 6 mg/m³ TWA: 10 mg/m

6 mg/m³ respirable

fraction

3

TWA: 5 mg/m3 Calcium Phosphate Not Listed Not Listed Not Listed Not Listed Not Listed

Chemical Names Hungary Iceland India Ireland Italy

Wollastonite Not Listed TWA: 1 fiber/cm3



Calcium Sulfate TWA: 6 mg/m3 Not Listed Not Listed TWA: 10 mg/m³ Not Listed


Chemical Names Japan Luxembourg Netherlands New Zealand Norway

Wollastonite Not Listed Not Listed Not Listed Not Listed 10 mg/m3 - total dust

5 mg/m3 - respirable

nuisance dust

Calcium Sulfate Not Listed Not Listed Not Listed 10 mg/m3 TWA




Not Listed


Chemical Names Poland Portugal Russia Slovak Republic South Africa


Calcium Sulfate NDS: 10.0 mg/m³ TWA: 10 mg/m3 Not Listed 6 mg/m3 TWA: 6 mg/m3 TWA 6 mg/m3 10 mg/m

TWA

3 TWA total


5 mg/m3 TWA



Chemical Names Spain Sweden Switzerland United Kingdom Venezuela


Calcium Sulfate VLA-ED: 10 mg/m³ this

value is for the





Not Listed MAK: 3 mg/m³ Not Listed TWA: 10 mg/m3 Calcium Phosphate Not Listed Not Listed Not Listed Not Listed Not Listed


PPE


Respiratory protection Respirator must be worn if exposed to dust. N, R or P95 Series Respirator.


Skin protection Long sleeved clothing. Rubber gloves.


practice

When using, do not eat, drink or smoke. Regular cleaning of equipment, work area

and clothing. Wash hands before breaks and at the end of workday. Eyewash station

recommended. Handle in accordance with good industrial hygiene and safety

practice.

Environmental exposure controls Do not allow material to contaminate ground water system.


________________________________________________________________

Page 4 / 8






________________________________________________________________

Physical state Solid- Refractory

- Article

Color White

Odor Odorless

pH 7















Conditions to avoid Avoid dust formation.

Page 60


Materials to avoid No materials to be especially mentioned


products


reactions



Initial heating may release irritating gases and fumes. Ventilate room until fumes

have disappeared.

Hazardous polymerization does not occur






Calcium Phosphate - - -


Principle Routes of Exposure Inhalation. Ingestion. Eye contact.

Acute effects

Eyes Contact with eyes may cause irritation.

Skin May cause eye/skin irritation.

Ingestion Ingestion may cause irritation to mucous membranes.





________________________________________________________________

Page 5 / 8





________________________________________________________________




carcinogen

Chemical Names ACGIH NTP OSHA IARC Argentina




Chemical Names Australia Austria Belgium Czech Republic Denmark




Chemical Names EU France Germany Hungary Iceland




Chemical Names Ireland Italy Japan Luxembourg Netherlands




Chemical Names New Zealand Norway Portugal Russia South Africa




Chemical Names Spain Sweden Switzerland United Kingdom Venezuela






Ecotoxicity








________________________________________________________________

Page 6 / 8






________________________________________________________________

Page 62





Labelling

R -phrase(s)


S -phrase(s)









Calcium Phosphate - - - - - - - - - -

Germany





Calcium Phosphate This substance is not classified as dangerous according to German legislation

Switzerland



USA


SARA 313






-


-

Fire Hazard

-

________________________________________________________________

Page 7 / 8


-


-





________________________________________________________________










Calcium Phosphate (CAS #: 12167-74-7) - -






Calcium Phosphate - - - - -

Canada

WHMIS hazard class No information available

Australia

Australian Hazchem Code No information available

Poison Schedule Number /*Australia only*/No poison schedule number allocated


R38 - Irritating to skin

R49 - May cause cancer by inhalation





Ph:(509) 926-6212

Fax: (509) 927-2408






________________________________________________________________

Page 8 / 8

Wollite Installation Guide - Pyrotek

Transform your PDFs into Flipbooks and boost your revenue!

Wollite Installation Guide - Pyrotek

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
