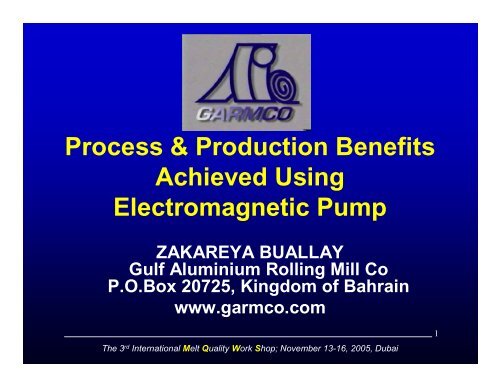

Process & Production Benefits Achieved Using ...

Process & Production Benefits

Achieved Using

Electromagnetic Pump

ZAKAREYA BUALLAY

Gulf Aluminium Rolling Mill Co

P.O.Box 20725, Kingdom of Bahrain

www.garmco.com

The 3 rd International Melt Quality Work Shop; November 13-16, 2005, Dubai

1

GARMCO – A brief Introduction

• GARMCO is an Aluminium Rolling

Mill company located in Kingdom of

Bahrain, which produces in excess

of 151000 tonnes / year of rolled

product

• Garmco’s share are owned by six

Gulf countries as follows:


2

38% 30% 5% 2% 2% 23%


3

SCRAPPED ALUMINIUM

FROM PRODUCTION LINES

#1

MELTING FURNACES: (2)

1. ROUND SHELL TYPE.

2. TOP CHARGING IS ADOPTED

TO MINIMIZE CHARGING

TIME.

3. REFINING SYSTEM WITH

FLUXES AND NITROGEN GAS

BUBBLING IS ADOPTED IN

PLACE OF CHLORIC GAS

BUBBLING TO IMPROVE

ENVIRONMENTAL

CONDITIONS.

MOLTEN

ALUMINIUM

SOWS

CASTING

#2

HOLDING FURNACE:

1. RECTANGULAR SHELL AND

TILTING TYPE.

2. REFINING PROCESS IS

CARRIED OUT BEFORE

POURING TO CASTING

STATION.

MELTING FURNACE:

FEATURES

ELECTRO-MAGNETIC PUMP

(EMP) FOR EFFICIENT

MELTING OF LIGHT SCRAP.

MOLTEN

ALUMINIUM

SLAB

CASTING STATION:

1. SETTING METHODS OF

MOULDS IS SIMPLIFIED TO

SAVE TIME IN PREPERATION.

2. MOULD HAS SLIT HOLE FOR

COOLING WATER TO SECURE

UNIFORM COOLING.

3. WITHDRAWAL MECHANISM IS

RIGIDLY GUIDED TO ENSURE

LESS DEFLECTION AND LESS

CAMBER, AND OIL

HYDRAULICALLY

CONTROLLED TO ENSURE

STABLE LOWERING SPEED.

CHIPS

1 21 NOV

2004

RE-ARRANGED AND FONT ENHANCED.

17 NOV

1 2004 UPDATED. NED

TO REMELT

SLAB SAW:

PURCHASED

SLABS FROM ALBA

CHIPS FROM

SCALPER

1. BAND CUTTING TYPE.

2. SAW IS DESIGNED TO CUT

TOP OR BOTTOM PARTS OF

SLABS.

SLAB SCALPER:

1. VERTICAL SPINDLE,

ONE-SIDE-SCALPING TYPE

WITH CEMENTED CARBIDE

TIP BLADES.

2. SLAB SURFACE IS SCALPED IN

ACCURATE MIRROR FINISH.

3. A DRY CUTTING SYSTEM IS

ADOPTED TO HANDLE CHIPS

EASILY.

#3

#2

SLAB HEATING FURNACES: (3)

1. RADIANT TUBE TYPE, INDIRECT

HEATING SYSTEM IS ADOPTED TO

MINIMIZE SURFACE

CONTAMINATION DURING HEATING

AND SOAKING.

2. DIRECT DIGITAL CONTROL SYSTEM

IS USED TO AUTOMATICALLY

CONTROL TEMPERATURE, PRESSURE

AND COMBUSTION AIR PRESSURE.

3. PRONG TEMP. DETECTOR ARE USED

TO MEASURE INGOT TEMP. AT EACH

ONE CONTINUOUSLY WITH

INFLICTING DENTS OR SCRATCHES

EITHER ON DETECTORS OR INGOT

SURFACE.

4. INGOTS ARE AUTOMATICALLY FED

AND DISCHARGED TO AND FROM

FURNACES IN STABLE UP-RIGHT

POSITION.

#1

ANNEALING FURNACES: (6)

1. RADIANT TUBE TYPE, INDIRECT

HEATING SYSTEM USING

NITROGEN GAS IS ADOPTED TO

PREVENT OIL STAINS AND TO

OBTAIN GOOD SURFACES.

2. AUTOMATIC TRAY TRANSFER

SYSTEM IS ADOPTED TO HANDLE

COIL TRAYS EFFICIENTLY.

3. FURNACE TEMP. IS

AUTOMATICALLY CONTROLLED

BY ZONE CONTROL SYSTEM.

4. FORCED COOLING SYSTEM IS

ADOPTED TO SHORTEN COOLING

TIME OPEN AIR.

COLD MILLS: (2)

1. AUTOMATIC GAUGE

CONTROL AND FLATNESS

CONTROL SYSTEMS ARE

ADOPTED TO PRODUCE HIGH

QUALITY COILS.

2. X-RAY THICKNESS GAUGE IS

EMPLOYED FOR AUTOMATIC

GAUGE CONTROL.

3. PROCESS COMPUTER IS

#2

EMPLOYED TO PERFORM

VARIOUS AUTOMATIC

ROLL FORMING LINE:

OPERATIONS IN IMPROVING

PRODUCTIVITY AND SAVING

MANPOWER.

#1 1. ROLL FORMING IS PERFORMED

ON SHEETS TRANSFERRED

FROM CUT-TO-LENGTH LINE.

4. LOW PRESSURE CO2 TANK

AND INITIAL STAGE FIRE

PROTECTION SYSTEM ARE

2. FORMING UNIT IS EASILY

REASSEMBLED.

ADOPTED FOR FIRE

PROTECTION.

3. LAYOUT IS SO ARRANGED

THAT ROLL FORMING CAN BE

INDEPENDENT IN FUTURE BY

INSTALLING PAY-OFF REEL,

ETC. BETWEEN ROLL FORMING

LINE AND CUT-TO-LENGTH

LINE.


HOT MILL:

COIL

1. REVERSING AND COMBINATION

TYPE TO ENABLE ROLLING OF

AN INGOT INTO A COIL WITH A

SINGLE MILL.

2. ROLL BENDING, COOLANT AND

AUTOMATIC GAUGE CONTROL

SYSTEMS ARE EMPLOYED TO

PRODUCE HOT COILS

DISPLAYING FAVORABLE SHEET

PROFILE AND LESS DEFLECTION

IN LONGITUDINAL DIRECTION.

3. X-RAY THICKNESS GAUGE IS

EMPLOYED FOR AUTOMATIC

GAUGE CONTROL.

4. TEMP. CONTROL SYSTEM IS

EMPLOYED FOR FINISHED HOT

COILS.

5. PROCESS COMPUTERS AND

PLCs ARE EMPLOYED TO

ENSURE VARIOUS AUTOMATIC

OPERATIONS IN IMPROVING

PRODUCTIVITY AND SAVING

MANPOWER.

CUT-TO-LENGTH LINE #1 :

1. SHEETS OF PREDETERMINED

LENGTH ARE CUT FROM COLD

ROLLED COILS.

2. ACCURACY OF LENGTH IS WELL

CONTROLLED BY DIRECT

DIGITAL SERVO SYSTEM, AND

CUTTING LENGTH IS QUICKLY

CHANGEABLE.

3. INTERMEDIATE TABLE IS

INSTALLED TO TRANSFER

SHEETS TO ROLL FORMING

LINE.

#1

GARMCO

FOIL MILL

#2

TENSION LEVELLING

LINES: (2)

1. COLD ROLLED COIL IS

CONTINUOUSLY LEVELLED

UNDER TENSION

CONDITION INTO STRIP

HAVING ACCURATE

FLATNESS.

2. GOOD ACCURACY IN WIDTH

IS ENSURED BY TRIMMING

WHILE LEVELLING.

3. ACCURATE LEVELLING FOR

WIDE RANGE OF THICKNESS

IS ENSURED USING

LEVELLING UNIT FOR THICK

OR THIN GAUGE

RESPECTIVELY.

CUT-TO-LENGTH LINE #2 :

SHEETS OF PREDETERMINED

LENGTH ARE CUT FROM COLD

ROLLED COILS.

SLITTING & EMBOSSING

LINES: (2)

1. COMBINATION TYPE OF

SLITTING AND EMBOSSING

OF COIL IS ADOPTED.

2. LINE SPEED IS CHANGABLE IN

TWO STEPS TO PERMIT

EFFICIENT OPERATION FOR

WIDE RANGE OF SHEET

THICKNESS.

3. SLIT COILS HAVE GOOD

ACCURACY IN WIDTH AND

LESS BORE IS OBTAINABLE.

CIRCLE SHEARS: (3)

LARGE CIRCLE BLANKS

FORMED FROM SHEETS

TRANSFERRED FROM

CUT-TO-LENGTH LINE.

CIRCLE PRESS:

FORMS CIRCLES FROM COILS

TRANSFERRED FROM

SLITTING LINES.

4

Abstract

• In 2000 GARMCO reviewed recycling

process of internally generated process

scrap, particularly scalping chips and Edge

trims to reduce melt loss & improve yield in

re-melting of scalper chips.

• The presentation summarizes the options

evaluated by GARMCO & results achieved

out of the investment on electromagnetic

pump & it’s vortex technology


5

BACKGROUND

• GARMCO generate 170 M.T. chips /

week from scalping of slabs.

• All loose & baled chips were

charged in to gas fired melting

furnaces which resulted in

following:-

1. High Melt loss

2. High dross formation

3. Reduced melting capacity


6

GOALS & OBJECTIVES

• To enhance metal recovery (yield) by

1. Reduced melt loss

2. Low dross formation

• Add additional molten metal capacity.

• Improve compositional analysis by having

known chemistry in charge material.

• Chemical & temperature homogeneity

• Reduce material handling.

• Significant annual cost savings (Reduce

subcontracts for melting scalper chips)


7

Scalper Chips


8

Scalper Conveyor for chips


9

Baling Press - Bales


10

Options available

• GARMCO investigated following

options

1. Induction furnace

2. Briquetting machine

3. Electromagnetic pump


11

EMP versus Induction Furnace

comparative Analysis

• GARMCO selected EMP against

induction furnace due to following

benefits

1. 45% cheaper on operating cost.

2. Lesser maintenance cost

3. Recovery is in the range of 98% to

98.5%.


12

EMP- Introduction

• Electromagnetic pump transports

mass & heat simultaneously as a result

of forced convection

• It has controlled sub-surface stirring

action that helps in rapidly ingesting

feedstock of varying densities into the

melt with minimal oxidation.

• It maximizes utilization of energy

through better conduction, better

furnace utilization & hence improves

productivity


13

Principle &Function of the EMP

• The Pump forces liquid metal to flow through inlet

& outlet tubes connected to furnace.

• The force is applied on metal by the magnetic field

based on principle of force applied on current

carrying conductor (Fleming’s left hand rule)

• The conductor here is liquid metal


14

EMP – Main Furnace


15

Chips collection in bins


16

EMP - Chips Charging System


17

Full View of EMP


18

Chips charging arrangement


19

EMP - Charging Well


20

EMP - Charging Well


21

Metal Transfer to M.F./ casting of Sows


22

SOWS produced from EMP


23

Operating Characteristics

• No physical moving parts within the EMP

• No direct contact with molten metal.

• Extremely consistent reliable operation

• Stirring can be performed throughout the

melting and/or refining period

• Controlled velocity subsurface flow

• Fully controllable stirring, adjustable speed

& direction

• Lower Power consumption


24

99.0%

98.5%

98.0%

97.5%

97.0%

96.5%

96.0%

98.1%

98.5%

EMP Performance (Recovery / Yield)

98.3%

97.2%

97.9%

98.5%

98.4%

97.5%

97.0%

98.2%

97.9%


98.2%

97.3%

Yield (After EMP)

Target

25

98.3%

2002 2003 Jan-04 Feb-04 Mar-04 Apr-04 May-04 Jun-04 Jul-04 Aug-04 Sep-04 Oct-04 Nov-04 Dec-04

Results &Conclusion

• Melt loss reduced from 15% to 2%

• No need to bale the chips any more.

• Reduced scalper chips inventory to bare

minimum.

• Reduced space needed to store chips.

• Reduced dross formation .

• No more subcontracts needed to melt chips.

• Payback period for project cost was just one

year.


26

• Thank you

very much

• Have a Great

Day!!!


27
