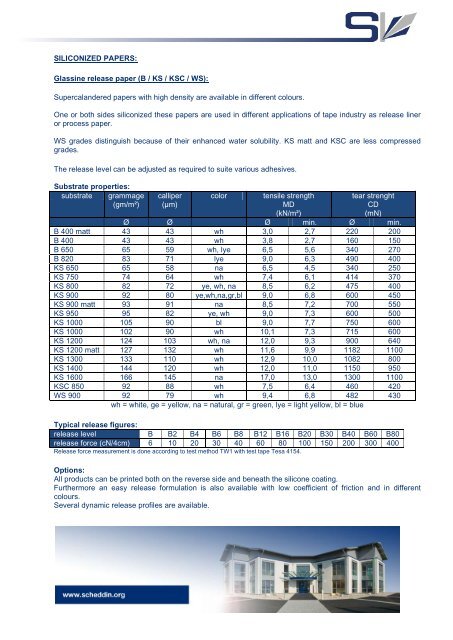

SILICONIZED PAPERS:
Glassine release paper (B / KS / KSC / WS):
Supercalandered papers with high density are available in different colours.
One or both sides siliconized these papers are used in different applications of tape industry as release liner
or process paper.
WS grades distinguish because of their enhanced water solubility. KS matt and KSC are less compressed
grades.
The release level can be adjusted as required to suite various adhesives.
Substrate properties:
substrate grammage
(gm/m²)
calliper
(µm)
color tensile strength
MD
(kN/m²)
tear strenght
CD
(mN)
Ø Ø Ø min. Ø min.
B 400 matt 43 43 wh 3,0 2,7 220 200
B 400 43 43 wh 3,8 2,7 160 150
B 650 65 59 wh, lye 6,5 5,6 340 270
B 820 83 71 lye 9,0 6,3 490 400
KS 650 65 58 na 6,5 4,5 340 250
KS 750 74 64 wh 7,4 6,1 414 370
KS 800 82 72 ye, wh, na 8,5 6,2 475 400
KS 900 92 80 ye,wh,na,gr,bl 9,0 6,8 600 450
KS 900 matt 93 91 na 8,5 7,2 700 550
KS 950 95 82 ye, wh 9,0 7,3 600 500
KS 1000 105 90 bl 9,0 7,7 750 600
KS 1000 102 90 wh 10,1 7,3 715 600
KS 1200 124 103 wh, na 12,0 9,3 900 640
KS 1200 matt 127 132 wh 11,6 9,9 1182 1100
KS 1300 133 110 wh 12,9 10,0 1082 800
KS 1400 144 120 wh 12,0 11,0 1150 950
KS 1600 166 145 na 17,0 13,0 1300 1100
KSC 850 92 88 wh 7,5 6,4 460 420
WS 900 92 79 wh 9,4 6,8 482 430
wh = white, ge = yellow, na = natural, gr = green, lye = light yellow, bl = blue
Typical release figures:
release level B B2 B4 B6 B8 B12 B16 B20 B30 B40 B60 B80
release force (cN/4cm) 6 10 20 30 40 60 80 100 150 200 300 400
Release force measurement is done according to test method TW1 with test tape Tesa 4154.
Options:
All products can be printed both on the reverse side and beneath the silicone coating.
Furthermore an easy release formulation is also available with low coefficient of friction and in different
colours.
Several dynamic release profiles are available.

Form of delivery:
These products can be delivered as coils from a width of 12 mm and reels up to 2400 mm.
Sheets and discs in different sizes are available.
The above mentioned data are typical data and given in good faith without warranty.
Users are recommended to test the suitability of our products for the specific application.
PE-coated release papers
NP – release papers:
One side PE-coated, one side silicone coated, these papers are often used as release papers for graphic
applications, for self adhesive forms and foams, or as process liner.
The release force can be adjusted in a wide range against different adhesives.
NPP – release papers:
Two side PE-coated papers with 20 gsm MDPE extruded on both sides. One or both sides silicone coated
these papers are suitable for applications like adhesive tapes or decals / transfers.
Especially in contact with water based adhesive coatings these papers distinguish because of optimized lay
flatness and perfect dimensional stability.
The narrow tolerance of calliper allows accurate depth when die-cutting.
Substrate properties:
substrate grammage
(gm/m²)
calliper
(µm)
color tensile strength
MD
(kN/m²)
tear strenght
CD
(mN)
Ø Ø Ø min. Ø min.
NP 750 78 93 wh 6,5 4,0 550 360
NP 950 95 117 wh 9,3 5,3 730 600
NP 950 95 121 na 9,3 6,7 730 800
NP (HD) 950 97 120 na 9,3 6,3 730 600
NP 1200 119 132 wh 10,5 7,3 1100 750
NPP 1200 123 122 wh 8,3 7,5 850 550
NPP 1400 145 144 wh 8,5 8,0 880 570
NPP 1400 146 161 bl 7,0 4,9 1038 680
wh = white, na = natural, bl = blue
Typical release figures:
release level B B2 B4 B6 B8 B12 B16 B20 B30 B40 B60 B80
release force (cN/4cm) 6 10 20 30 40 60 80 100 150 200 300 400
Release force measurement is done according to test method TW1 with test tape Tesa 4154.
Options:
NP paper can be individually printed on the reverse side.
NPP paper can be printed both beneath and on top of the PE film.
Form of delivery:

The products can be delivered as coils from a width of 12 mm and reels up to 2400 mm, NPP up to 1900 mm.
Sheets in different sizes are available.
The above mentioned data are typical data and given in good faith without warranty.
Users are recommended to test the suitability of our products for the specific application.
Clay coated release paper:
One- or double side clay coated paper, one- or both sides siliconized are used as backing paper for self
adhesive plotter films, for graphic applications or for packaging of sticky goods. Also these papers are often
used for adhesive tapes.
Especially in contact with water based coating systems this type of paper distinguishes because of an
excellent lay flatness and dimensional stability.
The release force can be adjusted in a wide range against a broad variety of adhesives.
Substrate properties:
substrate grammage
(gm/m²)
calliper
(µm)
color tensile strength
MD
(kN/m²)
tear strenght
CD
(mN)
Ø Ø Ø min. Ø min.
DAB 1350 137 135 wh 9,4 7,5 909 730
DBB 1350 136 147 wh 10,9 8,0 1052 900
DBB/S 800 85 88 wh 5,0 4,6 560 430
DBB/S 900 95 100 wh 6,0 4,8 650 520
IAB/S 1370 140 145 bl, wh 10,7 6,7 1034 1000
NAA 1400 141 147 wh 8,1 5,5 1034 900
NAP 800 84 88 wh 5,5 4,0 540 450
NAB/K 1200 120 111 wh 8,3 6,4 763 700
NAB/S 900 93 88 wh 6,0 4,1 620 470
NAB/S 1250 130 123 wh 8,5 5,7 950 800
NAB/S 1350 138 141 wh 9,5 6,7 1165 840
NAD/S 1350 138 145 wh 6,6 5,4 1143 1000
NAI/S 550 58 58 wh 4,6 3,0 262 250
NAR 1000 102 112 wh 7,1 4,5 881 600
NBI/S 800 82 80 wh 5,4 4,8 591 500
wh = white, bl = blue
Typical release figures:
release level B B2 B4 B6 B8 B12 B16 B20 B30 B40 B60 B80
release force (cN/4cm) 6 10 20 30 40 60 80 100 150 200 300 400
Release force measurement is done according to test method TW1 with test tape Tesa 4154.
Options:
Products can be printed on reverse side (logo or full covering) or underneath the silicone coating.
Different release levels and dynamic release profiles can be supplied.
Coloured easy release silicone coatings are also available.
Form of delivery:
Products can be delivered as reels from 12 mm up to 2400 mm width.

Sheets and discs in different sizes are available.
The above mentioned data are typical data and given in good faith without warranty.
Users are recommended to test the suitability of our products for the specific application.
Machine glazed paper / primed kraft paper:
N - release papers:
Machine glazed papers, one side siliconized are often used for hygienic products or as a cover for self
adhesive envelopes and self adhesive forms.
NSS – release papers:
Both sides primed kraft paper, which can be supplied either one or both sides siliconized. In comparison to
glassine paper this paper distinguishes because of its enhanced tensile strength.
The release force can be adjusted in a wide range. NSS/D paper shows an excellent elongation, which makes
it suitable for self adhesive bitumen as an alternative to PE-films.
Substrate properties:
substrate grammage
(gm/m²)
calliper
(µm)
color tensile strength
MD
(kN/m²)
tear strenght
CD
(mN)
Ø Ø Ø min. Ø min.
N 450 46 59 wh 4,2 3,0 300 250
N 500 54 67 wh 4,8 3,3 350 300
NSS 650 67 92 na 6,5 4,8 470 450
NSS 900 91 116 na 8,0 6,6 790 690
NSS 1200 131 161 na 10,2 9,0 1457 1000
NSS/D 650 69 92 wh 5,5 3,0 600 550
wh = white, na = natural
Typical release figures (N - release papers):
release level *BV BV2 BV4 BV6 BV8 BV12 BV16 BV20 BV30 BV40 BV60 BV80
release force (cN/4cm) 6 10 20 30 40 60 80 100 150 200 300 400
Release force measurement is done according to test method TW1 with test tape Tesa 4154. BV = silicone coat weight > 2,0 gsm
* For B coatings (silicone coat weight < 2 gsm) we specify 30 +/- 20 cN/4cm.
NSS – release papers: These papers are tested according to TW3 (Tesa 7476) method. Specification is different.
Options:
Products can be printed on the reverse side or underneath the silicone coating.
Furthermore an easy release formulation is also available with low coefficient of friction and in different
colours. Several dynamic release profiles are available.
Form of delivery:
Products can be supplied in reels down to 12 mm and up to 2400 mm width, NSS/D 650 white up to 1650
mm. Sheets and discs in different sizes are available.
The above mentioned data are typical data and given in good faith without warranty.
Users are recommended to test the suitability of our products for the specific application.
