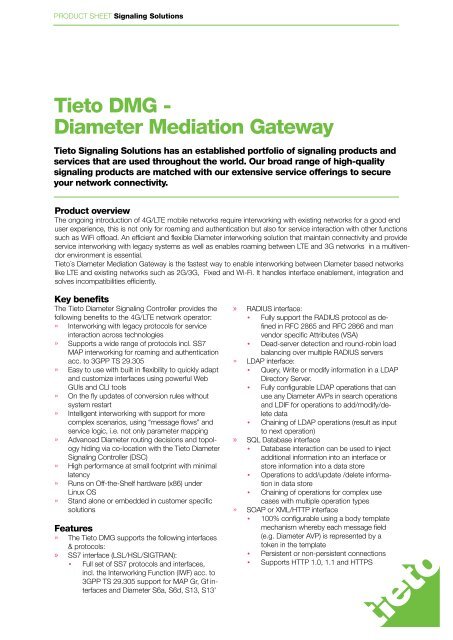

Tieto DMG - Diameter Mediation Gateway

PRODUCT SHEET Signaling Solutions
Tieto DMG -
Diameter Mediation Gateway
Tieto Signaling Solutions has an established portfolio of signaling products and
services that are used throughout the world. Our broad range of high-quality
signaling products are matched with our extensive service offerings to secure
your network connectivity.
Product overview
The ongoing introduction of 4G/LTE mobile networks require interworking with existing networks for a good end
user experience, this is not only for roaming and authentication but also for service interaction with other functions
such as WiFi offload. An efficient and flexible Diameter interworking solution that maintain connectivity and provide
service interworking with legacy systems as well as enables roaming between LTE and 3G networks in a multivendor
environment is essential.
Tieto´s Diameter Mediation Gateway is the fastest way to enable interworking between Diameter based networks
like LTE and existing networks such as 2G/3G, Fixed and Wi-Fi. It handles interface enablement, integration and
solves incompatibilities efficiently.
Key benefits
The Tieto Diameter Signaling Controller provides the
following benefits to the 4G/LTE network operator:
» Interworking with legacy protocols for service
interaction across technologies
» Supports a wide range of protocols incl. SS7
MAP interworking for roaming and authentication
acc. to 3GPP TS 29.305
» Easy to use with built in flexibility to quickly adapt
and customize interfaces using powerful Web
GUIs and CLI tools
» On the fly updates of conversion rules without
system restart
» Intelligent interworking with support for more
complex scenarios, using “message flows” and
service logic, i.e. not only parameter mapping
» Advanced Diameter routing decisions and topology
hiding via co-location with the Tieto Diameter
Signaling Controller (DSC)
» High performance at small footprint with minimal
latency
» Runs on Off-the-Shelf hardware (x86) under
Linux OS
» Stand alone or embedded in customer specific
solutions
Features
» The Tieto DMG supports the following interfaces
& protocols:
» SS7 interface (LSL/HSL/SIGTRAN):
• Full set of SS7 protocols and interfaces,
incl. the Interworking Function (IWF) acc. to
3GPP TS 29.305 support for MAP Gr, Gf interfaces
and Diameter S6a, S6d, S13, S13’
» RADIUS interface:
• Fully support the RADIUS protocol as defined
in RFC 2865 and RFC 2866 and man
vendor specific Attributes (VSA)
• Dead-server detection and round-robin load
balancing over multiple RADIUS servers
» LDAP interface:
• Query, Write or modify information in a LDAP
Directory Server.
• Fully configurable LDAP operations that can
use any Diameter AVPs in search operations
and LDIF for operations to add/modify/delete
data
• Chaining of LDAP operations (result as input
to next operation)
» SQL Database interface
• Database interaction can be used to inject
additional information into an interface or
store information into a data store
• Operations to add/update /delete information
in data store
• Chaining of operations for complex use
cases with multiple operation types
» SOAP or XML/HTTP interface
• 100% configurable using a body template
mechanism whereby each message field
(e.g. Diameter AVP) is represented by a
token in the template
• Persistent or non-persistent connections
• Supports HTTP 1.0, 1.1 and HTTPS

MAM 100 10xx-122/101 Ver 1.0
PRODUCT SHEET Signaling Solutions
» Transport protocols:
• SCTP (IETF RFC 2960)
• SS7 MTP and/or SIGTRAN (M3UA, SCTP)
• TCP
• UDP
• IPv4 & IPv6:
• TLS
• STOMP 1.1
» Operation & Maintenance:
• Web based Graphical User Interface (GUI)
for flow design and management
• Command Line Interface (CLI)
» SNMP Monitoring and Alarm interface Capacity:
• More than 100.000 Diameter routing transactions/second
using Intel Quad-Core CPU
» Congestion and overload protection
» Highly available and scalable architecture
» Available as Stand-alone system or integrated
with Tieto DSC
Alarm interface
Alarms are normally sent as SNMP traps to an external
SNMP manager via Ethernet connection. Alarm
notifications can also be viewed locally. Alarms are
saved in an alarm log.
User Security
The Linux system is hardened to prevent remote
access and system manipulation
HW Configurations
The Diameter Mediation Gateway is built for standard
Linux x86 server platforms
Tieto is the leading IT service company in Northern Europe
providing IT and product engineering services. With
approximately 18 000 experts, we are the global leader in
selected segments. We specialize in areas where we have
the deepest understanding of our customers’ businesses
and needs. Our superior customer centricity and expertise
in digital services set us apart from our competitors.
Address: Kanikenäsbanken 12, P.O Box 1038, SE-651 15 Karlstad, Sweden
Telephone: +46 10 481 00 00, email: signaling@tieto.com, www.tieto.com/signaling
Full set of supported interfaces
DMG combined with DSC
SS7
Wifi
EIR
RADIUS
Application
Servers
LDAP
SQL
SS7
SQL
HLR
SOAP
PCRF
SOAP
Diameter
DMG
HTTP
Mobile
Network
AS
SGSN
DMG DSC
AS
HSS
RADIUS
LDAP
STOMP
AS
GGSN
AS EIR
CSCF
SGW
CSCF
PGW
MME
MME
AS
PCRF
