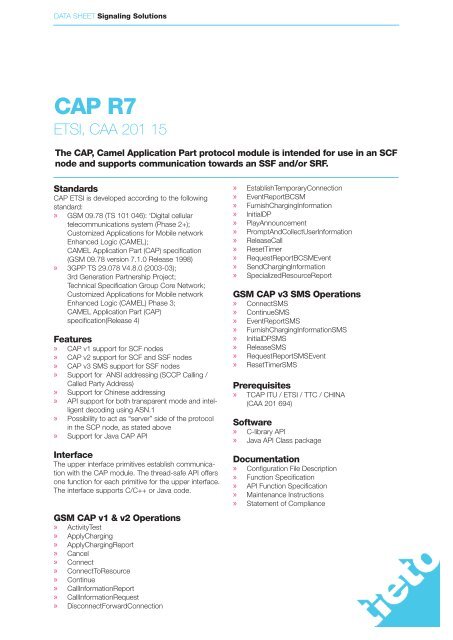

DATA SHEET Signaling Solutions<br />
<strong>CAP</strong> <strong>R7</strong><br />
ETSI, CAA 201 15<br />
The <strong>CAP</strong>, Camel Application Part protocol module is intended for use in an SCF<br />
node and supports communication towards an SSF and/or SRF.<br />
Standards<br />
<strong>CAP</strong> ETSI is developed according to the following<br />
standard:<br />
» GSM 09.78 (TS 101 046): ‘Digital cellular<br />
telecommunications system (Phase 2+);<br />
Customized Applications for Mobile network<br />
Enhanced Logic (CAMEL);<br />
CAMEL Application Part (<strong>CAP</strong>) specification<br />
(GSM 09.78 version 7.1.0 Release 1998)<br />
» 3GPP TS 29.078 V4.8.0 (2003-03);<br />
3rd Generation Partnership Project;<br />
Technical Specification Group Core Network;<br />
Customized Applications for Mobile network<br />
Enhanced Logic (CAMEL) Phase 3;<br />
CAMEL Application Part (<strong>CAP</strong>)<br />
specification(Release 4)<br />
Features<br />
» <strong>CAP</strong> v1 support for SCF nodes<br />
» <strong>CAP</strong> v2 support for SCF and SSF nodes<br />
» <strong>CAP</strong> v3 SMS support for SSF nodes<br />
» Support for ANSI addressing (SCCP Calling /<br />
Called Party Address)<br />
» Support for Chinese addressing<br />
» API support for both transparent mode and intelligent<br />
decoding using ASN.1<br />
» Possibility to act as “server” side of the protocol<br />
in the SCP node, as stated above<br />
» Support for Java <strong>CAP</strong> API<br />
Interface<br />
The upper interface primitives establish communication<br />
with the <strong>CAP</strong> module. The thread-safe API offers<br />
one function for each primitive for the upper interface.<br />
The interface supports C/C++ or Java code.<br />
GSM <strong>CAP</strong> v1 & v2 Operations<br />
» ActivityTest<br />
» ApplyCharging<br />
» ApplyChargingReport<br />
» Cancel<br />
» Connect<br />
» ConnectToResource<br />
» Continue<br />
» CallInformationReport<br />
» CallInformationRequest<br />
» DisconnectForwardConnection<br />
» EstablishTemporaryConnection<br />
» EventReportBCSM<br />
» FurnishChargingInformation<br />
» InitialDP<br />
» PlayAnnouncement<br />
» PromptAndCollectUserInformation<br />
» ReleaseCall<br />
» ResetTimer<br />
» RequestReportBCSMEvent<br />
» SendChargingInformation<br />
» SpecializedResourceReport<br />
GSM <strong>CAP</strong> v3 SMS Operations<br />
» ConnectSMS<br />
» ContinueSMS<br />
» EventReportSMS<br />
» FurnishChargingInformationSMS<br />
» InitialDPSMS<br />
» ReleaseSMS<br />
» RequestReportSMSEvent<br />
» ResetTimerSMS<br />
Prerequisites<br />
» T<strong>CAP</strong> ITU / ETSI / TTC / CHINA<br />
(CAA 201 694)<br />
Software<br />
» C-library API<br />
» Java API Class package<br />
Documentation<br />
» Configuration File Description<br />
» Function Specification<br />
» API Function Specification<br />
» Maintenance Instructions<br />
» Statement of Compliance
MAM 100 1006-122/108 Ver 1.1<br />
DATA SHEET Signaling Solutions<br />
<strong>Tieto</strong> is an IT service company providing IT, R&D and consulting<br />
services. With approximately 18 000 experts, we<br />
are among the leading IT service companies in Northern<br />
Europe and the global leader in selected segments. We<br />
specialize in areas where we have the deepest understanding<br />
of our customers’ businesses and needs. Our superior<br />
customer centricity and Nordic expertise set us apart from<br />
our competitors.<br />
Address: Kanikenäsbanken 12, P.O Box 1038, SE-651 15 Karlstad, Sweden<br />
Telephone: +46 10 481 00 00, email: signaling@tieto.com, www.tieto.com/signaling
