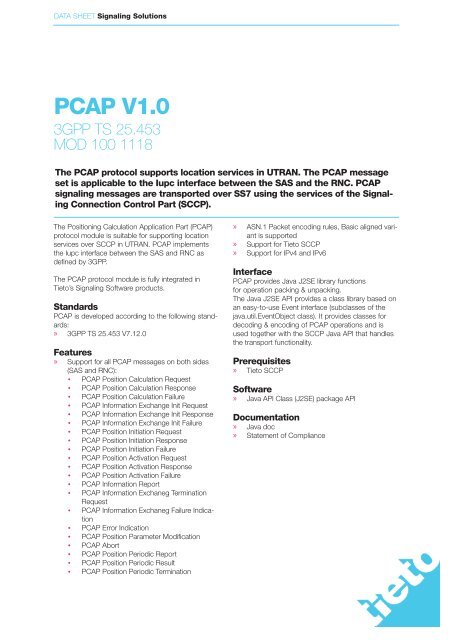

DATA SHEET Signaling Solutions
PCAP V1.0
3GPP TS 25.453
MOD 100 1118
The PCAP protocol supports location services in UTRAN. The PCAP message
set is applicable to the Iupc interface between the SAS and the RNC. PCAP
signaling messages are transported over SS7 using the services of the Signaling
Connection Control Part (SCCP).
The Positioning Calculation Application Part (PCAP)
protocol module is suitable for supporting location
services over SCCP in UTRAN. PCAP implements
the Iupc interface between the SAS and RNC as
defined by 3GPP.
The PCAP protocol module is fully integrated in
Tieto’s Signaling Software products.
Standards
PCAP is developed according to the following standards:
» 3GPP TS 25.453 V7.12.0
Features
» Support for all PCAP messages on both sides
(SAS and RNC):
• PCAP Position Calculation Request
• PCAP Position Calculation Response
• PCAP Position Calculation Failure
• PCAP Information Exchange Init Request
• PCAP Information Exchange Init Response
• PCAP Information Exchange Init Failure
• PCAP Position Initiation Request
• PCAP Position Initiation Response
• PCAP Position Initiation Failure
• PCAP Position Activation Request
• PCAP Position Activation Response
• PCAP Position Activation Failure
• PCAP Information Report
• PCAP Information Exchaneg Termination
Request
• PCAP Information Exchaneg Failure Indication
• PCAP Error Indication
• PCAP Position Parameter Modification
• PCAP Abort
• PCAP Position Periodic Report
• PCAP Position Periodic Result
• PCAP Position Periodic Termination
» ASN.1 Packet encoding rules, Basic aligned variant
is supported
» Support for Tieto SCCP
» Support for IPv4 and IPv6
Interface
PCAP provides Java J2SE library functions
for operation packing & unpacking.
The Java J2SE API provides a class library based on
an easy-to-use Event interface (subclasses of the
java.util.EventObject class). It provides classes for
decoding & encoding of PCAP operations and is
used together with the SCCP Java API that handles
the transport functionality.
Prerequisites
» Tieto SCCP
Software
» Java API Class (J2SE) package API
Documentation
» Java doc
» Statement of Compliance
