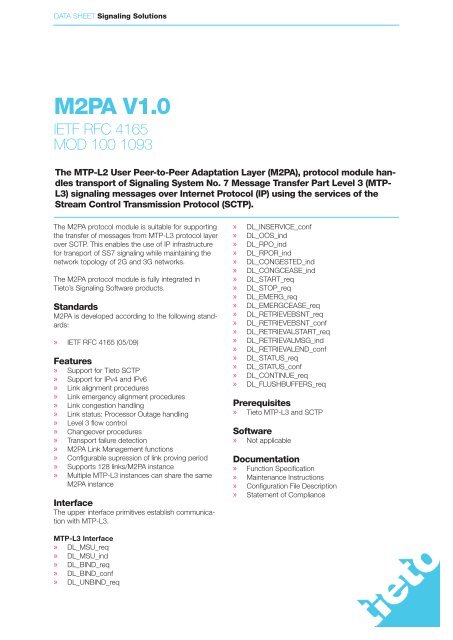

DATA SHEET Signaling Solutions<br />
<strong>M2PA</strong> <strong>V1.0</strong><br />
IETF RFC 4165<br />
MOD 100 1093<br />
The MTP-L2 User Peer-to-Peer Adaptation Layer (<strong>M2PA</strong>), protocol module handles<br />
transport of Signaling System No. 7 Message Transfer Part Level 3 (MTP-<br />
L3) signaling messages over Internet Protocol (IP) using the services of the<br />
Stream Control Transmission Protocol (SCTP).<br />
The <strong>M2PA</strong> protocol module is suitable for supporting<br />
the transfer of messages from MTP-L3 protocol layer<br />
over SCTP. This enables the use of IP infrastructure<br />
for transport of SS7 signaling while maintaining the<br />
network topology of 2G and 3G networks.<br />
The <strong>M2PA</strong> protocol module is fully integrated in<br />
<strong>Tieto</strong>’s Signaling Software products.<br />
Standards<br />
<strong>M2PA</strong> is developed according to the following standards:<br />
» IETF RFC 4165 (05/09)<br />
Features<br />
» Support for <strong>Tieto</strong> SCTP<br />
» Support for IPv4 and IPv6<br />
» Link alignment procedures<br />
» Link emergency alignment procedures<br />
» Link congestion handling<br />
» Link status: Processor Outage handling<br />
» Level 3 flow control<br />
» Changeover procedures<br />
» Transport failure detection<br />
» <strong>M2PA</strong> Link Management functions<br />
» Configurable supression of link proving period<br />
» Supports 128 links/<strong>M2PA</strong> instance<br />
» Multiple MTP-L3 instances can share the same<br />
<strong>M2PA</strong> instance<br />
Interface<br />
The upper interface primitives establish communication<br />
with MTP-L3.<br />
MTP-L3 Interface<br />
» DL_MSU_req<br />
» DL_MSU_ind<br />
» DL_BIND_req<br />
» DL_BIND_conf<br />
» DL_UNBIND_req<br />
» DL_INSERVICE_conf<br />
» DL_OOS_ind<br />
» DL_RPO_ind<br />
» DL_RPOR_ind<br />
» DL_CONGESTED_ind<br />
» DL_CONGCEASE_ind<br />
» DL_START_req<br />
» DL_STOP_req<br />
» DL_EMERG_req<br />
» DL_EMERGCEASE_req<br />
» DL_RETRIEVEBSNT_req<br />
» DL_RETRIEVEBSNT_conf<br />
» DL_RETRIEVALSTART_req<br />
» DL_RETRIEVALMSG_ind<br />
» DL_RETRIEVALEND_conf<br />
» DL_STATUS_req<br />
» DL_STATUS_conf<br />
» DL_CONTINUE_req<br />
» DL_FLUSHBUFFERS_req<br />
Prerequisites<br />
» <strong>Tieto</strong> MTP-L3 and SCTP<br />
Software<br />
» Not applicable<br />
Documentation<br />
» Function Specification<br />
» Maintenance Instructions<br />
» Configuration File Description<br />
» Statement of Compliance<br />
pertise set us apart from our competitors.
MAM 100 1006-122/104 Ver 1.1<br />
DATA SHEET Signaling Solutions<br />
<strong>Tieto</strong> is an IT service company providing IT, R&D and consulting<br />
services. With approximately 18 000 experts, we<br />
are among the leading IT service companies in Northern<br />
Europe and the global leader in selected segments. We<br />
specialize in areas where we have the deepest understanding<br />
of our customers’ businesses and needs. Our superior<br />
customer centricity and Nordic expertise set us apart from<br />
our competitors.<br />
Address: Kanikenäsbanken 12, P.O Box 1038, SE-651 15 Karlstad, Sweden<br />
Telephone: +46 10 481 00 00, email: signaling@tieto.com, www.tieto.com/signaling
