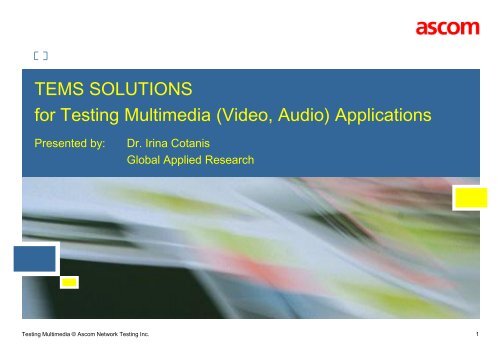

TEMS SOLUTIONS

for Testing Multimedia (Video, Audio) Applications

Presented by: Dr. Irina Cotanis

Testing Multimedia © Ascom Network Testing Inc.

Global Applied Research

1

OUTLINE

• Aspects of Objective Multimedia Equality Evaluation on 3G Networks

• Types of Multimedia Quality Evaluation Metrics

• Usage of Various Metrics

• Standardization Metrics and Development Status

• TEMS Video/Multimedia Solution: MOS Scores and Beyond

• Conclusions

Testing Multimedia © Ascom Network Testing Inc. 2

ASPECTS OF OBJECTIVE MULTIMEDIA QUALITY EVALUATION

ON 3G NETWORKS

3G Challenges in a Nutshell

Consequences

Testing & Evaluation Aspects


3

[ ASPECTS OF OBJECTIVE MULTIMEDIA QUALITY EVALUATION ON 3G NETWORKS ]

3G CHALLENGES IN A NUTSHELL

• Multimedia support for audio/speech, video

(streaming, mobile/IPTV, video telephony, video sharing, gaming, etc.)

Audio wideband/super-wide speech and

music; from traditional speech to

VoIP/VoLTE or VoLGA or

VoIP over IMS (known as MMTel)

Very low latencies, stable high throughput

Variety of codecs (commercial/standardized)

to ensure speech/audio for PSS / MMS /

MBMS:

multi-bandwidth with complex error

concealment techniques


Video delivery for a large variety of applications:

mobile and IP TV, streaming, telephony,

sharing, YouTube

Variety of contents (news, sports, gaming,

entertainment)

Variety of devices/clients; video formats/sizes and

displays

Variable delay, jitter buffer (including adaptive

buffering), packet loss

Variety of codecs (commercial / standardized)

with complex error concealment techniques and

compression schemes

4


CONSEQUENCES

QoS and intrinsically QoE dependency on:

• Performance of the network’s segments (RAN, Core-CS/PS or flat all IP, IMS)

Heterogeneous networks differing in throughput, latency, and reliability

Open interface difficulties (network challenges to interact with others in order to provide service continuity)

Multiple players (operators, service providers)

• Codec characteristics and performances

Low/very-low to high video rates

o Mobile (QCIF/QVGA): (>1.5)16/80kbpsec-320/800kbps; PC-CIF: 128kb/s-704kb/s; PC ITU-R Rec.601/HVGA: 320kb/s-2Mb/s

Audio bandwidth and rates

o Standardized: WB (300Hz-7kHz, 12.65kb/sec): AMR-WB (G.729.1); Audio Super-WB (300Hz-16kHz, 48-64kB/sec): E-, AAC+, AAC-LD

o Commercial speech codecs: SILK (Skype), etc

Variety of players with embedded codecs

o Commercial: Windows MediaVideo9, RealVideo9, Flush, etc.

o Standardized: H.264 (MPEG4-layer10; fixed and mobile MM)/AVC, H.263 (3GPP; video conferencing))

Variety of video sizes: QCIF(177x144), QVGA(320x240), CIF(352x288), HVGA


5


TESTING & EVALUATION ASPECTS –

TEST SCENARIOS

The complexity of “simple” services implies a vast range of conditions to account for

when determining subscriber expectations

Multiple references x multiple field test conditions (not exhaustive)

Multimedia: >400 reference scenarios for field test conditions

Video: Codecs: Microsoft VC1, Real9, MPEG2/4, H.261/263, H.264/AVC+

Bitrates: 32..80…250…800kbs…2Mbs (HVGA)

Frames per sec: 5, …8.33,12.5, 24, 25, 30fps

Video sizes: QCIF, QVGA, CIF, HVGA

o Audio: Codecs: AMR-WB+, AAC+, AAC-LD

Bitrates: 96kb/s, 48kb/s, 32kb/s, 24kb/s, 18kb/s, 14kb/s, 12.2kb/s


6



VIDEO SIGNAL ON IP STREAMS

• Video frames ("pictures")

• Transmitted at a rate of 15-60 frames per second

(e.g., 10fps for 3G video telephony; 25/30fps mobile TV)

• Compressed based on rather lossy than lossless techniques using temporal inter-frame and

spatial intra-frame redundancy

• Coding techniques:

o each frame is divided into blocks (typically 16x16 pixels)

o each block transformed using a Discrete Cosine Transform (DCT)

o DCT coefficients quantized and compressed further

• Group of Pictures (GoP). For example:

I, B, B, P, B, B, P, B, B, P, B, B, P, B, B sent at 30 frames per second

• I frame is independently compressed requiring a much larger number of IP packets than the

P or B frames (which only encode changes from the previous frame)


7




• Video stream processing:

Compressed frames divided into some number of transport units for transmission over IP network

Transport units first encapsulated in a transport packet (RTP or MPEG-2/4 Transport) ,

then in UDP or TCP, and then in IP

• Video IP streams structure

[IP header] [UDP or TCP header] [RTP header or MPEG-2 Transport ] [Video payload ]





• Video IP streams behavior (error, lost)

• Video systems with Forward Error Correction: redundancy to the packet stream,

which allows some proportion of lost packets to be replaced at the receiving end

• Usage of retransmission based protocol to replace lost packets

(Reliable UDP, TCP, or multicast with unicast retransmission)


9



MEASUREMENT CHALLENGES

• Capturing procedures for video and audio

• Embedded players don’t give access to

capturing the received, impaired multimedia

samples

• Procedures required to measure audio and

video misalignment (lip sync) for multimedia

quality evaluation

• Received samples must have audio and video

re-aligned

• The temporal and spatial misalignment

measurement of the video sequences


• Spatial: block translation within a frame

• Analysis of inter-frame temporal and intra-

frame spatial misalignment

• Large variety of contents:

sports, news, movies, games

• No objectively defined “standard content”

could cause low accuracy vs. range of content

• Proven to strongly impact quality evaluation

10

TYPES OF MULTIMEDIA QUALITY EVALUATION METRICS


11

[ TYPES OF MULTIMEDIA QUALITY EVALUATION METRICS ]

OBJECTIVE MEASUREMENTS

E2E QoE monitoring

Intrusive:

Uses test original and degraded signals

to provide quality score

Advantages:

• Direct estimator of subscriber’s opinion

• Quality ensured by the entire network

• Requires access only to the end point

Disadvantages:

• May push a network to capacity limits

• Limited space-time granularity

Algorithms:

• Video (MM1): PEVQ, PVA (J.247)

• Video HDTV: VQEG (2010)

• Audio (MM2): VQEG on-going work (very early phase)

• Third parties


Perceptual (content-based)

Troubleshooting/diagnosing in correlation

with full reference perceptual metric

Non-intrusive (non-reference, hybrid):

Uses received impaired video content and

some IP bit stream info (hybrid)

Advantages:

• Normal usage of the network

• Troubleshooting the “problem generating” node

• Flexible implementation


• Low accuracy (high-order averaging is required and therefore

possible problems could be smoothed out and not properly

detected)

Algorithms:

• Video: ITU-T SG 16 report - 2008, J.246 (RR)

• MM (video, audio): hybrid model (VQEG, on-going)


12

[ TYPES OF MULTIMEDIA QUALITY EVALUATION METRICS ]

OBJECTIVE MEASUREMENTS

No Reference (parametric-based)

Troubleshooting /diagnosing in correlation with full perception metric

Non-intrusive:

Uses IP/transport parameters or bit stream (payload) to predict quality

Advantages:

• Normal usage of the network

• Troubleshooting the “problem generating” node (if access enabled)

• High time and space granularity

• Possibility for quick correlation with network behavior


• Low accuracy (high-order averaging is required and therefore possible problems could be smoothed out)

• Quality evaluation “one-dimensional,” taking into consideration metrics belonging to a single segment of entire network (generally IP)

• Missing content information

Algorithms (Video/MM):

• P.NAMS (IP header based) – ITU-T on-going work (2011)

• P.NBAMS (IP payload base; bit stream decoding) – ITU-T on-going work (early phase) (2011-2012)



13

USAGE OF VARIOUS METRICS

What do they measure?

How do they measure?


14

[ USAGE OF VARIOUS METRICS ]

WHAT DO THEY MEASURE? Typical MM Degradations

Application Main degradation sources

(Network centric: QoS)

Video telephony

(CS)

MM streaming

Mobile/IP TV

(PS)

1. Terminals:

• Camera lens and software

• codecs

2. Network:

• Transmission delay and loss (BLER)

1. Video creation: down-sampling, content

2. Terminals:

Transmitter (codec/player, server):

• Encoding rate, Delay, codec

Receiver (codec/player, client):

• Decoding rate, error concealment

scheme

Delay, Jitter buffer

3. Network (transport):

• Transmission bit rate

• Transmission delay and loss (packet

loss) and their distribution

Perceived video degradations and their main causes

(Subscriber centric: QoE)

1. Jerkiness

• Motion does not look smooth

• Causes: dropped frames

2. Blockiness

• Block structure

• Causes: compression techniques, transmission

errors

3. Blurriness

• Loss of fine detail and smearing of the edges

• Causes: high frequency attenuation

(during recording or encoding process)

4. Noise:

• Pixels whose content deviates from original video

• Causes: noisy receiving equipment , compression,

transmission error

5. Colorfulness

• Intensity of saturation of colors and their spread and

distribution in the video


[ USAGE OF VARIOUS METRICS ]

HOW DO THEY MEASURE? Typical implementation

Downsampling

Encoding

Video/multimedia streaming and

mobile TV perceptual, parametric and hybrid measurements

Streaming

server

Mobile TV

server


Cellular

Voice & Data

Network

Video/MM

or mobile TV

FR (intrusive) measurement

Hybrid measurement

Video/MM

or mobile TV

Decoding

Radio access and/or

IP transport/payload

parameters

Non-intrusive (parametric) measurement

16

STANDARDIZATION METRICS & DEVELOPMENT STATUS


17

[ STANDARDIZATION METRICS & DEVELOPMENT STATUS]

Model High level description - generalities Standardization

P.NAMS Definition: parametric model that predicts the impact of observed IP network

impairments on quality experienced by the end-user in multi-media mobile streaming

and IPTV applications over transport formats such as: RTP (over UDP), MPEG2-TS

(over UDP or RTP/UDP), 3GPP-PSS (over RTP) based on IP header information

Characteristics: May be deployed in end-point and/or in mid-network monitoring points

Primary applications: Monitoring of transmission quality for operations/maintenance

P.NBAMS Definition: See P.NAMS + IP payload information

Characteristics: See P.NAMS

Primary applications: See P.NAMS

PEVQ, PVA Definition: Perceptual full reference model that predicts the video only quality

experienced by the end-user in multi-media mobile streaming, mobile/IPTV, video

telephony applications delivered on different network conditions (e.g., bit error, packet

loss) using different codecs (e.g., MPEG2, H.264, Real 9), in VGA, CIF, and QCIF

formats

Characteristics: Generally deployed at end-point

Primary applications: Quality monitoring of deployed networks to ensure their

operational readiness, lab testing for video systems

NTT PSNR,

VMon ,

Yonsei

University

Definition: Non-reference and reduced reference solution of J.247 and included in J.246

Characteristics: Generally deployed at end-point, but mid-point also possible and

actually recommended


operational readiness

ITU-T SG 12 /Q14

Slow on-going work –

estimated due date 2011

ITU-T SG 12 /Q14

Slow on-going work –

estimated due date 2011

VQEG study, ITU-T

J.247

(finished

recommendation)

VQEG study, ITU-T

J.246

(finished

recommendation)


[ STANDARDIZATION METRICS & DEVELOPMENT STATUS]

Model High level description - generalities Standardization

Hybrid Definition: See P.NBAMS + some video signal information

(similar to non-reference J.246)

Characteristics: Generally deployed at end-point, but mid-point also could possibly

be recommended


operational readiness

MM-phase 2

(mainly

informative for

now)

Definition: Perceptual full reference audio, multimedia

NOTE: To complete the MM-phase 1 model (J.247), which was video only

Characteristics: Deployed at end-point



HDTV Definition: Perceptual full reference model that predicts the video-only quality

experienced by the end-user in HDTV (for IPTV)

Characteristics: Deployed at end-point

Input: Original and captured degraded video signal

Output: Predicts Mean Opinion Scores (MOS) for video



VQEG study – on going

work; estimated due

date 2011

VQEG study, very early

phase

NOTE: A lot of

subjective testing work is

still needed

Finalized VQEG study to

be presented/submitted

to ITU-T/SG9

NOTE: Similar to J.247,

but for HD IPTV


TEMS VIDEO/MULTIMEDIA SOLUTION: MOS SCORES &

BEYOND


20

[ TEMS VIDEO/MULTIMEDIA SOLUTIONS: MOS SCORES & BEYOND]

MOS SCORE SOLUTIONS

Solution/

Product

Solution:

• PEVQ

(perceptual FR)

Products:

• TEMS

Investigation

• TEMS Discovery

• 2010-2011

Solution:

• MTQI

(parametric IP

header based)

Products:

• TEMS

Investigation

• TEMS Discovery

• 2010-2011

Applications Audio

Codec

• Mobile TV

(MBMS)

• IPTV

• MM streaming

• Mobile/wireline

video telephony

• Progressive

download

• Mobile TV

(MBMS)

• MM streaming

• (Mobile video

telephony)*

• (Progressive

download)*

Video Codec /

Format / fps

N/A Video codec:

Windows Media (VC-1),

Real Video 9/10, H.261,

H.263, MPEG4/H.264,

MPEG2, Cinepak, DivX,

Sorenson3, and Theora

AMR-

NB/WB+

MPEG4/

AAC

AAC-LC

(HE-AAC)*

Format: VGA, CIF, QCIF

fps:

2.5, 5, 8, 12.5, 15, 20, 25, 30

Video codec:

MPEG4, H.264

Format:

QCIF, QVGA, (HVGA)

fps:

5, 8.33, 12.5, 15, 20, 25, 30

Protocols Comments

Transparent • High accuracy, to be used as a reference

quality score

• Covers a large range of applications and is

protocol independent

• Video only for now (audio is not expected

earlier than 2012)

• Test stimuli covering sports, news,

entertainment

3GPP

MBMS, PSS

or RTSP

over

RTP/UDP/IP

MPEG2/

RTP/TCP/IP

(HTTP/TCP

/IP)*

• To replace previous solutions (VSQI/VTQI)

gradually

• No backwards compatibility because they are

parametric models designed with different

scopes and it is not recommended either to

compare or to map/convert to each other

• Low bit rates focused (mobile apps)

• Multiple video contents

• Unique:

Works also for H.263

On-going tests to extend its application for

flash player (applications such as Spotify

(similar to Pandora); YouTube)

* Later releases



MOS SCORE SOLUTIONS

Solution/

Product

Solution:

• VSQI

Products:

• TEMS

Investigation

• TEMS

Automatic

• TEMS

Discovery

Solution:

• VTQI

Products:

• TEMS

Investigation

• TEMS

Automatic

• TEMS

Discovery

Applications Audio

Codec

MM streaming AMR-

NB/WB+

Video telephony AMR-

NB/WB+

Video Codec /

Format / fps

Video codec:

Real Video, MPEG4/H.264,

Format: QCIF

fps: 15, 30

Protocols Comments

RTP/TCP/IP • Unique:

MM score

Buffering/re-buffering analysis

(30-sec samples)

1-sec MOS scores

(high granularity specific to mobile

environment)

30-sec MOS scores

(jitter buffer global effect)

• Multiple video contents

H.263 CS • Unique:

MM score

* Later releases



BEYOND MOS SCORES

Solution Outputs Scope / Usage Comments

PEVQ • MOS-video only

• Video metrics (e.g., blurriness,

jerkiness, blockiness, delay, and

delay variations)

MTQI • MOS (video for now, audio ready

also; multimedia later release)

• IP parameters (jitter buffer size, bit

rate, packet-loss, packet-discard,

averaged burst packet loss length,

burst packet loss variation range,

mean packet size, delay, delay

variation range)

• Codec and bit rate

VSQI • MOS (short and long term)

• Buffering duration, delay

• Overall end-user perception for a large set of

applications

• Reference video quality score

• Video imagine diagnostic

• Evaluation of the media path’s delay

• Video, audio, and multimedia quality impacted by

IP part of the network

• Diagnostic:

Video/audio path

Bandwidth / admission control (congestion

detection) optimization (per service type)

MOS score correlated with bit rate / throughput

and service type

• For the video case, when correlated to PEVQ,

scores could be used to identify whether RAN had

an impact on a possible quality degradation

• Unique metric to provide the most

accurate subscriber's perception

• To be used as reference metric when

correlated with other metrics such as

MTQI

This solution could be used in correlation

with PEVQ as well as with TEMS IP

analysis in order to diagnose possible IP

network problems and/or identify whether

RAN might affect quality

Similar to MTQI (MM streaming only) Similar to MTQI features, but for MM

streaming only (no separate video-audio

analysis)



BEYOND MOS SCORES: VSQI & IP ANALYSIS

• IP Analysis window: Highly versatile tool that

reveals traffic over a large number of protocols

allowing analysis and troubleshooting of any

service in minute detail (per application / transport

/ network / data link protocol)

• Demo: Snapshot

Streamed video clip replayed in the Video Monitor

WCDMA Data Line Chart tracks the application

throughput (blue curve) to evaluate the streaming

quality in terms of the VSQI quality measure (green

bars)

IP Analysis window: Monitors the message traffic over

the RTP, RTCP, and RTSP protocols that are used for

streaming.

Application layer: BOOTP, DNS, FTP, FTP-DATA, HTTP, NBDS,

NBNS, RTCP, RTP, RTSP, SNMP

Transport layer: TCP, UDP

Network layer: ICMP, IPv4, IPv6

Data link layer: PPP CC, PPP CHAP, PPP IPCP, PPP LCP, PPP PAP


CONCLUSIONS


25

CONCLUSIONS

• Video / audio / multimedia itself (in addition to the network’s complexity) raises more complex

and difficult challenges than speech ever did or would do (or is estimated to do)

• Various types of metrics have different applications and usage limitations

• Standardization status on the video/audio/multimedia topic

• TEMS video/multimedia suite: MOS scores and beyond


THANK YOU!


27

Questions?


28

[PDF] [PDF] - Ascom

You also want an ePaper? Increase the reach of your titles

Delete template?

Save as template ?
