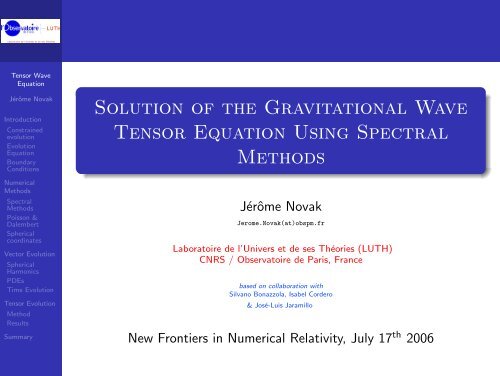

Solution of the Gravitational Wave
Tensor Equation Using Spectral
Methods
Jérôme Novak
Jerome.Novak(at)obspm.fr
Laboratoire de l’Univers et de ses Théories (LUTH)
CNRS / Observatoire de Paris, France
based on collaboration with
Silvano Bonazzola, Isabel Cordero
& José-Luis Jaramillo
New Frontiers in Numerical Relativity, July 17 th 2006

Tensor Wave
Equation
Jérôme Novak
Introduction
Constrained
evolution
Evolution
Equation
Boundary
Conditions
Numerical
Methods
Spectral
Methods
Poisson &
Dalembert
Spherical
coordinates
Vector Evolution
Spherical
Harmonics
PDEs
Time Evolution
Tensor Evolution
Method
Results
Summary
Outline
1 Introduction
Maximally-constrained evolution scheme
Evolution Equation
Boundary Conditions
2 Numerical Methods
Multidomain Spectral Methods with spherical coordinates
Solutions of Poisson and wave equations
Spherical coordinates and tensor components
3 Divergence-free evolution of a vector
Pure-spin vector spherical harmonics
Differential operators in terms of new potentials
New system for time evolution
4 Divergence-free evolution of a symmetric
tensor
Method
Results

Tensor Wave
Equation
Jérôme Novak
Introduction
Constrained
evolution
Evolution
Equation
Boundary
Conditions
Numerical
Methods
Spectral
Methods
Poisson &
Dalembert
Spherical
coordinates
Vector Evolution
Spherical
Harmonics
PDEs
Time Evolution
Tensor Evolution
Method
Results
Summary
3+1 formalism
Decomposition of spacetime and of Einstein equations
Evolution equations:
∂Kij
∂t − LβKij =
−DiDjN + NRij − 2NKikK k j +
N [KKij + 4π((S − E)γij − 2Sij)]
K ij = 1
„ ij
∂γ
2N ∂t + Diβ j + D j β i
«
.
Constraint equations:
R + K 2 − KijK ij = 16πE,
DjK ij − D i K = 8πJ i .
gµν dx µ dx ν = −N 2 dt 2 + γij (dx i + β i dt) (dx j + β j dt)
