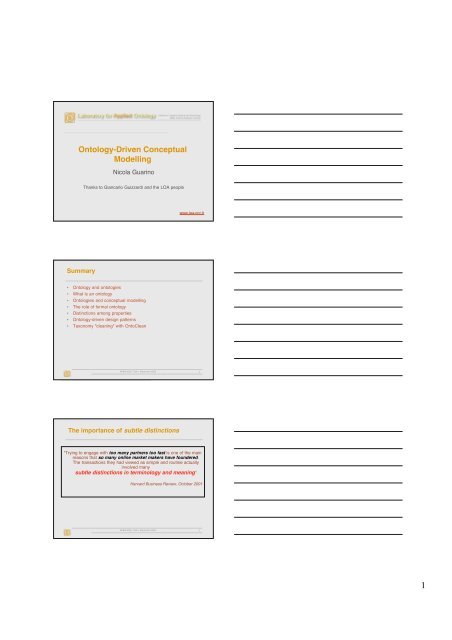

Ontology-Driven Conceptual Modelling

Ontology-Driven Conceptual

Modelling

Summary

Nicola Guarino

Thanks to Giancarlo Guizzardi and the LOA people

• Ontology and ontologies

• What is an ontology

• Ontologies and conceptual modelling

• The role of formal ontology

• Distinctions among properties

• Ontology-driven design patterns

• Taxonomy "cleaning" with OntoClean

www.loa-cnr.it

ADBIS 2005, Tallin, September 2005 2

The importance of subtle distinctions

“Trying to engage with too many partners too fast is one of the main

reasons that so many online market makers have foundered.

The transactions they had viewed as simple and routine actually

involved many

subtle distinctions in terminology and meaning”

Harvard Business Review, October 2001


1

Where subtle distinctions in meaning are

important

• Twin towers catastrophe:

how many events?

• US elections: how many holes?

…only ontological analysis solves these problems!!


Do we know what to REpresent?

• First ontological analysis,

• THEN conceptual modeling or knowledge

representation…

Unfortunately, this is not the current practice…

Ontology and Ontologies


• Ontology: the philosophical discipline

• Study of what there (possibly) is

• Study of the nature and structure of reality

• Domain of entities

• Categories and relations

• Characterizing properties

• An ontology: a theoretical or computational artifact

• “An explicit and formal specification of a conceptualization”

(Gruber)

• A specific artifact expressing the intended meaning of a

vocabulary in terms of the nature and structure of the

entities it refers to


2

What is a conceptualization

• Formal structure of (a piece of) reality as perceived and organized

by an agent, independently of:

• the vocabulary used

• the actual occurence of a specific situation

• Different situations involving same objects, described by different

vocabularies, may share the same conceptualization.

L E

L I

Language L

Tarskian

interpretation I

Intended

models I K (L)

apple

mela

same conceptualization


Ontologies and intended meaning

Conceptualization C

(invariants across

situations: D, ℜ)

Ontological commitment K

Models M D (L)

Ontology

Ontology models I K (L)

Ontology Quality: Precision and Coverage

Good

High precision, max coverage

BAD

Max precision, limited coverage

State of

State of

affairs Relevant

affairs

Situations

Less good

Low precision, max coverage

WORSE

Low precision, limited coverage


3

Levels of Ontological Precision

tennis

football

game

field game

court game

athletic game

outdoor game

Catalog

Glossary

game

athletic game

court game

tennis

outdoor game

field game

football

Taxonomy

Ontological precision

game

NT athletic game

NT court game

RT court

NT tennis

RT double fault

Thesaurus

When precision is not enough

game(x) → activity(x)

athletic game(x) → game(x)

court game(x) ↔ athletic game(x) ∧ ∃y. played_in(x,y) ∧ court(y)

tennis(x) → court game(x)

double fault(x) → fault(x) ∧ ∃y. part_of(x,y) ∧ tennis(y)

DB/OO

scheme

Axiomatic

theory


Only one binary predicate in the language: on

Only blocks in the domain: a, b, c, …

Axioms (for all x,y,z):

on(x,y) -> ¬on(y,x)

on(x,y) -> ¬∃z (on(x,z) ∧ on(z,y))

Non-intended models are excluded, but the rules for

the competent usage of on in different situations are

not captured.

a

a

c

a

b

Excluded situations

Precision vs. Accuracy

c

a

c

a

Indistinguishable situations

• In general, a single intended model may not discriminate

among relevant alternative situations because of

• Lack of primitives

• Lack of entities

• Capturing all intended models is not sufficient for a “perfect”

ontology

Precision: non-intended models are excluded

Accuracy: non-intended situations are excluded


c

a

4

Ontologies vs. Conceptual Schemas

• Conceptual schemas

• not accessible at run time

• not always have a formal semantics

• constraints focus on data integrity

• attribute values taken out of the UoD

• Ontologies

• accessible at run time (at least in principle)

• formal semantics

• constraints focus on intended meaning

• attribute values first-class citizens


Ontologies vs. Knowledge Bases

• Knowledge base

• Assertional component

• reflects specific (epistemic) states of affairs

• designed for problem-solving

• Terminological component (ontology)

• independent of particular states of affairs

• Designed to support terminological services

Ontological formulas are (assumed to be)

necessarily true


Community-based Access vs. Global Knowledge

Access

different roles of ontologies

• Community-based access

• Intended meaning of terms known in advance

• Taxonomic reasoning is the main ontology service

• Limited expressivity

• On-line reasoning (stringent computational requirements)

• Global knowledge access

• Negotiate meaning across different communities

• Establish consensus about meaning of a new term within a community

• Explain meaning of a term to somebody new to community

• Higher expressivity required to express intended meaning

• Off-line reasoning (only needed once, before cooperation process starts)


5

The Ontological Level

(Guarino 94)

Level Primitives Interpretation Main feature

Logical Predicates,

functions

Epistemological Structuring

relations

Ontological Ontological

relations

Conceptual Conceptual

relations

Linguistic Linguistic

terms

Arbitrary Formalization

Arbitrary Structure

Constrained Meaning

Subjective Conceptualization

Subjective Language

dependence


The semantic web architecture [Tim Berners Lee

2000]

The problem of primitives


• Representation primitives vs. ontological primitives

(against arbitrary interpretations)

• Formal ontology helps discovering general primitives,

similarly to what happens in mathematics: set,

relation, transitive, symmetric…


6

Formal Ontological Analysis

• Theory of Essence and Identity

• Theory of Parts (Mereology)

• Theory of Wholes

• Theory of Dependence

• Theory of Composition and Constitution

• Theory of Properties and Qualities

The basis for a common ontology

vocabulary

Formal Ontology


• Theory of formal distinctions and connections within:

• entities of the world, as we perceive it (particulars)

• categories we use to talk about such entities (universals)

• Why formal?

• Two meanings: rigorous and general

• Formal logic: connections between truths - neutral wrt truth

• Formal ontology: connections between things - neutral wrt reality

An example: mereology


• Primitive: proper part-of relation (PP)

• asymmetric

• transitive

• Pxy = def PPxy ∨ x=y

• Further axioms:

supplementation: PPxy → ∃z ( PPzy ∧ ¬ z=x)

principle of sum: ∃z ( PPxz ∧ PPyz ∧ ¬ ∃ w(PPwz ∧ ¬ (Pwx ∨ Pwy)))

extensionality: x = y ↔ (Pwx ↔ Pwy)

Excluded models:

?


7

OntoClean:

useful distinctions among properties

Essential properties and rigidity

• Certain entities must have some properties in order to exist;

• John must have a brain

• John must be a person.

• Certain properties are essential to all their instances (compare being a

person with having a brain).

• These properties are rigid - Their extension is the same in all possible

worlds. If an entity is ever an instance of a rigid property, it must

necessarily be such.

Formal Rigidity

• φ is rigid (+R): ∀x (pos φ(x) → nec φ(x))

• e.g. Person, Apple


• φ is non-rigid (-R): ∃ x (pos φ(x) ∧ ¬ nec φ(x))

• e.g. Red, Male

• φ is anti-rigid (~R): ∀ x (pos φ(x) → ¬ nec φ(x)) e.g. Student, Agent

Meta-properties


8

Sortals and other properties

• Sortals (horse, triangle, amount of matter, person, student...)

• Carry (non-trivial) identity conditions

• Usually correspond to nouns

• High organizational utility

• Non-sortals (red, big, old, decomposable, dependent...)

• No identity

• Usually correspond to adjectives

• Span across different sortals

• Limited organizational utility

• Categories (object, entity...)

• No identity

• Useful generalizations for sortals

• Characterized by a set of (only necessary) formal properties

• Good organizational utility

Identity criteria

• Classic formulation:

• Generalization:


φ(x) ∧ φ(y) → (ρ(x,y) ↔ x = y)

φ(x,t) ∧ φ(y,t’) → (Γ(x,y,t,t’) ↔ x = y)

(φ carries the identity criterion ρ)

(synchronic: t = t’; diachronic: t ≠ t’)

• In most cases, Γ is based on the sameness of certain characteristic

features:

• Non-triviality condition:

Γ(x,y,t,t’) = ∀z (χ(x,z,t) ∧ χ(y,z,t’))

• Γ( x,y, t, t’) must not contain an identity statement between x and y!

Carrying vs. Supplying Identity


• Supplying (global) identity (+O)

• Carrying an IC (or essential property) that doesn’t hold for all directly

subsuming properties

• Carrying identity (+I)

• Not supplying identity, while being subsumed by a property that does.

• Common sortal principle: x=y -> there is a common sortal supplying their

identity

• Theorem: only rigid properties supply identity


9

Heuristics for Identity

• Finding necessary and sufficient ICs for a given property may be very

hard.

• Heuristic 1: at least a sufficient IC.

• Heuristic 2: some essential parts or qualities

• Heuristic 3: some essential (non-rigid) properties

Carrying essential properties


• A property P carries a (relevant) essential property Q (different

from P) iff Q is essential to all instances of P, and still Q is not

rigid:

• Every person must have a brain.

• Compare with:

• Every person must be a mammal.

Unity, Identity, and Essence

• Unity: is the collar part of my

dog?

• Being a topological

whole is an essential

property of my dog

• Identity: is this my dog?

• Essential properties allow

us to keep track of my dog

across time

• Individual essential

properties of my dog

• Generic essential

properties of dogs



10

Unity as an essential property

• A tentative formulation: x is a whole under a unifying relation U iff U is

an equivalence relation that binds together all the parts of x, such that,

necessarily,

but not

P(y,x) → (P(z,x) ↔ U(y,z))

U(y,z) ↔ ∃x(P(y,x) ∧ P(z,x))

• P is the part-of relation

• U can be seen as a generalized indirect connection

Kinds of Whole


• Depending on the nature of U, we can distinguish:

• Topological wholes (a piece of coal, a lump of coal)

• Morphological wholes (a constellation)

• Functional wholes (a hammer, a bikini)

• Social wholes (a population)

* a whole can have parts that are themselves wholes (with a different

U)

* Being a whole of a certain kind is an essential property: things cannot

change their own unity conditions

Unity Disjointness Constraint


Classes with incompatible UCs are disjoint

Example: Object and Matter


11

Identity Disjointness Constraint

ICs impose constraints on sortals, making their ontological

nature explicit:

Properties with incompatible ICs are disjoint

Examples:

• persons and passengers

• sets vs. ordered sets

• amounts of matter vs. assemblies

Taxonomic Constraints

• +R ⊄ ~R

• -I ⊄ +I

• -U ⊄ +U

• +U ⊄ ~U

• -D ⊄ +D

Example - Identity

• Is time-interval a subclass of timeduration?

• Initial answer: yes

• IC for time-duration

• Same-length

• IC for time-interval

• Same start & end


• Incompatible IC’s are disjoint

• Incompatible UC’s are

disjoint


occurrent

time-interval

time-duration


12

Examples of IS-A overloading

1. A physical object is an amount of matter (Pangloss)

2 An amount of matter is a physical object (WordNet)

3. An association is a group (WordNet)

4. A place is a physical object (µKosmos, WordNet)

5. A country is a geographical region (WordNet)

6. A window is both an artifact and a place (µKosmos)

7. A person is both a physical object and a living thing (Pangloss)

How ontological levels

simplify taxonomies

social-event

mental-event

physical-event

social-event

mental-event

physical-event

Sortal specialization


communication-event

perceptual-event

communication-event

perceptual-event


• Type specialization (e.g. Living being → Person)

• New features (especially essential properties) affect identity

• Both necessary and sufficient ICs can be added while specializing types

• Polygon: same edges, same angles

• Triangle: two edges, one angle

• Living being: same DNA, etc…

• Zebra: same stripes...

• Role specialization (e.g. Person → Student)

• New features don’t affect identity

• Types are rigid, roles are anti-rigid


13

Roles are ‘dynamic’ and ‘antirigid’

Basic Idea (Steimann 2000): Roles have temporal/modal relations with

their players

• An entity can play different roles simultaneously

• In 2003, B. was the Italian Prime Minister, the President of the

European Union, the president of the Forza Italia party, the owner of

the Mediaset company, an Italian citizen, a defendant at a legal trial.

• An entity can cease playing a role (antirigidity)

• In 1960, B. was a piano bar singer, now he is the IPM.

• An entity can play the same role several times, simultaneously

• In 2003, B. had two presidencies / was president twice.

• A role can be played by different entities, simultaneously or at

different times

• Today, there are 4319 Italian National Research Council

researchers.

• In 2000, the Italian Prime Minister was D., now it is B.

Roles have a relational nature


• Basic Idea (Sowa, Guarino&Welty)

Roles imply patterns of relationships, i.e., they depend—via

these patterns—on additional ‘external’ properties

• Which kind of dependence?

• “Definitional” dependence (Fine 1995) avoids these

problems:

“to say that an object x depends upon an F is to say that an

F will be ineliminably involved in any definition of x.”

• with a non-internality condition added


The dual nature of roles [Masolo et al 2004]

• Basic Idea (Sowa 2000)

Roles can be ‘predicated’ of different entities, i.e.,

different entities can play the same role

• Standard representation

Roles as properties

• Social (and dynamic) aspects of roles not accounted

for

• Roles are created and disappear; are defined by

conventions; are adopted and accepted by communities of

agents

• Roles need to be considered both as properties and

“first-class citizens”


14

What's the right model? [Steimann 2000]

Customer

Person Organization

Person Organization Customer

a

The solution [Guizzardi 2005]

«kind»

Person

«role»

PrivateCustomer


«roleMixin»

Customer

«kind»

Social Being

Organization

«role»

CorporateCustomer


Another example solved with the same

Ontology-Driven Design Pattern

«kind»

Person

«roleMixin»

Participant

«kind»

Social Being

SIG

«role»

«role»

IndividualParticipant CollectiveParticipant


b

15

Location

Country

Location

+O-U-D+R

Country

+L+U-D~R

Fruit

A taxonomy cleaning example

Physical object

Apple

Amount of matter

Red apple


+O+U-D+R

Fruit

+O+U-D+R

Food

Entity

Living being

Caterpillar

Animal

Entity -I-U-D+R

Red

Agent

Legal agent

Vertebrate

Butterfly

assign meta-properties

Group

Group of people

Social entity

Organization

Person

Remove non-rigid properties


+O~U-D+R

Red

-I-U-D-R

Agent

-I-U+D~R

Group

+O~U-D+R

Apple

+O+U-D+R

Red apple

+I-O+U-D~R

Food

+I-O~U+D~R

Living being

+O+U-D+R

Caterpillar

+L+U-D~R

Animal

+O+U-D+R

Butterfly

+L+U-D~R

Legal agent

+L-U+D~R

Vertebrate

+I-O+U-D+R


+I-O~U-D+R

Social entity

-I+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R

16

Location

+O-U-D+R

Location

+O-U-D+R

Location

+O-U-D+R


+O+U-D+R

Fruit

+O+U-D+R



+O~U-D+R • ~U can’t subsume +U Group

• Living being can change +O~U-D+R parts and

remain the same, but amounts of

Living being

+O+U-D+R •

matter can not (incompatible ICs)

Living being is constituted Group of of matter people

+I-O~U-D+R

Apple

+O+U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Animal

+O+U-D+R


Animal

+O+U-D+R

Analyze taxonomic links

Vertebrate

+I-O+U-D+R

Social entity

-I+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R



+O~U-D+R

•

•

~U can’t subsume +U

Group

Living being can change parts and

+O~U-D+R

remain the same, but amounts of

Living being

+O+U-D+R •

matter can not (incompatible ICs)

Living being is constituted Group of of matter people

+I-O~U-D+R

Apple

+O+U-D+R


Animal

+O+U-D+R

Vertebrate

+I-O+U-D+R

Social entity

-I+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R




• Physical objects can change +O~U-D+R parts


+O+U-D+R

Living being

+O+U-D+R

•

and remain the same, but

amounts of matter can not

(incompatible ICs) Group of people

Physical object is constituted +I-O~U-D+R of

matter

Social entity

Fruit

+O+U-D+R

-I+U-D+R

Vertebrate

+I-O+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R

17

Location

+O-U-D+R

Location

+O-U-D+R

Location

+O-U-D+R


+O+U-D+R

Fruit

+O+U-D+R




• Physical objects can change +O~U-D+R parts

and remain the same, but amounts

Living being

+O+U-D+R •

of matter can not (incompatible ICs)

Physical object is constituted Group of ofpeople

matter

+I-O~U-D+R

Apple

+O+U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Animal

+O+U-D+R


Animal

+O+U-D+R


Vertebrate

+I-O+U-D+R

Social entity

-I+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R



+O~U-D+R • Meta-properties fineGroup

• Identity-check fails: +O~U-D+R being alive

is a contingent property for

Living being

+O+U-D+R

•

physical objects, and an

essential property Group for animals of people

+I-O~U-D+R

Constitution again

Apple

+O+U-D+R


Vertebrate

+I-O+U-D+R

Social entity

-I+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R


+O~U-D+R Group

+O~U-D+R

Living being

+O+U-D+R

Animal

+O+U-D+R


Vertebrate

+I-O+U-D+R


+I-O~U-D+R

Social entity

-I+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R

18

Fruit

+O+U-D+R

Apple

+O+U-D+R


Location

+O-U-D+R •


~U can’t subsume +O~U-D+R +U

Group

• A group can’t change parts - it

+O~U-D+R

becomes a different group

Physical • A social object entity can change Living parts being - it’s

+O+U-D+R

more than just a group +O+U-D+R (incompatible

IC)


+I-O~U-D+R

• Constitution again

Location

+O-U-D+R

Location

+O-U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Animal

+O+U-D+R



Vertebrate

+I-O+U-D+R

Social entity

-I+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R


+O~U-D+R Group

+O~U-D+R


+O~U-D+R

• ~R can’t subsume +R

• Really want a type restriction: all

agents are animals or social

entities.

• Subsumption is not disjunction!


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Living being

+O+U-D+R

Animal

+O+U-D+R


Living being

+O+U-D+R

Animal

+O+U-D+R

Vertebrate

+I-O+U-D+R

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Person

+O+U-D+R


+I-O~U-D+R

Social entity

-I+U-D+R

Organization

+O+U-D+R

Person

+O+U-D+R

Analyze non-rigid properties

Agent

-I-U+D~R

Group

+O~U-D+R


+I-O~U-D+R

Organization

+O+U-D+R

19

Location

+O-U-D+R

Location

+O-U-D+R

Location

+O-U-D+R


+O~U-D+R


• Another disjunction: all legal agents are

persons or organizations

Apple

+O+U-D+R


+O+U-D+R

Fruit

+O+U-D+R


+O~U-D+R


• Another disjunction: all legal agents are

persons or organizations

Food

+I-O~U+D~R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R


+O~U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Caterpillar

+L+U-D~R


Living being

+O+U-D+R

Animal

+O+U-D+R


Living being

+O+U-D+R

Animal

+O+U-D+R


Living being

+O+U-D+R

Animal

+O+U-D+R


Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Agent

-I-U+D~R

Person

+O+U-D+R

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Person

+O+U-D+R

Legal agent

+L-U+D~R

Group

+O~U-D+R


+I-O~U-D+R

Organization

+O+U-D+R


Agent

-I-U+D~R

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Butterfly

+L+U-D~R

Person

+O+U-D+R

Legal agent

+L-U+D~R

Group

+O~U-D+R


+I-O~U-D+R

Organization

+O+U-D+R


Agent

-I-U+D~R


Legal agent

+L-U+D~R

Group

+O~U-D+R

• Apple is not necessarily food. A poisonapple,

e.g., is still an apple.

• ~U can’t subsume +U

• Caterpillars are wholes, food is stuff.


+I-O~U-D+R

Organization

+O+U-D+R

20

Location

+O-U-D+R

Location

+O-U-D+R

Food

+I-O~U+D~R


+O~U-D+R

Apple

+O+U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Caterpillar

+L+U-D~R


+O~U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Country

+L+U-D~R Caterpillar

+L+U-D~R

Location

+O-U-D+R

Food

+I-O~U+D~R


Living being

+O+U-D+R

Animal

+O+U-D+R

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Butterfly

+L+U-D~R

Person

+O+U-D+R


Living being

+O+U-D+R

Animal

+O+U-D+R


Agent

-I-U+D~R


Legal agent

+L-U+D~R

Group

+O~U-D+R

• Apple is not necessarily food. A poisonapple,

e.g., is still an apple.

• ~U can’t subsume +U

• Caterpillars are wholes, food is stuff.

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Butterfly

+L+U-D~R

Person

+O+U-D+R


+I-O~U-D+R

Organization

+O+U-D+R


• Identity check: a location can’t change parts…

• 2 senses of country: geographical region and political entity.

• Split the two senses into two concepts, both rigid, both types.


+O~U-D+R


There is Physical a relationship object between the

two, but +O+U-D+R not subsumption. Living being

Food

+O+U-D+R

+I-O~U+D~R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Geographical

Country Region

+L+U-D~R +O-U-D+R Caterpillar

+L+U-D~R

Animal

+O+U-D+R

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Butterfly

+L+U-D~R

Person

+O+U-D+R

Group

+O~U-D+R


+I-O~U-D+R

Organization

+O+U-D+R


Agent

-I-U+D~R

Legal agent

+L-U+D~R

Group

+O~U-D+R


+I-O~U-D+R

Country

+O+U-D+R

Organization

+O+U-D+R

21

• Caterpillars and butterflies cannot be

vertebrate

• There must a rigid property that

subsumes the two, supplying identity

across temporary phases

Location

+O-U-D+R

Food

+I-O~U+D~R


+O~U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Geographical

Region

+O-U-D+R Caterpillar

+L+U-D~R

Location

+O-U-D+R


+O~U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Geographical

Region

+O-U-D+R Caterpillar

+L+U-D~R

Location

+O-U-D+R

Food

+I-O~U+D~R

Geographical

Region

+O-U-D+R


+O~U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R


Living being

+O+U-D+R

Animal

+O+U-D+R

Lepidopteran

+O+U-D+R

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Butterfly

+L+U-D~R

Person

+O+U-D+R


Living being

+O+U-D+R

Animal

+O+U-D+R

Lepidopteran

+O+U-D+R

Look for missing types

Agent

-I-U+D~R

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Butterfly

+L+U-D~R

Person

+O+U-D+R


Living being

+O+U-D+R

Animal

+O+U-D+R

Lepidopteran

+O+U-D+R

Legal agent

+L-U+D~R

Group

+O~U-D+R


+I-O~U-D+R

Country

+O+U-D+R

Organization

+O+U-D+R

Look for missing types

Agent

-I-U+D~R

Social entity

-I+U-D+R

Person

+O+U-D+R

Legal agent

+L-U+D~R

Group

+O~U-D+R


+I-O~U-D+R

Country

+O+U-D+R

Organization

+O+U-D+R

The backbone taxonomy

Vertebrate

+I-O+U-D+R

Group

+O~U-D+R


+I-O~U-D+R

Country

+O+U-D+R

Organization

+O+U-D+R

22

Location

+O-U-D+R

Food

+I-O~U+D~R

Geographical

Region

+O-U-D+R

Location

Country

Location

+O-U-D+R


+O~U-D+R


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Red apple

+I-O+U-D~R

Physical

object

Fruit

Caterpillar

+L+U-D~R


Living being

+O+U-D+R

Animal

+O+U-D+R

Lepidopteran

+O+U-D+R


Apple

Food

+I-O~U+D~R

Geographical

Region

+O-U-D+R

Red apple

Food


+O~U-D+R

Agent

-I-U+D~R

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Butterfly

+L+U-D~R

Person

+O+U-D+R

Entity

Living being

Caterpillar


+O+U-D+R

Fruit

+O+U-D+R

Apple

+O+U-D+R

Red apple

+I-O+U-D~R

Red

-I-U-D-R

Caterpillar

+L+U-D~R

Red

Animal Legal agent


Vertebrate

Butterfly

Living being

+O+U-D+R

Animal

+O+U-D+R

Lepidopteran

+O+U-D+R

Legal agent

+L-U+D~R

Agent

Social entity

-I+U-D+R

Vertebrate

+I-O+U-D+R

Agent

-I-U+D~R

Butterfly

+L+U-D~R

Person

+O+U-D+R

Group

+O~U-D+R


+I-O~U-D+R

Country

+O+U-D+R

Organization

+O+U-D+R

Before

Group


Social entity

Organization

Person

Legal agent

+L-U+D~R

After

Group

+O~U-D+R


+I-O~U-D+R

Country

+O+U-D+R

Organization

+O+U-D+R

23

An Interdisciplinary Approach

• Towards a unified Ontology-driven Modelling Methodology for databases,

knowledge bases and OO-systems

• Grounded in reality

• Transparent to people

• Rigorous

• General

• Based on

• Logic

• Philosophy

• Linguistics

- Cognitive science

Conclusions


• Subtle meaning distinctions do matter

• Properties and relations are not all the same

• Formal ontological analysis helps introducing distinctions that make modeling

assumptions clear

• Helps resolving known conflicts

• Helps recognizing unkown conflicts

• Imposes constraints on standard modeling primitives (generalization, aggregation,

association)

• Elicits natural distinctions

• …results in more reusable ontologies

• A humble interdisciplinary approach is essential

…Is this hard?!

Of course yes! (Why should it be easy??)


24

Applications of DOLCE (2)

Core Ontologies

based on DOLCE, D&S, and OntoWordNet

• Core ontology of plans and guidelines

• Core ontology of (Web) services

• Core ontology of service-level agreements

• Core ontology of (bank) transactions (anti-money-laundering)

• Core ontology for the Italian legal lexicon

• Core ontology of regulatory compliance

• Core ontology of fishery (FAO's Agriculture Ontology Service)

• Core ontology of biomedical terminologies (UMLS)

Dependence


• Between particulars

• Existential dependence (specific/generic)

• Hole/host, person/brain, person/heart

• Historical dependence

• Person/parent

• Causal dependence

• Heat/fire

• Between universals

• Definitional dependence

• P depends on Q iff Q is involved in the definition of P.

• Metaproperties: +D/-D

A formal ontology of properties

Property

Sortal

+I

Non-sortal

-I

Role

~R+D

Non-rigid

-R


Rigid

+R

Category +R

Attribution -R-D

Formal Role

Anti-rigid

Material role

~R Phased sortal -D

Mixin -D

Type +O

Quasi-type -O


25

DOLCE

a Descriptive Ontology for Linguistic and Cognitive

Engineering

• Strong cognitive bias: descriptive (as opposite to

prescriptive) attitude

• Emphasis on cognitive invariants

• Categories as conceptual containers: no “deep”

metaphysical implications wrt “ true” reality

• Clear branching points to allow easy comparison with

different ontological options

• Rich axiomatization

• 37 basic categories

• 7 basic relations

• 80 axioms, 100 definitions, 20 theorems

DOLCE’s basic taxonomy

Endurant

Physical



Feature

Non-Physical

Mental object

Social object

…

Perdurant

Static

State

Process

Dynamic

Achievement

Accomplishment


Quality

Physical

Spatial location

…

Temporal

Temporal location

…

Abstract

Abstract

Quality region

Time region

Space region

Color region

…

…


A representation of DOLCE’s upper levels


26

Qualities and qualia

• Linguistic evidence

• This rose is red

• Red is a color

• This rose has a color

• The color of this rose turned to brown in one week

• Red is opposite to green and close to brown

• The patient’s temperature is increasing

• The doctor measured the patient's temperature

• Each endurant and perdurant comes with certain qualities that permanently

inhere to it and are unique of it

• Qualities are perceptually mapped into qualia, which are regions of quality

spaces.

• Properties hold because qualities have certain locations in their quality spaces.

• Each quality type has its own quality space

Qualities

The rose and the chair have the same color:

• different color qualities inhere to the two objects

• they are located in the same quality region


Therefore,the same color attribute (red) is ascribed to the two

objects

Qualities


Quality attribution Quality

Quality space

Rose Red-obj

Color

Rose1

q-location

Color of rose1 Red421

Inheres Has-quale

Color-space

Red-region

Has-part

Has-part


27

Qualities vs. Features

• Featu res: “parasitic” physical entities.

• rel evant parts of their host…

… or places

• Features have qualities, qualities have

no features.

Abstract vs. Concrete Entities


• Concrete:

• located (at least) in time

• Abstract - two meanings:

- Result of an abstraction process (something common to multiple

exemplifications)

∗ Not located in space-time


Physical vs. Non-physical Objects

• Physical objects

• Inherent spatial localization

• Not necessarily dependent on other objects

• Non-physical objects

• No inherent spatial localization

• Dependent on agents

• mental (depending on singular agents)

• social (depending on communities of agents)

• Agentive: a company, an institution

• Non-agentive: a law, the Divine Comedy, a linguistic

system…

• Descriptions, an extension of DOLCE


28

Endurants and Perdurants

• Endurants (3D “objects”, e.g., a written text)

• All proper parts are present whenever they are present

(wholly presence, no temporal parts)

• Exist in time

• Can genuinely change in time

• Need a time-indexed parthood relation

• Perdurants (4D “eventualities”, e.g., an utterance)

• Only some proper parts are present whenever they are

present (partial presence,temporal parts )

• Happen in time

• Do not change in time

• Do not need a time-indexed parthood relation

• Participation

Physical vs. Non-physical Object


FIAT SpA

• Physical objects:

• inherent spatial localization

• not dependent on other objects (physical objects, like cars) or no

inherent localization and be dependent on agents (non-physical

objects, like laws and institutions).

•Non-physical objects can also be divided into mental (depending on

singular agents) and social (depending on communities of agents).


29

Ontology-Driven Conceptual Modelling - Cs.ioc.ee

Transform your PDFs into Flipbooks and boost your revenue!

Ontology-Driven Conceptual Modelling - Cs.ioc.ee

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
