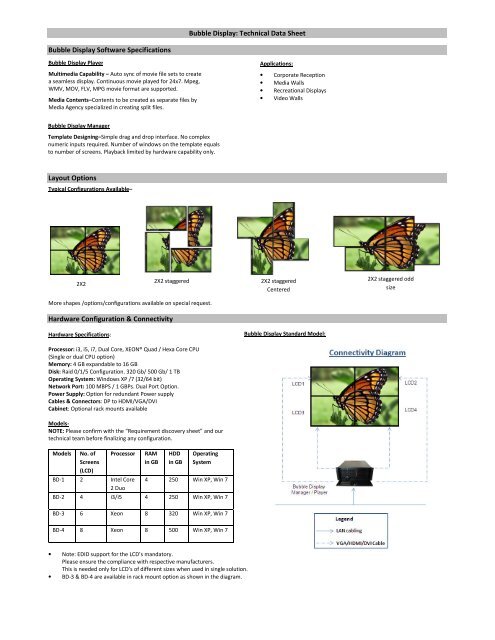

Technical Data Sheet Bubble Display Software Specifications ...

Bubble Display Software Specifications
Bubble Display Player
Multimedia Capability – Auto sync of movie file sets to create
a seamless display. Continuous movie played for 24x7. Mpeg,
WMV, MOV, FLV, MPG movie format are supported.
Media Contents–Contents to be created as separate files by
Media Agency specialized in creating split files.
Bubble Display Manager
Template Designing–Simple drag and drop interface. No complex
numeric inputs required. Number of windows on the template equals
to number of screens. Playback limited by hardware capability only.
Layout Options
Typical Configurations Available–
2X2
More shapes /options/configurations available on special request.
Hardware Configuration & Connectivity
Hardware Specifications:
Processor: i3, i5, i7, Dual Core, XEON® Quad / Hexa Core CPU
(Single or dual CPU option)
Memory: 4 GB expandable to 16 GB
Disk: Raid 0/1/5 Configuration. 320 Gb/ 500 Gb/ 1 TB
Operating System: Windows XP /7 (32/64 bit)
Network Port: 100 MBPS / 1 GBPs. Dual Port Option.
Power Supply: Option for redundant Power supply
Cables & Connectors: DP to HDMI/VGA/DVI
Cabinet: Optional rack mounts available
Models-
NOTE: Please confirm with the “Requirement discovery sheet” and our
technical team before finalizing any configuration.
Models No. of
Screens
(LCD)
Processor RAM
in GB
HDD
in GB
Bubble Display: Technical Data Sheet
Operating
System
BD-1 2 Intel Core
2 Duo
4 250 Win XP, Win 7
BD-2 4 i3/i5 4 250 Win XP, Win 7
BD-3 6 Xeon 8 320 Win XP, Win 7
BD-4 8 Xeon 8 500 Win XP, Win 7
• Note: EDID support for the LCD’s mandatory.
Please ensure the compliance with respective manufacturers.
This is needed only for LCD’s of different sizes when used in single solution.
• BD-3 & BD-4 are available in rack mount option as shown in the diagram.
Applications:
• Corporate Reception
• Media Walls
• Recreational Displays
• Video Walls
2X2 staggered 2X2 staggered
Centered
Bubble Display Standard Model:
2X2 staggered odd
size

Gesture Magix Software Specifications
Gesture Magix
Interactivity – Kinect Camera
Mounting Height: 2' to 7' feet
User Distance: 6' to 9' feet
User Height: 3'feet 4" inches & above
Simulation–Mouse Movement with right hand and mouse click on hold.
Gesture Magix –Mounting Kinect Camera
Typical Kinect Camera Mounting Available–
More options/configurations are available on special request.
Gesture Magix Hardware Configuration
Hardware Specifications:
Processor: i3, i5, i7, Dual Core, XEON® Quad Core CPU
(Single or dual CPU option)
Memory: 4 GB expandable to 16 GB
Disk: Raid 0/1/5 Configuration. 320 Gb/ 500 Gb / 1 TB
Operating System: Windows XP /7 Prof (32bit)
Network Port: 100 MBPS / 1 GBPs. Dual Port Option.
Power Supply: Option for redundant Power Supply
Cables & Connectors: DP to HDMI/VGA/DVI
Models:
Models No.of
Screens
(LCD)
Gesture 1 Intel Core
2 Duo
Processor RAM
in GB
HDD
in
GB
Gesture Magix: Technical Data Sheet
Operating
System
2 250 Win XP,
Win 7
(32 bit)
• Rack Mount option available
• Designed to work as standard or embedded hardware
• Supports separate or integrated (with LCD built in) hardware
Applications-
• Flash Applications
• Exe applications
• PPT linked to actions on click.
• Ideas for product catalogues
Gesture Magix Standard Model:
Gesture Magix also works with standard LCD Models

Sensor Magix Software Specifications
Sensor Magix
Multimedia Capability – Each sensor is mapped to a movie file.
Based on sensor input movie file is shown. Additional actions can
be configured. Default content played when no actions.
Types of sensors –
• Touch
• Transmitter proximity
• Transmitter Receiver proximity
Sensor Magix Layout
Typical Applications of Sensor Magix –
Sensor mounted on headlight, Engine, steering wheel of car in showroom
More options/configurations are available on special request.
Sensor Magix Hardware Configuration
Hardware Specifications:
Processor: i3, i5, i7, Dual Core, XEON® Quad Core CPU
(Single or dual CPU option)
Memory: 4 GB expandable to 16 GB
Disk: Raid 0/1/5 Configuration. 320 Gb/ 500 Gb / 1 TB
Operating System: Windows XP /7 Prof (32bit)
Network Port: 100 MBPS / 1 GBPs. Dual Port Option.
Power Supply: Option for redundant Power Supply
Cables & Connectors: DP to HDMI/VGA/DVI
Models:
Models Processor RAM
in GB
T4
T8
Tx4
Tx8
TR4
TR8
Range
Intel Core
2 Duo
Touch/Push On/Off
Transmitter only 1 meter
HDD
in GB
Transmitter / Receiver 2.5 meters
Operating
System
2 250 Win XP,
Win 7
(32 bit)
• Rack Mount option available
• Designed to work as standard or embedded hardware
• Supports separate or integrated (with LCD built in) hardware
Sensor Magix: Technical Data Sheet
Types Sens
ors
Touch
Touch
Transmitter
Transmitter
Tran Receiver
Tran Receiver
Additional serial port can be configured using additional cards.
Different Combinations are available.
4
8
4
8
4
8
Typical Application
• Product Display. E.g. machine
• Interactive Models. E.g. Car/Bike
• Real Estate features in showroom

Revo Magix Software Specifications
Revo Magix
Multimedia Capability – Revolutions of the encoder sets a seamless
display on the screen by auto play of image files in loop. Clockwise
and anticlockwise movement of encoder helps to define series of
images on the screen giving the reel effect. Speed of the moving
images depends upon the revolution of the revo sensor .Jpeg, .Bmp,
.Gif formats are supported.
Revo Magix Sample application as a charkha
Typical Configurations Available–
More shapes /options/configurations available on special request.
Revo Magix Hardware Configuration
Hardware Specifications-
1) Incremental Shaft Type- : S40
2) Shaft Diameter : c10 mm
3) Resolution : Up to 1000 PPR or more
4) Accuracy : +/- 1 degree over 1 rotation or better
NOTE: Please confirm with the “Requirement discovery sheet” and our
technical team before finalizing any configuration.
Models:
Models No. of
Screens
(LCD)
Revo 1 1 Intel Core
2 Duo
Processor RAM
in GB
HDD
in
GB
Revo Magix: Technical Data Sheet
Operating
System
2 250 Win XP,
Win 7
(32 bit)
• Rack Mount option available
• Designed to work as standard or embedded hardware
• Supports separate or integrated (with LCD built in) hardware
Applications:
• Intern calculation by rotating of years
• Games to measure strength & speed
• Educational Props.
• Museum & Brand center
Revo Magix Standard Model:

Motion Magix Software Specifications
Motion Magix
Using Accelerometer
• Based on the Accelerometer, direction is sensed.
• Accordingly appropriate media file is activated.
• Auto switch to default content in case of no activity by user
Using Sensor
• Sensors are placed at different distances.
• Based on which sensor is activated, Content is displayed. displayed
• Combination of accelerometer & sensor can be used
Motion Magix Application
Typical Application to create a History wall
Motion Magix: Magix Technical Data Sheet
As the LCD mounted on rails moves, sensors are activated to show image/movies image/ associated to the particular time.
Motion Magix Hardware Configuration
Hardware Specifications:
Processor: Intel Atom N280 1.66 GHz
Memory: 2 GB DDR3 SDRAM
Disk: 2 GB Flash
Operating System: Microsoft® Windows® Embedded Standard 7
Service Pack 1
Network Port: 100 MBPS
Power Supply: Option for redundant Power Supply
Cables & Connectors: DP to HDMI/VGA
NOTE: Please confirm with the “Requirement discovery sheet” and our
technical team before finalizing any configuration.
Models:
Models No. of
Screen
(LCD)
Timeline 1 Intel
Atom
N280
Processor RAM
in GB
2 2
Flash
in GB
Operating
System
Microsoft®
Windows®
Embedded
Standard 7
Service
Pack 1
• Rack Mount option available
• Designed to work as standard or embedded hardware
• Supports separate or integrated (with LCD built in) hardware
Please refer to sensor magix datasheet for more details.
Application
• History wall
• Corporate props / games
• Events and Exhibitions
• Demonstrations
Motion Magix Standard Model:

Kiosk Magix Software Specifications
Kiosk Magix-
Kiosk integrates signage and Proximity sensor or any standard kiosk
application.
• Auto Switch to signage if no activity
• Switch to kiosk based on Proximity sensor
• Proximity sensor needs Sensor Magix
• Signage needs Streme Player
• Action on kiosk can trigger media on another Signage player
Kiosk Magix Layout
Kiosk Magix: Technical Data Sheet
Applications-
Typical Configurations Available–
Interactive Mode Signage Mode Kiosk with other signage
Proximity sensor Proximity Sensor
More shapes /options/configurations available on special request.
Kiosk Magix Hardware Configuration
Hardware Specifications-
Processor: i3, i5, i7, Dual Core CPU
Memory: 2 GB expandable to 16 GB
Disk: Raid 0/1/5 Configuration. 320 Gb/ 500 Gb/ 1 TB
Operating System: Windows XP /7 Prof (32bit)
Network Port: 100 MBPS / 1 GBPs. Dual Port Option.
Power Supply: Option for redundant Power Supply
Cables & Connectors: DP to HDMI/VGA/DVI
Functionalities of Kiosk Models:
Models Functionality Processor RAM HDD in OS Serial Port
in GB GB
(RS-232)
KM+SM Proximity sensors are Intel Core 2 2 320 Win XP, 1
used for interactivity Duo
Win 7
to change the
Prof
contents on the
Kiosk.
(32 bit)
KM+S When there is no Intel Core 2 2 320 -
activity, the Kiosk will
switch to default
signage mode.
Duo
KM+SM+S When a user comes Intel Core 2 2 320 1
near Kiosk the
signage switch to
Kiosk mode. When
the person moves
away, it switches to
signage mode.
Duo
KM+S One Kiosk will be Intel Core 2 2 320 -
(Another used to change the Duo
machine) content on another
signage machine.
Where in a) KM: Kiosk Magix b) SM: Sensor Magix c) S: Signage
NOTE: Please confirm with the “Requirement discovery sheet” and our technical team before finalizing any configuration.
• Rack Mount option available
• Designed to work as standard or embedded hardware
• Supports separate or integrated (with LCD built in) hardware
• Interactive Signage for public place
• Experience Center
• Retail
• Large interactive video walls
Kiosk Magix Standard Model:
