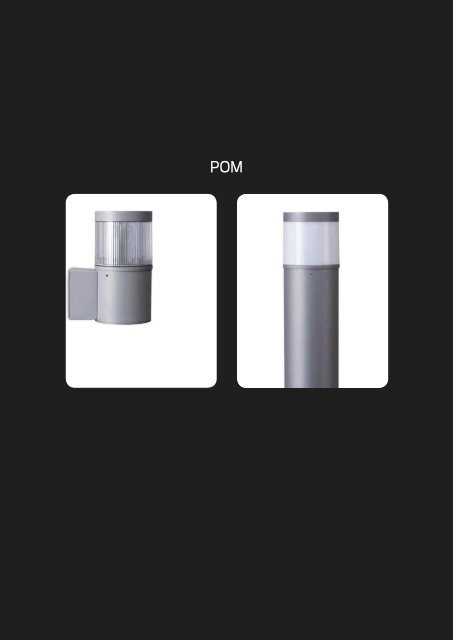

POM

symmetrical light distribution. It can be operated with compact fluorescent lamp and
HID lamp. The impact resistant PC lens cover is available in prismatic and opal, both
producing a uniform wide beam light distribution. It is generally installed in the walk
ways, parks, gardens, commercial areas and open spaces where general lighting
is needed. We produce the bollard at different height according to the customer
design. Anchorage unit for concrete foundation is available as an accessory.
Uniform light distribution.
Wall light version equipped
with quick connector.
Impact resistant body and
cover.
Electronic control gear.
Nano ceramic coating. Timed ignitor.
Available in 6 colors. Approved components.
268

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54/65. Protection against
mechanical impact IK 10 on body and optical part.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
polycarbonate diffuser with UV stabilized additive.
Working temperature -40C to +200C.
ENEC approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
B2 EEI class.
Schwabe/ Tridonic/ BAG. ENEC approved.
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
269
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(for Bollard)
Ordering code: 9-2010-00

POM Opal Wall Light
IP54 Class1
POM Opal Pillar Top Light
IP54 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Orderimg code:
Ordering code:
34 cd/Klm
28 cd/Klm
24 cd/Klm
26 cd/Klm
32 cd/Klm
32 cd/Klm
7750-0-3-711-XX
7750-0-3-611-XX
45
45
7750-0-3-424-XX
45
7750-0-3-436-XX
45
7750-0-2-495-XX
45
5507-0-2-495-XX
45
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
7750-0-3-71 1 -XX
H = 1.0m.
E max = 62.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
2.0
1.0
7750-0-3-61 1 -XX
H = 1.0m.
E max = 48.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
1.0
2.0
4.0
8.0
2.0
0.5
1.0
0.25
7750-0-3-424-XX
H = 1.0m.
E max = 13.0 lx.
1.0 2.0 3.0 4.0 5.0
2.0
4.0
8.0
16.0
1.0
7750-0-3-436-XX
H = 1.0m.
E max = 25.0 lx.
1.0 2.0 3.0 4.0 5.0
1.0
2.0
4.0
8.0
0.5
7750-0-2-495-XX
H = 1.0m.
E max = 15.0 lx.
0.25
1.0 2.0 3.0 4.0 5.0
1.0
2.0
4.0
8.0
0.5
0.5
5507-0-2-495-XX
H = 1.0m.
E max = 15.0 lx.
0.25
1.0 2.0 3.0 4.0 5.0

POM Prismatic Wall Light
IP54 Class1
POM Prismatic Pillar Top Light
IP54 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Orderimg code:
Ordering code:
107 cd/Klm
75 cd/Klm
68 cd/Klm
74 cd/Klm
93 cd/Klm
93 cd/Klm
7551-0-3-711-XX
7551-0-3-611-XX
45
45
7551-0-3-424-XX
45
7551-0-3-436-XX
45
7551-0-2-495-XX
5508-0-2-495-XX
45
45
5.0
4.0
3.0
2.0
1.0
16.0
32.0
16.0
7551-0-3-711-XX
H = 1.0m.
E max = 59.0 lx.
2.0
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
16.0
32.0
32.0
16.0
8.0
4.0
7551-0-3-611-XX
H = 1.0m.
E max = 49.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
8.0
4.0
4.0
2.0
8.0
4.0
2.0
7551-0-3-424-XX
H = 1.0m.
E max = 13.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
8.0
16.0
8.0
4.0
1.0
0.5
7551-0-3-436-XX
H = 1.0m.
E max = 25.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0 16.0
8.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
4.0
8.0
16.0
8.0
2.0
1.0
5508-0-2-495-XX
H = 1.0m.
E max = 24.0 lx.
0.5
m. 1.0 2.0 3.0 4.0 5.0
2.0
1.0
1.0
7551-0-2-495-XX
H = 1.0m.
Emax = 24.0 lx.
0.5
m. 1.0 2.0 3.0 4.0 5.0

POM Opal Bollard
IP65 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Orderimg code:
34 cd/Klm
28 cd/Klm
24 cd/Klm
26 cd/Klm
32 cd/Klm
7150-0-3-711-XX
7150-0-3-611-XX
45
45
7150-0-3-424-XX
7150-0-3-436-XX
45
45
7150-0-2-495-XX
45
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
7150-0-3-71 1 -XX
H = 1.0m.
Emax = 62.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
2.0
1.0
7150-0-3-61 1 -XX
H = 1.0m.
E max = 48.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
1.0
2.0
4.0
8.0
2.0
0.5
1.0
0.25
7150-0-3-424-XX
H = 1.0m.
E max = 13.0 lx.
1.0 2.0 3.0 4.0 5.0
2.0
4.0
8.0
16.0
1.0
7150-0-3-436-XX
H = 1.0m.
E max = 25.0 lx.
0.5
1.0 2.0 3.0 4.0 5.0
1.0
2.0
4.0
8.0
7150-0-2-495-XX
H = 1.0m.
E max = 15.0 lx.
0.25
1.0 2.0 3.0 4.0 5.0
0.5

POM Prismatic Bollard
IP65 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Orderimg code:
107 cd/Klm
75 cd/Klm
68 cd/Klm
74 cd/Klm
93 cd/Klm
7151-0-3-711-XX
45
7151-0-3-611-XX
7151-0-3-424-XX
7151-0-3-436-XX
45
45
45
7151-0-2-495-XX
45
5.0
4.0
3.0
2.0
1.0
16.0
32.0
16.0
7151-0-3-711-XX
H = 1.0m.
E max = 59.0 lx.
2.0
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
16.0
32.0
32.0
16.0
8.0
4.0
7151-0-3-611-XX
H = 1.0m.
E max = 49.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
8.0
4.0
4.0
2.0
8.0
4.0
2.0
7151-0-3-424-XX
H = 1.0m.
E max = 13.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
8.0
16.0
8.0
4.0
1.0
0.5
7151-0-3-436-XX
H = 1.0m.
E max = 25.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
8.0
2.0
1.0
7151-0-2-495-XX
H = 1.0m.
E max = 24.0 lx.
0.5
m. 1.0 2.0 3.0 4.0 5.0
2.0
1.0

GRILL

GRILL
GRILL is a family of glare-free shielded wall, pillar top light and bollards.
Grill gives symmetrical light distribution on illuminated surface. It can be operated
with compact fluorescent and HID lamps. The die-cast aluminium louvers direct the
light downward. Because of its comfortable light emission, it is used in walkways,
parks, commercial areas and open spaces where glare control is a prerequisite.
Grill provides general lighting for architectural environments as well as being an
eye-catching object. We can supply the bollard at different heights according to
customer design. Anchor unit for concrete foundation is available as an accessory.
Grilled louver provides
comfortable light emission.
Wall light version equipped
with quick connector.
Impact resistant body and
cover.
Electronic control gear.
Nano ceramic coating. Timed ignitor.
Available in 6 colors. Approved components.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54/65. Protection against
mechanical impact IK 10 on body and optical part.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Working temperature -40C to +200C.
ENEC approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
B2 EEI class.
Schwabe/ Tridonic/ BAG. ENEC approved.
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
GRILL
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(for Bollard)
Ordering code: 9-2010-00

GRILL
GRILL Round Wall Light
IP54 Class1
GRILL Flat Wall Light
IP54 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Ordering code:
49 cd/Klm
27 cd/Klm
17 cd/Klm
23 cd/Klm
35 cd/Klm
7505-0-3-711-XX
30
7505-0-3-611-XX
30
7505-0-3-424-XX
30
7505-0-3-436-XX
30
7505-0-2-495-XX
30
5.0
4.0
3.0
2.0
1.0
32.0
16.0
8.0
16.0
1.0
2.0
4.0
8.0
7505-0-3-711-XX
H = 1.0m.
E max = 47.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
32.0
16.0
4.0
8.0
2.0
0.5
0.25
0.1
7505-0-3-611-XX
H = 1.0m.
E max = 43.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
0.5
1.0
0.25
0.5
0.25
7505-0-3-424-XX
H = 1.0m.
E max = 9.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
16.0
8.0
4.0
2.0
1.0
0.1
0.05
7505-0-3-436-XX
H = 1.0m.
E max = 19.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
16.0
0.5
0.5
0.25
0.25
0.1
7505-0-2-495-XX
H = 1.0m.
E max = 18.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
0.1
0.05

GRILL Round Bollard
IP54 Class1
GRILL Flat Bollard
IP54 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Ordering code:
49 cd/Klm
27 cd/Klm
17 cd/Klm
23 cd/Klm
35 cd/Klm
7105-0-3-711-XX
30
7105-0-3-611-XX
30
7105-0-3-424-XX
30
7105-0-3-436-XX
30
7105-0-2-495-XX
30
5.0
4.0
3.0
2.0
1.0
32.0
16.0
8.0
16.0
1.0
2.0
4.0
8.0
GRILL
7105-0-3-711-XX
H = 1.0m.
E max = 47.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
5.0
4.0
3.0
2.0
1.0
5.0
4.0
3.0
2.0
1.0
16.0
8.0
4.0
2.0
1.0
0.5
0.25
0.1
7105-0-3-436-XX
H = 1.0m.
Emax = 19.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
32.0
8.0
16.0
4.0
8.0
2.0
4.0
1.0
1.0
2.0
4.0
8.0
16.0
2.0
0.5
0.5
1.0
0.25
0.5
0.25
0.5
0.1
0.25
0.1
7105-0-2-495-XX
H = 1.0m.
Emax = 18.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
0.1
7105-0-3-611-XX
H = 1.0m.
Emax = 43.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
7105-0-3-424-XX
H = 1.0m.
Emax = 9.0 lx.
0.05
m. 1.0 2.0 3.0 4.0 5.0
0.05

FUJI

and HID lamps. The reflectors suppress glare from the lamp and direct light
downward onto the ground or illuminated surface. It is generally installed in the
walkways, parks, commercial areas and open spaces. It provides general lighting
in the architectural environment where light pollution has to be controlled. We can
supply the bollard at different heights according to customer designs. Anchor unit
for concrete foundation is available as an accessory.
Comfortable light emission.
Wall light version equipped
with quick connector.
Impact resistant aluminium
body.
Electronic control gear.
Nano ceramic layer. Timed ignitor.
Available in 6 colors. Approved components.
282

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54/65. Protection against
mechanical impact IK 10 on body and optical part.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature ontrolled chamber at 200C.
Working temperature -40C to +200C.
ENEC approved.
nickel-coated contact from AAG Stucchi. ENEC approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
B2 EEI class.
Schwabe/ Tridonic/ BAG. ENEC approved.
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(for Bollard)
Ordering code: 9-2010-00

FUJI Flat Wall Light
IP54 Class1
FUJI Round Wall Light
IP54 Class1
HIT-CE G12
Ordering code:
HIT-CE G12
Ordering code:
26W 1800lm
Ordering code:
26W 1800lm
Electronic Ballast
Ordering code:
15W 900lm
Ordering code:
284
84 cd/Klm
69 cd/Klm
19 cd/Klm
19 cd/Klm
46 cd/Klm
7512-0-3-751-XX
30
7512-0-3-752-XX
30
7512-0-3-444-XX
30
7512-0-3-462-XX
30
7512-0-2-493-XX
30
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
16.0
8.0
4.0
2.0
1.0
7512-0-3-751-XX
H = 1.0m.
E max = 34.0 lx.
1.0 2.0 3.0 4.0 5.0
32.0
16.0
8.0
4.0
2.0
0.5
0.25
7512-0-3-752-XX
H = 1.0m.
E max = 58.0 lx.
1.0 2.0 3.0 4.0 5.0
4.0
2.0
1.0
0.5
1.0
0.5
0.25
7512-0-3-444-XX
H = 1.0m.
E max = 7.0 lx.
1.0 2.0 3.0 4.0 5.0
4.0
2.0
1.0
0.5
0.1
0.25
7512-0-3-462-XX
H = 1.0m.
E max = 7.0 lx.
1.0 2.0 3.0 4.0 5.0
1.0
2.0
4.0
8.0
0.5
0.1
0.25
0.25
7512-0-2-493-XX
H = 1.0m.
E max = 29.0 lx.
1.0 2.0 3.0 4.0 5.0
0.1

Double FUJI Flat Wall Light
IP54 Class1
Double FUJI Round Wall Light
IP54 Class1
Ordering code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Ordering code:
285
93 cd/Klm
50 cd/Klm
26 cd/Klm
54 cd/Klm
48 cd/Klm
7519-0-3-711-XX
30
7519-0-3-611-XX
30
7519-0-3-424-XX
30
7519-0-3-436-XX
30
7519-0-2-495-XX
30
5.0
4.0
3.0
2.0
16.0
1.0
32.0
64.0
8.0
7.0
7519 -0-3-711-XX
H = 1.0m.
E max = 67.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
1.0
32.0
4.0
2.0
7519 -0-3 -611 -XX
H = 1.0m.
E max = 92.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
2.0
0.25
1.0
7519 -0-3 -424 -XX
H = 1.0m.
E max = 14.0 lx.
0.1
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
2.0
0.5
7519 -0-3-436-XX
H = 1.0m.
E max = 59.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
16.0
1.0
0.5
7519 -0-2-495 -XX
H = 1.0m.
E max = 26.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
0.5

FUJI Flat Bollard
IP65 Class1
FUJI Round Bollard
IP65 Class1
HIT-CE G12
Ordering code:
HIT-CE G12
Ordering code:
26W 1800lm
Ordering code:
26W 1800lm
Electronic Ballast
Ordering code:
15W 900lm
Ordering code:
286
84 cd/Klm
69 cd/Klm
19 cd/Klm
19 cd/Klm
46 cd/Klm
7112-0-3-751-XX
30
7112-0-3-752-XX
30
7112-0-3-444-XX
30
7112-0-3-462-XX
30
7112-0-2-493-XX
30
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
16.0
8.0
4.0
2.0
1.0
0.5
7112-0-3-751-XX
H = 1.0m.
E max = 34.0 lx.
0.25
1.0 2.0 3.0 4.0 5.0
32.0
1.0
2.0
4.0
8.0
16.0
7112-0-3-752-XX
H = 1.0m.
E max = 58.0 lx.
0.5
0.25
1.0 2.0 3.0 4.0 5.0
4.0
2.0
1.0
0.5
7112-0-3-444-XX
H = 1.0m.
E max = 7.0 lx.
1.0 2.0 3.0 4.0 5.0
4.0
2.0
1.0
0.5
0.1
0.25
7112-0-3-462-XX
H = 1.0m.
E max = 7.0 lx.
1.0 2.0 3.0 4.0 5.0
1.0
2.0
4.0
8.0
0.5
0.1
0.25
0.25
7112-0-2-493-XX
H = 1.0m.
E max = 29.0 lx.
1.0 2.0 3.0 4.0 5.0
0.1

Double FUJI Flat Bollard
IP65 Class1
Double FUJI Round Bollard
IP65 Class1
Ordering code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Ordering code:
93 cd/Klm
50 cd/Klm
26 cd/Klm
54 cd/Klm
48 cd/Klm
7119-0-3-711-XX
30
7119-0-3-611-XX
30
7119-0-3-424-XX
30
7119-0-3-436-XX
30
7119-0-2-495-XX
30
5.0
4.0
3.0
2.0
16.0
1.0
32.0
64.0
8.0
7.0
7119 -0-3-711-XX
H = 1.0m.
Emax = 67.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
2.0
4.0
8.0
16.0
1.0
32.0
2.0
7119 -0-3-611 -XX
H = 1.0m.
E max = 92.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
0.25
1.0
7119 -0-3 -424 -XX
H = 1.0m.
E max = 14.0 lx.
0.1
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
2.0
0.5
7119 -0-3-436-XX
H = 1.0m.
E max = 59.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
16.0
1.0
0.5
7119 -0-2 -495 -XX
H = 1.0m.
E max = 26.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
0.5

FUJI Flat Pillar Top Light
IP54 Class1
Double FUJI Flat Pillar Top Light
IP54 Class1
15W 900lm
Ordering code:
Ordering code:
288
FUJI Round Pillar Top Light
IP54 Class1
Double FUJI Round Pillar Top Light
IP54 Class1
46 cd/Klm
48 cd/Klm
5501-0-2-493-XX
30
5503-0-2-495-XX
30
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
8.0
2.0
4.0
1.0
0.5
0.25
5501-0-2-493-XX
H = 1.0m.
E max = 29.0 lx.
1.0 2.0 3.0 4.0 5.0
1.0
2.0
4.0
8.0
16.0
0.1
5503 -0-2-495 -XX
H = 1.0m.
E max = 26.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
0.5

SAMPLE OF LIGHTING LEVEL AND ITS DISTRIBUTION
FLOOR
Eav [lux] : 18
Emin [lux] : 4.33
Emax [lux] : 67
0.00
FLOOR
6.00 m
15.00 m
0.00
lx
32
24
16
8
A
289
B
7.06 7.68 11 14 11 7.87 7.22
7.08 9.83 21 28 22 11 7.13
6.90 13 32 38 35 15 7.14
7.32 15 33 5.27 37 17 7.71
8.02 15 35 51 37 17 8.33
9.40 14 28 35 31 15 9.42
10 12 17 23 21 14 11
11 14 15 16 15 14 13
11 14 15 17 16 14 13
11 13 19 25 23 15 12
10 15 32 38 34 17 10
9.49 17 37 65 39 19 9.82
9.35 18 36 9.80 40 20 9.73
9.85 16 35 40 38 18 10
10 13 21 32 28 17 11
11 13 16 19 18 14 13
11 14 15 15 14 15 13
11 13 15 19 18 14 12
10 13 24 30 26 14 10
8.39 15 33 38 36 16 8.60
7.57 16 34 8.90 37 17 7.95
7.03 14 33 59 36 16 7.35
7.01 11 28 33 29 12 7.05
7.08 8.32 14 18 14 8.74 7.24
6.89 7.77 8.19 9.12 8.34 7.66 7.10
0.00
6.00 m
15.00 m
0.00

MACRON

Operated with compact fluorescent lamp and HID lamps, the clear polycarbonate
cover with internal glare suppression louvers improves lighting quality by limiting
commercial areas and open spaces. It provides general illumination for any
architectural environ as well as being an eye-catching object. The bollard can be
customized to required heights and an anchor unit for concrete foundation is
available as an accessory.
Comfortable light emission.
Electronic control gear.
Double layer coating.
Available in 6 colors.
Timed ignitor.
Approved components.
292
Wall light version equipped
with quick connector.
Nano ceramic coating.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54/65. Protection against
mechanical impact IK 10 on body and optical part.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Working temperature -40C to +200C.
ENEC approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
B2 EEI class.
Schwabe/ Tridonic/ BAG. ENEC approved.
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(for Bollard)
Ordering code: 9-2010-00

MACRON Flat Wall Light
IP54 Class1
MACRON Flat Pillar Top Light
IP54 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Orderimg code:
Ordering code:
294
85 cd/Klm
52 cd/Klm
36 cd/Klm
40 cd/Klm
53 cd/Klm
53 cd/Klm
7507-0-3-711-XX
30
7507-0-3-611-XX
30
7507-0-3-424-XX
30
7507-0-3-436-XX
30
7507-0-2-495-XX
30
5505-0-2-495-XX
30
5.0
4.0
3.0
2.0
1.0 64.0
128.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
5.0
4.0
3.0
2.0
1.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
16.0
1.0
2.0
4.0
8.0
16.0
1.0
2.0
4.0
8.0
16.0
0.5
0.5
5505-0- 2 -495 -XX
H = 1.0m.
E max = 31.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
0.5
7507-0-2-424-XX
H = 1.0m.
Emax = 25.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
3.0
4.0
8.0
16.0
32.0
4.0
8.0
16.0
32.0
64.0
2.0
4.0
8.0
16.0
32.0
2.0
1.0
7507-0-3-711-XX
H = 1.0m.
Emax = 166.0 lx.
2.0
1.0 2.0 3.0 4.0 5.0
7507-0-3-611-XX
H = 1.0m.
Emax = 107.0 lx.
1.0
1.0 2.0 3.0 4.0 5.0
7507-0-3-436-XX
H = 1.0m.
Emax = 48.0 lx.
0.5
m. 1.0 2.0 3.0 4.0 5.0
7507-0-2-495-XX
H = 1.0m.
Emax = 31.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0

MACRON Round Wall Light
IP54 Class1
MACRON Round Pillar Top Light
IP54 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Orderimg code:
Ordering code:
295
85 cd/Klm
52 cd/Klm
36 cd/Klm
40 cd/Klm
53 cd/Klm
53 cd/Klm
7508-0-3-711-XX
30
7508-0-3-611-XX
30
7508-0-3-424-XX
30
7508-0-3-436-XX
30
7508-0-2-495-XX
30
5506-0-2-495-XX
30
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
3.0
4.0
8.0
16.0
32.0
64.0
128.0
7508-0-3-711-XX
H = 1.0m.
E max = 166.0 lx.
2.0
1.0 2.0 3.0 4.0 5.0
4.0
8.0
16.0
32.0
64.0
7508-0-3-611-XX
H = 1.0m.
E max = 107.0 lx.
1.0 2.0 3.0 4.0 5.0
2.0
0.5
1.0
2.0
4.0
8.0
16.0
1.0
7 508 -0-2 -424 -XX
H = 1.0m.
E max = 25.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
16.0
32.0
7 508 -0-3 -436-XX
H = 1.0m.
E max = 48.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
16.0
1.0
0.5
7 508 -0-2 -495 -XX
H = 1.0m.
E max = 31.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
16.0
0.5
5506-0- 2 -495 -XX
H = 1.0m.
E max = 31.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
0.5

MACRON Flat Bollard
IP65 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Orderimg code:
296
85 cd/Klm
52 cd/Klm
36 cd/Klm
40 cd/Klm
53 cd/Klm
7107-0-3-711-XX
30
7107-0-3-611-XX
30
7107-0-3-424-XX
30
7107-0-3-436-XX
30
7107-0-2-495-XX
30
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
3.0
4.0
8.0
16.0
32.0
64.0
128.0
7107-0-3-711-XX
H = 1.0m.
E max = 166.0 lx.
2.0
1.0 2.0 3.0 4.0 5.0
4.0
8.0
16.0
32.0
64.0
7107-0-3-611-XX
H = 1.0m.
E max = 107.0 lx.
1.0 2.0 3.0 4.0 5.0
1.0
2.0
4.0
8.0
16.0
2.0
1.0
7107-0- 2-424 -XX
H = 1.0m.
Emax = 25.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
16.0
32.0
0.5
7107-0- 3-436-XX
H = 1.0m.
Emax = 48.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
16.0
1.0
0.5
7107-0- 2 -495 -XX
H = 1.0m.
E max = 31.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
0.5

MACRON Round Bollard
IP65 Class1
Ordering Code:
Ordering code:
26W 1800lm
Ordering code:
Electronic Ballast
Ordering code:
Orderimg code:
85 cd/Klm
52 cd/Klm
36 cd/Klm
40 cd/Klm
53 cd/Klm
7108-0-3-711-XX
30
7108-0-3-611-XX
30
7108-0-3-424-XX
30
7108-0-3-436-XX
30
7108-0-2-495-XX
30
5.0
4.0
3.0
2.0
1.0 64.0
128.0
m.
5.0
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
3.0
4.0
8.0
16.0
32.0
7108-0-3-711-XX
H = 1.0m.
Emax = 166.0 lx.
2.0
1.0 2.0 3.0 4.0 5.0
4.0
8.0
16.0
32.0
64.0
2.0
7108-0-3-611-XX
H = 1.0m.
E max = 107.0 lx.
1.0 2.0 3.0 4.0 5.0
1.0
2.0
4.0
8.0
16.0
1.0
7108-0-2-424 -XX
H = 1.0m.
E max = 25.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
16.0
32.0
0.5
7108-0- 3 -436-XX
H = 1.0m.
E max = 48.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
16.0
1.0
0.5
7108-0- 2 -495 -XX
H = 1.0m.
E max = 31.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
0.5

TOWER

TOWER
TOWER family is designed with a clean-cut line to provide scenic lighting in a
modern architectural environment. It is suitable for installation in gardens, pathways,
squares and open spaces. The aluminium body together with high impact resistant
cover in polycarbonate helps to protect the luminaire against vandalism and
corrosion. It is operated with compact fluorescent and discharge lamps. Anchor unit
for concrete foundation is available as an accessory.
Simple clean-cut.
Wall light version equipped
with quick connector.
Impact resistant body and
cover.
Electronic control gear.
Nano ceramic. Timed ignitor.
Available in 6 colors. Approved components.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54. Protection against
mechanical impact IK 09 on body and optical part.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Working temperature -40C to +200C.
ENEC approved.
nickel-coated contact from AAG Stucchi. ENEC approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
B2 EEI class.
Schwabe/ Tridonic/ BAG. ENEC approved.
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
TOWER
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(for Bollard)

TOWER
TOWER1 Bollard
IP54 Class1
TOWER1 Pillar Top Light
IP54 Class1
HIT-CE G12
Ordering code:
TC-D G24d-2 /
TC-DEL G24q-2
18W 1200lm
Ordering code:
26W 1800lm
Ordering code:
15W 900lm
Ordering code:
15W 900lm
Ordering code:
TC-D
TC-T
55 cd/Klm
54 cd/Klm
54 cd/Klm
17 cd/Klm
17 cd/Klm
7122-0-3-751-XX
45
7122-0-3-423-XX
45
7122-0-3-444-XX
7122-0-2-493-XX
45
45
5509-0-2-493-XX
45
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
7122 -0-3-751-XX
H = 1.0m.
Emax = 60.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
2.0
1.0
7122 -0-3-423 -XX
H = 1.0m.
E max = 18.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
16.0
8.0
4.0
2.0
0.5
71 22 -0-3-444-XX
H = 1.0m.
Emax = 28.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
8.0
2.0
4.0
1.0
1.0
0.5
0.25
71 22 -0-2-493 -XX
H = 1.0m.
E max = 15.0 lx.
0.1
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
8.0
4.0
2.0
1.0
0.5
0.5
0.25
0.25
5509-0-2-493-XX
H = 1.0m.
Emax = 15.0 lx.
0.1
m. 1.0 2.0 3.0 4.0 5.0

TOWER 2 Bollard
IP54 Class1
TOWER2 Pillar Top Light
IP54 Class1
TC-D G24d-2 /
TC-DEL G24q-2
18W 1200lm
Ordering code:
26W 1800lm
Ordering code:
15W 900lm
Ordering code:
15W 900lm
Ordering code:
TC-D
TC-T
75 cd/Klm
67 cd/Klm
66 cd/Klm
66 cd/Klm
7121-0-3-423-XX
45
7121-0-3-444-XX
45
7121-0-2-493-XX
45
5510-0-2-493-XX
45
5.0
4.0
3.0
2.0
1.0
2.0
TOWER
1.0
7121 -0-3-423 -XX
H = 1.0m.,MF = 0.8
E max = 4.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
2.0
1.0
0.5
0.5
7121-0-3-444-XX
H = 1.0m.
Emax = 6.0 lx.
0.25
m. 1.02 .0 3.04 .0 5.0
5.0
4.0
3.0
2.0
1.0
1.6
0.8
71 21 -0-2-493 -XX
H = 1.0m.,MF = 0.8
E max = 2.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.6
0.8
0.4
0.4
0.2
0.2
0.1
5510-0-2-493-XX
H = 1.0m.
Emax = 2.0 lx.
0.1
m. 1.02 .0 3.04 .0 5.0

TOWER
TOWER1 Wall Light
IP54 Class1
TOWER2 Wall Light
IP54 Class1
HIT-CE G12
Ordering code:
TC-D G24d-2 /
TC-DEL G24q-2
18W 1200lm
Ordering code:
26W 1800lm
Ordering code:
15W 900lm
Ordering code:
TC-D G24d-2 /
TC-DEL G24q-2
18W 1200lm
Ordering code:
26W 1800lm
Ordering code:
15W 900lm
Ordering code:
TC-D
TC-T
TC-D
TC-T
55 cd/Klm
54 cd/Klm
54 cd/Klm
17 cd/Klm
75 cd/Klm
67 cd/Klm
66 cd/Klm
7522-0-3-751-XX
7522-0-3-423-XX
7522-0-3-444-XX
45
45
45
7522-0-2-493-XX
45
7521-0-3-423-XX
45
7521-0-3-444-XX
45
7521-0-2-493-XX
45
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
7522 -0-3-751-XX
H = 1.0m.
E max = 60.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
2.0
1.0
7522 -0-3-423 -XX
H = 1.0m.
Emax = 18.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
16.0
8.0
4.0
2.0
0.5
7522 -0-3-444-XX
H = 1.0m.
Emax = 28.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
8.0
2.0
4.0
1.0
1.0
0.5
0.25
7522 -0-2-493 -XX
H = 1.0m.
E max = 15.0 lx.
0.1
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
1.0
0.5
0.25
7521 -0-3-423 -XX
H = 1.0m.
E max = 4.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
5.0
4.0
3.0
2.0
1.0
4.0
1.6
2.0
0.8
1.0
0.5
75 21 -0-2-493 -XX
H = 1.0m.
E max = 2.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
0.4
0.5
0.2
7521-0-3-444-XX
H = 1.0m.
Emax = 6.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
0.1

TOWER

CONDO

CONDO
The clean-cut lines of CONDO provides scenic illumination in a modern
architectural environment and the symmetrical diffused light is created by way of
the opal lens. CONDO is recommended in gardens, pathways, squares and public
spaces. The aluminium body together with high impact resistant plastic cover in
polycarbonate helps to protect the luminaire against vandalism and corrosion.
It is operated with compact fluorescent lamp and is available with electronic control
gear. Customisation of height is an option. Anchor unit for concrete foundation is
available as an accessory.
Clean-cut line.
Wall light version equipped
with quick connector.
Uniform light distribution.
Electronic control gear.
Impact resistant body and
cover.
Available in 6 colors. Approved components.
308
Double layer coating.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54. Protection against
mechanical impact IK 09 on body and optical part.
Corrosion resistance and suitable for outdoor use.
coated with UV
stabilized polyester powder and cured in digital temperature
controlled chamber at 200C.
diffuser with UV stabilized additive. Material from Teijin – Japan.
Working temperature -40C to +200C.
approved.
T140 rating 2A-250V.
B2 EEI class.
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
309
CONDO
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(for Bollard)
Ordering code: 9-2012-00

CONDO
CONDO1 Bollard
IP54 Class1
CONDO2 Bollard
IP54 Class1
TC-DEL G24q-2
18W 1200lm
Ordering code:
TC-D G24d-2
Ordering code:
23W 1500lm
Ordering code:
TC-DEL G24q-2
18W 1200lm
Ordering code:
TC-D G24d-2
Ordering code:
23W 1500lm
Ordering code:
310
TC-D
TC-D
50 cd/Klm
47 cd/Klm
28 cd/Klm
49 cd/Klm
46 cd/Klm
69 cd/Klm
7137-0-3-423-XX
45
7137-0-3-427-XX
45
7137-0-2-495-XX
45
7136-0-3-423-XX
45
7136-0-3-427-XX
45
7136-0-2-495-XX
45
5.0
4.0
3.0
2.0
1.0
1.0
2.0
4.0
8.0
713 7-0-3-423-XX
H = 1.0m.
Emax = 21.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
16.0
0.5
713 7-0-3-427-XX
H = 1.0m.
Emax = 29.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
1.0
1.0
0.5
713 7-0-2-495-XX
H = 1.0m.
E max = 15.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
0.5
2.0
4.0
8.0
16.0
0.25
0.1
71 36-0-3-423-XX
H = 1.0m.
Emax = 24.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
32.0
1.0
0.5
71 36-0-3-427-XX
H = 1.0m.
Emax = 42.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
8.0
4.0
2.0
2.0
1.0
71 36-0-2-495-XX
H = 1.0m.
E max = 14.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
1.0
0.5

CONDO1 Wall Light
IP54 Class1
CONDO2 Wall Light
IP54 Class1
TC-DEL G24q-2
18W 1200lm
Ordering code:
TC-D G24d-2
Ordering code:
23W 1500lm
Ordering code:
TC-DEL G24q-2
18W 1200lm
Ordering code:
TC-D G24d-2
Ordering code:
23W 1500lm
Ordering code:
311
TC-D
TC-D
50 cd/Klm
47 cd/Klm
28 cd/Klm
49 cd/Klm
46 cd/Klm
69 cd/Klm
7537-0-3-423-XX
45
7537-0-3-427-XX
45
7537-0-2-495-XX
45
7536-0-3-423-XX
45
7536-0-3-427-XX
45
7536-0-2-495-XX
45
5.0
4.0
3.0
2.0
1.0
5.0
4.0
3.0
2.0
1.0
CONDO
1.0
2.0
4.0
8.0
7537 -0-3-423-XX
H = 1.0m.
E max = 21.0 lx.
0.25
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
16.0
0.5
7537 -0-3-427-XX
H = 1.0m.
Emax = 29.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
1.0
1.0
0.5
7537 -0-2-495-XX
H = 1.0m.
Emax = 15.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
4.0
8.0
16.0
0.5
0.25
0.1
7 53 6-0-3-423-XX
H = 1.0m.
E max = 24.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
5.0
4.0
3.0
2.0
1.0
2.0
4.0
8.0
16.0
32.0
1.0
0.5
7536-0-3-427-XX
H = 1.0m.
Emax = 42.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
8.0
4.0
2.0
2.0
1.0
7536-0-2-495-XX
H = 1.0m.
E max = 14.0 lx.
m. 1.0 2.0 3.0 4.0 5.0
1.0
0.5

OLIVE

OLIVE
Corrosion resistance
aluminium profile.
Impact resistance PC
diffuser.
Double layer coating. Available in 6 colors.
314
OLIVE is an oval-shaped bollard with prismatic an
opal diffusing lens. It is suitable to be installed in
gardens, pathways and residential areas.
The aluminium body together with high impact
resistant plastic cover in polycarbonate helps to
protect the luminaire against vandalism and
corrosion. We supply the bollard at different
heights according to customer requirements.
Anchor units for concrete foundation is available
as an accessory.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54. Protection against
mechanical impact IK 09 on body and optical part.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
polycarbonate diffuser with UV stabilized additive. Material from
Teijin – Japan.
Working temperature -40C to +200C.
T140 rating 2A-250V.
B2 EEI class.
CET Electric – Italy. IMQ approved.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
OLIVE Prismatic
IP54 Class1
OLIVE Opal
IP54 Class1
TC-D G24d-2
18W 1200lm
Ordering code:
TC-D G24d-2
18W 1200lm
Ordering code:
315
OLIVE
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(for Bollard)
Ordering code: 9-2014-00
101 cd/Klm
71 cd/Klm
7125-0-3-423-XX 7125-0-3-423-XX
5.0
H = 1.0m.
Emax = 25.0 lx.
45
7126-0-3-423-XX
45
4.0
3.0
2.0
1.0
m.
5.0
4.0
3.0
2.0
1.0
m.
2.0
4.0
8.0
16.0
1.0 2.0 3.0 4.0 5.0
2.0
4.0
8.0
16.0
1.0
1.0
0.5
7126-0-3-423-XX
H = 1.0m.
Emax = 14.0 lx.
0.25
1.0 2.0 3.0 4.0 5.0

BUZZ

BUZZ
different types of light emission. BUZZ has a wide beam light distribution from a low
lighting level with no glare from the mounted view angle. With its robust aluminium
construction and clear polycarbonate cover, it protects the luminaire from dust and water
and possible harmful impact. It is generally installed in the walkways and pathways in both
private and public areas. It provides visual guidance in the architectural environment as
well as being an eye-catching object. Anchor unit for concrete foundation is available as
an accessory.
Robust aluminium
construction.
Double layer coating.
Vandal proof PC lens
protective cover.
Timed ignitor.
Comfortable light emission.
Electronic control gear.
318
Installed with helicoil for
easy maintenance.
Available in 6 colors.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP65. Protection against
mechanical impact IK 10 on body and optical part.
alloy with low copper content. Corrosion resistance and suitable for
outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
diffuser with UV stabilized additive. Material from Teijin – Japan.
resistant. Working temperature -40C to +200C.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Accessory
Anchor bolt kit for concrete
foundation installing.
Ordering code: 9-2015-00
319
BUZZ
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)

BUZZ
BUZZ1 Ground Washer
BUZZ2 Ground Washer
HIT-CE 12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
TC-D G24d-3
26W 1800lm
Ordering code:
Ordering code:
HIT-CE 12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
TC-D G24d-3
26W 1800lm
Ordering code:
Ordering code:
320
70 cd/Klm
61 cd/Klm
31 cd/Klm
36 cd/Klm
67 cd/Klm
62 cd/Klm
31 cd/Klm
31 cd/Klm
7160-0-3-751-XX
45
7160-0-3-752-XX
45
7160-0-3-424-XX
45
7160-0-3-435-XX
45
7161-0-3-751-XX
45
7161-0-3-752-XX
45
7161-0-3-424-XX
45
7161-0-3-435-XX
45
2.0
1.0
0.0
1.0
2.0
m.
2.0
1.0
0.0
1.0
2.0
m.
2.0
1.0
0.0
1.0
2.0
m.
2.0
1.0
0.0
1.0
2.0
m.
1.0
2.0
3.0
m.
1.0
2.0
3.0
m.
1.0
2.0
3.0
m.
1.0
2.0
3.0
m.
256.0
64.0
16.0
7160-0-3-751-xx
H = 0.25m.
Emax = 988.0 lx.
4.0
2.0
1.0
2.0 1.0 0.0 1.0 2.0
256.0
64.0
7160-0-3-752-xx
H = 0.25m.
Emax = 1535.0 lx.
16.0
8.0
4.0
2.0
2.0 1.0 0.0 1.0 2.0
1.0
7160-0-3-424-XX
H = 0.25m.
Emax = 192.0 lx.
64.0
32.0
16.0
8.0
4.0
2.0
2.0 1.0 0.0 1.0 2.0
128.0
1.0
7160-0-3-435-XX
H = 0.25m.
Emax = 255.0 lx.
64.0
32.0
16.0
8.0
4.0
2.0
2.0 1.0 0.0 1.0 2.0
1.0
1.0
1.0
1.0
526.0
64.0
126.0
16.0
32.0
4.0
2.0
1.0
7161-0-3-751-XX
H = 0.25m.
128.0 Emax = 949.0 lx.
32.0
16.0
8.0
4.0
2.0
0.0 1.0
7161-0-3-424-XX
H = 0.25m.
Emax = 186.0 lx.
1.0
0.5
0.0 1.0
7161-0-3-752-XX
H = 0.25m.
Emax = 1648.0 lx.
16.0
8.0
4.0
0.0 1.0
64.0
16.0
4.0
0.0 1.0
1.0
2.0
0.25
0.5
1.0
0.1
7161-0-3-435-XX
H = 0.25m.
Emax = 247.0 lx.
2.0
1.0
0.5
0.25

BUZZ3 Ground Washer
HIT-CE 12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
TC-D G24d-3
26W 1800lm
Ordering code:
Ordering code:
321
68 cd/Klm
61 cd/Klm
42 cd/Klm
43 cd/Klm
7162-0-3-751-XX
45
7162-0-3-752-XX
45
7162-0-3-424-XX
45
7162-0-3-435-XX
45
2.0
1.0
0.0
1.0
2.0
m.
2.0
1.0
0.0
1.0
2.0
m.
2.0
1.0
0.0 1.0
1.0
2.0
m.
2.0
1.0
0.0
1.0
2.0
m.
4.0
32.0
BUZZ
2.0 1.0 0.0 1.0 2.0
8.0
128.0
7162-0-3-424-XX
H = 0.25m.
Emax = 332.0 lx.
4.0 16.0 128.0 8.0 2.0
2.0 1.0 0.0 1.0 2.0
2.0 8.0 32.0
7162-0-3-751-XX
H = 0.25m.
Emax = 988.0 lx.
128.0 8.0 2.0
7162-0-3-752-XX
H = 0.25m.
Emax = 1541.0 lx.
512.0 32.0 4.0
2.0 1.0 0.0 1.0 2.0
7162-0-3-435-XX
H = 0.25m.
Emax = 441.0 lx.
128.0 16.0 4.0 1.0
2.0 1.0 0.0 1.0 2.0

RAY

RAY
324
RAY is a family of louvered large wall and pole-top luminaire with
symmetrical light distribution on illuminated surface. The recommended
mounting height is between 3 – 4 metres above the ground. It can be
operated with compact fluorescent and HID lamps. The internal glare
suppression louvre improves the lighting quality by limiting the
upward light emission. The top-reflecting disc reflects the light
downward. Polycarbonate lens cover protects the lamp compartment
from vandalism. RAY is generally installed in the walkways, gardens,
parks, commercial areas and open spaces to provide the general
lighting from mid-high level. Aluminium or galvanized steel pole, pole
adaptor and anchor unit for concrete foundation are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
mechanical impact IK 09 on body and optical part.
copper content. Corrosion resistance and suitable for outdoor use.
environment.
UV stabilized polyester powder and cured in digital temperature
controlled chamber at 200C.
diffuser with UV stabilized additive. Material from Teijin – Japan.
Working temperature -40C to +200C.
ENEC approved.
Accessories
Aluminium Pole ๛105mm.
with fuse
(see detail on
High impact resistant
PC cover.
Wall light version
equipped with quick
connector.
Galvanized Steel Pole
๛102mm. with fuse
(see detail on
page 482 & 483).
Glare suppression louvers.
Electronic control gear.
Anchor bolt kit for concrete
foundation installing.
(for Pole-Top)
482 & 483).
Double layer coating.
Available in 6 colors.
325
RAY
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Timed ignitor.
Approved components.

RAY
RAY Pole-Top Light
IP54 Class1
RAY Wall Light
IP54 Class1
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
326
92 cd/Klm
92 cd/Klm
86 cd/Klm
92 cd/Klm
92 cd/Klm
86 cd/Klm
7201-0-3-711-XX
30
7201-0-3-611-XX
30
7201-0-3-436-XX
30
7601-0-3-711-XX
30
7601-0-3-611-XX
30
7601-0-3-436-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
8.0
4.0
2.0
H = 3.5m.
Emax = 12 lx
1.0
0.5
2 4 6 8 10
8.0
4.0
2.0
H = 3.5m.
Emax = 12 lx
0.5
1.0
2 4 6 8 10
4.0
2.0
1.0
0.5
H = 3.5m.
Emax = 6 lx
0.25
2 4 6 8 10
4.0
8.0
16.0
16.0
8.0
2.0
1.0
H = 2.5m.
Emax = 25 lx
0.5
2 4 6 8 10
8.0
4.0
2.0
1.0
H = 2.5m.
Emax = 24 lx
0.5
2 4 6 8 10
4.0
2.0
1.0
0.5
H = 2.5m.
Emax = 12 lx
0.25
2 4 6 8 10

RAY Pole-Top Light / Double Head
IP54 Class1
Ordering Code:
Ordering code:
Ordering code:
92 cd/Klm
92 cd/Klm
86 cd/Klm
7233-0-3-711-XX
30
7233-0-3-611-XX
30
7233-0-3-436-XX
30
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
25.0
16.0
16.0
8.0
4.0
RAY
H = 3.5m.
Emax = 30 lx
1.0
2.0
1 3 5 7 9
25.0
16.0
8.0
4.0
H = 3.5m.
Emax = 33 lx
1.0
2.0
1 3 5 7 9
8.0
4.0
2.0
H = 3.5m.
Emax = 18 lx
0.5
1.0
1 3 5 7 9

TEARA

TEARA
330
TEARA is a family of large wall and pole-top luminaires giving symmetrical
light distribution on an illuminated surface. The recommended mounting height
is between 3 – 4 metres above ground. It is operated with compact fluorescent
and HID lamps. The internal glare suppression louvre improves light quality by
limiting the upward light emission. The top-reflecting disc reflects the light
downward. PMMA cover protects the lamp compartment from the ingress of
dust and water. It is generally installed in the walkways, gardens, parks,
commercial areas and open spaces to provide the general lighting from
mid-high level. Aluminium or galvanized steel pole, pole adaptor and anchor
unit for concrete foundation are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54. Protection against
copper content. Corrosion resistance and suitable for outdoor use.
environment.
stabilized polyester powder and cured in digital temperature
controlled chamber at 200C.
Surface hardened for scratch protection.
Working temperature -40C to +200C.
ENEC approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronic ignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
Anti-Yellowing PMMA
cover.
Wall light version
equipped with quick
connector.
Glare suppression louvers. Double layer coating. Timed ignitor.
331
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessories
Aluminium Pole ๛105mm.
with fuse
(see detail on
Anchor bolt kit for concrete
foundation installing.
(for Pole-Top)
482 & 483).
Electronic control gear. Available in 6 colors. Approved components.
Galvanized Steel Pole
๛102mm. with fuse
(see detail on
page 482 & 483).
TEARA

TEARA
TEARA Pole-Top Light
IP54 Class1
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
TEARA Pole-Top Light is also available in double-headed version.
332
95 cd/Klm
92 cd/Klm
86 cd/Klm
7202-0-3-711-XX
30
7202-0-3-611-XX
30
7202-0-3-436-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
8.0
4.0
2.0
H = 3.5m.
Emax = 16 lx
0.5
1.0
2 4 6 8 10
8.0
4.0
2.0
H = 3.5m.
Emax = 17 lx
0.5
1.0
2 4 6 8 10
4.0
2.0
1.0
H = 3.5m.
Emax = 8 lx
0.25
0.5
2 4 6 8 10

TEARA Wall Light
IP54 Class1
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
333
95 cd/Klm
92 cd/Klm
86 cd/Klm
7602-0-3-711-XX
30
7602-0-3-611-XX
30
7602-0-3-436-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
8.0
16.0
16.0
8.0
4.0
TEARA
2.0
1.0
H = 2.5m.
Emax = 28 lx
0.5
2 4 6 8 10
8.0
4.0
2.0
1.0
H = 2.5m.
Emax = 28 lx
0.5
2 4 6 8 10
4.0
2.0
1.0
0.5
H = 2.5m.
Emax = 13 lx
0.1
2 4 6 8 10

CONE

CONE
336
CONE is as its name suggests, a series of cone-shaped pole top and wall
mounted luminaires with a wide variety of light shield and distribution.
The recommended mounting height is between 3 – 4 metres.
CONE1 is assembled with an angled glare shield louvre that allows direct light
downward on the illuminated surface.
CONE2 is assembled with a glare suppression opal glass which gives a wide
beam distribution.
CONE3 was developed for those areas that require nil light pollution and very
good glare control. It is manufactured with a sand blasted cone-shaped
reflector that allows no light above the horizontal.
To avoid discolouration of the lens we have used a high quality PMMA clear
cover. Recommended uses are in gardens, parks, squares and public spaces.
CONE can be operated with compact fluorescent and HID lamps. Aluminium
pole, galvanized steel pole, pole adaptor and anchor unit for concrete
foundation are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54. Protection against
with low copper content.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Mitsubishi.
Working temperature -40C to +200C.
ENEC approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronic ignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
Anti-Yellowing PMMA
cover.
Wall light version
equipped with quick
connector.
Glare suppression glass. Double layer coating. Timed ignitor.
CONE
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessories
Aluminium Pole ๛105mm.
with fuse
Anchor bolt kit for concrete
foundation installing.
Electronic control gear. Available in 6 colors. Approved components.
Galvanized Steel Pole
๛102mm. with fuse
(see detail on page 482).

CONE
CONE1 Pole-Top Light
IP54 Class1
CONE1 Wall Light
IP54 Class1
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
338
99 cd/Klm
100 cd/Klm
93 cd/Klm
99 cd/Klm
100 cd/Klm
93 cd/Klm
7203-0-3-711-XX
30
7203-0-3-611-XX
30
7203-0-3-436-XX
30
7603-0-3-711-XX
30
7603-0-3-611-XX
30
7603-0-3-436-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
8.0
4.0
2.0
H = 3.5m.
Emax = 12 lx
0.5
1.0
2 4 6 8 10
8.0
4.0
2.0
H = 3.5m.
Emax = 10 lx
0.5
1.0
2 4 6 8 10
4.0
2.0
1.0
H = 3.5m.
Emax = 5 lx
0.25
0.5
2 4 6 8 10
16.0
16.0
8.0
4.0
8.0
2.0
1.0
H = 2.5m.
Emax = 26 lx
0.5
2 4 6 8 10
4.0
8.0
2.0
1.0
H = 2.5m.
Emax = 22 lx
0.5
2 4 6 8 10
4.0
1.0
2.0
0.5
H = 2.5m.
Emax = 11 lx
0.25
2 4 6 8 10

CONE2 Pole-Top Light
IP54 Class1
CONE2 Wall Light
IP54 Class1
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
339
145 cd/Klm
125 cd/Klm
104 cd/Klm
145 cd/Klm
125 cd/Klm
104 cd/Klm
7204-0-3-711-XX
45
7204-0-3-611-XX
45
7204-0-3-436-XX
45
7604-0-3-711-XX
45
7604-0-3-611-XX
45
7604-0-3-436-XX
45
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
8.0
4.0
2.0
CONE
1.0
H = 3.5m.
Emax = 12 lx
0.5
2 4 6 8 10
8.0
4.0
2.0
1.0
H = 3.5m.
Emax = 10 lx
0.5
2 4 6 8 10
4.0
2.0
1.0
0.5
H = 3.5m.
Emax = 5 lx
0.25
2 4 6 8 10
4.0
8.0
16.0
2.0
1.0
H = 2.5m.
Emax = 23 lx
0.1
0.5
2 4 6 8 10
4.0
8.0
16.0
2.0
1.0
H = 2.5m.
Emax = 19 lx
0.5
2 4 6 8 10
2.0
4.0
8.0
1.0
0.5
H = 2.5m.
Emax = 19 lx
0.25
2 4 6 8 10

CONE
CONE3 Pole-Top Light
IP54 Class1
CONE3 Wall Light
IP54 Class1
Ordering Code:
HIT-CE G12
Ordering code:
Ordering Code:
HIT-CE G12
Ordering code:
340
114 cd/Klm
169 cd/Klm
114 cd/Klm
169 cd/Klm
7211-0-3-711-XX
30
7211-0-3-752-XX
30
7611-0-3-711-XX
30
7611-0-3-752-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
64.0
16.0
8.0
4.0
2.0
H = 3.5m.
Emax = 28 lx
1.0
2 4 6 8 10
16.0
32.0
8.0
4.0
8.0
16.0
32.0
4.0
2.0
1.0
H = 3.5m.
Emax = 69 lx
2.0
1.0
2 4 6 8 10
H = 2.5m.
Emax = 55 lx
0.5
2 4 6 8 10
64.0
32.0
8.0
16.0
1.0
2.0
4.0
H = 2.5m.
Emax = 139 lx
0.5
2 4 6 8 10

341
CONE

EPSYLON

EPSYLON
344 344
EPSYLON is the family of pole top and wall mount luminaires with
unshielded symmetrical distribution. The recommended mounting height
is between 3 – 5 metres. To avoid discolouration of the lens we have
used a high quality PMMA clear cover. The diffuser gives a broad
spread light distribution. These luminaires are generally used to
illuminate gardens, parks, pedestrian, squares and open spaces.
They can be operated with compact fluorescent lamp and discharged
lamp. Aluminium pole, galvanized steel pole, pole adaptor and
anchorage unit for concrete foundation are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP54. Protection against
with low copper content. Corrosion resistance and suitable for
outdoor use.
environment.
stabilized polyester powder and cured in digital temperature
controlled chamber at 200C.
Mitsubishi.
Working temperature -40C to +200C.
ENEC approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronic ignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
Anti-Yellowing PMMA
diffuser.
Wall light version
equipped with quick
connector.
Board spread light
distribution.
Electronic control gear.
Nano ceramic layer.
Available in 6 colors.
345
EPSYLON
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessories
Aluminium Pole ๛105mm.
with fuse
480).
Anchor bolt kit for concrete
foundation installing.
Timed ignitor.
Approved components.
Galvanized Steel Pole
for double headed.
๛102mm. with fuse
(see detail on page 483).

EPSYLON
EPSYLON - Pole Top
IP54 Class1
Ordering code:
150W 13000lm
Ordering code:
Ordering code:
HSE E40
150W 14500lm
Ordering code:
42W 3200lm
Ordering code:
EPSYLON Pole-Top Light is also available in double-headed version.
346
92 cd/Klm
166 cd/Klm
92 cd/Klm
165 cd/Klm
97 cd/Klm
7210-0-3-711-XX
30
7210-0-3-713-XX
30
7210-0-3-611-XX
30
7210-0-3-613-XX
30
7210-0-3-436-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
16.0
8.0
4.0
2.0
1.0
H = 3.5m.
Emax = 17 lx
0.5
2 4 6 8 10
32.0
16.0
8.0
4.0
H = 3.5m.
Emax = 43 lx
2.0
2 4 6 8 10
16.0
8.0
4.0
2.0
H = 3.5m.
Emax = 17 lx
1.0
0.5
2 4 6 8 10
64.0
32.0
16.0
8.0
H = 3.5m.
Emax = 66 lx
4.0
2 4 6 8 10
8.0
4.0
2.0
1.0
H = 3.5m.
Emax = 9 lx
0.5
0.25
2 4 6 8 10

EPSYLON - Wall Light
IP54 Class1
Ordering code:
150W 13000lm
Ordering code:
Ordering code:
HSE E40
150W 14500lm
Ordering code:
42W 3200lm
Ordering code:
92 cd/Klm
166 cd/Klm
92 cd/Klm
165 cd/Klm
97 cd/Klm
7610-0-3-711-XX
30
7610-0-3-713-XX
30
7610-0-3-611-XX
30
7610-0-3-613-XX
30
7610-0-3-436-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
EPSYLON
2.0
4.0
8.0
16.0
32.0
1.0
H = 2.5m.
Emax = 34 lx
0.25
0.5
2 4 6 8 10
16.0
32.0
64.0
8.0
4.0
H = 2.5m.
Emax = 85 lx
2.0
1.0
2 4 6 8 10
2.0
4.0
8.0
16.0
32.0
1.0
H = 2.5m.
Emax = 34 lx
0.25
0.5
2 4 6 8 10
32.0
64.0
128.0
16.0
8.0
H = 2.5m.
Emax = 133 lx
4.0
2.0
2 4 6 8 10
2.0
4.0
8.0
16.0
1.0
0.5
H = 2.5m.
Emax = 18 lx
0.25
2 4 6 8 10

EQUINOX

Corrosion resistant
body.
No light spill above
horizontal line.
is operated with T5 fluorescent lamps and LED. It can be used on a pole with a clamping unit
economical luminaire that provides general illumination with fantastic astic lighting levels. There is
no light spill above the horizontal when the luminaire is positioned ed perpendicular to the pole
foundation are also available.
Class2 luminaire.
Also available as wall
mount luminaire.
Lamp replacement
without tool.
Choices of color.
350
High quality LED from
Nichia.
Adjustable angle.

Specification
luminaires IEC 60598-2-1. Electrical protection class 2.
Protection against dust and water IP65. Protection against
Other components made of high-pressure die cast aluminium alloy.
Adjustable angle. Corrosion resistance and suitable for outdoor
use. Stainless steel pole has to be ordered separately.
environment.
stabilized polyester powder and cured in digital temperature
controlled chamber at 200C.
temperature up to 250C. Glass flushes to the front cover,
no accumulation of dust and water.
Working temperature -40C to +200C.
ENEC approved.
Vossloh Schwabe – Germany or from Tridonic – Austria.
ENEC approved.
adhesive surface and mounted on to heat conductive cooling
material. Module manufactured from Germany.
Working temperature -40 C to + 50 C.
Accessories
๛105mm. with fuse
(see detail on page 481).
Galvanized steel pole
๛102mm. with fuse
(see detail on page 484).
Anchor bolt kit for concrete
foundation installing.
(see detail on page 481 & 484).
351
compatibility EN55015 and harmonics IEC61000-3-2.
cross section up to 2.5mm 2 .
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)

EQUINOX Pole Light – Single Sided
IP65 Class2
Lamp type A
Please order separately.
Side Throw
Integrated 12V Driver
1860lm 3800K
Ordering Code:
Symmetric
Integrated 12V Driver
1860lm 3800K
Ordering Code:
352
T5 G5
Ordering Code:
T5 G5
Ordering Code:
double-sided.
first 4 digit of ordering code with 7218
297 cd/Klm
2216 cd/Klm
805 cd/Klm
7217-0-3-316-XX
30
7217-3-3-978-XX
30
7217-7-3-978-XX
30
T5 G5
Ordering Code:
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
H = 3.5m.
Emax = 138 lx
0.5
1.0
2.0
4.0
8.0
16.0
32.0
64.0
1 3 5 7 9
2.0
16.0
128.0
0.5
0.2
H = 3.5m.
Emax = 188 lx
0.1
0.05
1 3 5 7 9
128.0
16.0
2.0
0.5
H = 3.5m.
Emax = 220 lx
0.2
0.1
1 3 5 7 9

EQUINOX Wall Light
IP65 Class2
Lamp type A
1,400 mm.
1,600 mm.
Side Throw
Integrated 12V Driver
1860lm 3800K
Ordering Code:
Symmetric
Integrated 12V Driver
1860lm 3800K
Ordering Code:
353
T5 G5
Ordering Code:
T5 G5
Ordering Code:
297 cd/Klm
2216 cd/Klm
805 cd/Klm
7617-0-3-316-XX
30
7617-3-3-978-XX
30
7617-7-3-978-XX
30
T5 G5
Ordering Code:
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
128.0
32.0
8.0
2.0
H = 2.5m.
Emax = 268 lx
0.5
0.1
1 3 5 7 9
2.0
16.0
128.0
0.1
0.2
0.5
H = 3.5m.
Emax = 283 lx
0.02
0.05
1 3 5 7 9
16.0
128.0
2.0
0.5
0.2
H = 3.5m.
Emax = 396 lx
0.1
0.05
1 3 5 7 9

HELIOS

HELIOS
356
HELIOS – a big wall and pole-top luminaire with symmetrical and asymmetrical
indirect light distribution. The light from the primary reflector is directed
upward from the lamp compartment to the top reflecting disc. Light is then
pushed downward smoothly and uniformly onto the illuminated surface. The
recommended mounting height is between 3 – 5 metres from the ground. It is
available in ceramic metal halide lamps in 3 different wattages.
HELIOS is suitable to illuminate parking lots, public parks, pedestrian, squares
and open areas where glare control is required. This luminaire is simply an
eye-catching object during the day and night.
Aluminium and galvanized steel pole, pole adaptor and anchor unit for
concrete foundation are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP65. Protection against
alloy with low copper content. Corrosion resistance and suitable for
outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
temperature up to 250C.
resistant. Working temperature -40C to +200C.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
from CET Electric – Italy. IMQ approved. HID gear wired with
double silicone ignition cable - suitable for ignition voltage up to
5KV. Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
Glare free indirect light
distribution.
Timed ignitor.
reflecting disc.
High purity reflector.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessories
Double layer coating. Wall light version equipped
with quick connector.
Aluminium Pole ๛105mm.
with fuse
Anchor bolt kit for concrete
foundation installing.
High strength die-cast
arm.
Available in 6 colors.
Galvanized Steel Pole
๛102mm. with fuse
(see detail on page 482).
HELIOS

HELIOS
HELIOS - Asymmetric Pole Top
IP65 Class1
HELIOS - Asymmetric Wall Light
IP65 Class1
HIT-CE G12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
HIT-CE G12
150W 14500lm
Ordering code:
HIT-CE G12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
HIT-CE G12
150W14500lm
Ordering code:
358
148 cd/Klm
148 cd/Klm
148 cd/Klm
148 cd/Klm
148 cd/Klm
148 cd/Klm
7221-0-3-751-XX
30
7221-0-3-752-XX
30
7221-0-3-753-XX
30
7621-0-3-751-XX
30
7621-0-3-752-XX
30
7621-0-3-753-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
16.0
32.0
64.0
4.0
8.0
2.0
1.0
H = 3.5m.
Emax = 20 lx
0.5
2 4 6 8 10
4.0
8.0
16.0
2.0
H = 3.5m.
Emax = 36 lx
1.0
2 4 6 8 10
8.0
16.0
32.0
4.0
H = 3.5m.
Emax = 85 lx
2.0
2 4 6 8 10
16.0
32.0
8.0
1.0
2.0
4.0
0.5
H = 2.5m.
Emax = 40 lx
0.25
2 4 6 8 10
2.0
4.0
8.0
16.0
32.0
64.0
1.0
H = 2.5m.
Emax = 73 lx
0.5
2 4 6 8 10
4.0
8.0
16.0
32.0
64.0
128.0
H = 2.5m.
Emax = 168 lx
2.0
1.0
2 4 6 8 10

HELIOS - Symmetric Pole Top
IP65 Class1
HELIOS - Symmetric Wall Light
IP65 Class1
HIT-CE G12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
HIT-CE G12
150W 14500lm
Ordering code:
HIT-CE G12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
HIT-CE G12
150W14500lm
Ordering code:
359
7224-0-3-751-XX
115 cd/Klm
30
7224-0-3-752-XX
114 cd/Klm
30
7224-0-3-753-XX
117 cd/Klm
30
7624-0-3-751-XX
115 cd/Klm
30
7624-0-3-752-XX
114 cd/Klm
30
7624-0-3-753-XX
117 cd/Klm
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
2.0
4.0
8.0
16.0
HELIOS
1.0
0.5
H = 3.5m.
Emax = 29 lx
0.2
2 4 6 8 10
2.0
4.0
8.0
16.0
32.0
1.0
H = 3.5m.
Emax = 55 lx
0.5
2 4 6 8 10
4.0
8.0
16.0
32.0
64.0
32.0
16.08.0
2.0
H = 3.5m.
Emax = 128 lx
1.0
2 4 6 8 10
0.5
1.0
2.0
4.0
0.2
H = 2.5m.
Emax = 57 lx
0.1
2 4 6 8 10
16.0
32.0
64.0
8.0
1.0
2.0
4.0
0.5
H = 2.5m.
Emax = 107 lx
0.2
2 4 6 8 10
64.0
128.0
32.0
16.0
4.0
8.0
2.0
1.0
H = 2.5m.
Emax = 249 lx
0.5
2 4 6 8 10

MARANELLO

MARANELLO
362
MARANELLO is a family of large wall light and pole-top luminaires with
symmetrical low glare indirect light distribution. The light from the primary
reflector is directed upward to the top reflecting disc and the light is forced
downward in a uniform fashion onto the illuminated surface.
The recommended mounting height is between 3 – 5 metres from the ground
depending on lamp requirements. Available in three wattages utilizing LED
and HID lamp sources. MARANELLO is suitable wherever glare control is
required and is a feature piece by day or night. Its success has been both in
its design and architectural design qualities.
Aluminium and galvanized steel pole, pole adaptor and anchor unit for
concrete foundation are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP65. Protection against
S6063 alloy with low copper content. Corrosion resistance and
suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Able to withstand the temperature up to 250C.
Secondary reflector whited coated aluminium.
resistant. Working temperature -40C to +200C.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
manufactured from Italy. Recommend to be used in the ambient
temperature at -30C to +30C.
patterns.
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
Glare free indirect light
distribution.
High Quality LED from
CREE.
High purity reflector.
Timed ignitor.
Strong supporting bracket.
Wall light version equipped
with quick connector.
363
MARANELLO
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessories
Aluminium Pole ๛105mm.
with fuse
Anchor bolt kit for concrete
foundation installing.
Double layer coating.
Available in 6 colors.
Galvanized Steel Pole
๛102mm. with fuse
(see detail on page 482).

MARANELLO
MARANELLO - Pole Top
IP65 Class1
864lm 3000K
Ordering code:
HIT-CE G12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
HIT-CE G12
150W 14500lm
Ordering code:
364
98 cd/Klm
104 cd/Klm
105 cd/Klm
109 cd/Klm
7222-0-3-969-XX
30
7222-0-3-751-XX
30
7222-0-3-752-XX
30
7222-0-3-753-XX
30
3
2
1
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
5.0
1
4.0
3.0
1.0
2.0
4.0
8.0
16.0
2.0
H = 3.0m.
Emax = 6 lx
1.0
2 3
0.5
H = 3.5m.
Emax = 29 lx
0.25
2 4 6 8 10
1.0
2.0
4.0
8.0
16.0
32.0
H = 3.5m.
Emax = 50 lx
0.5
0.25
2 4 6 8 10
2.0
4.0
8.0
16.0
32.0
64.0
H = 3.5m.
Emax = 114 lx
0.5
1.0
2 4 6 8 10

MARANELLO - WALL LIGHT
IP65 Class1
864lm 3000K
Ordering code:
HIT-CE G12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
HIT-CE G12
150W 14500lm
Ordering code:
365
98 cd/Klm
104 cd/Klm
105 cd/Klm
109 cd/Klm
7622-0-3-969-XX
MARANELLO
30
7622-0-3-751-XX
30
7622-0-3-752-XX
30
7622-0-3-753-XX
30
3.0
2.0
1.0
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
6.0
7.0
5.0
3.0
4.0
1.0
32.0
16.08.04.02.0
0.5
1.0
2.0
H = 2.5m.
Emax = 8 lx
1.0
2.0 3.0
0.25
H = 2.5m
Emax = 58 lx
0.1
2 4 6 8 10
32.0
64.0
16.08.04.0
1.0
2.0
0.5
H = 2.5m.
Emax = 102 lx
0.1
0.25
2 4 6 8 10
64.0
128.0
32.0
16.08.0
1.0
2.0
4.0
H = 2.5m.
Emax = 226 lx
0.25
0.5
2 4 6 8 10

BLAZE

BLAZE
368 368
BLAZE is a family of large wall and pole-top luminaires. Light distribution is both
symmetrical and asymmetrical. The top reflector is easily adjusted to get the
desired light distribution for most applications and assists with glare control.
A special upward reflector allows for smooth and uniform light distribution onto the
required illuminated surface. The recommended mounting height is between 3 – 5
in varying wattages. Blaze is most suited in parking lots, public parks, pedestrian
and open areas. Blaze is the perfect answer for a glare free installation. Aluminium
or galvanized steel pole, pole adaptor and anchor unit for concrete foundation are
also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP65. Protection against
alloy with low copper content.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
temperature up to 250C.
Secondary reflector whited coated aluminium.
resistant. Working temperature -40C to +200C.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
Glare free indirect light
distribution.
Top glass flushes to the
cover.
High purity reflector.
Timed ignitor.
Strong supporting
bracket.
Wall light version
equipped with quick
connector.
369
Adjustable reflecting disc.
Available in 6 colors.
BLAZE
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessories
Aluminium Pole ๛105mm.
with fuse
Anchor bolt kit for concrete
foundation installing.
Galvanized Steel Pole
๛102mm. with fuse
(see detail on page 482).

BLAZE
BLAZE – Pole Top
IP65 Class1
BLAZE – Wall Light
IP65 Class1
HIT-CE G12
35W 3300lm
Ordering Code:
HIT-CE G12
Ordering Code:
HIT-CE G12
150W 14500lm
Ordering Code:
HIT-CE G12
35W 3300lm
Ordering Code:
HIT-CE G12
Ordering Code:
HIT-CE G12
150W 14500lm
Ordering Code:
7223-0-3-751-XX
Slope 30
158 cd/Klm
30
7223-0-3-752-XX
Slope 30
155 cd/Klm
30
7223-0-3-753-XX
Slope 30
153 cd/Klm
30
7623-0-3-751-XX
Slope 30
158 cd/Klm
30
7623-0-3-752-XX
Slope 30
155 cd/Klm
30
7623-0-3-753-XX
Slope 30
153 cd/Klm
30
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
2.0
4.0
8.0
16.0
H = 3.5m.
Emax = 24 lx
1.0
0.5
1 3 5 7 9
32.0
8.0
16.0
4.0
2.0
H = 3.5m.
Emax = 44 lx
1.0
1 3 5 7 9
16.0
32.0
64.0
8.0
H = 3.5m.
Emax = 102 lx
4.0
2.0
1 3 5 7 9
32.0
16.08.0
2.0
4.0
1.0
H = 2.5m.
Emax = 51 lx
0.5
1 3 5 7 9
32.0
64.0
16.0
2.0
4.0
8.0
H = 2.5m.
Emax = 93 lx
0.5
1.0
1 3 5 7 9
64.0
218.0
32.0
4.0
8.0
16.0
H = 2.5m.
Emax = 217 lx
1.0
2.0
1 3 5 7 9

Sample of lighting level and distribution pattern .
Product name : BLAZE - Indirect Pole Light Luminaires spacing : 6 meters
Ordering code : Mounting height : 3.5 meters
Type :
E av [lux] : 21
E min [lux] : 4.16
E max [lux]
18 M.
10 M.
4.81 6.28 7.15 7.75 7.73 8.00 8.35 8.72 8.71 8.35 8.03 8.08 8.08 7.50 6.55 5.22
6.45 8.45 9.87 11 10 10 11 12 12 11 10 10 11 10 9.18 6.92
8.42 12 14 14 14 14 14 16 16 15 14 14 15 14 13 9.22
11 16 19 20 18 18 19 22 21 20 18 18 20 19 17 12
14 21 26 26 23 22 24 29 28 25 22 23 26 26 23 16
17 27 33 33 29 27 30 36 36 32 27 28 34 34 29 19
19 32 40 40 33 31 35 43 42 36 31 32 40 40 34 22
21 35 41 43 36 32 38 47 43 40 33 35 43 40 37 24
21 35 41 42 35 32 38 46 44 38 33 35 43 40 35 23
19 31 38 38 32 30 34 41 40 35 30 31 38 38 33 22
16 26 31 32 27 26 29 34 33 30 26 27 32 32 28 18
13 20 24 24 22 21 23 27 26 24 21 22 25 24 21 15
10 15 17 18 17 17 18 20 19 18 17 17 19 18 16 11
7.85 11 13 13 13 13 13 15 14 14 13 13 14 13 12 8.51
5.98 7.77 8.96 9.80 9.42 9.65 10 11 11 10 9.64 9.71 9.82 9.33 8.37 6.40
4.31 5.62 6.39 7.01 6.99 7.18 7.41 7.80 7.87 7.55 7.25 7.18 7.19 6.74 5.99 4.81
0.00
6 M.
18.00 m
BLAZE
10.00 m
0.00

STICK

STICK
STICK is a family of cylindrical-shaped light column and wall luminaire giving
symmetrical light distribution on illuminated surfaces. The recommended mounting
height is between 3 – 4 metres above ground. It can be operated with compact
fluorescent and HID lamps.
STICK LOUVER is assembled with anti-glare suppression louvers that direct the
light downward onto the illuminated surface.
STICK CONE is assembled with sandblasted cone-shaped reflector that gives
downward light without emitting any light above horizontal line.
Clear PMMA cover protects the lamp compartment from the ingress of dust and
water. It is generally installed in walkways, gardens, parks, commercial areas and
open spaces to provide the general lighting from mid-high level. Anchor unit for
concrete foundation are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP55. Protection against
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Surface hardened for scratch protection.
Working temperature -40C to +200C.
approved.
T140 rating 2A-250V.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronic ignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
Anti-Yellowing PMMA
cover.
Glare suppression
louvers.
Nano ceramic layer.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(see detail on page 493)
Ordering code: 9-2020-00
Impact resistant aluminium
body.
Timed ignitor. Wall light version
Available in 6 colors. Approved components.
equipped with quick
connector.
STICK

STICK
STICK LOUVER Light Column
IP55 Class1
STICK LOUVER Wall Light
IP55 Class1
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
Ordering Code:
Ordering code:
42W 3200lm
Ordering code:
92 cd/Klm
68 cd/Klm
73 cd/Klm
92 cd/Klm
68 cd/Klm
73 cd/Klm
7207-0-3-711-XX
30
7207-0-3-611-XX
30
7207-0-3-436-XX
30
7607-0-3-711-XX
30
7607-0-3-611-XX
30
7607-0-3-436-XX
30
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
10
8
6
4
2
m.
6.0
6.0
2.5
4.0
4.0
1.5
2.0
2.0
2.0
1.0
1.0
1.0
0.5
H = 3.5m.
Emax = 8 lx
H = 3.5m.
Emax = 8.5 lx
0.5
0.5
2 4 6 8 10
2 4 6 8 10
H = 3.5m.
Emax = 3 lx
0.25
2 4 6 8 10
8.0
8.0
4.0
4.0
4.0
2.0
2.0
2.0
1.0
1.0
1.0
0.5
H = 2.5m.
Emax = 15 lx
0.5
2 4 6 8 10
H = 2.5m.
Emax = 16 lx
0.25
0.5
2 4 6 8 10
H = 2.5m.
Emax = 5.5 lx
0.25
2 4 6 8 10

STICK CONE Light Column
IP55 Class1
STICK CONE Wall Light
IP55 Class1
HIT-CE G12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
HIT-CE G12
35W 3300lm
Ordering code:
HIT-CE G12
Ordering code:
105 cd/Klm
143 cd/Klm
105 cd/Klm
143 cd/Klm
7212-0-3-751-XX
30
7212-0-3-752-XX
30
7612-0-3-751-XX
30
7612-0-3-752-XX
30
5
4
3
2
1
m.
10
8
6
4
2
m.
5
4
3
2
1
m.
10
8
6
4
2
m.
64.0
4.0
8.0
16.0
2.01.0
STICK
0.5
H = 3.5m.
Emax = 18 lx
0.1
0.25
1 2 3 4 5
32.0
16.04.02.0
0.5
1.0
0.25
H = 3.5m.
Emax = 39 lx
0.1
2 4 6 8 10
32.0
16.0
8.04.02.0
1.0
0.5
H = 2.5m.
Emax = 36 lx
0.25
1 2 3 4 5
2.0
8.0
1.0
0.25
0.5
H = 2.5m.
Emax = 78 lx
0.1
2 4 6 8 10

PILLAR

PILLAR
380
PILLAR is a cylindrical shaped light column with unshielded symmetrical
light distribution. It is operated with T5 or T8 lamps with electronic control
gear. The PMMA UV stabilized diffuser is used to ensure that the diffuser
will not yellow or fade and the desired light output is maintained
throughout its life. The simple but effective shape of PILLAR does not clash
with surrounding structures in modern architectural spaces. The standard
deliver it at different heights for a customized solution. The recommended
height is 4 – 6 metres. Anchor bolt kit for ground mounting is available as
an accessory.
Anti-Yellowing PMMA
diffuser.
Electronic control gear.
T5 or T8 light sources.
Available in 6 colors.
Protected gear
compartment.
Impact resistant aluminium
body.
Nano ceremic coating.
Approved components.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP65. Protection against
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Surface hardened for scratch protection.
Working temperature -40C to +200C.
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
381
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessory
Anchor bolt kit for concrete
foundation installing.
(see detail on page 493)
Ordering code: 9-2020-00
PILLAR

PILLAR
PILLAR Light Column
IP65 Class1
“Drawing is in T8 version”
T8 G13
Ordering code:
T5 G5
Ordering code:
382
27 cd/Klm
50 cd/Klm
7213-0-3-328-XX
45
7213-0-3-316-XX
45
10
8
6
4
2
m.
10
8
6
4
2
m.
16.0
8.0
4.0
2.0
H = 3.5m.
Emax = 27 lx
1.0
2 4 6 8 10
8.0
4.0
2.0
1.0
H = 3.5m.
Emax = 13 lx
0.5
2 4 6 8 10

383
PILLAR

ANDROMEDA

ANDROMEDA
386
The round-shaped luminaire for public space illumination.
can be operated with both metal halide and high-pressure
sodium lamps from 250W to 400W. Being a class 2 luminaire it is
engineered to meet the highest light pollution requirements. There is no
light emission beyond the horizontal plane. A single piece CAD deep drawn
reflector allows for smooth and uniform light distribution. The recommended
mounting height is between 5 – 8 metres dependant on lamp wattage.
ANDROMEDA is suitable for installation in any public space, car parks and
shopping centres. Galvanized steel pole and
anchor unit for concrete foundations are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP65. Protection against
die cast aluminium alloy with low copper content.
Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Able to withstand the temperature up to 250C.
resistant. Working temperature -40C to +200C.
synthesized rubber grommet.
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
No light spill above the
horizontal line.
Timed ignitor.
Robust hig-pressure
diecast aluminium housing.
Class 2 luminaire.
Computer aided design
reflector.
Double layer coating.
ANDROMEDA
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessories
Galvanized Steel Pole
๛114mm. with fuse
(see detail on page 486 &
Adjustable aiming
angle.
Available in 6 colors.
Anchor bolt kit for concrete
foundation installing.

ANDROMEDA
ANDROMEDA Wall Light
IP65 Class2
Road Optic
HIT-CE E40
250W 26000lm
Ordering code:
Road Optic
HIT-CE E40
400W 42000lm
Ordering code:
Road Optic
250W 33200lm
Ordering code:
Road Optic
400W 56500lm
Ordering code:
388
7695-9-3-723-XX
790 cd/Klm
7695-9-3-724-XX
752 cd/Klm
30
30
7695-9-3-624-XX
553 cd/Klm
7695-9-3-625-XX
477 cd/Klm
30
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
H = 8.0m.
Emax = 98 lx
1.0
2.0
4.0
8.0
16.0
32.0
64.0
2 6 10 14 18
8.0
16.0
32.0
64.0
128.0
4.0
H = 8.0m.
Emax = 172 lx
2.0
2 6 10 14 18
64.0
32.0
16.0
H = 8.0m.
Emax = 133 lx
2.0
4.0
8.0
2 6 10 14 18
128.0
64.0
H = 8.0m.
Emax = 209 lx
2.0
4.0
8.0
16.0
2 6 10 14 18

ANDROMEDA Area Light / Single Sided
IP65 Class2
Please order separately.
Road Optic
HIT-CE E40
250W 26000lm
Ordering code:
Road Optic
HIT-CE E40
400W 42000lm
Ordering code:
Road Optic
250W 33200lm
Ordering code:
Road Optic
400W 56500lm
Ordering code:
389
7295-9-3-723-XX
790 cd/Klm
7295-9-3-724-XX
752 cd/Klm
ANDROMEDA
H = 8.0m.
Emax = 98 lx
1.0
2.0
4.0
8.0
16.0
32.0
64.0
ANDROMED Area Light is also available in double sided.
30
30
7295-9-3-624-XX
553 cd/Klm
7295-9-3-625-XX
477 cd/Klm
30
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
2 6 10 14 18
8.0
16.0
32.0
64.0
128.0
4.0
H = 8.0m.
Emax = 172 lx
2.0
2 6 10 14 18
64.0
32.0
16.0
H = 8.0m.
Emax = 133 lx
2.0
4.0
8.0
2 6 10 14 18
128.0
64.0
H = 8.0m.
Emax = 209 lx
2.0
4.0
8.0
16.0
2 6 10 14 18

MATCH BOX

392
on the market.
Available in metal halide and high-pressure sodium lamps from 250W to
400W. There is no light emission into upper sky above the luminaire.
The recommended mounting height for the post top is between 5 – 8 metres
from the ground. Most suited in parking lots, public parks, pedestrian, small
for concrete foundation are also available.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP65. Protection against
copper content. Corrosion resistance and suitable for outdoor use.
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Impact resistant safety tempered glass cover. Able to withstand the
temperature up to 250C.
light distribution.
resistant. Working temperature -40C to +200C.
E40 lampholder in ceramic housing with nickel-coated contact from
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm2 . Wiring provided with earth connection.
Robust housing.
Timed ignitor.
High purity reflector.
Nano Ceramic coating.
Choices of light distribution.
Available in 6 colors.
393
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Accessories
Galvanized Steel Pole
๛114mm. with fuse
(see detail on page 486 &
Anchor bolt kit for concrete
foundation installing.

MATCH BOX Wall Light
IP65 Class1
Asymmetric
HIT-CE E40
250W 26000lm
Ordering code:
Asymmetric
HIT-CE E40
400W 42000lm
Ordering code:
Asymmetric
250W 33200lm
Ordering code:
Asymmetric
400W 56500lm
Ordering code:
Bi-Symmetric
HIT-CE E40
250W 26000lm
Ordering code:
Bi-Symmetric
HIT-CE E40
400W 42000lm
Ordering code:
Bi-Symmetric
250W 33200lm
Ordering code:
Bi-Symmetric
400W 56500lm
Ordering code:
394
814 cd/Klm
762 cd/Klm
864 cd/Klm
846 cd/Klm
303 cd/Klm
301 cd/Klm
329 cd/Klm
317 cd/Klm
7670-1-3-723-XX
45
7670-1-3-724-XX
45
7670-1-3-624-XX
45
7670-1-3-625-XX
45
7671-2-3-723-XX
30
7671-2-3-724-XX
30
7671-2-3-624-XX
30
7671-2-3-625-XX
30
18
14
10
6 100.0
2
m.
18
14
10
6
2
m.
18
14
10
128.0
6
2
m.
18
14
10
256.0
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
H = 8.0m.
Emax = 107 lx
1.0
2.0
4.0
8.0
16.0
32.0
64.0
2 6 10 14 18
128.0
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 155 lx
4.0
2 6 10 14 18
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 158 lx
2.0
4.0
2 6 10 14 18
8.0
16.0
32.0
64.0
128.0
H = 8.0m.
Emax = 278 lx
4.0
2 6 10 14 18
64.0
4.0
8.0
16.0
32.0
2.01.00.5
H = 8.0m.
Emax = 77 lx
0.1
2 6 10 14 18
64.0
100.0
32.0
8.0
16.0
4.02.01.0
H = 8.0m.
Emax = 136 lx
0.1
0.5
2 6 10 14 18
16.0
32.0
64.0
8.0
4.0 2.01.0
H = 8.0m.
Emax = 117 lx
0.5
2 6 10 14 18
128.0
32.0
64.0
16.0
8.0 4.02.0
H = 8.0m.
Emax = 204 lx
1.0 0.5
2 6 10 14 18

MATCH BOX Wall Light
IP65 Class1
Road Optic
HIT-CE E40
250W 26000lm
Ordering code:
Road Optic
HIT-CE E40
400W 42000lm
Ordering code:
Road Optic
250W 33200lm
Ordering code:
Road Optic
400W 56500lm
Ordering code:
395
608 cd/Klm
600 cd/Klm
589 cd/Klm
581 cd/Klm
7674-1-3-723-XX
30
7674-1-3-724-XX
30
7674-1-3-624-XX
30
7674-1-3-625-XX
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
32.0
50.0
H = 8.0m.
Emax = 62 lx
0.5
4.0
8.0
16.0
2.01.0
2 6 10 14 18
64.0
32.0
H = 8.0m.
Emax = 96 lx
4.0
8.0
16.0
2.01.00.5
2 6 10 14 18
64.0
32.0
H = 8.0m.
Emax = 88 lx
4.0
8.0
16.0
2.01.00.5
2 6 10 14 18
128.0
64.0
H = 8.0m.
Emax = 150 lx
16.0
32.0
8.04.02.01.00.5
2 6 10 14 18

MATCH BOX Ceiling Mount
IP65 Class1
Asymmetric
HIT-CE E40
250W 26000lm
Ordering code:
Asymmetric
HIT-CE E40
400W 42000lm
Ordering code:
Asymmetric
250W 33200lm
Ordering code:
Asymmetric
400W 56500lm
Ordering code:
Bi-Symmetric
HIT-CE E40
250W 26000lm
Ordering code:
Bi-Symmetric
HIT-CE E40
400W 42000lm
Ordering code:
Bi-Symmetric
250W 33200lm
Ordering code:
Bi-Symmetric
400W 56500lm
Ordering code:
396
814 cd/Klm
762 cd/Klm
864 cd/Klm
846 cd/Klm
303 cd/Klm
301 cd/Klm
329 cd/Klm
317 cd/Klm
4270-1-3-723-XX
45
4270-1-3-724-XX
45
4270-1-3-624-XX
45
4270-1-3-625-XX
45
4271-2-3-723-XX
30
4271-2-3-724-XX
30
4271-2-3-624-XX
30
4271-2-3-625-XX
30
18
14
10
6 100.0
2
m.
18
14
10
6
2
m.
18
14
10
128.0
6
2
m.
18
14
10
256.0
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
H = 8.0m.
Emax = 107 lx
1.0
2.0
4.0
8.0
16.0
32.0
64.0
2 6 10 14 18
128.0
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 155 lx
4.0
2 6 10 14 18
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 158 lx
2.0
4.0
2 6 10 14 18
8.0
16.0
32.0
64.0
128.0
H = 8.0m.
Emax = 278 lx
4.0
2 6 10 14 18
64.0
4.0
8.0
16.0
32.0
2.01.00.5
H = 8.0m.
Emax = 77 lx
0.1
2 6 10 14 18
64.0
100.0
32.0
8.0
16.0
4.02.01.0
H = 8.0m.
Emax = 136 lx
0.1
0.5
2 6 10 14 18
16.0
32.0
64.0
8.0
4.0 2.01.0
H = 8.0m.
Emax = 117 lx
0.5
2 6 10 14 18
128.0
32.0
64.0
16.0
8.0 4.02.0
H = 8.0m.
Emax = 204 lx
1.0 0.5
2 6 10 14 18

MATCH BOX Ceiling Mount
IP65 Class1
Road Optic
HIT-CE E40
250W 26000lm
Ordering code:
Road Optic
HIT-CE E40
400W 42000lm
Ordering code:
Road Optic
250W 33200lm
Ordering code:
Road Optic
400W 56500lm
Ordering code:
608 cd/Klm
600 cd/Klm
589 cd/Klm
581 cd/Klm
4274-1-3-723-XX
30
4274-1-3-724-XX
30
4274-1-3-624-XX
30
4274-1-3-625-XX
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
32.0
H = 8.0m.
Emax = 62 lx
0.5
4.0
8.0
16.0
2.01.0
2 6 10 14 18
64.0
32.0
H = 8.0m.
Emax = 96 lx
4.0
8.0
16.0
2.01.00.5
2 6 10 14 18
64.0
32.0
H = 8.0m.
Emax = 88 lx
4.0
8.0
16.0
2.01.00.5
2 6 10 14 18
128.0
64.0
H = 8.0m.
Emax = 150 lx
4.0
8.0
16.0
32.0
2.01.00.5
2 6 10 14 18

MATCH BOX Area Light / Single Sided
IP65 Class1
Asymmetric
HIT-CE E40
250W 26000lm
Ordering code:
Asymmetric
HIT-CE E40
400W 42000lm
Ordering code:
Asymmetric
250W 33200lm
Ordering code:
Asymmetric
400W 56500lm
Ordering code:
Bi-Symmetric
HIT-CE E40
250W 26000lm
Ordering code:
Bi-Symmetric
HIT-CE E40
400W 42000lm
Ordering code:
Bi-Symmetric
250W 33200lm
Ordering code:
Bi-Symmetric
400W 56500lm
Ordering code:
398
814 cd/Klm
762 cd/Klm
864 cd/Klm
846 cd/Klm
303 cd/Klm
301 cd/Klm
329 cd/Klm
317 cd/Klm
7270-1-3-723-XX
45
7270-1-3-724-XX
45
7270-1-3-624-XX
45
7270-1-3-625-XX
45
7271-2-3-723-XX
30
7271-2-3-724-XX
30
7271-2-3-624-XX
30
7271-2-3-625-XX
30
18
14
10
6 100.0
2
m.
18
14
10
6
2
m.
18
14
10
128.0
6
2
m.
18
14
10
256.0
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
H = 8.0m.
Emax = 107 lx
1.0
2.0
4.0
8.0
16.0
32.0
64.0
2 6 10 14 18
128.0
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 155 lx
4.0
2 6 10 14 18
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 158 lx
2.0
4.0
2 6 10 14 18
8.0
16.0
32.0
64.0
128.0
H = 8.0m.
Emax = 278 lx
4.0
2 6 10 14 18
64.0
4.0
8.0
16.0
32.0
2.01.00.5
H = 8.0m.
Emax = 77 lx
0.1
2 6 10 14 18
64.0
100.0
32.0
8.0
16.0
4.02.01.0
H = 8.0m.
Emax = 136 lx
0.1
0.5
2 6 10 14 18
16.0
32.0
64.0
8.0
4.0 2.01.0
H = 8.0m.
Emax = 117 lx
0.5
2 6 10 14 18
128.0
32.0
64.0
16.0
8.0 4.02.0
H = 8.0m.
Emax = 204 lx
1.0 0.5
2 6 10 14 18

MATCH BOX Area Light / Single Sided
IP65 Class1
Road Optic
HIT-CE E40
250W 26000lm
Ordering code:
Road Optic
HIT-CE E40
400W 42000lm
Ordering code:
Road Optic
250W 33200lm
Ordering code:
Road Optic
400W 56500lm
Ordering code:
399
608 cd/Klm
600 cd/Klm
589 cd/Klm
581 cd/Klm
7274-1-3-723-XX
30
7274-1-3-724-XX
30
7274-1-3-624-XX
30
7274-1-3-625-XX
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
32.0
50.0
H = 8.0m.
Emax = 62 lx
0.5
4.0
8.0
16.0
2.01.0
2 6 10 14 18
64.0
32.0
H = 8.0m.
Emax = 96 l.
4.0
8.0
16.0
2.01.00.5
2 6 10 14 18
64.0
32.0
H = 8.0m.
Emax = 88 lx
4.0
8.0
16.0
2.01.00.5
2 6 10 14 18
128.0
64.0
H = 8.0m.
Emax = 150 lx
8.0
16.0
32.0
4.02.01.00.5
2 6 10 14 18

MATCH BOX Area Light / Double Sided
IP65 Class1
Asymmetric
HIT-CE E40
Ordering code:
Asymmetric
HIT-CE E40
Ordering code:
Asymmetric
Ordering code:
Asymmetric
Ordering code:
Bi-Symmetric
HIT-CE E40
Ordering code:
Bi-Symmetric
HIT-CE E40
Ordering code:
Bi-Symmetric
Ordering code:
Bi-Symmetric
Ordering code:
400
814 cd/Klm
762 cd/Klm
864 cd/Klm
846 cd/Klm
303 cd/Klm
301 cd/Klm
329 cd/Klm
317 cd/Klm
7272-1-3-703-XX
45
7272-1-3-704-XX
45
7272-1-3-603-XX
45
7272-1-3-604-XX
45
7273-2-3-703-XX
30
7273-2-3-704-XX
30
7273-2-3-603-XX
30
7273-2-3-604-XX
30
18
14
10
6 100.0
2
m.
18
14
10
6
2
m.
18
14
10
128.0
6
2
m.
18
14
10
256.0
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
H = 8.0m.
Emax = 107lx
1.0
2.0
4.0
8.0
16.0
32.0
64.0
2 6 10 14 18
128.0
32.0
64.0
H = 8.0m.
Emax = 155 lx
8.0
4.0
2 6 10 14 18
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 158 lx
2.0
4.0
2 6 10 14 18
8.0
16.0
32.0
64.0
128.0
H = 8.0m.
Emax = 278 lx
4.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 111 lx
8.0
16.0
32.0
4.02.01.00.5
2 6 10 14 18
H = 8.0m.
Emax = 220 lx
16.0
32.0
64.0
128.0
8.04.02.01.00.5
2 6 10 14 18
128.0
H = 8.0m.
Emax = 164 lx
8.0
16.0
32.0
64.0
4.02.01.00.5
2 6 10 14 18
H = 8.0m.
Emax = 276 lx
16.0
32.0
64.0
128.0
8.04.02.01.00.5
2 6 10 14 18

MATCH BOX Area Light / Double Sided
IP65 Class1
Road Optic
HIT-CE E40
Ordering code:
Road Optic
HIT-CE E40
Ordering code:
Road Optic
Ordering code:
Road Optic
Ordering code:
401
608 cd/Klm
600 cd/Klm
589 cd/Klm
581 cd/Klm
7275-1-3-703-XX
30
7275-1-3-704-XX
30
7275-1-3-603-XX
30
7275-1-3-604-XX
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
32.0
50.0
H = 8.0m.
Emax = 62 lx
0.5
4.0
8.0
16.0
2.01.0
2 6 10 14 18
64.0
32.0
H = 8.0m.
Emax = 96 lx
4.0
8.0
16.0
2.01.00.5
2 6 10 14 18
64.0
32.0
H = 8.0m.
Emax = 88 lx
4.0
8.0
16.0
2.01.00.5
2 6 10 14 18
128.0
64.0
H = 8.0m.
Emax = 150 lx
16.0
32.0
8.04.02.01.00.5
2 6 10 14 18

FIN

Ended Halogen lamp. The aluminium reflectors used in this luminaire are designed by
high-end lighting engineering software. The calibrated aiming unit provides
accuracy of the light distribution on the illuminated surface. The range of
accessories such as ground mount spike, tree strap, glare shield cap and spread lens
sized objects or areas such as signage boards, ceiling, building facades, etc.
Heat dissipation fin on
body.
Timed ignitor
Computer aided design
reflector.
Choices of light source.
Graduated scale for
accurate aiming..
Nano Ceramic coating.
404
Glare shield accessory.
Available in 6 colors.

Specification
luminaires IEC 60598-2-1. Electrical protection class1.
Protection against dust and water IP65. Protection against
die cast aluminium alloy with low copper content.
Corrosion resistance and suitable for outdoor use.
environment.
stabilized polyester powder and cured in digital temperature
controlled chamber at 200C.
Able to withstand the temperature up to 250C.
from Alanod.
resistant. Working temperature -40C to +200C.
synthesized rubber grommet.
Accessories
Ordering code: 9-2000-00
Tree Strap ๛40-120 mm.
Ordering code: 9-2001-00
Double Tree Strap
Ordering code: 9-2002-00
405
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
Service temperature -60C to +180C.
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Glare Shield Cap
Ordering code: 9-0018-00

FIN Halogen
IP65 Class1
FIN HID
IP65 Class1
300W 5300lm
Ordering code:
300W 5300lm
Ordering code:
Ordering code:
Ordering code:
Ordering Code:
Ordering Code:
150W 15000lm
Ordering Code:
150W 15000lm
Ordering Code:
406
1500 cd/Klm
500 cd/Klm
1200 cd/Klm
450 cd/Klm
225 cd/Klm
450 cd/Klm
800 cd/Klm
490 cd/Klm
2302-5-2-235-XX
30
2302-7-2-235-XX
30
2302-5-3-621-XX
30
2302-7-3-621-XX
30
2302-5-3-631-XX
30
2302-7-3-631-XX
30
2302-5-3-632-XX
30
2302-7-3-632-XX
30
135lx
105lx
75lx
45lx
15lx
81
63lx
45lx
27
9lx
135lx
105lx
75lx
45lx
15lx
90lx
70lx
50lx
30lx
10lx
135lx
105lx
75lx
45lx
15lx
90lx
70lx
50lx
30lx
10lx
360lx
280lx
200lx
120lx
40lx
225lx
175lx
125lx
75lx
25lx
2302-5-2-235-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 35 7 9
8
4
0
4
8
m.
2302-7-2-235-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 35 7 9
12
6
0
6
12
m.
2302-5-3-621-XX
Average Beam Illuminance
42.0
8.5
8.5
42.0
1 35 7 9
8
4
0
4
8
m.
2302-7-3-621-XX
Average Beam Illuminance
46.0
29.0
29.0
46.0
1 3 5 7 9
12
6
0
6
12
m.
2302-5-3-631-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 35 7 9
8
4
0
4
8
m.
2302-7-3-631-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 3 5 7 9
12
6
0
6
12
m.
2302-5-3-632-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 35 7 9
8
4
0
4
8
m.
2302-7-3-632-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 3 5 7 9
12
6
0
6
12
m.

FIN HID
IP65 Class1
Ordering code:
Ordering code:
Ordering code:
Ordering code:
150W 14200lm
Ordering code:
150W 14200lm
Ordering code:
1200 cd/Klm
460 cd/Klm
1590 cd/Klm
580 cd/Klm
1400 cd/Klm
480 cd/Klm
2302-5-3-721-XX
30
2302-7-3-721-XX
30
2302-5-3-731-XX
30
2302-7-3-731-XX
30
2302-5-3-732-XX
30
2302-7-3-732-XX
30
135lx
105lx
75lx
45lx
15lx
90lx
70lx
50lx
30lx
10lx
180lx
140lx
100lx
60lx
20lx
90lx
70lx
50lx
30lx
10lx
315lx
245lx
175lx
105lx
35lx
180lx
140lx
100lx
60lx
20lx
2302-5-3-721-XX
Average Beam Illuminance
42.0
8.5
8.5
42.0
1 3 5 7 9
8
4
0
4
8
m.
2302-7-3-721-XX
Average Beam Illuminance
46.0
29.0
29.0
46.0
1 3 5 7 9
12
6
0
6
12
m.
2302-5-3-731-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 3 5 7 9
8
4
0
4
8
m.
2302-7-3-731-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 35 7 9
m.
2302-5-3-732-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 3 5 7 9
8
4
0
4
8
m.
2302-7-3-732-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 35 7 9
12
6
0
6
12
m.

FIN Arm Halogen
IP65 Class1
FIN Arm HID
IP65 Class1
300W 5300lm
Ordering code:
300W 5300lm
Ordering code:
Ordering code:
Ordering code:
Ordering Code:
Ordering Code:
150W 15000lm
Ordering Code:
150W 15000lm
Ordering Code:
408
1500 cd/Klm
500 cd/Klm
1200 cd/Klm
450 cd/Klm
225 cd/Klm
450 cd/Klm
800 cd/Klm
490 cd/Klm
2303-5-2-235-XX
30
2303-7-2-235-XX
30
2303-5-3-621-XX
30
2303-7-3-621-XX
30
2303-5-3-631-XX
30
2303-7-3-631-XX
30
2303-5-3-632-XX
30
2303-7-3-632-XX
30
135lx
105lx
75lx
45lx
15lx
81
63lx
45lx
27
9lx
135lx
105lx
75lx
45lx
15lx
90lx
70lx
50lx
30lx
10lx
135lx
105lx
75lx
45lx
15lx
90lx
70lx
50lx
30lx
10lx
360lx
280lx
200lx
120lx
40lx
225lx
175lx
125lx
75lx
25lx
2303-5-2-235-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 3 5 7 9
8
4
0
4
8
m.
2303-7-2-235-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 3 5 7 9
12
6
0
6
12
m.
2303-5-3-621-XX
Average Beam Illuminance
42.0
8.5
8.5
42.0
1 3 5 7 9
8
4
0
4
8
m.
2303-7-3-621-XX
Average Beam Illuminance
46.0
29.0
29.0
46.0
1 3 5 7 9
12
6
0
6
12
m.
2303-5-3-631-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 35 7 9
8
4
0
4
8
m.
2303-7-3-631-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 3 5 7 9
12
6
0
6
12
m.
2303-5-3-632-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 3 5 7 9
8
4
0
4
8
m.
2303-7-3-632-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 3 5 7 9
12
6
0
6
12
m.

FIN Arm HID
IP65 Class1
Ordering code:
Ordering code:
Ordering code:
Ordering code:
150W 14200lm
Ordering code:
150W 14200lm
Ordering code:
409
1200 cd/Klm
460 cd/Klm
1590 cd/Klm
580 cd/Klm
1400 cd/Klm
480 cd/Klm
2303-5-3-721-XX
30
2303-7-3-721-XX
30
2303-5-3-731-XX
30
2303-7-3-731-XX
30
2303-5-3-732-XX
30
2303-7-3-732-XX
30
135lx
105lx
75lx
45lx
15lx
90lx
70lx
50lx
30lx
10lx
180lx
140lx
100lx
60lx
20lx
90lx
70lx
50lx
30lx
10lx
315lx
245lx
175lx
105lx
35lx
180lx
140lx
100lx
60lx
20lx
2303-5-3-721-XX
Average Beam Illuminance
42.0
8.5
8.5
42.0
1 3 5 7 9
8
4
0
4
8
m.
2303-7-3-721-XX
Average Beam Illuminance
46.0
29.0
29.0
46.0
1 3 5 7 9
12
6
0
6
12
m.
2303-5-3-731-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 3 5 7 9
8
4
0
4
8
m.
2303-7-3-731-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 3 5 7 9
m.
2303-5-3-732-XX
Average Beam Illuminance
40.0
9.0
9.0
40.0
1 35 7 9
8
4
0
4
8
m.
2303-7-3-732-XX
Average Beam Illuminance
45.0
28.0
28.0
45.0
1 35 7 9
12
6
0
6
12
m.

SIROCCO

SIROCCO
SIROCCO is a family of floodlight, surface washer and area lighting.
Three (3) types of light distribution, asymmetric, bi-symmetric, and road optic. Available in 3 different sizes with a range of
mounting accessories including ground mount base, pole top mount, and wall/pole mounting arm. SIROCCO is designed to be
operated with Metal Halide and High Pressure Sodium lamps from 70W to 400W. A version of Cosmopolis White lamp from Philips
with integrated electronic control gear is also available.
Reflectors for SIROCCO have been engineered utilizing the latest technology and software for maximum performance.
A calibrated aiming unit provides accuracy of light distribution on any surface or structure. SIROCCO is suitable to illuminate
medium to large size objects or areas such as signage boards, building facades, parking lots, public parks, pedestrian, small
streets and squares. The burning position of the lamp used in this luminaire must be observed. Galvanized steel pole and anchor
unit for concrete foundation are also available.
Robust high-pressure
diecast aluminium housing.
Timed ignitor.
Computer aided design
reflector.
Choices of light source.
Choices of light
distribution.
Double layer coating.
412
Graduated scale for
accurate aiming.
Available in 6 colors.

Specification
Protection against dust and water IP65. Protection against
die cast aluminium alloy with low copper content.
Ground bracket made of coated galvanized steel.
Corrosion resistance and suitable for outdoor use.
environment. Luminiare primarily coated with epoxy resin and top
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
temperature up to 250C.
from Alanod.
resistant. Working temperature -40C to +200C.
synthesized rubber grommet.
Prepare for H05RN-F / H07RN-F cable diameter 7 – 10mm.
ENCE approved. For discharge lamp. T250 rating 10/250/5KV.
from EMC Colosio - Italy / ENEC approved. For discharge lamp and
halogen lamp. T250 rating 6/1000/5KV.
nickel-coated contact from BJB / AAG Stucchi. ENEC approved.
Accessories
Extruded aluminium pole
๛105mm. with fuse
Mounting base (for flood
light) for ground mounting
Galvanized Steel Pole
๛102mm. with fuse
Pole top mount adaptor
(for flood light) – spigot
size 76mm.
Galvanized Steel Pole ๛114mm.
with fuse
Wall / Pole mounting arm
(for flood light)
413
SIROCCO
Colosio – Italy.
from EMC Colosio – Italy.
magnetic ballast from VosslohSchwabe / BAG – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
pressure safety device from ITALFARAD – ENEC approved.
Elite MW lamp from Philips.
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
approved. Working temperature -40C to +130C. For cable with
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Anchor bolt kit for concrete
foundation installing.
Ordering code: 9-2020-00 for aluminium pole ๛105mm.
9-2023-00 for steel pole ๛102mm.
9-2024-00 for steel pole ๛114mm.

SIROCCO
Small SIROCCO Floodlight / Asymmetric
IP65 Class1
Product image is in Bi-Symmetrical version.
Small SIROCCO Floodlight / Road Optic
IP65 Class1
Product image is in Bi-Symmetrical version.
70W 6500lm
Ordering code:
150W 14200lm
Ordering code:
Ordering code:
150W 15000lm
Ordering code:
300W 5300lm
Ordering code:
HIT-CE G12
70W 6600lm
Ordering code:
HIT-CE G12
150W 14500lm
Ordering code:
414
571 cd/Klm
503 cd/Klm
533 cd/Klm
436 cd/Klm
613 cd/Klm
494 cd/Klm
453 cd/Klm
2240-1-3-731-XX
30
2240-1-3-732-XX
2240-1-3-631-XX
117lx
91lx
65lx
Average Beam Illuminance
60.0
35.0
2.0
39lx
13lx
35.0
1 3 5 7 9
Average Beam Illuminance
8
4
0
4
8
m.
315lx
60.0
8
245lx
35.0
4
175lx
2.0
0
105lx
35.0
4
35lx
8
30 1 3 5 7 9 m.
30
2240-1-3-632-XX
30
2240-1-2-235-XX
30
2244-2-3-752-XX
30
2244-2-3-753-XX
30
135lx
105lx
75lx
Average Beam Illuminance
60.0
35.0
2.0
45lx
15lx
35.0
1 3 5 7 9
315lx
245lx
175lx
105lx
Average Beam Illuminance
60.0
35.0
2.0
35.0
35lx
1 3 5 7 9
90lx
70lx
50lx
Average Beam Illuminance
60.0
35.0
2.0
30lx
10lx
35.0
1 3 5 7 9
12
9
6
3
0
m. 0
9
3
0
m.
0
16.0
8.0
4.0
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
m.
H = 6.0m.
Emax = 27 lx
2.0
1.0
3 6 9 12
4.0
8.0
16.0
32.0
3
6
H = 6.0m.
Emax = 58 lx
12 2.0
6
9 12

Small SIROCCO Floodlight / Bi-Symmetric
IP65 Class1
70W 6500lm
Ordering code:
150W 14200lm
Ordering code:
Ordering code:
150W 15000lm
Ordering code:
300W 5300lm
Ordering code:
415
1007 cd/Klm
881 cd/Klm
889 cd/Klm
808 cd/Klm
972 cd/Klm
2241-7-3-731-XX
30
2241-7-3-732-XX
30
2241-7-3-631-XX
30
2241-7-3-632-XX
30
2241-7-2-235-XX
30
135lx
105lx
75lx
45lx
SIROCCO
Average Beam Illuminance
35.0
14.0
14.0
35.0
15lx
1 3 5 7 9
315lx
245lx
175lx
105lx
Average Beam Illuminance
35.0
14.0
14.0
35.0
8
4
0
4
8
m.
8
4
0
4
35lx
8
1 3 5 7 9 m.
135lx
105lx
75lx
45lx
Average Beam Illuminance
35.0
14.0
14.0
35.0
15lx
1 3 5 7 9
315lx
245lx
175lx
105lx
Average Beam Illuminance
35.0
14.0
14.0
35.0
35lx
1 3 5 7 9
117lx
91lx
65lx
39lx
Average Beam Illuminance
35.0
14.0
14.0
35.0
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
13lx
8
1 35 7 9 m.

SIROCCO
Medium SIROCCO Floodlight / Asymmetric
IP65 Class1
Product image is in Bi-Symmetrical version.
Medium SIROCCO Floodlight / Road Optic
IP65 Class1
Product image is in Bi-Symmetrical version.
HIT-CE E40
150W 14500lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HST-MF E40
150W 17500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HIT-CE G22
250W 26000lm
Ordering code:
210W 24200lm
Ordering code:
416
895 cd/Klm
873 cd/Klm
1000 cd/Klm
987 cd/Klm
494 cd/Klm
544 cd/Klm
2250-1-3-722-XX
45
2250-1-3-733-XX
45
2250-1-3-623-XX
45
2250-1-3-633-XX
45
2254-2-3-770-XX
30
30
450lx
350lx
250lx
Average Beam Illuminance
50.0
52.0
20.0
150lx
50.0
50lx
1 3 5 7 9
675lx
525lx
375lx
Average Beam Illuminance
50.0
52.0
20.0
225lx
50.0
75lx
1 3 5 7 9
450lx
350lx
250lx
150lx
50lx
765lx
595lx
425lx
Average Beam Illuminance
50.0
50.0
52.0
20.0
1 3 5 7 9
Average Beam Illuminance
50.0
52.0
20.0
255lx
50.0
85lx
1 3 5 7 9
18
14
10
6
2
m.
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
2254-2-3-794-XX H = 8.0m.
18
Emax = 49 lx
14
10
6
2
m.
32.0
1.0
2.0
4.0
8.0
16.0
2 6 10 14 18
m.
H = 8.0m.
Emax = 59 lx
1.0
2.0
4.0
8.0
16.0
32.0
2 6 10 14 18

Medium SIROCCO Floodlight / Bi-Symmetric
IP65 Class1
HIT-CE E40
150W 14500lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HST-MF E40
150W 17500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
417
SIROCCO
2251-7-3-722-XX Average Beam Illuminance
360lx
16
280lx
40.0
18.0
8
200lx
18.0
0
120lx
40.0
8
40lx
16
749 cd/Klm
30 2 61 0 14 18 m.
2251-7-3-733-XX Average Beam Illuminance
450lx
16
350lx
40.0
18.0
8
250lx
18.0
0
150lx
40.0
8
50lx
16
764 cd/Klm
30
2 61 0 14 18 m.
2251-7-3-623-XX Average Beam Illuminance
360lx
16
280lx
40.0
18.0
8
200lx
18.0
0
120lx
40.0
8
40lx
16
765 cd/Klm
30 2 61 0 14 18 m.
2251-7-3-633-XX
Average Beam Illuminance
450lx
16
350lx
40.0
18.0
8
250lx
18.0
0
150lx
40.0
8
50lx
16
749 cd/Klm
30
2 61 0 14 18 m.

SIROCCO
Large SIROCCO Floodlight / Asymmetric
IP65 Class1
Product image is in Bi-Symmetrical version.
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HIT-DE-CE Fc2
400W 37000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HST-DE Fc2
Ordering code:
853 cd/Klm
880 cd/Klm
853 cd/Klm
880 cd/Klm
921 cd/Klm
892 cd/Klm
921 cd/Klm
892 cd/Klm
2260-1-3-723-XX
45
2260-1-3-724-XX
45
2260-1-3-733-XX
45
2260-1-3-734-XX
45
2260-1-3-624-XX
45
2260-1-3-625-XX
45
2260-1-3-633-XX
45
2260-1-3-634-XX
45
360lx
280lx
200lx
Average Beam Illuminance
62.0
49.0
20.0
120lx
49.0
40lx
1 3 5 7 9
675lx
525lx
375lx
Average Beam Illuminance
62.0
49.0
20.0
225lx
49.0
75lx
1 3 5 7 9
360lx
280lx
200lx
Average Beam Illuminance
62.0
49.0
20.0
120lx
49.0
40lx
1 3 5 7 9
675lx
525lx
375lx
Average Beam Illuminance
62.0
49.0
20.0
225lx
49.0
75lx
1 3 5 7 9
540lx
420lx
300lx
Average Beam Illuminance
62.0
49.0
20.0
180lx
49.0
60lx
1 3 5 7 9
900lx
700lx
500lx
Average Beam Illuminance
62.0
49.0
20.0
300lx
49.0
100lx
1 35 7 9
540lx
420lx
300lx
Average Beam Illuminance
62.0
49.0
20.0
180lx
49.0
60lx
1 3 5 7 9
900lx
700lx
500lx
Average Beam Illuminance
62.0
49.0
20.0
300lx
49.0
100lx
1 3 5 7 9
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
m.
8
4
0
4
8
m.

Large SIROCCO Floodlight / Road Optic
IP65 Class1
Product image is in Bi-Symmetrical version.
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
Ordering code:
419
690 cd/Klm
609 cd/Klm
448 cd/Klm
379 cd/Klm
593 cd/Klm
2264-2-3-723-XX
30
2264-2-3-724-XX
30
2264-2-3-624-XX
30
2264-2-3-625-XX
30
2264-2-3-795-XX
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
SIROCCO
32.0
2.0
4.0
8.0
16.0
H = 8.0m.
Emax = 61 lx
1.0
2 6 10 14 18
64.0
2.0
4.0
8.0
16.0
32.0
H = 8.0m.
Emax = 99 lx
1.0
2 6 10 14 18
H = 8.0m.
Emax = 76 lx
2.0
4.0
8.0
16.0
64.0
32.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 117 lx
2.0
4.0
8.0
16.0
32.0
2 6 10 14 18
2.0
4.0
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 105 lx
2 6 10 14 18

SIROCCO
Large SIROCCO Floodlight / Bi-symmetric
IP65 Class1
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HIT-DE-CE Fc2
400W 37000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HST-DE Fc2
Ordering code:
420
2261-7-3-723-XX Average Beam Illuminance
450lx
16
350lx
42.0
17.0
8
250lx
17.0
0
150lx
42.0
8
50lx
16
714 cd/Klm
30 2 61 0 14 18 m.
1375 cd/Klm
2261-7-3-724-XX
Average Beam Illuminance
450lx
24
350lx
42.0
17.0
12
250lx
17.0
0
150lx
42.0
12
50lx
24
30 39 15 21 27 m.
2261-7-3-733-XX Average Beam Illuminance
450lx
16
350lx
42.0
17.0
8
250lx
17.0
0
150lx
42.0
8
50lx
16
714 cd/Klm
30
2 61 0 14 18 m.
1375 cd/Klm
768 cd/Klm
1375 cd/Klm
768 cd/Klm
1375 cd/Klm
2261-7-3-734-XX
2261-7-3-624-XX
2261-7-3-625-XX
2261-7-3-633-XX
2261-7-3-634-XX
Average Beam Illuminance
450lx
24
350lx
42.0
17.0
12
250lx
17.0
0
150lx
42.0
12
50lx
24
30 39 15 21 27 m.
Average Beam Illuminance
450lx
16
350lx
42.0
17.0
8
250lx
17.0
0
150lx
42.0
8
50lx
16
30 2 61 0 14 18 m.
Average Beam Illuminance
450lx
24
350lx
42.0
17.0
12
250lx
17.0
0
150lx
42.0
12
50lx
24
30 39 15 21 27 m.
Average Beam Illuminance
450lx
16
350lx
42.0
17.0
8
250lx
17.0
0
150lx
42.0
8
50lx
16
30 2 61 0 14 18 m.
Average Beam Illuminance
450lx
24
350lx
42.0
17.0
12
250lx
17.0
0
150lx
42.0
12
50lx
24
30 3 91 5 21 27 m.

421
SIROCCO

SIROCCO
Small SIROCCO Surface Washer / Asymmetric
IP65 Class1
Small SIROCCO Surface Washer / Road Optic
IP65 Class1
70W 6500lm
Ordering code:
150W 14200lm
Ordering code:
Ordering code:
150W 15000lm
Ordering code:
300W 5300lm
Ordering code:
HIT-CE G12
70W 6600lm
Ordering code:
HIT-CE G12
150W 14500lm
Ordering code:
422
571 cd/Klm
503 cd/Klm
533 cd/Klm
436 cd/Klm
613 cd/Klm
494 cd/Klm
453 cd/Klm
2340-1-3-731-XX
30
2340-1-3-732-XX
30
2340-1-3-631-XX
30
2340-1-3-632-XX
30
2340-1-2-235-XX
30
2344-2-3-752-XX
30
2344-2-3-753-XX
30
12
9
6
3
0
m. 0
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
0
32.0
H = 6.0m.
Emax = 42 lx
0.5
1.0
2.0
4.0
8.0
16.0
3 6 9 12
64.0
H = 6.0m.
Emax = 95 lx
1.0
2.0
4.0
8.0
16.0
32.0
3 6 9 12
32.0
0 3
0
0
m. 0
9
6
3
0
m.
0
64.0
H = 6.0m.
Emax = 54 lx
16.0 8.0
0.5
1.0
2.0
4.0
6 9 12
4.0
8.0
16.0
32.0
H = 6.0m.
Emax = 116 lx
2.0
3 6 9 12
32.0
1.0
2.0
4.0
8.0
16.0
3 6 9
16.0
8.0
4.0
H = 6.0m.
Emax = 39 lx
12
H = 6.0m.
Emax = 27 lx
2.0
1.0
3 6 9 12
4.0
8.0
16.0
32.0
3
6
H = 6.0m.
Emax = 58 lx
12 2.0
9 12

Small SIROCCO Surface Washer / Bi-Symmetric
IP65 Class1
70W 6500lm
Ordering code:
150W 14200lm
Ordering code:
Ordering code:
150W 15000lm
Ordering code:
300W 5300lm
Ordering code:
423
1007 cd/Klm
881 cd/Klm
889 cd/Klm
808 cd/Klm
2341-7-3-731-XX
30
2341-7-3-732-XX
30
2341-7-3-631-XX
30
2341-7-3-632-XX
30
2341-7-2-235-XX
972 cd/Klm
30
9
7
5
3
1
m. 1
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
9
7
5
3
1
m.
SIROCCO
4.0
8.0
16.0
32.0
64.0
32.0
64.0
128.0
1
H = 6.0m.
Emax =108 lx
2.0
1.0
3 5 7 9
8.0
16.0
H = 6.0m.
Emax = 229 lx
4.0
2.0
3 5 7 9
4.0
8.0
16.0
32.0
64.0
H = 6.0m.
Emax = 120 lx
2.0
1 3 5 7 9
4.0
8.0
16.0
32.0
64.0
128.0
1 3 5
1.0
2.0
4.0
8.0
16.0
32.0
64.0
H = 6.0m.
Emax = 268 lx
7
9
H = 6.0m.
Emax = 104 lx
1 3 5 7 9

SIROCCO
Medium SIROCCO Surface Washer / Asymmetric
IP65 Class1
Medium SIROCCO Surface Washer / Road Optic
IP65 Class1
HIT-CE E40
150W 14500lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HST-MF E40
150W 17500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HIT-CE G22
250W 26000lm
Ordering code:
210W 24200lm
Ordering code:
424
895 cd/Klm
873 cd/Klm
1000 cd/Klm
987 cd/Klm
494 cd/Klm
544 cd/Klm
2350-1-3-722-XX
45
2350-1-3-733-XX
45
2350-1-3-623-XX
45
2350-1-3-633-XX
45
2354-2-3-770-XX
30
2354-2-3-794-XX
30
18
14
10
6
2
m.
18
14
10
128.0
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
H = 8.0m.
Emax = 108 lx
16.0
32.0
64.0
8.0
1.0
2.0
4.0
2 6 10 14 18
H = 8.0m.
Emax = 153 lx
16.0
32.0
64.0
8.0
1.0
2.0
4.0
2 6 10 14 18
32.0
64.0
16.08.04.02.0
H = 8.0m.
Emax = 123 lx
1.0
2 6 10 14 18
H = 8.0m.
Emax = 412 lx
32.0
64.0
126.0
256.0
16.0
2.0
4.0
8.0
2 6 10 14 18
H = 8.0m.
Emax = 59 lx
1.0
2.0
4.0
8.0
16.0
32.0
2 6 10 14 18
32.0
H = 8.0m.
Emax = 49 lx
1.0
2.0
4.0
8.0
16.0
2 6 10 14 18

Medium SIROCCO Surface Washer / Bi-Symmetric
IP65 Class1
HIT-CE E40
150W 14500lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HST-MF E40
150W 17500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
425
749 cd/Klm
764 cd/Klm
765 cd/Klm
749 cd/Klm
2351-7-3-722-XX
30
2351-7-3-733-XX
30
2351-7-3-623-XX
30
2351-7-3-633-XX
30
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
0
0
0
0
SIROCCO
H = 8.0m.
Emax = 144 lx
4.0
8.0
16.0
32.0
64.0
128.0
3 6 9 12
16.0
32.0
64.0
128.0
H = 8.0m.
Emax = 208 lx
2.0
8.0
4.0
3 6 9 12
H = 8.0m.
Emax = 186 lx
2.0
4.0
8.0
16.0
32.0
64.0
128.0
3 6 9 12
64.0
256.0
32.0
16.0
8.0
H = 8.0m.
Emax = 315 lx
4.0
2.0
3 6 9 12

SIROCCO
Large SIROCCO Surface Washer / Asymmetric
IP65 Class1
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HIT-DE-CE Fc2
400W 37000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HST-DE Fc2
Ordering code:
426
853 cd/Klm
880 cd/Klm
853 cd/Klm
880 cd/Klm
921 cd/Klm
892 cd/Klm
921 cd/Klm
892 cd/Klm
2360-1-3-723-XX
45
2360-1-3-724-XX
45
2360-1-3-733-XX
45
2360-1-3-734-XX
45
2360-1-3-624-XX
45
2360-1-3-625-XX
45
2360-1-3-633-XX
45
2360-1-3-634-XX
45
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6 128.0
2
m.
18
14
10
6
2
m.
18
14
10
6 128.0
2
m.
18
14
10
6
2
m.
64.0
H = 8.0m.
Emax = 106 lx
8.0
16.0
32.0
4.0
2.0 1.0
2 6 10 14 18
128.0
16.0
32.0
64.0
H = 8.0m.
Emax = 180 lx
2.0
4.0
1.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 106 lx
8.0
16.0
32.0
4.0
2.0 1.0
2 6 10 14 18
128.0
H = 8.0m.
Emax = 180 lx
8.0
16.0
32.0
64.0
4.0
2.0 1.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 141 lx
8.0
16.0
32.0
4.02.01.0
2 6 10 14 18
H = 8.0m.
Emax = 245 lx
2.0
4.0
8.0
16.0
32.0
64.0
128.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 141 lx
8.0
16.0
32.0
4.02.01.0
2 6 10 14 18
H = 8.0m.
Emax = 245 lx
2.0
4.0
8.0
16.0
32.0
64.0
128.0
2 6 10 14 18

Large SIROCCO Surface Washer / Road Optic
IP65 Class1
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
Ordering code:
427
690 cd/Klm
609 cd/Klm
448 cd/Klm
379 cd/Klm
593 cd/Klm
2364-2-3-723-XX
30
2364-2-3-724-XX
30
2364-2-3-624-XX
30
2364-2-3-625-XX
30
2364-2-3-795-XX
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
SIROCCO
32.0
2.0
4.0
8.0
16.0
H = 8.0m.
Emax = 61 lx
1.0
2 6 10 14 18
64.0
2.0
4.0
8.0
16.0
32.0
H = 8.0m.
Emax = 99 lx
1.0
2 6 10 14 18
H = 8.0m.
Emax = 76 lx
2.0
4.0
8.0
16.0
64.0
32.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 117 lx
2.0
4.0
8.0
16.0
32.0
2 6 10 14 18
2.0
4.0
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 105 lx
2 6 10 14 18

SIROCCO
Large SIROCCO Surface Washer / Bi-Symmetric
IP65 Class1
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HIT-DE-CE Fc2
400W 37000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HST-DE Fc2
Ordering code:
714 cd/Klm
1375 cd/Klm
1514 cd/Klm
1560 cd/Klm
768 cd/Klm
1375 cd/Klm
765 cd/Klm
1375 cd/Klm
2361-7-3-723-XX
30
2361-7-3-724-XX
30
2361-7-3-733-XX
30
2361-7-3-734-XX
30
2361-7-3-624-XX
30
2361-7-3-625-XX
30
2361-7-3-633-XX
30
2361-7-3-634-XX
30
12
8
4
0
4
m.
12
8
4
0
4
m.
12
8
4
0
4
m.
12
8
4
0
4
m.
12
8
4
0
4
m.
12
8
4
0
4
m.
12
8
4
0
4
m.
12
8
4
0
4
m.
0
0
0
0
128.0
256.0
128.0
256.0
256.0
0
512.0
0
256.0
0
512.0
0
32.0
H = 8.0m.
Emax = 221 lx
2.0
8.0
0.5
4 8 12 16
4.0
16.0
64.0
1.0
H = 8.0m.
Emax = 342 lx
4 8 12 16
32.0
H = 8.0m.
Emax = 221 lx
2.0
8.0
0.5
4 8 12 16
4.0
16.0
64.0
1.0
H = 8.0m.
Emax = 342 lx
4 8 12 16
16.0
64.0
H = 8.0m.
Emax = 324 lx
4.0 1.0
4 8 12 16
128.0
2.0
8.0
32.0
H = 8.0m.
Emax = 556 lx
4 8 12 16
16.0
64.0
H = 8.0m.
Emax = 324 lx
4.0 1.0
4 8 12 16
128.0
2.0
8.0
32.0
H = 8.0m.
Emax = 556 lx
4 8 12 16

429
SIROCCO

SIROCCO
Small SIROCCO Area Light / Asymmetric Single Sided
IP65 Class1
Small SIROCCO Area Light / Road Optic Single Sided
IP65 Class1
70W 6500lm
Ordering code:
150W 14200lm
Ordering code:
Ordering code:
150W 15000lm
Ordering code:
300W 5300lm
Ordering code:
HIT-CE G12
70W 6600lm
Ordering code:
HIT-CE G12
150W 14500lm
Ordering code:
430
571 cd/Klm
503 cd/Klm
533 cd/Klm
436 cd/Klm
613 cd/Klm
494 cd/Klm
453 cd/Klm
7240-1-3-731-XX
30
7240-1-3-732-XX
30
7240-1-3-631-XX
30
7240-1-3-632-XX
30
7240-1-2-235-XX
7244-2-3-731-XX
30
30
7244-2-3-753-XX
30
12
9
6
3
0
m. 0
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
m.
12
9
6
3
0
m. 0
12
9
6
3
0
m.
32.0
H = 6.0m.
Emax = 42 lx
0.5
1.0
2.0
4.0
8.0
16.0
3 6 9 12
64.0
H = 6.0m.
Emax = 95 lx
1.0
2.0
4.0
8.0
16.0
32.0
0 3 6 9 12
32.0
0 3
64.0
H = 6.0m.
Emax = 54 lx
16.0 8.0
0.5
1.0
2.0
4.0
6 9
4.0
8.0
16.0
32.0
12
H = 6.0m.
Emax = 116 lx
2.0
0 3 6 9 12
32.0
0 3
16.0
8.0
4.0
H = 6.0m.
Emax = 27 lx
2.0
1.0
3 6 9 12
4.0
8.0
16.0
32.0
6 9
H = 6.0m.
Emax = 39 lx
12 0.5
1.0
9
2.0
4.0
6
8.0
16.0
3
0
0
3 6 9
12
H = 6.0m.
Emax = 58 lx
2.0
12

Small SIROCCO Area Light / Bi-Symmetric Single Sided
IP65 Class1
70W 6500lm
Ordering code:
150W 14200lm
Ordering code:
Ordering code:
150W 15000lm
Ordering code:
300W 5300lm
Ordering code:
Small SIROCCO Area Light also available in Double Sided.
For Double Sided version, please replace the first 4 digit of the
7242 for Small SIROCCO Area Light / Asymmetric Double Sided.
7243 for Small SIROCCO Area Light / Bi-Symmetric Double Sided.
7245 for Small SIROCCO Area Light / Road Optic Double Sided.
431
1007 cd/Klm
881 cd/Klm
889 cd/Klm
808 cd/Klm
972 cd/Klm
7241-7-3-731-XX
30
7241-7-3-732-XX
30
7241-7-3-631-XX
30
7241-7-3-632-XX
30
7241-7-2-235-XX
30
9.0
7.0
5.0
3.0
1.0
m. 1.0
9.0
7.0
5.0
3.0
1.0
m. 1.0
9.0
7.0
5.0
3.0
1.0
m. 1.0
9.0
7.0
5.0
3.0
1.0
m. 1.0
9.0
7.0
5.0
3.0
1.0
SIROCCO
4.0
8.0
16.0
32.0
64.0
32.0
64.0
128.0
H = 6.0m.
Emax = 108 lx
2.0
1.0
3.0 5.0 7.0 9.0
8.0
16.0
H = 6.0m.
Emax = 229 lx
4.0
2.0
3.0 5.0 7.0 9.0
4.0
8.0
16.0
32.0
64.0
H = 6.0m.
Emax = 120 lx
2.0
1.0
3.0 5.0 7.0 9.0
4.0
8.0
16.0
32.0
64.0
128.0
H = 6.0m.
Emax = 268 lx
2.0
3.0 5.0 7.0 9.0
H = 6.0m.
Emax = 104 lx
0.5
1.0
2.0
4.0
8.0
16.0
32.0
64.0
m. 1.0
3.0 5.0 7.0 9.0

SIROCCO
Medium SIROCCO Area Light / Asymmetric Single Sided
IP65 Class1
Medium SIROCCO Area Light / Road Optic Single Sided
IP65 Class1
HIT-CE E40
150W 14500lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HST-MF E40
150W 17500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HIT-CE G22
250W 26000lm
Ordering code:
210W 24200lm
Ordering code:
432
895 cd/Klm
873 cd/Klm
1000 cd/Klm
987 cd/Klm
494 cd/Klm
544 cd/Klm
7250-1-3-722-XX
45
7250-1-3-733-XX
45
7250-1-3-623-XX
45
7250-1-3-633-XX
45
7254-2-3-770-XX
30
7254-2-3-794-XX
30
18
14
10
6
2
m.
18
14
10
128.0
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
H = 8.0m.
Emax = 108 lx
16.0
32.0
64.0
8.0
1.0
2.0
4.0
2 6 10 14 18
H = 8.0m.
Emax = 153 lx
16.0
32.0
64.0
8.0
1.0
2.0
4.0
2 6 10 14 18
16.0
32.0
64.0
8.04.02.0
H = 8.0m.
Emax = 123 lx
1.0
2 6 10 14 18
H = 8.0m.
Emax = 412lx
32.0
64.0
126.0
256.0
16.0
2.0
4.0
8.0
2 6 10 14 18
H = 8.0m.
Emax = 59 lx
1.0
2.0
4.0
8.0
16.0
32.0
2 6 10 14 18
32.0
H = 8.0m.
Emax = 49 lx
1.0
2.0
4.0
8.0
16.0
2 6 10 14 18

Medium SIROCCO Area Light / Bi-Symmetric Single Sided
IP65 Class1
HIT-CE E40
150W 14500lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HST-MF E40
150W 17500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
Medium SIROCCO Area Light also available in Double Sided.
For Double Sided version, please replace the first 4 digit of the
7252 for Medium SIROCCO Area Light / Asymmetric Double Sided.
7253 for Medium SIROCCO Area Light / Bi-Symmetric Double Sided.
7255 for Medium SIROCCO Area Light / Road Optic Double Sided.
433
749 cd/Klm
764 cd/Klm
765 cd/Klm
749 cd/Klm
7251-7-3-722-XX
30
7251-7-3-733-XX
30
7251-7-3-623-XX
30
7251-7-3-633-XX
30
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
0
0
0
0
SIROCCO
= 8.0m.
Emax = 144 lx
4.0
8.0
16.0
32.0
64.0
128.0
3 6 9 12
16.0
32.0
64.0
128.0
H = 8.0m.
Emax = 208 lx
2.0
8.0
4.0
3 6 9 12
H = 8.0m.
Emax = 186 lx
2.0
4.0
8.0
16.0
32.0
64.0
128.0
3 6 9 12
64.0
256.0
32.0
16.0
8.0
H = 8.0m.
Emax = 315 lx
4.0
2.0
3 6 9 12

SIROCCO
Large SIROCCO Area Light / Asymmetric Single Sided
IP65 Class1
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HIT-DE-CE Fc2
400W 37000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HST-DE Fc2
Ordering code:
434
853 cd/Klm
880 cd/Klm
853 cd/Klm
880 cd/Klm
921 cd/Klm
892 cd/Klm
921 cd/Klm
892 cd/Klm
7260-1-3-723-XX
45
7260-1-3-724-XX
45
7260-1-3-733-XX
45
7260-1-3-734-XX
45
7260-1-3-624-XX
45
7260-1-3-625-XX
45
7260-1-3-633-XX
45
7260-1-3-634-XX
45
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
128.0
6
2
m.
18
14
10
6
2
m.
18
14
10
128.0
6
2
m.
18
14
10
6
2
m.
64.0
H = 8.0m.
Emax = 106 lx
8.0
16.0
32.0
4.0
2.0 1.0
2 6 10 14 18
128.0
H = 8.0m.
Emax = 180 lx
8.0
16.0
32.0
64.0
4.0
2.0 1.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 106 lx
8.0
16.0
32.0
4.0
2.0 1.0
2 6 10 14 18
128.0
H = 8.0m.
Emax = 180 lx
8.0
16.0
32.0
64.0
4.0
2.0 1.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 141 lx
8.0
16.0
32.0
4.02.01.0
2 6 10 14 18
H = 8.0m.
Emax = 245 lx
2.0
4.0
8.0
16.0
32.0
64.0
128.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 141 lx
8.0
16.0
32.0
4.02.01.0
2 6 10 14 18
H = 8.0m.
Emax = 245 lx
2.0
4.0
8.0
16.0
32.0
64.0
128.0
2 6 10 14 18

Large SIROCCO Area Light / Road Optic Single Sided
IP65 Class1
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
Ordering code:
435
690 cd/Klm
609 cd/Klm
448 cd/Klm
379 cd/Klm
593 cd/Klm
7264-2-3-723-XX
30
7264-2-3-724-XX
30
7264-2-3-624-XX
30
7264-2-3-625-XX
30
7264-2-3-795-XX
30
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
18
14
10
6
2
m.
SIROCCO
H = 8.0m.
Emax = 61 lx
1.0
2.0
4.0
8.0
16.0
32.0
2 6 10 14 18
64.0
2.0
4.0
8.0
16.0
32.0
H = 8.0m.
Emax = 99 lx
1.0
2 6 10 14 18
H = 8.0m.
Emax = 76 lx
2.0
4.0
8.0
16.0
64.0
32.0
2 6 10 14 18
64.0
H = 8.0m.
Emax = 117 lx
2.0
4.0
8.0
16.0
32.0
2 6 10 14 18
2.0
4.0
8.0
16.0
32.0
64.0
H = 8.0m.
Emax = 105 lx
2 6 10 14 18

SIROCCO
Large SIROCCO Area Light / Bi- Symmetric Single Sided
IP65 Class1
HIT-CE E40
250W 26000lm
Ordering code:
HIT-CE E40
400W 42000lm
Ordering code:
HIT-DE-CE Fc2
250W 24500lm
Ordering code:
HIT-DE-CE Fc2
400W 37000lm
Ordering code:
HST-MF E40
250W 33200lm
Ordering code:
HST-MF E40
400W 56500lm
Ordering code:
HST-DE Fc2
250W 25500lm
Ordering code:
HST-DE Fc2
Ordering code:
436
714 cd/Klm
1375 cd/Klm
714 cd/Klm
1375 cd/Klm
768 cd/Klm
1375 cd/Klm
768 cd/Klm
1375 cd/Klm
7261-7-3-723-XX
30
7261-7-3-724-XX
30
7261-7-3-733-XX
30
7261-7-3-734-XX
30
7261-7-3-624-XX
30
7261-7-3-625-XX
30
7261-7-3-633-XX
30
7261-7-3-634-XX
30
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
12
9
6
3
0
m.
m.
0
0
0
0
128.0
256.0
128.0
256.0
256.0
0
32.0
H = 8.0m.
Emax = 221 lx
2.0
8.0
0.5
3 6 9 12
4.0
16.0
64.0
1.0
H = 8.0m.
Emax = 342 lx
3 6 9 12
32.0
H = 8.0m.
Emax = 221 lx
2.0
8.0
0.5
3 6 9 12
4.0
16.0
64.0
1.0
H = 8.0m.
Emax = 342 lx
3 6 9 12
16.0
64.0
H = 8.0m.
Emax = 324 lx
4.0 1.0
3 6 9 12
H = 8.0m.
12
Emax = 556 lx
2.0
9
8.0
32.0
6
128.0
3
512.0
0
12
9
6
3
0
m.
12
9
6
3
0
m.
0
256.0
0
512.0
0
3 6 9 12
16.0
64.0
H = 8.0m.
Emax = 324 lx
4.0 1.0
3 6 9 12
128.0
2.0
8.0
32.0
H = 8.0m.
Emax = 556 lx
3 6 9 12

Large SIROCCO Area Light also available in Double Sided.
For Double Sided version, please replace the first 4 digit of the
7262 for Large SIROCCO Area Light / Asymmetric Double Sided.
7263 for Large SIROCCO Area Light / Bi-Symmetric Double Sided.
7265 for Large SIROCCO Area Light / Road Optic Double Sided.
437
SIROCCO

ZET

with halogen or compact fluorescent lamps and is available in LED.
The anti-condensation kit is factory fitted and equipped within the luminaire to
highlight small architectural works, wall structures, low ceilings, and columns.
The colour filter and softening lens are available as accessories.
imperative that correct installation is adhered to.
Can be walked over.
LED version features low
surface temperature.
2mm slim cover plate.
High quality LED from Cree.
316 stainless steel cover.
Various beam angle.
440
Come with new ground
recess housing.
Double layer coating.

Specification
Protection against dust and water IP67.
Protection against mechanical impact IK10 on body and optical part.
1,000KGs maximum load.
alloy. Front cover in 316 stainless steel brush finished.
Ground recess housing in GFR polymer.
Corrosion resistance and suitable for outdoor use.
driver or transformer box. It is available as an accessory.
environment. Luminiare primarily coated with epoxy resin and top
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
temperature up to 250 C.
weather resistant. Working temperature -40C to +200C.
Prewired with H07RN-F neoprene rubber cable for in-ground
application.
Vossloh Schwabe / BJB – Germany. ENEC approved.
and integrated with finned dissipater anodized aluminium.
Recommended to be used in the ambient temperature between
-30C to +30C.
External LED current constant driver required (available separately).
Accessories
device
Ordering code: 9-0901-00
Softening Lens
(for Halogen version)
Ordering code: 9-0050-00
device for through wiring
Ordering code: 9-0902-00
Deeper ground recess
housing.
Provides more space for
transformer/driver box
Ordering code: 9-0404-00
Transformer box
(for Halogen version)
IP67 12V 50W
Ordering code: 9-0500-01
441
featuring Philips Lumiled chips. The module mounted on to heat
conducting material. Recommended to be used in the ambient
temperature between -30C to +30C. The LED driver is assembled
inside the luminaires. Wiring provided with earth connection.
driver. Conform to safety standard EN61347-2-13, electromagnetic
compatibility EN55015 and harmonics IEC61000-3-2.
approved. Working temperature -40C to +130C. For cable with
cross section up to 2.5mm 2 .
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Color Filter (for Halogen
version)
LED driver box.
IP67 700mA 12W
Ordering code: 9-0504-01

ZET1 Clear (code begin with 9011)
IP67 Class3 / Class1
ZET2 Clear (code begin with 9021)
IP67 Class3 / Class1
450lm 3000K 7
Ordering code:
9011-0-2-960-91
9021-0-2-960-91
450lm 3000K 13
Ordering code:
9011-0-2-961-91
9021-0-2-961-91
450lm 3000K 30
Ordering code:
9011-0-2-962-91
9021-0-2-962-91
450lm 3000K 13/44
Ordering code:
9011-0-2-963-91
9021-0-2-963-91
QR-CB51 GU5.3
12V 50W
Ordering code:
QPAR51 GU10
50W
Ordering code:
9011-0-2-221-91
9021-0-2-221-91
9W 350lm
Ordering code:
442
22993 cd/Klm
9126 cd/Klm
2477 cd/Klm
3912 cd/Klm
8200 cd
1000 cd
82 cd
9011-0-2-960-91
90
9011-0-2-961-91
90
9011-0-2-962-91
90
9011-0-2-963-91
90
9011-0-2-281-91
90
9011-0-2-221-91
90
9011-0-2-486-91
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
9011-0-2-960-91
m. 4 2 0 2 4
9
7
5
3
1
3.5 3.5
35lx 105lx 175lx2 45lx 315lx
m. 42 0
9011-0-2-961-91
24
9
7
5
3
1
6.5 6.5
13lx 39lx 65lx 91lx 117lx
9011-0-2-962-91
m. 4 2 0 2 4
9
7
5
3
1
15.0 15.0
4lx 12lx 20lx 28lx 36lx
9011-0-2-963-91
m. 4 2 0 2 4
9
7
5
3
1
22.0 6.5 6.5 22.0
2lx 6lx 10lx 14lx 18lx
m. 42 0
9011-0-2-281-91
24
9
7
5
3
1
5.0 5.0
35lx 105lx 175lx2 45lx 315lx
9011-0-2-221-91
m. 4 2 0 2 4
9
7
5
3
1
15lx 45lx 75lx 105lx 135lx
9011-0-2-486-91
m. 8 4 0 4 8
4.5
3.4
2.5
1.5
0.5
3lx 9lx 15lx 21lx 27lx

ZET1 Frost (code begin with 9002)
IP67 Class3 / Class1
ZET2 Frost (code begin with 9004)
IP67 Class3 / Class1
QR-CB51 GU5.3
12V 50W
Ordering code:
QPAR51 GU10
50W
Ordering code:
9002-0-2-221-91
9004-0-2-221-91
9W 350lm
Ordering code:
443
954 cd/Klm
986 cd/Klm
70 cd/Klm
9002-0-2-221-91
90
9002-0-2-281-91
90
9002-0-2-486-XX
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
9002-0-2-221-91
m. 4 2 0 2 4
9
7
5
3
1
m. 42 0
9002-0-2-281-91
24
9
7
5
3
1
4.5
3.5
2.5
1.5
0.5
m.
20.0
3lx9 lx 15lx 21lx 27lx
2lx 6lx 10lx 14lx 18lx
9002-0-2-486-XX
8 4 0 4 8
42.0
42.0
4lx 12lx 20lx 28lx 36lx

ZET3 singleLED (code begin with 9012)
IP67 Class1
ZET4 singleLED (code begin with 9022)
IP67 Class1
1LED 1.4W 350mA
230V Integrated Driver
70lm 3000K Warm White
Ordering code:
1LED 1.4W 350mA
230V Integrated Driver
65lm 6500K Day light
Ordering code:
9012-0-3-991-91
9022-0-3-991-91
1LED 1.4W 350mA
230V Integrated Driver
10lm Blue LED
Ordering code:
9012-0-3-992-91
9022-0-3-992-91
1LED 1.4W 350mA
230V Integrated Driver
39lm Green LED
Ordering code:
9012-0-3-993-91
9022-0-3-993-91
1LED 1.4W 350mA
230V Integrated Driver
23lm Red LED
Ordering code:
9012-0-3-994-91
9022-0-3-994-91
444

445

QUANTUM

QUANTUM
QUANTUM is a walk and drive-over inground uplighter with adjustable optical
aiming unit for symmetrical light distribution. It is designed to be used with metal
halide lamps. QUANTUM features a control gear housing that is separate from the
compartment to prolong operating lifetime. QUANTUM has an extensive range of
filters, lens and connecting accessories to provide a solution for all applications.
It can be used to illuminate plants, flagpoles, columns, building facades and also
architectural works and landmarks.
QUANTUM has to be installed in the ground with the GFR polymer ground-recessed
housing which bears the load pressure. The neoprene cable is factory fitted with
anti-condensation kit to humidity issues. For all luminaires of this nature it is
imperative that correct installation is adhered to.
Robust construction.
Drive over at low
speed.
Separate gear compartment.
Post-cured treated
sealing.
Adjustable optic unit.
Pre-wired with
anti-condensation kit.
Choices of beam angle.
Narrow
Medium
Wide

Specification
and water IP67. Protection against mechanical impact IK10 on body
and IK09 on optical part.
(maximum 20kgm/hour). Withstand maximum load = 2000 kgs.
alloy. Front ring made of 316 stainless steel with brush finished.
Adjustable optical unit.
Corrosion resistance and suitable for outdoor use.
environment. Luminaire primarily coated with epoxy resin and top
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Able to withstand the temperature up to 250C. Glass flushes to the
front cover, no accumulation of dust and water.
distribution. Available in many beam angle.
weather resistant. Working temperature -40C to +200C.
Factory sealed with H07RN-F cable 3x1.00mm.
nickel-coated contact from BJB / AAG Stucchi. ENEC approved.
magnetic ballast from Vossloh Schwabe – ENEC approved,
2).electronic ignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
pressure safety device from ITALFARAD – ENEC approved.
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
approved. Working temperature -40C to +130C. For cable with
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Cable equipped with anti-condensation kit.
must be at lease 0.5 meter.
installation manual. The water drainage system must be tested to
ensure that it is sufficiency and efficiency.
Accessories
Glare shield louver
Ordering code: 9-0157-01
Ground installation block out
Ordering Code: 9-0405-00
Softening lens
Ordering Code: 9-0057-00
IP67 connection box for
through wiring
Ordering Code: 9-0900-00
Flat beam lens
Ordering Code: 9-0017-00
device
Ordering Code: 9-0901-00
449
Color filter
Ordering Code: Red 9-0323-81
Yellow 9-0323-82
Blue 9-0323-83
Green 9-0323-84
device for through wiring
Ordering Code: 9-0902-00
QUANTUM

QUANTUM
QUANTUM – Inground Uplighter
IP67 Class1
HIT-CE G12
35W 3300lm 10
Ordering Code:
9050-5-3-751-91
HIT-CE G12
35W 3300lm 20
Ordering Code:
9050-6-3-751-91
HIT-CE G12
35W 3300lm 32
Ordering Code:
9050-7-3-751-91
HIT-CE G12
70W 6600lm 10
Ordering Code:
9050-5-3-752-91
HIT-CE G12
70W 6600lm 20
Ordering Code:
9050-6-3-752-91
HIT-CE G12
70W 6600lm 32
Ordering Code:
9050-7-3-752-91
450
13522 cd/Klm
4516 cd/Klm
548 cd/Klm
13522 cd/Klm
4516 cd/Klm
548 cd/Klm
9050-5-3-751-91
90
9050-6-3-751-91
90
9050-7-3-751-91
90
9050-5-3-752-91
90
9050-6-3-752-91
90
9050-7-3-752-91
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
9050-5-3-751-91
m. 4 2 0 2 4
9
7
5
3
1
2.52 .5
175lx 525lx 875lx 1225lx 1575lx
m. 42 0
9050-6-3-751-91
24
9
7
5
3
1
10.0
10.0
40lx 120lx 200lx 280lx 360lx
9050-7-3-751-91
m. 4 2 0 2 4
9
7
5
3
1
19.0 19.0
8lx 24lx 40lx 56lx 72lx
m. 42 0
9050-5-3-752-91
24
9
7
5
3
1
2.52 .5
350lx 1050lx 1750lx 2450lx 3150lx
9050-6-3-752-91
m. 4 2 0 2 4
9
7
5
3
1
10.0
10.0
80lx 240lx 400lx 560lx 720lx
9050-7-3-752-91
m. 4 2 0 2 4
9
7
5
3
1
19.0 19.0
15lx 45lx 75lx 105lx 135lx

QUANTUM – Inground Uplighter
IP67 Class1
HIT-CE G12
150W 14500lm 10
Ordering Code:
9050-5-3-753-91
HIT-CE G12
150W 14500lm 20
Ordering Code:
9050-6-3-753-91
HIT-CE G12
150W 14500lm 32
Ordering Code:
9050-7-3-753-91
451
13522 cd/Klm
4516 cd/Klm
548 cd/Klm
9050-5-3-753-91
90
9050-6-3-753-91
90
9050-7-3-753-91
90
QUANTUM
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
9050-5-3-753-91
m. 4 2 0 2 4
9
7
5
3
1
2.52 .5
750lx 2250x 3750lx 5250lx 6750lx
9050-6-3-753-91
m. 4 2 0 2 4
9
7
5
3
1
10.0
10.0
170lx 510lx 850lx 1190lx 1530lx
9050-7-3-753-91
m. 4 2 0 2 4
9
7
5
3
1
19.0 19.0
35lx 105lx 175lx 245lx 315lx

QUARK

QUARK
QUARK is a walk or drive-over inground uplighter with shallow housing for minimum
recess depth and able to withstand loads up to 3,000kg. Designed to be used with
metal halide lamps. The light distribution is available in asymmetric and bi-symmetric.
QUARK can be installed with IP rated connecting devices, which are available as an
accessory. It can be used to illuminate plants, flagpoles, columns, walls, building facades
and also architectural works and landmarks.
QUARK has to be installed in the ground together with the ground-recessed housing
which bears the load pressure. The neoprene cable is pre-wired from the factory with
anti-condensation kit to ensure that the humidity could not be penetrated into the
luminaire. For all luminaires of this nature it is imperative that correct
installation is adhered to.
Robust construction.
Post-cured treated sealing.
316 Stainless steel frame.
Pre-wired with
anti-condensation kit.
Time ignitor.
454
Drive over at low speed.
Double layer coating.

Specification
and water IP67. Protection against mechanical impact IK10 on body
and IK09 on optical part.
(maximum 20kgm/hour). Withstand maximum load = 3000 kgs.
alloy. Front ring made of 316 stainless steel with brush finished.
Corrosion resistance and suitable for outdoor use.
environment. Luminaire primarily coated with epoxy resin and top
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
Able to withstand the temperature up to 250C. Glass flushes to the
front cover, no accumulation of dust and water.
Asymmetrical / Bi-Symmetrical light distribution.
weather resistant. Working temperature -40C to +200C.
Accessories
Ground installation recess
housing
Ordering code:
QUARK Round 9-0400-01
QUARK Square 9-0401-01
IP67 connection box for
through wring
Ordering code: 9-0900-00
device
Ordering code: 9-0901-00
455
device for through wiring
Ordering code: 9-0902-00
QUARK
Factory sealed with H07RN-F cable 3x1.00mm.
from EMC Colosio - Italy / ENEC approved.
magnetic ballast from Vossloh Schwabe – ENEC approved,
2).electronic ignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
pressure safety device from ITALFARAD – ENEC approved.
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
approved. Working temperature -40C to +130C. For cable with
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Cable equipped with anti-condensation kit.
must be at lease 0.5 meter.
installation manual. The water drainage system must be tested to
ensure that it is sufficiency and efficiency.

QUARK
QUARK Round – Asymmetric
IP67 Class1
QUARK Round – Bi-Symmetric
IP67 Class1
70W 6500lm
Ordering code:
9031-1-3-731-91
150W 14200lm
Ordering code:
9031-1-3-732-91
70W 6500lm
Ordering code:
9032-7-3-731-91
150W 14200lm
Ordering code:
9032-7-3-732-91
456
9031-1-3-731-91
9031-1-3-732-91
9032-7-3-731-91
9032-7-3-732-91
497 cd/Klm m. 8 4 0 4 8
497 cd/Klm
1007 cd/Klm
881 cd/Klm
90
90
90
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
9
7
5
3
1
m. 8 4 0 4 8
9
7
5
3
1
30.0
5.0 60.0
30.0
10lx 30lx 50lx 70lx 90lx
m. 8 4 0 4 8
9
7
5
3
1
30.0
5.0 60.0
30.0
20lx 60lx 100lx 140lx 190lx
14.0 14.0
35.0 35.0
15lx 45lx 75lx 105lx 135lx
m. 8 4 0 4 8
9
7
5
3
1
14.0
14.0
35.0 35.0
35lx 105lx 175lx 245lx 315lx

QUARK Square – Asymmetric
IP67 Class1
QUARK Square – Bi-Symmetric
IP67 Class1
70W 6500lm
Ordering code:
9041-1-3-731-91
150W 14200lm
Ordering code:
9041-1-3-732-91
70W 6500lm
Ordering code:
9042-7-3-731-91
150W 14200lm
Ordering code:
9042-7-3-732-91
457
9041-1-3-731-91
9041-1-3-732-91
9042-7-3-731-91
9042-7-3-732-91
497 cd/Klm
497 cd/Klm
1007 cd/Klm
881 cd/Klm
90
90
90
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
QUARK
m. 8 4 0 4 8
9
7
5
3
1
30.0
5.0 60.0
30.0
10lx 30lx 50lx 70lx 90lx
m. 8 4 0 4 8
9
7
5
3
1
30.0
5.0 60.0
30.0
20lx 60lx 100lx 140lx 190lx
m. 8 4 0 4 8
9
7
5
3
1
14.0 14.0
35.0 35.0
15lx 45lx 75lx 105lx 135lx
m. 8 4 0 4 8
9
7
5
3
1
14.0 14.0
35.0 35.0
15lx 45lx 75lx 105lx 135lx

SHOOTER

SHOOTER
SHOOTER is a robust above ground uplighter with an adjustable optic unit. It is
suitable for installation where a typical in-ground uplighter cannot or should not
be used. It is designed to be operated with LED and Metal Halide lamps with various
beam angle and optical accessories like colour filter, lens’ and glare shielding unit.
Constructed with a robust aluminium housing and use of a thick safety glass cover.
SHOOTER is protected from dust, water and possible harmful impact. This luminaire
can be used to illuminate columns, panels, blocks, and ceilings from the low level.
It’s perfectly matched in any architectural environment. Anchor unit for concrete
foundation is available as an accessory.
Robust aluminium
construction.
Choice of different beam
angle.
Double layer coating.
Installed with helicoil for
easy maintenance.
Get rid of typical inground
luminaire problems.
High quality LED chip from
CREE.
460
Adjustable optical unit.
Power supply conforms to
standard.

Specification
Protection against dust and water IP65. Protection against
alloy with low copper content.
Corrosion resistance and suitable for outdoor use.
environment. Luminiare primarily coated with epoxy resin and top
coated with UV stabilized polyester powder and cured in digital
temperature controlled chamber at 200C.
temperature up to 250C.
beam angles.
resistant. Working temperature -40C to +200C.
Prepare for H05RN-F / H07RN-F cable diameter 7 – 10mm.
nickel-coated contact from BJB / AAG Stucchi. ENEC approved.
magnetic ballast from VosslohSchwabe – ENEC approved,
2).electronicignitor with automatic cut-out function from Vossloh
Schwabe – ENEC approved, 3).aluminium case capacitor with over
pressure safety device from ITALFARAD – ENEC approved.
Tridonic/ Philips/ BAG. ENEC approved.
finned dissipater in anodized extruded aluminium. Complete module
manufactured from Italy. Recommend to be used in the ambient
temperature at -30C to +30C.
patterns.
CET Electric – Italy. IMQ approved. HID gear wired with double
silicone ignition cable - suitable for ignition voltage up to 5KV.
approved. Working temperature -40C to +130C. For cable with
cross section up to 2.5mm2 . Wiring provided with earth connection.
Accessories
Anchor bolt kit for
concrete foundation
installing.
Ordering code: 9-2015-00
Softening lens
(for Metal Halide lamp)
Ordering code: 9-0057-00
Flat beam lens
(for Metal Halide lamp)
Ordering code: 9-0017-00
Glare shield ring
(for Metal halide)
Ordering code: 9-0156-01
Color filter (for Metal
Halide lamp)
Ordering code:
461
SHOOTER
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)

SHOOTER
SHOOTER
IP67 Class1
Ordering code:
Ordering code:
Ordering code:
Ordering code:
HIT-CE 12
35W 3300lm 10
Ordering code:
HIT-CE 12
Ordering code:
HIT-CE 12
35W 3300lm 46
Ordering code:
462
24343 cd/Klm
8534 cd/Klm
2487 cd/Klm
3912 cd/Klm
9672 cd/Klm
1067 cd/Klm
443 cd/Klm
9900-0-3-968-XX
90
9900-0-3-969-XX
90
9900-0-3-970-XX
90
9900-0-3-971-XX
90
9900-5-3-751-XX
90
9900-6-3-751-XX
90
9900-7-3-751-XX
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
m. 42 0
9900-0-3-968-XX
24
9
7
5
3
1
3.5 3.5
75lx 225lx 375lx 525lx 675lx
9900-0-3-969-XX
m. 4 2 0 2 4
9
7
5
3
1
6.5 6.5
25lx 75lx 125lx 175lx 225lx
9900-0-3-970-XX
m. 4 2 0 2 4
9
7
5
3
1
15.0 15.0
6lx 18lx 30lx 42lx 54lx
9900-0-3-971-XX
m. 4 2 0 2 4
9
7
5
3
1
22.0 6.5 6.5 22.0
4lx 12lx 20lx 28lx 36lx
9900-5-3-751-XX
m. 4 2 0 2 4
9
7
5
3
1
5.0 5.0
125lx 375lx 625lx 875lx 1125lx
9900-6-3-751-XX
m. 4 2 0 2 4
9
7
5
3
1
14.0
14.0
13lx 39lx 65lx 91lx 117lx
9900-7-3-751-XX
m. 4 2 0 2 4
9
7
5
3
1
23.0
23.0
6lx 18lx 30lx 42lx 54lx

SHOOTER
IP67 Class1
HIT-CE 12
70W 6600lm 10
Ordering code:
HIT-CE 12
Ordering code:
HIT-CE 12
70W 6600lm 46
Ordering code:
HIT-CE 12
150W 14500lm 10
Ordering code:
HIT-CE 12
Ordering code:
HIT-CE 12
150W 14500lm 46
Ordering code:
463
9672 cd/Klm
1067 cd/Klm
443 cd/Klm
9672 cd/Klm
1067 cd/Klm
443 cd/Klm
9900-5-3-752-XX
90
9900-6-3-752-XX
90
9900-7-3-752-XX
90
9900-5-3-753-XX
90
9900-6-3-753-XX
90
9900-7-3-753-XX
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
SHOOTER
9900-5-3-752-XX
m. 4 2 0 2 4
9
7
5
3
1
5.0 5.0
250lx 750lx 1250lx 1750lx 2250lx
9900-6-3-752-XX
m. 4 2 0 2 4
9
7
5
3
1
9900-5-3-753-XX
m. 4 2 0 2 4
9
7
5
3
1
14.0
25lx 75lx 125lx 175lx 225lx
5.0 5.0
14.0
9900-7-3-752-XX
m. 4 2 0 2 4
9
7
5
3
1
400lx 1200lx 2000lx 2800lx 3600lx
9900-6-3-753-XX
m. 4 2 0 2 4
9
7
5
3
1
23.0
13lx 39lx 64lx 91lx 117lx
14.0
23.0
14.0
50lx 150lx 250lx 350lx 450lx
9900-7-3-753-XX
m. 4 2 0 2 4
9
7
5
3
1
23.0
23.0
25lx 75lx 125lx 175lx 225lx

SABER

SABER
SABER’s versatility lies in its ability to be mounted as a walk-over inground or surface washer,
wall mount and ceiling suspension luminaire. Operated with T5 lamps in symmetrical, asymmetrical
light distribution and is also available in LED light source. The minimum recess depth allows the
ground recess version to be installed in either indoor or outdoor applications. SABER is widely used
to wash architectural features, office blocks, hotels and public areas. The ground recess version
comes with connection box made of glass-reinforced polymer for through wiring. The colour
filters and softening lens’ are available as accessories to enhance the lighting effect. Low glass
surface temperature allows for human touch and safety against scolding.
Can be walked over
Choices of color filters
Low surface temperature
Nano Ceramic surface
conversion
IP67 GFR polymer
connection box
High quality LED from
Nichia
466
High purity reflector from
Alanod
Various beam angle.

Specification
Protection against dust and water IP65/67. Protection against
mechanical impact IK10 on body and IP07 optical part.
1,000KGs maximum load.
with low copper content.
Body components made of high pressure die-cast aluminium alloy.
Corrosion resistance and suitable for outdoor use.
environment.
Luminiare primarily coated with epoxy resin and top coated with UV
stabilized polyester powder and cured in digital temperature
controlled chamber at 200C.
temperature up to 250 C.
Working temperature -40C to +200C.
Prepare for H05RN-F / H07RN-F cable diameter 7 – 10mm.
Stucchi – Italy. T130 rating 2/500. ENEC approved.
from Vossloh Schwabe / Tridonic / BAG – ENEC approved.
Accessories
Color Filters
(for Ground Recess version)
Softening Lens
(for Ground Recess version)
Recess Housing for ground
installation
(for Ground Recess version)
Ordering Code
Ordering Code
467
SABER
adhesive surface and mounted on to heat conductive cooling material.
Module manufactured from Germany.
Working temperature -40 C to + 50 C.
to safety standard EN61347-2-13, electromagnetic compatibility
EN55015 and harmonics IEC61000-3-2.
CET Electric – Italy. IMQ approved.
approved. Working temperature -40C to +130C. For cable with
cross section up to 2.5mm 2 . Wiring provided with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
14W/24W 21W/39W
Red
Yellow
Blue
Green
14W/24W 21W/39W 28W/54W 35W/80W
9-0051-00 9-0052-00 9-0053-00 9-0054-00
14W/24W 21W/39W 28W/54W 35W/80W
Ordering Code 9-9051-01 9-9053-01 9-9055-01 9-9057-01
Dimension (mm)

SABER
SABER Ground Recess Symmetric
IP67 Class1
1573
TYPE L x W x H
T5 14W 674 x 100 x 92
T5 21W
1273 x 100 x 92
T5 35W 1573 x 100 x 92
SABER Ground Recess Asymmetric
IP67 Class1
1573
99
99
99
99
92
114
92
114
T5 G5
14W 1200lm /
24W 1750lm
Ordering code:
T5 G5
54W 4450lm
Ordering code:
T5 G5
14W 1200lm /
24W 1750lm
Ordering code:
T5 G5
54W 4450lm
Ordering code:
T5 G5
21W 1900lm /
39W 3100lm
Ordering code:
T5 G5
35W 3300lm /
Ordering code:
327 cd/Klm
9057-0-3-314-XX
T5 G5
21W 1900lm /
39W 3100lm
Ordering code:
T5 G5
35W 3300lm /
Ordering code:
198 cd/Klm
90
9058-0-3-314-XX
90
Average Beam Illuminance
Average Beam Illuminance
9057-0-3-314-XX
m. 12 60 6 12
9
7
5
3
1
50.0 50.0
45.0 45.0
35lx 105lx 175lx 245lx 315lx
9058-0-3-314-XX
m. 12 60 6 12
9
7
5
3
1
10.0 47.0
45.0 45.0
35lx 105lx 175lx 245lx 315lx

469
SABER

SABER
SABER Ground Recess 12LED
IP67 Class1
786
SABER Ground Recess 24LED
IP67 Class1
1469
99
92
114
99
92
114
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
470
10697 cd/Klm
1870 cd/Klm
574 cd/Klm
2411 cd/Klm
10697 cd/Klm
1870 cd/Klm
574 cd/Klm
2411 cd/Klm
9064-4-3-976-XX
90
9064-6-3-976-XX
90
9064-7-3-976-XX
90
9064-3-3-976-XX
90
9065-4-3-978-XX
90
9065-6-3-978-XX
90
9065-7-3-978-XX
90
9065-3-3-978-XX
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
m. 42 0
9064-4-3-976-XX
24
9
7
5
3
1
5.0 5.0
20lx 60lx 100lx 140lx 180lx
m. 42 0
9064-6-3-976-XX
24
9
7
5
3
1
15.0 15.0
4lx 12lx 20lx 28lx 36lx
9064-7-3-976-XX
m. 8 4 0 4 8
9
7
5
3
1
30.0 30.0
2lx 6lx 10lx 14lx 18lx
m. 42 0
9064-3-3-976-XX
24
9
7
5
3
1
22.0 7.5 7.5 22.0
4lx 12lx 20lx 28lx 36lx
9065-4-3-978-XX
m. 4 2 0 2 4
9
7
5
3
1
9065-6-3-978-XX
m. 4 2 0 2 4
9
7
5
3
1
m. 42 0
9065-3-3-978-XX
24
9
7
5
3
1
15.0 15.0
6lx 18lx 30lx 42lx 54lx
9065-7-3-978-XX
m. 8 4 0 4 8
9
7
5
3
1
5.0 5.0
35lx 105lx 175lx 245lx 315lx
30.0 30.0
4lx 12lx 20lx 28lx 36lx
22.0 7.5 7.5 22.0
6lx 18lx 30lx 42lx 54lx

471
SABER

SABER
SABER Wall Washer Symmetric
IP65 Class1
TYPE L x W x H
T5 14W
T5 21W
T5 35W
SABER Wall Washer Asymmetric
IP65 Class1
T5 G5
14W 1200lm /
24W 1750lm
Ordering code:
T5 G5
54W 4450lm
Ordering code:
T5 G5
14W 1200lm /
24W 1750lm
Ordering code:
T5 G5
54W 4450lm
Ordering code:
472
T5 G5
21W 1900lm /
39W 3100lm
Ordering code:
T5 G5
35W 3300lm /
Ordering code:
327 cd/Klm
T5 G5
21W 1900lm /
39W 3100lm
Ordering code:
T5 G5
35W 3300lm /
Ordering code:
198 cd/Klm
8011-0-3-314-XX
90
8013-0-3-314-XX
90
Average Beam Illuminance
Average Beam Illuminance
8011-0-3-314-XX
m. 12 60 6 12
9
7
5
3
1
50.0 50.0
45.0 45.0
35lx 105lx 175lx 245lx 315lx
8013-0-3-314-XX
m. 12 60 6 12
9
7
5
3
1
10.0 47.0
45.0 45.0
35lx 105lx 175lx 245lx 315lx

SABER Wall Washer 12LED
IP65 Class1
SABER Wall Washer 24LED
IP65 Class1
1437
754
127
85
93
127
65
85
93
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
473
10697 cd/Klm
1870 cd/Klm
574 cd/Klm
2411 cd/Klm
10697 cd/Klm
1870 cd/Klm
574 cd/Klm
2411 cd/Klm
8005-4-3-976-XX
90
8005-6-3-976-XX
90
8005-7-3-976-XX
90
8005-3-3-976-XX
90
8006-4-3-978-XX
90
8006-6-3-978-XX
90
8006-7-3-978-XX
90
8006-3-3-978-XX
90
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
SABER
m. 42 0
8005-4-3-976-XX
24
9
7
5
3
1
m. 42 0
8005-3-3-976-XX
24
9
7
5
3
1
5.0 5.0
20lx 60lx 100lx 140lx 180lx
m. 42 0
8005-6-3-976-XX
24
9
7
5
3
1
3
15.0 15.0
4lx 12lx 20lx 28lx 36lx
8005-7-3-976-XX
m. 8 4 0 4 8
9
7
5
1
30.0 30.0
2lx 6lx 10lx 14lx 18lx
22.0 7.5 7.5 22.0
4lx 12lx 20lx 28lx 36lx
8006-4-3-978-XX
m. 4 2 0 2 4
9
7
5
3
1
5.0 5.0
35lx 105lx 175lx 245lx 315lx
8006-6-3-978-XX
m. 4 2 0 2 4
9
7
5
3
1
15.0 15.0
6lx 18lx 30lx 42lx 54lx
m. 8 4 08
8006-7-3-978-XX
4
9
7
5
3
1
30.0 30.0
4lx 12lx 20lx 28lx 36lx
m. 42 0
8006-3-3-978-XX
24
9
7
5
3
1
22.0 7.5 7.5 22.0
6lx 18lx 30lx 42lx 54lx

SABER
SABER Suspension Symmetric
IP65 Class1
TYPE L x W x H
T5 14W
T5 21W
T5 35W
SABER Suspension Asymmetric
IP65 Class1
T5 G5
14W 1200lm /
24W 1750lm
Ordering code:
T5 G5
54W 4450lm
Ordering code:
T5 G5
14W 1200lm /
24W 1750lm
Ordering code:
T5 G5
54W 4450lm
Ordering code:
474
T5 G5
21W 1900lm /
39W 3100lm
Ordering code:
T5 G5
35W 3300lm /
Ordering code:
327 cd/Klm
T5 G5
21W 1900lm /
39W 3100lm
Ordering code:
T5 G5
35W 3300lm /
Ordering code:
327 cd/Klm
8012-0-3-314-XX
30
8014-0-3-314-XX
30
Average Beam Illuminance
Average Beam Illuminance
1
3
5
7
9
8012-0-3-314-XX
35lx 105lx 175lx 245lx 315lx
45.0 45.0
50.0
50.0
m. 12 60 6 12
1
3
5
7
9
8014-0-3-314-XX
35lx 105lx 175lx 245lx 315lx
47.0 10.0
45.0 45.0
m. 12 60 6 12

SABER Suspension 12LED
IP65 Class1
754
SABER Suspension 24LED
IP65 Class1
1437
65
85
65
85
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
12LED 7.2W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
24LED 14.4W 230V
Integrated Driver
Ordering code:
475
10697 cd/Klm
1870 cd/Klm
949 cd/Klm
2411 cd/Klm
10697 cd/Klm
1870 cd/Klm
949 cd/Klm
2411 cd/Klm
8007-4-3-976-XX
30
8007-6-3-976-XX
30
8007-7-3-976-XX
30
8007-3-3-976-XX
30
8008-4-3-978-XX
30
8008-6-3-978-XX
30
8008-7-3-978-XX
30
8008-3-3-978-XX
30
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
Average Beam Illuminance
1
3
5
7
9
1
3
5
7
9
SABER
8007-4-3-976-XX
20lx 60lx 100lx 140lx 180lx
5.0 5.0
m. 4 2 0 2 4
1
3
5
7
9
8007-6-3-976-XX
4lx 12lx 20lx 28lx 36lx
15.0
15.0
m. 4 2 0 2 4
1
3
5
7
9
8007-7-3-976-XX
2lx 6lx 10lx 14lx 18lx
30.0 30.0
m. 8 4 08 4
8007-3-3-976-XX
4lx 12lx 20lx 28lx 36lx
22.0 7.5 7.5 22.0
m. 4 2 0 2 4
1
3
5
7
9
m. 4 2 0 2 4
1
3
5
7
9
1
3
5
7
9
8008-4-3-978-XX
35lx 105lx 175lx 245lx 315lx
5.0 5.0
8008-6-3-978-XX
6lx 18lx 30lx 42lx 54lx
15.0
15.0
m. 4 2 0 2 4
1
3
5
7
9
8008-7-3-978-XX
4lx 12lx 20lx 28lx 36lx
30.0
30.0
m. 8 4 0 4 8
8008-3-3-978-XX
6lx 18lx 30lx 42lx 54lx
22.0 7.5 7.5 22.0
m. 4 2 0 2 4

POLE AND ANCHOR BOLT KIT

POLE AND ANCHOR BOLT KIT
Aluminium Pole
H1
Anchor Bolt Kit for this pole
Ordering Code: 9-2020-00
H2
D
B
A
K
T
d
Straight Cylindrical Extruded Aluminium Pole.
Pole Diameter 105 mm.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
For Luminaires :
RAY
CONE 1
HELIOS
Dimension
ORDERING CODE
in mm. 9-1003-XX 9-1004-XX 9-1005-XX
H1 3000 3500 4000
H2 1000 1000 1000
D 105 105 105
A 300 300 300
B 240 240 240
d 15 15 15
T 20 20 20
K
TEARA TEARA
CONE 2
HELIOS
CONE 3
MARANELLO

Aluminium Pole
H1
Anchor Bolt Kit for this pole
Ordering Code: 9-2020-00
H2
D
B
A
S1 S2
K
d
T
479
POLE AND ANCHOR BOLT KIT
Straight Cylindrical Extruded Aluminium Pole.
Pole Diameter 105 mm. with spigot size 60 mm.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Dimension
ORDERING CODE
in mm. 9-1017-XX 9-1018-XX 9-1019-XX
H1 3000 3500 4000
H2 1000 1000 1000
S1 60 60 60
S2 100 100 100
D 105 105 105
A 300 300 300
B 240 240 240
d 15 15 15
T 20 20 20
K
For Luminaires :
EPSYLON

POLE AND ANCHOR BOLT KIT
Aluminium Pole
H1
Anchor Bolt Kit for this pole
Ordering Code: 9-2020-00
H2
D
S1
B
A
S2
K
T
d
Straight Cylindrical Extruded Aluminium Pole.
Pole Diameter 105 mm. with spigot size 76 mm.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
For Luminaires :
RAY Double Headed
Small SIROCCO Area Light
Mega SONIC Pole Set KUBIK Pole Set
Dimension
ORDERING CODE
in mm. 9-1012-XX 9-1013-XX 9-1014-XX
H1 3000 3500 4000
H2 1000 1000 1000
S1 76 76 76
S2 140 140 140
D 105 105 105
A 300 300 300
B 240 240 240
d 15 15 15
T 20 20 20
K
TEARA Double Headed
EPSYLON Double Headed

Aluminium Pole
H1
H2
Anchor Bolt Kit for this pole
Ordering Code: 9-2020-00
D
Unilamp
B
A
Top cap
K
2xCABLE OUTLET
d
T
POLE AND ANCHOR BOLT KIT
Straight Cylindrical Extruded Aluminium Pole.
Pole Diameter 105 mm. with size cable outlets and top cap.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Dimension ORDERING CODE
in mm. 9-1042-XX 9-1043-XX
H1 3500 4000
H2 1000 1000
D 105 105
A 300 300
B 240 240
d 15 15
T 20 20
K
For Luminaires :
Mega SONIC Indirect Pole Light
KUBIK Indirect Pole Light

POLE AND ANCHOR BOLT KIT
Galvanized Steel Pole
H1
Anchor Bolt Kit for this pole
Ordering Code: 9-2023-00
a
H2
b
D
B
A
K
T
B A
Straight Cylindrical Hot-Dipped Galvanized Steel Pole.
Pole Diameter 102 mm.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
For Luminaires :
RAY
CONE 1
HELIOS
Dimension
ORDERING CODE
in mm. 9-1006-XX 9-1007-XX 9-1008-XX
H1 3000 4000 5000
H2 1000 1000 1000
D 102 102 102
a 22 22 22
b 50 50 50
A 300 300 300
B 200 200 200
T 15 15 15
K
TEARA
CONE 2
HELIOS
CONE 3
MARANELLO

Galvanized Steel Pole
H1
Anchor Bolt Kit for this pole
Ordering Code: 9-2023-00
H2
b
a
D
S1
B
A
S2
K
B
T
A
For Luminaires :
RAY
SMALL SIROCCO
SONIC POLE
POLE AND ANCHOR BOLT KIT
Straight Cylindrical Hot-Dipped Galvanized Steel Pole.
Pole Diameter 102 mm. with spigot size 76 mm.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Dimension
ORDERING CODE
in mm. 9-1020-XX 9-1021-XX 9-1023-XX
H1 3000 4000 5000
H2 1000 1000 1000
S1 76 76 76
S2 140 140 140
D 102 102 102
a 22 22 22
b 50 50 50
A 300 300 300
B 200 200 200
T 15 15 15
K
TEARA EPSYLON
KUBIK POLE

POLE AND ANCHOR BOLT KIT
Galvanized Steel Pole
H1
H2
b
Anchor Bolt Kit for this pole
Ordering Code: 9-2023-00
a
D
Unilamp
B
A
K
Top cap
2xCABLE OUTLET
T
B A
Straight Cylindrical Hot-Dipped Galvanized Steel Pole.
Pole Diameter 102 mm. with size cable outlets and top cap.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Dimension ORDERING CODE
in mm. 9-1045-XX 9-1046-XX
H1 4000 5000
H2 1000 1000
D 102 102
a 22 22
b 50 50
A 300 300
B 200 200
T 15 15
K
For Luminaires :
Mega SONIC Indirect Pole Light
KUBIK Indirect Pole Light

POLE AND ANCHOR BOLT KIT

POLE AND ANCHOR BOLT KIT
Galvanized Steel Pole
H1
Anchor Bolt Kit for this pole
Ordering Code: 9-2024-00
a
H2
b
D
S1
B
A
S2
K
T
B A
Straight Cylindrical Hot-Dipped Galvanized Steel Pole.
Pole Diameter 114 mm. with spigot size 76 mm.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Dimension ORDERING CODE
in mm. 9-1040-XX 9-1036-XX
H1 5000 6000
H2 1000 1000
D 114 114
a 30 30
b 70 70
A 400 400
B 300 300
T 20 20
K
For Luminaires :
Medium SIROCCO Area Light
Large SIROCCO Area Light
ANDROMEDA Pole Light

Galvanized Steel Pole
H1
2500
Anchor Bolt Kit for this pole
Ordering Code: 9-2024-00
H2
b
a
D
S1
Unilamp
B
A
S2
D1
K
T
B A
For Luminaires :
Medium SIROCCO Area Light
Large SIROCCO Area Light
ANDROMEDA Pole Light
POLE AND ANCHOR BOLT KIT
Stepped Cylindrical Hot-Dipped Galvanized Steel Pole.
Pole Diameter 140/114 mm. with spigot size 76 mm.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Dimension ORDERING CODE
in mm. 9-1040-XX 9-1036-XX
H1 7000
H2 1000 1000
D 114 114
D1 140 140
a 30 30
b 70 70
A 400 400
B 300 300
T 20 20
K

POLE AND ANCHOR BOLT KIT
Galvanized Steel Pole
H1
H2
b
Anchor Bolt Kit for this pole
Ordering Code: 9-2024-00
a
D
Unilamp
B
A
Top cap
K
6xCABLE OUTLET
T
B A
Straight Cylindrical Hot-Dipped Galvanized Steel Pole.
Pole Diameter 114 mm. with size cable outlets and top cap.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Dimension ORDERING CODE
in mm. 9-1031-XX 9-1032-XX
H1 5000 6000
H2 1000 1000
D 114 114
a 30 30
b 70 70
A 400 400
B 300 300
T 20 20
K
For Luminaires :
+
Pole Clamp
+
CANNON360 Pole Clamp

Galvanized Steel Pole
H1
2500
H2
b
Anchor Bolt Kit for this pole
Ordering Code: 9-2024-00
a
D
Unilamp
B
A
Top cap
D1
K
6xCABLE OUTLET
T
B A
For Luminaires :
POLE AND ANCHOR BOLT KIT
Stepped Cylindrical Hot-Dipped Galvanized Steel Pole.
Pole Diameter 140/114 mm. with size cable outlets and top cap.
Nano Ceramic Surface Treatment with Polyester Powder Coating.
Equipped with 16A fuse with earth connection.
Available Color
Black (replace the last 2 digits of ordering code with 01)
Graphite (replace the last 2 digits of ordering code with 02)
Dark Grey (replace the last 2 digits of ordering code with 03)
Aluminium Silver (replace the last 2 digits of ordering code with 04)
Smooth Silver (replace the last 2 digits of ordering code with 05)
White (replace the last 2 digits of ordering code with 06)
Dimension ORDERING CODE
in mm. 9-1033-XX 9-1034-XX
H1 7000
H2 1000 1000
D 114 114
D1 140 140
a 30 30
b 70 70
A 400 400
B 300 300
T 20 20
K
+
Pole Clamp
+
CANNON360 Pole Clamp

ANCHOR BOLT KIT
Anchor Bolt Kit
Ordering code: 9-2010-00
For Luminaires :
GRILL
AGAR
Anchor Bolt Kit
Ordering code: 9-2012-00
For Luminaires :
CONDO
Anchor Bolt Kit
Ordering code: 9-2013-00
For Luminaires :
TOWER
490
MACRON
POM
CONDO
TOWER
FUJI
FUJI

Anchor Bolt Kit
Ordering code: 9-2014-00
For Luminaires :
OLIVE
Anchor Bolt Kit
Ordering code: 9-2015-00
For Luminaires :
491
OLIVE
SHOOTER
ANCHOR BOLT KIT

ANCHOR BOLT KIT
Anchor Bolt Kit
Ordering code: 9-2016-00
For Luminaires :
Mini SONIC Stand
Mini TUBE Pole Light
Anchor Bolt Kit
For Luminaires :
Mini CORE Pole Light
492
Medium SONIC Stand

Anchor Bolt Kit
Ordering code: 9-2020-00
For Luminaires :
STICK
Maxi TUBE Pole Light
Anchor Bolt Kit
Ordering code: 9-2025-00
For Luminaires :
Maxi CORE Pole Light
RECTOR Pole Light
493
STICK PILLAR
ANCHOR BOLT KIT

LAMP TABLE
LAMP (LBS) BASE WATTAGE lm, cd KELVIN
MANUFACTURER
PHILIPS OSRAM
MAIN VOLTAGE TUNGSTEN HALOGEN REFLECTOR LAMP
QPAR51 GU10 50 W - 25° 1000 cd 2900 K TWISTline HALOPAR 16
QPAR51 GU10 50 W - 50° 600 cd 2900 K TWISTline HALOPAR 16
PAR20 E27 50 W - 10° 3200 cd 2900 K PAR20 HalogenA HALOPAR 20
PAR20 E27 50 W - 30° 1100 cd 2900 K PAR20 HalogenA HALOPAR 20
PAR30 E27 75 W - 10° 7500 cd 2900 K PAR30 HalogenA HALOPAR 30
PAR30 E27 75 W - 30° 2400 cd 2900 K PAR30 HalogenA HALOPAR 30
PAR38 E27 120 W - 10° 8500 cd 2900 K PAR38 HalogenA CONCENTRA PAR38
PAR38 E27 120 W - 30° 2550 cd 2900 K PAR38 HalogenA CONCENTRA PAR38
LOW VOLTAGE TUNGSTEN HALOGEN REFLECTOR LAMP
QR-CB51 GU5.3 50 W - 10° 8200 cd 3200 K BRILLIANTline Pro DECOSTAR 51
QR-CB51 GU5.3 50 W - 38° 1500 cd 3200 K BRILLIANTline Pro DECOSTAR 51
QR111 G53 50 W - 8° 23000 cd 3000 K ALUline Pro 111 HALOSPOT 111
QR111 G53 50 W - 24° 4000 cd 3000 K ALUline Pro 111 HALOSPOT 111
MAIN VOLTAGE TUNGSTEN HALOGEN LAMP
QT-DE12 RX7s 150 W 2500 lm 3000 K PlusLine Pro Small HALOLINE
QT-DE12 RX7s 200 W 3500 lm 3000 K PlusLine Pro Small HALOLINE
QT-DE12 RX7s 300W 5300 lm 3000 K PlusLine Pro Small HALOLINE
QT14
G9
60
W
820
lm
2900
K Clickline
MV
Capsule
HALOPIN
QT14
G9
75
W
1100
lm
2900
K -
HALOPIN
QT18 B15d
100
W
1500
lm
2900
K Capsuleline
Pro
MV
B15dHALOLUX
B15d
QT18
B15d
250
W
4350
lm
2900
K -
HALOLUX
B15d
QT32
E27
60
W
840
lm
2900
K HalogenA
Pro
HALOLUX
E27
QT32
E27
100
W
1550
lm
2900
K HalogenA
Pro
HALOLUX
E27
QT32
E27
150
W
2500
lm
2900
K HalogenA
Pro
HALOLUX
E27
LOW VOLTAGE TUNGSTEN HALOGEN LAMP
QT9
G4
QT12
GY6.
35
QT12
GY6.
35
10
W
50
W
100
W
140
lm
950
lm
2550
lm
494
3000
K
3000
K
3000
K
Capsuleline
Capsuleline
Capsuleline
HALOSTAR
HALOSTAR
HALOSTAR
LINEAR FLUORESCENT LAMP
T5 (T16) G5 14 W 1200 lm 2700-6500 K MASTER TL-5 LUMILUX T5
T5 (T16) G5 21 W 1900 lm 2700-6500 K MASTER TL-5 LUMILUX T5
T5 (T16) G5 28 W 2600 lm 2700-6500 K MASTER TL-5 LUMILUX T5
T5 (T16) G5 35 W 3300 lm 2700-6500 K MASTER TL-5 LUMILUX T5
T5 (T16) HO G5 24 W 1950 lm 2700-6500 K MASTER TL-5 LUMILUX T5
T5 (T16) HO G5 39 W 3400 lm 2700-6500 K MASTER TL-5 LUMILUX T5
T5 (T16) HO G5 54 W 4850 lm 2700-6500 K MASTER TL-5 LUMILUX T5
T5 (T16) HO G5 80 W 6800 lm 2700-6500 K MASTER TL-5 LUMILUX T5
T8 (T26) G13 18 W 1350 lm 2700-6500 K MASTER TL-D LUMILUX T8
T8 (T26) G13 36 W 3350 lm 2700-6500 K MASTER TL-D LUMILUX T8
CIRCULAR FLUORESCENT LAMP
T-R32
G10q
32
W
2000
lm
2700-6500
K
TL-E
LUMILUX
RING
COMPACT FLUORESCENT LAMP
TC-S
G23
9 W
600
lm
2700-6500
K MASTER
PL-S
DULUX
S
TC-S
G23
11
W
900
lm
2700-6500
K MASTER
PL-S
DULUX
S
TC-D
G24d-1
10
W
600
lm
2700-6500
K MASTER
PL-C
DULUX
D
TC-D
G24d-1
13
W
900
lm
2700-6500
K MASTER
PL-C
DULUX
D
TC-D
G24d-2
18
W
1200
lm
2700-6500
K MASTER
PL-C
DULUX
D
TC-D
G24d-3
26
W
1800
lm
2700-6500
K MASTER
PL-C
DULUX
D
TC-T
GX24d-1
13
W
900
lm
2700-4000
K MASTER
PL-T
DULUX
T
TC-T
GX24d-2
18
W
1200
lm
2700-4000
K MASTER
PL-T
DULUX
T
TC-T
GX24d-3
26
W
1800
lm
2700-4000
K MASTER
PL-T
DULUX
T
TC-SEL 2G7 9 W 600 lm 2700-6500 K MASTER PL-S 4P DULUX S/E
TC-SEL 2G7 11 W 900 lm 2700-6500 K MASTER PL-S 4P DULUX S/E
TC-DEL G24q-1 10 W 600 lm 2700-4000 K MASTER PL-C 4-PIN DULUX D/E
TC-DEL G24q-1 13 W 900 lm 2700-4000 K MASTER PL-C 4-PIN DULUX D/E
TC-DEL G24q-2 18 W 1200 lm 2700-4000 K MASTER PL-C 4-PIN DULUX D/E
TC-DEL G24q-3 26 W 1800 lm 2700-4000 K MASTER PL-C 4-PIN DULUX D/E
TC-TEL GX24q-1 13 W 900 lm 2700-4000 K MASTER PL-T 4-PIN DULUX T/E
TC-TEL GX24q-2 18 W 1200 lm 2700-4000 K MASTER PL-T 4-PIN DULUX T/E
TC-TEL GX24q-3 26 W 1800 lm 2700-4000 K MASTER PL-T 4-PIN DULUX T/E
TC-TEL GX24q-3 32 W 2400 lm 2700-4000 K MASTER PL-T 4-PIN DULUX T/E
TC-TEL GX24q-4 42 W 3200 lm 2700-4000 K MASTER PL-T 4-PIN DULUX T/E
TC-LEL 2G11 36 W 2900 lm 2700-4000 K MASTER PL-L 4-PIN DULUX L

495
LAMP TABLE
LAMP (LBS) BASE WATTAGE lm, cd KELVIN
MANUFACTURER
PHILIPS OSRAM
COMPACT FLUORESCENT LAMP (INTEGRATED ELECTRONIC BALLAST)
TC-TSE E27 15 W 900 lm 2700-6500 K PLE-T PRO DULUX EL
TC-TSE E27 23 W 1500 lm 2700-6500 K PLE-T PRO DULUX EL
TC-HSE E27 15 W 900 lm 2700-6500 K TORNADO SPIRAL DULUX EL TWIST
TC-HSE E27 23 W 1500 lm 2700-6500 K TORNADO SPIRAL DULUX EL TWIST
MEGAMAN
TCR50-SE E14 11 W 85 cd 2700-6500 K
TCR63-SE E27 13 W 147 cd 2700-6500 K
TCPAR30-SE E27 15 W 220 cd 2700-6500 K
TCR-TSE GX53 9 W 350 lm 2700-6500 K
BR0911i
BR1113i
BR1315i
GX0109iF
HIGH PRESSURE SODIUM LAMP
HSE-I
E27
70
W
6000
lm
2000
K SON
PRO
NAV-E
HSE
E40
150
W 14500
lm
2000
K SON
PRO
NAV-E
HSE
E40
250
W 27000
lm
2000
K SON
PRO
NAV-E
HSE
E40
400
W 48000
lm
2000
K SON
PRO
NAV-E
HST-MF E27 70 W 6600 lm 2000 K SON-T PIA Plus NAV-T SUPER
HST-MF E40 150 W 17500 lm 2000 K SON-T PIA Plus NAV-T SUPER
HST-MF E40 250 W 33200 lm 2000 K SON-T PIA Plus NAV-T SUPER
HST-MF E40 400 W 56500 lm 2000 K SON-T PIA Plus NAV-T SUPER
HST-DE
RX7s
70
W
6800
lm
2000
K -
NAV-TS
HST-DE
RX7s-24
150
W 15000
lm
2000
K -
NAV-TS
HST-DE
Fc2
250
W 25500
lm
2000
K -
NAV-TS
HST-DE
Fc2
400
W 48000
lm
2000
K -
NAV-TS
METAL HALIDE LAMP
HIE-CE E27 70 W 5900 lm 3000-4200 K CDM-EP HCI-E/P
HIE-CE E27 150 W 13000 lm 3000-4200 K CDM-EP HCI-E/P
HIE-CE
E40
250
W 20000
lm
4300
K -
HCI-E/
P
HIE-CE
E40
400
W 34000
lm
4300
K -
HCI-E/
P
HIT-CE E27 70 W 6500 lm 3000 K CDM-TT HCI-TT
HIT-CE E40 150 W 14500 lm 3000 K CDM-TT HCI-TT
HIT-CE E40 250 W 26000 lm 3000 K CDM-TT HCI-TT
HIT-CE E40 400 W 42000 lm 3500-6100 K CDM-TT HCI-TT
HIT-DE-CE RX7s 70 W 6500 lm 3000-4200 K CDM-TD HCI-TS
HIT-DE-CE RX7s-24 150 W 14200 lm 3000-4200 K CDM-TD HCI-TS
HIT-DE-CE
Fc2
250
W 24500
lm
3000
K -
HCI-TS
HIT-DE-CE
Fc2
400
W 37000
lm
4200-5600
K -
HCI-TS
HIT-TC-CE PGJ5 20 W 1650 lm 3000 K CDM-TM -
HIT-TC-CE G8.5 35 W 3300 lm 3000-4200 K CDM-TC HCI-TC
HIT-TC-CE G8.5 70 W 6600 lm 3000-4200 K CDM-TC HCI-TC
HIT-CE G12 35 W 3300 lm 3000-4200 K CDM-T HCI-T
HIT-CE G12 70 W 6600 lm 3000-4200 K CDM-T HCI-T
HIT-CE G12 150 W 14500 lm 3000-4200 K CDM-T HCI-T
HIT-CE
G22
250
W 26000
lm
3000-4200
K -
HCI-TM
HIT-CE
G22
400
W 40000
lm
3000-4200
K -
HCI-TM
HIPAR20-CE-P E27 35 W - 10° 44000 cd 3000-4200 K CDM-R PAR20 HCI-PAR20
HIPAR20-CE-P E27 35 W - 30° 7400 cd 3000-4200 K CDM-R PAR20 HCI-PAR20
HIPAR30-CE-P E27 70 W - 10° 68000 cd 3000-4200 K CDM-R PAR30 HCI-PAR30
HIPAR30-CE-P E27 70 W - 30° 13500 cd 3000-4200 K CDM-R PAR30 HCI-PAR30
HIPAR51-CE-P GX10 20W - 10° 1080 lm 3000 K CDM-Rm -
HIPAR51-CE-P GX10 20W - 30° 1081 lm 3000 K CDM-Rm -
HIR111-CE-P GX8.5 5 W - 10°/24°/30°39000/9500/4500 cd 3000-4200 K CDM-R111 HCI-R111
HIR111-CE-P GX8.5 0 W - 10°/24°/30°000/16500/10000 cd 3000-4200 K CDM-R111 HCI-R111
CPO-TW PGZ12 45 W 4300 lm 2800 K CPO-TW -
CPO-TW PGZ12 60 W 6800 lm 2800 K CPO-TW -
CPO-TW PGZ12 90 W 10450 lm 2800 K CPO-TW -
CPO-TW PGZ12 140 W 16500 lm 2800 K CPO-TW -
CDM-T MW Elite PGZ18 210 W 24200 lm 3000-4200 K CDM-T MW Elite -
CDM-T MW Elite PGZ18 315 W 37800 lm 3000-4200 K CDM-T MW Elite -

LAMP AND LAMP HOLDER
A60 CDM-T MW CPO-TW D45
HIE, HIE-CE HIPAR20-CE-P HIPAR30-CE-P HIPAR51-CE-P
HIR111-CE-P
HIT-CE
496
HIT-TC-CE
HSE-I HST-DE HST-MF PAR20
PAR30
QPAR51 QR-CB51
QR111 QT-DE12 QT9, QT12 QT14
QT32
T5
T32-R
TC-TEL
2G7
G5
G24d, Gx24d
PGj5
TC-D
2G11
HIT-CE
TC-DEL
HIT-CE
TC-HSE
E14
G10q
GU5.3
HIT-DE-CE
TC-LEL
E27
G12
GU10
HIT-TC-CE
TC-S
TC-TSE TCPAR30-SE TCR-TSE TCR50-SE TCR63-SE
B15d
G9
G53
E40
G13
TC-SEL
Fc2
G22
HME
TC-T
G4
G23
GY6.35

IP Rating
It is the designation system to indicate the degrees of protection of the luminaire against ingress
of solid foreign bodies and harmful ingress of water. It consists of the characteristic letters IP
followed by two numerals indicating conformity with the conditions stated in table below.
First numeral Explanation Second numeral Explanation
IK Rating
0
1
2
3
4
5
6
It is the designation system to indicate the degrees of protection of the luminaire against harmful
external mechanical Impacts. It is indicated by the code letters (IK) and followed by characteristic
group numeral (from 00 to 10). Each characteristic group numeral represents an impact energy
value as shown in table below.
Protection against electrical shock
Non-protected
Protected against solid objects greater than 50 mm.
Protected against solid objects greater than 12 mm.
Protected against solid objects greater than 2.5 mm.
Protected against solid objects greater than 1 mm.
Dust-protected
Dust-tight
Relation between IK rate and impact energy (in joules).
IK Rate Impact energy, J Explanation
IK 00
IK 01
IK 02
IK 03
IK 04
IK 05
IK 06
IK 07
IK 09
IK 10
Non-protected
0.14
0.2
0.35
0.5
0.7
1
2
5
10
20
Luminaires are classified according to the type of protection against electrical shock provided as
Class I, Class II and Class III.
Class Symbol Explanation
Class I
Class II
Class III
497
0
1
2
3
4
5
6
7
Non-protected
Protected against dripping water
Protected against dripping water when tilted up to 15
Protected against spraying water
Protected against splashing water
Protected against water jets
Protected against heavy seas
Protected against temporary immersion
Protected against continuous submersion
Resistant against an impact from an object of 200 grams thrown from a distance of 7.5 cm.
Resistant against an impact from an object of 200 grams thrown from a distance of 10 cm.
Resistant against an impact from an object of 200 grams thrown from a distance of 17.5 cm.
Resistant against an impact from an object of 200 grams thrown from a distance of 25 cm.
Resistant against an impact from an object of 200 grams thrown from a distance of 35 cm.
Resistant against an impact from an object of 500 grams thrown from a distance of 20 cm.
Resistant against an impact from an object of 500 grams thrown from a distance of 40 cm.
Resistant against an impact from an object of 1.7 kg. thrown from a distance of 29.5 cm.
Resistant against an impact from an object of 5 kg. thrown from a distance of 20 cm.
Resistant against an impact from an object of 5 kg. thrown from a distance of 40 cm.
Luminaire is provided for the connection of accessible conductive parts to
The protective (earthing) conductor in the fixed wiring installation.
An additional protective insulation is provided apart from functional insulation.
Under any fault condition, no dangerous voltage can reach metal parts.
Luminaire in which protection against electrical shock relies on supply at
Safety extra-low voltage.
IP/IK RATE

Odering Code Family Name Product Name Product Code Lamp Type Page
1016-0-2-263-XX TUBE Maxi TUBE - Suspension OD-1016 PAR38 E27 120W / TCPAR38-SE E27 23W 142
1016-0-3-968-XX TUBE Maxi TUBE - Suspension OD-1016 6LED 16.8W 700mA 864lm 3000K 7 142
1016-0-3-969-XX TUBE Maxi TUBE - Suspension OD-1016 6LED 16.8W 700mA 864lm 3000K 13 142
1016-0-3-970-XX TUBE Maxi TUBE - Suspension OD-1016 6LED 16.8W 700mA 864lm 3000K 30 142
1016-0-3-971-XX TUBE Maxi TUBE - Suspension OD-1016 6LED 16.8W 700mA 864lm 3000K 13/44 142
1016-5-3-751-XX TUBE Maxi TUBE - Suspension OD-1016 HIT-CE G12 35W - 10 143
1016-5-3-752-XX TUBE Maxi TUBE - Suspension OD-1016 HIT-CE G12 70W - 10 143
1016-6-3-751-XX TUBE Maxi TUBE - Suspension OD-1016 HIT-CE G12 35W - 26 143
1016-6-3-752-XX TUBE Maxi TUBE - Suspension OD-1016 HIT-CE G12 70W - 28 143
1016-7-2-495-XX TUBE Maxi TUBE - Suspension OD-1016 TC-TSE E27 23W 142
1016-7-3-424-XX TUBE Maxi TUBE - Suspension OD-1016 TC-D G24d-3 26W 142
1016-7-3-436-XX TUBE Maxi TUBE - Suspension OD-1016 TC-DEL G24q-3 26W / TC-TEL GX24q-4 42W 142
1016-7-3-751-XX TUBE Maxi TUBE - Suspension OD-1016 HIT-CE G12 35W - 46 143
1016-7-3-752-XX TUBE Maxi TUBE - Suspension OD-1016 HIT-CE G12 70W - 46 143
1316-5-3-752-XX TUBE Mega TUBE - Suspension OD-1316 HIT-CE G12 70W - 5 144
1316-7-3-436-XX TUBE Mega TUBE - Suspension OD-1316 TC-TEL GX24q-4 42W 144
1316-7-3-752-XX TUBE Mega TUBE - Suspension OD-1316 HIT-CE G12 70W - 38 144
1520-5-3-752-XX CANNON CANNON S280 OD-1520 HIT-CE G12 70W - 5 100
1520-5-3-753-XX CANNON CANNON S280 OD-1520 HIT-CE G12 150W - 5 100
1520-5-3-791-XX CANNON CANNON S280 OD-1520 CPO-TW PGZ12 60W (Philips) - 7 101
1520-6-3-752-XX CANNON CANNON S280 OD-1520 HIT-CE G12 70W - 22 100
1520-6-3-753-XX CANNON CANNON S280 OD-1520 HIT-CE G12 150W - 22 100
1520-6-3-791-XX CANNON CANNON S280 OD-1520 CPO-TW PGZ12 60W (Philips) - 44 101
1520-7-3-436-XX CANNON CANNON S280 OD-1520 TC-TEL GX24q-4 42W - 70 100
1520-7-3-611-XX CANNON CANNON S280 OD-1520 HSE-I E27 70W - 70 100
1520-7-3-711-XX CANNON CANNON S280 OD-1520 HIE-CE E27 70W - 70 100
1521-5-3-752-XX CANNON CANNON S360 OD-1521 HIT-CE G12 70W - 8 102
1521-5-3-753-XX CANNON CANNON S360 OD-1521 HIT-CE G12 150W - 8 102
1521-5-3-770-XX CANNON CANNON S360 OD-1521 HIT-CE G22 250W - 5 102
1521-5-3-793-XX CANNON CANNON S360 OD-1521 CPO-TW PGZ12 140W (Philips) - 5 103
1521-6-3-623-XX CANNON CANNON S360 OD-1521 HST-MF E40 150W - 24 102
1521-6-3-722-XX CANNON CANNON S360 OD-1521 HIT-CE E40 150W - 24 102
1521-6-3-752-XX CANNON CANNON S360 OD-1521 HIT-CE G12 70W - 30 102
1521-6-3-753-XX CANNON CANNON S360 OD-1521 HIT-CE G12 150W - 30 102
1521-7-3-770-XX CANNON CANNON S360 OD-1521 HIT-CE G22 250W - 36 102
1521-7-3-793-XX CANNON CANNON S360 OD-1521 CPO-TW PGZ12 140W (Philips) - 36 103
2012-5-3-624-XX CANNON CANNON 480 OD-2012 HST-MF E40 250W - 9 97
2012-5-3-625-XX CANNON CANNON 480 OD-2012 HST-MF E40 400W - 9 97
2012-5-3-723-XX CANNON CANNON 480 OD-2012 HIT-CE E40 250W - 9 97
2012-5-3-724-XX CANNON CANNON 480 OD-2012 HIT-CE E40 400W - 9 97
2012-5-3-770-XX CANNON CANNON 480 OD-2012 HIT-CE G22 250W - 5 96
2012-5-3-771-XX CANNON CANNON 480 OD-2012 HIT-CE G22 400W - 5 96
2012-5-3-794-XX CANNON CANNON 480 OD-2012 CDM-T Elite PGZ18 210W (Philips) - 5 96
2012-5-3-795-XX CANNON CANNON 480 OD-2012 CDM-T Elite PGZ18 315W (Philips) - 5 96
2012-6-3-624-XX CANNON CANNON 480 OD-2012 HST-MF E40 250W - 32 97
2012-6-3-625-XX CANNON CANNON 480 OD-2012 HST-MF E40 400W - 32 97
2012-6-3-723-XX CANNON CANNON 480 OD-2012 HIT-CE E40 250W - 32 97
2012-6-3-724-XX CANNON CANNON 480 OD-2012 HIT-CE E40 400W - 32 97
2012-7-3-770-XX CANNON CANNON 480 OD-2012 HIT-CE G22 250W - 36 96
2012-7-3-771-XX CANNON CANNON 480 OD-2012 HIT-CE G22 400W - 36 96
2012-7-3-794-XX CANNON CANNON 480 OD-2012 CDM-T Elite PGZ18 210W (Philips) - 36 96
2012-7-3-795-XX CANNON CANNON 480 OD-2012 CDM-T Elite PGZ18 315W (Philips) - 36 96
2012-9-3-770-XX CANNON CANNON 480 OD-2012 HIT-CE G22 250W - Road Optic 98
2012-9-3-771-XX CANNON CANNON 480 OD-2012 HIT-CE G22 400W - Road Optic 98
2012-9-3-794-XX CANNON CANNON 480 OD-2012 CDM-T Elite PGZ18 210W (Philips) - Road Optic 98
2012-9-3-795-XX CANNON CANNON 480 OD-2012 CDM-T Elite PGZ18 315W (Philips) - Road Optic 98
2020-5-3-752-XX CANNON CANNON 280 OD-2020 HIT-CE G12 70W - 5 92
2020-5-3-753-XX CANNON CANNON 280 OD-2020 HIT-CE G12 150W - 5 92
2020-5-3-791-XX CANNON CANNON 280 OD-2020 CPO-TW PGZ12 60W (Philips) - 7 93
2020-6-3-752-XX CANNON CANNON 280 OD-2020 HIT-CE G12 70W - 22 92
2020-6-3-753-XX CANNON CANNON 280 OD-2020 HIT-CE G12 150W - 22 92
2020-7-3-436-XX CANNON CANNON 280 OD-2020 TC-TEL GX24q-4 42W - 70 92
2020-7-3-611-XX CANNON CANNON 280 OD-2020 HSE-I E27 70W - 70 92
2020-7-3-711-XX CANNON CANNON 280 OD-2020 HIE-CE E27 70W - 70 92
2020-7-3-791-XX CANNON CANNON 280 OD-2020 CPO-TW PGZ12 60W (Philips) - 44 93
2020-9-3-752-XX CANNON CANNON 280 OD-2020 HIT-CE G12 70W - Road Optic 93
2020-9-3-753-XX CANNON CANNON 280 OD-2020 HIT-CE G12 150W - - Road Optic 93
2021-5-3-752-XX CANNON CANNON 360 OD-2021 HIT-CE G12 70W - 8 94
2021-5-3-753-XX CANNON CANNON 360 OD-2021 HIT-CE G12 150W - 8 94
2021-5-3-770-XX CANNON CANNON 360 OD-2021 HIT-CE G22 250W - 5 94
2021-5-3-793-XX CANNON CANNON 360 OD-2021 CPO-TW PGZ12 140W (Philips) - 5 95
2021-6-3-623-XX CANNON CANNON 360 OD-2021 HST-MF E40 150W - 24 94
2021-6-3-722-XX CANNON CANNON 360 OD-2021 HIT-CE E40 150W - 24 94
2021-6-3-752-XX CANNON CANNON 360 OD-2021 HIT-CE G12 70W - 30 94
2021-6-3-753-XX CANNON CANNON 360 OD-2021 HIT-CE G12 150W - 30 94
2021-7-3-770-XX CANNON CANNON 360 OD-2021 HIT-CE G22 250W - 36 94
2021-7-3-793-XX CANNON CANNON 360 OD-2021 CPO-TW PGZ12 140W (Philips) - 36 95
2021-9-3-753-XX CANNON CANNON 360 OD-2021 HIT-CE G12 150W - Road Optic 95
2021-9-3-770-XX CANNON CANNON 360 OD-2021 HIT-CE G22 250W - Road Optic 95
2021-9-3-793-XX CANNON CANNON 360 OD-2021 CPO-TW PGZ12 140W (Philips) - Road Optic 95
2240-1-2-235-XX SIROCCO Small SIROCCO - Flood Light / Asymmetric OD-2240 QT-DE12 RX7s 300W 414
2240-1-3-631-XX SIROCCO Small SIROCCO - Flood Light / Asymmetric OD-2240 HST-DE RX7s 70W 414
2240-1-3-632-XX SIROCCO Small SIROCCO - Flood Light / Asymmetric OD-2240 HST-DE RX7s-24 150W 414
2240-1-3-731-XX SIROCCO Small SIROCCO - Flood Light / Asymmetric OD-2240 HIT-DE-CE RX7s 70W 414
2240-1-3-732-XX SIROCCO Small SIROCCO - Flood Light / Asymmetric OD-2240 HIT-DE-CE RX7s-24 150W 414
2241-7-2-235-XX SIROCCO Small SIROCCO - Flood Light / Bi-Symmetric OD-2241 QT-DE12 RX7s 300W 415
2241-7-3-631-XX SIROCCO Small SIROCCO - Flood Light / Bi-Symmetric OD-2241 HST-DE RX7s 70W 415
2241-7-3-632-XX SIROCCO Small SIROCCO - Flood Light / Bi-Symmetric OD-2241 HST-DE RX7s-24 150W 415

499
Odering Code Family Name Product Name Product Code Lamp Type Page
2241-7-3-731-XX SIROCCO Small SIROCCO - Flood Light / Bi-Symmetric OD-2241 HIT-DE-CE RX7s 70W 415
2241-7-3-732-XX SIROCCO Small SIROCCO - Flood Light / Bi-Symmetric OD-2241 HIT-DE-CE RX7s-24 150W 415
2244-2-3-752-XX SIROCCO Small SIROCCO - Flood Light / Road Optic OD-2244 HIT-CE G12 70W 414
2244-2-3-753-XX SIROCCO Small SIROCCO - Flood Light / Road Optic OD-2244 HIT-CE G12 150W 414
2250-1-3-623-XX SIROCCO Medium SIROCCO - Flood Light / Asymmetric OD-2250 HST-MF E40 150W 416
2250-1-3-633-XX SIROCCO Medium SIROCCO - Flood Light / Asymmetric OD-2250 HST-DE Fc2 250W 416
2250-1-3-722-XX SIROCCO Medium SIROCCO - Flood Light / Asymmetric OD-2250 HIT-CE E40 150W 416
2250-1-3-733-XX SIROCCO Medium SIROCCO - Flood Light / Asymmetric OD-2250 HIT-DE-CE Fc2 250W 416
2251-7-3-623-XX SIROCCO Medium SIROCCO - Flood Light / Bi-Symmetric OD-2251 HST-MF E40 150W 417
2251-7-3-633-XX SIROCCO Medium SIROCCO - Flood Light / Bi-Symmetric OD-2251 HST-DE Fc2 250W 417
2251-7-3-722-XX SIROCCO Medium SIROCCO - Flood Light / Bi-Symmetric OD-2251 HIT-CE E40 150W 417
2251-7-3-733-XX SIROCCO Medium SIROCCO - Flood Light / Bi-Symmetric OD-2251 HIT-DE-CE Fc2 250W 417
2254-2-3-770-XX SIROCCO Medium SIROCCO - Floodlight / Road Optic OD-2254 HIT-CE G22 250W 416
2254-2-3-794-XX SIROCCO Medium SIROCCO - Floodlight / Road Optic OD-2254 CDM-T Elite PGZ18 210W (Philips) 416
2260-1-3-624-XX SIROCCO Large SIROCCO - Flood Light / Asymmetric OD-2260 HST-MF E40 250W 418
2260-1-3-625-XX SIROCCO Large SIROCCO - Flood Light / Asymmetric OD-2260 HST-MF E40 400W 418
2260-1-3-633-XX SIROCCO Large SIROCCO - Flood Light / Asymmetric OD-2260 HST-DE Fc2 250W 418
2260-1-3-634-XX SIROCCO Large SIROCCO - Flood Light / Asymmetric OD-2260 HST-DE Fc2 400W 418
2260-1-3-723-XX SIROCCO Large SIROCCO - Flood Light / Asymmetric OD-2260 HIT-CE E40 250W 418
2260-1-3-724-XX SIROCCO Large SIROCCO - Flood Light / Asymmetric OD-2260 HIT-CE E40 400W 418
2260-1-3-733-XX SIROCCO Large SIROCCO - Flood Light / Asymmetric OD-2260 HIT-DE-CE Fc2 250W 418
2260-1-3-734-XX SIROCCO Large SIROCCO - Flood Light / Asymmetric OD-2260 HIT-DE-CE Fc2 400W 418
2261-7-3-624-XX SIROCCO Large SIROCCO - Flood Light / Bi-Symmetric OD-2261 HST-MF E40 250W 420
2261-7-3-625-XX SIROCCO Large SIROCCO - Flood Light / Bi-Symmetric OD-2261 HST-MF E40 400W 420
2261-7-3-633-XX SIROCCO Large SIROCCO - Flood Light / Bi-Symmetric OD-2261 HST-DE Fc2 250W 420
2261-7-3-634-XX SIROCCO Large SIROCCO - Flood Light / Bi-Symmetric OD-2261 HST-DE Fc2 400W 420
2261-7-3-723-XX SIROCCO Large SIROCCO - Flood Light / Bi-Symmetric OD-2261 HIT-CE E40 250W 420
2261-7-3-724-XX SIROCCO Large SIROCCO - Flood Light / Bi-Symmetric OD-2261 HIT-CE E40 400W 420
2261-7-3-733-XX SIROCCO Large SIROCCO - Flood Light / Bi-Symmetric OD-2261 HIT-DE-CE Fc2 250W 420
2261-7-3-734-XX SIROCCO Large SIROCCO - Flood Light / Bi-Symmetric OD-2261 HIT-DE-CE Fc2 400W 420
2264-2-3-624-XX SIROCCO Large SIROCCO - Floodlight / Road Optic OD-2264 HST-MF E40 250W 419
2264-2-3-625-XX SIROCCO Large SIROCCO - Floodlight / Road Optic OD-2264 HST-MF E40 400W 419
2264-2-3-723-XX SIROCCO Large SIROCCO - Floodlight / Road Optic OD-2264 HIT-CE E40 250W 419
2264-2-3-724-XX SIROCCO Large SIROCCO - Floodlight / Road Optic OD-2264 HIT-CE E40 400W 419
2264-2-3-795-XX SIROCCO Large SIROCCO - Floodlight / Road Optic OD-2264 CDM-T Elite PGZ18 315W (Philips) 419
2302-5-2-235-XX FIN FIN Halogen OD-2302 QT-DE12 RX7s 300W - narrow 406
2302-5-3-621-XX FIN FIN HID OD-2302 HST-MF E27 70W - narrow 406
2302-5-3-631-XX FIN FIN HID OD-2302 HST-DE-CE RX7s 70W - narrow 406
2302-5-3-632-XX FIN FIN HID OD-2302 HST-DE RX7s-24 150W - narrow 406
2302-5-3-721-XX FIN FIN HID OD-2302 HIT-CE E27 70W - narrow 407
2302-5-3-731-XX FIN FIN HID OD-2302 HIT-DE-CE RX7s 70W - narrow 407
2302-5-3-732-XX FIN FIN HID OD-2302 HIT-DE-CE RX7s-24 150W - narrow 407
2302-5-3-783-XX FIN FIN HID OD-2302 HIT-DE-CE RX7s 70W - narrow (EG) 407
2302-5-3-784-XX FIN FIN HID OD-2302 HIT-DE-CE RX7s-24 150W - narrow (EG) 407
2302-5-3-787-XX FIN FIN HID OD-2302 HIT-CE E27 70W - narrow (EG) 407
2302-7-2-235-XX FIN FIN Halogen OD-2302 QT-DE12 RX7s 300W - wide 406
2302-7-3-621-XX FIN FIN HID OD-2302 HST-MF E27 70W - wide 406
2302-7-3-631-XX FIN FIN HID OD-2302 HST-DE-CE RX7s 70W - wide 406
2302-7-3-632-XX FIN FIN HID OD-2302 HST-DE RX7s-24 150W - wide 406
2302-7-3-721-XX FIN FIN HID OD-2302 HIT-CE E27 70W - wide 407
2302-7-3-731-XX FIN FIN HID OD-2302 HIT-DE-CE RX7s 70W - wide 407
2302-7-3-732-XX FIN FIN HID OD-2302 HIT-DE-CE RX7s-24 150W - wide 407
2302-7-3-783-XX FIN FIN HID OD-2302 HIT-DE-CE RX7s 70W - wide (EG) 407
2302-7-3-784-XX FIN FIN HID OD-2302 HIT-DE-CE RX7s-24 150W - wide (EG) 407
2302-7-3-787-XX FIN FIN HID OD-2302 HIT-CE E27 70W - wide (EG) 407
2303-5-2-235-XX FIN FIN Arm Halogen OD-2303 QT-DE12 RX7s 300W - narrow 408
2303-5-3-621-XX FIN FIN Arm HID OD-2303 HST-MF E27 70W - narrow 408
2303-5-3-631-XX FIN FIN Arm HID OD-2303 HST-DE-CE RX7s 70W - narrow 408
2303-5-3-632-XX FIN FIN Arm HID OD-2303 HST-DE RX7s-24 150W - narrow 408
2303-5-3-721-XX FIN FIN Arm HID OD-2303 HIT-CE E27 70W - narrow 409
2303-5-3-731-XX FIN FIN Arm HID OD-2303 HIT-DE-CE RX7s 70W - narrow 409
2303-5-3-732-XX FIN FIN Arm HID OD-2303 HIT-DE-CE RX7s-24 150W - narrow 409
2303-5-3-783-XX FIN FIN Arm HID OD-2303 HIT-DE-CE RX7s 70W - narrow (EG) 409
2303-5-3-784-XX FIN FIN Arm HID OD-2303 HIT-DE-CE RX7s-24 150W - narrow (EG) 409
2303-5-3-787-XX FIN FIN Arm HID OD-2303 HIT-CE E27 70W - narrow (EG) 409
2303-7-2-235-XX FIN FIN Arm Halogen OD-2303 QT-DE12 RX7s 300W - wide 408
2303-7-3-621-XX FIN FIN Arm HID OD-2303 HST-MF E27 70W - wide 408
2303-7-3-631-XX FIN FIN Arm HID OD-2303 HST-DE-CE RX7s 70W - wide 408
2303-7-3-632-XX FIN FIN Arm HID OD-2303 HST-DE RX7s-24 150W - wide 408
2303-7-3-721-XX FIN FIN Arm HID OD-2303 HIT-CE E27 70W - wide 409
2303-7-3-731-XX FIN FIN Arm HID OD-2303 HIT-DE-CE RX7s 70W - wide 409
2303-7-3-732-XX FIN FIN Arm HID OD-2303 HIT-DE-CE RX7s-24 150W - wide 409
2303-7-3-783-XX FIN FIN Arm HID OD-2303 HIT-DE-CE RX7s 70W - wide (EG) 409
2303-7-3-784-XX FIN FIN Arm HID OD-2303 HIT-DE-CE RX7s-24 150W - wide (EG) 409
2303-7-3-787-XX FIN FIN Arm HID OD-2303 HIT-CE E27 70W - wide (EG) 409
2340-1-2-235-XX SIROCCO Small SIROCCO - Surface Washer / Asymmetric OD-2340 QT-DE12 RX7s 300W 422
2340-1-3-631-XX SIROCCO Small SIROCCO - Surface Washer / Asymmetric OD-2340 HST-DE RX7s 70W 422
2340-1-3-632-XX SIROCCO Small SIROCCO - Surface Washer / Asymmetric OD-2340 HST-DE RX7s-24 150W 422
2340-1-3-731-XX SIROCCO Small SIROCCO - Surface Washer / Asymmetric OD-2340 HIT-DE-CE RX7s 70W 422
2340-1-3-732-XX SIROCCO Small SIROCCO - Surface Washer / Asymmetric OD-2340 HIT-DE-CE RX7s-24 150W 422
2341-7-2-235-XX SIROCCO Small SIROCCO - Surface Washer / Bi-Symmetric OD-2341 QT-DE12 RX7s 300W 423
2341-7-3-631-XX SIROCCO Small SIROCCO - Surface Washer / Bi-Symmetric OD-2341 HST-DE RX7s 70W 423
2341-7-3-632-XX SIROCCO Small SIROCCO - Surface Washer / Bi-Symmetric OD-2341 HST-DE RX7s-24 150W 423
2341-7-3-731-XX SIROCCO Small SIROCCO - Surface Washer / Bi-Symmetric OD-2341 HIT-DE-CE RX7s 70W 423
2341-7-3-732-XX SIROCCO Small SIROCCO - Surface Washer / Bi-Symmetric OD-2341 HIT-DE-CE RX7s-24 150W 423
2344-2-3-752-XX SIROCCO Small SIROCCO - Surface Washer / Road optic OD-2344 HIT-CE G12 70W 422
2344-2-3-753-XX SIROCCO Small SIROCCO - Surface Washer / Road optic OD-2344 HIT-CE G12 150W 422
2350-1-3-623-XX SIROCCO Medium SIROCCO - Surface Washer / Asymmetric OD-2350 HST-MF E40 150W 424

Odering Code Family Name Product Name Product Code Lamp Type Page
2350-1-3-633-XX SIROCCO Medium SIROCCO - Surface Washer / Asymmetric OD-2350 HST-DE Fc2 250W 424
2350-1-3-722-XX SIROCCO Medium SIROCCO - Surface Washer / Asymmetric OD-2350 HIT-CE E40 150W 424
2350-1-3-733-XX SIROCCO Medium SIROCCO - Surface Washer / Asymmetric OD-2350 HIT-DE-CE Fc2 250W 424
2351-7-3-623-XX SIROCCO Medium SIROCCO - Surface Washer / Bi-Symmetric OD-2351 HST-MF E40 150W 425
2351-7-3-633-XX SIROCCO Medium SIROCCO - Surface Washer / Bi-Symmetric OD-2351 HST-DE Fc2 250W 425
2351-7-3-722-XX SIROCCO Medium SIROCCO - Surface Washer / Bi-Symmetric OD-2351 HIT-CE E40 150W 425
2351-7-3-733-XX SIROCCO Medium SIROCCO - Surface Washer / Bi-Symmetric OD-2351 HIT-DE-CE Fc2 250W 425
2354-2-3-770-XX SIROCCO Medium SIROCCO - Surface Washer / Road Optic OD-2354 HIT-CE G22 250W 424
2354-2-3-794-XX SIROCCO Medium SIROCCO - Surface Washer / Road Optic OD-2354 CDM-T Elite PGZ18 210W (Philips) 424
2360-1-3-624-XX SIROCCO Large SIROCCO - Surface Washer / Asymmetric OD-2360 HST-MF E40 250W 426
2360-1-3-625-XX SIROCCO Large SIROCCO - Surface Washer / Asymmetric OD-2360 HST-MF E40 400W 426
2360-1-3-633-XX SIROCCO Large SIROCCO - Surface Washer / Asymmetric OD-2360 HST-DE Fc2 250W 426
2360-1-3-634-XX SIROCCO Large SIROCCO - Surface Washer / Asymmetric OD-2360 HST-DE Fc2 400W 426
2360-1-3-723-XX SIROCCO Large SIROCCO - Surface Washer / Asymmetric OD-2360 HIT-CE E40 250W 426
2360-1-3-724-XX SIROCCO Large SIROCCO - Surface Washer / Asymmetric OD-2360 HIT-CE E40 400W 426
2360-1-3-733-XX SIROCCO Large SIROCCO - Surface Washer / Asymmetric OD-2360 HIT-DE-CE Fc2 250W 426
2360-1-3-734-XX SIROCCO Large SIROCCO - Surface Washer / Asymmetric OD-2360 HIT-DE-CE Fc2 400W 426
2361-7-3-624-XX SIROCCO Large SIROCCO - Surface Washer / Bi-Symmetric OD-2361 HST-MF E40 250W 428
2361-7-3-625-XX SIROCCO Large SIROCCO - Surface Washer / Bi-Symmetric OD-2361 HST-MF E40 400W 428
2361-7-3-633-XX SIROCCO Large SIROCCO - Surface Washer / Bi-Symmetric OD-2361 HST-DE Fc2 250W 428
2361-7-3-634-XX SIROCCO Large SIROCCO - Surface Washer / Bi-Symmetric OD-2361 HST-DE Fc2 400W 428
2361-7-3-723-XX SIROCCO Large SIROCCO - Surface Washer / Bi-Symmetric OD-2361 HIT-CE E40 250W 428
2361-7-3-724-XX SIROCCO Large SIROCCO - Surface Washer / Bi-Symmetric OD-2361 HIT-CE E40 400W 428
2361-7-3-733-XX SIROCCO Large SIROCCO - Surface Washer / Bi-Symmetric OD-2361 HIT-DE-CE Fc2 250W 428
2361-7-3-734-XX SIROCCO Large SIROCCO - Surface Washer / Bi-Symmetric OD-2361 HIT-DE-CE Fc2 400W 428
2364-2-3-624-XX SIROCCO Large SIROCCO - Surface Washer / Road Optic OD-2364 HST-MF E40 250W 427
2364-2-3-625-XX SIROCCO Large SIROCCO - Surface Washer / Road Optic OD-2364 HST-MF E40 400W 427
2364-2-3-723-XX SIROCCO Large SIROCCO - Surface Washer / Road Optic OD-2364 HIT-CE E40 250W 427
2364-2-3-724-XX SIROCCO Large SIROCCO - Surface Washer / Road Optic OD-2364 HIT-CE E40 400W 427
2364-2-3-795-XX SIROCCO Large SIROCCO - Surface Washer / Road Optic OD-2364 CDM-T Elite PGZ18 315W (Philips) 427
4001-0-2-221-XX TUBE Mini TUBE - Surface Downlight OD-4001 QPAR51 GU10 50W / TCR50-SE GU10 14W 130
4001-0-2-261-XX TUBE Mini TUBE - Surface Downlight OD-4001 PAR20 E27 50W / TCR63-SE E27 13W 130
4001-0-3-960-XX TUBE Mini TUBE - Surface Downlight OD-4001 3LED 8.4W 700mA 450lm 3000K 7 130
4001-0-3-961-XX TUBE Mini TUBE - Surface Downlight OD-4001 3LED 8.4W 700mA 450lm 3000K 13 130
4001-0-3-962-XX TUBE Mini TUBE - Surface Downlight OD-4001 3LED 8.4W 700mA 450lm 3000K 30 130
4001-0-3-963-XX TUBE Mini TUBE - Surface Downlight OD-4001 3LED 8.4W 700mA 450lm 3000K 13/44 130
4002-0-2-262-XX TUBE Medium TUBE - Surface Downlight OD-4002 PAR30 E27 75W / TCPAR30-SE E27 15W 131
4002-7-2-493-XX TUBE Medium TUBE - Surface Downlight OD-4002 TC-TSE E27 15W 131
4003-0-2-263-XX TUBE Maxi TUBE - Surface Downight OD-4003 PAR38 E27 120W / TCPAR38-SE E27 23W 132
4003-0-3-968-XX TUBE Maxi TUBE - Surface Downight OD-4003 6LED 16.8W 700mA 864lm 3000K 7 132
4003-0-3-969-XX TUBE Maxi TUBE - Surface Downight OD-4003 6LED 16.8W 700mA 864lm 3000K 13 132
4003-0-3-970-XX TUBE Maxi TUBE - Surface Downight OD-4003 6LED 16.8W 700mA 864lm 3000K 30 132
4003-0-3-971-XX TUBE Maxi TUBE - Surface Downight OD-4003 6LED 16.8W 700mA 864lm 3000K 13/44 132
4003-7-2-495-XX TUBE Maxi TUBE - Surface Downight OD-4003 TC-TSE E27 23W 132
4011-5-3-745-XX TUBE Mini TUBE - Surface Downlight OD-4011 HIT-TC-CE PGj5 20W - 9 130
4011-6-3-745-XX TUBE Mini TUBE - Surface Downlight OD-4011 HIT-TC-CE PGj5 20W - 28 130
4016-5-3-751-XX TUBE Maxi TUBE - Surface Downlight OD-4016 HIT-CE G12 35W - 10 133
4016-5-3-752-XX TUBE Maxi TUBE - Surface Downlight OD-4016 HIT-CE G12 70W - 10 133
4016-6-3-751-XX TUBE Maxi TUBE - Surface Downlight OD-4016 HIT-CE G12 35W - 28 133
4016-6-3-752-XX TUBE Maxi TUBE - Surface Downlight OD-4016 HIT-CE G12 70W - 28 133
4016-7-3-424-XX TUBE Maxi TUBE - Surface Downlight OD-4016 TC-D G24d-3 26W 132
4016-7-3-436-XX TUBE Maxi TUBE - Surface Downlight OD-4016 TC-DEL G24q-3 26W / TC-TEL GX24q-4 42W 132
4016-7-3-751-XX TUBE Maxi TUBE - Surface Downlight OD-4016 HIT-CE G12 35W - 46 133
4016-7-3-752-XX TUBE Maxi TUBE - Surface Downlight OD-4016 HIT-CE G12 70W - 46 133
4016-9-3-751-XX TUBE Maxi TUBE - Surface Downlight OD-4016 HIT-CE G12 35W - Asymmetric 133
4016-9-3-752-XX TUBE Maxi TUBE - Surface Downlight OD-4016 HIT-CE G12 70W - Asymmetric 133
4102-0-2-262-XX CORE Maxi CORE - Surface Downlight OD-4102 PAR30 E27 75W / TCPAR30-SE E27 15W 164
4102-0-3-968-XX CORE Maxi CORE - Surface Downlight OD-4102 6LED 16.8W 700mA 864lm 3000K 7 164
4102-0-3-969-XX CORE Maxi CORE - Surface Downlight OD-4102 6LED 16.8W 700mA 864lm 3000K 13 164
4102-0-3-970-XX CORE Maxi CORE - Surface Downlight OD-4102 6LED 16.8W 700mA 864lm 3000K 30 164
4102-0-3-971-XX CORE Maxi CORE - Surface Downlight OD-4102 6LED 16.8W 700mA 864lm 3000K 13/44 164
4102-5-3-751-XX CORE Maxi CORE - Surface Downlight OD-4102 HIT-CE G12 35W - 10 165
4102-5-3-752-XX CORE Maxi CORE - Surface Downlight OD-4102 HIT-CE G12 70W - 10 165
4102-6-3-751-XX CORE Maxi CORE - Surface Downlight OD-4102 HIT-CE G12 35W - 28 165
4102-6-3-752-XX CORE Maxi CORE - Surface Downlight OD-4102 HIT-CE G12 70W - 28 165
4102-7-3-424-XX CORE Maxi CORE - Surface Downlight OD-4102 TC-D G24d-3 26W 164
4102-7-3-435-XX CORE Maxi CORE - Surface Downlight OD-4102 TC-DEL G24q-3 26W / TC-TEL GX24q-3 32W 164
4102-7-3-751-XX CORE Maxi CORE - Surface Downlight OD-4102 HIT-CE G12 35W - 46 165
4102-7-3-752-XX CORE Maxi CORE - Surface Downlight OD-4102 HIT-CE G12 70W - 46 165
4102-9-3-751-XX CORE Maxi CORE - Surface Downlight OD-4102 HIT-CE G12 35W - Asymmetric 165
4102-9-3-752-XX CORE Maxi CORE - Surface Downlight OD-4102 HIT-CE G12 70W -Asymmetric 165
4112-0-2-221-XX CORE Mini CORE - Surface Downlight OD-4112 QPAR51 GU10 50W / TCR50-SE GU10 14W 162
4112-0-2-261-XX CORE Mini CORE - Surface Downlight OD-4112 PAR20 E27 50W / TCR63-SE E27 13W 162
4112-0-3-960-XX CORE Mini CORE - Surface Downlight OD-4112 3LED 8.4W 700mA 450lm 3000K 7 162
4112-0-3-961-XX CORE Mini CORE - Surface Downlight OD-4112 3LED 8.4W 700mA 450lm 3000K 13 162
4112-0-3-962-XX CORE Mini CORE - Surface Downlight OD-4112 3LED 8.4W 700mA 450lm 3000K 30 162
4112-0-3-963-XX CORE Mini CORE - Surface Downlight OD-4112 3LED 8.4W 700mA 450lm 3000K 13/44 162
4113-5-3-745-XX CORE Mini CORE - Surface Downlight OD-4113 HIT-TC-CE PGj5 20W - 9 163
4113-6-3-745-XX CORE Mini CORE - Surface Downlight OD-4113 HIT-TC-CE PGj5 20W - 28 163
4202-7-2-231-XX RECTOR RECTOR - Surface Downlight OD-4202 QT-DE12 RX7s 150W - Bi-Symmetric 179
4202-7-3-751-XX RECTOR RECTOR - Surface Downlight OD-4202 HIT-CE G12 35W - Bi-Symmetric 179
4202-9-3-751-XX RECTOR RECTOR - Surface Downlight OD-4202 HIT-CE G12 35W - Asymmetric 179
4270-1-3-624-XX MATCH BOX MATCH BOX Ceiling Mount OD-4270 HST-MF E40 250W - Asymmetric 396
4270-1-3-625-XX MATCH BOX MATCH BOX Ceiling Mount OD-4270 HST-MF E40 400W - Asymmetric 396
4270-1-3-723-XX MATCH BOX MATCH BOX Ceiling Mount OD-4270 HIT-CE E40 250W - Asymmetric 396
4270-1-3-724-XX MATCH BOX MATCH BOX Ceiling Mount OD-4270 HIT-CE E40 400W - Asymmetric 396
4271-2-3-624-XX MATCH BOX MATCH BOX Ceiling Mount OD-4271 HST-MF E40 250W - Bi-Symmetric 396
4271-2-3-625-XX MATCH BOX MATCH BOX Ceiling Mount OD-4271 HST-MF E40 400W - Bi-Symmetric 396
500

501
Odering Code Family Name Product Name Product Code Lamp Type Page
4271-2-3-723-XX MATCH BOX MATCH BOX Ceiling Mount OD-4271 HIT-CE E40 250W - Bi-Symmetric 396
4271-2-3-724-XX MATCH BOX MATCH BOX Ceiling Mount OD-4271 HIT-CE E40 400W - Bi-Symmetric 396
4274-1-3-624-XX MATCH BOX MATCH BOX Ceiling Mount OD-4274 HST-MF E40 250W - Road Optic 397
4274-1-3-625-XX MATCH BOX MATCH BOX Ceiling Mount OD-4274 HST-MF E40 400W - Road Optic 397
4274-1-3-723-XX MATCH BOX MATCH BOX Ceiling Mount OD-4274 HIT-CE E40 250W - Road Optic 397
4274-1-3-724-XX MATCH BOX MATCH BOX Ceiling Mount OD-4274 HIT-CE E40 400W - Road Optic 397
4316-5-3-752-XX TUBE Mega TUBE - Surface Downlight OD-4316 HIT-CE G12 70W - 5 134
4316-7-3-436-XX TUBE Mega TUBE - Surface Downlight OD-4316 TC-TEL GX24q-4 42W 134
4316-7-3-752-XX TUBE Mega TUBE - Surface Downlight OD-4316 HIT-CE G12 70W - 38 134
4316-9-3-752-XX TUBE Mega TUBE - Surface Downlight OD-4316 HIT-CE G12 70W - Asymmetric 134
5001-0-2-221-XX TUBE Mini TUBE - Wall Up/DownLight OD-5001 QPAR51 GU10 2x50W / TCR50-SE GU10 2x14W 116
5001-0-2-264-XX TUBE Mini TUBE - Wall Up/Downlight OD-5001 PAR20 E27 2x50W / TCR63-SE E27 2x13W 116
5001-0-3-940-XX TUBE Mini TUBE - Wall Up/Downlight OD-5001 2x3LED 16.8W 700mA 2x450lm 3000K 7 116
5001-0-3-941-XX TUBE Mini TUBE - Wall Up/Downlight OD-5001 2x3LED 16.8W 700mA 2x450lm 3000K 13 116
5001-0-3-942-XX TUBE Mini TUBE - Wall Up/Downlight OD-5001 2x3LED 16.8W 700mA 2x450lm 3000K 30 116
5001-0-3-943-XX TUBE Mini TUBE - Wall Up/Downlight OD-5001 2x3LED 16.8W 700mA 2x450lm 3000K 13/44 116
5002-0-2-265-XX TUBE Medium TUBE - Wall Up/Downlight OD-5002 PAR30 E27 2x75W / TCPAR30-SE E27 2x15W 118
5002-7-2-493-XX TUBE Medium TUBE - Wall Up/Downlight OD-5002 TC-TSE E27 2x15W 118
5003-0-2-266-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5003 PAR38 E27 2x120W / TCPAR38-SE E27 2x23W 119
5003-0-3-948-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5003 2x6LED 33.6W 700mA 2x864lm 3000K 7 119
5003-0-3-949-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5003 2x6LED 33.6W 700mA 2x864lm 3000K 13 119
5003-0-3-950-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5003 2x6LED 33.6W 700mA 2x864lm 3000K 30 119
5003-0-3-951-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5003 2x6LED 33.6W 700mA 2x864lm 3000K 13/44 119
5003-7-2-495-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5003 TC-TSE E27 2x23W 119
5004-0-2-221-XX TUBE Mini TUBE - Wall Downlight OD-5004 QPAR51 GU10 50W / TCR50-SE GU10 14W 124
5004-0-2-261-XX TUBE Mini TUBE - Wall Downlight OD-5004 PAR20 E27 50W / TCR63-SE E27 13W 124
5004-0-3-960-XX TUBE Mini TUBE - Wall Downlight OD-5004 3LED 8.4W 700mA 450lm 3000K 7 124
5004-0-3-961-XX TUBE Mini TUBE - Wall Downlight OD-5004 3LED 8.4W 700mA 450lm 3000K 13 124
5004-0-3-962-XX TUBE Mini TUBE - Wall Downlight OD-5004 3LED 8.4W 700mA 450lm 3000K 30 124
5004-0-3-963-XX TUBE Mini TUBE - Wall Downlight OD-5004 3LED 8.4W 700mA 450lm 3000K 13/44 124
5005-0-2-262-XX TUBE Medium TUBE - Wall Downlight OD-5005 PAR30 E27 75W / TCPAR30-SE E27 15W 126
5005-7-2-493-XX TUBE Medium TUBE - Wall Downlight OD-5005 TC-TSE E27 15W 126
5006-0-2-263-XX TUBE Maxi TUBE - Wall Downlight OD-5006 PAR38 E27 120W / TCPAR38-SE E27 23W 127
5006-0-3-968-XX TUBE Maxi TUBE - Wall Downlight OD-5006 6LED 16.8W 700mA 864lm 3000K 7 127
5006-0-3-969-XX TUBE Maxi TUBE - Wall Downlight OD-5006 6LED 16.8W 700mA 864lm 3000K 13 127
5006-0-3-970-XX TUBE Maxi TUBE - Wall Downlight OD-5006 6LED 16.8W 700mA 864lm 3000K 30 127
5006-0-3-971-XX TUBE Maxi TUBE - Wall Downlight OD-5006 6LED 16.8W 700mA 864lm 3000K 13/44 127
5006-7-2-495-XX TUBE Maxi TUBE - Wall Downlight OD-5006 TC-TSE E27 23W 127
5007-0-2-221-XX TUBE Mini TUBE - Wall Up/Downlight OD-5007 QPAR51 GU10 2x50W / TCR50-SE GU10 2x14W 117
5008-0-2-221-XX TUBE Mini TUBE - Wall Downlight OD-5008 QPAR51 GU10 50W / TCR50-SE GU10 14W 125
5011-5-3-745-XX TUBE Mini TUBE - Single Lamp Wall Up/Downlight OD-5011 HIT-TC-CE PGj5 20W - 7 117
5011-6-3-745-XX TUBE Mini TUBE - Single Lamp Wall Up/Downlight OD-5011 HIT-TC-CE PGj5 20W - 14 117
5011-7-2-251-XX TUBE Mini TUBE - Single Lamp Wall Up/Downlight OD-5011 QT14 G9 75W - 30 117
5013-5-3-754-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 HIT-CE G12 2x35W - 10 120
5013-5-3-755-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 HIT-CE G12 2x70W - 10 120
5013-6-3-754-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 HIT-CE G12 2x35W - 28 120
5013-6-3-755-XX TUBE Maxi TUBE - Wall UpDownlight OD-5013 HIT-CE G12 2x70W - 28 120
5013-7-3-428-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 TC-D G24d-3 2x26W 119
5013-7-3-438-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 119
5013-7-3-754-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 HIT-CE G12 2x35W - 46 120
5013-7-3-755-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 HIT-CE G12 2x70W - 46 120
5013-9-3-754-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 HIT-CE G12 2X35W - Asymmetric forward throw 120
5013-9-3-755-XX TUBE Maxi TUBE - Wall Up/Downlight OD-5013 HIT-CE G12 2x70W - Asymmetric forward throw 120
5014-5-3-745-XX TUBE Mini TUBE - Single Lamp Wall Downlight OD-5014 HIT-TC-CE PGj5 20W - 7 125
5014-6-3-745-XX TUBE Mini TUBE - Single Lamp Wall Downlight OD-5014 HIT-TC-CE PGj5 20W - 14 125
5014-7-2-251-XX TUBE Mini TUBE - Single Lamp Wall Downlight OD-5014 QT14 G9 75W - 30 125
5016-5-3-751-XX TUBE Maxi TUBE - Wall Downlight OD-5016 HIT-CE G12 35W - 10 128
5016-5-3-752-XX TUBE Maxi TUBE - Wall Downlight OD-5016 HIT-CE G12 70W - 10 128
5016-6-3-751-XX TUBE Maxi TUBE - Wall Downlight OD-5016 HIT-CE G12 35W - 28 128
5016-6-3-752-XX TUBE Maxi TUBE - Wall Downlight OD-5016 HIT-CE G12 70W - 28 128
5016-7-3-424-XX TUBE Maxi TUBE - Wall Downlight OD-5016 TC-D G24d-3 26W 127
5016-7-3-436-XX TUBE Maxi TUBE - Wall Downlight OD-5016 TC-DEL G24q-3 26W / TC-TEL GX24q-4 42W 127
5016-7-3-751-XX TUBE Maxi TUBE - Wall Downlight OD-5016 HIT-CE G12 35W - 46 128
5016-7-3-752-XX TUBE Maxi TUBE - Wall Downlight OD-5016 HIT-CE G12 70W - 46 128
5016-9-3-751-XX TUBE Maxi TUBE - Wall Downlight OD-5016 HIT-CE G12 35W - Asymmetric forward throw 128
5016-9-3-752-XX TUBE Maxi TUBE - Wall Downlight OD-5016 HIT-CE G12 70W - Asymmetric forward throw 128
5020-6-3-741-XX TUBE Medium TUBE single lamp - Wall Up/Downlight OD-5020 HIT-CE G8.5 35W (EG) - 18 118
5020-7-3-741-XX TUBE Medium TUBE single lamp - Wall Up/Downlight OD-5020 HIT-CE G8.5 35W (EG) - 40 118
5021-6-3-741-XX TUBE Medium TUBE single lamp - Wall Downlight OD-5021 HIT-CE G8.5 35W (EG) - 18 126
5021-7-3-741-XX TUBE Medium TUBE single lamp - Wall Downlightt OD-5021 HIT-CE G8.5 35W (EG) - 40 126
5030-5-3-751-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 HIT-CE G12 35W (CG) - 20 121
5030-5-3-752-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 HIT-CE G12 70W (CG) - 20 121
5030-5-3-780-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 HIT-CE G12 35W (EG) - 20 121
5030-5-3-781-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 HIT-CE G12 70W (EG) - 20 121
5030-7-2-256-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 QT18 B15d 250W - 46 121
5030-7-3-444-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 TC-T GX24d-3 26W - Flood 121
5030-7-3-751-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 HIT-CE G12 35W (CG) - 46 121
5030-7-3-752-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 HIT-CE G12 70W (CG) - 46 121
5030-7-3-780-XX TUBE Maxi TUBE single lamp - Wall Up/Down Light OD-5030 HIT-CE G12 35W (EG) - 46 121
5030-7-3-781-XX TUBE Maxi TUBE single lamp - Wall Up/Downlight OD-5030 HIT-CE G12 70W (EG) - 46 121
5101-0-2-265-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 PAR30 E27 2x75W / TCPAR30-SE E27 2x15W 154
5101-0-3-948-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 2x6LED 33.6W 700mA 2x864lm 3000K 7 154
5101-0-3-949-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 2x6LED 33.6W 700mA 2x864lm 3000K 13 154
5101-0-3-950-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 2x6LED 33.6W 700mA 2x864lm 3000K 30 154
5101-0-3-951-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 2x6LED 33.6W 700mA 2x864lm 3000K 13/44 154
5101-5-3-754-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 HIT-CE G12 2X35W - 10 155
5101-5-3-755-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 HIT-CE G12 2x70W - 10 155
5101-6-3-754-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 HIT-CE G12 2X35W - 28 155

Odering Code Family Name Product Name Product Code Lamp Type Page
5101-6-3-755-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 HIT-CE G12 2x70W - 28 155
5101-7-3-428-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 TC-D G24d-3 2x26W - flood 154
5101-7-3-437-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 TC-DEL G24q-3 2x26W / TC-TEL GX24q-3 2x32W - Flood 154
5101-7-3-754-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 HIT-CE G12 2X35W - 46 155
5101-7-3-755-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 HIT-CE G12 2x70W - 46 155
5101-9-3-754-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 HIT-CE G12 2X35W - Asymmetric forward throw 155
5101-9-3-755-XX CORE Maxi CORE - Wall Up/Downlight OD-5101 HIT-CE G12 2x70W - Asymmetric forward throw 155
5102-0-2-262-XX CORE Maxi CORE - Wall Downlight OD-5102 PAR30 E27 75W / TCPAR30-SE E27 15W 160
5102-0-3-968-XX CORE Maxi CORE - Wall Downlight OD-5102 6LED 16.8W 700mA 864lm 3000K 7 160
5102-0-3-969-XX CORE Maxi CORE - Wall Downlight OD-5102 6LED 16.8W 700mA 864lm 3000K 13 160
5102-0-3-970-XX CORE Maxi CORE - Wall Downlight OD-5102 6LED 16.8W 700mA 864lm 3000K 30 160
5102-0-3-971-XX CORE Maxi CORE - Wall Downlight OD-5102 6LED 16.8W 700mA 864lm 3000K 13/44 160
5102-5-3-751-XX CORE Maxi CORE - Wall Downlight OD-5102 HIT-CE G12 35W - 10 161
5102-5-3-752-XX CORE Maxi CORE - Wall Downlight OD-5102 HIT-CE G12 70W - 10 161
5102-6-3-751-XX CORE Maxi CORE - Wall Downlight OD-5102 HIT-CE G12 35W - 28 161
5102-6-3-752-XX CORE Maxi CORE - Wall Downlight OD-5102 HIT-CE G12 70W - 28 161
5102-7-3-424-XX CORE Maxi CORE - Wall Downlight OD-5102 TC-D G24d-3 26W - Flood 160
5102-7-3-435-XX CORE Maxi CORE - Wall Downlight OD-5102 TC-DEL G24q-3 26W / TC-TEL GX24q-3 32W - Flood 160
5102-7-3-751-XX CORE Maxi CORE - Wall Downlight OD-5102 HIT-CE G12 35W - 46 161
5102-7-3-752-XX CORE Maxi CORE - Wall Downlight OD-5102 HIT-CE G12 70W - 46 161
5102-9-3-751-XX CORE Maxi CORE - Wall Downlight OD-5102 HIT-CE G12 35W - Asymmetric forward throw 161
5102-9-3-752-XX CORE Maxi CORE - Wall Downlight OD-5102 HIT-CE G12 70W - Asymmetric forward throw 161
5111-0-2-221-XX CORE Mini CORE - Wall Up/Downlight OD-5111 QPAR51 GU10 2x50W / TCR50-SE GU10 2x14W 152
5111-0-2-264-XX CORE Mini CORE - Wall Up/Downlight OD-5111 PAR20 E27 2x50W / TCR63-SE E27 2x13W 152
5111-0-3-940-XX CORE Mini CORE - Wall Up/Downlight OD-5111 2x3LED 16.8W 700mA 2x450lm 3000K 7 152
5111-0-3-941-XX CORE Mini CORE - Wall Up/Downlight OD-5111 2x3LED 16.8W 700mA 2x450lm 3000K 13 152
5111-0-3-942-XX CORE Mini CORE - Wall Up/Downlight OD-5111 2x3LED 16.8W 700mA 2x450lm 3000K 30 152
5111-0-3-943-XX CORE Mini CORE - Wall Up/Downlight OD-5111 2x3LED 16.8W 700mA 2x450lm 3000K 13/44 152
5112-0-2-261-XX CORE Mini CORE - Wall Downlight OD-5112 PAR20 E27 50W / TCR63-SE E27 13W 158
5112-0-3-960-XX CORE Mini CORE - Wall Downlight OD-5112 3LED 8.4W 700mA 450lm 3000K 7 158
5112-0-3-961-XX CORE Mini CORE - Wall Downlight OD-5112 3LED 8.4W 700mA 450lm 3000K 13 158
5112-0-3-962-XX CORE Mini CORE - Wall Downlight OD-5112 3LED 8.4W 700mA 450lm 3000K 30 158
5112-0-3-963-XX CORE Mini CORE - Wall Downlight OD-5112 3LED 8.4W 700mA 450lm 3000K 13/44 158
5113-5-3-745-XX CORE Mini CORE - Single Lamp Wall Up/Downlight OD-5113 HIT-TC-CE PGj5 20W - 7 153
5113-6-3-745-XX CORE Mini CORE - Single Lamp Wall Up/Downlight OD-5113 HIT-TC-CE PGj5 20W - 14 153
5113-7-2-251-XX CORE Mini CORE - Single Lamp Wall Up/Downlight OD-5113 QT14 G9 75W - 30 153
5114-5-3-745-XX CORE Mini CORE - Single Lamp Wall Downlight OD-5114 HIT-TC-CE PGj5 20W - 7 159
5114-6-3-745-XX CORE Mini CORE - Single Lamp Wall Downlight OD-5114 HIT-TC-CE PGj5 20W - 14 159
5114-7-2-251-XX CORE Mini CORE - Single Lamp Wall Downlight OD-5114 QT14 G9 75W - 30 159
5115-0-2-221-XX CORE Mini CORE - Wall Up/Downlight OD-5115 QPAR51 GU10 2x50W / TCR50-SE GU10 2x14W 153
5116-0-2-221-XX CORE Mini CORE - Wall Downlight OD-5116 QPAR51 GU10 50W / TCR50-SE GU10 14W 159
5122-0-2-221-XX CORE Mini CORE - Wall Downlight OD-5112 QPAR51 GU10 50W / TCR50-SE GU10 14W 158
5130-5-3-751-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 HIT-CE G12 35W (CG) - 18 156
5130-5-3-752-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 HIT-CE G12 70W (CG) - 18 156
5130-5-3-780-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 HIT-CE G12 35W (EG) - 18 156
5130-5-3-781-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 HIT-CE G12 70W (EG) - 18 156
5130-7-2-256-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 QT18 B15d 250W - 40 156
5130-7-3-444-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 TC-T GX24d-3 26W 156
5130-7-3-751-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 HIT-CE G12 35W (CG) - 40 156
5130-7-3-752-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 HIT-CE G12 70W (CG) - 40 156
5130-7-3-780-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 HIT-CE G12 35W (EG) - 40 156
5130-7-3-781-XX CORE Maxi CORE Single Lamp - Wall Up/Downlight OD-5130 HIT-CE G12 70W (EG) - 40 156
5201-7-2-233-XX RECTOR RECTOR - Wall Up/Downlight OD-5201 QT-DE12 RX7s 2x150W - Bi-Symmetric 178
5201-7-3-754-XX RECTOR RECTOR - Wall Up/Downlight OD-5201 HIT-CE G12 2x35W - Bi-Symmetric 178
5201-9-3-754-XX RECTOR RECTOR - Wall Up/Downlight OD-5201 HIT-CE G12 2x35W - Asymmetric 178
5202-7-2-231-XX RECTOR RECTOR - Wall Downlight OD-5202 QT-DE12 RX7s 150W - Bi-Symmetric 178
5202-7-3-751-XX RECTOR RECTOR - Wall Downlight OD-5202 HIT-CE G12 35W - Bi-Symmetric 178
5202-9-3-751-XX RECTOR RECTOR - Wall Downlight OD-5202 HIT-CE G12 35W - Asymmetric 178
5313-5-3-755-XX TUBE Mega TUBE - Wall Up/Downlight OD-5313 HIT-CE G12 2x70W - 5 122
5313-7-3-438-XX TUBE Mega TUBE - Wall Up/Downlight OD-5313 TC-TEL GX24q-4 2x42W 122
5313-7-3-755-XX TUBE Mega TUBE - Wall Up/Downlight OD-5313 HIT-CE G12 2x70W - 38 122
5313-9-3-755-XX TUBE Mega TUBE - Wall Up/Downlight OD-5313 HIT-CE G12 2x70W - Asymmetric 122
5316-5-3-752-XX TUBE Mega TUBE - Wall Downlight OD-5316 HIT-CE G12 70W - 5 129
5316-7-3-436-XX TUBE Mega TUBE - Wall Downlight OD-5316 TC-TEL GX24q-4 42W 129
5316-7-3-752-XX TUBE Mega TUBE - Wall Downlight OD-5316 HIT-CE G12 70W - 38 129
5316-9-3-752-XX TUBE Mega TUBE - Wall Downlight OD-5316 HIT-CE G12 70W - Asymmetric 129
5330-5-3-752-XX TUBE Mega TUBE Single Lamp - Wall Up/Downlight OD-5330 HIT-CE G12 70W (CG) - 8 123
5330-5-3-753-XX TUBE Mega TUBE Single Lamp - Wall Up/Downlight OD-5330 HIT-CE G12 150W (CG) - 8 123
5330-5-3-781-XX TUBE Mega TUBE Single Lamp - Wall Up/Downlight OD-5330 HIT-CE G12 70W (EG) - 8 123
5330-5-3-782-XX TUBE Mega TUBE Single Lamp - Wall Up/Downlight OD-5330 HIT-CE G12 150W (EG) - 8 123
5330-6-3-752-XX TUBE Mega TUBE Single Lamp - Wall Up/Downlight OD-5330 HIT-CE G12 70W (CG) - 20 123
5330-6-3-753-XX TUBE Mega TUBE Single Lamp - Wall Up/Downlight OD-5330 HIT-CE G12 150W (CG) - 20 123
5330-6-3-781-XX TUBE Mega TUBE Single Lamp - Wall Up/Downlight OD-5330 HIT-CE G12 70W (EG) - 20 123
5330-6-3-782-XX TUBE Mega TUBE Single Lamp - Wall Up/Downlight OD-5330 HIT-CE G12 150W (EG) - 20 123
5501-0-2-493-XX FUJI FUJI Flat Pillar Top Light OD-5501 TC-TSE E27 15W 288
5502-0-2-493-XX FUJI FUJI Round Pillar Top Light OD-5502 TC-TSE E27 15W 288
5503-0-2-495-XX FUJI Double FUJI Flat Pillar Top Light OD-5503 TC-TSE E27 23W 288
5504-0-2-495-XX FUJI Double FUJI Round Pillar Top Light OD-5504 TC-TSE E27 23W 288
5505-0-2-495-XX MACRON MACRON Flat Pillar Top Light OD-5505 TC-TSE E27 23W 294
5506-0-2-495-XX MACRON MACRON Round Pillar Top Light OD-5506 TC-TSE E27 23W 295
5507-0-2-495-XX POM POM Opal Pillar Top Light OD-5507 TC-TSE E27 23W 270
5508-0-2-495-XX POM POM Prismatic Pillar Top Light OD-5508 TC-TSE E27 23W 271
5509-0-2-493-XX TOWER TOWER1 Pillar Top Light OD-5509 TC-TSE E27 15W 302
5510-0-2-493-XX TOWER TOWER2 Pillar Top Light OD-5510 TC-TSE E27 15W 303
5831-0-2-221-XX SONIC Mini SONIC Stand OD-5831 QPAR51 GU10 50W 69
5831-0-2-261-XX SONIC Mini SONIC Stand OD-5831 PAR20 E27 50W - 10/30 69
5831-0-3-281-XX SONIC Mini SONIC Stand OD-5831 QR-CB51 GU5.3 50W 69
5831-0-3-747-XX SONIC Mini SONIC Stand OD-5831 HIPAR51-CE-P GX10 20W - 12/25/40 68
502

503
Odering Code Family Name Product Name Product Code Lamp Type Page
5831-0-3-960-XX SONIC Mini SONIC Stand OD-5831 3LED 8.4W 700mA 450lm 3000K 7 68
5831-0-3-961-XX SONIC Mini SONIC Stand OD-5831 3LED 8.4W 700mA 450lm 3000K 13 68
5831-0-3-962-XX SONIC Mini SONIC Stand OD-5831 3LED 8.4W 700mA 450lm 3000K 30 68
5831-0-3-963-XX SONIC Mini SONIC Stand OD-5831 3LED 8.4W 700mA 450lm 3000K 13/44 68
5831-5-3-295-XX SONIC Mini SONIC Stand OD-5831 QT12 GY6.35 50W - 9 69
5831-5-3-745-XX SONIC Mini SONIC Stand OD-5831 HIT-TC-CE PGj5 20W - 9 68
5831-6-3-295-XX SONIC Mini SONIC Stand OD-5831 QT12 GY6.35 50W - 25 69
5831-6-3-745-XX SONIC Mini SONIC Stand OD-5831 HIT-TC-CE PGj5 20W - 28 68
5833-0-2-262-XX SONIC Medium SONIC Stand OD-5833 PAR30 E27 75W / TCPAR30-SE E27 15W 71
5833-0-3-762-XX SONIC Medium SONIC Stand OD-5833 HIPAR30 E27 35W (CG) - 10/30 70
5833-0-3-763-XX SONIC Medium SONIC Stand OD-5833 HIPAR30 E27 70W (CG) - 10/30 70
5833-0-3-765-XX SONIC Medium SONIC Stand OD-5833 HIPAR30 E27 35W (EG) - 10/30 70
5833-0-3-766-XX SONIC Medium SONIC Stand OD-5833 HIPAR30 E27 70W (EG) - 10/30 70
5833-0-3-968-XX SONIC Medium SONIC Stand OD-5833 6LED 16.8W 700mA 864lm 3000K 7 71
5833-0-3-969-XX SONIC Medium SONIC Stand OD-5833 6LED 16.8W 700mA 864lm 3000K 13 71
5833-0-3-970-XX SONIC Medium SONIC Stand OD-5833 6LED 16.8W 700mA 864lm 3000K 30 71
5833-0-3-971-XX SONIC Medium SONIC Stand OD-5833 6LED 16.8W 700mA 864lm 3000K 13/44 71
5833-5-3-751-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 35W (CG) - 10 70
5833-5-3-752-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 70W (CG) - 10 70
5833-5-3-780-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 35W (EG) - 10 70
5833-5-3-781-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 70W (EG) - 10 70
5833-6-3-751-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 35W (CG) - 28 70
5833-6-3-752-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 70W (CG) - 28 70
5833-6-3-780-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 35W (EG) - 28 70
5833-6-3-781-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 70W (EG) - 28 70
5833-7-3-751-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 35W (CG) - 46 70
5833-7-3-752-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 70W (CG) - 46 70
5833-7-3-780-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 35W (EG) - 46 70
5833-7-3-781-XX SONIC Medium SONIC Stand OD-5833 HIT-CE G12 70W (EG) - 46 70
5901-0-2-263-XX SPOTT SPOTT OD-5901 PAR38 E27 120W / TCPAR38-SE E27 23W 38
5901-5-3-751-XX SPOTT SPOTT - HIT (Magnetic Gear) OD-5901 HIT-CE G12 35W - 10 39
5901-5-3-752-XX SPOTT SPOTT - HIT (Magnetic Gear) OD-5901 HIT-CE G12 70W - 10 39
5901-5-3-780-XX SPOTT SPOTT - HIT (Electronic Gear) OD-5901 HIT-CE G12 35W - 10 38
5901-5-3-781-XX SPOTT SPOTT - HIT (Electronic Gear) OD-5901 HIT-CE G12 70W - 10 38
5901-6-3-751-XX SPOTT SPOTT - HIT (Magnetic Gear) OD-5901 HIT-CE G12 35W - 28 39
5901-6-3-752-XX SPOTT SPOTT - HIT (Magnetic Gear) OD-5901 HIT-CE G12 70W - 28 39
5901-6-3-780-XX SPOTT SPOTT - HIT (Electronic Gear) OD-5901 HIT-CE G12 35W - 28 38
5901-6-3-781-XX SPOTT SPOTT - HIT (Electronic Gear) OD-5901 HIT-CE G12 70W - 28 38
5901-7-3-751-XX SPOTT SPOTT - HIT (Magnetic Gear) OD-5901 HIT-CE G12 35W - 46 39
5901-7-3-752-XX SPOTT SPOTT - HIT (Magnetic Gear) OD-5901 HIT-CE G12 70W - 46 39
5901-7-3-780-XX SPOTT SPOTT - HIT (Electronic Gear) OD-5901 HIT-CE G12 35W - 46 38
5901-7-3-781-XX SPOTT SPOTT - HIT (Electronic Gear) OD-5901 HIT-CE G12 70W - 46 38
5903-0-2-263-XX SIGMA SIGMA OD-5903 PAR38 E27 120W / TCPAR38-SE E27 23W 43
5904-0-2-263-XX SIGMA SIGMA SPIKE OD-5904 PAR38 E27 120W / TCPAR38-SE E27 23W 43
5911-0-2-221-XX TELESCOPE TELESCOPE OD-5911 QPAR51 GU10 50W 48
5911-0-2-261-XX TELESCOPE TELESCOPE OD-5911 PAR20 E27 50W / TCR63-SE E27 13W 117 48
5911-0-3-281-XX TELESCOPE TELESCOPE Gear OD-5911 QR-CB51 GU5.3 50W 48
5911-0-3-747-XX TELESCOPE TELESCOPE Gear OD-5911 HIPAR51-CE-P GX10 20W - 12/25/40 48
5911-0-3-761-XX TELESCOPE TELESCOPE Gear OD-5911 HIPAR20-CE-P E27 35W - 10/30 48
5931-0-2-221-XX SONIC Mini SONIC OD-5931 QPAR51 GU10 50W 57
5931-0-2-261-XX SONIC Mini SONIC OD-5931 PAR20 E27 50W - 10/30 57
5931-0-3-281-XX SONIC Mini SONIC Gear OD-5931 QR-CB51 GU5.3 50W 57
5931-0-3-747-XX SONIC Mini SONIC Gear OD-5931 HIPAR51-CE-P GX10 20W - 12/25/40 56
5931-0-3-960-XX SONIC Mini SONIC Gear OD-5931 3LED 8.4W 700mA 450lm 3000K 7 56
5931-0-3-961-XX SONIC Mini SONIC Gear OD-5931 3LED 8.4W 700mA 450lm 3000K 13 56
5931-0-3-962-XX SONIC Mini SONIC Gear OD-5931 3LED 8.4W 700mA 450lm 3000K 30 56
5931-0-3-963-XX SONIC Mini SONIC Gear OD-5931 3LED 8.4W 700mA 450lm 3000K 13/44 56
5931-5-3-295-XX SONIC Mini SONIC Gear OD-5931 QT12 GY6.35 50W - 9 57
5931-5-3-745-XX SONIC Mini SONIC Gear OD-5931 HIT-TC-CE PGj5 20W - 9 56
5931-6-3-295-XX SONIC Mini SONIC Gear OD-5931 QT12 GY6.35 50W - 25 57
5931-6-3-745-XX SONIC Mini SONIC Gear OD-5931 HIT-TC-CE PGj5 20W - 28 56
5932-0-2-221-XX SONIC Mini SONIC Arm OD-5932 QPAR51 GU10 50W 63
5932-0-2-261-XX SONIC Mini SONIC Arm OD-5932 PAR20 E27 50W - 10/30 63
5932-0-3-281-XX SONIC Mini SONIC Gear Arm OD-5932 QR-CB51 GU5.3 50W 63
5932-0-3-747-XX SONIC Mini SONIC Gear Arm OD-5932 HIPAR51-CE-P GX10 20W - 12/25/40 62
5932-0-3-960-XX SONIC Mini SONIC Gear Arm OD-5932 3LED 8.4W 700mA 450lm 3000K 7 62
5932-0-3-961-XX SONIC Mini SONIC Gear Arm OD-5932 3LED 8.4W 700mA 450lm 3000K 13 62
5932-0-3-962-XX SONIC Mini SONIC Gear Arm OD-5932 3LED 8.4W 700mA 450lm 3000K 30 62
5932-0-3-963-XX SONIC Mini SONIC Gear Arm OD-5932 3LED 8.4W 700mA 450lm 3000K 13/44 62
5932-5-3-295-XX SONIC Mini SONIC Gear Arm OD-5932 QT12 GY6.35 50W - 9 63
5932-5-3-745-XX SONIC Mini SONIC Gear Arm OD-5932 HIT-TC-CE PGj5 20W - 9 62
5932-6-3-295-XX SONIC Mini SONIC Gear Arm OD-5932 QT12 GY6.35 50W - 25 63
5932-6-3-745-XX SONIC Mini SONIC Gear Arm OD-5932 HIT-TC-CE PGj5 20W - 28 62
5933-0-2-262-XX SONIC Medium SONIC OD-5933 PAR30 E27 75W / TCPAR30-SE E27 15W 59
5933-0-3-762-XX SONIC Medium SONIC Gear OD-5933 HIPAR30 E27 35W (CG) - 10/30 58
5933-0-3-763-XX SONIC Medium SONIC Gear OD-5933 HIPAR30 E27 70W (CG) - 10/30 58
5933-0-3-765-XX SONIC Medium SONIC Gear OD-5933 HIPAR30 E27 35W (EG) - 10/30 58
5933-0-3-766-XX SONIC Medium SONIC Gear OD-5933 HIPAR30 E27 70W (EG) - 10/30 58
5933-0-3-968-XX SONIC Medium SONIC Gear OD-5933 6LED 16.8W 700mA 864lm 3000K 7 59
5933-0-3-969-XX SONIC Medium SONIC Gear OD-5933 6LED 16.8W 700mA 864lm 3000K 13 59
5933-0-3-970-XX SONIC Medium SONIC Gear OD-5933 6LED 16.8W 700mA 864lm 3000K 30 59
5933-0-3-971-XX SONIC Medium SONIC Gear OD-5933 6LED 16.8W 700mA 864lm 3000K 13/44 59
5933-5-3-751-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 35W (CG) - 10 58
5933-5-3-752-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 70W (CG) - 10 58
5933-5-3-780-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 35W (EG) - 10 58
5933-5-3-781-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 70W (EG) - 10 58
5933-6-3-751-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 35W (CG) - 28 58
5933-6-3-752-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 70W (CG) - 28 58

Odering Code Family Name Product Name Product Code Lamp Type Page
5933-6-3-780-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 35W (EG) - 28 58
5933-6-3-781-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 70W (EG) - 28 58
5933-7-3-751-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 35W (CG) - 46 58
5933-7-3-752-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 70W (CG) - 46 58
5933-7-3-780-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 35W (EG) - 46 58
5933-7-3-781-XX SONIC Medium SONIC Gear OD-5933 HIT-CE G12 70W (EG) - 46 58
5934-0-2-262-XX SONIC Medium SONIC Arm OD-5934 PAR30 E27 75W / TCPAR30-SE E27 15W 65
5934-0-3-762-XX SONIC Medium SONIC Gear Arm OD-5934 HIPAR30 E27 35W (CG) - 10/30 64
5934-0-3-765-XX SONIC Medium SONIC Gear Arm OD-5934 HIPAR30 E27 35W (EG) - 10/30 64
5934-0-3-766-XX SONIC Medium SONIC Gear Arm OD-5934 HIPAR30 E27 70W (EG) - 10/30 64
5934-0-3-968-XX SONIC Medium SONIC Gear Arm OD-5934 6LED 16.8W 700mA 864lm 3000K 7 65
5934-0-3-969-XX SONIC Medium SONIC Gear Arm OD-5934 6LED 16.8W 700mA 864lm 3000K 13 65
5934-0-3-970-XX SONIC Medium SONIC Gear Arm OD-5934 6LED 16.8W 700mA 864lm 3000K 30 65
5934-0-3-971-XX SONIC Medium SONIC Gear Arm OD-5934 6LED 16.8W 700mA 864lm 3000K 13/44 65
5934-5-3-751-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 35W (CG) - 10 64
5934-5-3-752-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 70W (CG) - 10 64
5934-5-3-780-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 35W (EG) - 10 64
5934-5-3-781-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 70W (EG) - 10 64
5934-6-3-751-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 35W (CG) - 28 64
5934-6-3-752-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 70W (CG) - 28 64
5934-6-3-780-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 35W (EG) - 28 64
5934-6-3-781-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 70W (EG) - 28 64
5934-7-3-751-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 35W (CG) - 46 64
5934-7-3-752-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 70W (CG) - 46 64
5934-7-3-780-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 35W (EG) - 46 64
5934-7-3-781-XX SONIC Medium SONIC Gear Arm OD-5934 HIT-CE G12 70W (EG) - 46 64
5935-0-2-263-XX SONIC Mega SONIC OD-5935 PAR38 E27 120W / TCPAR38-SE E27 23W 61
5935-5-3-752-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 70W (CG) - 5 60
5935-5-3-753-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 150W (CG) - 5 60
5935-5-3-781-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 70W (EG) - 5 60
5935-5-3-782-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 150W (EG) - 5 60
5935-6-3-752-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 70W (CG) - 20 60
5935-6-3-753-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 150W (CG) - 20 60
5935-6-3-781-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 70W (EG) - 20 60
5935-6-3-782-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 150W (EG) - 20 60
5935-7-3-752-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 70W (CG) - 38 60
5935-7-3-753-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 150W (CG) - 38 60
5935-7-3-781-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 70W (EG) - 38 60
5935-7-3-782-XX SONIC Mega SONIC Gear OD-5935 HIT-CE G12 150W (EG) - 38 60
5936-0-2-263-XX SONIC Mega SONIC Arm OD-5936 PAR38 E27 120W / TCPAR38-SE E27 23W 67
5936-5-3-752-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 70W (CG) - 5 66
5936-5-3-753-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 150W (CG) - 5 66
5936-5-3-781-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 70W (EG) - 5 66
5936-5-3-782-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 150W (EG) - 5 66
5936-6-3-752-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 70W (CG) - 20 66
5936-6-3-753-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 150W (CG) - 20 66
5936-6-3-781-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 70W (EG) - 20 66
5936-6-3-782-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 150W (EG) - 20 66
5936-7-3-752-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 70W (CG) - 38 66
5936-7-3-753-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 150W (CG) - 38 66
5936-7-3-781-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 70W (EG) - 38 66
5936-7-3-782-XX SONIC Mega SONIC Gear Arm OD-5936 HIT-CE G12 150W (EG) - 38 66
5942-0-2-262-XX KUBIK KUBIK Ground Mount OD-5942 PAR30 E27 75W / TCPAR30-SE E27 15W 81
5942-0-3-271-XX KUBIK KUBIK Ground Mount OD-5942 QR111 G53 50W 81
5942-0-3-773-XX KUBIK KUBIK Ground Mount OD-5942 HIR111-CE-P GX8.5 35W (EG) - 10/24/40 80
5942-0-3-775-XX KUBIK KUBIK Ground Mount OD-5942 HIR111-CE-P GX8.5 70W (EG) - 10/24/40 80
5942-0-3-968-XX KUBIK KUBIK Ground Mount OD-5942 6LED 16.8W 700mA 864lm 3000K 7 81
5942-0-3-969-XX KUBIK KUBIK Ground Mount OD-5942 6LED 16.8W 700mA 864lm 3000K 13 81
5942-0-3-970-XX KUBIK KUBIK Ground Mount OD-5942 6LED 16.8W 700mA 864lm 3000K 30 81
5942-0-3-971-XX KUBIK KUBIK Ground Mount OD-5942 6LED 16.8W 700mA 864lm 3000K 13/44 81
5942-5-3-780-XX KUBIK KUBIK Ground Mount OD-5942 HIT-CE G12 35W (EG) - 10 80
5942-5-3-781-XX KUBIK KUBIK Ground Mount OD-5942 HIT-CE G12 70W (EG) - 10 80
5942-6-3-780-XX KUBIK KUBIK Ground Mount OD-5942 HIT-CE G12 35W (EG) - 28 80
5942-6-3-781-XX KUBIK KUBIK Ground Mount OD-5942 HIT-CE G12 70W (EG) - 28 80
5942-7-3-780-XX KUBIK KUBIK Ground Mount OD-5942 HIT-CE G12 35W (EG) - 46 80
5942-7-3-781-XX KUBIK KUBIK Ground Mount OD-5942 HIT-CE G12 70W (EG) - 46 80
5943-0-3-763-XX SONIC Medium SONIC Gear Arm OD-5934 HIPAR30 E27 70W (CG) - 10/30 64
5950-0-3-751-XX SONIC Mega SONIC Indirect Wall Light OD-5950 HIT-CE G12 35W (CG) 75
5950-0-3-752-XX SONIC Mega SONIC Indirect Wall Light OD-5950 HIT-CE G12 70W (CG) 75
5950-0-3-753-XX SONIC Mega SONIC Indirect Wall Light OD-5950 HIT-CE G12 150W (CG) 75
5950-0-3-780-XX SONIC Mega SONIC Indirect Wall Light OD-5950 HIT-CE G12 35W (EG) 75
5950-0-3-781-XX SONIC Mega SONIC Indirect Wall Light OD-5950 HIT-CE G12 70W (EG) 75
5950-0-3-782-XX SONIC Mega SONIC Indirect Wall Light OD-5950 HIT-CE G12 150W (EG) 75
5951-0-3-780-XX KUBIK KUBIK Indirect Wall Light OD-5951 HIT-CE G12 35W (EG) 87
5951-0-3-781-XX KUBIK KUBIK Indirect Wall Light OD-5951 HIT-CE G12 70W (EG) 87
6000-0-2-121-XX I-BRICK I-BRICK/1 OD-6000 TC-DSE E27 11W 186
6000-0-3-412-XX I-BRICK I-BRICK/1 OD-6000 TC-S G23 9W 186
6000-0-3-416-XX I-BRICK I-BRICK/1 OD-6000 TC-SEL 2G7 9W 186
6000-0-3-423-XX I-BRICK I-BRICK/1 OD-6000 TC-D G24d-2 18W 186
6000-0-3-452-XX I-BRICK I-BRICK/1 OD-6000 TC-DEL G24q-2 18W 186
6000-0-3-932-XX I-BRICK I-BRICK/1 OD-6000 9LED 2.2W 12V (integral driver) 126lm 3000K 186
6001-0-2-121-XX I-BRICK I-BRICK/2 OD-6001 TC-DSE E27 11W 186
6001-0-3-412-XX I-BRICK I-BRICK/2 OD-6001 TC-S G23 9W 186
6001-0-3-416-XX I-BRICK I-BRICK/2 OD-6001 TC-SEL 2G7 9W 186
6001-0-3-423-XX I-BRICK I-BRICK/2 OD-6001 TC-D G24d-2 18W 186
6001-0-3-452-XX I-BRICK I-BRICK/2 OD-6001 TC-DEL G24q-2 18W 186
6001-0-3-932-XX I-BRICK I-BRICK/2 OD-6001 9LED 2.2W 12V (integral driver) 126lm 3000K 186
6008-0-2-121-XX LUNA LUNA OD-6008 D45 E27 40W / TC-DSE E27 7W 196
504

505
Odering Code Family Name Product Name Product Code Lamp Type Page
6008-0-3-421-XX LUNA LUNA OD-6008 TC-D G24d-1 10W 196
6008-0-3-450-XX LUNA LUNA OD-6008 TC-DEL G24q-1 10W 196
6008-0-3-998-XX LUNA LUNA OD-6008 LED3x1W 350mA (Integrated driver) Warm white 196
6008-0-3-999-XX LUNA LUNA OD-6008 LED3x1W 350mA (Integrated driver) Cool white 196
6009-0-2-121-XX LUNA LUNA Cross OD-6009 D45 E27 40W / TC-DSE E27 7W 196
6009-0-3-421-XX LUNA LUNA Cross OD-6009 TC-D G24d-1 10W 196
6009-0-3-450-XX LUNA LUNA Cross OD-6009 TC-DEL G24q-1 10W 196
6009-0-3-998-XX LUNA LUNA Cross OD-6009 LED3x1W 350mA (Integrated driver) Warm white 196
6009-0-3-999-XX LUNA LUNA Cross OD-6009 LED3x1W 350mA (Integrated driver) Cool white 196
6012-0-2-291-XX DOT DOT Square OD-6012 QT9 G4 10W 140lm 204
6012-0-2-989-XX DOT DOT Square OD-6012 1LED 1.4W 350mA 70lm 3000K 204
6012-0-2-991-XX DOT DOT Square OD-6012 1LED 1.4W 350mA 65lm 6500K 204
6012-0-2-992-XX DOT DOT Square OD-6012 1LED 1.4W 350mA 10lm Blue 204
6012-0-2-993-XX DOT DOT Square OD-6012 1LED 1.4W 350mA 39lm Green 204
6012-0-2-994-XX DOT DOT Square OD-6012 1LED 1.4W 350mA 23lm Red 204
6013-0-2-291-XX DOT DOT Round Eyelid OD-6013 QT9 G4 10W 140lm 205
6013-0-2-989-XX DOT DOT Round Eyelid OD-6013 1LED 1.4W 350mA 70lm 3000K 205
6013-0-2-991-XX DOT DOT Round Eyelid OD-6013 1LED 1.4W 350mA 65lm 6500K 205
6013-0-2-992-XX DOT DOT Round Eyelid OD-6013 1LED 1.4W 350mA 10lm Blue 205
6013-0-2-993-XX DOT DOT Round Eyelid OD-6013 1LED 1.4W 350mA 39lm Green 205
6013-0-2-994-XX DOT DOT Round Eyelid OD-6013 1LED 1.4W 350mA 23lm Red 205
6014-0-2-291-XX DOT DOT Round OD-6014 QT9 G4 10W 140lm 204
6014-0-2-989-XX DOT DOT Round OD-6014 1LED 1.4W 350mA 70lm 3000K 204
6014-0-2-991-XX DOT DOT Round OD-6014 1LED 1.4W 350mA 65lm 6500K 204
6014-0-2-992-XX DOT DOT Round OD-6014 1LED 1.4W 350mA 10lm Blue 204
6014-0-2-993-XX DOT DOT Round OD-6014 1LED 1.4W 350mA 39lm Green 204
6014-0-2-994-XX DOT DOT Round OD-6014 1LED 1.4W 350mA 23lm Red 204
6015-0-2-241-XX PLUTO PLUTO - Slim Ramp OD-6015 QT32 E27 60W / TC-TSE E27 15W 212
6015-0-3-424-XX PLUTO PLUTO - Slim Ramp OD-6015 TC-D G24d-3 26W 212
6015-0-3-453-XX PLUTO PLUTO - Slim Ramp OD-6015 TC-DEL G24q-3 26W (EG) 212
6015-0-3-930-XX PLUTO PLUTO - Slim Ramp OD-6015 3LED 1.8W 12V (integral driver) 150lm 3800K 212
6016-0-3-436-XX PLUTO PLUTO - Power Ramp OD-6016 TC-TEL GX24q-3/4 26/32/42W (EG) 212
6016-0-3-751-XX PLUTO PLUTO - Power Ramp OD-6016 HIT-CE G12 35W 212
6016-0-3-752-XX PLUTO PLUTO - Power Ramp OD-6016 HIT-CE G12 70W 212
6021-0-2-291-91 DOT Inox DOT Square OD-6021 QT9 G4 10W 140lm 206
6021-0-2-989-XX DOT Inox DOT Square OD-6021 1LED 1.4W 350mA 70lm 3000K 206
6021-0-2-991-91 DOT Inox DOT Square OD-6021 1LED 1.4W 350mA 65lm 6500K 206
6021-0-2-992-91 DOT Inox DOT Square OD-6021 1LED 1.4W 350mA 10lm Blue 206
6021-0-2-993-91 DOT Inox DOT Square OD-6021 1LED 1.4W 350mA 39lm Green 206
6021-0-2-994-91 DOT Inox DOT Square OD-6021 1LED 1.4W 350mA 23lm Red 206
6022-0-2-291-91 DOT Inox DOT Round OD-6022 QT9 G4 10W 140lm 206
6022-0-2-989-XX DOT Inox DOT Round OD-6022 1LED 1.4W 350mA 70lm 3000K 206
6022-0-2-991-91 DOT Inox DOT Round OD-6022 1LED 1.4W 350mA 65lm 6500K 206
6022-0-2-992-91 DOT Inox DOT Round OD-6022 1LED 1.4W 350mA 10lm Blue 206
6022-0-2-993-91 DOT Inox DOT Round OD-6022 1LED 1.4W 350mA 39lm Green 206
6022-0-2-994-91 DOT Inox DOT Round OD-6022 1LED 1.4W 350mA 23lm Red 206
6031-0-3-424-XX PLUTO PLUTO - Slim Flat OD-6031 TC-D G24d-3 26W 213
6031-0-3-428-XX PLUTO PLUTO - Slim Flat OD-6031 TC-D G24d-3 2x26W 213
6032-0-3-611-XX PLUTO PLUTO - Power Flat OD-6032 HSE-I E27 70W 213
6032-0-3-711-XX PLUTO PLUTO - Power Flat OD-6032 HIE-CE E27 70W 213
6041-0-3-413-XX I-BRICK Long I-BRICK/1 OD-6041 TC-S G23 11W 187
6041-0-3-417-XX I-BRICK Long I-BRICK/1 OD-6041 TC-SEL 2G7 11W 187
6041-0-3-424-XX I-BRICK Long I-BRICK/1 OD-6041 TC-D G24d-3 26W 187
6041-0-3-453-XX I-BRICK Long I-BRICK/1 OD-6041 TC-DEL G24q-3 26W 187
6041-0-3-933-XX I-BRICK Long I-BRICK/1 OD-6041 12LED 2.9W 12V (integral driver) 168lm 3000K 187
6042-0-3-413-XX I-BRICK Long I-BRICK/2 OD-6042 TC-S G23 11W 187
6042-0-3-417-XX I-BRICK Long I-BRICK/2 OD-6042 TC-SEL 2G7 11W 187
6042-0-3-424-XX I-BRICK Long I-BRICK/2 OD-6042 TC-D G24d-3 26W 187
6042-0-3-453-XX I-BRICK Long I-BRICK/2 OD-6042 TC-DEL G24q-3 26W 187
6042-0-3-933-XX I-BRICK Long I-BRICK/2 OD-6042 12LED 2.9W 12V (integral driver) 168lm 3000K 187
6050-3-3-930-XX I-BRICK I-BRICK Blade OD-6050 3LED 1.8W 12V (integral driver) 150lm 3800K 191
6051-0-2-291-XX DOT DOT Square Ramp OD-6051 QT9 G4 10W 140lm 202
6051-0-2-989-XX DOT DOT Square Ramp OD-6051 1LED 1.4W 350mA 70lm 3000K 202
6051-0-2-991-XX DOT DOT Square Ramp OD-6051 1LED 1.4W 350mA 65lm 6500K 202
6051-0-2-992-XX DOT DOT Square Ramp OD-6051 1LED 1.4W 350mA 10lm Blue 202
6051-0-2-993-XX DOT DOT Square Ramp OD-6051 1LED 1.4W 350mA 39lm Green 202
6051-0-2-994-XX DOT DOT Square Ramp OD-6051 1LED 1.4W 350mA 23lm Red 202
6052-0-2-291-XX DOT DOT Round Ramp OD-6052 QT9 G4 10W 140lm 202
6052-0-2-989-XX DOT DOT Round Ramp OD-6052 1LED 1.4W 350mA 70lm 3000K 202
6052-0-2-991-XX DOT DOT Round Ramp OD-6052 1LED 1.4W 350mA 65lm 6500K 202
6052-0-2-992-XX DOT DOT Round Ramp OD-6052 1LED 1.4W 350mA 10lm Blue 202
6052-0-2-993-XX DOT DOT Round Ramp OD-6052 1LED 1.4W 350mA 39lm Green 202
6052-0-2-994-XX DOT DOT Round Ramp OD-6052 1LED 1.4W 350mA 23lm Red 202
6053-0-2-291-XX DOT DOT Square Eyelid OD-6053 QT9 G4 10W 140lm 205
6053-0-2-989-XX DOT DOT Square Eyelid OD-6053 1LED 1.4W 350mA 70lm 3000K 205
6053-0-2-991-XX DOT DOT Square Eyelid OD-6053 1LED 1.4W 350mA 65lm 6500K 205
6053-0-2-992-XX DOT DOT Square Eyelid OD-6053 1LED 1.4W 350mA 10lm Blue 205
6053-0-2-993-XX DOT DOT Square Eyelid OD-6053 1LED 1.4W 350mA 39lm Green 205
6053-0-2-994-XX DOT DOT Square Eyelid OD-6053 1LED 1.4W 350mA 23lm Red 205
6055-0-2-291-XX DOT DOT Square Grill OD-6055 QT9 G4 10W 140lm 203
6055-0-2-989-XX DOT DOT Square Grill OD-6055 1LED 1.4W 350mA 70lm 3000K 203
6055-0-2-991-XX DOT DOT Square Grill OD-6055 1LED 1.4W 350mA 65lm 6500K 203
6055-0-2-992-XX DOT DOT Square Grill OD-6055 1LED 1.4W 350mA 10lm Blue 203
6055-0-2-993-XX DOT DOT Square Grill OD-6055 1LED 1.4W 350mA 39lm Green 203
6055-0-2-994-XX DOT DOT Square Grill OD-6055 1LED 1.4W 350mA 23lm Red 203
6056-0-2-291-XX DOT DOT Round Grill OD-6056 QT9 G4 10W 140lm 203
6056-0-2-989-XX DOT DOT Round Grill OD-6056 1LED 1.4W 350mA 70lm 3000K 203
6056-0-2-991-XX DOT DOT Round Grill OD-6056 1LED 1.4W 350mA 65lm 6500K 203

Odering Code Family Name Product Name Product Code Lamp Type Page
6056-0-2-992-XX DOT DOT Round Grill OD-6056 1LED 1.4W 350mA 10lm Blue 203
6056-0-2-993-XX DOT DOT Round Grill OD-6056 1LED 1.4W 350mA 39lm Green 203
6056-0-2-994-XX DOT DOT Round Grill OD-6056 1LED 1.4W 350mA 23lm Red 203
6061-0-3-412-XX I-BRICK I-BRICK H-Ramp OD-6061 TC-S G23 9W 188
6061-0-3-932-XX I-BRICK I-BRICK H-Ramp OD-6061 9LED 2.2W 12V (integral driver) 126lm 3000K 188
6062-0-3-413-XX I-BRICK Long I-BRICK H-Ramp OD-6062 TC-S G23 11W 188
6062-0-3-933-XX I-BRICK Long I-BRICK H-Ramp OD-6062 12LED 2.9W 12V (integral driver) 168lm 3000K 188
6063-0-3-989-XX I-BRICK I-BRICK V-Ramp OD-6063 1LED 1.4W 350mA (integral driver) 70lm 3000K 189
6063-0-3-991-XX I-BRICK I-BRICK V-Ramp OD-6063 1LED 1.4W 350mA (integral driver) 65lm 6500K 189
6063-0-3-992-XX I-BRICK I-BRICK V-Ramp OD-6063 1LED 1.4W 350mA (integral driver) 10lm Blue 189
6063-0-3-993-XX I-BRICK I-BRICK V-Ramp OD-6063 1LED 1.4W 350mA (integral driver) 39lm Green 189
6063-0-3-994-XX I-BRICK I-BRICK V-Ramp OD-6063 1LED 1.4W 350mA (integral driver) 23lm Red 189
6064-0-3-989-XX I-BRICK Long I-BRICK V-Ramp OD-6064 1LED 1.4W 350mA (integral driver) 70lm 3000K 189
6064-0-3-991-XX I-BRICK Long I-BRICK V-Ramp OD-6064 1LED 1.4W 350mA (integral driver) 65lm 6500K 189
6064-0-3-992-XX I-BRICK Long I-BRICK V-Ramp OD-6064 1LED 1.4W 350mA (integral driver) 10lm Blue 189
6064-0-3-993-XX I-BRICK Long I-BRICK V-Ramp OD-6064 1LED 1.4W 350mA (integral driver) 39lm Green 189
6064-0-3-994-XX I-BRICK Long I-BRICK V-Ramp OD-6064 1LED 1.4W 350mA (integral driver) 23lm Red 189
6065-0-3-412-XX I-BRICK I-BRICK V-Grill OD-6065 TC-S G23 9W 190
6065-0-3-416-XX I-BRICK I-BRICK V-Grill OD-6065 TC-SEL 2G7 9W 190
6065-0-3-932-XX I-BRICK I-BRICK V-Grill OD-6065 9LED 2.2W 12V (integral driver) 126lm 3000K 190
6066-0-3-413-XX I-BRICK Long I-BRICK V-Grill OD-6066 TC-S G23 11W 190
6066-0-3-417-XX I-BRICK Long I-BRICK V-Grill OD-6066 TC-SEL 2G7 11W 190
6066-0-3-933-XX I-BRICK Long I-BRICK V-Grill OD-6066 12LED 2.9W 12V (integral driver) 168lm 3000K 190
6071-0-3-998-XX LUNA LUNA Ramp OD-6071 LED3x1W 350mA (integrated driver) Warm white 197
6071-0-3-999-XX LUNA LUNA Ramp OD-6071 LED3x1W 350mA (integrated driver) Cool white 197
6072-0-2-121-XX LUNA LUNA Grill OD-6072 D45 E27 40W / TC-DSE E27 7W 197
6072-0-3-421-XX LUNA LUNA Grill OD-6072 TC-D G24d-1 10W 197
6072-0-3-450-XX LUNA LUNA Grill OD-6072 TC-DEL G24q-1 10W 197
6072-0-3-998-XX LUNA LUNA Grill OD-6072 LED3x1W 350mA (integrated driver) Warm white 197
6072-0-3-999-XX LUNA LUNA Grill OD-6072 LED3x1W 350mA (integrated driver) Cool white 197
7009-0-2-493-XX RETINA Mini RETINA - 1 OD-7009 TC-TSE E27 15W 218
7009-0-2-934-XX RETINA Mini RETINA - 1 OD-7009 12LED 15W 230V AC 3000K 860lm 218
7009-0-3-423-XX RETINA Mini RETINA - 1 OD-7009 TC-D G24d-2 18W 218
7009-0-3-452-XX RETINA Mini RETINA - 1 OD-7009 TC-DEL G24q-2 18W 218
7010-0-2-496-XX RETINA Maxi RETINA - 1 OD-7010 TC-TSE E27 2X23W 218
7010-0-3-428-XX RETINA Maxi RETINA - 1 OD-7010 TC-D G24d-3 2x26W 218
7010-0-3-438-XX RETINA Maxi RETINA - 1 OD-7010 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 218
7011-0-2-493-XX RETINA Mini RETINA - 6 OD-7011 TC-TSE E27 15W 223
7011-0-2-934-XX RETINA Mini RETINA - 6 OD-7011 12LED 15W 230V AC 3000K 860lm 223
7011-0-3-423-XX RETINA Mini RETINA - 6 OD-7011 TC-D G24d-2 18W 223
7011-0-3-452-XX RETINA Mini RETINA - 6 OD-7011 TC-DEL G24q-2 18W 223
7012-0-2-496-XX RETINA Maxi RETINA - 6 OD-7012 TC-TSE E27 2X23W 223
7012-0-3-428-XX RETINA Maxi RETINA - 6 OD-7012 TC-D G24d-3 2x26W 223
7012-0-3-438-XX RETINA Maxi RETINA - 6 OD-7012 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 223
7012-0-3-611-XX RETINA Maxi RETINA - 6 OD-7012 HSE-I E27 70W 223
7012-0-3-711-XX RETINA Maxi RETINA - 6 OD-7012 HIE-CE E27 70W 223
7013-0-2-493-XX RETINA Mini RETINA - 3 OD-7013 TC-TSE E27 15W 220
7013-0-2-934-XX RETINA Mini RETINA - 3 OD-7013 12LED 15W 230V AC 3000K 860lm 220
7013-0-3-423-XX RETINA Mini RETINA - 3 OD-7013 TC-D G24d-2 18W 220
7013-0-3-452-XX RETINA Mini RETINA - 3 OD-7013 TC-DEL G24q-2 18W 220
7014-0-2-496-XX RETINA Maxi RETINA - 3 OD-7014 TC-TSE E27 2X23W 220
7014-0-3-428-XX RETINA Maxi RETINA - 3 OD-7014 TC-D G24d-3 2x26W 220
7014-0-3-438-XX RETINA Maxi RETINA - 3 OD-7014 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 220
7015-0-2-493-XX RETINA Mini RETINA - 2 OD-7015 TC-TSE E27 15W 219
7015-0-2-934-XX RETINA Mini RETINA - 2 OD-7015 12LED 15W 230V AC 3000K 860lm 219
7015-0-3-423-XX RETINA Mini RETINA - 2 OD-7015 TC-D G24d-2 18W 219
7015-0-3-452-XX RETINA Mini RETINA - 2 OD-7015 TC-DEL G24q-2 18W 219
7016-0-2-495-XX RETINA Maxi RETINA - 2 OD-7016 TC-TSE E27 23W 219
7016-0-3-424-XX RETINA Maxi RETINA - 2 OD-7016 TC-D G24d-3 26W 219
7016-0-3-436-XX RETINA Maxi RETINA - 2 OD-7016 TC-DEL G24q-3 26W / TC-TEL GX24q-4 42W 219
7017-0-2-496-XX RETINA Maxi RETINA - 4 OD-7017 TC-TSE E27 2X23W 221
7017-0-3-428-XX RETINA Maxi RETINA - 4 OD-7017 TC-D G24d-3 2x26W 221
7017-0-3-438-XX RETINA Maxi RETINA - 4 OD-7017 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 221
7021-0-3-415-XX RETINA Maxi RETINA - 1/SH OD-7021 TC-S G23 2x11W 225
7021-0-3-424-XX RETINA Maxi RETINA - 1/SH OD-7021 TC-D G24d-3 26W 225
7021-0-3-427-XX RETINA Maxi RETINA - 1/SH OD-7021 TC-D G24d-2 2x18W 225
7021-0-3-453-XX RETINA Maxi RETINA - 1/SH OD-7021 TC-DEL G24q-3 26W 225
7023-0-3-415-XX ECLIPSE ECLIPSE OD-7023 TC-S G23 2x11W 229
7023-0-3-424-XX ECLIPSE ECLIPSE OD-7023 TC-D G24d-3 26W 229
7023-0-3-427-XX ECLIPSE ECLIPSE OD-7023 TC-D G24d-2 2x18W 229
7023-0-3-453-XX ECLIPSE ECLIPSE OD-7023 TC-DEL G24q-3 26W 229
7024-0-2-934-XX DRIFT Mini Flat DRIFT OD-7024 12LED 15W 230V AC 3000K 860lm 244
7024-0-3-414-XX DRIFT Mini Flat DRIFT OD-7024 TC-S G23 2x9W 244
7024-0-3-423-XX DRIFT Mini Flat DRIFT OD-7024 TC-D G24d-2 18W 244
7024-0-3-424-XX DRIFT Mini Flat DRIFT OD-7024 TC-D G24d-3 26W 244
7024-0-3-452-XX DRIFT Mini Flat DRIFT OD-7024 TC-DEL G24q-2 18W 244
7024-0-3-453-XX DRIFT Mini Flat DRIFT OD-7024 TC-DEL G24q-3 26W 244
7026-0-2-495-XX XEON XEON Cross Wall Light OD-7026 TC-TSE E27 23W 252
7026-0-3-415-XX XEON XEON Cross Wall Light OD-7026 TC-S G23 2x11W 252
7026-0-3-424-XX XEON XEON Cross Wall Light OD-7026 TC-D G24d-3 26W (CG) 252
7026-0-3-453-XX XEON XEON Cross Wall Light OD-7026 TC-DEL G24q-3 26W (EG) 252
7027-0-2-495-XX XEON XEON Roof Wall Light OD-7027 TC-TSE E27 23W 252
7027-0-3-415-XX XEON XEON Roof Wall Light OD-7027 TC-S G23 2x11W 252
7027-0-3-424-XX XEON XEON Roof Wall Light OD-7027 TC-D G24d-3 26W (CG) 252
7027-0-3-453-XX XEON XEON Roof Wall Light OD-7027 TC-DEL G24q-3 26W (EG) 252
7028-0-3-415-XX XEON XEON Flat Wall Light OD-7028 TC-S G23 2x11W 253
7028-0-3-424-XX XEON XEON Flat Wall Light OD-7028 TC-D G24d-3 26W (CG) 253
7028-0-3-453-XX XEON XEON Flat Wall Light OD-7028 TC-DEL G24q-3 26W (EG) 253
506

507
Odering Code Family Name Product Name Product Code Lamp Type Page
7029-0-2-405-XX AGAR AGAR Prismatic Wall Light OD-7029 TC-HSE E27 15W 262
7029-0-3-443-XX AGAR AGAR Prismatic Wall Light OD-7029 TC-T GX24d-2 18W (CG) 262
7029-0-3-461-XX AGAR AGAR Prismatic Wall Light OD-7029 TC-TEL GX24q-2 18W (EG) 262
7029-0-3-970-XX AGAR AGAR Prismatic Wall Light OD-7029 6LED 16.8W 700mA 864lm 3000K 262
7030-0-2-405-XX AGAR AGAR Opal Wall Light OD-7030 TC-HSE E27 15W 262
7030-0-3-443-XX AGAR AGAR Opal Wall Light OD-7030 TC-T GX24d-2 18W (CG) 262
7030-0-3-461-XX AGAR AGAR Opal Wall Light OD-7030 TC-TEL GX24q-2 18W (EG) 262
7032-0-2-496-XX DRIFT Maxi Flat DRIFT OD-7032 TC-TSE E27 2X23W 244
7032-0-3-428-XX DRIFT Maxi Flat DRIFT OD-7032 TC-D G24d-3 2x26W 244
7032-0-3-438-XX DRIFT Maxi Flat DRIFT OD-7032 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 244
7033-0-2-934-XX DRIFT Mini Cross DRIFT OD-7033 12LED 15W 230V AC 3000K 860lm 245
7033-0-3-414-XX DRIFT Mini Cross DRIFT OD-7033 TC-S G23 2x9W 245
7033-0-3-423-XX DRIFT Mini Cross DRIFT OD-7033 TC-D G24d-2 18W 245
7033-0-3-424-XX DRIFT Mini Cross DRIFT OD-7033 TC-D G24d-3 26W 245
7033-0-3-452-XX DRIFT Mini Cross DRIFT OD-7033 TC-DEL G24q-2 18W 245
7033-0-3-453-XX DRIFT Mini Cross DRIFT OD-7033 TC-DEL G24q-3 26W 245
7034-0-2-496-XX DRIFT Maxi Cross DRIFT OD-7034 TC-TSE E27 2X23W 245
7034-0-3-428-XX DRIFT Maxi Cross DRIFT OD-7034 TC-D G24d-3 2x26W 245
7034-0-3-438-XX DRIFT Maxi Cross DRIFT OD-7034 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 245
7035-0-2-934-XX DRIFT Mini Half DRIFT OD-7035 12LED 15W 230V AC 3000K 860lm 246
7035-0-3-423-XX DRIFT Mini Half DRIFT OD-7035 TC-D G24d-2 18W 246
7035-0-3-424-XX DRIFT Mini Half DRIFT OD-7035 TC-D G24d-3 26W 246
7035-0-3-452-XX DRIFT Mini Half DRIFT OD-7035 TC-DEL G24q-2 18W 246
7035-0-3-453-XX DRIFT Mini Half DRIFT OD-7035 TC-DEL G24q-3 26W 246
7036-0-2-495-XX DRIFT Maxi Half DRIFT OD-7036 TC-TSE E27 23W 246
7036-0-3-424-XX DRIFT Maxi Half DRIFT OD-7036 TC-D G24d-3 26W 246
7036-0-3-436-XX DRIFT Maxi Half DRIFT OD-7036 TC-DEL G24q-3 26W / TC-TEL GX24q-4 42W 246
7037-0-2-493-XX RETINA Mini RETINA - 5 OD-7037 TC-TSE E27 15W 222
7037-0-2-934-XX RETINA Mini RETINA - 5 OD-7037 12LED 15W 230V AC 3000K 860lm 222
7037-0-3-423-XX RETINA Mini RETINA - 5 OD-7037 TC-D G24d-2 18W 222
7037-0-3-452-XX RETINA Mini RETINA - 5 OD-7037 TC-DEL G24q-2 18W 222
7038-0-2-496-XX RETINA Maxi RETINA - 5 OD-7038 TC-TSE E27 2X23W 222
7038-0-3-428-XX RETINA Maxi RETINA - 5 OD-7038 TC-D G24d-3 2x26W 222
7038-0-3-438-XX RETINA Maxi RETINA - 5 OD-7038 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 222
7039-0-2-934-XX DRIFT Mini Roof DRIFT OD-7039 12LED 15W 230V AC 3000K 860lm 247
7039-0-3-414-XX DRIFT Mini Roof DRIFT OD-7039 TC-S G23 2x9W 247
7039-0-3-423-XX DRIFT Mini Roof DRIFT OD-7039 TC-D G24d-2 18W 247
7039-0-3-424-XX DRIFT Mini Roof DRIFT OD-7039 TC-D G24d-3 26W 247
7039-0-3-452-XX DRIFT Mini Roof DRIFT OD-7039 TC-DEL G24q-2 18W 247
7039-0-3-453-XX DRIFT Mini Roof DRIFT OD-7039 TC-DEL G24q-3 26W 247
7040-0-2-496-XX DRIFT Maxi Roof DRIFT OD-7040 TC-TSE E27 2X23W 247
7040-0-3-428-XX DRIFT Maxi Roof DRIFT OD-7040 TC-D G24d-3 2x26W 247
7040-0-3-438-XX DRIFT Maxi Roof DRIFT OD-7040 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 247
7040-0-3-611-XX DRIFT Maxi Roof DRIFT OD-7040 HSE-I E27 70W 247
7040-0-3-711-XX DRIFT Maxi Roof DRIFT OD-7040 HIE-CE E27 70W 247
7041-0-3-415-XX RETINA Maxi RETINA - 3/SH OD-7041 TC-S G23 2x11W 225
7041-0-3-424-XX RETINA Maxi RETINA - 3/SH OD-7041 TC-D G24d-3 26W 225
7041-0-3-427-XX RETINA Maxi RETINA - 3/SH OD-7041 TC-D G24d-2 2x18W 225
7041-0-3-453-XX RETINA Maxi RETINA - 3/SH OD-7041 TC-DEL G24q-3 26W 225
7042-0-2-413-XX RETINA Maxi RETINA - 2/SH OD-7042 TC-S G23 2x11W 225
7042-0-3-424-XX RETINA Maxi RETINA - 2/SH OD-7042 TC-D G24d-3 26W 225
7042-0-3-427-XX RETINA Maxi RETINA - 2/SH OD-7042 TC-D G24d-2 2x18W 225
7042-0-3-453-XX RETINA Maxi RETINA - 2/SH OD-7042 TC-DEL G24q-3 26W 225
7043-0-3-415-XX RETINA Maxi RETINA - 4/SH OD-7043 TC-S G23 2x11W 225
7043-0-3-424-XX RETINA Maxi RETINA - 4/SH OD-7043 TC-D G24d-3 26W 225
7043-0-3-427-XX RETINA Maxi RETINA - 4/SH OD-7043 TC-D G24d-2 2x18W 225
7043-0-3-453-XX RETINA Maxi RETINA - 4/SH OD-7043 TC-DEL G24q-3 26W 225
7044-0-3-415-XX RETINA Maxi RETINA - 5/SH OD-7044 TC-S G23 2x11W 225
7044-0-3-424-XX RETINA Maxi RETINA - 5/SH OD-7044 TC-D G24d-3 26W 225
7044-0-3-427-XX RETINA Maxi RETINA - 5/SH OD-7044 TC-D G24d-2 2x18W 225
7044-0-3-453-XX RETINA Maxi RETINA - 5/SH OD-7044 TC-DEL G24q-3 26W 225
7047-0-2-493-XX RETINA Mini RETINA - 4 OD-7047 TC-TSE E27 15W 221
7047-0-2-934-XX RETINA Mini RETINA - 4 OD-7047 12LED 15W 230V AC 3000K 860lm 221
7047-0-3-423-XX RETINA Mini RETINA - 4 OD-7047 TC-D G24d-2 18W 221
7047-0-3-452-XX RETINA Mini RETINA - 4 OD-7047 TC-DEL G24q-2 18W 221
7051-0-2-242-XX MASS MASS OD-7051 QT32 E27 100W 233
7051-0-3-424-XX MASS MASS OD-7051 TC-D G24d-3 26W 233
7051-0-3-436-XX MASS MASS OD-7051 TC-TEL GX24q-3/4 26/32/42W 233
7051-0-3-780-XX MASS MASS OD-7051 HIT-CE G12 35W 233
7060-0-2-496-XX NOCTUNE NOCTUNE T1 OD-7060 TC-TSE E27 2X23W 238
7060-0-3-404-XX NOCTUNE NOCTUNE T1 OD-7060 TC-LEL 2G11 2x36W 238
7060-0-3-428-XX NOCTUNE NOCTUNE T1 OD-7060 TC-D G24d-3 2x26W 238
7060-0-3-438-XX NOCTUNE NOCTUNE T1 OD-7060 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 238
7060-0-3-611-XX NOCTUNE NOCTUNE T1 OD-7060 HSE-I E27 70W 238
7060-0-3-711-XX NOCTUNE NOCTUNE T1 OD-7060 HIE-CE E27 70W 238
7061-0-2-496-XX NOCTUNE NOCTUNE T2 OD-7061 TC-TSE E27 2X23W 238
7061-0-3-404-XX NOCTUNE NOCTUNE T2 OD-7061 TC-LEL 2G11 2x36W 238
7061-0-3-428-XX NOCTUNE NOCTUNE T2 OD-7061 TC-D G24d-3 2x26W 238
7061-0-3-438-XX NOCTUNE NOCTUNE T2 OD-7061 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 238
7061-0-3-611-XX NOCTUNE NOCTUNE T2 OD-7061 HSE-I E27 70W 238
7061-0-3-711-XX NOCTUNE NOCTUNE T2 OD-7061 HIE-CE E27 70W 238
7062-0-2-496-XX NOCTUNE NOCTUNE T3 OD-7062 TC-TSE E27 2X23W 238
7062-0-3-404-XX NOCTUNE NOCTUNE T3 OD-7062 TC-LEL 2G11 2x36W 238
7062-0-3-428-XX NOCTUNE NOCTUNE T3 OD-7062 TC-D G24d-3 2x26W 238
7062-0-3-438-XX NOCTUNE NOCTUNE T3 OD-7062 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 238
7062-0-3-611-XX NOCTUNE NOCTUNE T3 OD-7062 HSE-I E27 70W 238
7062-0-3-711-XX NOCTUNE NOCTUNE T3 OD-7062 HIE-CE E27 70W 238
7063-0-2-496-XX NOCTUNE NOCTUNE T4 OD-7063 TC-TSE E27 2X23W 238

Odering Code Family Name Product Name Product Code Lamp Type Page
7063-0-3-404-XX NOCTUNE NOCTUNE T4 OD-7063 TC-LEL 2G11 2x36W 238
7063-0-3-428-XX NOCTUNE NOCTUNE T4 OD-7063 TC-D G24d-3 2x26W 238
7063-0-3-438-XX NOCTUNE NOCTUNE T4 OD-7063 TC-DEL G24q-3 2x26W / TC-TEL GX24q-4 2x42W 238
7063-0-3-611-XX NOCTUNE NOCTUNE T4 OD-7063 HSE-I E27 70W 238
7063-0-3-711-XX NOCTUNE NOCTUNE T4 OD-7063 HIE-CE E27 70W 238
7105-0-2-495-XX GRILL GRILL Round Bollard OD-7105 TC-TSE E27 23W 279
7105-0-3-424-XX GRILL GRILL Round Bollard OD-7105 TC-D G24d-3 26W 279
7105-0-3-436-XX GRILL GRILL Round Bollard OD-7105 TC-TEL GX24q-3/4 26/32/42W 279
7105-0-3-611-XX GRILL GRILL Round Bollard OD-7105 HSE-I E27 70W 279
7105-0-3-711-XX GRILL GRILL Round Bollard OD-7105 HIE-CE E27 70W 279
7107-0-2-495-XX MACRON MACRON Flat Bollard OD-7107 TC-TSE E27 23W 296
7107-0-3-424-XX MACRON MACRON Flat Bollard OD-7107 TC-D G24d-3 26W 296
7107-0-3-436-XX MACRON MACRON Flat Bollard OD-7107 TC-TEL GX24q-3/4 26/32/42W 296
7107-0-3-611-XX MACRON MACRON Flat Bollard OD-7107 HSE-I E27 70W 296
7107-0-3-711-XX MACRON MACRON Flat Bollard OD-7107 HIE-CE E27 70W 296
7108-0-2-495-XX MACRON MACRON Round Bollard OD-7108 TC-TSE E27 23W 297
7108-0-3-424-XX MACRON MACRON Round Bollard OD-7108 TC-D G24d-3 26W 297
7108-0-3-436-XX MACRON MACRON Round Bollard OD-7108 TC-TEL GX24q-3/4 26/32/42W 297
7108-0-3-611-XX MACRON MACRON Round Bollard OD-7108 HSE-I E27 70W 297
7108-0-3-711-XX MACRON MACRON Round Bollard OD-7108 HIE-CE E27 70W 297
7111-0-2-493-XX FUJI FUJI Round Bollard OD-7111 TC-TSE E27 15W 286
7111-0-3-444-XX FUJI FUJI Round Bollard OD-7111 TC-T GX24d-3 26W 286
7111-0-3-462-XX FUJI FUJI Round Bollard OD-7111 TC-TEL GX24q-3 26W 286
7111-0-3-751-XX FUJI FUJI Round Bollard OD-7111 HIT-CE G12 35W 286
7111-0-3-752-XX FUJI FUJI Round Bollard OD-7111 HIT-CE G12 70W 286
7112-0-2-493-XX FUJI FUJI Flat Bollard OD-7112 TC-TSE E27 15W 286
7112-0-3-444-XX FUJI FUJI Flat Bollard OD-7112 TC-T GX24d-3 26W 286
7112-0-3-462-XX FUJI FUJI Flat Bollard OD-7112 TC-TEL GX24q-3 26W 286
7112-0-3-751-XX FUJI FUJI Flat Bollard OD-7112 HIT-CE G12 35W 286
7112-0-3-752-XX FUJI FUJI Flat Bollard OD-7112 HIT-CE G12 70W 286
7115-0-2-495-XX GRILL GRILL Flat Bollard OD-7115 TC-TSE E27 23W 279
7115-0-3-424-XX GRILL GRILL Flat Bollard OD-7115 TC-D G24d-3 26W 279
7115-0-3-436-XX GRILL GRILL Flat Bollard OD-7115 TC-TEL GX24q-3/4 26/32/42W 279
7115-0-3-611-XX GRILL GRILL Flat Bollard OD-7115 HSE-I E27 70W 279
7115-0-3-711-XX GRILL GRILL Flat Bollard OD-7115 HIE-CE E27 70W 279
7119-0-2-495-XX FUJI Double FUJI Flat Bollard OD-7119 TC-TSE E27 23W 287
7119-0-3-424-XX FUJI Double FUJI Flat Bollard OD-7119 TC-D G24d-3 26W 287
7119-0-3-436-XX FUJI Double FUJI Flat Bollard OD-7119 TC-TEL GX24q-3/4 26/32/42W 287
7119-0-3-611-XX FUJI Double FUJI Flat Bollard OD-7119 HSE-I E27 70W 287
7119-0-3-711-XX FUJI Double FUJI Flat Bollard OD-7119 HIE-CE E27 70W 287
7120-0-2-495-XX FUJI Double FUJI Round Bollard OD-7120 TC-TSE E27 23W 287
7120-0-3-424-XX FUJI Double FUJI Round Bollard OD-7120 TC-D G24d-3 26W 287
7120-0-3-436-XX FUJI Double FUJI Round Bollard OD-7120 TC-TEL GX24q-3/4 26/32/42W 287
7120-0-3-611-XX FUJI Double FUJI Round Bollard OD-7120 HSE-I E27 70W 287
7120-0-3-711-XX FUJI Double FUJI Round Bollard OD-7120 HIE-CE E27 70W 287
7121-0-2-493-XX TOWER TOWER2 Bollard OD-7121N TC-TSE E27 15W 303
7121-0-3-423-XX TOWER TOWER2 Bollard OD-7121N TC-D G24d-2 18W (CG) 303
7121-0-3-444-XX TOWER TOWER2 Bollard OD-7121N TC-T GX24d-3 26W (CG) 303
7121-0-3-452-XX TOWER TOWER2 Bollard OD-7121N TC-DEL G24q-2 18W (EG) 303
7121-0-3-462-XX TOWER TOWER2 Bollard OD-7121N TC-TEL GX24q-3 26W (EG) 303
7122-0-2-493-XX TOWER TOWER1 Bollard OD-7122 TC-TSE E27 15W 302
7122-0-3-423-XX TOWER TOWER1 Bollard OD-7122 TC-D G24d-2 18W (CG) 302
7122-0-3-444-XX TOWER TOWER1 Bollard OD-7122 TC-T GX24d-3 26W (CG) 302
7122-0-3-452-XX TOWER TOWER1 Bollard OD-7122 TC-DEL G24q-2 18W (EG) 302
7122-0-3-462-XX TOWER TOWER1 Bollard OD-7122 TC-TEL GX24q-3 26W (EG) 302
7122-0-3-751-XX TOWER TOWER1 Bollard OD-7122 HIT-CE G12 35W 302
7123-0-2-263-XX AGAR AGAR Prismatic - Indirect Light Bollard OD-7123N PAR38 E27 120W / TCPAR38-SE E27 23W 263
7123-0-2-495-XX AGAR AGAR Prismatic - Indirect Light Bollard OD-7123N TC-TSE E27 23W 263
7123-0-3-424-XX AGAR AGAR Prismatic - Indirect Light Bollard OD-7123N TC-D G24d-3 26W 263
7123-0-3-436-XX AGAR AGAR Prismatic - Indirect Light Bollard OD-7123N TC-TEL GX24q-3/4 26/32/42W 263
7123-0-3-611-XX AGAR AGAR Prismatic - Indirect Light Bollard OD-7123N HSE-I E27 70W 263
7123-0-3-711-XX AGAR AGAR Prismatic - Indirect Light Bollard OD-7123N HIE-CE E27 70W 263
7123-0-3-970-XX AGAR AGAR Prismatic - Indirect Light Bollard OD-7123N 6LED 16.8W 700mA 864lm 3000K 263
7124-0-2-406-XX AGAR AGAR Opal - Direct Light Bollard OD-7124N TC-HSE E27 23W 264
7124-0-3-444-XX AGAR AGAR Opal - Direct Light Bollard OD-7124N TC-T Gx24d-3 26W (CG) 264
7124-0-3-462-XX AGAR AGAR Opal - Direct Light Bollard OD-7124N TC-TEL GX24q-3 26W (EG) 264
7124-0-3-751-XX AGAR AGAR Opal - Direct Light Bollard OD-7124N HIT-CE G12 35W 264
7124-0-3-752-XX AGAR AGAR Opal - Direct Light Bollard OD-7124N HIT-CE G12 70W 264
7125-0-3-423-XX OLIVE OLIVE Prismatic OD-7125 TC-D G24d-2 18W 315
7126-0-3-423-XX OLIVE OLIVE Opal OD-7126 TC-D G24d-2 18W 315
7132-0-2-495-XX XEON XEON Cross Bollard / Single Sided OD-7132 TC-TSE E27 23W 254
7132-0-3-424-XX XEON XEON Cross Bollard / Single Sided OD-7132 TC-D G24d-3 26W 254
7132-0-3-436-XX XEON XEON Cross Bollard / Single Sided OD-7132 TC-TEL GX24q-3/4 26/32/42W (EG) 254
7132-0-3-611-XX XEON XEON Cross Bollard / Single Sided OD-7132 HSE-I E27 70W 254
7132-0-3-711-XX XEON XEON Cross Bollard / Single Sided OD-7132 HIE-CE E27 70W 254
7133-0-2-495-XX XEON XEON Cross Bollard / Double Sided OD-7133 TC-TSE E27 2x23W 254
7133-0-3-424-XX XEON XEON Cross Bollard / Double Sided OD-7133 TC-D G24d-3 2x26W 254
7133-0-3-436-XX XEON XEON Cross Bollard / Double Sided OD-7133 TC-TEL GX24q-3/4 2x26/32/42W (EG) 254
7133-0-3-611-XX XEON XEON Cross Bollard / Double Sided OD-7133 HSE-I E27 2x70W 254
7133-0-3-711-XX XEON XEON Cross Bollard / Double Sided OD-7133 HIE-CE E27 2x70W 254
7134-0-2-495-XX XEON XEON Flat Bollard / Single Sided OD-7134 TC-TSE E27 23W 256
7134-0-3-424-XX XEON XEON Flat Bollard / Single Sided OD-7134 TC-D G24d-3 26W 256
7134-0-3-436-XX XEON XEON Flat Bollard / Single Sided OD-7134 TC-TEL GX24q-3/4 26/32/42W (EG) 256
7134-0-3-611-XX XEON XEON Flat Bollard / Single Sided OD-7134 HSE-I E27 70W 256
7134-0-3-711-XX XEON XEON Flat Bollard / Single Sided OD-7134 HIE-CE E27 70W 256
7135-0-2-495-XX XEON XEON Flat Bollard / Double Sided OD-7135 TC-TSE E27 2x23W 256
7135-0-3-424-XX XEON XEON Flat Bollard / Double Sided OD-7135 TC-D G24d-3 2x26W 256
7135-0-3-436-XX XEON XEON Flat Bollard / Double Sided OD-7135 TC-TEL GX24q-3/4 2x26/32/42W (EG) 256

509
Odering Code Family Name Product Name Product Code Lamp Type Page
7135-0-3-611-XX XEON XEON Flat Bollard / Double Sided OD-7135 HSE-I E27 2x70W 256
7135-0-3-711-XX XEON XEON Flat Bollard / Double Sided OD-7135 HIE-CE E27 2x70W 256
7136-0-2-495-XX CONDO CONDO2 Bollard OD-7136 TC-TSE E27 23W 310
7136-0-3-423-XX CONDO CONDO2 Bollard OD-7136 TC-D G24d-2 18W (CG) 310
7136-0-3-427-XX CONDO CONDO2 Bollard OD-7136 TC-D G24d-2 2x18W 310
7136-0-3-452-XX CONDO CONDO2 Bollard OD-7136 TC-DEL G24q-2 18W (EG) 310
7137-0-2-495-XX CONDO CONDO1 Bollard OD-7137 TC-TSE E27 23W 310
7137-0-3-423-XX CONDO CONDO1 Bollard OD-7137 TC-D G24d-2 18W (CG) 310
7137-0-3-427-XX CONDO CONDO1 Bollard OD-7137 TC-D G24d-2 2x18W 310
7137-0-3-452-XX CONDO CONDO1 Bollard OD-7137 TC-DEL G24q-2 18W (EG) 310
7142-0-2-495-XX XEON XEON Roof Bollard / Single Sided OD-7142 TC-TSE E27 23W 255
7142-0-3-424-XX XEON XEON Roof Bollard / Single Sided OD-7142 TC-D G24d-3 26W 255
7142-0-3-436-XX XEON XEON Roof Bollard / Single Sided OD-7142 TC-TEL GX24q-3/4 26/32/42W (EG) 255
7142-0-3-611-XX XEON XEON Roof Bollard / Single Sided OD-7142 HSE-I E27 70W 255
7142-0-3-711-XX XEON XEON Roof Bollard / Single Sided OD-7142 HIE-CE E27 70W 255
7143-0-2-495-XX XEON XEON Roof Bollard / Double Sided OD-7143 TC-TSE E27 2x23W 255
7143-0-3-424-XX XEON XEON Roof Bollard / Double Sided OD-7143 TC-D G24d-3 2x26W 255
7143-0-3-436-XX XEON XEON Roof Bollard / Double Sided OD-7143 TC-TEL GX24q-3/4 2x26/32/42W (EG) 255
7143-0-3-611-XX XEON XEON Roof Bollard / Double Sided OD-7143 HSE-I E27 2x70W 255
7143-0-3-711-XX XEON XEON Roof Bollard / Double Sided OD-7143 HIE-CE E27 2x70W 255
7144-0-2-221-XX TUBE Mini TUBE Bollard / Single Sided OD-7144 QPAR51 GU10 50W / TCR50-SE GU10 14W 146
7144-0-2-261-XX TUBE Mini TUBE Bollard / Single Sided OD-7144 PAR20 E27 50W / TCR63-SE E27 13W 146
7144-0-3-962-XX TUBE Mini TUBE Bollard / Single Sided OD-7144 3LED 8.4W 700mA 450lm 3000K 30 146
7144-0-3-963-XX TUBE Mini TUBE Bollard / Single Sided OD-7144 3LED 8.4W 700mA 450lm 3000K 13/44 146
7144-5-3-745-XX TUBE Mini TUBE Bollard / Single Sided OD-7144 HIT-TC-CE PGj5 20W - 9 146
7144-6-3-745-XX TUBE Mini TUBE Bollard / Single Sided OD-7144 HIT-TC-CE PGj5 20W - 28 146
7145-0-2-221-XX TUBE Mini TUBE Bollard / Double Sided OD-7145 QPAR51 GU10 2x50W / TCR50-SE GU10 2x14W 146
7145-0-2-261-XX TUBE Mini TUBE Bollard / Double Sided OD-7145 PAR20 E27 2x50W / TCR63-SE E27 2x13W 146
7145-0-3-962-XX TUBE Mini TUBE Bollard / Double Sided OD-7145 2x3LED 16.8W 700mA 2x450lm 3000K 30 146
7145-0-3-963-XX TUBE Mini TUBE Bollard / Double Sided OD-7145 2x3LED 16.8W 700mA 2x450lm 3000K 13/44 146
7145-5-3-745-XX TUBE Mini TUBE Bollard / Double Sided OD-7145 HIT-TC-CE PGj5 2x20W - 9 146
7145-6-3-745-XX TUBE Mini TUBE Bollard / Double Sided OD-7145 HIT-TC-CE PGj5 2x20W - 28 146
7146-0-2-221-XX CORE Mini CORE Bollard / Single Sided OD-7146 QPAR51 GU10 50W / TCR50-SE GU10 14W 172
7146-0-2-261-XX CORE Mini CORE Bollard / Single Sided OD-7146 PAR20 E27 50W / TCR63-SE E27 13W 172
7146-0-3-962-XX CORE Mini CORE Bollard / Single Sided OD-7146 3LED 8.4W 700mA 450lm 3000K 30 172
7146-0-3-963-XX CORE Mini CORE Bollard / Single Sided OD-7146 3LED 8.4W 700mA 450lm 3000K 13/44 172
7146-5-3-745-XX CORE Mini CORE Bollard / Single Sided OD-7146 HIT-TC-CE PGj5 20W - 9 172
7146-6-3-745-XX CORE Mini CORE Bollard / Single Sided OD-7146 HIT-TC-CE PGj5 20W - 28 172
7147-0-2-221-XX CORE Mini CORE Bollard / Double Sided OD-7147 QPAR51 GU10 2x50W / TCR50-SE GU10 2x14W 172
7147-0-2-261-XX CORE Mini CORE Bollard / Double Sided OD-7147 PAR20 E27 2x50W / TCR63-SE E27 2x13W 172
7147-0-3-962-XX CORE Mini CORE Bollard / Double Sided OD-7147 2x3LED 8.4W 700mA 2x450lm 3000K 30 172
7147-0-3-963-XX CORE Mini CORE Bollard / Double Sided OD-7147 2x3LED 16.8W 700mA 2x450lm 3000K 13/44 172
7147-5-3-745-XX CORE Mini CORE Bollard / Double Sided OD-7147 HIT-TC-CE PGj5 2x20W - 9 172
7147-6-3-745-XX CORE Mini CORE Bollard / Double Sided OD-7147 HIT-TC-CE PGj5 2x20W - 28 172
7150-0-2-495-XX POM POM Opal Bollard OD-7150 TC-TSE E27 23W 272
7150-0-3-424-XX POM POM Opal Bollard OD-7150 TC-D G24d-3 26W 272
7150-0-3-436-XX POM POM Opal Bollard OD-7150 TC-TEL GX24q-3/4 26/32/42W 272
7150-0-3-611-XX POM POM Opal Bollard OD-7150 HSE-I E27 70W 272
7150-0-3-711-XX POM POM Opal Bollard OD-7150 HIE-CE E27 70W 272
7151-0-2-495-XX POM POM Prismatic Bollard OD-7151 TC-TSE E27 23W 273
7151-0-3-424-XX POM POM Prismatic Bollard OD-7151 TC-D G24d-3 26W 273
7151-0-3-436-XX POM POM Prismatic Bollard OD-7151 TC-TEL GX24q-3/4 26/32/42W 273
7151-0-3-611-XX POM POM Prismatic Bollard OD-7151 HSE-I E27 70W 273
7151-0-3-711-XX POM POM Prismatic Bollard OD-7151 HIE-CE E27 70W 273
7160-0-3-424-XX BUZZ BUZZ1 Ground Washer OD-7160 TC-D G24d-3 26W 320
7160-0-3-435-XX BUZZ BUZZ1 Ground Washer OD-7160 TC-TEL GX24q-3 26W/32W 320
7160-0-3-751-XX BUZZ BUZZ1 Ground Washer OD-7160 HIT-CE G12 35W (CG) 320
7160-0-3-752-XX BUZZ BUZZ1 Ground Washer OD-7160 HIT-CE G12 70W (CG) 320
7160-0-3-780-XX BUZZ BUZZ1 Ground Washer OD-7160 HIT-CE G12 35W (EG) 320
7160-0-3-781-XX BUZZ BUZZ1 Ground Washer OD-7160 HIT-CE G12 70W (EG) 320
7161-0-3-424-XX BUZZ BUZZ2 Ground Washer OD-7161 TC-D G24d-3 26W 320
7161-0-3-435-XX BUZZ BUZZ2 Ground Washer OD-7161 TC-TEL GX24q-3 26W/32W 320
7161-0-3-751-XX BUZZ BUZZ2 Ground Washer OD-7161 HIT-CE G12 35W (CG) 320
7161-0-3-752-XX BUZZ BUZZ2 Ground Washer OD-7161 HIT-CE G12 70W (CG) 320
7161-0-3-780-XX BUZZ BUZZ2 Ground Washer OD-7161 HIT-CE G12 35W (EG) 320
7161-0-3-781-XX BUZZ BUZZ2 Ground Washer OD-7161 HIT-CE G12 70W (EG) 320
7162-0-3-424-XX BUZZ BUZZ3 Ground Washer OD-7162 TC-D G24d-3 26W 321
7162-0-3-435-XX BUZZ BUZZ3 Ground Washer OD-7162 TC-TEL GX24q-3 26W/32W 321
7162-0-3-751-XX BUZZ BUZZ3 Ground Washer OD-7162 HIT-CE G12 35W (CG) 321
7162-0-3-752-XX BUZZ BUZZ3 Ground Washer OD-7162 HIT-CE G12 70W (CG) 321
7162-0-3-780-XX BUZZ BUZZ3 Ground Washer OD-7162 HIT-CE G12 35W (EG) 321
7162-0-3-781-XX BUZZ BUZZ3 Ground Washer OD-7162 HIT-CE G12 70W (EG) 321
7201-0-3-436-XX RAY RAY Pole - Top Light OD-7201 TC-TEL GX24q-4 42W 326
7201-0-3-611-XX RAY RAY Pole - Top Light OD-7201 HSE-I E27 70W 326
7201-0-3-711-XX RAY RAY Pole - Top Light OD-7201 HIE-CE E27 70W 326
7202-0-3-436-XX TEARA TEARA Pole - Top Light OD-7202 TC-TEL GX24q-4 42W 332
7202-0-3-611-XX TEARA TEARA Pole - Top Light OD-7202 HSE-I E27 70W 332
7202-0-3-711-XX TEARA TEARA Pole - Top Light OD-7202 HIE-CE E27 70W 332
7203-0-3-436-XX CONE CONE1 Pole - Top Light OD-7203 TC-TEL GX24q-4 42W 338
7203-0-3-611-XX CONE CONE1 Pole - Top Light OD-7203 HSE-I E27 70W 338
7203-0-3-711-XX CONE CONE1 Pole - Top Light OD-7203 HIE-CE E27 70W 338
7204-0-3-436-XX CONE CONE2 Pole - Top Light OD-7204 TC-TEL GX24q-4 42W 339
7204-0-3-611-XX CONE CONE2 Pole - Top Light OD-7204 HSE-I E27 70W 339
7204-0-3-711-XX CONE CONE2 Pole - Top Light OD-7204 HIE-CE E27 70W 339
7207-0-3-436-XX STICK STICK Louver Light Column OD-7207 TC-TEL GX24q-4 42W 376
7207-0-3-611-XX STICK STICK Louver Light Column OD-7207 HSE-I E27 70W 376
7207-0-3-711-XX STICK STICK Louver Light Column OD-7207 HIE-CE E27 70W 376
7210-0-3-436-XX EPSYLON EPSYLON Pole - Top Light OD-7210 TC-TEL GX24q-4 42W 346

Odering Code Family Name Product Name Product Code Lamp Type Page
7210-0-3-611-XX EPSYLON EPSYLON Pole - Top Light OD-7210 HSE-I E27 70W 346
7210-0-3-613-XX EPSYLON EPSYLON Pole - Top Light OD-7210 HSE E40 150W 346
7210-0-3-711-XX EPSYLON EPSYLON Pole - Top Light OD-7210 HIE-CE E27 70W 346
7210-0-3-713-XX EPSYLON EPSYLON Pole - Top Light OD-7210 HIE-CE E27 150W 346
7211-0-3-711-XX CONE CONE3 Pole - Top Light OD-7211 HIE-CE E27 70W 340
7211-0-3-752-XX CONE CONE3 Pole - Top Light OD-7211 HIT-CE G12 70W 340
7212-0-3-751-XX STICK STICK Cone Light Column OD-7212 HIT-CE G12 35W 377
7212-0-3-752-XX STICK STICK Cone Light Column OD-7212 HIT-CE G12 70W 377
7213-0-3-313-XX PILLAR PILLAR OD-7213 T5 G5 3x28W 382
7213-0-3-328-XX PILLAR PILLAR OD-7213 T8 G13 3x36W 382
7217-0-3-316-XX EQUINOX EQUINOX Pole Light - Single Sided OD-7217 T5 G5 2x28W 352
7217-0-3-317-XX EQUINOX EQUINOX Pole Light - Single Sided OD-7217 T5 G5 2x35W 352
7217-0-3-332-XX EQUINOX EQUINOX Pole Light - Single Sided OD-7217 T5 G5 2x54W 352
7217-3-3-978-XX EQUINOX EQUINOX Pole Light - Single Sided OD-7217 2x24LED 230V 28.8W (integral 12V driver) 1860lm 3800K Flat Lens 352
7217-7-3-978-XX EQUINOX EQUINOX Pole Light - Single Sided OD-7217 2x24LED 230V 28.8W (integral 12V driver) 1860lm 3800K Wide Lens 352
7218-0-3-316-XX EQUINOX EQUINOX Pole Light - Double Sided OD-7218 T5 G5 2x[2x28W] 352
7218-0-3-317-XX EQUINOX EQUINOX Pole Light - Double Sided OD-7218 T5 G5 2x[2x35W] 352
7218-0-3-332-XX EQUINOX EQUINOX Pole Light - Double Sided OD-7218 T5 G5 2x[2x54W] 352
7218-3-3-978-XX EQUINOX EQUINOX Pole Light - Double Sided OD-7218 2x48LED 230V 57.6W (integral 12V driver) 2x1860lm 3800K Flat Lens 352
7218-7-3-978-XX EQUINOX EQUINOX Pole Light - Double Sided OD-7218 2x48LED 230V 57.6W (integral 12V driver) 2x1860lm 3800K Wide Lens 352
7221-0-3-751-XX HELIOS HELIOS - Asymmetric Pole Top OD-7221 HIT-CE G12 35W 358
7221-0-3-752-XX HELIOS HELIOS - Asymmetric Pole Top OD-7221 HIT-CE G12 70W 358
7221-0-3-753-XX HELIOS HELIOS - Asymmetric Pole Top OD-7221 HIT-CE G12 150W 358
7222-0-3-751-XX MARANELLO MARANELLO - Pole Top OD-7222 HIT-CE G12 35W 364
7222-0-3-752-XX MARANELLO MARANELLO - Pole Top OD-7222 HIT-CE G12 70W 364
7222-0-3-753-XX MARANELLO MARANELLO - Pole Top OD-7222 HIT-CE G12 150W 364
7222-0-3-969-XX MARANELLO MARANELLO - Pole Top OD-7222 6LED 16.8W 700mA 864lm 3000K 364
7223-0-3-751-XX BLAZE BLAZE - Pole Top OD-7223 HIT-CE G12 35W 370
7223-0-3-752-XX BLAZE BLAZE - Pole Top OD-7223 HIT-CE G12 70W 370
7223-0-3-753-XX BLAZE BLAZE - Pole Top OD-7223 HIT-CE G12 150W 370
7224-0-3-751-XX HELIOS HELIOS - Symmetric Pole Top OD-7224 HIT-CE G12 35W 359
7224-0-3-752-XX HELIOS HELIOS - Symmetric Pole Top OD-7224 HIT-CE G12 70W 359
7224-0-3-753-XX HELIOS HELIOS - Symmetric Pole Top OD-7224 HIT-CE G12 150W 359
7226-0-3-968-XX CORE Maxi CORE - Pole Light / Single Sided OD-7226 6LED 16.8W 700mA 864lm 3000K 7 173
7226-0-3-969-XX CORE Maxi CORE - Pole Light / Single Sided OD-7226 6LED 16.8W 700mA 864lm 3000K 13 173
7226-0-3-970-XX CORE Maxi CORE - Pole Light / Single Sided OD-7226 6LED 16.8W 700mA 864lm 3000K 30 173
7226-0-3-971-XX CORE Maxi CORE - Pole Light / Single Sided OD-7226 6LED 16.8W 700mA 864lm 3000K 13/44 173
7226-5-3-752-XX CORE Maxi CORE - Pole Light / Single Sided OD-7226 HIT-CE G12 70W - 10 173
7226-6-3-752-XX CORE Maxi CORE - Pole Light / Single Sided OD-7226 HIT-CE G12 70W - 28 173
7226-7-3-752-XX CORE Maxi CORE - Pole Light / Single Sided OD-7226 HIT-CE G12 70W - 46 173
7226-9-3-752-XX CORE Maxi CORE - Pole Light / Single Sided OD-7226 HIT-CE G12 70W - Asymmetric forward throw 173
7227-0-3-968-XX CORE Maxi CORE - Pole Light / Double Sided OD-7227 2x6LED 33.6W 700mA 2x864lm 3000K 7 173
7227-0-3-969-XX CORE Maxi CORE - Pole Light / Double Sided OD-7227 2x6LED 33.6W 700mA 2x864lm 3000K 13 173
7227-0-3-970-XX CORE Maxi CORE - Pole Light / Double Sided OD-7227 2x6LED 33.6W 700mA 2x864lm 3000K 30 173
7227-0-3-971-XX CORE Maxi CORE - Pole Light / Double Sided OD-7227 2x6LED 33.6W 700mA 2x864lm 3000K 13/44 173
7227-5-3-752-XX CORE Maxi CORE - Pole Light / Double Sided OD-7227 HIT-CE G12 2x70W - 10 173
7227-6-3-752-XX CORE Maxi CORE - Pole Light / Double Sided OD-7227 HIT-CE G12 2x70W - 28 173
7227-7-3-752-XX CORE Maxi CORE - Pole Light / Double Sided OD-7227 HIT-CE G12 2x70W - 46 173
7227-9-3-752-XX CORE Maxi CORE - Pole Light / Double Sided OD-7227 HIT-CE G12 2x70W - Asymmetric forward throw 173
7228-7-2-235-XX RECTOR RECTOR - Pole Light / Single OD-7228 QT-DE12 RX7s 300W - Bi-Symmetric 180
7228-7-3-731-XX RECTOR RECTOR - Pole Light / Single OD-7228 HIT-DE-CE RX7s 70W - Bi-Symmetric 180
7228-7-3-751-XX RECTOR RECTOR - Pole Light / Single OD-7228 HIT-CE G12 35W - Bi-Symmetric 180
7228-7-3-752-XX RECTOR RECTOR - Pole Light / Single OD-7228 HIT-CE G12 70W - Bi-Symmetric 180
7228-9-3-751-XX RECTOR RECTOR - Pole Light / Single OD-7228 HIT-CE G12 35W - Asymmetric 180
7228-9-3-752-XX RECTOR RECTOR - Pole Light / Single OD-7228 HIT-CE G12 70W - Asymmetric 180
7229-7-2-236-XX RECTOR RECTOR - Pole Light / Double OD-7229 QT-DE12 RX7s 2x300W - Bi-Symmetric 181
7229-7-3-735-XX RECTOR RECTOR - Pole Light / Double OD-7229 HIT-DE-CE RX7s 2x70W - Bi-Symmetric 181
7229-7-3-754-XX RECTOR RECTOR - Pole Light / Double OD-7229 HIT-CE G12 2x35W - Bi-Symmetric 181
7229-7-3-755-XX RECTOR RECTOR - Pole Light / Double OD-7229 HIT-CE G12 2x70W - Bi-Symmetric 181
7229-9-3-754-XX RECTOR RECTOR - Pole Light / Double OD-7229 HIT-CE G12 2x35W - Asymmetric 181
7229-9-3-755-XX RECTOR RECTOR - Pole Light / Double OD-7229 HIT-CE G12 2x70W - Asymmetric 181
7233-0-3-436-XX RAY RAY Pole - Top Light / Double Head OD-7233 TC-TEL GX24q-4 2x42W 327
7233-0-3-611-XX RAY RAY Pole - Top Light / Double Head OD-7233 HSE-I E27 2x70W 327
7233-0-3-711-XX RAY RAY Pole - Top Light / Double Head OD-7233 HIE-CE E27 2x70W 327
7234-0-3-438-XX TEARA TEARA Pole - Top Light / Double Head OD-7234 TC-TEL GX24q-4 2x42W 332
7234-0-3-601-XX TEARA TEARA Pole - Top Light / Double Head OD-7234 HSE-I E27 2x70W 332
7234-0-3-701-XX TEARA TEARA Pole - Top Light / Double Head OD-7234 HIE-CE E27 2x70W 332
7236-0-3-436-XX EPSYLON EPSYLON Pole - Top Light / Double Head OD-7236 TC-TEL GX24q-4 2x42W 346
7236-0-3-611-XX EPSYLON EPSYLON Pole - Top Light / Double Head OD-7236 HSE-I E27 2x70W 346
7236-0-3-613-XX EPSYLON EPSYLON Pole - Top Light / Double Head OD-7236 HSE E40 2x150W 346
7236-0-3-711-XX EPSYLON EPSYLON Pole - Top Light / Double Head OD-7236 HIE-CE E27 2x70W 346
7236-0-3-713-XX EPSYLON EPSYLON Pole - Top Light / Double Head OD-7236 HIE-CE E27 2x150W 346
7238-0-3-968-XX TUBE Maxi TUBE Pole Light / Single Sided OD-7238 6LED 16.8W 700mA 864lm 3000K 7 147
7238-0-3-969-XX TUBE Maxi TUBE Pole Light / Single Sided OD-7238 6LED 16.8W 700mA 864lm 3000K 13 147
7238-0-3-970-XX TUBE Maxi TUBE Pole Light / Single Sided OD-7238 6LED 16.8W 700mA 864lm 3000K 30 147
7238-0-3-971-XX TUBE Maxi TUBE Pole Light / Single Sided OD-7238 6LED 16.8W 700mA 864lm 3000K 13/44 147
7238-5-3-752-XX TUBE Maxi TUBE Pole Light / Single Sided OD-7238 HIT-CE G12 70W - 10 147
7238-6-3-752-XX TUBE Maxi TUBE Pole Light / Single Sided OD-7238 HIT-CE G12 70W - 28 147
7238-7-3-752-XX TUBE Maxi TUBE Pole Light / Single Sided OD-7238 HIT-CE G12 70W - 46 147
7238-9-3-752-XX TUBE Maxi TUBE Pole Light / Single Sided OD-7238 HIT-CE G12 70W - Asymmetric forward throw 147
7239-0-3-968-XX TUBE Maxi TUBE Pole Light / Double Sided OD-7239 2x6LED 33.6W 700mA 2x864lm 3000K 7 147
7239-0-3-969-XX TUBE Maxi TUBE Pole Light / Double Sided OD-7239 2x6LED 33.6W 700mA 2x864lm 3000K 13 147
7239-0-3-970-XX TUBE Maxi TUBE Pole Light / Double Sided OD-7239 2x6LED 33.6W 700mA 2x864lm 3000K 30 147
7239-0-3-971-XX TUBE Maxi TUBE Pole Light / Double Sided OD-7239 2x6LED 33.6W 700mA 2x864lm 3000K 13/44 147
7239-5-3-752-XX TUBE Maxi TUBE Pole Light / Double Sided OD-7239 HIT-CE G12 2x70W - 10 147
7239-6-3-752-XX TUBE Maxi TUBE Pole Light / Double Sided OD-7239 HIT-CE G12 2x70W - 28 147
7239-7-3-752-XX TUBE Maxi TUBE Pole Light / Double Sided OD-7239 HIT-CE G12 2x70W - 46 147
7239-9-3-752-XX TUBE Maxi TUBE Pole Light / Double Sided OD-7239 HIT-CE G12 2x70W - Asymmetric forward throw 147
510

511
Odering Code Family Name Product Name Product Code Lamp Type Page
7240-1-2-235-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Single Sided OD-7240 QT-DE12 RX7s 300W 430
7240-1-3-631-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Single Sided OD-7240 HST-DE RX7s 70W 430
7240-1-3-632-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Single Sided OD-7240 HST-DE RX7s-24 150W 430
7240-1-3-731-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Single Sided OD-7240 HIT-DE-CE RX7s 70W 430
7240-1-3-732-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Single Sided OD-7240 HIT-DE-CE RX7s-24 150W 430
7241-7-2-235-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7241 QT-DE12 RX7s 300W 431
7241-7-3-631-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7241 HST-DE RX7s 70W 431
7241-7-3-632-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7241 HST-DE RX7s-24 150W 431
7241-7-3-731-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7241 HIT-DE-CE RX7s 70W 431
7241-7-3-732-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7241 HIT-DE-CE RX7s-24 150W 431
7242-1-2-235-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Double Sided OD-7242 QT-DE12 RX7s 2x300W 430
7242-1-3-631-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Double Sided OD-7242 HST-DE RX7s 2x70W 430
7242-1-3-632-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Double Sided OD-7242 HST-DE RX7s-24 2x150W 430
7242-1-3-731-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Double Sided OD-7242 HIT-DE-CE RX7s 2x70W 430
7242-1-3-732-XX SIROCCO Small SIROCCO - Area Light / Asymmetric Double Sided OD-7242 HIT-DE-CE RX7s-24 2x150W 430
7243-7-2-235-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7243 QT-DE12 RX7s 2x300W 431
7243-7-3-631-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7243 HST-DE RX7s 2x70W 431
7243-7-3-632-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7243 HST-DE RX7s-24 2x150W 431
7243-7-3-731-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7243 HIT-DE-CE RX7s 2x70W 431
7243-7-3-732-XX SIROCCO Small SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7243 HIT-DE-CE RX7s-24 2x150W 431
7244-2-3-752-XX SIROCCO Small SIROCCO - Area Light / Road Optic Single Sided OD-7244 HIT-CE G12 70W 430
7244-2-3-753-XX SIROCCO Small SIROCCO - Area Light / Road Optic Single Sided OD-7244 HIT-CE G12 150W 430
7245-2-3-752-XX SIROCCO Small SIROCCO - Area Light / Road Optic Double Sided OD-7245 HIT-CE G12 2x70W 430
7245-2-3-753-XX SIROCCO Small SIROCCO - Area Light / Road Optic Double Sided OD-7245 HIT-CE G12 2x150W 430
7250-1-3-623-XX SIROCCO Medium SIROCCO - Area Light / Asymmetric Single Sided OD-7250 HST-MF E40 150W 432
7250-1-3-633-XX SIROCCO Medium SIROCCO - Area Light / Asymmetric Single Sided OD-7250 HST-DE Fc2 250W 432
7250-1-3-722-XX SIROCCO Medium SIROCCO - Area Light / Asymmetric Single Sided OD-7250 HIT-CE E40 150W 432
7250-1-3-733-XX SIROCCO Medium SIROCCO - Area Light / Asymmetric Single Sided OD-7250 HIT-DE-CE Fc2 250W 432
7251-7-3-623-XX SIROCCO Medium SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7251 HST-DE Fc2 150W 433
7251-7-3-633-XX SIROCCO Medium SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7251 HST-DE Fc2 250W 433
7251-7-3-722-XX SIROCCO Medium SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7251 HIT-CE E40 150W 433
7251-7-3-733-XX SIROCCO Medium SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7251 HIT-DE-CE Fc2 250W 433
7252-1-3-623-XX SIROCCO Medium SIROCCO - Area Light / Asymmetric Double Sided OD-7252 HST-MF E40 2x150W 432
7252-1-3-633-XX SIROCCO Medium SIROCCO - Area Light / Asymmetric Double Sided OD-7252 HST-DE Fc2 2x250W 432
7252-1-3-722-XX SIROCCO Medium SIROCCO - Area Light / Asymmetric Double Sided OD-7252 HIT-CE E40 2x150W 432
7252-1-3-733-XX SIROCCO Medium SIROCCO - Area Light / Asymmetric Double Sided OD-7252 HIT-DE-CE Fc2 2x250W 432
7253-7-3-623-XX SIROCCO Medium SIROCCO - Area Light / Bi-Symmetric Double Side OD-7253 HST-DE Fc2 2x150W 433
7253-7-3-633-XX SIROCCO Medium SIROCCO - Area Light / Bi-Symmetric Double Side OD-7253 HST-DE Fc2 2x250W 433
7253-7-3-722-XX SIROCCO Medium SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7253 HIT-CE E40 2x150W 433
7253-7-3-733-XX SIROCCO Medium SIROCCO - Area Light / Bi-Symmetric Double Side OD-7253 HIT-DE-CE Fc2 2x250W 433
7254-2-3-770-XX SIROCCO Medium SIROCCO - Area Light / Road Optic Single Sided OD-7254 HIT-CE G22 250W 432
7254-2-3-794-XX SIROCCO Medium SIROCCO - Area Light / Road Optic Single Sided OD-7254 CDM-T Elite PGZ18 210W (Philips) 432
7255-2-3-770-XX SIROCCO Medium SIROCCO - Area Light / Road Optic Double Sided OD-7255 HIT-CE G22 2x250W 432
7255-2-3-794-XX SIROCCO Medium SIROCCO - Area Light / Road Optic Double Sided OD-7255 CDM-T Elite PGZ18 2x210W (Philips) 432
7260-1-3-624-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Single Sided OD-7260 HST-MF E40 250W 434
7260-1-3-625-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Single Sided OD-7260 HST-MF E40 400W 434
7260-1-3-633-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Single Sided OD-7260 HST-DE Fc2 250W 434
7260-1-3-634-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Single Sided OD-7260 HST-DE Fc2 400W 434
7260-1-3-723-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Single Sided OD-7260 HIT-CE E40 250W 434
7260-1-3-724-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Single Sided OD-7260 HIT-CE E40 400W 434
7260-1-3-733-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Single Sided OD-7260 HIT-DE-CE Fc2 250W 434
7260-1-3-734-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Single Sided OD-7260 HIT-DE-CE Fc2 400W 434
7261-7-3-624-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7261 HST-MF E40 250W 436
7261-7-3-625-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7261 HST-MF E40 400W 436
7261-7-3-633-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7261 HST-DE Fc2 250W 436
7261-7-3-634-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7261 HST-DE Fc2 400W 436
7261-7-3-723-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7261 HIT-CE E40 250W 436
7261-7-3-724-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7261 HIT-CE E40 400W 436
7261-7-3-733-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7261 HIT-DE-CE Fc2 250W 436
7261-7-3-734-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Single Sided OD-7261 HIT-DE-CE Fc2 400W 436
7262-1-3-624-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Double Sided OD-7262 HST-MF E40 2x250W 434
7262-1-3-625-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Double Sided OD-7262 HST-MF E40 2x400W 434
7262-1-3-633-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Double Sided OD-7262 HST-DE Fc2 2x250W 434
7262-1-3-634-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Double Sided OD-7262 HST-DE Fc2 2x400W 434
7262-1-3-723-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Double Sided OD-7262 HIT-CE E40 2x250W 434
7262-1-3-724-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Double Sided OD-7262 HIT-CE E40 2x400W 434
7262-1-3-733-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Double Sided OD-7262 HIT-DE-CE Fc2 2x250W 434
7262-1-3-734-XX SIROCCO Large SIROCCO - Area Light / Asymmetric Double Sided OD-7262 HIT-DE-CE Fc2 2x400W 434
7263-7-3-624-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7263 HST-MF E40 2x250W 436
7263-7-3-625-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7263 HST-MF E40 2x400W 436
7263-7-3-633-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7263 HST-DE Fc2 2x250W 436
7263-7-3-634-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7263 HST-DE Fc2 2x400W 436
7263-7-3-723-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7263 HIT-CE E40 2x250W 436
7263-7-3-724-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7263 HIT-CE E40 2x400W 436
7263-7-3-733-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7263 HIT-DE-CE Fc2 2x250W 436
7263-7-3-734-XX SIROCCO Large SIROCCO - Area Light / Bi-Symmetric Double Sided OD-7263 HIT-DE-CE Fc2 2x400W 436
7264-2-3-624-XX SIROCCO Large SIROCCO - Area Light / Road Optic Single Sided OD-7264 HST-MF E40 250W 435
7264-2-3-625-XX SIROCCO Large SIROCCO - Area Light / Road Optic Single Sided OD-7264 HST-MF E40 400W 435
7264-2-3-723-XX SIROCCO Large SIROCCO - Area Light / Road Optic Single Sided OD-7264 HIT-CE E40 250W 435
7264-2-3-724-XX SIROCCO Large SIROCCO - Area Light / Road Optic Single Sided OD-7264 HIT-CE E40 400W 435
7264-2-3-795-XX SIROCCO Large SIROCCO - Area Light / Road Optic Single Sided OD-7264 CDM-T Elite PGZ18 315W (Philips) 435
7265-2-3-624-XX SIROCCO Large SIROCCO - Area Light / Road Optic Double Sided OD-7265 HST-MF E40 2x250W 435
7265-2-3-625-XX SIROCCO Large SIROCCO - Area Light / Road Optic Double Sided OD-7265 HST-MF E40 2x400W 435
7265-2-3-723-XX SIROCCO Large SIROCCO - Area Light / Road Optic Double Sided OD-7265 HIT-CE E40 2x250W 435
7265-2-3-724-XX SIROCCO Large SIROCCO - Area Light / Road Optic Double Sided OD-7265 HIT-CE E40 2x400W 435
7265-2-3-795-XX SIROCCO Large SIROCCO - Area Light / Road Optic Double Sided OD-7265 CDM-T Elite PGZ18 2x315W (Philips) 435
7270-1-3-624-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7270 HST-MF E40 250W - Asymmetric 398
7270-1-3-625-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7270 HST-MF E40 400W - Asymmetric 398

Odering Code Family Name Product Name Product Code Lamp Type Page
7270-1-3-723-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7270 HIT-CE E40 250W - Asymmetric 398
7270-1-3-724-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7270 HIT-CE E40 400W - Asymmetric 398
7271-2-3-624-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7271 HST-MF E40 250W - Bi-Symmetric 398
7271-2-3-625-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7271 HST-MF E40 400W - Bi-Symmetric 398
7271-2-3-723-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7271 HIT-CE E40 250W - Bi-Symmetric 398
7271-2-3-724-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7271 HIT-CE E40 400W - Bi-Symmetric 398
7272-1-3-603-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7272 HST-MF E40 2x250W - Asymmetric 400
7272-1-3-604-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7272 HST-MF E40 2x400W - Asymmetric 400
7272-1-3-703-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7272 HIT-CE E40 2x250W - Asymmetric 400
7272-1-3-704-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7272 HIT-CE E40 2x400W - Asymmetric 400
7273-2-3-603-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7273 HST-MF E40 2x250W - Bi-Symmetric 400
7273-2-3-604-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7273 HST-MF E40 2x400W - Bi-Symmetric 400
7273-2-3-703-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7273 HIT-CE E40 2x250W - Bi-Symmetric 400
7273-2-3-704-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7273 HIT-CE E40 2x400W - Bi-Symmetric 400
7274-1-3-624-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7274 HST-MF E40 250W - Road Optic 399
7274-1-3-625-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7274 HST-MF E40 400W - Road Optic 399
7274-1-3-723-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7274 HIT-CE E40 250W - Road Optic 399
7274-1-3-724-XX MATCH BOX MATCH BOX Area Light / Single Sided OD-7274 HIT-CE E40 400W - Road Optic 399
7275-1-3-603-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7275 HST-MF E40 2x250W - Road Optic 401
7275-1-3-604-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7275 HST-MF E40 2x400W - Road Optic 401
7275-1-3-703-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7275 HIT-CE E40 2x250W - Road Optic 401
7275-1-3-704-XX MATCH BOX MATCH BOX Area Light / Double Sided OD-7275 HIT-CE E40 2x400W - Road Optic 401
7295-9-3-624-XX ANDROMEDA ANDROMEDA Area Light / Single Sided OD-7295 HST-MF E40 250W 389
7295-9-3-625-XX ANDROMEDA ANDROMEDA Area Light / Single Sided OD-7295 HST-MF E40 400W 389
7295-9-3-723-XX ANDROMEDA ANDROMEDA Area Light / Single Sided OD-7295 HIT-CE E40 250W 389
7295-9-3-724-XX ANDROMEDA ANDROMEDA Area Light / Single Sided OD-7295 HIT-CE E40 400W 389
7296-9-3-624-XX ANDROMEDA ANDROMEDA Area Light / Double Sided OD-7296 HST-MF E40 2x250W 389
7296-9-3-625-XX ANDROMEDA ANDROMEDA Area Light / Double Sided OD-7296 HST-MF E40 2x400W 389
7296-9-3-723-XX ANDROMEDA ANDROMEDA Area Light / Double Sided OD-7296 HIT-CE E40 2x250W 389
7296-9-3-724-XX ANDROMEDA ANDROMEDA Area Light / Double Sided OD-7296 HIT-CE E40 2x400W 389
7300-0-2-263-XX TUBE Maxi TUBE - Recess Downlight / Frost Glass OD-7300 PAR38 E27 120W / TCPAR38-SE E27 23W 140
7300-7-2-495-XX TUBE Maxi TUBE - Recess Downlight / Frost Glass OD-7300 TC-TSE E27 23W 140
7300-7-3-424-XX TUBE Maxi TUBE - Recess Downlight / Frost Glass OD-7300 TC-D G24d-3 26W 140
7300-7-3-436-XX TUBE Maxi TUBE - Recess Downlight / Frost Glass OD-7300 TC-DEL G24q-3 26W / TC-TEL GX24q-4 42W 140
7300-7-3-611-XX TUBE Maxi TUBE - Recess Downlight / Frost Glass OD-7300 HSE-I E27 70W - Flood 140
7300-7-3-711-XX TUBE Maxi TUBE - Recess Downlight / Frost Glass OD-7300 HIE-CE E27 70W - Flood 140
7300-7-3-751-XX TUBE Maxi TUBE - Recess Downlight / Frost Glass OD-7300 HIT-CE G12 35W - Flood 140
7300-7-3-752-XX TUBE Maxi TUBE - Recess Downlight / Frost Glass OD-7300 HIT-CE G12 70W - Flood 140
7302-0-2-263-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 PAR38 E27 120W / TCPAR38-SE E27 23W 138
7302-0-3-968-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 6LED 16.8W 700mA 864lm 3000K 7 138
7302-0-3-969-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 6LED 16.8W 700mA 864lm 3000K 13 138
7302-0-3-970-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 6LED 16.8W 700mA 864lm 3000K 30 138
7302-0-3-971-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 6LED 16.8W 700mA 864lm 3000K 13/44 138
7302-5-3-751-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 HIT-CE G12 35W - 5 139
7302-5-3-752-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 HIT-CE G12 70W - 5 139
7302-7-2-495-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 TC-TSE E27 23W 138
7302-7-3-424-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 TC-D G24d-3 26W 138
7302-7-3-436-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 TC-DEL G24q-3 26W / TC-TEL GX24q-4 42W 138
7302-7-3-611-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 HSE-I E27 70W - Flood 139
7302-7-3-711-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 HIE-CE E27 70W - Flood 139
7302-7-3-751-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 HIT-CE G12 35W - 38 139
7302-7-3-752-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 HIT-CE G12 70W - 38 139
7302-9-3-751-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 HIT-CE G12 35W - Asymmetric 139
7302-9-3-752-XX TUBE Maxi TUBE - Recess Downlight / Clear Glass OD-7302 HIT-CE G12 70W - Asymmetric 139
7310-7-3-745-XX TUBE Mini TUBE - Recess Downlight / Frost Glass (HD) OD-7310 HIT-TC-CE PGj5 20W - Flood 137
7311-0-2-221-XX TUBE Mini TUBE - Recess Downlight / Frost Glass OD-7311 QPAR51 GU10 50W / TCR50-SE GU10 14W 137
7311-0-2-261-XX TUBE Mini TUBE - Recess Downlight / Frost Glass OD-7311 PAR20 E27 50W / TCR63-SE E27 13W 137
7312-0-2-221-XX TUBE Mini TUBE - Recess Downlight / Clear Glass OD-7312 QPAR51 GU10 50W / TCR50-SE GU10 14W 136
7312-0-2-261-XX TUBE Mini TUBE - Recess Downlight / Clear Glass OD-7312 PAR20 E27 50W / TCR63-SE E27 13W 136
7312-0-3-960-XX TUBE Mini TUBE - Recess Downlight / Clear Glass OD-7312 3LED 8.4W 700mA 450lm 3000K 7 136
7312-0-3-961-XX TUBE Mini TUBE - Recess Downlight / Clear Glass OD-7312 3LED 8.4W 700mA 450lm 3000K 13 136
7312-0-3-962-XX TUBE Mini TUBE - Recess Downlight / Clear Glass OD-7312 3LED 8.4W 700mA 450lm 3000K 30 136
7312-0-3-963-XX TUBE Mini TUBE - Recess Downlight / Clear Glass OD-7312 3LED 8.4W 700mA 450lm 3000K 13/44 136
7313-5-3-745-XX TUBE Mini TUBE - Recess Downlight / Clear Glass (HD) OD-7313 HIT-TC-CE PGj5 20W - 9 136
7313-6-3-745-XX TUBE Mini TUBE - Recess Downlight / Clear Glass (HD) OD-7313 HIT-TC-CE PGj5 20W - 28 136
7321-0-2-262-XX CORE Maxi CORE - Recess Down Light / Frost Glass OD-7321 PAR30 E27 75W / TCPAR30-SE E27 15W 170
7321-7-3-424-XX CORE Maxi CORE - Recess Down Light / Frost Glass OD-7321 TC-D G24d-3 26W - flood 170
7321-7-3-435-XX CORE Maxi CORE - Recess Down Light / Frost Glass OD-7321 TC-DEL G24q-3 26W / TC-TEL GX24q-3 32W - Flood 170
7321-7-3-751-XX CORE Maxi CORE - Recess Down Light / Frost Glass OD-7321 HIT-CE G12 35W 170
7321-7-3-752-XX CORE Maxi CORE - Recess Down Light / Frost Glass OD-7321 HIT-CE G12 70W 170
7322-0-2-262-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 PAR30 E27 75W / TCPAR30-SE E27 15W 168
7322-0-3-968-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 6LED 16.8W 700mA 864lm 3000K 7 168
7322-0-3-969-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 6LED 16.8W 700mA 864lm 3000K 13 168
7322-0-3-970-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 6LED 16.8W 700mA 864lm 3000K 30 168
7322-0-3-971-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 6LED 16.8W 700mA 864lm 3000K 13/44 168
7322-5-3-751-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 HIT-CE G12 35W - 10 169
7322-5-3-752-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 HIT-CE G12 70W - 10 169
7322-6-3-751-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 HIT-CE G12 35W - 28 169
7322-6-3-752-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 HIT-CE G12 70W - 28 169
7322-7-3-424-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 TC-D G24d-3 26W 168
7322-7-3-435-XX CORE Maxi Core - Recess Down Light / Clear Glass OD-7322 TC-DEL G24q-3 26W / TC-TEL GX24q-3 32W 168
7322-7-3-751-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 HIT-CE G12 35W - 46 169
7322-7-3-752-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 HIT-CE G12 70W - 46 169
7322-9-3-751-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 HIT-CE G12 35W - Asymmetric 169
7322-9-3-752-XX CORE Maxi CORE - Recess Down Light / Clear Glass OD-7322 HIT-CE G12 70W - Asymmetric 169
7330-7-3-745-XX CORE Mini CORE - Recess Down Light / Frost Glass OD-7330 HIT-TC-CE PGj5 20W - Flood 167
7331-0-2-221-XX CORE Mini CORE - Recess Down Light / Frost Glass OD-7331 QPAR51 GU10 50W / TCR50-SE GU10 14W 167
7331-0-2-261-XX CORE Mini CORE - Recess Down Light / Frost Glass OD-7331 PAR20 E27 50W / TCR63-SE E27 13W 167
512

513
Odering Code Family Name Product Name Product Code Lamp Type Page
7332-0-2-221-XX CORE Mini CORE - Recess Down Light / Clear Glass OD-7332 QPAR51 GU10 50W / TCR50-SE GU10 14W 166
7332-0-2-261-XX CORE Mini CORE - Recess Down Light / Clear Glass OD-7332 PAR20 E27 50W / TCR63-SE E27 13W 166
7332-0-3-960-XX CORE Mini CORE - Recess Down Light / Clear Glass OD-7332 3LED 8.4W 700mA 450lm 3000K 7 166
7332-0-3-961-XX CORE Mini CORE - Recess Down Light / Clear Glass OD-7332 3LED 8.4W 700mA 450lm 3000K 13 166
7332-0-3-962-XX CORE Mini CORE - Recess Down Light / Clear Glass OD-7332 3LED 8.4W 700mA 450lm 3000K 30 166
7332-0-3-963-XX CORE Mini CORE - Recess Down Light / Clear Glass OD-7332 3LED 8.4W 700mA 450lm 3000K 13/44 166
7333-5-3-745-XX CORE Mini CORE - Recess Down Light / Clear Glass OD-7333 HIT-TC-CE PGj5 20W - 9 167
7333-6-3-745-XX CORE Mini CORE - Recess Down Light / Clear Glass OD-7333 HIT-TC-CE PGj5 20W - 28 167
7405-0-2-281-92 ACQUA ACQUA Wall Recess OD-7405 QR-CB51 GU5.3 50W 108
7405-0-2-960-92 ACQUA ACQUA Wall Recess OD-7405 3LED 8.4W 700mA 450lm 3000K 7 108
7405-0-2-961-92 ACQUA ACQUA Wall Recess OD-7405 3LED 8.4W 700mA 450lm 3000K 13 108
7405-0-2-962-92 ACQUA ACQUA Wall Recess OD-7405 3LED 8.4W 700mA 450lm 3000K 30 108
7405-0-2-963-92 ACQUA ACQUA Wall Recess OD-7405 3LED 8.4W 700mA 450lm 3000K 13/44 108
7406-0-2-281-92 ACQUA ACQUA Wall / Ground Mount OD-7406 QR-CB51 GU5.3 50W 109
7406-0-2-960-92 ACQUA ACQUA Wall / Ground Mount OD-7406 3LED 8.4W 700mA 450lm 3000K 7 109
7406-0-2-961-92 ACQUA ACQUA Wall / Ground Mount OD-7406 3LED 8.4W 700mA 450lm 3000K 13 109
7406-0-2-962-92 ACQUA ACQUA Wall / Ground Mount OD-7406 3LED 8.4W 700mA 450lm 3000K 30 109
7406-0-2-963-92 ACQUA ACQUA Wall / Ground Mount OD-7406 3LED 8.4W 700mA 450lm 3000K 13/44 109
7407-0-2-275-92 ACQUA ACQUA XL Wall Recess OD-7407 QR70 B15d 12V 50W - 8/24 110
7407-0-2-960-92 ACQUA ACQUA XL Wall Recess OD-7407 3LED 8.4W 700mA 450lm 3000K 7 110
7407-0-2-961-92 ACQUA ACQUA XL Wall Recess OD-7407 3LED 8.4W 700mA 450lm 3000K 13 110
7407-0-2-962-92 ACQUA ACQUA XL Wall Recess OD-7407 3LED 8.4W 700mA 450lm 3000K 30 110
7407-0-2-963-92 ACQUA ACQUA XL Wall Recess OD-7407 3LED 8.4W 700mA 450lm 3000K 13/44 110
7407-5-2-297-92 ACQUA ACQUA XL Wall Recess OD-7407 QT12 GY6.35 100W - 9 110
7407-6-2-297-92 ACQUA ACQUA XL Wall Recess OD-7407 QT12 GY6.35 100W - 25 110
7408-0-2-275-92 ACQUA ACQUA XL Wall / Ground Mount OD-7408 QR70 B15d 12V 50W - 8/24 111
7408-0-2-960-92 ACQUA ACQUA XL Wall / Ground Mount OD-7408 3LED 8.4W 700mA 450lm 3000K 7 111
7408-0-2-961-92 ACQUA ACQUA XL Wall / Ground Mount OD-7408 3LED 8.4W 700mA 450lm 3000K 13 111
7408-0-2-962-92 ACQUA ACQUA XL Wall / Ground Mount OD-7408 3LED 8.4W 700mA 450lm 3000K 30 111
7408-0-2-963-92 ACQUA ACQUA XL Wall / Ground Mount OD-7408 3LED 8.4W 700mA 450lm 3000K 13/44 111
7408-5-2-297-92 ACQUA ACQUA XL Wall / Ground Mount OD-7408 QT12 GY6.35 100W - 9 111
7408-6-2-297-92 ACQUA ACQUA XL Wall / Ground Mount OD-7408 QT12 GY6.35 100W - 25 111
7505-0-2-495-XX GRILL GRILL Round Wall Light OD-7505 TC-TSE E27 23W 278
7505-0-3-424-XX GRILL GRILL Round Wall Light OD-7505 TC-D G24d-3 26W 278
7505-0-3-436-XX GRILL GRILL Round Wall Light OD-7505 TC-TEL GX24q-3/4 26/32/42W 278
7505-0-3-611-XX GRILL GRILL Round Wall Light OD-7505 HSE-I E27 70W 278
7505-0-3-711-XX GRILL GRILL Round Wall Light OD-7505 HIE-CE E27 70W 278
7507-0-2-495-XX MACRON MACRON Flat Wall Light OD-7507 TC-TSE E27 23W 294
7507-0-3-424-XX MACRON MACRON Flat Wall Light OD-7507 TC-D G24d-3 26W 294
7507-0-3-436-XX MACRON MACRON Flat Wall Light OD-7507 TC-TEL GX24q-3/4 26/32/42W 294
7507-0-3-611-XX MACRON MACRON Flat Wall Light OD-7507 HSE-I E27 70W 294
7507-0-3-711-XX MACRON MACRON Flat Wall Light OD-7507 HIE-CE E27 70W 294
7508-0-2-495-XX MACRON MACRON Round Wall Light OD-7508 TC-TSE E27 23W 295
7508-0-3-424-XX MACRON MACRON Round Wall Light OD-7508 TC-D G24d-3 26W 295
7508-0-3-436-XX MACRON MACRON Round Wall Light OD-7508 TC-TEL GX24q-3/4 26/32/42W 295
7508-0-3-611-XX MACRON MACRON Round Wall Light OD-7508 HSE-I E27 70W 295
7508-0-3-711-XX MACRON MACRON Round Wall Light OD-7508 HIE-CE E27 70W 295
7511-0-2-493-XX FUJI FUJI Round Wall Light OD-7511 TC-TSE E27 15W 284
7511-0-3-444-XX FUJI FUJI Round Wall Light OD-7511 TC-T GX24d-3 26W 284
7511-0-3-462-XX FUJI FUJI Round Wall Light OD-7511 TC-TEL GX24q-3 26W 284
7511-0-3-751-XX FUJI FUJI Round Wall Light OD-7511 HIT-CE G12 35W 284
7511-0-3-752-XX FUJI FUJI Round Wall Light OD-7511 HIT-CE G12 70W 284
7512-0-2-493-XX FUJI FUJI Flat Wall Light OD-7512 TC-TSE E27 15W 284
7512-0-3-444-XX FUJI FUJI Flat Wall Light OD-7512 TC-T GX24d-3 26W 284
7512-0-3-462-XX FUJI FUJI Flat Wall Light OD-7512 TC-TEL GX24q-3 26W 284
7512-0-3-751-XX FUJI FUJI Flat Wall Light OD-7512 HIT-CE G12 35W 284
7512-0-3-752-XX FUJI FUJI Flat Wall Light OD-7512 HIT-CE G12 70W 284
7515-0-2-495-XX GRILL GRILL Flat Wall Light OD-7515 TC-TSE E27 23W 278
7515-0-3-424-XX GRILL GRILL Flat Wall Light OD-7515 TC-D G24d-3 26W 278
7515-0-3-436-XX GRILL GRILL Flat Wall Light OD-7515 TC-TEL GX24q-3/4 26/32/42W 278
7515-0-3-611-XX GRILL GRILL Flat Wall Light OD-7515 HSE-I E27 70W 278
7515-0-3-711-XX GRILL GRILL Flat Wall Light OD-7515 HIE-CE E27 70W 278
7519-0-2-495-XX FUJI Double FUJI Flat Wall Light OD-7519 TC-TSE E27 23W 285
7519-0-3-424-XX FUJI Double FUJI Flat Wall Light OD-7519 TC-D G24d-3 26W 285
7519-0-3-436-XX FUJI Double FUJI Flat Wall Light OD-7519 TC-TEL GX24q-3/4 26/32/42W 285
7519-0-3-611-XX FUJI Double FUJI Flat Wall Light OD-7519 HSE-I E27 70W 285
7519-0-3-711-XX FUJI Double FUJI Flat Wall Light OD-7519 HIE-CE E27 70W 285
7520-0-2-495-XX FUJI Double FUJI Round Wall light OD-7520 TC-TSE E27 23W 285
7520-0-3-424-XX FUJI Double FUJI Round Wall light OD-7520 TC-D G24d-3 26W 285
7520-0-3-436-XX FUJI Double FUJI Round Wall light OD-7520 TC-TEL GX24q-3/4 26/32/42W 285
7520-0-3-611-XX FUJI Double FUJI Round Wall light OD-7520 HSE-I E27 70W 285
7520-0-3-711-XX FUJI Double FUJI Round Wall light OD-7520 HIE-CE E27 70W 285
7521-0-2-493-XX TOWER TOWER2 Wall Light OD-7521 TC-TSE E27 15W 304
7521-0-3-423-XX TOWER TOWER2 Wall Light OD-7521 TC-D G24d-2 18W (CG) 304
7521-0-3-444-XX TOWER TOWER2 Wall Light OD-7521 TC-T GX24d-3 26W (CG) 304
7521-0-3-452-XX TOWER TOWER2 Wall Light OD-7521 TC-DEL G24q-2 18W (EG) 304
7521-0-3-462-XX TOWER TOWER2 Wall Light OD-7521 TC-TEL GX24q-3 26W (EG) 304
7522-0-2-493-XX TOWER TOWER1 Wall Light OD-7522 TC-TSE E27 15W 304
7522-0-3-423-XX TOWER TOWER1 Wall Light OD-7522 TC-D G24d-2 18W (CG) 304
7522-0-3-444-XX TOWER TOWER1 Wall Light OD-7522 TC-T GX24d-3 26W (CG) 304
7522-0-3-452-XX TOWER TOWER1 Wall Light OD-7522 TC-DEL G24q-2 18W (EG) 304
7522-0-3-462-XX TOWER TOWER1 Wall Light OD-7522 TC-TEL GX24q-3 26W (EG) 304
7522-0-3-751-XX TOWER TOWER1 Wall Light OD-7522 HIT-CE G12 35W 304
7536-0-2-495-XX CONDO CONDO2 Wall Light OD-7536 TC-TSE E27 23W 311
7536-0-3-423-XX CONDO CONDO2 Wall Light OD-7536 TC-D G24d-2 18W (CG) 311
7536-0-3-427-XX CONDO CONDO2 Wall Light OD-7536 TC-D G24d-2 2x18W 311
7536-0-3-452-XX CONDO CONDO2 Wall Light OD-7536 TC-DEL G24q-2 18W (EG) 311
7537-0-2-495-XX CONDO CONDO1 Wall Light OD-7537 TC-TSE E27 23W 311

Odering Code Family Name Product Name Product Code Lamp Type Page
7537-0-3-423-XX CONDO CONDO1 Wall Light OD-7537 TC-D G24d-2 18W (CG) 311
7537-0-3-427-XX CONDO CONDO1 Wall Light OD-7537 TC-D G24d-2 2x18W 311
7537-0-3-452-XX CONDO CONDO1 Wall Light OD-7537 TC-DEL G24q-2 18W (EG) 311
7550-0-2-495-XX POM POM Opal Wall Light OD-7550 TC-TSE E27 23W 270
7550-0-3-424-XX POM POM Opal Wall Light OD-7550 TC-D G24d-3 26W 270
7550-0-3-436-XX POM POM Opal Wall Light OD-7550 TC-TEL GX24q-3/4 26/32/42W 270
7550-0-3-611-XX POM POM Opal Wall Light OD-7550 HSE-I E27 70W 270
7550-0-3-711-XX POM POM Opal Wall Light OD-7550 HIE-CE E27 70W 270
7551-0-2-495-XX POM POM Prismatic Wall Light OD-7551 TC-TSE E27 23W 271
7551-0-3-424-XX POM POM Prismatic Wall Light OD-7551 TC-D G24d-3 26W 271
7551-0-3-436-XX POM POM Prismatic Wall Light OD-7551 TC-TEL GX24q-3/4 26/32/42W 271
7551-0-3-611-XX POM POM Prismatic Wall Light OD-7551 HSE-I E27 70W 271
7551-0-3-711-XX POM POM Prismatic Wall Light OD-7551 HIE-CE E27 70W 271
7601-0-3-436-XX RAY RAY - Wall Light OD-7601 TC-TEL GX24q-4 42W 326
7601-0-3-611-XX RAY RAY - Wall Light OD-7601 HSE-I E27 70W 326
7601-0-3-711-XX RAY RAY - Wall Light OD-7601 HIE-CE E27 70W 326
7602-0-3-436-XX TEARA TEARA Wall Light OD-7602 TC-TEL GX24q-4 42W 333
7602-0-3-611-XX TEARA TEARA Wall Light OD-7602 HSE-I E27 70W 333
7602-0-3-711-XX TEARA TEARA Wall Light OD-7602 HIE-CE E27 70W 333
7603-0-3-436-XX CONE CONE1 Wall Mount OD-7603 TC-TEL GX24q-4 42W 338
7603-0-3-611-XX CONE CONE1 Wall Mount OD-7603 HSE-I E27 70W 338
7603-0-3-711-XX CONE CONE1 Wall Mount OD-7603 HIE-CE E27 70W 338
7604-0-3-436-XX CONE CONE2 Wall Mount OD-7604 TC-TEL GX24q-4 42W 339
7604-0-3-611-XX CONE CONE2 Wall Mount OD-7604 HSE-I E27 70W 339
7604-0-3-711-XX CONE CONE2 Wall Mount OD-7604 HIE-CE E27 70W 339
7607-0-3-436-XX STICK STICK Louver Wall Light OD-7607 TC-TEL GX24q-4 42W 376
7607-0-3-611-XX STICK STICK Louver Wall Light OD-7607 HSE-I E27 70W 376
7607-0-3-711-XX STICK STICK Louver Wall Light OD-7607 HIE-CE E27 70W 376
7610-0-3-436-XX EPSYLON EPSYLON Wall Light OD-7610 TC-TEL GX24q-4 42W 347
7610-0-3-611-XX EPSYLON EPSYLON Wall Light OD-7610 HSE-I E27 70W 347
7610-0-3-613-XX EPSYLON EPSYLON Wall Light OD-7610 HSE E40 150W 347
7610-0-3-711-XX EPSYLON EPSYLON Wall Light OD-7610 HIE-CE E27 70W 347
7610-0-3-713-XX EPSYLON EPSYLON Wall Light OD-7610 HIE-CE E27 150W 347
7611-0-3-711-XX CONE CONE3 Wall Mount OD-7611 HIE-CE E27 70W 340
7611-0-3-752-XX CONE CONE3 Wall Mount OD-7611 HIT-CE G12 70W 340
7612-0-3-751-XX STICK STICK Cone Wall Light OD-7612 HIT-CE G12 35W 377
7612-0-3-752-XX STICK STICK Cone Wall Light OD-7612 HIT-CE G12 70W 377
7617-0-3-316-XX EQUINOX EQUINOX Wall Light OD-7617 T5 G5 2x28W 353
7617-0-3-317-XX EQUINOX EQUINOX Wall Light OD-7617 T5 G5 2x35W 353
7617-0-3-332-XX EQUINOX EQUINOX Wall Light OD-7617 T5 G5 2x54W 353
7617-3-3-978-XX EQUINOX EQUINOX Wall Light OD-7617 2x24LED 230V 28.8W (integral 12V driver) 1860lm 3800K Flat Lens 353
7617-7-3-978-XX EQUINOX EQUINOX Wall Light OD-7617 2x24LED 230V 28.8W (integral 12V driver) 1860lm 3800K Wide Lens 353
7621-0-3-751-XX HELIOS HELIOS - Asymmetric Wall Light OD-7621 HIT-CE G12 35W 358
7621-0-3-752-XX HELIOS HELIOS - Asymmetric Wall Light OD-7621 HIT-CE G12 70W 358
7621-0-3-753-XX HELIOS HELIOS - Asymmetric Wall Light OD-7621 HIT-CE G12 150W 358
7622-0-3-751-XX MARANELLO MARANELLO - Wall Light OD-7622 HIT-CE G12 35W 365
7622-0-3-752-XX MARANELLO MARANELLO - Wall Light OD-7622 HIT-CE G12 70W 365
7622-0-3-753-XX MARANELLO MARANELLO - Wall Light OD-7622 HIT-CE G12 150W 365
7622-0-3-969-XX MARANELLO MARANELLO - Wall Light OD-7622 6LED 16.8W 700mA 864lm 3000K 365
7623-0-3-751-XX BLAZE BLAZE - Wall Light OD-7623 HIT-CE G12 35W 370
7623-0-3-752-XX BLAZE BLAZE - Wall Light OD-7623 HIT-CE G12 70W 370
7623-0-3-753-XX BLAZE BLAZE - Wall Light OD-7623 HIT-CE G12 150W 370
7624-0-3-751-XX HELIOS HELIOS - Symmetric Wall Light OD-7624 HIT-CE G12 35W 359
7624-0-3-752-XX HELIOS HELIOS - Symmetric Wall Light OD-7624 HIT-CE G12 70W 359
7624-0-3-753-XX HELIOS HELIOS - Symmetric Wall Light OD-7624 HIT-CE G12 150W 359
7670-1-3-624-XX MATCH BOX MATCH BOX Wall Light OD-7670 HST-MF E40 250W - Asymmetric 394
7670-1-3-625-XX MATCH BOX MATCH BOX Wall Light OD-7670 HST-MF E40 400W - Asymmetric 394
7670-1-3-723-XX MATCH BOX MATCH BOX Wall Light OD-7670 HIT-CE E40 250W - Asymmetric 394
7670-1-3-724-XX MATCH BOX MATCH BOX Wall Light OD-7670 HIT-CE E40 400W - Asymmetric 394
7671-2-3-624-XX MATCH BOX MATCH BOX Wall Light OD-7671 HST-MF E40 250W - Bi-Symmetric 394
7671-2-3-625-XX MATCH BOX MATCH BOX Wall Light OD-7671 HST-MF E40 400W - Bi-Symmetric 394
7671-2-3-723-XX MATCH BOX MATCH BOX Wall Light OD-7671 HIT-CE E40 250W - Bi-Symmetric 394
7671-2-3-724-XX MATCH BOX MATCH BOX Wall Light OD-7671 HIT-CE E40 400W - Bi-Symmetric 394
7674-1-3-624-XX MATCH BOX MATCH BOX Wall Light OD-7674 HST-MF E40 250W - Road Optic 395
7674-1-3-625-XX MATCH BOX MATCH BOX Wall Light OD-7674 HST-MF E40 400W - Road Optic 395
7674-1-3-723-XX MATCH BOX MATCH BOX Wall Light OD-7674 HIT-CE E40 250W - Road Optic 395
7674-1-3-724-XX MATCH BOX MATCH BOX Wall Light OD-7674 HIT-CE E40 400W - road Optic 395
7695-9-3-624-XX ANDROMEDA ANDROMEDA Wall Light OD-7695 HST-MF E40 250W 388
7695-9-3-625-XX ANDROMEDA ANDROMEDA Wall Light OD-7695 HST-MF E40 400W 388
7695-9-3-723-XX ANDROMEDA ANDROMEDA Wall Light OD-7695 HIT-CE E40 250W 388
7695-9-3-724-XX ANDROMEDA ANDROMEDA Wall Light OD-7695 HIT-CE E40 400W 388
7711-0-3-780-XX SONIC Mega SONIC Indirect Pole Light Single Sided OD-7711 HIT-CE G12 35W (EG) 74
7711-0-3-781-XX SONIC Mega SONIC Indirect Pole Light Single Sided OD-7711 HIT-CE G12 70W (EG) 74
7711-0-3-782-XX SONIC Mega SONIC Indirect Pole Light Single Sided OD-7711 HIT-CE G12 150W (EG) 74
7712-0-3-780-XX SONIC Mega SONIC Indirect Pole Light Double Sided OD-7712 HIT-CE G12 2x35W (EG) 74
7712-0-3-781-XX SONIC Mega SONIC Indirect Pole Light Double Sided OD-7712 HIT-CE G12 2x70W (EG) 74
7712-0-3-782-XX SONIC Mega SONIC Indirect Pole Light Double Sided OD-7712 HIT-CE G12 2x150W (EG) 74
7713-0-3-780-XX KUBIK KUBIK Indirect Pole Light OD-7713 HIT-CE G12 35W (EG) 86
7713-0-3-781-XX KUBIK KUBIK Indirect Pole Light OD-7713 HIT-CE G12 70W (EG) 86
7714-0-3-780-XX KUBIK KUBIK Indirect Pole Light OD-7714 HIT-CE G12 35W (EG) 86
7714-0-3-781-XX KUBIK KUBIK Indirect Pole Light OD-7714 HIT-CE G12 70W (EG) 86
7721-5-3-781-XX SONIC Mega SONIC Pole Set OD-7721 HIT-CE G12 2x70W (EG) - 5 72
7721-5-3-782-XX SONIC Mega SONIC Pole Set OD-7721 HIT-CE G12 2x150W (EG) - 5 72
7721-6-3-781-XX SONIC Mega SONIC Pole Set OD-7721 HIT-CE G12 2x70W (EG) - 20 72
7721-6-3-782-XX SONIC Mega SONIC Pole Set OD-7721 HIT-CE G12 2x150W (EG) - 20 72
7721-7-3-781-XX SONIC Mega SONIC Pole Set OD-7721 HIT-CE G12 2x70W (EG) - 38 72
7721-7-3-782-XX SONIC Mega SONIC Pole Set OD-7721 HIT-CE G12 2x150W (EG) - 38 72
7722-5-3-781-XX SONIC Mega SONIC Pole Set OD-7722 HIT-CE G12 4x70W (EG) - 5 72
514

515
Odering Code Family Name Product Name Product Code Lamp Type Page
7722-5-3-782-XX SONIC Mega SONIC Pole Set OD-7722 HIT-CE G12 4x150W (EG) - 5 72
7722-6-3-781-XX SONIC Mega SONIC Pole Set OD-7722 HIT-CE G12 4x70W (EG) - 20 72
7722-6-3-782-XX SONIC Mega SONIC Pole Set OD-7722 HIT-CE G12 4x150W (EG) - 20 72
7722-7-3-781-XX SONIC Mega SONIC Pole Set OD-7722 HIT-CE G12 4x70W (EG) - 38 72
7722-7-3-782-XX SONIC Mega SONIC Pole Set OD-7722 HIT-CE G12 4x150W (EG) - 38 72
7723-5-3-781-XX SONIC Mega SONIC Pole Set OD-7723 HIT-CE G12 6x70W (EG) - 5 72
7723-5-3-782-XX SONIC Mega SONIC Pole Set OD-7723 HIT-CE G12 6x150W (EG) - 5 72
7723-6-3-781-XX SONIC Mega SONIC Pole Set OD-7723 HIT-CE G12 6x70W (EG) - 20 72
7723-6-3-782-XX SONIC Mega SONIC Pole Set OD-7723 HIT-CE G12 6x150W (EG) - 20 72
7723-7-3-781-XX SONIC Mega SONIC Pole Set OD-7723 HIT-CE G12 6x70W (EG) - 38 72
7723-7-3-782-XX SONIC Mega SONIC Pole Set OD-7723 HIT-CE G12 6x150W (EG) - 38 72
7724-5-3-781-XX SONIC Mega SONIC Wall Set OD-7724 HIT-CE G12 2x70W (EG) - 5 73
7724-5-3-782-XX SONIC Mega SONIC Wall Set OD-7724 HIT-CE G12 2x150W (EG) - 5 73
7724-6-3-781-XX SONIC Mega SONIC Wall Set OD-7724 HIT-CE G12 2x70W (EG) - 20 73
7724-6-3-782-XX SONIC Mega SONIC Wall Set OD-7724 HIT-CE G12 2x150W (EG) - 20 73
7724-7-3-781-XX SONIC Mega SONIC Wall Set OD-7724 HIT-CE G12 2x70W (EG) - 38 73
7724-7-3-782-XX SONIC Mega SONIC Wall Set OD-7724 HIT-CE G12 2x150W (EG) - 38 73
7725-5-3-781-XX SONIC Mega SONIC Wall Set OD-7725 HIT-CE G12 4x70W (EG) - 5 73
7725-5-3-782-XX SONIC Mega SONIC Wall Set OD-7725 HIT-CE G12 4x150W (EG) - 5 73
7725-6-3-781-XX SONIC Mega SONIC Wall Set OD-7725 HIT-CE G12 4x70W (EG) - 20 73
7725-6-3-782-XX SONIC Mega SONIC Wall Set OD-7725 HIT-CE G12 4x150W (EG) - 20 73
7725-7-3-781-XX SONIC Mega SONIC Wall Set OD-7725 HIT-CE G12 4x70W (EG) - 38 73
7725-7-3-782-XX SONIC Mega SONIC Wall Set OD-7725 HIT-CE G12 4x150W (EG) - 38 73
7726-5-3-781-XX SONIC Mega SONIC Wall Set OD-7726 HIT-CE G12 6x70W (EG) - 5 73
7726-5-3-782-XX SONIC Mega SONIC Wall Set OD-7726 HIT-CE G12 6x150W (EG) - 5 73
7726-6-3-781-XX SONIC Mega SONIC Wall Set OD-7726 HIT-CE G12 6x70W (EG) - 20 73
7726-6-3-782-XX SONIC Mega SONIC Wall Set OD-7726 HIT-CE G12 6x150W (EG) - 20 73
7726-7-3-781-XX SONIC Mega SONIC Wall Set OD-7726 HIT-CE G12 6x70W (EG) - 38 73
7726-7-3-782-XX SONIC Mega SONIC Wall Set OD-7726 HIT-CE G12 6x150W (EG) - 38 73
7731-0-3-773-XX KUBIK KUBIK Pole Set OD-7731 HIR111-CE-P GX8.5 2x35W (EG) - 10/24/40 82
7731-0-3-775-XX KUBIK KUBIK Pole Set OD-7731 HIR111-CE-P GX8.5 2x70W (EG) - 10/24/40 82
7731-0-3-968-XX KUBIK KUBIK Pole Set OD-7731 2x6LED 33.6W 700mA 2x864lm 3000K 7 83
7731-0-3-969-XX KUBIK KUBIK Pole Set OD-7731 2x6LED 33.6W 700mA 2x864lm 3000K 13 83
7731-0-3-970-XX KUBIK KUBIK Pole Set OD-7731 2x6LED 33.6W 700mA 2x864lm 3000K 30 83
7731-0-3-971-XX KUBIK KUBIK Pole Set OD-7731 2x6LED 33.6W 700mA 2x864lm 3000K 13/44 83
7731-5-3-780-XX KUBIK KUBIK Pole Set OD-7731 HIT-CE G12 2x35W (EG) - 10 82
7731-5-3-781-XX KUBIK KUBIK Pole Set OD-7731 HIT-CE G12 2x70W (EG) - 10 82
7731-6-3-780-XX KUBIK KUBIK Pole Set OD-7731 HIT-CE G12 2x35W (EG) - 28 82
7731-6-3-781-XX KUBIK KUBIK Pole Set OD-7731 HIT-CE G12 2x70W (EG) - 28 82
7731-7-3-780-XX KUBIK KUBIK Pole Set OD-7731 HIT-CE G12 2x35W (EG) - 46 82
7731-7-3-781-XX KUBIK KUBIK Pole Set OD-7731 HIT-CE G12 2x70W (EG) - 46 82
7732-0-3-773-XX KUBIK KUBIK Pole Set OD-7732 HIR111-CE-P GX8.5 4x35W (EG) - 10/24/40 82
7732-0-3-775-XX KUBIK KUBIK Pole Set OD-7732 HIR111-CE-P GX8.5 4x70W (EG) - 10/24/40 82
7732-0-3-968-XX KUBIK KUBIK Pole Set OD-7732 4x6LED 67.2W 700mA 4x864lm 3000K 7 83
7732-0-3-969-XX KUBIK KUBIK Pole Set OD-7732 4x6LED 67.2W 700mA 4x864lm 3000K 13 83
7732-0-3-970-XX KUBIK KUBIK Pole Set OD-7732 4x6LED 67.2W 700mA 4x864lm 3000K 30 83
7732-0-3-971-XX KUBIK KUBIK Pole Set OD-7732 4x6LED 67.2W 700mA 4x864lm 3000K 13/44 83
7732-5-3-780-XX KUBIK KUBIK Pole Set OD-7732 HIT-CE G12 4x35W (EG) - 10 82
7732-5-3-781-XX KUBIK KUBIK Pole Set OD-7732 HIT-CE G12 4x70W (EG) - 10 82
7732-6-3-780-XX KUBIK KUBIK Pole Set OD-7732 HIT-CE G12 4x35W (EG) - 28 82
7732-6-3-781-XX KUBIK KUBIK Pole Set OD-7732 HIT-CE G12 4x70W (EG) - 28 82
7732-7-3-780-XX KUBIK KUBIK Pole Set OD-7732 HIT-CE G12 4x35W (EG) - 46 82
7732-7-3-781-XX KUBIK KUBIK Pole Set OD-7732 HIT-CE G12 4x70W (EG) - 46 82
7733-0-3-773-XX KUBIK KUBIK Pole Set OD-7733 HIR111-CE-P GX8.5 6x35W (EG) - 10/24/40 82
7733-0-3-775-XX KUBIK KUBIK Pole Set OD-7733 HIR111-CE-P GX8.5 6x70W (EG) - 10/24/40 82
7733-0-3-968-XX KUBIK KUBIK Pole Set OD-7733 6x6LED 100.8W 700mA 6x864lm 3000K 7 83
7733-0-3-969-XX KUBIK KUBIK Pole Set OD-7733 6x6LED 100.8W 700mA 6x864lm 3000K 13 83
7733-0-3-970-XX KUBIK KUBIK Pole Set OD-7733 6x6LED 100.8W 700mA 6x864lm 3000K 30 83
7733-0-3-971-XX KUBIK KUBIK Pole Set OD-7733 6x6LED 100.8W 700mA 6x864lm 3000K 13/44 83
7733-5-3-780-XX KUBIK KUBIK Pole Set OD-7733 HIT-CE G12 6x35W (EG) - 10 82
7733-5-3-781-XX KUBIK KUBIK Pole Set OD-7733 HIT-CE G12 6x70W (EG) - 10 82
7733-6-3-780-XX KUBIK KUBIK Pole Set OD-7733 HIT-CE G12 6x35W (EG) - 28 82
7733-6-3-781-XX KUBIK KUBIK Pole Set OD-7733 HIT-CE G12 6x70W (EG) - 28 82
7733-7-3-780-XX KUBIK KUBIK Pole Set OD-7733 HIT-CE G12 6x35W (EG) - 46 82
7733-7-3-781-XX KUBIK KUBIK Pole Set OD-7733 HIT-CE G12 6x70W (EG) - 46 82
7734-0-3-773-XX KUBIK KUBIK Pole Set OD-7734 HIR111-CE-P GX8.5 2x35W (EG) - 10/24/40 85
7734-0-3-775-XX KUBIK KUBIK Pole Set OD-7734 HIR111-CE-P GX8.5 2x70W (EG) - 10/24/40 85
7734-0-3-968-XX KUBIK KUBIK Pole Set OD-7734 2x6LED 33.6W 700mA 2x864lm 3000K 7 85
7734-0-3-969-XX KUBIK KUBIK Pole Set OD-7734 2x6LED 33.6W 700mA 2x864lm 3000K 13 85
7734-0-3-970-XX KUBIK KUBIK Pole Set OD-7734 2x6LED 33.6W 700mA 2x864lm 3000K 30 85
7734-0-3-971-XX KUBIK KUBIK Pole Set OD-7734 2x6LED 33.6W 700mA 2x864lm 3000K 13/44 85
7734-5-3-780-XX KUBIK KUBIK Pole Set OD-7734 HIT-CE G12 2x35W (EG) - 10 84
7734-5-3-781-XX KUBIK KUBIK Pole Set OD-7734 HIT-CE G12 2x70W (EG) - 10 84
7734-6-3-780-XX KUBIK KUBIK Pole Set OD-7734 HIT-CE G12 2x35W (EG) - 28 84
7734-6-3-781-XX KUBIK KUBIK Pole Set OD-7734 HIT-CE G12 2x70W (EG) - 28 84
7734-7-3-780-XX KUBIK KUBIK Pole Set OD-7734 HIT-CE G12 2x35W (EG) - 46 84
7734-7-3-781-XX KUBIK KUBIK Pole Set OD-7734 HIT-CE G12 2x70W (EG) - 46 84
7735-0-3-773-XX KUBIK KUBIK Pole Set OD-7735 HIR111-CE-P GX8.5 4x35W (EG) - 10/24/40 85
7735-0-3-775-XX KUBIK KUBIK Pole Set OD-7735 HIR111-CE-P GX8.5 4x70W (EG) - 10/24/40 85
7735-0-3-968-XX KUBIK KUBIK Pole Set OD-7735 4x6LED 67.2W 700mA 4x864lm 3000K 7 85
7735-0-3-969-XX KUBIK KUBIK Pole Set OD-7735 4x6LED 67.2W 700mA 4x864lm 3000K 13 85
7735-0-3-970-XX KUBIK KUBIK Pole Set OD-7735 4x6LED 67.2W 700mA 4x864lm 3000K 30 85
7735-0-3-971-XX KUBIK KUBIK Pole Set OD-7735 4x6LED 67.2W 700mA 4x864lm 3000K 13/44 85
7735-5-3-780-XX KUBIK KUBIK Pole Set OD-7735 HIT-CE G12 4x35W (EG) - 10 84
7735-5-3-781-XX KUBIK KUBIK Pole Set OD-7735 HIT-CE G12 4x70W (EG) - 10 84
7735-6-3-780-XX KUBIK KUBIK Pole Set OD-7735 HIT-CE G12 4x35W (EG) - 28 84
7735-6-3-781-XX KUBIK KUBIK Pole Set OD-7735 HIT-CE G12 4x70W (EG) - 28 84
7735-7-3-780-XX KUBIK KUBIK Pole Set OD-7735 HIT-CE G12 4x35W (EG) - 46 84

Odering Code Family Name Product Name Product Code Lamp Type Page
7735-7-3-781-XX KUBIK KUBIK Pole Set OD-7735 HIT-CE G12 4x70W (EG) - 46 84
7736-0-3-773-XX KUBIK KUBIK Pole Set OD-7736 HIR111-CE-P GX8.5 6x35W (EG) - 10/24/40 85
7736-0-3-775-XX KUBIK KUBIK Pole Set OD-7736 HIR111-CE-P GX8.5 6x70W (EG) - 10/24/40 85
7736-0-3-968-XX KUBIK KUBIK Pole Set OD-7736 6x6LED 100.8W 700mA 6x864lm 3000K 7 85
7736-0-3-969-XX KUBIK KUBIK Pole Set OD-7736 6x6LED 100.8W 700mA 6x864lm 3000K 13 85
7736-0-3-970-XX KUBIK KUBIK Pole Set OD-7736 6x6LED 100.8W 700mA 6x864lm 3000K 30 85
7736-0-3-971-XX KUBIK KUBIK Pole Set OD-7736 6x6LED 100.8W 700mA 6x864lm 3000K 13/44 85
7736-5-3-780-XX KUBIK KUBIK Pole Set OD-7736 HIT-CE G12 6x35W (EG) - 10 84
7736-5-3-781-XX KUBIK KUBIK Pole Set OD-7736 HIT-CE G12 6x70W (EG) - 10 84
7736-6-3-780-XX KUBIK KUBIK Pole Set OD-7736 HIT-CE G12 6x35W (EG) - 28 84
7736-6-3-781-XX KUBIK KUBIK Pole Set OD-7736 HIT-CE G12 6x70W (EG) - 28 84
7736-7-3-780-XX KUBIK KUBIK Pole Set OD-7736 HIT-CE G12 6x35W (EG) - 46 84
7736-7-3-781-XX KUBIK KUBIK Pole Set OD-7736 HIT-CE G12 6x70W (EG) - 46 84
8005-3-3-976-XX SABER SABER Wall Washer 12LED OD-8005 12LED 7.2W 230V (integral driver) 465lm 3800K 15/44 473
8005-4-3-976-XX SABER SABER Wall Washer 12LED OD-8005 12LED 7.2W 230V (integral driver) 465lm 3800K 10 473
8005-6-3-976-XX SABER SABER Wall Washer 12LED OD-8005 12LED 7.2W 230V (integral driver) 465lm 3800K 30 473
8005-7-3-976-XX SABER SABER Wall Washer 12LED OD-8005 12LED 7.2W 230V (integral driver) 465lm 3800K 60 473
8006-3-3-978-XX SABER SABER Wall Washer 24LED OD-8006 24LED 14.4W 230V (integral driver) 930lm 3800K 15/44 473
8006-4-3-978-XX SABER SABER Wall Washer 24LED OD-8006 24LED 14.4W 230V (integral driver) 930lm 3800K 10 473
8006-6-3-978-XX SABER SABER Wall Washer 24LED OD-8006 24LED 14.4W 230V (integral driver) 930lm 3800K 30 473
8006-7-3-978-XX SABER SABER Wall Washer 24LED OD-8006 24LED 14.4W 230V (integral driver) 930lm 3800K 60 473
8007-3-3-976-XX SABER SABER Suspension 12LED OD-8007 12LED 7.2W 230V (integral driver) 465lm 3800K 15/44 475
8007-4-3-976-XX SABER SABER Suspension 12LED OD-8007 12LED 7.2W 230V (integral driver) 465lm 3800K 10 475
8007-6-3-976-XX SABER SABER Suspension 12LED OD-8007 12LED 7.2W 230V (integral driver) 465lm 3800K 30 475
8007-7-3-976-XX SABER SABER Suspension 12LED OD-8007 12LED 7.2W 230V (integral driver) 465lm 3800K 60 475
8008-3-3-978-XX SABER SABER Suspension 24LED OD-8008 24LED 14.4W 230V (integral driver) 930lm 3800K 15/44 475
8008-4-3-978-XX SABER SABER Suspension 24LED OD-8008 24LED 14.4W 230V (integral driver) 930lm 3800K 10 475
8008-6-3-978-XX SABER SABER Suspension 24LED OD-8008 24LED 14.4W 230V (integral driver) 930lm 3800K 30 475
8008-7-3-978-XX SABER SABER Suspension 24LED OD-8008 24LED 14.4W 230V (integral driver) 930lm 3800K 60 475
8011-0-3-311-XX SABER SABER Wall Washer Symmetric OD-8011 T5 G5 14W 472
8011-0-3-312-XX SABER SABER Wall Washer Symmetric OD-8011 T5 G5 21W 472
8011-0-3-313-XX SABER SABER Wall Washer Symmetric OD-8011 T5 G5 28W 472
8011-0-3-314-XX SABER SABER Wall Washer Symmetric OD-8011 T5 G5 35W 472
8011-0-3-318-XX SABER SABER Wall Washer Symmetric OD-8011 T5 G5 54W 472
8011-0-3-319-XX SABER SABER Wall Washer Symmetric OD-8011 T5 G5 80W 472
8011-0-3-320-XX SABER SABER Wall Washer Symmetric OD-8011 T5 G5 24W 472
8011-0-3-330-XX SABER SABER Wall Washer Symmetric OD-8011 T5 G5 39W 472
8012-0-3-311-XX SABER SABER Suspension Symmetric OD-8012 T5 G5 14W 474
8012-0-3-312-XX SABER SABER Suspension Symmetric OD-8012 T5 G5 21W 474
8012-0-3-313-XX SABER SABER Suspension Symmetric OD-8012 T5 G5 28W 474
8012-0-3-314-XX SABER SABER Suspension Symmetric OD-8012 T5 G5 35W 474
8012-0-3-318-XX SABER SABER Suspension Symmetric OD-8012 T5 G5 54W 474
8012-0-3-319-XX SABER SABER Suspension Symmetric OD-8012 T5 G5 80W 474
8012-0-3-320-XX SABER SABER Suspension Symmetric OD-8012 T5 G5 24W 474
8012-0-3-330-XX SABER SABER Suspension Symmetric OD-8012 T5 G5 39W 474
8013-0-3-311-XX SABER SABER Wall Washer Asymmetric OD-8013 T5 G5 14W 472
8013-0-3-312-XX SABER SABER Wall Washer Asymmetric OD-8013 T5 G5 21W 472
8013-0-3-313-XX SABER SABER Wall Washer Asymmetric OD-8013 T5 G5 28W 472
8013-0-3-314-XX SABER SABER Wall Washer Asymmetric OD-8013 T5 G5 35W 472
8013-0-3-318-XX SABER SABER Wall Washer Asymmetric OD-8013 T5 G5 54W 472
8013-0-3-319-XX SABER SABER Wall Washer Asymmetric OD-8013 T5 G5 80W 472
8013-0-3-320-XX SABER SABER Wall Washer Asymmetric OD-8013 T5 G5 24W 472
8013-0-3-330-XX SABER SABER Wall Washer Asymmetric OD-8013 T5 G5 39W 472
8014-0-3-311-XX SABER SABER Suspension Asymmetric OD-8014 T5 G5 14W 474
8014-0-3-312-XX SABER SABER Suspension Asymmetric OD-8014 T5 G5 21W 474
8014-0-3-313-XX SABER SABER Suspension Asymmetric OD-8014 T5 G5 28W 474
8014-0-3-314-XX SABER SABER Suspension Asymmetric OD-8014 T5 G5 35W 474
8014-0-3-318-XX SABER SABER Suspension Asymmetric OD-8014 T5 G5 54W 474
8014-0-3-319-XX SABER SABER Suspension Asymmetric OD-8014 T5 G5 80W 474
8014-0-3-320-XX SABER SABER Suspension Asymmetric OD-8014 T5 G5 24W 474
8014-0-3-330-XX SABER SABER Suspension Asymmetric OD-8014 T5 G5 39W 474
9002-0-2-221-91 ZET ZET1 Frost OD-9002 QPAR51 GU10 50W 443
9002-0-2-281-91 ZET ZET1 Frost OD-9002 QR-CB51 GU5.3 50W 443
9002-0-2-486-91 ZET ZET1 Frost OD-9002 TCR-TSE GX53 9W 443
9004-0-2-221-91 ZET ZET2 Frost OD-9004 QPAR51 GU10 50W 443
9004-0-2-281-91 ZET ZET2 Frost OD-9004 QR-CB51 GU5.3 50W 443
9004-0-2-486-91 ZET ZET2 Frost OD-9004 TCR-TSE GX53 9W 443
9011-0-2-221-91 ZET ZET1 Clear OD-9011 QPAR51 GU10 50W 442
9011-0-2-281-91 ZET ZET1 Clear OD-9011 QR-CB51 GU5.3 50W 442
9011-0-2-486-91 ZET ZET1 Clear OD-9011 TCR-TSE GX53 9W 442
9011-0-2-960-91 ZET ZET1 Clear OD-9011 3LED 8.4W 700mA 450lm 3000K 7 442
9011-0-2-961-91 ZET ZET1 Clear OD-9011 3LED 8.4W 700mA 450lm 3000K 13 442
9011-0-2-962-91 ZET ZET1 Clear OD-9011 3LED 8.4W 700mA 450lm 3000K 30 442
9011-0-2-963-91 ZET ZET1 Clear OD-9011 3LED 8.4W 700mA 450lm 3000K 13/44 442
9012-0-3-989-91 ZET ZET3 single LED OD-9012 1LED 1.4W 350mA (integral driver) 70lm 3000K 444
9012-0-3-991-91 ZET ZET3 single LED OD-9012 1LED 1.4W 350mA (integral driver) 65lm 6500K 444
9012-0-3-992-91 ZET ZET3 single LED OD-9012 1LED 1.4W 350mA (integral driver) 10lm Blue 444
9012-0-3-993-91 ZET ZET3 single LED OD-9012 1LED 1.4W 350mA (integral driver) 39lm Green 444
9012-0-3-994-91 ZET ZET3 single LED OD-9012 1LED 1.4W 350mA (integral driver) 23lm Red 444
9021-0-2-221-91 ZET ZET2 Clear OD-9021 QPAR51 GU10 50W 442
9021-0-2-281-91 ZET ZET2 Clear OD-9021 QR-CB51 GU5.3 50W 442
9021-0-2-486-91 ZET ZET2 Clear OD-9021 TCR-TSE GX53 9W 442
9021-0-2-960-91 ZET ZET2 Clear OD-9021 3LED 8.4W 700mA 450lm 3000K 7 442
9021-0-2-961-91 ZET ZET2 Clear OD-9021 3LED 8.4W 700mA 450lm 3000K 13 442
9021-0-2-962-91 ZET ZET2 Clear OD-9021 3LED 8.4W 700mA 450lm 3000K 30 442
9021-0-2-963-91 ZET ZET2 Clear OD-9021 3LED 8.4W 700mA 450lm 3000K 13/44 442
9022-0-3-989-91 ZET ZET4 single LED OD-9022 1LED 1.4W 350mA (integral driver) 70lm 3000K 444
9022-0-3-991-91 ZET ZET4 single LED OD-9022 1LED 1.4W 350mA (integral driver) 65lm 6500K 444
516

517
Odering Code Family Name Product Name Product Code Lamp Type Page
9022-0-3-992-91 ZET ZET4 single LED OD-9022 1LED 1.4W 350mA (integral driver) 10lm Blue 444
9022-0-3-993-91 ZET ZET4 single LED OD-9022 1LED 1.4W 350mA (integral driver) 39lm Green 444
9022-0-3-994-91 ZET ZET4 single LED OD-9022 1LED 1.4W 350mA (integral driver) 23lm Red 444
9031-1-3-731-91 QUARK QUARK Round - Asymmetric OD-9031 HIT-DE-CE RX7s 70W 456
9031-1-3-732-91 QUARK QUARK Round - Asymmetric OD-9031 HIT-DE-CE RX7s-24 150W 456
9032-7-3-731-91 QUARK QUARK Round - Bi-Symmetric OD-9032 HIT-DE-CE RX7s 70W 456
9032-7-3-732-91 QUARK QUARK Round - Bi-Symmetric OD-9032 HIT-DE-CE RX7s-24 150W 456
9041-1-3-731-91 QUARK QUARK Square - Asymmetric OD-9041 HIT-DE-CE RX7s 70W 457
9041-1-3-732-91 QUARK QUARK Square - Asymmetric OD-9041 HIT-DE-CE RX7s-24 150W 457
9042-7-3-731-91 QUARK QUARK Square - Bi-Symmetric OD-9042 HIT-DE-CE RX7s 70W 457
9042-7-3-732-91 QUARK QUARK Square - Bi-Symmetric OD-9042 HIT-DE-CE RX7s-24 150W 457
9050-5-3-751-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 35W - 10 450
9050-5-3-752-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 70W - 10 450
9050-5-3-753-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 150W - 10 451
9050-6-3-751-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 35W - 20 450
9050-6-3-752-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 70W - 20 450
9050-6-3-753-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 150W - 20 451
9050-7-3-751-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 35W - 32 450
9050-7-3-752-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 70W - 32 450
9050-7-3-753-91 QUANTUM QUANTUM - Inground Uplighter OD-9050 HIT-CE G12 150W - 32 451
9051-0-3-311-XX SABER SABER Ground Recess Symmetric OD-9051 T5 G5 14W 468
9051-0-3-320-XX SABER SABER Ground Recess Symmetric OD-9051 T5 G5 24W 468
9052-0-3-311-XX SABER SABER Ground Recess Asymmetric OD-9052 T5 G5 14W 468
9052-0-3-320-XX SABER SABER Ground Recess Asymmetric OD-9052 T5 G5 24W 468
9053-0-3-312-XX SABER SABER Ground Recess Symmetric OD-9053 T5 G5 21W 468
9053-0-3-330-XX SABER SABER Ground Recess Symmetric OD-9053 T5 G5 39W 468
9054-0-3-312-XX SABER SABER Ground Recess Asymmetric OD-9054 T5 G5 21W 468
9054-0-3-330-XX SABER SABER Ground Recess Asymmetric OD-9054 T5 G5 39W 468
9055-0-3-313-XX SABER SABER Ground Recess Symmetric OD-9055 T5 G5 28W 468
9055-0-3-318-XX SABER SABER Ground Recess Symmetric OD-9055 T5 G5 54W 468
9056-0-3-313-XX SABER SABER Ground Recess Asymmetric OD-9056 T5 G5 28W 468
9056-0-3-318-XX SABER SABER Ground Recess Asymmetric OD-9056 T5 G5 54W 468
9057-0-3-314-XX SABER SABER Ground Recess Symmetric OD-9057 T5 G5 35W 468
9057-0-3-319-XX SABER SABER Ground Recess Symmetric OD-9057 T5 G5 80W 468
9058-0-3-314-XX SABER SABER Ground Recess Asymmetric OD-9058 T5 G5 35W 468
9058-0-3-319-XX SABER SABER Ground Recess Asymmetric OD-9058 T5 G5 80W 468
9064-3-3-976-XX SABER SABER Ground Recess 12LED OD-9064 12LED 7.2W 230V (integral driver) 465lm 3800K 15/44 470
9064-4-3-976-XX SABER SABER Ground Recess 12LED OD-9064 12LED 7.2W 230V (integral driver) 465lm 3800K 10 470
9064-6-3-976-XX SABER SABER Ground Recess 12LED OD-9064 12LED 7.2W 230V (integral driver) 465lm 3800K 30 470
9064-7-3-976-XX SABER SABER Ground Recess 12LED OD-9064 12LED 7.2W 230V (integral driver) 465lm 3800K 60 470
9065-3-3-978-XX SABER SABER Ground Recess 24LED OD-9065 24LED 14.4W 230V (integral driver) 930lm 3800K 15/44 470
9065-4-3-978-XX SABER SABER Ground Recess 24LED OD-9065 24LED 14.4W 230V (integral driver) 930lm 3800K 10 470
9065-6-3-978-XX SABER SABER Ground Recess 24LED OD-9065 24LED 14.4W 230V (integral driver) 930lm 3800K 30 470
9065-7-3-978-XX SABER SABER Ground Recess 24LED OD-9065 24LED 14.4W 230V (integral driver) 930lm 3800K 60 470
9900-0-3-968-XX SHOOTER SHOOTER OD-9900 6LED 16.8W 700mA 864lm 3000K 7 462
9900-0-3-969-XX SHOOTER SHOOTER OD-9900 6LED 16.8W 700mA 864lm 3000K 13 462
9900-0-3-970-XX SHOOTER SHOOTER OD-9900 6LED 16.8W 700mA 864lm 3000K 30 462
9900-0-3-971-XX SHOOTER SHOOTER OD-9900 6LED 16.8W 700mA 864lm 3000K 13/44 462
9900-5-3-751-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 35W (CG) - 10 462
9900-5-3-752-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 70W (CG) - 10 463
9900-5-3-753-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 150W (CG) - 10 463
9900-5-3-780-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 35W (EG) - 10 462
9900-5-3-781-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 70W (EG) - 10 463
9900-5-3-782-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 150W (EG) - 10 463
9900-6-3-751-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 35W (CG) - 28 462
9900-6-3-752-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 70W (CG) - 28 463
9900-6-3-753-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 150W (CG) - 28 463
9900-6-3-780-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 35W (EG) - 28 462
9900-6-3-781-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 70W (EG) - 28 463
9900-6-3-782-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 150W (EG) - 28 463
9900-7-3-751-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 35W (CG) - 46 462
9900-7-3-752-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 70W (CG) - 46 463
9900-7-3-753-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 150W (CG) - 46 463
9900-7-3-780-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 35W (EG) - 46 462
9900-7-3-781-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 70W (EG) - 46 463
9900-7-3-782-XX SHOOTER SHOOTER OD-9900 HIT-CE G12 150W (EG) - 46 463

CONTACT US
Unilamp Co.,Ltd.
Sale office and showroom:
461 Ramintra Road, Kannayao,
Bangkok 10230 Thailand
Tel: +66(0)2 943 2420-1, +66(0)2 946 4170-1
Purchasing office and warehouse:
Wangthonglang, Bangkok 10310 Thailand
Tel: +66(0)2 530 1620, +66(0)2 530 2337, 39
Engineering office:
2519 Ladprao 79, Ladprao Road,
Wangthonglang, Bangkok 10310 Thailand
Fax: +66(0)2 539 0579
Machining and coating factory:
25 Moo 11 Tambol Bansang,
Amper Bansang, Prachinburi 25150 Thailand
Fax: +66(0)3 745 1169, +66(0)3 727 1402
Assembly factory:
29 Moo 3 Tambol Bansang,
Amper Bansang, Prachinburi 25150 Thailand
Fax: +66(0)3 727 1402, +66(0)3 745 1169
unilamp@unilamp.co.th
www.unilamp.co.th
DUE TO THE CONSTANCY OF PRODUCT DEVELOPMENT,
WE RESERVE THE RIGHT TO ALTER ALL
SPECIFICATION WITHOUT PRIOR NOTICE.

WORKING CATALOGUE
2012
