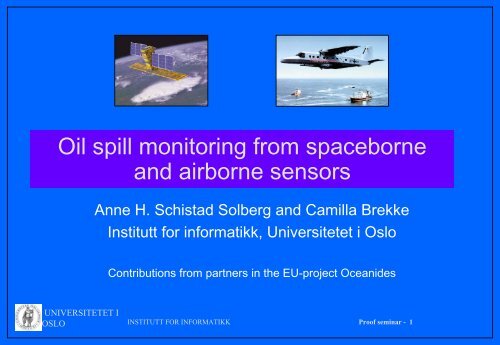

Oil spill monitoring from spaceborne and airborne sensors

Oil spill monitoring from spaceborne

and airborne sensors

UNIVERSITETET I

OSLO

Anne H. Schistad Solberg and Camilla Brekke

Institutt for informatikk, Universitetet i Oslo

Contributions from partners in the EU-project Oceanides

INSTITUTT FOR INFORMATIKK Proof seminar - 1

Agenda

• State-of-the art in detection of illegal oil spills

– Airborne and spaceborne sensors

– Sensor coverage and limitations

– Monitoring costs

– Present monitoring: joint aircraft/satellite coverage

• Automatic methods for oil spill detection

– SAR imaging of oil spills

– Algorithms for automatic detection

– Performance of automatic vs. manual detection


OSLO


Illegal oil spills

Spills from ships in open seas e.g. due to tank cleaning

Oil spills from oil platforms

600 000 tons/year in the Mediterranean

Monitoring used to identify polluters and check if clean-up

necessary

Polluter received fine of $3.5M in the US (June 2004)


OSLO



OSLO

Example

satellite image

Envisat SAR image from

Baltic Sea 21 July 2003

Arrows show oil spills

Image size ~100x100km


Spill sources

Bright spots: ship or

platforms

Left: outlets from

stationary sources


OSLO

Right: outlets from

moving ship


Temporal development

Ship releasing oil


OSLO

Wind, current and

waves affect the

shape of the oil

Older spills are

irregular in shape


Oil spill map of the Baltic Sea (HELCOM)


OSLO


Remote sensing of oil spills


OSLO

• Aircrafts cover narrow swaths

– Can identify polluter

– Determines if clean-up is necessary

– Can also operate during nighttime

• Satellites cover large swaths

– Early warning of oil spills

– 400x400 km 2 in a single image

– All-weather/all-day capability

– Can not identify the polluter

– Can sometimes confuse oil and algae


Comparison of Radarsat and aircraft

SLAR image

RADARSAT image


OSLO

SLAR image


Comparison of Radarsat and aircraft

photos


OSLO


Aircraft sensors

Sensor Coverage Capabilities Nighttime operation

SLAR 30 km Location Yes

UV 250 m Spatial extent No

IR 250 m Spatial extent Yes

Microwave

Radiometer

Laser

Fluorosensor


OSLO

250 m Oil thickness Yes

75 m Oil type

Oil thickness

Yes


Satellite sensors for oil spill

• Optical sensors:

– Need cloud-free scenes

– Cannot operate at night

– Can be used to discriminate between oil and algae if spatial

resolution is high

• Synthetic aperture radar (SAR):

– Can operate all day and in clouded areas

– Oil spills visible in wind speed from 3 m/s to approx. 12-15 m/s

– Covers wide areas

– Temporal coverage: close to daily


OSLO


SAR satellite sensors

Satellite Launched Owner Frequency/


OSLO

Polarization

ERS-1 1991-1996 ESA C-band/VV

ERS-2 1995- ESA C-band/VV

RADARSAT-1 1995- CSA

(Canadian)

ENVISAT

(ASAR)

C-band/HH

2002- ESA C-band/VV and

HH, alt pol. and

cross pol.

RADARSAT-2 2005 CSA C-band/

pol.

combinations


ENVISAT Satellite passes pr. month


OSLO

• Coverage depends on

latitude

• Almost daily coverage

in Norwegian waters

Images pr. month

1-7

8-11

12-15

16-18

19-24


Monitoring costs example

• Example from the EU-project Oceanides

• Aircraft monitoring (Germany):

– I flight hour: 4-5000 Euro

– 12 flight hours to cover a full 400x400km scene

– Cost of covering the entire Baltic sea: 126 000 Euro

• Satellite monitoring:

– Cost of 1 Envisat Near-real time scene: 850 Euro

– Envisat images to cover the entire Baltic Sea: 2550 Euro

• International cooperation needed to share costs


OSLO


Joint aircraft/satellite monitoring


OSLO

• Satellite acquisitions and flight plans

coordinated

• Satellite image downloaded and inspected

at KSAT in Tromsø

• KSAT reports suspect slicks to surveillance

aircrafts by fax/email/phone

• Aircraft flies to reported locations to verify

• Aircraft tries to catch the polluter and

collect evidence

• Service presently used in Sweden,

Denmark, Finland, Germany, Netherlands,

UK


Manual oil spill detection: KSAT

• Manual inspection by trained operators

– Information about wind speed used

– Information about oil rig, pipelines, coastlines etc. is overlaid

the image

• Oil spills are assigned confidence levels:

– Low

– Medium

– High


OSLO


Manual vs. automatic detection

• Automatic methods faster

– Manual: average processing time 10 min

– Automatic: average processing time 1.45 min

• Benchmarking studies show that automatic

algorithms can perform comparable to manual

detection in detecting verified oil spills

• Manual verifification of suspect slick should be

done prior to alarming the aircraft

• Our automatic system will be installed and run at

KSAT in Tromsø as part of ESA-project


OSLO


Automatic algorithm based on SAR images

• Starting in 1993, an advanced algorithm for oil spill detection in ERS

images was developed by the Norwegian Computing Center (NR).

• Collaboration project

– NR

– University of Oslo.

• The work has been extended to RADARSAT-1 ScanSAR and

ENVISAT ASAR WideSwath images.

– Sensor specific modules developed:


OSLO

» some differences in the dark spot detector

» very similar features

» sensor specific set of rules


The automatic

oil spill

detection

algorithm

• Main parts:

– Dark spot detection

– Spot feature extraction

– Spot classification

» Make a decision if

oil or look-alike,

based on a

statistical model for

oil in different wind

conditions and of

different shapes.


OSLO

Oil spill

desciption

database

Preprocessing and

calibration

Masking

Dark spot

detection

Spot feature

extraction

Spot

classification

Warning

if classified as oil

INSTITUTT FOR INFORMATIKK Proof seminar - 20

e

Weather

information

Dark spot deteksjon

• Adaptive thresholding:

– T is set to k dB below the estimated local mean backscatter

level.

– Wind information used to estimate k.

• Power-to-mean ratio:

– Local homogeneity is computed by PMR.

– T is adjusted accordingly.

• Pyramid approach:

– Thresholding done in different scales. Result is merged.

• Thin linear slicks (New ENVISAT approach):

– Fragments located by thresholding as described, but fixing k at

a small dB value. 1 st invariant planar moment an indicator of

elongatedness.

– Object oriented bounding box for each selected fragment.

– Bounding box extended in the orientation of the slick and a

threshold is applied inside the box.

– Only pixels close to/on an edge are selected.

– Segmented slicks merged with the original segmented image.


OSLO


Dark spot

detection –

thin,

linear slicks

example

Large part of oil spill detected as background.


OSLO


Oil spill example

(ENVISAT ASAR

WideSwath).

Improved result. Larger part of the oil spill detected

and still separated from the background.

Feature extraction

• ENVISAT and RADARSAT uses the same set of features (only

slight modifications).

– Simple ship detector tailored for each sensor.

• The features are a mix of standard region descriptors and features

tailored to oil spill detection.

– Spot geometry and shape (e.g. area, width, complexity)

– Intensity level (e.g. spot border gradient, local contrast)

– Spot contextual features (e.g. spot local and global neighbours)

– Texture (PMR)


OSLO


Slick classification

• M spots to be classified as either oil spill or look-alike.

• A statistical classifier model is applied which

incorporates prior knowledge in terms of loss

functions, and a rule-based approach. (See Solberg

et al. 1999 IEEE Trans. on geoscience and remote

sensing for details).


OSLO


Detected oil spill

ENIVSAT ASAR WS.

Detected as oil spill by KSAT and our algorithm, verified by Finnish surveillance aircraft,


OSLO

21 July 2003.


Detected oil spill


OSLO

ENIVSAT ASAR WS.

Detected as oil spill by KSAT and our algorithm,

verified by German surveillance aircraft, 2 September 2003.


Algorithm compared to manual and semi

manual approaches

• Benchmark study

– Training set: 100 RADARSAT and 64 ENVISAT images.

– Test set: 32 RADARSAT and 28 ENVISAT images.

Approach/

Detected oil

spills


OSLO

RADARSAT:

18 oil spills verified by

aircraft

KSAT 15

Our algorithm

14

ENVISAT:

11 oil spills verified by

aircraft

QinetiQ 12

5


7

8

Oil spills detected both by RADARSAT and

ENVISAT ASAR

Two oil spills verified by aircraft the 21 st July 2003 at 23:26 pm.

Wind speed 10 m/s. Spot to the right: 59,50 Lat and 21.98 Lon.

RADARSAT SCN image, 21 st July 2003, 16:05 pm.

None of the satellite approaches detected the oil spill to

the right. KSAT, QinetiQ and NR detected the oil spill to

the left.


OSLO

ENVISAT ASAR WS image, 21 st July 2003, 19:54 pm. Oil

spill to the right detected by KSAT and NR. None of the

satellite based approaches detected the spill to the left.


Oil spill missed by satellite

ENVISAT ASAR WS. Classified as oil by German surveillance aircraft, 3

August 2003. Not detected by KSAT, our algorithm or QinetiQ.


OSLO


Look-alikes and false alarms

• Look-alikes:

– Natural films

– Grease ice

– Threshold wind speed areas (< 3m/s)

– Wind sheltering by land

– Rain cells

– Shear zones

– Internal waves

– Natural oil seepage etc.

• In certain cases, a SAR sensor alone is not sufficient to

discriminate between oil, natural films and algae.

• To detect all true oil spills, a certain number of false

alarms must be expected.


OSLO


Algae

examples


OSLO

ENVISAT ASAR WS. Classified as algae by German surveillance aircraft, 7. august

2003.

ENVISAT ASAR WS. Classified as algae by

Finnish surveillance aircraft, 11. August 2003.

RADARSAT ScanSAR. Classified as

algae by aircraft, 1. August 2003.


Algae study

• Additional information necessary to distinguish

between algae and oil spills in SAR images.

– Suitable sensors:


OSLO

» MERIS? 300m spatial resolution.

» MODIS? 250-300 m spatial resolution.

» Low resolution.

» Cloud coverage and light conditions a problem.

– Algae maps and probabilities of observing algae in different

areas at different times of the year.

» Summer months in the Baltic sea.


Algae in ASAR

WS image. Length

of spot ~7050 m

(pixel size is 75 m).

Summary

• Future operational oil spill monitoring a combination of

– SAR satellites (RADARSAT-1/-2, ENVISAT) with wide coverage and a

spatial resolution

Oil spill statistics

• >1000 spills observed annualy in European water

• Oil spill lifetimes range from hours to days

– Most oil spills are not observed the following day

• Environmental effect depends on position,

amount, oil type etc.


OSLO


Oil spill statistics – Finland (from SYKE)


OSLO

Oil spill monitoring from spaceborne and airborne sensors
