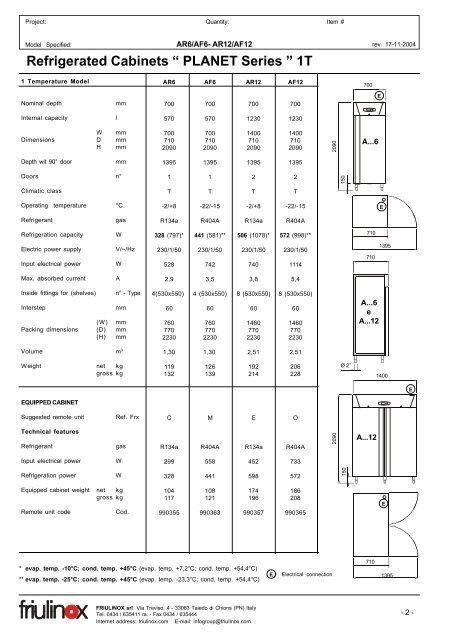

Project: Quantity: Item #<br />

Model Specified: AR6/AF6- AR12/AF12<br />

<strong>Refrigerated</strong> <strong>Cabinets</strong> “ <strong>PLANET</strong> <strong>Series</strong> ” <strong>1T</strong><br />

1 Temperature Model<br />

Nominal depth mm<br />

Internal capacity l<br />

W mm<br />

Dimensions D mm<br />

H mm<br />

Depth wit 90° door mm<br />

Doors n°<br />

Climatic class<br />

Operating temperature °C<br />

Refrigerant gas<br />

Refrigeration capacity W<br />

Electric power supply V/~/Hz<br />

Input electrical power W<br />

Max. absorbed current A<br />

Inside fittings for (shelves) n° - Type<br />

Interstep mm<br />

(W) mm<br />

Packing dimensions (D) mm<br />

(H) mm<br />

Volume m 3<br />

Weight net kg<br />

gross kg<br />

EQUIPPED CABINET<br />

Suggested remote unit Ref. Frx<br />

Technical features<br />

Refrigerant gas<br />

Input electrical power W<br />

Refrigeration power W<br />

Equipped cabinet weight net kg<br />

gross kg<br />

Remote unit code Cod.<br />

AR6 AF6<br />

700 700<br />

570 570<br />

700 700<br />

710 710<br />

2090 2090<br />

1395 1395<br />

1 1<br />

T T<br />

-2/+8 -22/-15<br />

R134a R404A<br />

328 (797)* 441 (581)**<br />

230/1/50 230/1/50<br />

528 742<br />

2,9 3,5<br />

4(530x550) 4 (530x550)<br />

60 60<br />

760 760<br />

770 770<br />

2230 2230<br />

1,30 1,30<br />

119 126<br />

132 139<br />

C M<br />

R134a R404A<br />

299 558<br />

328 441<br />

104 108<br />

117 121<br />

990355 990363<br />

* evap. temp. -10°C; cond. temp. +45°C (evap. temp. +7,2°C; cond. temp. +54,4°C)<br />

** evap. temp. -25°C; cond. temp. +45°C (evap. temp. -23,3°C; cond. temp. +54,4°C)<br />

FRIULINOX srl Via Treviso, 4 - 33083 Taiedo di Chions (PN) ItaIy<br />

TeI. 0434 / 635411 ra. - Fax 0434 / 635444<br />

Internet address: friulinox.com E-mail: infogroup@friuIinox.com<br />

AR12 AF12<br />

700 700<br />

1230 1230<br />

1400 1400<br />

710 710<br />

2090 2090<br />

1395 1395<br />

2 2<br />

T T<br />

-2/+8 -22/-15<br />

R134a R404A<br />

506 (1078)* 572 (998)**<br />

230/1/50 230/1/50<br />

740 1114<br />

3,8 5,4<br />

8 (530x550) 8 (530x550)<br />

60 60<br />

1460 1460<br />

770 770<br />

2230 2230<br />

2,51 2,51<br />

192 206<br />

214 228<br />

E O<br />

R134a R404A<br />

452 733<br />

598 572<br />

174 186<br />

196 208<br />

990357 990365<br />

E Electrical connection<br />

2090<br />

2090<br />

150<br />

Ø 2”<br />

150<br />

700<br />

A...6<br />

710<br />

710<br />

A...6<br />

e<br />

A...12<br />

A...12<br />

710<br />

rev. 17-11-2004<br />

E<br />

E<br />

1395<br />

1400<br />

E<br />

1395<br />

E<br />

- 2 -

Project: Quantity: Item #<br />

Model Specified: AR6 VTR/AF6 VTR- AR12 VTR/AF12 VTR<br />

<strong>Refrigerated</strong> <strong>Cabinets</strong> “ <strong>PLANET</strong> <strong>Series</strong> ” VTR <strong>1T</strong><br />

1 Temperature Model<br />

Nominal depth mm<br />

Internal capacity l<br />

W mm<br />

Dimensions D mm<br />

H mm<br />

Depth wit 90° door mm<br />

Doors n°<br />

Climatic class<br />

Operating temperature °C<br />

Refrigerant gas<br />

Refrigeration capacity W<br />

Electric power supply V/~/Hz<br />

Input electrical power W<br />

Max. absorbed current A<br />

Inside fittings for (shelves) n° - Type<br />

Interstep mm<br />

(W) mm<br />

Packing dimensions (D) mm<br />

(H) mm<br />

Volume m 3<br />

Weight net kg<br />

gross kg<br />

EQUIPPED CABINET<br />

Suggested remote unit Ref. Frx<br />

Technical features<br />

Refrigerant gas<br />

Input electrical power W<br />

Refrigeration power W<br />

Equipped cabinet weight net kg<br />

gross kg<br />

Remote unit code Cod.<br />

AR6 VTR AF6 VTR<br />

700 700<br />

570 570<br />

700 700<br />

730 730<br />

2090 2090<br />

1395 1395<br />

1 1<br />

N N<br />

-2/+8 -20/-15<br />

R134a R404A<br />

328 (797)* 441 (778)**<br />

230/1/50 230/1/50<br />

588 802<br />

3,4 4,0<br />

4 (530x550) 4 (530x550)<br />

60 60<br />

760 760<br />

770 770<br />

2230 2230<br />

1,30 1,30<br />

134 141<br />

147 154<br />

C M<br />

R134a R404A<br />

299 558<br />

328 441<br />

104 108<br />

117 121<br />

990355 990363<br />

* evap. temp. -10°C; cond. temp. +45°C (evap. temp. +7,2°C; cond. temp. +54,4°C)<br />

** evap. temp. -25°C; cond. temp. +45°C (evap. temp. -23,3°C; cond. temp. +54,4°C)<br />

FRIULINOX srl Via Treviso, 4 - 33083 Taiedo di Chions (PN) ItaIy<br />

TeI. 0434 / 635411 ra. - Fax 0434 / 635444<br />

Internet address: friulinox.com E-mail: infogroup@friuIinox.com<br />

AR12 VTR AF12 VTR<br />

700 700<br />

1230 1230<br />

1400 1400<br />

730 730<br />

2090 2090<br />

1395 1395<br />

2 2<br />

N N<br />

-2/+8 -20/-15<br />

R134a R404A<br />

506 (1078)* 572 (998)**<br />

230/1/50 230/1/50<br />

800 1174<br />

4,3 5,9<br />

8 (530x550) 8 (530x550)<br />

60 60<br />

1480 1480<br />

770 770<br />

2230 2230<br />

2,51 2,51<br />

207 236<br />

229 258<br />

E O<br />

R134a R404A<br />

452 733<br />

598 572<br />

174 186<br />

196 208<br />

990357 990365<br />

E Electrical connection<br />

2090<br />

2090<br />

150<br />

Ø 2”<br />

150<br />

700<br />

A...6<br />

VTR<br />

730<br />

730<br />

A...6<br />

e<br />

A...12<br />

VTR<br />

A...12<br />

VTR<br />

730<br />

rev. 17-11-2004<br />

E<br />

E<br />

1395<br />

1400<br />

E<br />

1395<br />

E<br />

- 3 -

Project: Quantity: Item #<br />

Model Specified: AR7/AF7- AR14/AF14<br />

<strong>Refrigerated</strong> <strong>Cabinets</strong> “ <strong>PLANET</strong> <strong>Series</strong> ” <strong>1T</strong><br />

1 Temperature Model<br />

Nominal depth mm<br />

Internal capacity l<br />

W mm<br />

Dimensions D mm<br />

H mm<br />

Depth wit 90° door mm<br />

Doors n°<br />

Climatic class<br />

Operating temperature °C<br />

Refrigerant gas<br />

Refrigeration capacity W<br />

Electric power supply V/~/Hz<br />

Input electrical power W<br />

Max. absorbed current A<br />

Inside fittings for (shelves) n° - Type<br />

Interstep mm<br />

(W) mm<br />

Packing dimensions (D) mm<br />

(H) mm<br />

Volume m 3<br />

Weight net kg<br />

gross kg<br />

EQUIPPED CABINET<br />

Suggested remote unit Ref. Frx<br />

Technical features<br />

Refrigerant gas<br />

Input electrical power W<br />

Refrigeration power W<br />

Equipped cabinet weight net kg<br />

gross kg<br />

Remote unit code Cod.<br />

AR7 AF7<br />

800 800<br />

650 650<br />

700 700<br />

810 810<br />

2090 2090<br />

1495 1495<br />

1 1<br />

T T<br />

-2/+8 -22/-15<br />

R134a R404A<br />

328 (797)* 441 (778)**<br />

230/1/50 230/1/50<br />

528 742<br />

2,9 3,5<br />

4 GN2/1 4 GN2/1<br />

60 60<br />

760 760<br />

870 870<br />

2230 2230<br />

1,47 1,47<br />

128 135<br />

143 150<br />

D N<br />

R134a R404A<br />

365 649<br />

506 486<br />

113 116<br />

128 131<br />

990356 990364<br />

* evap. temp. -10°C; cond. temp. +45°C (evap. temp. +7,2°C; cond. temp. +54,4°C)<br />

** evap. temp. -25°C; cond. temp. +45°C (evap. temp. -23,3°C; cond. temp. +54,4°C)<br />

FRIULINOX srl Via Treviso, 4 - 33083 Taiedo di Chions (PN) ItaIy<br />

TeI. 0434 / 635411 ra. - Fax 0434 / 635444<br />

Internet address: friulinox.com E-mail: infogroup@friuIinox.com<br />

AR14 AF14<br />

800 800<br />

1400 1400<br />

1400 1400<br />

810 810<br />

2090 2090<br />

1495 1495<br />

2 2<br />

T T<br />

-2/+8 -22/-15<br />

R134a R404A<br />

506 (1078)* 572 (998)**<br />

230/1/50 230/1/50<br />

740 1114<br />

3,8 5,4<br />

8 GN2/1 8 GN2/1<br />

60 60<br />

1480 1480<br />

870 870<br />

2230 2230<br />

2,83 2,83<br />

202 216<br />

226 240<br />

E P<br />

R134a R404A<br />

452 886<br />

598 690<br />

183 194<br />

207 218<br />

990357 990366<br />

2090<br />

2090<br />

E Electrical connection<br />

150<br />

Ø 2”<br />

150<br />

700<br />

A...7<br />

810<br />

810<br />

A...7<br />

e<br />

A...14<br />

A...14<br />

810<br />

rev. 17-11-2004<br />

E<br />

E<br />

1495<br />

1400<br />

E<br />

1495<br />

E<br />

- 4 -

Project: Quantity: Item #<br />

Model Specified: AR7 VTR/AF7 VTR- AR14 VTR/AF14 VTR<br />

<strong>Refrigerated</strong> <strong>Cabinets</strong> “ <strong>PLANET</strong> <strong>Series</strong> ” VTR <strong>1T</strong><br />

1 Temperature Model<br />

Nominal depth mm<br />

Internal capacity l<br />

W mm<br />

Dimensions D mm<br />

H mm<br />

Depth wit 90° door mm<br />

Doors n°<br />

Climatic class<br />

Operating temperature °C<br />

Refrigerant gas<br />

Refrigeration capacity W<br />

Electric power supply V/~/Hz<br />

Input electrical power W<br />

Max. absorbed current A<br />

Inside fittings for (shelves) n° - Type<br />

Interstep mm<br />

(W) mm<br />

Packing dimensions (D) mm<br />

(H) mm<br />

Volume m 3<br />

Weight net kg<br />

gross kg<br />

EQUIPPED CABINET<br />

Suggested remote unit Ref. Frx<br />

Technical features<br />

Refrigerant gas<br />

Input electrical power W<br />

Refrigeration power W<br />

Equipped cabinet weight net kg<br />

gross kg<br />

Remote unit code Cod.<br />

AR7 VTR AF7 VTR<br />

800 800<br />

650 650<br />

700 700<br />

830 830<br />

2090 2090<br />

1495 1495<br />

1 1<br />

N N<br />

-2/+8 -20/-15<br />

R134a R404A<br />

328 (797)* 441 (778)**<br />

230/1/50 230/1/50<br />

528 742<br />

2,9 3,5<br />

4 GN2/1 4 GN2/1<br />

60 60<br />

760 760<br />

870 870<br />

2230 2230<br />

1,47 1,47<br />

143 150<br />

158 165<br />

D N<br />

R134a R404A<br />

365 649<br />

506 486<br />

113 116<br />

128 131<br />

990356 990364<br />

* evap. temp. -10°C; cond. temp. +45°C (evap. temp. +7,2°C; cond. temp. +54,4°C)<br />

** evap. temp. -25°C; cond. temp. +45°C (evap. temp. -23,3°C; cond. temp. +54,4°C)<br />

FRIULINOX srl Via Treviso, 4 - 33083 Taiedo di Chions (PN) ItaIy<br />

TeI. 0434 / 635411 ra. - Fax 0434 / 635444<br />

Internet address: friulinox.com E-mail: infogroup@friuIinox.com<br />

AR14 VTR AF14 VTR<br />

800 800<br />

1400 1400<br />

1400 1400<br />

830 830<br />

2090 2090<br />

1495 1495<br />

2 2<br />

N N<br />

-2/+8 -20/-15<br />

R134a R404A<br />

506 (1078)* 572 (998)**<br />

230/1/50 230/1/50<br />

740 1114<br />

3,8 5,4<br />

8 GN2/1 8 GN2/1<br />

60 60<br />

1480 1480<br />

870 870<br />

2230 2230<br />

2,83 2,83<br />

232 246<br />

256 270<br />

E P<br />

R134a R404A<br />

452 886<br />

598 690<br />

183 194<br />

207 218<br />

990357 990366<br />

2090<br />

2090<br />

E Electrical connection<br />

150<br />

Ø 2”<br />

150<br />

700<br />

A...7<br />

VTR<br />

W<br />

830<br />

830<br />

A...7<br />

e<br />

A...14<br />

VTR<br />

A...14<br />

VTR<br />

830<br />

rev. 17-11-2004<br />

E<br />

E<br />

1495<br />

1400<br />

E<br />

1495<br />

E<br />

- 5 -

Yumpu Logo

products

Resources

Company

Terms of service
Privacy policy
Cookie settings
Accessibility Statement
Accessibility Statement
Imprint
Change language
Made with love in Switzerland
© 2025 Yumpu.com, all rights reserved

Hooray! Your file is uploaded and ready to be published.

Saved successfully!

Ooh no, something went wrong!
