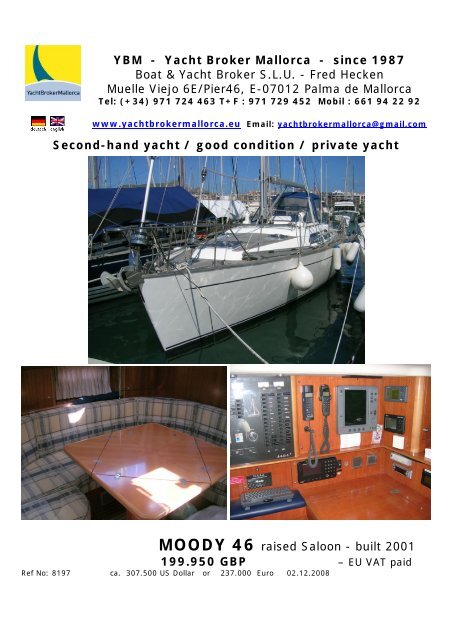

YBM - Yacht Broker Mallorca - since 1987 Boat ... - heckenweb.de

YBM - Yacht Broker Mallorca - since 1987
Boat & Yacht Broker S.L.U. - Fred Hecken
Muelle Viejo 6E/Pier46, E-07012 Palma de Mallorca
Tel: (+34) 971 724 463 T+F : 971 729 452 Mobil : 661 94 22 92
www.yachtbrokermallorca.eu Email: yachtbrokermallorca@gmail.com
Second-hand yacht / good condition / private yacht
MOODY 46 raised Saloon - built 2001
199.950 GBP – EU VAT paid
Ref No: 8197 ca. 307.500 US Dollar or 237.000 Euro 02.12.2008

Built by: Marine Projects (Plymouth) Ltd, U.K. to
Lloyds Specification Certificate
Designer: Bill Dixon Design Built-No: D7063
Lying:
Europe / Spain / Mallorca
Length over All 14.06 m 46´2”
Length Water Line 12.00 m 39´4”
Beam 4.40 m 14´5”
Draught 1.60 m shoal keel, cast iron
Displacement
14.700 kg
Ballast 4.700 kg 10.340 lbs Rudder with Skeg
Tankage: Fuel 431 liters 95 Imp. Gal.
Tankage: Freshwater 772 liters 170 Imp. Gal.
Tankage: Holding yes
RIG & SAILS: SELDÈN Aluminum Mast & Boom with Rod kick -S/S standing rigging –
• main mast with RCB track and batten car (in lieu of standard)
• fully battened Mainsail (in lieu of standard)
• Furling foresail system with Yankee with Sea-foam Luff with UV-protection
• Furling Cutter rig with self tacking staysail (in lieu of standard)
• Self tacking bar cross fore ship (extra)
• running backstays (extra)
• Spi-Lift Equipment & telescopic spi-pole (mast stored) (extra)
• All control lines leading aft to cockpit – Winches LEWMAR: self tailing winches,
• 2x CEST 54 electric operated primary winches (in lieu of standard)
• Cruising Chute (extra)
• Tri sail in orange colour (extra)
• 2x UV protection covers to hoist for 2x foresails
ENGINE: VOLVO PENTA TMD22 4-cylinder Turbo Diesel 78 HP. Stainless steel shaft with 3-
bladed propeller, Dual circuit cooling with sea water filter – Isolated engine compartment with
working light – content with fuel level indicator and diesel filter.
HEATING: WEBASTO Airtop 5000 Diesel fired hot water / air central system throughout –
AIR CONDITION: reverse cycle AIR CONDITION fitted (cooling/heating) by CRUISEAIR
BOW THRUSTER: Electric operated 8 HP SIDEPOWER fitted

ELECTRICAL:
• 230 V shore power supply
• Battery charger PHASE Tree PT40DE
• Batteries 4x 95 Ah service free (service & starter)
• Batteries 2x (one in each aft locker)
• Batteries 2x for bow thruster (under forward berth
• Alternator
• Generator diesel MASTERVOLT Whisper 6000 (923 hours)
• Inverter MAX 24 to 230 Volt / 2000 Watt
WATER & PUMBING:
• Fresh water tanks, gauge - hot & cold pressurized water system – H/water by engine heat
exchanger – hot/cold shower at cockpit/stern –
• hand operated freshwater pump at galley
• electric bilge pump & manual bilge pump
• salt water deck wash to foredeck
• Holding tank system with dockside and overboard discharge
• Washing machine GUMENIA
• WATER MAKER by AQUAFRESH
• Inverter and Generator Panel

NAUTIC & NAVIGATION:
• Compass on helm station
• B&G HYDRA 2000 Log/Speed
•
Information by: B&G H2000 Full Function Display units
The B&G Hercules & Hydra Displays offer an easy to read, accurate and reliable Display. The Displays are
fully waterproof and robust, with a removable carbon fibre bezel. The units have a option of Red or Green
backlighting, so day or night it offers excellent clarity. It can be used to control the entire system; from
setting alarms to entering calibration values, With the units Soft touch buttons providing access to 9 pre-set
pages of the most frequently required information, such as:
Boat Speed + Target Boat Speed + Polar speed
True Wind Angle + True Wind Direction + True Wind Speed + Optimum Wind Angle
• B&G Hydra AUTOPILOT + 48 miles Radar with 7” screen at helm station
• GPS : AP NAVIGATOR Mk10 GPS plus

• ECHOPILOT FLS GOLD Depth meter / echo sounder
Information by: EchoPilot FLS Gold is a result of many years development. The display may be
switched to show GPS data (from almost any GPS), including all Waypoint information, forward sonar display
or a combination of both. NMEA0183 the world marine industry standard protocol interface allows the
instrument to output speed and depth to other instruments or if appropriate to receive and display it. The
Gold screen is also the largest that can be fitted in the case. Simple selection of range in use is by pressing
the up or down buttons. The shortest range for maximum detail in shallow water is 20m ahead x 10m down
(60' x 30') and the longest is 150m ahead x 75m down (450' x 225').
• RAYTHEON RL80C Chart plotter
• SHIPMATE RS8400 DSC VHF telephone
• NAVTEX FURUNO NX300
Information by FURUNO: Paperless Navtex receiver.
messages will be memorized and can be recalled one
after the other on the display. If a GPS Receiver is
connected, the nearest Navtex-Station will be
received in Auto- mode. Additionally, the NX-300 is
suitable as a GPS slave unit.

• Cell-phone
• International Navigation Lights & tri/white anchor top light
• Multi antenna “all in one” on mast top
VARIOUS & SAFETY:
• electric Anchor windlass by LEWMAR
• 25 kg anchor with chain and 2 nd 15 kg anchor with chain/warp as stern anchor
• FIXED WINDSCREEN with soft Spray-hood and covers for full enclosed cockpit
• COCKPIT TABLE: folding Cockpit table
• LIFE-RAFT (run out of service date) + EPIRP COMODO G4 – Dan Buoy with flash light
• Emergency tiller (stored in aft locker)
• Various spares, tools, domestic equipment - Electric cable, water hose, connectors,
Fenders/warps etc – spare stay or shroud stored in aft locker
• Fire extinguishers (some run out of service date) – various hatch covers – safety panels
(wood) for windows -
• DINGHY & OUTBOARD ENGINE: inflatable dinghy
• GANGWAY: alu gangway with handrail
• DAVITS: strong stainless steel removable davits by SIMPSON
• – lifelines at both sides -
HULL & DECK, COCKPIT etc.: teak laid deck - Scandinavian type Pulpit with passage and
opening part to port side, push-pit, twin guard wires, railing doors to both sides – S/S stem
head bow fitting with anchor roller – 6 mooring cleats (2 bow, 2 mid & 2 aft) – self draining anchor
locker – self draining gas bottle storage for 2x bottles (57x27 cm) – Teak hand rails on coach roof
- Teak on cockpit seat and C/pit floor - Deck & engine vent – Centre cockpit – S/S steering wheel
hide covered, helm cover – S/S frame – folding bathing platform with S/S folding bathing ladder -
teak seats to aft rail (integrated to pushpit) -
ACCOMMODATION:
4 cabins / 7 berths / 2 heads compartments
Cherry Interior
Forward cabin: centreline double berth, large hanging locker to starboard, opening deck hatch.
Port guest cabin: twin single berths, hanging locker and storage, opening deck hatch.
Forward heads: Wash basin, marine toilet, separate shower area, hot and cold pressurized water,
opening deck hatch.
Saloon: Large C shaped settee to port side with folding leaf table, to starboard are 2 built in
armchairs with a built in locker between, the built in armchairs house pull out stools to provide
additional seating around the dining table, hull portlights, large saloon windows, opening deck
hatch.
Navigation area: navigation desk, chart table seat, wet hanging locker aft of chart table seat.
Galley: Large U-shaped galley one step down from saloon, twin sinks with h/c pressurized water
and hand operated freshwater pump, ISOTHERM large front opening S/S refrigerator plus top
opening freezer, SMEV gas cooker, PANASONIC microwave oven, shore support system, extractor
fan.

Port passage cabin: accessed aft of navigation area the cabin comprises a single mid level
height berth above built in locker/sideboard unit.
Aft stateroom: large centreline double berth, twin curved seats flowing away from the berth,
vanity desk, deck hatch, opening portlights, aft facing coachroof window. Washer/Dryer installed -
En suite to the aft stateroom, separate shower stall, marine toilet and wash hand basin, opening
portlight for light and ventilation.
Entertainment: JVC Radio & CD-player & loud speakers at saloon - CELLO color TV 14” &
PIONEER DVD – Computer plus creen (no harddrive or operating system)
COMMENT: Present owner bought new in 2001 – Yacht in good condition
The Moody 46 is a superb high performance vessel for blue-water cruising. She can be sailed
comfortably by two people, with all controls located within the long cockpit. Fully battended
mainsail, headsail furling system.
Test-Report: Yachting World 1998
Date introduced: December 1997 Date ceased: June 2001

DISCLAIMER:
In this transaction YBM-YachtBrokerMallorca is acting as Broker only. We are informed that this
sale related to the Owner’s business. Whilst every care has been taken in their preparation, the
correctness of these particulars is not guaranteed. The particulars are intended only as a guide and
they do not constitute a term of any contract. Some pictures may be of a similar boat. A
prospective buyer is strongly advised to check the particulars and where appropriate to have the
boat fully surveyed and inspected, sea trialled and opened up. The boat is subject to price change,
withdrawal or sale without notice. YBM is not responsible for checking that the seller of this boat is
the owner or has the ability to sell it or transfer title in it. A prospective buyer is strongly advised to
check such matters for himself.
