Vapor Phase Analysis of Tobacco Smoke

Tobacco Science 9 : 102 (1965)

J. R. Newsome, V . Norman and C . H. Keith=

Research Department

Uggett and Myers Tobacco Company

Durham, Norhh Carolina, USA

~

Introduction

The smoke stream issuing from

burning tobacco products contains,

in addition to the billions of visible

smoke particles, a highly complex

mixture of atmospheric gases and

volatile combustion products. In the

case of cigarette smoke this gaseous

mixture represents 90 to 95 per cent

of the mass of the effluent stream

and contains a large number of components

of widely differing volatilities

which are present in widely differing

concentrations . Over 95 per

cent of the mixture comprises seven

major components, nitrogen, oxygen,

carbon dioxide and monoxide, bydrogen,

argon, and methane and has

been extensively studied both as to

overall quantityand variations in

quantity within a burning cigarette

~(15, 17, 19, 20) . A considerable anay

of components makes up the balance

of the mixture, and many oi these

have been identified and estimated

(7, 19, 20, 21, 22) .

The complexity of the vaporous

mixture, and the extremely minute

concentrations of the minor components

when combined with the rapidly

changing character of the mixture

due to chemical and physical

inter-action of it with the condensed

smoke particles- make its analysis

rather difficult . Previous studies have

generally involved the IoNc temperature

condensation of smoke vapors

from a number of cigarettes and the

extensive fractionation of the condensate

. Such techniques in addition

to being time consuming generally

permit the partial loss of some components

through imperfect collection,

volatilization during fractionation,

or through chemical interaction

of the condensed vapors . Also the

results obtained by such methods are

quite dependent on the collection

system employed, as this frequently

alters the partition of the less volatile

components between the vapor

and the particulate phases .

BASIC SMp9NG SYSTEM

The recent increase of interest in

the gas phase of cigarette smoke has

made it desirable to develop a rapid

and quantitative analytical sy stem

for its minor gaseous components .

Many of these materials have long

been known to be of physiological

significance in concentrations far in

excess of their reported levels in tobacco

smoke, and have variously been

classified as irritating, anaesthetic,

or toxic vapors . In their minute concentrations

in tobacco smoke, their

chief contribution has been towards

imparting the indefinite physiological

sensations of "bite" and "sting"

to the taste of the smoke . Recently

Kensler and Battista (13) demon-

' Pruewsod +n part ot tir ScJtN Natiana/ Mert-

'np of tAe A'r.rsitan CAemice7 Sansty, Nem Yor#.

, SrD1e'~ber 1i-17, 1963 awd e : tAr 17th

Tubaece Che+,.i.rt.' Reseurch C`w ./s.rxr, Srpee,~.-

ber II-15, 1V61, ,n Montrraf, Q„ebre, Canads .

address : Crlm,rsr Fibrrs Qa . . CLorlour,

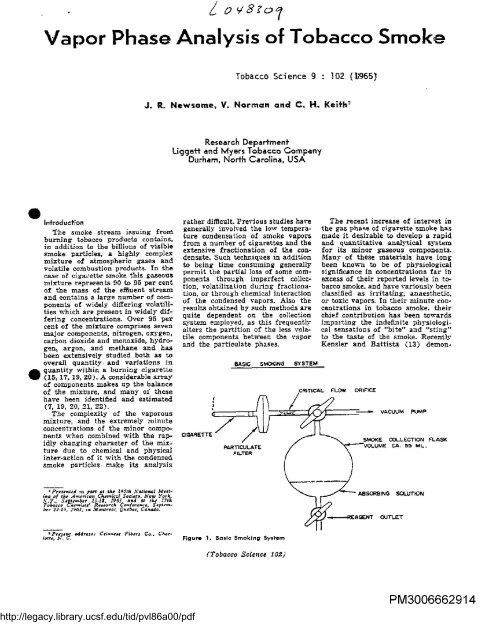

A: C. Fi9ure 1 . Basic Smoking System

(Tobacco Science 102)

http://legacy.library.ucsf.edu/tid/pvl86a00/pdf

PM3006662914

strated a more specific effect in their

finding that the vapor phase of cigarette

smoke can inhibit the action

of mammalian ciliated tissue, and

thereby interfere with the ability of

the lung and trachea to eliminate

foreign matter (6) . They also have

found that gaseous smoke constituents

such as hydrogen cyanide, ammonia,

acrolein, and formaldehyde

inhibit ciliary motion at concentrations

approaching those found in

ordinary cigarette smoke . A companion

development has been the introduction

of a considerable variety

of adsorbent bearing filters which

serve to selectively reduce the levels

of a number of the components of

the gas phase .

To fulfill this need for a suitable

gas phase analytical system, this paper

describes a system for quantitatively

collecting smoke samples, and

applying a variety of colorimetric,

electrometric, and chromatographic

+ techniques to the unfractionated

sample . As an illustration of the

utility of the system, comparative

data on eighty gaseous components

issuing from three different types

of cigarettes are presented . It is

thought that these techniques would

also be of use in studies of other

complex vapor systems.

6perimental

1 . Smoking dnd Sample CoIkction

System .

A simple smoking system which

allows the quantitative collection and

subsequent rapid analysis of the

gaseous phase of a single puff of

smoke is illustrated in Figure 1-

The components are the cigarette

under study, a particulate smoke

filter, a flow limiting orifice, and

an evacuated flask which provides

the source of suction to withdraw

the puff and also wholly contain

the vapor sample. In the modification

illustrated in Figure 1, the

flask contains 10 ml of an absorbing

solution appropriate to the component

under study. In operation the

flask is evacuated by an external

pump, and the puff is taken by turning

the three-way stopcock to connect

the orifice, filter, and the previously

lighted cigarette to the flask,

Following the puff the sample of

smoke vapors in the flask are transferred

to the absorbing solution by

manual shaking . The puff characteristics

are controlled by the free voIume

of the flask (ea . 45 ml with 10

ml of absorbing solution), the vacuum

drawn on the flask (27 in Hg),

and the hole diameter of the orifice

(0.508 mm) . These parameters are

found to provide a normal human

puff volume of 40 ml with an appropriate

velocity distribution during

the two second duration of the puff .

The particulate filter (Cambridge

CM-113 glass fiber filter) provides a

crude separation of the particulate

and vaporous smoke, and can be discarded

if a total smoke sample is

desired. Since the division of materials

effected by such filters is generally

becoming empirically defined

as the division between particulate

and gaseous tobacco smoke, and

since the vaporous components of

pharmacological interest pass

through such filters, they have been

used throughout these experiments .

No . of

C atoms

in

Compound molecule

Table 1 . Ffome response data, compared to n•hexane

1 x 10° maies n-hexane-5415 integrator counts .

FunctConal

group

Change in

response,

No . of C

atoms

l:ffective No . of C

a4oms in molecu(e

Exp. iterature (3)

Ethane 2 . . . +0 .03 :1 .03 1 .98

Propene 3 -0 .07 2 .93 2.88

Butane 4 . . . -0 .09 3 .91

Isoprene (2-methyl•1,3-butadiene) 5 0-00 5 .00

Benzene 6 +0.12 6 .12 6 .00

A cetonihlle 2 C~V 1 .35

Acnlonitrile 3 CM*I -0.73 2 .47

Propionilrile 3 C~\ -0 .64 2 .36

Isabutvronitrile 4 CnnN -0 .64 3 .36

Furan 4 cyc1 . ether, CGO- -0 .99 3 .01 2.97•, 2 .9•

Methylfuran 5 cyc1. ether, C-O- -1 .12 3 .88

Methylacetate 3 C-O-C -1 .27 1 .73

0

0

Ethal acetate 4

//

C-O--C -1 .28 2 .72 2.49

Acetone 3 C-O -0.85 2.15 2.00, 1 .8

2-Butanone 4 C-O -0.91 3 .09 3.16

2-Pentanone 5 C-O -1 .02 3 .98

3.3-Butanedione 4 Two, C-O -1 .87 2.13

:+cetaldehvde 2 C-O -1 .07 0 .93

Propionaldehyde 3 C-O -1 .2 1 .88

Isobutyraldehyde 4 C-O -1 .22 2 .78 2 .83

\4ethanol

1 C-OH -0 .26 0 .74 0 .75

• DieiAyl etMr

(Tobacco Science X0s)


PM3006662915

PARTICULATE I VACUUM

FtLTER PUMP

CRITICAL

FLOW

ORIFICE

•

MDOIFICATION FOR CMROMATOGRAPHIC USE

CIGARETTE

~

PARTCULATE

FILTER

TO COLUMN AND

ChWOMATOGRAPH

-SMQ

MODIFICATION FOR SEQUENTIAL PUFFING

TIMER

•

~ / -~~3-WAr sOLENOD VALVE

'f VAODUM PUMP

CRITICAL

FLOW I

ORIFlCE sMOKE

COLLECTION

FLASg

Figure 2 . Modifications of the Basic Smoking System

It is realized that many of the vapors,

particularly those of lesser

volatility, are partitioned between

the condensed particles and the gaseous

phase, and that some may be

absorbed by the filter pad, so that

larger amounts may be present in

the total smoke stream than are in-

•dicated by these measurements of

the "vapor" phase .

Since any individual collection

flask is designed to take and retain

enly one puff, eight or more flasks

are used in smoking one cigarette

at one minute puff intervals . The

flasks are generally connected to a

common vacuum manifold and the

orifice, filter, and cigarette are

switched from flask to flask between

puffs . Each individual puff

can thus be analyzed and averages

obtained over the whole cigarette .

A middle puff, such as the fourth

or the fifth can be considered tc be

representative of the whole cigarette

since the burning cone is by

then completely established and air

dilution through paper and filtration

by the tobacco column have

reached an approximately . average

value. The HC\ data in Table 3

\TRAPS ••

are typical of the variation of

smoke gas phase components as a

function of puff number .

Two modifications of the basic

smoking system of Figure I are

illustrated in Figure 2 . That schematically

represented at the top

of the figure is an adaptation for

gas chromatographic analyses . By

replacement of the three-way stopcoek

with a timer operated solenoid

valve and the use of a manual six

port linear calve (llicrotek or

equivalent), a portion of the initially

evacuated smoke collection

space can be utilized as a chromatographic

sample loop . This loop,

which is filled with smoke vapors

during the puffing process . is subsequently

switched by the six port

valve into the carrier gas stream

so that a 20 ml sample is rapidly

and directly introduced onto the

chromatographic column .

A second modification useful for

obtaining samples of specific components

from repetitive puffs on

one or more cigarettes is also illustrated

in Figure 2. In this syste[n

each puff is taken by a smoke

collection flask which is re-evac-

uated prior to the next putf. Th

gases removed from the flask dur•

ing the re-evacuation process are

collected in fritted bubble traps

placed betn•een the collection flask

and the vacuum pump . By having

these traps external to the puffing

mechanism, the trapping system

can be as extensive as desired without

deleterious effect on the smoking

parameters .

2 . Ckemicat Analytical Techniques .

A number of physiologically active

smoke vapors have been estimated

by colorimetric and electrometric

techniques which are summarized

as follows :

a. Hydrogen Cyanide .

Utilizing the basic smoking syFtem

or the second modification with

0.1 \- \aOH as an absorbing reagent

. HC\ can be estimated in the

presence of other smoke vapors

either by the electrometric method

of Baker and lforrison (2) or the

colorimetric method of :lfurty and

Viswanathan (16) . In the eIectrometric

method the peak electrolysis

current generated in an Ag-Pt cell

by smoke solutions (1-6 puffs per 50

ml 0.1 N \aOH) is directly compared

with that obtained from

known SCV solutions with a cyanide

ion concentration equivalent to 10

to 30 itg HCN per 50 inl . The electrode

system consists of 18 inches

of 18 gauge silver wire and 10

inches of 20 gauge platinum wire

coiled on glass supports and separated

bc two cm in the magnetically

stirr+-d electrolyte solution . The currentis

read on a galvanometer (sensitivity

0 .0016 rafmm, resistance

A500'.i) shunted with a variable resistance

of five to 25 ohms . Since

the electrolysis current is linearly

proportional to the cyanide ion concentration,

simple ratios of the current

readings of known and unknown

cyanide solutions are sufficient

for calculation of the unknown

cyanide concentration . Of the

acidic gases found in tobacco smoke

vapors . onl .- H,5 is found to appreciably

interfere in this measurement,

and its concentration is sufficiently

low in smoke so that its

effect may be neglected .

b . Hydrogen Sulfide .

The hydrogen sulfide content of

tobacco smoke was determined by

the meth>-lene blue colorimetric

method (10) . With the basic single

puff smoking flasks, an absorbing

solution consisting of 15 ml of one

per cent zinc acetate in water and

0 .5 ml of 10 per cent aqueous haOH

is injected by means of a hypodermic

syringe into each puffing flask . After

collection and absorption of a

puff of smoke gases. 2 .5 ml of 0 .1

(Tobacco Science I0¢)


PM3006662916

per cent N.A'-dimethyl-p-phenclene

8iamine chloride in 1 :1 HCl and 0 .5

ml of 0 .2 .11 aqueous FeCI„ are added

to the absorbing solution . After

complete color development within

2 hours the solution is transfered

and made up to 25 ml volume and

its absorbance determined at 665 mlx

against a reagent blank . Compari-

=on of these with known sulfide solutions

yielded the level of H,S in

smoke gases in micrograms per puff .

Possible interfering materials, including

heavy metals, oxidizing sub-

:tances and other sulfide reactants

present in smoke gases . were inve=tigated

and found to be present

in inFufficient quantities in smoke

rn seriously interfere with the

measurement of H,S .

Alternatively, the second modification

of the basic smoking system

can he used for estimating the H,S

coming from a whole cigarette rather

than from individual puffs . In

. zuch experiments, the rolumes of

the various reagents are increased

fivefold .

c . Nitrogen Oxides

The Saltzman (23) procedure ultilizing

Griess-Ilosvay reagent was

found to be satisfactory for estimating

the nitric oxide and nitrogen

dioxide in cigarette smoke . 10 ml of

an aquecus absorbing solution containing

20 mg of ?t"-(1-napthcl)-

ethylene diamine dih y drochloride .

five g of sulfanilic acid, and 140 ml

of glacial acetic acid per liter was

contacted with individual puffs of

smoke vapors in the collection flasks .

After one hour for oxidation of NO

to \O : and for complete color de-

N elopment . the NO and \O, concentrations

w ere estimated by the

amounts of pink azo dye formed, as

measured by the optical density of

` the reaction mixture at 550 mµ .

Other experiments (14, 18) have

!

.

Material

Ketones :

acetone

2-butanone

butenone

2,3-butanedione

3-methyl-2-butanone

2-pentanone

3-pentanone

Esters :

methyl formate

eth,vl formate

methyl acetate

isopropvl formate

vinyl acetate

ethyl acetate

Cyclic Ethers :

furan 4 .8

2-methylfuran 5 .8

tetrahydrofuran t.race

2.5-dimethvlfuran 4 .9

Nitriles :

hydrogen cyanide 32

acrylonitrile 1.5

acetonitrile 18

methacrylonitrile 0 .4

propionitrile 2 .8

isobutyronitrile 1 .0

crotononitrile 0.4

Miscellaneous :

nitric oxide 30

methyl chloride 19

hydrogen sulBde 3 .4

ammonia' 12

thiophene 0 .1

Table 2. (Continued)

• Totnl of nrnmonveal rorayauMt det, . .n:ns61, by the

.c~.~~nl .nt n,tcrnu*nn.r °f nmtwwfu.

ysis .

d. Ammoniacal Compounds

Compounds in tobacco smoke that

yield the ammonium ion in an acidic

solution can be conveniently estimated

by the colorimetric ?ieriee

aaehvd-{3, 11, 24) applied to smoke

gas samples trapped in 0 .02 N H2-

SO, . The basic smoking system containing

10 ml of acid solution per

puffing flask was utilized . The H.

SO, trapping solutions from each

flask were subsequently heated for

i hour at 90-100' to expel interfering

acidic gases and acetone . After

cooling to 25°, addition of \essler's

reagent . and dilution to 25 ml, the

optical density at 450 m/, was measured

. Comparison of these observed

absorbances with those of known

(\H,) :SO, solutions provided a

Yield in micrograms per 40 ml puff

No Acetate Combined Acetate

Filter Filter Adsorbent Filter

42 39 13

10 9.4 2 .3

3 .7 .3.5 0 .9

15 15 3 .9

1.0 1.0 0 .2

2.3 1.9 0 .5

0.5 0.5 0 .2

3.6 3.5 1 .2

0.5 0.5 0 .2

1.7 1.6 0 .5

0.6 0.5 0.1

0.5 0.5 0.2

1.0 1.0 0.3

4.3 1 .7

5.4 1 .5

trace 0 .0

4.5 1 .0

29 11

1.3 0 .4

15 5 .8

0.4 0 .1

2.5 0.7

0.9 0 .2

0.4 0.1

35 41

24 22

3.1 1 .3

13 7 .6

0.1 trace

h-errte.

;rovedwrr, srt+s :nd n.r tAt

measure of the ammonical compound

content of smoke . This method does

not differentiate between ammonium

compounds and free ammonia .

Hydrogen sulfide and acetone are

found to interfere with the determination

of the ammoniutn ion

through formation of colloidal products

with Nessler's reagent . The extensive

heating step is found to eliminate

these materials from the absorbing

solution, and thus avoid their

interference .

e . >iirrmatd®hvd .-

Formaldehyde in cigarette smoke

can most conveniently be estimated

by the cly,omotropic aai,d . method

(1, 25) and alternately and less conveniently

by Schryver's method (12) .

Utilizing the basic puffing flasks,

five ml of 0 .1 per cent aqueous chromotropic

acid solution (1,3-dibydroxynaphthalene-3,6-disulfonic

acid) is utilized as an absorbing solution

. After smoking and absorption

of the smoke gases the solution

is transferred to a 50 ml volumetric

flask and 43 ml of concentrated

11,SO, is added . Color development is

essentially immediate due to the heat

of reaction of sulfuric acid and

water. Subsequently on cooling the

solution is made up to 50 ml with

water and the optical density measured

at 580, 500 and 600 mµ, the

short and long wavelength values being

for the purpose of providing a

base line correction for the formaldehyde-chromotropic

acid peak, thus

eliminating acrolein interference .

The amount of formaldehyde is calculated

by comparison of the absorbance

of smoke solutions with that

of known formaldehyde solutions .

A variety of known smoke components

including unsaturated and

aromatic hydrocarbons, nitric oxide,

aldehydes, ketones, phenols and

alcohols were tested for possible

interference with the formaldehyde

reaction . In general . unsaturated

hydrocarbons and acrolein w ere

found to interfere, but the utilization

of the aqueous collection system

and the base line correction essentially

eliminated these effects . It

sras found that the particulate

smoke collected on Cambridge filter

pads adsorbed appreciable quantities

of formaldehyde, so that it was necessary

to use a fresh pad for each

individual puff .

Because of the possible lack of

specificity of the chromotropic acid

method for formaldehyde, additional

estimations were made by Schn1 er's

method (12) which involves the formation

of an intense magenta coloration

by the reaction of formaldehyde

phenylhydrazone with potassium ferrieyanide

. Smoke gases were collected

in 10 ml of 1 per cent aqueous

phenylhydrazine hydrochloride solution

. Subsequently this solution was

diluted with water to 50 ml and a 10

ml aliquot of this was combined with

one ml of freshly prepared 5 per cent

K,Fe(C\ )s in water and four ml

of 31 .5 per cent HCI in water . The

reaction mixture was diluted to 25

ml and its absorbence determined at

525 mµ within 10 minutes . Comparable

results were obtained with both

methods.

3 . Chromatogra.phic Teclentqlses

Most of organic materials in cigarette

smoke vapors are most concenientlc

estimated by gas-liquid

chromatngraphic techniques . R hile



PM3006662918

other workera such as Grob (7) have

auccessfully employed capillary columna

for tobacco smoke analysis,

this work was confined to small

diameter packed columns to improve

the quantitative aspects of these

analyses. A Microtek GC 2500R chromatograph

equipped with linear temperature

programming, a disc integrator,

and dual flame ionization

detectors was utilized in this work .

The dual detector feature was, however,

not utilized since the columns

employed had negligible "bleed"

aver the temperature range of interest

. Helium dried over 5A molecular

sieve was employed as a carrier gas .

The packed columns were all constructed

from ?S" stainless steel tubing

coiled in a helix . They were

packed under 75 pounds helium pressure

with mechanical vibration . The

liquid phase was generally applied as

• a water or methylene chloride solution

to the substrate, after which the

solvent was removed in a rotary

evaporator . Three major column systems

were utilized, one being for low

molecular weight hydrocarbons and

the other ta-o for larger hydrocarbons

and oxygenated smoke components-

These were as follows :

Column I .

Highly polar column for hydrocarbons

.

To adequately resolve the complex

mixture of hydrocarbons in smoke,

a composite column consisting of a

25 foot section containing 18 per cent

fl,/3-ocydipropionitrile on 100-120

mesh Alcoa F-20 alumina followed by

a second 25 foot section packed with

22 per cent bis-2-(2-methoxyethoxy)

ethyl ether and three per cent hexadecane

on 100-120 mesh C22 firebrick

. The alumina section was operated

ated at 0° and the second section at

25° . A third section consisting of

five feet of tubing packed with 60-80

mesh firebrick coated with 25 per

cent mercuric perchlorate was utilized

in some of the measurements

and was inserted by means of a valve

system between the first two sections

. The third section was used to

remove all the unsaturated hydrocarbons

from the mixture without

affecting the saturated components

and thus resolve a number of overlapping

peaks (5) . Helium at 100 psi

gave a flow of 30 ml per minute

through this series of columns . Preparative

purging with hetium at elevated

temperatures was necessary

before use of this composite column .

Column 11 .

First polar column for aromatic

hydrocarbons and oxygenated components

.

The more polar vaporous mixture

of aromatic hydrocarbons and low

C0WhT1 I

a.

TME, MIN.

27520

Figure 3 . Chromotogram of gas phase smoke hydrocarbons, showing removaL of unsoturated

compounds with mercuric perchlorate .

Compounds for Figure 3 .

s

14 15

1 . methane 19 . propyne

22 ethene 20 . 1-pentene

3 . ethylene 21 . 1 .2-butcdienn

4 . propane 22 . 2-methyl-l-buten e

5 . propene 23 . trans-2-pentene

6 . 2-methylpropone 24 . cis-2-penfene

7. acetylenn 25 . cyclopentone

B . butane 26 . unknown

9 . propudiene 27 . 2-methy I-2-bute ne

10 . 1-butene 28 . 2-methylpentane

11 . 2-methylpropene 29 . 1,4-pentodiene

12. trans-2-burens 30 . 3-metby4pentonw

13, cis-2-butene 31 . hexone

14. 2-methylbutene 32 . 4-m ethy (-1-pe nte n*

15 . penrane 33, ryclupentene

16 . 3-m e th y l-1-b u f e n e 34 . 4-methylB-pentene (cis- } trons-}

17 . 1,3-butadiene 3S . 2-methy I-1,3 .butadiene

18 , methyl chloride 36. methylcyclopentene

molecular weight materials containing

oxygen and nitrogen was partially

resolved by on~ column and completely

resolved by two columns . The

first of these consisted of a 60 foot

column packed with 100-120 m-n

C22 firebrick coated with 25 per cent

licon Polar 50 FIB280X . Operating

conditions were holding at 25° for

60 minutes, programming 1' per

minute to 70°, and holding at 70°

until completion of the chromatogram

. A carrier gas pressure of 110

psi gave an exit flow of 40 mlJmin .

and the column was purged with

helium at 1000 for 48 hours before

use .

Column III .

Second polar column for aromab

ics and oxygenated components .

This consisted of a two component

column connected in series. The first

section of 35 ft contained 100-120

mesh C22 firebrick coated aith 20

per cent 1,2,3-tris-(2-cyanoethoay)

32

wo

propane- The second section, 25 ft

long, contained the packing of column

II . The operating and preparations

conditions were the same as

for column II except that the initial

hold at 25' was for 45 minutes instead

of one hour .

It was found that methanol, a vaporous

component of cigarette

smoke . w as eluted with considerable

tailing from both columns II and III,

which interfered with several following

peaks . This interference was

removed by inserting a small six

inch precolumn containing one per

cent boric acid on 100-120 mesh C22

support operated at 25° (8) . With

this precolumn methanol was quantitatively

removed from the mixture,

thus allowing the estimation of the

succeeding peaks . Methanol ia turn

was estimated by the difference between

chromatograms with and without

the precolumn. Methyl- and di-



PM3006662919

• TIME . MIN .

Fi9ure 4 . Chrometeg :em of gos phase smoke hydrocarbons aid oxygenoted components .

.

Compounds for Figure 4

1 . acetoldehyde 21 . ethyl acetate

2 . 2-methyl-1, 3-butadiene 22 . 2-butanone

3 . trers-1,3-pentadiene 23 . butenone

4 . cyclopenaene 24 . ocetonitrile

5 . cis-1,3-pentodiene 25 . ocrylonitrile

6- methyl formate 26 . isovalercldehyde

7 . propionoldehyde 27 . 2,3-butaneidione

8 . furon 28 . benzene

9 . acetone 29 . 3-methyl-2-buto none

10 . ethyl formote 30. methacrylonitrile

11 . ecrolein 31 . propionitrile

12 . isobutyroldehyde 32 . isabutyronitrile

13 . methyl ocelote 33 . 2,5-dimethyfforan

14 . pivaloldehyde

34. 2-pentonone

35 . 3 .pentanone

15 . iaopropyl formate

36. vcleraldehyde

16 . methocrolein

37 . thiophene

17 . 2-methylfvron

38 . crotonoldehyde

18 . butyrotdehyde 39 . 2-methylvoleraldehyde

19 . tetrnhydrofuran :0 . crotononitrile

20 . vinyl acetate 41 . toluene

methylfuran were also found to be

partially removed by this precolumn,

so that chromatograms with it in

place were used onl y to estimate

those materials subject to methanol

interference .

Smoke samples of 20 ml, obtained

with the chromatographic modification

of the basic smoking system,

were sub ;ect to analysis . -lluisture

and temperature equilibrated cigarettes

(7-t`F, 60 per cent RH) were

smoked and an average fourth puff

was chromatographed when 57 to

60 mm of the cigarette remained .

The data reported herein, are the

average of eight to 10 such measurements

.

Calibrations were made using a

20 ml sample loop fitted with an injection

port so that calibration mixtures

could be injected at atmospheric

pressure . Calibration standards

were mixed in a one liter flask

to which was attached a second

smaller, about 25 ml, flask . The two

containers l-ere connected through

a stopcock and both were fitted with

injection ports that were sealed with

rubber septums. With the larger

flask evacuated . microgram quantities

of the pure compound -ere injected

into the smaller flask which

uas maintained at atmospheric pres-

sure. The stopcock connecting the

two containers was then opened, and

a h .-podermic syringe needle was inserted

throuRh the injection port of

the smaller flask in order to permit

air to enter the flask and flush the

sample into the larger container . For

higher boiling materials the flask

was heated before flushing. Final

mixing was attained by adding several

pieces of teflon to the one liter

flask and shaling- Samples prepared

in this manaer were found to deteriorate

rapidly since most of the

materials were readily adsorbed by

the rubber septums_ The simplicity

of the method, however, permitted

almost instantaneous mixing and

sampling. The reproducibility of this

method was found to be better than

=2 per cent . The highest purity

gases and liquids were utilized as

obtained or, if impure, were fractionated

prior to use .

Resulis and Discussions

1 . Idenfi,8cation and Estimation of

ConEpoitFntS.

For the components estimated by

non-chromatographic methods, the

apecificity of the individual techniques

and the frequent use of alternate

methods are sufficient to provide

a reasonable assurance that the results

are in fact a measure of the

particular components•under study .

For the chromatographically estimated

components, the identification=

can only be considered as tenta-

(Tobacco Science 108,


PM3006662920

tire. and are based on the retention

tir:ies of the individual materials on

di''erent column packings and on a

comparison of this work with that of

others- For the hydrocarbons listed

in Table 2. Osborne et al. (19) and

Philippe et al . (20, 21, 22), have provided

sufficient evidence of the presence

of most of these materials in

cigarette smoke . Since our hydrocarbon

column (column I) was essentially

that used subsequently by

Philippe (21) with the same elution

order of hydrocarbons . the identity

of these materials is fairly rx-ell established

. For the oxygenated components

analyzed with columns II and

III . the considerable alteration of

elution times between these packings

and the comparison of these data

with those of Irby and Harlow (9)

and Grob (7) allows a tentative assignment

of these materials . Figures

3 and 4 show the chromatographic

tracings obtained with columns

I . II, and III with and without

the additional mercuric perchlorate

and boric acid columns .

These illustrate the degree of separation

achieved . In Figure 3, the

thorough scavenging effect of the

mercuric perchlorate for unsaturated

hydrocarbons is clearly

shown . u-hich allows the resolution

of all but one of the overlapping

peaks .

Considerably greater mixing of

components is apparent in Figure

4. where eight to 10 overlapping

peaks are evident in the two chromatograms.

The considerably different

polarities of these two columns

resulted in a pronounced change in

retention times for a number of

components, thus allowing an interchange

of partners in the mixed

peaks . It w as thus possible to resolve

each mixture by means of difference

calculations .

Calibration data using individual

components and mixtures thereof

were obtained for estimation of the

amounts of each material . As has

been reported previously (1), each

class of compound was found to exhibit

a linearly increasing flame

ionization detector response with increasing

numbers of carbon atoms

in the molecule . The difference between

classes of compounds which

are primarily dependent on the nalure

of the functional groups present

can be expressed in terms of an efieetice

number of carbon atoms

(\c) . For hydrocarbons Kc is es-

,entially equal to the number of

carbon atoms, while for materials

containing carbon-oxygen bonds, the

effectire number is generally one unit

less than the actual number. Table

1 summarizes some of our calibration

data in terms of this quantity,

which is measured relative to n-hexane,

and compares these with values

reported in the literature (4) .

The general agreement between

Ve values computed from our calibration

data and those reported in

the literature is useful in that it

provides a check on our calibration

procedures . Although calibration

data were obtained for most of the

compounds reported herein, the

linearity of the flame response for

homologous series was occasionally

used to estimate minor members of

such a series and provided a further

check on the individual calibrations .

2 . Analysis of Cigarette Smoke .

To demonstrate the utiliri- of these

methods, comparative data an three

different types of cigarettes were

obtained . These iiere chosen to demonstrate

the effect of cigarette filters

on this array of minor gaseous smoke

components . All three cigarettes bad

the same tobacco column, which consisted

of a commercial blend of the

major types of cigarette to'naccos .

The first sample, labelled "no filter,"

is representative of an 85mm unfiltered

cigarette . The second . labelled

"acetate filter," is also 85 mm

long and is equipped with a I6 mm

cellulose acetate filter, and is found

to be quite similar to most ordinary

commercial filter cigarettes in its

smoke and gas filtration properties .

The third 85 mm cigarette, labelled

"combined acetate adsorbent filter,"

is equipped with a 20 mm combination

filter consisting of two outer

sections of cellulose acetate surrounding

a five to six mm cavity

filled with 100 to 120 milligrams of

a specially impregnated granulated

charcoal adsorbent .

The yields of minor gaseous components

obtained from these cigarettes

are given in Table 2. As is

apparent from this table tobacco

smoke contains a highly complex

mixture of gaseous materials . As

noted by Philippe et oi . (21) the array

of hydrocarbons approximates

that of thermally cracked gasoline .

The composition of the whole mixture

suggests a combination of a randomized

series of pyrolytic reactions

which would form a large number of

individual components and some destructive

and non-destructive distillations

which w ould generate the

greater than expected amounts of

such materials and 2 .3-butanedione .

2A striking feature of these data is

the capacity of the adsorbent bea'

ing filter to remove apprecia 1rb

quantities of the less volatile gaseous

constituents of tobacco smoke .

Materials boiling above -40° to -10°

are appreciably extracted from the

smoke stream by the adsorbent and

removals of up to 85 per cent are

achieved for some of the less volatile

materials . Although the contact

time between the flowing smoke

stream and the charcoal is only of

Table 3 . Variation of the deliver/ of hydrogen cyanide and

formaldehyde during the smoking process.

Combined acetate-adsorbent filtered cigarettes

1 . H.-drogen ccanide (pg 40 ml puff )

Ci _arette • puff \ o .

1 2 3 -i 5 6 T 3 Average(2-8)

1 6 .5 4 .8 7 .7 9 .9 9 .5 7.9 10 .7 12 .5 9 .0

2 10.3 7.6 12 .0 S .7 10 .2 15 .0 12 .3 14.2 11 .4

3 3 .0 4 .2 6 .7 7 .5 9 .2 8 .^ 13 .0 14.0 S .6

4 J .4 7.0 9 .7 13 .2 5A 12 .4 20 .6 17.6 12 .7

5 6.4 -4.8 10 .- 10 .6 8 .7 8 .3 16.2 18.3 11 .1

AVERAGE 5.9 5.7 9 .°_ 100 9 .2 10 .0 14 .6 16.4 10 .6

S.D. 2 .9 1 .5 2 .4 2 .2 0 .7 3.6 3 .9 2.6 1 .7

2. Formaldehyde (pg ;-f0 ml puff)

Ciqarette'puff \o .

1 2 3 -1 5 6 7 8 Acerage(2-8)

1 7 .0 -.9 1 .1 1 .7 2 .4 1 .S 1 .2 2 2 1 .7

2 5.9 3.3 1 .3 2 .0 2 .0 1 .3 1 .9 1.5 2 .0

3 10 .4 4.1 2 .8 3 .3 4 .3 3 .4 4 .5 3.6 3 .7

4 5.9 2.0 2 .0 2 .2 2 .0 1 .0 2 .1 2.7 2 .0

5 3 .2 3 .2 3 .0 2 . 8 2 .7 2 .6 3 .9 4.7 3 .3

AVERAGE 7.5 3 .1 2 .0 2 .5 2 .4 2 .0 2 .7 2.9 2 .5

S.D. 1 .9 0.3 0 .9 0 .2 1 .1 1 .0 1 .4 1.2 0 .9

(TobnC4o Science 109)


PM3006662921

the order of 0 .1 second or less, the

extensive pore structure provides a

considerable adsorption capacity . It

is estimated that the charcoal has a

5000 fold greater surface area than

the cellulose acetate filter, a factor

which allows appreciable condensation

and capture of smoke components

which are essentially unaffected

by passage through ordinary acetate

filters .

The concentration of gases that

are not affected by filters is generally

slightly higher in filtered cigarette

smoke . This is probably the

composite effect of the fixed volume

puff and gas diffusion through cigarette

paper. Since the smoking machine

takes a fixed volume puff, the

volume previously occupied by the

adsorbed smoke components is made

up by the less readily adsorbed gas

phase components which are usually

the very low boiling gases . The loss

of gases by diffusion through cigarette

rette paper has been found to be a

significant factor for gases such as

hydrogen and methane (17)•and

since in a filter cigarette the paper

area available for diffusion is considerably

reduced, the concentration

of such gases would be expected to

be somewhat higher .

Since many of the irritating materials

in smoke are in the proper

volatility range for removal by adsorbent

filters, such filters have been

found to enhance the "smoothness"

of the smoke . Some of these irritants

. such as hydrogen cyanide, ammonia

. acrolein and formaldehyde,

are ciliary depressants and thus

smoke passed through such an

adsorbent filter is considerably less

inhibitory to mammalian ciliary

activity (13) .

Since the smoking technique deacribed

herein is primarily an individual

puff technique, it is possible to

study the variation of the composition

of the gaseous phase from puff to puff

as the cigarette is consumed . As an

example of this type of measurement

. Table 3 illustrates the variations

found for two irritating components,

hydrogen cyanide and formaldeh}-de

. Although considerable

variation between measurements is

evident, there appears to be a general

trend towards slightly increasing

yield of these materials as the

cigarette is consumed . This behavior

is consistent with a decreasing

air dilution through the paper

wrapper, but is not so marked as to

indicate a breakdown of the adsorption

capacity of the filter .

Summary

A combination of a relatively simple

smoking technique and a variety

of electrometric, colorimetric and

chromatographic analyses has been

utilized to investigate some of the

minor gaseous components of cigarette

smoke . Eighty different materials

have been isolated and estimated .

Literature Cited

1 . Altschuller, A . P ., D . L . Miller,

and S . F . Sleva, Determination

of Formaldehyde in Gas 3iiztures

by the Chromotropic Acid

Method . Anal. Chem . 33 : 621-

625, 1961 .

2 . Baker, B . B . and J . D . Morrison,

Determination of \ficrogram

Quantities of Fluoride and Cyanide

by lfeasurement of Current

from Spontaneous Electrolysis .

Anal . Cl:e>n . 27 : 1306-1307, 1955 .

3 . Bradford, J, A ., E . S . Harlow,

W . R. Harlan and H . R . Hanmer,

Nature of Cigarette Smoke .

Volatile Bases and Acids. Ind .

Eng. Chetn . 29 : 46-50, 1937 .

4. Brenner, N ., J . E . Callen and 1f .

D . 1Ceiss, editors, Gas CArovn.atography,

1st Ed ., Chapt . 18

and Chapt. 19, Academic Press,

New York. 1962.

5 . Brenner, N ., J. E . Callen . and

M . D . Weiss . editors, ibid ., Chapt .

28 .

6 . Falk, H . L . and P . Kotin, Symposium

on Chemical Carcinogenesis

. III . Chemistry, Host Entrland

Metabolic Fate of Carcinogens

. Clin . Plw.rmacol . 4 : 88-103,

1963 .

7. Grob, K., Zur Gaschromatographie

des Cigarettenrauches . 1 .

Teil . Eine Methode zur Routineanalyse

der Gas-Dampf-Phase .

Beitr. TabakJorsch. 1 (7) : 285-

290, 1962 .

2 . Tei1 . Verfeinerte Trennung

mit Hilfe von Kapillarkolonnen .

Beitr. Tobakforsch . 1 (9) : 315-

323, 1962.

8 . Ikeda, R . >f ., D . E . Simmons and

J . D . Grossman, Removal of --Ucohols

from Complex Mixtures

During Gas Chromatography .

Anal . Chem . 36 ; 2188-2189, 1964 .

9 . Irby, R . M ., Jr ., and E . S . Harlo

.c, Cigarette Smoke . I . Determination

of Certain Vapor Constituents

. Tobacco Sci . 3 : 52-56,

1959 .

10 . Jacobs, M. B ., The Analytical

Che»e.istry of Industriai Poisora,

Hazards and Sofvents, 2nd_ Ed .,

p . 326, Interscience, New York,

1948 .

11 . Jacobs, M. B ., ibid ., p . 364 .

12. Jacobs, 1f . B ., ibid., p . 673.

13 . Kensler, C. J . and S . P . Battista,

Components of Cigarette Smoke

with Ciliary-Depressant Activity

. Their Selective Removal by

Filters Containing Activated

Charcoal Granules . Netv Eng. J.

]fed. 269 : 1161-1166, 1963 .

14 . Levins . P . L . . and D . Koch, Arthur

D . Little, Inc ., Cambridge,

.llass ., Unpublished data, 1964 .

15 . Mumpower . R . C . . J . S . Lewis

and G . P . Touey, Determination

of Carbon ?fonoxide in Cigarette

Smoke by Gas Chromatography .

Tobacco Sci . 6 : 142-145, 1962 .

16 . _'kIurty . G . V . L. N . and T . S .

Viswananthan, Determination of

Traces of Cyanide . .4wa.t . Chirn .

.4cfa 25 : 293-295, 1961 .

17. Newsome, J . R . and C . 11 . Keith,

Variation of the Gas Phase Composition

Within a Burning Cigarette

. Tobacco Sci 9 : 30-34, 1965 .

18. Norman, V . and C . H, Keith .

Nitrogen Oxides in Tobacco

Smoke. Nature 205 : 915-916,

1965 .

19 . Osborne . J . S . . S. Adamek and

3f . E . Hobbs, Some Components

of Gas Phase of Cigarette

Smoke . Anal . Chem. . 28 : 211-215,

1956 .

20 . Philippe . R . J . and M . E . Hobbs,

Some Components of the Gas

Phase of Cigarette Smoke . Anai .

Chem . 28 : 2002-2006, 1966 .

21 . Philippe . R . J ., H. :lioore, R. G.

Honeycutt and J . Tf . Ruth . Some

H}-drocarbons of the Gas Phase

of Cigarette Smoke . Anat . Chem .

36 : 8n9-866, 1964 .

22, Philippe . R. J., Unpublished

data, 1964 .

23 . Saltzman. B . E ., Colorimetric

-IIicrodetermination of Nitrogen

Dioxide in the Atmosphere. Anal.

Chene . 26 : 1949-1955, 1954_

2-4 . Thompson . J. F . and G . R . Morrison

. Determination of Organic

Nitrogen . Control of Variables

in the Use \essler's Reagent .

Anal . Chnn . 23 : 1153-1158, 1951 .

25 . West, P. R' . and B . Sen, Spectrophotometric

Determination of

Traces of Formaldehyde . Z . Anal.

Cltetn . 153 : 177-183, 1956 .



PM3006662922

Vapor Phase Analysis of Tobacco Smoke - Legacy Tobacco ...

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
