Gebrauchte Segelyacht Amel SANTORIN - heckenweb.de

YBM - Yacht Broker Mallorca - since 1987
Boat & Yacht Broker S.L.U. - Fred Hecken
Muelle Viejo 6E/Pier 46, E-07012 Palma de Mallorca
Tel: (+34) 971 724 463 – T+Fax: 971 729 452 Mobil: 661 942
292
www.yachtbrokermallorca.eu Email: yachtbrokermallorca@gmail.com

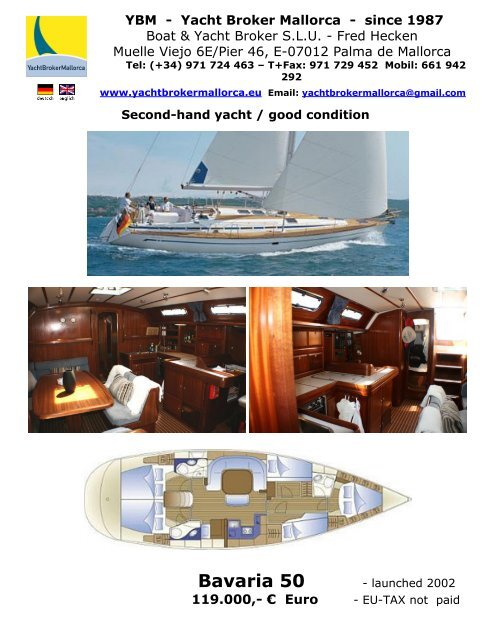

Second-hand yacht / good condition
Bavaria 50 - launched 2002
119.000,- € Euro - EU-TAX not paid

Ref 8285 ca. 156.600 US Dollar or 107.000 GBP rates on 10.04.2009 xe.com
BUILDER Bavaria Yachtbau, Germany, built 2001, launched 2002
to German Lloyd specification
DESIGNER
J&J Design
MATERIAL
GRP hull, Deck and superstructure
Teak laid side decks, superstructure & cockpit sole/seats
LYING
Europe / Spain, Balearic Islands - Mallorca
LOA 15.40 m 50´6”
LOD/Hull 14.99 m 49´2”
LWL 13.45 m 44´1” speed approx. 8.8 knots
BEAM 4.55 m 14´11”
DRAUGHT Shoal keel 1.65 m 5´4”
DISPLACEMENT 11.000 kg 24.283 lbs
BALLAST LEAD KEEL 3.900 kg 8.609 lbs
Tank FUEL Diesel 270 litres 60 Imp. Gal / 71.3 US Gal
Tank FRESH WATER 700 litres 155 Imp. Gal / 185 US Gal
Tank HOLDING 60 litres 13.5 Imp.Gal / 16 US Gal
RIGG & SAILS: - Sloop - Aluminum twin spreader Mast & Boom + Stainless steel standing
rigging, adjustable back stay tensioner, rod-kick boom vang, furling “in-mast” for mainsail and
furling foresail system by SELDÉN – spinnaker equipment and spinnaker pole -
WINCHES: all self-tailing, 2-speed, HARKEN 2x 2-56.2 + 2x 44
SAILS: approx. 119 m²
- MAINSAIL “in-mast” furling, checked by sailmaker in 2008
- GENOA furling, UV protection strip new 2008, sail checked by sailmaker
ENGINE: VOLVO PENTA 78 hp turbo diesel, with sail drive and fixed propeller - Dual circuit
cooling with sea water filter - Engine hours counter and rev-counter - Insulated engine
compartment –
BOW THRUSTER with 2x propellers fitted, control from helm station
HEATING: EBERSPÄCHER diesel fired warm air heating system throughout
ELECTRICAL: Boat’s power supply switch board with automatic fuses & control lamps
• BATTERIES: for engine and service
• 220V SHORE POWER supply, interior connectors
• BATTERY CHARGER + Alternator
• Navigation lights; Deck light
FRESHWATER / HOLDING /PLUMBING:
• Hot & cold pressurized water throughout - Electrical pressure pump with filter
• Hot water by engine heat exchanger and 220V immersion heater coil
• Electrical bilge pump, Manual bilge pump
• hot/cold shower at stern
• holding tank and 3-way valve installed
NAUTIC / NAVIGATION:
• cockpit helm station with 2x wheel steering positions,
full engine control,
bow thruster control
• 2x compass
• instruments: by RAYMARINE, fitted in front of cockpit table
• Log/speed and Echo sounder ST60 TriData
• Windinstrument ST60
• Autopilot ST6000

• On Chart Table: GPS FURUNO
• VHF-radio telephone
• 12 V + 220 V socket – Barometer, Nautical charts
SAFETY & VARIOUS:
• Electrical Anchor Windlass (LOFRANS Tigre) with remote control, Anchor, chain – 2 nd anchor
• emergency equipment, fire extinguisher, emergency tiller, first aid kit, Black ball & cone -
Fog horn - Torch light - Horseshoes buoys
• SPRAY HOOD
• BIMINI sun awning protect cockpit
• Inflatable dinghy
• Fenders, mooring warps, boats hook, gangplank
CONSTRUCTION: Hull & Deck in GRP, teak laid side decks and superstructure and as well cockpit
floor and seats, AFT COCKPIT with twin wheel steering pedestal, stainless steel wheel hide
covered, cockpit table with folding leafs - locker seats in cockpit - Dorade ventilators - gas
bottle locker – stainless steel pulpit, push-pit and stanchions with twin guard wires, opening ports
to port & starboard – mooring cleats at fore and aft and spring cleats mid-ships - Bow fitting with
self stowing anchor - hatches to open - bathing platform with bathing ladder
BALLAST: Lead keel in modern lateral profile, Draught approx.1,65 m (shoal draft keel version) –
RUDDER: Streamlined rudder with fore-balance (Rudder stock with self-adjusting bearings)
ACCOMMODATION & INTERIOR:
5 cabins version with 10 berths, 3x head compartments – Headroom 2,00 m+
- Forward CABIN: double berth with storage under, wardrobe, opening deck hatch
- 2x CABIN´s forward to port and starboard: with two bunk berth each, wardrobe, opening
deck hatches
- forward head compartment: marine pump toilet, hand washbasin + shower, cupboards, head
with easy-care synthetic surfaces
- Saloon: comfortable U-shaped settee and salon table to port side, storage shelves
- Galley with 2-burner gas cooker (with faile flame)/oven – top opening refrigerated cool-box by
FRIGOBOAT – twin sink with hot/cold pressurized water, storage space for pots and pans, cutlery
and crockery
- Navigation/Chart table with chart storage, navigator seat with storage under, electrical / fuse
panel and instruments
- 2x AFT CABINES, with double berth each, hanging wardrobe
- full set of bedding, blankets, pillows etc. – blue upholstery
ENTERTAINMENT: radio/CD with loud speakers at saloon and cockpit
BROKER COMMENT: Yacht launched in 2002 - good and a “ready to go” condition. Private owner,
since 2006, used for holidays. Third ownership.
YACHT Test report no. 19/1998 (in German)

DISCLAIMER: Boat & Yacht Broker S.L.U – YBM-Yacht Broker Mallorca
In this case we are acting as brokers only. The Vendor is not selling in the course of a business. Whilst every care has
been taken in their preparation, the correctness of these particulars is not guaranteed. The particulars are intended only
as a guide and they do not constitute a term of any contract. A prospective buyer is strongly advised to check the
particulars and where appropriate at his own expense to employ a qualified Marine Surveyor to carry out a survey and /
or to have an engine trial conducted, which if carried out by us shall not imply any liability for such engine on our part.
Note to seller and purchaser: If the boat you are selling or purchasing is registered, please ensure that the registration is
completed after the sale of the boat. If the purchaser wishes to cancel the registration is the duty of the seller to contact
the Registry and inform them that the registration is to be cancelled. If the purchase wishes to continue with the
registration, it is the duty of the purchaser to complete the relevant forms and post off the bill of sale to the Registrar.
