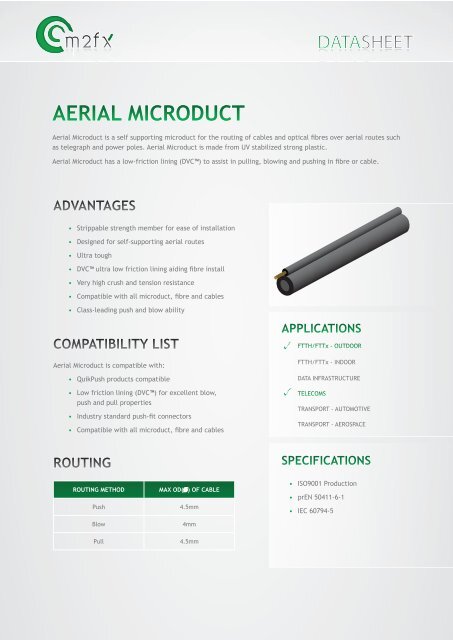

AERIAL MICRODUCT<br />
Aerial Microduct is a self supporting microduct for the routing of cables and optical fibres over aerial routes such<br />
as telegraph and power poles. Aerial Microduct is made from UV stabilized strong plastic.<br />
Aerial Microduct has a low-friction lining (DVC) to assist in pulling, blowing and pushing in fibre or cable.<br />
ADVANTAGES<br />
• Strippable strength member for ease of installation<br />
• Designed for self-supporting aerial routes<br />
• Ultra tough<br />
• DVC ultra low friction lining aiding fibre install<br />
• Very high crush and tension resistance<br />
• Compatible with all microduct, fibre and cables<br />
• Class-leading push and blow ability<br />
COMPATIBILITY LIST<br />
Aerial Microduct is compatible with:<br />
• QuikPush products compatible<br />
• Low friction lining (DVC) for excellent blow,<br />
push and pull properties<br />
• Industry standard push-fit connectors<br />
• Compatible with all microduct, fibre and cables<br />
APPLICATIONS<br />
FTTH/FTTx - OUTDOOR<br />
FTTH/FTTx - INDOOR<br />
DATA INFRASTRUCTURE<br />
TELECOMS<br />
TRANSPORT - AUTOMOTIVE<br />
TRANSPORT - AEROSPACE<br />
ROUTING<br />
SPECIFICATIONS<br />
ROUTING METHOD<br />
Push<br />
Blow<br />
MAX OD(ø) OF CABLE<br />
4.5mm<br />
4mm<br />
• ISO9001 <strong>Product</strong>ion<br />
• prEN 50411-6-1<br />
• IEC 60794-5<br />
Pull<br />
4.5mm
SPECIFICATIONS<br />
OUTSIDE ø<br />
INSIDE ø<br />
WEIGHT<br />
(per km)<br />
CRUSH RESISTANCE<br />
20% DEFLECTION<br />
MAX INSTALL<br />
TENSION<br />
SERVICE TEMP<br />
INSTALLATION<br />
TEMP<br />
8mm<br />
0.315”<br />
5.5mm<br />
0.213”<br />
40.9kg<br />
90lbs<br />
600 N / 135 lbf<br />
1500 N<br />
330 lbf<br />
-40°C / +80°C<br />
-10°C / +70°C<br />
OPTIONS<br />
DRUM LENGTHS REEL ø REEL WEIGHT<br />
COLOUR<br />
PULLCORD<br />
PRINT<br />
600 Metres<br />
2000ft (8mm)<br />
ø600mm<br />
24”<br />
30.8kg<br />
67.8lbs<br />
Black<br />
As Standard<br />
Per Metre<br />
