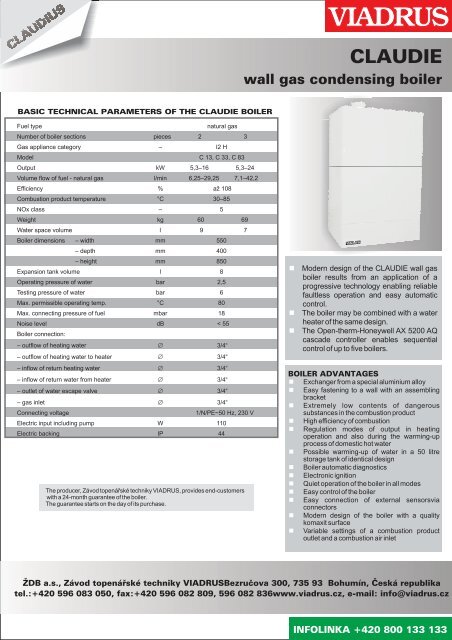

wall gas condensing boiler

Fuel type
natural gas
Number of boiler sections pieces 2 3
Gas appliance category – I2 H
Model C 13, C 33, C 83
Output kW 5,3–16 5,3–24
Volume flow of fuel - natural gas l/min 6,25–29,25 7,1–42,2
Efficiency % a 108
Combustion product temperature °C 30–85
NOx class – 5
Weight kg 60 69
Water space volume l 9 7
Boiler dimensions – width mm 550
– depth mm 400
– height mm 850
Expansion tank volume l 8
Operating pressure of water bar 2,5
Testing pressure of water bar 6
Max. permissible operating temp. °C 80
Max. connecting pressure of fuel mbar 18
Noise level dB < 55
Boiler connection:
– outflow of heating water Æ
3/4“
– outflow of heating water to heater Æ
3/4“
– inflow of return heating water Æ
3/4“
– inflow of return water from heater Æ
3/4“
– outlet of water escape valve Æ
3/4“
– gas inlet Æ
3/4“
Connecting voltage
1/N/PE~50 Hz, 230 V
Electric input including pump W 110
Electric backing IP 44
The producer, Závod topenáøské techniky VIADRUS, provides end-customers
with a 24-month guarantee of the boiler.
The guarantee starts on the day of its purchase.
Modern design of the CLAUDIE wall gas
boiler results from an application of a
progressive technology enabling reliable
faultless operation and easy automatic
control.
The boiler may be combined with a water
heater of the same design.
The Open-therm-Honeywell AX 5200 AQ
cascade controller enables sequential
control of up to five boilers.
Exchanger from a special aluminium alloy
Easy fastening to a wall with an assembling
bracket
Extremely low contents of dangerous
substances in the combustion product
High efficiency of combustion
Regulation modes of output in heating
operation and also during the warming-up
process of domestic hot water
Possible warming-up of water in a 50 litre
storage tank of identical design
Boiler automatic diagnostics
Electronic ignition
Quiet operation of the boiler in all modes
Easy control of the boiler
Easy connection of external sensorsvia
connectors
Modern design of the boiler with a quality
komaxit surface
Variable settings of a combustion product
outlet and a combustion air inlet

Fuel type
natural gas
Number of boiler sections pieces 2 3 5
Gas appliance category – I2 H
Model C 13, C 33, C 83
Output kW 5,3–16 5,3–24 11,5–49,5
Volume flow of fuel - natural gas l/min 6,25–29,25 7,1–42,2 10,6–46
Efficiency % 108
Combustion product temperature °C 30–85
NOx class – 5
Weight kg 60 69 95
Water space volume l 7 9 13
Boiler dimensions – width mm 485 485 570
– depth mm 560
– height mm 910
Expansion tank volume l 8
Operating pressure of water bar 2,5
Testing pressure of water bar 6
Max. permissible operating temp. °C 80
Max. connecting pressure of fuel mbar 18
Noise level dB < 55
Boiler connection:
– outflow of heating water Æ
3/4“
– outflow of heating water to heater Æ
3/4“
– inflow of return heating water Æ
3/4“
– inflow of return water from heater Æ
3/4“
– outlet of water escape valve Æ
3/4“
– gas inlet Æ
3/4“
Connecting voltage
1/N/PE~50 Hz, 230 V
Electric input including pump W 110
Electric backing IP 44
The producer, Závod topenáøské techniky VIADRUS, provides end-customers
with a 24-month guarantee of the boiler.
The guarantee starts on the day of its purchase.
Modern design of the floor-standing
condensing boiler CLAUDIUS results from an
application of a progressive technology
enabling reliable faultless operation and easy
automatic control.
Exchanger from a special aluminium alloy
Extremely low contents of dangerous
substances in the combustion product
High efficiency of combustion
Regulation modes of output in heating
operation and also during the warming-up
process of domestic hot water
Boiler automatic diagnostics
Electronic ignition
Quiet operation of the boiler in all modes
Easy control of the boiler
Easy connection of external sensors via
connectors
Modern design of the boiler with a quality
komaxit surface
Variable settings of a combustion product
outlet and a combustion air inlet
