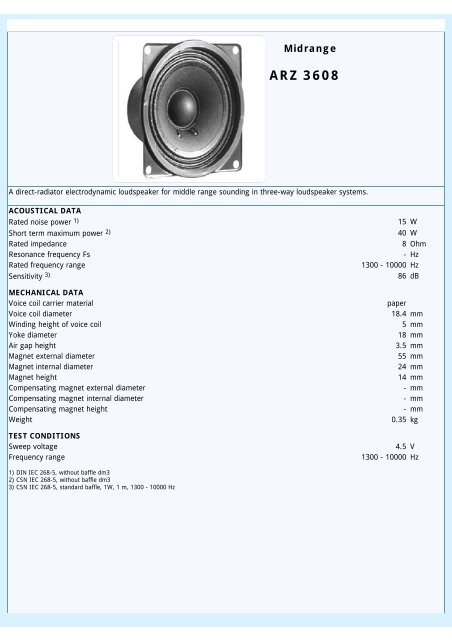

Midrange<br />
<strong>ARZ</strong> <strong>3608</strong><br />
A direct-radiator electrodynamic loudspeaker for middle range sounding in three-way loudspeaker systems.<br />
ACOUSTICAL DATA<br />
Rated noise power 1)<br />
Short term maximum power 2)<br />
Rated impedance<br />
Resonance frequency Fs<br />
Rated frequency range<br />
Sensitivity 3)<br />
MECHANICAL DATA<br />
Voice coil carrier material<br />
Voice coil diameter<br />
Winding height of voice coil<br />
Yoke diameter<br />
Air gap height<br />
Magnet external diameter<br />
Magnet internal diameter<br />
Magnet height<br />
Compensating magnet external diameter<br />
Compensating magnet internal diameter<br />
Compensating magnet height<br />
Weight<br />
TEST CONDITIONS<br />
Sweep voltage<br />
Frequency range<br />
15 W<br />
40 W<br />
8 Ohm<br />
- Hz<br />
1300 - 10000 Hz<br />
86 dB<br />
paper<br />
18.4 mm<br />
5 mm<br />
18 mm<br />
3.5 mm<br />
55 mm<br />
24 mm<br />
14 mm<br />
- mm<br />
- mm<br />
- mm<br />
0.35 kg<br />
4.5 V<br />
1300 - 10000 Hz<br />
1) DIN IEC 268-5, without baffle dm3<br />
2) CSN IEC 268-5, without baffle dm3<br />
3) CSN IEC 268-5, standard baffle, 1W, 1 m, 1300 - 10000 Hz
