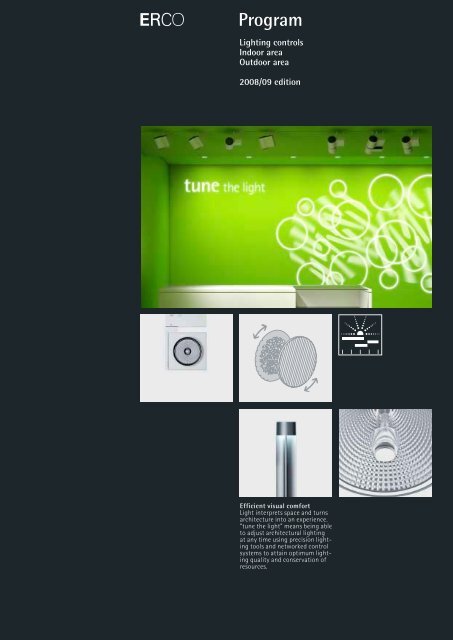

Program

Program

Lighting controls

Indoor area

Outdoor area

2008/09 edition

Efficient visual comfort

Light interprets space and turns

architecture into an experience.

“tune the light” means being able

to adjust architectural lighting

at any time using precision lighting

tools and networked control

systems to attain optimum lighting

quality and conservation of

resources.

Contents

Introduction 7 ERCO Innovations

43 Lighting Vertical Surfaces

Lighting control systems

Index page 50

Lighting controls

Light System

DALI

51

LON Area Net

61

Indoor

Introduction 74 Light in the indoor area

Track and light structures

Index page 76

ERCO track

77

Hi-trac track

and light structure

95

T16 light structure

103

Monopoll track


111

Note:

Available in varychrome

technology

www.erco.com ERCO Program 2008/09 1

Contents

Indoor

Spotlights, floodlights and

wallwashers

for track

Index page 122

Cantax

128

Emanon

147

Parscan

180

Eclipse

194

TM Spotlights

200

Domotec

208

Quinta

212

Jilly

224

Pollux

234

Castor

242

Oseris

248

Gimbal

253

Optec

256

Stella

281

Recessed spotlights


Compar

297

Gimbal

305

Quadra

312

2 ERCO Program 2008/09 www.erco.com

Contents

Indoor

Lightcast recessed luminaires


Low-voltage halogen lamps:

330 Double-focus downlights

331 Downlights

335 Washlights

337 Double washlights

338 Double-focus wallwashers

339 Lens wallwashers

340 Directional luminaires

Tungsten halogen lamps:






PAR lamps:




High-pressure discharge lamps:






380 Wallwashers


Compact fluorescent lamps:



403 Wallwashers

Recessed luminaires


Compact HIT

410

Skim

416

Starpoint

431

Compact 100

440

CL downlights

447

CLC downlights

453

Panarc

460

Quadra

466

Lightscan

481

TFL Wallwasher

487

Surface-mounted luminaires


Starpoint

495

Cylinder

500

Panarc

505

TFL Wallwasher

510

Note:


technology


Contents

Indoor

Pendant luminaires


Parabelle

515

Starpoint

522

Cylinder

525

Task lights


Lucy

530

Wall-mounted luminaires


Trion

536

Atrium

545

Floor washlights

551

Recessed floor luminaires


Nadir IP67

558

Outdoor

Introduction 571 Light in the outdoor area

Projectors and floodlights


Grasshopper

574

Beamer

580

Focalflood

594

Parscoop

614

Note:

Available in

multichrome technology


technology


Contents

Outdoor

Open area and facade

luminaires


Kubus

638

Axis Walklight

645

Visor

650

Midipoll

659

Panorama

666

Lightmark

674

Lightmark

Facade

luminaires

689

Cylinder Facade

luminaires

694

Focalflood

Facade

luminaires

Site

703

699

Lightcast recessed luminaires


Low-voltage halogen lamps:



PAR lamps:



High-pressure discharge lamps:



Compact fluorescent lamps:


Ceiling-mounted luminaires


Paratec

719

Cylinder

726

In-ground luminaires


Tesis IP68

734

LED orientation

luminaires IP68

Note:


technology

756


Contents

Outdoor

Appendix 767 Lamp index

778 Photometric data from ERCO

789 General Information

792 Article number index

795 ERCO Addresses


ERCO Innovations 2008/09

The essence of innovations is

more than a collection of crea -

tive ideas, inventions or research

results. It is the implementation

of these to bring about a change

for the better, to benefit the

people who will use them. The

new ERCO Program includes a

phenomenal 800 new products.

Some are additions to, and

updates of, existing ranges, but

predominantly, it includes several

completely new product ranges.

New developments provide the

opportunity to link state-of-theart

technology with the results

of ERCO’s own research and

develop ment to produce designs

which are as innovative as the

technologies used in these products.

The following pages introduce

our key innovations that

have resulted in new ERCO lighting

equipment, and explain the

concepts behind the new prod -

uct ranges. The aim is to enable

every lighting user to exploit

the advantages and possibilities

afforded by these developments

straight away.

Spherolit reflectors

The new reflector technology produces

perfect light quality and a

wealth of advantages in practical

applications.

8

Kubus

Kubus is a range of highly inte grated,

miniaturised light sources for outdoor

use – for use with HIT lamps or

maintenance-free LED technology.

27

Emanon

From the stage to the shop window:

the Emanon range of spotlights

designed by Yves Béhar – for effective

presentation lighting, sales

areas or trade fair stands.

13

Midipoll

This new range of bollard luminaires

for either HIT lamps or LED technology

provides glare-free light and

transforms the bollard into a spacedividing

element.

30

Cantax

This spotlight range designed by

Naoto Fukasawa is characterised by

clear shapes and state-of-the-art

technologies.

17

Lightmark

The Lightmark range of bollard

lumi naires and facade luminaires

has been extended with versions

for recessed wall installation.

33

Light System DALI

This lighting control system and

its integral Light Studio software

are continuously updated with new

functions.

20


The redevelopment of the range of

floor washlights has concen trated

on modern lamps such as LEDs

and on maintaining the attractive

appearance.

35

Wallwashing out of the ground

New lighting equipment for recessed

floor mounting provides differentiated

vertical illumination to suit

every situation – both indoors and

outdoors.

22

Compact HIT

With Spherolit technology and

highly efficient metal halide lamps,

the Compact HIT represents a new

approach to the concept and appearance

of downlights.

37

Tesis

The square recessed Tesis floor

luminaires add a further design to

the range and include new types

of wallwasher.

23

Compar

This new range of recessed spotlights

is intended primarily for the retail

sector and is intriguing through the

variety of lighting innovations.

39

Nadir

The Nadir range of recessed floor

luminaires has been entirely redeveloped

and given a new look with various

trim detail in round or square.

25

Focus: efficient visual comfort;

vertical illumination

Lighting technology, lighting design

and light management provide significant

potential for energy savings

and the conservation of resources.

42


Spherolit reflectors: a new technology

The innovative and exclusive

technology which ERCO introduced

in Spherolit reflectors

presents a virtually ideal light

quality. The reflectors offer many

practical advantages to lighting

designers and users. After introducing

Spherolit reflectors some

two years ago in individual ERCO

products, they can now be found

in a comprehensive range of new

and existing products. So, ERCO

has reinvented a seemingly trivial

element of lighting technology.

The Spherolit technology is

based on the division of the reflector

into individual areas, similar to

conventional facetted reflectors.

However, these individual areas –

we call them spherolites – have a

three-dimensional, spherical curvature.

Due to the individual shaping

of the spherolites, the reflector

characteristic can be controlled

over a wide range. The result is

spotlight reflectors that have the

same basic geometry, i.e. diameter,

depth and focal point, but different

light distribution patterns,

from narrow spot to wide flood.

All these characteristics share one

common factor – producing a light

quality of the highest standard.

The beams are exceptionally uniform,

without striations and have

a neat, slightly soft edge – and

that in connection with a suitably

high light output ratio.

Spherolit reflectors are pressformed

of aluminium and mirrorfinish

anodised. The manufacturing

process from the complex

calculation and computer simulation

to the manufacture of precision

tools and the production

occurs within ERCO, which confirms

our claim to leadership in

reflector technology.

ERCO Spherolit

reflectors are

easily recognised

by the bright,

attractive appearance

of the individual

convex

spherolites.

Not until the

availability of

effective computer

simulations

has it become

possible to calculate

the complex

shapes of


efficiently.

“tune the light”:

changing reflectors

without

using tools allows

spotlights with

Spherolit technology

to be

quickly and flexibly

adapted to

new lighting

concepts.


Spherolit reflectors: spotlight characteristics

Narrow spot

To accentuate

smaller objects

with high luminance

or to cover

considerable distances

between

luminaire and

object. Beam

angle < 10°.

Spot

The standard

characteristic to

accentuate all

kinds of objects,

specifically to

model the threedimensional

shape. Beam

angle 10°-20°.

Flood

For efficient

accent light on

larger objects or

for wider spread

lighting of areas

of rooms. Beam

angle 25°-30°.

Wide flood

To provide flexible

floodlighting

of surfaces

and room areas,

specifically for

the presentation

of merchandise.

Beam angle

> 45°.

The reflectors of

spotlights with


can be

exchanged without

tools in next

to no time. The

reflectors are

available in different

characteristics.

Each reflector

is supplied

with 3 retaining

springs and the

safety glass.


Spherolit reflectors: wallwashing

Spherolit

wallwasher

In terms of its

basic dimensions,

the innovative

Spherolit reflector,

wallwash,

does not differ

from other spotlight

reflectors.

A Softec lens

replaces the clear

safety glass.

The specially

shaped spherolites

used for wallwashing

are clearly visible

as a segment

in the reflector

surface.

Providing four different spotlight

characteristics for one and the

same basic reflector shape does

not, by any means, exhaust the

Spherolit principle. After extensive

experiments with virtual and

real reflector prototypes, ERCO

has now produced an asymmetrical

light distribution which

resulted exclusively from the

three-dimensional shaping of

separate areas of the reflector.

Now several spotlight ranges

include Spherolit wallwashers,

which are specifically designed

for applications such as sales

areas or for presentation, where

they are an interesting alternative

to the classic lens wallwasher

technology.

In terms of its basic shape,

dimensions and focal point, the

Spherolit reflector, wallwash, is

no different from spotlight reflectors,

i.e. it can also be replaced by

other versions without tools. The

reflector surface, however, stands

out clearly due to its spe cially

shaped spherolites, and a Softec

lens replaces the usually clear

safety glass. The light distribu -

tion of the Spherolit wallwasher

is designed so that a focal emphasis

is placed on the upper third of

the wall, while providing general

illumination of high uniformity.

The new wallwasher technology

has also resulted in raising light

levels over the illuminated area.

For certain applications, however,

the classic lens wallwasher technology

proves more suitable due

to its perfect uniformity across

the entire wall – relevant for museums

or particular representative

areas in architecture. The wallwasher

attachment also provides

improved shielding against glare.

Consequently, both wallwasher

technologies are now a component

part of ERCO’s extensive

range of lighting equipment for

vertical illumination.

Lens wallwasher

The scoop-shaped

wall washer attachment

is a characteristic

feature of

the classic lens

wallwasher technology.


Spherolit reflectors: technical background

Using complex calculations and

computer simulations ERCO’s

design engineers created the

arrangement and shape of the

spherolites so they achieve the

intended light distribution pattern.

Because the beam of the

spotlight is actually made up of

a multitude of separate beams

from the individual sub areas, it

is possible to produce excellent

uniformity and the defined, yet

soft edge of the beam without

reducing the brightness of the

light. Compared with other methods

used to affect the spotlight

characteristic, such as Vario reflector

technology, attachments or

spread lenses, the Spherolit reflectors

can be replaced without tools

and result in an optimum light

output ratio.

The development

and production of


requires special

know-how,

especially in the

area of computer

calculation and

simulation. The

complex tool

shapes can only

be realised by

using highly

developed CAD/

CAM systems –

with tolerances

in the range of

1/1000mm.

Based on decades

of experience in

reflector production,

ERCO can

now fully implement

this precision

in its production

processes.

The optical principle of the

Spherolit reflector: Depending

on the convex shape used in each

individual sub area, the incident

light reflected off them is spread

accurately. Consequently, the

Spherolit reflector, narrow spot,

has the flattest spherolites, while

the convex shape of the Spherolit

reflector, wide flood, is most pronounced.

Section of a


narrow spot.

Section of a


wide flood.


Spherolit reflectors: product overview

The following

product ranges

are all provided

with reflectors

in Spherolit

technology:

Cantax

Emanon

Compar

Compact HIT

In the following

ranges, the


is used

in individual

articles:

Parscan

TM spotlight

Quinta

Jilly

Castor

Gimbal

Optec

Gimbal recessed

spotlights

Lightcast directional

luminaires

for low-voltage

halogen lamps

Lightcast directional

luminaires

for high-pressure

discharge lamps

Grasshopper


Emanon

Many methods and effects that

are used in stage lighting and

then applied to shops and shop

windows, presentations or trade

fair stands eventually now find

their way into architecture. The

time was right to develop a new

range of spotlights from scratch

for this area of application – a

system which would consolidate

the progress of lighting technology

over the past few years and

which creative designers could

use effortlessly to implement

the principle of “tune the light“.

Lighting equipment which would

enable the creation of scenographic

effects – a familiar aspect

in stage shows and at events

– even for continuous, day-byday

operation. This new range of

spotlights – Emanon - consists

of a striking, integrative housing

design for highly differentiated

lighting equipment: from standards

including spotlights for lowvoltage

halogen or HIT lamps to

ERCO specialities such as LED varychrome

spotlights or technical

innovations such as the DALIcontrolled

Goborotator.

The innovations incorporated

in the Emanon range include the

Spherolit reflectors, which are

available with four spotlight beam

angles, from narrow spot to wide

flood, and wallwasher. In addition

to a superior quality of light,

they provide the option of replacing

the exchangeable reflectors

in next to no time to change the

light distribution. For vertical illumination,

the range alternatively

provides classic lens wallwashers.

In terms of heat management, this

range also follows a new path: the

thermally stressed components

such as lamp, lampholder and

reflector are installed in a cylindrical

metal carrier with controlled

ventilation which is situated

between the high-quality plastic

shells of the spotlight housing.

The flat part of the housing provides

a thermally separated space

for the electronic or DALI-compatible

control gear. Its dimpled

surface identifies a gripping zone

to adjust the luminaires during

operation.

In a class of their own are the

projection spotlights, specifically

those with digitally controlled

Goborotator. There are two types

of optical projection system, differentiated

by their light distribution

patterns. Both types of system

are also available as Goborotator,

which projects two independently

rotating gobos to produce fascinating,

dynamic lighting effects.

Emanon design

Designer Yves Béhar says of the

concept devised by fuseproject

for the Emanon range of spotlights:

“Our aim for Emanon was to

come up with a design that

would combine visual clarity

with new forms of expression:

the lighting technology and the

volume of the control gear join

to produce a flowing shape by

arranging them next to each

other and uniting them through

a band-like surface. The band

appears like a mantle and has

strong, yet unobtrusive symbolism:

the luminaire naturally

merging with the ceiling and its

surroundings. The lightweight,

slimline track fixture penetrates

this mantle like a pendulum at

the luminaire’s centre of gravity

without compromising the

flowing shape.

Emanon demonstrates the

intelligence which characterises

it by subtle design details

which, rather than intimidate

the user, encourage creativity.

At once sensual and metaphorical,

Emanon prompts you to

touch and align it: the spotlight

has a similar feel to that of a

camera and allows the user to

manage light intuitively.

The housing itself is a handle

with highly tactile recesses. The

spotlight can be adjusted to

illuminate the required scenery.

Emanon challenges the user’s

creativity, encourages spontaneous

and insouciant handling

– a fundamentally different

user experience from previous

spotlight luminaires.”

www.fuseproject.com


Emanon: system design

Unmistakably, the different

Emanon lighting tools form a

system with common design

features. This makes it possible

in an architectural situation to

produce differentiated scenographic

lighting concepts with a

uniform appearance of the luminaires.

The spotlights use the

whole spectrum of ERCO spot -

light accessories, such as colour

and conversion filters or antidazzle

rings.

Designer Yves

Béhar used a

structured surface

to indicate the

handling zones on

the spotlight. The

heat generated by

the lamp is dissipated

through the

ventilation grille

on the back.

Emanon

spotlight

Emanon lens

wallwasher

Emanon projection

spotlight

medium beam,

soft-edged

Emanon

projection

spotlight with

Goborotator

medium beam,

soft-edged

narrow beam,

sharp-edged

narrow beam,

sharp-edged


The Emanon spotlights all make

use of the advantages of the innovative

Spherolit reflectors: a superior

quality of light and flexibility

through the option to exchange

the reflectors quickly. The reflectors


and are available with four spotlight

beam angles and as Spherolit

reflector, wallwash.

Narrow spot

Rotationally

symmetrical light

distribution,

beam angle < 10°

Spot

Rotationally symmetrical

light distribution,

beam

angle 10°-20°

Flood



beam

angle 25°-35°

Wide flood



beam

angle > 45°

Wallwash

Asymmetrical

wallwasher light

distribution


Emanon Goborotator

In the Emanon range, the projection

spotlights with Goborotator are an

innovative highlight. Through the

use of independently controllable

rotating gobos, the projection

effects created can be fascinating.

The character of these projections

can range from slow moving, subtly

atmospheric effects to stimulating,

highly dynamic focal points.

The Goborotator can be used with

two metal or glass gobos, but also

with colour filters or structured

glasses – thus, there is now virtually

no limit to the imagination.

The direction and speed of rotation

are controlled using either

the rotary switch directly on the

spotlight or via the ERCO Light

System DALI and its integrated

Light Studio software, which provides

a convenient tool for the

operation of the Goborotator.

Low-noise toothed belt drives,

elastic motor bearings, long-life

lamps, and a fanless, thermally

efficient design ensure reliable

continuous operation in architecture.

ERCO offers

a selec tion of

gobos and structured

glasses with

abstract structures

as accessories.

Since the

gobos have standard

dimensions,

a wide variety of

suitable gobos

are also available

from other accessory

suppliers.

The Light Studio

software provides

a tool that allows

the control of all

Goborotator functions

via Light

System DALI.


Product overview Emanon

Spotlight

white & silver

Spherolit reflector

Low-voltage halogen lamps 50W

High-pressure discharge lamps 20/35W









Spotlight

varychrome


LED red, green, blue



Projection

spotlight



High-pressure discharge lamps 70W



Projection


Goborotator






Spherolit

wallwasher



wallwash







wallwash

















Cantax

The new Cantax range of spotlights

clearly demonstrates how

design and innovation can help

in an aesthetic way to make technical

equipment simpler and

clearer, instead of increasingly

complicated. Based on ERCO’s

latest developments in lighting

technology, the Cantax range is a

logically structured system which

provides a professional quality of

light in shops, galleries, restaurants

or residential areas, while

making a striking, highly contemporary

design statement with a

shape made up of basic geometric

forms.

As with Emanon spotlights,

ERCO has provided Cantax with

the new Spherolit reflectors,

which are available in four light

distribution patterns, from narrow

spot to wide flood, and as a

Spherolit wallwasher. In addition

to a superior quality of light, they

provide the option of replacing

the interchangeable reflectors

in next to no time to change the

light distribution. When using an

appropriate wallwash version of

the Spherolit reflector, the light

distribution can even be changed

to that of a wallwasher without

altering the outer appearance

of the spotlight. Alternatively,

Cantax is also available with the

classic lens wallwasher technology

for vertical illumination. Naturally,

the Cantax range with its

spotlights, wallwashers and accessories

also comprises exclusive

ERCO technologies such as DALIcompatible

Light Clients or the

varychrome spotlight with colourcompensating

LED technology.

The housing and the bracket on

one side with concealed cables

are of cast aluminium with black

or white powder-coating.

Cantax design

Designer Naoto Fukasawa says

of his concept for the Cantax

range of spotlights:

“This lighting tool lights up

walls and surfaces. It connects

the round shape of the beam

with the square shapes of the

illuminated surfaces. Rather

than being without shape or

form, the light is directed – as

visualised by the design of the

spotlights. Architecture with its

right angles calls for rectangular

light sources. Consequently,

we have given Cantax the basic

shape of a pure, flat cuboid

to represent this connection.

All we have done is add simple,

universal hinge joints and

then combine these elements

very carefully to produce a

fully coher ent, uncompromising

shape, yet one which integrates

harmoniously with its

environment.

It may be possible one day

to control the shape of light

fully like a data projection.

Light will become digitalised

information; light will provide

intelligent functions. The use

of light will develop into a software

technology, while the

housings and the lighting technology

will rise to ever higher

standards of quality to adapt to

their environment and tasks.

Design is about creating a

pleas ant harmony between

man, his objects and the environ

ment. With the evolution

of technol ogy, our demand

for comfort and convenience

keeps increas ing so that continual

efforts are required to

maintain this process of coordi

nation and harmonisation.

Focusing on design quality

does not mean keeping to one

lifestyle or one technology.

Rather, we must never stop

considering new solutions so

that the necessary, constant

change proves a pleas ant experience.”

www.naotofukasawa.com


Cantax: system design


The Cantax spotlights universally

use the advantages of the

innovative Spherolit reflectors:

a superior quality of light and

flexible use thanks to the option

of exchanging the reflectors in

next to no time. The reflectors


and are available with 4 spotlight

characteristics and as a Spherolit

reflector, wallwash.

Narrow spot

Rotationally

symmetrical light

distribution,

beam angle < 10°

Spot



beam

angle 10°-20°

Flood



beam

angle 25°-35°

Wide flood



beam

angle > 45°

Wallwash

Asymmetrical

wallwasher light

distribution

The specially

designed joints

of Cantax guarantee

lasting precision,

effortless

alignment and

a secure fit. The

end positions are

defined by stops.


Classic lens reflector

technology

with wallwasher

attachment

The Cantax LED

varychrome spotlight

comprises

the exclusive

ERCO colour compensation

technology

and can

be conveniently

controlled via


and the Light

Studio software.


Product overview Cantax

Spotlight

white & black




white & black






white & black






Spotlight

varychrome

white & black




Spherolit

wallwasher

white & black


wallwash





white & black


wallwash






white & black





white & black







The interaction of control software,

control hardware and

addressable luminaires in ERCO’s

Light System DALI has opened up

new dimensions of scenographic

design possibilities for lighting

users. Following its principle of

“tune the light“, ERCO consistently

continues to pursue this

concept by steadily increasing its

range of Light Clients, the DALIcompatible

luminaires from ERCO

– but also by continuously further

developing the hardware and software

functions of Light System

DALI itself and improving its userfriendliness.

The Light

Sequencer introduces

two new

lists: the sequence

list, which contains

the defined

sequences, and a

work list, which

specifies the

scenes included

in the current

sequence. The

actions and fading

times for each

scene can be set

individually.

From the Light

Studio scene list,

the user selects

the scenes to be

combined into a

sequence.

Light Sequencer

The Light Sequencer is a further

module added to the Light Studio

software which provides new functions

and considerably increases

the possibilities of using Light

Studio DALI for scenographic concepts.

Dynamic progressions and

timer functions were already available

as facilities to set light in

motion. The Light Sequencer is a

tool used to define, name, store

and edit sequences of light scenes

in a timed progression and to recall

them through program control.

The Light Sequencer uses the

familiar elements of the Light

Studio user interface, such as the

scene list, to make the new functions

intuitively accessible to the

user.

ERCO Light Studio

Light Studio is the integrated

software for the

ERCO Light System DALI. It is used

for setting up light scenes and for

other, more complex operating

procedures. To increase convenience

and to provide new functions

or luminaire features, the

Light Studio is regularly updated.

Further information:

www.erco.com/lightstudio

Goborotator

Particularly convenient tools

for using complex, digitally controlled

lighting equipment are one

of the main advantages of Light

System DALI and Light Studio.

Even for the new Goborotator

luminaires, Light Studio provides

a software tool which opens up

the whole range of creative possibilities

and makes them usable.

The direction of

rotation of each

gobo can be set

individually.



max. of

4 inputs

Day situation: The

users in a building

select individual

light scenes based

on the ambient

lighting.

Digital inputs

The redesigned digital inputs

of the ERCO Light Server now

facilitate the connection of a

wide range of alternative digital

input devices beyond simple pushbuttons.

Obvious application scenarios

include the recall of defined

scenes using movement sensors or

twilight switches. Furthermore, a

radio receiver module can be used

to integrate battery-free remote

controls or radio wall switches as

operating elements with minimal

installation requirement into a

Light System DALI.

Night situation:

When reaching a

specified switching

threshold, a

twilight switch

activates a special

light scene

to produce a

defined nighttime

appear ance

of the building.

Typical application

of movement

or presence sensors:

sensitive

exhibits in a gallery

are only illuminated

when

visitors enter the

room.

The radio pushbutton

module

allows the control

of Light System

DALI (scene selection,

master dimming)

using batteryless

4-channel

remote controls

or 4-channel wall

transmitters.


Wallwashing out of the ground

In a qualitative, perceptionoriented

lighting design, verti cal

illuminances play a major role.

ERCO meets this requirement

by providing an exceptionally

wide range of appropriate lighting

equipment with a wide beam,

asymmetrical light distribution.

Today, it includes not only

wallwashers for recessed ceiling

instal lation or for track mounting,

but also luminaires for recessed

floor mounting both indoors and

outdoors, which provide vertical

illumination in different ways to

suit the situation.

Outdoor area

In the outdoor area, high-quality

wallwashing is useful, for example,

for the uniform illumination

of facades or walls. Recessed floor

luminaires are a solution, which

integrates particularly discreetly

with the architectural environment.

Depending on the requirements,

different technologies can

be used to produce diverse results.

The Tesis range includes three different

types of wallwasher. Their

properties are shown in the following

illustrations.

Tesis focal

wallwasher

Highly efficient

wallwashing with

a focal point

approx. at eye

level. Lamp cover

as diffuser with

clearly perceptible

luminance.

Tesis lens

wallwasher

Wallwashing that

meets the highest

standards of

uniformity, with

round or square

front lens. Darklight

reflector,

40° cut-off angle.

Tesis wallwasher

The front lens

above the mounting

plane ensures

that the beam

meets the surface

very low, right

from the edge

of the floor, to

ensure optimum

glare protection.

Maximum uniformity.

Indoor area

In indoor areas, wallwashing is

usually provided from the ceiling.

The role of recessed floor luminaires

is more one of producing

effect lighting, as the unusual

direc tion of their light attracts

attention. The Nadir range of recessed

floor luminaires for indoor

areas now includes a special grazing

light wallwasher as lighting

tool for vertical illumination, this

is mounted close to the wall to

meet the requirements of real-life

situations. The designer has the

choice between rhythmic wall illumination

due to the intersecting

beams of directional luminaires or

a uniform grazing light that underlines

the structure and material of

the wall.

Nadir

Flat, widespread

beam for grazing

light effects,

mounted close to

the wall.


Tesis IP68

Tesis is the well-established range

of recessed floor luminaires in

protection mode IP68 for universal

use in outdoor areas. The versions

with square front lens in the

Tesis range have now been completely

redeveloped. In this shape,

which designers prefer in specific

architectural situations not least

for aesthetic reasons, the Tesis

recessed luminaires are available

as directional luminaires, as LED

varychrome recessed floor luminaires,

and in various wallwasher

characteristics. The lamps predominantly

used include metal

halide lamps in different wattages,

which have a high energy

efficiency and long life and thus

ensure economic operation.

The Tesis lens wallwashers,

which are available with both

round and square front lens, are

supplemented by a further two

types of wallwasher which, for

design reasons, are reserved to

the new, square version: firstly,

the Tesis focal wallwasher with

a focal point of the light in the

lower third of the wall, and secondly,

the Tesis wallwasher with

front lens above the mounting

plane.

The additions

to the Tesis

range with

square recessed

floor lumi naires

are complete

redevel opments

with their own

charac teristics

profile.

A separate

IP68 control

gear allows the

rational connection

of recessed

floor lumi naires

includ ing throughwiring.


Product overview IP68

Focal wallwasher Size 5

High-pressure discharge lamps

20/35W



Size 7





Size 5


20/35W



Size 7




Wallwasher

Size 5




Size 7




Directional

luminaire

Size 5


20/35W



Size 7


70/150W



Recessed floor

luminaire

vary chrome

Size 5





Nadir IP67

Since the unusual direction of

their light attracts attention,

lighting designers like to use

recessed floor luminaires even in

indoor areas. However, recessed

floor installation is usually more

complex than mounting the luminaires

to or in the ceiling. Consequently,

when the Nadir recessed

floor luminaires for indoors were

completely redeveloped, ERCO

focused its efforts not only on the

usual sophisticated lighting technology

but also directed attention

to a safe and simple mounting

solution with superior finish.

The height-adjustable frame of

the recessed floor housing now

compensates for dimensional tolerances

between floor slab and

finished floor. The shallow recess

depth of 100mm makes the luminaires

suitable for many applications

in architecture. The Nadir can

even be mounted in floating floor

screed without forming sound

bridges. The front covers are round

or square; particular highlights in

the range include luminaires with

special characteristics such as the

grazing light wallwashers or with

innovative lamps such as LEDs.

The elegant,

edgeless mounting

detail makes

the Nadir recessed

floor luminaires

an adequate

design element

– even in floors

made of highquality

material.

For a flush surface

and to compensate

dimensional

tolerances,

the position of

the luminaires

can be pre cisely

adjusted during

mounting using

height adjust ment

screws.

As is the case

with a wide range

of ERCO lighting

equipment, the

Nadir now also

allows alterna -

tive mounting

options without

special accessories:

depend ing

on the position of

the cover frame,

either edgeless

flush floor mounting

or overlapping.


Product overview Nadir IP67

Grazing light

wallwasher

Size 4

LED daylight white, warm white




Size 4





Size 5




Size 5




Directional

luminaire

Size 4





Size 4





Size 5




Size 5




Recessed floor

luminaire

vary chrome

Size 4




Size 4





Kubus

Using well-integrated lighting

technology, the Kubus range of

luminaires carries the ERCO principle

of “Light, not luminaires” to

positive extremes – less luminaire,

after all, is hardly conceivable. The

miniaturised light sources, inconspicuous,

ultra-compact cuboids

with robust housings made of cast

aluminium, are completely immaterial

compared to their striking

lighting effect as floor washlights

or facade luminaires.

Their high energy efficiency

and extended maintenance cycles

are due to the modern metal

halide lamps and LEDs. Two housing

sizes of the Kubus completely

exhaust the packing density for

the appro priate light source: a line

for the metal halide lamp HIT-CE

20W is available for enormous

output from a compact housing;

as an absolutely minimised solution,

Kubus is available with highpower

LEDs for even smaller housing

dimensions. Despite all the

integration, the Kubus luminaires

are provided with efficient, innovative

lighting technology which

allows interesting areas of application.

And each individual Kubus

model creates a particular lighting

effect.

So, for example, the Kubus

facade luminaire with LEDs is used

to produce a delightful grazing

light effect, while the HIT version

of the facade luminaire features

distinctly asymmetrical, flowing

characteristics. The floor washlights

with LED provide a choice

between conventional, extensive

light distribution and a more widespread

version that follows the

path. Additional mounting options

arise from a recessed wall housing

and an upright supporting

pole, which can be used to transform

the Kubus into an elegant

bollard luminaire. One aspect that

holds true for all Kubus luminaires

is that their visual comfort meets

the highest standards.

Small luminaire,

big effect: in the

outdoor area, the

lighting effects of

Kubus are often

enough to ensure

good orientation

and spatial perception.

The Kubus facade

luminaires can be

mounted to emit

their light either

upwards or downwards.


Kubus

The cables

can be routed

safely in the

upright supporting

poles available

as mounting

accessories.

Depending on the

required characteristics,

there are

various mounting

alternatives. All

Kubus luminaires

can be used on

walls as surfacemounted

versions.

Kubus floor washlights

can also be

mounted on an

upright supporting

pole available

as an accessory

and freely positioned

in an area

for use as a bollard

luminaire.

The floor washlights

are also

suitable for flush

wall mounting

using the recessed

housing or mounting

plate available


The Kubus can

be mounted to

suit any situation

using the

ERCO range of

accessories: a

mounting plate,

an upright supporting

pole, a

base, and a concrete

anchor.

For the LED floor

washlights, the

choice includes

a conventional,

extensive light

distribution and

a more widespread

version

which follows

the path.

High-power LEDs

as light sources

need special lighting

systems consisting

of reflectors

and lenses

to be used effectively

for illumination.

These systems

made of

high-quality optical

materials are

developed and

produced by ERCO

itself. LEDs are

energy-efficient

and practically

maintenance-free

– a key benefit

particularly in the

outdoor area.


Product overview Kubus

Floor washlight







Facade luminaire








Midipoll

The Midipoll bollard luminaire

provides architects, lighting and

landscape designers with a tool

which competently performs not

one but several tasks: Midipoll is

not only an efficient instrument

for outdoor area lighting, but

itself also serves as an unobtrusive,

space-dividing element –

both during the day and at night.

The light beam emitted from the

abso lutely glare-free, shielded

front lens illuminates the surrounding

area while also grazing

the elegant, cross-shaped profile

to produce a discreet luminance

on the bollard itself.

Midipoll is ideal for a variety

of applications: to reveal open

areas, but also to follow path -

ways or accentuate focal points.

Thanks to its rational design and

the latest lighting technology,

Midipoll combines cost-effective

procurement and operation with

ERCO’s high standard of sturdiness,

design and lighting quality.

A significant level of energy efficiency

and long maintenance

cycles are ensured by innovative

light sources such as metal halide

lamps and LEDs. Using the Dark

Sky technology, Midipoll prevents

spill light above the horizon line.

Exclusive lighting elements such

as the complex prism lens of the

LED models made of high-quality

polycarbonate are developed and

produced entirely by ERCO – from

the computer calculation to precision

tool manufacture to the production

in ERCO’s own injection

moulding facility.

The housing and profile are

both of cast aluminium with the

tried and tested multi-layer powder

coating that enables them to

withstand any weather condition

for many years. Depending on the

ground, the appropriate mounting

accessories ensure rational installation

options.

The cover glass

of the bollard

luminaire is fully

concealed from

view. A lens

spreads the light

onto the ground

but also illuminates

the crossshaped

aluminium

profile to

provide a discreet

focal point.


Midipoll

Midipoll with LED

module 4x2.5W

is available in the

light colours daylight

white and

warm white.

The models for

HIT lamps are

available as 20W

or 35W version

and provide a

choice of two

heights.

Due to its quartered

light emission,

the Midipoll

has a double axially

symmetrical,

rather than an

absolutely round,

light distribution.

Midipoll for HIT

lamps feature an

optimised glass

flood lens as

front cover.

Midipoll provides

various mounting

options: concrete

anchor, ground

socket or mounting

plate. The

wall plate enables

rational throughwiring.

The Midipoll bollard

luminaire for

LEDs uses a recalculated

prism lens

made of plastic to

spread the light

of the high- power

LEDs over a wide

area.


Product overview Midipoll

Bollard luminaire










Lightmark floor washlights

The Lightmark range consists of a

diverse system of outdoor luminaires

with different flood light

distributions and cuboid forms to

integrate precisely and inconspicuously

into architecture as well as

square and landscape design. In

addition to the bollard luminaires

and facade luminaires already

available, ERCO now also offers

Lightmark luminaires for wall

mounting. These make it possible

for lighting concepts for open

areas and pathways to change

seamlessly from free-standing

bollards to floor washlights integrated

flush in walls.

In terms of lighting technology,

the Lightmark floor washlights for

wall mounting are similar to bollard

luminaires: they are fitted with

highly efficient light sources such

as metal halide lamps, low-voltage

halogen lamps or compact fluorescent

lamps and feature different

light distribution patterns. Glare

protection and visual comfort are

of the highest standard, while the

Dark Sky technology prevents any

spill light above the horizon line.

The mounting

accessories

include a frame

for surface

mounting and a

concrete housing.

The luminaires

for recessed wall

installation complement

the established

range of

Lightmark bollard

luminaires for

open area lighting.


Product overview Lightmark


Pathway lighting



Fluorescent lamps 18W



Open area lighting




Bollard luminaire

Pathway lighting with single-sided light

emission

Tungsten halogen lamps 150W


Fluorescent lamps 18W

Pathway lighting with single-sided light

emission







Pathway lighting with double-sided light

emission





Pathway lighting with double-sided light

emission





Open area lighting




Facade floodlight




Facade luminaire

with single-sided light emission





with double-sided light emission







The complete redevelopment

of the ERCO range of floor washlights

focused on two aspects:

the integration of modern light

sources such as LEDs and more

flexibility in terms of trim detail

design. In addition, ERCO’s design

engineers devised reflectors with

a new surface that proves particularly

scratch-resistant and easy

to clean. Apart from its excellent

reflection capacities, the satin

matt silver coating ensures that

the discreet luminance of the

reflector surface provides the

desired effect and turns the floor

washlights into an architectural

element.

The light sources themselves

are fully concealed from view and

protected against the ingress of

dust and dirt by using a Softec

lens as safety glass. Low-maintenance

light sources such as metal

halide lamps or maintenancefree

LED lamps underline the fact

that the ERCO floor washlights

are truly efficient and economical

lighting tools suitable for problemfree

operation over long periods

of time.

The mounting

frame is available

with two optional

trim details for

mounting in drywall

partitions:

optionally with

cover edge or

flush mounted.


are used to provide

discreet and

safe lighting for

traffic areas, hallways

and stairs.

Due to its luminance,

the new

satin matt reflector

surface stands

out as an architectural

element that

is both scratchresistant

and easy

to clean.


Product overview Floor washlights













Compact HIT

Compact HIT represents an

entirely new approach to downlight

lighting and is made possi -

ble only by the exclusive ERCO

innovation of Spherolit reflectors.

In order to achieve a revolutionary

combination of light efficiency,

compact recessing dimensions,

visual comfort, and cost-effectiveness,

the Compact HIT follows

an alternative path to Darklight

technology, a characteristic of the

remaining ERCO range of downlights:

the exclusive use of energyefficient

metal halide lamps with

a connected load of 20W to 70W –

naturally with electronic control

gear – ensures high luminances

of the wide beams emitted by

Spherolit reflectors with a wide

flood light distribution. An antidazzle

cap with mirror-finish

exterior effectively shields the

lamp. The attractive, almost magical

appearance of Compact HIT

in the ceiling is defined by bright

reflections and the non-reflecting

safety glass, which makes it ideal

for prestigious rooms in the retail

sector or in administrative buildings.

Easy mounting

and the compact

dimensions of

Compact HIT are

aspects which

can have a positive

effect on

the overall costeffec

tiveness of a

building project.

130

100

50

0

30°

The Spherolit

reflector, the nonreflecting

safety

glass, and the

mirror-finish antidazzle

cap provide

high visual

comfort and an

attractive appearance.

In the Spherolit

reflector, hundreds

of individually

domed sub

areas disperse the

light from the

light source and

reshape it into a

beam with ideal

properties.


Product overview HIT

Downlight Size 3


wide flood




Size 4


wide flood




Size 5


wide flood





Compar

The development of the Compar

recessed spotlights was based to

a degree on the requirements of

the retail sector in the area of

shop lighting. The Compar range

provides a combination of innovative

lighting technology, rational

detail solutions and flexible

system design. As a result, all the

spotlights have Spherolit reflectors

for a superior quality of light.

The light distribution patterns

include the rotationally symmetrical

narrow spot, spot, flood and

wide flood reflectors and the

Spherolit reflector, wallwash, for

asymmetrical light distribution.

New in the ERCO Program is the

Compar recessed spotlight with

display lens: depending on the

version with flood or spot reflector,

this lighting tool produces an

oval-shaped beam of different

dimensions and is suitable for the

highly efficient illumination of

product presentations with wide

luminaire spacing. Fitted with

economical, long-life lamps, the

luminaires are available for either

HIT or HST.

The aluminium

mounting ring

can be mounted

in false ceilings

without tools by

using three bracing

springs. The

spotlights can

be tilted up to

30° and rotated

through 360°.

30°

30°

360°


Compar

The powerful,

bright light of

the HIT lamps

makes fresh

products in selfservice

areas

appear natural

and appetising.

Compar recessed



spot + display lens




flood + display

lens

The new display

lens produces

a brilliant, precise,

horizontally

spread beam of

light. In contrast

to the sculpture

lens, its only

structuring are

the grooves for


and it features

an anti-dazzle

cap for defined

visual comfort.

The beam angles

vary depending

on whether the

display lens is

combined with

a spot or a flood

reflector.

Compar forms a system of recessed

ceiling spotlights with an as yet

unparalleled variety of seven different

light distribution patterns.

Producing a uniform, aesthetic

appearance in the ceiling, the

Compar can be used effectively

for complex lighting tasks. Different

spotlight characteristics in

Spherolit technology ensure flexibility

to produce extraordinary

highlights, while the Spherolit

wallwasher emphasises the vertical

room surfaces. The spotlights

with display lens are particularly

suitable for the efficient illumination

of product presentations in a

linear arrangement, such as tables

and shelves. The selection of light

sources – both metal halide lamps

and high-pressure sodium vapour

lamps – and wattages provide

additional design possibilities.




narrow spot




spot

Designed for

use in the retail

sector, Compar

is also available

for HST 50/100W

lamps to highlight

specific types of

products optimally

with warm

light tones.




flood




wide flood

Compar Spherolit

wallwasher with


wallwash


Product overview Compar

Recessed

spotlight

Size 6


Metal halide lamps 35/70W

High-pressure sodium vapour lamps

50/100W



Size 6


+ display lens



50/100W



Spherolit

wallwasher

Size 6


wallwash



50/100W




Efficient visual comfort

Lighting requires energy. Anyone

involved in any aspect of lighting

– from the manufacturer to the

designer and the user – should use

the limited resources responsibly.

Even under the pressure of rising

energy prices, architectural lighting

has made enormous progress

over the past few years and has

already achieved a significant level

of efficiency. The efforts in this

area must not be reduced – on

the other hand, energy efficiency

should not be sought at any price,

especially not at the expense of

the quality of light. ERCO sees

further potential for the effective

use of our resources particularly

in the following areas:

Effective lighting technology

Efficient, precise optical systems

lower the energy requirement for

lighting. Innovations such as the

ERCO Spherolit reflectors combine

a high light output ratio with visual

comfort. Only tools which give

the user complete control of the

light, allow effective planning and

design.

Efficient lamps

ERCO provides an exceptionally

wide range of products for use with

the economical and long-lasting

metal halide lamps, but also for

compact fluorescent lamps. Furthermore,

ERCO is significantly

involved in the development of LED

lighting equipment and thus practically

utilises the rapid progress

in terms of the luminous efficacy

of LEDs.

Thermal management

In practice, all artificial light

sources generate excess heat.

As part of ERCO’s resource-conscious

thinking, the luminaires

are designed so as to allow a

construc tive dissipation of this

heat to ensure that the lamps and

heat-sensitive electronic components

such as LEDs or control gear

can work to capacity throughout

their entire life.

Modern control gear

Electronic control gear not only

ensures greater comfort than conventional

control gear, it is also a

lower-loss, more compact version

and protects the lamps. On the

whole, it is a far more resourcesaving

option. Incidentally, ERCO

exclu sively uses lead-free soldered

electronic components.

Intelligent lighting control

DALI technology from ERCO makes

scenic lighting uncomplicated and

economical. Light scenes to suit

each situation are selected and

controlled by the user and together

with automated light management

involving sensor systems and timer

programs provide enormous potential

savings.

Qualitative lighting design

Careful, perception-oriented lighting

design uses light specifically

where it meets the requirements

of the user: vertical lighting, for

example, provides a subjectively

high impression of brightness in

a room. In the same manner, regulated

accent lighting is usually

more effective than the provision

of a blanket high level of lighting.

A

QT, QPAR

QT-NV

T

TC

HIT-CE

HST

LED

20

40

60

80

Light output

ratio

The table shows

the average light

output ratios

of today’s lamp

types. The differences

speak

for themselves –

100

(lm/W)

nevertheless, a

qualitative lighting

design should

never be based

solely on the

light output ratio

as the only criterion

for lamp

selection.

Accent lighting

Qualitative lighting

design concentrates

on the

essentials in architecture

and thus

produces many

possibilities to

lower energy

consumption.

Scenic lighting

Light scenes

recalled only

where required

provide enormous

energy

savings potential

– whether manually

controlled

or automated by

timer or sensors.

Vertical lighting

Wallwashing is

one example of

how perceptionoriented

lighting

design with a

lower connected

load can provide

a brighter impression

of the room.


Illumination of vertical surfaces

Light can be used to define and

continually reinterpret spaces.

Looking at walls and other vertical

surfaces, it is clear that

these are crucial for the perception

of architecture: illuminated

walls allow us to perceive the

shape and dimensions of a room.

When illuminated in perfect uniformity,

the wall appears light,

almost intangible. Objects such

as photos, posters or paintings

can be viewed in optimal conditions.

Vertical illumination creates

a subjective impression of

significant brightness in the room

and can contribute to energy saving.

The lighting equipment used

for this type of lighting is called

wallwashers. ERCO has developed

and perfected these special luminaires

for decades. The result is a

range of tools for the illumination

of vertical surfaces which is

as yet unparallaled in terms of its

extent and distinction. The different

types of wallwasher and their

typical applications are presented

on the following pages.

Wallwashing and

accent lighting

Wide, vertical

illumination

as background,

together with

accentuating,

directed illumination

in the

foreground form

a classic concept

for highlighting

objects in the

room.

Successful

wallwasher illumination

can be

so subtle that

it is hardly perceived

as such,

but rather as a

pleasant level of

brightness in the

room. The diffuse

light reflected on

the wall contributes

to the ambient

lighting.

Wallwashing:

play of brilliants

Vertical surfaces

in the room are

transformed by

appropriate lighting

equipment to

become screens

used for dynamic

lighting effects.

Plays of colours

or projections

become an attractive

eyecatcher.



The applications illustrated describe

a widespread, uniform wall illumination

with different optical systems

and a wide range of lamps. To ensure

optimal uniformity and high illuminances,

the following is recommended:

Wall height up to 3.0m 4.0m

Offset from wall 1.0m 1.5m

When the wallwashers are arranged

in a row, the luminaire spacing should

be the same as the offset from the

wall. With some luminaires, this can

be up to 1.5 times the offset from

the wall. In addition, the wall and

spacing distances documented in

the publications provide information

on optimal arrangements and the

expected illuminances.

Lens wallwashers

The reflector technology used here

is suitable for the highest museum

quality. Lens wallwashers illuminate

walls from the ceiling to the floor.

The light is spread in longitudinal

direction by special lenses. Reflectors

distribute the luminous flux evenly

on the wall and shield the lens wallwashers

to prevent glare in the room.

The wallwashers illustrated are operated

on tracks.


Special lens wallwasher systems

ensure a uniform illumination of the

wall. The light is spread by lenses,

while the reflectors direct it onto

the wall. The Darklight reflectors

visible from below are glare-free.

Wallwashers with LED varychrome

also produce scenic effects on vertical

surfaces.


These lens wallwashers distinguish

themselves by their high visual comfort.

Darklight reflectors with a cutoff

angle of 40° let the luminaires

appear dark. Only the cover glass is

visible above the cut-off angle. A

wallwasher lens system distributes

the luminous flux on the wall to provide

an illuminance distribution of

the highest level of uniformity.

Washlights

As recessed ceiling luminaires, these

wallwashers are no different to downlights.

The internal reflector segment

distributes the light uniformly on the

wall surface, while the downlight effect

is maintained. Washlights are available

for low-voltage halogen lamps, tungsten

halogen lamps, high-pressure

discharge lamps, and compact fluorescent

lamps.



Double focus wallwashers

This type of wall illumination provides

the highest level of uniformity for

vertical illuminances. The effect of

these wallwashers is achieved using

special, internal wallwasher reflec tors.

Due to the total shielding of the

lamp, the Darklight reflector produces

an improved optical effect. There

is no spill light in areas of the room

near to the walls.

Focal wallwashers

The use of metal halide lamps in

Lightscan wallwashers makes them

particularly suitable for the general

lighting of walls in shops and presentational

area. They produce a focal

emphasis in the upper third of the

illuminated area, e.g. for the illumination

of displays above shelves.

Focal wallwashers

A diffuser and a wallwasher reflector

distribute the light of Tesis on a

façade in a way that produces a visible

focal emphasis at approx. 1/3 of

the height. The lens below the safety

glass produces a wide beam and distributes

the luminous flux uniformly

on the cover glass. This means that

the luminaire is visible even when

viewed from shallow angles.

Wallwashers

Wallwashers in the Optec range are

track mounted and provide an ideal,

uniform illuminance distribution

from ceiling to floor. The area in

front of the wall is also illuminated.

The range comprises various types

of luminaires for almost all lamps.

Wallwashers

With Paratec wallwashers, part of the

luminaire projects from the ceiling.

The beam intersects with the wall

directly in the upper corner, while

the illuminated surface remains practically

invisible to the viewer. A special

wallwasher reflector provides

the highest level of uniformity. These

wallwashers combine a high degree

of visual comfort with maximum

efficiency.



Wallwashers

With Tesis wallwashers, part of the

luminaire is above the mounting

plane. Thus, the luminaire cannot be

walked on or rolled over by vehicles.

The beam intersects with the wall

directly above the mounting plane.

The illuminated surface remains

practically invisible to the viewer.

A special wallwasher reflector and

a Softec lens provide the highest level

of uniformity.

Wallwashers

Designed for high-pressure discharge

lamps and compact fluorescent lamps,

they are available especially for wall

illumination and shop lighting in

sales rooms and shops. On these wallwashers,

the peak intensity is emitted

at approx. 30° and produces the vertical

illuminances important for the

required spatial effect.

Wallwashers

Parscoop wallwashers and floodlights

are provided with asymmetrical

beam reflectors. These reflectors

are designed so that the light distribution

is ideal for uniform facade

lighting. In addition to the main

mounting option on the ceiling or

the floor to illuminate facades, they

can also be mounted on walls to provide

uniform ceiling illumination.

Wallwashers

The special reflector technology

of TFL wallwashers for fluorescent

lamps provides a uniform and even

wall illumination, especially in museums.

The DALI-compatible luminaires

have digitally addressable control

gear which allow each luminaire to

be addressed individually. TFL wallwashers

can also be mounted as a

continuous arrangement.

The uniform

light distribution

from ceiling to

floor highlights

the wall as a

whole and makes

the room appear

more spacious.



Spherolit wallwashers

These wallwashers use Spherolit reflectors,

wallwash. In these reflectors, the

individual spherolites are arranged

so as to produce an asymmetrical

light distribution. As opposed to lens

wallwashers, Spherolit wallwashers

can also be positioned in high rooms

or closer to the wall. With a focal

emphasis on the upper half of the

wall, they are ideal for the illumination

of vertical surfaces in shops.

Grazing light wallwashers

These types of luminaire produce

grazing light and can be positioned at

close distance to the wall. Sculpture

lenses spread the width of the beam

along one plane, while maintaining a

narrow beam light distribution on the

other. In the round and square Nadir

recessed floor luminaires, the lamps

can be tilted and rotated by +/- 5° for

adjustment.

Facade luminaires

Focalflood facade luminaires are

available for high-performance LEDs.

The luminaire’s lens system has been

optimised so that a narrow beam light

distribution gives an efficient grazing

light on the wall surface. In the other

direction, a wide light distribution is

produced. The DALI-compatible varychrome

version can be controlled via

the ERCO Light System DALI.

Facade floodlights

Facade floodlights are fitted with

asymmetrical reflector-lens systems.

They are effectively free of spill light.

The light distributions are designed

for even wall illumination or surfaces

without perceptible edges to the beam.


Lighting control

Lighting control systems link

both indoor and outdoor luminaires

in intelligent networks.

They combine the lighting hardware

and software to produce a

user-friendly tool allowing innovative

lighting technology functions,

such as the varychrome

colour change technology, to be

utilised for scenographic lighting

concepts. They also enable

lighting systems to be integrated

with the building technology for

professional light management.

Whether for a single room or an

entire building – the ERCO product

range offers the optimum

solutions for lighting control

tasks of all sizes.

Parkside Restaurant

at Stockholm

trade fair, Stockholm

Älvsjö. Architect:

Rosenbergs

Arkitekter, Stockholm,

Akabaljev

Barrow Arkitekter,

Stockholm.

Darmstadt Evangelical

Church,

Darmstadt. Lighting

design: Prof.

Harald Hofmann,

Lüdenscheid.


Lighting control

Scenographically

controlled light

with Light System

DALI at the ERCO

auditorium,

Lüdenscheid.

Guillaume at

Bennelong restaurant,

Sydney Opera

House, Syd ney.

Architect: Dale

Jones-Evans, Sydney.

Lighting

design: Barry

Webb Design Pty

Ltd., Barry Webb,

Matt Tindale, Sydney.


Lighting control systems

Lighting control systems from ERCO are

professional control systems for lighting

management and scenic dimming.

By using such systems, the architecture

can be repeatedly reinterpreted along

functional, aesthetic and dramaturgical

lines. Intelligent lighting management

increases the comfort of the building

and saves energy. It is equally possible

to control light scenes via timer

functions as it is to program cyclical

sequences. ERCO lighting control systems

are particularly suitable for controlling

complex, atmospheric scenic

lighting installations in architectural

settings, e.g.in hotel foyers, lobbies,

shops, restaurants, bars or conference

rooms. Lighting control systems allow

dynamic and user-friendly control of

lighting tools with colour mixing function

such as ERCO Varychrome luminaires.

Light System DALI 51

LON Area Net 61



The ERCO Light System DALI brings

an innovative approach to lighting

control:intelligently applied

DALI (Digital Addressable Lighting

Interface) technology for individually

addressable luminaires,

combined with the ERCO Light

Studio software, form an integrated

system for scenographic

lighting. Together with the comprehensive

range of DALI-compatible

ERCO luminaires for the indoor

and outdoor area and the ERCO

DALI track, this enables scenographiclighting

effects such as

coloured light, dynamic progressions,

light scenes, timer functions

and light sequences to be used in

architecture more simply and economically

than ever before.

New standards in terms of ease

of operation, range of functions

and creative control are set by the

consistent integration of software

and hardware. For example, colour

selection for DALI-compatible

varychrome luminaires in the

ERCO Light Studio are determined

clearly and interactively at the

click of a mouse. The bus technology

and the switch and dimming

functions integrated into the control

gear make a permanent wiring

of individual circuits and the

installation of vast dimmer banks

in switch cabinets unnecessary.

Once a system is activated, the

DALI-compatible ERCO luminaires -

known as Light Clients - are automatically

recognised by the Light

Server due to the factory-set coding

of the luminaire’s DALI control

gear and clearly displayed in the

software. DALI-compatible luminaires

of other manufacturers can

also be integrated into Light System

DALI and be controlled just as

easily as ERCO Light Clients. The

Light Server 64 for up to 64 DALI

addresses enables the Light System

to handle many typical lighting

control applications, as in multifunctional

rooms, shops and shop

windows, restaurants, lobbies or

company showrooms.

Larger installations with over

64 addresses can be created by

networking up to twelve Light

Servers via the integrated Ethernet

interfaces. This makes it possible to

manage up to 768 DALI addresses.

In order to identify luminaires in

complex rooms with limited visual

contact, each Light Client has an

electronic luminaire ID stored in

the control gear and recorded

onasticker, which is placed in

alighting plan on site. The electronic

luminaire ID is automatically

recognised by the lighting

control software. The DALI Light

System consists of the hardware

components Light Server and Light

Changer and the software Light

Studio. The Light Server is a DALI

controller that stores system and

scene data and provides the control

functions. Day-to-day operation

takes place via the compact,

wall-mounted ERCO Light Changer

control panel, via push-buttons or

via remote control. To set up light

scenes and for more complex operations,

designers or users can use

the ERCO Light Studio software on

a PC connected to the Light Server

or the Light Changer via a USB

connection. The Light Server uses

the DALI protocol to communicate

with the Light Clients, i.e. the

connected DALI-compatible luminaires,

via a two-core control line.

With DALI track accessories, the

well-established and reliable ERCO

track is ideal for the operation of

DALI-compatible ERCO spotlights

viaLight System DALI.

Dreipunkt furniture

showroom

at the Stilwerk

mall, Stuttgart.

Architect: Bernd

Schellenberg

(DREIPUNKT International).

Lighting

design: Stephan

Haubner, Wesenlicht,

Stuttgart.



Software

Output devices

Input devices

The Light Studio software is used

to set up lighting installations with

Light System DALI and to make

its complex functions available

in a user-friendly format. It consists

of four modules: Light Master,

Light Book, Light Timer, and Light

Sequencer. Light scenes, which

may contain coloured effects and

dynamic progressions, are created,

designed and edited in the Light

Master module. The Light Book

is used to organise and spatially

structure lighting installations.

The selection of the scene can

be automatically time-controlled

with the Light Timer. A sequence

of light scenes can be stored in

the Light Sequencer. An interface

for the configuration of Emanon

The Light Server controls the

ERCO Light Clients. These can

be DALI compatible luminaires

and/or DALI compatible control

gear, dimmers, switching actuators

or transformers. The data

for the luminaires, light scenes,

timer programs and the room

management is stored in the Light

Server. APCinstalled with the

ERCO Light Studio software can

be connected via the USB port.

Every single Light Server 64+ can

address up to 64 DALI participants.

It has an interface enabling itto

be networked with additional

Light Server 64+ devices. A total

of up to 768 DALI addresses can be

managed via the integral Ethernet

interfaces. Four digital inputs for

Stored light scenes and timer programs

can be recalled by the Light

Server via the Light Changer. The

Light Changer has a user-friendly

touch screen for menu navigation.

A push-button for the On/Off function

can switch all Clients on or off.

The plastic housing can be mounted

on the plaster or flush mounted

in the wall using the mounting

frame. The Light Changer has

a USB interface for connecting a

PC to the Light System installation.

Goborotator is integrated in the

Light Master. The project data can

be printed out for documentation.

The software issuitable for

the following operating systems:

Windows 2000, XP and Vista.

customised configuration can be

used for push-buttons, movement

sensors or twilight switches. An

interface to the media system

can be created or a PC with Light

Studio connected via Ethernet.

Batteryless remote controls or wall

transmitters and a radio control

receiver are available for the easy

recall of light scenes.



Accessories

The DALI switching actuator, DALI

dimmer or DALI transformer allows

luminaires, for example those

without DALI control gear, to be

integrated into the Light System

DALI. The mechanical accessories

enable wall mounting of the Light

Changer.

Entry Paradise

Pavilion (coal

washery, Zollverein

colliery. Exhibition:

Entry2006),

Essen. Architect:

Chris Bosse,

Sydney.



120V-240V

50-60Hz

DALI

ERCO track with DALI live end

Light Clients

Hub/Switch

Cat-5

Light Studio

USB

Light Server

Light Server 64+

12 max.

24V DC

Light Changer

31 max.

RS485

RS485

Receiver

--DALI control line

-USB connection

-- 24V DC

-Mains voltage

-RS 485 connection

Light Client: either lumi -

naire with its own DALI

control gear or a separate,

encoded DALI control gear

Movement sensor/

twilight switch

4 push-button

groups max.

Remote control

Radio push-button

System overview

The diagram shows how the

components of the Light System

DALI can be combined not only

with ERCO Light Clients but also

with conventional ERCO luminaires,

with DALI-compatible

luminaires of other manufactures

and with additional peripheral

devices such as push-buttons.

The installation work is significantly

reduced when compared

with that of other lighting control

technologies: DALI technology

integrates the switching and

dimming functions in the luminaire

or in the control gear, while

the 2-core control line connects

all participating devices in any

topology. The power supply to

the luminaires is constant and

independent of the DALI wiring.

Light Server

The Light Server 64+ is a DALI

controller that stores system and

scene data and provides the control

functions. Its compact design

gives it great flexibility when

choosing a mounting location.

The ERCO Light Studio software is

included with every Light Server.

A PC can be connected via the

USB interface. The integral Ethernet

interface can be used to network

several Light Servers.

Light Client

DALI-compatible ERCO luminaires

– known as Light Clients – are preprogrammed

with a factory-set

code of their DALI control gear.

This allows them to be auto matically

recognised and clearly displayed

by the Light Server and the

Light Studio software. The selection

of Light Clients cur rently available

covers the most impor tant

areas of the ERCO product range.

In particular, it also includes Varychrome

luminaires whose colour

change function can now be simply

and intuitively controlled with

unparalleled ease using the Light

System DALI.

Light Clients with luminaire ID

When you can see the luminaires,

the mounting locations of Light

Clients are identified simply by

using the “flash” option in the

Light Studio software. However,

this is not always possible for

larger Light System DALI installations.

Now, every Light Client

carries an additional sticker with

a unique luminaire ID. This individual

luminaire ID allows each

Light Client to be identified both

during commissioning and in the

lighting control software. The

sticker can be removed by the

installer and transferred to the

appropriate place on the reflected

ceiling plan drawing to show the

mounting location of each Light

Client.



ERCO Light Studio

The ERCO Light Studio

software is an integral

component of the Light System

DALI and is included with every

Light Server. Although a Light

System DALI may be commissioned

for use without a PC, only

the Light Studio can give designers

and users full creative control

in the sense of “tune the light”.

With its easy-to-follow graphic

user interface, Light Studio provides

many different functions

for setting up and documenting

DALI Light Systems and for

using them for scenographic and

energy-efficient architectural

lighting. These functions include

such unique features as the automatic

recognition of DALI-compatible

ERCO luminaires (Light

Clients) and the display of these

with product names, images and

article numbers, or the interac -

tive determination of the colour

locus of varychrome luminaires.

A PC installed with ERCO Light

Studio can be connected to the

Light Server or the Light Changer

via a USB port or to the hub via

Ethernet. When connected, the

arrangement and current settings

of the particular Light System

DALI are transferred to the program

and displayed there as a project.

After completing the system

set up and programming the light

scenes, the PC can then be disconnected

from the system; the

day-to-day operation (i.e. recalling

light scenes) is performed via

the Light Changer or via pushbuttons.

Light Studio consists of

several modules which cover different

tasks when working with

a Light System DALI.

In 2008, the Light System DALI

will be available with new functions:

1. Connection of a PC to Light

Studio via Ethernet

2. Connection of up to four

switches, movement sensors or

twilight switches for each Light

Server

3. Interface to media technology

via Ethernet

4. Master dimming

5. Configuration of Emanon

projection spotlights with

Goborotators

6. Printout of project data for

documentation

Light Master

The primary function

of the Light Master

module is to process and control

light scenes. The Light Clients of

a Light System are displayed as

a list and graphically. Their attributes,

such as dimmer settings

or colour locations, can be set

interactively, and there are userfriendly

tools such as the colour

wheel, a colour library and a progression

library or dynamic progressions

especially for controlling

varychrome luminaires. Light

Clients can be grouped together

as required and synchronised

with each other. Defined settings

are saved as a light scene. Up to

1024 light scenes can be created

and given plain text names. These

are also displayed on the Light

Changer.

Light Book

The Light Book is used

for the organisation

and spatial structuring of Light

Studio projects. Its main function

is to create zones and assign

Light Clients or Light Changers

to zones. It also defines generic

Light Clients for luminaires from

other manufacturers or custombuilt

ERCO luminaires and saves

the relevant information in the

DALI control gear of the Light

Clients.

Light Timer

The Timer module allows

light scenes to be recalled

at predefined times. The time and

calendar functions provide great

flexibility for the automation of

scenographic lighting, e.g. to set

the light scenes to shop-opening

times or licensing hours, or to

reduce the lighting level during

night time.

Light Sequencer

The Light Sequencer

is a tool designed specifically

for the purpose of defining

and storing sequences of light

scenes as a timed progression.

Compared with the dynamic progression

in the Light Master, the

Light Sequencer can be used to

create a sequence of scenes without

specifying a definite starting

time. This component can then

be used for a variety of events

with different starting times.

The actions and fading times for

each scene transition can be set

individually.



Integrating sensors and media

technology

The four digital inputs on the

Light Server allow an individual

configuration of components

such as movement sensors or twilight

switches. The Light System

DALI can thus interact with sensors

and automatically recall

scenes. The inputs are conveniently

configured using Light

Studio. The Ethernet interface

enables the user to connect to

the media technology or wirelessly

program the Light System

DALI using a WLAN router. This

simplifies the set-up of the

scenes and enables the lighting

designer to move around freely

in the room and check the different

light settings in the Light

Studio.

The battery free

remote control,

for example, is

useful in conference

rooms for

conveniently

recalling different

light scenes.

The battery free

wall transmitter

with four pushbuttons

can also

be subsequently

mounted on any

surface since it

does not require

electrical wiring.

The receiver

receives the signals

sent by the

remote control

or the wall transmitter

and passes

them on to the

Light System

DALI installation.

Sensors such as

movement sensors

or twilight

switches can be

connected to

the four digital

inputs of the

Light Server and

configured using

the Light Studio

software.

Scalability

DALI protocol limits the number

of addresses in a conventional

DALI system to 64. ERCO Light

System DALI goes beyond this

limit with the Light Server 64+,

which can be networked with

other Light Servers of the same

type through an Ethernet interface.

Installations with over

64 addresses can be created by

networking up to twelve Light

Server 64+ units via the integrated

Ethernet interfaces. This

allows the management of up

to 768 DALI addresses. The number

of connectable Light Changers

multiplies accordingly.

The option of

the networkable

Light Server 64+

makes the Light

System DALI suitable

for extensive

systems with differentiated

lighting

concepts and

dynamic light.


Software

06652.000

Light Studio for Light System DALI

Software for configuring the ERCO


Light Studio software for PCs with

Windows 2000, XP, Vista, for configuration

of the ERCO Light System DALI.

Creation of 1024 light scenes, 64 colour

progressions and 1024 timed events.

Operation in 6 languages: German,

English, French, Italian, Spanish, Dutch.

The Light Master, Light Book and Light

Timer modules help in designing the

light scenes, the organisation and spatial

structuring of projects, and the

recalling of scenes at pre-determined

times.

- Easy-to-follow representation of the

Light Clients.

-Display of product information.

- The symbols for the Light Clients can

be placed anywhere on the stage as a

visual, mnemonic aid.

-Simple adjustment of colours, etc.,

with the help of a colour wheel.

The Light Sequencer module enables

the individual creation of sequences, i.e.

a predefined progression of scenes.

Configuration of Emanon projection

spotlights with Goborotators (2nd

quarter of 2008).

Printout of the project data for documentation

(2nd half of 2008).


06660.000 White

Light Server 64+ for Light System DALI

Control gear to control up to 64 Light

Clients.

Connection of 31 Light Changers maximum

and up to 4 push-button groups.

Realisation of larger Light System DALI

installations possible by using additional

interface to network 12 Light

Servers 64+ units to each other.

Control of up to 768 Light Clients,

12x31 Light Changers, 1024 light

scenes in up to 64 zones.

USB connection for configuration with

ERCO Light Studio.

Weight 0.55kg













DALI controller for connection of up to

64 Light Clients with DALI interface.

The networking of a number of Light

Servers is carried out using Ethernet,

RJ45 connector, Cat5 cabling.

Automatic identification of ERCO Light

Clients and automatic assignment of

RGB colour channels. All required data

is permanently stored, e.g. light scenes,

timer programs, colour progressions,

etc.

Connection of up to 31 Light Changers

for recalling light scenes, timer programs

and single-circuit operation.

When connecting more than four Light

Changers, an additional 24V DC power

supply (SELV) is required, e.g. ERCO

06139.

The light scenes, timer programs, colour

progressions, etc., are configured

using the ERCO Light Studio Windows

software supplied.

The Light Master, Light Book and Light

Timer modules help in designing the

light scenes, the organisation and spatial

structuring of projects, and the

recalling of scenes at predefined times.

- Easy-to-follow representation of the

Light Clients.

-Display of product information.

- The symbols for the Light Clients can

be placed anywhere on the stage as a

visual, mnemonic aid.

-Simple adjustment of colours, etc.,

with the help of a colour wheel.

The Light Sequencer module enables

the individual creation of sequences, i.e.

a predefined progression of scenes.

The PC is connected via the Light

Server’s USB interface with a USB A-B

or a USB A-mini B cable. A USB A-

mini B cable is included in the delivery.

4digital inputs with individually configurable

functions of:

- up to 4 push-button groups for the

recall of scenes or sequences

- master dimming (from 2nd quarter of

2008)

-upto4switches, movement sensors

or twilight sensors (from 2nd quarter of

2008)

Other features in the 2nd half of 2008

- Interface to media technology via

Ethernet.

- ConnectionofaPCwith Light Studio

via Ethernet.


Manual input devices





















Control panel for recalling 32 light

scenes, single-circuit operation and the

On/Off, master dimming and timer on/

off functions.

Graphic LCdisplay with touch screen,

sensor button ON/OFF.

Cavity wall box, plastic.

06651.000 White

Light Changer for Light System DALI

Control panel for recalling light scenes

and timer programs, single-circuit operation,

On/Off and master dimming

functions.

Weight 0.18kg




























06655.000 Silver





functions.

Weight 0.18kg




























06656.000 Graphit





functions.

Weight 0.18kg















Transmitter for battery free remote

control on the interference-free

868MHz frequency. Maintenance-free.

Range of 30m with2brick walls. Max.

30 transmitters on one receiver.

06658.000

4-channel remote control for Light System

DALI

Transmitter with 4 push-buttons for the


Weight 0.05kg

Receiver for remote control.











06659.000

2-channel receiver for Light System

DALI

Receiver with 2 DALI push-button functions,

for switching light scenes.

Weight 0.04kg


















2 rocker switches. Combi frame. Other

combi frames to be ordered separately.

www.peha.de.

06665.000 White

4-channel wall transmitter for Light

System DALI



Weight 0.06kg




















www.peha.de.

06666.000 Graphit


System DALI



Weight 0.06kg






















www.peha.de.

06667.000 Silver


System DALI



Weight 0.06kg

Electrical accessories

































































83817.000

DALI transformer EN 61347

230/240/12V, 50-60Hz. 20-105W at

max 60°C ambient temperature.

Secondary voltage 11.8V.

Installation in ceiling voids, showcases,

furniture.

Plastic housing. Primary and secondary

cable clamps and terminal blocks.

Short-circuit protection: electronic cutout,

reconnect once short-circuit is

cleared.

Overload and overheat protection:

automatic load-sensing. For interference

suppression to VDE 0875, part 2,

secondary conductor length 2m max.

For ceiling aperture ø 80mm, recessed

depth 90mm

83829.000

DALI dimmer 1000W

for ohmic loads, conventional and electronic

transformers. Mounting on DIN

rail.

83816.000

DALI switch actuator, double, 16A

Weight 0.21kg

Two voltage-free contacts for switching

ohmic, inductive and capacitive loads

max 16A.

DALI interface with two independent

addresses. Mounting on DIN rail.

83814.000

DALI analogue converter 230V ± 10%,

5A

Weight 0.22kg

For connection of luminaires with ECG

1-10V to Light System DALI.

Conversion of a DALI signal into a

1-10V signal.

Internal relay for inductive loads of

max. 5A. Mounting on DIN rail.

Mechanical accessories

40 72







72

06653.000

Plaster frame for


Weight 0.22kg

Plaster frame for

the installation of

Light Changers in

cavity walls or for

flush installation.

06657.000

Housing for Light System DALI

Weight 0.19kg

Recessed housing for the installation of

Light Changer.


LON Area Net

ERCO Area Net, the system for

light management and scenic

dimming, is a convenient tool for

dynamiclighting design. Area Net

can be used to interpret architecturetosuitdifferent

requirementswhether

aestheticorpractical, Area

Net can create the optimum lighting

effect for each individual case.

Area Net integrates into the networked

building technology as

a modular-based individual system

with decentralised control

panels which control the lighting

of a whole building and can

be linked up with sensors, other

equipment and data networks. The

system components have their own

microprocessor with an integrated

interface. Identified by individual

addresses, all com-ponents can

communicate with one another

using a common line, which simplifies

the installation considerably.

The speed and dependability of the

bus protocol is ideal for high quality

lighting control applications.

Sensors enable the interaction

between Area Net and its environment.

This means that the daylight

sensors automatically maintain

the lighting level even with fluctuating

levels of daylight, saving

energy. In addition, different light

scenes can be recalled to suit the

external lighting conditions. The

connections for presence sensors

and switches complete the product

range.

Public services

administration

building, Lüdenscheid.

Architect:

HPP Hentrich,

Petschnigg &

Partner, Düsseldorf.

Lighting

design: Ingenieurgesellschaft

Dr.

A. Henne mbH,

Siegen.


LON Area Net

Input devices


Programming, configuration and

operation of Area Net is carried

out via the Control Pad or a Preset.

From thispoint the output modules

are addressed. They recall the

relevant parameters for the requested

light scene from their memory

banks and control the connected

circuits as required. Parallel to

the Preset, four programmed light

scenes can be recalled and can be

regulated in their total brightness

through the master control function

via extensions,orviaanIR

remote control. An IR receiver is

integrated in the Control Pad or

the Preset. Sensors for the indoor

and outdoor areas enable automatic

input for the daylight control.

A sequence module is available

Output modules for a maximum of

4 or 8 connections are available to

control external dimmers or relays

for luminaires, electricblinds and

projection screens.

to automatically recall light scenes

in sequential order.

Interfaces

APCinterface is available to connect

the Preset to a bus connector.


LON Area Net

Control gear units

The supply of power to the Presets,

extensions, D/A modules etc.is

ensured by the control gear units. If

necessary, several power packs can

be connected in parallel. Dimmers

in leading and trailing edge technology

control ohmic and inductive

loads as well as electronic transformers.

Sets

The set serves as a lighting control

system for one area with 32 light

scenes and 8 circuits. It consists

of a Preset with built-in infrared

receiver, the relevant housing, a

D/A module (as the output device)

and the power supply.

Accessories

Area Net can be easily programmed,

configured and

documented with the PC Preset

software for Windows.

ERCO’s LON-based

lighting control

technology

manages over

700 circuits in

the Stuttgart

Art Museum.

Architects:

Hascher Jehle und

Assoziierte GmbH,

Berlin. Lighting

design: Peter

Andres, Hamburg;

ibb Burrer &

Deuring Ingenieurbüro

GmbH,

Ludwigsburg.


Manual input devices for recessed wall installation











For the configuration, programming

and operation of max. 32 light scenes,

ON/OFF and master control. Integral IR

receiver, single-circuit operation and

blind control.

06100.000

Preset for Area Net

Control panel for the configuration,

programming and operation (recall of

max. 32 light scenes)

Weight 0.96kg











Recall of 4 light scenes, ON/OFF and

master control. LEDs identify the

selected light scene. For instance,

when using, with a Preset Area Net

06100.000 in one room, the 4 light

scenes are recalled which are currently

displayed on the Preset.

06101.000

Extension for Area Net

Control panel for the recall of 4 light

scenes

Weight 0.32kg

Manual input device for recessed ceiling installation













4 programmed light scenes, the ON/OFF

functions and master dimming function

can be recalled with the IR receiver via

the IR remote control 06105.000. For

instance, when using, with a Preset

Area Net 06100.000 in one room, the

4light scenes can be recalled which are

currently displayed on the Preset.

06106.000

IR receiver for Area Net

IR receiver for remote control

06105.000

Weight 0.12kg


Manual input device Remote control











IR remote control for the recall of

4light scenes, ON/OFF and master control.

Only those 4 light scenes are to be

recalled which are shown on the display

of the Preset. The required block battery

(6F22) is not included.

06105.000

IR remote control for Area Net,

Professional Net

Control panel for the recall of 4 light

scenes

Weight 0.12kg

Manual input devices for installation indistribution boxes













Recall of 4 light scenes, ON/OFF and

master control. 8 inputs for the connection

of potential-free push-buttons.

8 outputs to confirm the selected function.

An optional function automatically

switches a light scene off after a

prescribed time period.

06112.000

Key control for Area Net


via external potential-free push-buttons

Weight 0.40kg













The switch trigger is used to connect

commercially available switches or

movement sensors with potential-free

switch contacts. The recall of defined

light scenes and the OFF function, and/

or the function of two defined light

scenes is possible in up to 8 rooms. A

switch and/or input of the switch trigger

is assigned to every room.

06113.000

Switch trigger for Area Net

Control panel for recalling a defined

light scene via potential-free switches

or movement sensors

Weight 0.40kg


Manual input devices for installation in distribution boxes













The 4x key control allows 2 programmed

light scenes for up to 4 rooms

to be recalled via external pushbuttons.

8 inputs for the connection of

potential-free push-buttons. 8 outputs

to confirm the selected function.

06124.000

4x key control for Area Net

Control panel for recalling two light

scenes in up to 4 rooms via external

push-buttons

Weight 0.40kg

Automatic input devices for installation in distribution boxes

06110.000

Daylight control with indoor sensor for

Area Net

Control panel for maintaining up to

32 lighting levels constant in one room

Weight 0.41kg













The daylight control with internal

sensor maintains constant illuminance

within aroom. The set value can be a

default value or can be variably selected.

Variably means that the present

light situation (illuminance) is taken as

being the new set value. Default means

that the set values measured with a

luxmeter during the course of programming

are used when a light scene

is recalled. The default set values are

permanently saved in the device. The

daylight control features an input for

connecting a potential-free switch with

which the function for maintaining

constant illuminance can be temporarily

switched off.













The daylight control with external

sensor is used to automatically recall

light scenes depending on the external

brightness. The device features an input

for connecting a potential-free pushbutton

to switch the control on and off.

06111.000

Daylight control with outdoor sensor

for Area Net

Control panel for automatic recall of

light scenes dependant on daylight

conditions

Weight 0.43kg


Automatic input devices for installation indistribution boxes













The sequence module is used for the

automatic and sequential recalling of

max. 32 light scenes. The time interval

between light scenes is adjustable. The

sequence is started or stopped by an

operating device or via external pushbuttons

/ switches.

06114.000

Sequence module for Area Net

Control panel for the automatic

sequential recall of up to 32 light

scenes

Weight 0.40kg













The partition interconnector is used

for functionally connecting up to six

rooms. The device uses potential-free

switches to detect when the partitioning

walls are opened. The switch positions

recognised by the device can be

displayed via the acknowledgement

outputs. An additional switch can be

connected to deactivate the device.

06165.000

Partition interconnector for Area Net

For the interconnection of up to six

rooms

Weight 0.40kg

Output device for installation in distribution boxes













The D/A module is an output device

with 8 channels. Each channel contains

one analogue output and one switch

output. The D/A module allows the connection

of: external dimmers 0V-10V,

electronic control gear or other devices

with 1V-10V (current sink), power relay

for controlling non-dimmable luminaires,

electric blinds and projection

screens. For saving and calling up light

scenes as well as light scene names

and all necessary parameters. Saves the

switch-on period/switch-on frequency

of every circuit. Recall via separate software

(PC Preset).

06120.000

D/A module for Area Net

8x output module for connecting

external dimmers, for directly controlling

dimmable ECG or transformers.

Weight 0.40kg


Output device for installation in distribution boxes













The electric blind control is an output

device for controlling up to 4 electric

blinds or projection screens via external

relays (e.g. ERCO 06209.000). The outputs

for each electric blind are mutually

interlocked using software.

06121.000

Electric control blind for Area Net

Output module for controlling up to

4 electricblind groups

Weight 0.39kg

Interface













With the PC interface (RS232) and a

PC or media control, light scenes can

be recalled and the ON/OFF and master

control functions used.

06153.000

PC interface (RS232) for Area Net

PC interface for the recall of light

scenes via devices with serial interface

(RS232)

Weight 0.35kg

Software (CD ROM) for configuration

and programming, recall of light scenes,

single-circuit operation, ON/OFF and

master control. Additional timer and

sequence control.

PC interface (RS232) for connecting

ERCO Area Net to a PC.

Operation via a multi-media system

is possible. Current commands can be

made available.

06156.000

PC Preset for Area Net

Software for programming and recall of

light scenes incl. PC interface (RS232)

Weight 0.35kg


Gateway

Software (CD ROM) for configuration

and programming, recall of light scenes,

single-circuit operation, ON/OFF and

master control. Additional timer and

sequence control.

Gateway with RJ45 socket for connecting

ERCO Area Net to IT networks.

Operation via a multi-media system

is possible. Current commands can be

made available.

06159.000

PC Preset for Area Net

Software for programming and recall of

light scenes incl. Gateway (TCP/IP).

Weight 0.35kg

Power supplies





Power supply for supplying Presets,

Extensions, D/A modules etc. If necessary,

several power supplies can be connected

in parallel.









06139.000

Power supply 36VA, 24V DC for Area

Net and Professional Net

Power supply 36VA, 24V DC

Weight 0.20kg

















Power supply for supplying of Presets,

extensions, D/A modules etc. If 120VA

of power is insufficient, then up to

three power supplies can be connected

in parallel.

06142.000

Power supply 120VA, 24V DC for Area

Net and Professional Net

Power supply 120VA, 24V DC

Weight 0.75kg


Dimmer





















Dimmer for controlling incandescent

lamps, tungsten halogen lamps, lowvoltage

halogen lamps with conventional

(wire-wound) transformer and

fluorescent lamps. Control via external

0V-10V control voltage or 10kO linear

potentiometers or push-buttons.

06203.000

Dimmer LE, 5500VA for Area Net and


Dimmer (leading edge), 5500VA

Weight 2.80kg
















(wire-wound) transformer and

fluorescent lamps. Control via external

0V-10V control voltage or 10kO linear

potentiometers.

06204.000




Weight 0.56kg
















transformer and fluorescent

lamps. Control via external 0V-10V

control voltage or 10kO linear potentiometers.

06205.000




Weight 1.40kg













Dimmer in trailing edge technology for

controlling incandescent lamps, tungsten

halogen lamps and low-voltage

halogen lamps with electronic transformer.

Control via external 0V-10V

control voltage or linear potentiometers.

06213.000

Dimmer TE, 1200VA for Area Net and


Dimmer (trailing edge), 1200VA

Weight 0.46kg


Dimmer














controlling incandescent lamps and

electronic transformers for low-voltage

halogen lamps.

Control via external control voltage

1V-10V (current sink) 470kO potentiometer,

preferred logarithmic.

Incandescent or tungsten halogen

lamps: 60-500W

06215.000




Weight 0.24kg














controlling incandescent lamps, tungsten

halogen lamps and low-voltage

halogen lamps with electronic transformer.

Control via external 0V-10V

control voltage or linear potentiometers.

06217.000




Weight 1.00kg

Relay













For direct connection to the switch outputs

of the D/A or S/D/A module or

electric blind control (control voltage

24V DC). For switching luminaire groups

and dimmers, 10A ohmic load.

06209.000

Power relay for Area Net and


Power relay 10A ohmic load

Weight 0.07kg


Set

06300.000

Local System Set

Consisting of: Preset Local System,

housing, D/A module and power supply

Weight 2.03kg

Lighting control for a room with

32 light scenes and 8 circuits

(expandable to 16 circuits), consisting

of:

Preset Local System

For the configuration, programming

and operation of max. 32 light scenes,

ON/OFF and master control. Integral IR

receiver, single-circuit operation, blind

control.

Housing/recessed mounted wall housing

For mounting Presets in cavity walls

and for flush installation.

D/A module

8x output module for connecting

external dimmers, for directly controlling

dimmable ECG or transformers.

36VA power supply

For supplying the Local System. For

mounting on DIN rail. For installation in

standard distribution boxes.

Electrical accessories





















06146.000

Bus terminating resistor for Area Net,


Bus terminating resistor with integrated

bus connection socket.

Weight 0.05kg

Allows connection of PC interface (e. g.

06153.000, 06553.000 or 06156.000,

06556.000), the terminating resistance

setting and bus line through-wiring.

The bus terminating resistance is

provided within a housing for mounting

on DIN rail.

06154.000

Bus connection socket for Area Net,


Bus connection socket for PC interface

(RS232)

Weight 0.12kg

The bus connection socket is required

for connecting the PC interface (RS232)

(e.g. 06153.000/06553.000).

Mechanical accessories





















06151.000

Recessed housing, extension for Area

Net, Professional Net

Recessed wall housing for recessed

mounting in walls for extensions

Weight 0.27kg

Recessed housings are for the installation

of Presets in cavity walls and for

flush installation.

06152.000

Recessed housing, Preset for Area Net,


Recessed housing for Presets

Weight 0.47kg

Recessed housings are for mounting

Presets in cavity walls and for flush

installation.


Software

06122.000

D/A-Save for Area

Net

Software for saving

data

The software D/A

Save is a facility

with which the

memory of the

Local System/Area

Net output modules

can be read,

written, and saved

onto other data

medium. The different

versions of

the output modules

used allow

various copying

options.

Supplied on CD-

ROM.

06162.000

CE Light Pad for

Area Net

Software for operation

with pocket

PCs

Software CE Light

Pad for Pocket PCs

with Windows CE

3.0 for recalling

16 light scenes

and the OFF function.

06190.000

PC Light Pad for

Area Net

Software for operation

with PCs

Software for PCs

to recall programmed

light

scenes, controlling

blinds, ON/

OFF and dimming

functions.

Teatteri Ravintola,

Helsinki. Architect/

lighting design:

Rupert Gardner,

Stockholm.


Light in the indoor area

Luminaires designed to add scenic

lighting to architecture are more

accurately described as lighting

instruments. They are the result

of intense reflection on the issues

of lighting engineering. ERCO’s

range of indoor luminaires embraces

a wide spectrum of different

lighting tools: spotlights and

downlights, track, light structures,

task lights, directive luminaires,

ceiling washlights and floor washlights.

The common features that

they share are the high quality

constructional precision and

visual comfort.

Top:

Museum Ara Pacis,

Rome. Architect:

Richard Meier,

New York. Lighting

design: Fisher

Marantz Stone,

New York.

Yoko Yap shoe

store, Gothenburg.

Architect:

Vasilis arkitekt

Design, Västra

Frölunda.


Light in the indoor area

Hotel Emirates

Palace, Abu Dhabi.

Architect: Wimber

ly Allison Tong

& Goo. Lighting

design, indoor

area: DHA Design

& Lighting Design

International,

London. Lighting

design, outdoor

area: DHA Design,

London.

Company Fashion

Shop, Antwerp.

Architect: Claire

Bataille & Paul

Ibens, Antwerp.

Diesel, Spring

Street, Soho, New

York. Architect:

Diesel interior

Design Department,

Molvena.

Rembrandt Exhibition,

Kulturforum

Staatliche

Museen zu Berlin

(Berlin State Mu -

se ums). Architecture/light

ing

design: Hansjörg

Hartung, Berlin;

Staatliche Museen

zu Berlin.


Track and light structures

No invention since the incandescent

lamp has created such a revolution in

lighting design as the track. The track

effectively liberates light and luminaires

from the constraints of rigid mounting.

It forms the basis for variable, flexible

lighting design that can be adapted

to the changing style and use of a

space. A comprehensive range of accessories

allows the track to be connected

in alinear sequence, or for right-angle

shapes to be constructed. Light structures

combine the benefits of fixed and

movable luminaires.

They typically feature a modular design

that enables the construction of countless

structural variations - ranging from

single-dimensional linear arrangements

to two-dimensional networked grids -

all using standardised basic and connector

components.

ERCO track

81

Hi-trac track and light structure

98 99 100


106 107 108 108

Monopoll track and light structure

115 115 116 117


ERCO track

No invention since the incandescent

lamp has created such a

revolution inlighting design as

the track. The track effectively liberates

light and luminaires from

the constraints of rigid mounting

and allows lighting designers additional

freedom to meet any specific

lighting requirement. Luminaires

in different shapes and with different

photometric characteristics

can be installed on track, to suit

the specific lighting requirements.

If the room interior or function

changes, the luminaires can easily

be replaced or moved on the track.

The classic ERCO track with a crosssection

of 33.5 x 34mm is primarily

designed for mounting on ceilings

or walls, whereas the flanged

track is designed for suspended

ceilings or flush mounted using a

plaster trim profile. Individual track

lengths of up to 4 metres can be

butted together or formed into

rectangular shapes. Flexible connectors

are available to create more

complex configurations.

In the standard form, the ERCO

track is operated in 3-circuit

installations. When using the

ERCO track in a DALI application,

the same conductors are used

but are connected differently:

only one conductor carries the

supply voltage, the other two

conductors are used for the control

signal. Spotlights fitted with

DALI adapters are designed for

mechanical and electrical as well

as for bus connection. Special DALI

accessories ensure that the track

can be correctly and safely wired.

This arrangement ensures the

optimum logistics and availability

of DALI track systems. It also means

that existing track installations can

be economically retrofitted with

ERCO DALI technology.

"Abpfiff! Faces of

Football" exhibition,

Mathias

Braschler and

Monika Fischer.

c/o Berlin atthe

central post office

building, Oranienburger

Straße,

Berlin. Architect:

Ingo Pott, Berlin.


ERCO track

The ERCO track is formed of

extruded aluminium profile, with

white or black powder-coating or

silver anodised. A large number of

connectors are available. Almost

all connectors can be used for

electrical power supply. When

selecting connectors and live ends,

the position of the earth conductor

iscritical. Earth conductors must

be continuous throughout the

planned layout. The profile has

stamped knock-outs to mount

the track to ceilings or walls. The

track can also be suspended using

pendant tubes or wire ropes.

Track

Flanged track

ERCO 3-circuit track is available

in lengths up to 4m. When connected

to a three-phase network,

each of the three circuits can be

loaded to a maximum of 16A. The

circuits must be separately protected.

In the DALI version, one conductor

carries the phase and the

two others are used for the information

signal. All the connectors for

3-circuit installation or for DALI

applications are available for making

the electrical connection.

ERCO 3-circuit track is available as

flanged track in 3m lengths. The

profile’s flanged sides can be used

as a surface on which to place ceiling

panels. When connected to a

three-phase network, each of the

three circuits can be loaded to a

maximum of 16A. The circuits must

be separately protected. In the DALI

version, one conductor carries the

phase and the two others are used

for the information signal. All the

connectors for 3-circuit installation

or for DALI applications are available

for making the electrical connection.

Application

For a flexible power supply to spotlights,

floodlights and wallwashers

and for accent lighting and washlighting

in all professional lighting

situations.

Application





situations.


ERCO track

The earth conductor in ERCO track

systems is set in the lower profile

edge. When selecting live end, L- and

T-connectors, it must be ensured that

the continuous line is not interrupted.

The position of the earth conductor is

established by the orientation of the

track system.

Definitions

Live end

Earth conductor left: when looking

up into the track towards the live end,

the earth conductor is on the left.

Earth conductor right: when looking

up into the track towards the live end,

the earth conductor is on the right.

T-connector

Earth conductor left: the earth conductor

is on the left when looking

across the T towards the leg.

Earth conductor right: the earth

conductor is on the right when looking

across the T towards the leg.

The earth conductor is always positioned

on the outside of the T-bar.

Live end

Earth conductor

left


right

L-connector


inside

L-connector


outside

T-connector


left

T-connector


right

X-connector

To begin with, all track and connectors

should be drawn without earth

conductor.

Starting from a T-connector, the

earth conductor should be drawn as

a continuous line.

All connectors shown in this catalogue

are marked according to the

above definitions of earth conductor

left and right.

79307.000 outside 79309.000 left 79309.000 left 79301.000 left

79308.000 right

79310.000

79308.000 right

79307.000 outside 79309.000 left 79307.000 outside

Mechanical information

Horizontal ceiling mounting:

All luminaires that are approved for

the ERCO track system can be used.

Horizontal mounting on walls:

ERCO 3-circuit adapter and DALI

adapter: Only luminaires weighing

up to a maximum of 2kg may be

used.

ERCO transadapter and DALI transadapter:

Only luminaires weighing up

to a maximum of 1kg may be used.

Vertical mounting on walls:

The guide groove on the track profile

must be facing to the right.

ERCO 3-circuit adapter and DALI

adapter: The luminaires must not

weigh more than 3.5kg.

ERCO transadapter and DALI transadapter:

The luminaires must not

weigh more than 1kg max.

Other mounting positions:

If using luminaires mounted at an

angle, please contact us for advice.

Permissible loading is calculated

from the max. permissible profile

deflection and the max. permissible

mechanical loading of the suspension

devices. Load distribution takes

both the weight of the system and

the equally distributed point loads

into consideration.

L (mm) length

fe (mm) deflection due to weight

of profile

FD (kg) max. loading of suspension

device

Fe (kg) weight of the profile

F1 (kg)

maximum permissible load

for two-point suspension

and permissible deflection

(L/250) of 4mm per metre

length

F2 (kg) maximum permissible load

for series suspension and

permissible deflection

(L/250) of 4mm per metre

length

ERCO track

L (mm) 1000 2000 3000 4000

Fe (kg) 1.1 2.2 3.3 4.4

fe (mm) 0.07 1.09 5.50 17.40

FD = 20 kg

F1 (kg) 39 11 3 —

F2 (kg) 19 11 3 —

F D

F D

20kg

20kg

L

F D

L

F 1

L

F 2 F 2

2 m

20kg

1 m

11kg

1 m

F D

F D

20kg

20kg

19kg

19kg


ERCO track

ERCO track is designed for use in a

variety of electrical installations. The

same track profile is wired for either

conventional 3-circuit, 1-circuit and

for DALI installations.

Whereas in conventional 3-circuit

installations all conductors are connected

to the network and are individually

protected by 3x16A circuit

breakers, in the DALI installation only

one circuit (1x16A) is required for

supplying the mains voltage to the

Light Client. The two remaining copper

conductors are used as DALI data

lines.

All connector parts for the electrical

connection are available either

for 3-circuit or for DALI installations.

The various different applications

or connection types are indicated

on the articles themselves. Furthermore,

every single piece of track in

the DALI installation should be identified

as DALI track using the clips

provided.

ERCO track for

3-circuit installation

2 1

3 N

1 Circuit 1

2 Circuit 2

3 Circuit 3

N Neutral conductor

PE Earth conductor

ERCO flanged

track for

3-circuit installation

2 1

3 N

1 Circuit 1

2 Circuit 2

3 Circuit 3



PE

PE

ERCO track for

DALI installation

DA

DA

1 N

DA DALI data line


1 Circuit



ERCO flanged

track for

DALI installation

DA

DA

1 N



1 Circuit



PE

PE

When installing the 3-circuit adapter,

the lever on the left is firstly locked

in order to make the mechani cal connection

in the track, and then one

of the three circuits is selected with

the rotatable circuit selector switch.

When inserting the DALI adapter,

the left contact lever first locks it in

place and then the necessary contacts

in the track are made by turning

the DALI switch.

With the 3-circuit adapter the

actual usage is predetermined by

selecting the circuit, while with the

DALI adapter the voltage is permanently

applied. It is the DALI signal

that first triggers an action, e.g.

switching on a luminaire.

Spotlights for mains voltage lamps

are fitted with 3-circuit adapters;

transformers or control gear for fluorescent

or high-intensity discharge

3-circuit adapter

Trans adapters in

various shapes

and sizes

3-circuit adapter DALI adapter lamps are frequently built into the DALI adapter DALI transadapters

in

transadapters. The various shapes

and sizes depend on the dimensions

various shapes

of the internal equipment.

and sizes

Where spotlights with DALI adapters

are concerned, the DALI transformers

or the DALI control gear are located

either in the luminaires themselves

or in a DALI transadapter.

Every Light Client with DALI adapter

or DALI transadapter is specially

equipped to protect against over voltage

caused by running three circuits

on one conductor.


ERCO track

4 isolated copper conductors and

pressed-in earth conductor.

When used as DALI track: one 16A circuit

and two conductors for connecting

to the DALI data line.

When used as a 3-circuit track: three

separately switchable circuits 16A each.

The ERCO track system is approved to

IEC 60570 (EN 60570/VDE 0711 part

300).

Mounting surface with easy to remove

knockouts at 0.4m intervals.

Accessories page 83

78341.000 White (RAL9002)

78361.000 Black

Aluminium profile, powder-coated.

Weight 1.10kg

0 q













78301.000 Silver

Aluminium profile, anodised.

Weight 1.10kg

0 q













78342.000 White (RAL9002)

78362.000 Black


Weight 2.20kg

0 q













78302.000 Silver


Weight 2.20kg

0 q













78343.000 White (RAL9002)

78363.000 Black


Weight 3.30kg

0 q













78303.000 Silver


Weight 3.30kg

0 q













78344.000 White (RAL9002)

78364.000 Black


Weight 4.40kg

0 q













78304.000 Silver


Weight 4.40kg

0 q














ERCO track



























































































































































SIDI trade fair

stand at the

Orgatec 2006,

Cologne. Architect:

Stefano

Colli, Barcelona.

Lighting design:

Stefano Colli, SIDI

team.


ERCO track DALI installation: connectors









































79200.000 White

79220.000 Black

DALI

DALI live end

Plastic.

Earth conductor, right.

0 q

79201.000 White

79221.000 Black

DALI

DALI live end

Plastic.

Earth conductor, left.

0 q

79302.000 White

79322.000 Black

End plate

Plastic.

0 q

79204.000 White

79224.000 Black

DALI

DALI coupler

Plastic.

Feeding possible. Through-wiring.

0 q

































79206.000 White

79226.000 Black

DALI

DALI L-connector

Plastic.

Earth conductor inside. Feeding possible.

Through-wiring.

0 q

79207.000 White

79227.000 Black

DALI


Plastic.

Earth conductor outside. Feeding possible.


0 q

79208.000 White

79228.000 Black

DALI

DALI T-connector

Plastic.

Earth conductor, right. Feeding possible.


0 q

79209.000 White

79229.000 Black

DALI


Plastic.

Earth conductor, left. Feeding possible.


0 q





























79210.000 White

79230.000 Black

DALI

DALI X-connector

Plastic.


0 q

79211.000 White

79231.000 Black

DALI

DALI Multiflex coupler

Plastic.


0 q

79315.000 White

79335.000 Black

Coupler

for flush connection of ERCO track.

Plastic.

0 q


ERCO track DALI installation: electrical accessories





















79047.000 White

79048.000 Black

DALI

ERCO DALI

adapter

For 250V, 10A

pendant luminaire,

with strain

relief. Plastic.

Connection cable

5x0,75mm²,

L 1500mm.

Weight 0.39kg

79094.000 White

79095.000 Black

DALI

DALI singlet

Recessed mounting/cast into concrete.

For spotlights with ERCO DALI adapter,

250V, 6A.

Plastic. Strain relief.

Mechanical Load:

Ceiling mounting 8.00kg.

Wall mounting 3.50kg.

Weight 0.32kg

0 q

79092.000 White

79093.000 Black

DALI

DALI singlet

Surface mounting. For spotlights with

ERCO DALI adapter, 250V, 6A.





Weight 0.13kg

0 q

12693.000 White

5x1,5mm²

12691.000 Black

5x1,5mm²

Spiral cable

L 500/2,500mm.

ERCO track 3-circuit installation: connectors









































79300.000 White

79320.000 Black

3-circuitlive end

Plastic.


0 q

79301.000 White

79321.000 Black

3-circuit live end

Plastic.


0 q

79302.000 White

79322.000 Black

End plate

Plastic.

0 q

79304.000 White

79324.000 Black

3-circuit coupler

Plastic.


0 q

































79306.000 White

79326.000 Black

3-circuit L-connector

Plastic.



0 q

79307.000 White

79327.000 Black


Plastic.



0 q

79308.000 White

79328.000 Black

3-circuit T-connector

Plastic.



0 q

79309.000 White

79329.000 Black


Plastic.



0 q





























79310.000 White

79330.000 Black

3-circuit X-connector

Plastic.


0 q

79311.000 White

79331.000 Black

3-circuit Multiflex coupler

Plastic.


0 q

79315.000 White

79335.000 Black

Coupler


Plastic.

0 q


ERCO track 3-circuit installation: electrical accessories





















79053.000 White

79052.000 Black

ERCO 3-circuit

adapter

With earthed

coupler. 250V, 6A.

Spiral cable

3x0,75mm².

L 700/1400mm.

79023.000 White

79024.000 Black


adapter

With earthed

socket outlet.

250V, 10A.

Plastic. Cover:

plastic, black.

L 71mm, B 56mm,

H 90mm.

79031.000 White

79030.000 Black


adapter

Installation kit

for 250V, 10A


with strain



3x0.75mm,

L 1500mm.

Individual parts to

be assembled onsite.

Weight 0.15kg

79055.000 White

79054.000 Black


adapter

For pendant luminaire,

250V, 10A,

with hook and

terminal block.

Plastic.

Load: 10kg.

L 71mm, B 32mm,

H 33mm.

79037.000 White

79036.000 Black

1-circuit singlet


For spotlights with ERCO 3-circuit

adapter, 250V, 6A.





Weight 0.32kg

0 q

79039.000 White

79038.000 Black



ERCO 3-circuit adapter, 250V, 6A.





Weight 0.12kg

0 q





















12692.000 White

3x1,5mm²

12693.000 White

5x1,5mm²

12690.000 Black

3x1,5mm²

12691.000 Black

5x1,5mm²

Spiral cable

L 500/2,500mm.

83816.000

DALI




max 16A.


addresses.

Mounting on DIN rail.

Weight 0.21kg

Cuines de Santa

Catarina restaurant,

Barcelona.

Architect/lighting

design: Sandra

Tamuella, Isabel

Lopéz, Barcelona.


ERCO track Mechanical accessories

























79551.000 White

79550.000 Black

Mounting device

for suspension on live end.

Metal.

79556.000 White

79555.000 Black


for suspension on coupler with feeding.

Metal.

79561.000 White

79560.000 Black


for suspension on L-connector.

Metal.

79566.000 White

79565.000 Black


for suspension on T-connector.

Metal.













79571.000 White

79570.000 Black


for suspension on X-connector.

Metal.

78671.000 White

78670.000 Black


for suspension on

track.

Metal.

78652.000 White

78651.000 Black


for subsequent

mounting on

track.

12440.000

Wire rope

Load: 20kg.

ø1.75mm, L 10m.

16910.000

Turnbuckle with

2 clamps

Metal, galvanised.

Load: 60kg.

78350.000

Plaster trim profile

Aluminium profile, silver anodised. For

flush mounting of track in plasterboard

ceilings.

B 40mm, H 52mm, L 3000mm.

Weight 3.00kg



































79515.000

Mechanical bridge

for connection of plaster trim profiles.

78633.000

Mounting toggle

for fixing track in plaster trim profiles.

79500.000

Suspension device for track


Subsequent mounting of suspension

bridge in ERCO track possible.

Load: 15kg.

L 30mm, H 47mm.

79501.000

Suspension bridge

for direct track coupler connection.




Load: 20kg.

L 180mm, H 47mm.

Matisse Exhibition,

K20 Art

Gallery of North

Rhine-Westphalia,

Düsseldorf.

Exhibitions

architecture: Kühn

Malvezzi Architekten,

Berlin.


ERCO track Mechanical accessories























79503.000

Fixing clip

Spring steel, galvanised.

Load: 20kg.

L 33mm.

14mm.

79504.000

Junction

With two screws.

Aluminium, anodised.

Load 30kg.

L 50mm, H 26mm.

79530.000


for M5 screws, with retaining spring.

Cast aluminium.

Load: 10kg.

79527.000

Display hook

Plastic/steel.

Load: 10kg.

L 67mm.

79528.000


with M4 set screw

and two nuts.

Kunststoff/Stahl.

Load: 10kg.

L 55mm.

79548.000 White

79547.000 Black

Cover profile

Plastic.

L 10m.

79549.000

Cable nippers

for shortening the

copper conductors

in track.

Rembrandt Exhibition,

Culture

Forum of the

Berlin State

Museums, Berlin.

Exhibitions architecture/lighting

design: Hansjörg

Hartung,

Berlin; Berlin

State Museums.

Shop window of

the "Donaldson"

boutique, Brussels.


ERCO track Suspension equipment













































































12446.000 White

12445.000 Black

Pendant tube suspension

Pendant tube: metal, powder-coated.

ø 13mm, L 1,040mm.

Baldachin: plastic. ø 64mm, H 73mm.

Load: 20kg.

12671.000

Wire rope suspension

Wire rope: ø1.50mm, L 2,500mm.

Mounting bush: metal.

Canopy: plastic, white, ø 105mm,

H 43mm.

Cable entry for 5x1.5mm² plasticcoated

cable or spiral cable.

Strain relief. Terminal block.

Load: 20kg.

12662.000





H 63mm.




Load: 20kg.

12561.000 White

12560.000 Black


With rapid connector for adjustment

levelling.


Ceiling fixture: cast aluminium/metal,

powder-coated. ø 65mm, H 14mm.

Load: 20kg.



















12557.000


With single-point fixing and rapid connector

for adjustment levelling.



white powder-coated. ø 18mm,

H 49mm.

Load 20kg (with heavy load dowel).

ERCO flanged track

Flanges for ceiling panels.


pressed-in earth conductor.







IEC 60570 (EN 60570/VDE 0711 part

300).


78353.000 White (RAL9002)


Weight 3.60kg

0 q

78323.000 Silver


Weight 3.60kg

0 q


































ERCO flanged

track































































































































Spotlights and

ERCO track

provide a flexible

basis for the lighting

concept of

the Swedish EGO

chemist stores.


ERCO flanged

track DALI installation: connectors



































79240.000 White

79260.000 Black

DALI

DALI live end

Plastic.


0 q

79241.000 White

79261.000 Black

DALI

DALI live end

Plastic.


0 q

79302.000 White

79322.000 Black

End plate

Plastic.

0 q

79243.000 White

79263.000 Black

DALI

DALI coupler

Plastic.

Through-wiring. Feeding possible.

0 q









































79244.000 White

79264.000 Black

DALI


Plastic.



0 q

79245.000 White

79265.000 Black

DALI


Plastic.



0 q

79246.000 White

79266.000 Black

DALI


Plastic.



0 q

79247.000 White

79267.000 Black

DALI


Plastic.



0 q





















79248.000 White

79268.000 Black

DALI

DALI X-connector

Plastic.


0 q

79315.000 White

79335.000 Black

Coupler


Plastic.

0 q


ERCO flanged

track DALI installation: electrical accessories





















79047.000 White

79048.000 Black

DALI

ERCO DALI

adapter

For 250V, 10A


with strain



5x0,75mm²,

L 1500mm.

Weight 0.39kg

79094.000 White

79095.000 Black

DALI

DALI singlet


For spotlights with ERCO DALI adapter,

250V, 6A.





Weight 0.32kg

0 q

79092.000 White

79093.000 Black

DALI

DALI singlet


ERCO DALI adapter, 250V, 6A.





Weight 0.13kg

0 q

12693.000 White

5x1,5mm²

12691.000 Black

5x1,5mm²

Spiral cable

L 500/2,500mm.

ERCO flanged

track 3-circuit installation: connectors



































79340.000 White

79360.000 Black


Plastic.


0 q

79341.000 White

79361.000 Black


Plastic.


0 q

79302.000 White

79322.000 Black

End plate

Plastic.

0 q

79343.000 White

79363.000 Black

3-circuit coupler

Plastic.


0 q









































79344.000 White

79364.000 Black


Plastic.



0 q

79345.000 White

79365.000 Black


Plastic.



0 q

79346.000 White

79366.000 Black


Plastic.



0 q

79347.000 White

79367.000 Black


Plastic.



0 q





















79348.000 White

79368.000 Black

3-circuit X-connector

Plastic.


0 q

79315.000 White

79335.000 Black

Coupler


Plastic.

0 q


ERCO flanged

track 3-circuit installation: electrical accessories





















79053.000 White

79052.000 Black


adapter

With earthed

coupler. 250V, 6A.

Spiral cable

3x0,75mm².

L 700/1400mm.

79023.000 White

79024.000 Black


adapter

With earthed

socket outlet.

250V, 10A.

Plastic. Cover:

plastic, black.

L 71mm, B 56mm,

H 90mm.

79031.000 White

79030.000 Black


adapter

Installation kit

for 250V, 10A


with strain



3x0.75mm,

L 1500mm.

Individual parts to

be assembled onsite.

Weight 0.15kg

79055.000 White

79054.000 Black


adapter

For pendant luminaire,

250V, 10A,

with hook and

terminal block.

Plastic.

Load: 10kg.

L 71mm, B 32mm,

H 33mm.

79037.000 White

79036.000 Black



For spotlights with ERCO 3-circuit

adapter, 250V, 6A.





Weight 0.32kg

0 q

79039.000 White

79038.000 Black



ERCO 3-circuit adapter, 250V, 6A.





Weight 0.12kg

0 q





















12692.000 White

3x1,5mm²

12693.000 White

5x1,5mm²

12690.000 Black

3x1,5mm²

12691.000 Black

5x1,5mm²

Spiral cable

L 500/2,500mm.

83816.000

DALI




max 16A.


addresses.


Weight 0.21kg

Galerie de Pury

& Luxembourg,

Löwenbräu Complex,

Zurich.


Neuco AG, Zurich.


ERCO flanged

track Mechanical accessories

























79551.000 White

79550.000 Black


for suspension on live end.

Metal.

79556.000 White

79555.000 Black


for suspension on coupler with feeding.

Metal.

79561.000 White

79560.000 Black


for suspension on L-connector.

Metal.

79566.000 White

79565.000 Black


for suspension on T-connector.

Metal.











79571.000 White

79570.000 Black


for suspension on X-connector.

Metal.

78671.000 White

78670.000 Black



track.

Metal.

78652.000 White

78651.000 Black


for subsequent

mounting on

track.

12440.000

Wire rope

Load: 20kg.

ø1.75mm, L 10m.

16910.000


2 clamps


Load: 60kg.

79500.000

Suspension device for track




Load: 15kg.

L 30mm, H 47mm.





























79501.000

Suspension bridge

for direct track coupler connection.




Load: 20kg.

L 180mm, H 47mm.

79503.000

Fixing clip

Spring steel, galvanised.

Load: 20kg.

L 33mm.

14mm.

79504.000

Junction

With two screws.

Aluminium, anodised.

Load 30kg.

L 50mm, H 26mm.

79530.000


for M5 screws, with retaining spring.


Load: 10kg.

79527.000

Display hook

Plastic/steel.

Load: 10kg.

L 67mm.

79528.000


with M4 set screw

and two nuts.

Kunststoff/Stahl.

Load: 10kg.

L 55mm.

79548.000 White

79547.000 Black

Cover profile

Plastic.

L 10m.

79549.000

Cable nippers



in track.


ERCO flanged

track Suspension equipment













































































12446.000 White

12445.000 Black



ø 13mm, L 1,040mm.


Load: 20kg.

12671.000





H 43mm.




Load: 20kg.

12662.000





H 63mm.




Load: 20kg.

12561.000 White

12560.000 Black



levelling.




Load: 20kg.



















12557.000







H 49mm.




The Hi-trac light structure is able

to support heavy loads and allows

awide spacing between the suspension

points. Hi-trac is a 72mm

high aluminium profile section

available in two versions: On the

one hand, as an ERCO track with

an empty upper compartment for

cables and, otherwise as an indirect

luminaire for T16 fluorescent lamps

with ERCO track contained in the

lower part. All ERCO spotlights,

floodlights and wallwashers with

3-circuit adapters, DALI adapters

or transadapters can be used on

the track. Luminaires can be fitted

as uplights into the upper empty

compartment. Hi-trac enables

highlighting or washlighting to

be combined with indirect lighting.

Numerous connectors are

available, allowing wall or ceiling

mounting and the construction of

rightangled structures.

To use the Hi-trac tracks and the

Hi-trac light structure for a DALI

application, the same conductors

are used in the track, but just connected

differently: only one conductor

carries the circuit current,

the other two conductors are used

for the control signal. Special DALI

accessories ensure that the track

is correctly installed. This arrangement

ensures the optimum logistics

and availability of DALI track

systems. It also means that existing

track installations can be economically

retrofitted with ERCO DALI

technology.

Spotlights are fitted with DALI

adapters for the mechanical and

electrical connection and also for

the control signals.

Dr. Oetker Welt,

Bielefeld. Architect:

Ackermann

& Raff, Tübingen.

Exhibition design:

Triad, Berlin. Electrical

fitters:

Elektro Beckhoff,

Verl.



The product range consists of profile

section lengths of 2m to 4m.

The 36mm x 72mm rectangular

sectioned aluminium profile is

available silver or powder-coated

white. The underside is designed

as a 3-circuit track and the topside

as an empty compartment or

as a luminaire. The light structure’s

connectors are suitable for forming

linear and rightangled layouts.

Pendant tubes or wire ropes are

available as suspension systems.

Track

When connected to a three-phase

network, each of the three circuits

can be loaded to a maximum of

16A. The tracks can be arranged

inlinear, L-shaped, U-shaped and

rectangular formations by using L-

connectors, sometimes also with

T-connectors and X-connectors.

The mounting options available are

suspension systems with pendant

tube or wire-rope. In the DALI version,

one conductor carries the

phase and the two others are used

for the control signal. All the connectors

for 3-circuit installation or

for DALI applications are available

for making the electrical connection.

Application

For a fully accessible power supply

for spotlights, floodlights, wallwashers

,accent lighting and washlighting


situations. With minimum suspension

points for large spans.

Luminaires

In the Hi-trac, T16 fluorescent

lamps up to 54W are used in the

upper profile. In the DALI version,

one conductor carries the supply

and the other two the control signal.

The connectors are available

to make the electrical connection

for 3-circuit installation or for DALI

applications..

Application

For indirect general lighting in

offices, medical practices and

entrance areas, e.g.in public

buildings and hotels. Additional

highlighting and washlighting

using spotlights, floodlights and

wallwashers.

Uplights

A double uplight is available for

washlighting with the warm white

light of two 150W tungsten halogen

lamps.

Application

For indirect general lighting in



buildings and hotels. Additional

highlighting and washlighting

using spotlights, floodlights and

wallwashers.


Hi-trac track and light structures

In addition to the classic ERCO

track, the Hi-trac range of track

and light structures is also

available for DALI installations.

This means that both the trackmounted

spotlights as well as the

light structure luminaires can be

incorporated in a Light System

DALI installation and can be individually

controlled using the

Light Studio software. Instead of

introducing an additional, incompatible

track section, the proven

5-conductor track from the light

structures is used in a new way

in a DALI installation. Whereas

in conventional 3-circuit installations,

all conductors are connected

to the network and are

individually protected, the DALI

installation only uses one circuit

to supply the Light Clients with

mains voltage. The two remaining

copper conductors are used as

DALI data lines. The special DALI

accessories for the electrical live

end or connection are labelled

accordingly.

2 1

3 N

PE

DA

DA

1 N

PE

Hi-trac track and

light structures

are 72mm high

aluminium sec -

tions. They are

available in two

versions: as a

track with an

empty upper

compartment or

as a track with

an indirect T16

fluorescent lamp.

Hi-trac track


for 3-circuit

installation

Hi-trac track


for DALI

installation

1 Circuit 1

2 Circuit 2

3 Circuit 3





1 Circuit




ERCO Hi-trac track

Panel profile: aluminium, powdercoated.

Upper part: empty compartment, for

fixing of uplights, through-wiring or

cover profile.

Lower part: track. 4 isolated copper

conductors and impressed earth conductor.







IEC 60570 (EN 60570/VDE 0711 part

300).


13400.000 White (RAL9002)

13440.000 Silver

Weight 4.00kg

0 q













13401.000 White (RAL9002)

13441.000 Silver

Weight 6.00kg

0 q













13402.000 White (RAL9002)

13442.000 Silver

Weight 8.00kg

0 q













Boyds Bistro,

Copenhagen.

Architect/Interior

Design: Birgitte

de Neergaard,

Copenhagen.

vital pharmacy,

Vienna. Architecture/lighting

designers:

bpw architektur,

Vienna.


Hi-trac Luminaire indirect lighting for fluorescent lamps


Upper part:insert for T16 fluorescent

lamp.

3-pole terminal block. Covered electronic

control gear. Fluorescent lamp

operation with one track circuit.





to the DALI data line. Use DALI electrical

feeding 13491.000, 13492.000.


separately switchable circuits 16A

each. Use electrical feeding 12553.000,

12552.000.


IEC 60570 (EN 60570/VDE 0711 part

300).


13403.000 White (RAL9002) ECG

13408.000 Silver ECG

T16 28W G5 2600lm

Weight 5.00kg LMF F

0 q













T16

750 cd

150° 150°

120° 120°

LOR 0.59

DLOR 0.00

ULOR 0.59

13404.000 White (RAL9002) ECG


T16 54W G5 4450lm


0 q













T16

1000 cd

150° 150°

120° 120°

LOR 0.59

DLOR 0.00

ULOR 0.59

Connected load

13403.000 P: 31 W

13408.000 P: 31 W

13404.000 P: 61 W

13409.000 P: 61 W

Connected load per 100lx

13403.000 P*: 3.91 W/m²

13408.000 P*: 3.91 W/m²

13404.000 P*: 4.49 W/m²

13409.000 P*: 4.49 W/m²

Number of luminaires per 100lx

13403.000 n*: 12.61 1/100m²

13408.000 n*: 12.61 1/100m²

13404.000 n*: 7.37 1/100m²

13409.000 n*: 7.37 1/100m²

Architecture Biennial

2002, German

Pavilion,

Venice. Architect:

Hilde Léon,

Léon Wohlhage

Wernik Architekten,

Berlin. Lighting

designer: Licht

Kunst Licht, Bonn/

Berlin.


Hi-trac Luminaire indirect lighting for fluorescent lamps




Upper part:insert for T16 fluorescent

lamp.

5-pole terminal block. Covered electronic

control gear. Fluorescent lamp

operation with one track circuit.





to the DALI data line. Use DALI electrical

feeding 13491.000, 13492.000.


separately switchable circuits 16A

each. Use electrical feeding 12553.000,

12552.000.


IEC 60570 (EN 60570/VDE 0711 part

300).


13413.000 White (RAL9002) ECG DALI

13418.000 Silver ECG DALI

T16 28W G5 2600lm

T16 54W G5 4450lm


0 q













T16

750 cd

150° 150°

120° 120°

LOR 0.59

DLOR 0.00

ULOR 0.59

1000 cd

150° 150°

120° 120°

T16

LOR 0.59

DLOR 0.00

ULOR 0.59


13413.000 P: 31 W

13413.000 P: 61 W

13418.000 P: 31 W

13418.000 P: 61 W


13413.000 P*: 3.91 W/m²

13413.000 P*: 4.49 W/m²

13418.000 P*: 3.91 W/m²

13418.000 P*: 4.49 W/m²


13413.000 n*: 12.61 1/100m²

13413.000 n*: 7.37 1/100m²

13418.000 n*: 12.61 1/100m²

13418.000 n*: 7.37 1/100m²

Hi-trac Uplights for tungsten halogen lamps

Housing for use on the upper compartment

of Hi-trac profiles: cast aluminium,

powder-coated. Insert: Metal,

powder-coated.

Through-wiring possible.

Reflectors: Aluminium, silver anodised.

Lamp cover: Safety glass.


13540.000 White (RAL9002)

2×QT-DE12 150W 230V R7s L75mm

2550lm


0 q













1500 cd

150° 150°

120° 120°

LOR 0.46

DLOR 0.00

ULOR 0.46

2×QT-DE12


13540.000 P: 300 W


13540.000 P*: 24.76 W/m²


13540.000 n*: 8.25 1/100m²

































































Hi-trac track and light structure Accessories



















































13485.000 White

13486.000 Silver

Hi-trac End plate

Plastic.

Weight 0.02kg

13460.000 White

13461.000 Silver

Hi-trac Live-end housing

Cast aluminium with plastic cover.

Feeding and through-wiring to be

ordered separately.

Suspension possible.

Weight 0.25kg

13465.000 White

13466.000 Silver

Hi-trac Coupler housing





Weight 0.30kg

13470.000 White

13471.000 Silver

Hi-trac L-connector





Weight 0.30kg

































































13475.000 White

13476.000 Silver

Hi-trac T-connector





Weight 0.40kg

13480.000 White

13481.000 Silver

Hi-trac X-connector





Weight 0.60kg

13500.000 White

13501.000 Silver

Hi-trac Wall bracket

Cast aluminium with cover. Sliding

adjustment +/-5mm.

Feeding to be ordered separately.

Weight 0.30kg

79315.000 White

Coupler


Plastic.

0 q


Hi-trac track and light structure Accessories

































13491.000

DALI

DALI electrical feeding

and through-wiring for ERCO DALI

track systems. Plastic, white.


5-pole terminal block.

13492.000

DALI






12552.000

Electrical feeding

and through-wiring for ERCO 3-circuit

tracks. Plastic, white.



0 q

12553.000






0 q









































12693.000 White

5x1,5mm²

Spiral cable

L 500/2,500mm.

12692.000 White

3x1,5mm²

Spiral cable

L 500/2,500mm.

83829.000

DALI

DALI dimmer 1000W

for ohmic loads, conventional and electronic

transformers.


83816.000

DALI




max 16A.


addresses.


Weight 0.21kg

13490.000

Hi-trac Mounting device

for suspension of butt-jointed profile.


Feeding not possible. Electrical coupler

79315 to be ordered separately.























12440.000

Wire rope

Load: 20kg.

ø1.75mm, L 10m.

16910.000


2 clamps


Load: 60kg.

79546.000

Cable nippers



in track.

13420.000 White L 1000mm.

13421.000 White L 2000mm.

13422.000 Silver L 1000mm.

13423.000 Silver L 2000mm.

Hi-trac Cover profile

for use on the upper compartment.

Aluminium, powder-coated. Fitted

without tools.

12446.000 White

12445.000 Black

12447.000 Silver



ø 13mm, L 1,040mm.


Load: 20kg.













































































12671.000





H 43mm.



Strainrelief. Terminal block.

Load: 20kg.

12662.000





H 63mm.




Load: 20kg.

12561.000 White

12560.000 Black



levelling.




Load: 20kg.

12557.000







H 49mm.




The T16 light structure is identified

by its very precise design. Due to its

compact dimensions it is aninconspicuous

architectural detail. Its

versatility as a lighting tool means

it can be used universally. T16 light

structures are designed primarily

for the T16 fluorescent lamp. They

are always suspended at the ends

of the profile so that unsupported

spans of up to 3.2m are possible.

BPA Banca

Privada d’Andorra,

Escaldes-Engordany,

Andorra.

Architect/lighting

design: Orobitg

Arquitects/Stefano

Colli.



The range consists of three luminaire

types: Direct luminaires, direct

/indirect luminaires and indirect

luminaires. They consist of a

72mm x 60mm rectangular sectioned

aluminium profile and are

powder-coated white or silver. The

ends of the profile are finished

with mounting trays to secure the

luminaires to each other or to the

connectors. The connectors are cast

aluminium and provide the suspension

of the luminaires and connection

to the power supply. They

are suitable for forming linear and

right-angled layouts.

An adjustable connector means

that geometric forms to be constructed.

Pendant tubes or wire

ropes are available as suspension

systems for the profiles.

Luminaires, direct

Each luminaire is designed for one

T16 fluorescent lamp of 54W. In

the 2-lamp versions, two singlelamp

luminaires are arranged end

to end in the profile. The light

apertures for the single-lamp

luminaires are asymmetrically positioned

in the profiles. Conversely,

the light apertures in the 2-lamp

versions are symmetrically positioned

in the profile. All luminaires

for direct lighting are fitted with

Darklight reflectors with 40° cutoff

angles.

Application

For direct general lighting in



buildings and hotels.

Luminaires, direct/indirect

These luminaires are to be fitted

with a 54W T16 fluorescent lamp.

In the 2-lamp versions, two singlelamp


to end in the profile. The light

apertures for the single-lamp

luminaires are asymmetrically

positioned in the profiles. Conversely,

the light apertures in the

2-lamp versions are symmetrically

positioned in the profile.

All luminaires for direct/indirect

lighting are fitted with Darklight

reflectors with 40° cut-off. The

upper light apertures can be fitted

with clear, longitudinally ribbed

covers.

Application

For direct/indirect general lighting

in offices, medical practices and

entrance areas, e.g.in public buildings

and hotels.

Luminaires, indirect

Indirect luminaires are created as a

profile which is covered below and

take T16 fluorescent 54W lamps.

In the 2-lamp versions, two singlelamp


to end in the profile. In this case,

however, the light apertures of the

single-lamp and 2-lamp luminaires

are arranged symmetrically in

the profile. These can also be fitted

with clear, ribbed covers.

Application

For purely indirect general lighting

in offices, medical practices and

entrance areas, e.g.in public buildings

and hotels.



Empty profile

The upper-side isprovided with a

cover. The lower cover features a

longitudinal structure.

Application

The empty compartments can be

used to provideadirect connection

to the luminairesortoactas

connectors.

Sidley Austin

LLP Law Office,

London. Architect:

Gensler, San

Francisco/London.


T16 light structure Luminaire direct lighting for fluorescent lamps

Aluminium profile, powder-coated. Cast

aluminium mounting plates, for direct

connection of luminaires or connectors.

Lower lateral cover profiles: aluminium,

fluted.

Feeding possible. Electronic control

gear. 5-pole terminal block on each end

of profile. Through-wiring 5x1.5mm².

Darklight reflector with parabolic cross

baffles: aluminium, silver, mirror-finish

anodised. Cut-off angle 40° (C0), 30°

(C90). For lamp replacement removable

without tools, retained on safety cords.


13602.000 White (RAL9002) ECG


T16 54W G5 4450lm

Light aperture positioned asymmetrically

in profile.

Weight 4.90kg LMF C

7











60° 60°













LOR 0.57

UGR C0 -17.3

UGR C90 18.2

65° < 1000 cd/m²

T16

30° 30°

2000 cd

13606.000 White (RAL9002) ECG


2×T16 54W G5 4450lm

Lamps positioned in series.


7





























2×T16


13602.000 P: 61 W

13603.000 P: 61 W

13606.000 P: 118 W

13607.000 P: 118 W


13602.000 P*: 2.42 W/m²

13603.000 P*: 2.42 W/m²

13606.000 P*: 2.34 W/m²

13607.000 P*: 2.34 W/m²


13602.000 n*: 3.97 1/100m²

13603.000 n*: 3.97 1/100m²

13606.000 n*: 1.99 1/100m²

13607.000 n*: 1.99 1/100m²

PalaisduVin,

Les Ateliers des

Tanneurs, Brussels.

Architect:

Christophe Gillis,

OZON

Architecture,

Brussels.


T16 light structure Luminaire direct/indirect lighting for fluorescent lamps


Upper side with openings for indirect

lighting. Cast aluminium mounting

plates, for direct connection of luminaires

or connectors. Lower lateral cover

profiles: aluminium, fluted.




Darklight reflector with parabolic cross

baffles: aluminium, silver, mirror-finish

anodised. Cut-off angle 40° (C0), 30°

(C90). For lamp replacement removable

without tools, retained on safety cords.


13612.000 White (RAL9002) ECG


T16 54W G5 4450lm


in profile.


7





T16







1500 cd

120° 120°

60° 60°













LOR 0.79

DLOR 0.40

ULOR 0.38

UGR C0 -20.0

UGR C90 12.7

65° < 1000 cd/m²

13616.000 White (RAL9002) ECG


2×T16 54W G5 4450lm



7





























2×T16


13612.000 P: 61 W

13613.000 P: 61 W

13616.000 P: 118 W

13617.000 P: 118 W


13612.000 P*: 2.30 W/m²

13613.000 P*: 2.30 W/m²

13616.000 P*: 2.23 W/m²

13617.000 P*: 2.23 W/m²


13612.000 n*: 3.78 1/100m²

13613.000 n*: 3.78 1/100m²

13616.000 n*: 1.89 1/100m²

13617.000 n*: 1.89 1/100m²

Munich Airport,

Terminal 2,

Munich. Architect:

Koch & Partner,

Munich. Electrical

engineers: Pro-

Elektroplan,

Ottobrunn.

Installation: ARGE

Bauer Elektro

GmbH + Co. KG,

Buchbach, Elektro

Kreutzpointner

GmbH,

Burghausen.


T16 light structure Luminaire indirect lighting for fluorescent lamps


Lower side fluted. Cast aluminium

mounting plates, for direct connection

of luminaires or connectors.





13622.000 White (RAL9002) ECG


T16 54W G5 4450lm


7

















T16

1250 cd

150° 150°

120° 120°

LOR 0.60

DLOR 0.00

ULOR 0.60

13626.000 White (RAL9002) ECG


2×T16 54W G5 4450lm



7































2×T16


13622.000 P: 61 W

13623.000 P: 61 W

13626.000 P: 118 W

13627.000 P: 118 W


13622.000 P*: 4.40 W/m²

13623.000 P*: 4.40 W/m²

13626.000 P*: 4.25 W/m²

13627.000 P*: 4.25 W/m²


13622.000 n*: 7.21 1/100m²

13623.000 n*: 7.21 1/100m²

13626.000 n*: 3.61 1/100m²

13627.000 n*: 3.61 1/100m²

T16 light structure Empty profile

Aluminium profile, powder-coated. Cast

aluminium mounting plates, for direct

connection of luminaires or connectors.

Upper side with cover. Lower side

fluted.


13630.000 White (RAL9002)

13631.000 Silver

Weight 3.00kg













13632.000 White (RAL9002)

13633.000 Silver

Weight 4.90kg































































































T16 light structure Accessories

























13639.000


Cover

For upper lighting

aperture.

Clear, ribbed

plastic cover.

13654.000 White

13655.000 Silver

T16 light structure Dead end

Cast aluminium, powder-coated.

Feeding possible.

Weight 0.16kg

13656.000 White

13657.000 Silver

T16 light structure 90°-connector

Cast aluminium, powder-coated. Lower

side with plastic cover.


Weight 0.58kg

13658.000 White

13659.000 Silver

T16 light structure T-connector




Weight 0.70kg















































13660.000 White

13661.000 Silver

T16 light structure X-connector




Weight 0.82kg

13662.000 White

13663.000 Silver

T16 light structure L-connector

Cast aluminium, powder-coated.

0°-180° tilt.

Weight 0.65kg

12692.000 White

3x1,5mm²

Spiral cable

L 500/2,500mm.

83816.000

DALI




max 16A.


addresses.


Weight 0.21kg

13650.000 White

13651.000 Silver




mounting plates

and dead ends.

Cast aluminium,



T16 light structure Accessories









































13652.000 White

13653.000 Silver



for intermediate

suspension on

profile.

Cast aluminium,


No suspension

possible in the

area of the cover

13639.000.

12440.000

Wire rope

Load: 20kg.

ø1.75mm, L 10m.

16910.000


2 clamps


Load: 60kg.

12446.000 White

12445.000 Black

12447.000 Silver



ø 13mm, L 1,040mm.


Load: 20kg.

12662.000





H 63mm.




Load: 20kg.





































12561.000 White

12560.000 Black



levelling.




Load: 20kg.

12557.000







H 49mm.


Sparkasse savings

bank, Würzburg.

Architect:

Architekturbüro

Appel, Würzburg.


REA Reinhart

Engel Albert

Ingenieure.



With a 50mm tube diameter,

Monopoll light structures provide

a good solution wherever a filigree

lighting system is required which

remains subordinate to the architecture.

T16 fluorescent lamps are

to be used indirect luminaires as

well as in the wallwasher.

For accent lighting, the Monopoll

track can be fitted with spotlights

for ERCO track. A large selection

of connectors, suspension devices

and accessories make the creation

of complex vertical and horizontal

structures possible. The Monopoll

profiles can be rotated at 15° intervals.

This allows the direction of

the light aperture to be adjusted to

produce uniform wall illumination.

When using the Monopoll track

in a DALI application, the same

conductors are used in the track

but they are connected differently:

only one conductor carries the circuit

current, the other two conductors

are used for the control

signal. Special DALI accessories

ensure that the track is correctly

installed. This ensures optimum

logistics and availability of DALI

track systems. It also means that

existing track installations can be

economically retrofitted with ERCO

DALI technology.

The spotlights are fitted with

DALI adapters to facilitate mechanical

and electrical connection and

to handle the control signals.

Art gallery,

Emden. Architects:

Friedrich

and Ingeborg

Spengelin,

Hanover.



Monopoll luminaires consist of circular

aluminium profile sections of

50mm dia., powder-coated white

and supplied in lengths of up to

3.20m. Monopoll wallwashers and

direct luminaires are available for

T16 fluorescent lamps. Each luminaire

is designed for one fluorescent

lamp of 54W. In the 2-lamp

versions, two single-lamp luminaires

are arranged end to end in

the profile. The light apertures for

the single-lamp luminaires are

asymmetrically positioned in the

profiles. The light apertures on 2-

lamp luminaires are positioned

symmetrically.

The aluminium connectors are

used to construct linear and rightangled

structures. An adjustable L

connector enables other geometric

forms to be constructed. Pendant

tubes or wire ropes are available as

suspension systems for the profiles.

Track

Empty profiles

Monopoll track is available in

lengths of up to 4m. When connected

to a three-phase network,

each of the three circuits can be

loaded to a maximum of 16A.

The circuits must be separately

protected. The tracks can be

arranged inlinear, L-shaped, U-

shaped and rectangular forms

using L connectors or with T

connectors, X connectors and

adjustable L connectors. Mounting

options include suspension with

pendant tube or with wire rope.

Rotation of the track profile in

15° steps using rotatable connectors.

In the DALI version, one

conductor carries the supply and

the other two the control signal.

The connectors are available to

Monopoll profiles are available as

empty compartments for connecting

luminaires.

make the electrical connection for

3-circuit installation or for DALI

applications.

Application




of all professional lighting

situations. For areas where filigree

lighting systems are to be suspended

or routed along ceilings and

walls.

Wallwashers

The special wallwasher reflector

provides uniform illumination of

the wall even above the usually

suspended Monopoll profiles.

Application

Optimised, asymmetrical light distribution

from a highly efficient

reflector system providing uniform

washlighting. Applications include

museums, exhibitions and art galleries,

promotional and entrance

areas.



Luminaires, direct

All direct Monopoll luminaires have

aluminium-vaporised plastic Darklight

reflectors with 20° cut-off

angles.

Application

For floodlighting in professional

lighting scenarios. For areas where

suspended, filigree lighting systems

provide ambient lighting along the

contours of counters, for instance.

Faena Hotel and

Universe, Buenos

Aires. Interior

Design: Philippe

Starck, Paris.


Monopoll track and light structures


and light structures

are based

on a 50mm diameter

round aluminium

section.

In addition to the classic ERCO

track, the Monopoll range of

track and light structures is also

available for DALI installations.

This means that both the trackmounted

spotlights as well as the

light structure luminaires can be

incorporated in a Light System

DALI installation and can be individually

controlled using the

Light Studio software. Instead of

introducing an additional, incompatible

track section, the proven

5-conductor track from the light

structures is used in a new way

in a DALI installation. Whereas

in conventional 3-circuit installations,

all conductors are connected

to the network and are

individually protected, the DALI

installation only uses one circuit

to supply the Light Clients with

mains voltage. The two remaining

copper conductors are used as

DALI data lines. The special DALI

accessories for the electrical live

end or connection are labelled

accordingly.

2 1

3 N

PE

DA

DA

1 N

PE



for 3-circuit

installation



for DALI

installation

1 Circuit 1

2 Circuit 2

3 Circuit 3





1 Circuit




ERCO Monopoll track

Extruded aluminium profile, powdercoated.


impressed earth conductor.







IEC 60570 (EN 60570/VDE 0711 part

300).


12031.000 White (RAL9002)

Weight 1.45kg

0 q

12032.000 White (RAL9002)

Weight 2.90kg

0 q

12033.000 White (RAL9002)

Weight 4.35kg

0 q

12034.000 White (RAL9002)

Weight 5.80kg

0 q

















































Monopoll Empty profile

Aluminium, powder-coated.


12037.000 White (RAL9002)

Weight 0.95kg










Monopoll Wallwasher for fluorescent lamps




Electronic control gear. 5-pole terminal

block. Through-wiring 5x1.5mm².

Wallwasher reflector: aluminium, silver,

satin-matt anodised.


12404.000 White (RAL9002) ECG

T16 54W G5 4450lm


in profile.


0 q













T16

Mean illuminance E n (lx)

Specifications:

Number of luminairesn>5

Without maintenance factor

Without indirect component

Without peripheral area

Wall height (m) 3.0

Offset from wall (m) 1.00 1.25

Luminaire spacing (m) 1.92 1.92

Illuminance E n (lx) 464 425

12406.000 White (RAL9002) ECG

2×T16 54W G5 4450lm



0 q

2×T16


































Offset from wall (m) 1.00 1.25

Luminaire spacing (m) 3.30 3.30

Illuminance E n (lx) 539 495



Direct beam

Monopoll luminaires

ensure good

light in the library

at the Xaverian

Brothers High

School, Westwood

MA.


Monopoll Luminaire direct lighting for fluorescent lamps




Electronic control gear. 5-pole terminal

block. Through-wiring 5x1.5mm².

Darklight reflector: plastic, silver, mirror-finish

aluminium vaporised. Scratch

resistant special coating. Cut-off angle

20° (C0, C90). Visible parts, silver mirror-finish.

For lamp replacement removable


Upper reflector: metal, white powdercoated.


12412.000 White (RAL9002) ECG

T16 54W G5 4450lm


in profile.


0 q





















60° 60°

LOR 0.58

UGR C0 20.8

UGR C90 20.3

75° < 200 cd/m²

T16

30° 30°

1250 cd

12414.000 White (RAL9002) ECG

2×T16 54W G5 4450lm


Weight 5.00kg

0 q

































2×T16


12412.000 P: 61 W

12414.000 P: 118 W


12412.000 P*: 2.55 W/m²

12414.000 P*: 2.46 W/m²


12412.000 n*: 4.17 1/100m²

12414.000 n*: 2.09 1/100m²

Pilar and Joan

Miró foundation,

Palma de Mallorca.

Architect:

Rafael Moneo.















































Supreme Court,

Warsaw. Architect:

Marek Budzynski,Zbigniew

Badowski, Adam

Kowalewski.


Monopoll track and light structure Accessories



















































12606.000

Monopoll End cap

for ERCO 3-circuit track and empty profiles.

Fixing plate and screw. Plastic,

white.

12612.000

Monopoll Live-end housing

Cast aluminium, white (RAL9002)

powder-coated. Rotatable fixing insert,

to adjust profiles in steps of 15°.



Weight 0.35kg

12617.000

Monopoll Coupler housing






Weight 0.35kg

12502.000

Monopoll T-connector

for horizontal mounting.






Weight 0.60kg

















































12512.000

Monopoll X-connector






Weight 0.85kg

12527.000

Monopoll 90° connector






Weight 0.20kg

12602.000

Monopoll L-connector

with mounting device 12567.000. Cast

aluminium, white (RAL9002) powdercoated,

90°-180° tilt. Rotatable fixing

insert, to adjust profiles in steps of 15°.

Feeding not possible. Through-wiring to

be ordered separately.

Weight 0.50kg

12587.000

Monopoll Wall/ceiling fixing




Feeding to be ordered separately.



























12597.000

Monopoll Wall/ceiling fixing



Mounting device for connector or

intermediate suspension to be ordered

separately.

Load: 20kg.























12482.000

Monopoll Wall/ceiling cantilever

as end/intermediate fixing.


powder-coated. One end plate: plastic,

white.



Load: 25kg.

Weight 0.82kg











12578.000

Monopoll End plate

Cover for free ends for T- and X-connectors.

Plastic, white.









79315.000 White

Coupler


Plastic.

0 q

































13491.000

DALI






13492.000

DALI






12552.000






0 q

12553.000






0 q



































12556.000

Electrical coupler

For through-wiring of ERCO 3-circuit

track on connectors. Plastic, white.

0 q

12693.000 White

5x1,5mm²

Spiral cable

L 500/2,500mm.

12692.000 White

3x1,5mm²

Spiral cable

L 500/2,500mm.

83816.000

DALI




max 16A.


addresses.


Weight 0.21kg

12271.000

Monopoll Mechanical bridge

Connection of track, empty profiles and

luminaires. Not suitable for combination

of track with luminaires. Not suitable

for wall/ceiling cantilever.

With 3-circuit track electric coupler

79315 to be ordered separately.













12567.000


for suspension

on connector.

Metal,white.

12572.000



profile. Profile to

be drilled on-site.

Metal,white.

12657.000



connector.

Metal.

12440.000

Wire rope

Load: 20kg.

ø1.75mm, L 10m.

16910.000


2 clamps


Load: 60kg.

12499.000

Monopoll Cable

nippers



in Monopoll track.

12099.000

Hole gauge

for on-site cutting of Monopoll track

and profiles.

Cast aluminium, with hardened sleeve.

































































12083.000

Monopoll Cover profile

Aluminium, white (RAL9002) powdercoated.

B 32mm, L 500mm.

12446.000 White



ø 13mm, L 1,040mm.


Load: 20kg.

12561.000 White



levelling.




Load: 20kg.

12667.000


Wire rope: ø 3mm, L 2,500mm.



H 43mm.




Load: 60kg.















































































12681.000





H 63mm.




Load: 20kg.

12563.000



levelling. Also for suspension on profile.

Profile to be drilled on-site.




H 14mm.

Load: 20kg.

12558.000


With single-point fixing. With rapid

connector for adjustment levelling. Also

for suspension on profile. Profile to be

drilled on-site.




H 49mm.

Load: 20kg (with heavy load dowel).

12557.000







H 49mm.


























12503.000

Monopoll Intermediate suspension

for 2-lamp luminaires.

Wire rope with mounting bush.

ø1.50mm, L 2,550mm.

Canopy: metal, white powder-coated.

ø 65mm, H 14mm. Ceiling fixture:

cast aluminium/metal, white powdercoated.

Subsequent installation.

Apollo Theatre in

the SI-Centrum,

Stuttgart. Architect:

Schwarz &

Schwarz, Stuttgart/Dresden;

Planungsgruppe

Fiedler, Bielefeld.


Ingenieurbüro

Scholze, Leinfelden;

Gottfried

Schaal, Stuttgart;

Lighting

Design Partnership,

London.


Spotlights, floodlights and wallwashers for track

Spotlights bring flexible light to architecture:

The most important characteristic

is mobility, both when positioning

on track and when aligning. Its primary

application is accent lighting. The ERCO

spotlight ranges feature different power

ranges and detailed solutions for each

particular area of application. Each

range consists of luminaires with different

beam characteristics, types of lamps

and wattages while the design features

remain consistent. Awide range

of accessories is also available.

Cantax

LEDs

Low-voltage halogen lamps


132

132 140 143

135 141 144

Emanon

LEDs



153

153 161 167 172 175

156 165 169 173 177

Parscan


R and PAR lamps


183 191

187 192

189

Eclipse



196 199

197 199

TM Spotlights




202

203

204

Domotec R and PAR lamps 210

Quinta


Tungsten halogen lamps


214 222

221

216 223

Jilly





Fluorescent lamps

227

231

229

230 232

233


Spotlights, floodlights and wallwashers for track

Pollux



237 239 241

238 240 241

Castor





244 247

245

245 247

247

Oseris



250

251

Gimbal



255

255

Optec

LEDs





260

260 270 274

267 274

263 268 271 275

268 277 279

Stella




284 289 292

285 293

286 291 295

New in the program

Cantax

128

Emanon

147


Spotlights, floodlights and wallwashers

The introduction of the track

resulted in a new flexibility in

architectural lighting. Arranging

the luminaires is no longer

restricted to individual singlets

since power can now be

distri buted along the track. For

changing exhibitions, the luminaires

can be easily rearranged

and realigned. If a different light

distribution is required, the spotlight

can simply be replaced by

another type of luminaire. The

design of each range of luminaires

consists of common features

to allow the combination

of spotlights, floodlights and

wallwashers without disturbing

the overall appearance of the

ceiling.

Flexibility

For adjustable focus on exhibits,

many spotlights, floodlights

and wallwashers can be rotated

through 360° and tilted by up

to 180°. For accurate alignment,

many luminaires are also provided

with an imprinted scale.

Lockability

To maintain the luminaire orientation

during lamp replacement,

the angle of rotation and tilt of

many luminaires can be locked.

Locking the beam direction

means that the quality of a lighting

set-up can be maintained.

DALI-compatible spotlights,

floodlights, and wallwashers with

a factory-set code can be fitted

to the DALI track and individually

dimmed as Light Clients. The luminaires

in the Light System DALI

can be controlled centrally via

the Light Studio software. Compared

with the 3-circuit installation,

the DALI track has the advantage

that each luminaire can be

adjusted separately. The control

of luminaires on the track profile

with 3-circuit operation is lim ited

to three different dimmer settings.

Track-mounted

spotlights are the

classical solution

for display lighting,

as used in

shop windows.


Adapters and lighting technology

Taking system design to its

logical conclusion is a characteristic

feature of the ERCO spotlight

range. We never develop

products in isolation but always

design whole product groups

that are clearly positioned within

the well- defined structure of

the overall product range. This

includes using versatile system

accessories to adapt the lighting

tools to suit particular requirements.

The ability to interlink

digitally controllable Light Clients

using the Light System DALI and

the incorporation of the Light

Studio software as a user interface

for complex luminaire functions

is an equally important part

of this concept.

3-circuit adapter

The locking lever on the adapter

is used for mechanical mounting

on the track and for making the

electrical connection to the neutral

conductor. The rotatable circuit

selector switch is then used

to make the electrical connection

to the required phase. When

turned 90° to the right or left, the

contact is switched to phase 1 or

2. For phase 3, the selector switch

is pulled out and then turned by

90° to position 3.

Dimming

Using the integral potentiometer

on the electronic transformer,

the lamp lumens can be freely

dimmed between 100% and 10%.

This allows individual brightness

adjustments without requiring

a lighting control system. When

using different light scenes, a

central control option via a lighting

control system proves more

convenient.

DALI adapters

When using a DALI adapter, the

lever is initially locked and then

the necessary contacts for power

and DALI signal are made by

turning the DALI switch. With

the DALI adapter, the voltage is

permanently applied. It is the

DALI signal that first triggers

an action, e.g. switching on a

luminaire.

Transadapters

Luminaires with transformers or

control gear for fluorescent or

high-pressure lamps either have

a transadapter or a DALI transadapter.

Every Light Client with

DALI adapter or DALI transadapter

is specially protected against

potential overvoltage associated

with running three circuits.

Beam angle

To ensure optimal illumination

of both large and small objects,

the spotlights are available with

different beam angles. This allows

designers to select the size that

suits the distance to the object.

The range of beam angles extends

from narrow spot (45°).


Types of lighting and lighting technology

Spotlights

Spotlights with a narrow to wide

beam, rotationally symmetrical

light distribution are used to

accentuate objects. To ensure

accurate alignment, they can be

rotated and tilted. The light distribution

can be individually

adjusted using the lenses available


Wallwashers

The characteristic feature of

wallwashers is a light distribu -

tion which directs the light both

onto vertical surfaces and onto

the area in front of the wall.

Floodlights

Floodlights produce a wide beam

light distribution for uniform

ambient lighting. They are available

with a symmetrical or axially

symmetrical light distribution.


The asymmetrical light distribution

of the wallwashers ensures a

very uniform wall illumination by

distributing light through a lens.

An additional reflector on the

wallwasher attachment increases

the light in the area at the top

of the wall. The lens wallwashers

can simply be tilted to suit specific

wall heights.

Projector spotlights

Spotlights with an additional

lens system are used to project

patterns or shapes through gobos.

They are suitable for decorative

lighting effects as well as for the

projection of text or image information.


The asymmetrical light distribution

of the Spherolit wallwasher

with Spherolit reflector ensures

a uniform wall illumination with

focal emphasis on the upper

third of the wall. The Spherolit

wallwashers can simply be tilted

to suit specific wall heights.

Luminaires

The luminaires for tracks are

fitted with fluorescent lamps

to produce a wide beam light

distribution for ambient lighting.

Louvres improve the visual comfort

when viewed from the side.


Accessories

For optimal adjustment of accent

lighting to suit a particular lighting

situation, the spotlights can

be fitted with appropriate accessories.

These accessories can be

mounted in two ways: they can

be attached to the luminaire housing

or fitted internally. The lenses

or filters are easily and quickly

attached or replaced. Attached

to the outside, the accessories

express the technical design, while

the different lighting technologies

are indicated on the luminaire.

Accessories which

are contained

within the luminaire

ensure a

consistent appearance

of all luminaires

– irres pective

of whether or

not they contain

accesso ries. This

gives the ceiling a

discreet, consistent

appearance

with inconspicuous

luminaires.

Lenses

Lenses allow the lighting

designer to change the light distribution

of luminaires, modify

the beam angle or provide beams

with softer edges. The light spectrum

remains unchanged. Softec

lenses used with reflector lamps

eliminate striations, while flood

lenses distribute the light beam

symmetrically. Sculpture lenses

extend the beam along one axis,

while leaving it unchanged on

the other. The oval light pattern

is ideal for the illumination of

sculptures.

Filters

Filters change the spectrum of

the light. Colour filters are used

for attraction or for decorative

purposes. The effect of correction

filters is rather more subtle. They

can be used to change the light

spectrum to a small degree in

order, for example, to raise the

colour temperature from warm

white to daylight white. In case

of sensitive exhibits, the works

of art can be protected against

harmful spectral components by

using UV and IR filters.

Visual comfort

The fascination of some lighting

installations is their hidden light

sources with appropriately glarefree

luminaires and exceptional

visual comfort. Most spotlights

include features to ensure glare

protection. The anti-dazzle cap

attached to the safety glass conceals

the lamp from direct view.

The alternative is an internal antidazzle

screen which reduces the

glare by obscuring the view of

the reflector and the lamp. Where

special situations require even

higher visual comfort, ERCO provides

honeycomb anti-dazzle

screens, anti-dazzle rings or separately

adjustable barn doors as

accessories.


Cantax for track

The Cantax spotlight range combines

advanced lighting technology

with a design to produce

distinctive architectural accent

lighting.For these luminaires, the

Japanese designer Naoto Fukasawa

devised stylistic features that are

both elegant and precise and consist

of simple geometrical shapes

such as cuboids and cylinders.

The spatial relationships of these

basic shapes, changes depending

on use to create an intriguing

architectural impression. Technically,

Cantax represents the current

status of development at ERCO

and produces a quality of light

that meets the highest requirements

from upmarket residential

to shops, restaurants and galleries.

Lamp options of different wattages

and Spherolit reflectors of different

beam angles allow the Cantax

spotlights for low-voltage halogen

lamps or metal halide lamps

to be selected for specific lighting

tasks. Their reflectors are of the

innovative Spherolit technology

which provides the options of narrow

spot, spot, flood, wide flood, or

wallwash characteristics, all from

reflectors of the same size.

The Spherolit reflectors are easily

replaced without tools and

allow a change of light distribution

pattern to suitdifferent lighting

tasks. The Spherolit reflector, wallwash,

provides a focal emphasis

in the upper third of the wall, for

example, to enhance the visibility

of shop displays. To meet the

requirement of maximum uniformity

and glare control for wallwashing,

the Cantax range also includes

lens wallwashers. For accent lighting,

Cantax uses high-power LEDs

in varychrome technology for

variable colours of light. The LED

varychrome luminaires have a colour

compensation feature to correct

the manufacturing tolerances

of the coloured LEDs by calibrating

the control gear. As a result,

the same DALI control values will

give the user exactly the same colour

of light for all luminairesofa

specific type. The DALI-compatible

luminaires have digital control gear

which can address each luminaire

individually - for instance using

the ERCO Light System DALI with

its integral ERCO Light Studio software.

Combining the

latest developments

from

ERCO’s lighting

technology with

the minimalist

design of Naoto

Fukasawa: the

Cantax spotlight

series.



The Cantax range consists of spotlights,

Spherolit wallwashers and

lens wallwashers in three sizes. The

housings are cast aluminium and

powder-coated black or white. The

electrical connection is made using

a transadapter and the wiring is all

contained internally. DALI-compatible

luminaires feature a DALI

transadapter. Amongst the accessories

are colour filters and filters

to reduce both IR and UV radiation.

Spotlights

The Cantax spotlights feature

Spherolit reflectors which are easily

replaced without tools and can

produce very narrow to wide light

distribution. In the three sizes,

LEDs in varychrome technology,

low-voltage halogen lamps up to

100W/12V or metal halide lamps

up to 70W are to be used. The

accessories are fitted to the light

heads usingafixing ring.

Application

Very narrow to wide beam, rotationally

symmetrical light distribution

for accent lighting in

museums, exhibitions, art galleries

as well as sales and promotional

areas.


With Spherolit technology for wallwashing,

the reflectors are formed

to produce an asymmetrical light

distribution for wallwashing with

focal emphasis in the upper area of

the wall. The Spherolit wallwashers

are available for low-voltage halogen

lamps up to 100W/12V and

metal halide lamps up to 70W.

Application

Asymmetrical light distribution for

wallwashing with focal emphasis

in the upper area especially of high

walls, for applications including

sales and promotional areas.


The uniform wallwashing of the

lens wallwasher, which meet

extremely high standards of glare

control, is ensured by the typical

ERCO wallwasher reflector. The

lens wallwashers are available for


100W/12V and metal halide lamps

up to 70W.

Application


extremely uniform wallwashing

especially of high walls, for applications

including museums, exhibitions

and art galleries.



The design of Cantax is characterised

by a reduction to cubic

forms, clear lines and the contrast

of cuboid and cylinder. The concept

devised by designer Naoto

Fukasawa distinctly embodies

the Japanese tradition with its

minimalist approach and precision.

The light head and bracket

are flush with the transadapter

for track mounting. Within the

simple form there is control gear

with coded information for convenient

operation using Light

System DALI.

Four Spherolit

reflectors with

narrow spot,

spot, flood and

wide flood beam

angles are available

for accent

lighting.

Alternatively

to the spotlight

reflector, the


wallwash, can

be used for vertical

illumina tion.

The slight focal

emphasis noticeable

in the upper

third serves as

additional accent

lighting. The task

of a spotlight can

thus alternate

between accent

lighting and wallwashing

to suit

the situation.

The innovative

and patented


are ideal

to produce brilliant

light with

a highly uniform

brightness pattern.

Their surfaces

consists of

computer-calculated,

spherically

domed segments.

The Spherolit

reflectors can easily

be exchanged

without tools. This

means that the

user can change

the reflector with

safety glass to suit

different lighting

tasks.

The low-voltage

transadapter can

be dimmed using

trailing-edge

technology dimmers.

A potentiometer

allows

the spotlight to be

adjusted directly

on the luminaire.

The LED function

indicator shows

that the luminaire

is operating correctly.



LED varychrome spotlight

The coloured light of this Cantax

spotlight is created by twelve

high-power LEDs. The Softec

lens ensures full mixing of the

red, green and blue light colours.

The narrow beam light distribution

of the spot reflector lens system

allows coloured highlighting

with high colour saturation. The

LED varychrome luminaires have

a colour compensation feature to

correct the manufacturing tolerances

of the coloured LEDs by

calibrating the LED module. As a

result, the same DALI control values

will give the user exactly the

same colour of light for all luminaires

of a specific type.

90

80

70

60

50

40

30

465

506

527

622

S (%)

Because ERCO

uses LEDs with an

extremely high

colour saturation

in the Varychrome

luminaires, a particularly

wide

range of colours

can be obtained.

The saturation

diagram shows

the mixed colours

as wavelength

with the saturation

given as a

percentage.

The DALI-compatible

luminaires

have digital control

gear which

allows each lumi -

naire to be indi vidually

addressed,

for example by

using the ERCO

Light System

DALI with inte -

gral ERCO Light


100 S (%) (nm)

20

10

0

250

200

150

100

380 480 490 500 510 530 555 575 600 780

300 (lm) (nm)

478

527

583

622

-493

(lm)

-561

(nm)

-569

ERCO’s varychrome

LED

luminaires have

been optimised

to produce high

luminous flux

with highly saturated

light colours.

The luminous flux

diagram indicates

the output of

the LED module

with respect to

the wavelength.

50

465

0

380 480 490 500 510 530 555 575 600 780

-493

(nm)

-569

Like other lamps, high-power

LEDs generate heat. To prevent

the luminous flux and life of the

lamp from decreasing drastically,

the maximum junction temperature

must not be exceeded even

during continuous operation.

ERCO places particular importance

on heat management in

its luminaires to ensure that the

LED modules remain below the

critical temperature range and

operate at full output throughout

their lives. Mounting the

LED module directly on metalcore

PCBs effectively dissipates

the heat to the luminaire housing.

The form, design and material

of the housing all contribute

to effective heat management.

Extensive simulations and tests

in the development phase ensure

the success of the production

procedures used.


Cantax Spotlight varychrome LED with DALI transadapter



Cubic housing and bracket: cast aluminium,

powder-coated. 0°-90° tilt.

Peripheral groove for fixing accessories.

Bracket on DALI transadapter rotatable

through 360°. Internal wiring.

Only for ceiling mounting.

ERCO DALI transadapter for DALI track:

plastic.

Electronic control gear for ERCO

Varychrome colour mixing.

Replaceable LED module: high-power

LEDs on metallic core PCB with lens

system.

Anti-dazzle ring: cast aluminium, black

powder-coated. Softec lens.


75696.000 White (RAL9002) LED red,

green, blue DALI

75697.000 Black LED red, green, blue

DALI

LED 13W 390lm

Version 1

Colour compensation for precise light

colour.

Weight 2.10kg LMF D



125

100



174





161



237

LED

60° 60°

30° 30°

4000 cd

Primary colours LED module

Luminous flux F(lm)

Dominant wavelength l(nm)

Colour saturation S(%)

h(m) E(lx) D(m)

13°

1 3188 0.23

2 797 0.46

3 354 0.68

4 199 0.91

5 128 1.14

Colour F(lm) l(nm) S(%)

Red 140 620-625 99

Green 184 525-530 77

Blue 64 465-470 97

Cantax Spotlight with transadapter for low-voltage halogen lamps



Bracket on transadapter rotatable


ERCO transadapter for 3-circuit

track: plastic. Electronic transformer

220-240/12V. Potentiometer for

brightness control 10%-100%. LED

function indicator. Circuit pre-selection.

Anti-dazzle cone: aluminium, black

powder-coated. Softec lens.

Use dimmers for electronic transformers

(trailing edge).

75650.000 White (RAL9002)

75651.000 Black

QR-CBC51-RE 50W 12V GU5.3 10°

QR-CBC51-RE 50W 12V GU5.3 60°

Weight 0.60kg LMF E

ig





















QR-CBC51-RE

60° 60°

30°

15000 cd

30°


10°

1 13500 0.17

2 3375 0.35

3 1500 0.52

4 844 0.70

5 540 0.87

QR-CBC51-RE

60° 60°

30°

2000 cd

30°


60°

1 1287 1.15

2 322 2.31

3 143 3.46

4 80 4.62

5 51 5.77













Anti-dazzle ring: cast aluminium,

black powder-coated. Anti-dazzle cap

attached to safety glass.

Reflector replacement without tools.




75652.000 White (RAL9002)

75657.000 Black

QT12-ax-RE 50W 12V GY6.35 1250lm

Spherolit reflector, narrow spot: aluminium,

silver, mirror-finish anodised.


i

75653.000 White (RAL9002)

75658.000 Black

QT12-ax-RE 50W 12V GY6.35 1250lm

Spherolit reflector, spot: aluminium,



i

75654.000 White (RAL9002)

75659.000 Black

QT12-ax-RE 50W 12V GY6.35 1250lm

Spherolit reflector, flood: aluminium,



i





























































QT12-ax-RE

QT12-ax-RE

QT12-ax-RE

60° 60°

30° 30°

20000 cd

60° 60°

30° 30°

9000 cd

60° 60°

30° 30°

2500 cd







ERCO transadapter for 3-circuit track:

plastic. Electronic transformer 240/12V.

Potentiometer for brightness control

10%-100%. LED function indicator. Circuit

pre-selection.





9°

1 16041 0.16

2 4010 0.31

3 1782 0.47

4 1003 0.63

5 642 0.79


15°

1 7064 0.26

2 1766 0.53

3 785 0.79

4 441 1.05

5 283 1.32


31°

1 1796 0.55

2 449 1.11

3 200 1.66

4 112 2.22

5 72 2.77




75662.006 White (RAL9002)

75667.006 Black

QT12-ax-LP 100W 12V GY6.35 2200lm



Anti-dazzle cap attached to safety

glass.






















QT12-ax-LP

60° 60°

30° 30°

60000 cd


7°

1 54234 0.12

2 13559 0.24

3 6026 0.37

4 3390 0.49

5 2169 0.61

75663.006 White (RAL9002)

75668.006 Black

QT12-ax-LP 100W 12V GY6.35 2200lm

Spherolit reflector, spot: aluminium, silver,

mirror-finish anodised. Anti-dazzle

cap attached to safety glass.






















QT12-ax-LP

60° 60°

30° 30°

20000 cd


14°

1 15709 0.25

2 3927 0.49

3 1745 0.74

4 982 0.98

5 628 1.23



75664.006 White (RAL9002)

75669.006 Black

QT12-ax-LP 100W 12V GY6.35 2200lm


silver, mirror-finish anodised. Antidazzle


Weight 1.55kg





















QT12-ax-LP

60° 60°

30° 30°

6000 cd


29°

1 4573 0.52

2 1143 1.03

3 508 1.55

4 286 2.07

5 183 2.59

75665.006 White (RAL9002)

75670.006 Black

QT12-ax-LP 100W 12V GY6.35 2200lm

Spherolit reflector, wide-flood: aluminium,


Safety glass.






















QT12-ax-LP

60° 60°

30° 30°

2500 cd


53°

1 1761 1.00

2 440 1.99

3 196 2.99

4 110 3.99

5 70 4.99

Cantax Spotlight with DALI transadapter for low-voltage halogen lamps










plastic. Electronic transformer 230/240/

12V.





75672.000 White (RAL9002) DALI

75677.000 Black DALI

QT12-ax-LP 100W 12V GY6.35 2200lm




glass.






















QT12-ax-LP

60° 60°

30° 30°

60000 cd


7°

1 54234 0.12

2 13559 0.24

3 6026 0.37

4 3390 0.49

5 2169 0.61

75673.000 White (RAL9002) DALI


QT12-ax-LP 100W 12V GY6.35 2200lm

























QT12-ax-LP

60° 60°

30° 30°

20000 cd


14°

1 15709 0.25

2 3927 0.49

3 1745 0.74

4 982 0.98

5 628 1.23


Cantax Spotlight with DALI transadapter for low-voltage halogen lamps

75674.000 White (RAL9002) DALI


QT12-ax-LP 100W 12V GY6.35 2200lm

























QT12-ax-LP

60° 60°

30° 30°

6000 cd


29°

1 4573 0.52

2 1143 1.03

3 508 1.55

4 286 2.07

5 183 2.59

75675.000 White (RAL9002) DALI


QT12-ax-LP 100W 12V GY6.35 2200lm



Safety glass.






















QT12-ax-LP

60° 60°

30° 30°

2500 cd


53°

1 1761 1.00

2 440 1.99

3 196 2.99

4 110 3.99

5 70 4.99

Cantax Spotlight with transadapter for metal halide lamps







plastic. Electronic control gear. Circuit



powder-coated. Safety glass.



75600.000 White (RAL9002) ECG

75605.000 Black ECG

HIT-TC-CE 20W PGJ5 1650lm




i

75601.000 White (RAL9002) ECG






i

75602.000 White (RAL9002) ECG






i

75603.000 White (RAL9002) ECG






i

















































































HIT-TC-CE

HIT-TC-CE

HIT-TC-CE

HIT-TC-CE

60° 60°

30°

27000 cd

30°

60° 60°

30°

12500 cd

30°

60° 60°

30°

4000 cd

30°

60° 60°

30°

2000 cd

30°

h(m)

E(lx) D(m)

9°

1 23122 0.16

2 5781 0.31

3 2569 0.47

4 1445 0.63

5 925 0.79

h(m)

E(lx) D(m)

15°

1 9795 0.26

2 2449 0.53

3 1088 0.79

4 612 1.05

5 392 1.32

h(m)

E(lx) D(m)

31°

1 2837 0.55

2 709 1.11

3 315 1.66

4 177 2.22

5 113 2.77

h(m)

E(lx) D(m)

49°

1 1323 0.91

2 331 1.82

3 147 2.73

4 83 3.65

5 53 4.56


Cantax Spotlight with transadapter for metal halide lamps














75610.000 White (RAL9002) ECG


HIT-CE 35W G12 3300lm
























HIT-CE

60° 60°

30° 30°

80000 cd


7°

1 67104 0.12

2 16776 0.24

3 7456 0.37

4 4194 0.49

5 2684 0.61

75611.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

25000 cd

30°


16°

1 19218 0.28

2 4805 0.56

3 2135 0.84

4 1201 1.12

5 769 1.41

75612.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

8000 cd

30°


31°

1 5561 0.55

2 1390 1.11

3 618 1.66

4 348 2.22

5 222 2.77

75613.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

3000 cd

30°


58°

1 1956 1.11

2 489 2.22

3 217 3.33

4 122 4.43

5 78 5.54

75620.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

80000 cd

30°


10°

1 68629 0.17

2 17157 0.35

3 7625 0.52

4 4289 0.70

5 2745 0.87

75621.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

40000 cd

30°


17°

1 32850 0.30

2 8213 0.60

3 3650 0.90

4 2053 1.20

5 1314 1.49

75622.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

15000 cd

30°


31°

1 11279 0.55

2 2820 1.11

3 1253 1.66

4 705 2.22

5 451 2.77

75623.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

6000 cd

30°


55°

1 4196 1.04

2 1049 2.08

3 466 3.12

4 262 4.16

5 168 5.21


Cantax Spotlight with DALI transadapter for metal halide lamps










plastic. Electronic control gear, switchable.






75645.000 Black ECG DALI

























HIT-CE

60° 60°

30°

80000 cd

30°


7°

1 67104 0.12

2 16776 0.24

3 7456 0.37

4 4194 0.49

5 2684 0.61



























HIT-CE

60° 60°

30°

25000 cd

30°


16°

1 19218 0.28

2 4805 0.56

3 2135 0.84

4 1201 1.12

5 769 1.41



























HIT-CE

60° 60°

30°

8000 cd

30°


31°

1 5561 0.55

2 1390 1.11

3 618 1.66

4 348 2.22

5 222 2.77



























HIT-CE

60° 60°

30°

3000 cd

30°


58°

1 1956 1.11

2 489 2.22

3 217 3.33

4 122 4.43

5 78 5.54


Cantax Accessories

70966.000

70986.000

70967.000

70987.000

70968.000

70988.000

70969.000

70989.000

70970.000

70990.000

75935.000

75941.000

75940.000

75801.000

75906.000

75905.000

74820.000

74825.000

74806.000

74805.000

74486.000

74487.000

75610.000 • • • • • • • • • • • • • • • • •

75611.000 • • • • • • • • • • • • • • • • •

75612.000 • • • • • • •

75613.000 • • • • • • •

75615.000 • • • • • • • • • • • • • • • • •

75616.000 • • • • • • • • • • • • • • • • •

75617.000 • • • • • • •

75618.000 • • • • • • •

75620.000 • • • • • • • • • • • • • • • • •

75621.000 • • • • • • • • • • • • • • • • •

75622.000 • • • • • • •

75623.000 • • • • • • •

75625.000 • • • • • • • • • • • • • • • • •

75626.000 • • • • • • • • • • • • • • • • •

75627.000 • • • • • • •

75628.000 • • • • • • •

75640.000 • • • • • • • • • • • • • • • • •

75641.000 • • • • • • • • • • • • • • • • •

75642.000 • • • • • • •

75643.000 • • • • • • •

75645.000 • • • • • • • • • • • • • • • • •

75646.000 • • • • • • • • • • • • • • • • •

75647.000 • • • • • • •

75648.000 • • • • • • •

75662.006 • • • • • • • • • • • • • • • • •

75663.006 • • • • • • • • • • • • • • • • •

75664.006 • • • • • • •

75665.006 • • • • • • •

75667.006 • • • • • • • • • • • • • • • • •

75668.006 • • • • • • • • • • • • • • • • •

75669.006 • • • • • • •

75670.006 • • • • • • •

75672.000 • • • • • • • • • • • • • • • • •

75673.000 • • • • • • • • • • • • • • • • •

75674.000 • • • • • • •

75675.000 • • • • • • •

75677.000 • • • • • • • • • • • • • • • • •

75678.000 • • • • • • • • • • • • • • • • •

75679.000 • • • • • • •

75680.000 • • • • • • •

75696.000 • •

75697.000 • •

74451.000

74452.000

74453.000

74454.000



70956.000

70957.000

70958.000

70959.000

70960.000

75825.000

75831.000

75830.000

75801.000

75800.000

75600.000 • • • • • • • • • • • • • • • • •

75601.000 • • • • • • • • • • • • • • • • •

75602.000 • • • • • • •

75603.000 • • • • • • •

75605.000 • • • • • • • • • • • • • • • • •

75606.000 • • • • • • • • • • • • • • • • •

75607.000 • • • • • • • •

75608.000 • • • • • • •

75652.000 • • • • • • • • • • • • • • • •

75653.000 • • • • • • • • • • • • • • • •

75654.000 • • • • • •

75657.000 • • • • • • • • • • • • • • • •

75658.000 • • • • • • • • • • • • • • • •

75659.000 • • • • • •

74420.000

74425.000

74406.000

74405.000

74484.000

74485.000

74447.000

74448.000

74449.000

74450.000

70956.000

70966.000


narrow spot

Reflector set

replaceable


Reflector: Aluminium,

silver, mirrorfinish

anodised.

Anti-dazzle cap

attached to safety

glass.

70986.000


narrow spot

Reflector set

replaceable




anodised.

Safety glass.

70957.000

70967.000


spot

Reflector set

replaceable




anodised.



glass.

70987.000


spot

Reflector set

replaceable




anodised.

Safety glass.

70958.000

70968.000


flood

Reflector set

replaceable




anodised.



glass.

70988.000


flood

Reflector set

replaceable




anodised.

Safety glass.

70959.000

70969.000

70989.000


wide flood

Reflector set

replaceable




anodised.

Safety glass.

70960.000

70970.000

70990.000


wallwash

Reflector set

replaceable




anodised.

Softec lens.

74420.000

74820.000

Sculpture lens

74425.000

74825.000

Flood lens

74406.000

74806.000

UV filter

74405.000

74805.000

IR filter

74484.000

74486.000

Skintone filter

74485.000

74487.000

Daylight conversion

filter

74447.000

74451.000

Interference colour

filter

Magenta

74448.000

74452.000


filter

Amber



74449.000

74453.000


filter

Sky blue

74450.000

74454.000


filter

Night blue

75825.000

75935.000

Anti-dazzle ring

Plastic, black.

75831.000 White

75941.000 White

75830.000 Black

75940.000 Black

Barn doors

Metal, powdercoated.

75801.000 White

75906.000 White

75800.000 Black

75905.000 Black

Mounting ring

Plastic.

Cantax Spherolit wallwasher with transadapter for low-voltage halogen lamps










Spherolit wallwasher reflector replaceable

without tools: Aluminium, silver,

mirror-finish anodised. Softec lens.





75656.000 White (RAL9002)

75661.000 Black

QT12-ax-RE 50W 12V GY6.35 1250lm


i





















QT12-ax-RE







Angle of tilt 22°


Offset from wall (m) 1.00 1.25 1.50

Luminaire spacing (m) 1.00 1.25 1.50

Illuminance E n (lx) 156 108 75


















75666.006 White (RAL9002)

75671.006 Black

QT12-ax-LP 100W 12V GY6.35 2200lm






















QT12-ax-LP













Cantax Spherolit wallwasher with DALI transadapter for low-voltage halogen lamps










12V.






75676.000 White (RAL9002) DALI


QT12-ax-LP 100W 12V GY6.35 2200lm






















QT12-ax-LP












Cantax Spherolit wallwasher with transadapter for metal halide lamps













75604.000 White (RAL9002) ECG




i





















HIT-TC-CE













Cantax Spherolit wallwasher with transadapter for metal halide lamps














75614.000 White (RAL9002) ECG
























HIT-CE












75624.000 White (RAL9002) ECG
























HIT-CE












Cantax Spherolit wallwasher with DALI transadapter for metal halide lamps







































HIT-CE













Cantax Lens wallwasher with transadapter for low-voltage halogen lamps













Wallwasher attachment: cast aluminium,

powder-coated. Spread lens with

reflector: aluminium, silver anodised.




75682.000 White (RAL9002)

75683.000 Black

QT12-ax-RE 50W 12V GY6.35 1250lm


i





















QT12-ax-RE









Offset from wall (m) 1.00 1.00 1.25 1.25

Luminaire spacing (m) 1.00 1.25 1.25 1.50

Illuminance E n (lx) 144 116 98 82



















75684.006 White (RAL9002)

75685.006 Black

QT12-ax-LP 100W 12V GY6.35 2200lm






















QT12-ax-LP













Cantax Lens wallwasher with DALI transadapter for low-voltage halogen lamps










12V.







75686.000 White (RAL9002) DALI


QT12-ax-LP 100W 12V GY6.35 2200lm






















QT12-ax-LP












Cantax Lens wallwasher with transadapter for metal halide lamps















75688.000 White (RAL9002) ECG




i





















HIT-TC-CE













Cantax Lens wallwasher with transadapter for metal halide lamps















75690.000 White (RAL9002) ECG
























HIT-CE












75694.000 White (RAL9002) ECG
























HIT-CE












Cantax Lens wallwasher with DALI transadapter for metal halide lamps








































HIT-CE














70688.000

77198.000

70689.000

77196.000

74482.000

74488.000

74483.000

74489.000

74431.000

74455.000

74432.000

74456.000

74433.000

74457.000

75682.000 • • • • • • • •

75683.000 • • • • • • • •

75684.006 • • • • • • • •

75685.006 • • • • • • • •

75686.000 • • • • • • • •

75687.000 • • • • • • • •

75688.000 • • • • • • • •

75689.000 • • • • • • • •

75690.000 • • • • • • • •

75691.000 • • • • • • • •

75692.000 • • • • • • • •

75693.000 • • • • • • • •

75694.000 • • • • • • • •

75695.000 • • • • • • • •

74434.000

74458.000

70688.000

77198.000

UV filter

70689.000

77196.000

IR filter

74482.000

74488.000


74483.000

74489.000


filter

74431.000

74455.000


filter

Magenta

74432.000

74456.000


filter

Amber

74433.000

74457.000


filter

Sky blue

74434.000

74458.000


filter

Night blue


Emanon for track

Light used as a component of

design has long been used to produce

effective highlights particularly

in the retail sector. Lighting

equipment such as the Emanon

range of spotlights combine innovative

lighting technology with

digital control electronics resulting

inanentirely new, creative

scope for scenographic lighting

concepts. Shops and shop windows

become a stage with possibilities

previously the reserve of event and

show lighting: Emanon includes a

variety of spotlights with different

beam angles and a wide range

of accessories, along with highquality

wallwashers, LED varychrome

luminaires, and projection

spotlights. As an exceptional feature

in the ERCO Program, even

digitally addressable Goborotators

for dynamicprojection effects

are available. The distinct integral

shape which is characteristic ofall

Emanon spotlights is the brainchild

of designer Ives Béhar. The consistent

element isalighting technology

module of cast aluminium.

This is thermally separated

from the electronic control gear

and contained in housings made

of two plastic shells. The structured

surface indicates that the spotlights

can be touched and aligned

without a problem even when in

operation. Optimal heat dissipation

is ensured by the concentric

ventilation slots on the back

of the housing. Lamp options of

different wattages and Spherolit

reflectors of different beam angles

make the Emanon spotlights for

low-voltage halogen lamps and

metal halide lamps ideal for specific

lighting tasks. Their reflectors

feature the innovative Spherolit

technology that provides the

option of narrow spot, spot, flood,

wide-flood or wallwash characteristics

all from reflectors of the

same size. The Spherolit reflectors

are easily replaced without tools

meaning that the light distribution

patterns can be changed to suit

various lighting tasks.

The Spherolit reflector, wallwash,

produces a focal emphasis

in the upper third of the wall, for

example, to enhance the visibility

of shop displays. To meet the

requirement of maximum uniformity

and glare control for wallwashing,

the Emanon range also

includes lens wallwashers. For

accent lighting, Cantax uses highpower

LEDs in varychrome technology

for variable colours of light.

The LED varychrome luminaires

have a colour compensation feature

to correct the manufacturing

tolerances of the coloured LEDs

by calibrating the control gear.

As a result, the same DALI control

values will give the user exactly

the same colour of light from all

luminaires of a specific type. The

Emanon projection spotlights are

available with two light distribution

patterns for different applications.

One of the special features in

the Emanon range are the Goborotators

for scenographiclighting

concepts with dynamicprojections.

The overlapping of two rotating

gobo motifs withadifferent sharpness

and speed produces fascinating

lighting effects. Vibrationfree

motor bearings and toothed

belt drives ensure a low-noise, lowmaintenance

operation. This makes

qualifies the Goborotator ideal for

continuous use inarchitectural

applications. The DALI-compatible

luminaires feature digitally

addressable control gear, which can

be individually addressed to each

luminaire separately, for example

when using the ERCO Light System

DALI and the integrated ERCO Light


The spotlights,

projectors and

Goborotators

of the Emanon

product group

provide retail

architecture with

lighting effects fit

for the stage.



The Emanon range consists of

spotlights, projection spotlights,

Spherolit wallwashers and lens

wallwashers in two sizes. The housings

are of high-quality white

plasticorwithasilver coating. The

electrical connection is made using

a 3-circuit adapter or DALI adapter

and the wiring is all contained

internally. The necessary control

gear is integrated into the spotlight.

Amongst the accessories are

colour filters and filters to reduce

both IR and UV radiation.

Spotlights

The Emanon spotlights Spherolit

reflectors are easily replaced

without tools and have a very narrowtowide

light distribution.

Depending on their lamps, the

luminaires are available in two

sizes. LEDs in varychrome technology,

low-voltage halogen lamps up

to 100W/12V or metal halide lamps

up to 150W are to be used. The

accessories are fitted to the light

heads usingafixing ring.

Application

Very narrow to wide beam, rotationally

symmetrical light distribution

for accent lighting in

museums, exhibitions, art galleries

as well as sales areas and promotional

areas.

Projector spotlights

Two optical systems with and

without Goborotator are available

for different projection applications.

The projection spotlight with

optical projection system has three

lenses for precise gobo images with

a medium beam light distribution.

The projection spotlight with

optical imaging system has one

lens withawide beam angle for

soft-edged lighting effects using

gobos. In the version without

the Goborotator, four framing

blades can shape the projection

to a square. The Goborotator

has two separately addressable

motors on vibration-free bearings

to rotate the gobos at speeds of

four seconds to sixminutes per

revolution. Control is possible using

either the rotary switch on the

luminaire to recall 12 predefined

programs, or in the DALI version via

the Light Studio software.

Application

Accent effects can be produced by

using individually adjustable, hardedged

beams or rectangular image

mask projections. Alternatively projection

of rotating gobos for precise

images or soft-edged lighting

effects in restaurants, cafés, wine

bars, sales and promotional areas.


With Spherolit technology for wallwashing,

the reflectors are formed

so as to produce an asymmetrical

light distribution for wallwashing

with focal emphasis in the

upper area of the wall. The Spherolit

wallwashers are available for



up to 150W.

Application


wallwashing with focal emphasis

in the upper area especially of high

walls, for applications including

sales and promotional areas.




The highly uniform wallwashing

of the lens wallwasher which

meet extremely high standards

of glare control, is ensured by

a special wallwasher reflector.

The wallwashers are available for



up to 150W.

Application


very uniform wallwashing especially

of high walls, for applications

including museums, exhibitions

and art galleries.



The shape of Emanon is defined by

two rounded shells with shadow

gaps. Designer Yves Béhar and his

Californian design office, fuseproject,

devised soft stylistic features

as characteristic elements

to accentuate both the lighting

effect and the shape of these

luminaires. Innovative reflector

technology and control gear with

coded information extend the

scope in terms of light distribution

and lighting control using


The innovative

and patented


are ideal for

producing brilliant

light with

a highly uniform

brightness pattern.

Their surfaces

consist of

computer-calculated,

spherically

domed segments.

The Spherolit

reflectors can easily

be exchanged

without tools. This

means that the

user can change

the reflec tor with

safety glass to suit

different lighting

tasks.

The thermally

stressed components

such as

lamp, lampholder

and reflector

are installed in a

cylindrical metal

carrier with controlled

ventilation,

which sits

between the highquality

plastic

shells of the spotlight

housing.

The flat part of

the housing provides

a thermally

separated space

for the electronic

or DALI-compatible

control gear.

Its structured

surface marks

a gripping zone

for adjusting the

luminaires during

operation.

Four framing

blades can shape

the circular beam

or the gobo projection

into a

square shape.

The projection


lens system

means that precise

images can

be produced. The

three lenses produce

a narrow

beam light distribution

for a

maximum of

two gobos.

The projection


optical imaging

system has one

lens with a wide

beam angle for

soft-edged lighting

effects. Both

projection spotlights

are also

available with a

Goborotator.



The Emanon projection spotlight

with Goborotator can be fitted

with two metal gobos, glass gobos

or structure lenses ( 66mm). The

speed of rotation can be set from

four seconds to four minutes.

The gobos are easily exchanged.

After removing the front part of

the housing, the Goborotator

attachment is tilted to the side.

The gobos can be exchanged for

other motifs without tools by

removing the fixing springs. The

vibration-free bearings of the

motors and toothed belt drives

ensure low-noise, low-maintenance

operation, which makes

the Goborotator ideal for continuous

use in architectural applications.

Even without a DALI lighting control

system, it is possible to select

twelve programs with different

speeds and directions of rotation

using a rotary switch on the luminaire

itself. The Light System DALI

with the Light Studio software

gives the option of individual

settings.

ERCO provides

a selection of

gobos with abstract

structures


Since the gobos

all have standard

dimensions,

a wide variety of

other gobos can

be added from

other suppliers.

The direction of

rotation of the

gobos can be set

separately.

The extensive

range of gobo

projection options

can be controlled

via the Light

Studio software:

speed, direction

of rotation, and

different dynamic

progressions can

all be adjusted to

suit specific lighting

requirements.

The Emanon

Goborotator can

be used to produce

dynamic

light for impressive

effects in a

room. By using

metal gobos, glass

gobos or structure

lenses, the

designer is able

to produce a

whole range of

lighting effects.

Furthermore,

combining these

with colour filters

opens up the

world of coloured

scenography.



90

80

70

60

50

40

30

465

506

527

622

S (%)

Because ERCO

uses LEDs with an

extremely high

colour saturation

in the Varychrome

luminaires, a particularly

wide

range of colours

can be obtained.

The saturation

diagram shows

the mixed colours

as wavelength

with the saturation

given as a

percentage.

The DALI-compatible

luminaires

have digital control

gear which

allows each lumi -

naire to be indi vidually

addressed,

for example by

using the ERCO

Light System

DALI with inte -

gral ERCO Light


100 S (%) (nm)

20

10

0

250

200

150

100

380 480 490 500 510 530 555 575 600 780

300 (lm) (nm)

478

527

583

622

-493

(lm)

-561

(nm)

-569

ERCO’s varychrome

LED

luminaires have

been optimised

to produce high

luminous flux

with highly saturated

light colours.

The luminous flux

diagram indicates

the output of

the LED module

with respect to

the wavelength.

50

465

0

380 480 490 500 510 530 555 575 600 780

-493

(nm)

-569

The coloured light of this Emanon

spotlight is created by twelve

high-power LEDs. The Softec lens

ensures complete mixing of the

red, green and blue light colours.

The narrow beam light distribution

of the spot reflector lens system

allows coloured highlighting

with high colour saturation. The

LED varychrome luminaires have

a colour compensation feature

to correct the manufacturing tolerances

of the coloured LEDs by

calibrating the LED module. As a

result, the same DALI control values

will give the user exactly the

same colour of light for all luminaires

of a specific type.

Like other lamps, high-power

LEDs generate heat. To prevent

the luminous flux and life of the

lamp from decreasing drastically,

the maximum junction temperature

must not be exceeded even

during continuous operation.

ERCO places particular importance

on heat management in

its luminaires to ensure that the

LED modules remain below the

critical temperature range and

operate at full output throughout

their lives. Mounting the

LED module directly on metalcore

PCBs effectively dissipates

the heat to the luminaire housing.

The form, design and material

of the housing all contribute

to effective heat management.

Extensive simulations and tests

in the development phase ensure

the success of the production

procedures used.


Emanon Spotlight varychrome LED with DALI adapter



Housing: high-temperature plastic.

Non-slip surface with geometrically

arranged dimples. 0°-90° tilt. Bracket:

cast aluminium, powder-coated, rotatable

on the DALI adapter through 360°.

Internal wiring.

ERCO DALI adapter for DALI track:

plastic.

Electronic control gear for ERCO

Varychrome colour mixing.

Replaceable LED module: high-power

LEDs on metallic core PCB with lens

system.


powder-coated. Peripheral groove for

fixing accessories. Softec lens.


76541.000 White (RAL9002) LED red,

green, blue DALI

76542.000 Silver LED red, green, blue

DALI

LED 13W 390lm

Version 1

Colour compensation for precise light

colour.






















LED

60° 60°

30° 30°

4000 cd

Primary colours LED module

Luminous flux F(lm)

Dominant wavelength l(nm)

Colour saturation S(%)


13°

1 3188 0.23

2 797 0.46

3 354 0.68

4 199 0.91

5 128 1.14

Colour F(lm) l(nm) S(%)

Red 140 620-625 99

Green 184 525-530 77

Blue 64 465-470 97

Emanon Spotlight for low-voltage halogen lamps





on 3-circuit adapter through 360°.


Electronic transformer 220-240/12V.


10%-100%. LED function indicator.

ERCO 3-circuit adapter: plastic.



fixing accessories. Anti-dazzle cap

attached to safety glass.





76427.000 White (RAL9002)

76428.000 Silver

QT12-ax-RE 50W 12V GY6.35 1250lm
























QT12-ax-RE

60° 60°

30°

20000 cd

30°


9°

1 16041 0.16

2 4010 0.31

3 1782 0.47

4 1003 0.63

5 642 0.79

76430.000 White (RAL9002)

76431.000 Silver

QT12-ax-RE 50W 12V GY6.35 1250lm
























QT12-ax-RE

60° 60°

30°

9000 cd

30°


15°

1 7064 0.26

2 1766 0.53

3 785 0.79

4 441 1.05

5 283 1.32

76433.000 White (RAL9002)

76434.000 Silver

QT12-ax-RE 50W 12V GY6.35 1250lm
























QT12-ax-RE

60° 60°

30°

2500 cd

30°


31°

1 1796 0.55

2 449 1.11

3 200 1.66

4 112 2.22

5 72 2.77


Emanon Spotlight for low-voltage halogen lamps







Electronic transformer 240/12V.






fixing accessories.





76469.006 White (RAL9002)

76470.006 Silver

QT12-ax-LP 100W 12V GY6.35 2200lm




glass.






















QT12-ax-LP

60° 60°

30° 30°

60000 cd


7°

1 54234 0.12

2 13559 0.24

3 6026 0.37

4 3390 0.49

5 2169 0.61

76472.006 White (RAL9002)

76473.006 Silver

QT12-ax-LP 100W 12V GY6.35 2200lm

























QT12-ax-LP

60° 60°

30° 30°

20000 cd


14°

1 15709 0.25

2 3927 0.49

3 1745 0.74

4 982 0.98

5 628 1.23

76475.006 White (RAL9002)

76476.006 Silver

QT12-ax-LP 100W 12V GY6.35 2200lm

























QT12-ax-LP

60° 60°

30° 30°

6000 cd


29°

1 4573 0.52

2 1143 1.03

3 508 1.55

4 286 2.07

5 183 2.59

76478.006 White (RAL9002)

76479.006 Silver

QT12-ax-LP 100W 12V GY6.35 2200lm



Safety glass.






















QT12-ax-LP

60° 60°

30° 30°

2500 cd


53°

1 1761 1.00

2 440 1.99

3 196 2.99

4 110 3.99

5 70 4.99


Emanon Spotlight with DALI adapter for low-voltage halogen lamps







on DALI adapter through 360°.


Electronic transformer 230/240/12V.


plastic.



fixing accessories.



76499.000 White (RAL9002) DALI

76500.000 Silver DALI

QT12-ax-LP 100W 12V GY6.35 2200lm




glass.






















QT12-ax-LP

60° 60°

30° 30°

60000 cd


7°

1 54234 0.12

2 13559 0.24

3 6026 0.37

4 3390 0.49

5 2169 0.61

76502.000 White (RAL9002) DALI


QT12-ax-LP 100W 12V GY6.35 2200lm

























QT12-ax-LP

60° 60°

30° 30°

20000 cd


14°

1 15709 0.25

2 3927 0.49

3 1745 0.74

4 982 0.98

5 628 1.23

76505.000 White (RAL9002) DALI


QT12-ax-LP 100W 12V GY6.35 2200lm

























QT12-ax-LP

60° 60°

30° 30°

6000 cd


29°

1 4573 0.52

2 1143 1.03

3 508 1.55

4 286 2.07

5 183 2.59

76508.000 White (RAL9002) DALI


QT12-ax-LP 100W 12V GY6.35 2200lm



Safety glass.






















QT12-ax-LP

60° 60°

30° 30°

2500 cd


53°

1 1761 1.00

2 440 1.99

3 196 2.99

4 110 3.99

5 70 4.99


Emanon Spotlight for metal halide lamps







Electronic control gear.




fixing accessories. Safety glass.



76400.000 White (RAL9002) ECG


HIT-TC-CE 20W G8.5 1700lm
























HIT-TC-CE

60° 60°

30°

20000 cd

30°


10°

1 16769 0.17

2 4192 0.35

3 1863 0.52

4 1048 0.70

5 671 0.87

76403.000 White (RAL9002) ECG


























HIT-TC-CE

60° 60°

30°

10000 cd

30°


16°

1 8484 0.28

2 2121 0.56

3 943 0.84

4 530 1.12

5 339 1.41

76406.000 White (RAL9002) ECG


























HIT-TC-CE

60° 60°

30°

4000 cd

30°


32°

1 2655 0.57

2 664 1.15

3 295 1.72

4 166 2.29

5 106 2.87

76539.000 White (RAL9002) ECG


























HIT-TC-CE

60° 60°

30°

2000 cd

30°


47°

1 1321 0.87

2 330 1.74

3 147 2.61

4 83 3.48

5 53 4.35

76412.000 White (RAL9002) ECG


























HIT-TC-CE

60° 60°

30°

35000 cd

30°


10°

1 29756 0.17

2 7439 0.35

3 3306 0.52

4 1860 0.70

5 1190 0.87

76415.000 White (RAL9002) ECG


























HIT-TC-CE

60° 60°

30°

20000 cd

30°


16°

1 14810 0.28

2 3702 0.56

3 1646 0.84

4 926 1.12

5 592 1.41

76418.000 White (RAL9002) ECG


























HIT-TC-CE

60° 60°

30°

7500 cd

30°


31°

1 5479 0.55

2 1370 1.11

3 609 1.66

4 342 2.22

5 219 2.77

76421.000 White (RAL9002) ECG


























HIT-TC-CE

60° 60°

30°

4000 cd

30°


46°

1 2779 0.85

2 695 1.70

3 309 2.55

4 174 3.40

5 111 4.24


Emanon Spotlight with DALI adapter for metal halide lamps









Electronic control gear, switchable.


plastic.
































HIT-TC-CE

60° 60°

30°

35000 cd

30°


10°

1 29756 0.17

2 7439 0.35

3 3306 0.52

4 1860 0.70

5 1190 0.87



























HIT-TC-CE

60° 60°

30°

15000 cd

30°


16°

1 14810 0.28

2 3702 0.56

3 1646 0.84

4 926 1.12

5 592 1.41



























HIT-TC-CE

60° 60°

30°

7500 cd

30°


31°

1 5479 0.55

2 1370 1.11

3 609 1.66

4 342 2.22

5 219 2.77



























HIT-TC-CE

60° 60°

30°

4000 cd

30°


46°

1 2779 0.85

2 695 1.70

3 309 2.55

4 174 3.40

5 111 4.24















76439.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

80000 cd

30°


10°

1 68629 0.17

2 17157 0.35

3 7625 0.52

4 4289 0.70

5 2745 0.87

76442.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

40000 cd

30°


17°

1 32850 0.30

2 8213 0.60

3 3650 0.90

4 2053 1.20

5 1314 1.49

76445.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

15000 cd

30°


31°

1 11279 0.55

2 2820 1.11

3 1253 1.66

4 705 2.22

5 451 2.77



76448.000 White (RAL9002) ECG


























HIT-CE

60° 60°

30°

6000 cd

30°


55°

1 4196 1.04

2 1049 2.08

3 466 3.12

4 262 4.16

5 168 5.21

76454.000 White (RAL9002) ECG


HIT-CE 150W G12 14000lm
























HIT-CE

60° 60°

30°

110000 cd

30°


12°

1 91838 0.21

2 22959 0.42

3 10204 0.63

4 5740 0.84

5 3674 1.05

76457.000 White (RAL9002) ECG


HIT-CE 150W G12 14000lm
























HIT-CE

60° 60°

30°

70000 cd

30°


18°

1 53678 0.32

2 13419 0.63

3 5964 0.95

4 3355 1.27

5 2147 1.58

76460.000 White (RAL9002) ECG


HIT-CE 150W G12 14000lm
























HIT-CE

60° 60°

30°

30000 cd

30°


31°

1 22208 0.55

2 5552 1.11

3 2468 1.66

4 1388 2.22

5 888 2.77

76463.000 White (RAL9002) ECG


HIT-CE 150W G12 14000lm
























HIT-CE

60° 60°

30°

12500 cd

30°


53°

1 9266 1.00

2 2316 1.99

3 1030 2.99

4 579 3.99

5 371 4.99

Emanon Spotlight with DALI adapter for metal halide lamps











plastic.
































HIT-CE

60° 60°

30°

80000 cd

30°


10°

1 68629 0.17

2 17157 0.35

3 7625 0.52

4 4289 0.70

5 2745 0.87



























HIT-CE

60° 60°

30°

40000 cd

30°


17°

1 32850 0.30

2 8213 0.60

3 3650 0.90

4 2053 1.20

5 1314 1.49



























HIT-CE

60° 60°

30°

15000 cd

30°


31°

1 11279 0.55

2 2820 1.11

3 1253 1.66

4 705 2.22

5 451 2.77



























HIT-CE

60° 60°

30°

6000 cd

30°


55°

1 4196 1.04

2 1049 2.08

3 466 3.12

4 262 4.16

5 168 5.21


Emanon Accessories

70966.000

70986.000

70967.000

70987.000

70968.000

70988.000

70969.000

70989.000

70970.000

70990.000

75935.000

75941.000

75940.000

75906.000

75905.000

74820.000

74825.000

74806.000

74805.000

76439.000 • • • • • • • • • • • • • • • • •

76440.000 • • • • • • • • • • • • • • • • •

76442.000 • • • • • • • • • • • • • • • • •

76443.000 • • • • • • • • • • • • • • • • •

76445.000 • • • • • • •

76446.000 • • • • • • •

76448.000 • • • • • • •

76449.000 • • • • • • •

76454.000 • • • • • • • • • • • • • • • • •

76455.000 • • • • • • • • • • • • • • • • •

76457.000 • • • • • • • • • • • • • • • • •

76458.000 • • • • • • • • • • • • • • • • •

76460.000 • • • • • • •

76461.000 • • • • • • •

76463.000 • • • • • • •

76464.000 • • • • • • •

76469.006 • • • • • • • • • • • • • • • • •

76470.006 • • • • • • • • • • • • • • • • •

76472.006 • • • • • • • • • • • • • • • • •

76473.006 • • • • • • • • • • • • • • • • •

76475.006 • • • • • • •

76476.006 • • • • • • •

76478.006 • • • • • • •

76479.006 • • • • • • •

76484.000 • • • • • • • • • • • • • • • • •

76485.000 • • • • • • • • • • • • • • • • •

76487.000 • • • • • • • • • • • • • • • • •

76488.000 • • • • • • • • • • • • • • • • •

76490.000 • • • • • • •

76491.000 • • • • • • •

76493.000 • • • • • • •

76494.000 • • • • • • •

76499.000 • • • • • • • • • • • • • • • • •

76500.000 • • • • • • • • • • • • • • • • •

76502.000 • • • • • • • • • • • • • • • • •

76503.000 • • • • • • • • • • • • • • • • •

76505.000 • • • • • • •

76506.000 • • • • • • •

76508.000 • • • • • • •

76509.000 • • • • • • •

76541.000 • •

76542.000 • •

74486.000

74487.000

74451.000

74452.000

74453.000

74454.000



70956.000

70981.000

70957.000

70982.000

70958.000

70983.000

70984.000

70960.000

70985.000

75825.000

75831.000

75830.000

75801.000

75800.000

74420.000

74425.000

74406.000

74405.000

76400.000 • • • • • • • • • • • • • • • • •

76401.000 • • • • • • • • • • • • • • • • •

76403.000 • • • • • • • • • • • • • • • • •

76404.000 • • • • • • • • • • • • • • • • •

76406.000 • • • • • • •

76407.000 • • • • • • •

76412.000 • • • • • • • • • • • • • • • • •

76413.000 • • • • • • • • • • • • • • • • •

76415.000 • • • • • • • • • • • • • • • • •

76416.000 • • • • • • • • • • • • • • • • •

76418.000 • • • • • • •

76419.000 • • • • • • •

76421.000 • • • • • • •

76422.000 • • • • • • •

76427.000 • • • • • • • • • • • • • • • •

76428.000 • • • • • • • • • • • • • • • •

76430.000 • • • • • • • • • • • • • • • •

76431.000 • • • • • • • • • • • • • • • •

76433.000 • • • • • •

76434.000 • • • • • •

76529.000 • • • • • • • • • • • • • • • • •

76530.000 • • • • • • • • • • • • • • • • •

76531.000 • • • • • • • • • • • • • • • • •

76532.000 • • • • • • • • • • • • • • • • •

76533.000 • • • • • • •

76534.000 • • • • • • •

76535.000 • • • • • • •

76536.000 • • • • • • •

76539.000 • • • • • • •

76540.000 • • • • • • •

74484.000

74485.000

74447.000

74448.000

74449.000

74450.000

70956.000

70966.000


narrow spot

Reflector set

replaceable




anodised.



glass.

70981.000

70986.000


narrow spot

Reflector set

replaceable




anodised.

Safety glass.

70957.000

70967.000


spot

Reflector set

replaceable




anodised.



glass.

70982.000

70987.000


spot

Reflector set

replaceable




anodised.

Safety glass.

70958.000

70968.000


flood

Reflector set

replaceable




anodised.



glass.

70983.000

70988.000


flood

Reflector set

replaceable




anodised.

Safety glass.

70969.000

70984.000

70989.000


wide flood

Reflector set

replaceable




anodised.

Safety glass.

70960.000

70970.000

70985.000

70990.000


wallwash

Reflector set

replaceable




anodised.

Softec lens.

74420.000

74820.000

Sculpture lens

74425.000

74825.000

Flood lens

74406.000

74806.000

UV filter

74405.000

74805.000

IR filter

74484.000

74486.000


74485.000

74487.000


filter

74447.000

74451.000


filter

Magenta

74448.000

74452.000


filter

Amber



74449.000

74453.000


filter

Sky blue

74450.000

74454.000


filter

Night blue

75825.000

75935.000

Anti-dazzle ring

Plastic, black.

75831.000 White

75941.000 White

75830.000 Black

75940.000 Black

Barn doors

Metal, powdercoated.

75801.000 White

75906.000 White

75800.000 Black

75905.000 Black

Mounting ring

Plastic.

Emanon Projector spotlight for low-voltage halogen lamps

With projection lens for precise projection.




cast aluminium, powder- coated, on the

mechanical adapter rotatable through

360°.





ERCO 3-circuit adapter with cable:

plastic.

Reflector: aluminium, silver anodised. IR

filter.

Contour attachment: aluminium,

powder-coated. Framing attachment

(opening 8x8mm) with holder for

aperture masks or gobo (ø 66mm).

3 aperture masks: metal, black, ø 50,

ø40,ø30. Lens 1:1. 7/100mm, focusing

± 10mm.

Contour attachment removable for

lamp replacement without tools.



Available as of 3rd quarter of 2008


76568.006 White (RAL9002)

76569.006 Silver

QT12-ax 90W 12V GY6.35 1800lm

Weight 4.75kg

















QT12-ax

Measured illuminance levels (new

values) E (lx) and beam diameters D (m)

dependent on aperture mask and projection

distance h (m)

Aperture

mask h (m) E (lx) D (m)

(mm)

16

30 1 3006 0.30

2 752 0.60

3 334 0.90

4 188 1.20

5 120 1.50

22

40 1 2430 0.40

2 608 0.80

3 270 1.20

4 152 1.60

5 97 2.00

26

50 1 1890 0.50

2 473 1.00

3 210 1.50

4 118 2.00

5 76 2.50

Maximum edge length D (m) of

square projection through framing

attachment dependent on projection


h (m) E (lx) D (m)

1 1890 0.35

2 473 0.71

3 210 1.06

4 118 1.41

5 76 1.77


Emanon Projector spotlight for low-voltage halogen lamps

Projection lens for soft-edged effect

lighting.






360°.






plastic.


filter.






ø40,ø30. Projection lens, 50mm, Focal

length, focusable.







76562.006 White (RAL9002)

76563.006 Silver

QT12-ax 90W 12V GY6.35 1800lm

Weight 4.55kg

















QT12-ax





Aperture


(mm)

33

30 1 716 0.60

2 179 1.20

3 79 1.80

4 45 2.40

5 29 3.00

44

40 1 608 0.80

2 152 1.60

3 68 2.40

4 38 3.20

5 24 4.00

53

50 1 461 1.00

2 115 2.00

3 51 3.00

4 29 4.00

5 18 5.00





h (m) E (lx) D (m)

1 461 0.71

2 115 1.41

3 51 2.12

4 29 2.83

5 18 3.54


Emanon Projector spotlight with DALI adapter for low-voltage halogen lamps







cast aluminium, powder-coated, on the


360°.



ERCO DALI adapter with cable for DALI

track: plastic.


filter.







± 10mm.





76576.000 White (RAL9002) DALI


QT12-ax 90W 12V GY6.35 1800lm

Weight 4.80kg

















QT12-ax





Aperture


(mm)

16

30 1 3006 0.30

2 752 0.60

3 334 0.90

4 188 1.20

5 120 1.50

22

40 1 2430 0.40

2 608 0.80

3 270 1.20

4 152 1.60

5 97 2.00

26

50 1 1890 0.50

2 473 1.00

3 210 1.50

4 118 2.00

5 76 2.50





h (m) E (lx) D (m)

1 1890 0.35

2 473 0.71

3 210 1.06

4 118 1.41

5 76 1.77


Emanon Projector spotlight with DALI adapter for low-voltage halogen lamps




lighting.






360°.



ERCO DALI adapter with cable for DALI

track: plastic.


filter.






ø40,ø30. Projection lens with focal

length of 50mm, focusable.





76574.000 White (RAL9002) DALI


QT12-ax 90W 12V GY6.35 1800lm

Weight 4.60kg

















QT12-ax





Aperture


(mm)

33

30 1 716 0.60

2 179 1.20

3 79 1.80

4 45 2.40

5 29 3.00

44

40 1 608 0.80

2 152 1.60

3 68 2.40

4 38 3.20

5 24 4.00

53

50 1 461 1.00

2 115 2.00

3 51 3.00

4 29 4.00

5 18 5.00





h (m) E (lx) D (m)

1 461 0.71

2 115 1.41

3 51 2.12

4 29 2.83

5 18 3.54


Emanon Projector spotlight for metal halide lamps





cast aluminium, powder-coated, on the


360°.




plastic.


filter.







± 10mm.





76556.000 White (RAL9002) ECG



Weight 4.85kg

















HIT-CE





Aperture


(mm)

16

30 1 5000 0.30

2 1250 0.60

3 556 0.90

4 313 1.20

5 200 1.50

22

40 1 4615 0.40

2 1154 0.80

3 513 1.20

4 288 1.60

5 185 2.00

26

50 1 3590 0.50

2 898 1.00

3 399 1.50

4 224 2.00

5 144 2.50





h (m) E (lx) D (m)

1 3590 0.35

2 898 0.71

3 399 1.06

4 224 1.41

5 144 1.77


Emanon Projector spotlight for metal halide lamps


lighting.






360°.




plastic.


filter.






ø40,ø30. Projection lens with focal

length of 50mm, focusable.





76550.000 White (RAL9002) ECG



Weight 4.65kg

















HIT-CE





Aperture


(mm)

33

30 1 1226 0.60

2 306 1.20

3 136 1.80

4 72 2.40

5 49 3.00

44

40 1 1188 0.80

2 297 1.60

3 132 2.40

4 74 3.20

5 47 4.00

53

50 1 901 1.00

2 277 2.00

3 123 3.00

4 69 4.00

5 44 5.00





h (m) E (lx) D (m)

1 901 0.71

2 277 1.41

3 123 2.12

4 69 2.83

5 44 3.54


Emanon Projector spotlight with Goborotator for low-voltage halogen lamps

With projection lens for precise projections.

Thermally optimised housing without

fan: high-temperature plastic. Non-slip

surface with geometrically arranged

dimples. 0°-90° tilt. Bracket: cast aluminium,

powder- coated, on the mechanical

adapter rotatable through 360°.





2 ERCO 3-circuit adapters with cable:

plastic.


filter.

Goborotator attachment: plastic.

Two rotatable receptacles for gobos

(ø 66mm). Lens 1:1,7/100mm, focusing

± 10mm.

Two elastically mounted stepping

motors, 4s/1 to 360s/1. Hall sensors

for adjusting the gobos. Low-noise

toothed-belt drive.

Switch for calling up speed and rotational

direction (12 programs). Pushbutton

for setting the reference position.

LED function indicator.

Goborotator attachment removable for

lamp replacement without tools. Screw

fixing.





76570.006 White (RAL9002)

76571.006 Silver

QT12-ax 90W 12V GY6.35 1800lm

Weight 6.50kg

















QT12-ax





Aperture


(mm)

16

30 1 3006 0.30

2 752 0.60

3 334 0.90

4 188 1.20

5 120 1.50

Aperture


(mm)

22

40 1 2430 0.40

2 608 0.80

3 270 1.20

4 152 1.60

5 97 2.00


lighting.












plastic.


filter.



(ø 66mm). Projection lens, 50mm focal




Aperture


(mm)

26

50 1 1890 0.50

2 473 1.00

3 210 1.50

4 118 2.00

5 76 2.50









fixing.





76566.006 White (RAL9002)

76567.006 Silver

QT12-ax 90W 12V GY6.35 1800lm

Weight 6.30kg

















QT12-ax





Aperture


(mm)

33

30 1 716 0.60

2 179 1.20

3 79 1.80

4 45 2.40

5 29 3.00

Aperture


(mm)

44

40 1 608 0.80

2 152 1.60

3 68 2.40

4 38 3.20

5 24 4.00

Aperture


(mm)

53

50 1 461 1.00

2 115 2.00

3 51 3.00

4 29 4.00

5 18 5.00


Emanon Projector spotlight with Goborotator and DALI adapter for low-voltage halogen lamps












2 ERCO DALI adapters with cable for

DALI track: plastic.


filter.




± 10mm.





The speed and rotational direction are

recalled via the Light System DALI software.




fixing.



76572.000 White (RAL9002) DALI


QT12-ax 90W 12V GY6.35 1800lm

Weight 6.55kg

















QT12-ax





Aperture


(mm)

16

30 1 3006 0.30

2 752 0.60

3 334 0.90

4 188 1.20

5 120 1.50



Aperture


(mm)

22

40 1 2430 0.40

2 608 0.80

3 270 1.20

4 152 1.60

5 97 2.00


lighting.












filter.









Aperture


(mm)

26

50 1 1890 0.50

2 473 1.00

3 210 1.50

4 118 2.00

5 76 2.50






fixing.



76564.000 White (RAL9002) DALI


QT12-ax 90W 12V GY6.35 1800lm

Weight 6.35kg

















QT12-ax





Aperture


(mm)

33

30 1 716 0.60

2 179 1.20

3 79 1.80

4 45 2.40

5 29 3.00

Aperture


(mm)

44

40 1 608 0.80

2 152 1.60

3 68 2.40

4 38 3.20

5 24 4.00

Aperture


(mm)

53

50 1 461 1.00

2 115 2.00

3 51 3.00

4 29 4.00

5 18 5.00


Emanon Projector spotlight with Goborotator for metal halide lamps











plastic.


filter.




± 10mm.











fixing.



76558.000 White (RAL9002) ECG



Weight 6.60kg

















HIT-CE





Aperture


(mm)

16

30 1 5000 0.30

2 1250 0.60

3 556 0.90

4 313 1.20

5 200 1.50

Aperture


(mm)

22

40 1 4615 0.40

2 1154 0.80

3 513 1.20

4 288 1.60

5 185 2.00


lighting.










plastic.


filter.









Aperture


(mm)

26

50 1 3590 0.50

2 898 1.00

3 399 1.50

4 224 2.00

5 144 2.50







fixing.



76554.000 White (RAL9002) ECG



Weight 6.40kg

















HIT-CE





Aperture


(mm)

33

30 1 1226 0.60

2 306 1.20

3 136 1.80

4 72 2.40

5 49 3.00

Aperture


(mm)

44

40 1 1188 0.80

2 297 1.60

3 132 2.40

4 74 3.20

5 47 4.00

Aperture


(mm)

53

50 1 901 1.00

2 277 2.00

3 123 3.00

4 69 4.00

5 44 5.00


Emanon Projector spotlight with Goborotator and DALI adapter for metal halide lamps















filter.




± 10mm.






recalled through the Light System DALI

software. LED function indicator.



fixing.






Weight 6.65kg

















HIT-CE





Aperture


(mm)

16

30 1 5000 0.30

2 1250 0.60

3 556 0.90

4 313 1.20

5 200 1.50



Aperture


(mm)

22

40 1 4615 0.40

2 1154 0.80

3 513 1.20

4 288 1.60

5 185 2.00


lighting.












filter.









Aperture


(mm)

26

50 1 3590 0.50

2 898 1.00

3 399 1.50

4 224 2.00

5 144 2.50






fixing.






Weight 6.45kg

















HIT-CE





Aperture


(mm)

33

30 1 1226 0.60

2 306 1.20

3 136 1.80

4 72 2.40

5 49 3.00

Aperture


(mm)

44

40 1 1188 0.80

2 297 1.60

3 132 2.40

4 74 3.20

5 47 4.00

Aperture


(mm)

53

50 1 901 1.00

2 277 2.00

3 123 3.00

4 69 4.00

5 44 5.00



75800.000

74406.000

74405.000

74484.000

74485.000

74447.000

74448.000

74449.000

74450.000

75926.000

75927.000

75928.000

75929.000

76550.000 • • • • • • • • • • • • • • •

76551.000 • • • • • • • • • • • • • • •

76552.000 • • • • • • • • • • • • • • •

76553.000 • • • • • • • • • • • • • • •

76554.000 • • • • • • • • • • • • • • •

76555.000 • • • • • • • • • • • • • • •

76556.000 • • • • • • • • • • • • • • •

76557.000 • • • • • • • • • • • • • • •

76558.000 • • • • • • • • • • • • • • •

76559.000 • • • • • • • • • • • • • • •

76560.000 • • • • • • • • • • • • • • •

76561.000 • • • • • • • • • • • • • • •

76562.006 • • • • • • • • • • • • • • •

76563.006 • • • • • • • • • • • • • • •

76564.000 • • • • • • • • • • • • • • •

76565.000 • • • • • • • • • • • • • • •

76566.006 • • • • • • • • • • • • • • •

76567.006 • • • • • • • • • • • • • • •

76568.006 • • • • • • • • • • • • • • •

76569.006 • • • • • • • • • • • • • • •

76570.006 • • • • • • • • • • • • • • •

76571.006 • • • • • • • • • • • • • • •

76572.000 • • • • • • • • • • • • • • •

76573.000 • • • • • • • • • • • • • • •

76574.000 • • • • • • • • • • • • • • •

76575.000 • • • • • • • • • • • • • • •

76576.000 • • • • • • • • • • • • • • •

76577.000 • • • • • • • • • • • • • • •

75930.000

75931.000

74406.000

UV filter

74405.000

IR filter

74484.000


74485.000


filter

74447.000


filter

Magenta

74448.000


filter

Amber

74449.000

Interference col-

Program

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
