DESIGNED FOR EVERY APPLICATION

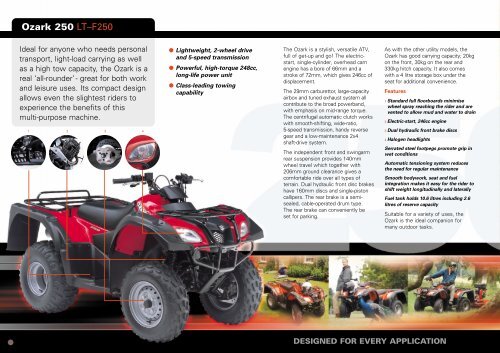

Ozark 250 LT–F250
Ideal for anyone who needs personal
transport, light-load carrying as well
as a high tow capacity, the Ozark is a
real ‘all-rounder’- great for both work
and leisure uses. Its compact design
allows even the slightest riders to
experience the benefits of this
multi-purpose machine.
1 2 3 4
● Lightweight, 2-wheel drive
and 5-speed transmission
● Powerful, high-torque 248cc,
long-life power unit
● Class-leading towing
capability
The Ozark is a stylish, versatile ATV,
full of get-up and go! The electricstart,
single-cylinder, overhead cam
engine has a bore of 66mm and a
stroke of 72mm, which gives 246cc of
displacement.
The 29mm carburettor, large-capacity
airbox and tuned exhaust system all
contribute to the broad powerband,
with emphasis on mid-range torque.
The centrifugal automatic clutch works
with smooth-shifting, wide-ratio,
5-speed transmission, handy reverse
gear and a low-maintenance 2x4
shaft-drive system.
The independent front and swingarm
rear suspension provides 140mm
wheel travel which together with
206mm ground clearance gives a
comfortable ride over all types of
terrain. Dual hydraulic front disc brakes
have 160mm discs and single-piston
callipers. The rear brake is a semisealed,
cable-operated drum type.
The rear brake can conveniently be
set for parking.
As with the other utility models, the
Ozark has good carrying capacity; 20kg
on the front, 30kg on the rear and
330kg hitch capacity. It also comes
with a 4 litre storage box under the
seat for additional convenience.
Features
1 Standard full floorboards minimise
wheel spray reaching the rider and are
vented to allow mud and water to drain
2 Electric-start, 246cc engine
3 Dual hydraulic front brake discs
4 Halogen headlights
Serrated steel footpegs promote grip in
wet conditions
Automatic tensioning system reduces
the need for regular maintenance
Smooth bodywork, seat and fuel
integration makes it easy for the rider to
shift weight longitudinally and laterally
Fuel tank holds 10.6 litres including 2.6
litres of reserve capacity
Suitable for a variety of uses, the
Ozark is the ideal companion for
many outdoor tasks.
