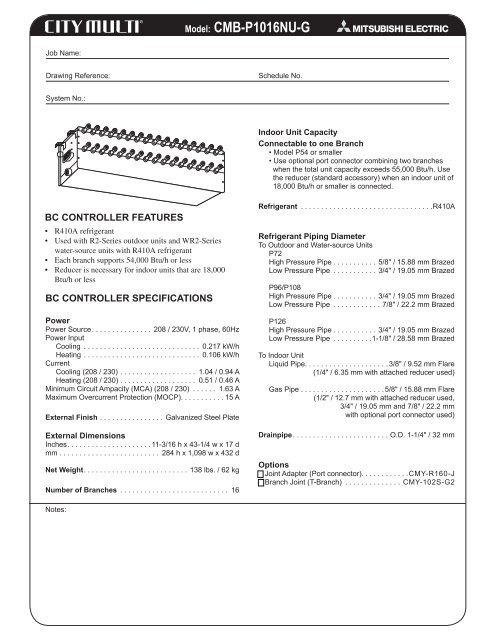

Model: CMB-P1016NU-G
Job Name:
Drawing Reference:
Schedule No.
System No.:
indoor Unit Capacity
Connectable to one Branch
• Model P54 or smaller
• Use optional port connector combining two branches
when the total unit capacity exceeds 55,000 Btu/h. Use
the reducer (standard accessory) when an indoor unit of
18,000 Btu/h or smaller is connected.
BC Controller featUreS
• R410A refrigerant
• Used with R2-Series outdoor units and WR2-Series
water-source units with R410A refrigerant
• Each branch supports 54,000 Btu/h or less
• Reducer is necessary for indoor units that are 18,000
Btu/h or less
BC Controller SpeCifiCationS
power
Power Source. . . . . . . . . . . . . . . 208 / 230V, 1 phase, 60Hz
Power Input
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.217 kW/h
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.106 kW/h
Current
Cooling (208 / 230) . . . . . . . . . . . . . . . . . . . 1.04 / 0.94 A
Heating (208 / 230) . . . . . . . . . . . . . . . . . . . 0.51 / 0.46 A
Minimum Circuit Ampacity (MCA) (208 / 230) . . . . . . 1.63 A
Maximum Overcurrent Protection (MOCP). . . . . . . . . . . 15 A
external finish . . . . . . . . . . . . . . . . Galvanized Steel Plate
external Dimensions
Inches. . . . . . . . . . . . . . . . . . . . . 11-3/16 h x 43-1/4 w x 17 d
mm . . . . . . . . . . . . . . . . . . . . . . . . . 284 h x 1,098 w x 432 d
net Weight. . . . . . . . . . . . . . . . . . . . . . . . . . 138 lbs. / 62 kg
number of Branches . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
refrigerant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .R410A
refrigerant piping Diameter
To Outdoor and Water-source Units
P72
High Pressure Pipe . . . . . . . . . . . 5/8" / 15.88 mm Brazed
Low Pressure Pipe . . . . . . . . . . . 3/4" / 19.05 mm Brazed
P96/P108
High Pressure Pipe . . . . . . . . . . . 3/4" / 19.05 mm Brazed
Low Pressure Pipe . . . . . . . . . . . . 7/8" / 22.2 mm Brazed
P126
High Pressure Pipe . . . . . . . . . . . 3/4" / 19.05 mm Brazed
Low Pressure Pipe . . . . . . . . . .1-1/8" / 28.58 mm Brazed
To Indoor Unit
Liquid Pipe. . . . . . . . . . . . . . . . . . . . . 3/8" / 9.52 mm Flare
(1/4" / 6.35 mm with attached reducer used)
Gas Pipe . . . . . . . . . . . . . . . . . . . . . 5/8" / 15.88 mm Flare
(1/2" / 12.7 mm with attached reducer used,
3/4" / 19.05 mm and 7/8" / 22.2 mm
with optional port connector used)
Drainpipe. . . . . . . . . . . . . . . . . . . . . . . . O.D. 1-1/4" / 32 mm
options
□ Joint Adapter (Port connector). . . . . . . . . . . .CMY-R160-J
□ Branch Joint (T-Branch) . . . . . . . . . . . . . . CMY-102S-G2
Notes:

Model: CMB-P1016NU-G – DIMENSIONS
Drw. : CMB-P-NU-G_W659644
Unit : mm(in)
(2-17/32) (4-19/32)
64
116
(5-1/16)
128
250
(9-27/32)
700
(27-9/16)
(9/16)
Detail of X section Detail of Y section
(7-7/8)
(7-7/8)
200
298 (11-3/4)
(Lifting bolt pitch)
362 (14-9/32) 70
(2-25/32)
(2-25/32)
70
(3)
76
(2-5/16)
(1-3/32)
(2-3/8)
(11-3/16)
(10-1/16)
(5-1/16)
128
(2-17/32) (4-1/16)
248
(9-25/32)
(1-1/4)
(1-3/16)
30
12 (1/2)
Band(Accessory)
Drain hose(Accessory)
Drain piping
I.D.32 (1-1/4)
Connection pipe of outdoor/water-source unit(High pressure)
14
prepare in the field.
2.Take notice of service space as follows.
(Please give attention not to occupy service
space by letting ducts and pipes through.)
PQRY-P72: ø15.88 (5/8)
(use attachment pipe)
PQRY-P96: ø19.05 (3/4)
X
130 23
(5-1/8) (29/32)
Connection pipe of outdoor/water-source unit(Low pressure)
Y
A
B
(Lifting bolt pitch)
Control box
Service
space
103
60
1 2 3 4 5 6 7 8 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6
200
CMB-P105NU-G
CMB-P106NU-G
CMB-P108NU-G
CMB-P1010NU-G
CMB-P1013NU-G
200
(7-7/8)
CMB-P1016NU-G
A B C D
648
(25-17/32)
1098
(43-1/4)
702
(27-21/32)
1152
(45-3/8)
12
15
4
5
7
9
240(9-15/32)
300(11-13/16)
420(16-9/16)
540(21-9/32)
720(28-3/8)
900(35-7/16)
58
27
64
PQRY-P72: ø19.05 (3/4)
(use attachment pipe)
PQRY-P96: ø22.2 (7/8)
60(2-3/8)XC=D
Connection pipe of
indoor unit(Liquid)
284
Connection pipe of
indoor unit(Gas)
Access
door
255
Mitsubishi Electric Air Conditioning & Refrigeration Systems Works acquired ISO
based on a review of quality warranties for the production of refrigeration and air
conditioning equipment.
ISO Authorization System
The ISO 9000 series is a plant authorization system relating to quality warranties as
development, production, installation and auxiliary services" for products built at
an authorized plant.
Mitsubishi Electric Sales Canada Inc.
www.MitsubishiElectric.ca
Mitsubishi Electric Air Conditioning & Refrigeration Systems Works acquired environmental
The ISO 14000 series is a set of standards applying to environmental protection set by the
International Standard Organization (ISO).
Specifications are subject to change without notice.
SB_CMB-P1016NU-G_Single_201106
