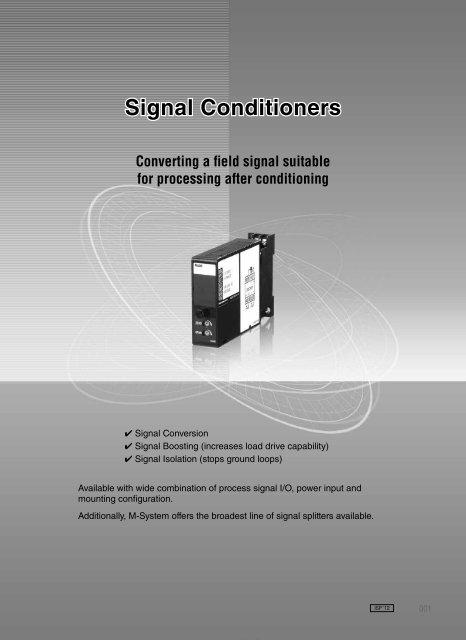

Signal Conditioners

Converting a field signal suitable

for processing after conditioning

✔ Signal Conversion

✔ Signal Boosting (increases load drive capability)

✔ Signal Isolation (stops ground loops)

Available with wide combination of process signal I/O, power input and

mounting configuration.

Additionally, M-System offers the broadest line of signal splitters available.

ISP ’12

001

A

008

Compact Plug-in

Mini-M Series


Two-wire


Power Transducers

Indicators

Limit Alarms

Gateway,

Remote I/O

Paperless Recording

System

PC Recorder

Electric Actuators

& Position Sensors

Lightning Surge

Protectors

M2 Series Signal Conditioners are designed to accept a largest range of process signal

inputs and provide a standard and non-standard DC output.

◆◆

M2 use a compact-size, plug-in socket base for

quick installation or replacement of modules without

disturbing wiring.

◆◆

2000V AC isolation

◆◆

Standard DIN rail or surface mounting

◆◆

Base socket included with modules

◆◆

Selectable 100–240V AC/24V DC power input

◆◆

Fixed range or PC programmable models

selectable

◆◆

CE marking and UL/C-UL Class 1 Div 2 approval

(selected models)

SPECIFICATIONS

EXTERNAL DIMENSIONS

mm (inch)


Product Selection Guide

Mini-M Series

Mini-MW Series

M6 Series

M5-UNIT Series

Construction

Connection

Housing material

Isolation

Operating temperature

Mounting

Dielectric strength

AC power input

DC power input

Plug-in

M3 screw terminals (torque 0.8 N·m)

Flame-resistant resin (black)

Input to output to power

-5 to +55°C (23 to 131°F)

Surface or DIN rail

2000V AC @1 minute

(input to output to power to ground)

Operational voltage range 85 – 264V

(90 – 264V for UL)

Operational voltage range for 24V ±10%,

11 – 27V, or 85 – 150V (110V ±10% for UL)

8-pin Mounted Modules

70.5 (2.78)

21.5 (.85)

DIN RAIL

35mm wide

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

8–M3

SCREW

10 (.39) 84 (3.31)

15 (.59)

114 (4.49)

[4 (.16)]

23 (.91)

1

5

9

6 (.23)

59 (2.32)

72 (2.83)

• When mounting, no extra space is needed between units.

8

4

12

14 13

4 (.16)

W5-UNIT Series


M3S-UNIT Series

20 Series

Pico-M Series


n DC Inputs, Isolators

Model Function Page

M2SN Input Loop Powered Isolator P.010

n Temperature & Sensor Inputs


M2XT2 Thermocouple Transmitter (PC programmable) P.026

MX-UNIT Series

M2XU Universal Transmitter (PC programmable) P.012

M2TS Thermocouple Transmitter P.028

M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series

M2XUM

Universal Transmitter

(PC programmable; Modbus-RTU communication)

P.014

M2XV2 Signal Transmitter (PC programmable) P.016

M2LV Signal Transmitter (field- and PC-configurable) P.018

M2VS Signal Transmitter P.019

M2FV Signal Transmitter (field-configurable) P.020

M2VF Signal Transmitter (high speed response) P.021

M2XR2 RTD Transmitter (PC programmable) P.030

M2LR RTD Transmitter (field- and PC-configurable) P.032

M2RS RTD Transmitter P.033

M2RR Resistance/Resistance Converter P.034

M2XM2 Potentiometer Transmitter (PC programmable) P.035

M2LPM

Potentiometer Transmitter

(field- and PC-configurable)

P.036

10-RACK Series



Rack-mounted

M2VF2

M2VF3

Signal Transmitter

(ultra-high speed response 30μsec.)


(high-accuracy, ultra-high speed response 30 μsec.)

P.022

P.023

M2VV Voltage Divider P.024

M2MS Potentiometer Transmitter P.037

M2LCS Strain Gauge Transmitter P.038

M2TG Tachogenerator Transmitter P.039

M2AC AC Transmitter P.040

M2PA PT Transmitter (average sensing, RMS calibrated) P.041

008

Data sheets available on Web in PDF. Visit M-System Data Library at www.m-system.co.jp ISP ’12

Compact Plug-in Mini-M Series

A

009



M2PE PT Transmitter (RMS sensing) P.042

M2CA CT Transmitter (average sensing, RMS calibrated) P.043

M2CE CT Transmitter (RMS sensing) P.044

M2CEC AC Current Transmitter (clamp-on current sensor) P.046

n DC Supplies


M2D Current Loop Supply (non-isolated) P.048

M2D2 Current Loop Supply (non-isolated) P.049

M2DYS Current Loop Supply P.050

M2DY Current Loop Supply P.051

M2DL

Current Loop Supply

(with square root extractor; non-isolated)

P.052

M2DNY Current Loop Supply (with square root extractor) P.053

M2DYH2 Current Loop Supply (applicable to HART signal) P.054

M2DYH Current Loop Supply (applicable to HART signal) P.055

M2DYHR Current Repeater (applicable to HART signal) P.056

M2DU Current Loop Supply (10-50mA loop) P.057

n Pneumatic Transducers


M2PV P/I Transducer P.058

n Limit Alarms


M2AVS DC Alarm P.060

M2SED DC Alarm (thumbwheel switch adjustments) P.062

M2AS

DC Alarm

(thumbwheel switch adjustments; DPDT output)

P.063

M2AS1

DC Alarm

(thumbwheel switch adjustments; single SPDT output)

P.064

n Frequency I/O


M2XPA3 Frequency Transmitter (PC programmable) P.066

M2SP Low Frequency Transmitter (50 Hz minimum) P.068

M2XRP2

Encoder Speed Transmitter

(PC programmable; built-in excitation)

P.070

M2AP DC/Frequency Converter P.072

M2PP Pulse Isolator P.074

M2PRU Pulse Scaler (field-configurable) P.076

n Function Modules


M2ADS Adder P.078

M2SBS Subtractor P.079

M2MLS Multiplier P.080

M2DIS Divider P.081

M2REB Ratio/Bias Transmitter (output bias) P.082

M2RTS Ratio/Bias Transmitter (input bias) P.084

M2XF2 Linearizer (PC programmable) P.086

M2FL Square Root Extractor (non-isolated) P.088

M2FLS Square Root Extractor (3-port isolation) P.089

M2LMS Limiter P.090

M2UDS2

Inverted Output Transmitter

(with simple loop test output)

P.091

M2UDS Inverted Output Transmitter P.092

M2CDS Delay Buffer P.093

M2CRS Ramp Buffer P.094

M2AMS2 Track/Hold (with simple loop test output) P.095

M2AMS Track/Hold P.096

M2PHS2 Peak Hold (with simple loop test output) P.097

M2PHS Peak Hold P.098

M2SES2 High/Low Selector (with simple loop test output) P.100

M2SES High/Low Selector P.101

M2MNV Analog Switching Module P.102

M2MST Parameter Generator P.104

n Installation Base


M2BS-16 Installation Base (16 positions) ***

M2BS-8 Installation Base (8 positions) ***

M2BS2 Installation Base ***

M2BC

Communication Controller

(Mitsubishi Control & Communication Link use) ***

M2BD Communication Controller (DeviceNet use) ***

n Accessories


P-M2 Socket Cover, M2BS use ***

M2BW Extender Module ***

M2DM Blank Filler Module ***

Two-wire



Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder




Protectors




Mini-M Series


M6 Series





20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series

Rack-mounted




To find a product in the list with “***”, visit M-System Data Library.

If you cannot find a product here, please contact: info@m-system.co.jp

ISP ’12

Specifications are subject to change without notice.

009

A

Four-wire



106

Compact Plug-in Signal Splitters

Two-wire



The W2 Series Signal Splitters provide two isolated outputs of independent ranges.


Indicators

◆◆

W2 use a compact-size, plug-in socket base for

quick installation or replacement of modules without

disturbing wiring.

Limit Alarms

Gateway,

Remote I/O

◆◆


◆◆

Standard DIN rail or surface mounting

◆◆

Base socket included with modules



PC Recorder

◆◆

Selectable 100–240V AC/24V DC power input

◆◆

Fixed range or PC programmable models

selectable



◆◆

CE marking and UL/C-UL Class 1 Div 2 approval

(selected models)


Protectors



mm (inch)



Mini-M Series


Construction

Connection


Isolation


Mounting




Plug-in



Input to output 1 to output 2 to power

-5 to +55°C (23 to 131°F)

Surface or DIN rail


(input to output 1 to output 2 to power to ground)


(90 – 264V for UL)


11 – 27V, or 85 – 150V (110V ±10% for UL)

89 (3.50)

53 (2.09)

23 (.91)

10 (.39)

84 (3.31)

114 (4.49)

DIN RAIL

35mm wide

[4 (.16)]

2–4.2x5

(.17x.20)

MTG HOLE

6 (.24) deep

11–M3

SCREW

6

9

3

2

5

1

4

8 7

11 10

22 (.87)

29.5 (1.16)

6 (.23)

59 (2.32)

72 (2.83)


M6 Series


n DC Inputs

n DC Supplies




20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series





Rack-mounted


W2VS Signal Transmitter P.107

W2VF Signal Transmitter (high speed response) P.108

n Temperature & Sensor Inputs


W2XT Thermocouple Transmitter (PC programmable) P.110

W2TS Thermocouple Transmitter P.112

W2XR RTD Transmitter (PC programmable) P.114

W2RS RTD Transmitter P.116

W2XM Potentiometer Transmitter (PC programmable) P.118

W2MS Potentiometer Transmitter P.119

W2TG Tachogenerator Transmitter P.120

W2AC AC Transmitter P.121

W2PA PT Transmitter (average sensing, RMS calibrated) P.122

W2PE PT Transmitter (RMS sensing) P.123

W2CA CT Transmitter (average sensing, RMS calibrated) P.124

W2CE CT Transmitter (RMS sensing) P.125


W2DYS Current Loop Supply P.126

W2DY Current Loop Supply P.127

W2DNY Current Loop Supply (with square root extractor) P.128

W2DYH Current Loop Supply (applicable to HART signal) P.129

n Pneumatic Transducers


W2PV P/I Transducer P.130

n Frequency I/O


W2SP Low Frequency Transmitter (50 Hz minimum) P.131

W2AP DC/Frequency Converter P.132

W2PP Pulse Isolator P.134

n Function Modules


W2XF Linearizer (PC programmable) P.136

W2VABS Absolute Value Output Transmitter P.137

106


A

138

Ultra-Slim

M6 Series


Two-wire



Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder




Protectors

Ultra-slim, Space saving, Low power consumption.

High performance transmitters with wide selection of input and output ranges.

◆◆

Selectable connection method – Tension-Clamp, Screw terminal or Euro terminal.

◆◆

Output load resistance 550Ω (at 4–20mA DC)

◆◆

Low power consumption

◆◆

Front power LED provided

◆◆

Fixed range or PC programmable models selectable. User-friendly versatile programming features provided.

◆◆

Status LED for PC programmable models.

◆◆


◆◆

Optional fast response: Approx. 3.5 msec,

voltage output (M6xYV)

◆◆

AC Power input available (M6xXU, M6xYV, M6xVS)


Tension-Clamp

(M6S Series)

Screw Terminal

(M6N Series)

Euro Terminal

(M6D Series)



Mini-M Series


M6 Series

Construction

Ultra-slim

M6S: Tension clamp

Connection

M6N: M3 screw terminal (torque 0.5 N·m)

M6D: Euro terminal (torque 0.3 N·m)

Housing material Flame-resistant resin (black)

Isolation

Input to output to power/


Operating temperature -20 to +55°C (-4 to +131°F)

Mounting

DIN rail




AC Power input


(M6xXU, M6xYV, M6xVS)

DC Power input Operational voltage range 24V ±10%

5.9mm

(0.23”)

7.5mm

(0.30”)

5.9mm

(0.23”)





20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series



M6xSN Input Loop Powered Isolator P.141

M6xYV Isolator P.142

M6xXU Universal Transmitter (PC programmable) P.144

M6xXV Signal Transmitter (PC programmable) P.146

M6xVS Signal Transmitter P.148

M6xVF


(high-accuracy, ultra-high speed response 30 μsec.)

P.149

M6xWVS Signal Transmitter (two isolated outputs) P.150

M6xXT Thermocouple Transmitter (PC programmable) P.152


M6xPP Pulse Isolator P.162

M6xXAS DC Alarm (PC programmable) P.164

M6xXAT Thermocouple Alarm (PC programmable) P.166

M6xXAR RTD Alarm (PC programmable) P.168

M6xXF1 Function Module (PC programmable) P.170

M6xXF2 2-input Math Function Module (PC programmable) P.174

M6xXF3 Hold Function Module (PC programmable) P.176

n Accessories

x=S, N or D

F-UNIT Series

M6xXR RTD Transmitter (PC programmable) P.154


H-UNIT Series

M6xXM Potentiometer Transmitter (PC programmable) P.156

M6xBS Installation Base P.178

M6xDY Current Loop Supply P.157

M6xPS1 Power Supply Module P.179




Rack-mounted

M6xCTC CT Transmitter (clamp-on current sensor) P.158

M6xPA Frequency Transmitter P.159

M6xXAP DC/Frequency Converter (PC programmable) P.160

x=S, N or D

M6xPS2 Power Supply Module (dual redundant) P.180

M6-PSM Power Supply Module P.181

M6xDM Blank Filler Module P.182

x=S, N or D

138


Ultra-Slim M6 Series

A

139


n Tension-Clamp Ultra-Slim Signal Conditioners M6S Series

Two-wire


◆◆

5.9 mm (0.23”) wide ultra-slim design


mm (inch)


◆◆

Spring terminal provides constant force, eliminating

torque management, maintenance- free for retightening

5 6 7 8

DIN RAIL HOOK

Indicators

DIN RAIL

35mm wide

Limit Alarms

94 (3.70)

Gateway,

Remote I/O



5.9 (.23)

1 2 3 4

102 (4.02) [0.5 (.02)]


PC Recorder




Protectors

n Screw Terminal Ultra-Slim Signal Conditioners M6N Series

◆◆



mm (inch)

◆◆

Self-up screw style prevents falling off a terminal

8–M3

SCREW TERMINAL



5 6 7 8

DIN RAIL HOOK

DIN RAIL

35mm wide

Mini-M Series

102 (4.02)


M6 Series

n Euro Terminal Ultra-Slim Signal Conditioners M6D Series

◆◆


◆◆

Space saving euro type terminal

7.5 (.30)


8–M3

EURO TERMINAL

1 2 3 4

102 (4.02)

[1 (.04)]


5 6 7 8

DIN RAIL HOOK

DIN RAIL

35mm wide

mm (inch)






20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series

94 (3.70)

1 2 3 4

Rack-mounted




5.9 (.23)

102 (4.02)

[0.5 (.02)]


ISP ’12


139

A


140 Ultra-Slim M6 Series

Two-wire



Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder




Protectors

n Installation Base model: M6xBS

◆◆

Power supplied to signal conditioners from the power supply module

(via the installation base). Spring terminal provides constant force,

eliminating torque management, maintenance- free for retightening

◆◆

High-density mounting: 16 units (M6D) in a space of 9.5 cm (3.75”)

◆◆

Holding up to 48 modules of M6 Series using 6 installation bases.

Max.

48 modules

Installation Base

(Model : M6xBS)

Power supply module

(Model : M6xPS1)

or

For redundant

power supplies

(Model : M6xPS2)

9.5 cm

(3.75”)

Power supply through the backplane bus

16 modules in a 9.5 cm- (3.75 in.-)

wide space (M6S/M6D)

Less than 30 cm (12 in.)

with 48 modules (M6S/M6D)




mm (inch)

Mini-M Series

n M6SBS

n M6NBS

n M6DBS

1.5 (.45)

14

(.55)

70 (2.76)


M6 Series





20 Series

Pico-M 49 (1.93) Series[3 (.12)]

37 (1.46)

MX-UNIT Series 3–4.5 (.18) dia.

MTG HOLE

M-UNIT Series 2 (.08) deep

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series





Rack-mounted

11.5 (.45)

99 (3.90)

70 (2.76)

5 (.20)

5 (.20)

14

(.55)

11.5 (.45)

101 (3.98)

72 (2.83)

5 (.20)

5 (.20)

14

(.55)

116 (4.57)

49 (1.93)

37 (1.46)

[3 (.12)]

3–4.5 (.18) dia.

MTG HOLE

2 (.08) deep

27 (1.06) [5 (.20)]

61.6 (2.43) [3 (.12)]

3–4.5 (.18) dia.

MTG HOLE

2 (.08) deep

22.5

49.8 (1.96)

(.89)

14

(.55)

49 (1.93)

DIN RAIL

35mm wide

18 (.71)

11.5 (.45)

101 (3.98)

72 (2.83)

5 (.20)

5 (.20)

14

(.55)

116 (4.57)

61.627 (2.43) (1.06) [5 (.20)] [3 (.12)]

3–4.5 (.18) dia.

MTG HOLE

2 (.08) deep

49.8 (1.96) 22.5

(.89)

11.5 (.45)

99 (3.90)

70 (2.76)

5 (.20)

5 (.20)

14

(.55)

116 (4.57)

14

(.55)

49 (1.93)

DIN RAIL

35mm wide

18 (.71)

2749 (1.06) (1.93) [5 (.20)] [3 (.12)]

37 (1.46)

3–4.5 (.18) dia.

MTG HOLE

2 (.08) deep

22.5

(.89)

2 (.08)

51 (2.01)

DIN RAIL

35mm wide

11.5 (.45)

99 (3.90)

70 (2.76)

5 (.20)

5 (.20)

14

(.55)

116 (4.57)

116 (4.57)

49 (1.93) 27 (1.06) [3 [5(.12)]

(.20)]

37 (1.46)

3–4.5 (.18) dia.

MTG HOLE

2 (.08) deep

22.5

(.89)

2 (.08)

51 (2.01)

DIN RAIL

35mm wide

27 (1.06) [5 (.20)]

22.5

(.89)

14

(.55)

49 (1.93)

DIN RAIL

35mm wide

116 (4.57)

140


A

184

Low Profile



Two-wire



Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder




Protectors

M-System's M5 Series Transmitters are designed to accept a wide variety of process

signal input and provide a standard and non-standard DC output.

◆◆

Only 41 mm (1.61 in") deep modules can be

installed anywhere, even behind the panel cover

◆◆

The M5 Series features single channel four-wire

models

◆◆

Standard DIN rail mounting

◆◆

2000V AC isolation (1500V AC for AC powered)

◆◆

Selectable power input 24V DC, 85–264V AC

◆◆

Power indicator LED



mm (inch)



Mini-M Series


M6 Series



Construction

Terminal block

Connection

M3.5 screw terminals

(nickel-plated steel; torque 0.8 N·m)

Housing material Flame-resistant resin (black)

Isolation


Operating temperature -5 to +55°C (23 to 131°F)

Power LED

Green light turns on when the power is supplied

Mounting

DIN rail


DC powered

AC powered

High dielectric strength

Input to output to power to ground



2000V AC @1 minute (model: M5VSH)



DC power input Operational voltage range for 24V ±10%

94 (3.70)

3 (.12)

7.3 (.29)

1 2

3 4

5 6

7 8

8–M3.5 SCREW

35.4 (1.39)

25 (.98) 41 (1.61) [3.3 (.13)]

DIN RAIL

35mm wide




20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series



M5SN Input Loop Powered Isolator P.185

M5VS Signal Transmitter P.186

M5MV Signal Transmitter (narrow span input) P.187

M5VF Signal Transmitter (high speed response) P.188

M5VSH Signal Transmitter (high dielectric strength) P.189

M5TS Thermocouple Transmitter P.190

M5RS RTD Transmitter P.192

M5MS Potentiometer Transmitter P.193


M5PT PT Transmitter P.195




Rack-mounted

M5CT CT Transmitter P.196

M5CTC CT Transmitter (clamp-on current sensor) P.198

M5PA Frequency Transmitter P.200

184


A

202

Low Profile Signal Splitters



Two-wire



Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder

W5 Series Dual Output Transmitters are designed to accept a wide variety of process

signal input and provide a standard and non-standard DC output.

◆◆

Only 41 mm (1.61 in") deep modules can be

installed anywhere, even behind the panel cover

◆◆

The W5 Series signal splitters provide two isolated

DC outputs of independent ranges

◆◆

Standard DIN rail mounting

◆◆


◆◆

Selectable power input 11–27 V DC, 85–264V AC,

110V DC




Protectors



mm (inch)

Construction

Terminal block

7.4 (.29)

5–M3.5 SCREW



Mini-M Series


M6 Series



Connection

Input

Output & Power


Isolation


Mounting




M3.5 screw terminals (torque 0.8 N·m)




-5 to +55°C (23 to 131°F)

DIN rail

2000V AC @1 minute (input to output 1 or

output 2 to power to ground)

1000V AC @1 minute (output 1 to output 2)



11 – 27V, or 85 – 150V

94 (3.70)

3 (.12)

1

6

7

2

8

3

9

4

10

5

11

6 (.24)

45 (1.77) 41 (1.61) [3.3 (.13)]

6–M3 SCREW

DIN RAIL

35mm wide




20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series



W5VS Signal Transmitter P.203

W5FV Signal Transmitter (field-configurable) P.204

W5TS Thermocouple Transmitter P.206

W5RS RTD Transmitter P.208

W5MS Potentiometer Transmitter P.209

W5DY Current Loop Supply P.210

W5LCS Strain Gauge Transmitter P.211

W5PA Frequency Transmitter P.212




Rack-mounted

202


A

214

Thin Profile



Two-wire



Indicators

Limit Alarms

PC Programmable; “ONE-STEP CAL” Programming Without Needing a PC is also available.

◆◆

Easy and precise field configurable I/O ranges

◆◆

Enhanced PC Configurator Software

◆◆


◆◆

18 mm (0.71”) thin profile DIN rail mounting

Gateway,

Remote I/O



PC Recorder




Protectors



Mini-M Series


M6 Series





20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series





Rack-mounted


Construction

Connection


Isolation

Calibration

Status indicator LED


Mounting


Power input

AC

DC

Universal

(M3DY)

Front terminal access

Removable terminal block

Flame-resistant resin (gray)


One-Step Cal

Tri-color (green/amber/red) LED

-25 to +65°C (-13 to +149°F)

-25 to +60°C (-13 to +140°F) (M3LU2)

Max. 55°C (131°F) for UL approval

DIN rail

AC powered (M3LU2, M3LU, M3DY):



DC powered:


(input to output or power to ground)

500V @1 minute (output to power)

Operational voltage range 85 – 264V AC

(M3LU2, M3LU, M3LPA2)

Operational voltage range 9 – 36V DC

Operational voltage range 24V DC ±10% (M3LDY)

AC: Operational voltage range 90 – 264V

47 – 66 Hz

DC: Operational voltage range 21.6 – 264V,

24V ±10%


M3LU2 Universal Transmitter (field- and PC-configurable) P.216

M3LU Universal Transmitter (field- and PC-configurable) P.218

M3LV Signal Transmitter (field- and PC-configurable) P.220

M3LT

Thermocouple Transmitter


P.222

M3LR RTD Transmitter (field- and PC-configurable) P.224

M3LM

Potentiometer Transmitter


P.226

M3LLC

M3LDY

Strain Gauge Transmitter


Current Loop Supply

(linearizing; field- and PC-configurable)

P.227

P.228


M3LPA2 Frequency Transmitter (field- and PC-configurable) P.232


106 (4.17)

10 11 12

7 8 9

1 2 3

4 5 6

62 (2.44)

18 (.71) 110.5 (4.35)

[5 (.20)]


mm (inch)

DIN RAIL

35mm wide

214


Thin Profile M3-UNIT Series

A

215


n “ONE-STEP CAL” Configuration

Both input type & range and output type & range are totally independent to each

other, which makes the calibration easier and quicker than ever.

Simply by pushing the front control buttons, “ONE-STEP CAL” programming is

possible without requiring personnel to have any special knowledge to do so.

Two-wire



Indicators

Limit Alarms

LED

The front LED’s colors and flashing patterns help you

easily identify the transmitter’s status and confirm the

setup actions in each step of Calibration Modes.

MODE Button

UP Button

DOWN Button

Gateway,

Remote I/O



PC Recorder

n Enhanced PC Configurator Software

When you need to apply the same setting to multiple transmitters, downloading

one setting from the PC is convenient. The PC Configurator software is available to

download at M-System web site.

M3 PC Configurator is packed with advanced features such as:




Protectors

• Parameter setting is easily configured with a help of bargraphs on the screen.

• Trend graph monitoring is also possible.

• Fixed analog output can be set and provided for simulation

when conducting a loop test.

• 128-point linearization and custom thermocouple/RTD tables

• Fine calibration

• Save configuration files

• Input filter

• Diagnostics

Sensor Information with Trend Graph Analog Output Calibration File Management (Compare)



Mini-M Series


M6 Series






20 Series

Pico-M Series


M-UNIT Series

n EXTERNAL VIEW

W-UNIT Series

K-UNIT Series

F-UNIT Series

■ FRONT VIEW

LED1 (LD1)

■ SIDE VIEW

H-UNIT Series

10 11 12

7 8 9

LED2 (LD2)

LED3 (LD3)

Configuration DIP SW

MODE Button

UP Button

DOWN Button

Configurator Jack

4321

OFF

ON

SW1

SW2

Rack-mounted




8 7654321

OFF

SW3

ON

4 5 6

432 1

OFF

ON

ISP ’12


215

A

234

Thin Profile



Two-wire



Indicators

Limit Alarms

Universal AC/DC power input models available.

◆◆

Super-space-saving 12mm (0.47") width

◆◆

Universal AC/DC power input available

◆◆

PC programmable models available

◆◆

DC input model with optional fast response time

Gateway,

Remote I/O



PC Recorder




Protectors



mm (inch)



Mini-M Series


Construction

Front terminal access

Connection

Removable terminal block

Housing material Flame-resistant resin (gray)

Isolation

Input to output to power/


Operating temperature -10 to +55°C (14 to 131°F)

Mounting

DIN rail




AC Operational voltage range 90 – 264V

Power input

DC Operational voltage range 24V DC ±10%,

Universal

AC: Operational voltage range 90 – 264 V AC

DC: Operational voltage range 21.6 – 264 V DC

106 (4.17)

7 8

5 6

1 2

3 4

12

(.47)

62 (2.44)

110.5 (4.35)

[5 (.20)]

DIN RAIL

35mm wide


M6 Series





20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series



M3SYV Isolator P.235

M3SXV Signal Transmitter (PC programmable) P.236

M3SVS Signal Transmitter P.237

M3SWVS Signal Transmitter (two isolated outputs) P.238

M3SXT Thermocouple Transmitter (PC programmable) P.239

M3SXR RTD Transmitter (PC programmable) P.240

M3SRS RTD Transmitter P.241

M3SXM Potentiometer Transmitter (PC programmable) P.242

M3SMS Potentiometer Transmitter P.243

M3SDY Current Loop Supply P.244

F-UNIT Series

H-UNIT Series




Rack-mounted

234


A

246

Hybrid IC Isolation Amplifiers

20 Series


Two-wire



Isolation amplifiers provide signal and power isolation for data acquisition components to

protect them from noises present at remote devices.

Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder




Protectors



Model

20VS1A

Function

Isolation Amplifier (high speed response, 3-port isolation)

Model

20VS5-150

Function

Isolation Amplifier (input isolation)

20VS2-1

Isolation Amplifier (input isolation)

20VS5-140

Isolation Amplifier (output isolation)

Mini-M Series


M6 Series





20 Series

Pico-M Series


20VS2-2

20VS2-3

20VS2-4

20VS2-01

20VS2-02

20VS3

20VS4-384

20VS5-100

Isolation Amplifier (output isolation)

Isolation Amplifier (input isolation for narrow span)

Isolation Amplifier (output isolation, current output)

Isolation Amplifier (3-port isolation)



Isolation Amplifier (5 kV input isolation)

Isolation Amplifier (bidirectional amplifier)

20VS5-170

20VS5-200

20VS5-500

20VS8-210

20VF-1

20VF-2

Isolation Amplifier (output isolation, for current output)

Isolation Amplifier

(input isolation, ultra-high speed response)

Isolation Amplifier (5 kV input isolation)

Isolation Amplifier (high speed response, 3-port isolation)


(input isolation, ultra-high speed response)


(output isolation, ultra-high speed response)


M-UNIT Series

W-UNIT Series

K-UNIT Series

20VS1A

20VS2-x

20VS2-0x

20VS3

20VS4-384

F-UNIT Series

H-UNIT Series




Rack-mounted

20VS5-100, 150, 140 20VS5-170 20VS5-200 20VS5-500

20VS8-210

20VF-x

246


Hybrid IC Isolation Amplifiers 20 Series

A

247



◆ 2-port Isolation

■ Input Isolation

Model Features Input Output

Response Time

(0 – 90 %)

Freq.

Characteristics

Power

Input

20VF-1 Ultra-high speed response -10 – +10V DC -10 – +10V DC ≤ 80 μsec. Approx. 5 kHz, -3 dB 15V DC

20VS2-1 Built in surge protectors -10 – +10V DC -10 – +10V DC ≤ 450 μsec. Approx. 1 kHz, -3 dB 15V DC

Dimensions

mm (inch)

W49 × H14.5 × D18

(1.93” × 0.57” × 0.71”)

W49 × H14.5 × D18

(1.93” × 0.57” × 0.71”)

20VS2-3 Narrow span

-10 – +100mV DC

≤ 200 msec. Approx. 2 Hz, -3 dB

0 – 10V DC

15V DC

W49 × H14.5 × D18

0 – 5V DC ≤ 450 μsec. Approx. 1 kHz, -3 dB

(1.93” × 0.57” × 0.71”)

20VS4-384 Up to 5 kV input isolation -5 – +5 V DC -5 – +5 V DC ≤ 450 μsec. 1 kHz, -3 dB 15V DC

W38 × H15.2 × D38

(1.50” × 0.60” × 1.50”))

• Small installation area in

@ 15 V power

20VS5-150

printed wiring board -7 – +7 V DC -7 – +7 V DC

≤ 90 μsec. Approx. 5 kHz, -3 dB 15V DC

W53 × H24 × D18

• Gain adjustable range,

@ 11.5 V power

(2.09” × 0.94” × 0.71”)

× 1 to × 100

-5 – +5 V DC -5 – +5 V DC

20VS5-200 Ultra-high speed response -5 – +5 V DC -5 – +5 V DC ≤ 10 μsec. Approx. 50 kHz, -3 dB 15V DC

W48 × H15 × D9.5

(1.89” × 0.59” × 0.37”)

20VS5-500 Up to 5 kV input isolation -5 – +5 V DC -5 – +5 V DC ≤ 90 μsec. 5 kHz, -3 dB TYP. 15V DC

W38 × H15.2 × D38

(1.50” × 0.60” × 1.50”)

Two-wire



Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder




Protectors

■ Output Isolation


Response Time

(0 – 90 %)

Freq.


Power

Input

20VF-2 Ultra-high speed response -10 – +10V DC -10 – +10V DC ≤ 80 μsec. Approx. 5 kHz, -3 dB 15V DC

20VS2-2 Built in surge protectors -10 – +10V DC -10 – +10V DC ≤ 450 μsec. Approx. 1 kHz, -3 dB 15V DC

0 – 20mA DC

20VS2-4 Voltage and current output 0 – 5V DC

0 – 10V DC

@ 15 V power

20VS5-140

Small installation area in -7 – +7 V DC -7 – +7 V DC

printed wiring board


-5 – +5 V DC -5 – +5 V DC

≤ 2 msec. Approx. 200 Hz, -3 dB 15V DC


20VS5-170 Current output 0 – 5 V DC 0 – 20 mA DC ≤ 1 msec. Approx. 500 Hz, -3 dB 12V DC

■ Bidirectional Isolation


20VS5-100

◆ 3-port Isolation

• Small installation area in

printed wiring board

• Bidirectional amplifier

@ 15 V power

-7 – +7 V DC -7 – +7 V DC


-5 – +5 V DC -5 – +5 V DC


Response Time

(0 – 90 %)

Freq.


Power

Input


Response Time

(0 – 90 %)

Freq.


Power

Input

20VS1A High speed response -10 – +10 V DC -10 – +10 V DC ≤ 50 μsec. Approx. 20 kHz, -3 dB 15V DC

20VS2-01 High-linearity -5 – +5 V DC -5 – +5 V DC ≤ 390 μsec. Approx. 1 kHz, -3 dB 15V DC

20VS2-02 High-linearity 0 – 5 V DC 0 – 5 V DC ≤ 390 μsec. Approx. 1 kHz, -3 dB 15V DC

20VS3 Saving installation space -5 – +5V DC -5 – +5V DC ≤ 450 μsec. Approx. 1 kHz, -3 dB 15V DC

20VS8-210 High speed response -10 – +10 V DC -10 – +10 V DC ≤ 50 μsec. Approx. 20 kHz, -3 dB 15V DC

Dimensions

mm (inch)

W49 × H14.5 × D18

(1.93” × 0.57” × 0.71”)

W49 × H14.5 × D18

(1.93” × 0.57” × 0.71”)

W49 × H14.5 × D18

(1.93” × 0.57” × 0.71”)

W53 × H24 × D18

(2.09” × 0.94” × 0.71”)

W44 × H10.5 × D18

(1.73” × 0.41” × 0.71”)

Dimensions

mm (inch)

W53 × H24 × D18

(2.09” × 0.94” × 0.71”)

Dimensions

mm (inch)

W53.3 × H26 × D11.3

(2.1” × 1.02” × 0.44”)

W33 × H8 × D19

(1.30” × 0.31” × 0.75”)

W33 × H8 × D19

(1.30” × 0.31” × 0.75”)

W33 × H19 × D8

(1.30” × 0.75” × 0.31”)

W53.3 × H9.8 × D25.4

(2.1” × 0.39” × 1”)




Rack-mounted

Mini-M Series


M6 Series





20 Series

Pico-M Series


M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series




ISP ’12


247

248A


Two-wire



Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder

Other Signal Conditioners

Pico-M/ MX-UNIT/ M-UNIT/

W-UNIT/ K-UNIT/ F-UNIT Series

Dual Output Super-mini Signal Conditioners

Pico-M Series

Wide Variety of I/O Modules

◆◆Ultra-small size thanks to surface-mounted components

with low heat generating design

◆◆4-way isolation

◆◆Continuously selectable input ranges

◆◆4–20mA 2nd output available

Plug-in Front Configurable


Field Configurable

◆◆Local LED display indicates input in engineering unit

◆◆The display helps programming with the front ITEM/

DATA buttons.

◆◆2000V AC isolation




Protectors

Plug-in

M-UNIT Series

Plug-in Signal Splitters

W-UNIT Series



Mini-M Series

Plug-in type

◆◆LCD display optional


Plug-in signal splitters

◆◆Two independent output ranges can be specified.



M6 Series





20 Series

Pico-M Series



Plug-in

K-UNIT Series

Space-saving Plug-in

F-UNIT Series

M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

Plug-in type

◆◆Low cost

◆◆Wide selection of power transducers

Space-saving type

◆◆Zero & span adjustments behind access door

H-UNIT Series




Rack-mounted

248


Other Signal Conditioners

H-UNIT/ 10-RACK/ 18-RACK/

38-RACK Series and Others

Space-saving Plug-in

H-UNIT Series

Space-saving type

◆◆Pneumatic transducers available

Dual Output


One-input, two isolated outputs

◆◆Up to 16 units in 19-inch rack

◆◆Optional 40-pin connector for outputs

◆◆Direct interface to Various DCS via connector

A249


Two-wire



Indicators

Limit Alarms

Gateway,

Remote I/O



PC Recorder




Protectors

DCS Front End


Connectors compatible to various DCS

◆◆Up to 16 units in 19-inch rack

◆◆Direct interface to Various DCS via connector

◆◆Dual outputs standard

Interposing Relays


Greatly simplifies designing, installation, wiring and

testing of interposing relays.

◆◆Complete packaging for interposing relays

◆◆Plug to plug connection controller

◆◆I/O simulator function



Mini-M Series


M6 Series



DC Power Supply

model: MDC5 / MDC6 / MDC7




20 Series

Pico-M Series


◆◆Accepts 100–240V AC and provides regulated

24V DC output (60W / 120W / 240W)

◆◆Maintenance forecast monitor function

M-UNIT Series

W-UNIT Series

K-UNIT Series

F-UNIT Series

H-UNIT Series

Rack-mounted




ISP ’12


249

Signal Conditioners - M-System

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
