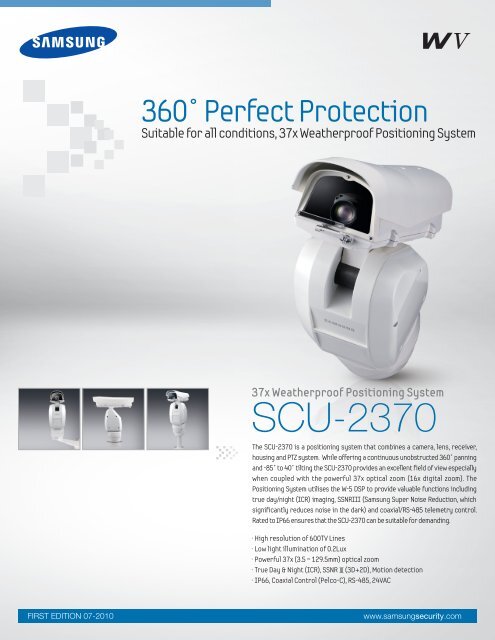

SCU-2370
The SCU-2370 is a positioning system that combines a camera, lens, receiver,
housing and PTZ system. While offering a continuous unobstructed 360° panning
and -85° to 40° tilting the SCU-2370 provides an excellent field of view especially
when coupled with the powerful 37x optical zoom (16x digital zoom). The
Positioning System utilises the W-5 DSP to provide valuable functions including
true day/night (ICR) imaging, SSNRIII (Samsung Super Noise Reduction, which
significantly reduces noise in the dark) and coaxial/RS-485 telemetry control.
Rated to IP66 ensures that the SCU-2370 can be suitable for demanding.
• High resolution of 600TV Lines
• Low light illumination of 0.2Lux
• Powerful 37x (3.5 ~ 129.5mm) optical zoom
• True Day & Night (ICR), SSNRⅢ(3D+2D), Motion detection
• IP66, Coaxial Control (Pelco-C), RS-485, 24VAC
FIRST EDITION 07-2010
www.samsungsecurity.com

37x Weatherproof Positioning System
SCU-2370
Accessories
Wall Mount
SBU-500WM
Specifications
Video
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution
Min. Illumination
S / N Ratio
Video Output
Lens Type
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Focus Control
Zoom Movement Speed
Lens Type
Pan / Tilt
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Preset
Preset Accuracy
Operational
On Screen Display
Camera Title
Day & Night
Backlight Compensation
Contrast Enhancement
Digital Noise Reduction
Digital Image Stabilization
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Digital Zoom
Schedule
IR Illuminator(Optional)
Alarm
Communication
Protocol
Environmental
Operating Temperature / Humidity
Ingress Protection
Electrical
Input Voltage/Current
Power Consumption
Mechanical
Color / Material
Dimension (WxHxD)
Weight
Dimensions
SCU-2370N
1/4" Ex view HAD CCD
811(H) x 508(V)
768(H) x 494(V)
2 : 1 Interlace
Internal / Line Lock
H : 15.734KHz / V : 59.94Hz
Color : 600 TV lines / B/W : 700 TV lines
Color : 0.2Lux @ F1.6, 0.0004 Lux (Sens-up, 512x)
B/W : 0.02 Lux @ F1.6, 0.00004 Lux (Sens-up, 512x)
52dB (AGC off, Weight on)
CVBS : 1.0 Vp-p / 75Ω composite
3.5~129.5mm (Optical 37x)
1:1.6 (Wide) ~ 3.9 (Tele)
H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)
150cm
Auto / Manual / One Shot
2.8 sec
DC Auto Iris
360° Endless
Preset : 0.1°~100°/sec, Manual : 0.1°/sec ~ 30°/sec (Turbo : 100°/sec)
-85° ~ 40°
Preset : 0.1°~30°/sec, Manual : 0.1°/sec ~ 30°/sec
255
±0.1º
795(H) x 596(V)
752(H) x 582(V)
Internal / Line Lock
H : 15.625KHz / V : 50Hz
SCU-2370P
English, Chinese, French, German, Spanish, Italian, Portuguese
Off / On (Displayed 12 characters)
Color / B/W / Auto
Off / HLC / BLC
SSDR (Off / On)
SSNR (Off / On)
Off / On
Off / On
Off / On (8 area)
2x ~ 512x
Off / Low / Medium / High / Manual
ATW / Indoor / Outdoor / Manual / AWC
Auto(1/60 ~ 1/120,000 sec) / Manual / A.FLK
Auto(1/50 ~ 1/120,000 sec) / Manual / A.FLK
Off / On (2x ~ 16x)
Day / Time
On/On(1~60(sec), 1~60(min)) / Off
3 In 2 Out 1 Aux
RS-485, Coaxial Control (SPC-300 Compatible)
Coax : Pelco-C (Coaxitron)
RS-485 : Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Vicon, Honeywell, AD, GE, Bosch
-50°C ~ +50°C (-58°F ~ +122°F) / Less than 90% RH
IP66
24VAC±10%
Max. 40W / Max. 144W (Heater & Fan)
Ivory / Aluminum
217.3(8.6") x 587.5(23.1") x 500(19.7")
17.5Kg
Unit : mm (inch)
