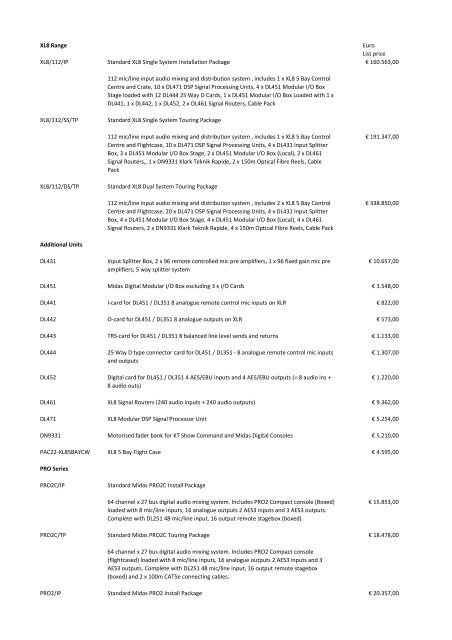

XL8 Range<br />
Euro<br />
List price<br />
XL8/112/IP Standard XL8 Single System Installation Package € 160.563,00<br />
112 mic/line input audio mixing and distribution system , includes 1 x XL8 5 Bay Control<br />
Centre and Crate, 10 x DL471 DSP Signal Processing Units, 4 x DL451 Modular I/O Box<br />
Stage loaded with 12 DL444 25 Way D Cards, 1 x DL451 Modular I/O Box Loaded with 1 x<br />
DL441, 1 x DL442, 1 x DL452, 2 x DL461 Signal Routers, Cable Pack<br />
XL8/112/SS/TP<br />
Standard XL8 Single System Touring Package<br />
112 mic/line input audio mixing and distribution system , includes 1 x XL8 5 Bay Control € 191.347,00<br />
Centre and Flightcase, 10 x DL471 DSP Signal Processing Units, 4 x DL431 Input Splitter<br />
Box, 3 x DL451 Modular I/O Box Stage, 2 x DL451 Modular I/O Box (Local), 2 x DL461<br />
Signal Routers,, 1 x DN9331 Klark Teknik Rapide, 2 x 150m Optical Fibre Reels, Cable<br />
Pack<br />
XL8/112/DS/TP<br />
Standard XL8 Dual System Touring Package<br />
112 mic/line input audio mixing and distribution system , includes 2 x XL8 5 Bay Control € 338.850,00<br />
Centre and Flightcase, 20 x DL471 DSP Signal Processing Units, 4 x DL431 Input Splitter<br />
Box, 4 x DL451 Modular I/O Box Stage, 4 x DL451 Modular I/O Box (Local), 4 x DL461<br />
Signal Routers, 2 x DN9331 Klark Teknik Rapide, 4 x 150m Optical Fibre Reels, Cable Pack<br />
Additional Units<br />
DL431 Input Splitter Box, 2 x 96 remote controlled mic pre amplifiers, 1 x 96 fixed gain mic pre € 10.657,00<br />
amplifiers, 5 way splitter system<br />
DL451 Midas Digital Modular I/O Box excluding 3 x I/O Cards € 3.548,00<br />
DL441 I‐card for DL451 / DL351 8 analogue remote control mic inputs on XLR € 822,00<br />
DL442 O‐card for DL451 / DL351 8 analogue outputs on XLR € 573,00<br />
DL443 TRS‐card for DL451 / DL351 8 balanced line level sends and returns € 1.133,00<br />
DL444 25 Way D type connector card for DL451 / DL351 ‐ 8 analogue remote control mic inputs € 1.307,00<br />
and outputs<br />
DL452 Digital card for DL451 / DL351 4 AES/EBU inputs and 4 AES/EBU outputs (= 8 audio ins + € 1.220,00<br />
8 audio outs)<br />
DL461 XL8 Signal Routers (240 audio inputs + 240 audio outputs) € 9.362,00<br />
DL471 XL8 Modular DSP Signal Processor Unit € 5.254,00<br />
DN9331 Motorised fader bank for KT Show Command and Midas Digital Consoles € 5.210,00<br />
PAC22‐XL85BAYCW XL8 5 Bay Flight Case € 4.595,00<br />
PRO Series<br />
PRO2C/IP<br />
Standard Midas PRO2C Install Package<br />
64 channel x 27 bus digital audio mixing system. Includes PRO2 Compact console (Boxed) € 15.853,00<br />
loaded with 8 mic/line inputs, 16 analogue outputs 2 AES3 inputs and 3 AES3 outputs.<br />
Complete with DL251 48 mic/line input, 16 output remote stagebox (boxed).<br />
PRO2C/TP Standard Midas PRO2C Touring Package € 18.478,00<br />
64 channel x 27 bus digital audio mixing system. Includes PRO2 Compact console<br />
(flightcased) loaded with 8 mic/line inputs, 16 analogue outputs 2 AES3 inputs and 3<br />
AES3 outputs. Complete with DL251 48 mic/line input, 16 output remote stagebox<br />
(boxed) and 2 x 100m CAT5e connecting cables.<br />
PRO2/IP Standard Midas PRO2 Install Package € 20.357,00
64 channel x 27 bus digital audio mixing system. Includes PRO2 console (Boxed) loaded<br />
with 8 mic/line inputs, 16 analogue outputs 2 AES3 inputs and 3 AES3 outputs. Complete<br />
with DL251 48 mic/line input, 16 output remote stagebox (boxed).<br />
PRO2/TP Standard Midas PRO2 Touring Package € 22.844,00<br />
64 channel x 27 bus digital audio mixing system. Includes PRO2 console (flightcased)<br />
loaded with 8 mic/line inputs, 16 analogue outputs 2 AES3 inputs and 3 AES3 outputs.<br />
Complete with DL251 48 mic/line input, 16 output remote stagebox (boxed) and 2 x<br />
100m CAT5e connecting cables.<br />
PRO2C/CC/IP PRO2C Control Centre (Boxed) € 12.743,00<br />
Surface only<br />
64 channel x 27 bus digital audio mixing system. Includes PRO2 Compact console (Boxed)<br />
loaded with 8 mic/line inputs, 16 analogue outputs 2 AES3 inputs and 3 AES3 outputs.<br />
PRO2C/CC/TP PRO2C Control Centre Inc. Touring Flight Case € 14.452,00<br />
Surface only<br />
64 channel x 27 bus digital audio mixing system. Includes PRO2 Compact console<br />
(flightcased) loaded with 8 mic/line inputs, 16 analogue outputs 2 AES3 inputs and 3<br />
AES3 outputs.<br />
PRO2/CC/IP PRO2 Control Centre (Boxed) € 18.445,00<br />
Surface only<br />
64 channel x 27 bus digital audio mixing system. Includes PRO2 console (flightcased)<br />
loaded with 8 mic/line inputs, 16 analogue outputs 2 AES3 inputs and 3 AES3 outputs.<br />
PRO3/IP Standard PRO3 Package € 37.910,00<br />
48 mic/line input audio mixing system, includes PRO3 Control Centre (Crated) loaded<br />
with 8 sends and returns, 2 x Blanking Plates, 1 x DL371 (Boxed) PRO DSP engine with 4<br />
DSP Cards, 1 x Router Card and 3 Link Cards, 1 x DL251 Digital I/O Box loaded with 6<br />
Analogue Input Boards and 2 x Analogue Output Boards, 1 x 100m CAT5e Reels, 3 x 1m<br />
CAT5e Cables<br />
PRO6/IP Standard PRO6 Install Package € 50.607,00<br />
56 mic/line input audio mixing system, includes PRO6 Control Centre (Crated) loaded<br />
with 8 analogue inputs, 4 AES/EBU inputs and 4 AES/EBU outputs and 8 sends and<br />
returns, 1 x DL371 PRO6 DSP engine with 5 DSP Cards (Boxed), 1 x DL351 Digital I/O Box<br />
(Boxed) loaded with 56 Mic/Line Inputs and 8 Analogue Line Outputs, 2 x 5m CAT5e for<br />
Test<br />
PRO9/TP Standard PRO9 Package € 60.902,00<br />
PRO Series Upgrade Kits<br />
88 mic/line input audio mixing system, includes PRO9 Control Centre (Flightcased)<br />
loaded with 8 analogue outputs, 4 AES/EBU inputs and 4 AES/EBU outputs and 8 sends<br />
and returns, 1 x DL371 PRO DSP engine (Flightcased with DL351) with 6 DSP Cards, 1 x<br />
Router Card and 1 x Link Cards, 1 x DL351 Digital I/O Box (Flightcased with DL371) loaded<br />
with 56 analogue inputs and 8 analogue outputs, 1 x DL451 (Boxed) with 24 Analogue<br />
Inputs, 2 x 100m CAT5e Reels, 6 x 1m CAT5e Cables<br />
PRO3‐PRO6 Standard Upgrade Package from PRO3/IP to PRO6/IP Standard Configuration ‐ Includes € 20.270,00<br />
Firmware*<br />
PRO6‐PRO9 Standard Upgrade Package from PRO6/IP to PRO9/IP Standard Configuration ‐ Includes € 13.660,00<br />
Firmware*<br />
PRO3‐PRO9 Standard Upgrade Package from PRO3/IP to PRO9/IP Standard Configuration ‐ Includes € 33.206,00<br />
Firmware*<br />
Additional Units<br />
T‐DL371A‐01 Additional DSP Card for Redundancy € 4.171,00
DL351 Midas Digital Modular I/O Rack (boxed) excluding any I/O Cards € 4.768,00<br />
DL451 Midas Digital Modular I/O Box excluding 3 x I/O Cards € 3.548,00<br />
DL441 I‐card for DL451 / DL351 8 analogue remote control mic inputs on XLR € 822,00<br />
DL442 O‐card for DL451 / DL351 8 analogue outputs on XLR € 573,00<br />
DL443 TRS‐card for DL451 / DL351 8 balanced line level sends and returns € 1.133,00<br />
DL444 25 Way D type connector card for DL451 / DL351 ‐ 8 analogue remote control mic inputs € 1.307,00<br />
and outputs<br />
DL452 Digital card for DL451 / DL351 4 AES/EBU inputs and 4 AES/EBU outputs (= 8 audio ins + € 1.220,00<br />
8 audio outs)<br />
MWX‐DL451M25 I/O Blanking Plate for DL451 and DL351 I/O Rack € 45,00<br />
DL251 Fixed Format I/O Unit (48 remote control mic inputs / 16 outputs) € 4.059,00<br />
DL431 Input Splitter Box, 2 x 96 remote controlled mic pre amplifiers, 1 x 96 fixed gain mic pre € 10.657,00<br />
amplifiers, 5 way splitter system<br />
DN9331 Motorised fader bank for KT Show Command and Midas Digital Consoles € 5.210,00<br />
PAC22‐PRO6CW PRO Control Centre Flightcase € 3.486,00<br />
PAC23‐16U 16U Flightcase for DL371 Engine and DL351 I/O Rack € 1.505,00<br />
PAC21‐PRO6 PRO Control Centre Freighting Crate € 985,00<br />
Digital Snakes and <strong>Audio</strong> Distribution Products<br />
Fixed Snake 48/16 Standard Fixed Format Snake 48/16 Package € 8.326,00<br />
1 x DL251 I/O Rack loaded with 48 Remote Control Mic/Line Inputs and 16 Line Outputs,<br />
1 x DL252 I/O Rack loaded with 16 Remote Control Mic/Line Inputs and 48 Line Outputs,<br />
1 x 100m CAT5e Cable on Reel, Remote Control Software for PC<br />
Configurable Snake 64 Example Configuration Snake 64/0 € 21.501,00<br />
2 x DL351 I/O (Boxed) loaded with 8 x DL441 Analogue Inputs and 8 x DL442 Analogue<br />
Outputs, 3 x 100m CAT5e Cable, Remote Control Software for PC<br />
Configurable Snake 24 Example Configuration Snake 24/0 Package € 11.330,00<br />
2 x DL451 I/O (Boxed) loaded with 3 x DL441 Analogue Inputs and 3 x DL442 Analogue<br />
Outputs, 1 x 100m CAT5e Cable, Remote Control Software for PC<br />
24 Channel Mic Splitter Example Splitter Configuration 24 Dual Remote Controlled Mic Pre's to Dual Output € 19.727,00<br />
Devices<br />
1 x DL431 Stage Box, 2 x DL451 I/O (Boxed) loaded with 3 x DL442 Analogue Outputs<br />
each, 2 x 100m CAT5e Cable, Remote Control Software for PC<br />
DL251 Fixed Format I/O Unit (48 remote control mic inputs / 16 outputs) € 4.059,00<br />
DL252 Fixed Format I/O Unit (16 remote control mic inputs / 48 outputs) € 4.059,00<br />
DN9650<br />
Digital <strong>Audio</strong> Network Bridge ‐ AES50 to<br />
MADI/DANTE/AVIOM/CobraNet/EtherSound ‐ excluding Module € 3.349,00<br />
DN9652 Digital <strong>Audio</strong> Converter ‐ MADI/DANTE/AVIOM/CobraNet/Ethersound to € 3.349,00<br />
MADI/DANTE/AVIOM/CobraNet/EtherSound ‐ excluding Modules<br />
CM1MADI Lab X MADI Network Module, 64‐in, 64‐out € 1.282,00
CM1DANTE Audinate DANTE DLM Network Module € 697,00<br />
CM1AVIOM Lab X AVIOM A‐Net Network Module, 16‐out € 1.855,00<br />
CM1ETHERSOUND Auvitran EtherSound Network Module € 2.141,00<br />
CM1COBRANET Cirrus CobraNet CM‐2Network Module € 585,00<br />
DN9696<br />
5 hours rec time / mirrored drives / 96 ch / 96kHz for Midas Digital Consoles<br />
Cables ‐ Optical Fibre and CAT5<br />
ACBLX‐2061 Optical Fibre Reels (1 x 150m) € 1.551,00<br />
ACBLX‐2303 CAT5e Reel (1 x 100m) € 589,00<br />
ACBLX‐2065 CAT5e Cable (1 x 1m) € 57,00<br />
ACBLX‐2062 CAT5e Cable (1 x 5m) € 91,00<br />
ACBLX‐2063 CAT5e Cable (1 x 10m) € 124,00<br />
ACBLX‐2064 CAT5e Cable (1 x 30m) € 249,00<br />
ANALOGUE CONSOLES<br />
VeniceF Consoles<br />
VF16 VeniceF‐16 – 8mono mic/line inputs, 4stereo mic/line inputs, 16x16 FireWire € 2.903<br />
interface. Inc. dustcover &trial RECORD software<br />
VF16R VeniceF‐16R – 8mono mic/line inputs, 4stereo mic/line inputs, 16x16 FireWire € 2.903<br />
interface. 13U, 19" rack mount. Inc. trial RECORD software<br />
VF24 VeniceF‐24 – 16 mono mic/line inputs, 4stereo mic/line inputs, 24x24 FireWire € 4.010<br />
interface. Inc. dustcover &trial RECORD software<br />
VF32 VeniceF‐32 – 24 mono mic/line inputs, 4stereo mic/line inputs, 32x32 FireWire € 4.959<br />
interface. Inc. dustcover &trial RECORD software<br />
Verona Consoles<br />
V/480/8/TP Verona Touring Package (2 x Internal PSU and Touring Flight Case) € 15.382<br />
40 mono + 8 multifunction inputs<br />
V/400/8/TP Verona Touring Package (2 x Internal PSU and Touring Flight Case) € 13.858<br />
32 mono + 8 multifunction inputs<br />
V/320/8/TP Verona Touring Package (2 x Internal PSU and Touring Flight Case) € 12.408<br />
24 mono + 8 multifunction inputs<br />
V/240/8/TP Verona Touring Package (2 x Internal PSU and Touring Flight Case) € 10.311<br />
16 mono + 8 mutifunction inputs (1 x PSU)<br />
V/480/8/IP Verona Install Package (2 x Internal PSU and Freighting Crate) € 13.785<br />
40 mono + 8multifunction inputs<br />
V/400/8/IP Verona Install Package (2 x Internal PSU and Freighting Crate) € 12.200<br />
32 mono + 8multifunction inputs<br />
V/320/8/IP Verona Install Package (2 x Internal PSU and Freighting Crate) € 10.787<br />
24 mono + 8multifunction inputs<br />
V/240/8/IP Verona Install Package (2 x Internal PSU and Freighting Crate) € 8.897<br />
16 mono + 8mutifunction inputs<br />
Rack Mount Products and<br />
EASYTILTSTD Easy Tilt Console Stand (28.5" high) € 600<br />
EASYTILTLOW Easy Tilt Console Stand (26" high) € 600<br />
Analogue Consoles Packi<br />
Verona /Siena<br />
PAC22‐V240CW 240 Touring Flight Case inc. Cable Box &Wheels € 1.572<br />
PAC22‐V320CW 320 Touring Flight Case inc. Cable Box &Wheels € 1.804<br />
PAC22‐V400CW 400 Touring Flight Case inc. Cable Box &Wheels € 1.853<br />
PAC22‐V480CW 480 Touring Flight Case inc. Cable Box &Wheels € 1.987<br />
PAC22‐V560CW 560 Touring Flight Case inc. Cable Box &Wheels € 2.413<br />
PAC21‐V240 240 Freight Box € 232<br />
PAC21‐V320 320 Freight Box € 232<br />
PAC21‐V400 400 Freight Box € 232<br />
PAC21‐V480 480 Freight Crate € 390<br />
PAC21‐V560 560 Freight Crate € 439<br />
PAC31‐MIDAS24 240 Dustcover € 49
PAC31‐MIDAS32 320 Dustcover € 49<br />
PAC31‐MIDAS40 400 Dustcover € 61<br />
PAC31‐MIDAS48 480 Dustcover € 61<br />
PAC31‐MIDAS56 560 Dustcover € 73
