Valve-spring fractures not wholly avoidable - Scherdel GmbH

REPORTS ON RESEARCH AND DEVELOPMENT, MANUFACTURING, MATERIAL TECHNOLOGY AND THE PRACTICAL APPLICA-

TIONS OF ENGINEERING SPRINGS AND ON THE SYSTEMS, MACHINERY AND TOOLING DIVISIONS OF THE SCHERDEL GROUP

Dear reader,

As you will see from this new

edition of SCHERDELnews, we are

continuing to act in accordance with

our corporate motto "Progress based

on tradition" and also "Growth thanks

to innovation". Here, we are constantly

striving to achieve our most

important corporate aim: customer

satisfaction. Of course, this also

includes the improvement of the

services we offer. Since SCHERDEL

has expertise in almost all branches

of technology relating to engineering

springs, we can guarantee optimum

customer service, from a single

source and on a worldwide basis,

for just about all engineering-spring

problems.

So far we have been able to maintain

the profitability of our Group,

despite the widespread difficulty in

obtaining raw materials. Here, I

would like to point out that transferring

the production of new parts to

low-wage countries is not always an

acceptable alternative, since these

countries often lack the necessary

specialist staff to ensure a faultless

production process.

As far as our global activities are

concerned, I can report that the joint

venture in China relating to "coilspring

manufacture" is running to

schedule, and that additional projects

in India and Poland are currently at

the planning stage.

I am sure you will find several

points of interest in the following

articles. I look forward to continuing

our fruitful cooperation and to developing

new synergy effects for the

maximum benefit of our customers.

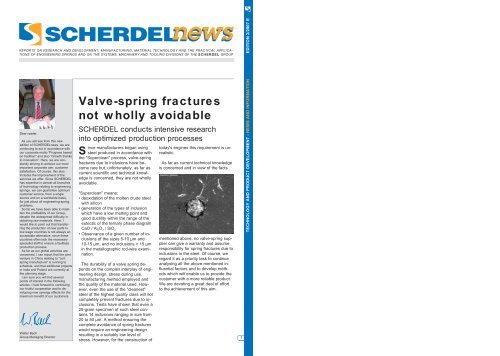

Valve-spring fractures

not wholly avoidable

SCHERDEL conducts intensive research

into optimized production processes

S

ince manufacturers began using

steel produced in accordance with

the "Superclean" process, valve-spring

fractures due to inclusions have become

rare but, unfortunately, as far as

current scientific and technical knowledge

is concerned, they are not wholly

avoidable.

"Superclean" means:

• deoxidation of the molten crude steel

with silicon

• generation of the types of inclusion

which have a low melting point and

good ductility within the range of the

eutectic of the ternary phase diagram

CaO / Al 2 O 3 / SiO 2

• Observance of a given number of inclusions

of the sizes 5-10 µm and

10-15 µm, and no inclusions > 15 µm

in the metallographic rod-wire examination.

The durability of a valve spring depends

on the complex interplay of engineering

design, stress during use,

manufacturing method employed and

the quality of the material used. However,

even the use of the "cleanest"

steel of the highest quality class will not

completely prevent fractures due to inclusions.

Tests have shown that even a

25-gram specimen of such steel contains

14 inclusions ranging in size from

20 to 50 µm. A method ensuring the

complete avoidance of spring fractures

would require an engineering design

Walter Bach

resulting in a suitably low level of

Group Managing Director 1

stress. However, for the construction of

today's engines this requirement is unrealistic.

As far as current technical knowledge

is concerned and in view of the facts

mentioned above, no valve-spring supplier

can give a warranty and assume

responsibility for spring fractures due to

inclusions in the steel. Of course, we

regard it as a priority task to continue

analysing all the above-mentioned influential

factors and to develop methods

which will enable us to provide the

customer with a more reliable product.

We are devoting a great deal of effort

to the achievement of this aim.

TECHNOLOGY AND PRODUCT DEVELOPMENT - NEWS AND INFORMATION EDITION 2/2007 E

COMPANY NEWS

SCHERDEL puts new coati ng installation into operation

TLZ-1 installation ensures a dynamic sequence of operations - optimum coating is now possible,

even for delicate parts and for those with complex geometry

TECHNOLOGY AND PRODUCT DEVELOPMENT - NEWS AND INFORMATION

View of the interior of the new

TLZ-1 installation, whose special

feature is its dynamic sequence

of operations.

C

orrosion is a decomposition

process mainly affecting metallic

materials and caused by chemical or

electrochemical influences. The Delta

MKS coating system employed by the

company known as Sigmund Scherdel

Surface Finishing in Marktredwitz -

a member of the SCHERDEL Group -

enhances the durability of technical

components to a considerable extent.

By altering the material characteristics -

e.g. by reducing a component's frictional

resistance, providing protection

against acids and caustic solutions, or

preventing contact corrosion - the system

can also be of great benefit to the

customer. Coating in special colours is

also possible and orders for small

quantities are no problem.

Sigmund Scherdel Surface Finishing

has invested heavily in a state-of-theart

coating installation which, thanks to

quence of operations - this is provided

by the new TLZ-1 installation. Once the

coating basket has been filled, the dipping,

coating and spinning procedures

are carried out automatically. Since the

unit is completely enclosed, no solvent

can escape. An ingenious air-circulation

system is used for preheating, heating

and cooling.

DELTA PROTEKT KL 100

An inorganic base coat which provides

a micro-layer consisting of zinc and aluminium

flakes. The component is given

a coating with a silvery metallic sheen

which provides excellent corrosion

resistance and can withstand temperatures

up to 180°C. Here, several protective

mechanisms are involved:

galvanic protection - barrier effect

provided by zinc and aluminium flakes -

reaction of the binding system with

the base - cementation of the Delta

Protekt KL 100 coating when subjected

to corrosion.

DELTA TONE 9000

This is a largely inorganic base coat.

The product is very similar to Delta

Protekt KL 100. The differences relate

to the binding system and the temperature

stability.

DELTA SEAL AND DELTA

SEAL GZ

Enhances the characteristics of a

material and provides colouring as

required. It has an insulating effect and

provides protection against contact corrosion.

The coating is resistant to acids

and caustic solutions, and is approved

for use in connection with foodstuffs.

It also provides a distinct reduction of

the frictional resistance.

Parts which have been treated with the Delta

MKS coating process.

The new exhaust-air cleaning installation contributes to environmental protection.


2

the Company's own efforts and the support

of the SCHERDEL subsidiaries

AFEMA and ZARIAN, went into operation

recently. Here, consideration was

also given to the environment: the integration

of an exhaust-air cleaning installation

ensures that all production

processes in the factory meet the most

exacting environmental standards.

A coating process which ensures firstclass

quality and a high degree of flexibility

combined with a dynamic se-

Previously, coating installations of this

type could only be used for treating

bulk items. Until now, springs hooking

on to each other, sensitive or easily

dented workpieces with complicated

surface geometry, or heavy components

were a problem. Thanks to the

new TLZ-1 installation this is a thing of

the past. Depending on customer requirements

and technical specifications,

Sigmund Scherdel Surface Finishing

uses the following coating procedures:

Further information

available from:

Oberflächentechnik

Sigmund Scherdel

GmbH & Co.

c/o Herr Schörner

Meußelsdorfer Str. 27

95615 Marktredwitz

Tel. 09231/603800

Fax 09231/603802

www.oftm.de

info@oftm.de

3

COMPANY NEWS

AFEMA equipped with

new CAD/CAM system


View of the factory at AFEMA Automation

and Control Technology

Optimized construction of special machines,

thanks to networked processes for design

and production

I

n order to achieve a more effective

production process for modern,

special high-tech machines, AFEMA

Automation and Control Technology

has put a new electronic data processing

system for process optimization into

operation at its company headquarters

in Marktredwitz.

Postprocessor Assistant". In addition to

the great saving in time for programming

the machines, the potential source

of error presented by manual data input

no longer exists, thus avoiding the tiresome

business of searching for programming

errors. In addition, there are

new possibilities regarding the sequence

of operations: for example, the

integrated software "EdgeCam Simulator"

provides a realistic image of the

surface of a workpiece, which makes it

possible to visualize the removal of

4

Four 3-D workstations with a common

server provide networked data access

to engineering drawings, component

drawings, parts lists, operating instructions,

technical specification sheets or

tenders. In order to optimize the interface

between the 3-D engineeringdrawing

department and the control of

the processing machines, the Company

has acquired the CAM software product,

"EdgeCam Solid Machinist", which,

as far as programming the machines is

concerned, makes manual operation

more or less superfluous. This means a

considerable reduction in programming

time for the Company's lathes and

milling machines, as well as for the

modern turning and milling centres. The

data from all the leading CAD manufacturers

can be imported directly for further

processing. The basic versions of

all the most frequently used control programs

are integrated in the "EdgeCAM

material during the machining process.

When installing the new CAD-CAM

system, AFEMA paid particular attention

to ensuring that the hardware and

software were adapted to suit in-house

working procedures to an optimum degree.

In addition to the improvements

already achieved, and the resulting advantage

for the customer, the way is

now paved for the use of further new

developments in the technical field.

COMPANY NEWS

Fine-blanking technology

extends range of expertise

GL-Spezial Platinen GmbH in Chemnitz makes

precision components for heavy-duty service

A

s a result of the take-over of the

company known as GL-Spezial

Platinen GmbH in Chemnitz,

SCHERDEL has extended its range of

expertise in the field of stamping and

bending technology. This company,

which is now an established member of

the Group, was founded in 1921 and,

initially, it made a name for itself as a

supplier of needle-guide elements for

the construction of textile machinery. In

Chemnitz they can call on four decades

of experience in the field of fine-blanking

technology and, on the basis of the

sound technical knowledge and motivation

of the staff, they can guarantee the

high quality of their products. Customers

specializing in the manufacture

of automobiles, in the making of household

and recreational appliances, in the

electrical and electronics industry, or in

the field of medical technology can

build on cost-optimized solutions for

the development and manufacture of

precision metal components which are

ready for installation. In the automotive

field the products include components

for locking systems, brakes, exhaust

systems, gear mechanisms, and motion

and safety systems.

Fine-blanked components are produced

in a single operation on presses

with three effective-force parameters.

The special features of this process are

the very smooth cutting surfaces, the

observance of extremely fine tolerances

and the high level of angular

precision plus a workpiece with an optimum

degree of evenness. The resulting

products are in fact "ready-to-use".

Depending on customer requirements,

processes involving thermal treatment,

or surface treatment and surface coating

are available. An in-house prototype

and tool-making shop ensures an

efficient sequence of operations from

the development stage right through to

series production. Here, cold-forming

processes can even be integrated into

the tooling equipment. The machinery

at GL-Spezial Platinen GmbH includes

presses with a pressure force of 80 to

880 tonnes. It is possible to process

material with a thickness of up to

12 millimetres. Here the maximum

strip-processing width is 450 millimetres.

Depending on requirements, the

basic materials used are: steel, copper,

aluminium and a wide range of alloys.

By investing in new machinery,

SCHERDEL intends to develop the

field of fine-blanking technology further.

Follow-on production unit

Fine-blanked parts are suitable for

heavy-duty service.


stamping

fine blanking

F S

F R

F R

F S = cutting force

F R = vee-ring force

F G = counter force

F S

F G

F S

The diagram shows the differences

between stamping and fine blanking.

5

RESEARCH

Potential of modern spring materials for spring components

subjected to dynamic stress in the valve train

Staff profile

We'd like to introduce staff members

to you who will act as your

contact if required.

New engine designs require springs with improved cha racteristics and enhanced load-bearing capacity -

Choice of material is crucial - paper presented at the co nference of the Association of German Engineers (part 2)


6

Fig. 4: Shot-peened surface

Fig. 5a: Fatigue test for springs

B

oth the quality of the different steel

suppliers and the ability of the individual

wire drawers vary. The worldwide

requirement for valve-spring wire

can be produced by an average steelworks

in less than two weeks. This

shows how difficult the situation is with

regard to this highly specialized steel

market and the exacting technical standards

it involves. It requires very close

co-operation between the spring manufacturer

and the supply chain for the ingoing

material. In particular, the development

of new types of steel - something

in which our Company is also involved

- and the ongoing optimization

of the ensuing wire-drawing processes

require perseverance and the kind of

co-operation between the material supplier

and the spring manufacturer which

is based on sustained effort and partnership.

The high level of technological

expertise and the profound specialized

knowledge required for the design of

new materials and their processing

methods is something which, on a global

basis, is possessed by very few

spring manufacturers today. In addition

to the sound technical know-how and

experience of the staff, one of the main

requirements is a sound financial basis.

Here, it should be mentioned that

SCHERDEL is active at the forefront of

worldwide developments and that, during

the past years and decades, our

Group has contributed to important

ideas and innovations in many areas,

thus establishing today's quality requirements

and today's quality standards

in relation to valve-spring wire.

It should also be mentioned that the

IVSWMA (International Valve Spring

Wire Manufacturers' Association) has

repeatedly pointed out that in the steelmaking

process inclusions are unavoidable.

Our customers have received written

information to this effect. That

means that today, despite intense efforts

and the ongoing improvement of

the steel-making processes and the ensuing

machining technologies, it is still

not possible to ensure that the material

is completely free of inclusions. To a

great extent, these "natural defects in

the material" can be offset by the developments

in the spring-manufacturing

process which are taking place hand-inhand

with the development of the materials.

Design

The design of the valve spring is

largely determined by the predefined

cam contour, which determines the

excitation of the valve spring, as well as

by the load being moved and, finally, by

the dimensions and the overall dynamics

of the valve train. Using modern

design tools - Finite Element Method

(FEM), Multi-Body Simulation (MBS)

and calculation programs developed

in-house - combined with efficient measuring

and test stands, it is possible to

achieve a dynamically optimum design

of the valve spring within the given

dimensions. As mentioned at the beginning,

lightweight construction, reduction

in mass and thus reduction of the frictional

resistance in the valve train are

the main topics. Here, the valve spring

is only one of many elements which

determine these dynamic characteristics.

However, it is one of the most sensitive

components, which directly shows

the designer that there is a problem

relating to the dynamics. It functions,

as it were, as the dynamic sensor of

the valve train. It reflects alI the dynamic

events in the form of excessive

dynamic increases by means of the

characteristic frequency response. The

design of valve springs and the design

tools used for this purpose is a topic

which has already been dealt with in

previous editions of SCHERDELnews.

These design tools are now able to

achieve an even greater degree of conformity

between simulation and measurement,

in order to determine precisely

the dynamic behaviour of valve

springs and spring elements in the

valve train, whereby this is reflected not

only in the design of the spring but, in

particular, in the optimum choice of

materials and in the shape of the wire.

Today, MultiArc profiles combined with

a beehive-shaped design, for example,

make it possible to design a valve

spring for highly dynamic valve trains

with excellent dynamic characteristics,

combining a distinct reduction in size

with extremely fine manufacturing tolerances.

Techniques and processes

Of course, the processing of higherstrength

valve-spring materials means

that the existing manufacturing infrastructure

has to be adapted accordingly.

In addition to adapting the different

tools in the spring-coiling process, it is

necessary to select not only the appropriate

thermal-treatment parameters but

also suitable shot-peening parameters,

for example. The greater degree of

hardness of the higher-strength materials

and, especially, of the nitrided surfaces

calls for a suitable shot: that

means an shot with a suitably adapted

hardness and shape, so that it can induce

compressive residual stress in the

region of the boundary layer without

damaging the surface.

In order to shot-peen the component,

modifications must also be made to the

shot-peening installation and, in some

cases, other materials must be selected,

to ensure adequate stability of the

surfaces in question.

It is therefore clear that the existence

of a new material alone will not result in

a more efficient component. In order to

gain the full benefit of the material's efficiency

in the component, this material

must be used in conjunction with extensive

process modification and suitably

adapted installations. Here, the majority

of the processes and the accompanying

installations are developed and built by

SCHERDEL in-house. This is one of

the main reasons why, from a technological

point of view, SCHERDEL occupies

a leading position in the market.

Finally, this means a benefit for the

customer, who has the opportunity of

using these new materials without delay.

In this connection it should be mentioned

that today we carry out an extensive

release procedure for new materials

and processes. As a rule, this release

procedure is carried out separately

with each OEM and it involves long

trial runs as well as high costs for the

suppliers and automobile manufacturers

themselves in relation to experiments

and tests. The wire and valvespring

suppliers, for example, carry out

a rotating bending test (100 million

cycles) to test the surface quality and

cleanness, fatigue tests with springs

(including exposure to heat) and also

extensive engine tests with the engine

manufacturer.

Surface-finishing techniques provide

another possibility for enhancing the

durability of springs exposed to a higher

level of stress. One example is the

nitriding process, which is carried out

in-house at SCHERDEL. In this case

Fig. 5b: Rotating bending test for wires

too, the specific installations and

processes have to be adapted to suit

the new materials and an overall inhouse

process-development system

has to provide a secure technological

basis. Once these processes have

been mastered, the components can

be given the careful treatment required

to ensure top quality, without the need

for additional transport to external service

companies.

Thomas Regnet

General Manager of Innotec GmbH

Since 1st July this year, Thomas

Regnet (graduate in business administration)

has been General

Manager of Innotec GmbH, the

SCHERDEL subsidiary in Poppenreuth

near Marktredwitz which is

responsible for research, development

and innovation.

Thomas Regnet was born in

Bernstein near Wunsiedel in 1963.

He attended the grammar school

in Wunsiedel and obtained his

A levels there in 1984. After military

service he trained as a commercial

employee in industry from

1986 to 1988. During the following

years Thomas Regnet studied industrial

engineering and business

economics at the Würzburg-

Schweinfurt Vocational College,

his main subject being marketing.

During this period he gained

business experience by working

at various times as a student employee

with an internationally

active enterprise in Upper Franconia

and also with SCHERDEL.

From 1993 to 1999, as a graduate

in business administration, he

worked in the Sales and Marketing

Division at SCHERDEL.

From 1999 to 2001, Mr Regnet

worked as Head of Sales and

Marketing with an automotive

parts supplier specializing in plastics.

During the next six years he

took over the management of the

Sales and Marketing Department

of an automotive parts supplier

for the German market and then

became Director of Sales & Marketing

specializing in Seat Comfort,

with responsibility for the

whole European market and for

a turnover in the three-digit

million range.

7

TECHNOLOGY AND PRODUCT DEVELOPMENT - NEWS AND INFORMATION

Expertise

around the automobile

The SCHERDEL Group works out solutions tailored to customer requirements in the following divisions:

Engineering springs, Vehicle components, Stamping and bending technology, Connection technology, Assembly technology,

Machines and systems, Automation and control technology, Tools and equipment, Surface finishing and Research

and development. Here we would like to show you the most important products in the automotive field:


Expertise in Vehicle Drive

injection system

compression springs

piezo-injection stamping parts

variable valve drive

torsion springs


stamping and bending parts

spiral springs

double-body springs

assemblies

fine-blanking parts

belt tensioners



torsion bars


basic engine

coil expanders

valve springs

springs for valve clearance compensation /

switchable tappets

springs for vibration absorber


circlips

ignition

magnetic sleeves

contact springs

rolled bushes / sleeves

ignition plug protection covers

EMC shielding

hose and stud connections

hose clamps

transmission / coupler



spring packs

disk springs

stamping and bending parts


assemblies

compression springs dualmass flywheel

Expertise in Vehicle Interior

central arm rest

metal structures with and

without snap mechanism

safety of passengers

springs for belt

height adjustment

springs for belt lock

stamping / bending parts for airbag

seat system

metal structures seat frames

metal structures backrest frames

sport frames

side upholstery / upholstery wires

spring systems for backrests and seats

lumbar support springs

supporting and connecting elements

isofix connectors

seat connectors / guides

panel holders

headrest bows

holder for fire extinguisher

actuating devices

assemblies

(e.g. seat height adjustment, pedals)


disk springs

torsion bar springs

Expertise in the Areas Body, Brakes

and Chassis

brake system actuation

booster springs

spring packs

control units

brake system foundation

pad holder springs

housing holder springs

spread locks

tension / compression springs drum brake

fine-blanking parts drum brake

annular counters for ABS

mechanical wear display

cable holder

chassis

rolled bushes for chassis damping

disk springs / fine-blanking parts bumper

rebound springs

comfort springs steering column regulation

body

spare wheel holder

compression / tension / torsion springs

for lock systems

active and passive pedestrian

protection systems

assembly plates

coating of structure components

opening systems

spring supports tailgate / rear lid

tension springs tailgate / rear lid

hinges

clamps

8

SCHERDEL GmbH, PO Box 4 40, 95604 Marktredwitz, Germany, Phone: +49 9 23 16 03-0, Fax: +49 9 23 16 03-4 62

Valve-spring fractures not wholly avoidable - Scherdel GmbH

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
