Force Ware Bomb Blankets

Page 1 of 3

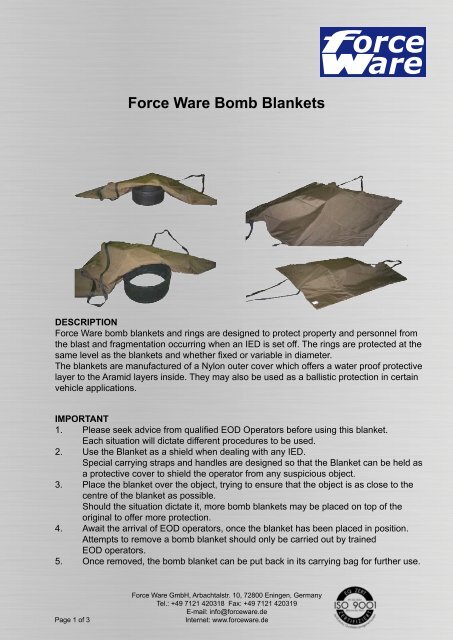

Force Ware Bomb Blankets
DESCRIPTION
Force Ware bomb blankets and rings are designed to protect property and personnel from
the blast and fragmentation occurring when an IED is set off. The rings are protected at the
same level as the blankets and whether fixed or variable in diameter.
The blankets are manufactured of a Nylon outer cover which offers a water proof protective
layer to the Aramid layers inside. They may also be used as a ballistic protection in certain
vehicle applications.
IMPORTANT
1. Please seek advice from qualified EOD Operators before using this blanket.
Each situation will dictate different procedures to be used.
2. Use the Blanket as a shield when dealing with any IED.
Special carrying straps and handles are designed so that the Blanket can be held as
a protective cover to shield the operator from any suspicious object.
3. Place the blanket over the object, trying to ensure that the object is as close to the
centre of the blanket as possible.
Should the situation dictate it, more bomb blankets may be placed on top of the
original to offer more protection.
4. Await the arrival of EOD operators, once the blanket has been placed in position.
Attempts to remove a bomb blanket should only be carried out by trained
EOD operators.
5. Once removed, the bomb blanket can be put back in its carrying bag for further use.
Force Ware GmbH, Arbachtalstr. 10, 72800 Eningen, Germany
Tel.: +49 7121 420318 Fax: +49 7121 420319
E-mail: info@forceware.de
Internet: www.forceware.de

Adjustable Ring
Protection Class
STANAG
Page 2 of 3
Force Ware Bomb Blankets
Size
(cm)
Ring
Diameter
(cm)
Ring
Height
(cm)
Force Ware GmbH, Arbachtalstr. 10, 72800 Eningen, Germany
Tel.: +49 7121 420318 Fax: +49 7121 420319
E-mail: info@forceware.de
Internet: www.forceware.de
Article
Number
v 50 = 450 m/s 100 x 100 40-70 40 100057
v 50 = 450 m/s 125 x 125 40-70 40 100058
v 50 = 450 m/s 150 x 150 40-70 40 100044
v 50 = 450 m/s 200 x 100 40-70 40 100059
v 50 = 450 m/s 200 x 200 40-70 40 100061
v 50 = 550 m/s 100 x 100 40-70 40 100062
v 50 = 550 m/s 125 x 125 40-70 40 100063
v 50 = 550 m/s 150 x 150 40-70 40 100064
v 50 = 550 m/s 200 x 100 40-70 40 100065
v 50 = 550 m/s 200 x 200 40-70 40 100066
v 50 = 650 m/s 100 x 100 40-70 40 100067
v 50 = 650 m/s 125 x 125 40-70 40 100068
v 50 = 650 m/s 150 x 150 40-70 40 100045
v 50 = 650 m/s 200 x 100 40-70 40 100069

Fixed Ring
Protection Class
STANAG
Page 3 of 3
Force Ware Bomb Blankets
Size Ring
Diameter
Ring
Height
Force Ware GmbH, Arbachtalstr. 10, 72800 Eningen, Germany
Tel.: +49 7121 420318 Fax: +49 7121 420319
E-mail: info@forceware.de
Internet: www.forceware.de
Article
Number
v 50 = 400 m/s 155 cm x 125 cm 40 cm 20 cm 050006-06
v 50 = 400 m/s 155 cm x 155 cm 40 cm 20 cm 050006-08
v 50 = 400 m/s 200 cm x 122 cm 40 cm 20 cm 050006-10
v 50 = 400 m/s 200 cm x 200 cm 40 cm 20 cm 050006-12
v 50 = 500 m/s 120 cm x 120 cm 40 cm 20 cm 050006-04
v 50 = 500 m/s 155 cm x 125 cm 40 cm 20 cm 050006-07
v 50 = 500 m/s 150 cm x 150 cm 40 cm 20 cm 050006-01
v 50 = 500 m/s 155 cm x 155 cm 40 cm 20 cm 050006-09
v 50 = 500 m/s 200 cm x 122 cm 40 cm 20 cm 050006-11
v 50 = 500 m/s 200 cm x 200 cm 40 cm 20 cm 050006-13
