EOD / IED Equipment<br />

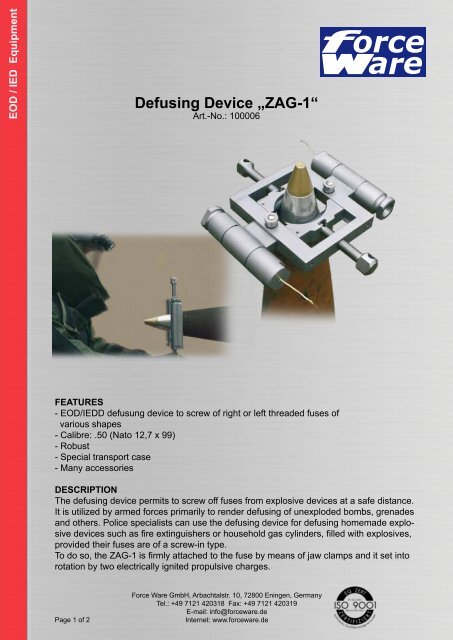

Page 1 of 2<br />
<strong>Defusing</strong> <strong>Device</strong> <strong>„ZAG</strong>-<strong>1“</strong><br />
Art.-No.: 100006<br />
FEATURES<br />
- EOD/IEDD defusung device to screw of right or left threaded fuses of<br />
various shapes<br />
- Calibre: .50 (Nato 12,7 x 99)<br />
- Robust<br />
- Special transport case<br />
- Many accessories<br />
DESCRIPTION<br />
The defusing device permits to screw off fuses from explosive devices at a safe distance.<br />
It is utilized by armed forces primarily to render defusing of unexploded bombs, grenades<br />
and others. Police specialists can use the defusing device for defusing homemade explosive<br />
devices such as fire extinguishers or household gas cylinders, filled with explosives,<br />
provided their fuses are of a screw-in type.<br />
To do so, the ZAG-1 is firmly attached to the fuse by means of jaw clamps and it set into<br />
rotation by two electrically ignited propulsive charges.<br />
<strong>Force</strong> <strong>Ware</strong> GmbH, Arbachtalstr. 10, 72800 Eningen, Germany<br />
Tel.: +49 7121 420318 Fax: +49 7121 420319<br />
E-mail: info@forceware.de<br />
Internet: www.forceware.de
EOD / IED Equipment<br />
Page 2 of 2<br />
<strong>Defusing</strong> <strong>Device</strong> <strong>„ZAG</strong>-<strong>1“</strong><br />
Art.-No.: 100006<br />
SPECIFICATIONS<br />
ZAG-1: EOD/IED defusing device to screw off right- or left threaded fuses, of coniform<br />
or cylindrical type, from explosive devices.<br />
Consists of: 1 steel frame with two welded barrels, 2 clamping screws, 2 barrels with one<br />
nozzle and one cover each, for fixation of the propulsive charge within the<br />
barrel, 2 clasping screws, 2 fixed jaw clamps for cylindrical detonators, 2<br />
movable jaw clamps for conical detonators, 2 clamping screws, 1 roll of<br />
(200 m) thin lead ignitioncable, 1 roll (20 m) nylon rope 4 mm, fork wrench<br />
22 mm and 32 mm, screw driver size 5, cleaning spray, ramrod, cleaning<br />
brush and rubber tensioning rope.<br />
Caliber: .50 12,7<br />
DIMENSIONS AND WEIGHT<br />
Size: 63 x 44 x 17 cm (LxWxH)<br />
Weight: 18.8 kg<br />
OPTIONAL<br />
Ignition device, with integrated circuit tester and battery. Art. No.: 100055<br />
Propulsive charges on request Art. No.: 100007-02<br />
<strong>Force</strong> <strong>Ware</strong> GmbH, Arbachtalstr. 10, 72800 Eningen, Germany<br />
Tel.: +49 7121 420318 Fax: +49 7121 420319<br />
E-mail: info@forceware.de<br />
Internet: www.forceware.de
