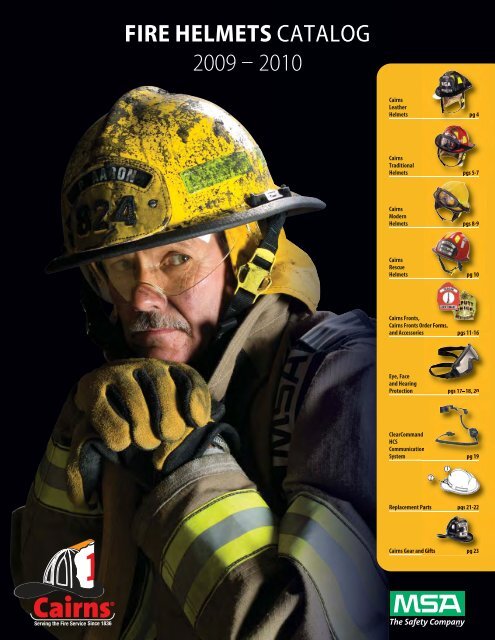

FIRE HELMETS CATALOG<br />

<strong>2009</strong> – <strong>2010</strong><br />

Cairns<br />

Leather<br />

Helmets<br />

Cairns<br />

Traditional<br />

Helmets<br />

Cairns<br />

Modern<br />

Helmets<br />

Cairns<br />

Rescue<br />

Helmets<br />

Cairns Fronts,<br />

Cairns Fronts Order<br />

<strong>and</strong> Accessories pgs 11-16<br />

Eye, Face<br />

<strong>and</strong> Hearing<br />

Protection pgs 17 18, 2<br />

ClearComm<strong>and</strong><br />

HCS<br />

Communicatio<br />

System<br />

Replacement P<br />

Cairns Gear <strong>and</strong>


Top 10 Reasons to Choose Cairns®<br />

1Impact Protection<br />

6Quality<br />

Only Cairns offers the most complete system for<br />

absorbing an impact. The helmet shell, impact<br />

cap, tube-lock, <strong>and</strong> suspension straps work as an<br />

energy-absorbing system to protect you. The<br />

greatest testament to Cairns <strong>helmets</strong> are the<br />

countless lives saved by the “above <strong>and</strong> beyond”<br />

top-<strong>and</strong>-side impact protection <strong>and</strong> penetration<br />

resistance of the industry’s Number One helmet.<br />

2Thermal Protection<br />

Every Cairns helmet provides the extra<br />

protection of a thermal impact cap. A Cairns<br />

helmet with an impact cap is 66% cooler than<br />

a <strong>fire</strong> helmet without a thermal impact cap.<br />

So, protect an important part of your body<br />

from heat.<br />

3Eye Protection<br />

Only Cairns <strong>helmets</strong> are available with the<br />

revolutionary patent-pending Defender Visor<br />

retractable, full-coverage, close-fitting eye<br />

protection that meets both NFPA <strong>and</strong> ANSI<br />

st<strong>and</strong>ards. By complementing <strong>helmets</strong> with a<br />

full line of conventional faceshields <strong>and</strong><br />

goggles, Cairns is the clear leader in <strong>fire</strong>fighters’<br />

eye <strong>and</strong> face protection.<br />

4Shell Release System<br />

This safety system found only on Cairns<br />

<strong>helmets</strong> provides an extra margin of safety<br />

<strong>and</strong> protection for you if the helmet shell<br />

becomes lodged during <strong>fire</strong>fighting.<br />

5Comfort<br />

Cairns <strong>helmets</strong> are well known for their comfort,<br />

ride, <strong>and</strong> weight distribution. You can benefit<br />

from our decades of experience resulting in a<br />

highly refined helmet with unparalleled wearability<br />

allowing you to focus on the job at h<strong>and</strong>.<br />

All Cairns <strong>helmets</strong> are known for their quality<br />

from design to manufacture. For example, you<br />

can “feel” the quality of our 100% h<strong>and</strong>crafted<br />

leather <strong>helmets</strong>, the durability of our hardware,<br />

<strong>and</strong> the strength of other components used on<br />

all our <strong>fire</strong> <strong>helmets</strong>.<br />

7User-Friendly<br />

Routine maintenance is easy <strong>and</strong> fast with<br />

Cairns <strong>helmets</strong>, from easy-to-remove headb<strong>and</strong><br />

liners to the use of minimal parts in helmet<br />

construction. To aid with compliance to the<br />

NFPA 1851 st<strong>and</strong>ard on care <strong>and</strong> maintenance<br />

of <strong>fire</strong> <strong>helmets</strong>, MSA offers a free guide to<br />

NFPA 1851 compliance for Cairns <strong>helmets</strong>,<br />

with an optional on-line certification.<br />

Visit www.MSAnet.com for all the details.<br />

8Selection<br />

Cairns offers the most complete line of <strong>fire</strong><br />

<strong>helmets</strong> from leathers to traditional <strong>and</strong><br />

modern styles, from thermoplastic to fiberglass<br />

<strong>and</strong> Kevlar composites. No one else can match<br />

our selection. Just ask for your favorite style.<br />

9Warranty<br />

Cairns st<strong>and</strong>s behind our product with a 5-year<br />

shell replacement warranty <strong>and</strong> additional<br />

lifetime coverage on components. We lead the<br />

way with warranty.<br />

10<br />

Heritage<br />

Since 1836, Cairns has been designing <strong>and</strong><br />

manufacturing high-quality <strong>fire</strong> <strong>helmets</strong>. No<br />

other helmet manufacturer has our experience<br />

<strong>and</strong> history in the <strong>fire</strong> service. More <strong>fire</strong>fighters<br />

choose Cairns than any other type of <strong>fire</strong> helmet.<br />

At Cairns, safety is our tradition.<br />

So choose Cairns for the ultimate<br />

reason – YOUR safety!<br />

2<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


F IRE<br />

H ELMETS<br />

Cairns® <strong>Fire</strong> Helmets<br />

High-temperature<br />

foam liner for<br />

increased thermal<br />

<strong>and</strong> impact protection,<br />

combined with a<br />

shell-release system.<br />

Aluminum-core<br />

edge trim.<br />

•<br />

High-temperature<br />

Nomex chinstrap with<br />

quick release <strong>and</strong><br />

postman’s slide<br />

enhances performance,<br />

safety, <strong>and</strong> fit.<br />

Other Features<br />

Shell Release System<br />

Through-color shell material to<br />

hide minor chips <strong>and</strong> scratches is<br />

available on thermoplastic <strong>and</strong><br />

fiberglass helmet shells.<br />

•<br />

Fiberglass* <strong>and</strong> Kevlar Models Only<br />

Reduce the chance of neck injury with a shell that is designed to<br />

release from the impact cap in the event that it would become<br />

lodged during a fall. Although the outer shell releases, the impact<br />

cap <strong>and</strong> earlaps are designed to stay on the user’s head for continued<br />

impact <strong>and</strong> thermal protection. Meets NFPA 1971, Rev.<br />

2007, 80 lbs. minimum for release requirement.<br />

* Does not include HP3<br />

Adjustable Headb<strong>and</strong> System<br />

Excludes Leather Models<br />

Cairns headb<strong>and</strong> features:<br />

• Three-position, rear-ratchet height<br />

adjustment to ensure a secure,<br />

comfortable fit for all head sizes between<br />

6 3 /8 <strong>and</strong> 8 3 /8 (on 880 Tradition, fit is<br />

between 5 5 /8 <strong>and</strong> 7 3 /8 inches).<br />

• An adjustable front headb<strong>and</strong> allows<br />

perfect fit between the helmet <strong>and</strong> a<br />

SCBA mask without lifting the helmet or<br />

exposing the forehead.<br />

•<br />

•<br />

•<br />

•<br />

•<br />

Integrated Defender Visor<br />

Unique<br />

shock-absorbing<br />

tube. No other<br />

<strong>helmets</strong> provide<br />

this type<br />

of impact<br />

protection.<br />

Velcro stowage for extra<br />

chinstrap material.<br />

A Few Words About Helmet Performance<br />

Cairns <strong>Fire</strong> Helmets are designed <strong>and</strong> manufactured to<br />

be durable. All of our leather, thermoplastic, fiberglass,<br />

<strong>and</strong> Kevlar <strong>helmets</strong> exceed industry st<strong>and</strong>ards for heat,<br />

impact, <strong>and</strong> penetration protection. Cairns offers the most<br />

diverse line in the industry, so you can choose the helmet<br />

that is best for your application.<br />

Leather<br />

New Yorker N5A® <strong>and</strong><br />

N6A Helmet Models<br />

Top-grain steer hide<br />

shell, layered with a highperformance<br />

thermal impact<br />

cap, skillfully h<strong>and</strong>-tooled<br />

by MSA Cairns craftsmen.<br />

The only 100% true<br />

leather helmet.<br />

Kevlar<br />

Classic 1000 <strong>and</strong><br />

Intruder 990® Helmet<br />

Models<br />

Fiberglass-reinforced<br />

Kevlar shell provides<br />

maximum thermal,<br />

impact, <strong>and</strong> penetration<br />

protection. Available in<br />

both modern <strong>and</strong><br />

traditional styles.<br />

Fiberglass<br />

Cairns® 1010 <strong>and</strong> 1044,<br />

660C Metro, Invader<br />

664 <strong>and</strong> Comm<strong>and</strong>o<br />

HP3® Helmet Models<br />

Exclusive, Dura-Glas®<br />

chip-resistant, throughcolor,<br />

high-performance,<br />

high-heat-resistant,<br />

compression-molded,<br />

fiberglass composite shell.<br />

Available in both modern<br />

<strong>and</strong> traditional styles.<br />

Thermoplastic<br />

Structural 360S, 360R,<br />

360R-13 <strong>and</strong> 880<br />

Tradition® Helmet Models<br />

Through-color<br />

thermoplastic shell combines<br />

toughness <strong>and</strong> durability<br />

with NFPA performance.<br />

Available in both modern <strong>and</strong><br />

traditional styles.<br />

All Cairns® Kevlar, Fiberglass, Thermoplastic* <strong>and</strong><br />

Leather N6A** <strong>Fire</strong> Helmets are certified to NFPA 1971-2007.<br />

The Leather N5A is OSHA certified.<br />

*The 360R-13 is approved to NFPA 1951-2007 only.<br />

**Natural color N6A is not NFPA compliant.<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

3


F IRE<br />

H ELMETS<br />

Leather Helmets<br />

Carved (shown) or<br />

silk-screened brass eagle<br />

front holder<br />

available<br />

for all traditional<br />

<strong>helmets</strong>.<br />

•<br />

H<strong>and</strong>crafted 100%<br />

leather shell for the ultimate<br />

in tradition.<br />

•<br />

Bourkes*—The “Original”: Easy up <strong>and</strong> down,<br />

available on all traditional style <strong>helmets</strong>.<br />

Leather Forever!<br />

Since 1836, Cairns has been the original manufacturer of<br />

leather <strong>fire</strong>fighting <strong>helmets</strong>. The Houston <strong>and</strong> New Yorker <strong>helmets</strong><br />

retain the same authentic look <strong>and</strong> quality that generation<br />

after generation of <strong>fire</strong>fighters have relied upon.<br />

Quality Craftsmanship<br />

•<br />

Every Cairns leather helmet is individually h<strong>and</strong>crafted. Every<br />

helmet is ready to provide you with years of<br />

dependable service.<br />

H<strong>and</strong>crafting Begins with the Shell<br />

N6A Houston<br />

The Original Leather Helmet<br />

H<strong>and</strong>-crafted to meet today’s NFPA<br />

st<strong>and</strong>ards with over 173 years of<br />

dependable performance.<br />

• H<strong>and</strong>crafted, 100%<br />

leather shell.<br />

• The Cairns 5-year shell<br />

replacement warranty.<br />

• Non-corroding,<br />

high-temperatureresistant<br />

faceshield/<br />

goggle hardware.<br />

* For cosmetic purposes only. Provides no eye or face protection.<br />

N5A New Yorker<br />

The original OSHA-approved leather helmet,<br />

individually h<strong>and</strong>-crafted to meet today’s<br />

OSHA st<strong>and</strong>ards with over 173 years of<br />

dependable performance.<br />

All Cairns Leather Helmets offer the following features <strong>and</strong> benefits:<br />

• Durable helmet hanger<br />

that fits on large hooks <strong>and</strong><br />

resists bending.<br />

• Minimal parts for lower<br />

service cost <strong>and</strong> easier<br />

maintenance.<br />

• High-temperature impact<br />

cap increases thermal <strong>and</strong><br />

impact protection.<br />

• Comfortable fit for head<br />

sizes Medium (6 3 ⁄8 - 7 1 ⁄2)<br />

<strong>and</strong> Large (7 5 ⁄8 - 8 3 ⁄8).<br />

• The New Yorker <strong>and</strong> Houston shells are constructed of topgrain<br />

Steer hide, impregnated with a natural resin system,<br />

which is sealed <strong>and</strong> over-coated with a colored high-luster<br />

finish system.<br />

• The crown is h<strong>and</strong>-sewn to the one-piece brim section.<br />

Showing attention to detail in every stitch, the brim is<br />

embossed with Cairns original Oak vine pattern.<br />

• Increasing your safety, a thermal impact liner is then<br />

installed within the leather crown. The thermal impact liner<br />

dramatically increases the levels of protection where you<br />

need it most.<br />

• The Cairns six-way overhead strap suspension system<br />

reduces shock transmission at the top of the helmet while<br />

providing a deep, comfortable fit.<br />

• Complete your unique helmet with the comfort pad kit<br />

supplied with every helmet. Using these pads provides<br />

a superior fit <strong>and</strong> feel that do not come in a typical<br />

<strong>fire</strong> helmet.<br />

The N6A Houston is NFPA 1971-2007 certified. The N5A New Yorker is OSHA 1977 certified.<br />

Model Color Size<br />

Eye<br />

Protection<br />

Earlap<br />

Front<br />

Holder<br />

Chinstrap Trim Type Trim Color<br />

The Assemble-to-Order<br />

(ATO) System<br />

1<br />

2<br />

3<br />

4<br />

Leather<br />

N6A<br />

Houston*<br />

Leather<br />

N6A<br />

Houston<br />

with<br />

Bourkes*<br />

Leather<br />

N5A<br />

New<br />

Yorker†<br />

Leather<br />

N5A<br />

New Yorker<br />

with<br />

Bourkes†<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

7<br />

8<br />

Black<br />

Red<br />

Blue<br />

White<br />

Yellow<br />

Orange<br />

Natural x<br />

Green<br />

1<br />

2<br />

Medium<br />

Large<br />

0 None†<br />

1 4'' Tuffshield<br />

2 Cairns ESS<br />

Goggles<br />

3 Cairns Goggles<br />

4 ESS Innerzone<br />

3 Goggles<br />

5 ESS Innerzone<br />

2 Goggles<br />

6 ESS Innerzone<br />

1 Goggles<br />

7 4'' Gold-Plated<br />

Faceshield<br />

8 6'' Gold-Plated<br />

Faceshield<br />

1<br />

2<br />

3<br />

Leather/Sateen<br />

Liner with<br />

Jumbo Nomex<br />

Yellow Earlap<br />

Leather/Sateen<br />

Liner with<br />

Jumbo<br />

PBI/Kevlar<br />

Earlap<br />

Leather/Sateen<br />

Liner with<br />

Jumbo Nomex<br />

Black Earlap<br />

1<br />

2<br />

3<br />

4<br />

6''<br />

Carved<br />

Brass<br />

Eagle<br />

6'' Silk<br />

Screened<br />

Eagle<br />

6'' Silk<br />

Screened<br />

Maltese<br />

Cross<br />

6''<br />

Carved<br />

Brass<br />

Beaver<br />

1<br />

2<br />

Nomex<br />

with Quick<br />

Release<br />

Nomex<br />

with Quick<br />

Release &<br />

Postman’s<br />

Slide<br />

0<br />

2<br />

3<br />

None†<br />

Reflexite<br />

(St<strong>and</strong>ard)<br />

Scotchlite<br />

0<br />

1<br />

2<br />

3<br />

4<br />

5<br />

St<strong>and</strong>ard<br />

(Lime Yellow)<br />

Lime Yellow<br />

White†<br />

(Reflexite Only)<br />

Red/Orange<br />

(Reflexite† &<br />

Scotchlite Only)<br />

Red/Orange<br />

Triple Trim<br />

(Scotchlite Only)<br />

Lime/Yellow<br />

Triple Trim<br />

(Scotchlite Only)<br />

The ATO system is easy to use,<br />

allowing you to order the right<br />

configuration to fit your needs.<br />

The ATO system allows you to<br />

“build” your own helmet by<br />

creating a feature-specific part<br />

number. Each character of an<br />

ATO part number represents a<br />

specific component, so the entire<br />

number describes the finished helmet<br />

built exactly to your specifications.<br />

Note: A number or letter must<br />

be selected for each category.<br />

The ATO system is only used to<br />

order complete <strong>helmets</strong>. Spare parts,<br />

additional components, etc., must be<br />

ordered by specific part number.<br />

* Eye protection (goggles or faceshield)<br />

required for NFPA compliance.<br />

† Not NFPA compliant<br />

x Natural color for N6A is not NFPA compliant<br />

B-LTH-<br />

Part Number<br />

4<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


Traditional Style Helmets<br />

•<br />

Performance blend of<br />

2 layers of ballistic-grade<br />

Kevlar <strong>and</strong> fiberglass<br />

composite.<br />

Tough, through-color, Dura-Glas fiberglass<br />

composite shell resists<br />

chipping <strong>and</strong> cracking.<br />

• •<br />

F IRE<br />

H ELMETS<br />

Classic 1000:<br />

Unmatched performance<br />

for extreme conditions.<br />

Cairns® 1010:<br />

The market leader, unparalleled balance<br />

<strong>and</strong> comfort, with high gloss paint job.<br />

Cairns® 1044:<br />

Rugged design for<br />

everyday durability.<br />

The Classic 1000, Cairns 1010 <strong>and</strong> Cairns 1044 <strong>Fire</strong> Helmets offer the following features <strong>and</strong> benefits:<br />

• Market-leading 5-year shell<br />

replacement warranty.<br />

• Non-corroding, high-temperature-resistant,<br />

faceshield/goggle hardware.<br />

• Rugged, high-temperature edge trim<br />

will not melt or drip.<br />

Classic 1000 St<strong>and</strong>ard Helmets<br />

1000FS St<strong>and</strong>ard Configuration: includes<br />

St<strong>and</strong>ard Flannel Cushion Liner, Nomex<br />

Earlap, 6" Front Holder & 4" Tuffshield<br />

1000GS St<strong>and</strong>ard Configuration: includes<br />

St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder <strong>and</strong><br />

Cairns Goggle System<br />

1000XS St<strong>and</strong>ard Configuration: includes<br />

St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder <strong>and</strong><br />

ESS Goggle System<br />

1000FD Deluxe Configuration: includes<br />

Leather Cushion Liner, Flannel Crown<br />

Pad, PBI/Kevlar Earlap, Carved Brass<br />

Eagle 6" Front Holder & 4" Tuffshield<br />

1000GD Deluxe Configuration: includes Leather<br />

Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle<br />

6" Front Holder & Cairns Goggle System<br />

1000XD Deluxe Configuration: includes Leather<br />

Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle<br />

6" Front Holder & ESS Goggle System<br />

• Easy front headb<strong>and</strong> adjustment<br />

for proper SCBA mask fit.<br />

• Simple rear ratchet height adjustment<br />

to fit all head sizes.<br />

• Headb<strong>and</strong> (6 3 ⁄8 to 8 3 ⁄8) fits a wide<br />

variety of head sizes.<br />

Cairns 1010 St<strong>and</strong>ard Helmets<br />

1010FS St<strong>and</strong>ard Configuration: includes<br />

St<strong>and</strong>ard Flannel Cushion Liner, Nomex<br />

Earlap, 6" Front Holder & 4" Tuffshield<br />

1010GS St<strong>and</strong>ard Configuration: includes St<strong>and</strong>ard<br />

Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder<br />

<strong>and</strong> Cairns Goggle System<br />

1010XS St<strong>and</strong>ard Configuration: includes<br />

St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder<br />

<strong>and</strong> ESS Goggle System<br />

1010FD Deluxe Configuration: includes Leather<br />

Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle<br />

6" Front Holder & 4" Tuffshield<br />

1010GD Deluxe Configuration: includes Leather<br />

Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle<br />

6" Front Holder & Cairns Goggle System<br />

1010XD Deluxe Configuration: includes Leather<br />

Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle<br />

6" Front Holder & ESS Goggle System<br />

• Durable helmet hanger fits on large hooks<br />

<strong>and</strong> resists bending.<br />

• Minimal parts for lower service cost<br />

<strong>and</strong> easier maintenance.<br />

• Exclusive shell release system for<br />

an extra margin of safety.<br />

• Unique tube-lock system absorbs<br />

the shock of an impact.<br />

Pre-Assembled Helmet Part Numbers<br />

The most popular Cairns styles, which are built to stock <strong>and</strong> more readily available, can be ordered with a Cairns part number. St<strong>and</strong>ard configuration includes<br />

St<strong>and</strong>ard Flannel Cushion Liners, Nomex Earlap, 6" Front Holder, <strong>and</strong> your choice of eye protection. Deluxe configuration includes Leather Cushion Liner,<br />

Flannel Crown Pad, PBI/Kevlar Earlap, Carved Brass Eagle 6" Front Holder, <strong>and</strong> your choice of eye protection. To designate a helmet color, add a W (White),<br />

B (Black), R (Red), Y (Yellow), O (Orange), C (Blue) or G (Green) after the part number.*<br />

Classic 1044 St<strong>and</strong>ard Helmets<br />

1044FS St<strong>and</strong>ard Configuration: includes<br />

St<strong>and</strong>ard Flannel Cushion Liner, Nomex<br />

Earlap, 6" Front Holder & 4" Tuffshield<br />

1044GS St<strong>and</strong>ard Configuration: includes<br />

St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder <strong>and</strong><br />

Cairns Goggle System<br />

1044XS St<strong>and</strong>ard Configuration: includes<br />

St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder <strong>and</strong><br />

ESS Goggle System<br />

1044FD Deluxe Configuration: includes Leather<br />

Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle<br />

6" Front Holder & 4" Tuffshield<br />

1044GD Deluxe Configuration: includes Leather<br />

Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle<br />

6" Front Holder & Cairns Goggle System<br />

1044XD Deluxe Configuration: includes Leather<br />

Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle<br />

6" Front Holder & ESS Goggle System<br />

* Orange, Blue <strong>and</strong> Green Helmet colors not available<br />

for the Cairns 1044 Helmet.<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

5


F IRE<br />

H ELMETS<br />

Defender® Visor for Cairns 1010 <strong>and</strong> 1044 Helmets<br />

The Defender Visor for Cairns 1010 <strong>and</strong> 1044 Helmets<br />

offers the follwing features <strong>and</strong> benefits:<br />

• Available on both the Cairns 1010 <strong>and</strong> Cairns 1044 <strong>Fire</strong> Helmets<br />

• Retractable eyewear system that’s ready when you need it<br />

• Available with a new helmet or as user-upgrade kit<br />

• Quick-disconnect for fast lens change-out without the use of tools<br />

• Never lose or misplace your eye protection again<br />

• Optically correct lens eliminates peripheral distortion<br />

• Doesn't block front piece like other eye protection styles<br />

patent pending<br />

The new Defender® Visor for MSA Cairns 1010 <strong>and</strong><br />

1044 Traditional Helmets offers eye protection from<br />

dust, dirt, <strong>and</strong> grit. Sleek <strong>and</strong> attractive construction<br />

allows fast, easy raising <strong>and</strong> lowering of your<br />

visor even with gloved h<strong>and</strong>s. This visor's exclusive<br />

integral design is retractable for the ultimate in<br />

compact convenience. St<strong>and</strong>ard clear <strong>and</strong> amber<br />

Tuffshield visor options are NFPA-compliant.<br />

New Cairns 1010 <strong>and</strong> 1044 helmet assemblies<br />

incorporating the Defender Visor may be ordered<br />

through the Traditional Helmets Assemble-To-<br />

Order Matrix. A user-installable upgrade kit<br />

(includes new impact cap) lets you install the<br />

Defender Visor in existing Cairns 1010 or 1044<br />

Helmets yourself.<br />

If you're in the market for a new Cairns 1010 or 1044<br />

Helmet or if you've thought about replacing your<br />

existing impact cap, consider the streamlined<br />

advantage of the new NFPA- compliant MSA<br />

Defender Visor. Cairns 1010 <strong>and</strong> 1044 Traditional<br />

Helmets offer the perfect combination of<br />

durability <strong>and</strong> performance in a lightweight,<br />

high-performance design. MSA Cairns once again<br />

has incorporated the latest technological advances<br />

that <strong>fire</strong>fighters come to expect from the leader.<br />

St<strong>and</strong>ard 1010 Defender Configurations<br />

1010DS Includes St<strong>and</strong>ard Flannel Cushion Liner, Yellow Nomex Earlap,<br />

Silk-Screened 6" Eagle Front Holder <strong>and</strong> Clear Defender Visor<br />

1010DD Includes Leather Cushion Liner, Flannel Crown Pad, PBI/Kevlar Earlap,<br />

Carved 6" Eagle Front Holder <strong>and</strong> Clear Defender Visor<br />

1010TS Includes St<strong>and</strong>ard Flannel Cushion Liner, Yellow Nomex Earlap,<br />

Silk-Screened 6" Eagle Front Holder <strong>and</strong> Tuffshield Defender Visor<br />

1010TD Includes Leather Cushion Liner, Flannel Crown Pad, PBI/Kevlar Earlap,<br />

Carved 6" Eagle Front Holder <strong>and</strong> Tuffshield Defender Visor<br />

St<strong>and</strong>ard 1044 Defender Configurations<br />

1044DS Includes St<strong>and</strong>ard Flannel Cushion Liner, Yellow Nomex Earlap,<br />

Silk-Screened 6" Eagle Front Holder <strong>and</strong> Clear Defender Visor<br />

1044DD Includes Leather Cushion Liner, Flannel Crown Pad, PBI/Kevlar Earlap,<br />

Carved 6" Eagle Front Holder <strong>and</strong> Clear Defender Visor<br />

1044TS Includes St<strong>and</strong>ard Flannel Cushion Liner, Yellow Nomex Earlap,<br />

Silk-Screened 6" Eagle Front Holder <strong>and</strong> Tuffshield Defender Visor<br />

1044TD Includes Leather Cushion Liner, Flannel Crown Pad, PBI/Kevlar Earlap,<br />

Carved 6" Eagle Front Holder <strong>and</strong> Tuffshield Defender Visor<br />

Defender Visor in deployed position<br />

Defender Visor in stowed position<br />

Defender Upgrade Assembly<br />

10077038 Clear Lens w/ QR Chinstrap<br />

10077039 Amber Tuffshield Lens w/ QR Chinstrap<br />

10077040 Smoke Lens w/ QR Chinstrap<br />

10077111 Mirror Lens w/ QR Chinstrap<br />

10077112 Clear Lens w/ Slide<br />

10077113 Amber Tuffshield Lens w/ Slide<br />

10077114 Smoke Lens w/ Slide<br />

10077115 Mirror Lens w/ Slide<br />

Defender Visor color variety<br />

6<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


Traditional Helmets<br />

F IRE<br />

The 880 Tradition <strong>Fire</strong> Helmet offers the<br />

following features <strong>and</strong> benefits:<br />

H ELMETS<br />

Shown with 6” front<br />

•<br />

• Market-leading 5-year shell replacement warranty.<br />

• Non-corroding, high-temperature-resistant faceshield/goggle<br />

hardware.<br />

• Rugged, high-temperature edge will not melt or drip.<br />

• Easy front headb<strong>and</strong> adjustment for proper SCBA mask fit.<br />

• Simple rear ratchet height adjustment to fit all head sizes.<br />

• Headb<strong>and</strong> fits a wide variety of head sizes (5 5 ⁄8 to 7 5 ⁄8).<br />

• Durable helmet hanger fits on large hooks <strong>and</strong> resists bending.<br />

• Minimal parts for lower service cost <strong>and</strong> easier maintenance.<br />

• Unique tube-lock system absorbs the shock of an impact.<br />

• Cairns original Oak vine pattern molded into the brim.<br />

880 Tradition:<br />

The combination of traditional design <strong>and</strong> legendary performance with modern materials.<br />

Pre-Assembled Helmet Part Numbers<br />

The most popular Cairns styles, which are built to stock <strong>and</strong> more readily available, can be<br />

ordered with a Cairns part number. To designate a helmet color, add a W (White), B (Black),<br />

R (Red), Y (Yellow), O (Orange) or C (Blue) after the part number.<br />

880 Tradition St<strong>and</strong>ard Helmets<br />

880FS St<strong>and</strong>ard Configuration: includes St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder & 4" Tuffshield<br />

880GS St<strong>and</strong>ard Configuration: includes St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder <strong>and</strong> Cairns Goggle System<br />

880XS St<strong>and</strong>ard Configuration: includes St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap, 6" Front Holder <strong>and</strong> ESS Goggle System<br />

880FD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle 6" Front Holder & 4" Tuffshield<br />

880GD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle 6" Front Holder & Cairns Goggle System<br />

880XD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown Pad,<br />

PBI/Kevlar Earlap, Carved Brass Eagle 6" Front Holder & ESS Goggle System<br />

Low-ride helmet design<br />

creates a low-profile for<br />

superior clearance <strong>and</strong><br />

maneuverability.<br />

•<br />

Tough, high-temperature<br />

thermoplastic shell resists<br />

chipping <strong>and</strong> cracking.<br />

•<br />

•<br />

New, high-tech thermal<br />

impact cap provides<br />

increased heat <strong>and</strong><br />

impact protection.<br />

Assemble-To-Order System<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

7<br />

8<br />

9<br />

B<br />

A<br />

C<br />

Model Color Eye Protection**<br />

Cairns 1010<br />

Cairns 1010 with Bourkes**<br />

Classic 1000<br />

Classic 1000 with Bourkes**<br />

880 Tradition<br />

880 Tradition<br />

with Bourkes**<br />

Cairns 1044<br />

Cairns 1044 with Bourkes**<br />

Cairns 1010 with<br />

Defender Visor <br />

Cairns 1044 with<br />

Defender Visor <br />

1010 Defender<br />

with Bourkes** <br />

1044 Defender<br />

with Bourkes** <br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

7<br />

Black<br />

Red<br />

Blue<br />

White<br />

Yellow<br />

Orange<br />

Green‡<br />

0<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

7<br />

8<br />

9<br />

B<br />

C<br />

None*<br />

4'' Tuffshield<br />

Cairns ESS Goggles<br />

Cairns Goggles<br />

ESS Innerzone<br />

3 Goggles<br />

ESS Innerzone<br />

2 Goggles<br />

ESS Innerzone<br />

1 Goggles<br />

4'' Gold-Coated<br />

Faceshield*<br />

6'' Gold-Coated<br />

Faceshield*<br />

St<strong>and</strong>ard Faceshield*<br />

Defender Visor, Clear <br />

Defender Tuffshield <br />

Headb<strong>and</strong><br />

Liners<br />

1 Economy<br />

Flannel<br />

2 St<strong>and</strong>ard<br />

Flannel<br />

3 Deluxe<br />

Leather<br />

with<br />

Crown<br />

Pad<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

7<br />

9<br />

A<br />

Earlaps Front Holder Chinstrap Trim Type Trim Color<br />

Yellow Nomex<br />

Yellow Nomex with<br />

Underchin Extension<br />

PBI/Kevlar<br />

PBI/Kevlar with<br />

Underchin Extension<br />

Bloodborne<br />

Pathogen Resistant<br />

Yellow Nomex<br />

Winter Hood<br />

PBI Winter Hood<br />

CFR Aluminized<br />

Bonnet with<br />

PBI/Kevlar Shroud<br />

& Nomex Earlap‡<br />

Black Nomex<br />

0<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

None<br />

6''<br />

Carved Brass<br />

Eagle<br />

6'' Silk<br />

Screened Eagle<br />

6'' Silk<br />

Screened<br />

Maltese Cross<br />

5'' Silk<br />

Screened<br />

Eagle†<br />

5'' Silk<br />

Screened<br />

Maltese Cross†<br />

6'' Carved Brass<br />

Beaver‡<br />

1<br />

2<br />

Nomex with<br />

Quick Release<br />

Nomex with<br />

Quick Release<br />

& Postman’s<br />

Slide<br />

0<br />

2<br />

3<br />

None*<br />

Reflexite<br />

(St<strong>and</strong>ard)<br />

Scotchlite<br />

0<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

St<strong>and</strong>ard<br />

(Lime Yellow)<br />

Lime Yellow<br />

White<br />

(Reflexite<br />

Only)*<br />

Red/Orange<br />

(Reflexite &<br />

Scotchlite<br />

Only)*<br />

Blue<br />

(Reflexite<br />

Only)*<br />

Red/Orange Triple<br />

Trim (Scotchlite<br />

Only)<br />

Lime/Yellow<br />

Triple Trim<br />

(Scotchlite Only)<br />

** Eye protection (Defender Visor, goggles or faceshield)<br />

required for NFPA compliance<br />

* Not NFPA compliant<br />

† Available with 880 Tradition only<br />

‡ Not available with 880 Tradition<br />

C-TRD-<br />

Part Number<br />

x Requires a 5'' front with 880 Tradition only<br />

Not available on Cairns 1044<br />

Must specify Defender Visor in both Model<br />

<strong>and</strong> Eye Protection selections<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

7


Modern Helmets<br />

F IRE<br />

H ELMETS<br />

660C®Metro<br />

• Durable, painted<br />

fiberglass composite.<br />

Invader 664:<br />

• Rugged, through-color<br />

DuraGlas fiberglass<br />

composite shell.<br />

Intruder 990®:<br />

• Extreme protection,<br />

includes 3-layers of<br />

Kevlar composite for<br />

cut <strong>and</strong> penetration<br />

resistance.<br />

Structural 360S®:<br />

• Lightest structural <strong>fire</strong> helmet<br />

in Cairns line.<br />

• Well-balanced construction<br />

for all-day comfort.<br />

• Tough thermoplastic shell for<br />

everyday durability.<br />

All Cairns <strong>Fire</strong> Helmets Listed Here Include the Following Features:<br />

• Market-leading 5-year shell replacement warranty.<br />

• Non-corroding, high-temperature-resistant, faceshield/goggle hardware.<br />

• Rugged, high-temperature edge will not melt or drip.<br />

• Easy front headb<strong>and</strong> adjustment for proper SCBA mask fit.<br />

• Simple rear ratchet height adjustment to fit all head sizes.<br />

• Headb<strong>and</strong> (6 3 /8 to 8 3 /8) fits a wide variety of head sizes.<br />

• Durable helmet hanger fits on large hooks <strong>and</strong> resists bending.<br />

• Minimal parts for lower service cost <strong>and</strong> easier maintenance.<br />

Pre-Assembled Helmet Part Numbers<br />

The most popular Cairns styles, which are built to stock <strong>and</strong> more readily available, can be ordered with a Cairns part number.<br />

To designate a helmet color, add a W (White), B (Black), R (Red), Y (Yellow), O (Orange), C (Blue) or G (Green) after the part number.*<br />

660C Metro St<strong>and</strong>ard Helmets<br />

660CFS St<strong>and</strong>ard Configuration: includes St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap & 4" St<strong>and</strong>ard Faceshield<br />

660CGS St<strong>and</strong>ard Configuration: includes St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap & Cairns Goggle System<br />

660CXS St<strong>and</strong>ard Configuration: includes St<strong>and</strong>ard Flannel Cushion Liner,<br />

Nomex Earlap & ESS Goggle System<br />

660CFD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown<br />

Pad, PBI/Kevlar Earlap & 4" Tuffshield<br />

660CGD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown<br />

Pad, PBI/Kevlar Earlap & Cairns Goggle System with Extra Lens<br />

660CXD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown<br />

Pad, PBI/Kevlar Earlap & ESS Goggle System<br />

Shell Release System<br />

Structural 360S St<strong>and</strong>ard Helmets<br />

360SFS St<strong>and</strong>ard Configuration: includes Economy Flannel Cushion Liner, Nomex Earlap & 4" St<strong>and</strong>ard Faceshield<br />

360SGS St<strong>and</strong>ard Configuration: includes Economy Flannel Cushion Liner, Nomex Earlap & Cairns Goggle System<br />

360SXS St<strong>and</strong>ard Configuration: includes Economy Flannel Cushion Liner, Nomex Earlap & ESS Goggle System<br />

* Green Helmet Color not available for Structural 360S Helmet<br />

• Cairns-exclusive system provides an extra margin of safety - dem<strong>and</strong> it!<br />

• Thermal impact cap<br />

Impact Cap Performance<br />

• Part of Cairns complete head protection system.<br />

• Provides increased thermal <strong>and</strong> impact protection.<br />

• Tube-lock system, instrumental in absorbing the shock of an impact.<br />

The Metro 660C, Invader 664, <strong>and</strong> Intruder 990 Helmets<br />

all feature the Shell Release System.<br />

Invader 664 St<strong>and</strong>ard Helmets<br />

664FS St<strong>and</strong>ard Configuration: includes Economy Flannel Cushion Liner,<br />

Nomex Earlap & 4" St<strong>and</strong>ard Faceshield<br />

664GS St<strong>and</strong>ard Configuration: includes Economy Flannel Cushion Liner,<br />

Nomex Earlap & Cairns Goggle System<br />

664XS St<strong>and</strong>ard Configuration: includes Economy Flannel Cushion Liner,<br />

Nomex Earlap & ESS Goggle System<br />

664FD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown<br />

Pad, PBI/Kevlar Earlap & 4" Tuffshield<br />

664GD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown<br />

Pad, PBI/Kevlar Earlap & Cairns Goggle System with Extra Lens<br />

664XD Deluxe Configuration: includes Leather Cushion Liner, Flannel Crown<br />

Pad, PBI/Kevlar Earlap & ESS Goggle System<br />

* Orange, Blue <strong>and</strong> Green Helmet Colors not available for Invader 664 Helmet<br />

8<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


Defender® Visor for Modern Style Helmets<br />

F IRE<br />

H ELMETS<br />

Integral, retractable, close-fitting visor for modernstyle<br />

Cairns® Helmets. Pull the visor down to protect<br />

eyes; push it up to stow inside helmet. Low-profile,<br />

rugged eye protection.<br />

• Eye protection stays clean stored inside the helmet.<br />

• Lowest-profile helmet available is good for tight spaces.<br />

• Order with your new helmet or as a user-upgrade kit.<br />

• Never lose or misplace your eye protection again.<br />

new<br />

patent pending<br />

MSA’s Defender Visor is retractable eyewear that’s<br />

ready when you need it. It can be worn with three<br />

modern-style Cairns <strong>helmets</strong>: The 660C Metro, the<br />

Invader 664, <strong>and</strong> the Comm<strong>and</strong>o HP3. It stays clean<br />

inside your helmet until you need eye protection<br />

during overhaul <strong>and</strong> non-IDLH search-<strong>and</strong>-recovery.<br />

The Defender Visor’s exclusive design defines<br />

compact convenience. Its sleekness <strong>and</strong> attractive<br />

construction promote fast, easy raising <strong>and</strong><br />

lowering, even with gloved h<strong>and</strong>s. And don’t be<br />

conerned about slippage. It’s securely stowed until<br />

YOU pull it down.<br />

St<strong>and</strong>ard clear <strong>and</strong> amber Tuffshield visors are<br />

compliant with NFPA 1971, <strong>and</strong> all Defender Visors<br />

meet ANSI Z87.1+ St<strong>and</strong>ard. The optically correct<br />

lens eliminates peripheral distortion. The visor<br />

quickly disconnects for fast lens changes, <strong>and</strong><br />

requires no tools.<br />

Defender Upgrade Assembly (660/664 Only)<br />

10092441 Clear Lens w/ QR Chinstrap<br />

10092442 Amber Tuffshield Lens w/ QR Chinstrap<br />

10092443 Smoke Lens w/ QR Chinstrap<br />

10092444 Mirror Lens w/ QR Chinstrap<br />

10092445 Clear Lens w/ Slide<br />

10092446 Amber Tuffshield Lens w/ Slide<br />

10092447 Smoke Lens w/ Slide<br />

10092448 Mirror Lens w/ Slide<br />

Defender Visor in deployed position<br />

Defender Visor in stowed position<br />

Defender Visor color variety<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

9


Rescue Helmets<br />

F IRE<br />

H ELMETS<br />

Comm<strong>and</strong>o® HP3:<br />

• Low-profile design is ideal for EMS<br />

<strong>and</strong> rescue operations.<br />

• Full foam impact cap used for<br />

increased impact protection.<br />

• Durable fiberglass shell resists<br />

cracking <strong>and</strong> chipping.<br />

• Certified to both NFPA 1971-2007<br />

<strong>and</strong> NFPA 1951-2007.<br />

• Now available with the<br />

Defender Visor!<br />

All Cairns <strong>Fire</strong> Helmets Listed Here Include the Following Features:<br />

• Market-leading 5-year shell replacement warranty.<br />

• Available with 3-point chinstrap <strong>and</strong> bloodborne pathogen resistant earlap.<br />

• Non-corroding, high-temperature-resistant, faceshield/goggle hardware.<br />

• Rugged, high-temperature edge will not melt or drip.<br />

• Easy front headb<strong>and</strong> adjustment for proper SCBA mask fit (HP3 only).<br />

• Simple rear ratchet height adjustment to fit all head sizes.<br />

• Headb<strong>and</strong> (6 3 / 8 to 8 3 / 8) fits a wide variety of head sizes.<br />

• Durable helmet hanger fits on large hooks <strong>and</strong> resists bending.<br />

• Minimal parts for lower service cost <strong>and</strong> easier maintenance.<br />

Rescue 360R:<br />

• Lightweight, low-profile<br />

performance<br />

• Through-color,<br />

thermoplastic shell<br />

• Certified to both<br />

NFPA 1971-2007 <strong>and</strong><br />

NFPA 1951-2007.<br />

Rescue 360R-13:<br />

• Lightweight, low-profile<br />

performance<br />

• Through-color,<br />

thermoplastic shell<br />

• Certified to NFPA<br />

1951-2007.<br />

The Assemble-to-Order (ATO) System<br />

The ATO system is easy to use, allowing you to order the right configuration<br />

to fit your needs. The ATO system allows you to “build” your own helmet by<br />

creating a feature-specific part number.<br />

Each character of an ATO part number represents a specific component,<br />

so the entire number describes the finished helmet built exactly to your<br />

specifications.<br />

Model Color Eye Protection<br />

Headb<strong>and</strong><br />

Liners<br />

Earlaps Chinstrap Trim Type Trim Color Trim Shape<br />

1<br />

2<br />

5<br />

6<br />

7<br />

A<br />

B<br />

C<br />

D<br />

E<br />

G<br />

990 Intruder<br />

660C Metro<br />

HP3 Comm<strong>and</strong>o<br />

360 Structural<br />

360 Structural<br />

without Edge<br />

Bead<br />

Invader 664<br />

Rescue 360R+<br />

Rescue* 360R-13<br />

660C Metro<br />

Defender<br />

Invader 664<br />

Defender<br />

HP3 Comm<strong>and</strong>o<br />

Defender<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

7<br />

Black<br />

Red<br />

Blue‡<br />

White<br />

Yellow<br />

Orange‡<br />

Green†‡<br />

0 None*<br />

1 4'' Tuffshield<br />

2 Cairns ESS Goggles<br />

3 Cairns Goggles<br />

4 ESS Innerzone 3 Goggles<br />

5 ESS Innerzone 2 Goggles<br />

6 ESS Innerzone 1 Goggles<br />

7 4'' St<strong>and</strong>ard Faceshield<br />

8 6'' St<strong>and</strong>ard Faceshield<br />

9 4'' Gold-Coated Faceshield**<br />

A 6'' Gold-Coated Faceshield<br />

B<br />

C<br />

D<br />

ESS Striketeam XTO Goggle**<br />

Defender Visor, Clear <br />

Defender Visor, Amber<br />

Tuffshield <br />

1<br />

2<br />

3<br />

Economy<br />

Flannel<br />

St<strong>and</strong>ard<br />

Flannel<br />

Deluxe<br />

Leather<br />

with<br />

Crown<br />

Pad<br />

0<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

7<br />

9<br />

A<br />

None<br />

Yellow Nomex<br />

Yellow Nomex with<br />

Underchin Extension<br />

PBI/Kevlar<br />

PBI/Kevlar with<br />

Underchin Extension<br />

Bloodborne Pathogen<br />

Resistant<br />

Yellow Nomex<br />

Winter Hood<br />

PBI Winter Hood<br />

CFR Aluminized<br />

Bonnet with<br />

PBI/Kevlar Shroud<br />

& Nomex Earlap<br />

Black Nomex<br />

1<br />

2<br />

3<br />

4<br />

6<br />

7<br />

Nomex with<br />

Quick Release<br />

Nomex with<br />

Quick Release<br />

& Postman’s Slide<br />

3'' longer Nomex<br />

with Quick Release<br />

& Postman’s Slide<br />

(360 Only)<br />

Nomex with<br />

Postman’s Slide<br />

(Not available on<br />

HP3)<br />

6'' longer Nomex<br />

with Postman’s<br />

Slide<br />

3-Point with<br />

Quick Release<br />

(HP3 only)<br />

0<br />

2<br />

3<br />

None*<br />

Reflexite<br />

(St<strong>and</strong>ard)<br />

Scotchlite<br />

0<br />

1<br />

2<br />

3<br />

4<br />

St<strong>and</strong>ard<br />

Lime/<br />

Yellow<br />

Red/<br />

Orange*<br />

Blue*<br />

(Reflexite<br />

only)<br />

White*<br />

0 St<strong>and</strong>ard<br />

1 Tetrabar<br />

2* Bar<br />

3* Diamond<br />

4* Triple Trim<br />

(Scotch-lite<br />

only)<br />

* Not NFPA approved<br />

† Not available on 360<br />

‡ Not available on Invader 664<br />

** Available only on 360 <strong>and</strong> HP3<br />

x Not all colors available in all types <strong>and</strong> shapes<br />

+ Rescue 360R not available with faceshield<br />

Must specify Defender Visor in both model & eye protection sections<br />

C-MOD-<br />

Part Number<br />

10<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


F IRE<br />

H ELMETS<br />

Cairns Accessories<br />

St<strong>and</strong>ard Fronts<br />

Made with your choice of high-gloss patent leather<br />

or dull-finish genuine leather reinforced with a<br />

high-temperature, shrink-resistant back layer <strong>and</strong> sewn<br />

with high-temperature, <strong>fire</strong>-retardant Nomex thread.<br />

The Choice Is Yours!<br />

St<strong>and</strong>ard fronts offer over 27 million possible<br />

configurations! Design your own st<strong>and</strong>ard front<br />

by choosing from the options <strong>and</strong> then indicating your<br />

preferences by calling 1-877-MSA-FIRE to<br />

place your order.<br />

Legend<br />

(AG) Attached Graphics = Choice of raised or sunken<br />

numbers, sunken fleur-de-lis, metal badges <strong>and</strong> decals.<br />

(PG) Printed Graphics = Choice of printed graphic<br />

symbol or number.<br />

Top Layer<br />

• Available in low-gloss 100%<br />

natural leather or high-gloss patent<br />

leather<br />

• Both leathers available in your<br />

choice of 8 colors: white, red,<br />

black, blue, yellow, green, orange<br />

or gold leaf<br />

Print Layer<br />

• Available in 8 colors of<br />

high-temperature nylon:<br />

white, red, black, blue, yellow,<br />

green, orange or gold foil<br />

• Also available in reflective<br />

Scotchlite (white only)<br />

•<br />

•<br />

•<br />

•<br />

Lettering<br />

• 1<br />

⁄2" tall, except on Mini Fronts<br />

• Maximum of 4 lines with up to<br />

14 characters per line<br />

• Available in 8 colors: white,<br />

red, black, blue, yellow, green,<br />

orange or gold foil<br />

• Also available in reflective<br />

Scotchlite (white only)<br />

Graphics<br />

• Choose from: attached raised numbers,<br />

attached sunken<br />

numbers, printed numbers <strong>and</strong><br />

letters, printed graphics, attached<br />

graphic decals or attached metal<br />

ornaments (shown)<br />

(NG) No Graphics<br />

Accountability Systems<br />

• Improve department<br />

accountability with<br />

simple numeric<br />

identification inserts<br />

• Meets NFPA 1971-2007<br />

• High-temperature,<br />

<strong>fire</strong>-resistant hook-<strong>and</strong>loop<br />

attachment for<br />

easy placement <strong>and</strong><br />

removal<br />

• Available in all front<br />

piece color choices<br />

or in white reflective<br />

Scotchlite for<br />

higher visibility<br />

#AS006 1 3 ⁄4” x 2 1 ⁄2”<br />

#AS007 3 1 ⁄2” x 1 3 ⁄4”<br />

6" Passport Accountability System<br />

FDNY 6" Front<br />

Passport 4", 5" <strong>and</strong> 6" Fronts<br />

This system consists of three removable<br />

patches: 1 for the front itself <strong>and</strong> one for<br />

each side of the helmet<br />

This system consists of a removable pinned<br />

insert <strong>and</strong> frame.<br />

• Available with sunken, raised or printed<br />

numbers only.<br />

• If front <strong>and</strong> insert colors are different,<br />

order the frame <strong>and</strong> insert separately.<br />

This system consists of a removable<br />

hook-<strong>and</strong>-loop insert <strong>and</strong> frame.<br />

• Available with printed numbers<br />

<strong>and</strong> letters.<br />

• 5" fronts for 880 Tradition Helmet only<br />

#52 Frame <strong>and</strong> Insert<br />

#53 Frame only<br />

#54 Insert only<br />

#62 Frame with 3<br />

Inserts<br />

#60 Frame only<br />

#61 One Insert<br />

only<br />

#42 Frame<br />

<strong>and</strong> Insert<br />

#43 Frame<br />

only<br />

#44 Frame<br />

<strong>and</strong> Insert<br />

#45 Frame<br />

only<br />

#46 Frame<br />

<strong>and</strong> Insert<br />

#47 Frame<br />

only<br />

#48 Insert<br />

only<br />

#49 Frame <strong>and</strong><br />

Insert<br />

#50 Frame only<br />

#51 Insert only<br />

#55 Frame<br />

<strong>and</strong> Insert<br />

#56 Frame<br />

only<br />

#58 Frame <strong>and</strong><br />

Insert<br />

#59 Frame only<br />

#57 Insert only<br />

Reflective Shapes <strong>and</strong> Numbers<br />

Scotchlite<br />

Reflexite<br />

Scotchlite Colors: Lime/Yellow, Red/Orange*, White*<br />

Scotchlite Tetrahedron Triple Trim Colors:<br />

Lime/Yellow, Red/Orange, White<br />

Reflexite Colors: Lime/Yellow, Red/Orange*, Blue*,<br />

White*<br />

* Does not meet NFPA 1971-2007.<br />

Shapes<br />

Shape Reflexite Scotchlite<br />

Tetrahedron RP20P SP20P<br />

Diamond RP12P SP12P<br />

Tetra Bar RP17P SP17P<br />

Bar 1" x 4" RP16P SP16P<br />

Tetrahedron Triple Trim (R/O) 10062655<br />

Tetrahedron Triple Trim (L/Y) 10062656<br />

Numbers<br />

Size Material Part No.<br />

1" Reflexite RP100P<br />

Scotchlite SP100P<br />

2" Reflexite RP200P<br />

Scotchlite SP200P<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

11


F IRE<br />

H ELMETS<br />

8" PARADE FRONTS<br />

For use on G5A or G64 presentation leather helmet (Parade-style Eagle required)<br />

#10 (AG) #11 (PG) #12 (AG) #13 (PG) #14 (AG) #15 (PG) #16 (AG) #17 (PG) #18 (NG)<br />

1 line of text 2 lines of text 3 lines of text 4 lines of text<br />

6" FRONTS (for use on all traditional <strong>helmets</strong>)<br />

5" FRONTS (for use on 880 Tradition <strong>fire</strong> helmet only)<br />

Note: The styles depicted below are shown on 6-inch fronts,<br />

but may be ordered for both 6-inch <strong>and</strong> 5-inch fronts.<br />

A sample 5-inch front is shown at right.<br />

5" front<br />

with<br />

2 lines<br />

of text<br />

4" FRONTS<br />

For use on modern <strong>helmets</strong><br />

#31 (AG) #32 (PG) #33 (AG) #34 (PG)<br />

1 line of text<br />

6-inch #19 (AG) #20 (PG) #21 (AG) #22 (PG) #23 (AG) #24 (PG)<br />

5-inch #150 (AG) #151(PG) #152(AG) #153(PG) #154(AG) #155(PG)<br />

1 line of text 2 lines of text<br />

#35 (AG) #36 (PG) #37 (NG)<br />

2 lines of text 3 lines of text<br />

3" MINI FRONTS<br />

For keychain <strong>and</strong> mini helmet gift items<br />

#38 (AG) #39 (PG) #40 (AG) #41 (NG)<br />

6-inch #25 (AG) #26 (PG) #27 (AG) #28 (PG) #29 (NG) #30 (NG)<br />

5-inch #156 (AG) #157 (PG) #158 (AG) #159 (PG) #160 (NG) #161 (NG)<br />

3 lines of text 4 lines of text<br />

FRONT PIECE HOLDERS<br />

GRAPHIC CHOICES FOR STANDARD FRONTS<br />

Unless otherwise noted, all graphics are available as your choice<br />

of: color-printed graphic, attached graphic decal, 14K gold badge<br />

or chrome badge. Badges are available only in choices A K.<br />

To discuss your custom artwork or logo application needs, please<br />

call 1-877-MSA-FIRE.<br />

BADGES<br />

available in<br />

graphic<br />

choices A-K<br />

K (14K Gold)<br />

C (Chrome)<br />

1 2<br />

3<br />

A B C D E F<br />

1<br />

2<br />

4<br />

Silk-Screened Eagle<br />

N5A, N6A, 1000, 1010, 1044 M9P<br />

880 Tradition (6” Front) 10049738<br />

880 Tradition (5” Front) 10049736<br />

Carved Brass Eagle<br />

N5A, N6A, 1000, 1010, 1044 M8P<br />

880 Tradition (6” Front) 10065952<br />

5<br />

G H I * J K L<br />

* EMS: Available in printed<br />

format only.<br />

** Available in tin or as graphic<br />

decal. Not available on #35.<br />

*Available only as a sunken cutout.<br />

M * N ** O P Q R<br />

3 Maltese Cross<br />

N5A, N6A, 1000, 1010, 1044 M6P<br />

880 Tradition (6” Front) 10049739<br />

880 Tradition (5” Front) 10049737<br />

4<br />

5<br />

Brass Beaver<br />

N5A, N6A, 1000, 1010, 1044 10071258<br />

Carved Parade Eagle<br />

Parade-style (8” Front) 10100839<br />

12<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


F IRE<br />

H ELMETS<br />

Printed Gold Leaf Fronts<br />

• Printed, h<strong>and</strong>-drawn artwork on 23K<br />

gold background in your choice of<br />

three styles.<br />

• High-temperature materials<br />

are stable up to 500° F.<br />

• St<strong>and</strong>ard designs available in 2-3 weeks.<br />

Custom designs are available at an<br />

additional charge.<br />

Ordering is Easy!<br />

1. Choose the background you want:<br />

23K satin gold leaf, 23K turned gold leaf<br />

or white with gold accents.<br />

2. Choose the design you want: classic<br />

scrolls, classic banners or flaming scroll.<br />

3. Choose the number of lines of text<br />

you want from 1-4.<br />

Please call 1-877-MSA-FIRE to discuss your custom artwork or logo applications.<br />

Satin Gold Leaf Turned Gold Leaf Gold on White<br />

with Banners with Scroll with Flaming Scroll<br />

STANDARD 8" PRINTED GOLD LEAF<br />

F70B F70S F70F F71B F71S F71F<br />

F72B F72S F72F F73B F73S F73F<br />

STANDARD 6" PRINTED GOLD LEAF<br />

F74B F74S F74F F75B F75S F75F F76B F76S<br />

F76F F77B F77S F77F F78 F79 F80 F81<br />

STANDARD 4" PRINTED GOLD LEAF<br />

STANDARD LOGOS Nine stock logos are available. For custom logos, call 1-877-MSA-FIRE.<br />

F82B<br />

F82S<br />

GA: GB: GC: GD: GE: GF: GG:<br />

Lieutenant Lieutenant Captain Captain 2nd/Battalion Chief 1st/Deputy Chief Assistant Chief<br />

F83A<br />

F83B<br />

GH: Chief<br />

GI: <strong>Fire</strong>fighter<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

13


F IRE<br />

H ELMETS<br />

Decals & Title Tapes<br />

All decals <strong>and</strong> title tapes are available in either vinyl or reflective Scotchlite. Decal choices are shown below. Custom decals also available.<br />

ENGINEER<br />

D101P D102P D103P D104P D105P D106P D107P D108P D114P D130P D109P<br />

DS101P DS102P DS103P DS104P DS105P DS106P DS107P DS108P DS114P DS130P DS109P<br />

D110P D111P D112P D113P D115P D129P D117P D118P D119P D120P D121P<br />

DS110P DS111P DS112P DS113P DS115P DS129P DS117P DS118P DS119P DS120P DS121P<br />

D122P D123P D124P D125P D126P D127P D128P D131P D133P D134P D135P<br />

DS122P DS123P DS124P DS125P DS126P DS127P DS128P DS131P DS133P DS134P DS135P<br />

CUSTOM<br />

DECAL<br />

D99P* D201P<br />

DS201P<br />

D202P<br />

DS202P<br />

D203P<br />

DS203P<br />

D204P<br />

DS204P<br />

D205P<br />

DS205P<br />

D206P<br />

DS206P<br />

D207P D208P D209P D210P D211P D212P D213P<br />

DS207P DS208P DS209P DS210P DS211P DS212P DS213P<br />

D214P D215P D216P D217P D218P D219P D220P<br />

DS214P DS215P DS216P DS217P DS218P DS219P DS220P<br />

D221P D222P D223P D224P D225P D226P D227P<br />

DS221P DS222P DS223P DS224P DS225P DS226P DS227P<br />

D228P D229P D230P D231P D232P D233P D234P<br />

DS228P DS229P DS230P DS231P DS232P DS233P DS234P<br />

D235P D236P D237P D238P D239P D240P T99P*<br />

DS235P DS236P DS237P DS238P DS239P DS240P TS99P*<br />

FIRE INVESTIGATOR<br />

SUPERVISOR<br />

10068636 (Vinyl) 10068638 (Vinyl)<br />

10068637 (Scotchlite)10068639 (Scotchlite)<br />

* 50 Unit Minimum Required for Custom Decals<br />

14<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


NEW!<br />

Creating your own front is easy! Visit MSA<strong>Fire</strong>.com to build<br />

<strong>and</strong> see your custom front online. E-mail your order to your<br />

nearest MSA authorized distributor.<br />

St<strong>and</strong>ard Fronts<br />

✁<br />

Ordering Instructions<br />

Please copy <strong>and</strong> complete a separate form for each type of<br />

front ordered. Give the completed form(s) to your sales<br />

representative or fax them to 800-967-0398.<br />

Company:<br />

Contact:<br />

Phone:<br />

Fronts other than those that can be ordered given the choices<br />

below are considered custom fronts. To discuss your custom<br />

artwork or logo application needs, please call 1-877-MSA-FIRE<br />

or speak with your sales representative.<br />

PO #:<br />

SO#:<br />

Shop #:<br />

For office use only below this line<br />

1. Style Option<br />

Enter style number from 10 to 59,<br />

or from 150 to 161<br />

2. Shipping Option<br />

L Loose or A Attached<br />

3. Attachment Option<br />

Punch front(-s) or attach to: L Leather Helmet<br />

P Plastic Helmet or K Mini Front Key Chain<br />

V Hook <strong>and</strong> Loop Attachment (for 4" fronts only)<br />

N No holes needed<br />

4. Front Material<br />

L Genuine Leather<br />

P High-Gloss Patent Leather<br />

5. Front Color Option<br />

Choose one color: B Black, W White,<br />

R Red, Y Yellow, O Orange, C Blue,<br />

G Green, N Natural/Brown or K - Gold (patent only)<br />

6. Insert Color Option<br />

Choose one color: B Black, W White,<br />

R Red, Y Yellow, O Orange, C Blue,<br />

G Green, N Natural/Brown or K - Gold (patent only)<br />

7. Panel Color Option<br />

Choose one color: B Black, W White,<br />

R Red, Y Yellow, O Orange, C Blue, G Green,<br />

K Gold or S Reflective White Scotchlite<br />

8. Panel Text Color Option<br />

Choose one color: B Black, W White,<br />

R Red, Y Yellow, O Orange, C Blue, G Green,<br />

K Gold or N No printed text<br />

St<strong>and</strong>ard Fronts<br />

Line 1<br />

St<strong>and</strong>ard Fronts<br />

Enter your choices in the boxes to<br />

the right of each section.<br />

Total Quantity:<br />

9. Graphic Option<br />

For attached graphics (AG):<br />

S Sunken Numbers (not available on 4” or Passport fronts)<br />

R Raised Sewn Numbers (not available on Passport inserts)<br />

K 14K Gold Badge, C Chrome Badge or T Tin Emblem<br />

F Fleur-de-lis (same as panel color) or D Graphic Decal<br />

For printed graphics (PG):<br />

P Printed Numbers, G Printed Graphics<br />

or N No Graphics<br />

10.Color of Large Centered Numbers<br />

Size determined by style chosen (not available on gold leaf)<br />

Choose one color: B Black, W White, R Red,<br />

Y Yellow, O Orange, C Blue, G Green, K Gold,<br />

S Reflective White Scotchlite or N No numbers<br />

11.Graphic Ornament Option<br />

Enter choice from A to R.<br />

12.Text Font<br />

Choose one text style:<br />

A<br />

B<br />

C<br />

D<br />

E<br />

13.Text<br />

Fill in the appropriate lines of text for your front<br />

style up to 14 characters per line. Spaces <strong>and</strong><br />

punctuation marks each count as one character.<br />

Include centered numbers as one line (4 for 6”<br />

<strong>and</strong> 8” fronts; 3 for 4”). Fill in top to bottom.<br />

F<br />

G<br />

H<br />

I<br />

J<br />

ORDERING FORM<br />

Line 2<br />

Line 3<br />

Line 4<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

15


✁<br />

Gold Leaf Fronts<br />

Ordering Instructions<br />

Company:<br />

Please copy <strong>and</strong> complete a separate form for each type of<br />

gold leaf front ordered. Give the completed form(s) to your sales<br />

representative or fax them to 800-967-0398.<br />

Contact:<br />

Phone:<br />

Fronts other than those that can be ordered given the choices below<br />

are considered custom fronts. To discuss your custom artwork or logo<br />

application needs, please call 1-877-MSA-FIRE or speak with your sales<br />

representative.<br />

PO #:<br />

SO#:<br />

Shop #:<br />

For office use only below this line<br />

✁<br />

Printed Gold Leaf Fronts<br />

Enter your choices in the boxes<br />

to the right of each section.<br />

Total Quantity:<br />

ORDERING FORM<br />

1. Style Option<br />

Enter style number from 70 to 83.<br />

2. Shipping Option<br />

L Loose or A Attached<br />

3. Attachment Option<br />

Punch front(-s) or attach to: L Leather Helmet<br />

P Plastic Helmet or K Mini Front Key Chain<br />

V Hook <strong>and</strong> Loop Attachment (for 4" fronts only)<br />

N No holes needed<br />

G Giant Size (for decoration only)<br />

4. Artwork Option<br />

Choose from: B Banners, F Flaming Scrolls, S Regular Scrolls, A Upward Arch (for 4" fronts only)<br />

T No text art (for 6" fronts only)<br />

5. Graphic Option<br />

Enter style letters from GA to GI.<br />

6. Front Material<br />

Choose from: GSS Gold Satin, GET Gold Engine Turned or WHT White<br />

7. Text<br />

Fill in the appropriate lines of text for your front style up to 14 characters per line.<br />

Spaces <strong>and</strong> punctuation marks each count as one character. Fill in top to bottom.<br />

Gold Leaf Fronts<br />

Line 1<br />

Line 2<br />

Line 3<br />

Line 4<br />

16<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


Goggles, Faceshields <strong>and</strong> Proximity System for Cairns <strong>Fire</strong> Helmets<br />

F IRE<br />

H ELMETS<br />

Cairns Goggle<br />

“Military Look,” non-vented eye<br />

protection that mounts to <strong>helmets</strong> for<br />

easy access. NFPA/ANSI/OSHA compliant.<br />

Faceshields<br />

The Cairns 4" St<strong>and</strong>ard Faceshield is st<strong>and</strong>ard on<br />

all Modern Helmets. (ASTM-D648 melting<br />

temperature is 325ºF.).<br />

The Cairns 4" Tuffshield, offering<br />

superior thermal <strong>and</strong> scratch resistance,<br />

is st<strong>and</strong>ard on all Traditional <strong>and</strong> all Deluxe<br />

Configuration Helmets. (ASTM-D648 melting<br />

temperature is 345ºF.).<br />

Other faceshield options include a 4" or 6" CFR Faceshield <strong>and</strong> an extra-long<br />

4" or 6" Gold Coated Faceshield, made with a heat-resistant polycarbonate lens<br />

<strong>and</strong> coated on the outside with 24K gold for ultra-radiant heat protection.<br />

All Cairns faceshields come supplied with wing protectors for extra face<br />

protection. Wing protectors are made of the same <strong>fire</strong>-proven material found in<br />

Cairns’ faceshield hardware to provide additional strength at high temperatures.<br />

NFPA Compliant Faceshields<br />

4" Tuffshield w/ Wing Protectors S905P<br />

4" St<strong>and</strong>ard Faceshield w/ Wing Protectors (Modern Style Helmets Only) 10037315<br />

6" St<strong>and</strong>ard Faceshield w/ Wing Protectors S806CP<br />

4" Gold-Coated Faceshield w/ Wing Protectors S601GP<br />

6" Gold-Coated Faceshield w/ Wing Protectors S606GP<br />

Bourkes<br />

Bourkes Kit S10K<br />

The original easy-flip Bourkes are available on all<br />

Traditional <strong>and</strong> Leather Helmets. Use for cosmetic<br />

purposes only. Provides no eye or face protection.<br />

Defender Visors<br />

Lens Assembly, Clear, Defender (NFPA Compliant) 10077117<br />

Lens, Assembly, Amber Tuffshield, Defender (NFPA Compliant) 10077118<br />

Lens, Assembly, Smoke, Defender 10077119<br />

Lens, Assembly, Mirrored, Defender 10077120<br />

Crash <strong>Fire</strong> Rescue (CFR) Proximity System<br />

• Easy to don <strong>and</strong> doff, this CFR System is compliant with<br />

NFPA 1971-2007.<br />

• Designed <strong>and</strong> approved for use with the Metro 660C,<br />

Invader 664, Intruder 990, Cairns 1010, Cairns 1044<br />

<strong>and</strong> Classic 1000 <strong>Fire</strong> Helmets, it will not interfere<br />

with the SCBA while in use.<br />

• Components consist of an aluminized PBI/Kevlar<br />

layer, vapor barrier <strong>and</strong> inner layer.<br />

Modern Helmet<br />

Shown<br />

CFR Proximity System Consists Of:<br />

Bonnet for 660C <strong>and</strong> 664 10041993<br />

Bonnet for 1010 <strong>and</strong> 1044 10041992<br />

Shroud for Helmets 10041994<br />

6” Gold-Coated Faceshield S606G<br />

NFPA Eye Protection is certified as<br />

a component on all NFPA-compliant<br />

Cairns Helmets. Cairns’ NFPA<br />

Goggles <strong>and</strong> Faceshields offer the<br />

following features <strong>and</strong> benefits:<br />

• High-temperature materials are<br />

stable up to 500º F.<br />

• Flame-retardant.<br />

• Easy donning <strong>and</strong> doffing while<br />

wearing gloves.<br />

Cairns ESS <strong>Fire</strong>fighters’ Goggles<br />

InnerZone One<br />

Goggle<br />

InnerZone Two<br />

Goggle<br />

Cairns’ NFPA Goggles <strong>and</strong><br />

Faceshields both offer the<br />

following features <strong>and</strong> benefits:<br />

• Ballistic-grade lens protects<br />

against impacts.<br />

• Anti-fog coating on both sides<br />

of the lens to ensure visibility.<br />

• Superior anti-scratch coating<br />

on both sides of the lens for a<br />

longer life.<br />

• Easy lens replacement.<br />

InnerZone Three<br />

Goggle<br />

Cairns ESS Goggle System<br />

MSA’s InnerZone series of NFPA-compliant <strong>fire</strong>fighters’ goggles are certified<br />

by an independent test lab to meet the performance requirements of the NFPA<br />

St<strong>and</strong>ard 1971-2007, including the test for exposure to 500° F for 5 minutes.<br />

We offer four styles of ESS goggles:<br />

The InnerZone One model attaches to structural <strong>helmets</strong>. A unique two-piece<br />

strap <strong>and</strong> mounting bracket system interfaces with all structural <strong>helmets</strong>.<br />

The InnerZone Two model has a snap-on/snap-off attachment to<br />

structural <strong>helmets</strong>. The low-profile post design works with all structural<br />

<strong>fire</strong>fighting <strong>helmets</strong>.<br />

The InnerZone Three Goggle has a wraparound strap that attaches to the<br />

back of the helmet with two adhesive-backed Velcro tabs.<br />

The Cairns ESS Goggle System has a wraparound strap that attaches to the back<br />

of the helmet with a D-Ring fastener.<br />

NFPA Compliant Goggles<br />

InnerZone One Goggle<br />

S548P<br />

InnerZone Two Goggle<br />

S549P<br />

InnerZone Three Goggle 10032882<br />

Cairns ESS Goggle System<br />

S550P<br />

ESS Goggle Tear-Off Lens Covers<br />

S555P<br />

ESS Goggle Replacement Lens<br />

S556P<br />

Cairns ESS Stealth Sleeve 10059535<br />

ESS One <strong>and</strong> Two Replacement Strap Kit 10059814<br />

Cairns ESS Goggle System Replacement Strap Kit 10064534<br />

ESS Strikedown XTO Goggle (non-NFPA) 10068733<br />

FPA Goggle System & Hardware<br />

S501P<br />

NFPA Replacement Goggle<br />

S503P<br />

NFPA Replacement Goggle Lens<br />

S506P<br />

Cairns <strong>Fire</strong> Helmets Bag<br />

Cairns <strong>Fire</strong> Helmet Bag (Holds four <strong>helmets</strong>) 10059084<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

17


Protective Eyewear<br />

new<br />

F IRE<br />

H ELMETS<br />

Pro 6 <strong>Safety</strong> Eyewear<br />

The Pro 6 sporty look <strong>and</strong> three sets of<br />

interchangeable lenses allow quick<br />

"gear-shifting." This Sports Series rubber-painted<br />

frame features a flexible nose pad for a secure fit.<br />

Blue comes with rich blue mirror, gray <strong>and</strong> clear<br />

lenses. Black includes red mirror, gray <strong>and</strong> clear<br />

lenses. All lenses are anti-scratch <strong>and</strong> anti-fog with<br />

maximum UV protection. Meet ANSI high-impact<br />

requirements.<br />

Mettle <strong>Safety</strong> Eyewear<br />

Strength wrapped in good looks that's the<br />

hallmark of our Mettle safety eyewear products.<br />

Mettle Agent <strong>Safety</strong> Eyewear<br />

Lustrous metal frame. Gray tinted lenses.<br />

Maximum UV <strong>and</strong> anti-scratch protection.<br />

Meet ANSI high-impact requirements.<br />

Special Agent <strong>Safety</strong> Eyewear<br />

Durable satin finish. Spring-loaded temples.<br />

Light silver mirror lenses. Maximum UV <strong>and</strong><br />

anti-scratch. Meet ANSI high-impact requirements.<br />

<strong>Safety</strong> Eyewear<br />

Ratchet adjustment. Rubber-tipped temples. Gray<br />

or clear lenses with anti-fog <strong>and</strong> maximum UV<br />

protection. Meet ANSI high-impact requirements.<br />

Pro 3 <strong>Safety</strong> Eyewear<br />

Silver metal frame. 7-layer blue mirrored lenses.<br />

Maximum UV <strong>and</strong> anti-scratch protection. Meet<br />

ANSI high-impact requirements.<br />

Red<br />

Safe y Eyewear<br />

ue Heat<br />

Excellent coverage with wraparound styling. Rubber<br />

painted frames for perfect long-time wearing. Rich<br />

mirroring <strong>and</strong> matching painted flame temple<br />

detail. Maximum UV protection <strong>and</strong> anti-fog. Meet<br />

ANSI high-impact requirements.<br />

Pro 6 <strong>Safety</strong> Eywear<br />

10076768 Pro 6, blue frame<br />

10076769 Pro 6, black frame<br />

Pro 3 <strong>Safety</strong> Eywear<br />

10053478 Pro 3, silver metal frame,<br />

blue mirrored lenses<br />

Mettle <strong>Safety</strong> Eyewear<br />

10087629 Mettle Agent, metal frame,<br />

gray tinted lenses<br />

10092894 Special Agent, spring loaded temples,<br />

silver indoor/outdoor mirror lens<br />

Red Heat & Cool Blue Heat <strong>Safety</strong> Eyewear<br />

10081385 Red Heat, rich red mirrored lenses<br />

10081386 Cool Blue Heat, rich blue mirrored lenses<br />

NFL <strong>Safety</strong> Glasses<br />

Gray Lenses Clear Lenses Style<br />

10079246 10079147 Chicago Bears<br />

10079249 10079150 Dallas Cowboys<br />

10079252 10079163 Green Bay Packers<br />

10079257 10079168 Miami Dolphins<br />

10079261 10079170 New Engl<strong>and</strong> Patriots<br />

10079262 10079172 New York Giants<br />

10079263 10079174 Oakl<strong>and</strong> Raiders<br />

10079265 10079176 Pittsburgh Steelers<br />

10079272 Washington Redskins<br />

18<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


F IRE<br />

H ELMETS<br />

ClearComm<strong>and</strong>® HCS Helmet Communication System<br />

The ClearComm<strong>and</strong> Helmet Communication<br />

System from MSA is a state-of-the-art radio<br />

interface device which significantly improves the<br />

user’s ability to receive <strong>and</strong> send messages even<br />

in loud ambient-noise environments. It goes<br />

wherever you go. The system consists of a helmetmounted<br />

microphone <strong>and</strong> ear speaker assembly<br />

that weighs 5.3 ounces <strong>and</strong> easily snaps onto the<br />

user’s <strong>fire</strong> helmet or industrial-style helmet’s<br />

ratchet suspension. The helmet mic/ear speaker<br />

assembly connects to a lapel microphone or<br />

optional st<strong>and</strong>-alone PTT (push-to-talk) unit.<br />

The lapel microphone <strong>and</strong> PTT are permanently<br />

fitted with a connector for attachment to the<br />

specific radio of choice.<br />

The ClearComm<strong>and</strong> Helmet Communication<br />

System also offers a plug-in truck communication<br />

adapter that can be used by <strong>fire</strong>fighters, along<br />

with their helmet microphone assembly, on the<br />

way to a <strong>fire</strong> scene or other incident. Once the<br />

<strong>fire</strong>fighter arrives at the scene, the truck system<br />

cable is unplugged from the helmet microphone,<br />

<strong>and</strong> the helmet microphone cable end is<br />

connected to the user’s lapel mic or PTT. The<br />

user of the Helmet Communication System has<br />

uninterrupted communication from the time the<br />

alarm sounds until the incident is over.<br />

For more complete information,<br />

see Bulletin 3639-01-MC.<br />

Features & Benefits<br />

• Incorporates a “noise-eliminating” boneconduction<br />

voice transmitter that virtually<br />

eliminates high ambient noise levels.<br />

• Custom user-fitted ear speaker brings all<br />

incoming communication directly to the user’s<br />

ear. No need to lift your lapel mic<br />

up to your ear to hear transmission.<br />

• Easily snaps onto the ratchet suspension<br />

of <strong>fire</strong> <strong>helmets</strong> or industrial-style <strong>helmets</strong><br />

(Wildl<strong>and</strong>). The unit can be easily transferred to<br />

other users, <strong>and</strong> no tools are required for<br />

removal or installation.<br />

• Can be used over the top of facepiece head<br />

harnesses, hoods <strong>and</strong> liners without losing the<br />

quality of the transmission.<br />

• The bone-conduction microphone is made<br />

of soft silicone material, which makes it<br />

comfortable to wear, with no pressure points.<br />

• The helmet microphone assembly can be<br />

reversed on the helmet suspension to<br />

position the ear speaker on either ear.<br />

• The helmet mic system, when used with the<br />

lapel mic or PTT, is powered by the battery<br />

from the radio. No need to replace or<br />

re-charge dry cells.<br />

• Special connectors suitable for most<br />

common radios are available for the lapel<br />

microphone <strong>and</strong> PTT, which allows users to<br />

adapt the system to their existing radios.<br />

• The helmet mic is NFPA-certified which allows<br />

its use while fighting <strong>fire</strong>s.<br />

• Intrinsic safety approvals allow the use<br />

of the helmet communication system in<br />

hazardous environments.<br />

• The st<strong>and</strong>-alone PTT unit is designed for use<br />

under hazardous material suits. The large button<br />

makes it easy for the user to depress <strong>and</strong><br />

communicate.<br />

• The helmet mic incorporates a cable keeper<br />

which allows for storage of the cable when it’s<br />

not connected to the lapel mic or PTT.<br />

Communication system shown outside of earlap for<br />

illustration purposes only. For best protection <strong>and</strong><br />

performance, earlap should be worn over the<br />

communication system.<br />

Helmet Mic with<br />

Lapel Mic<br />

Helmet Mic with<br />

St<strong>and</strong>-Alone PTT<br />

Note: Lapel Mic <strong>and</strong> St<strong>and</strong>-Alone PTT sold separately<br />

Helmet Microphone Assembly<br />

(includes Custom Fitted Flannel Headb<strong>and</strong> Liner) 10042902<br />

Lapel Mic Kits for Radio Interface*<br />

Maxon SP120, SP130, SP140 10042908<br />

Motorola HT600, MT1000, MTX820, MTX900, Radius P200 & P500 10042909<br />

Motorola HT1000, JEDI, MT2000, MTS2000, MTX838,<br />

MT839, MTX8000, MTX9000 10042903<br />

Motorola Astro <strong>and</strong> Saber 10042904<br />

Motorola Radius GP300, P110, SP50, LTS2000, Spirit-III, GTX, SP21 10042905<br />

Motorola STX, MX800, MX840 10042912<br />

GE Ericsson PCS, PC2005 10042906<br />

GE Ericsson MRK, LPE-200, Prism, PX 126T 10042907<br />

St<strong>and</strong>-Alone PTT Kits for Radio Interface*<br />

Maxon SP120, SP130, SP140 10045667<br />

Motorola HT600, MT1000, MTX820, MTX900, Radius P200 & P500 10045668<br />

Motorola HT1000, JEDI, MT2000, MTS2000, MTX838,<br />

MT839, MTX8000, MTX9000 10045662<br />

Motorola Astro <strong>and</strong> Saber 10045663<br />

Motorola Radius GP300, P110, SP50, LTS2000, Spirit-III, GTX, SP21 10045664<br />

Motorola STX, MX800, MX840 10045669<br />

GE Ericsson PCS, PC2005 10045665<br />

GE Ericsson MRK, LPE-200, Prism, PX 126T 10045666<br />

Truck System<br />

Nexus Adapter, D. Clarke 10045732<br />

Phonejack Adapter, D. Clarke 10045731<br />

Parts <strong>and</strong> Accessories<br />

Remote Finger PTT 10046574<br />

Dust Cover 10046087<br />

Guard Ring, Tall 10046123<br />

Guard Ring, Short 10046122<br />

Belt Clip Assy, St<strong>and</strong>ard 10046089<br />

Belt Clip Assy, Clothes Pin Type 10046120<br />

O-Ring, Single Pin Connector 10046121<br />

Flannel Head B<strong>and</strong> Liner 10045778<br />

*If your specific radio is not listed above, please contact MSA Customer Service<br />

at 1-877-MSA-FIRE.<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

19


F IRE<br />

H ELMETS<br />

Passive Hearing Protection<br />

left/RIGHT Ear Muff<br />

• Patented design<br />

• Headb<strong>and</strong> cups <strong>and</strong> headb<strong>and</strong> conform to curves of the head to<br />

reduce pressure points<br />

• Each muff can be individually angled <strong>and</strong> adjusted<br />

• Hygiene kits available for each model<br />

left/RIGHT Headb<strong>and</strong> Earmuff<br />

10087399 left/RIGHT, HIGH, yellow (NRR 28 dB)<br />

10087426 left/RIGHT, MEDIUM, blue (NRR 25 dB)<br />

10087436 left/RIGHT, LOW, white (NRR 21 dB)<br />

Ear Plugs<br />

FormFit Disposable Foam Ear Plugs<br />

10051348 FormFit Disposable Conical Urethane Foam Ear Plugs (non-corded), NRR 31 dB,<br />

Dispenser Box of 200 individually packaged pairs<br />

10009333 FormFit Disposable Round Urethane Foam Ear Plugs (non-corded), NRR 29 dB,<br />

Dispenser Box of 200 individually packaged pairs<br />

10009332 FormFit Disposable Round Urethane Foam Ear Plugs (corded), NRR 29 dB,<br />

Dispenser Box of 200 individually packaged pairs<br />

Reusable Silicone Ear Plugs<br />

10005607 Reusable Silicone Ear Plugs (corded), NRR 25 dB,<br />

Dispenser Box of 100 individually packaged pairs<br />

Helmet Shell ATO<br />

Model Shell Color* Trim Type Trim Color Trim Shape Front Holder<br />

A<br />

B<br />

C<br />

D<br />

H<br />

J<br />

K<br />

L<br />

M<br />

N<br />

P<br />

R<br />

990 Intruder<br />

990E<br />

660C Metro**<br />

660CE<br />

HP3 Comm<strong>and</strong>o**<br />

360 Structural<br />

360 Structural<br />

w/o Edge Bead<br />

Cairns 1010**<br />

Classic 1000<br />

880 Tradition<br />

Invader 664**<br />

Cairns 1044**<br />

1<br />

2<br />

3<br />

4<br />

5<br />

6<br />

7<br />

Black<br />

Red<br />

Blue<br />

White<br />

Yellow<br />

Orange<br />

Green<br />

0<br />

2<br />

3<br />

None<br />

Reflexite<br />

Scotchlite<br />

1<br />

2<br />

3<br />

4<br />

Lime Yellow<br />

Red Orange<br />

Blue<br />

White<br />

1<br />

2<br />

3<br />

Tetrabar<br />

Bar<br />

Diamond<br />

0<br />

1<br />

2<br />

3<br />

6<br />

7<br />

8<br />

9<br />

A<br />

None<br />

6'' Silk-Screened Eagle (1010, 1000 <strong>and</strong> 1044)<br />

6'' Carved Eagle (1010, 1000 <strong>and</strong> 1044)<br />

6'' Silk-Screened Maltese Cross (1010, 1000 <strong>and</strong> 1044)<br />

5'' Silk-Screened Eagle (880)<br />

5'' Silk-Screened Maltese Cross (880)<br />

6'' Silk-Screened Eagle (880)<br />

6'' Silk-Screened Maltese Cross (880)<br />

6'' Carved Beaver (1010, 1000 & 1044)<br />

* Not all colors available in all Types - see matrix<br />

Not all colors are NFPA approved<br />

** Not for use with Defender Visor models<br />

A-REP-<br />

Part Number<br />

20<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


Replacement Parts for Cairns <strong>Fire</strong> Helmets<br />

LEATHER<br />

1010 & 1044 DEFENDER<br />

880 TRADITION<br />

TRADITIONAL<br />

Leather<br />

Description<br />

Replacement P/N<br />

1. Reflexite Tetra- Lime/Yellow RP20YP<br />

Scotchlite Tetra- Lime/Yellow<br />

SP20YP<br />

2. Nomex Chinstrap w/ QRB & Postman Slide C893P<br />

Nomex Chinstrap w/ QRB<br />

C892P<br />

3. Ratchet Headb<strong>and</strong> System RBP<br />

4. Leather/Sateen Cushion Liner w/ Nomex Earlap L5RP<br />

Leather/Sateen Cushion Liner w/ PBI/Kevlar Earlap L59RP<br />

5. Leather Ratchet Pad LRPP<br />

6. Faceshield Hardware S918P<br />

7. 4" Tuffshield, w/ wing protectors S905P<br />

Goggle System & Hardware**<br />

S501P<br />

Replacement Goggle**<br />

S503P<br />

Replacement Goggle Lens**<br />

S506P<br />

Cairns ESS Goggle**<br />

S550P<br />

Replacement Lens**<br />

S556P<br />

Bourkes<br />

S10KP*<br />

8. Silk Screened Eagle 6" Front Holder M9P<br />

Carved Brass Eagle 6" Front Holder<br />

M8P<br />

9. Brass Crown Piece M10P<br />

10. Foam Adjustment Kit M560P<br />

11. Foam Crown Pad FCPP<br />

* Use of these items meets OSHA only, not NFPA. **Not Shown<br />

1010 & 1044 Defender<br />

Description<br />

Replacement P/N<br />

1. Helmet Shell Complete* - See Helmet Shell ATO (pg. 20)<br />

660 Defender 664 Defender<br />

Black 10075391 10075383<br />

Red 10075389 10075382<br />

Blue 10075387 10075299<br />

White 10075390 10075381<br />

Yellow 10075388 10075384<br />

Orange 10075386 10075300<br />

Green 10075385<br />

2. Reflexite Tetra - Lime / Yellow RP20YP<br />

Scotchlite Tetra - Lime / Yellow<br />

SP20YP<br />

3. Chinstrap Replacement<br />

Nomex w/ Quick Release Buckle<br />

C892P<br />

Nomex w/ Quick Release Buckle & Postman's Slide C893P<br />

4. Impact Cap Assemblies<br />

with Quick Release Chinstrap, Clear 10077038<br />

with Quick Release Chinstrap, Amber Tuffshield 10077039<br />

with Quick Release Chinstrap, Smoke 10077040<br />

with Quick Release Chinstrap, Mirror 10077111<br />

with Quick Release & Postman's Slide Chinstrap,<br />

Clear 10077112<br />

with Quick Release & Postman's Slide Chinstrap,<br />

Amber Tuffshield 10077113<br />

with Quick Release & Postman's Slide Chinstrap,<br />

Smoke 10077114<br />

with Quick Release & Postman's Slide Chinstrap,<br />

Mirror 10077115<br />

5. Ratchet Headb<strong>and</strong> Assembly RHBP<br />

6. Headb<strong>and</strong> & Ratchet Liner<br />

Economy Flannel<br />

LK27P<br />

St<strong>and</strong>ard Flannel<br />

LK28P<br />

Deluxe Leather (Includes Flannel Crown Pad) LK29P<br />

7. Defender, Tab, Retainer , Replacement 10077121<br />

8. Defender Lens Assembly<br />

Clear 10077117<br />

Amber Tuffshield 10077118<br />

Smoke 10077119<br />

Mirrored 10077120<br />

9. Earlaps<br />

Nomex 10075773<br />

PBI / Kevlar 10075774<br />

10. Front Mounting Bracket M16P<br />

11. 6" Front Holders<br />

Carved Brass Eagle 6" Front Holder<br />

M8P<br />

Silkscreened Eagle 6" Front Holder<br />

M9P<br />

Maltese Cross 6" Front Holder<br />

M6P<br />

Carved Brass Beaver 6" Front Holder 10071259<br />

F IRE<br />

These original equipment replacement parts can be used<br />

to maintain or upgrade <strong>helmets</strong> under NFPA regulations.<br />

H ELMETS<br />

880 Tradition<br />

Description<br />

Replacement P/N<br />

1. See Helmet Shell ATO (pg. 20)<br />

2. Reflexite Tetra Lime/Yellow RT20YP<br />

Scotchlite Tetra Lime/Yellow SP20YP<br />

Glo-Flex Tetra Lime/Yellow G20YP<br />

3. Nomex Chinstrap w/ QRB C89P<br />

Nomex Chinstrap w/ QRB & Postman Buckle 10046712<br />

Economy Nomex Chinstrap w/ QRB 10046713<br />

4. Impact Cap, Overhead Suspension 10049740<br />

5. Ratchet Headb<strong>and</strong> System 10046721<br />

6. Cushion Liner Economy Flannel LK27P<br />

Cushion Liner St<strong>and</strong>ard Flannel LK28P<br />

Cushion Liner Deluxe Leather LK29P<br />

7. Faceshield Hardware S918P<br />

8. 4" Tuffshield w/ wing protectors S905P<br />

4" Faceshield w/wing protectors 10037315<br />

6" Faceshield, w/wing protectors S806CP<br />

Cairns Goggle System & Hardware<br />

S501P**<br />

Inner Zone I<br />

S548P**<br />

Inner Zone II<br />

S549P**<br />

Inner Zone III 10032882**<br />

Replacement Goggle Lens<br />

S506P**<br />

Cairns ESS Goggle<br />

S550P**<br />

Bourkes & Hardware<br />

S10KP**<br />

9. Economy Nomex Earlap 10049488<br />

Nomex Earlap 10046723<br />

PBI/Kevlar Earlap 10049734<br />

PBI/Kevlar Earlap with Moisture Barrier 10049735<br />

Nomex Earlap with Underchin Extension 10049833**<br />

PBI/Kevlar Earlap with Underchin Extension 10049834**<br />

10. Front Mounting Bracket Kit for 880 10047526<br />

11. Silk Screened Eagle 5" Front Holder 10049736<br />

Silk Screened Maltese Cross 5" Front Holder 10049737<br />

Silk Screened Eagle 6" Front Holder 10049738<br />

Silk Screened Maltese Cross 6" Front Holder 10049739<br />

12. Helmet Hanger Replacement Kit 10049831<br />

Edge Trim Replacement 10049832<br />

**Not Shown<br />

Traditional Classic 1000, Cairns 1010 <strong>and</strong> Cairns 1044<br />

Description<br />

Replacement P/N<br />

1. Helmet Shell Complete - See Helmet Shell ATO (pg. 20)<br />

2. Reflexite Tetra Lime/Yellow RP20YP<br />

Scotchlite Tetra Lime/Yellow SP20YP<br />

3. Nomex Chinstrap w/ QRB & Postman Slide C922P<br />

Nomex Chinstrap w/ QRB<br />

C923P<br />

4. Impact Cap, Overhead Suspension, Chinstrap M604P<br />

w/ QRB & Postman Slide, RHB, Nomex Earlap &<br />

Std. Flannel Liner<br />

5. Ratchet Headb<strong>and</strong> System RHBP<br />

6. Headb<strong>and</strong> & Ratchet Liner Economy Flannel LK27P<br />

Headb<strong>and</strong> & Ratchet Liner St<strong>and</strong>ard Flannel LK28P<br />

Headb<strong>and</strong> & Ratchet Liner Deluxe Leather LK29P<br />

6A. Flannel Crown Pad included in Deluxe Model<br />

7. Faceshield Hardware S918P<br />

8. 4" Tuffshield w/ wing protectors S905P<br />

4" Faceshield w/ wing protectors 10037315*<br />

6" Faceshield w/ wing protectors S806CP*<br />

Goggle System & Hardware<br />

S501P**<br />

Replacement Goggle<br />

S503P**<br />

Replacement Goggle Lens<br />

S506P**<br />

Cairns ESS Goggle<br />

S550P**<br />

Cairns ESS Goggle Replacement Lens<br />

S556P**<br />

Bourkes & Hardware<br />

S10KP*<br />

9. Nomex Earlap L655XP<br />

PBI/Kevlar Earlap<br />

L955P<br />

10. Front Mounting Bracket M16P<br />

11. Silk Screened Eagle 6" Front Holder M9P<br />

Carved Brass Eagle 6" Front Holder<br />

M8P<br />

* Use of these items meets OSHA only, not NFPA. **Not Shown<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com<br />

21


MODERN<br />

MODERN DEFENDER<br />

360 STRUCTURAL<br />

HP3<br />

Modern<br />

Description<br />

Replacement P/N<br />

1. Helmet Shell Complete - See Helmet Shell ATO (pg. 20)<br />

2. Reflexite Bars Lime/Yellow RP16YP<br />

Scotchlite Bars Lime/Yellow SP16YP<br />

Reflexite Tetra Bars–Lime/Yellow<br />

RP17YP<br />

Scotchlite Tetra Bars Lime/Yellow SP17YP<br />

Reflexite Diamonds Lime/Yellow RP12YP<br />

Scotchlite Diamonds Lime/Yellow SP12YP<br />

3. Nomex Chinstrap w/ QRB & C922P<br />

Postman Slide Nomex Chinstrap w/ QRB<br />

C923P<br />

4. Impact Cap, Overhead Suspension M603P<br />

Chinstrap w/ QRB & Postman Slide, RHB,<br />

Nomex Earlap & Std. Flannel Liner<br />

5. Ratchet Headb<strong>and</strong> System RHBP<br />

6. Headb<strong>and</strong> & Ratchet Liner<br />

Economy Flannel<br />

LK27P<br />

St<strong>and</strong>ard Flannel<br />

LK28P<br />

Deluxe Leather<br />

LK29P<br />

6A. Flannel Crown Pad Included in Deluxe Model<br />

7. Faceshield Hardware S910P<br />

8. 4" Faceshield, w/ wing protectors 10037315<br />

6" Faceshield, w/ wing protectors S806CP<br />

4" Tuffshield, w/ wing protectors S905P<br />

Goggle System & Hardware<br />

S501P**<br />

Replacement Goggle<br />

S503P**<br />

Replacement Goggle Lens<br />

S506P**<br />

Cairns ESS Goggle<br />

S550P**<br />

Cairns ESS Goggle Replacement Lens<br />

S556P**<br />

9. Nomex Earlap L655XP<br />

PBI/Kevlar Earlap<br />

L955P<br />

**Not Shown<br />

Modern Defender<br />

Description<br />

Replacement P/N<br />

1. Helmet Shell Complete* - See Helmet Shell ATO (pg. 20)<br />

660 Defender 664 Defender<br />

Black 10092360 10092385<br />

Red 10092359 10092384<br />

Blue 10092356<br />

White 10092358 10092383<br />

Yellow 10092361 10092386<br />

Orange 10092357<br />

Green 10096234<br />

2. Reflexite Bar - Lime / Yellow RT16Y<br />

Scotchlite Bar - Lime / Yellow<br />

ST16Y<br />

3. Chinstrap Replacement<br />

Nomex w/ Quick Release Buckle<br />

C892P<br />

Nomex w/ Quick Release Buckle & Postman's Slide C893P<br />

4. Impact Cap Assemblies<br />

with Quick Release Chinstrap, St<strong>and</strong>ard 10096894<br />

with Quick Release & Postman's Slide Chinstrap,<br />

St<strong>and</strong>ard 10096895<br />

with Quick Release Chinstrap, Deluxe 10096896<br />

with Quick Release & Postman's Slide Chinstrap,<br />

Deluxe 10096897<br />

5. Ratchet Headb<strong>and</strong> Assembly RHBP<br />

6. Headb<strong>and</strong> & Ratchet Liner<br />

Economy Flannel<br />

LK27P<br />

St<strong>and</strong>ard Flannel<br />

LK28P<br />

Deluxe Leather<br />

(Includes Flannel Crown Pad)<br />

LK29P<br />

7. Defender, Tab, Retainer Replacement 10096795<br />

8. Defender Lens Assembly<br />

Clear 10077117<br />

Amber Tuffshield 10077118<br />

Smoke 10077119<br />

Mirrored 10077120<br />

9. Earlaps<br />

Nomex 10075773<br />

PBI / Kevlar 10075774<br />

F IRE<br />

H ELMETS<br />

Comm<strong>and</strong>o HP3<br />

Description<br />

Replacement P/N<br />

1. Helmet Shell Complete - See Helmet Shell ATO (pg. 20)<br />

2. Reflexite Tetra Bars Lime/Yellow RT18YP<br />

Scotchlite Tetra Bars Lime/Yellow ST18YP<br />

3. Nomex Chinstrap w/ QRB & Postman Slide C892P<br />

Nomex Chinstrap w/ QRB<br />

C893P<br />

4. Impact Cap, Overhead Suspension, M603P<br />

Nomex Chinstrap w/ QRB & Postman<br />

Slide,RHB, Nomex Earlap & Std. Flannel Liner<br />

5. Ratchet Headb<strong>and</strong> System RHBP<br />

6. Headb<strong>and</strong> & Ratchet Liner<br />

Economy Flannel<br />

LK27P<br />

St<strong>and</strong>ard Flannel<br />

LK28P<br />

Deluxe Leather<br />

LK29P<br />

7. Faceshield Hardware S620P<br />

8. 4" St<strong>and</strong>ard Faceshield 10037315P<br />

4" St<strong>and</strong>ard Faceshield w/o wing protectors S802AP<br />

6" St<strong>and</strong>ard Faceshield w/ wing protectors S806CP<br />

4" Tuffshield w/ wing protectors S905P<br />

8. Goggle System & Hardware S501P**<br />

Replacement Goggle<br />

S503P**<br />

Replacement Goggle Lens<br />

S506P**<br />

Cairns ESS Goggle<br />

S550P**<br />

Cairns ESS Goggle Replacement Lens<br />

S556P**<br />

9. Nomex Earlap 655XP<br />

PBI/Kevlar Earlap<br />

L955P<br />

**Not Shown<br />

Structural 360<br />

Description<br />

Replacement P/N<br />

1. Helmet Shell Complete - See Helmet Shell ATO (pg. 20)<br />

2. Reflexite Tetra Bars Lime Yellow RT17YP<br />

Scotchlite Tetra Bars Lime Yellow ST17YP<br />

3. Nomex Chinstrap w/ QRB C892P<br />

Nomex Chinstrap w/ QRB & Postman Slide<br />

C893P<br />

4. Impact Cap w/ Overhead Suspension,<br />

Chinstrap w/ QRB, RHB, Nomex Earlap,<br />

& Economy Flannel Liner<br />

M802P<br />

5. Ratchet Headb<strong>and</strong> System RHBP<br />

6. Headb<strong>and</strong> & Ratchet Liner<br />

Economy Flannel<br />

LK27P<br />

St<strong>and</strong>ard Flannel<br />

LK28P<br />

Deluxe Leather<br />

LK29P<br />

7. Faceshield Hardware S912P<br />

8. 4" Std. Faceshield, w/o Wing Protectors S802AP<br />

4" Std. Faceshield, w/ Wing Protectors 10037315P<br />

6" Std. Faceshield, w/ Wing Protectors S806CP<br />

4" Tuffshield, w/o Wing Protectors S901P<br />

4" Tuffshield, w/ Wing Protectors S905P<br />

Goggle System & Hardware<br />

S501P**<br />

Replacement Goggle<br />

S503P**<br />

Replacement Goggle Lens<br />

S506P**<br />

Cairns ESS Goggle<br />

S550P**<br />

Cairns ESS Goggle Replacement Lens<br />

S556P**<br />

9. Nomex Earlap L655XP<br />

PBI/Kevlar Earlap<br />

L955P<br />

**Not Shown<br />

*Specify by Color<br />

22<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com


Cairns Gifts<br />

F IRE<br />

H ELMETS<br />

To see our current<br />

selection <strong>and</strong> to purchase<br />

gear online, go to<br />

www.MSA<strong>Fire</strong>.com<br />

Click on “<strong>Fire</strong> Helmets”<br />

<strong>and</strong> then “Cairns Gear” to order.<br />

“Leather Forever” Keychain<br />

A pewter replica of a traditional Cairns leather<br />

helmet with the “Leather Forever” logo engraved on<br />

the underside of the helmet’s brim.<br />

Authentic Presentation Helmet*<br />

Replica of a turn-of-the-century helmet.<br />

For display only. G5A <strong>and</strong> G64 Leather models.<br />

880 presentation helmet also available.<br />

Mini Leather Helmets*<br />

A scaled-down version of our traditional<br />

New Yorker Helmet. Perfect for your mantelpiece,<br />

promotions, awards <strong>and</strong> retirements. Approximately<br />

7 1 / 4” x 5 5 / 8” x 4”.<br />

Mini Leather<br />

Helmet<br />

Mini Front Keychains*<br />

Unique gift idea, personalized for your needs.<br />

* Items shown here not available online.<br />

Please order by calling MSA <strong>Fire</strong> Service<br />

Customer Service at 1-877-MSA-FIRE.<br />

880 Tradition<br />

Presentation Helmet<br />

Authentic G5A Leather Presentation Helmet<br />

(shown with 8" High Eagle)<br />

Cairns Gifts are made<br />

with the same quality<br />

as all Cairns products<br />

Authentic G64 Leather<br />

Presentation Helmet<br />

<strong>Fire</strong> Customer Service: 1-877-MSA-FIRE • Website: www.MSA<strong>Fire</strong>.com 23


Additional Cairns Information<br />

Warranty<br />

Contact the MSA <strong>Fire</strong> Service Customer Service at 1-877-MSA FIRE or refer to Bulletin No. 3600-09-MC<br />

for complete information.<br />

▲!<br />

WARNING<br />

Wearing protective equipment without proper training in <strong>fire</strong>fighting techniques, or without<br />

knowledge of the proper selection, use <strong>and</strong> care of protective equipment could result in<br />

serious personal injury, or death.<br />

Note: This Bulletin contains only a general description of<br />

the products shown. While uses <strong>and</strong> performance capabilities<br />

are described, under no circumstances<br />

shall the products be used by untrained or unqualified<br />

individuals <strong>and</strong> not until the product instructions<br />

including any warnings or cautions provided have been<br />

thoroughly read <strong>and</strong> understood. Only they contain the<br />

complete <strong>and</strong> detailed information concerning proper use<br />

<strong>and</strong> care of these products.<br />

Bulletin 3600-01-MC<br />

April <strong>2009</strong><br />

©MSA <strong>2009</strong> Printed in U.S.A.<br />

Corporate Headquarters:<br />

P.O. Box 426<br />

Pittsburgh, PA 15230 USA<br />

e-mail info@MSA<strong>Fire</strong>.com<br />

www.MSA<strong>Fire</strong>.com<br />

<strong>Fire</strong> Customer Service:<br />

Phone 1-877-MSA-FIRE<br />

Fax 1-800-967-0398<br />

MSA International:<br />

Phone (412) 967-3354<br />

Fax (412) 967-3451<br />

MSA Canada:<br />

Phone 800-MSA-2222<br />

Fax 905-238-4151<br />

MSA Mexico:<br />

Phone 01 800 672 7222<br />

Fax 52 - 44 2227 3943

Hooray! Your file is uploaded and ready to be published.

Saved successfully!

Ooh no, something went wrong!
