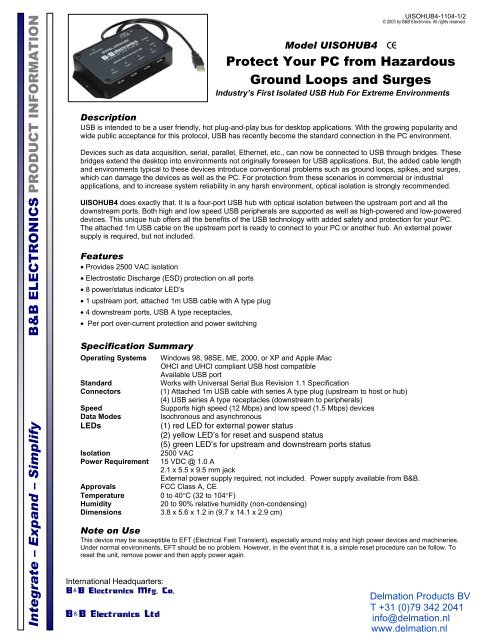

Integrate – Expand – Simplify B&B ELECTRONICS PRODUCT INFORMATION<br />
International Headquarters:<br />
<strong>UISOHUB4</strong>-1104-1/2<br />
© 2003 by B&B Electronics. All rights reserved.<br />
Model <strong>UISOHUB4</strong> CE<br />
Protect Your PC from Hazardous<br />
Ground Loops and Surges<br />
Industry’s First <strong>Isolated</strong> <strong>USB</strong> Hub For Extreme Environments<br />
Description<br />
<strong>USB</strong> is intended to be a user friendly, hot plug-and-play bus for desktop applications. With the growing popularity and<br />
wide public acceptance for this protocol, <strong>USB</strong> has recently become the standard connection in the PC environment.<br />
Devices such as data acquisition, serial, parallel, Ethernet, etc., can now be connected to <strong>USB</strong> through bridges. These<br />
bridges extend the desktop into environments not originally foreseen for <strong>USB</strong> applications. But, the added cable length<br />
and environments typical to these devices introduce conventional problems such as ground loops, spikes, and surges,<br />
which can damage the devices as well as the PC. For protection from these scenarios in commercial or industrial<br />
applications, and to increase system reliability in any harsh environment, optical isolation is strongly recommended.<br />
<strong>UISOHUB4</strong> does exactly that. It is a four-port <strong>USB</strong> hub with optical isolation between the upstream port and all the<br />
downstream ports. Both high and low speed <strong>USB</strong> peripherals are supported as well as high-powered and low-powered<br />
devices. This unique hub offers all the benefits of the <strong>USB</strong> technology with added safety and protection for your PC.<br />
The attached 1m <strong>USB</strong> cable on the upstream port is ready to connect to your PC or another hub. An external power<br />
supply is required, but not included.<br />
Features<br />
• Provides 2500 VAC isolation<br />
• Electrostatic Discharge (ESD) protection on all ports<br />
• 8 power/status indicator LED’s<br />
• 1 upstream port, attached 1m <strong>USB</strong> cable with A type plug<br />
• 4 downstream ports, <strong>USB</strong> A type receptacles,<br />
• Per port over-current protection and power switching<br />
Specification Summary<br />
Operating Systems<br />
Standard<br />
Connectors<br />
Speed<br />
Data Modes<br />
LEDs<br />
Isolation<br />
Power Requirement<br />
Approvals<br />
Temperature<br />
Humidity<br />
Dimensions<br />
Windows 98, 98SE, ME, 2000, or XP and Apple iMac<br />
OHCI and UHCI compliant <strong>USB</strong> host compatible<br />
Available <strong>USB</strong> port<br />
Works with Universal Serial Bus Revision 1.1 Specification<br />
(1) Attached 1m <strong>USB</strong> cable with series A type plug (upstream to host or hub)<br />
(4) <strong>USB</strong> series A type receptacles (downstream to peripherals)<br />
Supports high speed (12 Mbps) and low speed (1.5 Mbps) devices<br />
Isochronous and asynchronous<br />
(1) red LED for external power status<br />
(2) yellow LED’s for reset and suspend status<br />
(5) green LED’s for upstream and downstream ports status<br />
2500 VAC<br />
15 VDC @ 1.0 A<br />
2.1 x 5.5 x 9.5 mm jack<br />
External power supply required, not included. Power supply available from B&B.<br />
FCC Class A, CE<br />
0 to 40°C (32 to 104°F)<br />
20 to 90% relative humidity (non-condensing)<br />
3.8 x 5.6 x 1.2 in (9.7 x 14.1 x 2.9 cm)<br />
Note on Use<br />
This device may be susceptible to EFT (Electrical Fast Transient), especially around noisy and high power devices and machineries.<br />
Under normal environments, EFT should be no problem. However, in the event that it is, a simple reset procedure can be follow. To<br />
reset the unit, remove power and then apply power again.<br />
<strong>Delmation</strong> Products BV<br />
T +31 (0)79 342 2041<br />
info@delmation.nl<br />
www.delmation.nl
Integrate – Expand – Simplify B&B ELECTRONICS PRODUCT INFORMATION<br />
Ordering Information<br />
<strong>UISOHUB4</strong>..........<strong>USB</strong> <strong>Optically</strong> <strong>Isolated</strong> 4-<strong>Port</strong> Hub<br />
Power Supply Options from B&B Electronics:<br />
<strong>USB</strong>PS................120 VAC to 15 VDC@1.0 A Power Supply<br />
PS-<strong>USB</strong>-EU ........220 VAC to 15 VDC@1.0 A, Euro 2-Prong, Power Supply<br />
PS-<strong>USB</strong>-UK ........220 VAC to 15 VDC@1.0A, UK 3-Prong, Power Supply<br />
DECLARATION OF CONFORMITY<br />
Manufacturer’s Name:<br />
B&B Electronics Manufacturing Company<br />
Manufacturer’s Address: P.O. Box 1040<br />
707 Dayton Road<br />
Ottawa, IL 61350 USA<br />
Model Number:<br />
<strong>UISOHUB4</strong><br />
Description:<br />
4 <strong>Port</strong> <strong>Isolated</strong> <strong>USB</strong> Hub<br />
Type:<br />
Light industrial ITE equipment<br />
Application of Council Directive: 89/336/EEC<br />
Standards: EN 55022<br />
EN 61000-6-1<br />
EN 61000 (-4-2, -4-3, -4-4, -4-5, -4-6, -4-8, -4-11)<br />
William H. Franklin III, Director of Engineering<br />
International Headquarters:<br />
<strong>UISOHUB4</strong>-1104-2/2<br />
© 2003 by B&B Electronics. All rights reserved.<br />
