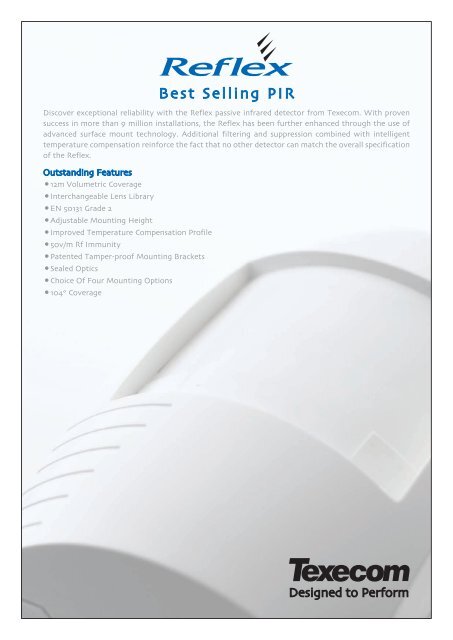

Best Selling PIR
Discover exceptional reliability with the Reflex passive infrared detector from Texecom. With proven
success in more than 9 million installations, the Reflex has been further enhanced through the use of
advanced surface mount technology. Additional filtering and suppression combined with intelligent
temperature compensation reinforce the fact that no other detector can match the overall specification
of the Reflex.
Outstanding Features
•12m Volumetric Coverage
•Interchangeable Lens Library
•EN 50131 Grade 2
•Adjustable Mounting Height
•Improved Temperature Compensation Profile
•50v/m Rf Immunity
•Patented Tamper-proof Mounting Brackets
•Sealed Optics
•Choice Of Four Mounting Options
•104° Coverage

Proven Reliability
Now with advanced surface mount technology and additional filtering,
the Reflex exceeds industry standards by over 500%. Full compliance
with EN50130-4 has been independently verified for total peace of mind.
Sealed Optics & Adjustable Mounting Height
The Reflex contains fully sealed optics, preventing false alarms from
insects & draughts. An adjustable PCB position provides optical alignment,
ensuring an optimum coverage pattern when mounted anywhere between
1.5m & 3.0m.
Patented Tamper-Proof Brackets
Patented tamper-proof brackets provide two extra mounting options,
enabling precise angle adjustment & make installation simple in any
location.
Reflex Specifications
Range:
12m (40 feet), 104˚ volumetric coverage
Supply Voltage:
9 - 16VDC
Current Consumption: 10mA typical at 12VDC
Alarm Signaling:
Built-in normally closed relay
Alarm Relay:
Rated at 24VDC, 50mA protected by 18Ω series resistor
Dimensions:
90mm x 63mm x 40mm
Packed Weight:
125g (4.5oz) approx.
EMC: Independently certified to EN50130-4 : 1996
Design:
Noise reduction circuits with maximum ground plane
RF Immunity:
No false alarms from 80MHz to 1GHz at 50V/m modulated
Coverage Patterns
Volumetric
Curtain
4m
13'1"
4m 12m
13'1" 26'2"
8m
40'0"
Top View
Side View
Top View
Side View
2m
6'7"
0m
0'0" 2m 6m
6'7" 19'8" 32'9"
10m
2m
6'7"
0m
0'0"
6ϒ
2m 4m 6m 8m 10m 12m
6'7" 13'1" 19'8" 26'2" 32'9" 40'0"
Pet
Side View
Top View
Long Range
4m
13'1"
2m
6'7"
European Standards
EMC: Conforms to European Union (EU) Electro-Magnetic Compatibility
(EMC) Directive 89/336/EEC (amended by 92/31/EEC and 93/68/EEC).
Approved to BS EN 55022 Class B and BS EN 50130-4 : 1996.
PD 6662 & EN 50131 Grade 2 Environmental Class II.
The CE mark indicates that this product complies with the European
requirements for safety, health, environmental and customer protection.
Texecom products are protected by UK and International patents,
trademarks and registered design rights.
UK Registered Design Number 2036936. Reflex is a trademark of Texecom
Limited. © 1989 - 2009 Texecom Limited. (LIT0059)
0m
0'0"
4m 8m 12m
13'1" 26'2" 40'0" 52'5" 16m
65'6" 20m
78'9" 24m
91'9" 28m 32m
104'11"
2m 6m 10m
6'7" 19'8" 32'9" 45'11" 14m
59'0" 18m
72'1" 22m
85'3" 26m
98'4" 30m 34m
111'5"
Side View
Certificate Number: FM 35285
4m
13'1"
2m
6'7"
0m
0'0"
4m 12m
13'1" 26'2"
8m
40'0" 52'5" 16m
65'6" 20m
78'9" 24m
91'9" 28m 32m
104'11"
2m 6m
6'7" 19'8" 32'9" 10m
45'11" 14m
59'0" 18m
72'1" 22m
85'3" 26m
98'4" 30m 34m
111'5"
Top View
8ϒ
A20090310
