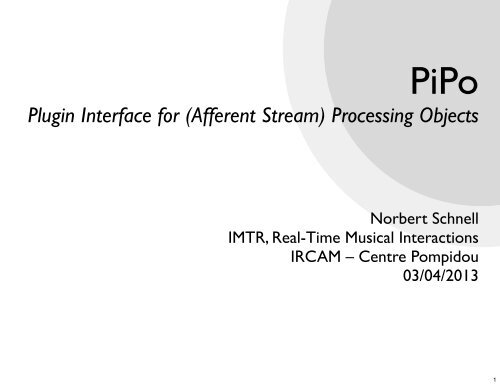

PiPo
Plugin Interface for (Afferent Stream) Processing Objects
Norbert Schnell
IMTR, Real-Time Musical Interactions
IRCAM – Centre Pompidou
03/04/2013
1

Context
Experimentation and Prototyping
•
•
We don’t know exactly what we are doing
We need everything ready-at-hand
... in and off Max (MuBu for Max, IAE on iOS)
•
We have a lot of code to plug-in
... and the simpler the better.
2

Context
Interactive Audio Systems
performer
listener
user
interface
sensor
data
streams
?
computer
sound
streams
3

Context
Interactive Audio Systems
our daily
sensor
data
streams
?
sound
streams
4

Context
Interactive Audio Systems
sensor
data
streams
extraction,
filtering,
segmentation,
etc.
action and sound
analysis
synthesis
learning
planning
mixing,
effects,
spatialization,
etc.
sound
streams
5

Context
Interactive Audio Systems
sensor
data
streams
afferent
stream
processing
action and sound
analysis
synthesis
learning
planning
efferent
mixing,
effects,
spatialization, stream
etc.
processing
sound
streams
⎧ ⎜⎟⎢⎥⎪⎨⎜⎟⎢⎥⎪⎩
⎧
⎜⎟⎢⎥⎪⎜⎟⎢⎥⎪⎜⎟⎢⎥⎪⎜⎟⎢⎥⎪
⎜⎟⎢⎥⎪
⎨⎜⎟⎢⎥⎪⎜⎟⎢⎥⎪⎜⎟⎢⎥⎪⎜⎟⎢⎥⎪⎜⎟⎢⎥⎪⎩
VAMP plugins
FEAPI
VST plugins
AudioUnits
etc. etc.
6

audio and
motion input
Context
IMTR Audio Engine (IAE)
stream
processing
filtering
segmentation
extraction
visualization,
editing, control
MuBu for Max
interaction
models
k-NN
follower
...
MuBu data
container
audio files
audio descriptors
segmentations
musical descriptions
stream
processing
filtering
segmentation
extraction
description files
audio and
motion data files
audio files
SDIF files
text files
MIDI standard files
MusicXML files
real-time audio rendering
concatenative synthesis
granular synthesis
+ additive synthesis
audio output
7

audio and
motion input
Context
IMTR Audio Engine (IAE)
classical real-time streams
real-time random access
stream
processing
filtering
segmentation
extraction
interaction
models
k-NN
follower
...
real-time audio rendering
concatenative synthesis
granular synthesis
+ additive synthesis
visualization,
editing, control
MuBu
container
audio files
audio descriptors
segmentations
musical descriptions
asynchronous (random) access
stream
processing
filtering
segmentation
extraction
description files
MuBu for Max
audio and
motion data files
audio files
SDIF files
text files
MIDI standard files
MusicXML files
audio output
8

Summary
Afferent Streams
• Real-Time and offline processing
• Synchronous and asynchronous processing
• Multi-dimensional / -modal / -format
• Data conditioning, reduction, annotation
- filtering
- extraction
- segmentation
- temporal modeling
- classification
9

What is PiPo?
• Very compact formalization of streams
• Module API (C++)
• Experimental host integration (Max and IAE)
• First set of modules
• First applications (MuBu for Max, VoiceFollower, iOS proto)
10

PiPo Constraints and Motivations
• Extremely simple framework (in a single .h !!!)
• Easily integrate modules into applications
• Easily reuse code (cf. openFrameworks)
• Inhomogeneous module size and granularity
- elementary (e.g. slice, fft, bands, dct, scale, sum)
- compact (e.g. mel, mfcc, loudseg)
- integrated (i.e. extract + filter + segment + temporal modeling + classify)
• Integrate existing code (FTM & Co., MnM, etc.)
11

PiPo Formalization (roughly SDIF inspired)
• Chain or graph of modules
• One in, one out, multiple branches
• Two mutually exclusive phases of streaming
1. (setup stream): propagate stream attributes
2. (real-time processing): propagate frames
• Stream attributes
- stream timing (time-tagged, sample rate and offset, ...)
- frame dimensions (scalars/vectors/2dim-matrices, ...)
• Module attributes (real-time or require setup)
12

PiPo Implementation
PiPo.h
class PiPo
{
private:
std::list receivers; /**< list of receivers */
std::vector attrs; /**< list of attributes */
public:
PiPo(PiPo *receiver = NULL);
~PiPo(void);
// make connections
virtual void setReceiver(PiPo *receiver, bool add = false);
// setup module and propagate stream attributes
virtual int streamAttributes(bool hasTimeTags, double rate, double offset,
unsigned int width, unsigned int size,
const char **labels, bool hasVarSize,
double domain, unsigned int maxFrames);
// signal stream attributes changed
virtual int streamAttributesChanged(unsigned int unitId = 0);
// reset streaming, propagate frames, finalize streaming
virtual int reset(void);
virtual int frames(double time, double weight, PiPoValue *values, unsigned int size, unsigned int num);
virtual int finalize(double inputEnd);
...
// attribute base class, template, and specializations
13

PiPo Module PiPoScale
#include "PiPo.h"
class PiPoScale : public PiPo
{
private:
... // internal stuff
public:
enum ScaleFun { ScaleLin, ScaleLog, ScaleExp };
PiPoVarSizeAttr inMin;
PiPoVarSizeAttr inMax;
PiPoVarSizeAttr outMin;
PiPoVarSizeAttr outMax;
PiPoScalarAttr clip;
PiPoScalarAttr func;
PiPoScalarAttr base;
PiPoScale(PiPo *receiver = NULL) :
PiPo(receiver),
inMin(this, "inmin", "Input Minimum", true),
inMax(this, "inmax", "Input Maximum", true),
outMin(this, "outmin", "Output Minimum", true),
outMax(this, "outmax", "Output Maximum", true),
clip(this, "clip", "Clip Values", false, false),
func(this, "func", "Scaling Function", true, ScaleLin),
base(this, "base", "Scaling Base", true, 1.0),
...
{
...
module attribute declaration
module attribute instantiation
}
this->func.addEnumItem("lin", "Linear scaling");
this->func.addEnumItem("log", "Logarithmic scaling");
this->func.addEnumItem("exp", "Exponential scaling");
func attribute enum declaration
14

PiPo Module PiPoOnseg
#include "PiPo.h"
class PiPoOnseg : public PiPo
{
private:
... // internal stuff
public:
PiPoScalarAttr fltsize;
PiPoScalarAttr threshold;
PiPoScalarAttr mininter;
module attribute declaration
PiPoOnseg(PiPo *receiver = NULL) :
PiPo(receiver),
fltsize(this, "filtersize", "Onset Filter Size", true, 3),
threshold(this, "threshold", "Onset Threshold", false, 5),
mininter(this, "mininter", "Minimum Onset Interval", false, 50.0)
{
...
}
module attribute instantiation
15

Propagate Stream Attributes
int PiPoOnseg::streamAttributes(bool hasTimeTags, double rate, double offset,
unsigned int width, unsigned int size, const char **labels, bool hasVarSize,
double domain, unsigned int maxFrames)
{
unsigned int filterSize = this->fltsize.get();
unsigned int inputSize = width * size;
this->offset = -1000.0 / rate; // we are one frame off
if(filterSize < 1)
filterSize = 1;
if(filterSize != this->filterSize || inputSize != this->inputSize)
{
// configure internal state
this->buffer.resize(inputSize, filterSize);
this->temp.resize(inputSize * filterSize);
this->lastFrame.resize(inputSize);
}
this->filterSize = filterSize;
this->inputSize = inputSize;
}
return propagateStreamAttributes(true, rate, 0.0, 1, 1, NULL, false, 0.0, 1);
stream attribute propagation
16

Propagate Frames
int PiPoOnseg::frames(double time, double weight, PiPoValue *values, unsigned int size, unsigned int num)
{
double onsetThreshold = this->threshold.get();
double minimumInterval = this->mininter.get();
for(unsigned int i = 0; i < num; i++) // iterate over input frames
{
PiPoValue onset;
bool isOnset = frameIsOnset(values, size, onsetThreshold, minimumInterval, onset);
if(isOnset && !this->lastWasOnset && time >= this->lastOnsetTime + minimumInterval)
{
// we have an onset here
int ret = propagateFrames(this->offset + time, weight, &onset, 1, 1); // propagate output frames
if(ret != 0)
return ret;
}
this->lastOnsetTime = time;
this->lastWasOnset = onset;
}
values += size;
}
return 0;
17

Reset and Finalize Streaming
int PiPoOnseg::reset(void) // reset module before streaming
{
this->buffer.reset();
this->lastWasOnset = false;
this->lastOnsetTime = -DBL_MAX;
return propagateReset();
};
int PiPoOnseg::finalize(double inputEnd) // finalize stream at end (if any)
{
return propagateFinalize(inputEnd);
}
18

PiPoMel.h
Compose PiPo Modules
#include "PiPoSlice.h"
#include "PiPoFft.h"
#include "PiPoBands.h"
class PiPoMel: public PiPoSlice // inherit first PiPo in the chain (mel = slice + fft + bands)
{
private:
PiPoFft fft; // internal PiPo (2nd in chain)
PiPoBands bands; // internal PiPo (3rd in chain)
public:
PiPoMel(PiPo *receiver = NULL) :
PiPoSlice(&this->fft), // instantiate 1st and connect to 2nd
fft(&this->bands), // instantiate 2nd and connect to 3rd
bands(receiver) // instantiate 3rd and connect to receiver
{
// steal attributes from internal PiPos
this->addAttr(this, "windsize", "FFT Window Size", &this->size, true);
this->addAttr(this, "hopsize", "FFT Hop Size", &this->hop);
this->addAttr(this, "numbands", "Number Of Bands", &this->bands.num);
this->addAttr(this, "log", "Logarithmic Scale Output", &this->bands.log);
}
// set internal PiPo attributes
this->wind.set(PiPoSlice::BlackmanWindow);
this->norm.set(PiPoSlice::PowerNorm);
this->fft.mode.set(PiPoFft::PowerFft);
this->bands.mode.set(PiPoBands::MelBands);
this->bands.log.set(false);
// overload set receiver to connect to last PiPo (bands)
void setReceiver(PiPo *receiver, bool add) { this->bands.setReceiver(receiver, add); };
};
19

Max Plugins (Externals)
#include "PiPoScale.h"
#include "MaxPiPo.h"
// generate pipo.scale (“NOBOX”) Max external
PIPO_MAX_CLASS("scale", PiPoScale);
#include "PiPoMel.h"
#include "MaxPiPo.h"
// generate pipo.mel (“NOBOX”) Max external
PIPO_MAX_CLASS("mel", PiPoMel);
20

Available PiPo Hosts (3/4/2013)
• Max externals pipo and pipo~
• Max external mubu.process (MuBu for Max)
• IAE method applyPiPo() (Max, Unity 3D, iOS proto)
21

Available PiPo Modules (3/4/2013)
• psy ... pitch synchronous yin
• mvavrg, median, biquad ... simple filters
• scale, sum ... misc modules
• slice, fft, bands, dct ... spectral description building blocks
• mel, mfcc ... spectral description
• onseg ... onset detector (yet to be released)
• ircamdescriptor ... similar to ircamdescriptor~ (yet to be released) 22

Pi... Po... Perspectives (3/4/2013)
• More modules
• Integration of temporal modeling
• Consolidate API
• Share PiPo framework
• Share PiPo modules
23

http://imtr.ircam.fr/imtr/PiPo
