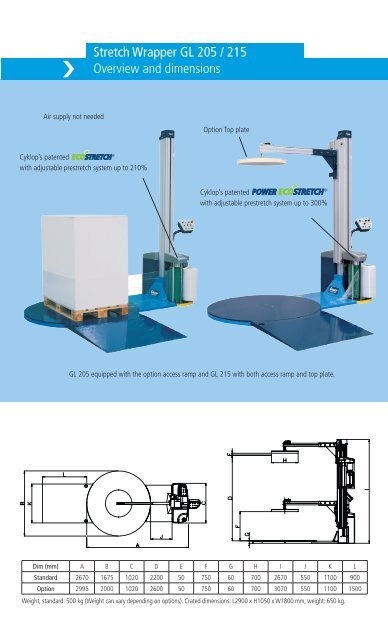

Stretch Wrapper GL 205 / 215 Overview and dimensions Air supply not needed Option Top plate Cyklop’s patented with adjustable prestretch system up to 210% Cyklop’s patented with adjustable prestretch system up to 300% GL 205 equipped with the option access ramp and GL 215 with both access ramp and top plate. Dim (mm) A B C D E F G H I J K L Standard 2670 1675 1020 2200 50 750 60 700 2670 550 1100 900 Option 2995 2000 1020 2600 50 750 60 700 3070 550 1100 1500 Weight, standard: 500 kg (Weight can vary depending on options). Crated dimensions: L2900 x H1050 x W1800 mm, weight: 650 kg.
Stretch Wrapper GL 205 / 215 Specification GL 205 GL 215 Machine Table diam Ø1675 mm Table speed Up to 12 r.p.m adjustable Soft start / stop Electronically run Bottom/top wrappings 1–3 1–6 Film carriage speed Variable film overlapping top and bottom Pre-stretch system Pre-stretch ratio on the Ecostretch unit Stretch wrapping programs Controller Power Supply Loading Protection Pallet Goods Max size (length x width) Max. goods height incl. pallet: Permitted load weight: Stretch Film Core diameter Outer diameter, max Film width, max Film thickness Operating temperature: C-mark (EN 60204) GL 205: 1, 25, 45, 65, 90, 135, 170 or 210 % adjustable GL 215: 30, 60, 80, 110, 145, 200, 250 or 300 % adjustable 4 standard, 2 options Siemens PLC 3-phase 400 V+N+PE, 50 Hz 10 A IP54 1200 x 1200 mm 2200 mm (standard machine) Up to 1500 Kg 76 mm 250 mm 500 mm 15-35 my 5°C (40°F) to 35°C (95°F) for use in a dry, tempered area. Selected options Turntable diam Ø2000 mm, for load up to 2000 kg Extended mast (load height 2600 mm) Access ramp Top film cassette 1-phase 220V Low temperature Extra corrosion protection GL 215 with option Tandem GL 215 with option HS (Horse shoe turntable.) GL 215 with option driven conveyor
Page 1: FOR SEMI AUTOMATIC WRAPPING STRETCH

GL 205 / 215
