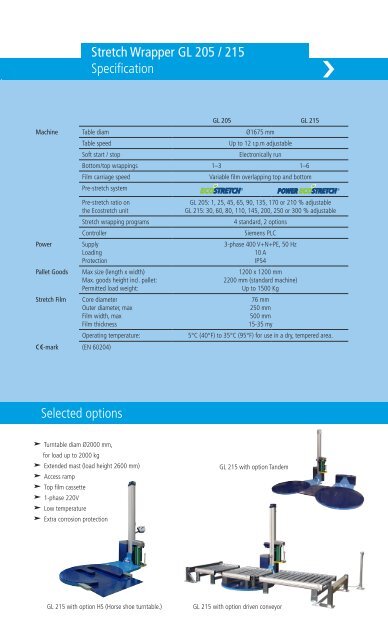

GL 205 / 215

Stretch Wrapper GL 205 / 215
Specification
GL 205 GL 215
Machine Table diam Ø1675 mm
Table speed
Up to 12 r.p.m adjustable
Soft start / stop
Electronically run
Bottom/top wrappings 1–3 1–6
Film carriage speed
Variable film overlapping top and bottom
Pre-stretch system
Pre-stretch ratio on
the Ecostretch unit
Stretch wrapping programs
Controller
Power Supply
Loading
Protection
Pallet Goods Max size (length x width)
Max. goods height incl. pallet:
Permitted load weight:
Stretch Film Core diameter
Outer diameter, max
Film width, max
Film thickness
Operating temperature:
C-mark (EN 60204)
GL 205: 1, 25, 45, 65, 90, 135, 170 or 210 % adjustable
GL 215: 30, 60, 80, 110, 145, 200, 250 or 300 % adjustable
4 standard, 2 options
Siemens PLC
3-phase 400 V+N+PE, 50 Hz
10 A
IP54
1200 x 1200 mm
2200 mm (standard machine)
Up to 1500 Kg
76 mm
250 mm
500 mm
15-35 my
5°C (40°F) to 35°C (95°F) for use in a dry, tempered area.
Selected options
Turntable diam Ø2000 mm,
for load up to 2000 kg
Extended mast (load height 2600 mm)
Access ramp
Top film cassette
1-phase 220V
Low temperature
Extra corrosion protection
GL 215 with option Tandem
GL 215 with option HS (Horse shoe turntable.)
GL 215 with option driven conveyor
