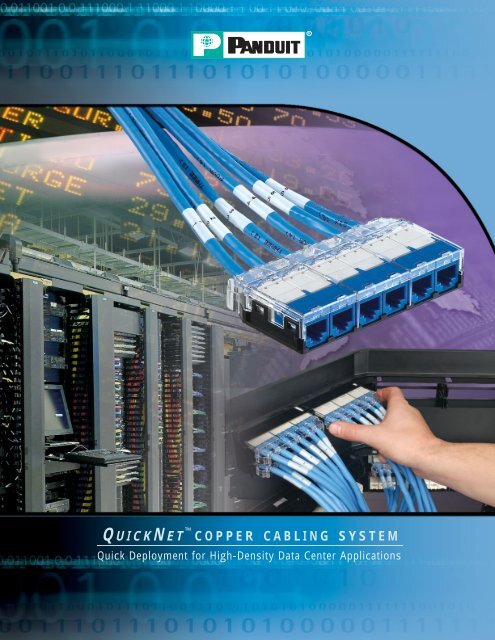

Q UICKN ET COPPER CABLING SYSTEM
Quick Deployment for High-Density Data Center Applications

BENEFITS OF A PRE-TERMINATED
CABLING SYSTEM
Your network drives the critical data, voice, video and security
applications required to support your business. A pre-terminated
cabling system simplifies the delivery of those network services
by providing reliable infrastructure components assembled
and tested in a factory-controlled environment.
An end-to-end pre-terminated cabling system is an ideal
solution for data centers especially when time for traditional
cable installation, termination, and testing is limited.
Pre-terminated cable assemblies offer a simple plug-n-go
solution for links between LAN switches, servers, patch panels
and zone distribution areas, which enables easy additions
to current infrastructure or new installations.
2

As part of the complete QUICKNET Solution*, the PANDUIT ® QUICKNET Copper
Cabling System is a custom pre-terminated cabling solution, designed to meet unique
structured cabling requirements. Fast and simple to install, this high-density solution
provides consistent network reliability and reduces initial on-site rework.
This leading-edge system delivers ensured performance for the lowest total cost
of ownership.
Quick Network Deployment
Pre-terminated cabling systems can be installed in 75% less time than
field-termination methods, eliminating the need for on-site bundling,
terminating, and testing. Moves, adds, and changes can be made immediately
by existing on-site network professionals, increasing productivity relative to
traditional field installations. This is critical for areas that require high security
and limited access, as changes to the network can be made
without scheduling outside personnel.
Consistent Reliability
Components are 100% tested and assembled in a factory-controlled environment
ensuring more consistent network connections with optimum reliability as compared
to those terminated on-site. This eliminates rework and keeps your project on
schedule with maximum network uptime.
Innovative System Components
Assemblies are comprised of tuned components designed to deliver maximum
channel performance and network reliability. Angled high-density patch panels
are engineered to ensure optimum rack space utilization.
As a result, data centers can manage continuously evolving technologies more
quickly and efficiently than ever before. An investment in a trouble-free, high
performance infrastructure that leverages reliable, scalable components
ensures overall system performance with the lowest cost of ownership.
*For QUICKNET Fiber Optic Cabling System product information, refer to www.panduit.com/quicknetfiber.
Why Specify PANDUIT QUICKNET Copper Cabling System?
Quick Deployment – 75% Less Installation Time than Field-Termination
Ease of Installation – Plug-n-Go Solution
Improved Reliability – 100% Factory Performance Tested
High Rack Density Utilization – Up to 48 ports in 1 RU
High Performing Cabling System – Supports Category 6 UTP and
Category 6A (10GBASE-T) UTP/STP Applications
Custom Assemblies – Built to Your Specific Cabling Requirements
Short Lead Time – Meet Your Project Deadlines
3

Innovative Design
The PANDUIT ® QUICKNET Copper Cabling System incorporates innovative
design features.
Built-in release mechanism on QUICKNET Pre-Terminated Cassettes enables simple
installation and removal with one hand
48-port (1 RU) high-density angled patch panels and PATCHRUNNER Vertical Cable Managers
quadruple rack density for reduced real estate costs
QUICKNET Adapter snaps in and out of QUICKNET Patch Panels and accepts all
MINI-COM ® Modules to provide flexibility and scalability for changing network requirements
QUICKNET Plug Pack Assemblies facilitate quick and easy connection and disconnection
of cables to a variety of switches, reducing time and cost associated when installing and
maintaining structured cabling links
Staggered cable lengths ensure proper bend radius control and an aesthetic solution
Jack modules, cable, and patch cords that are tuned to each other to deliver
maximum channel performance and network reliability
Integrated release tab
enables easy installation
and removal of 6-port
pre-terminated cassette
World-Class Quality
QUICKNET Copper Cabling System components are manufactured to strict ISO quality procedures.
QUICKNET Cable Assemblies are 100% performance tested to TIA/EIA electrical
permanent link specifications (test report shipped with each assembly)
Each assembly has a unique serial number for future traceability
TX6 Jack Modules undergo more than 90 additional quality checks
for assured performance
World-Class Service and Support
At PANDUIT, we respond quickly to customer needs and deliver exceptional service
levels globally.
PANDUIT global sales and technical support teams work together to ensure
the optimum solution is provided to meet your requirements
Short lead times and custom configurations keep your project on schedule
Design tools facilitate customization and allow flexibility when designing
the structured cabling infrastructure
4

QUICKNET Cable Assemblies
Offer UTP Category 6 Cabling and UTP/STP
Category 6A Cabling (plenum and riser cable
fire ratings)
Pre-bundled with six cables for easy installation
Available in 1 foot cable length increments from
10 – 295 feet and different cable colors for
redundant path applications
Multiple termination types including
pre-terminated cassettes, jack modules,
modular plugs, plug packs, and/or unterminated options
QUICKNET Angled and Flat Patch Panels
Accept QUICKNET Pre-Terminated Cassettes, which snap in and out
with one hand for quick installation
Available in 24-port (1 RU) standard density and 48-port (1 RU)
high-density configurations
Angled design allows cable to flow to each side of the rack and
eliminates the need for horizontal cable managers by enabling patch
cords to be routed directly into vertical cable managers
Proper identification of each port with pre-printed numbers above
each port; vertical numbering from top to bottom of panel is also
available for high density switch applications
QUICKNET Plug Packs allow multiple cables to
be installed simultaneously with one hand for
speed of deployment in switch applications
QUICKNET Patch Panel Accessories
Patch panel adapter accepts MINI-COM ® Modules for UTP, fiber optic, and
audio/video applications
Blank patch panel adapter reserves space for future use while promoting
proper airflow and cooling
Adapters and blanks easily snap in and out of QUICKNET Patch Panels
5

To simplify data center designs, PANDUIT has developed a
library of PANDUIT products, represented as isometric shapes.
Simply select PANDUIT products from the toolbar using a
“drag and drop” feature to create customized design specifications.
Designers can utilize the cable routing function to estimate
QUICKNET Cable Assembly lengths.
Speed the design of your data center with
the PANDUIT Design Tool for AutoCAD*
A simple to use macro within the tool generates a PANDUIT Bill of
Material which can be saved within the AutoCAD* drawing or
exported to Excel^ for use in quote requests.
Additional functions include cable management and accessory
prompts for consideration to help ensure deployment
of a complete end-to-end system.
The PANDUIT Design Tool for
AutoCAD* is intended for designers
within the construction industry who
possess an intermediate-to-advanced
knowledge of AutoCAD*.
Estimated cable assembly lengths
are generated based on specified
cable routing
To request more information
regarding this tool, contact your local
PANDUIT sales representative or email pcd@panduit.com.
Telecommunication rack is populated
with management accessories for optimum
cable management
*AutoCAD is a registered trademark of Autodesk, Inc.
^EXCEL is a registered trademark of Microsoft Corporation in the United States and/or other countries.
6

The PANDUIT ® QUICKNET Copper Cabling System exceeds the applicable permanent link requirements for
Category 6A and Category 6 transmission over twisted-pair cabling. Each assembly is 100% performance tested at
the factory. A Fluke* Linkware test report accompanies each cable assembly and will also be archived by PANDUIT
(see figure 1). Because the cable assemblies are 100% factory tested, the time and cost associated with on-site field
testing is eliminated.
Permanent Link Compliance is tested for the following parameters:
Insertion Loss (IL)
Return Loss (RL)
Near-End Crosstalk (NEXT)
Power Sum Near-End Crosstalk (PSNEXT)
Equal Level Far-End Crosstalk (ELFEXT)
Power Sum Equal Level Far-End Crosstalk (PSELFEXT)
Power Sum Alien Crosstalk for 10GBASE-T Systems (PSANEXT)**
Power Sum Alien Attenuation to Crosstalk Ratio at the
Far-End for 10GBASE-T Systems (PSAACR-F)**
Figure 1 – FLUKE* Linkware
test results accompany
each cable assembly.
*FLUKE is a registered trademark of Fluke Corporation.
**PSANEXT and PSAACR-F results are available for Category 6A (10GBASE-T)
assemblies, as an option, upon request by contacting PANDUIT customer service.
7

QUICKNET Jack-to-Plug Cable Assemblies
are ideal for cross-connect applications
The QUICKNET Copper Cabling System is
integrated with the PANDUIT STRUCTUREDGROUND
System to optimize network performance
For the full PANDUIT product offering, request PANDUIT ®
PAN-NET ® Network Solutions Catalog, SA-NCCB46.
8
QUICKNET Copper and Fiber Cabling Systems are
compatible with PANZONE ® Enclosures and Boxes
for zone cabling applications

PANDUIT delivers a complete pre-terminated copper and fiber optic solution to satisfy all
data center installations. For QUICKNET Fiber Optic Cabling System information, refer to
www.panduit.com/quicknetfiber.
QUICKNET Cassettes snap in and out of QUICKNET
Patch Panels allowing quick and reliable
installation in server applications
Bundled QUICKNET Cable Assemblies
are easily routed in ladder rack,
FIBERRUNNER ® or underfloor
QUICKNET Cassettes snap in and out of QUICKNET
Patch Panels allowing easy access for moves,
adds, and changes in switch or server applications
QUICKNET Plug Pack termination option
minimizes network downtime during switch
installation and maintenance
9

Q
Custom Assembly Part Number Configurator
QUICKNET Cable Assemblies are customized to meet your unique structured cabling requirements. The table below
shows all the options available within each feature which creates the custom part number.
For example, the part number QAPBCHJRXX10N is a 10 foot custom assembly made of UTP, Category 6A, plenum, blue
cable with a pre-terminated cassette containing off white jacks on one end and red jacks on the other end.
1 2 3 4 5 6 7 8 9 10
Performance Level
Cable
Flame
Rating
Cable
Color
Termination
End 1
Termination
End 1
Color*
Termination
End 2
Termination
End 2
Color*
Assembly
Options**
Custom
Labeling***
A – CATEGORY 6A
(10GIG ) UTP
B – Category 6
Enhanced UTP
C – Category 6 UTP
E – Category 6A
(10GIG ) STP
P – Plenum B – Blue
R – Riser
W – White
Custom Assembly Part Number Configurator
C – Cassette B – Blue
J – Jack
Modules
P – Modular
Plugs
K – Jack
Modules
Staggered
Right
L – Jack
Modules
Staggered
Left
Q – Modular
Plug
Staggered
Right
S – Modular
Plug
Staggered
Left
E – Electric
Ivory
A – Plug
Pack (6 pack)
C – Cassette
J – Jack
Modules
G – Green
P – Modular
Plugs
H – Off White
K – Jack
Modules
I – Int'l Gray
Staggered
Right
L – Black
L – Jack
Modules
O – Orange Staggered
Left
R – Red
Q – Modular
Plug
V – Violet Staggered
Right
W – White S – Modular
Plug
Y – Yellow Staggered
Left
B – Blue
E – Electric
Ivory
G – Green
R – Red
X – No
assembly
options
requested
10' – 295'
(1 foot
increments)
U –
Unterminated
*Color option not available for modular plugs, shielded jack modules, or unterminated options. All modular plugs are clear and shielded jack modules are black. Plug packs
available in B = Blue, W = White, L = Black, or R = Red.
**Permanent link test results shipped with each cable assembly, alien crosstalk test results available as option for Category 6A cabling.
***Custom cable assembly labels are available up to eighteen characters, individual cable labels are available up to fifteen characters.
All custom cable assemblies are non-returnable, minimum order quantity one.
Notes: All connectivity is wired T568B. Category 6 Enhanced performance level utilizes PANDUIT ® TX6500 Category 6 UTP Cable. Individual cassette and jack modules
available as option when unterminated option is requested for on-site termination.
For QUICKNET Fiber Optic Cabling System product information, refer to www.panduit.com/quicknetfiber.
For QUICKNET Plug Pack Assembly product information, refer to SA-COCB17.
H – Off
White
I – Int'l Gray
L – Black
O – Orange
V – Violet
W – White
Y – Yellow
P – Pulling
Eye
T – Alien
Crosstalk
test results
L – Cable
assembly
label
C – Individual
cable labels
B – Pulling B – Assembly
Eye and and
Alien individual
Crosstalk cable labels
test results
X – No
custom
labels
requested
11
Assembly
Length
12
N – Custom
Assembly
10

Patch Cords
Part Number
Description
No. of
Rack
Spaces^
Std.
Pkg.
Qty.
Std.
Ctn.
Qty.
Patch Panels
QPP24BL 24-port flat patch panel. 1 1 10
QPP48HDBL 48-port high-density flat patch panel. 1 1 10
QPP48HDVNSBL
^One rack space = 1.75" (44.45mm).
48-port high density flat patch panel with pre-printed vertical
numbering on each port for switch applications.
1 1 10
QAPP24BL 24-port angled patch panel. 1 1 10
QAPP48HDBL 48-port high-density angled patch panel. 1 1 10
QAPP48HDVNSBL
Patch Panel Adapter
QPPABL
Patch Panel Blank
QPPBBL
Strain Relief Bar
SRB19BLY
Quick Release Bracket
SRBBRKT
Label Kit
QPPLC24
Equipment Jumper Kit
RGEJ1057PFY
Plug Pack Accessories
QPPRT
QPPLD6-X
48-port high-density angled patch panel with pre-printed vertical
numbering on each port for switch applications.
6-port patch panel adapter accepts MINI-COM ® UTP, fiber optic and
audio/video modules.
Reserves space for future use and promotes proper airflow
and cooling.
Cable strain relief bar extends 2" off of the rack to support cables in
patch panels.
Quick release brackets for strain relief bar; converts conventional
screw mounting of strain relief bar to quick release mounting/removal.
Label/label cover kit for 24-port QUICKNET Patch Panels. Each kit
contains four labels and four clear label covers per bag.
Kit includes jumper, bent lug, rack grounding strip, anti-oxidant paste
and thread-forming screws for shielded applications. (Recommend two
kits for 48-port patch panels.)
Removal tool allows individual cables to be removed from plug pack
without disruption of other network connections.
Lock-in device prevents unauthorized removal of cables from the
plug pack.
1 1 10
— 1 10
— 1 10
— 1 10
— 1 10
— 1 10
— 1 10
— 1 10
— 10 100
TX6 10GIG UTP
TX6 10GIG STP
TX6 PLUS UTP
Length (Ft.)
Cable Color
UTP6X3Y
STP6X3IG
UTPSP3Y
3
International Gray
UTP6X5Y STP6X5IG
UTPSP5Y
5 International Gray
UTP6X7Y STP6X7IG
UTPSP7Y
7 International Gray
UTP6X10Y STP6X10IG
UTPSP10Y
10 International Gray
UTP6X14Y STP6X14IG
UTPSP14Y
14 International Gray
UTP6X20Y STP6X20IG
UTPSP20Y
20 International Gray
For additional lengths and colors, reference a PANDUIT ® PAN-NET ® Network Solutions Catalog, SA-NCCB46.
For QUICKNET Fiber Optic Cabling System product information, refer to www.panduit.com/quicknetfiber.
For QUICKNET Plug Pack Assembly product information, refer to SA-COCB17.
11

PANDUIT Corp.
Worldwide Headquarters
Tinley Park, Illinois 60477-3091
For more information
Visit us at www.panduit.com
Contact Customer Service by email: cs@panduit.com
or by phone: 800-777-3300
PANDUIT Europe Ltd.
London, UK
cs-emea@panduit.com
Phone: 44.20.8601.7200
PANDUIT Japan
Tokyo, Japan
cs-japan@panduit.com
Phone: 81.3.3767.7011
PANDUIT Singapore Pte. Ltd.
Republic of Singapore
cs-ap@panduit.com
Phone: 65.6305.7575
PANDUIT Latin America
Jalisco, Mexico
cs-la@panduit.com
Phone: 52.333.777.6000
PANDUIT Australia Pty. Ltd.
Victoria, Australia
cs-aus@panduit.com
Phone: 61.3.9794.9020
PANDUIT Canada
Markham, Ontario
cs-cdn@panduit.com
Phone: 800.777.3300
WORLDWIDE LOCATIONS
For a copy of PANDUIT product warranties, log on to www.panduit.com/warranty
© 2008 PANDUIT Corp.
ALL RIGHTS RESERVED
Printed in the U.S.A.
Brochure Number SA-CPCB35
Replaces SA-CPCB29
4/2008
