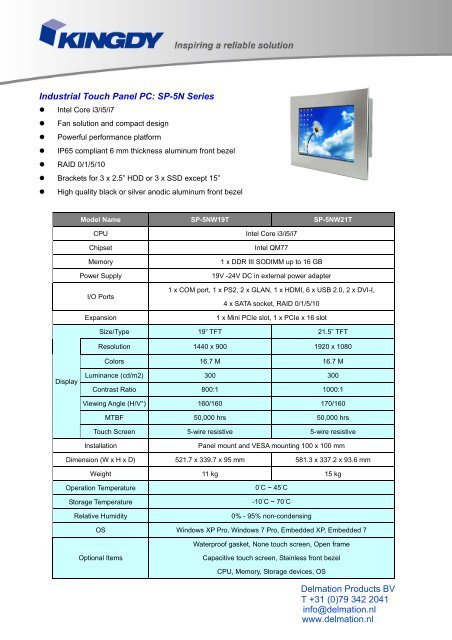

Industrial Touch Panel PC: SP-5N Series
• Intel Core i3/i5/i7
• Fan solution and compact design
• Powerful performance platform
• IP65 compliant 6 mm thickness aluminum front bezel
• RAID 0/1/5/10
• Brackets for 3 x 2.5” HDD or 3 x SSD except 15”
• High quality black or silver anodic aluminum front bezel
Model Name SP-5NW19T SP-5NW21T
CPU
Chipset
Memory
Power Supply
I/O Ports
Expansion
Intel Core i3/i5/i7
Intel QM77
1 x DDR III SODIMM up to 16 GB
19V -24V DC in external power adapter
1 x COM port, 1 x PS2, 2 x GLAN, 1 x HDMI, 6 x USB 2.0, 2 x DVI-I,
4 x SATA socket, RAID 0/1/5/10
1 x Mini PCIe slot, 1 x PCIe x 16 slot
Size/Type 19” TFT 21.5” TFT
Resolution 1440 x 900 1920 x 1080
Colors 16.7 M 16.7 M
Display
Luminance (cd/m2) 300 300
Contrast Ratio 800:1 1000:1
Viewing Angle (H/V°) 160/160 170/160
MTBF 50,000 hrs 50,000 hrs
Touch Screen 5-wire resistive 5-wire resistive
Installation
Panel mount and VESA mounting 100 x 100 mm
Dimension (W x H x D) 521.7 x 339.7 x 95 mm 581.3 x 337.2 x 93.6 mm
Weight 11 kg 15 kg
Operation Temperature 0°C ~ 45°C
Storage Temperature -10°C ~ 70°C
Relative Humidity
0% - 95% non-condensing
OS Windows XP Pro, Windows 7 Pro, Embedded XP, Embedded 7
Waterproof gasket, None touch screen, Open frame
Optional Items
Capacitive touch screen, Stainless front bezel
CPU, Memory, Storage devices, OS
Ü»´³¿¬·±² Ю±¼«½¬­ ÞÊ
Ì õíï øð÷éç íìî îðìï
·²º±à¼»´³¿¬·±²ò²´
©©©ò¼»´³¿¬·±²ò²´

Industrial Touch Panel PC: SP-5N Series
• Intel Core i3/i5/i7
• Fan solution and compact design
• Powerful performance platform
• IP65 compliant 6 mm thickness aluminum front bezel
• RAID 0/1/5/10
• Brackets for 3 x 2.5” HDD or 3 x SSD except 15”
• High quality black or silver anodic aluminum front bezel
Model Name SP-5NR15T SP-5NR17T SP-5NR19T
CPU
Chipset
Memory
Power Supply
I/O Ports
Expansion
Intel Core i3/i5/i7
Intel QM77
1 x DDR III SODIMM up to 8 GB
19V-24V DC in external power adapter
2 x COM port, 1 x Keyboard/Mouse, 2 x GLAN, 1 x HDMI, 6 x USB 2.0, 2 x DVI-I,
4 x SATA socket, 1 x IDE socket, RAID 0/1/5/10
1 x Mini PCIe slot, 1 x PCIe x 16 slot
Size/Type 15” TFT (4:3) 17” TFT (4:3) 19” TFT (4:3)
Resolution 1024 x 768 1280 x 1024 1280 x 1024
Colors 16.2 M 16.7 M 16.7 M
Display
Luminance (cd/m2) 400 300 250
Contrast Ratio 700:1 800:1 1000:1
Viewing Angle (H/V°) 140/125 140/125 140/125
MTBF 50,000 hrs 50,000 hrs 50,000 hrs
Touch Screen 5-wire resistive 5-wire resistive 5-wire resistive
Installation
Panel mount and VESA mounting 100 x 100 mm
Dimension (W x H x D) 400.9 x 303.7 x 93 mm 453.5 x 352 x 90 mm 487 x 376.8 x 93.7 mm
Weight 9 kg 10 kg 11 kg
Operation Temperature 0°C ~ 45°C
Storage Temperature -10°C ~ 70°C
Relative Humidity
0% - 95% non-condensing
OS Windows XP Pro, Windows 7 Pro, Embedded XP, Embedded 7
Waterproof gasket, None touch screen, Open frame
Optional Items
Capacitive touch screen, Stainless front bezel
CPU, Memory, Storage devices, OS
