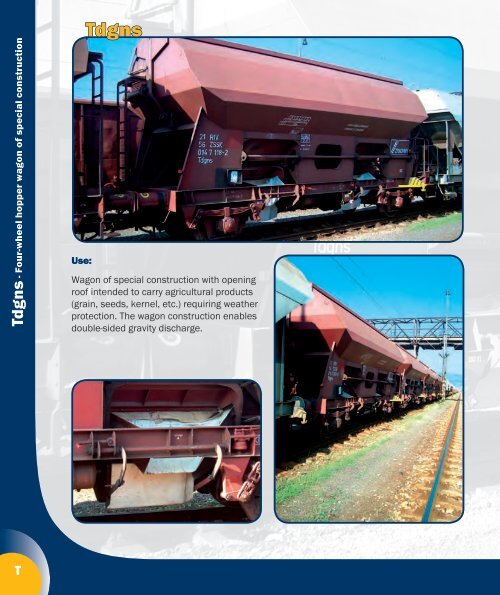

<strong>Td</strong>gns - Four-wheel hopper wagon of special construction<br />
Use:<br />
<strong>Td</strong>gns<br />
Wagon of special construction with opening<br />
roof intended to carry agricultural products<br />
(grain, seeds, kernel, etc.) requiring weather<br />
protection. The wagon construction enables<br />
double-sided gravity discharge.<br />
T
Wagon technical parameters<br />
Wagon series<br />
<strong>Td</strong>gns<br />
Digit interval 0147<br />
Construction group 12<br />
Interoperability 21<br />
Wagon tare<br />
14,50 t<br />
Wagon length over the buffers<br />
9,64 m<br />
Loading capacity<br />
A<br />
B<br />
C<br />
D<br />
17,50 t<br />
21,50 t<br />
25,50 t<br />
30,50 t<br />
Distance between floor and USR -<br />
Loading capacity 38,00 m 3<br />
Axle base / pivot pins distance<br />
6,00 m<br />
Roof aperture<br />
length<br />
width<br />
7,90 m<br />
1,20 m<br />
Unloading apertures<br />
Note<br />
count<br />
height<br />
distance from USR<br />
2 + 2<br />
0,82 m<br />
0,72 m<br />
hopper wagon for grain<br />
<strong>Td</strong>gns - Four-wheel hopper wagon of special construction<br />
