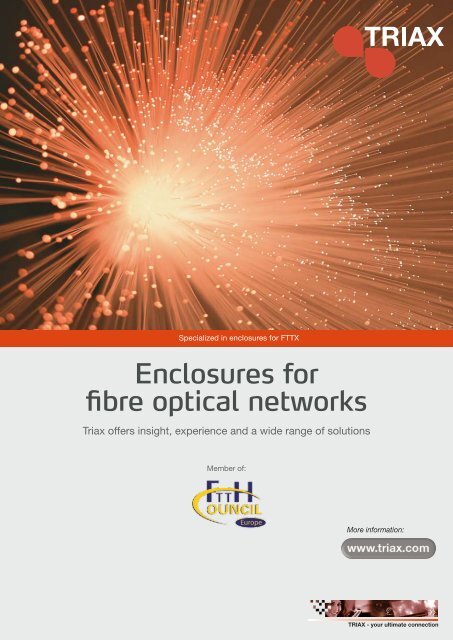

Specialized in enclosures <strong>for</strong> FTTX<br />
<strong>Enclosures</strong> <strong>for</strong><br />
<strong>fibre</strong> <strong>optical</strong> <strong>networks</strong><br />
<strong>Triax</strong> offers insight, experience and a wide range of solutions<br />
Member of:<br />
More in<strong>for</strong>mation:<br />
TRIAX - your ultimate connection
A new range of solutions<br />
developed <strong>for</strong> <strong>fibre</strong> <strong>optical</strong> <strong>networks</strong><br />
Insight, experience and a wide range of<br />
efficient solutions. These are benefits offered to<br />
you, when asking <strong>Triax</strong> about <strong>fibre</strong> distribution<br />
hubs and access cabinets <strong>for</strong> <strong>optical</strong> cabling.<br />
A fast growing demand <strong>for</strong> access to high<br />
speed <strong>optical</strong> <strong>networks</strong> among enterprises’ and<br />
subscribers’ residences is driving the network<br />
providers in many countries to offer<br />
such services directly to the final consumers.<br />
FTTX (Fibre-To-The-X) is already in<br />
demand from local governments, private<br />
companies and consumers in many European<br />
countries.<br />
Among others end-users are expected to<br />
demand high-speed Internet, videophone,<br />
video on demand, multi-channel HDTV,<br />
security systems, etc.<br />
Selected by leading network<br />
operators<br />
Power utilities, cable television operators and<br />
telecommunication companies in Denmark,<br />
Norway and Sweden are among the pioneers<br />
in implementing FTTX <strong>networks</strong>. Newly<br />
developed <strong>Triax</strong> access cabinets are today<br />
the brand by several internationally operating<br />
telecommunication operators, a large number<br />
of Danish power utilities in particular and<br />
directly by <strong>fibre</strong> <strong>optical</strong> network providers.<br />
<strong>Triax</strong> has invested considerably<br />
in developing a new line of cabinets to provide<br />
efficient protection and easy installation and<br />
maintenance of <strong>fibre</strong> <strong>optical</strong> components.<br />
Designed <strong>for</strong> <strong>fibre</strong> optics<br />
Dialogue with all relevant parties has always<br />
been an integrated part in <strong>Triax</strong>’s design<br />
processes. Fibre optics is no exception. Our<br />
range of access cabinets is the result of close<br />
cooperation with system designers, installers<br />
and leading international suppliers of <strong>fibre</strong> optic<br />
components.<br />
The result is efficient solutions to the specific<br />
needs in FTTX <strong>networks</strong>, including solutions<br />
<strong>for</strong> optimum protection of <strong>fibre</strong>s, easy splicing<br />
and providing time-saving mounting and cable<br />
management systems.<br />
Central Office<br />
Head End<br />
Feeder<br />
Distribution<br />
Drop Cable<br />
<strong>Triax</strong> Shelter<br />
Distribution Hub<br />
<strong>Triax</strong> FK<br />
Access Point<br />
<strong>Triax</strong> FT<br />
Access Point<br />
Residential<br />
Businesses<br />
<strong>Triax</strong> Indoor<br />
Wall Box<br />
<strong>Triax</strong> FE<br />
Access Point<br />
<strong>Triax</strong> Outdoor<br />
Wall Box<br />
<strong>Triax</strong> Termination Box
Multi Dwelling<br />
Units<br />
specific needs and requirements.<br />
Our manufacturing lines are designed to<br />
combine flexibility with the economic<br />
advantages of a highly automated production.<br />
Small batches of enclosures are produced<br />
with almost the same efficiency<br />
as thousands.<br />
• Fibre <strong>optical</strong> access enclosures range from<br />
single and small 8-12 connections, to large<br />
cabinets <strong>for</strong> 144 connections or more<br />
• Time-saving solutions available <strong>for</strong><br />
mounting splice cassettes, fittings<br />
and protective ducts<br />
• Wide range of accessories available,<br />
including backboards, bottom plates, cable<br />
attachment plates, 19” racks, etc.<br />
• <strong>Enclosures</strong> with in a wide range of IP<br />
classification available<br />
• Solutions <strong>for</strong> mounting different <strong>fibre</strong><br />
systems<br />
• Enclosure solutions <strong>for</strong><br />
combining <strong>fibre</strong> and<br />
copper <strong>networks</strong><br />
• <strong>Enclosures</strong> <strong>for</strong> use in<br />
combination with<br />
manholes<br />
• <strong>Triax</strong> enclosures are<br />
normally manufactured<br />
in high grade galvanized<br />
steel and protected<br />
with polyester powder<br />
coating.<br />
More than 35 years of<br />
experience in outdoor<br />
enclosures<br />
Dust, extreme<br />
temperatures, vibrations, salt, moisture and -<br />
sometimes - people can be tough aggressors<br />
to enclosures and their valuable content.<br />
We know how to design and manufacture longlasting<br />
enclosure solutions. Since 1968 <strong>Triax</strong><br />
has been a leading supplier of enclosures <strong>for</strong><br />
distribution <strong>networks</strong> and control systems in<br />
Europe and the Middle East.<br />
Standard or custom design<br />
<strong>Triax</strong> offers you an extensive range of readyto-order<br />
enclosures and optional accessories,<br />
including access enclosures designed <strong>for</strong><br />
specific makes of <strong>fibre</strong> optic components.<br />
Furthermore, we offer you customised<br />
enclosure solutions designed to meet your<br />
Environment and quality<br />
• Efficient quality control at TRIAX from raw<br />
materials to distribution<br />
• <strong>Triax</strong> is ISO 9001 and ISO<br />
14001 certified
FE empty <strong>fibre</strong> cabinets<br />
Dimensioned sketches of FE cabinets with short in-ground root<br />
FE cabinets with short in-ground root<br />
Empty cabinets with Ruko 205 lock in plastic housing incl. fittings <strong>for</strong> backboard and condensation block made of foam material<br />
TYPE FE 198 FE 264 FE 330 FE 396 FE 462 FE 594<br />
- 300<br />
FE 792<br />
- 300<br />
Partnumber RAL 7037 Grey 252000 252010 252020 252030 252040 252050 252060<br />
Partnumber <strong>Triax</strong> green Green 252001 252011 252021 252031 252041 252051 252061<br />
Overall dimensions<br />
Height outside<br />
- above ground level<br />
Width outside<br />
Depth outside<br />
H mm<br />
W mm<br />
D mm<br />
675<br />
198<br />
198<br />
675<br />
264<br />
198<br />
675<br />
330<br />
198<br />
675<br />
396<br />
198<br />
675<br />
462<br />
198<br />
675<br />
594<br />
300<br />
675<br />
792<br />
300<br />
Mounting volume<br />
Height<br />
Width<br />
Depth<br />
mm<br />
mm<br />
mm<br />
700<br />
160<br />
171<br />
700<br />
220<br />
171<br />
700<br />
285<br />
171<br />
700<br />
350<br />
171<br />
700<br />
420<br />
171<br />
700<br />
550<br />
271<br />
700<br />
690<br />
271<br />
Backboard<br />
16 mm water<br />
resistant chipboard<br />
1.5 mm galvanized<br />
steel<br />
18 mm plywood<br />
part no.<br />
part no.<br />
part no.<br />
252008<br />
252310<br />
252018<br />
252324<br />
252311<br />
252028<br />
252325<br />
252312<br />
252038<br />
252326<br />
252313<br />
252048<br />
252327<br />
252314<br />
252058<br />
252328<br />
252315<br />
252068<br />
252329<br />
252316<br />
FE 792<br />
FE 330 FE 264 FE 198
FE empty <strong>fibre</strong> cabinets<br />
Dimensioned sketches of FE cabinets with long in-ground root<br />
FE cabinets with long in-ground root<br />
Empty cabinets with triangular lock incl. fittings <strong>for</strong> backboard and condensation block made of foam material<br />
TYPE FE 198 FE 264 FE 330 FE 396 FE 462 FE 462<br />
- 300<br />
FE 594<br />
- 300<br />
FE 792<br />
- 300<br />
FE 990<br />
- 300<br />
Partnumber RAL 7037 Grey 252004 252014 252024 252034 252044 252046 252054 252064 252170<br />
Partnumber <strong>Triax</strong> green Green 252005 252015 252025 252035 252045 252047 252055 252065 252171<br />
Overall dimensions<br />
Height outside<br />
- above ground level<br />
Width outside<br />
Depth outside<br />
H mm<br />
W mm<br />
D mm<br />
850<br />
198<br />
198<br />
850<br />
264<br />
198<br />
850<br />
330<br />
198<br />
850<br />
396<br />
198<br />
850<br />
462<br />
198<br />
850<br />
462<br />
300<br />
850<br />
594<br />
300<br />
850<br />
792<br />
300<br />
850<br />
990<br />
300<br />
Mounting volume<br />
Height<br />
Width<br />
Depth<br />
mm<br />
mm<br />
mm<br />
700<br />
160<br />
171<br />
700<br />
220<br />
171<br />
700<br />
285<br />
171<br />
700<br />
350<br />
171<br />
700<br />
420<br />
171<br />
700<br />
420<br />
271<br />
700<br />
550<br />
271<br />
700<br />
690<br />
271<br />
700<br />
980<br />
271<br />
Backboard<br />
16 mm water<br />
resistant chipboard<br />
1.5 mm galvanized<br />
steel<br />
18 mm plywood<br />
part no.<br />
part no.<br />
part no.<br />
252008<br />
252310<br />
252018<br />
252324<br />
252311<br />
252028<br />
252325<br />
252312<br />
252038<br />
252326<br />
252313<br />
252048<br />
252327<br />
252314<br />
252048<br />
252327<br />
252314<br />
252058<br />
252328<br />
252315<br />
252068<br />
252329<br />
252316<br />
252178<br />
252317<br />
FE 264 FE 330
FK 430, 530 and 760<br />
Features<br />
• Pitched roof<br />
• Rigid construction<br />
• Unique <strong>for</strong> installation of<br />
<strong>fibre</strong> products<br />
• Lock extra protected by a teardrop<br />
• Backboards available in various<br />
materials<br />
• Ruko 205 lock<br />
• Lift-off door type<br />
(Please enquire <strong>for</strong> hinged door)<br />
FK 530<br />
D<br />
W<br />
FK 760<br />
TYPE FK 430 FK 530 FK 760<br />
H<br />
Partnumber RAL 7037 Grey 252142 252070 252080<br />
Partnumber <strong>Triax</strong> green Green 252143 252075 252085<br />
Overall dimensions<br />
Height outside<br />
Width outside<br />
Depth outside<br />
Mounting volume<br />
Height<br />
Width<br />
Depth<br />
H mm<br />
W mm<br />
D mm<br />
mm<br />
mm<br />
mm<br />
985<br />
430<br />
315<br />
800<br />
340<br />
285<br />
985<br />
530<br />
315<br />
805<br />
440<br />
285<br />
985<br />
760<br />
315<br />
800<br />
650<br />
285<br />
FK enclosure with W root <strong>for</strong><br />
embedding in concrete<br />
D<br />
Accessories<br />
Backboard<br />
10 mm water resistant<br />
chipboard<br />
1.5 mm steel (Star mesh)<br />
part no.<br />
part no.<br />
252149 252078<br />
252079<br />
252088<br />
252089<br />
Fixing bar <strong>for</strong> guide tubes part no. 252148 252073 252083<br />
Bottom plate <strong>for</strong> tube entry part no. 252158 252074 252084<br />
In-ground root<br />
- part no.<br />
- part no.<br />
Root <strong>for</strong> embedding in concrete<br />
- part no.<br />
- part no.<br />
Grey<br />
Green<br />
Grey<br />
Green<br />
252144<br />
252145<br />
252146<br />
252147<br />
252071<br />
252076<br />
252072<br />
252077<br />
252081<br />
252086<br />
252082<br />
252087<br />
FK 760<br />
FK 530<br />
FK 530
FK 700 and FK 700 3-doors<br />
Features<br />
• Pitched roof<br />
• Rigid construction<br />
• Swing handle with cylinder lock<br />
combined with 3-point security<br />
locking system<br />
• Flanges <strong>for</strong> mounting on<br />
concrete plinth<br />
• Doors can be removed without<br />
use of tools<br />
• Prepared <strong>for</strong> fitting of fan<br />
• 19" rack and backboard possible<br />
at the same time<br />
• Shelves and backboard possible at<br />
the same time<br />
• Euro cylinder lock TYPE FK 700 FK 700<br />
3-doors<br />
W<br />
D<br />
H<br />
Partnumber RAL 7037 Grey 252090 252107<br />
Partnumber <strong>Triax</strong> green Green 252095 252108<br />
Overall dimensions<br />
Height outside<br />
Width outside<br />
Depth outside<br />
Mounting volume<br />
Height<br />
Width<br />
Depth<br />
H mm<br />
W mm<br />
D mm<br />
mm<br />
mm<br />
mm<br />
1305<br />
700<br />
500<br />
1075<br />
575<br />
460<br />
1305<br />
700<br />
500<br />
1075<br />
575<br />
460<br />
Accessories<br />
D<br />
FK W 700 with low base W<br />
D<br />
FK 700<br />
3-doors<br />
under<br />
installation<br />
Backboard<br />
10 mm water resistant<br />
chipboard<br />
1.5 mm steel (Ø5.5)<br />
part no.<br />
part no.<br />
252097<br />
252098<br />
252097<br />
252098<br />
- please enquire <strong>for</strong><br />
other backboards<br />
19" rack (UN 24) part no. 252099 252099<br />
In-ground root<br />
- part no.<br />
- part no.<br />
Low base <strong>for</strong> concrete<br />
- part no.<br />
- part no.<br />
In-ground root with fixing bar<br />
<strong>for</strong> guide tubes<br />
- part no.<br />
- part no.<br />
Other accessories<br />
Grey<br />
Green<br />
Grey<br />
Green<br />
Grey<br />
Green<br />
252101<br />
252106<br />
252091<br />
252096<br />
252110<br />
252111<br />
Shelves, fan<br />
filter and<br />
thermostat<br />
252101<br />
252106<br />
252091<br />
252096<br />
252110<br />
252111<br />
Shelves, fan<br />
filter and<br />
thermostat<br />
In-ground root<br />
Low base <strong>for</strong><br />
concrete
FT 400, 785 L/M/H<br />
Features<br />
• Flat roof<br />
• Rigid construction<br />
• 3-point security locking system<br />
• Used as distribution hubs and<br />
access points<br />
• The cabinets are as standard<br />
delivered empty without lock<br />
• Heavy-duty in-ground roots<br />
• IP 55<br />
TYPE FT 400 FT 785 L FT 785 M FT 785 H<br />
Partnumber RAL 7037 Grey 252220 252240 252210 252260<br />
Partnumber <strong>Triax</strong> green Green 252221 252241 252211 252261<br />
Overall dimensions<br />
Height outside<br />
Width outside<br />
Depth outside<br />
Mounting volume<br />
Height<br />
Width<br />
Depth<br />
H mm<br />
W mm<br />
D mm<br />
mm<br />
mm<br />
mm<br />
800<br />
400<br />
300<br />
750<br />
320<br />
250<br />
800<br />
785<br />
300<br />
750<br />
710<br />
250<br />
1020<br />
785<br />
300<br />
970<br />
710<br />
250<br />
1540<br />
785<br />
300<br />
1480<br />
710<br />
250<br />
FT 785 (H)<br />
Accessories<br />
Open in-ground root w. one bracket<br />
- part no.<br />
- part no.<br />
Closed in-ground root w. dobb. bracket<br />
- part no.<br />
- part no.<br />
Grey<br />
Green<br />
Grey<br />
Green<br />
252232<br />
252233<br />
252234<br />
252235<br />
252252<br />
252253<br />
252254<br />
252255<br />
252252<br />
252253<br />
252254<br />
252255<br />
252252<br />
252253<br />
252254<br />
252255<br />
Backboard 1.5 mm steel (Ø5.5) part no. 252222 252242 252212 252242+252262<br />
- please enquire <strong>for</strong> other backboards<br />
Rail system backboard part no. 252223 252243 252243 2 x 252243<br />
19" rack part no. 252289 252219 2 x 252289<br />
ETSI rack part no. 252292 252218 2 x 252292<br />
Rail system <strong>for</strong> racks part no. 252244 252214 252264<br />
Bottom plate w. 1 blind plate part no. 252225<br />
Bottom plate w. 2 blind plate part no. 252245 252245 252245<br />
Cable attachment plate with<br />
mounting bracket and accessories part no. 252293 252293 252293<br />
8 x PG21 seal kit <strong>for</strong> bottom plate part no. 251427 251427 251427 251427<br />
In-ground root<br />
during<br />
installation<br />
Splicing<br />
in the<br />
field
Backboards<br />
please enquire <strong>for</strong> custom design<br />
Water resistant chipboard<br />
with / without aluminium<br />
Galvanized steel board<br />
1.5 mm galvanized steel with<br />
Ø 5.5 mm hole pattern<br />
or star mesh hole pattern<br />
Custom designed<br />
backboards<br />
please inquire<br />
Locking system<br />
please enquire <strong>for</strong> other locking systems<br />
Triangular lock<br />
Key Set - Part No. 232000<br />
3 different TRIAX keys (1+2+3)<br />
together in one bag.<br />
EMKA lock<br />
Security push and turn type.<br />
Keys can also be ordered<br />
separately:<br />
1<br />
2<br />
3<br />
No. Part No. Type<br />
1 225921 Kombi key<br />
2 225920 Ruko key<br />
3 848616 EMKA key<br />
4 848610 TN 1 Triangular key<br />
4<br />
Ruko 205 lock in<br />
plastic housing<br />
Single<br />
teardrop<br />
Double<br />
teardrop<br />
Single cam lock protection<br />
3 point security locking system
Cable Organiser 5 Cable<br />
MATERIALE<br />
Galv. plade 2 mm<br />
OFB<br />
SKALA TOL. RETTET DATO INIT TEGNINGS-NR.<br />
Polyester A4<br />
+/- 0.5 30-03-2006 nsl<br />
MATERIALE<br />
Galv. plade 1 mm<br />
OFB<br />
27-03-2006<br />
emn<br />
SKALA TOL. RETTET DATO INIT TEGNINGS-NR.<br />
Polyester A4<br />
+/- 0.3 30-03-2006 nsl<br />
23-02-2006<br />
nsl<br />
MATERIALE<br />
OFB<br />
MATERIALE<br />
OFB<br />
Accessories<br />
please enquire <strong>for</strong> custom design<br />
Brackets <strong>for</strong> cable and <strong>fibre</strong> cabinets<br />
Type Part No. Description<br />
TRIAX<br />
CO-5C<br />
252199<br />
CB-440<br />
CO-5C 252199 Cable organiser <strong>for</strong> 5 cables<br />
CB-320 252499 Cable bracket, W320 D60<br />
CB-440 252498 Cable bracket, W440 D60<br />
RL-140 252190 Radius limiter, D140mm<br />
RL-225 252191 Radius limiter, D225mm<br />
CO-20MT 251905 Cable organiser <strong>for</strong> 20 micro tubes<br />
RL 225<br />
TRIAX<br />
Kabelholder <strong>for</strong> fiber<br />
B440 D60<br />
Galv. plade 1,5 mm<br />
SKALA TOL. RETTET DATO INIT TEGNINGS-NR.<br />
Polyester A4<br />
+/- 0.5 30-03-2006 nsl<br />
08-12-2005<br />
emn<br />
CO-20MT<br />
252498<br />
TRIAX<br />
Radius limiter 225<br />
252191<br />
TRIAX<br />
Beslag <strong>for</strong> fiberrør<br />
Galv. plade 1 mm<br />
SKALA TOL. DATO<br />
RETTET INIT TEGNINGS-NR.<br />
Polyester A4<br />
+/- 0.5 30-03-2006 nsl<br />
20-10-2003<br />
emn<br />
733445<br />
Customer designed enclosures<br />
- tailored to meet the exact requirements<br />
<strong>Triax</strong> enclosure solution made <strong>for</strong> a leading<br />
European operator<br />
Specifications:<br />
• Stainless steel<br />
• Double-wall construction <strong>for</strong> optimum ventilation<br />
• Rail system <strong>for</strong> flexible mounting of equipment<br />
• External measurements:<br />
Height<br />
1300 mm<br />
Width<br />
1600 mm<br />
Depth<br />
400 mm<br />
Enclosure developed <strong>for</strong> network<br />
operator in the Middle East with<br />
19” rack, aircondition and a high<br />
protection rate (IP65)<br />
Specifications:<br />
• <strong>Enclosures</strong> external dimensions<br />
Height<br />
1880 mm<br />
Width<br />
1800 mm<br />
Depth<br />
700 mm<br />
10
Customer designed enclosures<br />
tailored to meet the exact requirements<br />
A special version<br />
of FK 700 3-doors<br />
with long root<br />
33SA-4 cabinet optimized <strong>for</strong> <strong>fibre</strong> equipment<br />
Specifications on 33SA-4:<br />
• <strong>Enclosures</strong> external dimensions<br />
Height<br />
804 mm<br />
Width<br />
443 mm<br />
Depth<br />
11 mm<br />
Please contact <strong>Triax</strong> to get your <strong>fibre</strong> <strong>optical</strong><br />
equipment mounted/installed during the<br />
manufacturing process.<br />
Custom designed indoor<br />
solution <strong>for</strong> active decoder<br />
and <strong>fibre</strong> nodes<br />
Custom designed in-ground<br />
root <strong>for</strong> FK 530<br />
A special version of Kiosk 700<br />
with double-wall construction.<br />
11
Thinking one<br />
step ahead...<br />
<strong>Triax</strong> Marketing • © 2007 The <strong>Triax</strong> Group • All rights reserved. Use of this material signifies your agreement to the terms of use.<br />
TRIAX A/S<br />
Bjørnkærvej 3<br />
DK - 8783 Hornsyld<br />
Tel.: +45 76 82 22 00<br />
Fax: +45 75 68 79 66<br />
mail: triax@triax.dk<br />
www.triax.com<br />
SB.23.4.02
![Satellite dishes w-partnership 2005 [GB-UK].indd - Triax](https://img.yumpu.com/48180523/1/184x260/satellite-dishes-w-partnership-2005-gb-ukindd-triax.jpg?quality=85)
Change language
