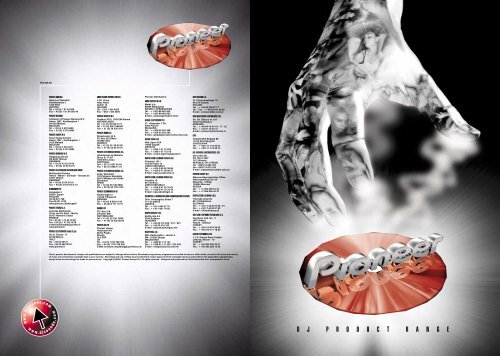

DJ Product Range - Pioneer Europe

PRO-BR-EN
PIONEER AUSTRIA
Hans Lurf GesmbH
Gorskistrasse 3
1232 Wien
AUSTRIA
Tel + 43 (0) 1 61 64 580
Fax + 43 (0) 1 61 64 580 40
PIONEER BELGIUM
A Branch of Pioneer Benelux B.V.
Haven 1087, Keetberglaan 1
B-9120 Melsele
BELGIUM
Tel + 32 (0) 3 570 0500
Fax + 32 (0) 3 570 0884
PIONEER EUROPE N.V.
Direct Sales Division
Haven 1087 - Keetberglaan 1
9120 Melsele
BELGIUM
Tel + 32 (0) 3 570 0511
Fax + 32 (0) 3 570 0883
PIONEER DENMARK A/S
Helgeshøj Allé 26
DK-2630 Tåstrup
DENMARK
Tel + 45 (0) 43 55 54 00
Fax + 45 (0) 43 55 54 01
PIONEER ELECTRONICS DEUTSCHLAND GMBH
Multimedia Division
Hanns - Martin - Schleyer - Strasse 35
47877 Willich
GERMANY
Tel + 49 (0) 2154 913-0
Fax + 49 (0) 2154 913-2 73
ULKOKAUPAT OY
Kutojantie 3
02630 Espoo
FINLAND
Tel 09-521 788
Fax 09 521 4702
www.pioneer.ulkokaupat.fi
PIONEER FRANCE S.A.
Activités Multimedia
35 Av. de l'IIe Saint - Martin
92737 Nanterre Cedex
FRANCE
Tél +33 (0) 1 47 60 79 99
Fax +33 (0) 1 47 60 79 58
e-mail:multimedia@pioneer.fr
www.pioneer.fr
PIONEER ELECTRONICS (Italia) S.p.A.
Via G. Fantoli, 17
20138 Milano
ITALY
Tel. +39 02 50741
Fax +39 02 58012181
www.pioneer.it
AUDIO VISION IMPORT LIMITED
J.F.K. Drive
Naas Road
Dublin 12
IRELAND
Tel: +353 1 450 4855
Fax: +353 1 450 4870
PIONEER BENELUX B.V.
Postbus 3010, 1300 EM Almere
NETHERLANDS
Tel +31 (0) 36 538 7777
Tel + 31 (0) 900 7466337
Fax + 31 (0) 36 536 5511
PIONEER NORGE AS
Sinsenveien 53 A
PO Box 353 Økern
N-0585 Oslo
NORWAY
Tel + 47 (0) 22 09 30 00
Fax + 47 (0) 22 09 30 01
PIONEER ELECTRONICS IBERICA S.A.
Urbanizaçao da Matinha
Bloco B, 1º dtº
1900-649 Lisboa
PORTUGAL
Telf + 351.21.861.03.40
Fax + 351.21.868.71.75
PIONEER ELECTRONICS IBERICA S.A.
Avda. Salvatella
122 Poligono Salvatella
08210 Barberá del Vallés
Barcelona
SPAIN
Tel + 34 (0) 93 739 9900
Fax + 34 (0) 93 729 4153
PIONEER SCANDANAVIA AB
Nyckelvägen 2
142-82 Trångsund
SWEDEN
Tel + 46 (0) 8 609 91 00
Fax + 46 (0) 8 771 10 15
SACOM LTD
P.O. Box 218
CH-2501 Biel
SWITZERLAND
Tel + 41 (0) 32 332 8500
Fax + 41 (0) 32 332 86 00
PIONEER GB LTD
Pioneer House
Hollybush Hill
Stoke Poges
Slough
SL2 4QP
UK
Tel: +44 (0) 1753 789 789
Fax: +44 (0) 1753 789 539
E-Mail: brochure_request@pgb.pioneer.co.uk
Pioneer Distributors
AUDIO EXPERTS D.O.O.
Matali b.b.
88266 Medjugorje
BOSNIA I HERZEGOVINA
Tel. : ++387-88 650 925
Fax : ++387-88 650 935
E-mail : audioexperts@int.tel.hr
GLOBAL ELECTRONICS PLC.
47, "Alexander I" Str.
4000 Plovdiv
BULGARIA
Tel. : ++359-32 622 498
Fax : ++359-32 624 256
E-mail : global@plovdiv.techno-link.com
RECOM TRADE LTD.
Nad Lipom 22A
10000 Zagreb
CROATIA
Tel. : ++385-1-37 72 520
Fax : ++385-1-37 72 515
E-mail : recom-trgovina@zg.tel.hr
BASYS CZECH & SLOVAK PRAHA S.R.O.
Prátelství 1011
104 00 Praha 10
CZECH REPUBLIC
Tel. : ++420-2-90 00 38 86
Fax : ++420-2-71 96 00 57
E-mail : basys-pr@comp.cz
BASYS CZECH & SLOVAK BRNO S.R.O.
Vázného 16
621 00 Brno
CZECH REPUBLIC
Tel. : ++420-5-41 22 76 55
Fax : ++420-5-41 22 76 54
E-mail : basysbo@login.cz
INTERSYS S.A. INFORMATION AND COMMUNICATION SYSTEMS
Dion. Areopagitou Street 7
117 42 Athens
GREECE
Tel. : ++30-1-924 27 10
Fax : ++30-1-921 78 05
BASYS HUNGARY LTD.
Epítök útja 2-4
2040 Budaörs
HUNGARY
Tel. : ++36-23 415 246 / 541 / 601
Fax : ++36-23 415 182
E-mail : basyshu@hungary.net
MAKPETROL A.D.
Mito Hadzivasilev - Jasmin 4
MK - 91000 Skopje
MACEDONIA
Tel. : ++389-91-112 144
Fax : ++389-91-111 525 / 222 649
E-mail : makpet2@unet.com.mk
DSV TRADING S.A.
Ul. Chrzanowskiego 10
80-278 Gdansk
POLAND
Tel. : ++48-58 348 27 71
Tel. / Fax : ++48-58 341 00 25
E-mail : pioneer@dsv.com.pl
MM MIKOTRONIC EXIM HOLDING LTD.
Str. Gh. Bilascu nr. 107
3400 Cluj-Napoca
ROMANIA
Tel. : ++40-64-19 04 16 / 17 / 25
Fax : ++40-61-19 42 15
E-mail : pioneer@mikotronic.ro
ITM
Omladinskih Brigada 86
11070 Novi Beograd
YUGOSLAVIA
Tel. : ++381-11-176 40 07
Fax : ++381-11-176 40 73
KH. PAPASIAN (DISTRIBUTORS) LTD.
240 Ledra Str.
P.O. Box 21607
1511 Nicosia
REPUBLIC OF CYPRUS
Tel. : 00357-2-663 795
Fax : 00357-2-674 706
E-mail : papasian@cytanet.com.cy
PIONEER EUROPE N.V.
Moscow Representative Office
Nikoloyamskaia Str. 54
Mosenka - 5 Bldg.
109004 Moscow
RUSSIA
Tel. : ++7-095-258 54 44
Fax : ++7-095-258 54 37
BASYS CZECH & SLOVAK S.R.O.
Trnavská cesta 84
821 02 Bratislava
SLOVAKIA
Tel. : ++421-7-4445 57 90 / 91
Fax : ++421-7-4445 57 92
E-mail : office@basys.sk
DIGI-COM ELEKTRONIK PAZARLAMA A.S.
Dereboyu Cad. No. 11
(ATV Arkasi)
Halkali - Istanbul
TURKEY
Tel. : ++90-212-470 06 00
Fax : ++90-212-471 78 83
GAYEM ELECTRONICS LTD.
1/1 D. Osman Pasa Cadden
Lefkosa, Mersin - 10
TURKEY
Tel. : ++90-392 228 33 57
Fax : ++90-392 228 13 93
Due to product development, design and specifications are subject to change without notice. Broadcast programmes, programmes recorded on discs or other media, as well as the lyrics and melody
of music are protected by copyright laws in your country. Recording and use of these sources therefore require approval of the copyright owner as prescribed in the applicable copyright laws,
except when the recordings are made for personal use. Copyright (c)2000. Pioneer Europe N.V. All rights reserved. Designed and produced by Planet Interactive Arts: www.planet-ia.co.uk
D J P R O D U C T R A N G E

2
Pro Sound Series................................ 4-5
D J P R O D U C T R
DJM-600 Professional DJ Mixer........... 6-7
DJM-500 Professional DJ Mixer........... 8-9
DJM-300 2 Channel Mixer ................10-11
CDJ-500S Compact CD Turntable ..... 12-13
Performance Series......................... 22-23
CDJ-500II Limited CD Turntable ....... 14-15
CMX-5000 Twin CD System.............. 16-17
A N G E
CDJ-100S CD Turntable.................... 24-25
SE-DJ5000 DJ Headphones ............. 18-19
DJ Series Merchandising ..................20-21
EFX-500 DJ Effector..........................26-27
3

4
The Pioneer Pro Sound Series is the equipment of choice for
many of the world's top club DJ's. The range offers an array
of innovative features, giving DJ's more creative scope in
their performance and of course has Pioneer's legendary
construction quality to survive the toughness of clubland.
Pro Sound Series
The Pro Sound Series has been developed in
conjunction with professional DJ's to meet their
particular needs. This has resulted in superb functional
designs, which fit effortlessly into the club environment.
Pioneer continues to innovate the range and offer products
that push the creative scope within the DJ's live performance.
5

6
Pioneer’s all new DJ mixer, the DJM-600, has all
the excellence of the DJM-500, plus many innovative
DJ friendly features which will make this the new
standard in clubland. The DJM-600 is for artists, it’s
for those serious about music, for those serious
about their mixes! Complete with an impressive
arsenal of powerful effects, sampling functions,
automatic beat synchronization, a choice of cross
fader curve patterns... and superb sound quality the
DJM-600 is set to create the ultimate high!
Features
Beat Effects
• Easy to use, DJ friendly sound effects.
• Effects dial allows complete control over the intensity
of the effect.
• Enables sound effects on 1/4, 1/2, 1/1, 2/1, 4/1,
8/1 beats.
Auto BPM
• Enables beat measurement from 70 to 180 BPM.
• Enables automatic synchronization between BPM
and effect.
• Beat indicator informs you when the required beat
is linked to the Auto BPM.
Effects Selection
1. Delay Produces repeat beat effect.
2. Echo Produces repeated sounds, which
fade to create an echo effect.
3. Auto Pan Automatically throws sounds
between left and right speakers.
4. Auto Transformer Cuts sounds at requested beat.
5. Auto Filter Creates effects through manipulating
sound frequencies.
6. Flanger Produces an electronic wave effect.
Sample Configuration
CDJ-500S.................................................................x 2
DJM-600 ..................................................................x 1
SE-DJ5000 ...............................................................x 1
Vinyl Turntables.........................................................x 2
DJM-600
Professional DJ Mixer
“The 600 is a real quality product, with enhanced
features. I particularly like the sampling function.”
Paul Oakenfold
7. Reverb Produces a range of reverberation
effects.
8. Pitch Shifter Manipulates music pitch within
±1 octave.
9. Send/Return (External effects input/output)
Connects available peripherals
(effectors, samplers, etc).
Beat Sampler
1 Rec Mode
• Auto Beat Sampling Enables you to record up
to 8 seconds of sound
for sampling.
• Auto Synchronous Recording From any given Cue point.
2 Play Mode
• Manual (Single) Play Sampled music can be
activated manually over
given track.
• Auto Loop Play Sample can be seamlessly
and continually looped.
• Auto Loop/Stretch Play The tempo of a sample can
be manipulated with desired
beat. Sample can be looped
to facilitate a better mix.
Channel Fader
• Easily replaceable Faders (5 Faders).
• Easy Slide Sensitive Touch Faders.
• Extremely durable and reliable.
• Fader Start Play (in conjunction with Pioneer’s
CDJ-500 series).
Cross Fader
• Three different Cross Fader Curve patterns can
be selected.
• Fader Curve echo effect enables smoother mixing.
• Fader Start Play with cross fader and channel fader
(in conjunction with Pioneer’s CDJ-500 series).
Pioneer CD Turntables will work with any type of mixer,
just as all Pioneer mixers will work with any type of
deck (vinyl, DAT, etc.).
• Fader Back Cue Play (in conjunction with Pioneer’s
CDJ-500 series).
Headphone Mix Level Monitor
• Assign any channel to Headphone.
• Assign inputs to either side of phone for monitoring
and cueing.
• Vary the level of mix transition between
assigned channels.
• Mono splits or stereo.
• Separate volume control.
Talk Over Button
• For efficient use of Mic.
Rec Out Terminal
Four Line Connections
• Enables Line connections to each CH.
Frequency Equalizer
• 3-band independent EQ for each CH.
• Vast EQ range from –26dB (kill function) to +12dB.
Two Mic Inputs
Peak Level Meter For Each Channel
• Source input levels are given instantly for
each channel.
Other Features
• Independent Monitor Selection Switch:
Monitor any channel input or effect independently
or simultaneously.
• Booth Monitor Level: Adjusts the volume for a
separate DJ booth monitoring system.
• Balanced Output: Direct connection to amplifier.
• Top panel phones output.
•Trim: Separate controls for each channel.
Specifications
Input Terminal CD .................................................2 (RCA)
Phono ............................................3 (RCA)
Line ...............................................3 (RCA)
Mic 2.....(Face-XLR x 1, Rear-1/4” Phone x 1)
Output Terminal Master Out ......................(RCA x 1, XLR x 1)
Booth Monitor Out ...........................1 (RCA)
Rec Out ........................-10 dBV (1V)/1k(Ω)
Headphone Monitor Out .........1 (1/4” Phone)
Other Terminal Send ....................................1 (1/4” Phone)
Return .................................1 (1/4” Phone)
Channel EQ Bass (at 70 Hz).......................-26~+12 dB
Mid (at 1 kHz).........................-26~+12 dB
Treble (at 13 kHz)....................-26~+12 dB
Frequency Response.........................20Hz~20kHz (CD)
Signal To Noise Ratio .....................................87dB (CD)
Total Harmonic Distortion Rate..........0.02% or less (CD)
Power Supply Voltage ...........AC 220 – 240 V (50/60Hz)
Power Consumption ...............................................34W
Dimensions (W x H x D).................320 x 107 x 372 mm
Weight ..................................................................6.6kg
7

8
This is the mixer top DJs have embraced. Now you
can explore a new world of sound by linking effects
to the beat with the Auto BPM function. The DJM-500
and CDJ-500 Series make the perfect system for
creating the ultimate in club and house party music.
Functions that Push DJ Sound to
the Limit
• Auto BPM Counter. Let the digital readout confirm
what you already know by ear. The Beat-Per-Minute
Counter measures the BPM of virtually all kinds of
dance music, enabling you to check the tempo at
a glance.
Linking widely differing types of music is easier
than ever with the Auto BPM Counter.
Pioneer's Auto BPM system enables automatic
synchronization between the beat count and your
desired effect.
Producing New Sounds and Effects
is easy with the DJM-500
• Delay. A single repeat of 1/2, 3/4, and 1/1 beat
music can be overlaid on a track. For example,
with 1/2 beat Delay, 4 beats will be increased to 8,
while using the 3/4 beat Delay produces a "leap
sound" effect.
• Echo. Repeatedly overlaying beats of 1/2, 3/4, and
1/1 is simple. Cutting in 1/1 beat Echo can create
an intriguing fade to the beat; applying it to the mic
allows microphone output to be reproduced
repeatedly to the same beat.
DJM-500
Professional DJ Mixer
“It's the best mixer that's ever been on the market, I've worked on
all the mixers in all of the thousands of clubs and nothing even
comes close.” Danny Rampling
• Auto Pan. The left-right balance can be changed
automatically to the rhythm, as rapidly as you like.
Auto Pan can do rhythmic switches which are too
quick for human operators.
• Flanger. Switching to the Flanger effect produces
synthesiser tones quickly and easily at 1/2, 3/4,
1/1, 2/1, and 4/1 time. The Flanger works particularly
well in conjunction with a Seamless loop.
• Pitch Shifter. The Pitch Shifter corrects changes
in pitch, within a range of 1 octave, when using
analogue turntables or other vendor's CD players.
Used with the mic, the Pitch Shifter can alter voices.
• Reverb. A variety of reverberation effects are available.
• Send/Return. Your samplers and peripherals
are easily connected to the DJM-500 and Auto
BPM Counter.
• Effect On/Off. With one touch of the Effect On/Off
button, effects are linked to the rhythm.
• Beat Indicator. The Indicator lamps tell you when
the beat you want is linked to the Auto BPM.
• EQ for Each Channel. The DJM-500 features
3-band independent EQ for each channel, giving
you simple correction, emphasis, or even elimination,
of different sound characteristics.
• Peak Level Meter for Each Channel. Source input
levels are given instantly for each channel.
A Great Match for the CDJ-500
Series
• Fader Start Play. Connecting the DJM-500 to the
CDJ-500 Series enables you to take advantage of
Sample Configuration
CDJ-500II ................................................................................................................................................................x 2
DJM-500 .................................................................................................................................................................x 1
the Fader Start Play. By increasing the Fader on the
mixer the player automatically overrides the pause
control and starts the music immediately. Fader
Start Play also works during Cross Fading... an
industry first that brings out the best in samplerstyle
music.
• Fader Back Cue Play. When the DJM-500 is used
with the CDJ-500II Series or CDJ-500S, the Fader
or Cross Fader controls can also return you
automatically to a designated cue point.
• Size. The DJM-500 has the same dimensions as
the CDJ-500II Series, making it the perfect and
stylish partner for these CD turntables.
Only the highest quality parts go into the DJM-500.
But if the unthinkable happens, the Cross Fader can
easily be removed and quickly replaced.
Other Features
• Two MIC Inputs: Main located on the top panel, Sub
on the rear panel.
• Other Inputs: 2 CD, 2 line, 3 phono.
• Monitor EQ: Adjust the bass tone to your
favourite level.
• Independent Monitor Selection Switch:
Monitor any channel input or effect independently
or simultaneously.
• Booth Monitor Level: Adjusts the volume for a
separate DJ booth monitoring system.
• Balanced Output: Direct connection to amplifier.
• Phones Output: Located on top panel.
•Trim: Separate controls for each channel.
Specifications
Input Terminals CD ..............................................2 (RCA)
Phono..........................................3 (RCA)
Line.............................................2 (RCA)
Mic ............................2 (XLR, 1/4" Phone)
Output Terminals Master Out .........3 (RCS, XLR, 1/4" Phone)
Booth Monitor ..............................1 (RCA)
Headphone Monitor.............1 (1/4" Phone)
Other Terminals Send.............................1 (1/4" Phone x 2)
Return...........................1 (1/4" Phone x 2)
Channel EQ Bass (at 100 Hz)..................-20~+12 dB
Mid (at 1 kHz)......................-20~+12 dB
Treble (at 10 kHz).................-20~+12 dB
Frequency Response..............................20 Hz~20 kHz (CD)
Signal to Noise Ratio.......................................90 dB or more
Total Harmonic Distortion .........................0.02% or less (CD)
Audio Output ...............................................................1.0 V
Power Supply..............AC 110-120/220-230/240 V, 50/60 Hz
Power Consumption ....................................................37 W
Dimensions (W x H x D) .....................320 x 107 x 357.4 mm
Net Weight..................................................................5.9kg
9

10
DJs will be delighted to find some of DJM-500's
popular advanced features in this 2-channel mixer.
High-quality sound and reliability is guaranteed by
VCA use for all volume controls.
• Auto BPM Counters. Check the tempo at a glance
with individual BPM counter displays for channel 1
and 2. You get automatic "beats per minute" for
virtually all types of dance music, from any source:
CD, turntable or DAT.
• 3-Band EQ for Each Channel. There's individual
Low, Mid, and High equalisation for each channel
with an exceptionally wide range of adjustment: -
26 dB~+12 dB. With this adjustment range you
can use it as a "kill switch", widening the scope for
creative mixing.
Specification
Input Terminals CD ........................................2 (RCA)
Phono/Line with Gain Switch ....2 (RCA)
Mic .............................1 (1/4" Phone)
Output Terminals Master Out ............................2 (RCA)
Headphone Monitor ...1 (1/4" Phone)
Channel EQ Bass (at 100 Hz) ...........-26~+12dB
Mid (at 1 kHz)................-26~+12dB
Treble (at 10 kHz) ..........-26~+12dB
DJM-300
2 Channel Mixer
“For a start-up DJ I couldn't think of a better mixing unit that offers a
real advantage in mixing. The BPM Counters are always a major help
when starting out.” Rocky (Ballistic Brothers)
• Fader Start Play. Connecting the DJM-300 to the
CDJ-500 Series enables you to take advantage of the
Fader Start Play. Increasing the Fader (or Cross
Fading) on the mixer automatically releases the pause
control of the player, starting the music immediately.
• Fader Back Cue Play. The Fader or Cross Fader
controls can automatically return the CDJ-500II
Series or CDJ-500S to a designated cue point. This
is an industry first that brings out the best in samplerstyle
music.
• Split Headphone Monitor. This handy function
makes sound-source monitoring more convenient
and flexible than ever, by allowing you to switch
easily between all-channel stereo, all-channel mixed
stereo, and all-channel left/right distributed
monitoring (see below).
Sample Configuration
CDJ-500S .................................................................x 2
DJM-300...................................................................x 1
Frequency Response ..................................20 Hz~20kHz
Signal to Noise Ratio...........................80 dB or more (CD)
Total Harmonic Distortion ........0.05% (3Vrms) or less (CD)
Audio Output...........................................................1.0 V
Power Supply .........AC 110-120/220-230/240 V, 50/60 Hz
Power Consumption ................................................17 W
Dimensions (W x H x D) ....................308 x 107 x 220 mm
Net Weight.............................................................3.7 kg
• Phono/Line Input with Gain Switch. With a Gain
Switch for each channel, you have input access for
either a phono, CD, or a DAT, etc.
• Trim. There are separate controls for each channel
to adjust differences in signal levels.
• Mic. A volume control is provided for the
microphone, with a separate EQ for tonal
adjustment.
• Peak Level Meter. The dual-purpose Peak Level
Meter can be switched to monitor the master output
level, alternatively the left meter can show the
channel 1 signal while the right meter shows the
channel 2 signal.
• Size. The DJM-300 is the same depth as the
CDJ-500S CD turntable - perfect for DJ's on the move.
Split Headphone Monitor Switch
CH1 CH2 Master Monitoring Sound
On Off Off CH1 Stereo
Off On Off CH2 Stereo
Off Off On Master Stereo
On On Off CH1 + CH2 Mix, Stereo
On Off On L = CH1 Mono / R = Master Mono
Off On On L = CH2 Mono/ R = Master Mono
11

12
With the help of top DJs, the CDJ-500S has been
specifically designed for today's professional club
performers. It answers all their needs and concerns,
so that they can focus 100% on what really matters;
their performance and interaction with the crowd.
Now there is absolutely no excuse for failing to exploit
all the advantages and creative possibilities of the
CD format.
The compact CDJ-500S incorporates all the good points
that made the CDJ-500II the reference for CD turntables.
It offers revolutionary and innovative features which
make it the standard in clubland.
• Anti-Vibration. The revolutionary oil-dampened floating
suspension prevents sound skipping, even when the
unit is subjected to impact during use or vibrations
from high music volume. The case also incorporates
a specially insulated disc compartment to withstand
the explosive sound pressure of club environments.
• Compact Design. The CDJ-500S's compact design
means that it will fit in any DJ booth, radio or
recording studio, no matter how small the available
space is. All controls are big and well laid out for
easy tactile operation.
• Easy Installation. The CDJ-500S can be mounted
at any angle up to 45° towards the DJ, for maximum
flexibility. What's more, putting two units together
gives you a standard 19" width; so they will fit in
standard industry racks. There's also an optional
installation bracket available, so the CDJ-500S will
fit in the most difficult locations.
• Headphone Output. The headphone output, with
volume control on the rear panel, allows you to
monitor the sound at any time and in any situation.
Conventional Analogue Turntable
Design
• Sensitive Jog Dial. The extra large, quick-response
Jog Dial makes it very easy searching the music
frame-by-frame and selecting precise cue points.
The Jog Dial is also used to synchronize beats, once
having been matched, and to correct the Loop-Out
Sample Configuration
CDJ-500S ....................................................................x 2
DJM-600......................................................................x 1
SE-DJ5000 ..................................................................x 1
Vinyl Turntables............................................................x 2
CDJ-500S
Compact CD Turntable
“The CDJ-500S is the closest a CD player has come
to making me feel like I'm using a vinyl turntable.”
Roger Sanchez
point in real-time. The degree of sensitivity gives you
a closer-to-vinyl (turntable) feel.
• Flat-Top Design. DJs used to working with vinyl
turntables will have no problem switching to the topmounted
controls of the CDJ-500S.
• Quick Start. There is no time lag when you hit the
Play button (

14
The layout, controls and "feel" are the same as the
conventional turntable design but the digital CD functions
put it light years ahead. Incorporating the best of both
the digital and analogue worlds puts the CDJ-500II Ltd
in a class of its own.
Conventional Analogue Turntable
Design
• Sensitive Jog Dial. The extra large, quick-response
Jog Dial makes it very easy searching the music
frame-by-frame and selecting precise cue points.
The Jog Dial is also used to synchronize beats,
once having been matched, and to correct the Loop-
Out point in real-time. The degree of sensitivity gives
you a closer-to-vinyl (turntable) feel.
• Flat-Top Design. DJs used to working with vinyl
turntables will have no problem switching to the
top-mounted controls of the CDJ-500II.
• Quick Start. There is no time lag when you hit the
Play button (

16
Pioneer has entered the new Millennium with a
product set to redefine the DJ market. The
CMX-5000, a stylish and innovative rack mountable
twin CD mixing system, is set to rock the deepest
foundations of DJ/club culture.
In addition to all the excellent features of the
CDJ-500S the CMX-5000 has Legato Link Conversion,
enhanced memory, improved anti-vibration
construction, multi-read functionality, slot in CD,
large easy use Jog Dials with transparent centres
for clear display AND, if this wasn't enough, is
equipped with the world's first automatic mixing
function enabling the system to mix tracks by itself!
Regardless of whether its use is amateur or professional,
super club or bar, mobile or resident the CMX-5000
will always perform to the highest standards.
Features
Auto Mix Play
This revolutionary function automatically enables two
tracks to be mixed together seamlessly at the push of a
button! Pioneer's original search system measures the
tracks' BPM and beat timing then automatically corrects
the tempos to the designated BPM, matches the beats
and cross fades creating a flawless, smooth mix - even
for tracks on a single disc that have different tempos.
Three Playback Modes:-
• Track Mode. Mixed playback alternating between tracks
from disc A and disc B.
• Disc Mode. Mixed playback of track on a single disc
in numerical order.
• Program Mode. Mixed playback of tracks (on either
or both discs) in any pre-designated order.
Mix Mode Select:-
The user can pre select any one of a choice of four mix
patterns or let the CMX-5000 automatically determine the
most effective mix mode.
The most familiar techniques in mixing, are of course the
'cut in' and the 'cross mix' but if these mixes are not
compatible with the music the CMX-5000 will select a
more appropriate mix. While a house beat is playing and
a garage track is lined up to be mixed in, the CMX-5000
Sample Configuration
CMX-5000 ................................................................x 1
DJM-600 ..................................................................x 1
Vinyl Turntables.........................................................x 2
CMX-5000
Professional Twin CD System
“In the hands of a professional, the CMX-5000 injects an extra dimension to the
mix, providing an unmatchable tool for sampling, looping and cutting, blurring the
gap between the studio and the club. For the masses, the machine allows instant
mixing prowess with minimum effort.”
will select the most compatible mix mode from Cross
Fade, Cut, Echo or Zip effect.
Adjustable Mix Time:-
• Short Time Change. Mixes tracks at fixed "short" time
intervals.
• Instant Change. Instantly mixes into the next track at
the push of a button.
The Auto Mix function is of course an option and can be
used in the set when so desired. It gives greater flexibility
and freedom to the DJ, thus allowing the DJ to concentrate
on other elements of the set.
The sheer versatility and quality of the product extends
the appeal of the CMX-5000 from super clubs to mini
clubs, from small music bars to mobile DJs.
The super club gains all the excellent technical specification
and sound quality of a world beating twin CD system.
The mini club can use the Auto Mix function to warm up
the crowd before the night really starts. The music bar
can recreate that club vibe at the touch of a button. The
mobile DJ can divert his attention to other things and have
the confidence that the mix will go on!
DJ Functions
The CMX-5000 incorporates all the functions of Pioneer's
world-renowned CDJ-500S - and also boasts a number
of upgraded features and brand new innovations.
• Large Jog Dials with transparent centres. Allows for
clear display and easy operation.
• Quick Start. Instant playback with a time lag of less
than 0.01 seconds from pause.
• Cue Functions. (Cue Point/Back Cue/Auto Cue/Cue
Point Sampler). Set your own playback points using
the above functions.
• Fader Start Play/Back Cue Play. Operating any Pioneer
mixer together with the CMX-5000 you can use the
faders to control playback operations such as track
start and return to cue points.
• Tempo Control. Three ranges of tempo control:
+/-6/10/16%.
• Master Tempo. Allows you to change tempo without
altering pitch.
• Loop Functions. (Seamless Loop/Realtime Loop/Loop-
Out Adjust/Reloop). Loops are a cinch! And with the
The CMX-5000 will work with any type of mixer, just
as all Pioneer mixers will work with any type of deck
(vinyl, DAT, etc.).
Reloop function you can return any time to a previously
set loop.
• Playing Address. Allows you to graphically check a
track's playback status.
• BPM Counter. (NEW)
Pioneer Gives You More!
• Legato Link Conversion for High Quality
Sound. (NEW) Equipped with Pioneer's original Wide-
Range technology - Legato Link Conversion - the CMX-
5000 is capable of reproducing sound frequencies
above 20kHz (which are lost during normal CD-format
playback). Resulting in excellent sound reproduction.
• Vibration-Proof Memory and Anti-Vibration
Construction. (NEW) The CMX-5000 boasts
unbeatable vibration-resistant characteristics. Sound
jumps are prevented with the double protection of an
8-second vibration proof memory and a cleverly
engineered vibration-proof construction.
• Slot In CD. Thanks to this system, swapping discs is
smooth yet rapid. No more worries about damaged
disc trays.
• Mix Out Terminal. (NEW) This can be used even
when there is only one input system, when the setup
is restricted to a single amplifier, or there is no mixerinput
margin.
• Multi-Read Capability. (NEW) The CMX-5000 can
read CD, CD-R and CD-RW formats.
• Headphone Monitor. (NEW) This useful monitor
function enables versatile sound monitoring.
• Digital Output. The CMX-5000 is equipped with
digital output.
The CMX-5000 provides an unparalleled platform for
anyone to master the art of mixing. No matter the genre
of music, the CMX-5000 chews up and spits out the
opposition with its awesome array of functions and
features. Loop or reloop, cut in or cross fade, house,
techno, echo or zip, the machine will instantly and faultlessly
match the BPMs utilising some dazzling effects to create
a seamless mix.
At the end of the day, it's all about the music and the ability
to move a crowd. One world under a groove courtesy of
Pioneer and the revolutionary CMX-5000, the next chapter
in DJing.
Specification
Frequency characteristic............................4 Hz - 20 kHz
SN ratio .......................................115 dB or more (EIAJ)
Total harmonic distortion..........................0.006% (EIAJ)
Audio output: Analogue............3 channels (A/B/MIX)
Digital.......................2 channels (A/B)
Operating temperature................................+5˚ - +35˚
Operating humidity ...........................................5% - 85%
Power supply ...............................AC220 - 240V, 50/60Hz
Power consumption..................................................40W
Dimensions: (W x H x D) Controller ....482 x 132 x 73 mm
Player .........482 x 90 x 268 mm
Weight: Controller.........................2.1kg
Player..............................5.4kg
Cut In
Echo
Begin Mixing
Previous Track Next Track
Echo
Previous Track Next Track
Cross Fade
Zip
Mix Time
Previous Track Next Track
ZIP
Previous Track Next Track
Pitch Fall
17

18
The SE-DJ5000 is ideal for high-volume monitoring,
with high sensitivity and high-power input handling
capabilities. The well-insulated and tightly closed
structure captures delicate sounds and ensures
dynamic reproduction.
• Exclusive Single-Ear Monitor with Shoulder Rest.
The SE-DJ5000 has a push-in shoulder pad to make
single-ear monitoring easy, leaving both your hands
free to get on with the job.
SE-DJ5000
DJ Headphones
“Their sound is excellent, they're extremly loud which is a
real help when working with some club mixers with a low
headphone output.” Pete Tong
50 mm Large Diameter Headphones for Pro-Level Performance Specification
Flight
Cases
• Housing Rotation/Reverse Rotation Mechanism
and Foldable Design. The housing is capable of
both rotation and reverse rotation, for one-ear
monitoring. It can be folded too, for easy carrying
and storage.
• Robust, stress absorbing structure.
• Stereo/mono switch.
• Curl cord and cord-fixing belt clip.
Accessories
The ideal solution for the
mobile DJ
Pioneer's mixers and turntables fit perfectly into these
quality, dual-function flight cases. They protect
equipment from transportation damage and enable
fast and easy installation at any dance event.
Brackets
19" Rack Mount Adapters for
DJM-600 and the DJM-500
Allows the DJM’s to be mounted in a standard industrial
size 19" rack.
Lightweight flight case for DJM-300 and 2 x CDJ-500S
Flight case for DJM-600 / DJM-500 and 2 x CDJ-500II Ltd
Installation
Bracket for
CDJ-500S
Designed for installing
the CDJ-500S above
existing decks or mixers.
Angle adjustable 0°–45°.
Height adjustable from
30 cm–40 cm. It is
delivered with a
special plate to install
two CDJ-500S’s on
one bracket.
Type ...............Tightly closed type, dynamic headphones
Frequency Range ......................................5~28,000 Hz
Impedance..............................................................55Ω
Max. Input .....................................................3,000 mW
Output Sound Level ....................................105 dB /mW
Unit Type................................................Ø 50 mm dome
Weight ...................................................................270g
Accessories...............................................Shoulder Pad
.....................................................6.3 mm Plug adapter
.........................................................................Belt clip
19

20
DJ GEAR
DJ Series Merchandising
It's hip, trendy and cool... The new range of Pioneer Pro Sound
merchandise offers an array of urban streetwear available in all
fits and sizes.
Each Pro Sound garment has been exclusively designed by Pioneer offering the highest quality and individuality to suit even the coolest Dj in town!
Sweatshirt
Available in sizes from M - XXL, this 50% cotton &
50% polyester sweatshirt is durable and robust for
those wanting style with comfort, with double stitched
sleeves and reinforced necktape.
Short Sleeve T-shirt
Available in sizes from M - XXL, this 100% pre-shrunk
cotton T-shirt will keep even the hottest Dj in town
cool, with a full colour Prosound Logo splashed on
the back.
Sling Bags
These functional sling
bags have multipurpose
pockets with an ideal
pocket for CD's and are
wet weatherproof. Don't
leave home without it.
Baseball Caps
In a choice of corduroy or cotton - these baseball caps
are both practical and stylish with adjustable clips and
embroidered Pro Sound logo.
Combat Trousers
Available in sizes from waist 28" - 38", these 35%
cotton & 65% polyester Combats speak for themselves
with embroidered logo and adjustable waist straps -
making them the right fit for anybody.
Skinny Fit T-shirt
Available in sizes from chest 32" - 38", this 100%
cotton fitted T-shirt has style that can be worn by
any male or female who wants to keep cool in black
or white.
Flight Jackets
Available in sizes M - XXL -this flight jacket has been
exclusively tailored to Pioneer's requirement with double
stitching, extra heavy polyester filling and a final silver
coating, all with embroidered logo front and back -
making it the DJ's No.1 choice in flight jackets.
Pioneer DJ Gear is available in a variety of sizes which can be purchased through your local dealer or online at djsounds.com
21

22
Pioneer now offer the home DJ the capability to mix from
scratch with the introduction of the easy-to-master
"Performance" product series. Performance products
offer the aspiring DJ the chance to produce cutting
edge creative mixing just like the professionals.
Performance Series
The Performance Series already boasts an unbeatable
line-up of products ranging from an effects box to
CD turntables all with a slick silver finish to give any
home set-up a club vibe. Performance offers an
exceptionally high specification at an accessible price.
23

24
The CDJ-100S is a compact disc player designed for
use by DJs, combining the functions and operations
required for use in clubs with the unique features of
the CD medium.
• Digital Jog Break. Built-in Digital Jog Break for
Original Sound Creation. Each of three buttons
provides a different remix assist function (Jet, Zip,
Wah). By selecting the desired function and
controlling the Jog Dial to match the track selection
you can easily create new remix sounds.
• Slot In. The new disc loading slot mechanism
makes it fast and easy to play, change and remove
discs from the player. Discs are inserted directly,
without the need to open doors or trays, making
operation and track selection that much faster.
• Sensitive Jog Dial. The large-diameter (100mm)
Jog Dial allows the user to manipulate the music in
a way common to analogue turntables.
Merely rotating the dial with the fingertips allows
you to find the precise entry point for tracks, moving
in increments of one-frame (1/75th second).
• Tempo Control. Long-stroke (100 mm) high-precision
slider control allows exact control of track speed.
The digital display with a 0.1% unit readout provides
simplified tempo control with higher accuracy.
• Two Tempo Control Ranges. Achieving the desired
CDJ-100S
CD Turntable
A CD turntable with endless sound creation and remix possibilities,
the CDJ-100S allows creative freedom to develop your own
individual style.
adjustment has been facilitated by providing two
variable ranges: either ±10% (in 0.1% steps), or+10
to -16% (in 0.2% steps).
• Quick Start. Pressing the play button from the
standby mode produces instantaneous (0.01 second
or less) music start.
Normal CD players require up to 0.3 seconds from
the standby mode to the production of sound. The
quick start function virtually eliminates this time lag
making smoother track-to-track splices.
• Master Tempo. Changes music tempo without
changing pitch. With analogue systems, changing
track speed results in a change in pitch. Master
Tempo Control takes advantage of the unique features
of digital medium enabling track speed to be changed
with no deterioration of the original pitch.
• Playing Address. Analogue bar graph gives direct
indication of elapsed and remaining playing
time.This bar graph provides a direct visual readout
of the progress of the track playback, comparable
to the moving needle position on an analogue
record. The length of the bar gives the user
immediate knowledge of the current location on
the track and the flashing bar display warns that
the track is coming to an end.
• Cue. Full cueing functions.
Sample Configuration
CDJ-100S............................................................x 2
DJM-300S...........................................................x 1
Specification
Frequency response ..................................................................................................................4 Hz ~ 20 kHz (EIAJ)
Signal-to-noise ratio...................................................................................................................96 dB or more (EIAJ)
Audio Out .............................................................................................................................1 channel "stereo" (RCA)
Output level........................................................................................................................................................2.0 V
Power....................................................................................AC 110-120 V / 220-230-240 V (Switchable), 50/60 Hz
Dimensions (W x H x D) ...............................................................................................................217 x 91 x 297 mm
Net Weight.........................................................................................................................................................2.2kg
• Auto Cue Function. Automatic by-passing of the
non-recorded part of track introductions, cueing the
track to a standby point immediately before sound
starts. This function allows instantaneous start of
playback when the Play button is pressed.
• Cue Point Sampler Function. Allows playing up to
ten minutes of sound from a preselected cue point.
This function is convenient for confirming a cue
point or creating a track sampler.
• Relay Play. Connecting two CDJ-100S decks. If
two units are connected, when playback of a track
comes to an end on one deck, standby mode on
the second deck is released instantly beginning
playback on that deck.
• Oil-damped Suspension. Oil-damped floating
suspension protects against vibrations and impacts.
The player has been designed with an oil-damped
floating suspension to prevent sound skipping even
when the unit is subjected to impacts during use or
floor-transmitted vibrations.
• Fader Start/Fader Back Cue Play. When the
CDJ-100S is used with the DJM-600, DJM-500 or
DJM-300 mixer, you can start the music by
increasing the Channel Fader (or sliding the Cross
Fader). Closing the Fader will return the CDJ-100S
to the designated cue point.
Also Available DJM-300S
Pioneer has produced the DJM-300S in silver as a
compatible mixer for the CDJ-100S. It shares the same
quality specification as the legendary Pro Sound Series
DJM-300 and can of course be used with vinyl.
(See Pro Sound Series DJM-300 for Features and
Specification.)
25

26
With a comprehensive range of beat effects, a
powerful three-band isolator and even Midi
compatibility, the EFX-500 will allow you to scare
your crowd with a succession of weird and
wonderful sounds.
Further evolved Beat Effects actualise real-time
effect performance with a Jog Dial, allowing 25
different effects (5 x 5 combination). You can
expand and explore the world of digital sound by
connecting this machine to your mixer, player, and
electronic instruments.
Isolator
• 3 Band (Low, Mid, Hi) - ∞EQ can silence the sound
of instruments.
• The Momentary Play & Play Lock On lever switch
provides optimal performance.
Beat Effects
• The Auto BPM Counter is capable of measuring the
BPM of the music automatically.
Specification
Input Channel .................................................1 x Stereo
Power Input .....................................AC 220-240V/50Hz
Input Terminal.......1/4” phone (stereo) and RCA (stereo)
Output Terminal ....1/4” phone (stereo) and RCA (stereo)
Midi Terminal........................................................In/Out
EFX-500
DJ Effector
Pioneer has launched an all-new effects box. Designed from a
DJ-perspective and with the feel of an instrument, the EFX-500 is
guaranteed to make your mixes more dynamic.
• Beat (BPM) linked effects; Delay, Echo, Autopan,
Flanger, and Auto Transformer.
• The Effect Frequency produces effects only on a
selected range (Low, Mid, Hi).
• The Auto Beat effect button links effects with the
beat (BPM) (1/4, 1/2, 3/4, 1, 2, 4).
• The Tap button enables you to set beat time easily.
• Various time-set methods such as Auto, Tap msec,
BPM, and Midi.
• The Depth dial changes the strength and depth
of effects.
• The Mix Ratio changes the balance of the original
sounds and effect sounds.
• The Momentary Play & Play Lock On lever switch
provides optimal performance.
Digital Jog Break
• The effects Jet, Zip, Wah, Ring & Fuzz, can be
controlled and performed instantly with the Jog Dial.
• The Hold switch maintains the action selected by
the Jog Dial.
Sample Configuration
CDJ-100S.................................................................x 2
DJM-300S ................................................................x 1
EFX-500....................................................................x 1
Output level switch.................................+4dBu/-10dBu
Signal to Noise ratio..................................80dB or more
Total Harmonic Distortion..........................0.03% or less
Frequency Response...............................20Hz ~ 20kHz
Dimensions (W x H x D)....................276 x 64 x 220mm
• The Jog Break Meter displays visually the motion
of the Jog Dial and Effect Frequency level.
• The Jog Dial Memory memorises and reproduces
the motion of the Jog Dial.
• The Depth dial changes the strength and depth of
effects as well as the balance of the original sounds
and effect sounds.
• The Momentary Play & Play Lock On lever switch
provides optimal performance.
Other Features
• The EFX-500 is designed for high quality sound.
• It is equipped with a Midi In/Out terminal for
controlling the Clock signal of Midi instruments.
• The Effect Monitor System monitors each effect
sound and master sound.
• The auto-lighting button indicates the setting situation
of each effect.
• A level meter for input/effect output.
• It is equipped with a 1/4 inch Phone terminal as
well as RCA Pin for input/output terminals.
Weight..................................................................2.5Kg
3 band EQ (Low, Mid, Hi)...............................∞~+6dB
Effect Monitor (Headphone)...........................Beat Effect
....................................................................Master Out
............................................................Digital Jog Break
27
