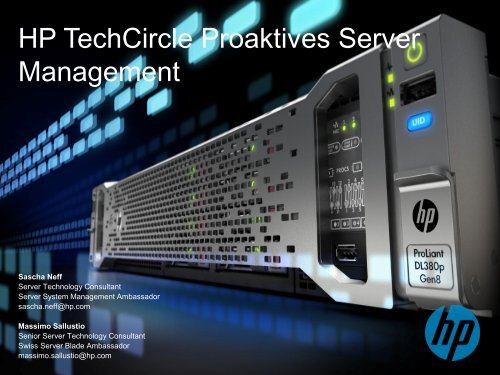

HP Insight Management Software

HP TechCircle Proaktives Server

Management

Sascha Neff

Server Technology Consultant

Server System Management Ambassador

sascha.neff@hp.com

Massimo Sallustio

Senior Server Technology Consultant

Swiss Server Blade Ambassador

massimo.sallustio@hp.com

© Copyright 2012 Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

Agenda

• Insight Management Overview

• HP Firmware Management

• Service Pack for ProLiant

• HPSUM & FW Management Demo

• HPSIM and Version Control

• HP iLO4 Management Engine



Admin

Efficiency

Hardware

Events

Reporting

HP Systems Insight Manager

Free System Management

Free Integration Packages for:

Blade

Viewer

Firmware


Remote

Support

HP Operations

HP Network Node Manager

MS System Center

IBM Tivoli

CA Unicenter

3



Server

Deployment

Performance


HP Insight Control Environment

Licensed Additional Management Features

Admin

Efficiency

Hardware

Events

Reporting



Server

Migration

Virtualization

Managment


Blade

Viewer

Firmware


Remote

Support




IBM Tivoli

CA Unicenter

Remote

Control

Power and

Cooling

Integration into vCenter, SCOM, SCCM, SCVMM

4



HP Matrix Operating Environment

Licensed Automation Features

Insight

Orchestration

Server

Deployment

Hardware

Events

Performance


HP Insight Control Environment

Licensed Additional Management Features


Admin

Efficiency

Reporting


Server

Migration

Virtualization

Managment


Capacitiy

Advisor

Blade

Viewer

Remote

Control

Firmware


Remote

Support

Power and

Cooling




IBM Tivoli

CA Unicenter

Integration into vCenter, SCOM, SCCM, SCVMM

Insight

Recovery

5



Licensing

HP Insight Control Environment (incl. iLO Advanced)

HP Insight Control for ProLiant and Blade Servers SFr. 565.-

Including 1yr 24x7 Technical Support and Updates Electronic License T9074BAE

HP Insight Control bundled with ProLiant ML/DL/BL SFr. 470.-

Including 1yr 24x7 Technical Support and Updates Electronic License TC278AAE

iLO Advanced License

HP iLO Advanced for ProLiant ML/DL and Blade Servers SFr. 410.-

Including 1yr 24x7 Technical Support and Updates Electronic License TA850AAE

HP iLO Advanced for Blade Servers SFr. 305.-

Including 1yr 24x7 Technical Support and Updates Electronic License TA851AAE

HP Matrix Operating Environment

HP Matrix Operating Environment for ProLiant IC incl. 1yr 24x7 Support SFr. 2’700.-

Including 1yr 24x7 Technical Support and Updates Electronic License TC222A

6



Insight Control for Dummies

The premier HP ProLiant essential server management guide

• An easy-to-read overview of the HP Insight

Control product & its capabilities and benefits.

• Includes a couple cartoons for light humor!

Download the e-book from

www.hp.com/go/ic4dummies

-OR-

Visit the Insight Control website at

www.hp.com/go/insightcontrol

Don’t delay –

Get Insight Control for Dummies today!

7



HP Systems

Insight Manager 7



HP Insight End-to-End Infrastructure Management

iLO Management

Engine

Insight Control

Insight Online

On Board On Premise Online

9



HPSIM 7.1

10




11




12




13




14




15



HP Insight Remote

Support 7

and Insight Online



HP Insight Online

Monitor, manage & support your IT infrastructure online via HP Support Center

Personalized

dashboard

Manage &

organize devices

Manage

HP support

Remote Support

Monitor device

health, events &

support status and

easily navigate to

details*

Organize devices for

easier management

and share with other

IT admins

Proactively manage

contracts & warranty

and check service

credit balance

Monitor autogenerated

hardware

events and support

cases online*

New capability integrated into HP Support Center and Insight Remote Support

www.hp.com/go/insightonline *HP Insight Online + Insight Remote Support 7.x

17



Contract & Warranty

18



HP Insight Control 7

Essential infrastructure management

for Gen8 servers



Intelligent Power Components

Power data communication in power supply, iPDU and power cable

94% Label

PLC Connectors



Location Discovery Services

Optimize workload placement with servers that self-identify and inventory

• No manual, inaccurate and tedious asset collection

• Server learns from rack the rack id and server U

location

• HP iLO collects and passes this data on to Insight

Control to auto populate a server location screen

~100%

Manual, error prone

inventory tracking

eliminated

21



HP Insight Control for Automated Energy Optimization

Display and act on thermal, location, workload and power information

Show and control

• System, rack, row temperature

• System location and space use

• Power use, capacity, settings

22



Power and Thermal Reporting



Enhanced power/thermal reporting



Goal-oriented response to power/cooling events

using Data Center Power Control

• Reduce power consumption

due to power/cooling and

disaster recovery events to

a specified goal

• Conditionally stop rule

execution if the expected

power consumption goal

has been achieved

• Rule summary provided to

state when power

consumption goal has been

met



Insight Control VMM

26



Insight Control PMP

27



HP Service Pack

for ProLiant (SPP)



Transition timeline to SPP and HPSUM

1H2011 2H2011 1H2012 2H2012

Insight Foundation

(PSP, Firmware DVD, BladeSystem Release Sets)

Development

complete

Remains available for

download

Service Pack for ProLiant

(Inc. HP SUM 5)

29



Consolidated Release Process

1 st Release 2 nd Release

3 rd Release

1 Year Release Cicle

Firmware release sets are released approximately every 3-4

months and tested for a minimum of 6 weeks.





3 rd Release


Updates/bug fixes


Bug fixes and updates might be released between release sets

to resolve issues reported by customers.




Updates/bug fixes collected into maintenance

releases, updates & new server releases


3 rd Release




Grouped together and…






1 st Release w/updates 2 nd Release w/updates

3 rd Release w/updates




Tested for a minimum of 3 weeks against the current and two

previous release sets.






Critical Exception

1 st Release w/updates 2 nd Release w/updates

3 rd Release w/updates




Unless the critical update affects your environment, wait until HP completes

testing the critical fixes before using these updates as part of a baseline.



HP Firmware Management

with SPP, HPSUM and

Insight Software



FW and Driver Deployment Overview

GUI

CLI

HPSUM - HP Systems Update Manager

SPP - Service Pack for ProLiant

Firmware Management

iLO4 – Intelligent Provisioning

Server Infrastructure

VCRM - Version Control Repository Manager

HP Systems Insight Manager with Version Control

HP Insight Control – MS SCCM and VMWare vCenter Integration

36




37



HP Service Pack for Proliant

Confidently implement the fully tested and consolidated firmware and software

Bootable ISO File

Non-Bootable

38


The information contained herein is subject to change without notice.

SPP Download page: www.hp.com/go/spp/

HP SPP – Best Practices and Video Library

www.hp.com/go/spp

http://www.hp.com/go/CoffeeCoaching

39



HPSUM Guides and Best Practices Guides



http://h18004.www1.hp.com/products/servers/service_packs/documentation/index.html

Other updates to the Web-Experience

Server Support Guide

This handy document lists all of the components included in the SPP and the

servers that they are supported on.

41



www.hp.com/go/spp/download

Other updates to the Web-Experience

SPP Content Report

This report lists the following

information for all of the

components included in the SPP:

• Description

• or Product Name

• Version

• Filename

Note: This document is also found

on the root of the SPP ISO/DVD as

contents.html

42



www.hp.com/go/spp/download


43



HP Smart Update Manager (HPSUM) Capabilities

Firmware and software updates with dramatically reduced downtime

• Agentless remote deployment

• Intuitive Graphical User Interface (GUI)

• Extensive CLI

• Multiple, shareable baseline repositories

• Pulls updates from web

• Schedule & deploy updates, aligning with

service windows

• Interdependency checking

− Within system (FW and SW)

− Between systems and enclosures

• Automatically deploys updates in the

right sequence

• Comprehensive compliance-oriented reporting

44



Virtual Connect 1 Virtual Connect 2

iLO 2

iLO 4

iLO 3

FW Management - Offline

Offline Firmware Upgrade

Baremetal G6

Blade Server

• Use Boot ISO on USB Stick together with OA

• Use Boot ISO with iLO

• Gen8, use Intelligent Provisioning

• Use HPSUM Remote (only OA and VC)

Upgrade

Onboard Admin.

Upgrade

Virtual Connect

Baremetal G7

Blade Server

Upgrade

Baremetal Blade

Baremetal Gen8

Blade Server

Boot ISO File

Repository

SPP/PSP

Onboard Admin. 1 Onboard Admin. 2

Blade Enclosure

HPSUM 5

45



Without an OS, the order is blade infrastructure (OA, VC, etc.), then blades (offline)


iLO

iLO

iLO

FW Management - Online

Online FW & Driver Upgrade

Windows

Blade Server

Dependency Check for:

• OA, VC and iLO FW

• Firmware to Drivers

• Health Component Requirements

• Operating System Libraries

Linux

Blade Server

ESX

Blade Server

Windows Remote Server

Repository

SPP/PSP



Dependency Check


Standalone

46



LIVE DEMO…



HPSUM Failed Dependencies

48



HPSUM Reporting Engine

49



HPSUM CLI

HPSUM 5.2 User Guide

http://h18004.www1.hp.com/products/servers/service_packs/documentation/index.html

50



HPSUM for Linux

HPSUM Linux Whitepaper

http://h18004.www1.hp.com/products/servers/service_packs/documentation/index.html

http://downloads.linux.hp.com/SDR

Using HP SUM as an RPM package

In addition to getting the HP SUM deliverable

from the /hp/swpackages directory on the SPP,

you can also find hpsum-*.rpm in native RPM

format on the SDR. There is a version of the

hpsum-*.rpm for each supported OS and

architecture type.

51



HPSUM Security

Whitepaper: http://h20564.www2.hp.com/portal/site/hpsc/public/kb/docDisplay/docId=emr_na-c03345481

52



FW Update for Blades

through…

…Onboard Administrator




54



LIVE DEMO…



Enclosure Firmware

56







58






The new HPSIM Version

Control…

…without VCA




61




iLO

iLO

iLO 4

FW Management with HPSIM


Version Control Baseline through HPSIM 7

Windows

Blade Server

VCA

Linux

Blade Server

VCA


Only FW via

iLO Embedded Intelligent Smart Provisioning

Start




HPSIM 7

VCRM

Repository

SPP/PSP


62



LIVE DEMO…



Select your Version Control Repository

64



Select the Managed Server Software Baseline

65



Update to Baseline

66



Update to Baseline

67



Create your own Baseline…

…Tips and Tricks



VCRM Custom Baseline

Scan a sample server with HPSUM and copy the desired packages to a folder.

69




• For ease of use, install a

separate VCRM Server in a VM.

• Copy the packages needed for

the baseline into a separate

folder.

• Point VCRM to the folder with

your packages.

70




• Create a custom software

baseline

• Check your packages

71




• VCRM generates automatically

the required description files

72




• Copy the folder with your

baseline to your main VCRM

server

73



The new HPSIM Version

Control…

…with VCA




75




iLO

iLO

iLO 4

FW Management with HPSIM and VCA installed


Version Control Agent installed

Windows

Blade Server

VCA

Linux

Blade Server

VCA


Only FW via

iLO Embedded Intelligent Smart Provisioning

Start




HPSIM 7

VCRM

Repository

SPP/PSP


76



What you get without VCA

77



What you get with VCA in addition

• Get detailed package and

revision history informations

78



Disadvantage with VCA Agent intalled

• You should not point the VCA to

another VCRM than the

referenced VCRM on HPSIM

• If the HPSIM admin is changing the VCRM reference server, it will not automatically be

reflected on the VCA!

79



HPSIM, VCRM and VCA

HPSIM is referenced to his own VCRM.

• Machine one VCA points to another VCRM.

• Machine two VCA points to HPSIM VCRM.

80



VCA User Settings

• On the Domaincontroller create

a user, for example, “vcadmin”

and a group “vcadmins” and

add the user to the group.

• On the Version Control Repository

Server, add the

“domain\vcadmins” group to the

local administrators group.

81



Wizard to configure VCA

82



Configure or Repair Agents to configure VCA

83



Manual configure VCA

• Reference the VCA to the

VCRM

• Choose your Baseline

84



Replicate Agent Settings to configure other VCAs

85



Where to go for Driver and

FW Management

http://www.hp.com/go/SPP

http://downloads.linux.hp.com/SDR

http://vibsdepot.hp.com



HP Insight Control for

VMware vCenter Server



Seamless management for virtual and physical

environments

HP Insight Control for

VMware vCenter Server

Servers

Power & cooling

Single pane of glass from

VMware vCenter server to

your HP Converged

Infrastructure

HP Insight

Software

Storage

Network

88



What’s new

• Simplified management enablement with support of new HP ProLiant Gen8 servers

Agentless Management that delivers health monitoring and configuration data without

the need for loading Insight Control agents or CIM providers on the VMware hosts

• Enhanced bare-metal deployment: Deploy ESX/ESXi on our newest HP ProLiant

Gen8 servers from Vmware vCenter using the HP Insight Control Deployment Wizard

• Complete refresh of the user interface delivering a amazing new experience for

managing your physical environment in VMware vCenter:

− Optimized view of the converged infrastructure health and configuration dashboards

− Grouping of all the plug-in actions and control capabilities under one button

− Integration of a News Feed in the main area to deliver updates on health, configuration changes

and actions results

• Integrated installer that delivers a simplified process for installing the server and

storage modules

• Support for Active Directory accounts with role based security

• Architectural changes to scale to larger environments

Subject to changes

89



Architecture overview

VMware vCenter

and vSphere

Client

HP Insight

SIM / RDP

HP Insight Control for VMware vCenter

vSphere API

VMware

ESX or ESXi

CIM Providers

SNMP Agents

ProLiant

Server

CPUs

Memory

Network

Storage

iLO +

Embedded

Mgmt

ProLiant


Fans

Power

Supplies

Virtual Connect

Modules

Onboard

Administrator

90



LIVE DEMO…



Demo

92



ESXi Image and Drivers from HP

Download:

http://vibsdepot.hp.com/

93



VMware Update Manager (VUM) Integration

94




95




96



HP ProLiant Server and Option Firmware and Driver Support Recipe

Download:

http://vibsdepot.hp.com/hpq/recipes/

97



HP Customized VMware Image Downloads

Download:

http://h18004.www1.hp.com/products/servers/software/vmware/esxi-image.html

98



HP Customized Image Contents

Download:

http://h18004.www1.hp.com/products/servers/software/vmware-esxi/driver_version.html

HP ESXi 5.0 Management Providers

bundle - includes the latest HP

Common Information Model (CIM)

Providers, HP Integrated Lights-Out

(iLO) driver, HP Compaq ROM Utility

(CRU) driver, and the new HP

Agentless Management Service

(AMS)

HP ESXi 5.0 NMI bundle - Non

Maskable Interrupt (NMI) driver used

to write VMware® errors to the Insight

Management Log (IML)

With the VMware ESXi 5.0 Hypervisor, the vStorage API for Array Integration (VAAI) offers off-loading functions from the

target VMware host to the storage array. With the tasks being performed more efficiently by the array instead of the target

VMware host, performance is greatly enhanced. http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA3-5025ENW.pdf

99



HP VIBS Depot Downloads

Download:

http://vibsdepot.hp.com/hpq/

A file with the VIB file extension is an update, or

“bulletin,” file for the VMWare ESX virtual server. VIB

files are installed using the service console on the

ESX host. You must log into the system as “user

root," so you must have administrative privileges on

the virtual server to install VIB updates. VIB updates

may be bundled together in a ZIP file; the ESX

update tool uses the bundled ZIP file, in addition to

the VIB file format, to install the updates. Running

the ESX Update command automatically installs all

applicable VIB files and bundled VIB files that are

found while running the scan.

100



HP Agentless Management Service Offline Bundle


A service that provides support for Agentless Management and Active Health

Agentless Management provides

Integrated Lights Out (iLO) based

robust management without the

complexity of OS-based agents.

Agentless Management Service

provides a wider range of server

information (e.g. OS type and

version, installed applications, IP

addresses) allowing customers to

complement hardware

management with OS information

and alerting.

101



HP VMware Utilities

Documentation and Whitepapers:

http://h20000.www2.hp.com/bizsupport/TechSupport/DocumentIndex.jspcontentType=SupportManual&lang=en&cc=us&docIndexId=6417

9&taskId=101&prodTypeId=18964&prodSeriesId=420496

• HPONCFG

‣ Command line utility used for obtaining and setting ProLiant iL O configurations.

• HPBOOT CFG

‣ Command line utility used for configuring ProLiant server boot order .

• HP ACUCLI (ESX-I 5.0 and 5.1 only)

‣ Command line utility used for configuration and diagnostics of ProLiant server SmartArrays.

• HP Remote System Management Utility

‣ Currently, HP RSM is not supported with VMware hosts that are in lock-down mode.

‣ The HP Remote System Management (RSM) utility is a Windows command line tool. HP RSM

provides a view into a server's configuration and health. This tool displays data collected by the

server's CIM providers. The data gathered by RSM can be reported either in XML or in text formats.

HP RSM is designed to run on Microsoft Windows 7 and Windows Vista.

HP RSM Download:

http://h20000.www2.hp.com/bizsupport/TechSupport/SoftwareDescription.jsplang=en&cc=us&prodTypeId=15351&prodSeriesId=4091412&pro

dNameId=4091432&swEnvOID=4115&swLang=8&mode=2&taskId=135&swItem=MTX-b677f47e08794b8cba62d12c3f

102



HP System Management & VMware Security


• Secure Shell (SSH)

‣ HP SIM uses SSH to run commands on managed systems. These commands include the

command-line tools plus many HP-UX and Linux management tools.

‣ The Insight Control virtual machine management plug-in to HP SIM requires SSH on the virtual

machine host system to deploy the virtual machine management agent.

‣ You can also add your own tools that use SSH.

• WBEM

‣ WBEM uses HTTPS to provide a secure TCP connection from the CMS to the managed system.

WBEM uses its own port (5989 for SSL connections) and is supported through firewalls.

‣ Firewalls should be configured to allow the HPSIM to communicate with managed systems through

default port 5989. If you have modified the default port setting for your WBEM provider, you must

configure your firewall for the port number your WBEM provider on which it is actually configured.

• WMI

‣ WMI is Microsoft’s implementation of WBEM. WMI runs over DCOM, which in turn, uses RPC.

‣ The WMI Mapper is an application that provides translation from WMI (a DCOM-based interface) to

a standardized WBEM interface (CIM XML/HTTP). This is a two-way translation.

‣ The WMI Mapper is required for HP SIM to manage Windows computers, including ProLiant

servers running the Insight Providers for Windows.

103



HP System Management & VMware Security


104 © Copyright 2012 Hewlett-Packard Development Company, L.P.


ESX5i Firewall Settings



ESX Host Discovery



VCenter Credentials



ESX Host in HPSIM



Managed System Setup Wizard



Managed System Setup Wizard



Add iLO to Vcenter Power Management



Insight Control vCenter Installation

Install Server and Storage components upfront.

• There is no possibility to install the Storage part later.

• Install Storage later, means uninstall the Server part and

reinstall everything.

112



IC vCenter Installation – Storage Integration

Add CV-EVA in order to add the Storage Array.

113



IC vCenter Installation – Server Integration

Start the “HP Insight Control Server Administrator for vCenter” Application

and add all your vCenter Servers.

114



IC vCenter Installation – VC Network Diagram

If the iLO was configured

in Power Management,

the V-Center Integration

should find the server

automatically

For the ESX host, you will need to add

a SNMP Community String:

In the “Server Password Management”

page. Use “*” for both the Username and

Host field. Specify the community string

in the Password field, and select the

“SNMP Community String” in the type

dropdown.

115



IC vCenter Installation – VC Network Diagram

In order to see the Virtual Connect Network Diagram, add a second/special

user for VC Network Diagram scan. It should not be the Admin user!

116



IC vCenter Installation – VCND with VCEM

Virtual Connect Network Diagram does not show up in a VCEM configuration

1. Stop “HP Common Services” (on the server where ICE4VCenter is installed)

2. Put VCEM Domain in Maintenance Mode

3. Start HP common services, it will/should start HPICVCSERVER service as well

4. Move out from VCEM Maintenance Mode

117



IC vCenter Installation – Problems fixed

If you dont get the vCenter Integration to work, install the Visual C++ 2008 SP1

Redistributable Package and reinstall the vCenter Integration

118



Refresh of the UI – Main area

Related actions and control for

the server and storage

available in this pull down

menu

This pull down menu replaces

the three view to navigate the

different areas of the plug in

New consolidated news feed

delivering status information for

the host selected and

associated external storage

Launch links replaced by

these icons

New UI allows maximization of the real

estate available to show full Converge

Infrastructure information inside individual

portlets

Quick view to level of

access based on role

assigned in VMware

vCenter

Subject to changes – early development screenshots

119



HP iLO4

Managment Engine






iLO Mobile Application

• Server Management in your pocket

• ProLiant G7 (iLO3) and Gen8 (iLO4)

• iOS and Android

• Phones and Tablets

Features:

• Remote Console

• Power Button

• Web-based Virtual Media

• Server Health Status

• Launch XML Scripts

• QR Code Reader

• Links to iLO web UI



Generational comparison

iLO 2 iLO 3

iLO Management Engine

(iLO 4)

CPU 66 Mhz NEC v850 400 Mhz ARM 926 400 Mhz ARM 926

Memory

4MB Flash

16MB SDRAM

8MB Flash

128MB DDR3

(56MB after ECC & video)

16MB Flash

256MB DDR 3

(112 MB after ECC &

video)

Network 10/100 Mbps 10/100 Mbps 1Gbps

USB 1.1 2.0 2.0

Video

ATI ES1000 (external)

• 1280 x 1024 (32 bpp)

• 1600 x 1200 (16 bpp)

Matrox G200 (embedded)

• 1280 x 1024 (32 bpp)

• 1920 x 1200 (16 bpp)

Matrox G200 (embedded)

• 1280 x 1024 (32 bpp)

• 1920 x 1200 (16 bpp)

DVR Color 12 bpp (4096 colors) 15 bpp (32,768 colors) 15 bpp (32,768 colors)

NAND

Storage

4GB



HP iLO Management Engine

Core lifecycle management functions built in for instant availability

HP Intelligent

Provisioning

HP Agentless


HP Active Health

System

Ready to deploy and

update out-of-box without

the need for HP discs or

downloads

Base hardware health

monitoring and alerting

without OS agents

Continuously running

diagnostics to minimize

downtime

Cloud-enabled embedded management throughout all ProLiant Gen8 platforms






Provisioning




System




downloads






downtime

No License Fee



iLO4 – Active Health

Search: fan module

126






Provisioning




System




downloads






downtime


127



Agentless Management




How does it work

Bare Metal (OS not installed)

• Agentless Management is provided by the iLO

Management Engine for hardware status

− Memory, Processor, Power and cooling

HP SIM

7.0

ProLiant Gen8 Server

Bare metal

iLO


Engine

OS installed

• A new service or daemon, Agentless

Management Service is running on the host to

provide software information to the iLO

Management Engine

HP SIM

7.0

ProLiant Gen8 Server

OS installed

iLO


Engine

Host

Agentless


Service



Agents and Agentless Comparison

AGENT-BASED

AGENTLESS MANAGEMENT

SNMP Agents Agentless Management With Agentless Management Service

Server

Health

− Fans

− Temps

− Power supplies

− Memory

− CPU

− Fans

− Temps


− Memory

− CPU

− Fans

− Temps


− Memory

− CPU

Storage

− Smart Array

− SAS/SATA HBA

− Fibre Channel and iSCSI

− SMART Drive Monitoring

− Tape

− External storage



− Internal HDDs attached to

Smart Array


− SAS/SATA HBA


− Internal HDDs attached to Smart Array

NIC

− Standup and embedded

− MAC and IP address

− Link Up/Down

− Teaming information

− VLAN information

− MAC Addresses

− Standup and embedded

− MAC and IP address

− Link Up/Down traps

Other

− Operating system

information (Host MIB)

− iLO data

− Performance data

− Configurable thresholds

− Logging events to

operating system logs

− Clustering information

− iLO data

− Firmware inventory

− iLO data

− Operating system information (Host

MIB)

− Firmware inventory

− Driver/Service inventory




iLO4 View – No AMS

iLO4 View – With AMS

131



HPSIM 7.0 for full Gen8 Server Support



DL380 Gen8 with iLO4 SNMP Agentless Management






Provisioning




System




downloads






downtime




HP Intelligent Provisioning Webpage



135

www.hp.com/go/intelligentprovisioning

iLO4 – Gen8 Boot Screen



Gen8 Intelligent Features






























iLO Licensing Features

Free

Licensed

HP iLO 4 and iLO 3 HP iLO 2 HP iLO 4 and iLO 3 HP iLO 2

Advanced Advanced Advanced for BladeSystem Advanced for BladeSystem

Virtual KVM Full text and graphic modes (pre-OS) Full text and graphic modes (pre-OS) Full text and graphic modes (pre-OS & OS) Full text and graphic modes (pre-OS & OS)

Virtual KVM Full text and graphic modes (pre-OS & OS) Full text and graphic modes (pre-OS & OS) Full text and graphic modes (pre-OS & OS) Full text and graphic modes (pre-OS & OS)

Global Team Collaboration (Virtual KVM) Up to 6 Server Administrators Up to 4 Server Administrators Up to 6 Server Administrators Up to 4 Server Administrators

Console Record and Replay • • • •

Virtual Power • • • •

Virtual Media • • Browser Only Browser Only

Virtual Media • • • •

Virtual folders • • • •

Terminal Services Pass-Through • •

Remote Serial Console SSH only • SSH only •

Virtual Unit Indicator Display • • • •

ROM-Based Setup Utility(RBSU) • • • •

Option ROM Configuration for Arrays (ORCA) • • • •

Blade Setup Wizard • •

Present power reading • • • •

Power usage reporting • • • •

Ambient temperature reporting • • • •

Dynamic Power Capping • • • •

Power supply high-efficiency mode • • • •

Sea of sensors • • • •

POST and failure sequence replay • • • •

iLO and server integrated management log • • • •

Advanced Server Management (ASM) • • • •

Alert Administrator (SNMP Pass-through) • • • •

System health & configuration display • • • •

Directory Services Authentication • • • •

Two-Factor Authentication • •

Locally Stored Accounts • • • •

Browser • • • •

Command Line • • • •

XML/PERL scripting • • • •

WS Management scripting • •

Secure Socket Layer • • • •

Secure Shell • • • •

AES • • • •

RC4 (Virtual KVM) • • • •

Dedicated NIC • • • •

Shared Network Port • • • •

147



The World’s Most

Self-Sufficient

Servers

© Copyright 2012 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice.

Thank you

HP Insight Management Software - Hewlett Packard

Transform your PDFs into Flipbooks and boost your revenue!

HP Insight Management Software - Hewlett Packard

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
