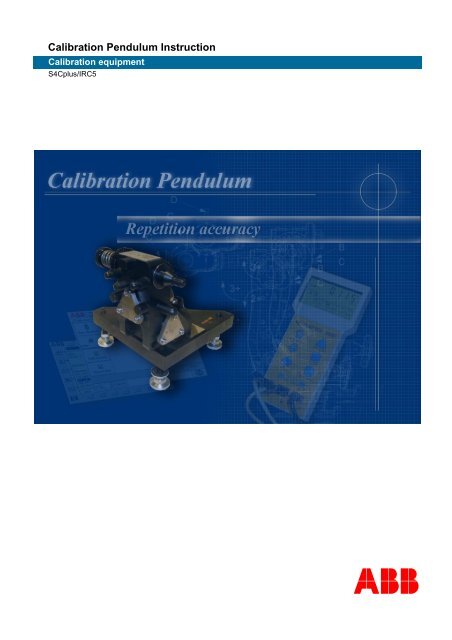

Calibration Pendulum Instruction

Calibration equipment

S4Cplus/IRC5

Calibration Pendulum Instruction

Document ID: 3HAC 16578-1

Revision: C

The information in this manual is subject to change without notice and

should not be construed as a commitment by ABB. ABB assumes no

responsibility for any errors that may appear in this manual.

Except as may be expressly stated anywhere in this manual, nothing

herein shall be construed as any kind of guarantee or warranty by ABB

for losses, damages to persons or property, fitness for a specific purpose

or the like.

In no event shall ABB be liable for incidental or consequential damages

arising from use of this manual and products described herein.

This manual and parts thereof must not be reproduced or copied without

ABB's written permission, and contents thereof must not be imparted to

a third party nor be used for any unauthorized purpose. Contravention

will be prosecuted.

Additional copies of this manual may be obtained from ABB at its then

current charge.

© Copyright 2003 ABB All rights reserved.

ABB Automation Technologies AB

Robotics

SE-721 68 Västerås

Sweden

Table of Contents

Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1 Calibration 5

1.1 To what robots does this apply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.2 General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2.1 Types of calibration procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.2.2 Storage and startup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

1.2.3 Setting of Levelmeter 2000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

1.2.4 Calibration of Pendulum sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1.2.5 Checking of individual sensors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1.2.6 How to calibrate the robot system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

1.2.7 Calibration pendulum kit, contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

1.3 Preliminaries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1.3.1 Checking the calibration position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

1.3.2 Updating revolution counters with TPU. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

1.3.3 Updating revolution counters with FlexPendant . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

1.3.4 Calibration Pendulum II procedure on TPU, S4Cplus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

1.3.5 Calibration Pendulum II procedure on FlexPendant, IRC5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

1.3.6 Initialization of calibration pendulum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

1.4 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

1.4.1 Reference positioning Calibration Pendulum II for axis 1 (general) . . . . . . . . . . . . . . . . . . . . . . . 31

1.4.2 Calibration sensor mounting positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

1.4.3 Calibration scales and correct axis position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

1.4.4 Calibration, all axes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

1.5 After calibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

1.5.1 Post calibration procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

3HAC 16578-1

Rev.C 3

Overview

Overview

About This

Manual

This information product is a manual containing instructions for calibrating a robot, using the

calibration pendulum method.

Usage

This manual should be used during calibration with the pendulum method using the

Calibration Pendulum 3HAC 15716-1.

Who Should Read

This Manual

This manual is intended for:

• installation personnel on the installation site.

• repairing personnel during repair or maintenace.

Prerequisites

The reader should have...

• the required knowledge of how the robot works

• a basic understanding of what calibration does and how it is performed.

Organization of

Chapters

The manual is organized in the following chapters:

Chapter

Contents

1. Calibration

Revisions

Revision

Description

0 First edition

A

B

C

Information on IRB 7600/2.3/500 added

Paths to calibration software revised

Minor editorial changes

Minor editorial changes

Methods to calibrate the pendel tool added

Changes in Information about IRB 7600/2.3/500

Pendellum Calib II intrud.

Methods to calibrate the pendel tool added for IRC5

Changes in Information about IRB 7600/2.3/500

4

Rev.C 3HAC 16578-1

1 Calibration

1.1. To what robots does this apply


1.1. To what robots does this apply

Serial numbers

Robots, in general, may be calibrated using a number of methods. This manual describes

robot calibration using the Calibration Pendulum method, which is applicable to the

following ABB robots:

Robot model

Serial number

IRB 140 14M-21493

IRB 1400 14-26001

IRB 2400

M2000

IRB 4400

M2000

IRB 6600

IRB 7600

IRC5

24-23050 and on.

Robots with serial numbers 24-23051, 24-23052, 24-23054, 24-23055,

24-23056 and 24-23061 were not calibrated using the calibrations

pendulum method before delivery from ABB, but these robots are fully

compatible with this method.

44-21782 and on.

All robots

76-20187 and on.

NOTE! Robots 76-20190 and 76-20191 are excluded!

All robots using IRC5

3HAC 16578-1

Rev.C 5


1.2.1. Types of calibration procedures

1.2 General

1.2.1. Types of calibration procedures

When to calibrate

The system must be calibrated if one or more of the listed failure below occurs.

Changed resolver

values

Calibrate the measurement system carefully as detailed in section Calibration if any of the

resolver values has been changed. This may occur when parts affecting the calibration

position have been replaced on the robot.

Contents of the

revolution counter

memory are lost

Calibrate the system roughly as detailed in section Updating revolution counters with TPU

on page 21if the contents of the revolution counter memory are lost. This may occur when:

• the battery has been discharged

• a resolver error occurs

• the signal between a resolver and measurement board interrupted

• a robot axis has been moved while the control system was disconnected

6

Rev.C 3HAC 16578-1


1.2.2. Storage and startup

1.2.2. Storage and startup

NOTE!

Always store the pendulum sensor in its carrying bag laying down or mounted on the tool

plate in a horizontal position.

Storage in a non horizontal position may cause long term drift and errors in the Wyler

sensors.

Storage

After storage the pendulum tool must be mounted in a horizontal position and be warmed up

(power on) for at least 5 minutes before use.

Storage position or warm up position illustrated below

A

B

xx0300000152

A Calibration Pendulum 3HAC 4540-1

B Calibration plate 3HAC 020552-002

3HAC 16578-1

Rev.C 7


1.2.3. Setting of Levelmeter 2000

1.2.3. Setting of Levelmeter 2000

Levelmeter 2000

If the Calibration Pendulum is turned off, it must be warmed up for at least 5 minutes before

use.

The Levelmeter 2000 should be set to measure the angle (DEG°) with a sensibility of tree

decimals, ex. 0,330°

-

+

Port/Sensor

A

50

BATT

0000000 00000

°oo A°oo mRAD mm/m DEG

GON "1/12" "1/10" "/REL" mm/REL

LEVELMETER 2000

+

ON/MODE

ZER O S E LE CT

-

ENTER

HOLD

S END/ESC

W YL ER

A B OUT

xx0300000156

8

Rev.C 3HAC 16578-1


1.2.4. Calibration of Pendulum sensors


Location of

sensors

The illustration shows how to locate the sensors and how to connect them to the Levelmeter

2000.

xx0300000157

A Connect sensor F

B Connect sensor G

C Connection controller SIO 1

D Selection pointer

E Measuring pointer

F Sensor A

G Sensor B

Required

equipment

Equipment, etc.

Spare part

no.

Art. no.

Note

Calibration plate 3HAC 020552-002

Calibration pendulum kit 3HAC 15716-1 Described in section

Calibration pendulum kit,

contents on page 16

Isopropanol 11771012-208 For cleaning the sensor

attachment points

3HAC 16578-1

Rev.C 9



Calibration tool

A

B

xx0300000152

A

B

Calibration Pendulum

Calibration plate

The procedure below details how to calibrate the sensors to the Levelmeter 2000.

Step Action Info/Illustration

1. Place the calibration plate on a

steady and flat surface. Clean the

calibration plate surface with

isopropanol.

Clean the surface of the Calibration

Pendulums tree contact surfaces

with isopropanol.

Fit the pendulum tool in one of the

two possible positions.

2. Press repeatedly the button ON/

MODE until the marker moves to the

text SENSOR.

3. Press repeatedly the button ENTER.

4. Press repeatedly the button ZERO/

SELECT until“ A” appears under the

Port/Sensor.

5. Press the button ENTER - wait until

“A” stops flashing.

6. Press the button ON/MODE until the

marker moves to the text “ZERO”.

7. Press the button ENTER - The

direction indicator (+/-) and the last

zero-offset will be displayed. Wait a

couple of seconds for the sensors to

stabilize.

shown in illustration Location of sensors on

page 9

10

Rev.C 3HAC 16578-1




8. Press the button HOLD - wait until

the marker under ZERO starts to

blink.

9. Remove the pendelum tool, turn it

180° and fit the tool in the

corresponding hole pattern.NOTE!

Do not change the position of the

calibration plate.- wait a couple of

seconds for the sensors to stabilize..

xx0300000207

10. Press the button HOLD -and wait a

couple of seconds. The new zerooffset

will be displayed..

11. Press the button ENTER, now the

sensor is calibrated and should

display the same value, but with

different direction (+/-) for the two

positions.

12. Adjust the instrument as described in

step 2- 5, to read the sensor ”B”.

13. Repeat the actions described in step

6 - 11

14. Adjust the instrument as described in

step 2- 5, to read the sensor “AB”.

15. Check the results. Shown in chapter Checking of individual

sensors on page 12.

3HAC 16578-1

Rev.C 11


1.2.5. Checking of individual sensors


Calibration tool

A

B

xx0300000152

A

B

Calibration pendulum

Calibration plate

Required

equipment

Equipment, etc. Spare part no. Art. no. Note

Calibration pendulum

kit

3HAC 15716-1

Contains all hardware

required for calibration,

specified inCalibration

pendulum kit, contents

Calibration plate 3HAC 020552-002

Isopropanol 11771012-208 For cleaning the sensor

attachment points

Checkl

The procedure below details how to check isopropanolindividual sensors in the Levelmeter

2000.

12

Rev.C 3HAC 16578-1




1. Place the calibration plate on a steady

and flat ground, Clean the surface of

the calibration plate with isopropanol.

Clean the surface of the Calibration

Pendulums contact surfaces with

isopropanol.

Fit the Calibration Pendulum tool in

one of the two possible positions.

2. Adjust the instrument to read the

sensor “A” and “B”.

3. Wait a couple of seconds for the

sensors to stabiliz, read the value

shown by the instrument.

4. Remove the Calibration Pendulum

tool, turn it 180° and refit it in the

corresponding hole pattern. wait a

couple of seconds until the sensors

have been stabilized.

NOTE! Do not change the position

of the calibration plate.

If the instrument read anything else,

adjusts it. As described in step 2- 5,

Calibration of sensors .

180

A

B

5. Read the values for “A” and “B” shown

by the instrument. The difference

between the two readings should be

less than 0,002° deg. and have

opposite directions (+/-). If the

difference is greater, the sensor must

be recalibrated.

C

xx0300000261

Described in step 1-15 inCalibration of

sensors .

D

3HAC 16578-1

Rev.C 13


1.2.6. How to calibrate the robot system


General

This section provides an overview of the procedure required when calibrating the robot

system. Many of the steps in the procedure are detailed in other sections to which references

are given.

Procedure

NOTE!

Before use of the Pendulum Calibration all external axis ( 7 --->) must be disconnected.

Before use of the Pendulum Calibration, clean all the mounting surfaces for the sensors

on the robot.

Step Action Illustration

1. Install the robot. Detailed in the "Installation

Manual".

2. Check that all required hardware is available for

calibrating the robot.

3. Remove all the covers for the calibration tool

sensorsmounting surfaces.

Required hardware is

specified in the calibrating

procedures for each axis.

Use standard tools

4. Clean the guide pin holes. Use isopropanol.

5. Connect the calibration equipment to the robot

controller and initialize it.

6. Manually, run the robot axes to be calibrated to a

position close to the correct calibration position.

Specified in Initialization of

calibration pendulum on

page 29.

Use the calibration scales

fitted to each robot axis to

locate this position.

7. Start the calibration program. Detailed in Calibration

Pendulum II procedure on

TPU, S4Cplus on page 26.

8. Calibrate each axis in sequence as detailed in the

program.

9. Verify that the calibration was successfully carried

out.

Detailed in each axis'

calibration instruction.

Detailed in Post calibration

procedure on page 52.

General -

Calibration

Pendulum

In the calibration procedure the position of the sensor is first measured at the reference plane.

Then the pendulum calibration sensor is placed on each axis and the robot is run to its

calibration position, thus reducing the sensor difference to close to zero.

All article numbers of relevant equipment are specified in their instructions respectively.

Peripheral

equipment

The robots upper arm must be free from any peripheral equipment during calibration. Fitted

tools and similar will cause erroneous calibration positions.

14

Rev.C 3HAC 16578-1



Calibration order The axes must be adjusted in increasing sequence, i.e. 1 - 2 - 3 - 4 - 5 - 6.

Location of

sensors

The positions where the calibration sensor and reference sensor should be fitted during

calibration, are specified in Calibration sensor mounting positions on page 32.

3HAC 16578-1

Rev.C 15


1.2.7. Calibration pendulum kit, contents


General

The calibration pendulum kit contains all required hardware to calibrate all robot models

(except IRB 6400R) using the calibration pendulum method.

These kits may only be rented from ABB at this time, please contact the Service Department.

Contents of

calibration

pendulum kit

3HAC 15716-1

Qty Contents Art. no. Rem.

2 Inclinometer, Wyler 3HAC 12837-7

Zerotronic

1 Cable set Wyler 3HAC 15144-1 All required cables

1 Leveltronic NT/41 3HAC 15732-1

1 Calibration pendulum 3HAC 4540-1

1 Turning disk adapter 3HAC 16423-1 May be turned both

ways to fit IRB 140,

IRB 1400, IRB 2400

and IRB 4400.

Includes all guide

pins and attachment

screws.

Also see illustration

below!

4 Batteries For battery supply of

"Leveltronic NT/41"

1 Thread tap, M8 For repairing any

damaged protective

cover attachment

holes

5 Protective covers and

attachment screws

For replacing any

damaged protective

covers

1 Location pin 3HAC 14137-1 58 mm long

For IRB 6600 and IRB

7600, axis 1

1 Location pin 3HAC 14137-2 68 mm long

For IRB 140, IRB

1400, IRB 2400 and

IRB 4400, axis 1

1 User documentation 3HAC 16578

Illustration, turning

disk adapter

May be turned both ways to fit IRB 140, IRB 1400, IRB 2400 and IRB 4400.

16

Rev.C 3HAC 16578-1



xx0200000276

A

B

C

D

Guide pin, 8 mm

Guide pin, 6 mm

Screw, M10

Screw, M6

3HAC 16578-1

Rev.C 17


1.3.1. Checking the calibration position

1.3 Preliminaries


General

Check the calibration position before beginning any programming of the robot system. This

may be done in one of two ways:

• Using a MoveAbsJ instruction with argument zero on all axes

• Using the Jogging window on the teach pendant

Using a

MoveAbsJ

instruction on the

TPU, S4Cplus

This section describes how to create a program, which runs all the robot axes to their zero

position

Step Action Note

1. Crate a new program

2. Use MoveAbsJ

3. Create the following program: MoveAbsJ

[[0,0,0,0,0,0],[9E9,9E9,9E9,9E9,9E9,9E9]]\NoEOffs

, v1000, z50, Tool0

4. Run the program in manual mode

5. Check that the calibration marks for the axes align

correctly. If they do not, update the revolution

counters!

The calibration marks are

shown in section Calibration

scales and correct axis

position on page 44.

How to do this is detailed in

section Updating revolution

counters with TPU on page

21

18

Rev.C 3HAC 16578-1



Using a

MoveAbsJ

instruction on the

FlexPendant,

IRC5

This section describes how to create a program, which runs all the robot axes to their zero

position.


1. On ABB menu tap Program Editor.

2. Create a new program.

3. Use MoveAbsJ in the Motion&Proc menu.

4. Create the following program: MoveAbsJ

[[0,0,0,0,0,0],[9E9,9E9,9E9,9E9,9E9,9E9]]\NoEOff

s, v1000, z50, Tool0

5. Run the program in manual mode.

6. Check that the calibration mark for the particular

axis align correctly. If it does not, update the

revolution counters!





How to update the revolution

counters is detailed in section

Updating revolution counters

with FlexPendant on page 24.

Using the

Jogging window

on the TPU,

S4Cplus

This section describes how to jog the robot to all axes zero position.

Step Action Illustration/information

1. Open the Jogging window.

2. Choose running axes-by-axes.

xx0100000195

3. Manually run the robot axes to a position where the

resolver offset value read, is equal to zero.



counters!

xx0100000196





Detailed in section Updating

revolution counters with TPU

on page 21.

3HAC 16578-1

Rev.C 19



Using the

Jogging window

on the

Flexpendant,

IRC5

This section describes how to jog the robot to all axes zero position.


1. Tap Jogging in the ABB menu

2. Tap Motion mode to chose group of axes to jog

3. Tap axes 1-3 to jog axes 1 ,2 or 3

4. Manually run the robots axes to a position where the

resolver offset value read, is equal to zero.



counters!





How to update the counters

is detailed in section

Updating revolution counters

with FlexPendant on page

24.

20

Rev.C 3HAC 16578-1


1.3.2. Updating revolution counters with TPU


General

This section details how to perform a rough calibration of each robot axis, i.e. updating the

revolution counter value for each axis, using the TPU.

Manually running

the robot to the

calibration

position

This procedure details the first step when updating the revolution counter; manually running

the robot to the calibration position.


1. Select axis-by-axis motion mode.

2. Jog the robot so that the calibration marks lie within

the tolerance zone.

IRB 140, 1400, 2400, 4400: Axes 5 and 6 must be

positioned together!

3. Note! Axis 4 and 6 do not have any mechanical stops

and there is a risk of positioning them with wrong

revolution, even if the calibration marks lie correctly!

Read more in Correct calibration position of axis 4

and 6, below.

4. When all axes are positioned, store the revolution

counter settings as detailed in following procedure

Storing the revolution counter setting.

Shown in section Calibration



Correct

calibration

position of axis 4

and 6

When running the robot to calibration position, it is extremely important to make sure that

axes 4 and 6 of the below mentioned robots are positioned correctly. The axes do not have

any mechanical stops and can therefor be calibrated at the wrong turn.

Make sure the axes are positioned according to the correct calibration values, not only

according to the calibration marks. The correct values are found on a label, located either on

the lower arm or underneath the flange plate on the base.

At delivery the robot is in the correct position, do NOT rotate axis 4 or 6 at power up before

the revolution counters has been updated.

If one of the below mentioned robots are rotated one or more turns from its calibration

position before updating the revolution counter, the exact calibration position will be lost due

to uneven gear ratio. This affects the following robots:

Robot variant Axis 4 Axis 6

IRB 140 Yes Yes

IRB 1400 Yes Yes

IRB2400L (5kg) Yes No

IRB6400 / 200kg Yes No

IRB6400R / 200kg Yes No

IRB6600 / 175kg_2,55 m Yes No

3HAC 16578-1

Rev.C 21



Robot variant Axis 4 Axis 6

IRB6600 / others Yes Yes

IRB7600 Yes Yes

Storing the

revolution

counter setting

This section details the second step when updating the revolution counter; storing the

revolution counter setting.


1. Press the button "Miscellaneous" then ENTER to select the

service window.

xx0100000194

2. Select Calibration from the View menu.

The Calibration window appears.

If there is more than one unit connected to the robot, they will

be listed in the window.

xx0100000201

3. Select the desired unit and choose Rev Counter Update

from the Calib menu.

The Revolution Counter Update window appears.

xx0100000202

22

Rev.C 3HAC 16578-1




4. Select the desired axis and press Incl to include it (it will

be marked with an x) or press All to select all axes.

5. Press OK when all axes that are to be updated are marked

with an x.

CANCEL returns to the Calibration window.

6. Press OK again to confirm and start the update.

CANCEL returns to the Revolution Counter Update window.

7. At this point, it is recommended that the revolution counter

values are saved to a diskette.

8.

Not required.

-

Caution!

If a revolution counter is incorrectly updated, it will cause

incorrect robot positioning, which in turn may cause damage or

injury!

Check the calibration position very carefully after each update.

How to perform the check is detailed in section Checking the

calibration position on page 18.

3HAC 16578-1

Rev.C 23


1.3.3. Updating revolution counters with FlexPendant


General

This section details how to perform a rough calibration of each robot axis, i.e. updating the

revolution counter value for each axis, using the FlexPendant.

Manually running

the robot to the

calibration

position

This procedure details the first step when updating the revolution counter; manually running

the robot to the calibration position.


1. Select axis-by-axis motion mode.

2. Jog the robot so that the calibration marks lie within

the tolerance zone.

IRB 140, 1400, 2400, 4400: Axes 5 and 6 must be

positioned together!

3. Note! Axis 4 and 6 do not have any mechanical stops

and there is a risk of positioning them with wrong

revolution, even if the calibration marks lie correctly!

Read more in Correct calibration position of axis 4

and 6, below.

4. When all axes are positioned, store the revolution

counter settings as detailed in following procedure

Storing the revolution counter setting.




Correct

calibration

position of axis 4

and 6

When running the robot to calibration position, it is extremely important to make sure that

axes 4 and 6 of the below mentioned robots are positioned correctly. The axes do not have

any mechanical stops and can therefor be calibrated at the wrong turn.

Make sure the axes are positioned according to the correct calibration values, not only

according to the calibration marks. The correct values are found on a label, located either on

the lower arm or underneath the flange plate on the base.

At delivery the robot is in the correct position, do NOT rotate axis 4 or 6 at power up before

the revolution counters has been updated.

If one of the below mentioned robots are rotated one or more turns from its calibration

position before updating the revolution counter, the exact calibration position will be lost due

to uneven gear ratio. This affects the following robots:

24

Rev.C 3HAC 16578-1



Storing the

revolution

counter setting

This procedure details the second step when updating the revolution counter; storing the

revolution counter setting.

Step

Action

1. On the ABB menu, tap Calibration.

All mechanical units connected to the system are shown along with their calibration

status.

2. Tap the mechanical unit in question.

A screen is displayed: tap Rev. Counters.

en0400000771

3. Tap Update revolution counters....

A dialog box is displayed, warning that updating the revolution counters may change

programmed robot positions:

• Tap Yes to update the revolution counters.

• Tap No to cancel updating the revolution counters.

Tapping Yes displays the axis selection window.

4. Select the axis to have its revolution counter updated by:

• Ticking in the box to the left

• Tapping Select all to update all axes.

Then tap Update.

5. A dialog box is displayed, warning that the updating operation cannot be undone:

• Tap Update to proceed with updating the revolution counters.

• Tap Cancel to cancel updating the revolution counters.

Tapping Update updates the ticked revolution counters and removes the tick from

the list of axes.

6.

-

Caution!

If a revolution counter is incorrectly updated, it will cause incorrect robot positioning,

which in turn may cause damage or injury!

Check the calibration position very carefully after each update.

See section Checking the calibration position on page 18.

3HAC 16578-1

Rev.C 25


1.3.4. Calibration Pendulum II procedure on TPU, S4Cplus


General

This section details how to use the Teach Pendant Unit (TPU) when calibrating the robot

using the calibration pendulum method.

Procedure


1. Press the

"Program" button

on the TPU.

2. Select "Special",

and then "Call

service routine".

3. Start the program:

"Calpendulum.rutin

".

4. Select the required

calibration

procedure and

press "START".

xx0300000009

xx0200000188

26

Rev.C 3HAC 16578-1




5. Enter the value of

your choice, of

which robot axes to

be calibrated.

Press OK .

6. Press "0" to

acknowledge the

selection made.

Press OK .

7. Proceed to

calibrate the

individual robot

axes.

xx0200000190

Default value: All axes

In this example, axis 1 was selected.

Detailed in the calibration instructions for the robot axes.

3HAC 16578-1

Rev.C 27


1.3.5. Calibration Pendulum II procedure on FlexPendant, IRC5

1.3.5. Calibration Pendulum II procedure on FlexPendant, IRC5

Overview

This section details how to use the FlexPendant when calibrating the robot using the

Calibration pendulum method

Procedure


1. On the ABB menu tap Program Editor

2. Tap on routines

3. Select the Calpendulum routine

4. Start the program by pressing “START”

5. Selection of Production or Field Service Calibration Select Field Service

Calibration, Production is

only used in ABB:s prodution

plant

6. Selection of alternativ positions for axes 3-6. Used if you want to calibrate

axes 1-2, with axes 3-6 in an

alternativ position. Look at

sectionAlternative

calibration positionsor

section Alternative

calibrating

7. Follow the futher istructions on the FlexPendant Proceed to calibrate the

individual robot axes,

detailed in section

Calibration sensor mounting

positions on page 32

28

Rev.C 3HAC 16578-1


1.3.6. Initialization of calibration pendulum


General

Whenever calibration pendulum is used for calibrating the robot, the equipment must first be

initialized as detailed below.

The Levelmeter 2000 is shown for reference below:

E

D

xx0200000126

A B C

A Connection sensor A

B Connection sensor B

C Controller connection SIO 1

D Selection pointer

E Measuring unit

Overview

Shown below is an outline of how to initialize the Levelmeter 2000. Detailed procedures are

specified in the manual supplied by the manufacturer.


1. Make sure the Levelmeter 2000 has reached normal

operating temperature before connecting it to

anything.

Also switch the power on for a couple of minutes

before operating the unit.

2. Connect the Levelmeter 2000 to the COM2 port in the

control cabinet through the connector marked OUT .

Shown in the figure in

section General on page 29.

3HAC 16578-1

Rev.C 29




3. Connect sensors A and B. Detailed in Connection of

sensors on page 30.

4. Calibrate the robot!

Address


1. Make sure the sensors have different addresses. Any

addresses will do, as long as they differ from each

other.

Detailed in the

documentation supplied by

sensor manufacturer.

Found in the calibration kit

box.

Connection of

sensors


1. Connect the sensor to the Sensor connection points. Marked A and B .

Shown in the figure in

section General on page 29.

2. Press ON/MODE .

3. Press ON/MODE until the dot flashes under

SENSOR .

4. Press ENTER.

5. Press ZERO/SELECT arrows until a flashing "A B"

is shown.


Wait until the "A B" flashes again.


Result

The Levelmeter 2000 is now initialized and ready for service.

30

Rev.C 3HAC 16578-1


1.4.1. Reference positioning Calibration Pendulum II for axis 1 (general)

1.4 Calibration

1.4.1. Reference positioning Calibration Pendulum II for axis 1 (general)

Overview

This section specifies the handling of the Calibration Pendulum in reference position for axis

1 on all robots.

Reference

positioning

This section details the procedure for preparation of the calibration pendulum before

calibration of axis 1.


1. Compress the spring

by moving the inner

hand wheel (axial

movement)

A

2. Rotate the inner

hand wheel

clockwise on the

shaft to lock the

spring in compressed

position.

xx0400001101

B

3. After calibration of

axis 1

xx0400001102

Release the compressed spring

3HAC 16578-1

Rev.C 31


1.4.2. Calibration sensor mounting positions


Introduction

This section specifies the mounting positions and directions of all calibration sensors on all

robot systems using the Calibration Pendulum method.

NOTE! Make sure that the cabling does not affect the Calibration Pendulum position.

NOTE! If position breaker(s) are fitted for axis 1, they must be removed before use of

the Calibration Pendulum on the reference position.

Additional information on calibration, alternative calibration positions etc, may be found in

the Repair Manual.

NOTE! After calibration of axis 1, release the compressed spring on the pendulum

calibration tool.

Further instructions about reference calibration of axis 1 are given in section Reference

positioning Calibration Pendulum for axis 1 (general)

IRB 140

The illustrations below show the mounting positions and directions for both the reference

sensor and axis sensors on the robot

Reference position

IRB 140

xx0200000244

A

Calibration pendulum in reference sensor position. NOTE! The pendulum is only fitted

in one position at a time!

32

Rev.C 3HAC 16578-1



Axis 1 IRB 140

\xx0200000245

A

B

C

Calibration sensor, axis 1. NOTE! The pendulum is only fitted in one position at a

time!

Locating pin

Calibration pendulum attachment screw


xx0200000246

A

Calibration sensor, axis 2. NOTE! The pendulum is only fitted in one position at a time!

3HAC 16578-1

Rev.C 33



Axis 3, 4, 5 and 6

IRB 140

xx0200000266

A Calibration sensor, axis 3

B Turning disk adapter

C Sensor locking screw

D Sensor cable, sensor B

E Sensor cable, sensor A

IRB 1400



34

Rev.C 3HAC 16578-1




IRB 1400

xx0200000248

A

Calibration pendulum in reference sensor position. NOTE! The pendulum is only

fitted in one position at a time!


xx0200000249

A

B

C

Calibration sensor, axis 1. NOTE! The pendulum is only fitted in one position at a time!

Locating pin


3HAC 16578-1

Rev.C 35




xx0200000281

A


time!

Axis 3, 4, 5 and 6

IRB 1400

xx0200000266




D Sensor cable, sensor B

E Sensor cable, sensor A

36

Rev.C 3HAC 16578-1



IRB 2400




IRB 2400

xx0200000250

A




xx0200000251

A

B

C


time!

Locating pin


3HAC 16578-1

Rev.C 37




xx0200000280

A


time!

Axis 3, 4, 5 and 6

IRB 2400

xx0200000266




38

Rev.C 3HAC 16578-1



D

E

Sensor cable, sensor B

Sensor cable, sensor A

IRB 4400




IRB 4400

xx0200000252

A




xx0200000253

A

B

C


time!

Locating pin


3HAC 16578-1

Rev.C 39




xx0200000279

A


time!

Axis 3, 4, 5 and 6

IRB 4400

xx0200000266

IRB 6600/7600



40

Rev.C 3HAC 16578-1




IRB 6600, IRB

7600

xx0200000183

A



Axis 1 IRB 6600,

IRB 7600

NOTE! If an old synchronization plate for axis 1 is mounted it is vital to change it to the

new synchronization plate 3HAC 021287-001.

xx0400001107

NOTE! If position breaker(s) are mounted for axis 1, they must be dismounted before

use of the Calibration Pendulum 3HAC 4540-1 on axis 1.

3HAC 16578-1

Rev.C 41



xx0200000177

A

B

C

Calibration pendulum. NOTE! The pendulum is only fitted in one position at a time!


Locating pin

Axis 2 IRB 6600,

IRB 7600

xx0200000178

A Calibration pendulum, axis 2

42

Rev.C 3HAC 16578-1



Axis 3-6 IRB 6600,

IRB 7600

xx0300000274

A B C

A Fit the Calibration Pendulum, screw home the attachment screw (by hand)

B Compress the spring and rotate the Calibration Pendulum counter clockwise

C At the end of the counter clockwise movement drop the Calibration Pendulum into its

calibration position

NOTE! To ensure the result of the procedure to be accurate it is vital that it is performed

identically each time.

3HAC 16578-1

Rev.C 43


1.4.3. Calibration scales and correct axis position


Introduction

This section specifies the calibration scale positions and/or correct axis position for all robot

models.


scales, IRB 140

The illustration below shows the calibration scale positions on IRB 140:

xx0200000157

44

Rev.C 3HAC 16578-1






en0200000272




3HAC 16578-1

Rev.C 45



en0200000273



The illustration below shows the calibration scale positions on IRB 4400.

The calibration marks for axes 2, 3, 4 and 5 are marked using punch mark tools.

46

Rev.C 3HAC 16578-1



xx0300000209

A Punch, axis 2, 3HAB 1521-1

B Punch, axis 3, 3HAB 1522-1

C Punch, axis 4, 3HAB 1523-1 (there are two different versions of the marks,as shown

in the figure)

D Punch, axis 5, 3HAB 1524-1

E Axes 5 and 6, IRB 4400/L10

3HAC 16578-1

Rev.C 47




scales, IRB 6600,

IRB 6650, IRB

6650S,IRB 7600

The illustration below shows the calibration scales and their positions on the robot.

The figure shows IRB 6600, but the scales and their positions are the same for IRB 6650S

and IRB 7600.

F

E

A1

A2

xx0200000176

A1 Sync scale, axis 1(early design)

A2 Sync scale, axis 1(new design)

B Sync scale, axis 2

C Sync scale, axis 3

D Sync scale, axis 4

E Sync scale, axis 5

F Sync scale, axis 6

48

Rev.C 3HAC 16578-1


1.4.4. Calibration, all axes


General

This section is valid for all robot models using the calibration pendulum procedure except

IRB 6400R.

It details how to perform the actual fine calibration of each axis using special calibration

equipment. The position to fit calibration sensors differ between different models and

different axes.

Equipment Article no. Note

Calibration pendulum,

complete set

3HAC 15716-1

Contains all hardware required for calibration of all

robot versions except IRB 6400R.

The contents are specified in Calibration pendulum

kit, contents on page 16.

Turning disk adapter 3HAC 16423-1 May be turned both ways to fit IRB 140, IRB 1400,

IRB 2400 and IRB 4400.

Included in the complete set.

Isopropanol 1177 1012-208 For cleaning the sensor attachment points

Sensor mounting

positions

The position of the calibration sensors are shown in Calibration sensor mounting positions

on page 32.

3HAC 16578-1

Rev.C 49



Procedure


1. Run the robot manually to the

calibration position of the axis to be

calibrated.

2. Make a rough calibration. Detailed in Updating revolution counters with

TPU on page 21.

3. Turn the calibration equipment on,

to allow it to reach operating

temperature and stabilize for a

couple of minutes.

4. Remove any protective covers

from the reference sensor,

calibration sensor and locating pin

attachment points.

The same calibration pendulum is

used as a "calibration sensor" and

as a "reference sensor" depending

on its function at the time. In the

instruction below, the pendulum

will be called "calibration sensor" or

reference sensor" depending on

the function.

5. Clean the reference sensor,

calibration sensor and locating pin

attachment points with isopropanol

.

6. Valid for axis 1 only!

Fit the locating pin to the

manipulator base.

Make sure the attachment surface

is clean and free from any nicks or

burrs.

Art. no. specified in section General on page

49.

Shown in Calibration sensor mounting

positions on page 32.

50

Rev.C 3HAC 16578-1




7. Connect the measurement cable

from the calibration sensor to the

Levelmeter 2000 unit.

E

D

8. Start the calibration program from

the TPU, and follow the instructions

given, incl. fitting the calibration

sensor when requested.

NOTE! After fitting the sensor on

the manipulator as specified on the

TPU, clicking OK will start

manipulator movement !

Make sure nobody is within the

working range of the robot!

9. Click OK .

A number of menus will flash by

briefly on the TPU, but no action is

required on behalf of the operator

until a specific action is displayed.

10. Confirm the position of all

calibrated axes when the

calibration has been performed

satisfactorily.

11. Disconnect all calibration

equipment and refit all protective

covers.

A B C

xx0200000126

• A: Connect sensor A here

• B: Connect sensor B here

• C: Connect SIO 1 in controller here

• D: Measuring unit

• E: Selection pointer

The position to fit the reference sensor and

calibration sensor respectively, are shown in

Calibration sensor mounting positions on page

32.

NOTE that no additional tool is required for

fitting the calibration pendulum for axes 1-3!

Fitting the pendulum to the turning disk

requires an adapter (included in the complete

set). NOTE that there are two adapters! Article

numbers, are specified in section General on

page 49.

How to handle the calibration program prior to

the actual calibration of each axis is detailed in

Calibration Pendulum II procedure on TPU,

S4Cplus on page 26.

Detailed in Post calibration procedure on page

52.

3HAC 16578-1

Rev.C 51


1.5.1. Post calibration procedure

1.5 After calibration


General

Perform the following procedure after calibrating any manipulator axis. The procedure is

intended to verify that all calibration positions are correct.

Procedure


1. Run the calibration home position program twice.

Do not change the position of the manipulator axes

after running the program!

2. Check the calibration positions.

IRB 6600, IRB 6650, IRB 6650S and IRB 7600:

Check the calibration positions of all axes. The

acceptable tolerances are:

• axis 2, 3: ±0.20 mm/m

• axis 4, 5, 6: ±0.40 mm/m

IRB 4400, IRB 6400R: Check the calibration positions

of axes 6, 2 and 5. If axes 5 and 6 are within the

tolerances given below, then axes 3 and 4 do not

need to be checked. The acceptable accurancy is:

• axes 2, 3: ±0.20 mm/m

• axes 4, 5, 6: ±0.40 mm/m

If the axes are outside the tolerance, start the

calibration procedure from the beginning, in

increasing sequence of the axes.

3. Repeat the check as above.

4. Adjust the calibration marks when the calibration is

done.

5. The system parameters will be saved to the storage

memory at power off.

6. Change the values on a new label and stick it on top

of the label located

• IRB 140, IRB 6600, IRB 6650, IRB 6650S, IRB

7600, IRB 6400R: on the lower arm.

• IRB 1400, IRB 2400, IRB 4400: underneath

the flange plate on the base.

7. Remove any calibration equipment from the

manipulator.

Detailed in section Checking

the calibration position on

page 18.

Detailed in section

Calibration scales and

correct axis position on page

44.




52

Rev.C 3HAC 16578-1

Index

C

Calibration position 21, 24

Changed resolver values 6

L

Levelmeter 2000 connections 9

Levelmeter 2000 instrument calibration 12

Levelmeter 2000 settings 8

R

Reference positioning 31

Revolution counters 21

S

Serial numbers 5

Storage of the Wyler sensor 7

U

Updating counters 6

Updating revolution counters 21

3HAC 16578-1

53



54

Rev.C 3HAC 16578-1

3HAC 16578-1, rev.C, en



ABB Automation Technology Products AB

Robotics

S-721 68 VÄSTERÅS

SWEDEN

Telephone: +46 (0) 21 344000

Telefax: +46 (0) 21 132592

1 Calibration - Technology

Transform your PDFs into Flipbooks and boost your revenue!

Delete template?

Save as template ?
