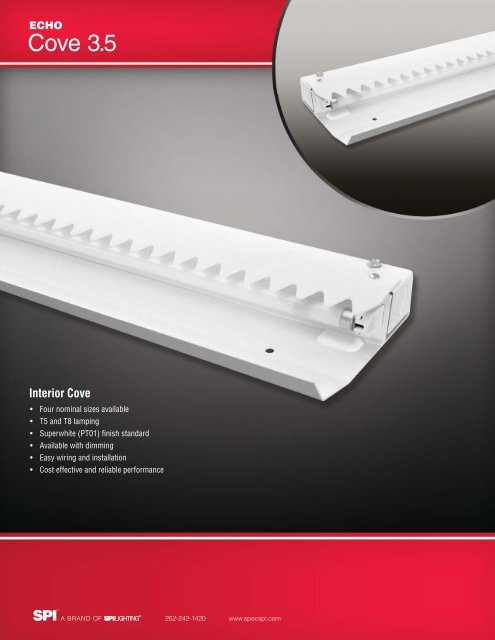

ECHO<br />
<strong>Cove</strong> <strong>3.5</strong><br />
Interior <strong>Cove</strong><br />
• Four nominal sizes available<br />
• T5 and T8 lamping<br />
• Superwhite (PT01) fi nish standard<br />
• Available with dimming<br />
• Easy wiring and installation<br />
• Cost effective and reliable performance<br />
A BRAND OF<br />
®<br />
262-242-1420 www.specspi.com
ECHO <strong>Cove</strong> <strong>3.5</strong> Interior <strong>Cove</strong><br />
EIV11709<br />
H<br />
W<br />
L<br />
Product Details<br />
SIZE (L) LAMP W H L LAMPING LAMPING DETAIL PHOTOMETRY VOLTAGE FINISHES OPTIONS<br />
22.4" T5 5.5" 1.5" 22.4" 1F14 1 1F14WT5/Mini Bipin 120V PT01 F<br />
1F14DM 1 1F14WT5/Mini Bipin Dimming 277V LBF 2<br />
1F24 1 1F24WT5HO/Mini Bipin<br />
1F24DM 1 1F24WT5HO/Mini Bipin Dimming<br />
34.2" T5 5.5" 1.5" 34.2" 1F21 1 1F21WT5/Mini Bipin<br />
1F21DM 1 1F21WT5/Mini Bipin Dimming<br />
1F39 1 1F39WT5HO/Mini Bipin<br />
1F39DM 1 1F39WT5HO/Mini Bipin Dimming<br />
46.0" T5 5.5" 1.5" 46.0" 1F28 1 1F28WT5/Mini Bipin<br />
1F28DM 1 1F28WT5/Mini Bipin Dimming<br />
1F54 1 1F54WT5HO/Mini Bipin ITL68350<br />
1F54DM 1 1F54WT5HO/Mini Bipin Dimming<br />
92.0" T5 5.5" 1.5" 92.0" 2F28 1 2F28WT5/Mini Bipin ITL68350<br />
2F28DM 1 2F28WT5/Mini Bipin Dimming ITL68350<br />
2F54 1 2F54WT5HO/Mini Bipin ITL68350<br />
2F54DM 1 2F54WT5HO/Mini Bipin Dimming ITL68350<br />
24.0" T8 6.3" 1.9" 24" 1F17 1 1F17WT8/Med Bipin<br />
1F17DM 1 1F17WT8/Med Bipin Dimming<br />
36.0" T8 6.3" 1.9" 36" 1F25 1 1F25WT8/Med Bipin<br />
1F25DM 1 1F25WT8/Med Bipin Dimming<br />
48.0" T8 6.3" 1.9" 48" 1F32 1 1F32WT8/Med Bipin<br />
1F32DM 1 1F32WT8/Med Bipin Dimming<br />
96.0" T8 6.3" 1.9" 96" 2F32 1 2F32WT8/Med Bipin<br />
2F32DM 1 2F32WT8/Med Bipin Dimming<br />
Code Definitions<br />
FINISHES<br />
OPTIONS<br />
PT01<br />
Superwhite Powder Coat Paint<br />
F<br />
Fusing<br />
LPF<br />
Low Power Factor Ballast<br />
1<br />
T5 and T8 fl uorescent linear lamp(s) not included.<br />
2<br />
Non-dimming only.<br />
© 2013 <strong>SPI</strong> Lighting. Design modification rights reserved. contact@specspi.com<br />
www.specspi.com S1001 R2
