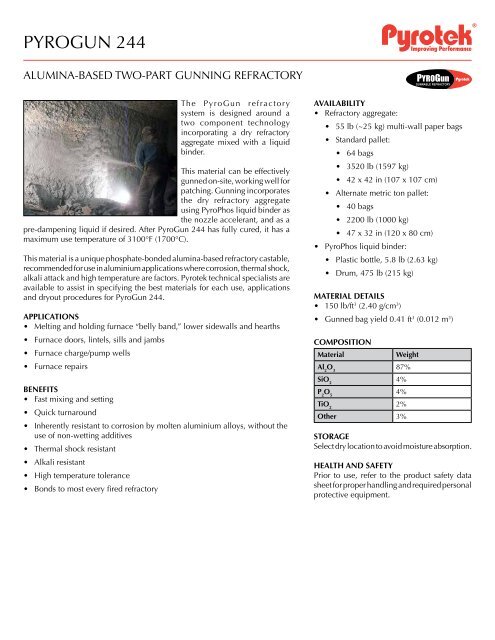

PYROGUN 244
ALUMINA-BASED TWO-PART GUNNING REFRACTORY
PYROGun
GUNNABLE REFRACTORY
The PyroGun refractory
system is designed around a
two component technology
incorporating a dry refractory
aggregate mixed with a liquid
binder.
This material can be effectively
gunned on-site, working well for
patching. Gunning incorporates
the dry refractory aggregate
using PyroPhos liquid binder as
the nozzle accelerant, and as a
pre-dampening liquid if desired. After PyroGun 244 has fully cured, it has a
maximum use temperature of 3100°F (1700°C).
This material is a unique phosphate-bonded alumina-based refractory castable,
recommended for use in aluminium applications where corrosion, thermal shock,
alkali attack and high temperature are factors. Pyrotek technical specialists are
available to assist in specifying the best materials for each use, applications
and dryout procedures for PyroGun 244.
APPLICATIONS
• Melting and holding furnace “belly band,” lower sidewalls and hearths
• Furnace doors, lintels, sills and jambs
• Furnace charge/pump wells
• Furnace repairs
BENEFITS
• Fast mixing and setting
• Quick turnaround
• Inherently resistant to corrosion by molten aluminium alloys, without the
use of non-wetting additives
• Thermal shock resistant
• Alkali resistant
• High temperature tolerance
• Bonds to most every fired refractory
AVAILABILITY
• Refractory aggregate:
• 55 lb (~25 kg) multi-wall paper bags
• Standard pallet:
• 64 bags
• 3520 lb (1597 kg)
• 42 x 42 in (107 x 107 cm)
• Alternate metric ton pallet:
• 40 bags
• 2200 lb (1000 kg)
• 47 x 32 in (120 x 80 cm)
• PyroPhos liquid binder:
• Plastic bottle, 5.8 lb (2.63 kg)
• Drum, 475 lb (215 kg)
MATERIAL DETAILS
• 150 lb/ft 3 (2.40 g/cm 3 )
• Gunned bag yield 0.41 ft 3 (0.012 m 3 )
COMPOSITION
Material
Weight
Al 2
O 3
87%
SiO 2
4%
P 2
O 5
4%
TiO 2
2%
Other 3%
STORAGE
Select dry location to avoid moisture absorption.
HEALTH AND SAFETY
Prior to use, refer to the product safety data
sheet for proper handling and required personal
protective equipment.

PYROGUN 244
PHYSICAL PROPERTIES
Temperature
230°F (110°C) 1500°F (815°C) 2000°F (1090°C) 2500°F (1370°C)
(after firing to)
Density 152 lb/ft 3 (2.44 g/cm 3 ) 150 lb/ft 3 (2.40 g/cm 3 ) 152 lb/ft 3 (2.44 g/cm 3 ) 165 lb/ft 3 (2.64 g/cm) 3
Cold Modulus of Rupture — 600 psi (4.1 MPa) 1200 psi (8.3 MPa) 4000 psi (27.6 MPa)
Cold Crushing Strength — 1200 psi (8.3 MPa) 2400 psi (16.5 MPa) 10,000 psi (68.9 MPa)
K-factor (estimated) 10.7 BTU·in/ft 2·hr·°F
(1.5 W/m·K)
10.8 BTU·in/ft 2·hr·°F
(1.6 W/m·K)
11.2 BTU·in/ft 2·hr·°F
(1.6 W/m·K)
11.8 BTU·in/ft 2·hr·°F
(1.7 W/m·K)
Permanent Linear Change — -0.3% -0.2% -0.7%
Note: The physical and chemical properties listed represent typical, average values obtained in accordance with
accepted test methods and are subject to normal manufacturing variations. They are supplied as a technical
service and are subject to change without notice.
Product Type: 106
Commodity Code: 02120
